IN STOCK - Ships within 3 working days, all sales final.

Kits Available:

Kit Number	Case Colour	Weight Colour / Finish	Badge	PCB	Plate
Kit 1	Ano Navy	Gold Alu	PVD Gold	HS Wired	POM
kit 2	Ano Navy	Gold Alu	PVD Gold	Tri-Mode	POM
Kit 3	Ano Navy	Mirror Dusk SS	PVD Gold	Tri-Mode	POM
Kit 4	Ano Navy	Mirror Chroma SS	PVD Silver	Tri-Mode	POM
Kit 5	Spray Coated Retro White	Copper	PVD Gold	Tri-Mode	POM
Kit 6	Spray Coated Retro White	Mirror Chroma SS	PVD Silver	Tri-Mode	POM
Kit 7	Spray Coated Retro White	Black Alu	PVD Black	HS Wired	POM
Kit 8	Spray Coated Avocado	Gold Alu	PVD Gold	Tri-Mode	POM
Kit 9	Spray Coated Avocado	Copper	PVD Gold	Tri-Mode	POM

Features:

Unibody Case

Derived from the Neo65 but specifically designed for the FRL TKL layout, the unibody case of the Neo70 exemplifies the elegance of minimalism while offering a sturdy foundation for effortless assembly.

Function keys are separated from the alphas to minimize potential hollow sounds and allow for individual adjustment. The cover plate above the arrow keys is attached using magnets, making it easy to remove the PCB whenever needed.

Neat Side Profile

We chose an inward-sloping edge to complement the minimal design on the front. This also makes it easier to pick up the keyboard.

2-Step Effortless Disassembly

We believe that providing an easy assembly/disassembly experience is crucial for making mechanical keyboards more accessible, which is always a top priority in our product design. Building upon the feedback we received from the Neo65, we have further simplified the disassembly process of the Neo70 into 2 steps: removing the badge, which is attached to the case using magnets, and pushing out the PCB.

Magnetic Connectors

Ribbon cables have long been a source of frustration for keyboard enthusiasts, which is also the main complaint we received for the Neo65. To address this issue and enable the 2-step disassembly, we replaced the ribbon cables with magnetic connectors. These connectors automatically connect and disconnect when you insert and remove the PCB.

Dual-Mounting System

Same as the Neo65, the Neo70 supports both PCB gasket mount and gummy O-ring mount in the alpha section (not compatible with plateless configurations). The gaskets have been further upgraded to be more durable.

Options Available:

PCB Options:

Tri-mode Hotswap PCB (Non-flex Cut)
- 1.6mm thick
- Support USB-C, Bluetooth, and 2.4GHz connection
- Support both ANSI and ISO layout
- NKRO
- Polling rate: 1000Hz in wired and 2.4Ghz mode; 125Hz in BT mode
Wired Hotswap PCB (Non-flex Cut)
- 1.6mm thick
- USB-C connection only
- Support both ANSI and ISO layout
- NKRO
- Polling rate: 1000Hz
- NO Per-key RGB
Solder PCB (Non-flex Cut)
- 1.6mm thick
- USB-C connection only
- Support both ANSI and ISO layout
- NKRO

Polling rate: 1000Hz

Plates with distinctive characters

Hard ———————————————> Soft:

Carbon Fibre > Aluminium > FR4 > POM > PC
Clack ———————————————> Thock:

Carbon Fibre > Aluminium > FR4 > POM > PC

Colour Options:

Case

Weight

white, golden and black are alu while mirror finished weights are stainless steel

Badge

Specification:

Typing angle：8 degree
Front height：17.5 mm
Size: 356.5mm x 107.8mm
Weight：
- with aluminium weight: 0.89kg before building, 1.26kg after building
- with copper weight: 1.16kg before building, 1.53kg after building
- with stainless steel weight: 1.13KG before building, 1.5kg after building

Content List:

Case
- Including one pre-installed external weight from Kit details
- Including one pre-installed badge from Kit details
- One 3000mAh battery will be installed inside the case for orders with Tri-mode PCBs
PCB Kit
- PCB from Kit choice
- 1x PE sheet
- 1x PCB Foam
- Standoffs
- Tri-mode PCB comes with a 2.4Ghz dongle
Plate of Your Choice (or Plateless with Solder PCB)
Poron Case Foam

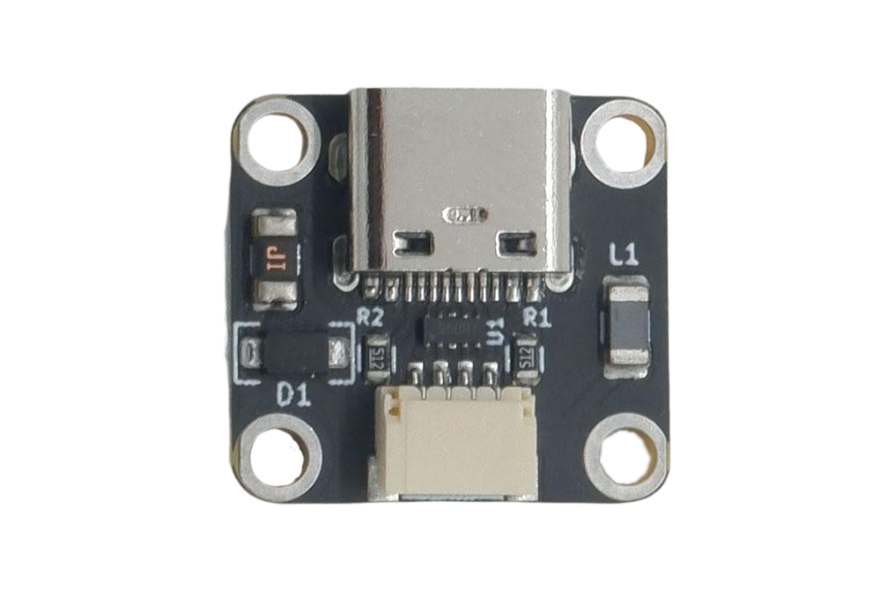

PCB Daughterboard * 3 - installed
Silicone Gaskets
O-ring (30 duro) x 1
Rubber feet

Disclaimers:

As this is an In Stock item please do not add items from group buys to this order as it will delay your orders shipping till As everything is available.
