(Group Buy) EVO70 R2 Keyboard Kit

Sale price£135.83
Sold out
Material & Colour: FR4 / Acrylic (Black)

Material & Colour

Layout: ANSI

Layout

Display: LCD

Display


Closing Date: January 31st 2023

Expected Shipping time: Q3-Q4 2023



The EVO70 R2 Group Buy is now live! Order extra parts HERE

Features:

  • Colour LCD screen or monochrome OLED screen
  • Dedicated ANSI or ISO layout
  • Powerful ARM microcontroller (STM32F411)

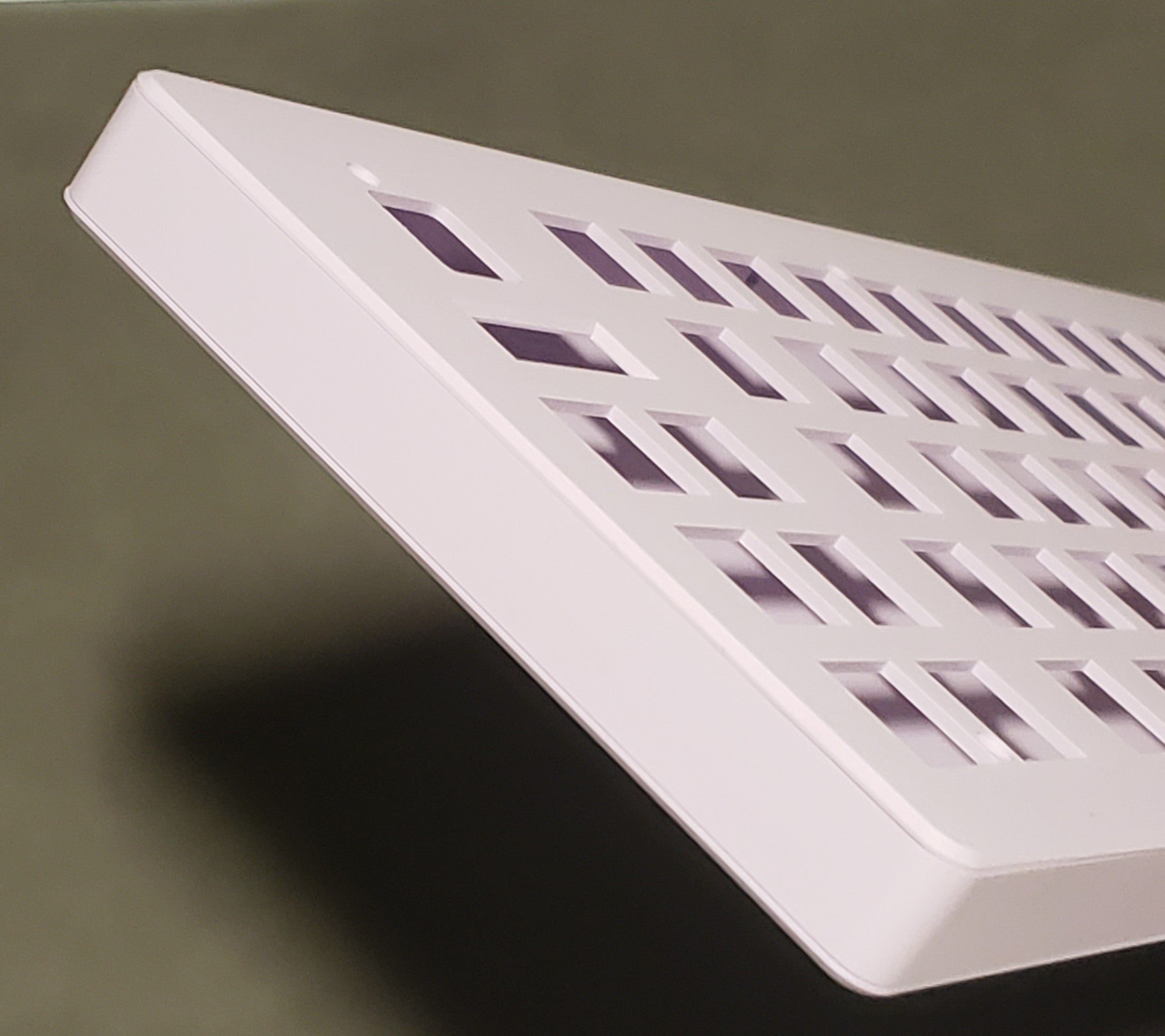

  • High profile case and Low profile case available
  • 512kB program memory, 64kb FRAM, 16MB flash memory*, and microSD card slot*
  • Real time clock
  • Speaker
  • Temperature sensor
  • Want to see what the LCD screen in action? Check out this animation!


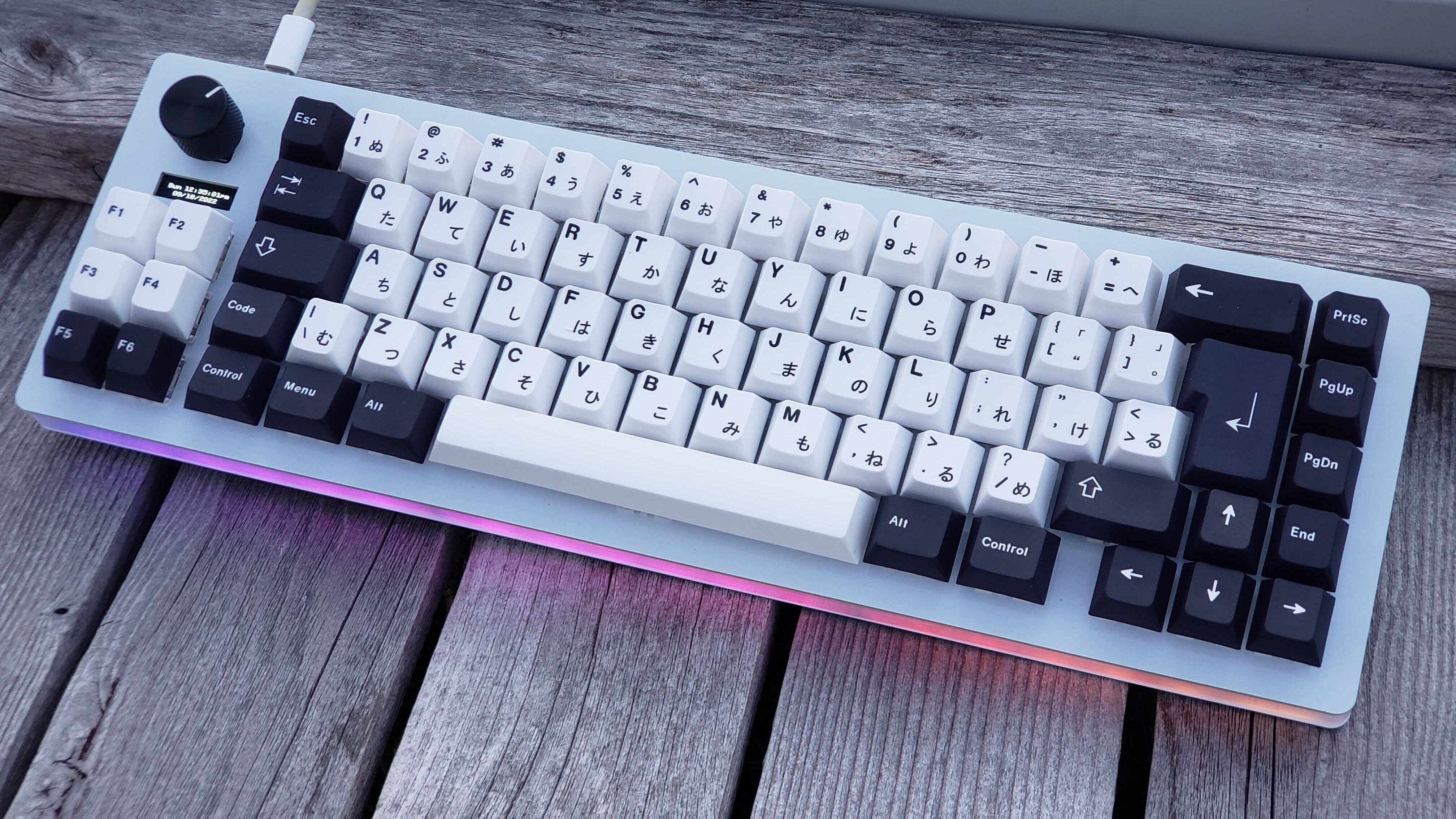

EVO70 R2:

  • 70% layout – classic 65% layout with an additional 6 macro keys on the left side
  • 6 macro keys on the left side
  • Requires 73 switches for ANSI, 74 switches for ISO
  • PCB mount stabilizers, can be screw-in or clip-in designed for 1.6mm thick PCB
    • ANSI: three 2u stabilizers, one 6.25u stabilizer
    • ISO: two 2u stabilizers, one 6.25u stabilizer



Build options:

  • FR-4

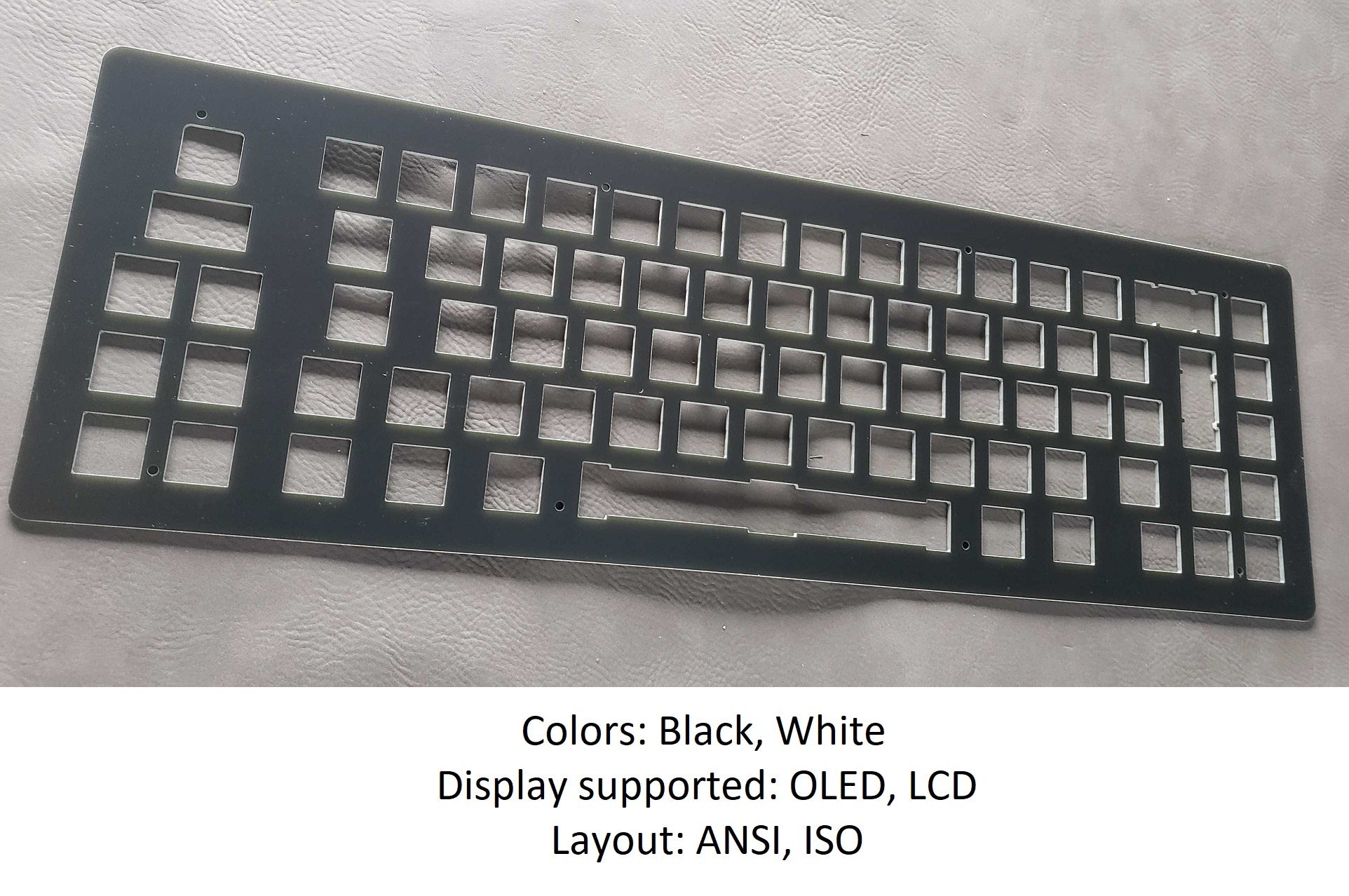

    • 1.5mm FR-4 switch plate

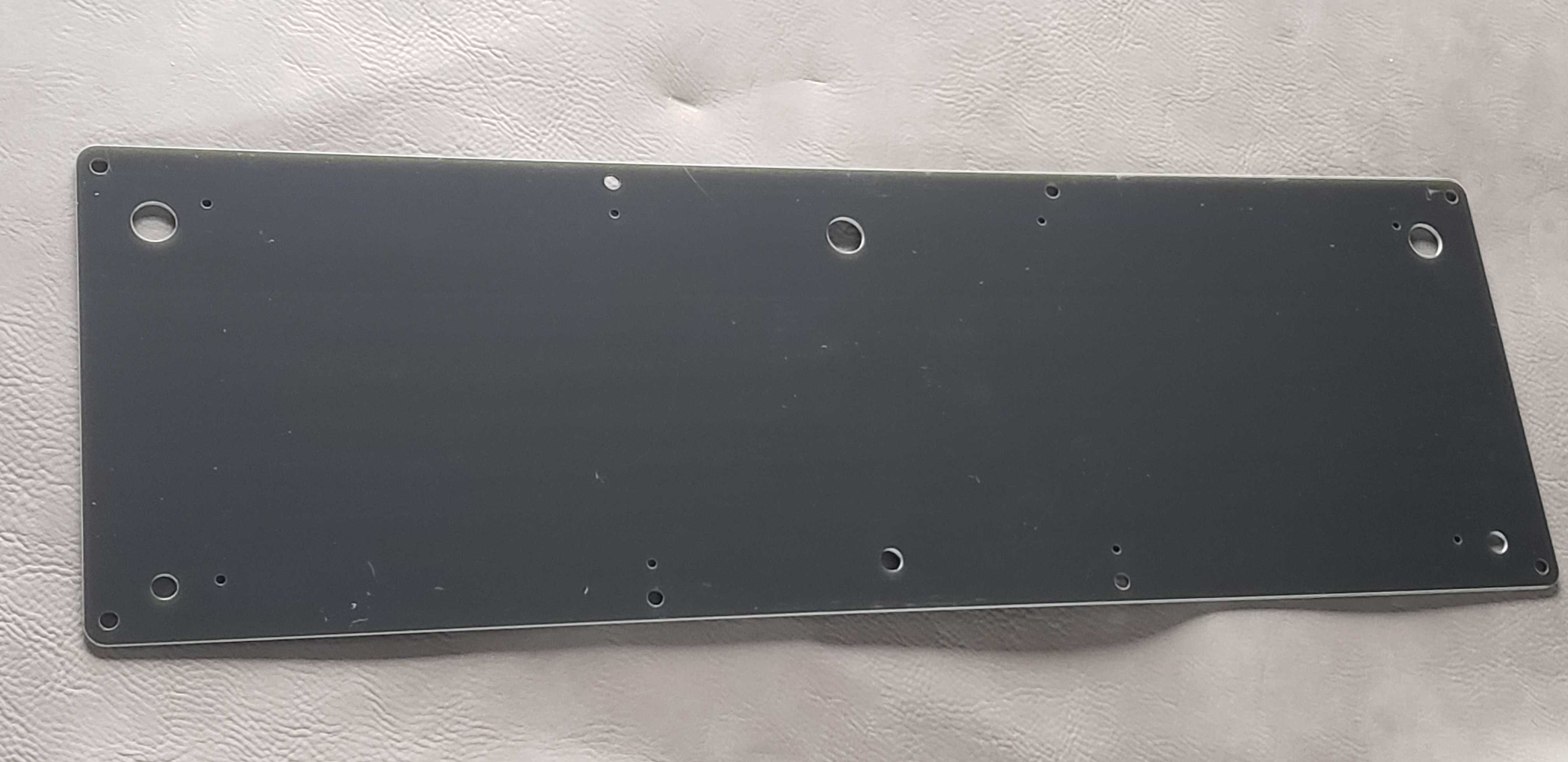

    • 1.6mm FR-4 base

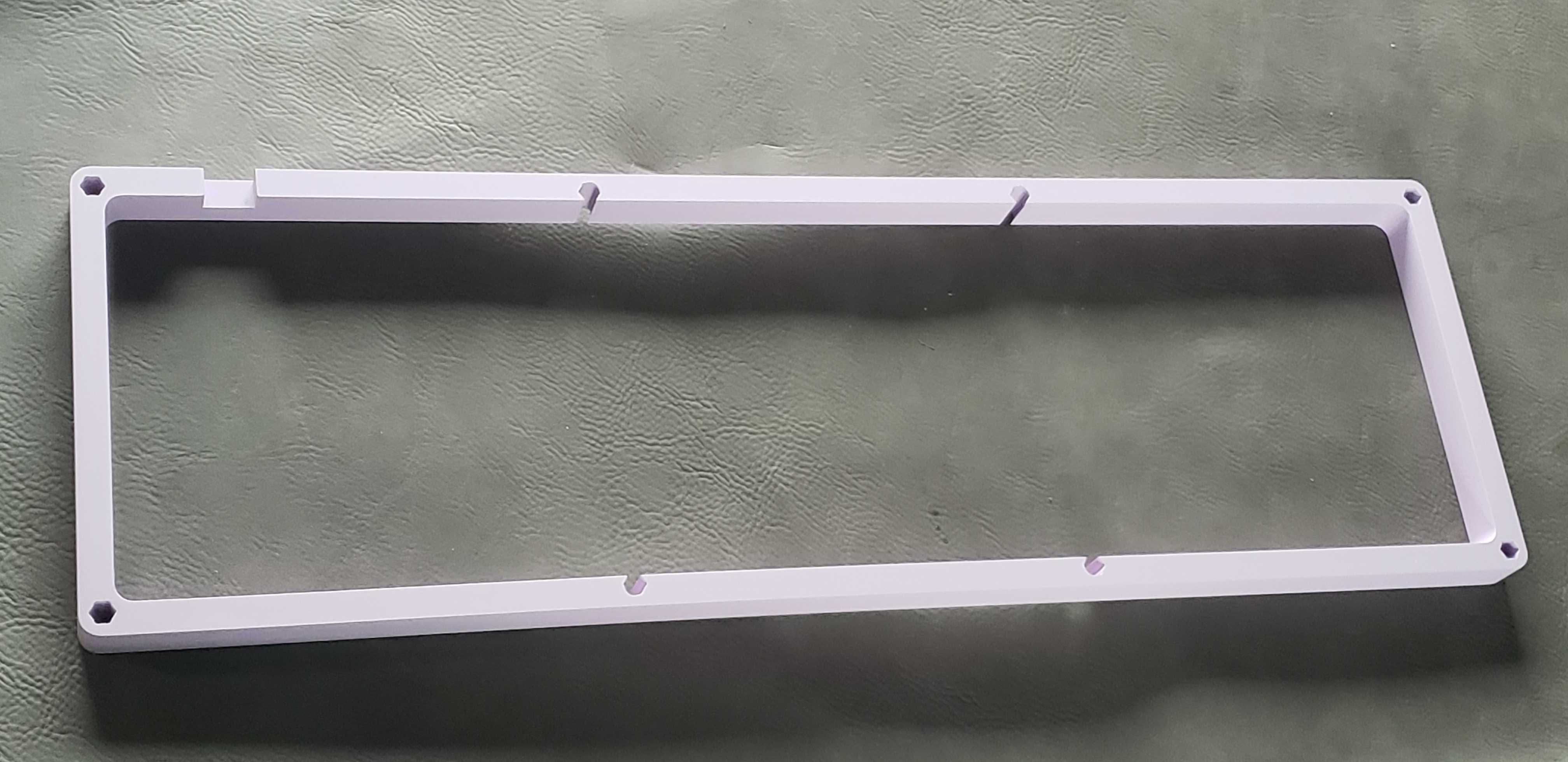

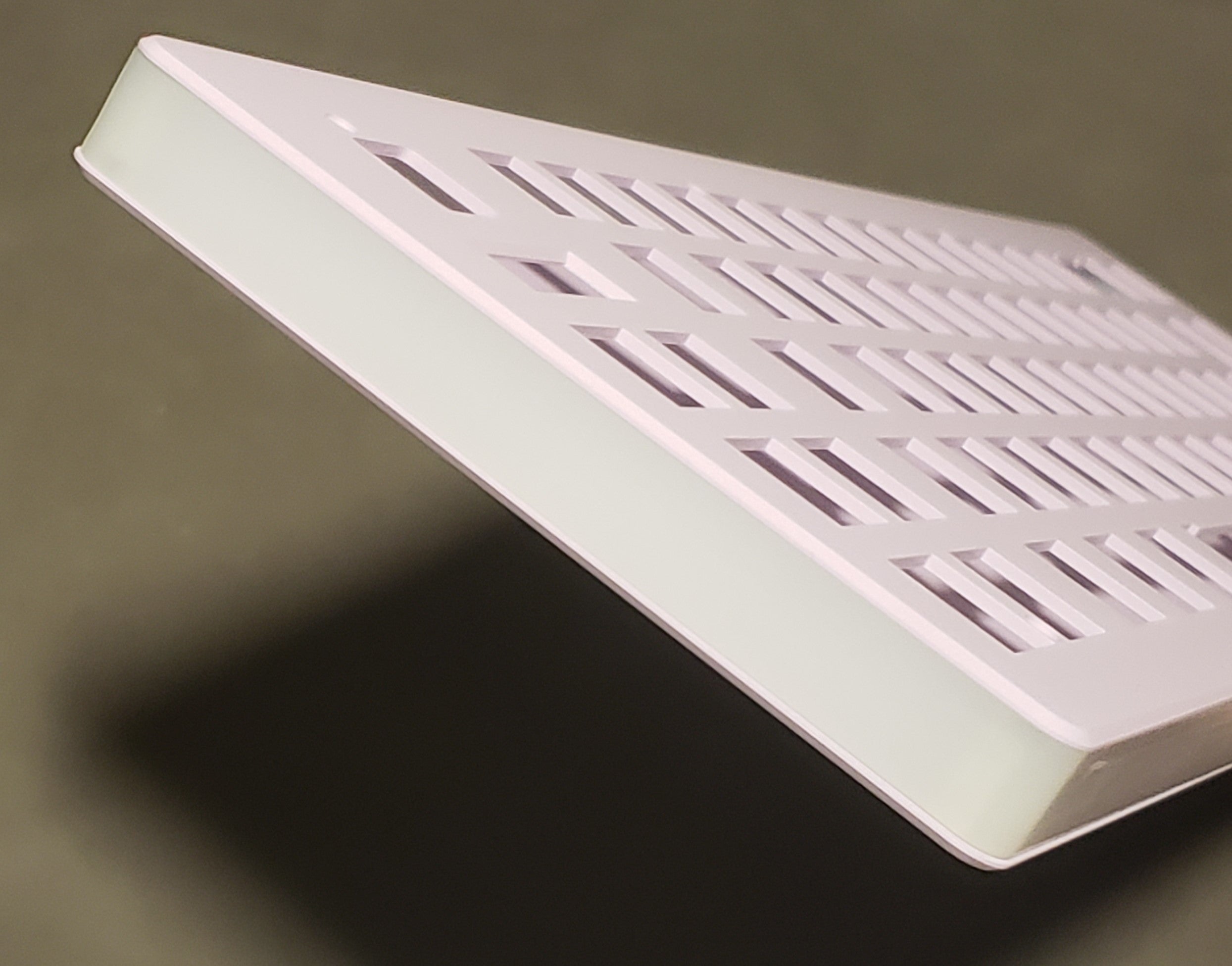

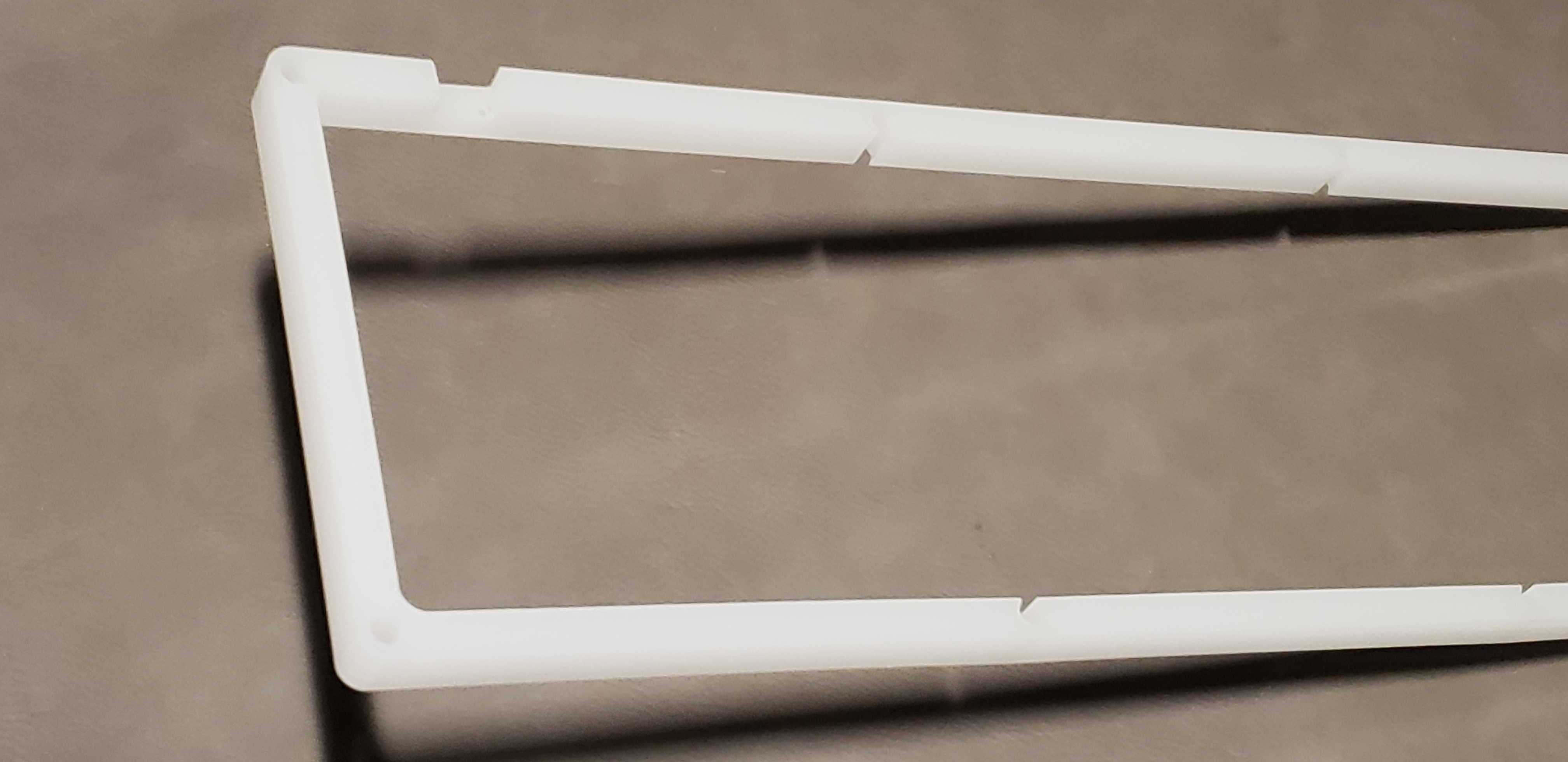

    • Milky white translucent acrylic mid piece
    • PCB with 5 pin switch support
  • Aluminum

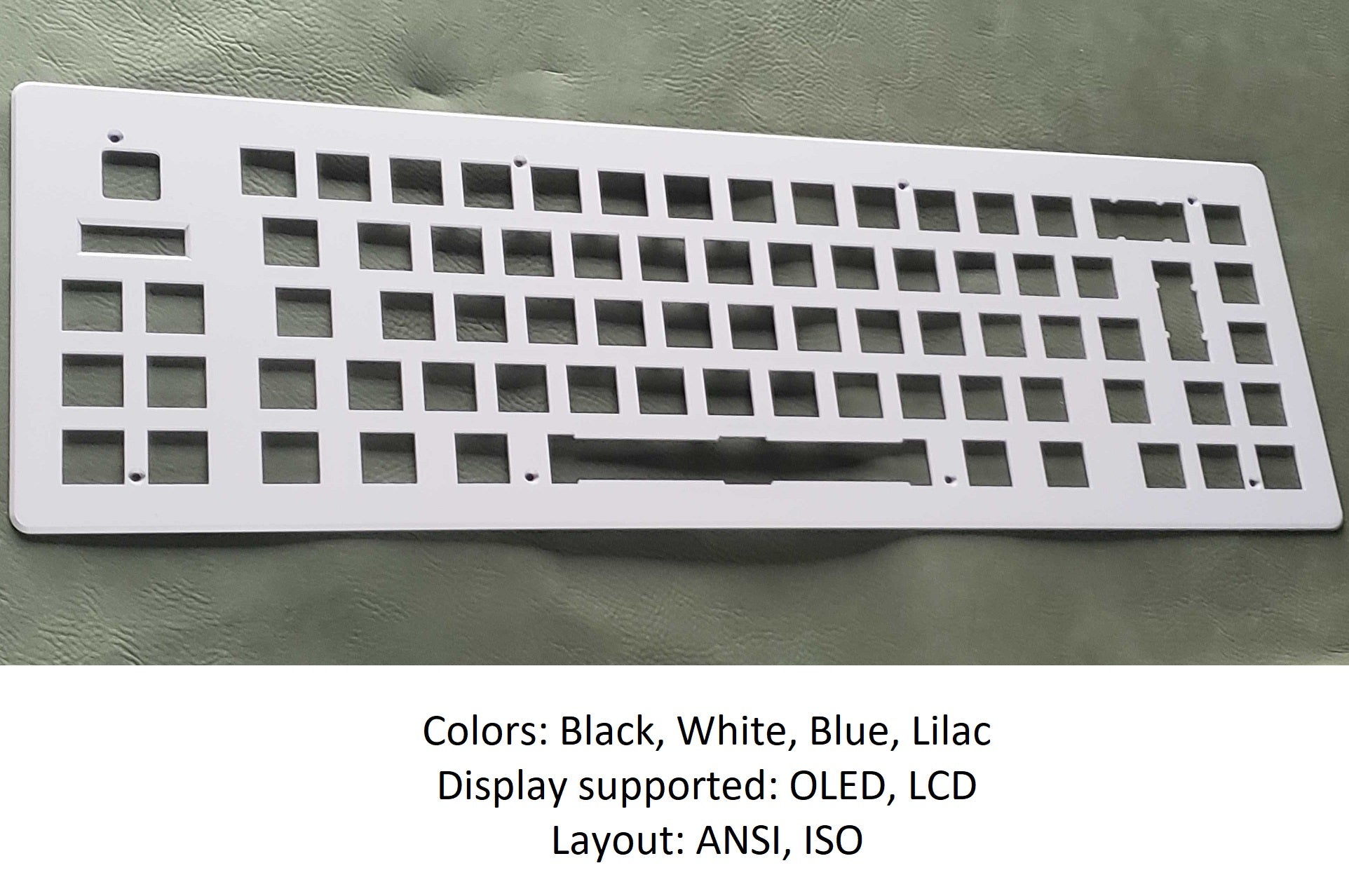

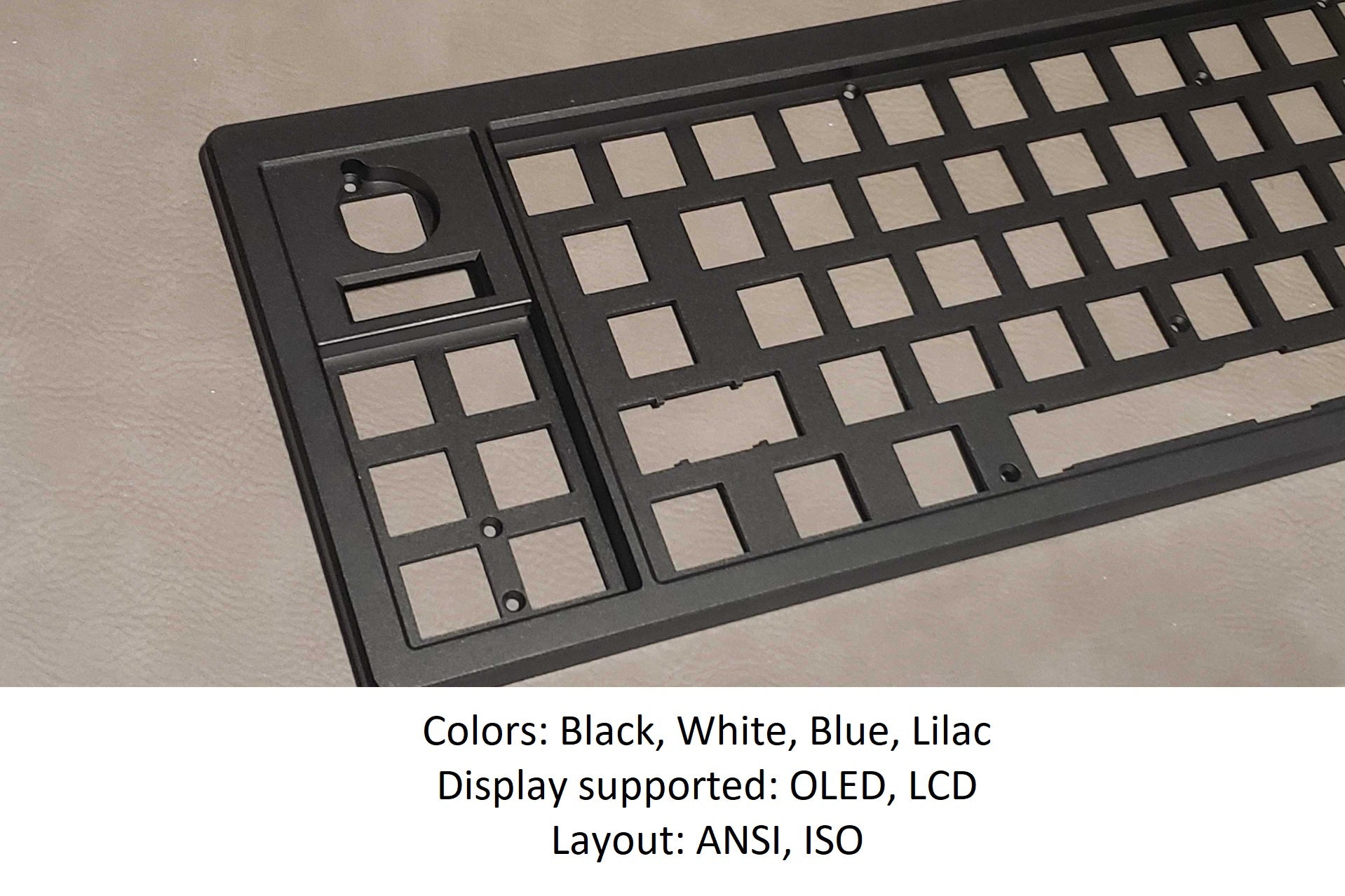

    • 1.5mm sandblasted, anodized aluminum switch plate
    • 1.5mm sandblasted, anodized aluminum base

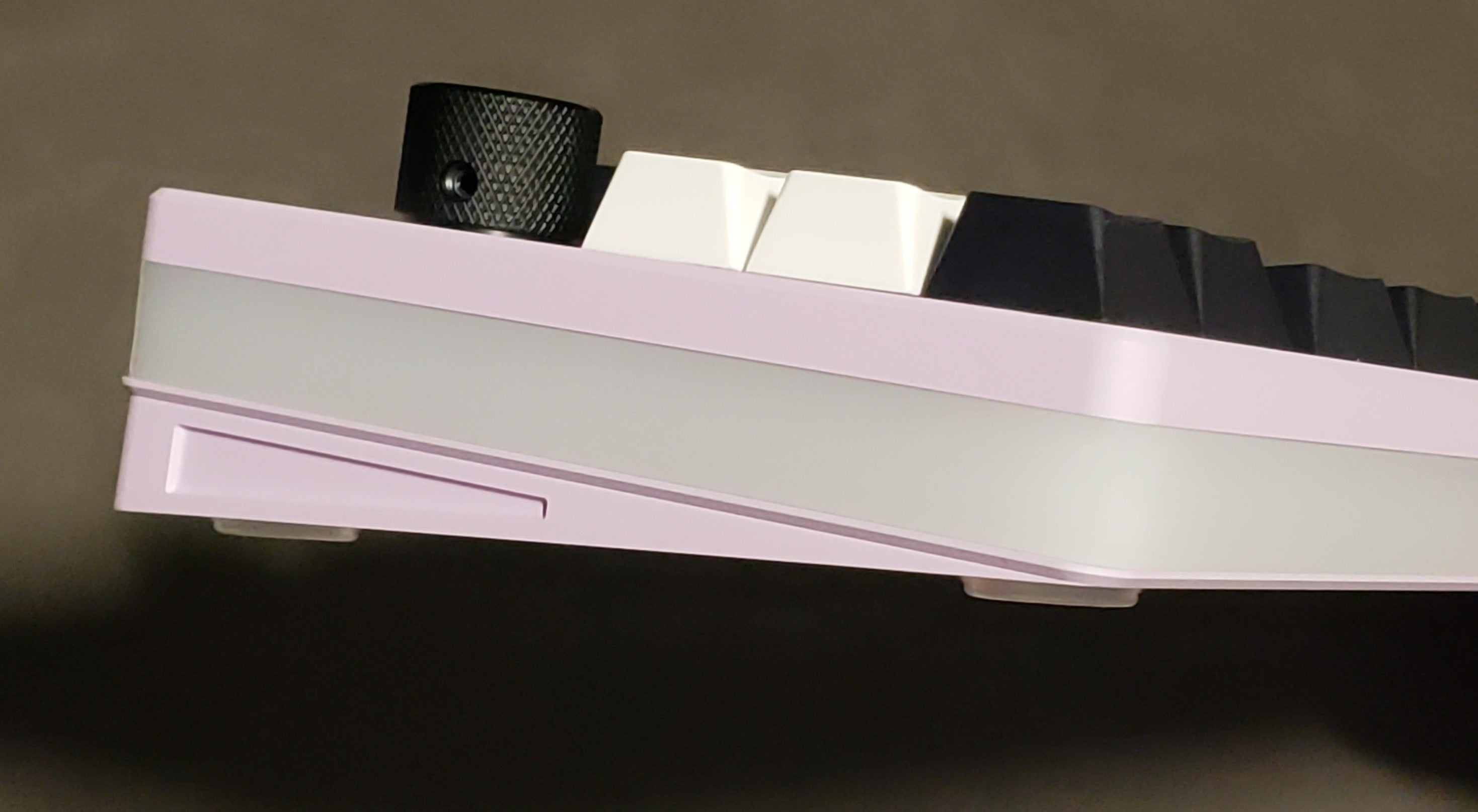

    • Milky white translucent acrylic mid piece
    • PCB with 5 pin switch support
    • Note: e-white and lilac use an electrophoresis coating rather than anodisation

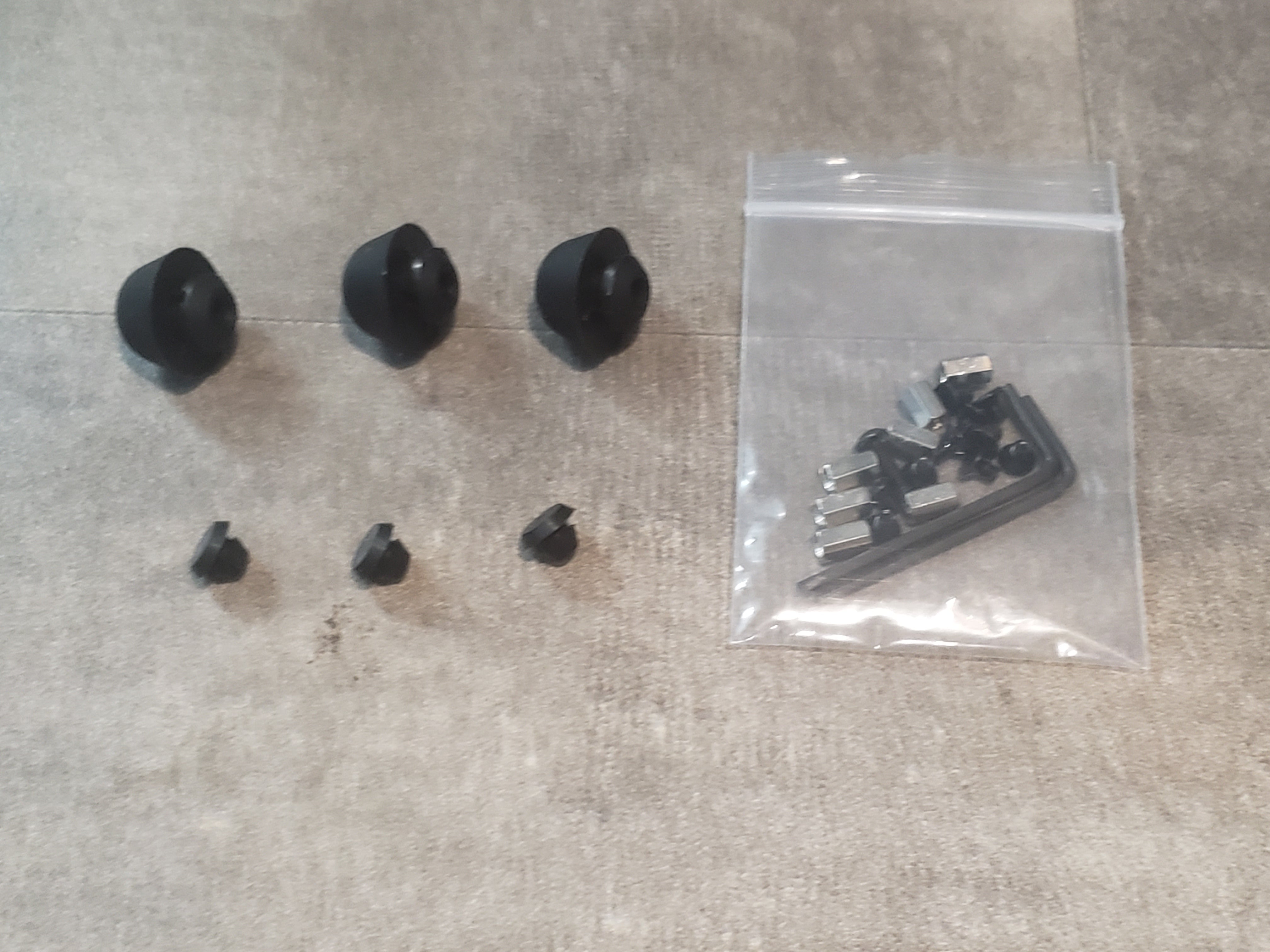

  • All build options are pre-assembled, and include all hardware and tools needed to disassemble and reassemble

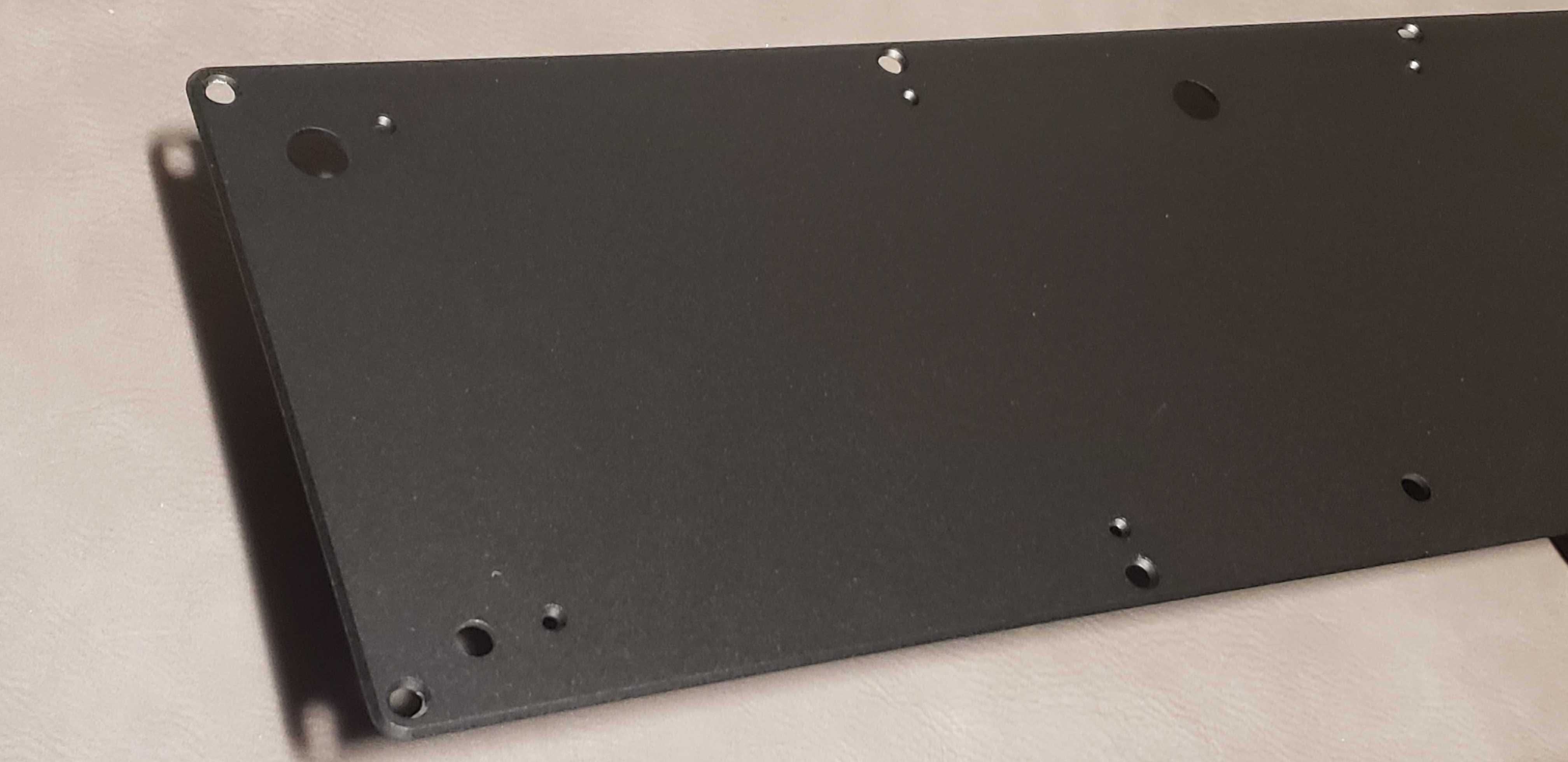

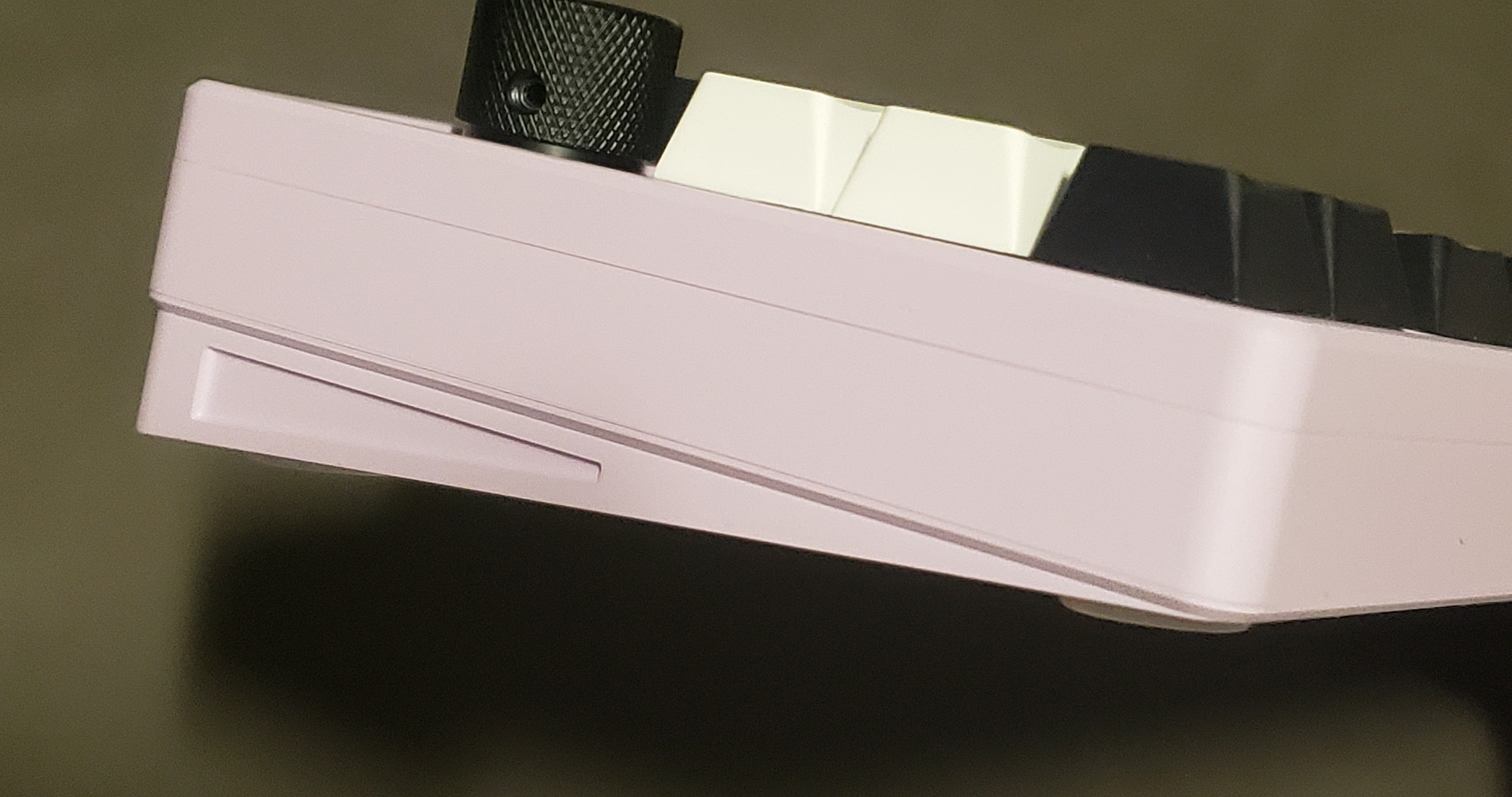

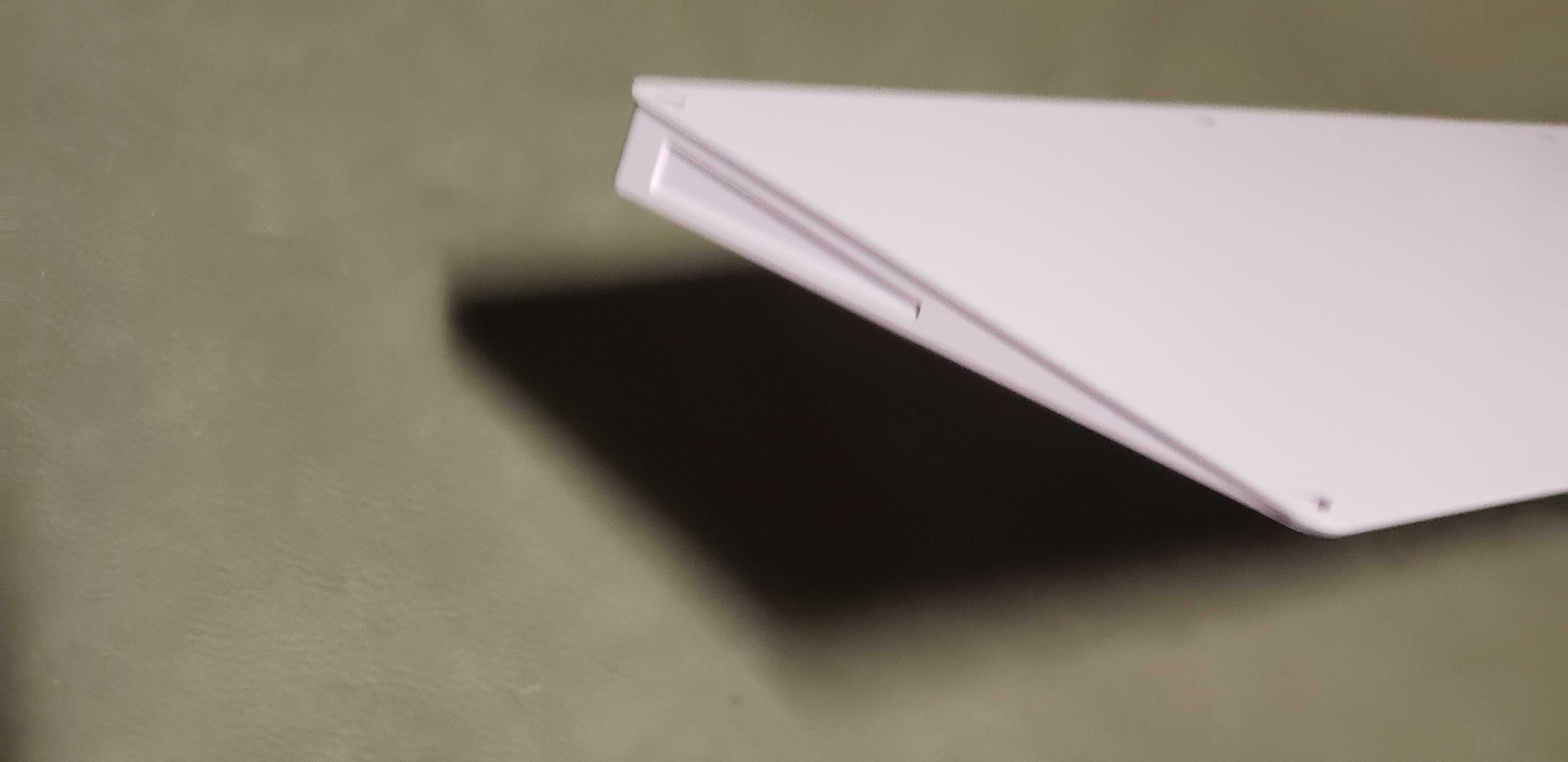

  • Aluminum high profile top, aluminum solid base, and aluminum mid piece available separately.
  • Does not include switches, stabilisers, keycaps, or USB-C cable



Color options:

  • FR-4: Black, White

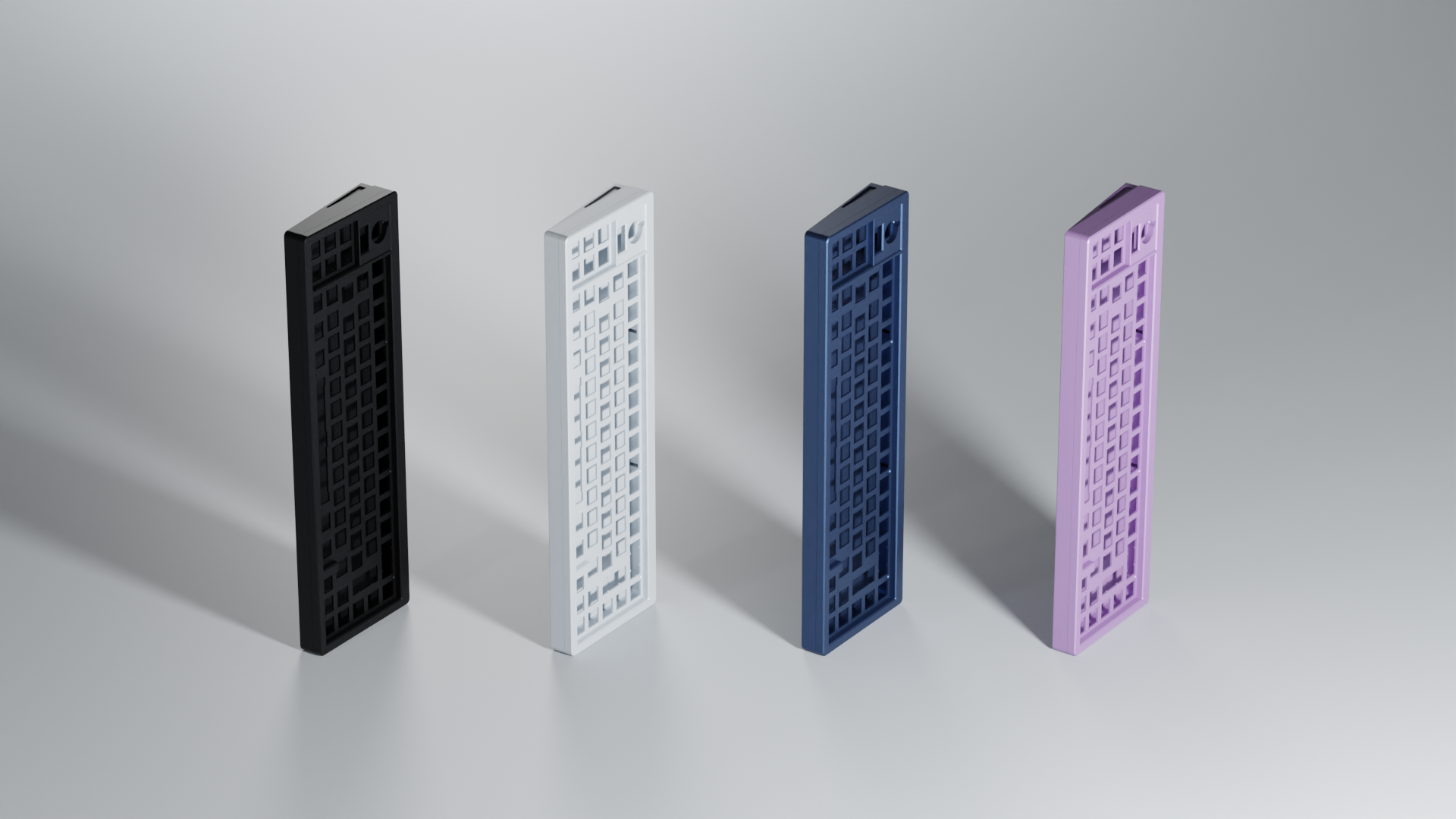

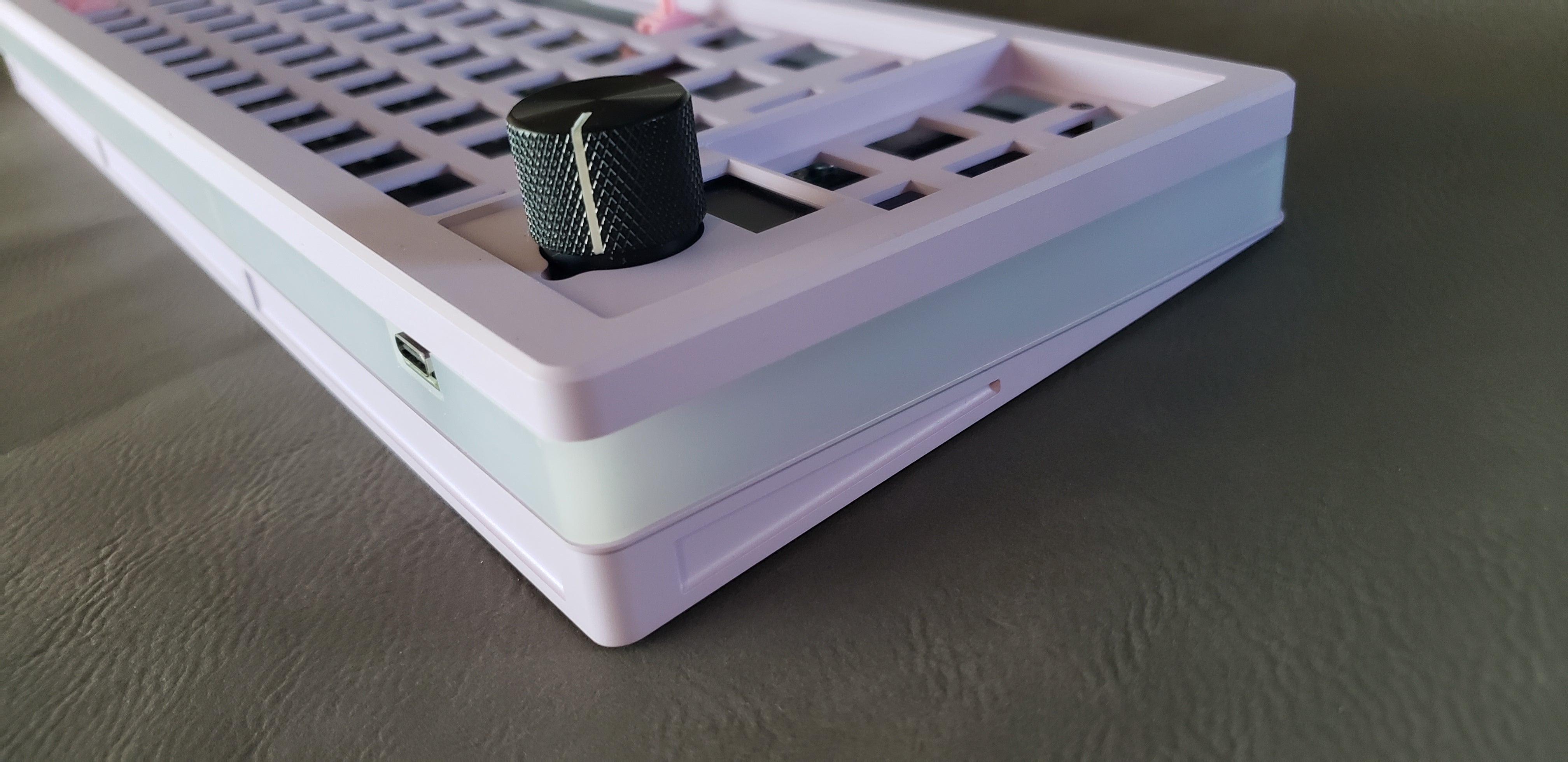

  • Aluminum: Black, White, Blue, Lilac



Misc Specs:

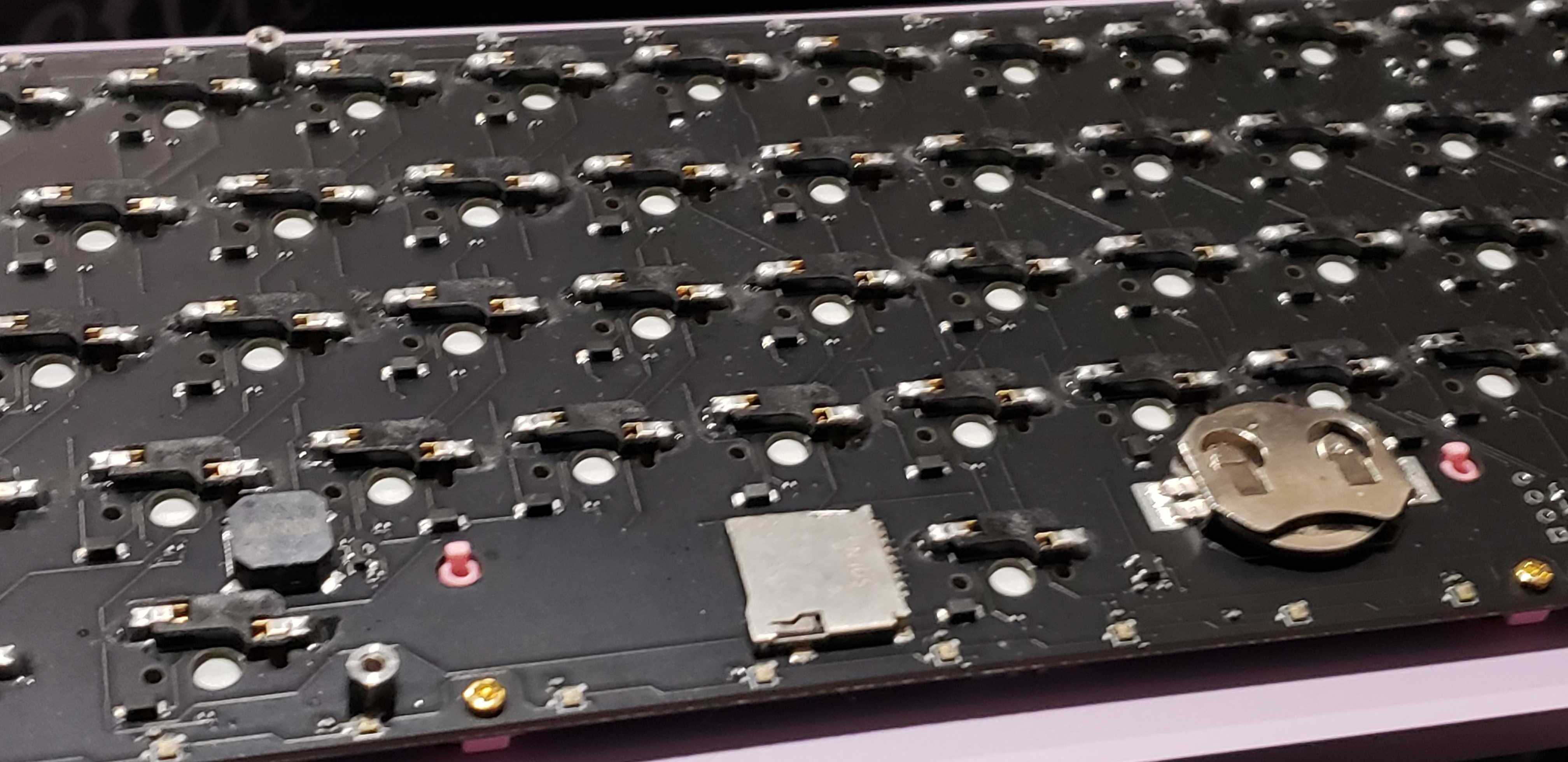

  • Kailh hotswaps – no soldering required.

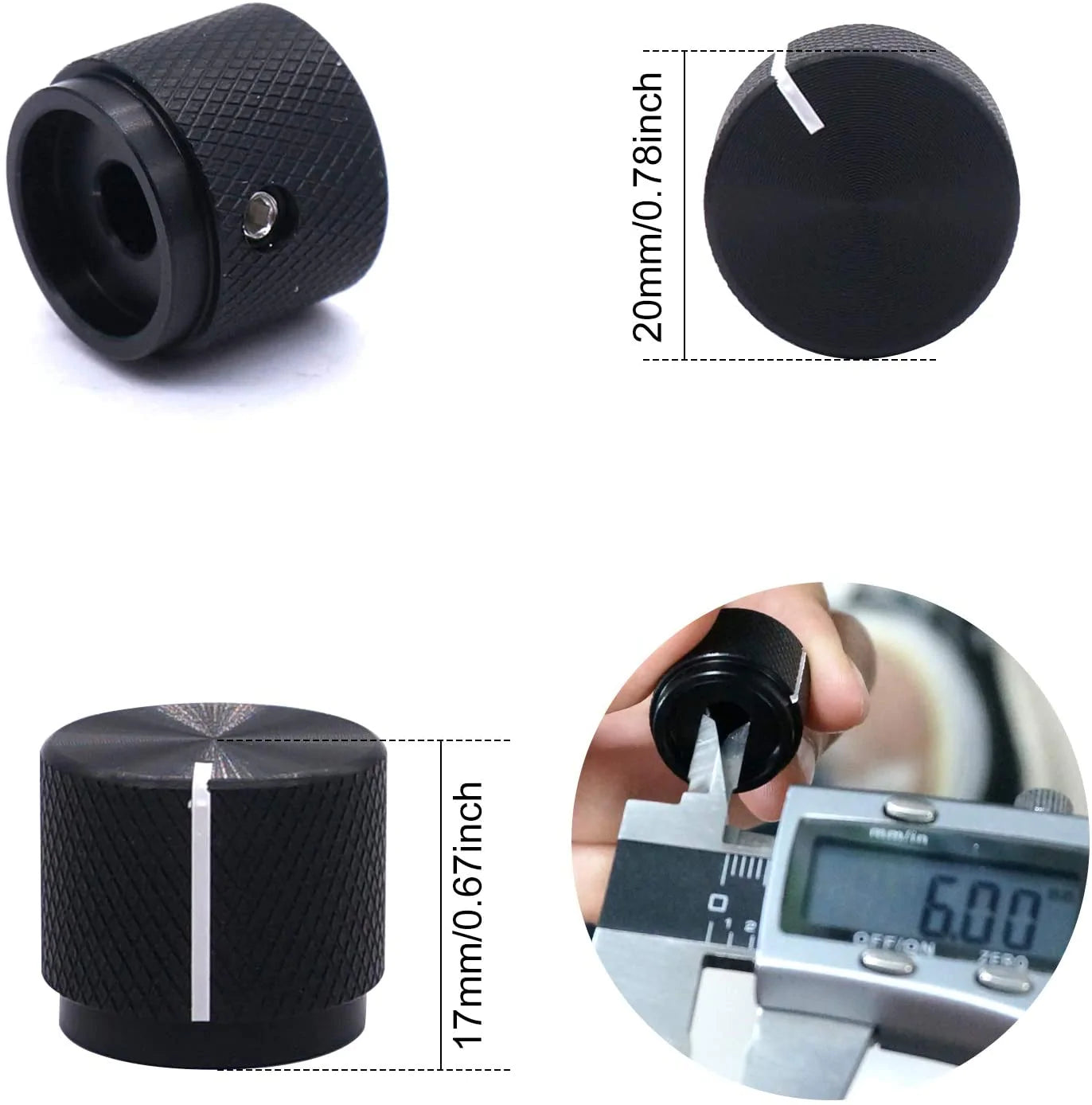

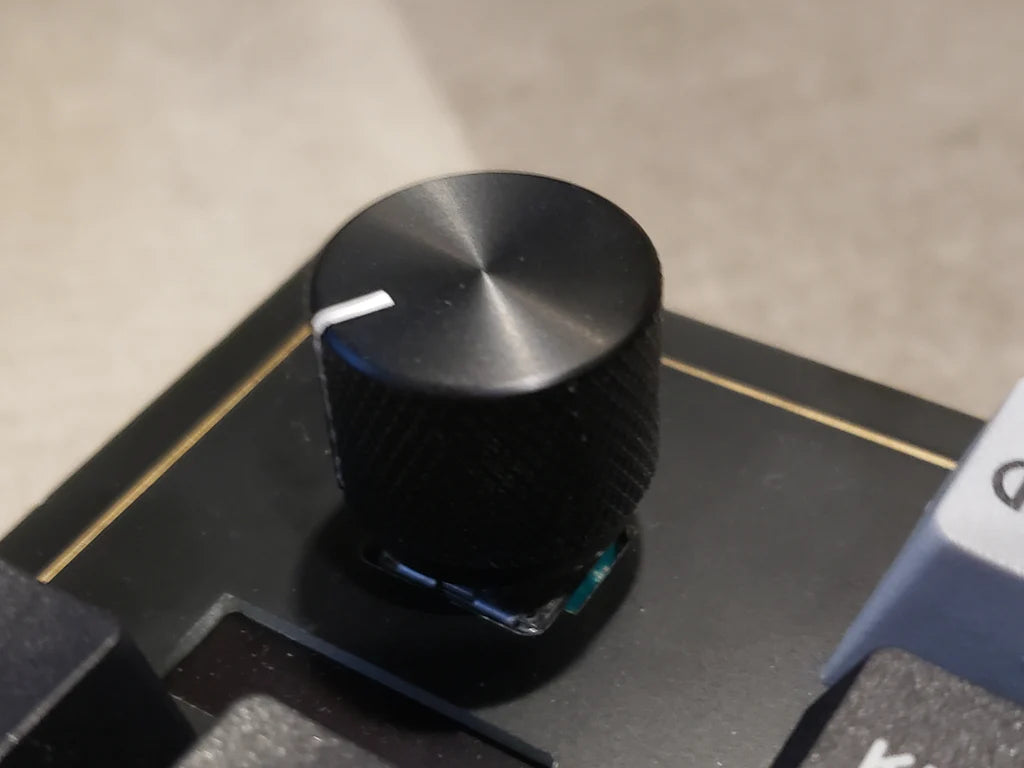

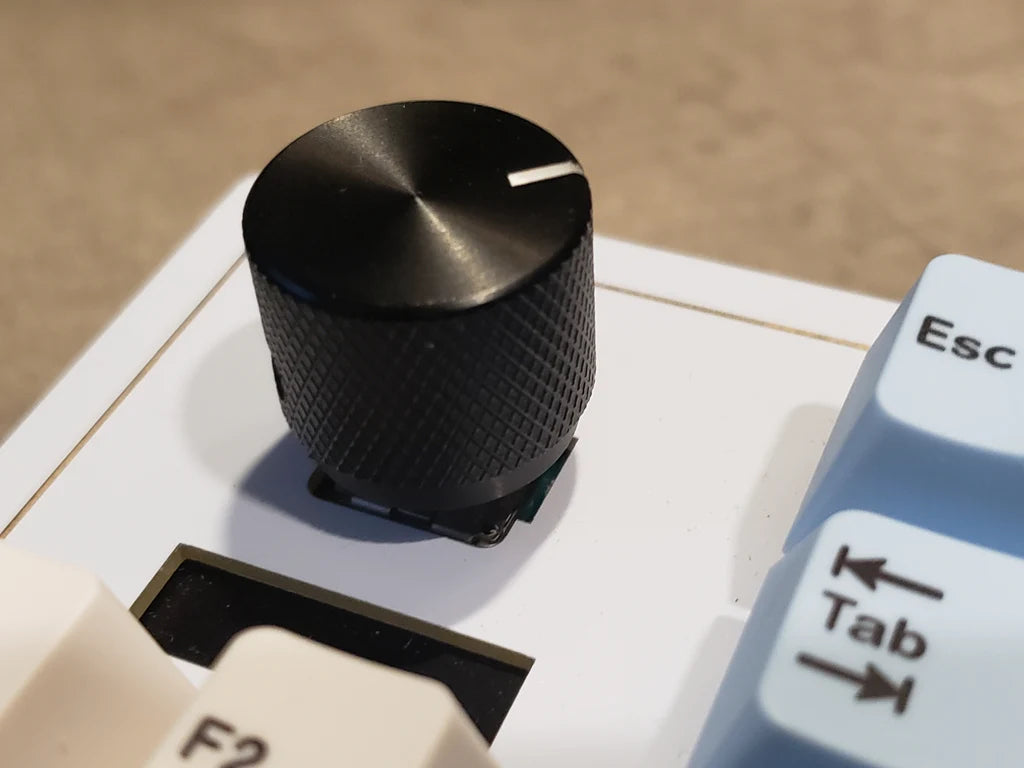

  • Rotary Encoder w/ 20mm black aluminum knob – configurable in VIA along with preprogrammed functions to control volume, lighting brightness, scroll wheel, and more.

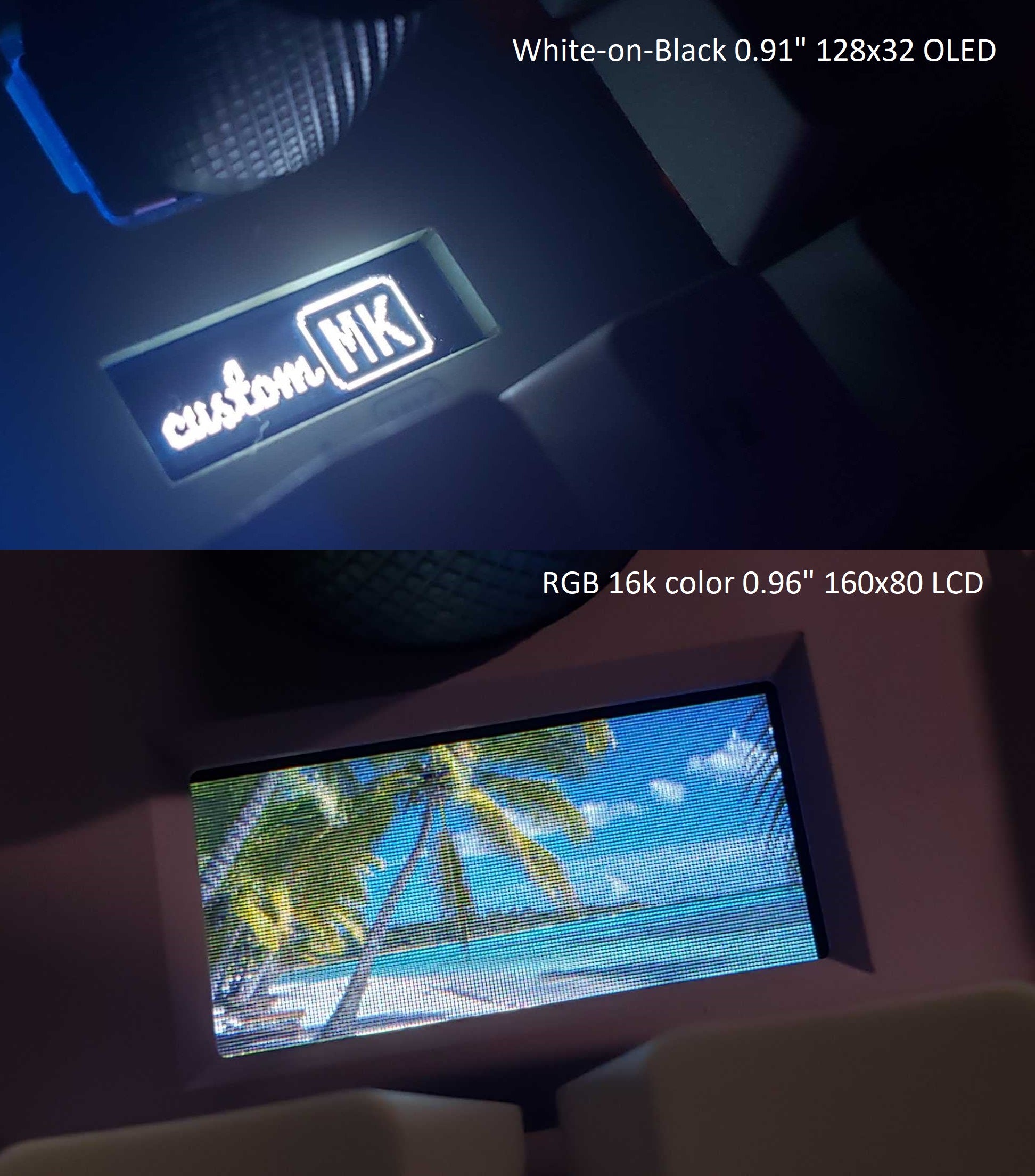

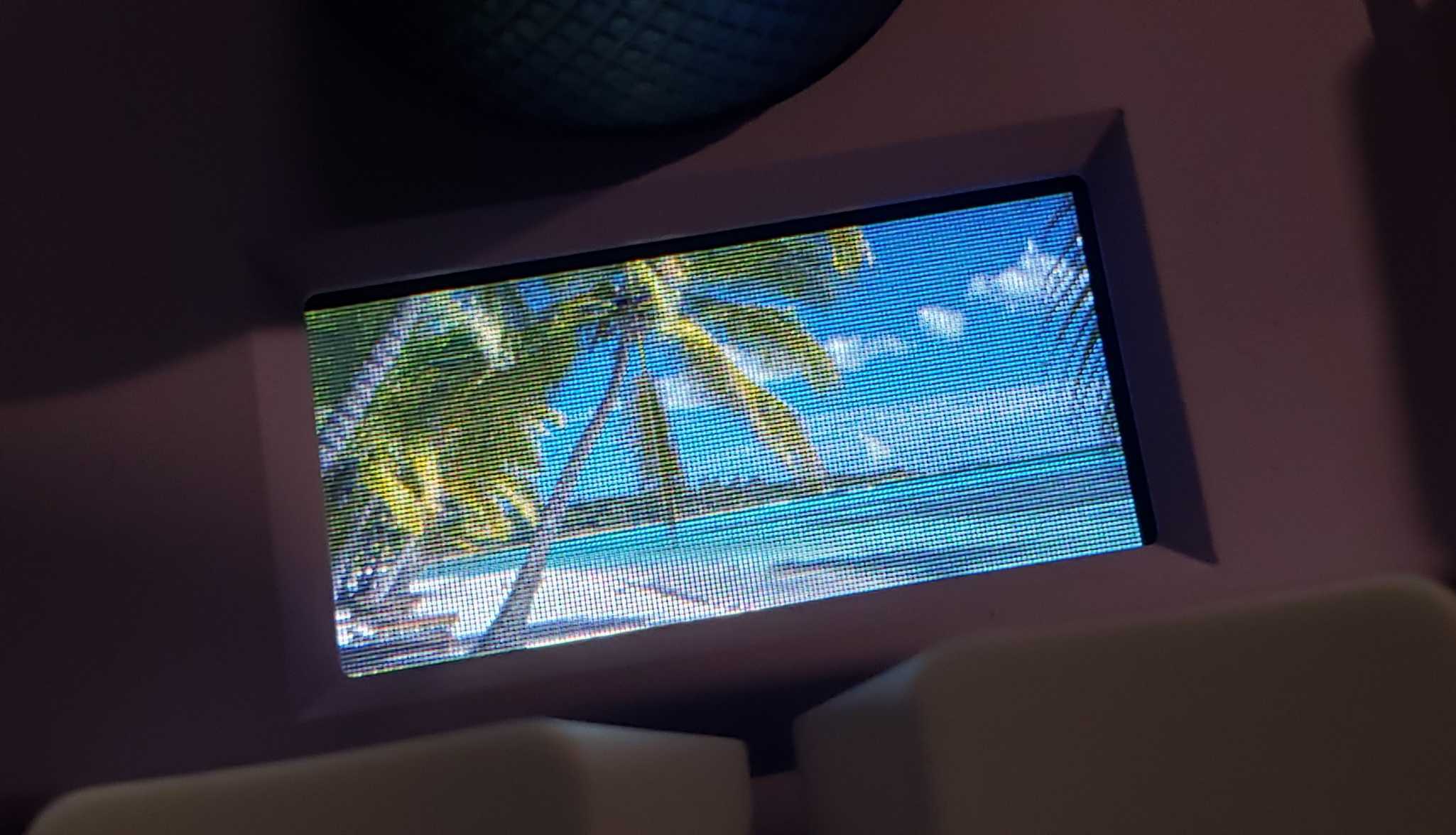

  • 0.91″ OLED screen (128×32) or 0.96″ color LCD screen (160×80)- displays current mode, layer number, caps lock, num lock and bongo cat.
  • Display sits flush against the bottom of the switch plate

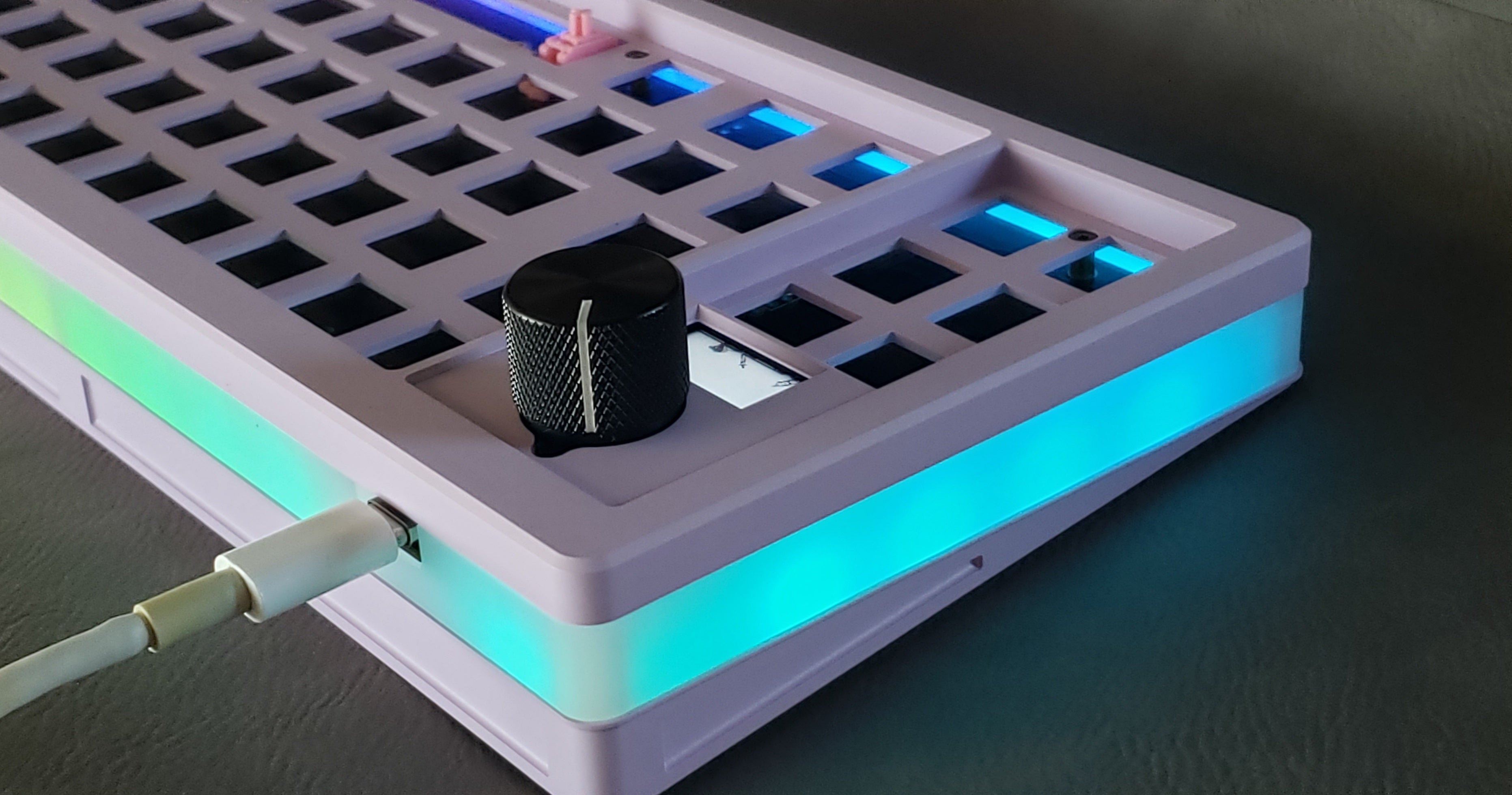

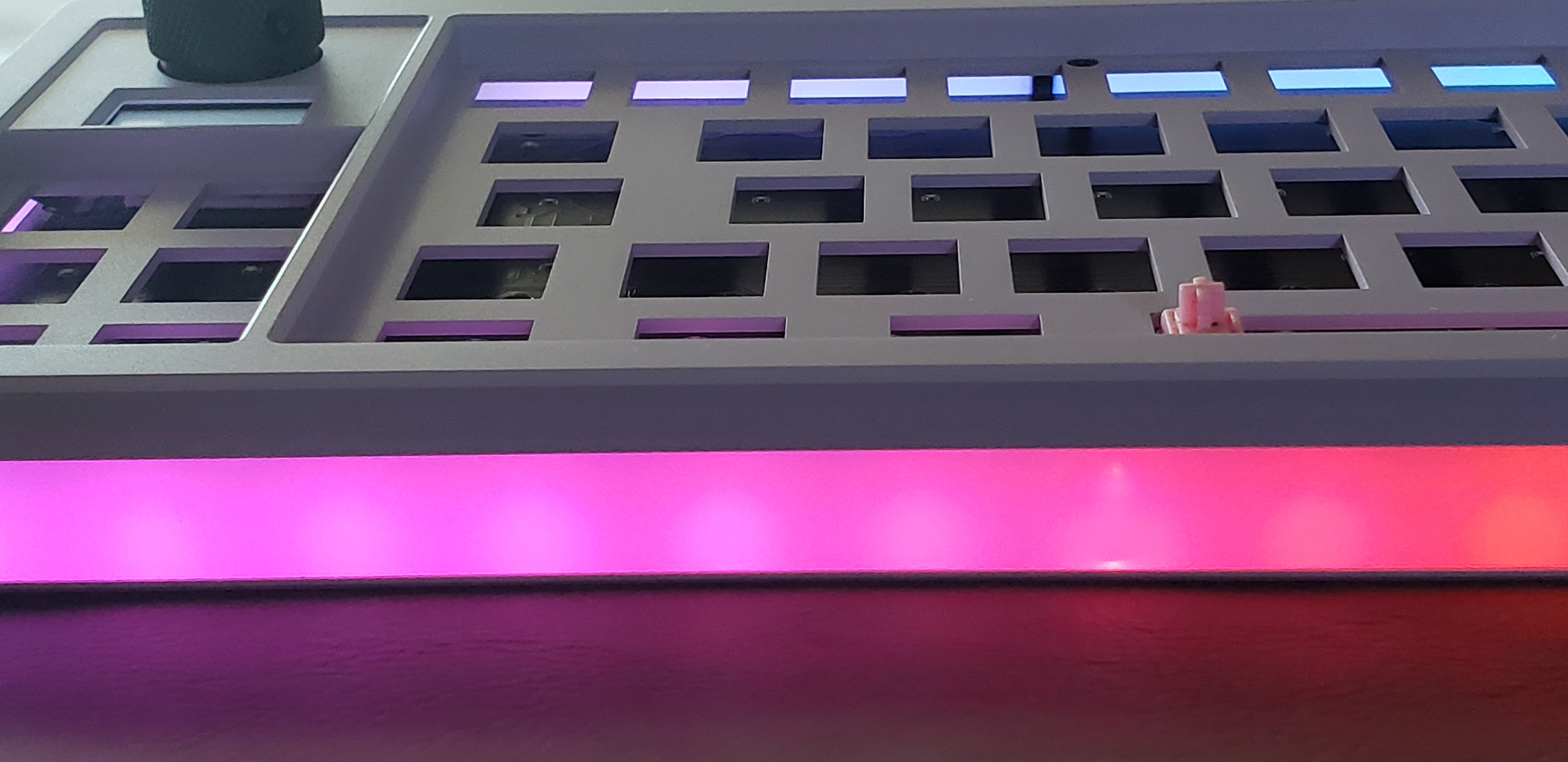

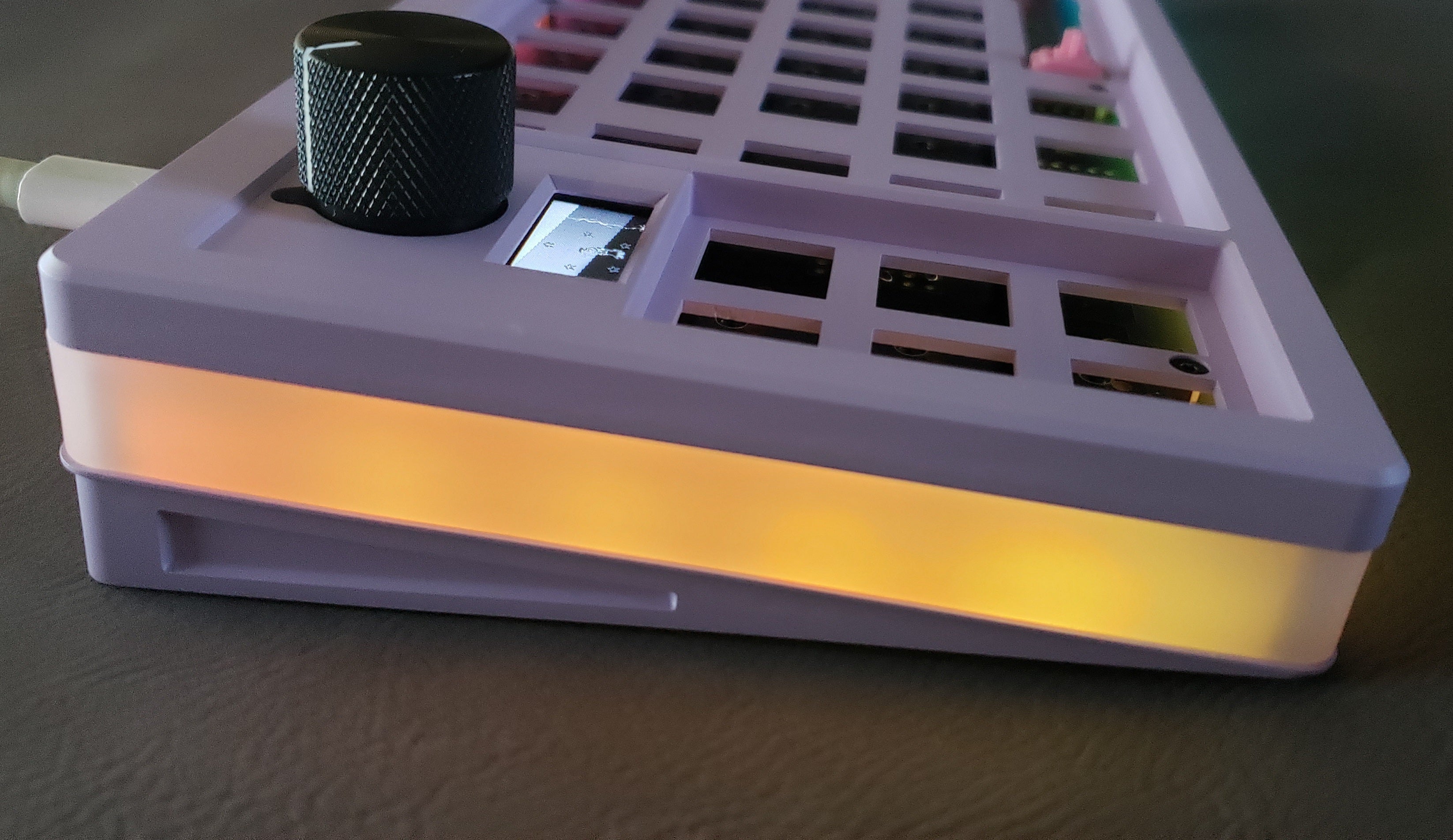

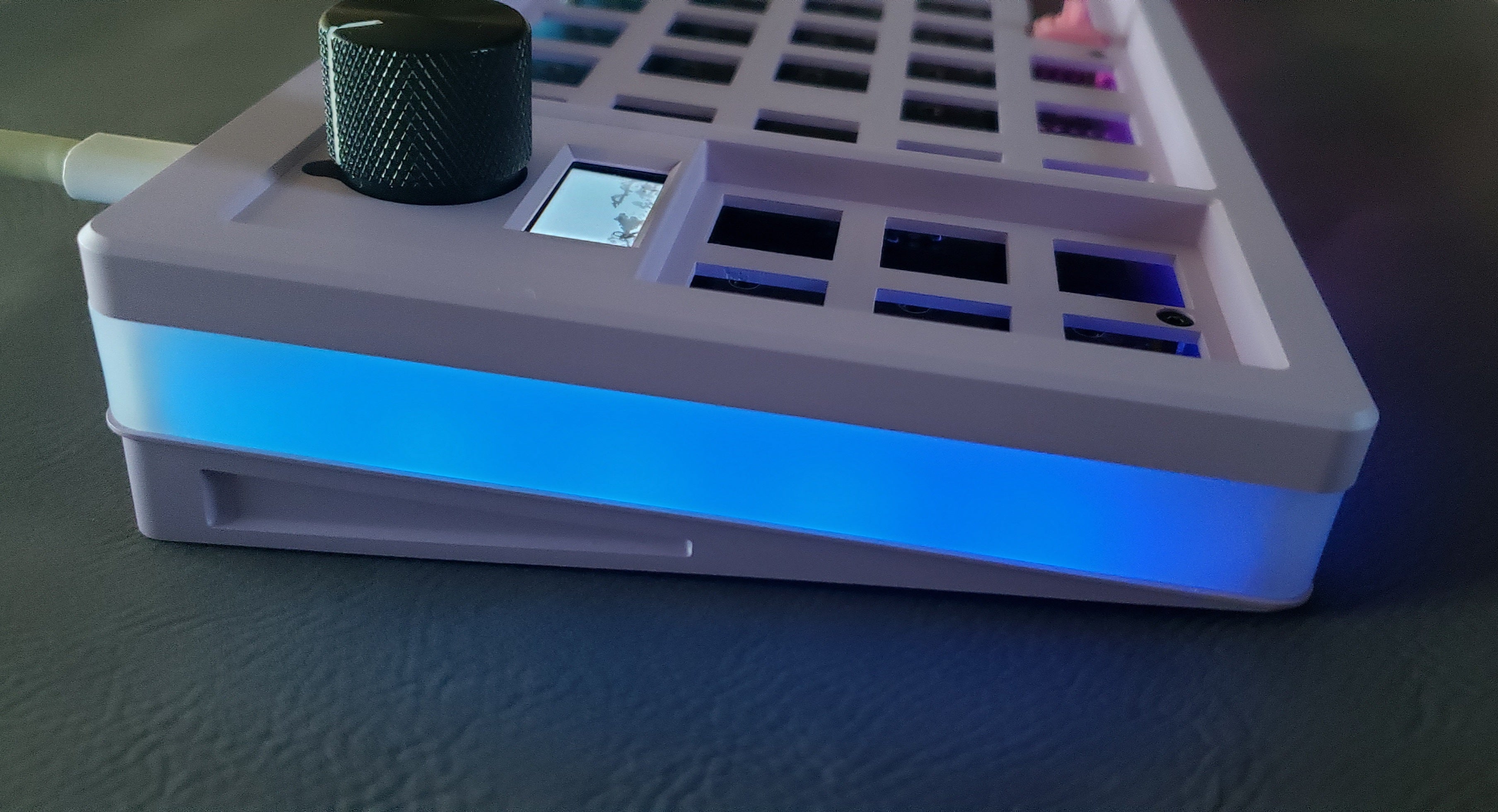

  • Underglow RGB LED lighting (dimmable)
  • Backlighting (white LEDs, 6000K temperature, dimmable)
  • Speaker (can play simple tunes, no DAC)

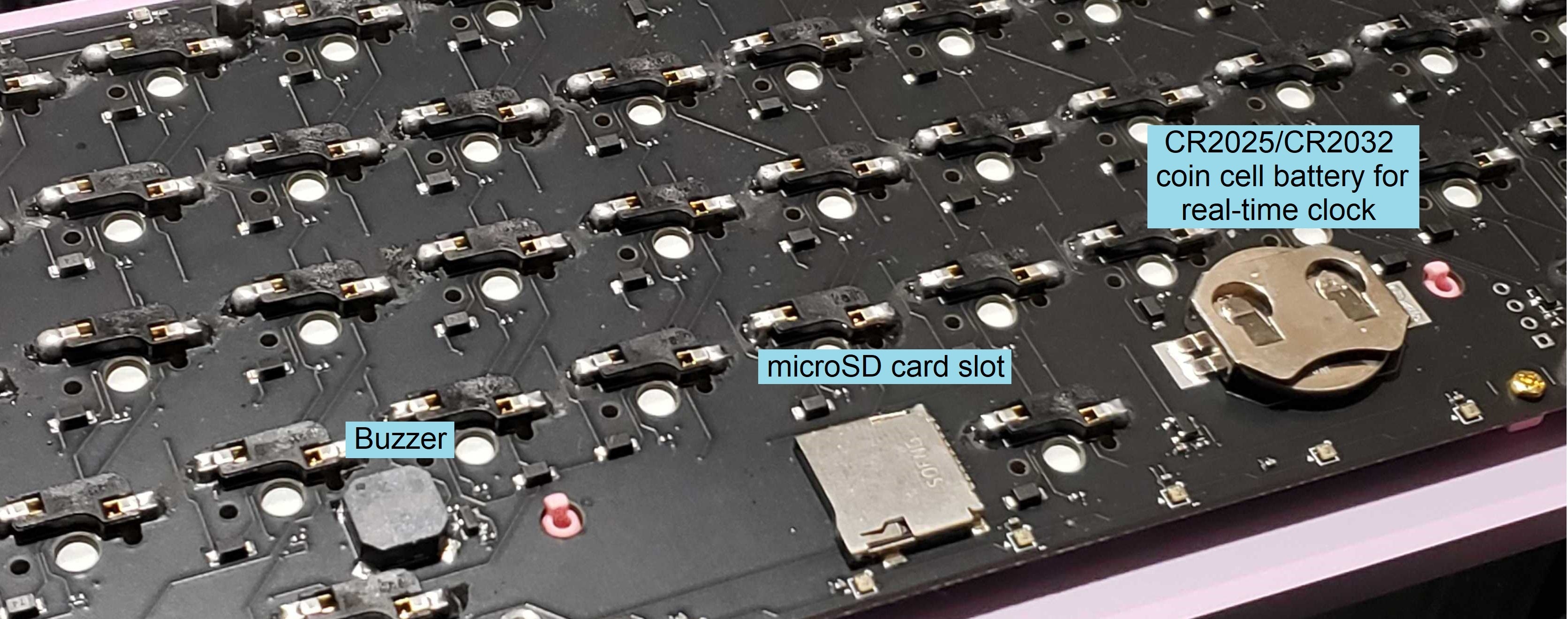

  • Real-time clock keeps track of time even when unplugged (2032 or 2025 coin cell battery required)
  • Ambient temperature sensor
  • ESD protection
  • USB C connection
  • 6 degree angle
  • QMK and VIA support.

*Please note that QMK does not yet support dynamic loading of LCD images over USB, memory card access, or use of the on-board flash memory. These features may be added to QMK in the future. Presently, adding custom graphics requires compiling new firmware.
