(Group Buy) Hiexa V Series (65+75+80+PAD) Brushed PVD Weight

Expected Shipping time: Q4 2024

Hiexa V (65+75+80+PAD) Brushed PVD Weight  Fully CNC Keyboard

Plus Optional Extra 500pcs Switches

Content List

• CNC Case x 1
• (Brushed/ Mirror) Stainless Steel PVD Weight x 1
• No Flex-cut POM Plate x 1
• 1.6mm No flex-cut Tri-mode PCB x 1
• IXPE Foam x 1
• 3.5MM Poron Foam x 1
• EPDM Foam x 1
• PET Insulation Sheet x 1
• Footpads x 1
• 2200mAh Battery x 2 (VPad comes with 800mAh Battery x 1）
• 2.4GHz Receiver x 1
• TOP Accessories Kit x 1
• Silicone Column&Socks x 1
• Screws x 1

Extra Parts Available Here

Specifications:

V65 Spec

• Typing angle: 6.5°
• Front height: 18.6mm
• Front length and width: 320mm*115mm
• Support PCB stabilizers
• Before assembly：1260g
• After assembly：1580g

V75 Spec

• Typing angle: 6.5°
• Front height: 18.6mm
• Front length and width: 320mm*139.2mm
• Support PCB stabilizers
• Before assembly：1695g
• After assembly：1950g

V80 Spec

• Typing angle: 6.5°
• Front height: 18.6mm
• Front length and width: 362.8mm*139.2mm
• Support PCB stabilizers
• Before assembly：1912g
• After assembly：2181g

VPad Spec

• Typing angle: 6.5°
• Front height: 17.8mm
• Front length and width: 91.8mm*134.8mm
• Support PCB/Plate-Mount Stabilizers
• Before assembly：455g
• After assembly：520g

Case Colours

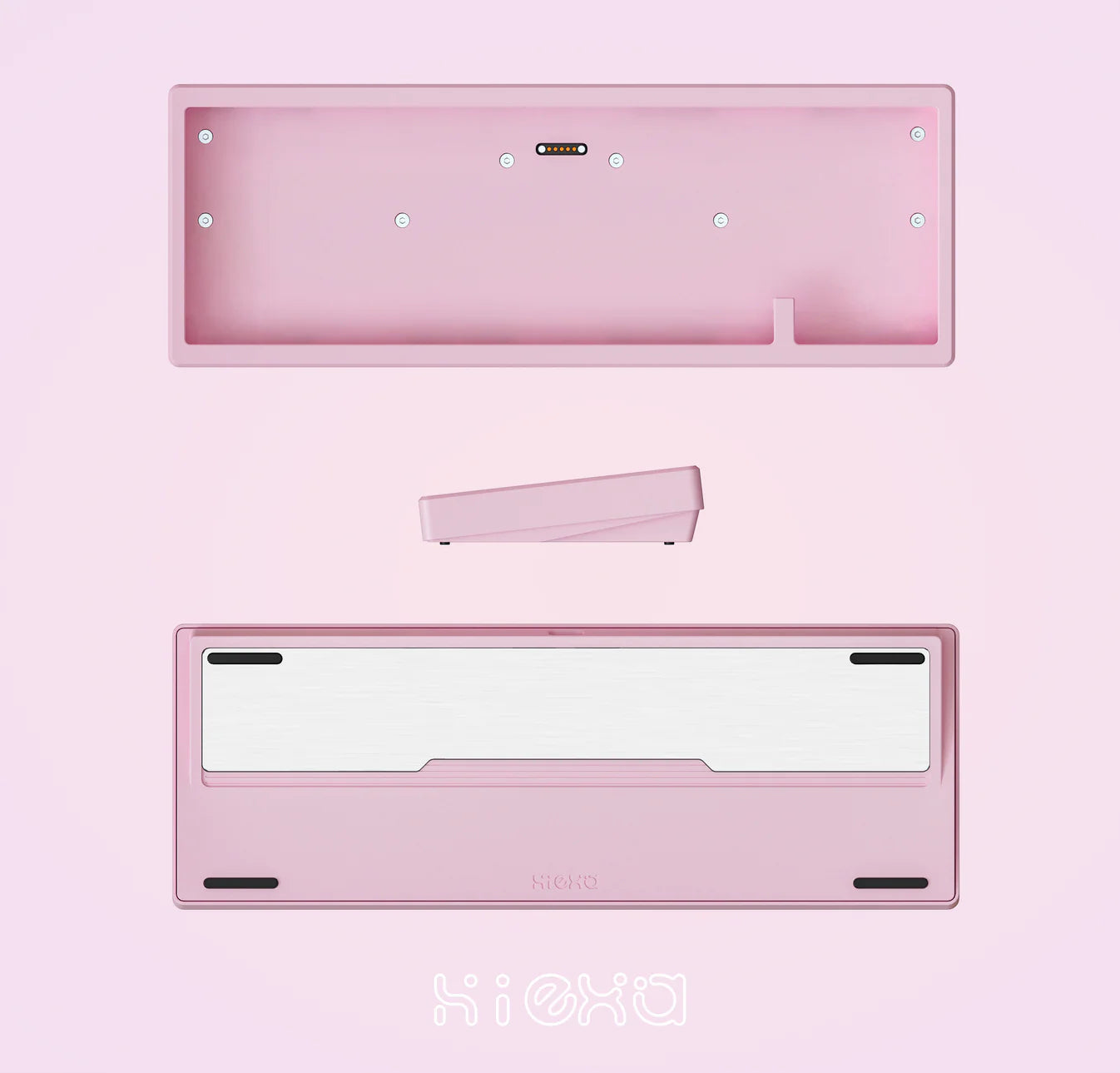

• Pink Glitter Spray Coated
• Latte Glitter Spray Coated

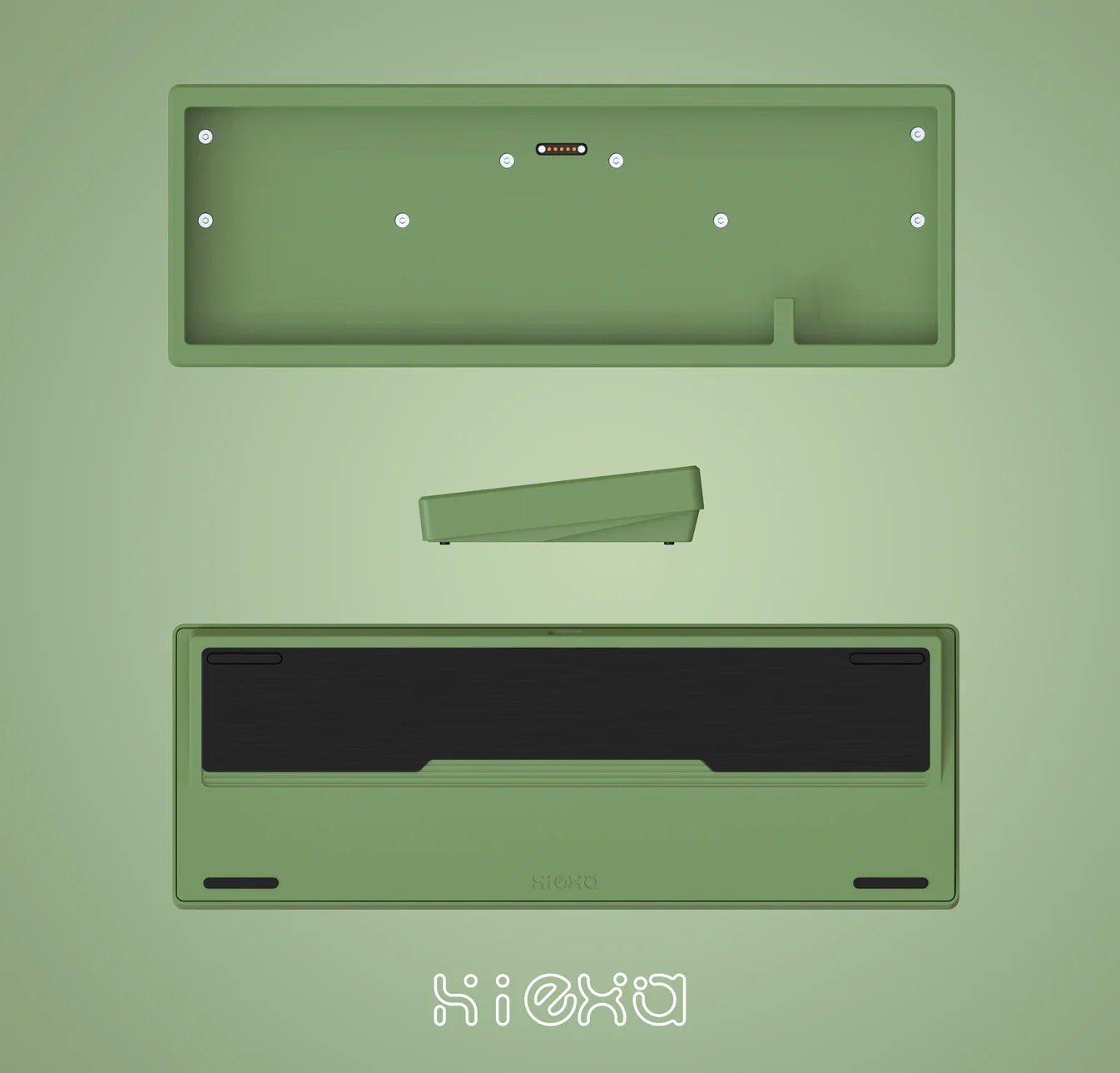

• Avocado Glitter Spray Coated

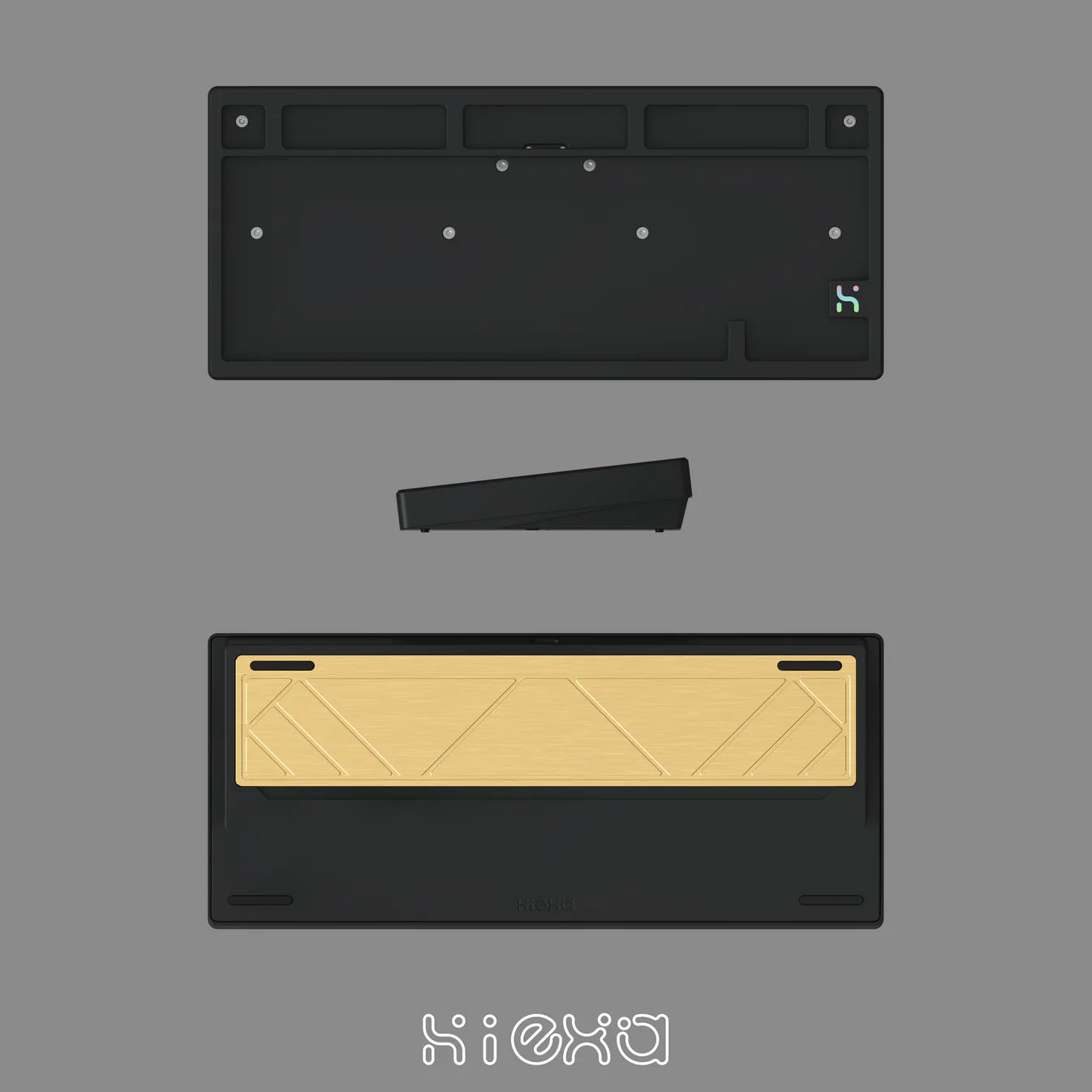

• Black Anodised

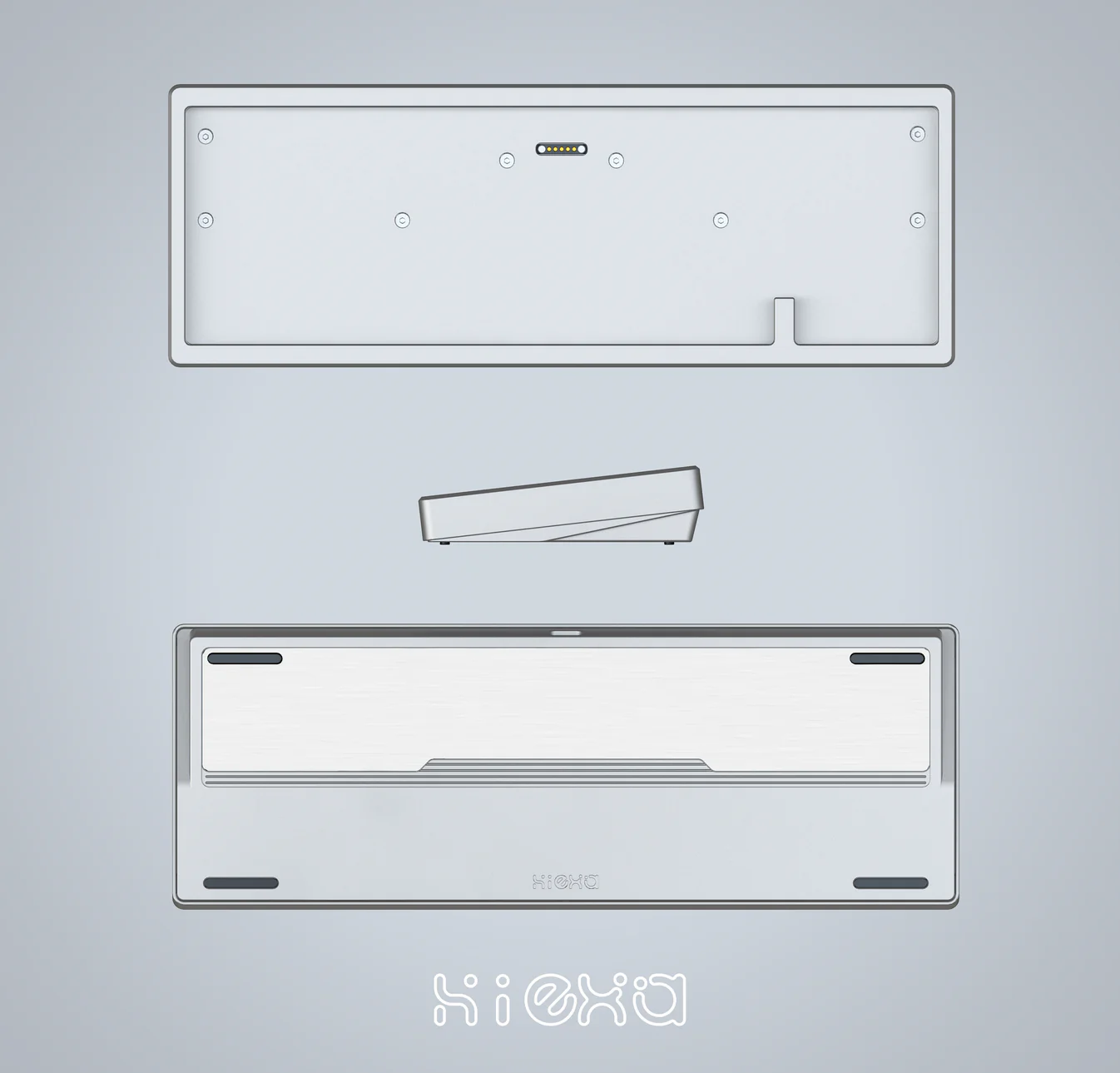

• Silver Anodised

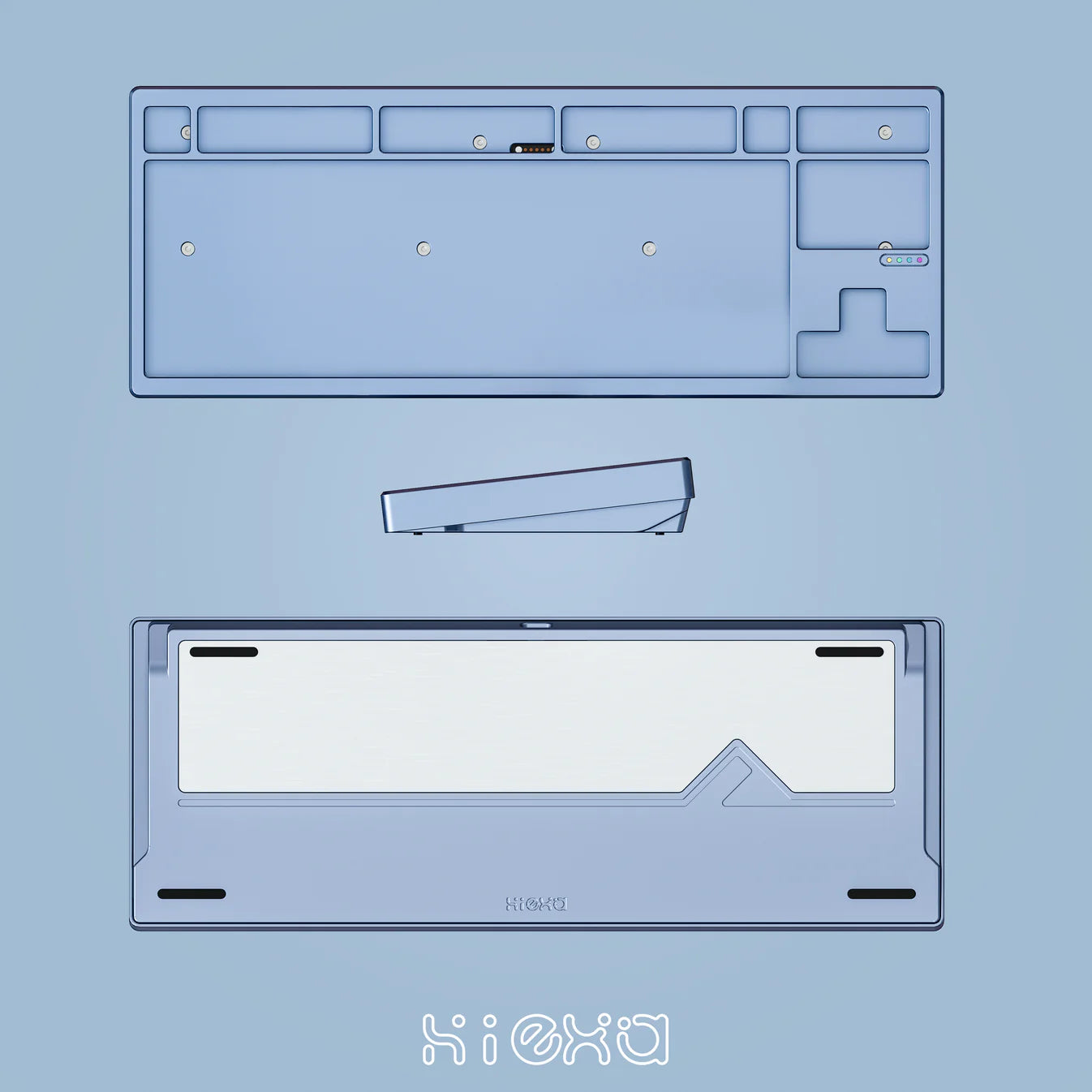

• Ice Blue Anodised

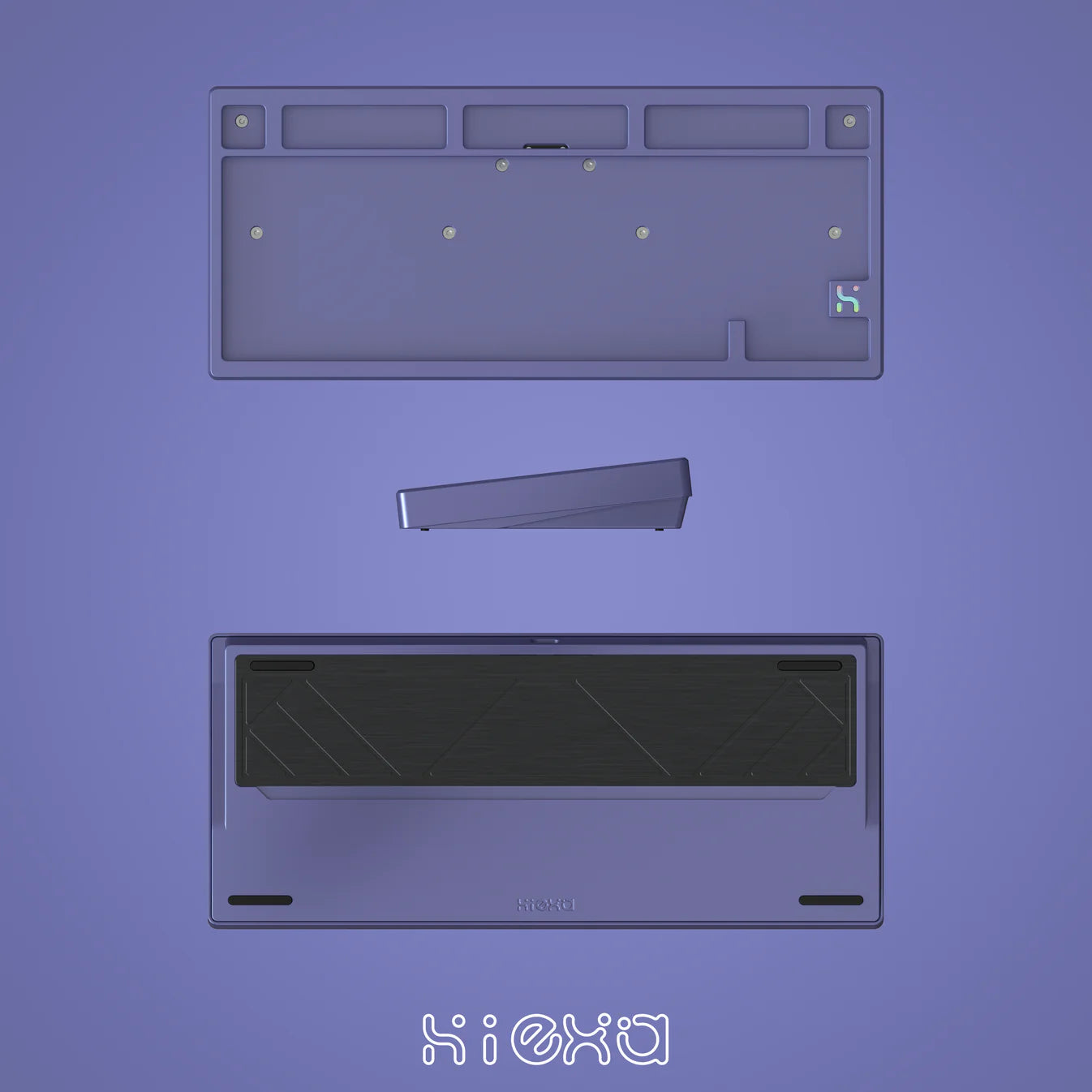

• Midnight Purple Anodised

V65 PVD Weight

V65 Tri-Mode HS PCB

• Wired, Bluetooth 5.0, and 2.4G mode.
• Support QMK/VIA, Support multiple layout
• Include 4400mAh capacity battery

V65 Plate

Non-flex cut POM

V65 Back Design

We used the case's contour to echo the weight balance lines, creating an elegant visual experience between the weight and the bottom case.

V65 Front Design

We adopts a simple and practical design language.

V65 Side Design

The line-cutting technique makes the side profile more design-oriented and customized.

V75 PVD Weight

V75 Tri-Mode HS PCB

• Wired, Bluetooth 5.0, and 2.4G mode.
• Support QMK/VIA,Support multiple layout
• Include 4400mAh capacity battery

V75 Default Plate

Non-flex cut POM

V75 Back Design

We adopted the line combination on the V75 weight, using the CNC process to cut the stainless steel weight into lines to create a high-level texture.

V75 Front Design

We designed an RGB logo in the function area. The 75% layout keyboard already provides most of the keys for daily use or work. The RGB logo allows you to relax in the RGB atmosphere and puts you in a good mood.

V75 Side Design

Still used the line-cutting technique to make the side profile more design-oriented and customized.

V80 PVD Weight

V80 Tri-Mode HS PCB

• Wired, Bluetooth 5.0, and 2.4G mode.
• Support QMK/VIA
• Support multiple layout
• Include 4400mAh capacity battery

V80 Default Plate

Non-flex cut POM

V80 Front Design

We've installed a dot-matrix circular LED light above the arrow keys. We're not looking to make it overly flashy, instead, our intention is for the lighting effect to create a soothing atmosphere for your daily use or office environment.

V80 Side Design

We've employed dual-cutting techniques on the V80 to enhance its side profile with a more design-oriented and customized look.

V80 Back Design

The geometric design elements and rectangular apertures maintain an overall minimalist style, while complementing the coordinated side contours for a more three-dimensional appearance.

VPad PVD Weight

VPad Tri-Mode HS PCB

• Wired, Bluetooth 5.0, and 2.4G mode.
• Support QMK/VIA, Support Rotary Knob
• Include 800mAh capacity battery

VPad Default Plate

Non-flex cut POM

VPad Front Design

VPad Side Design

VPad Back Design

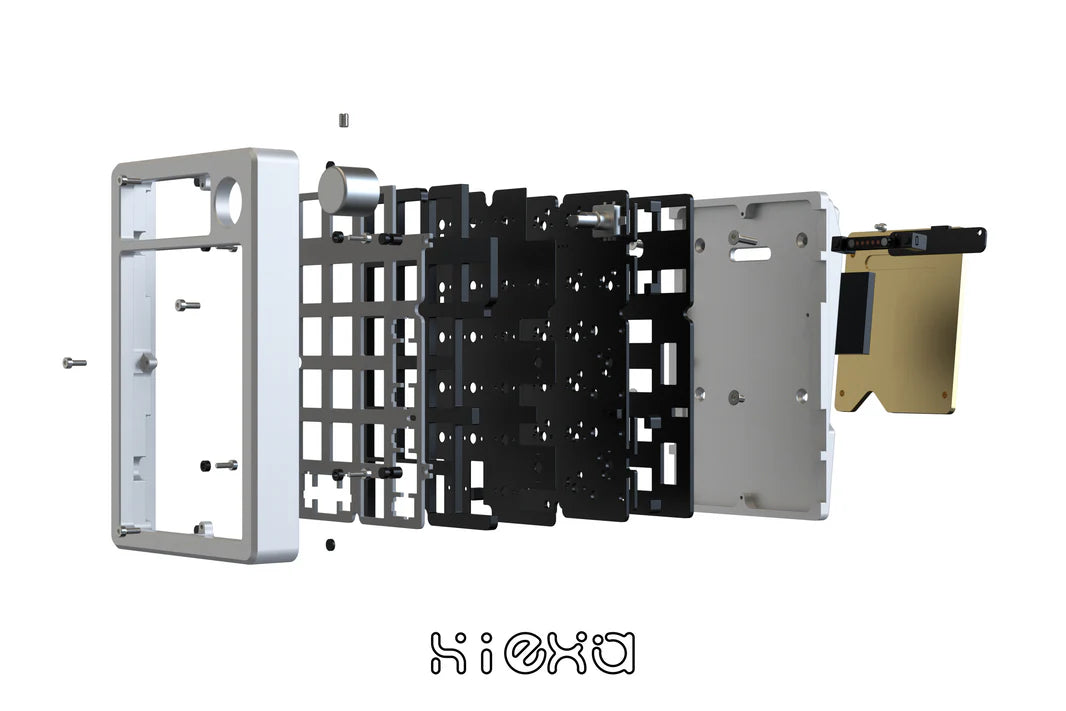

Structure

We have adopted the most convenient structure in the current market. It can make the assembly process of customized keyboards simple and painless. The ball catch is used on the case for quick assembly and disassembly in just a second. The magnetic connector is applied to the PCB for instant connection. The preinstalled battery reduces the assembly workload and ensures a flat inner bottom to guarantee the consistency of typing sounds.

Optional 500 Pcs Switches Includes

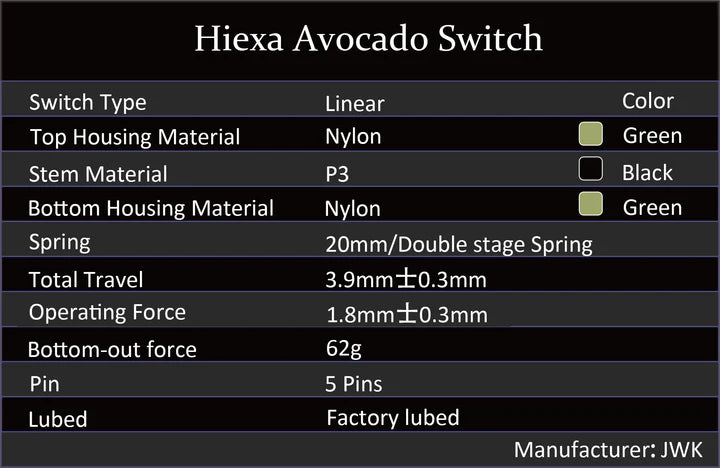

• Hiexa Avocado Switch 100pcs

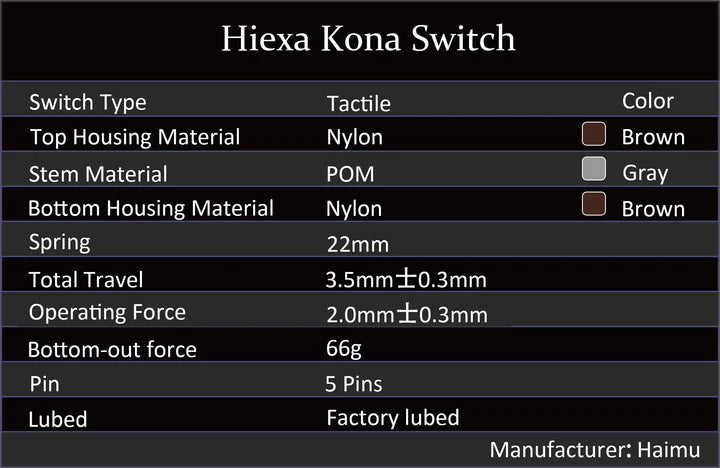

• Hiexa Kona Switch 100pcs

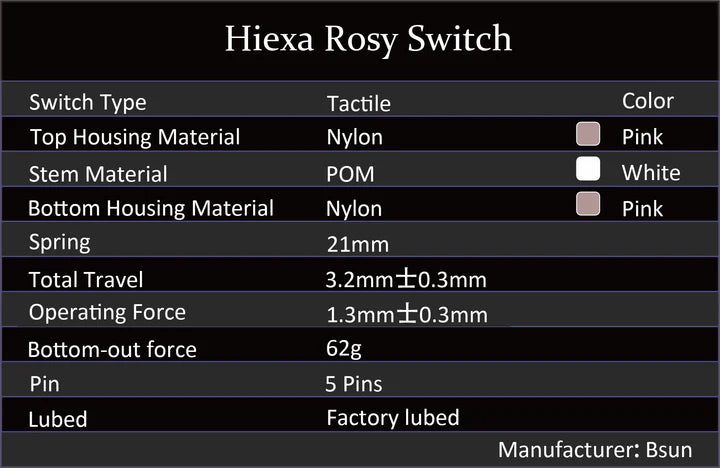

• Hiexa Rosy Switch 100pcs

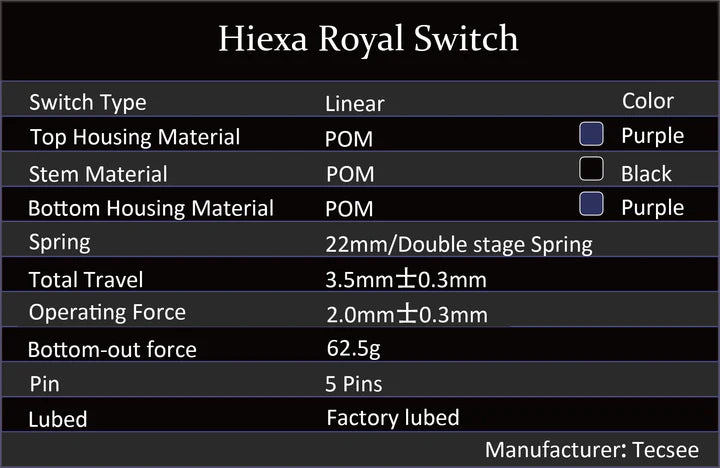

• Hiexa Royal Switch 100pcs

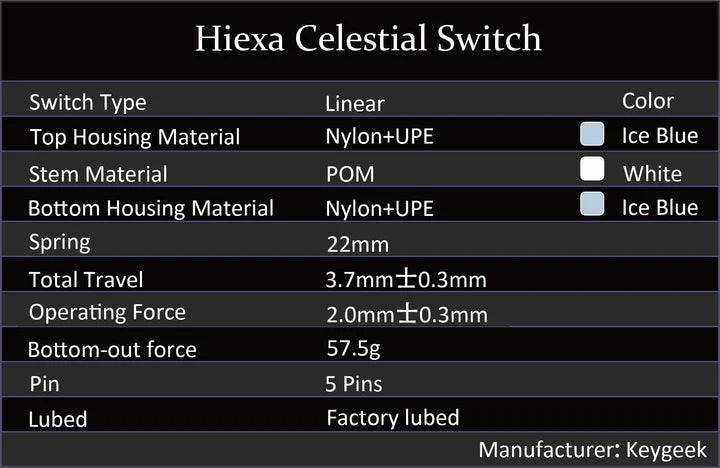

• Hiexa Celestial Switch 100

Regional Vendors

• US and Rest of world: Hiexakey
• UK: ProtoTypist
• EU: monacokeys
• EU: Coffeekeys
• PH: Zion Studio
• VN: Soi Gear
• AU: keebzncables
• TH: NTCH Keys
• ID: mechaland
• SG&MY: Mecha
