This is a Group Buy - that means this product has not yet been manufactured. This product will ship at a later date, as detailed in the product description below.
This is a Group Buy - that means this product has not yet been manufactured. This product will ship at a later date, as detailed in the product description below.
Please read our guidance on Group Buys here: FAQ's
This Group Buy Ends:
Expected Shipping time: Q4 2026

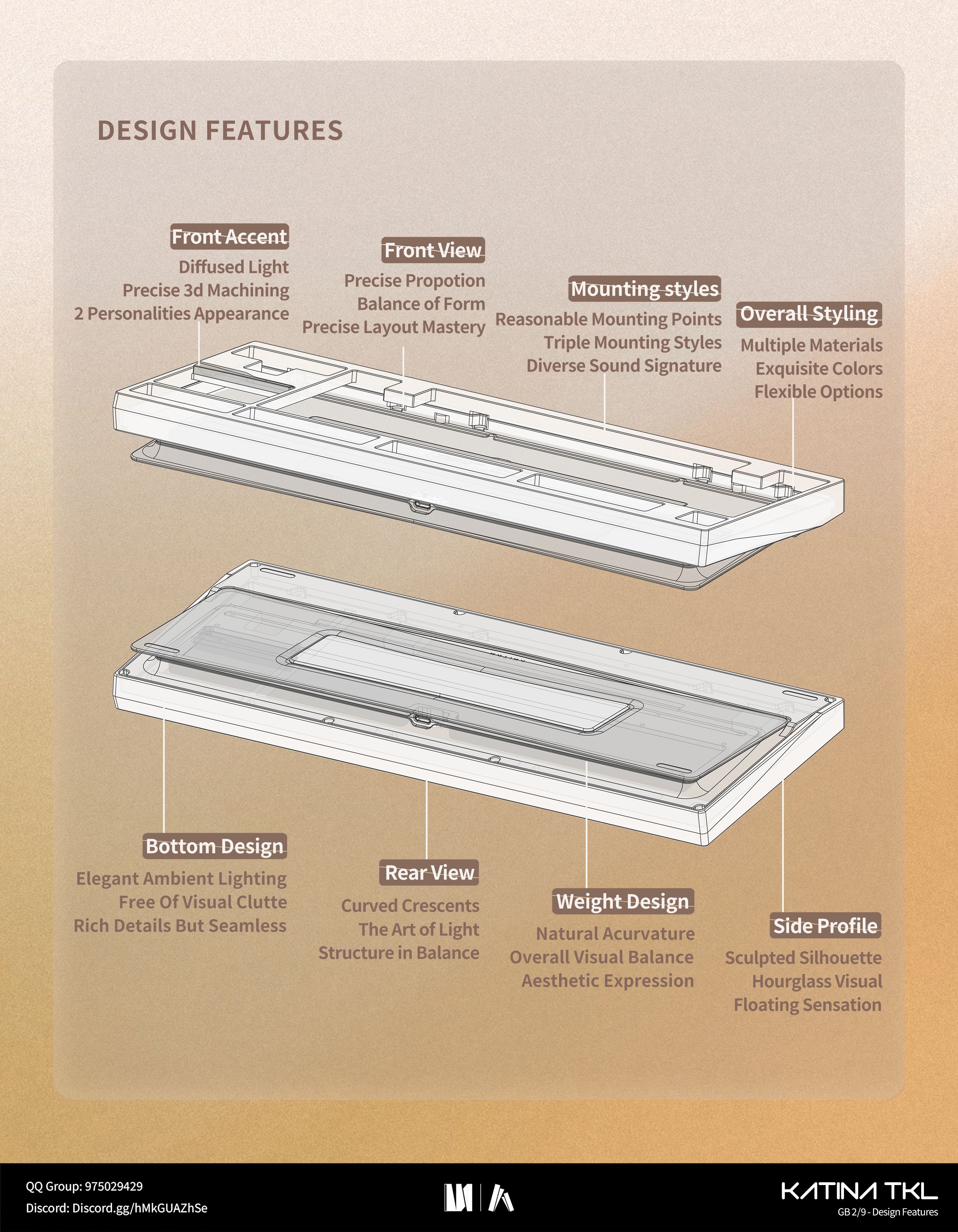

Katina TKL is the first collaborative project between iNN Studio and an excellent designer XIONG:
Inspired by the essence of a pure and elegant woman in imagination, Katina TKL embodies three core principles: Elegance, Softness, and Purity. Every detail flows from this vision—a keyboard not only shaped by aesthetics, but designed to convey emotion. This work represents a shared journey of creativity, with iNN Studio providing the foundational platform to refine, realize, and deliver XIONG's original vision as a complete product experience.
Addons Available Here
Classic Edition Available Here
Deluxe Edition:
Focusing on various high-value, high-texture craftsmanship as the core, complemented by exclusive custom product details, packaging, and accessories.
'The Artistic Interpretation of Stainless Steel'

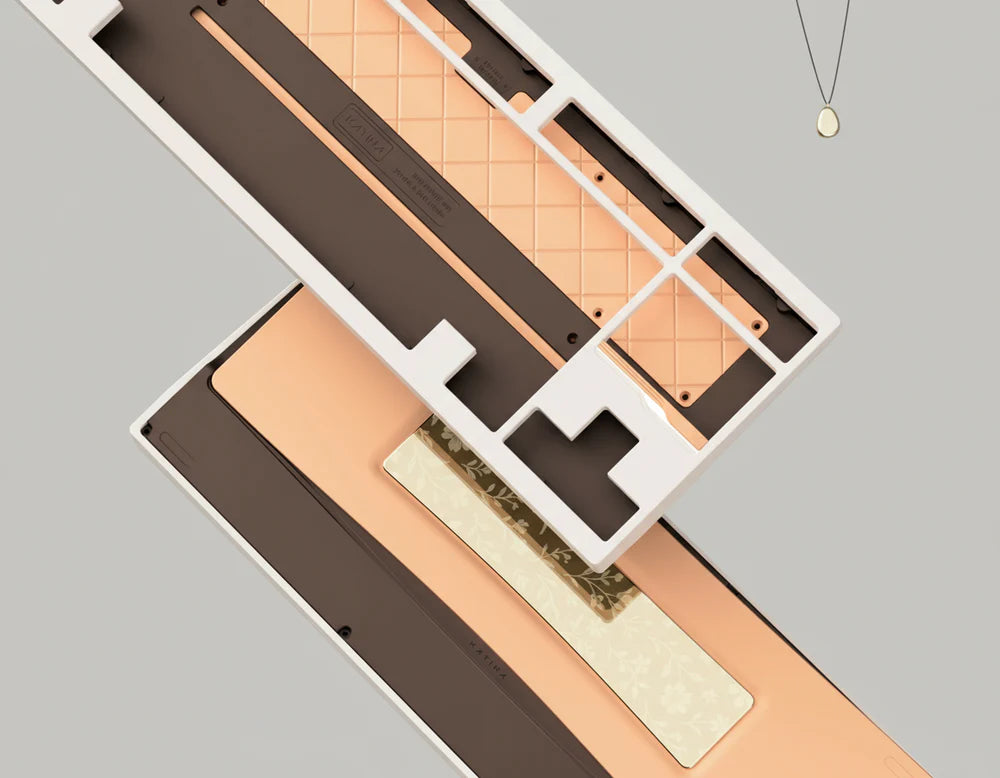

The major design of Katina TKL's Deluxe edtion is adding non-tactile patterns onto a mirror surface to achieve more complex, advanced aesthetic expression and emotional conveyance. Meanwhile, while pushing material and craftsmanship to their absolute limits, we've also prepared an abundance of design details to complement the 3D interior trim—including accent engraved patterns and deluxe logos.

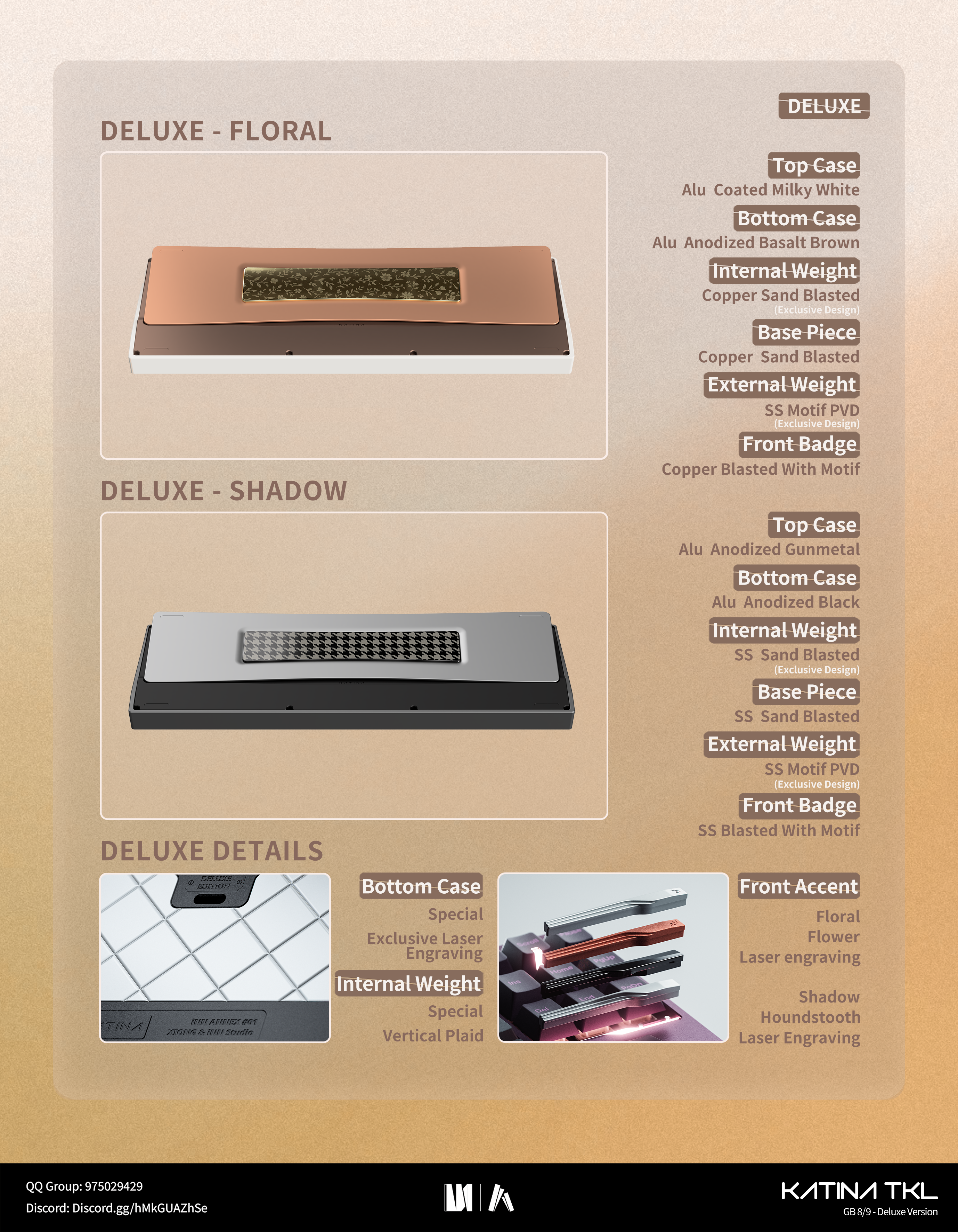

There are two exclusive design themes for the Deluxe Edition
Floral and Shadow

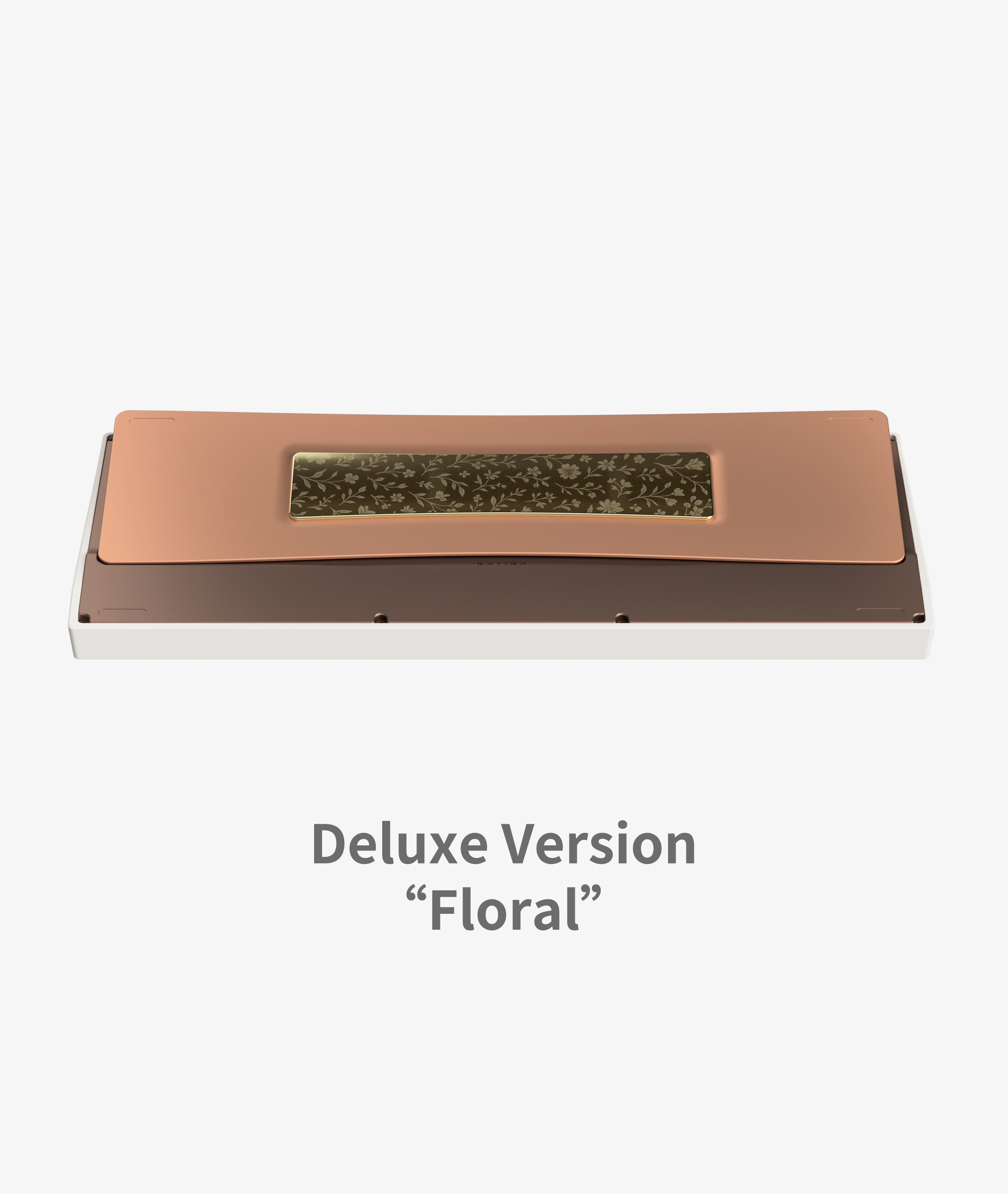

The Floral design employs a traditional motif on a light gold PVD surface, using flowers to symbolize vitality and virtue, creating an aura of understated luxury and grace.

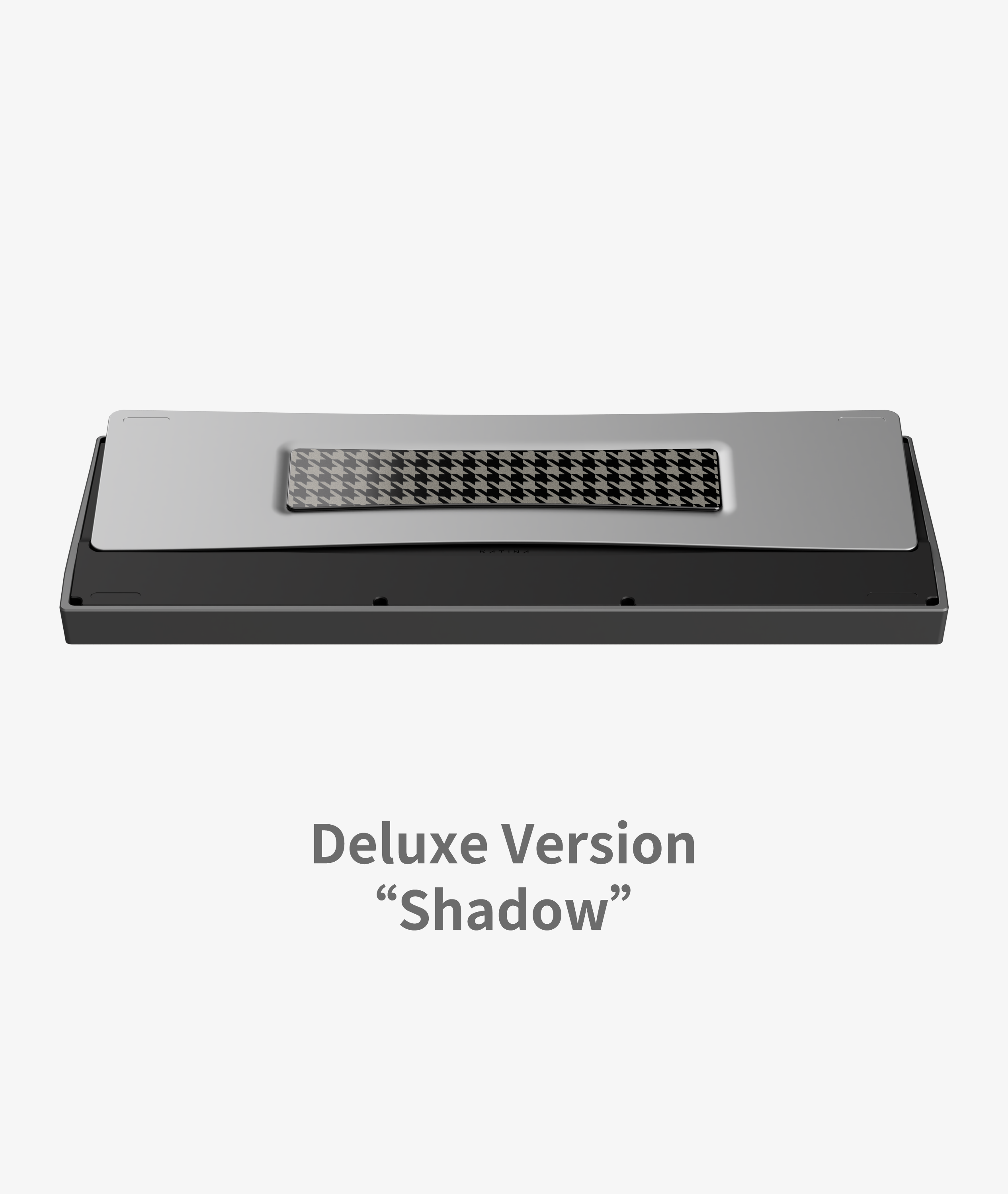

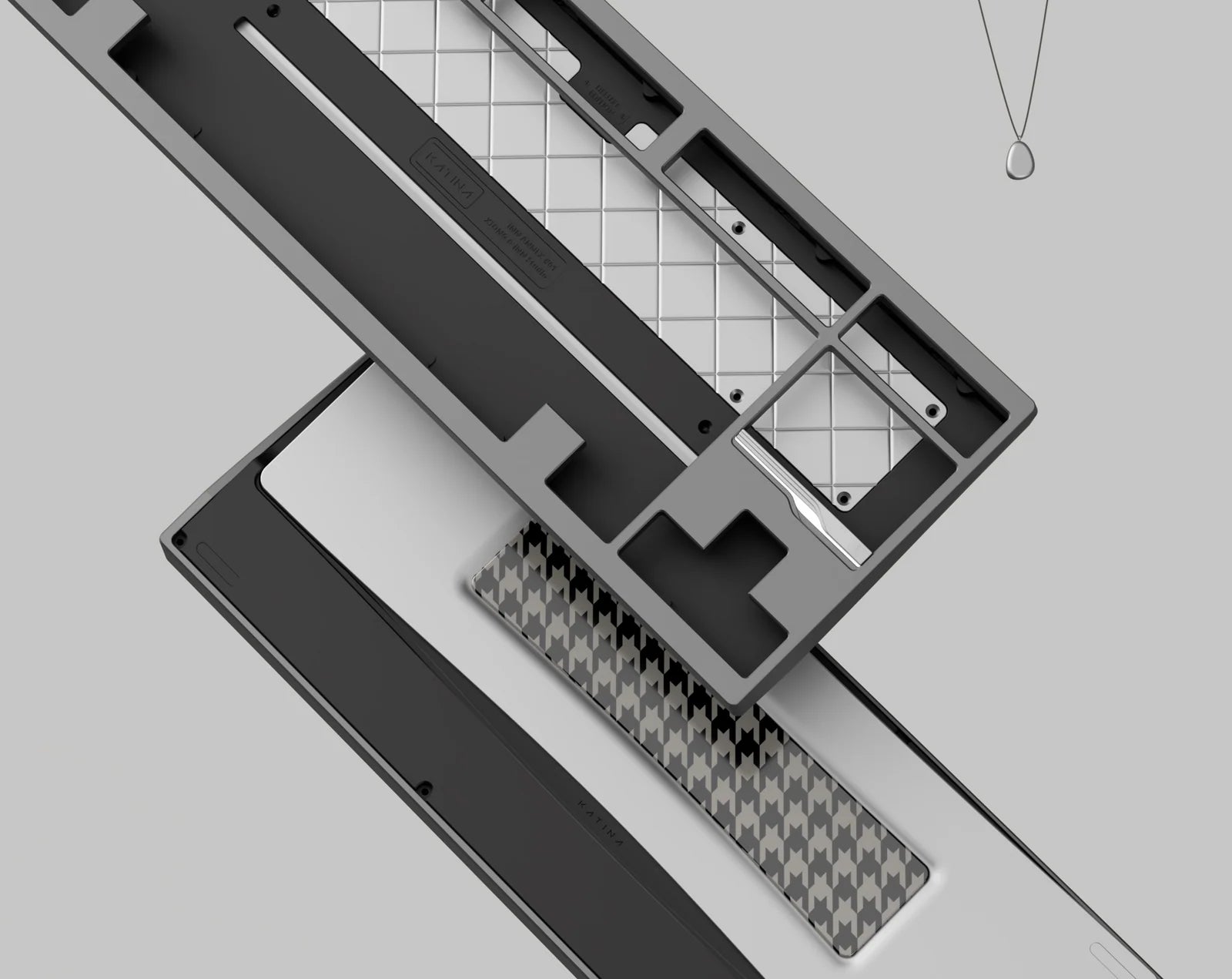

The Shadow edition draws inspiration from the classic Houndstooth pattern, utilizing advanced Imaging PVD technology to achieve a sophisticated and retro aesthetic. Both represent the limitless artistic potential of stainless steel in our hands.

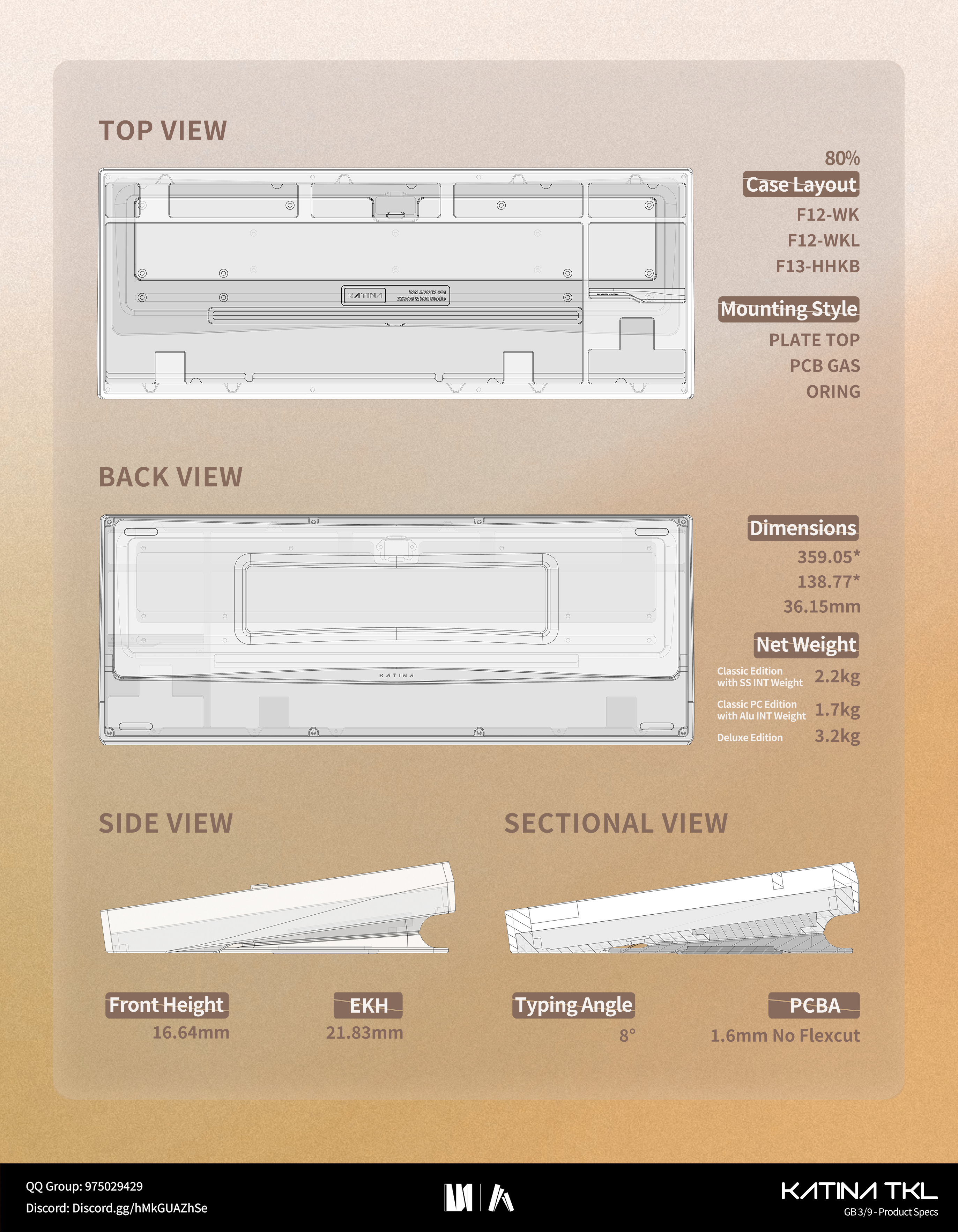

Specification:

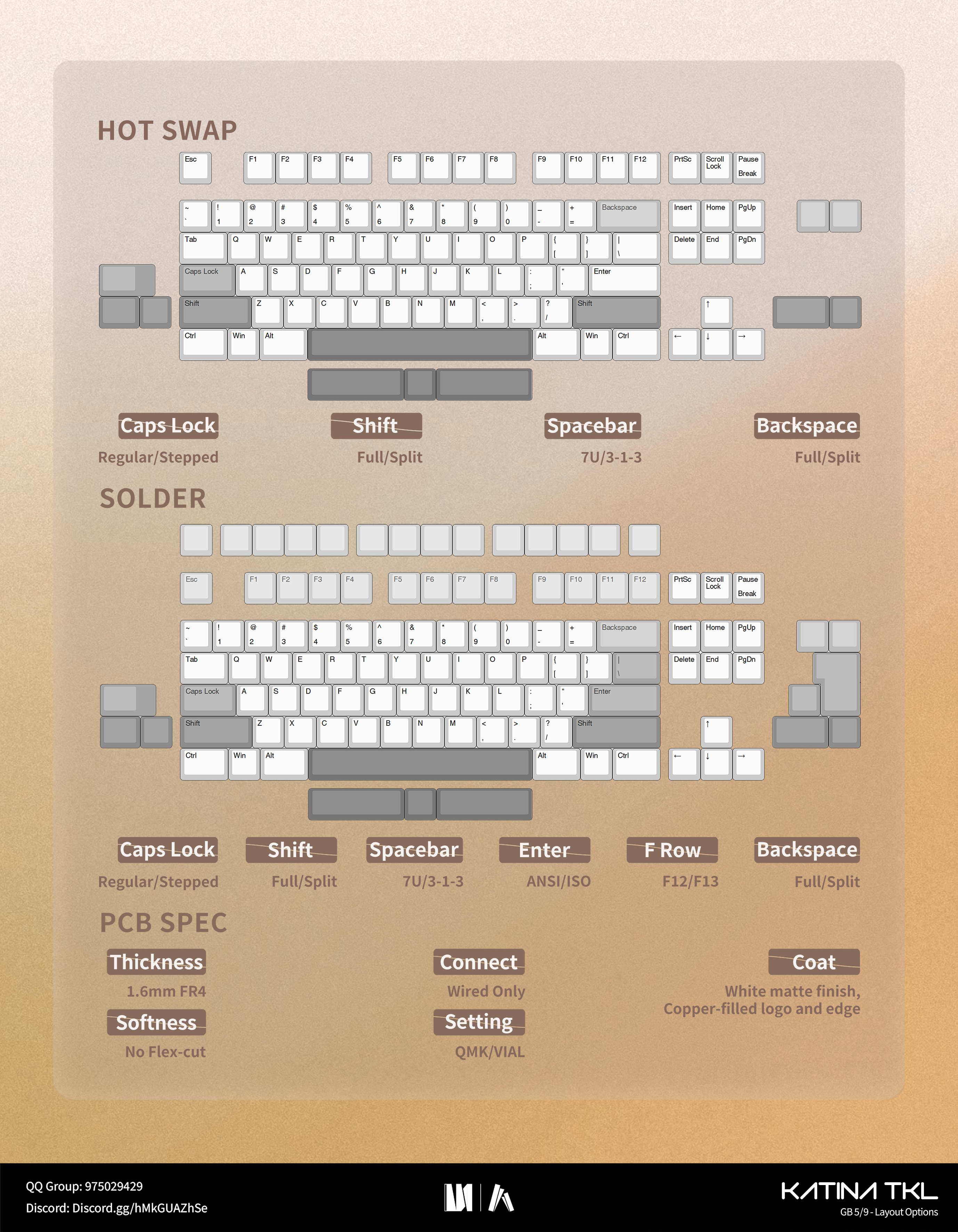

Case Layout:
Compatibility:

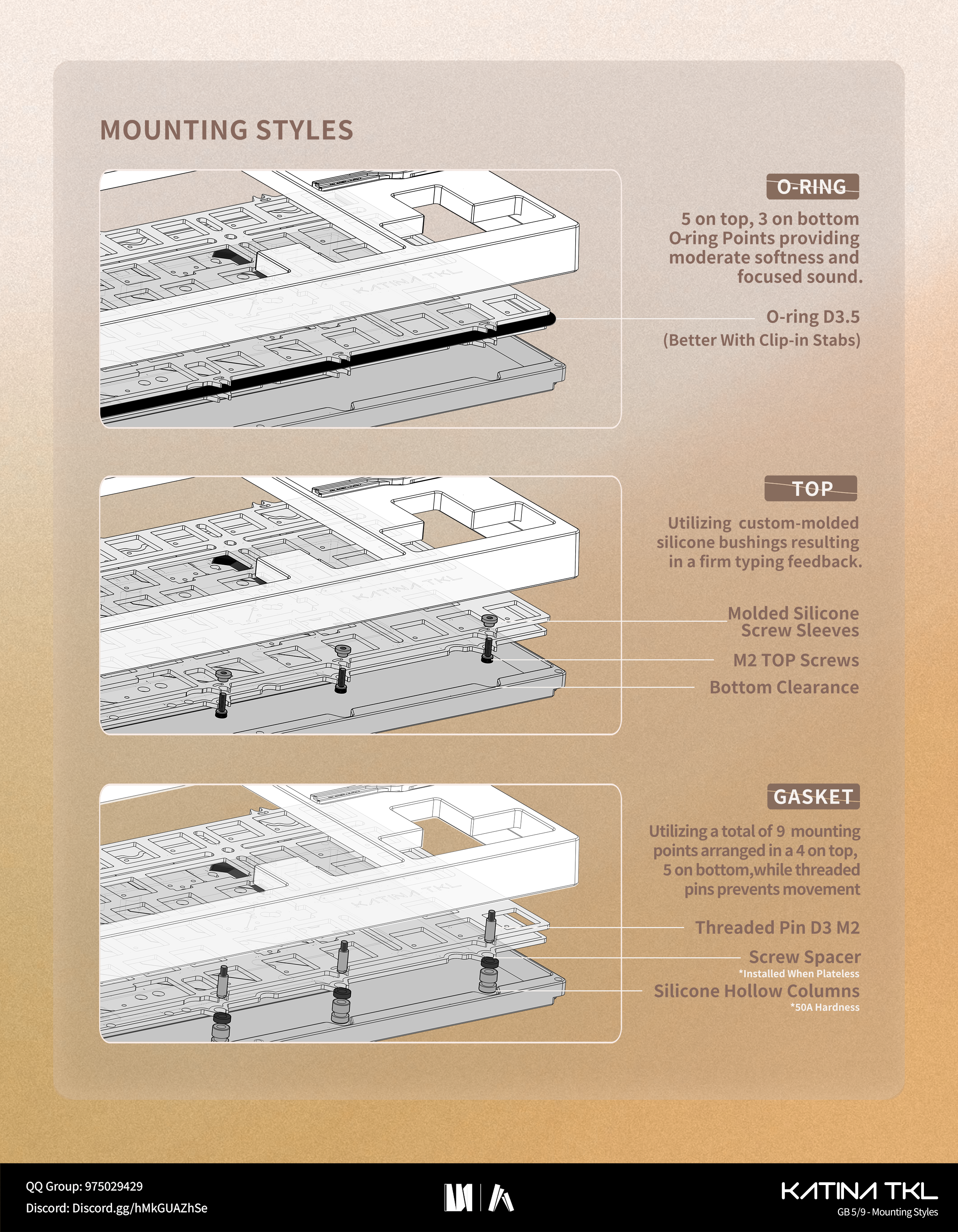

PCB Gasket Mount:
The internal assembly is suspended above the bottom case by the silicone columns, while limiting pins from the top case insert into the columns, restricting planar movement.
In this mode, the entire internal assembly makes no hard contact with the case. Simultaneously, the limiting pins introduce a subtle sense of firmness, giving a character best described as resilient.
With plateless mode and 3.7mm available travel space, the typing experience on the alphanumeric zone becomes notably soft and bouncy.
O-ring Mount:
Katina TKL adopted a configuration of 5 upper and 3 lower O-ring bosses to support the internal assembly.
It also employs standard D3.5 silicone O-ring and includes compatible clearance cuts in the plate for screw-in stabilizers. This delivers a typing experience that is moderately soft and acoustically focused.
The design is compatible with most mod parts and accessories readily available on the market,
e.g. Nexuros X Geon ‘s PCB Snap & Key Snap
Isolated TOP Mount:
The Katina TKL can also be configured in a top-mounted mode using M2 cup head screws fitted with custom silicone sleeves.
The degree of screw tightness can be adjusted to influence the down travel to some extent, while the plate makes only minimal contact with the screw heads.
This design effectively isolates vibration and unwanted noise, resulting in a solid typing feedback.
Please note that images may be of 3D renders and are for illustration purposes only. The final colours may differ slightly under different lighting.
Only the products detailed in the description are included. Other products are shown for demonstrative purposes only and are not included. Please check Keyset kitting images carefully for included keys. Please check Keyboard layout options carefully to ensure it meets your requirements.
Please note that this is a Group Buy. There can be delays and set backs. The timeline is only an estimate. By adding this item to your cart and purchasing you agree that you understand everything above. You will be charged immediately for this item. There are no refunds or cancellations on these orders due to their bespoke nature. Please do not purchase this item with other group buys or pre-orders as this will delay shipping till all items are available. Only the items specified in each product picture are included with that particular product.
These products are set to be shipped out at the date specified above, but please check our updates for the latest information.
