This is a Group Buy - that means this product has not yet been manufactured. This product will ship at a later date, as detailed in the product description below.
Please read our guidance on Group Buys here: FAQ's
This Group Buy Ended on or before:
Expected Shipping time: Q4 2026
Katina TKL is the first collaborative project between iNN Studio and an excellent designer XIONG:
Inspired by the essence of a pure and elegant woman in imagination, Katina TKL embodies three core principles: Elegance, Softness, and Purity. Every detail flows from this vision—a keyboard not only shaped by aesthetics, but designed to convey emotion. This work represents a shared journey of creativity, with iNN Studio providing the foundational platform to refine, realize, and deliver XIONG's original vision as a complete product experience.
Deluxe Edition Available Here
Addons Available Here
Classic Edition:
Pure Design, Ultimate Freedom
The Classic Edition embodies the essence of the Katina TKL in its most refined form—free from decorative additions, delivering the perfect balance of freshness and value. Its structural feel and acoustic performance set a high benchmark for all upgraded variants, offering a complete experience of the designer's original vision at an accessible price point. This edition also includes the full iNN Studio unboxing and service experience.
With an extensive selection of SKUs, colors, finishes, and material upgrades, the Classic Edition puts the power of choice in your hands. Customize your keyboard your way—whether you prefer a minimalist look or a personalized style statement.

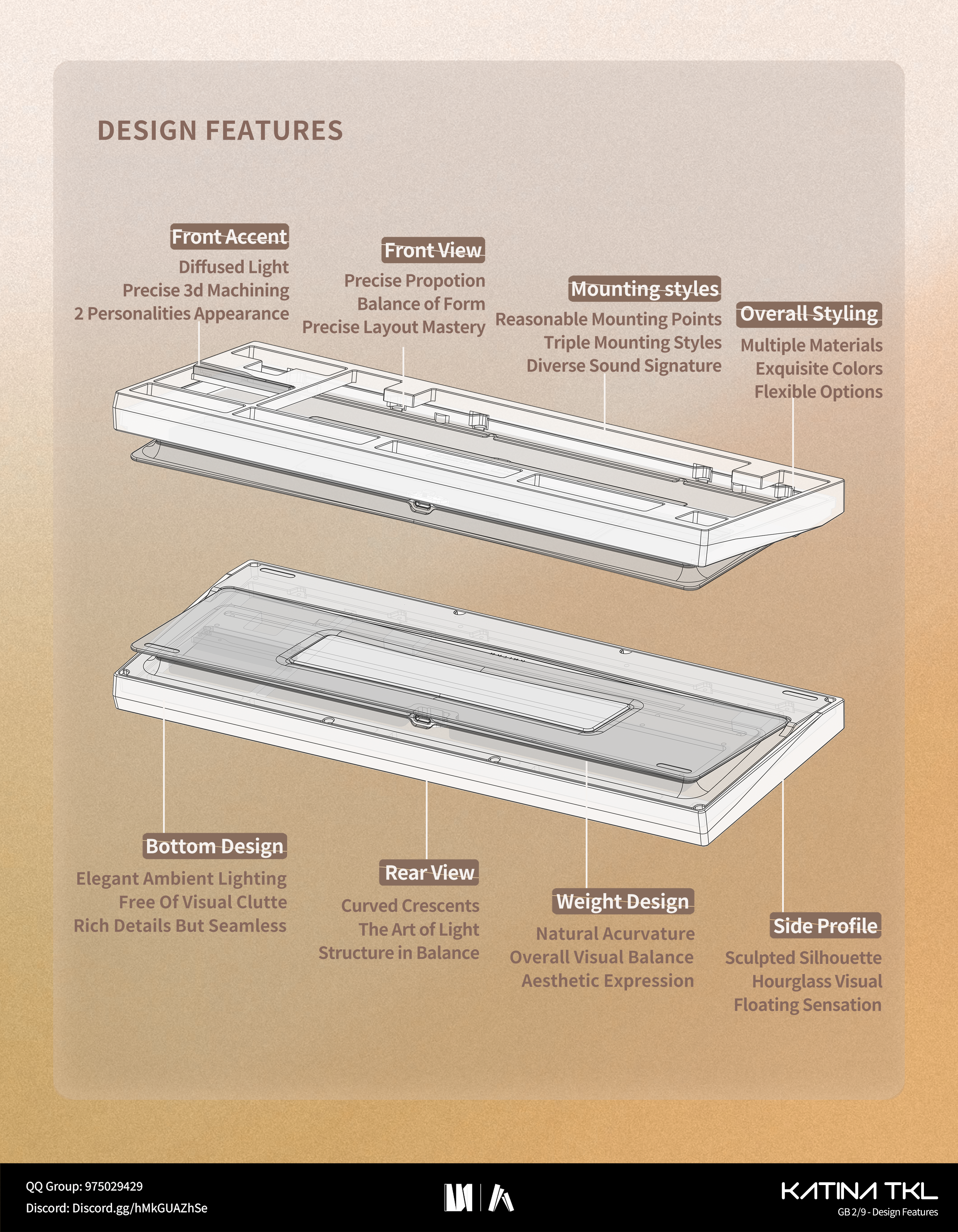

Design Features:

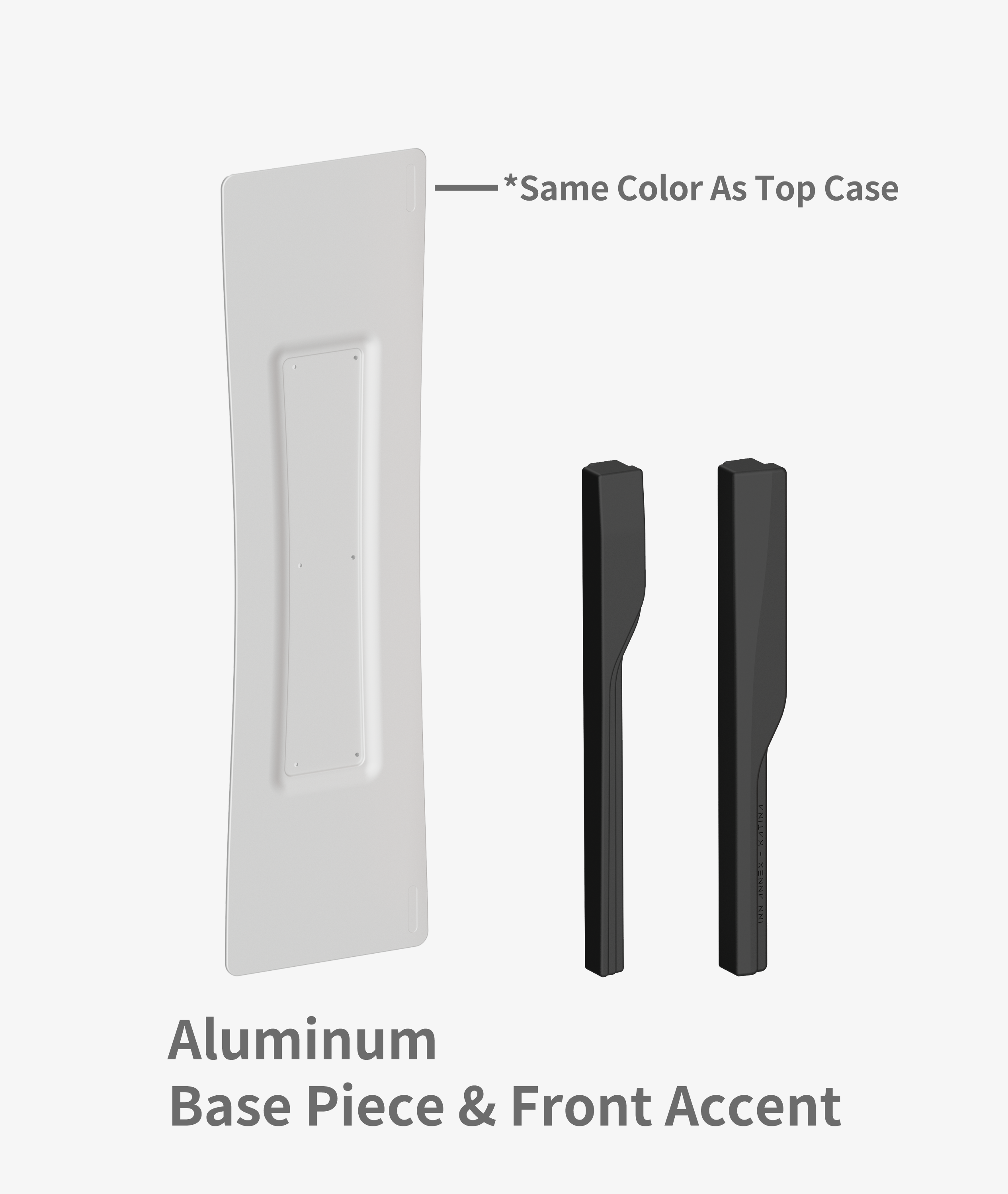

Accent
Located above the arrow keys, the decorative area draws inspiration from the architectural concept "Door of Order." It consists of three refined elements: a stepped nameplate structure, a softly diffused central light, and a finely machined texture line. Together, they create a cohesive visual narrative that balances design intention with emotional resonance.
Bezel
Precisely proportioned bazels—9.5mm top/bottom and 4mm left/right—achieving a balance of intentional whitespace without visual bulk. All four sides taper subtly inward, enhancing its elegant and slender silhouette.

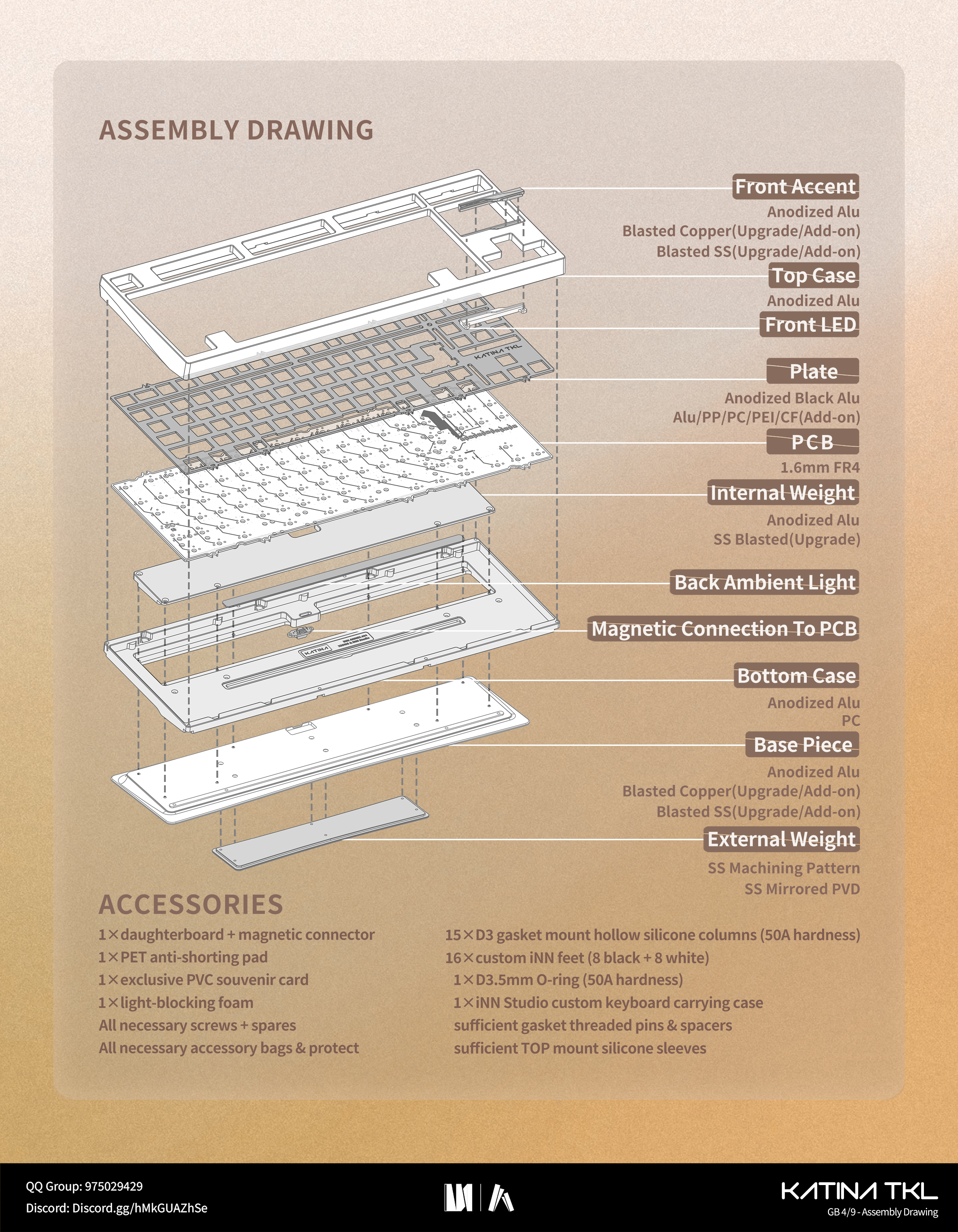

Structure in Balance

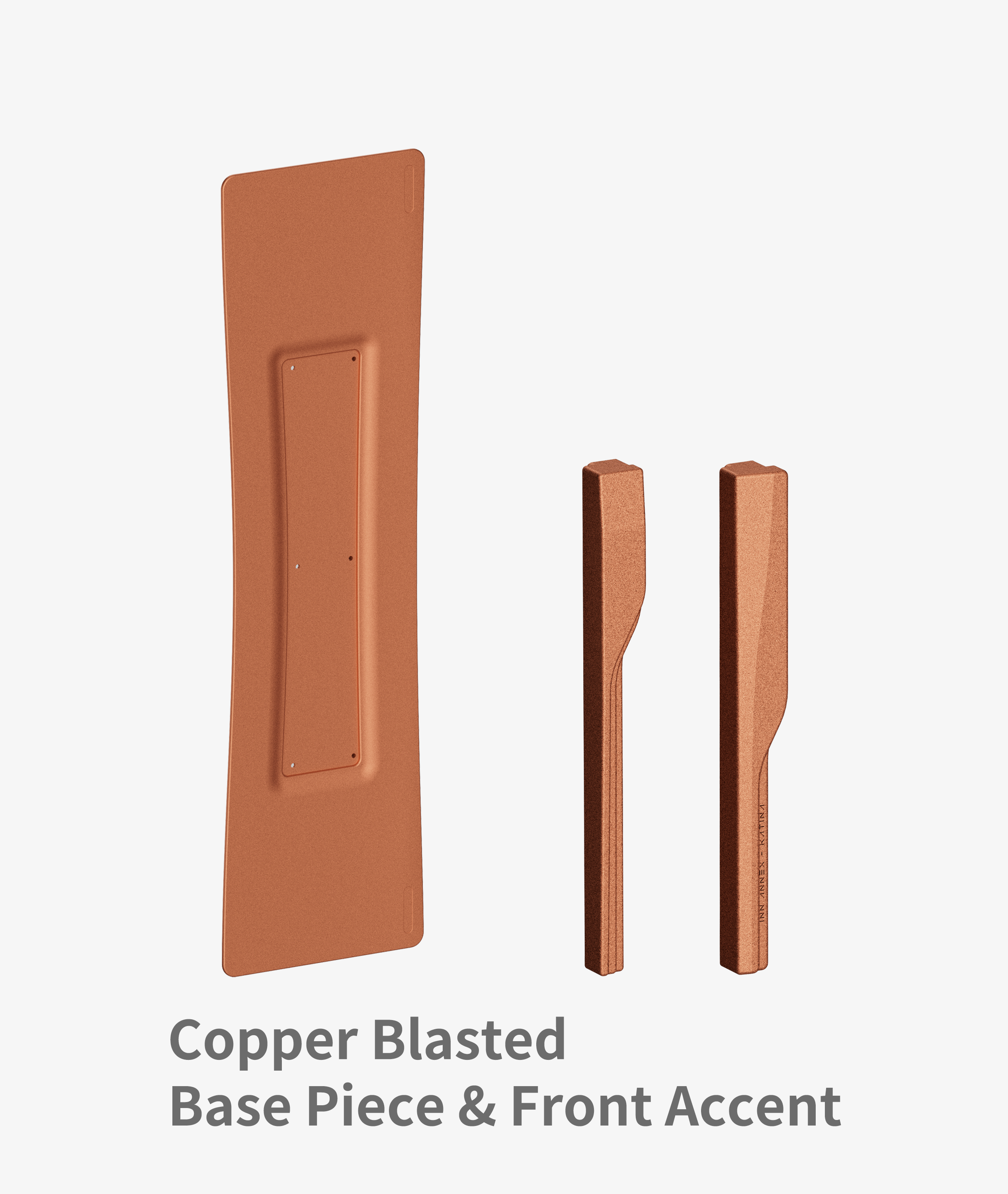

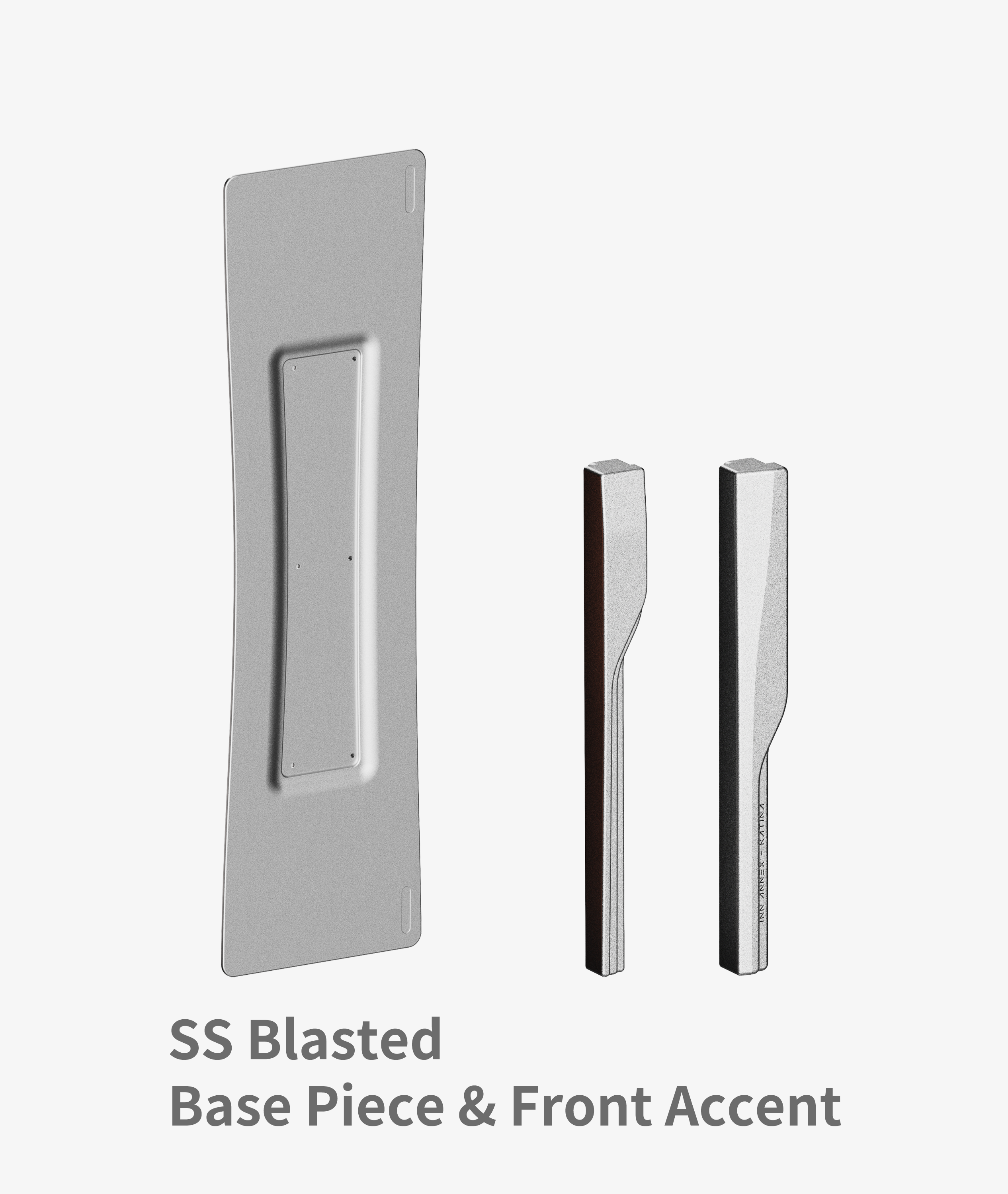

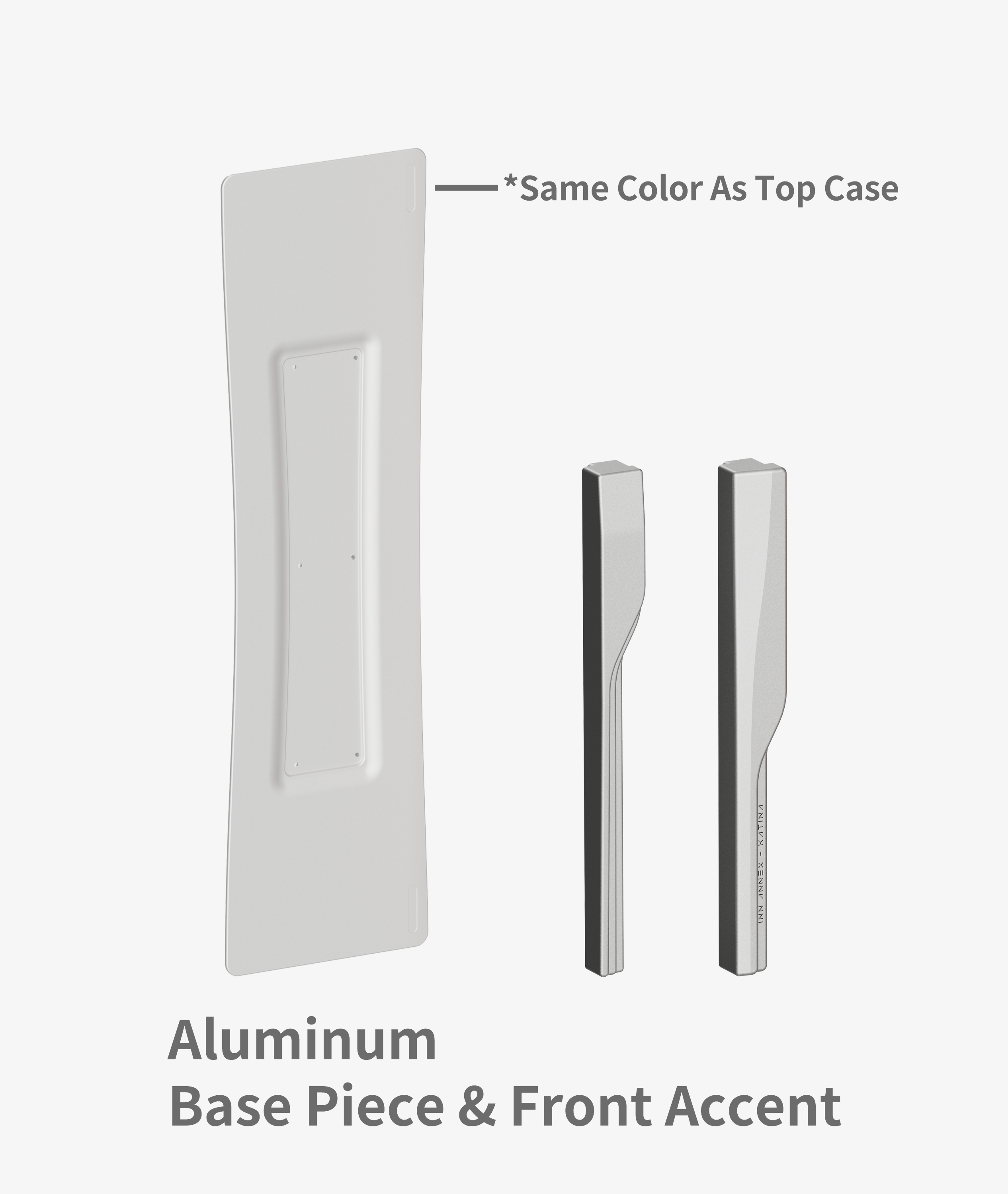

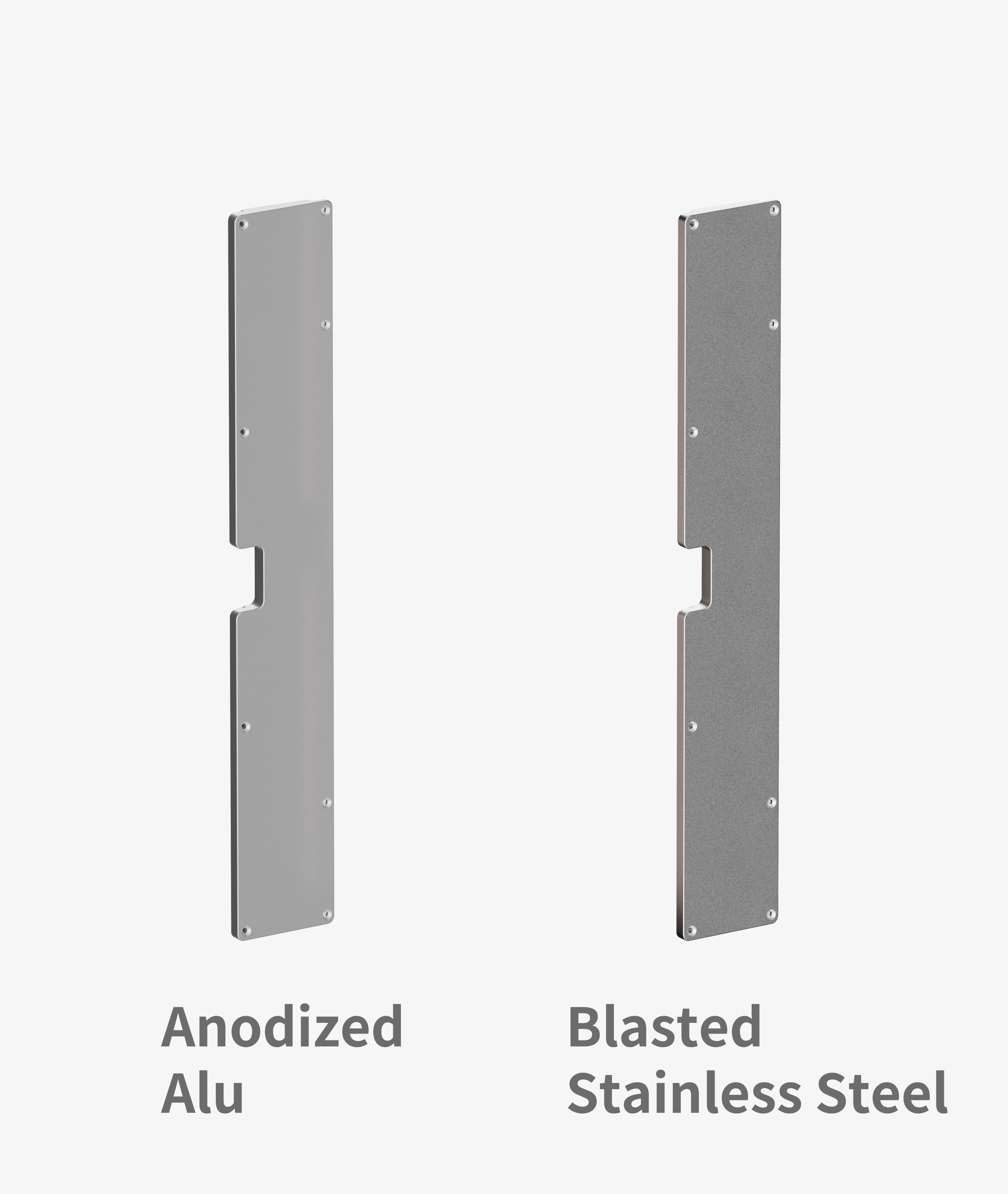

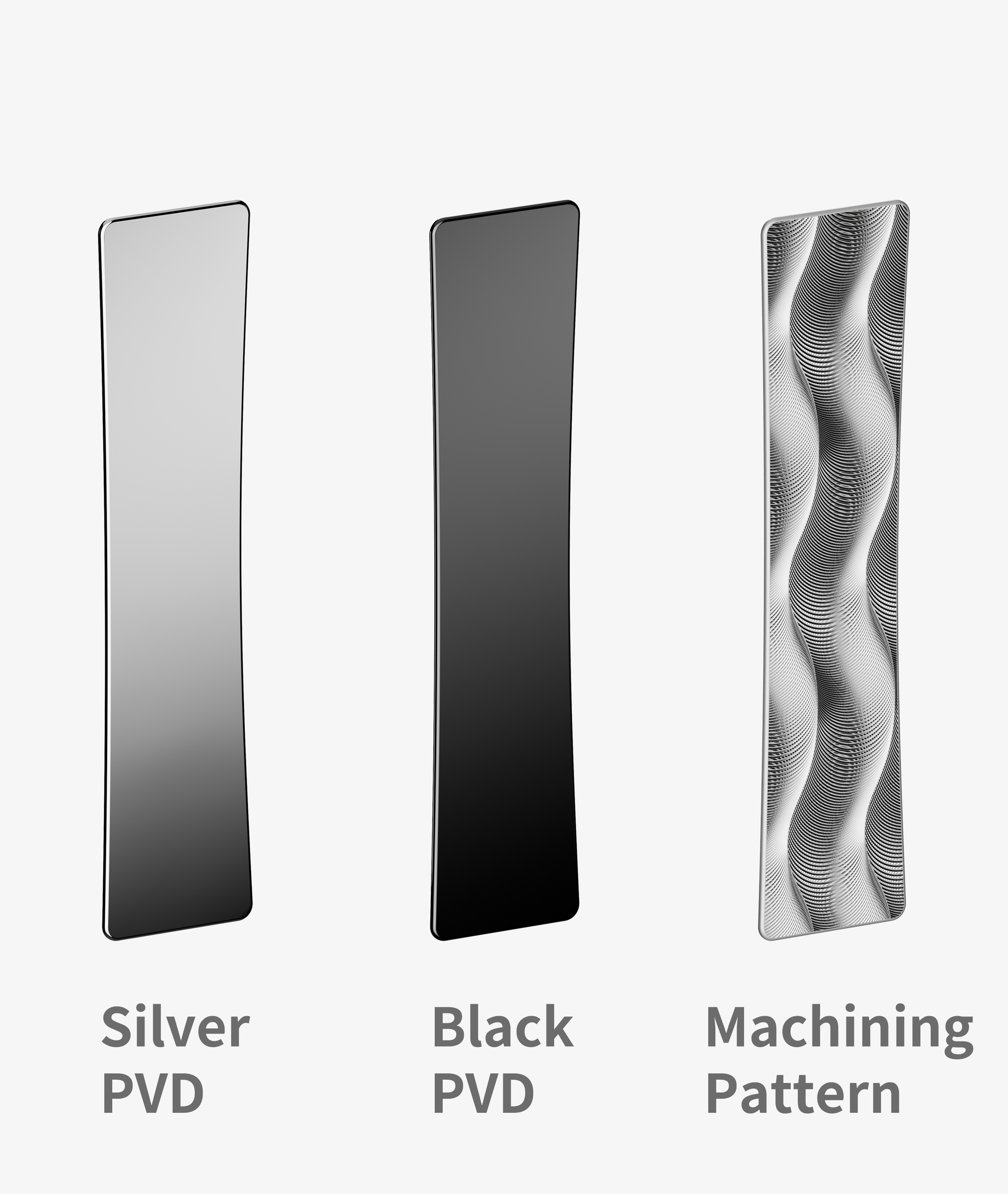

The rear view of Katina TKL is composed of three thoughtfully integrated elements: the lower case, an oversized external base weight, and a finely contoured weight plate. The generous use of materials such as stainless steel or red copper creates a striking visual presence, while the extended 18cm span of the weight block is balanced by elegantly curved crescents along its upper and lower edges. These flowing lines not only soften the sense of mass but also echo the hourglass-inspired silhouette of the keyboard’s side profile.
The Art of Light
Depth and order define the lower case, where a recessed arc engages in subtle dialogue with the base weight. Within this reserved space, two fading lines extend outward, reinforcing a sense of visual rhythm. A discreetly laser-engraved KATINA logo and a softly diffused LED—guided along the curved surface of the base—add refined detail and ambient sophistication. Through careful proportioning, intelligent layering, and precision mounting, the back achieves a harmonious and deep composition, free of visual clutter
The side profile of Katina TKL is defined by an original "Dual-Arc Curve," inspired by the elegant contour of an hourglass. This flowing line is accentuated by a subtle inflection point, lending rhythm and softness to the form. Throughout the design, auxiliary lines—such as the waistline and bottom case line—are carefully integrated not only as transitions but as stages for light and shadow, establishing a harmonious visual order.
Emotionally, Katina TKL continues iNN’s exploration of a "Floating Sensation." Through precise coordination between the bottom case and external weight, a gem-like cut-out is subtly embedded in the middle. Visible only from certain angles, this restrained detail conveys a sense of quiet presence—as though the keyboard rests lightly upon the desk, inviting a moment of contemplation.

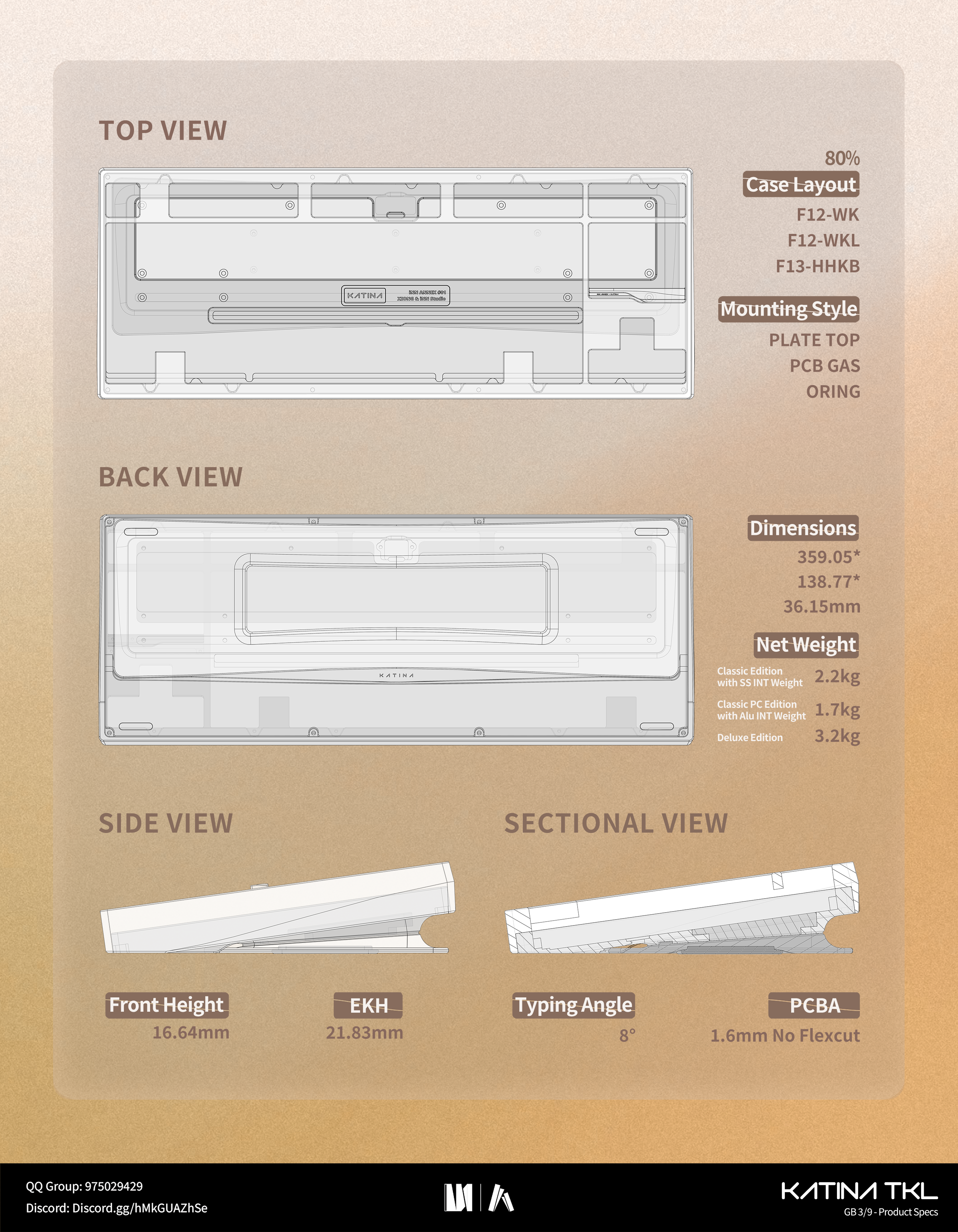

Specification:

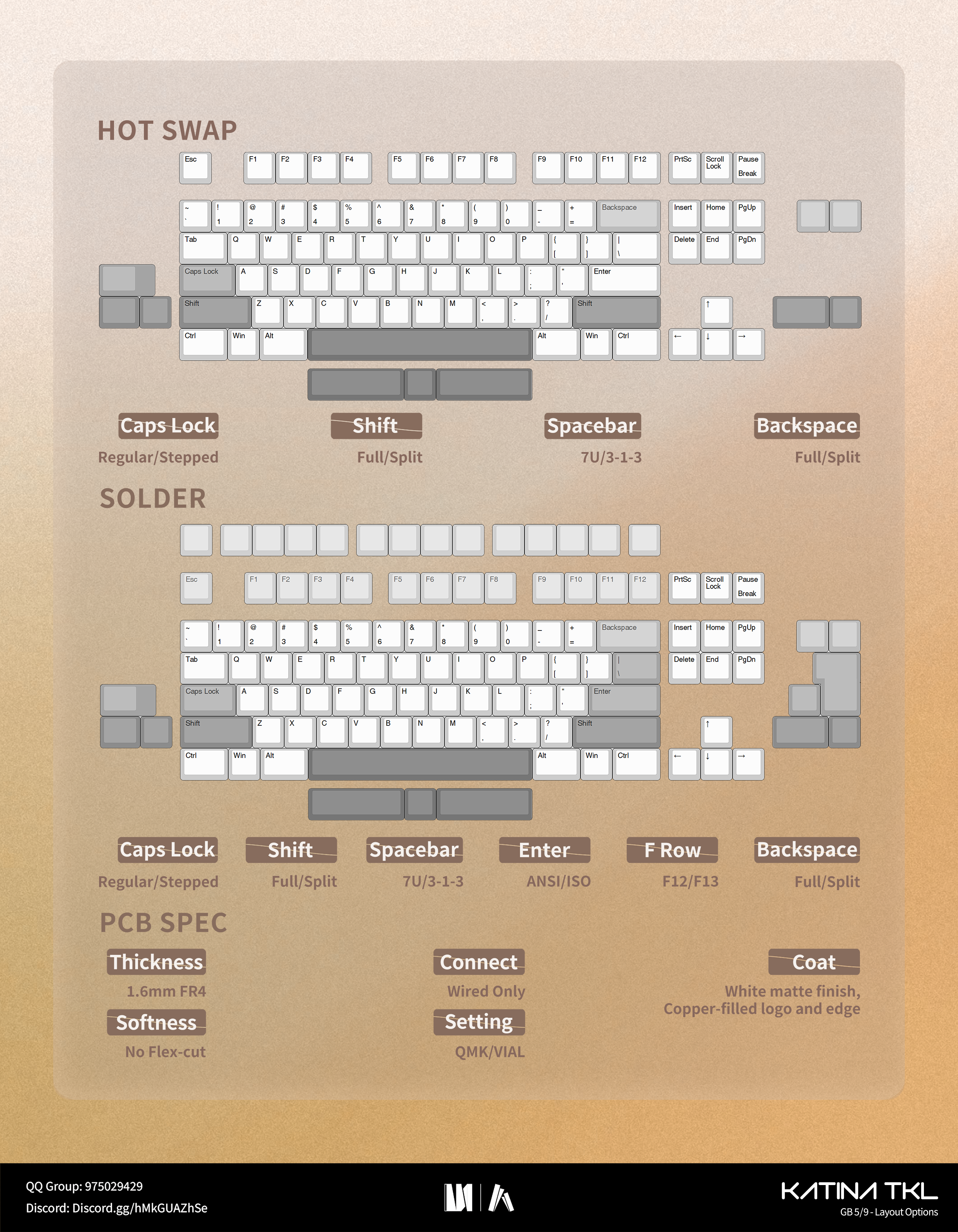

Case Layout:
Compatibility:

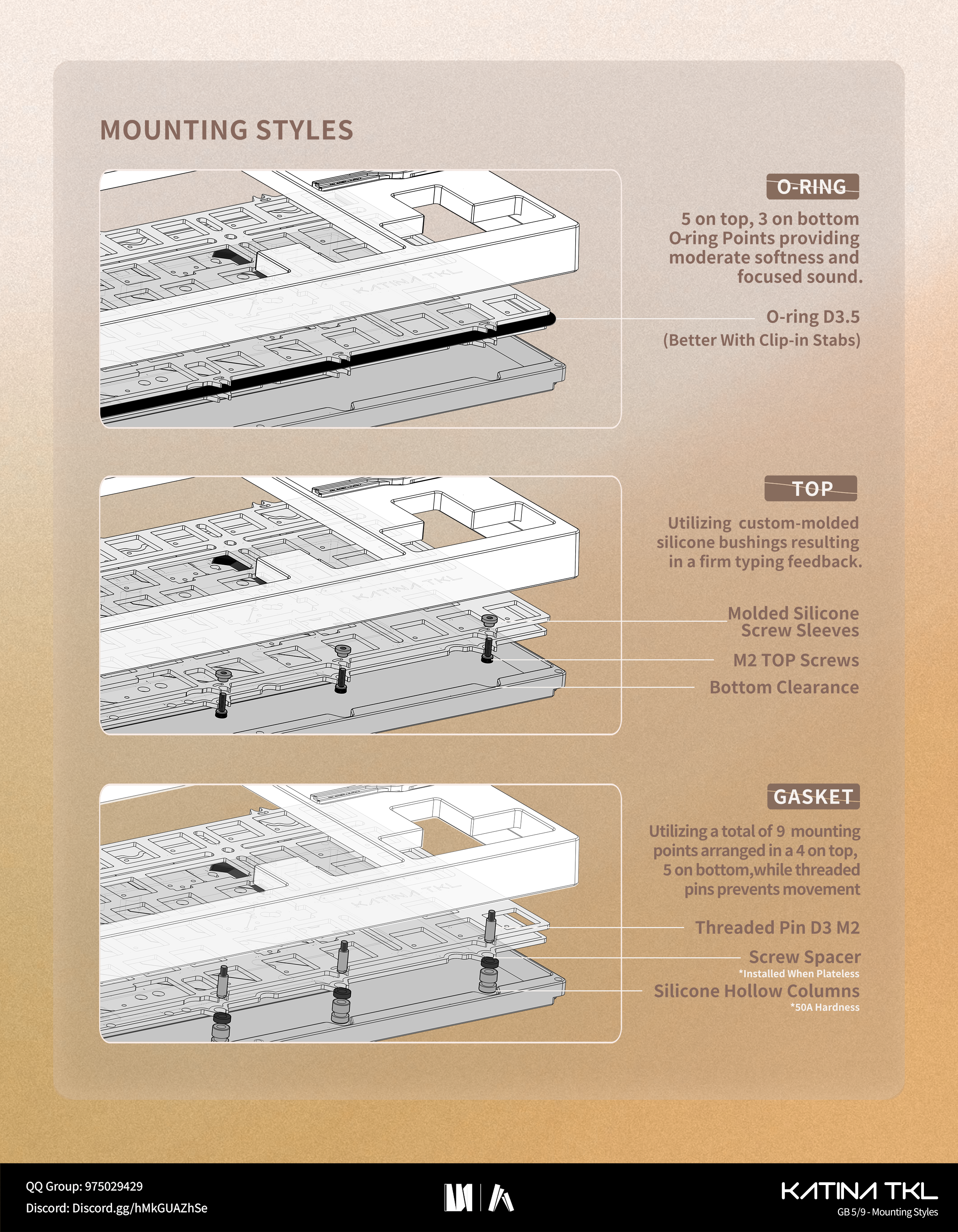

PCB Gasket Mount:
The internal assembly is suspended above the bottom case by the silicone columns, while limiting pins from the top case insert into the columns, restricting planar movement.
In this mode, the entire internal assembly makes no hard contact with the case. Simultaneously, the limiting pins introduce a subtle sense of firmness, giving a character best described as resilient.
With plateless mode and 3.7mm available travel space, the typing experience on the alphanumeric zone becomes notably soft and bouncy.
O-ring Mount:
Katina TKL adopted a configuration of 5 upper and 3 lower O-ring bosses to support the internal assembly.
It also employs standard D3.5 silicone O-ring and includes compatible clearance cuts in the plate for screw-in stabilizers. This delivers a typing experience that is moderately soft and acoustically focused.
The design is compatible with most mod parts and accessories readily available on the market,
e.g. Nexuros X Geon ‘s PCB Snap & Key Snap
Isolated TOP Mount:
The Katina TKL can also be configured in a top-mounted mode using M2 cup head screws fitted with custom silicone sleeves.
The degree of screw tightness can be adjusted to influence the down travel to some extent, while the plate makes only minimal contact with the screw heads.
This design effectively isolates vibration and unwanted noise, resulting in a solid typing feedback.

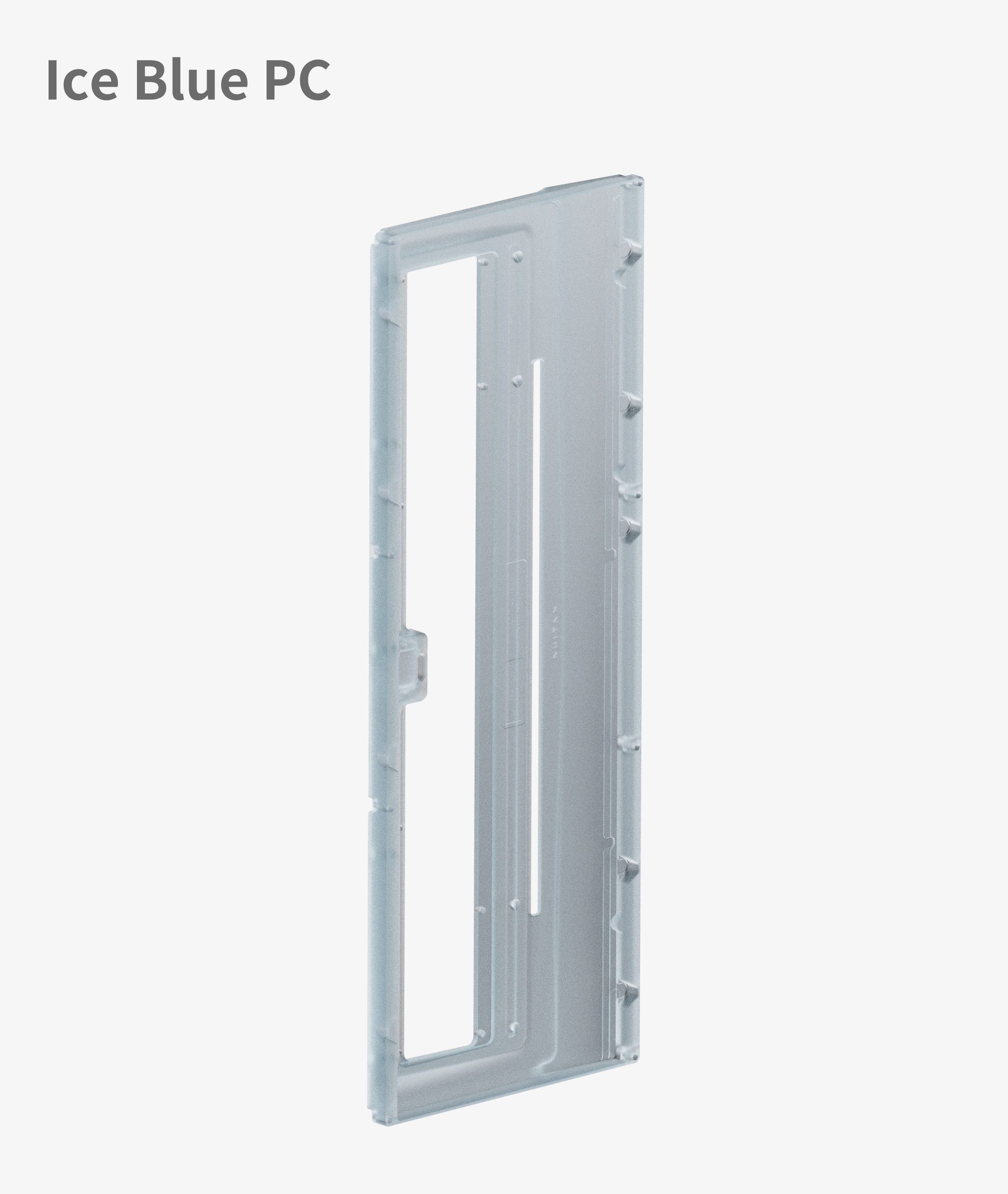

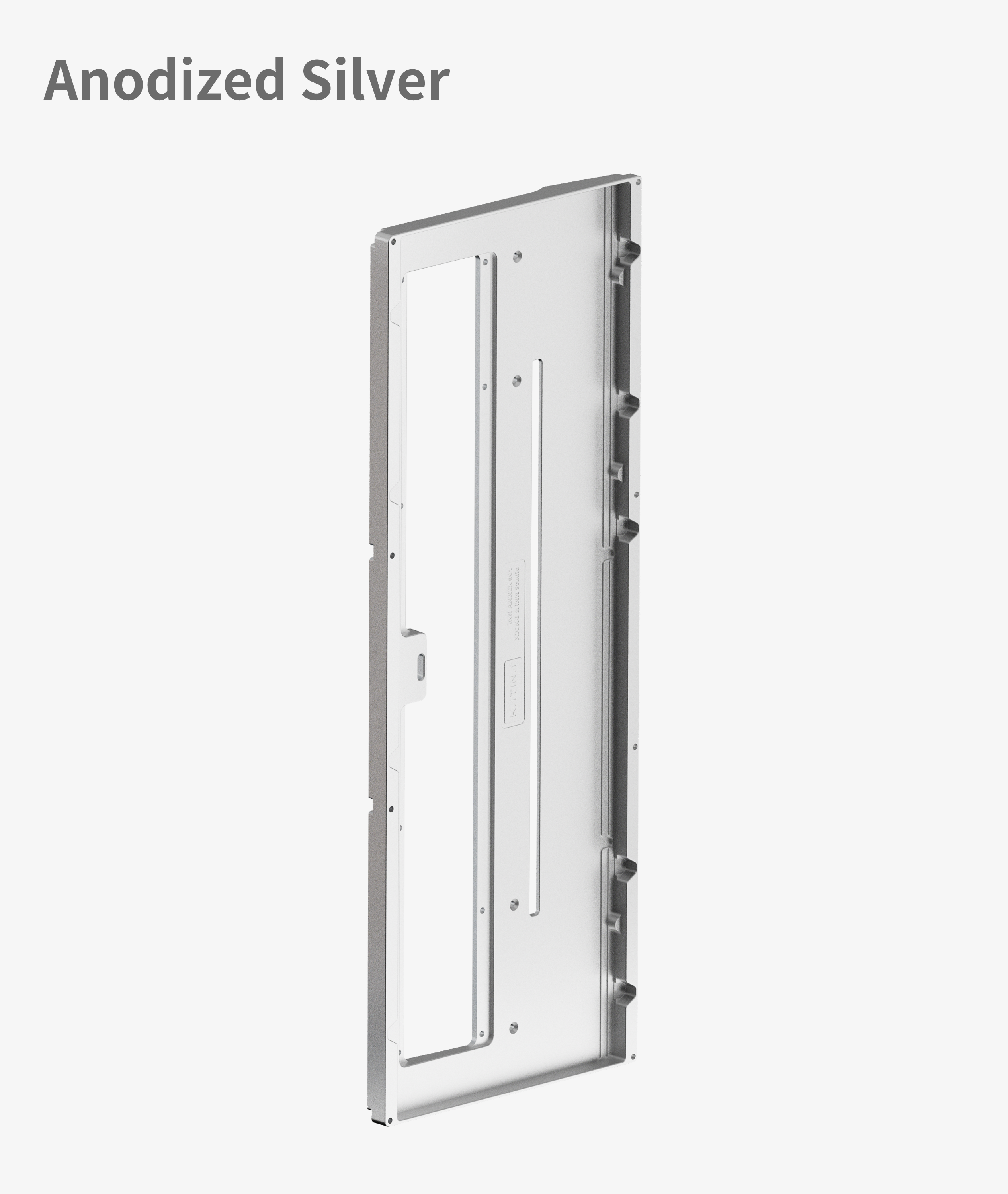

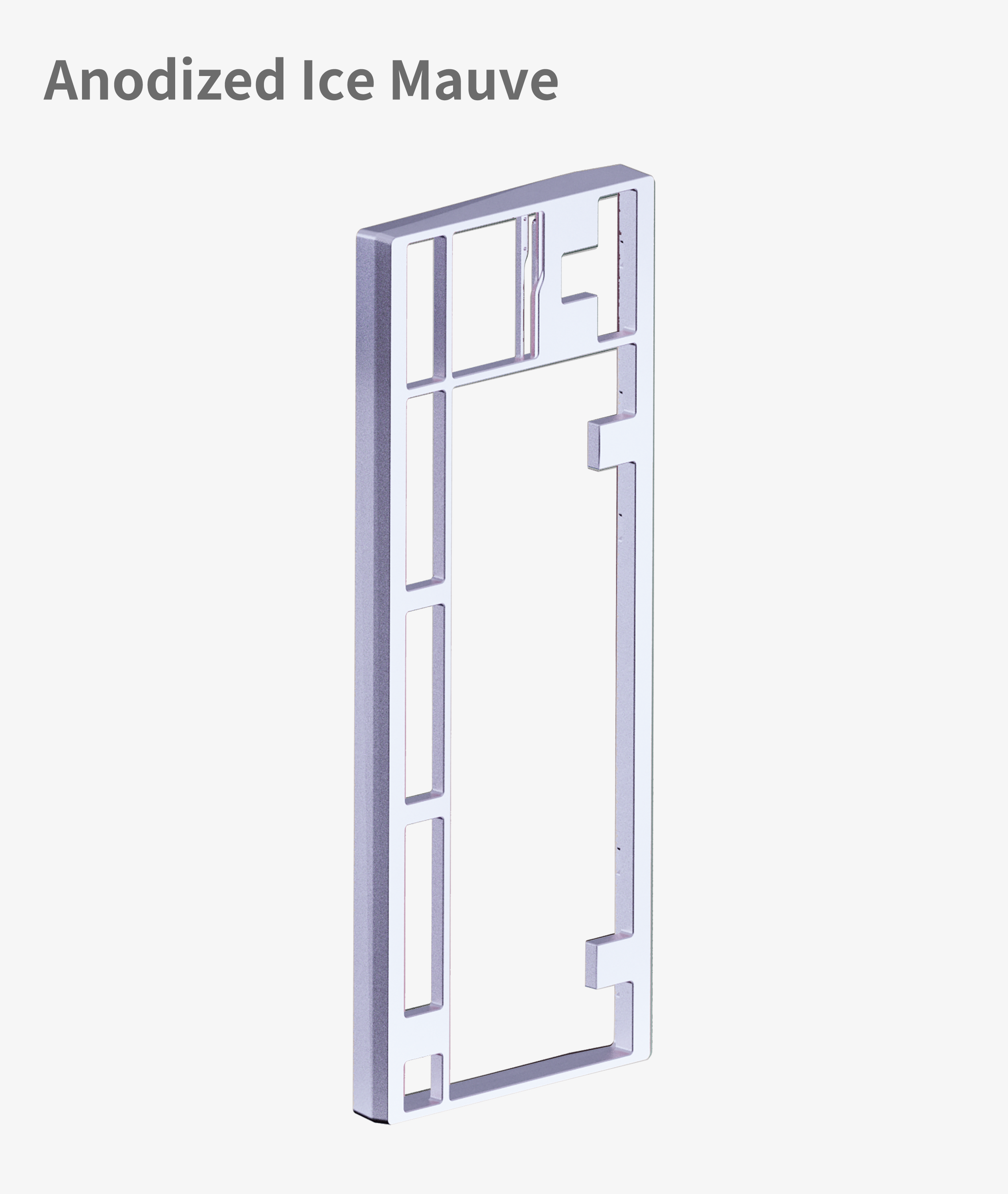

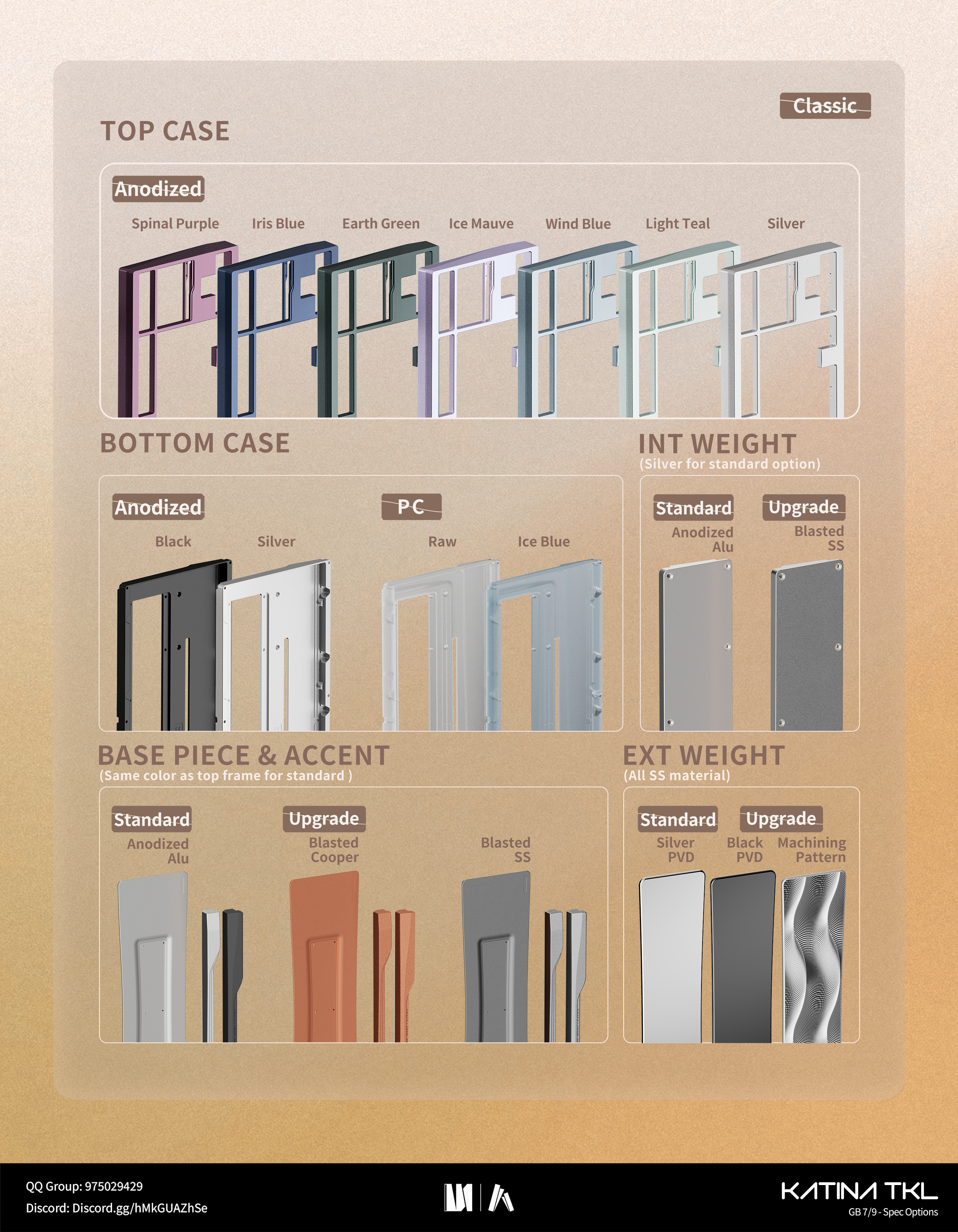

Colour Options:

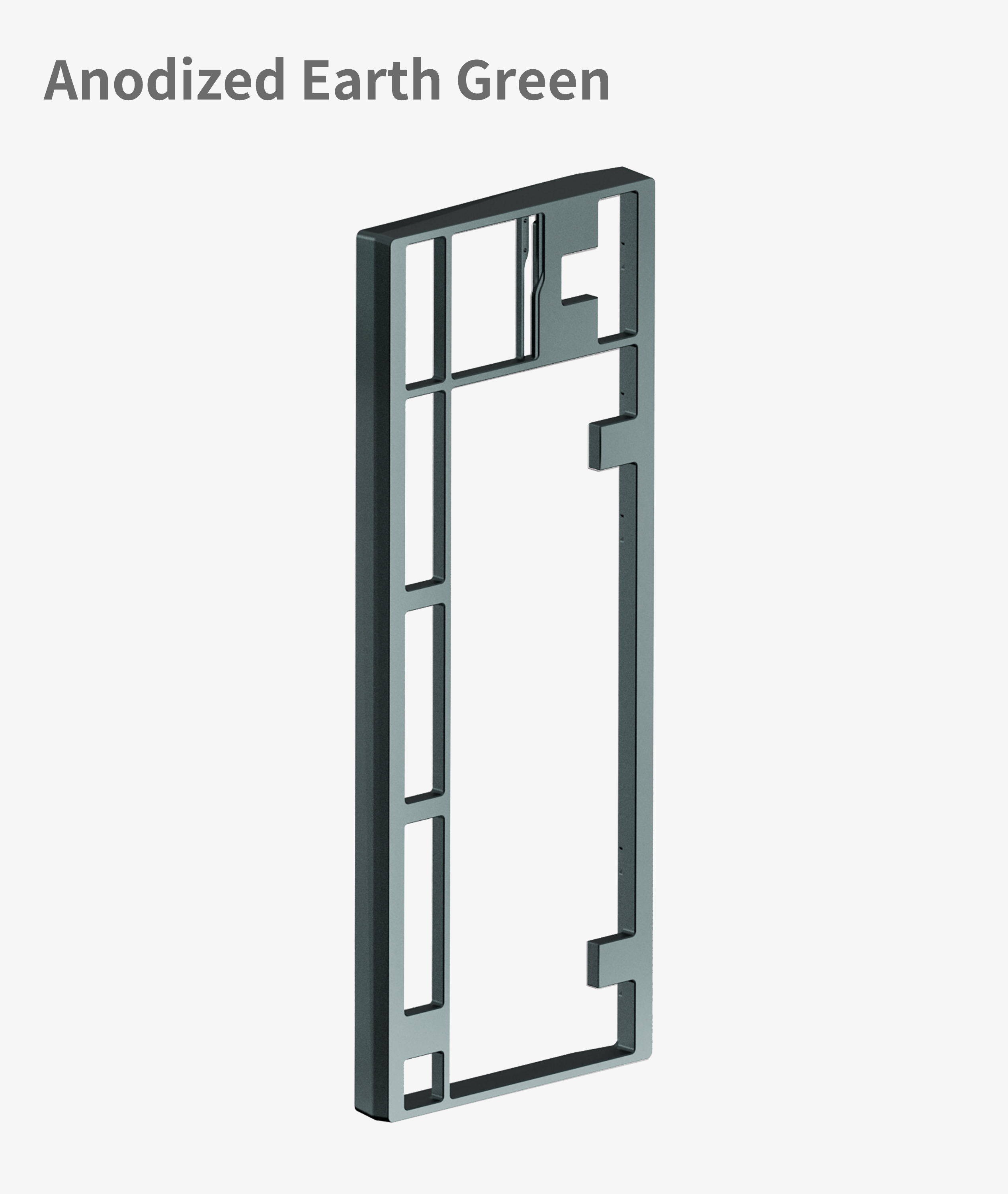

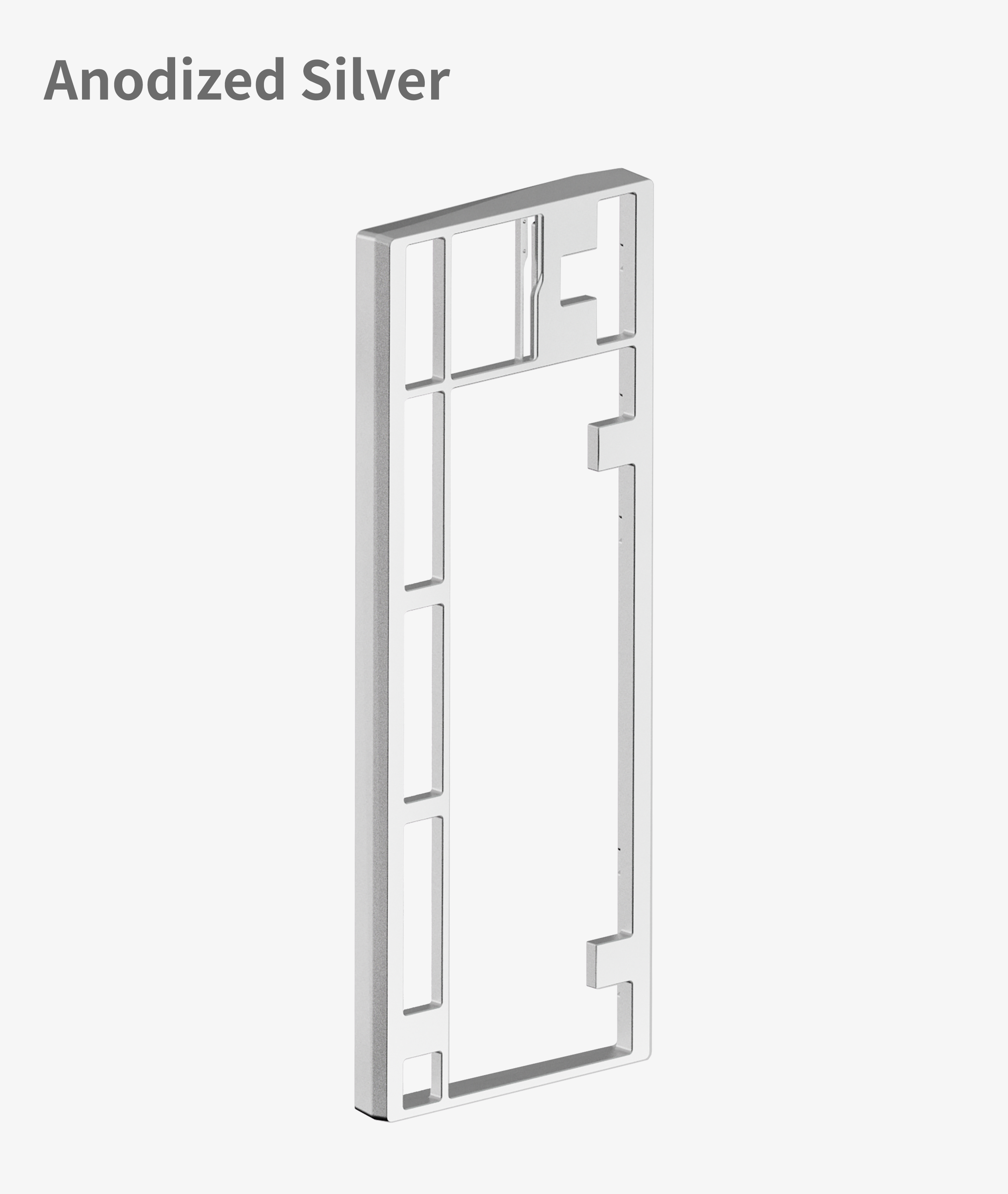

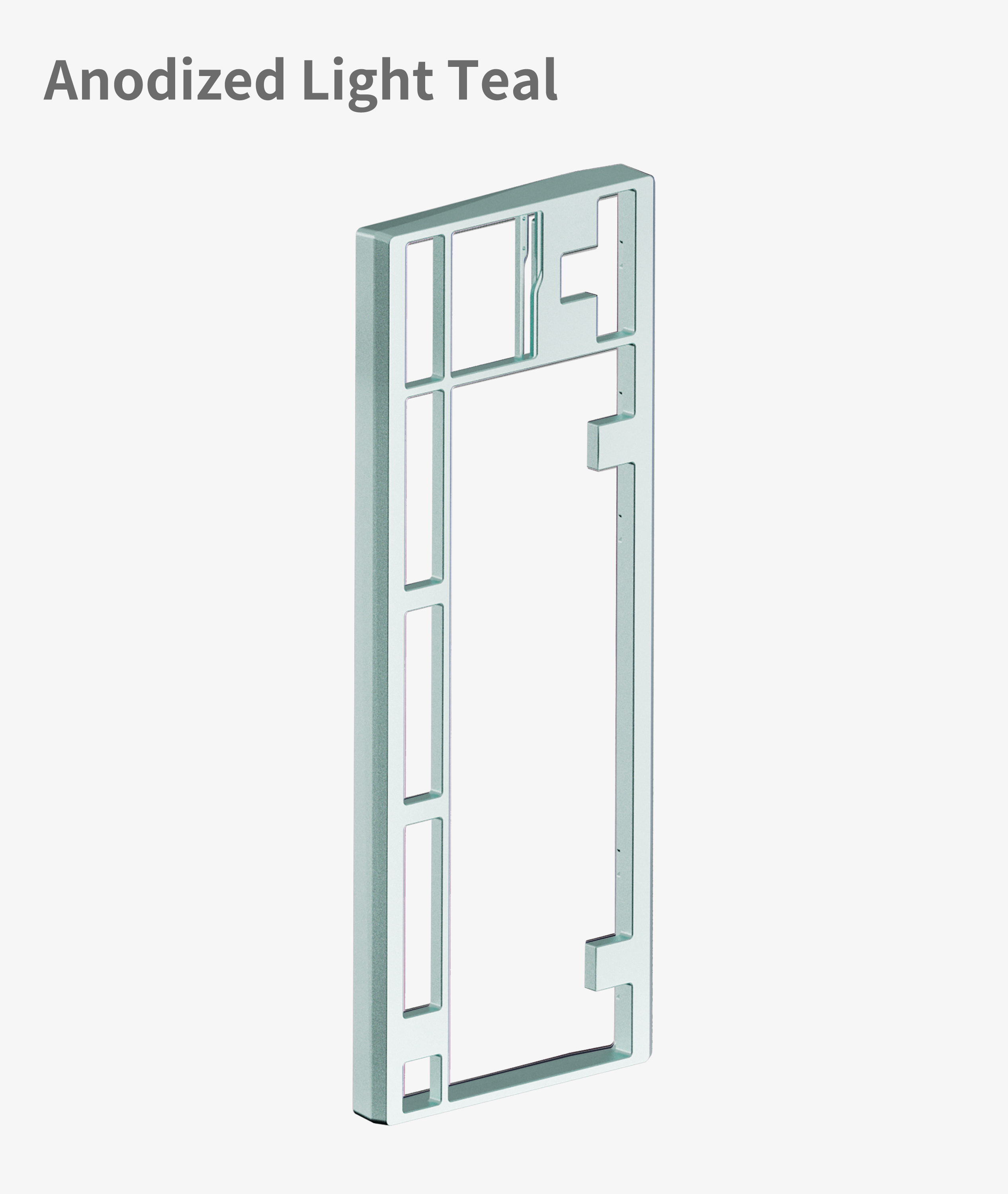

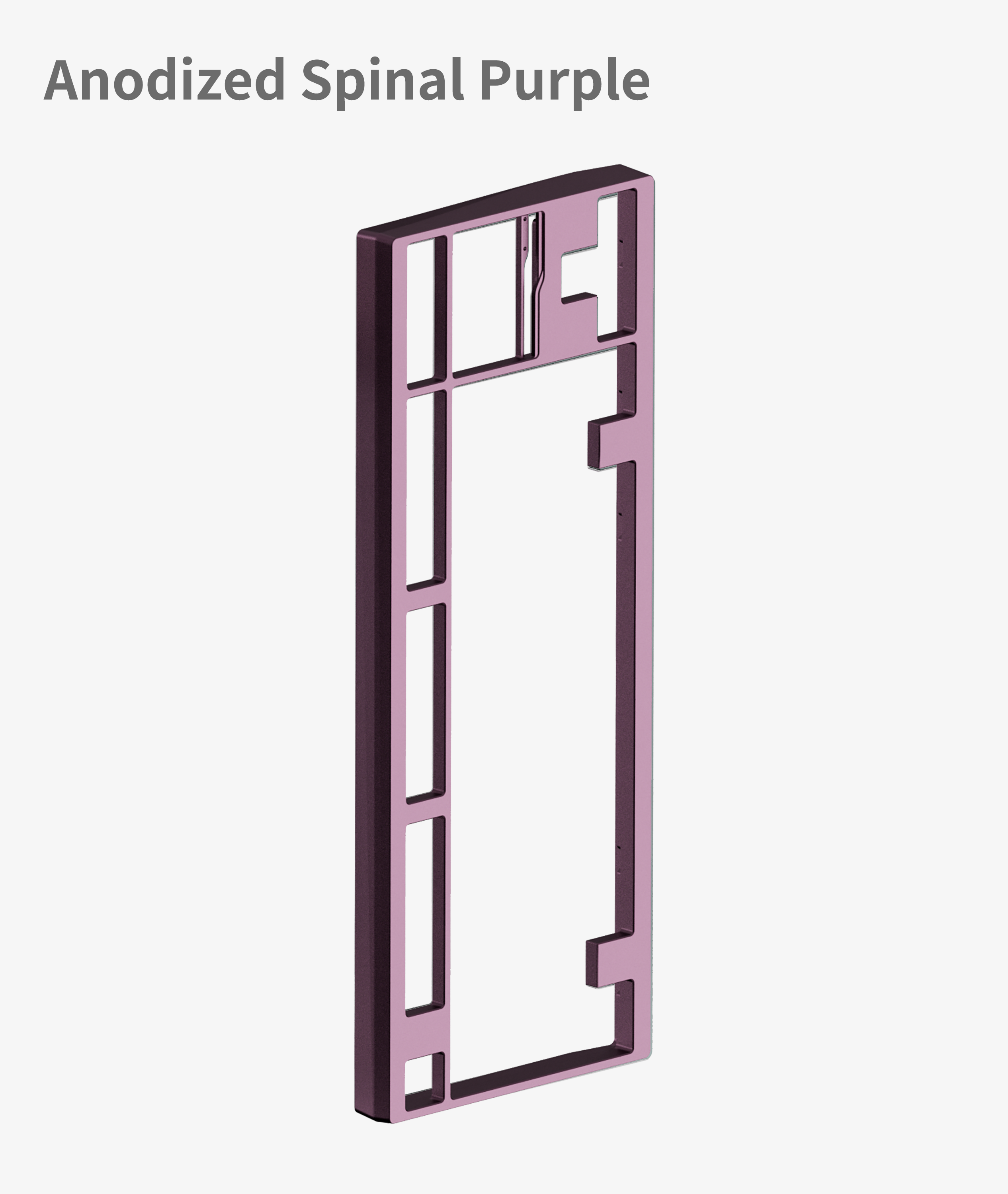

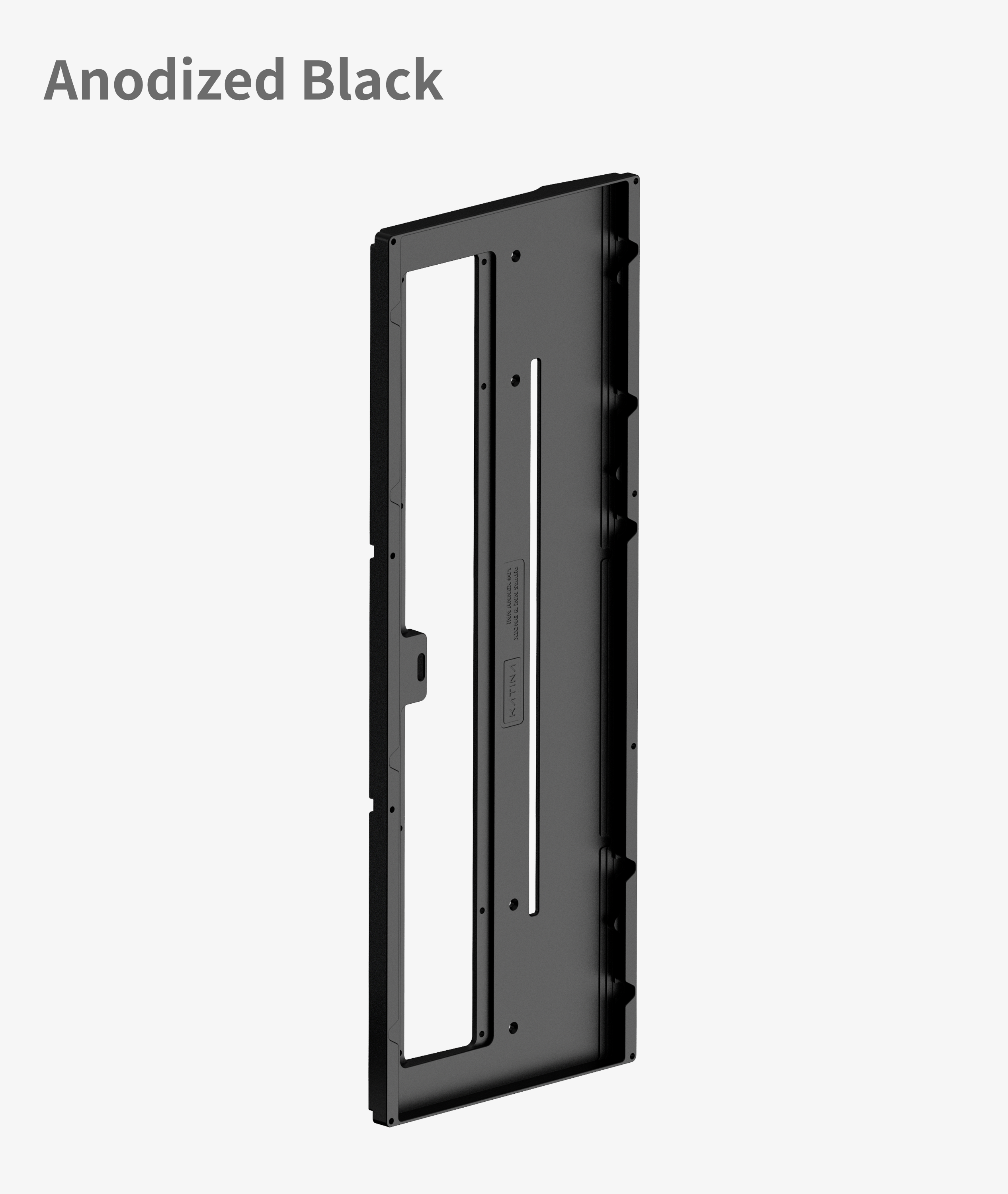

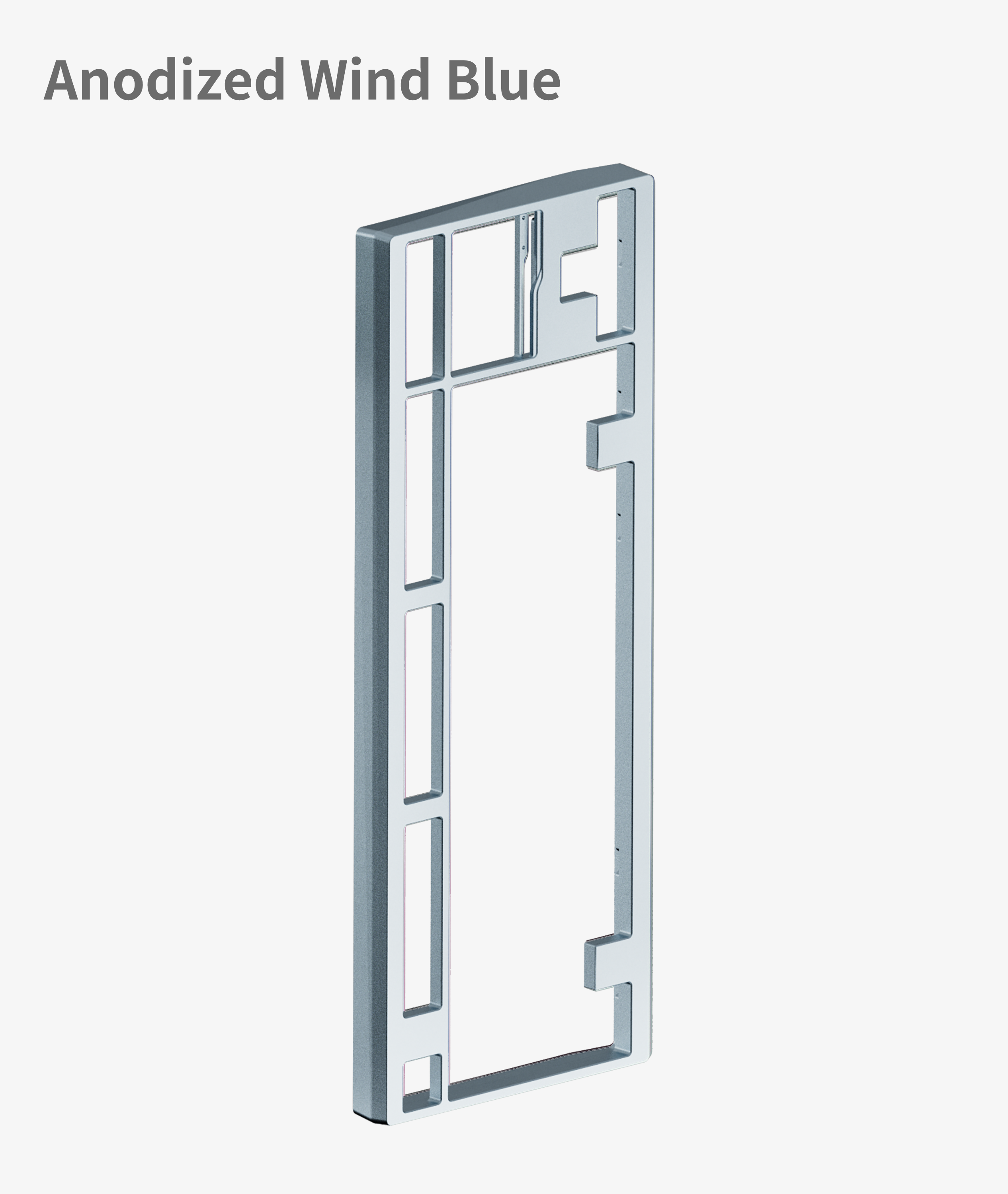

Anodized:

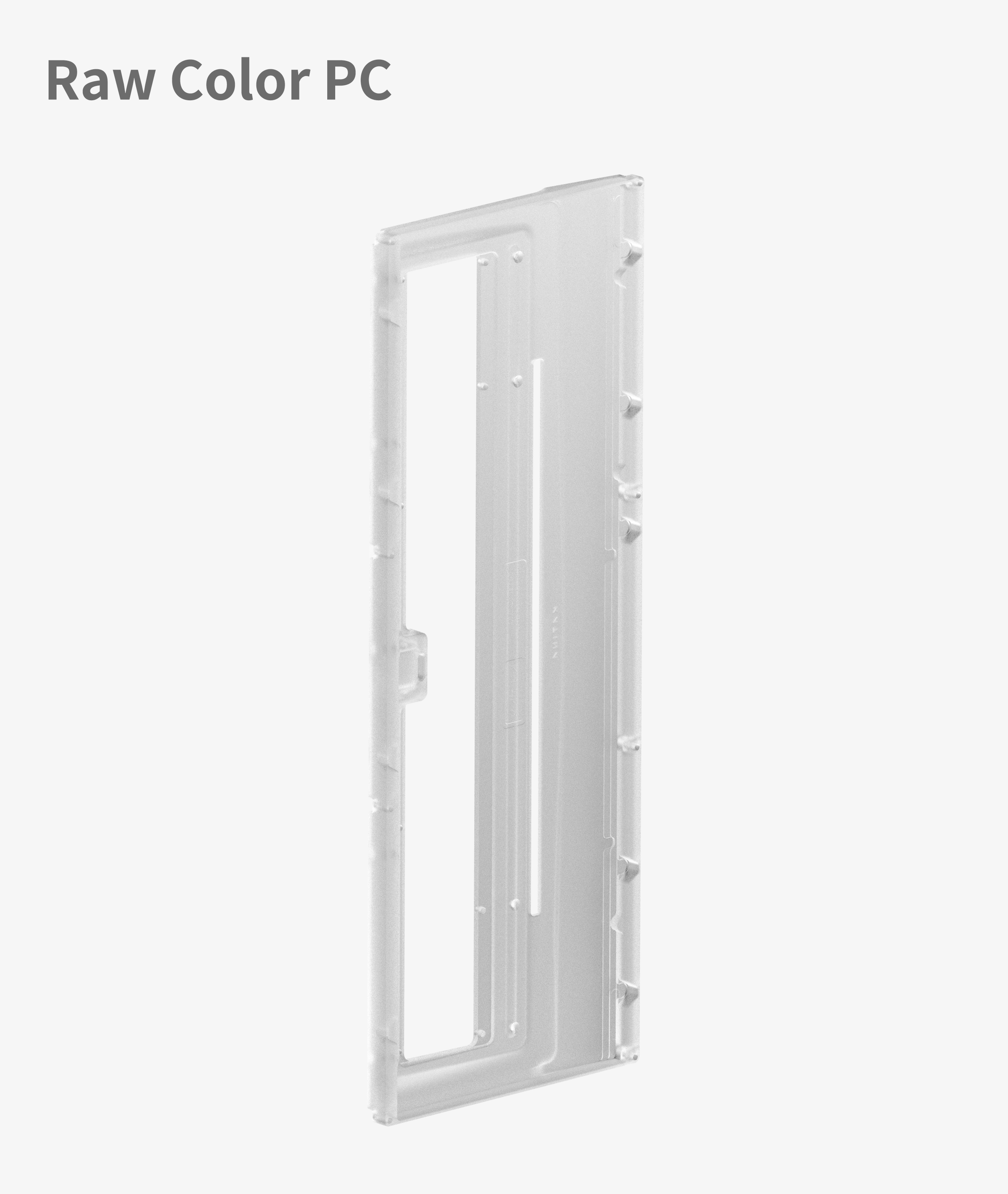

Coated:
Note: Color with *mark means its exclusive for Deluxe Edition
Please note that images may be of 3D renders and are for illustration purposes only. The final colours may differ slightly under different lighting.
Only the products detailed in the description are included. Other products are shown for demonstrative purposes only and are not included. Please check Keyset kitting images carefully for included keys. Please check Keyboard layout options carefully to ensure it meets your requirements.
Please note that this is a Group Buy. There can be delays and set backs. The timeline is only an estimate. By adding this item to your cart and purchasing you agree that you understand everything above. You will be charged immediately for this item. There are no refunds or cancellations on these orders due to their bespoke nature. Please do not purchase this item with other group buys or pre-orders as this will delay shipping till all items are available. Only the items specified in each product picture are included with that particular product.
These products are set to be shipped out at the date specified above, but please check our updates for the latest information.
