(Group Buy) MKC65 Keyboard Kit

Sale price£79.17
Sold out

Closing Date: February 15th 2024

Expected Shipping time: Q2 2024



Bonus - Order in the first week of the GB and receive a  MKC Titanium Switch Puller



MKC65 Features:

  • Compact 65% layout.

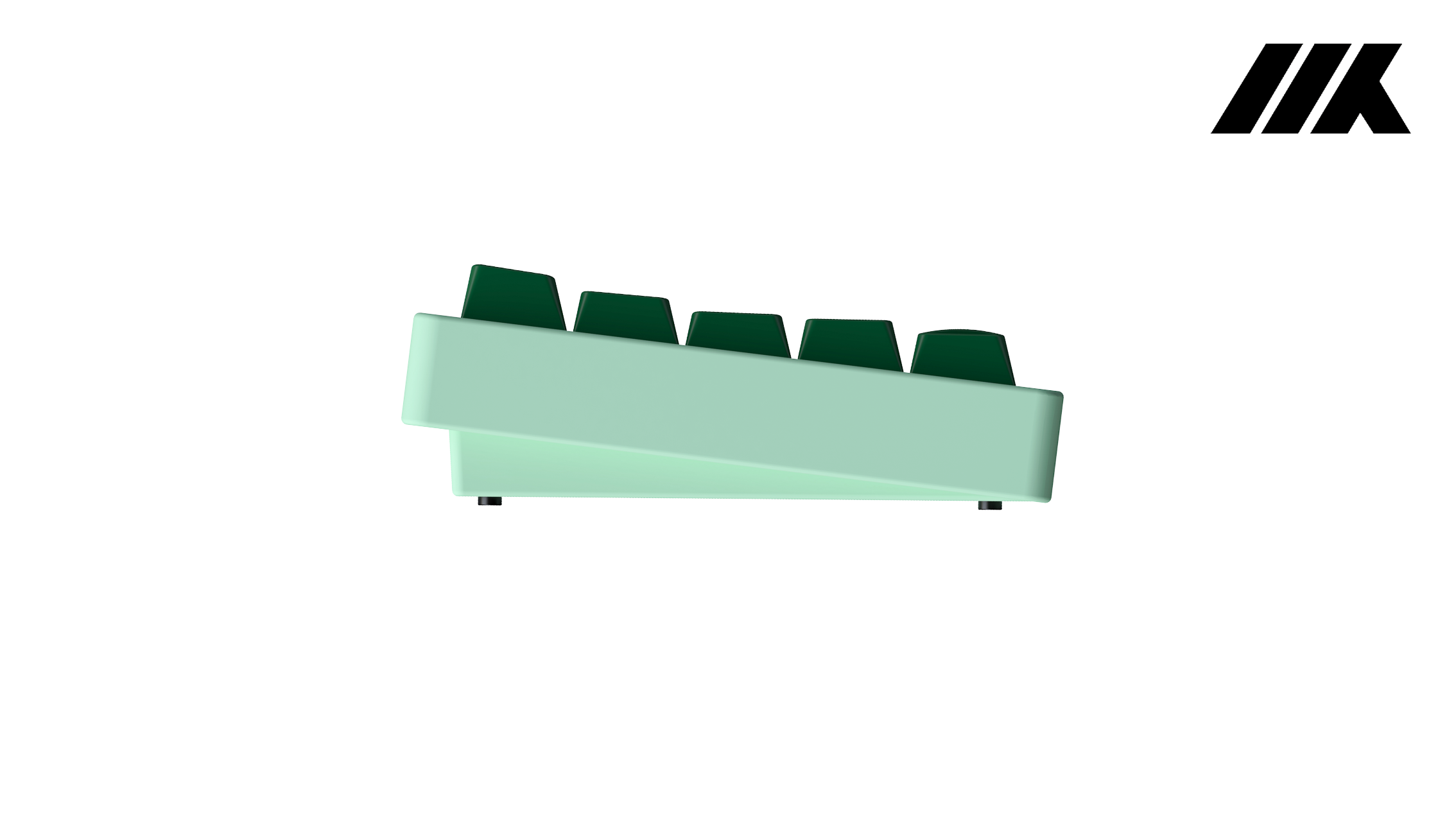

  • 5° typing angle for a more comfortable typing experience.
  • 100% CNC-machined with 6063 aluminum case.
  • Alu Internal Weight, adding to the overall weight and stability.
  • Simultaneously support two functional modules (Rotary Knob & Light Sign), also compatible with JRIS80 Rotary Knob/LED Light Sign.
  • Three-in-one design with Top Mount, Plate Gasket Mount, and PCB Gasket Mount for an enhanced keyboard experience.
  • Supports tri-mode PCB (Wired, Bluetooth and 2.4ghz).
  • Supports Plate and Plateless Build.
  • Supports Caps Lock Indicator Light.
  • 2 x 1100mha large battery capacity



 Three-in-one Structure:

Three-in-one structure (Top Mount, Plate Gasket Mount, and PCB Gasket Mount) is a versatile keyboard mounting system that combines the distinctive features of these three structures for comprehensive performance. Users can customize based on personal preferences and usage scenarios.

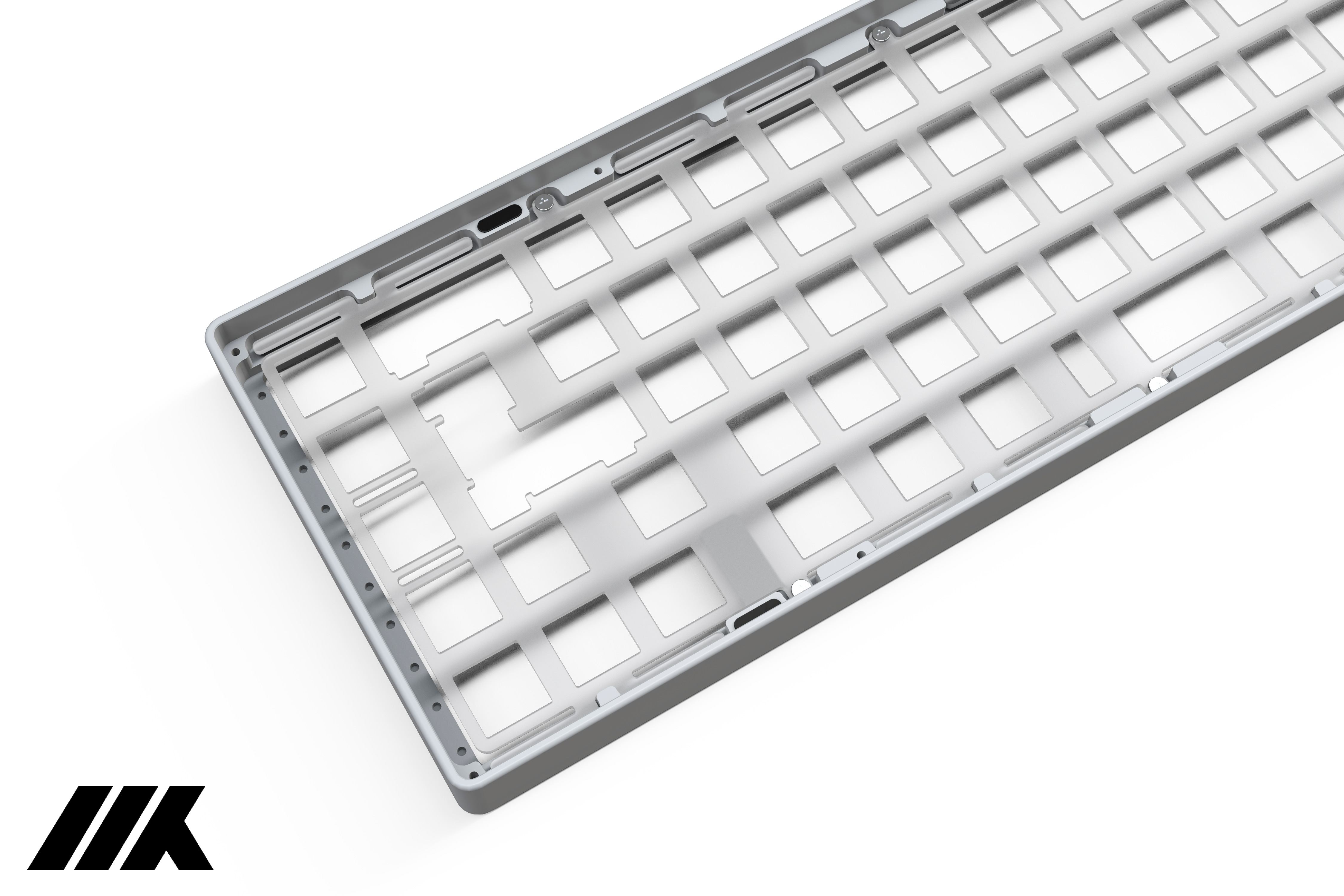

  • TOP Mount
  • Plate Gasket Mount

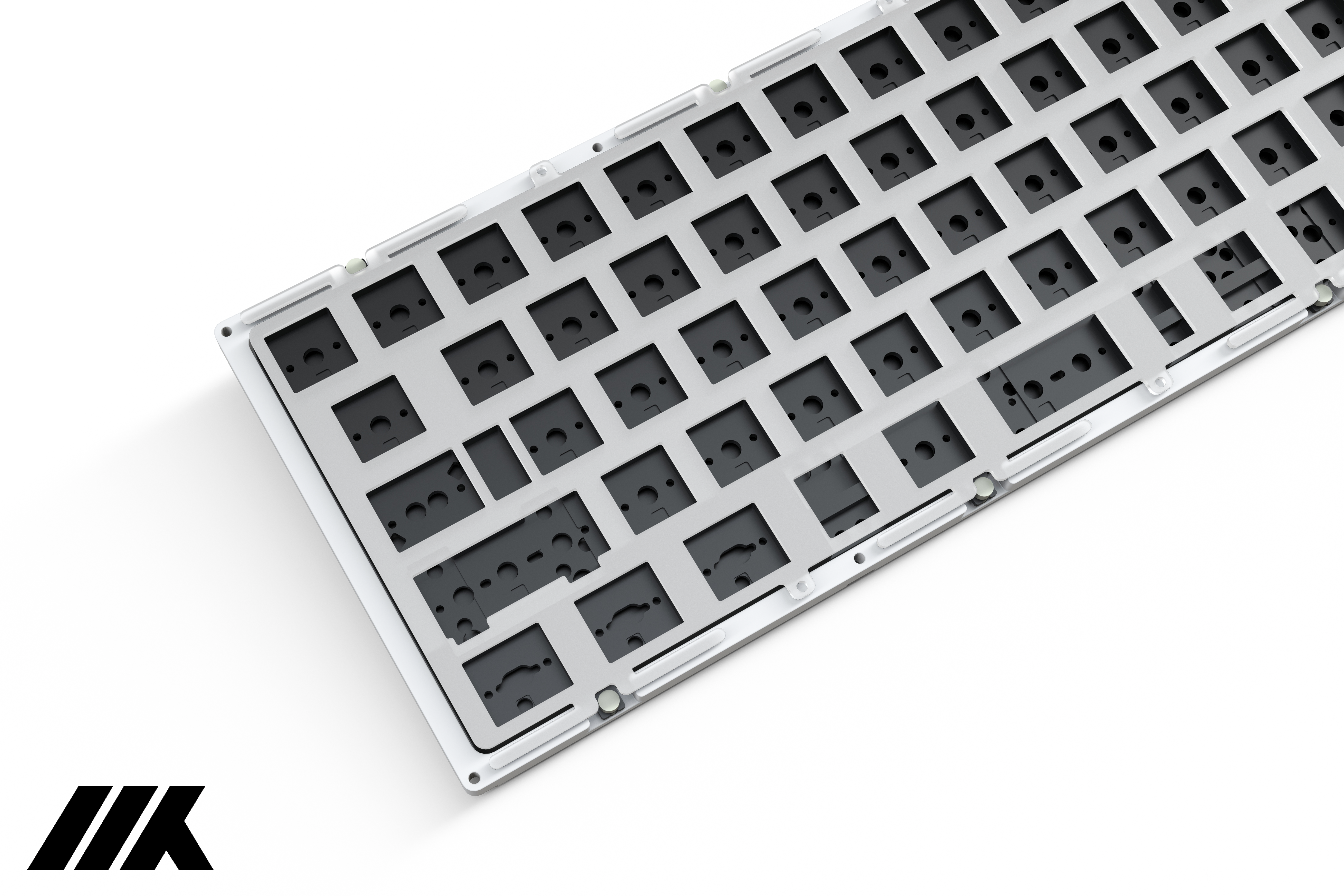

  • PCB Gasket Mount

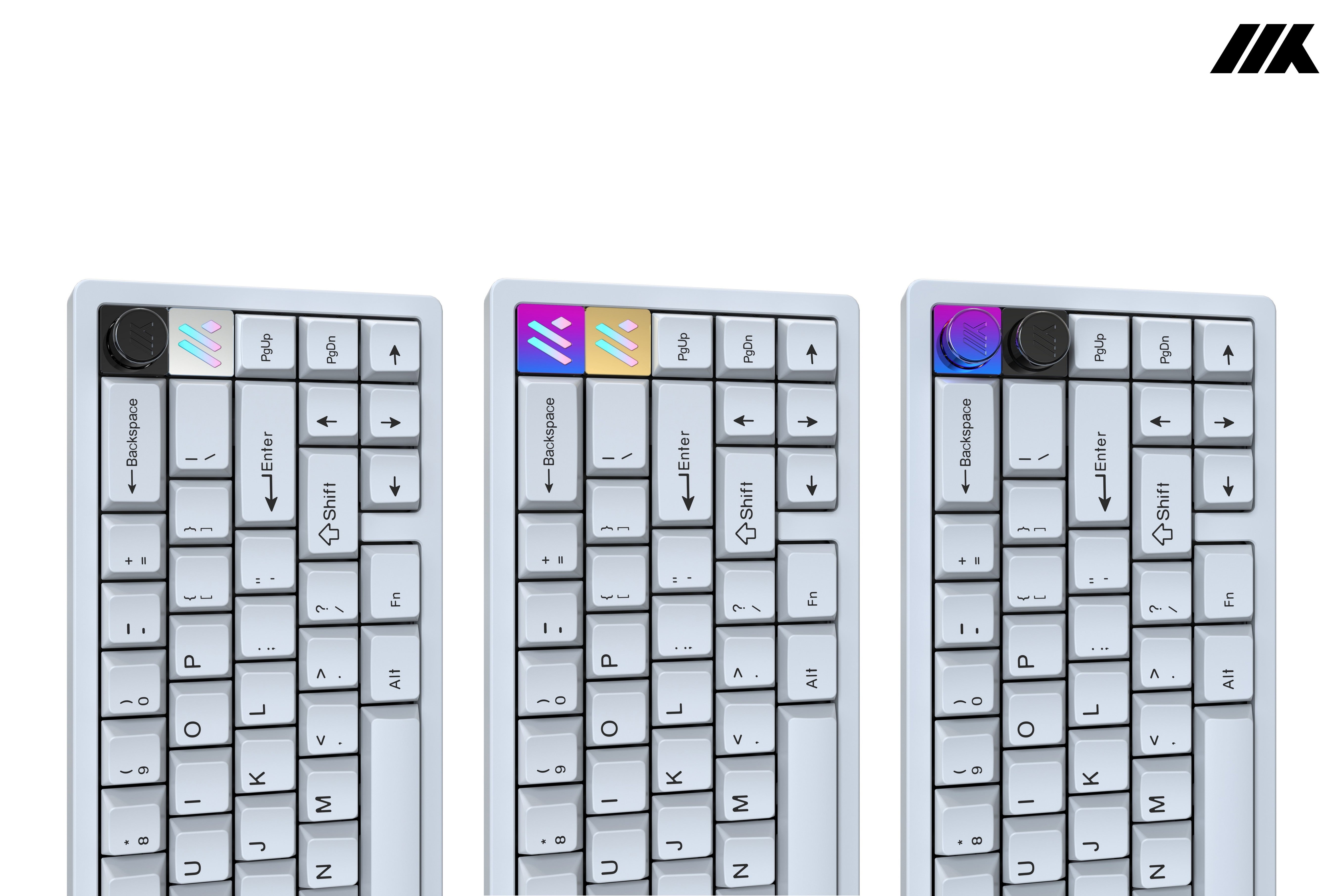

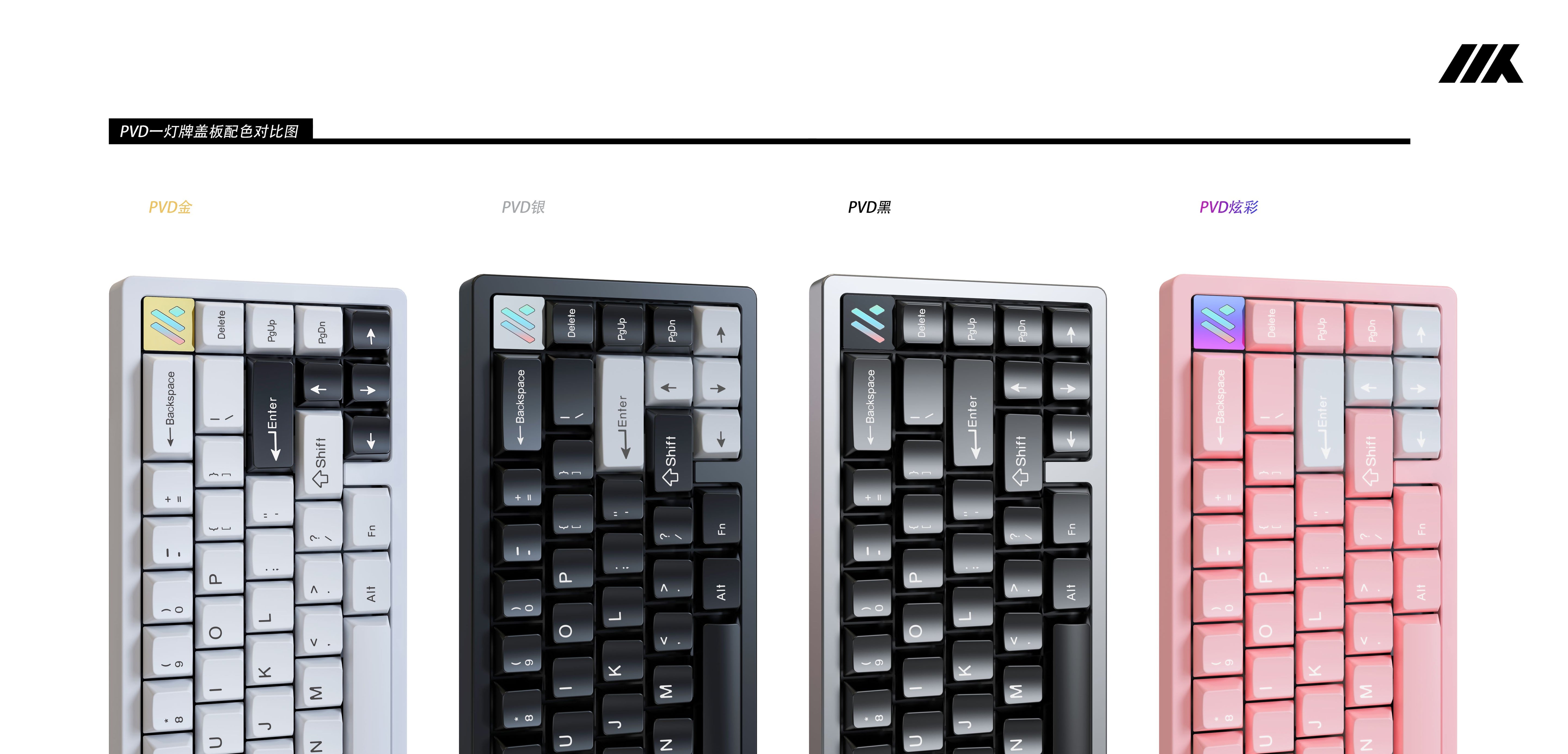

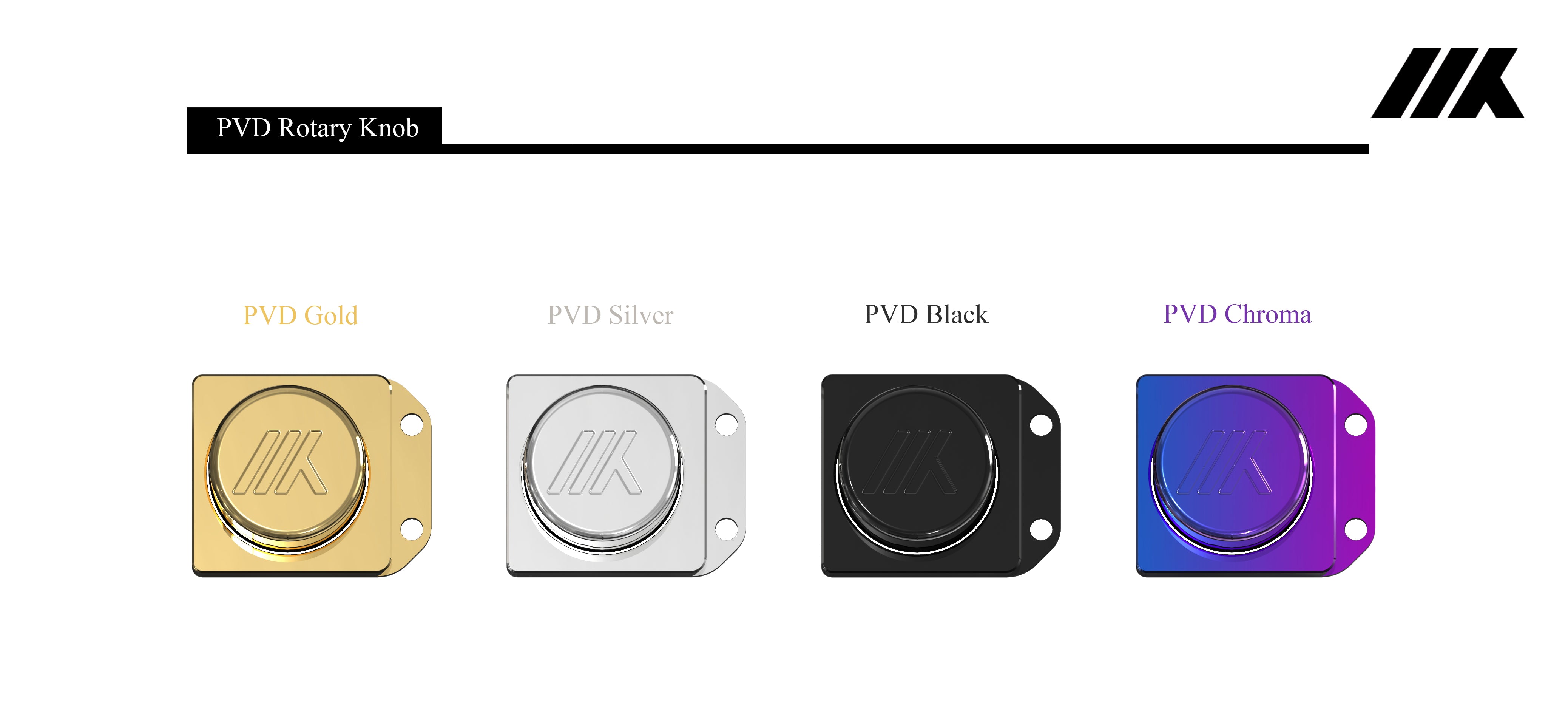

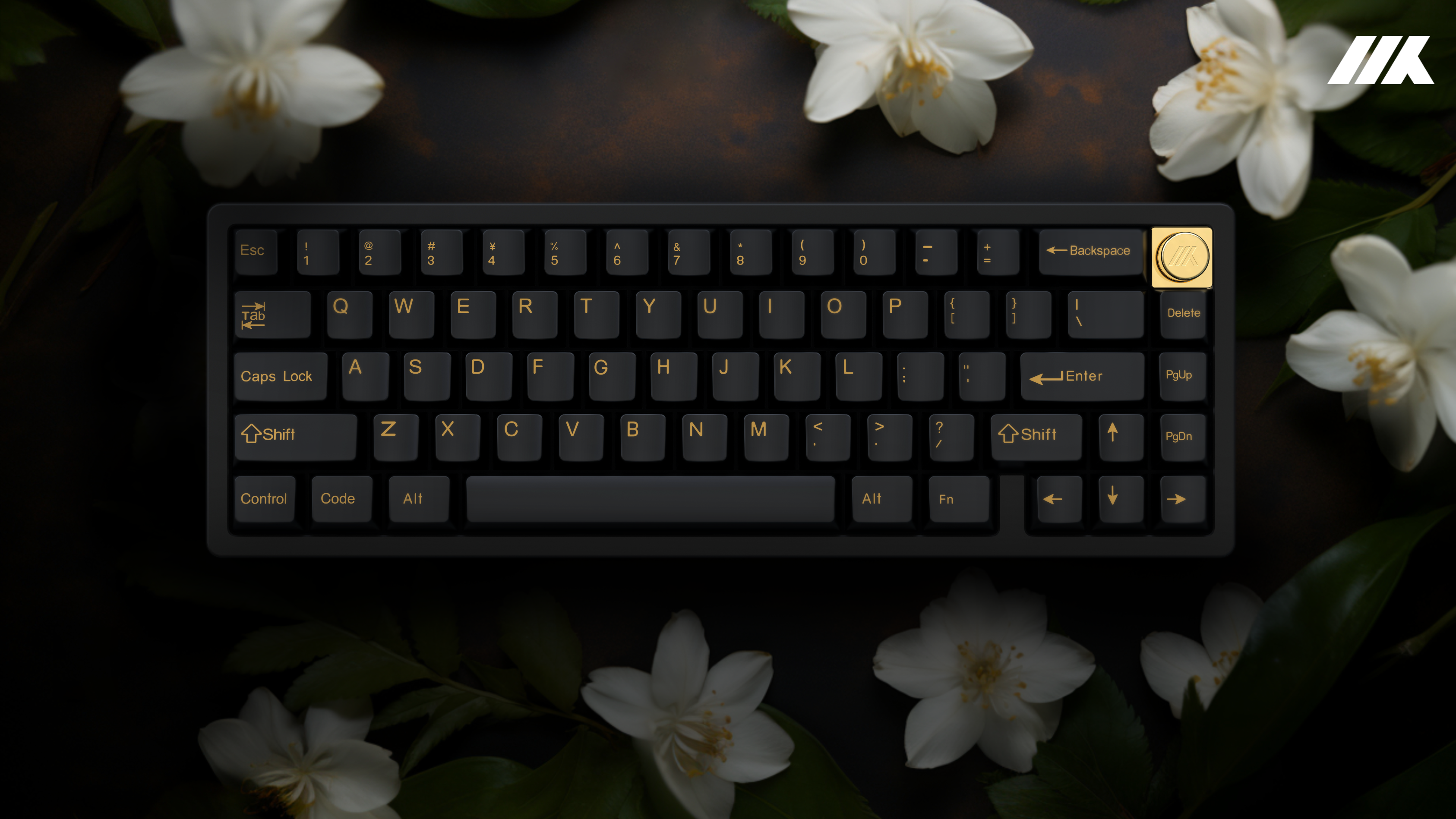

Support Rotary Knob & LED Light Sign at the same time:

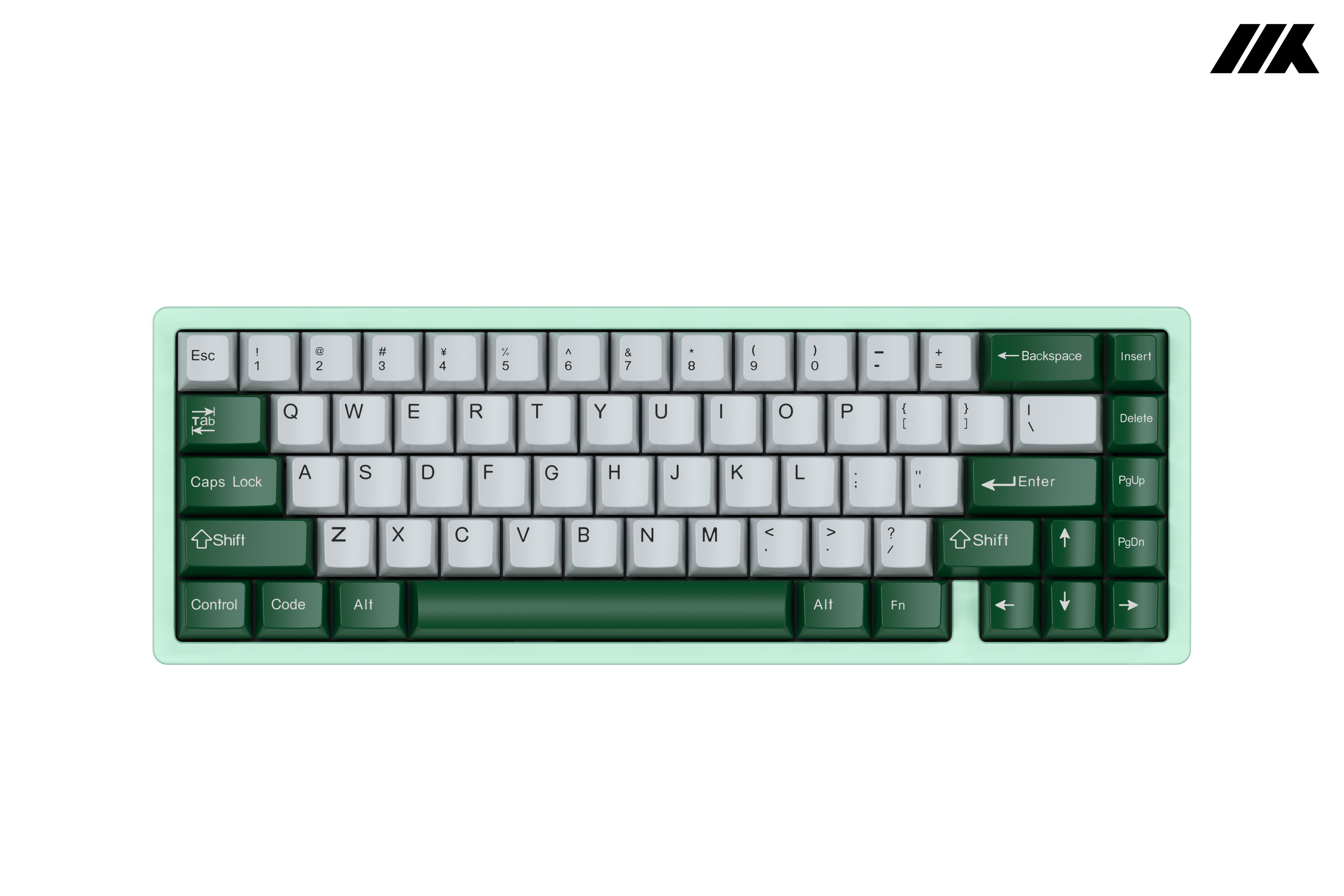

The four keys located on the rightmost row of the MKC65 keyboard (Insert, Delete, PgUp, and PgDn keys) can function as a customizable module. The Rotary Knob and Light Sign can be interchanged among any four keys, and they don't necessarily need to be connected together.

It supports a maximum of two functional modules simultaneously. For example, 2* Rotary Knob, 2* Light Sign, or 1* Rotary Knob + 1* Light Sign

Note: The Rotary Knob and Light Sign have a separate daughterboard. And please note that the wired and wireless versions of the knob are not compatible.

Customise Options for MKC65:

8 Case Options:

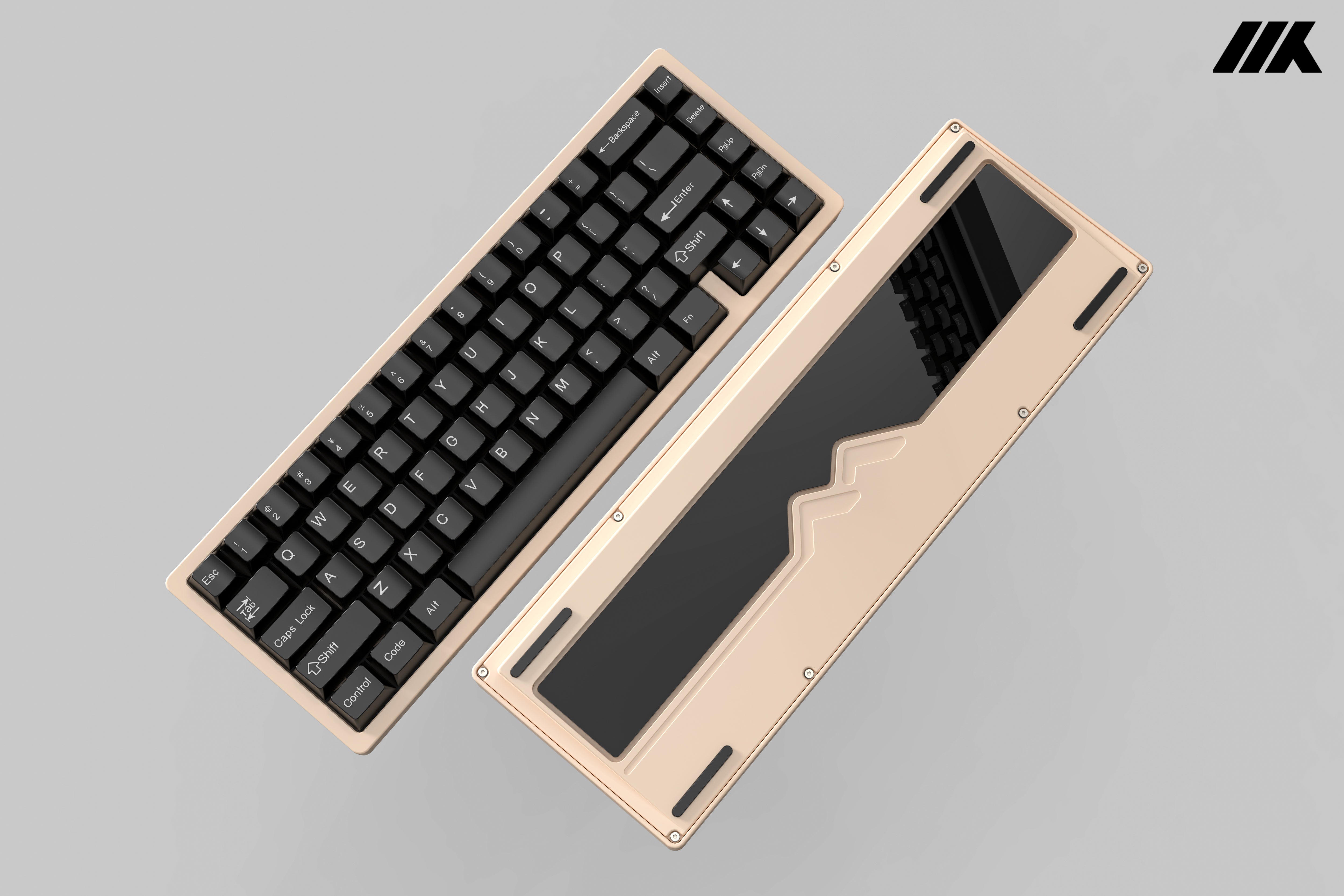

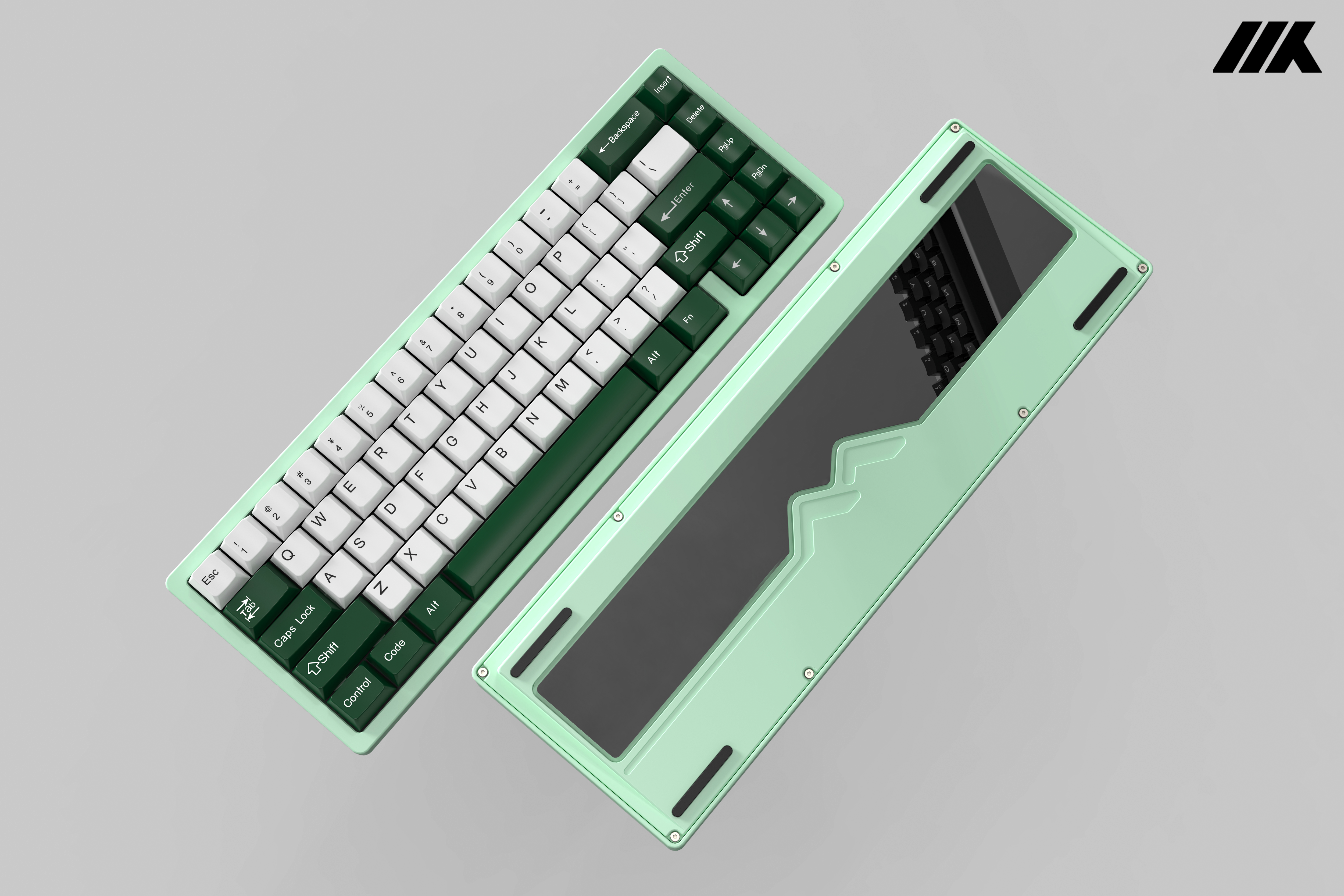

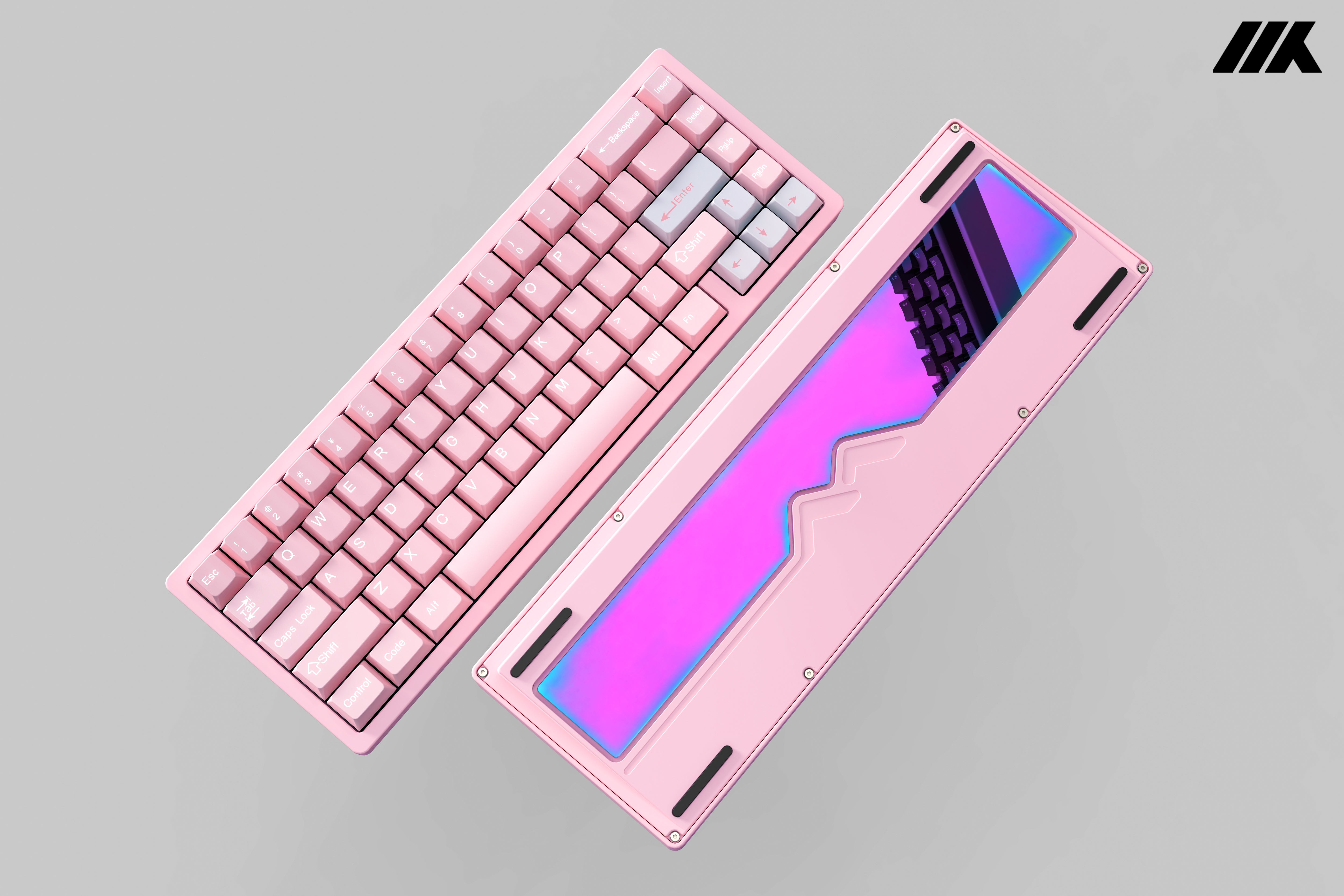

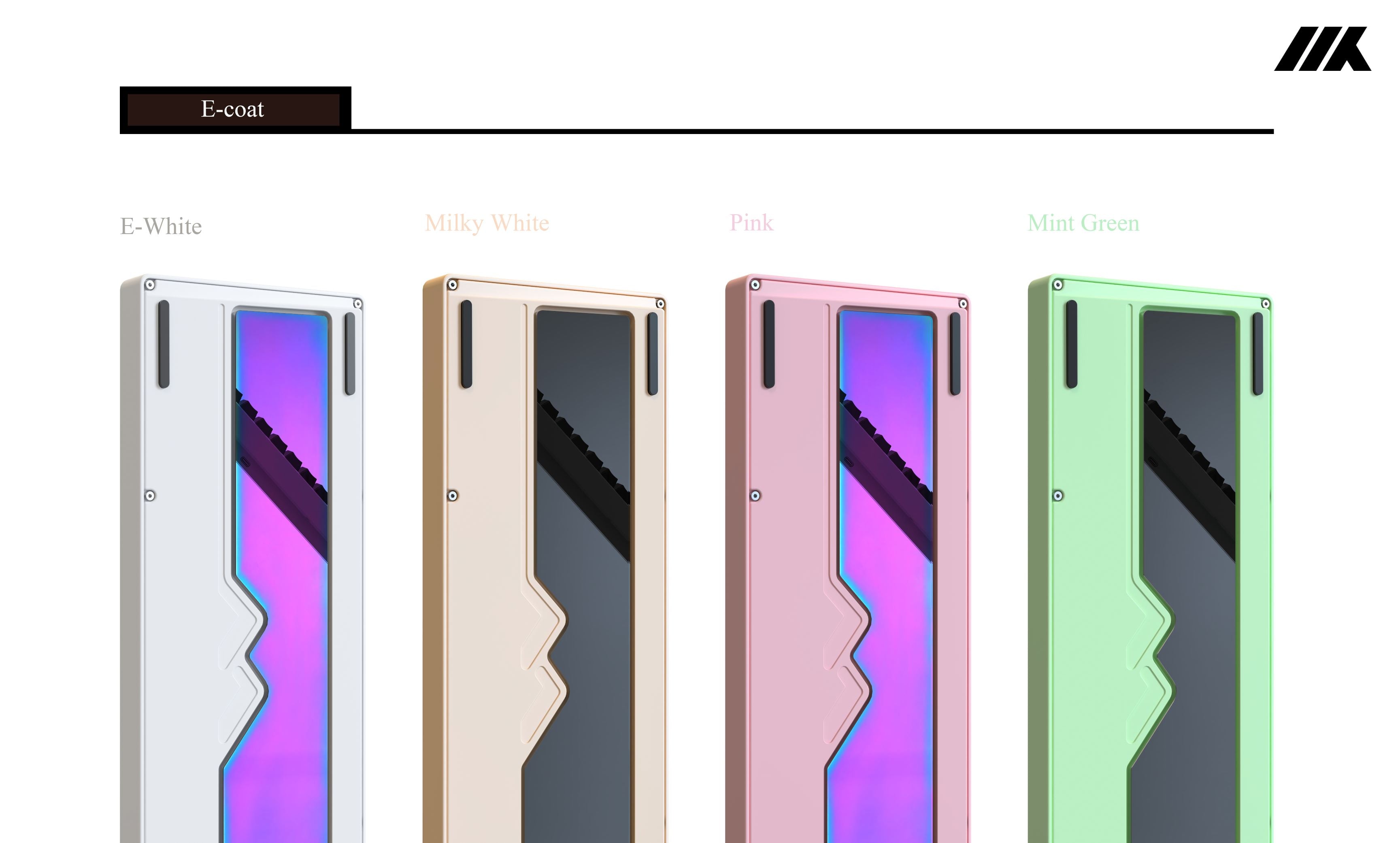

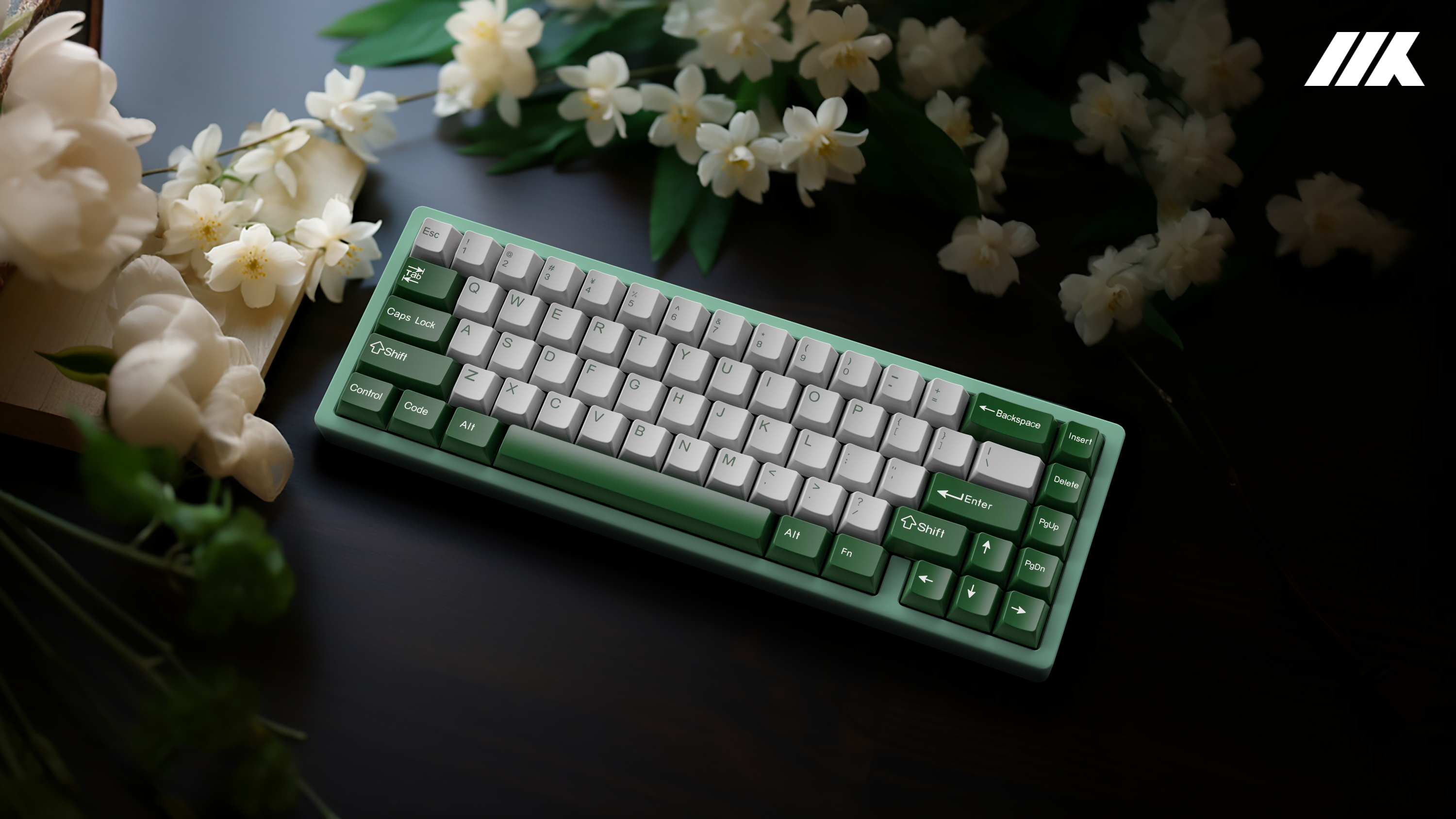

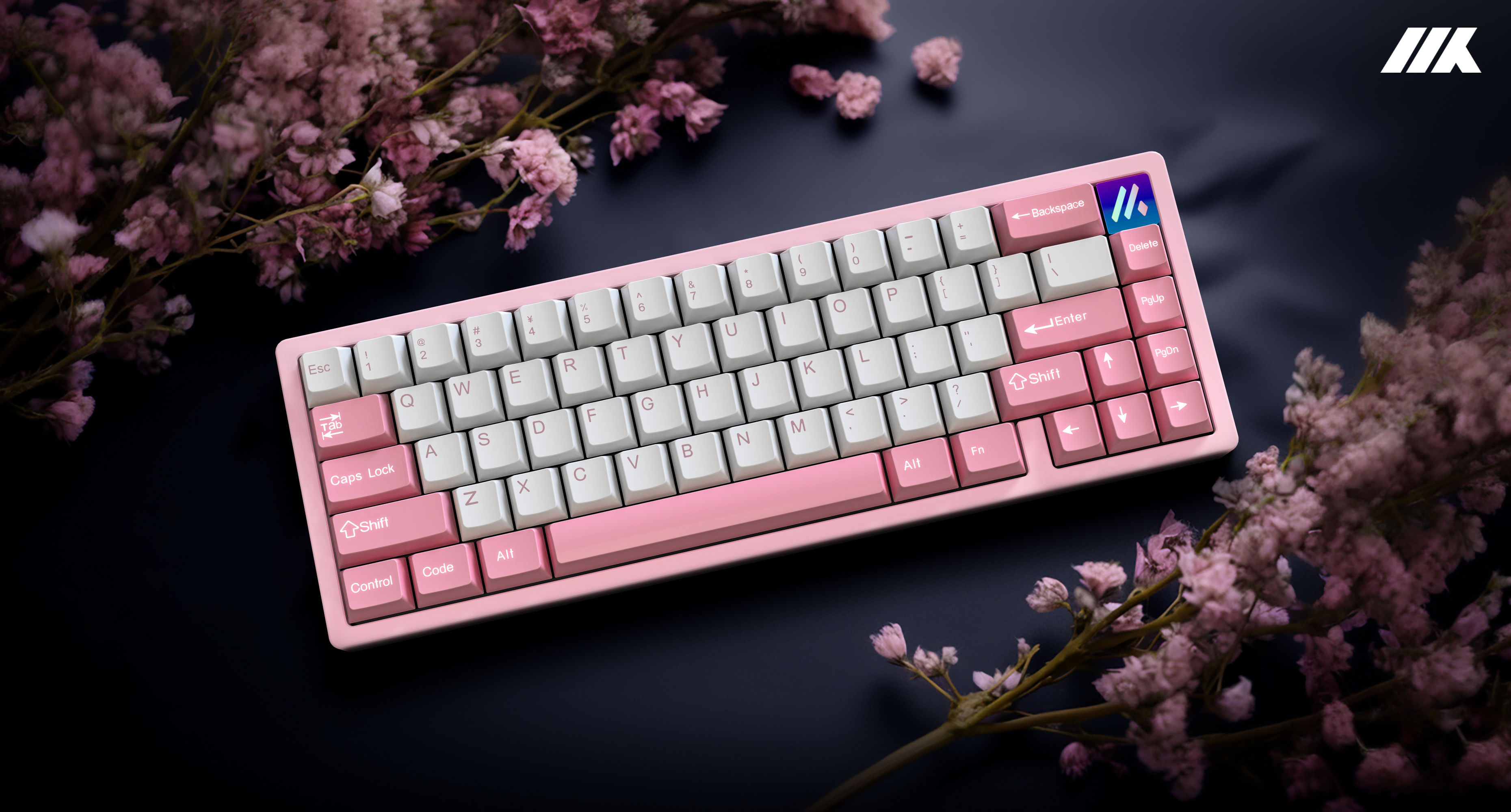

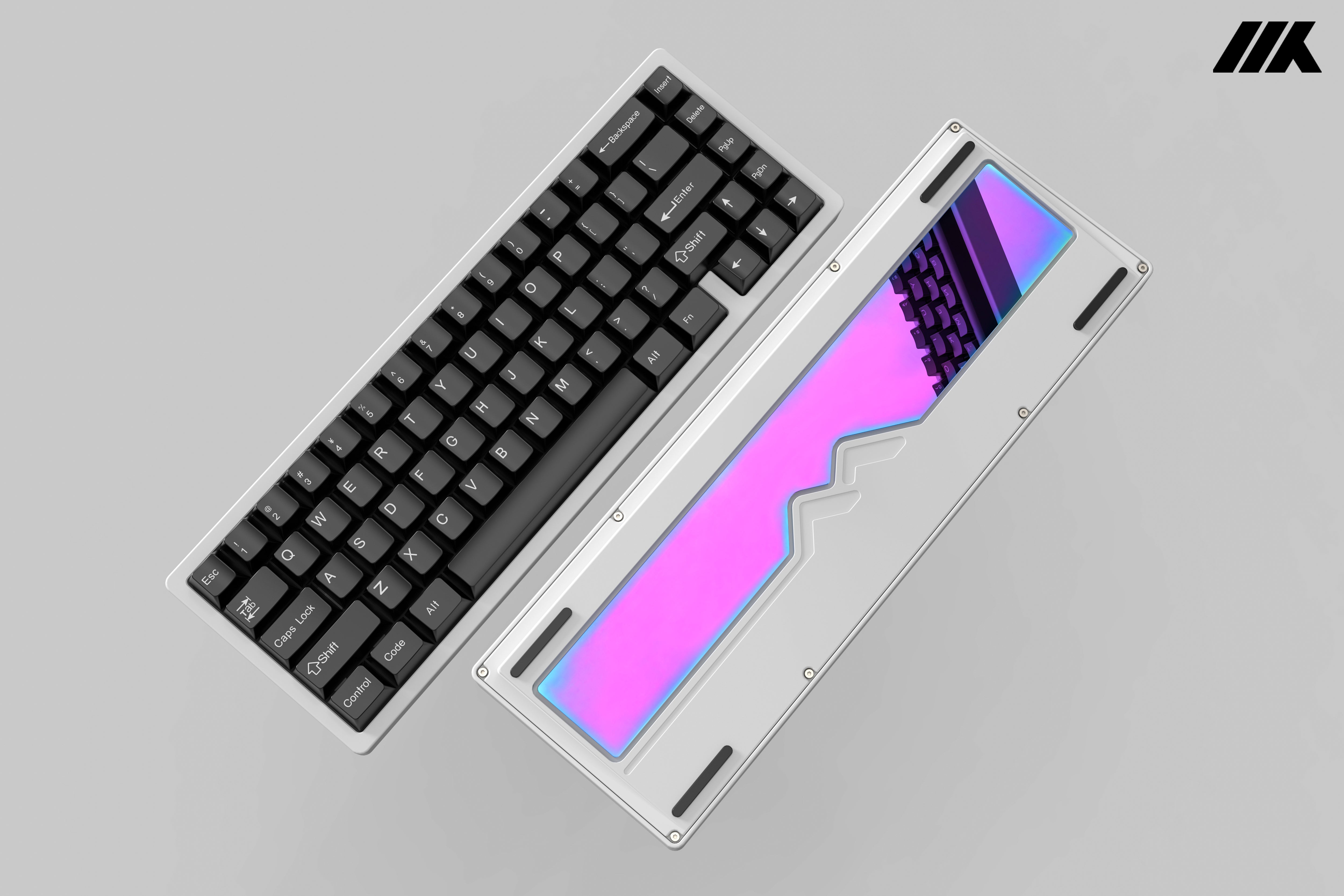

  • 4 E-coat case colours - E-White, Milky White, Pink, Mint Green

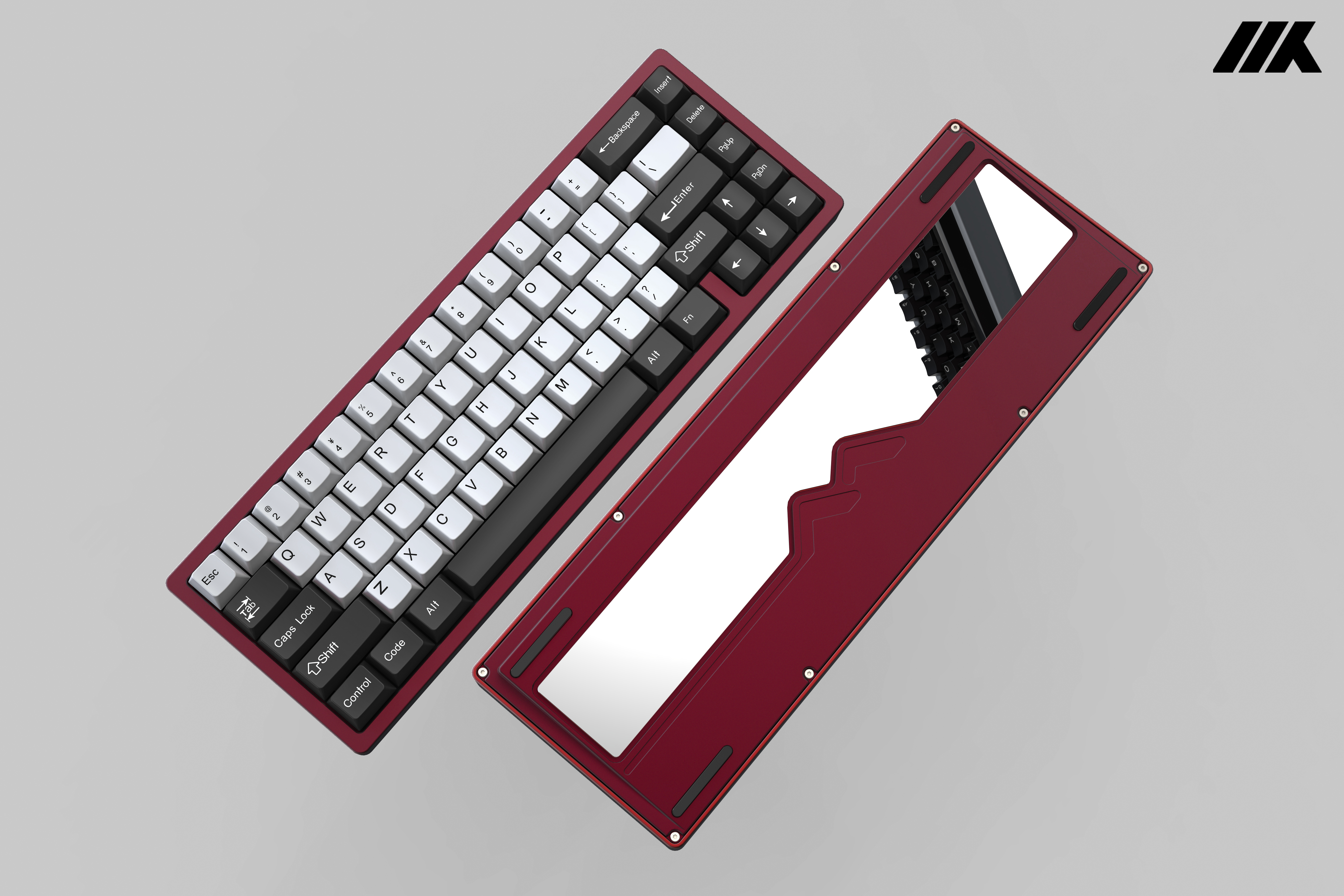

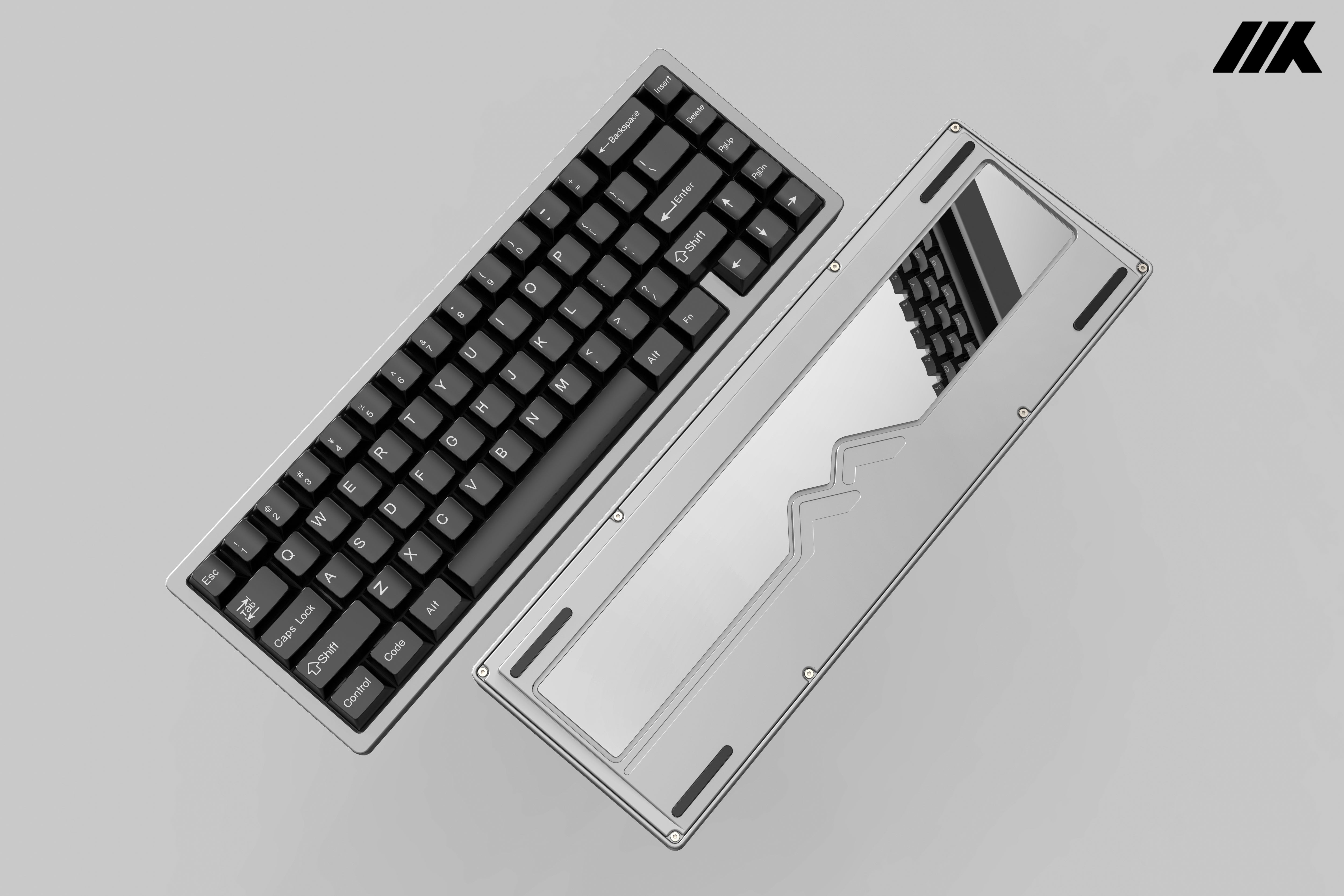

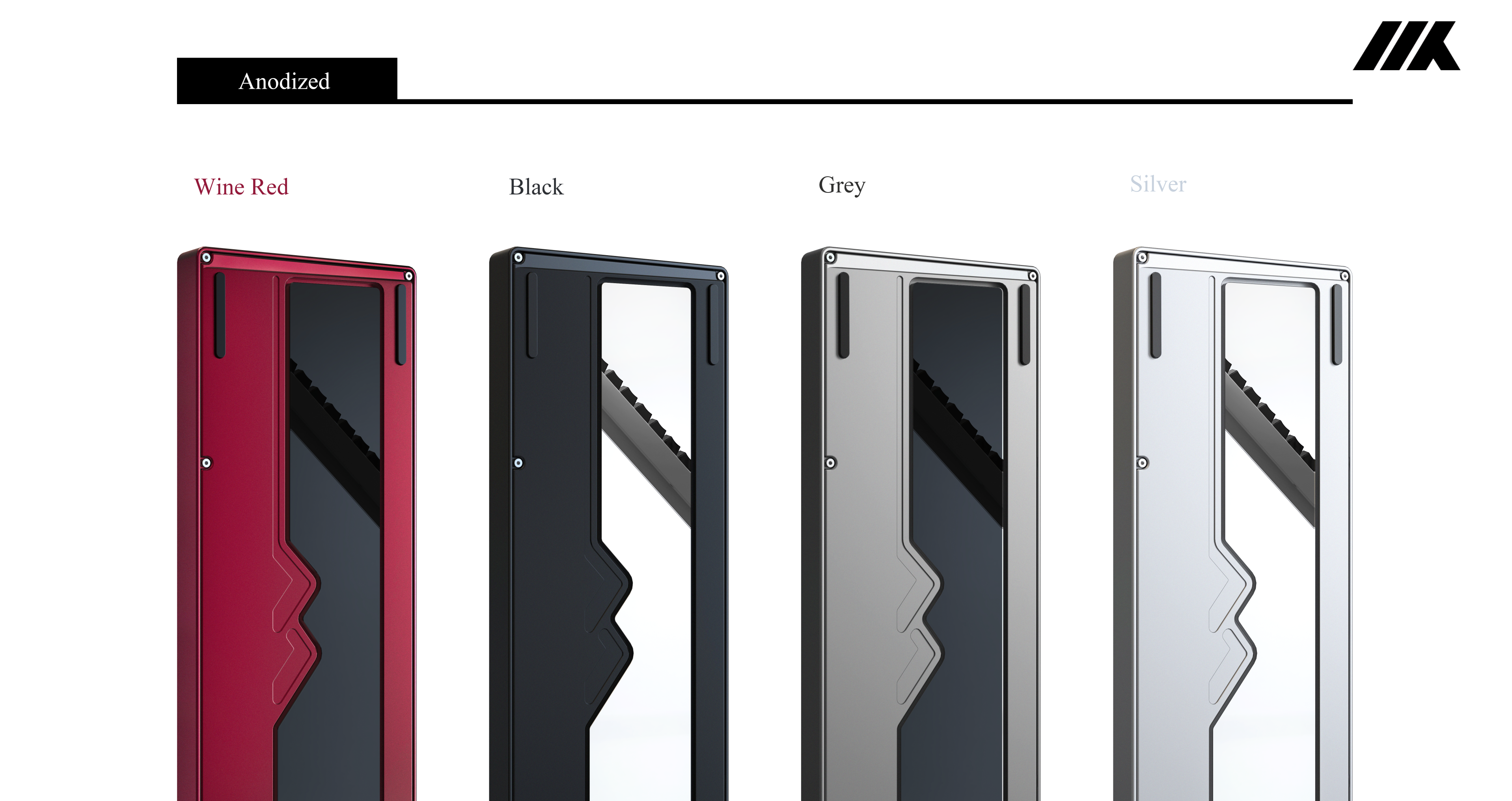

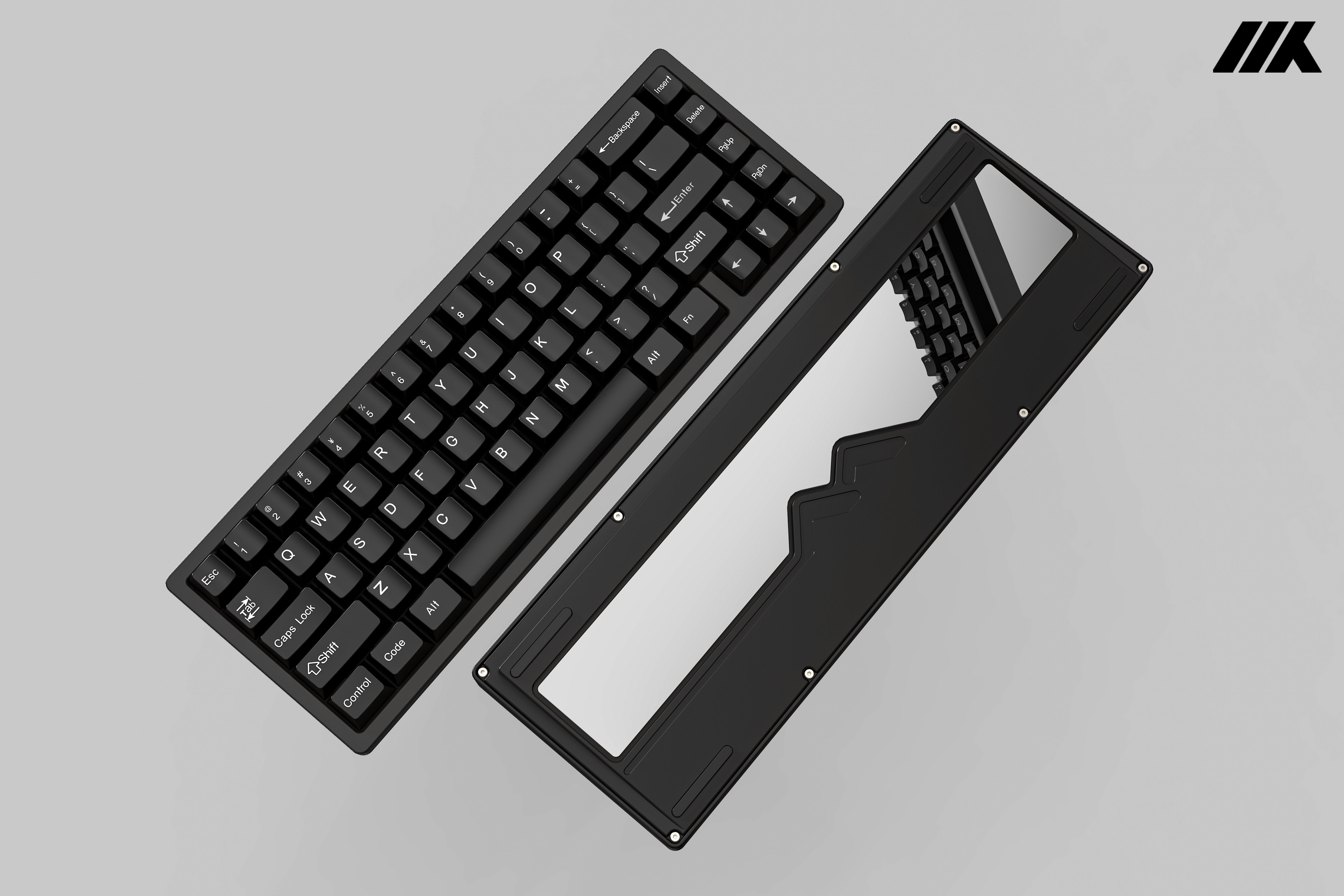

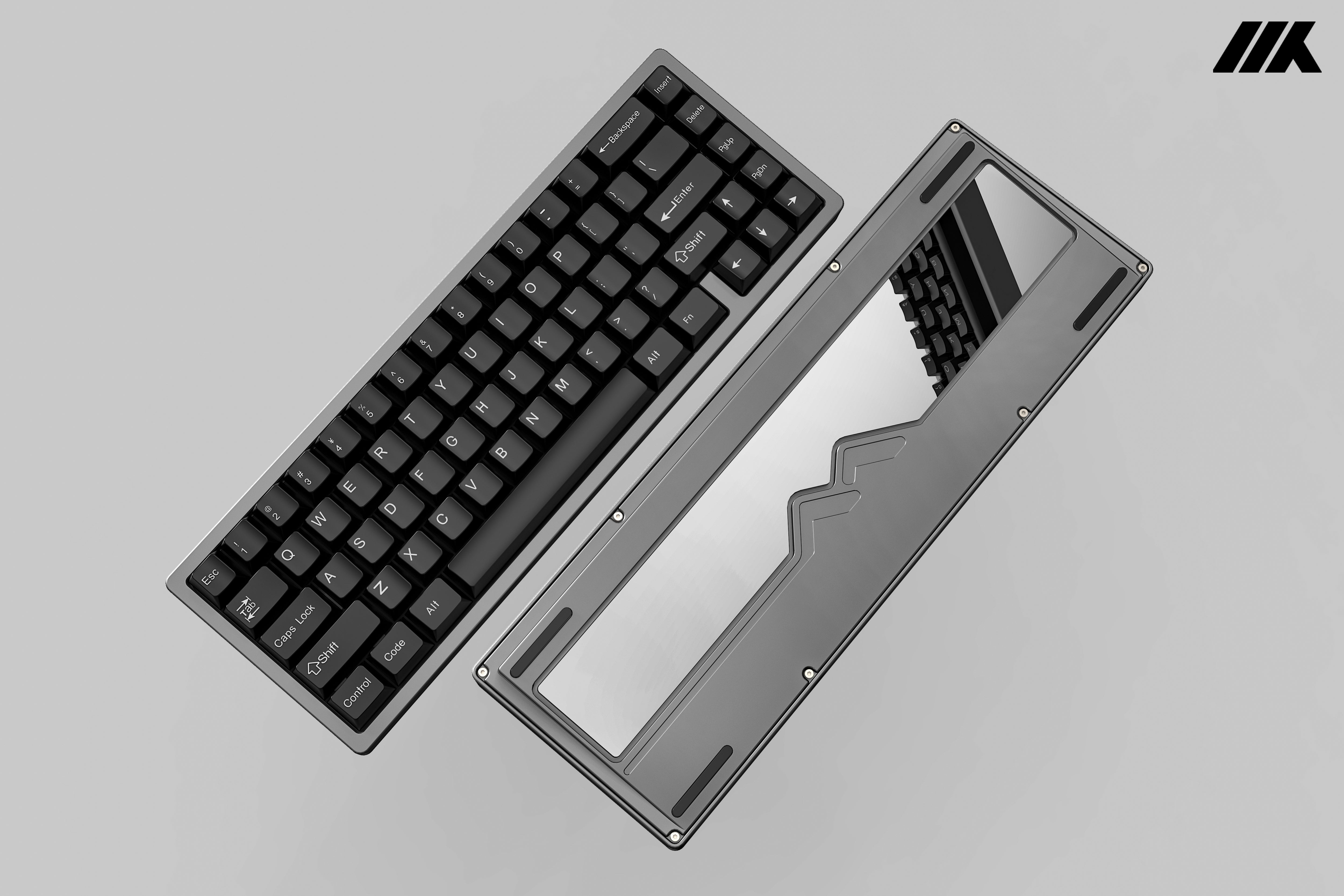

  • 4 Anodised case colours - Wine Red, Black, Grey, Silver

8 Weight Options:

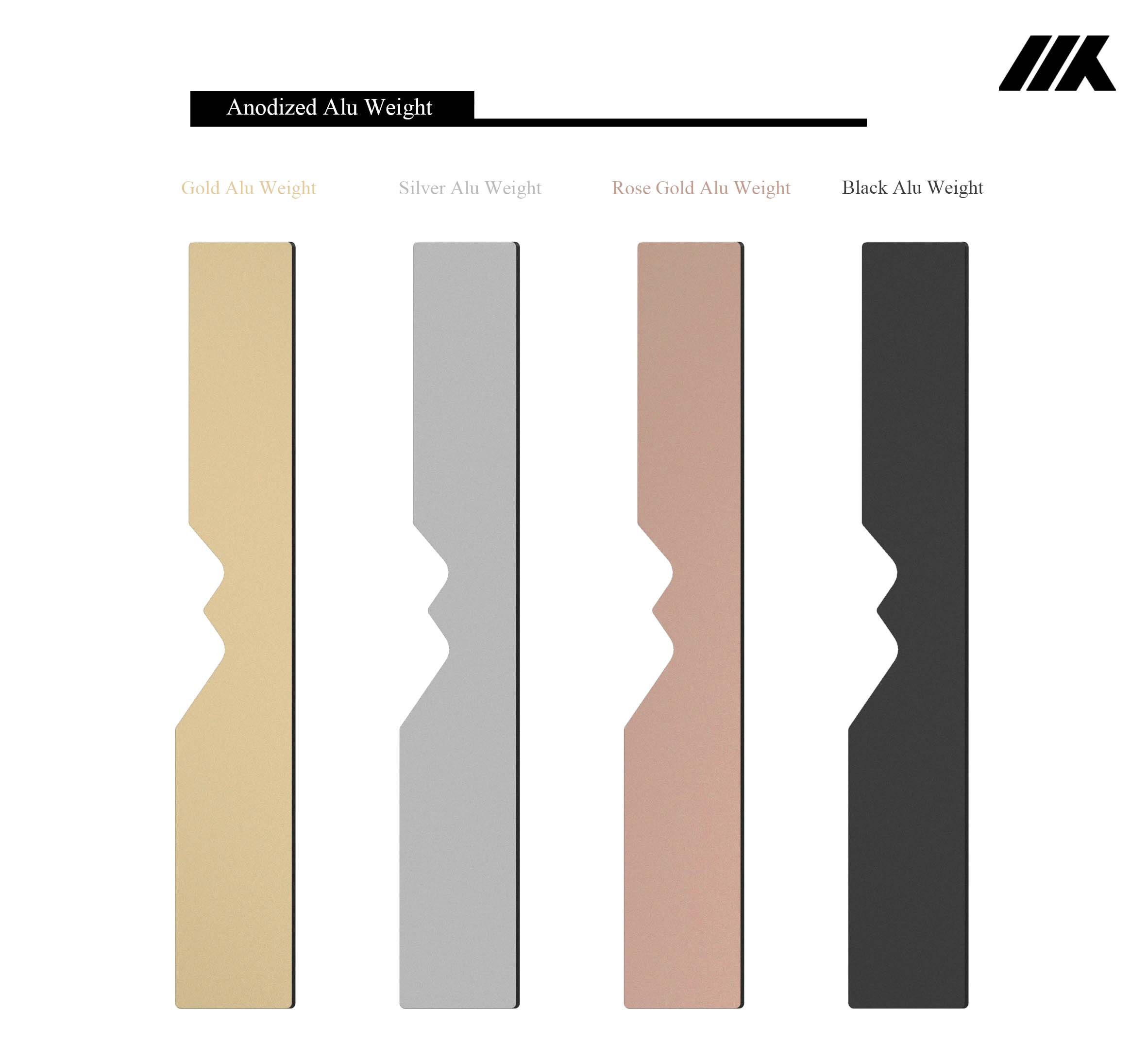

  • 4 Alu Weight: Gold/ Silver/ Rose Gold/ Black

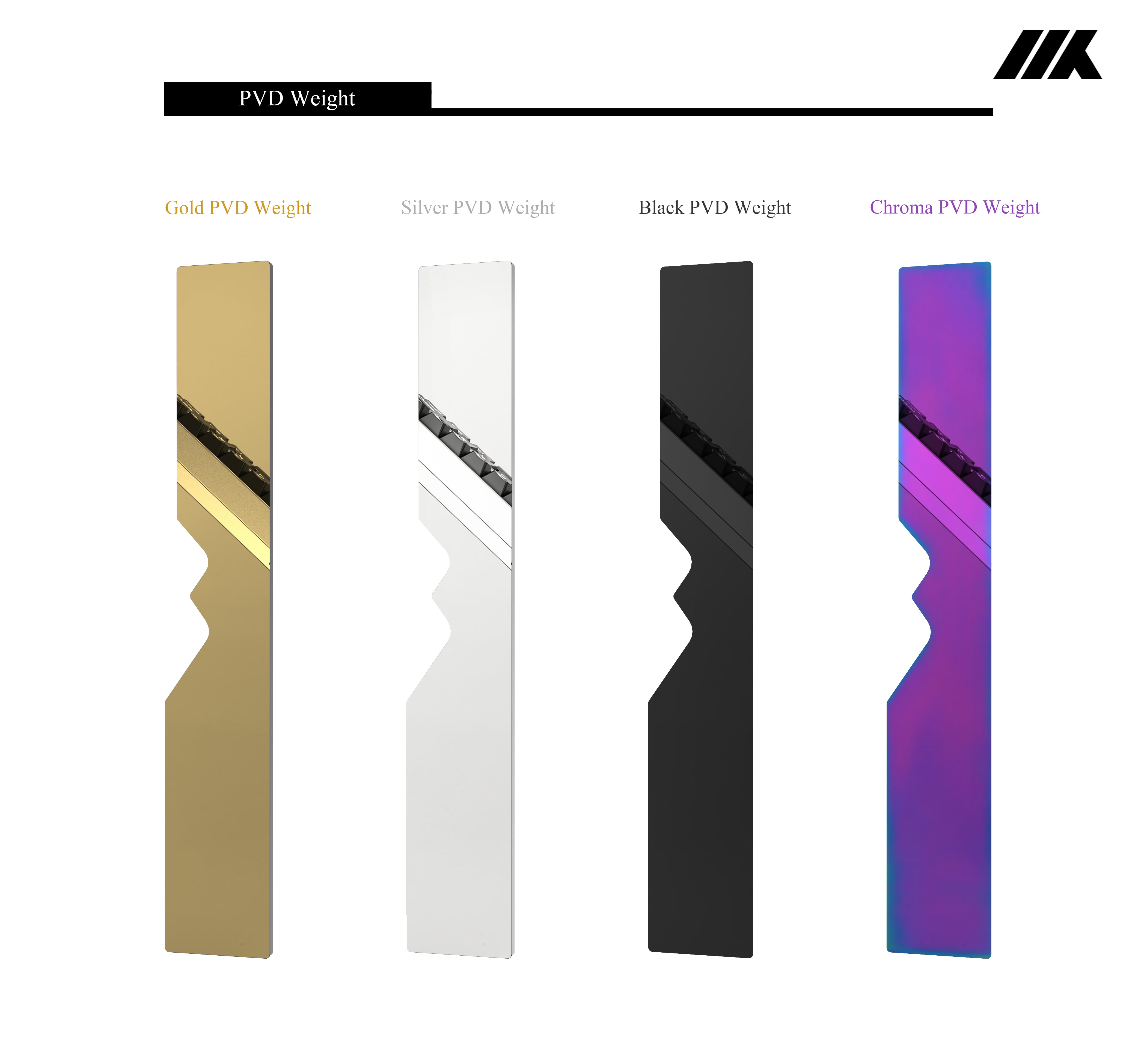

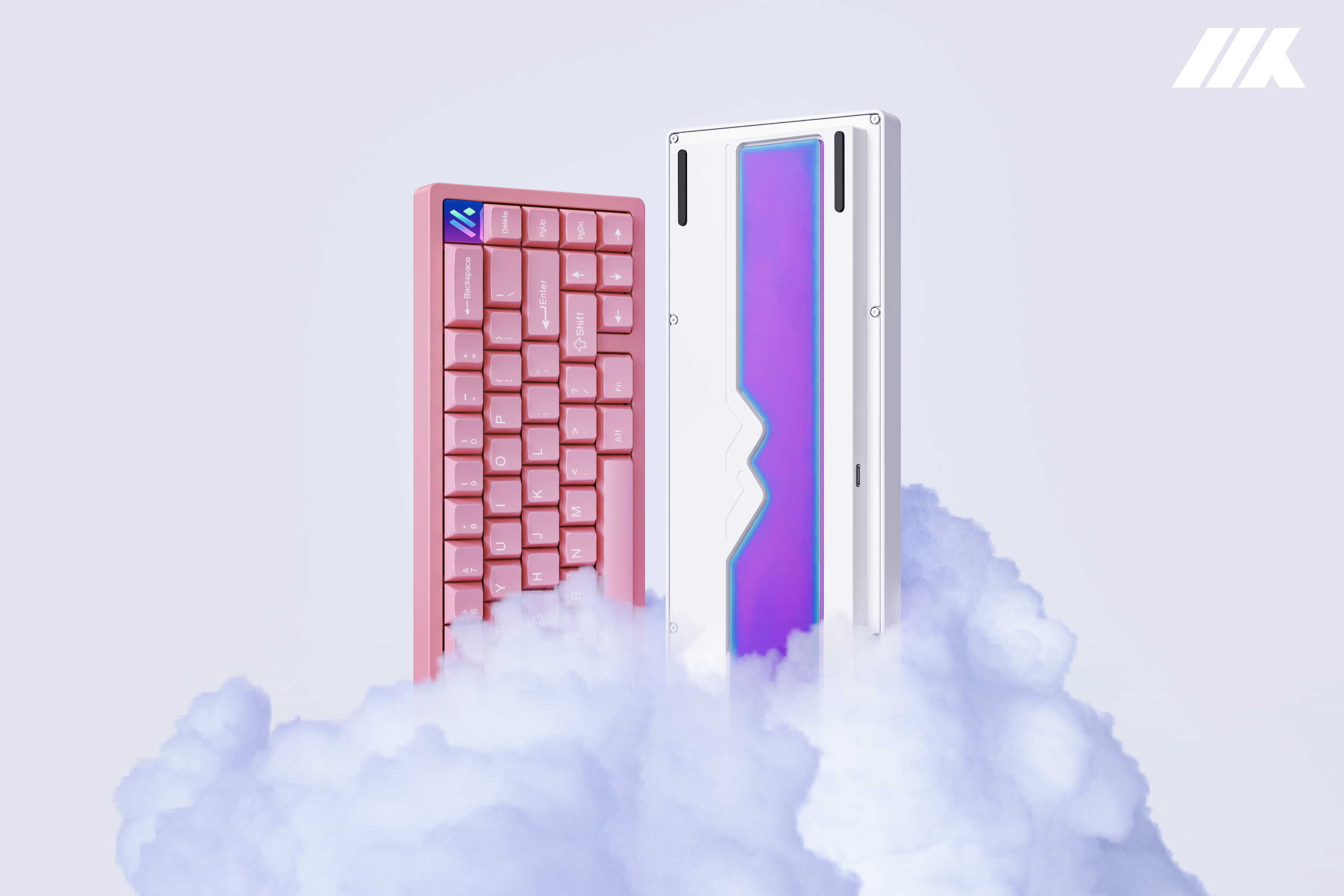

  • 4 PVD Mirror SS Weight: Gold/ Silver/ Black/ Chroma

5 PCB Options:

  • Wired Flex Cut Hotswap PCB( 1.2mm, Multi Layout, 7u split spacebar, No Per-key RGB, support QMK and VIA
  • Wired Non-Flex Cut Hotswap PCB(1.6mm, Multi Layout, 7u split spacebar, No Per-key RGB, support QMK and VIA )
  • Wired Solder PCB(1.6mm, Non-Flex Cut, Multi Layout, 7u split spacebar, No Per-key RGB, support QMK and VIA )
  • Wired Per-Key RGB Hotswap PCB (Add-on only, 1.6mm, Non-Flex Cut, ANSI Layout, support QMK and VIA )
  • Tri-mode Hotswap PCB (1.2mm, Non-Flex Cut, ANSI Layout, No Per-key RGB, support Mykeyclub Software)

Note: The Tri-mode technical support is provided by IRISLab

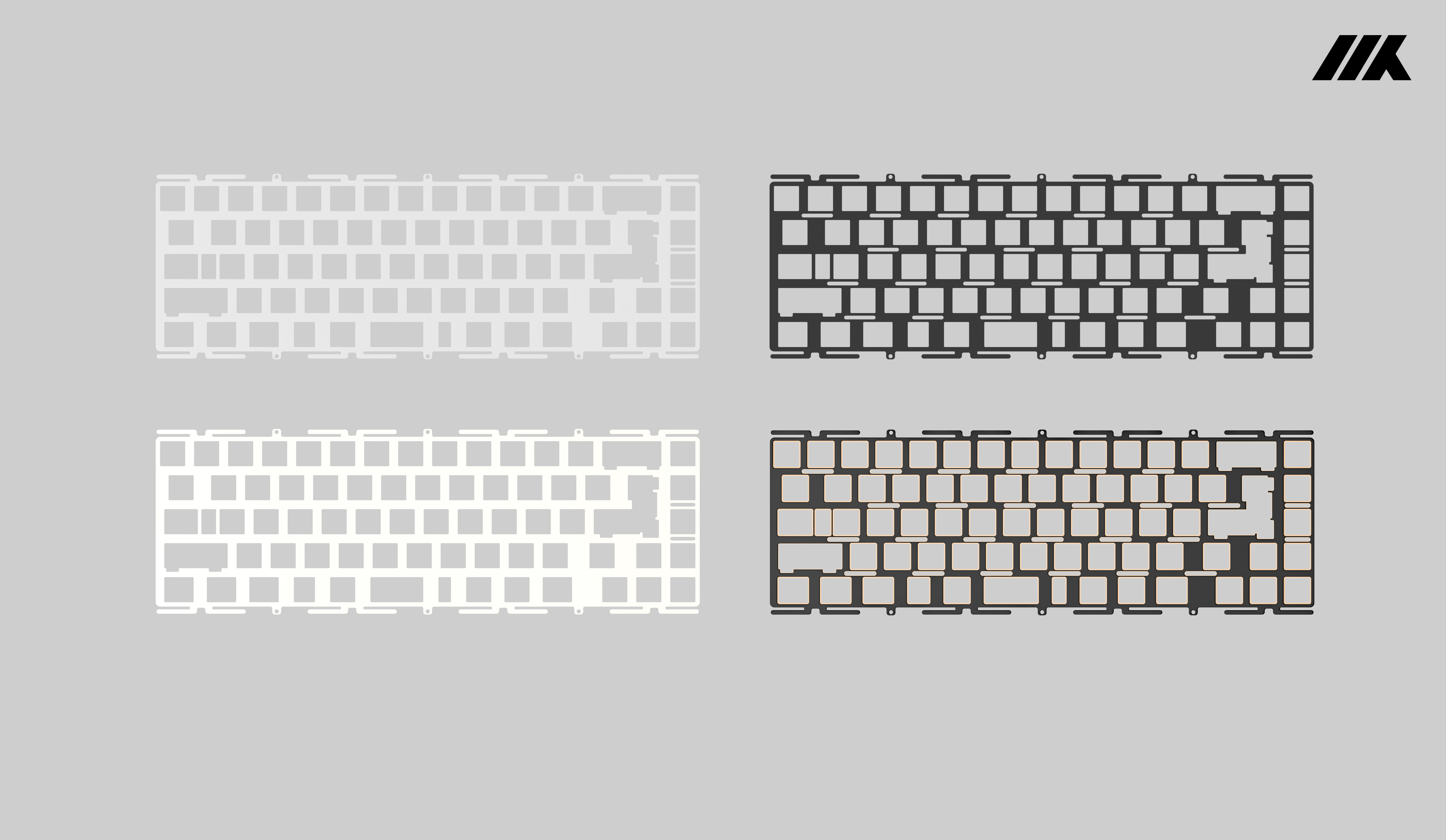

5 Plate Options:

  • Plateless
  • Flex Cut Plates: FR4, ALU, Brass (Brass Plate Add-on only)
  • Non-flex Cut Plates: PC, POM



MKC65 Specifications:

  • Typing angle: 6.5°
  • Front height: 9 mm
  • Material: Full CNC 6063 aluminium

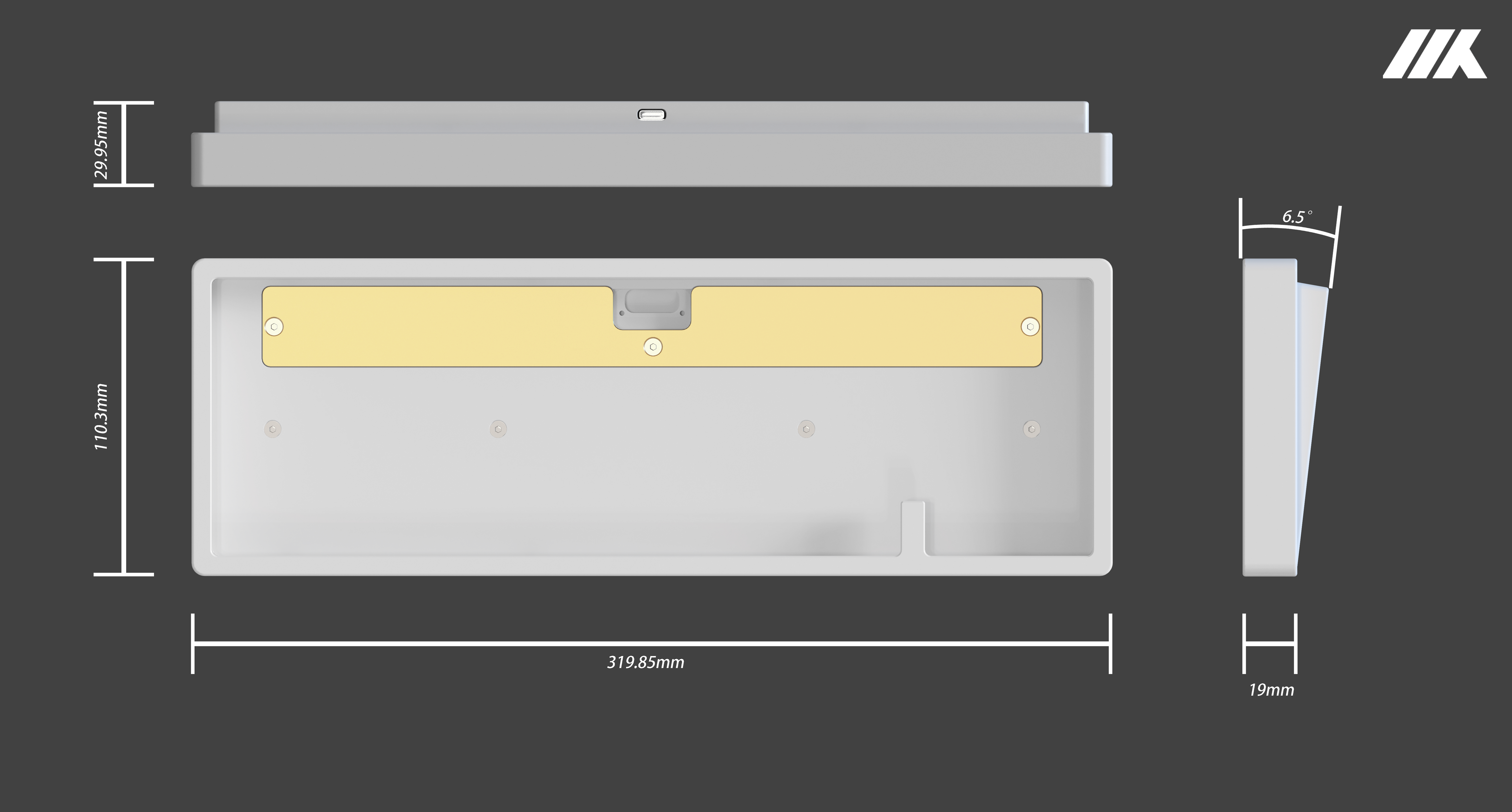

  • Dimensions: 319.85*110.3*29.95mm
  • Three-in-one Structure: TOP Mount / Plate Gasket Mount / PCB Gasket Mount
  • QMK/VIA Supported(wired)
  • Support PCB stabilizers
  • Unbuilt Weight
    • With PVD WEIGHT: 1.23kg
    • With Alu WEIGHT: 1kg
  • Built Weight
    • With PVD WEIGHT: 1.45kg
    • With Alu WEIGHT: 1.22kg

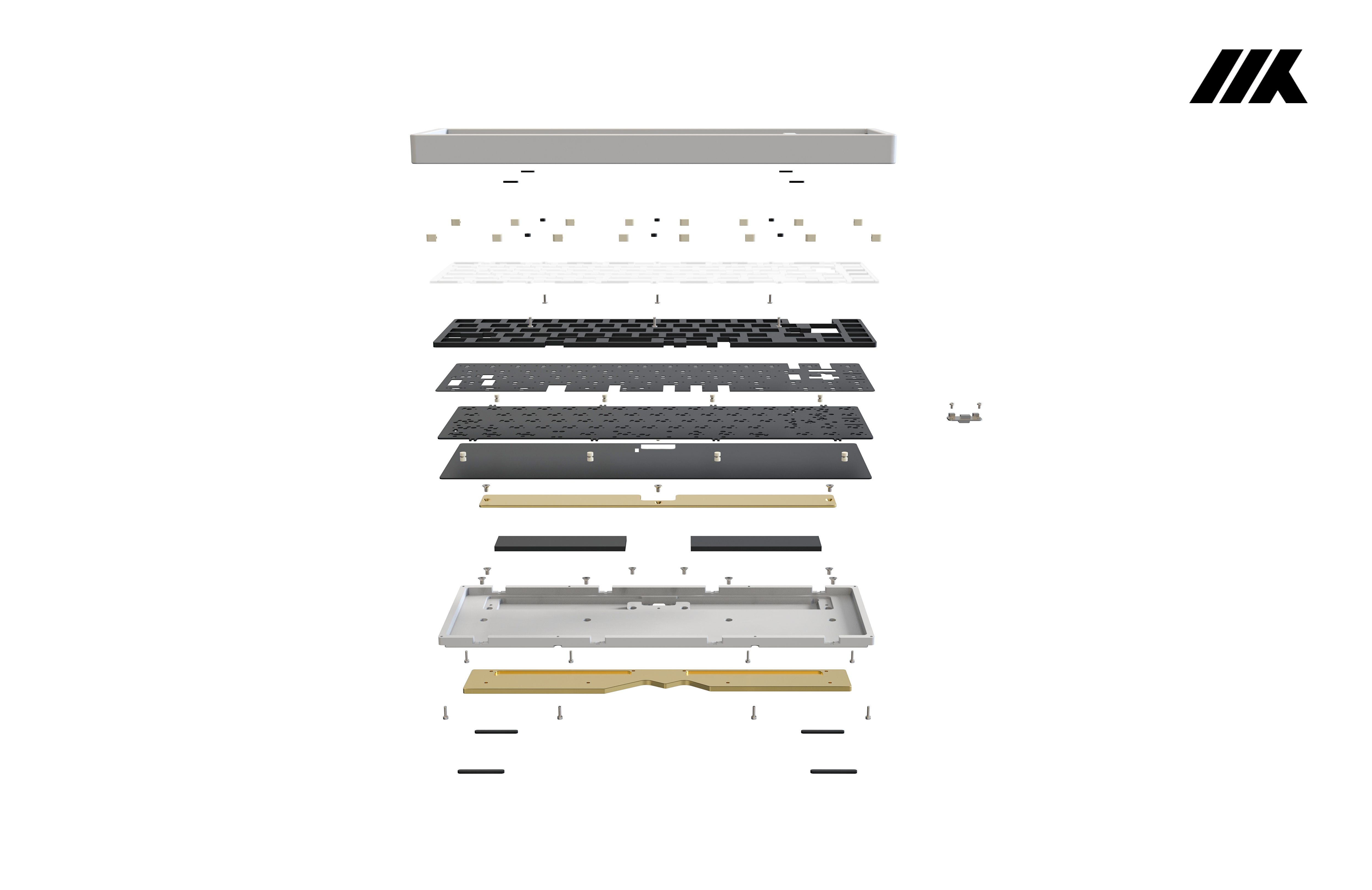

What's Included in MKC65:

  • Full CNC Aluminium Top case *1
  • Full CNC Aluminium Bottom case *1
  • Weight (Anodized Alu Weight or Stainless steel PVD Weight) *1
  • Internal Alu Weight *1
  • PCB *1
  • Plateless or Plate *1
  • IXPE Foam *1
  • Poron Case Foam *1
  • Poron Plate Foam *1
  • Type-C Daughterboard with JST Cable *1
  • PCB GAS Silicone Column *12
  • Plate GAS Silicone Sock *18
  • Top mount screw and spacer *12
  • PCB stabilizers o-ring *12
  • Footpad *6
  • Poron case strip *6
  • 5mm hex key *1

 Gift(will not send make-up or replacements)

  • 1 MKC Stabilizer Set
  • 1 Type-C Cable
  • 1 Pack of Extra Screw
    • M2x3mm cylindrical head screw *2
    • M2x8mm cylindrical head screw * 2
    • M3x5mm countersunk screw *2
  • 1000mha battery (Only for the Tri-mode Version Case) *2
  • Silicone pad of battery compartment *2



Addons Available Here



Vendor List





Disclaimers:

Quality Disclaimer:

  1. Each kit comes with fragile labels. Please check the appearance thoroughly before building. If you see any noticeable flaws/scratches on the external surfaces, please take a photo and contact us immediately. We’ll not be responsible for any flaws/scratches found after building.
  2. Due to the nature of the PVD coat, there may be minor, unavoidable dust points/micro scratches on the mirror finish of the PVD weight. The small dust points/micro scratches are only visible at just the right angle of the lighting.
  3. Chroma and Gradient PVD Mirror Stainless steel weight has random nature. Each weight may have some slight differences.
  4. CNC marks and imperfections inside the keyboard case or dents on the subject are not visible when the keyboard is fully built. These are normal and within our quality acceptance.
  5. On all other surfaces and edges, blemishes under 2mm are approved.
  6. The bottom of the Solid Aluminum Wrist Rest is defined as a B-level surface because the bottom side is the hanger side during the anodized process. The QC standard for B-level cover: blemishes under 1cm are approved on the surfaces and edges. Three or fewer fine trachoma, dust spots, etc., are within our quality acceptance (The diameter is under0.5mm). Color uniformity is a normal phenomenon around the process hole, but it is guaranteed that it will not be visible after installation.
  7. Other than the case itself, all parts with cosmetic imperfections will not be replaced unless the function is damaged for usage.
  8. Warranty only applicable for the first owner who purchased on our website or at our collaborative shops, with proof of purchase such as order number and confirmation.
  9. Our warranty covers the PCB for one year of use or if dead on arrival without any modification.
  10. Broken parts due to any human error will void your warranty. Including below list but not only
  • Mill-maxing PCB
  • Tape modding PCB
  • Hotswap Sockets that are pushed out of the PCB solder pads
  • Did not follow the steps to flash PCB and caused no function
  1. Gifts will not ship out replacements or issue a partial refund.

Shipping Time and GB Agreements (PLEASE READ):
These products are set to be shipped out in Q2 2024 but please check our updates for the latest information.

Please note that this is a Group Buy. There can be delays and set backs. The timeline is only an estimate. By adding this item to your cart and purchasing you agree that you understand everything above. You will be charged immediately for this item. There are no refunds or cancellations on these orders. Please do not purchase this item with other group buys. Only the items specified in each product picture are included with that particular product.
