(Group Buy) Nearfield Keyboard Kit

Sale price

Regular price £291.67
( / )
Option

Closing Date: June 11th 2022

Expected Shipping time: Q4 2022 - Q1 2023

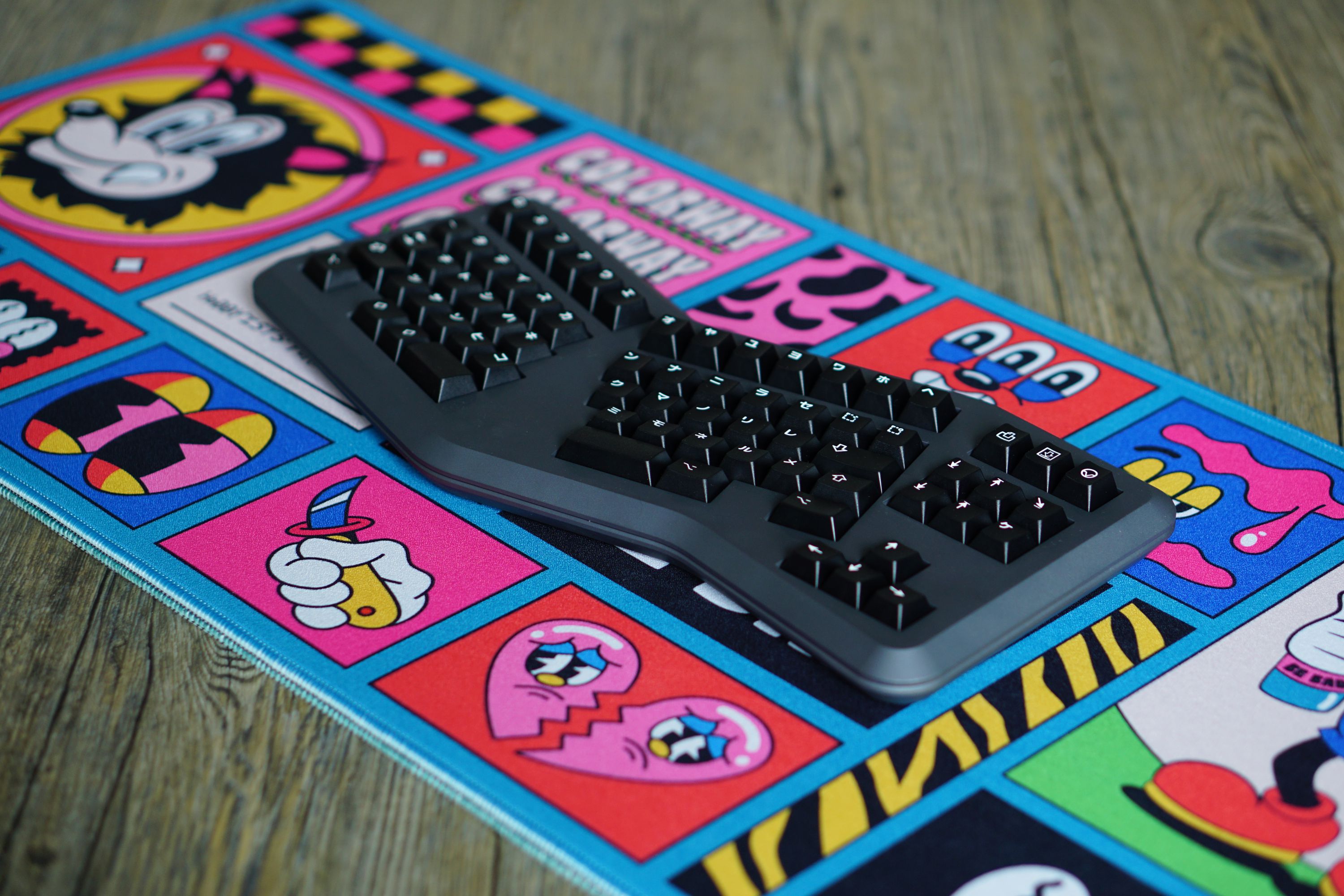

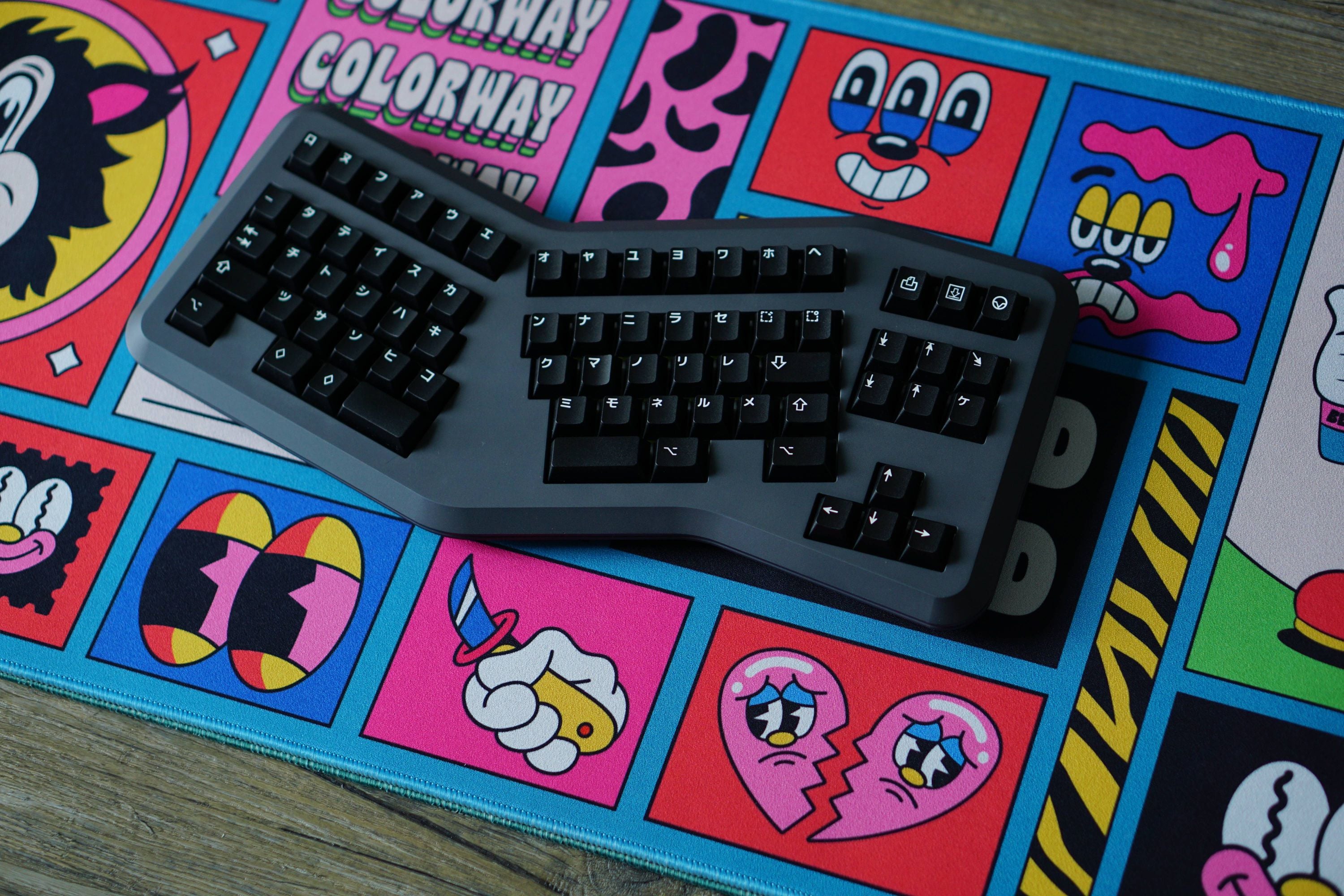

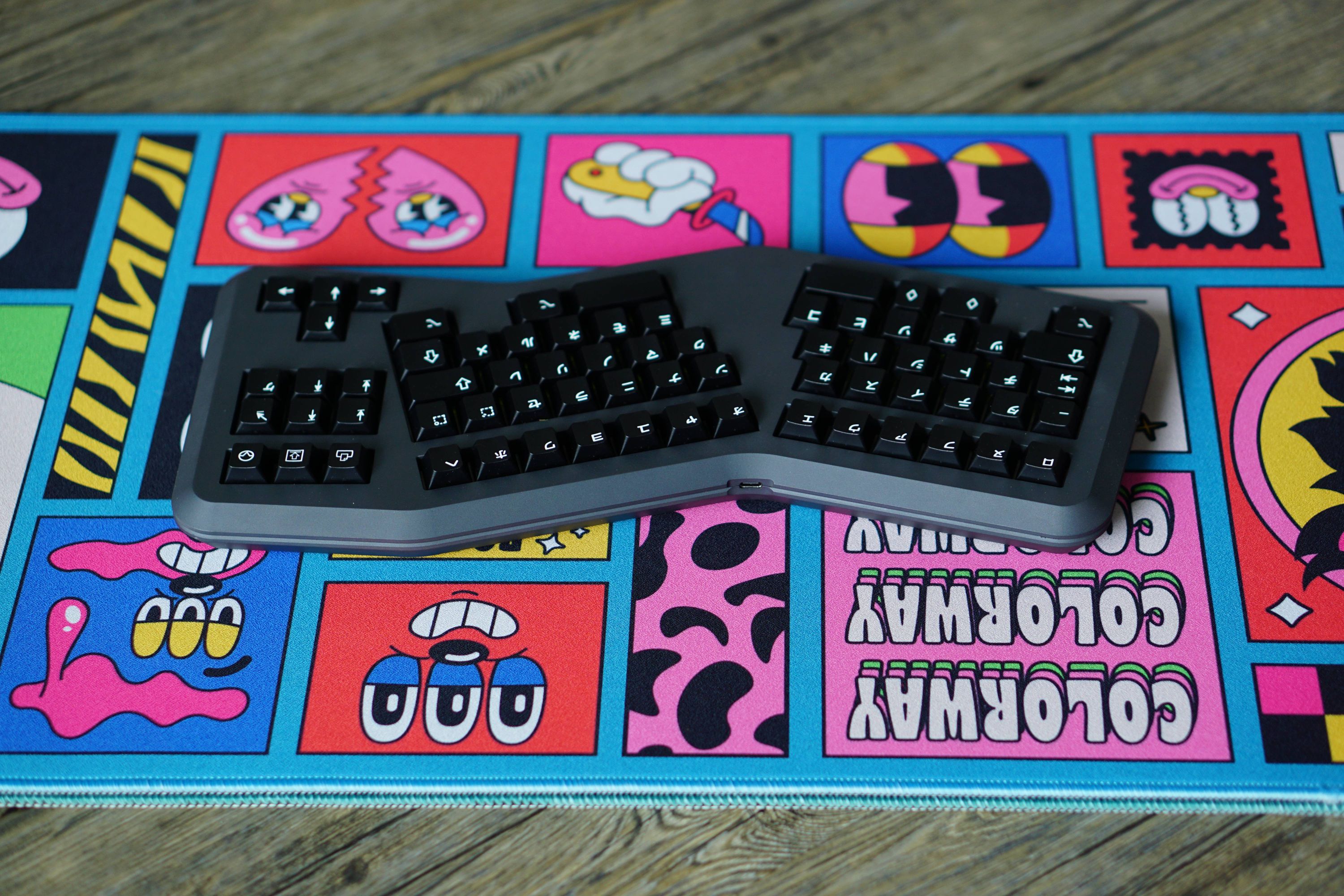

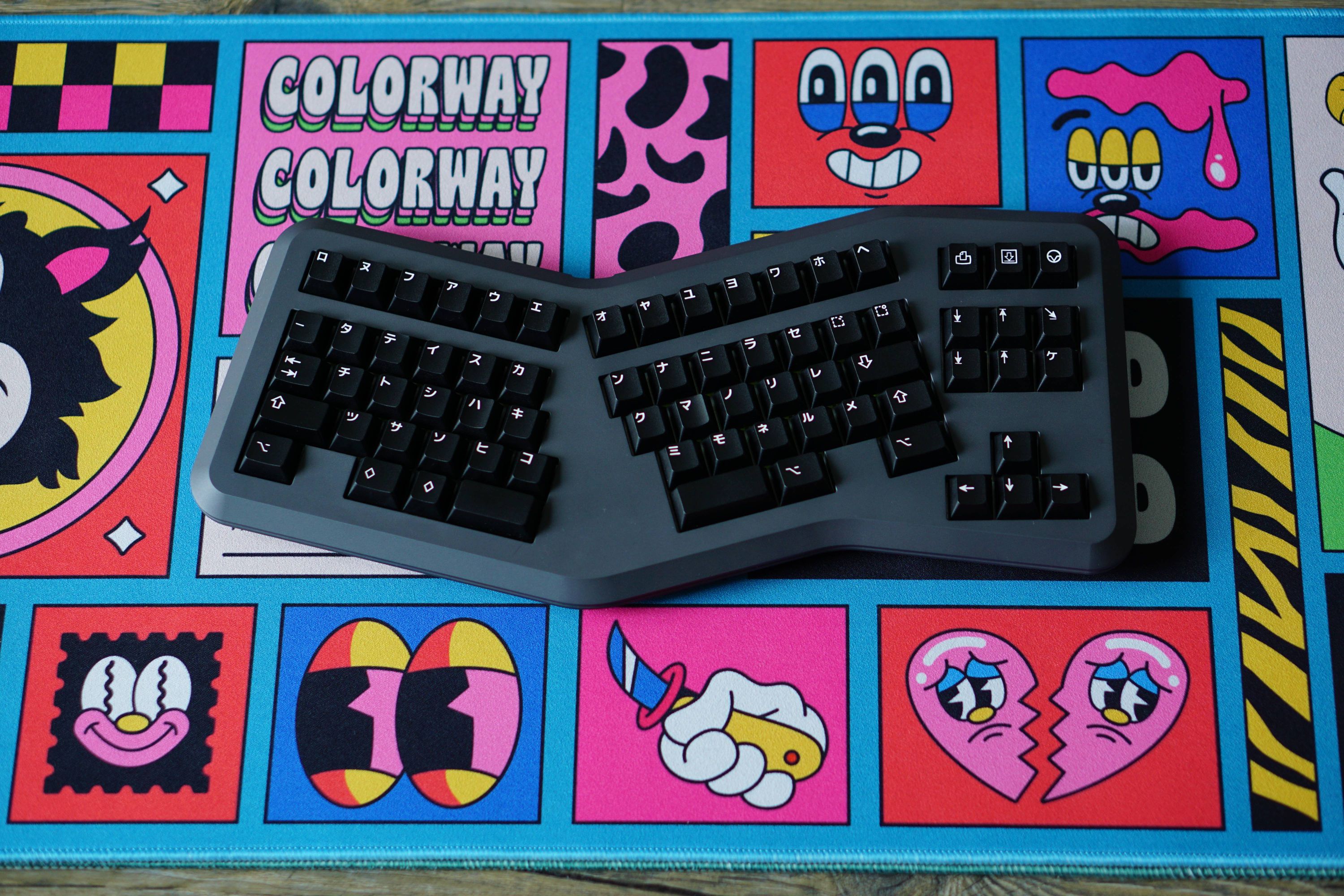

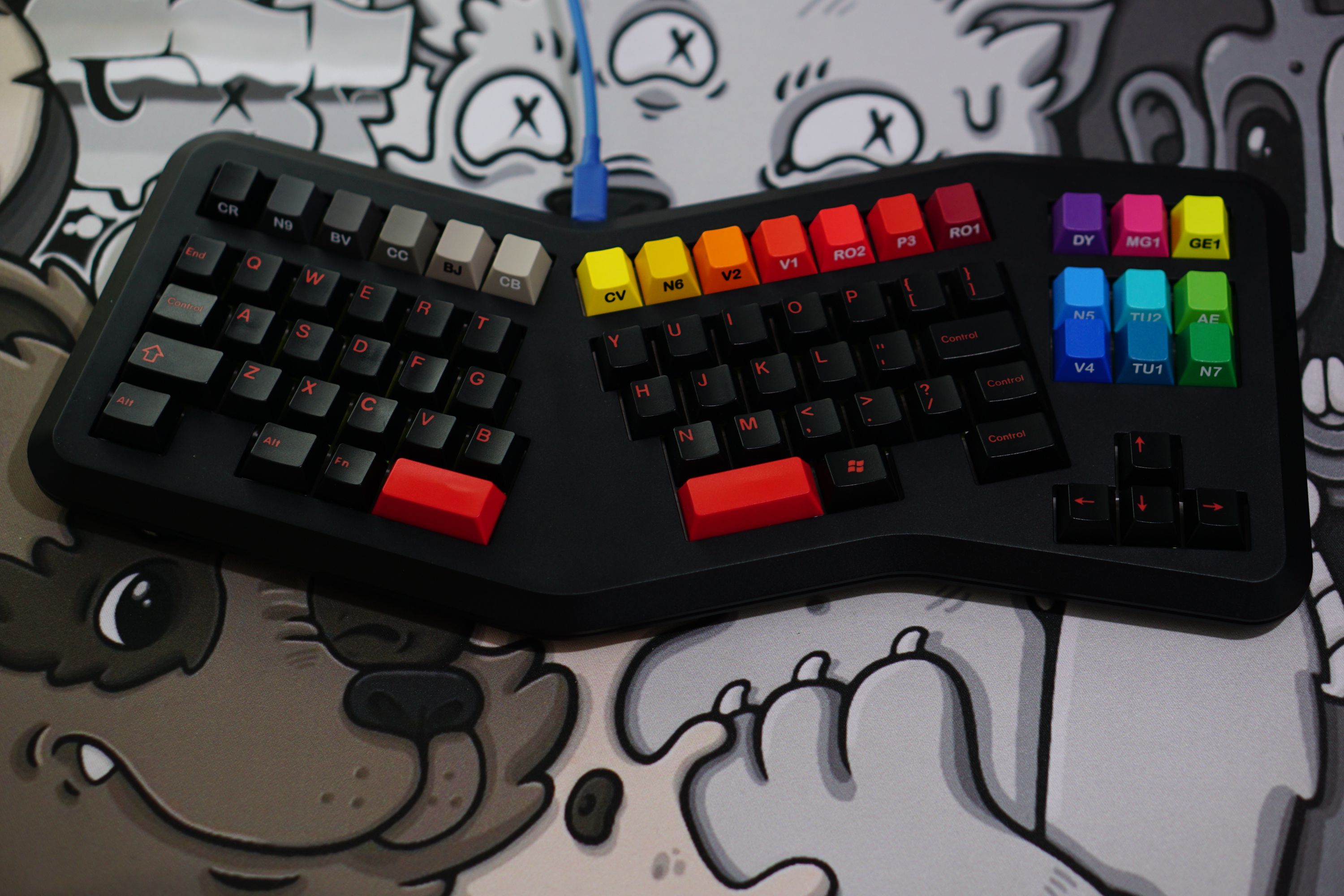

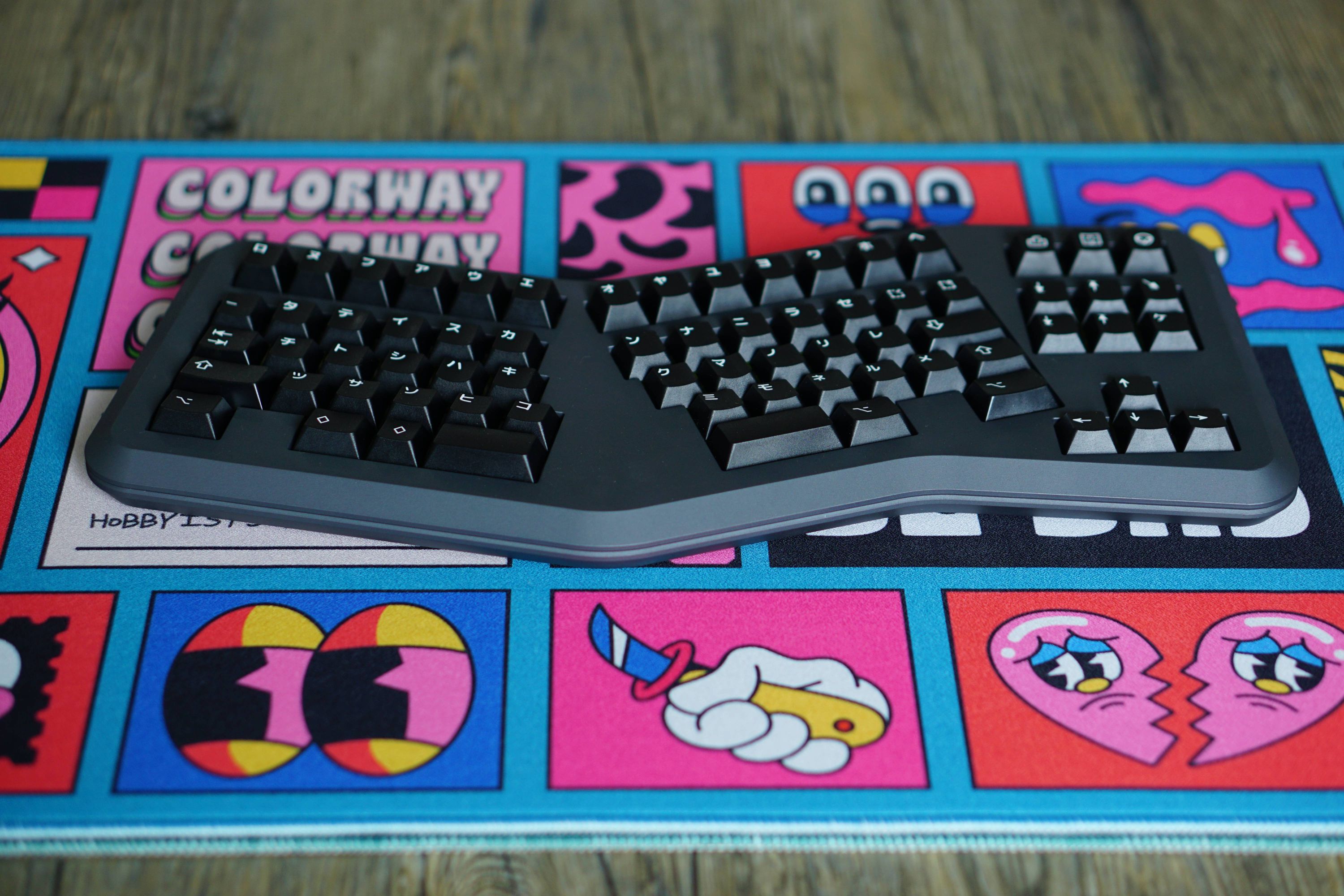

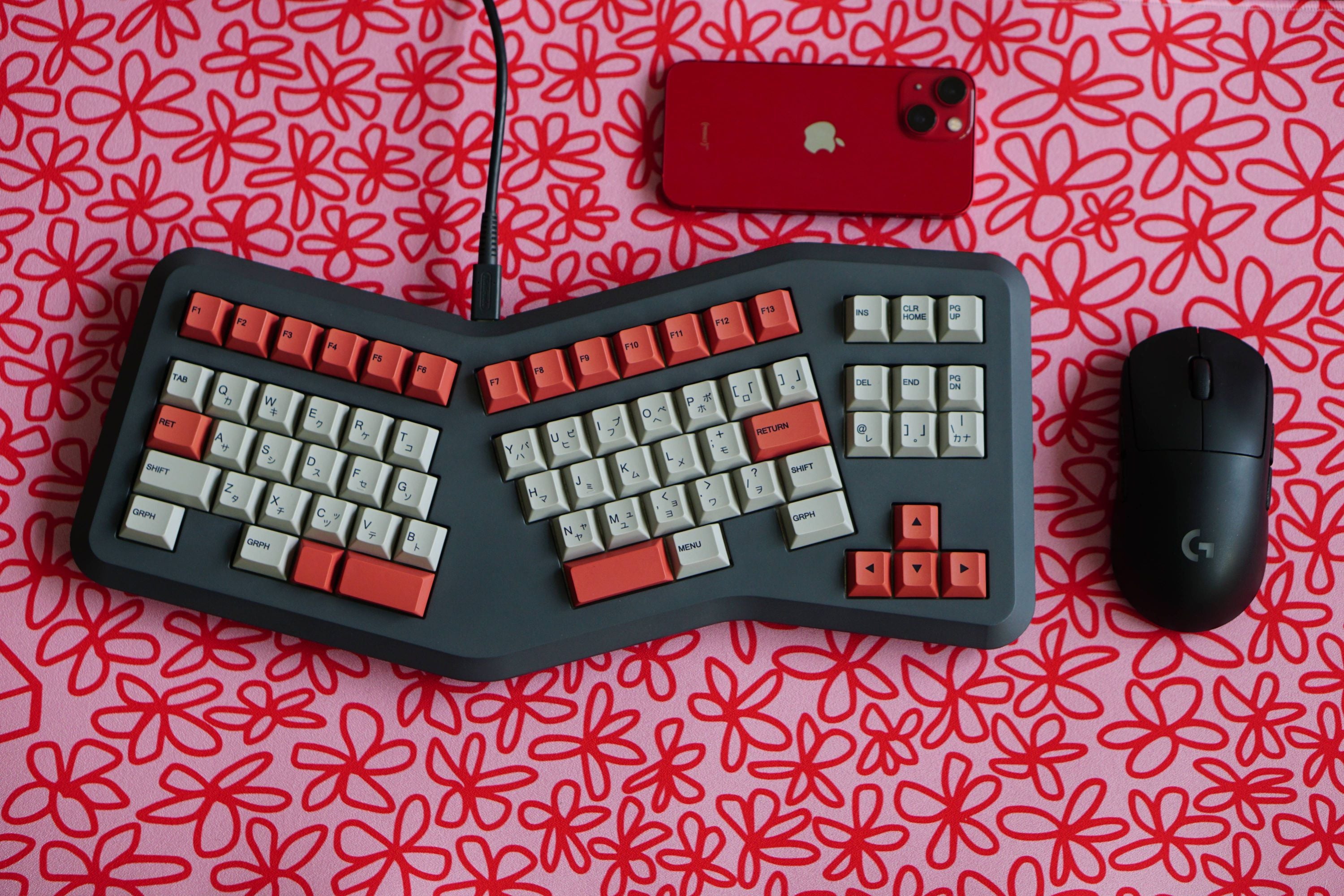

The LZ ErGO is a classic ergonomic design, predating the Alice layout, and drawing inspiration from the "Microsoft natural ergonomic" series.

Nearfield expands on this by increasing the rotation of the two halves of the alpha cluster, each half is rotated 15 degrees towards the centre of the board.
This increased angle forces the user to widen their elbow stance, and align their hands straighter with their forearms while typing.

Aesthetic design: Aside from the obvious layout homage to the ergo, retaining the nav cluster,
the case design draws inspiration from the M0110 keyboard series from Apple.



Keyboard Information

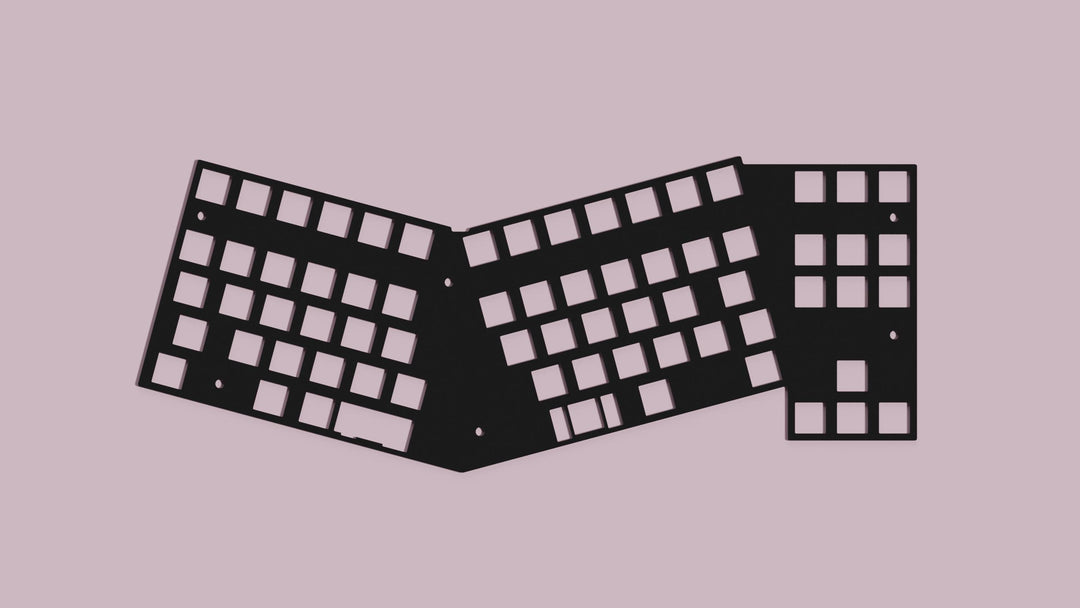

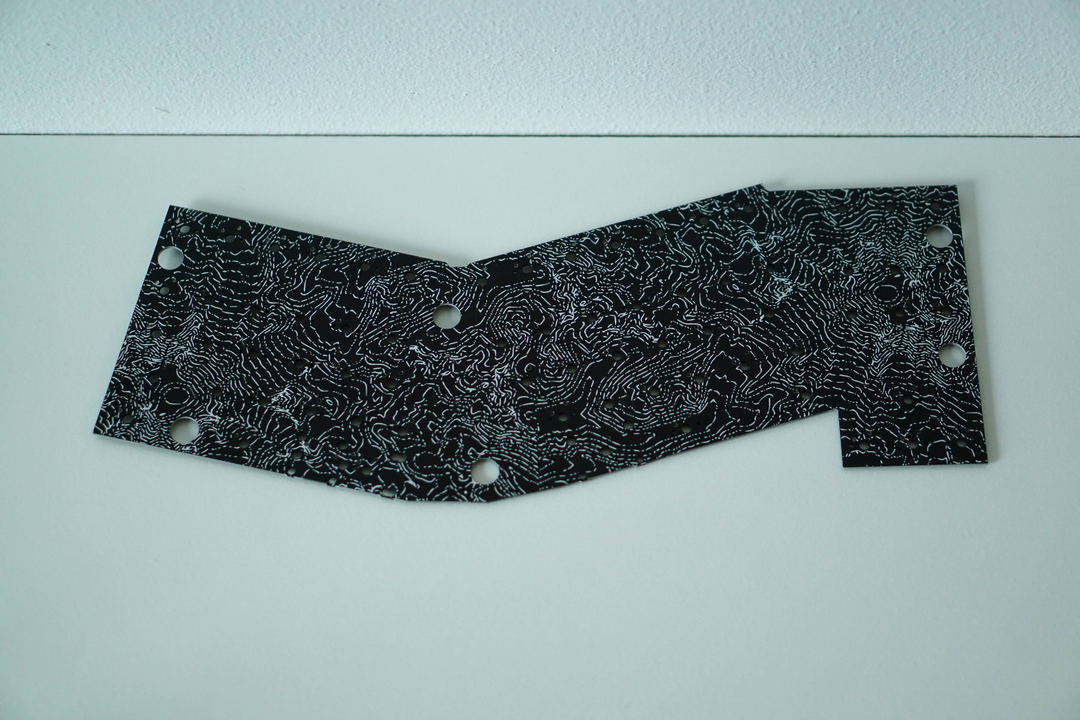

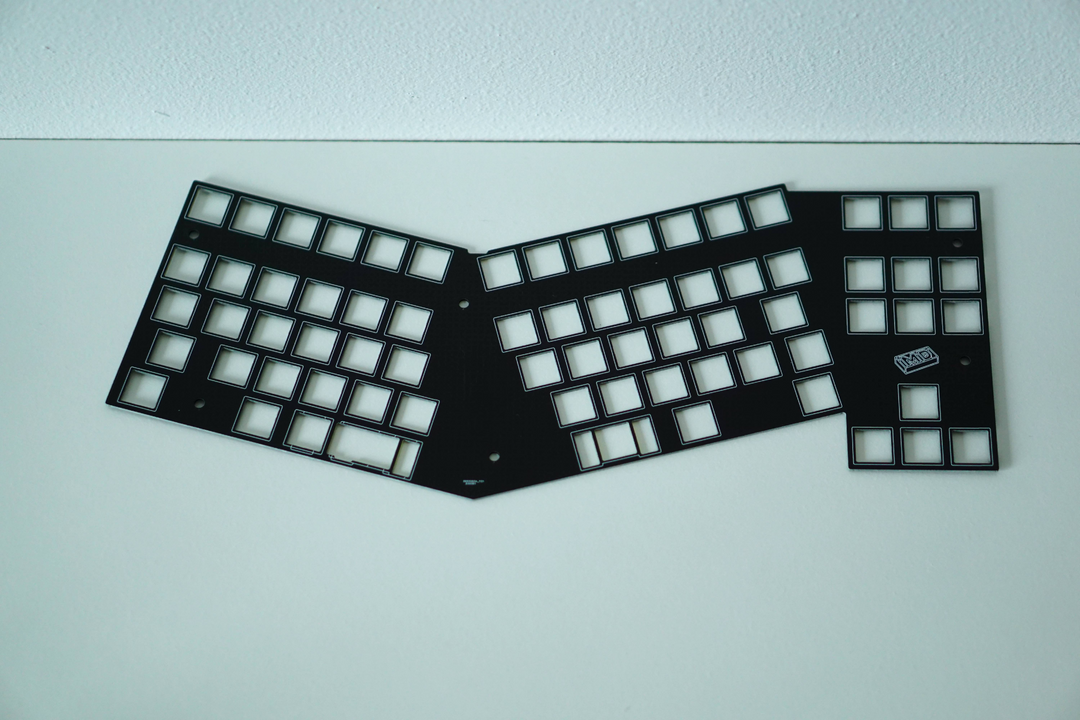

  • Top mount with an FR4 plate by default, mounting points as shown in plate image above
  • Alternate plate materials: POM, Carbon fibre

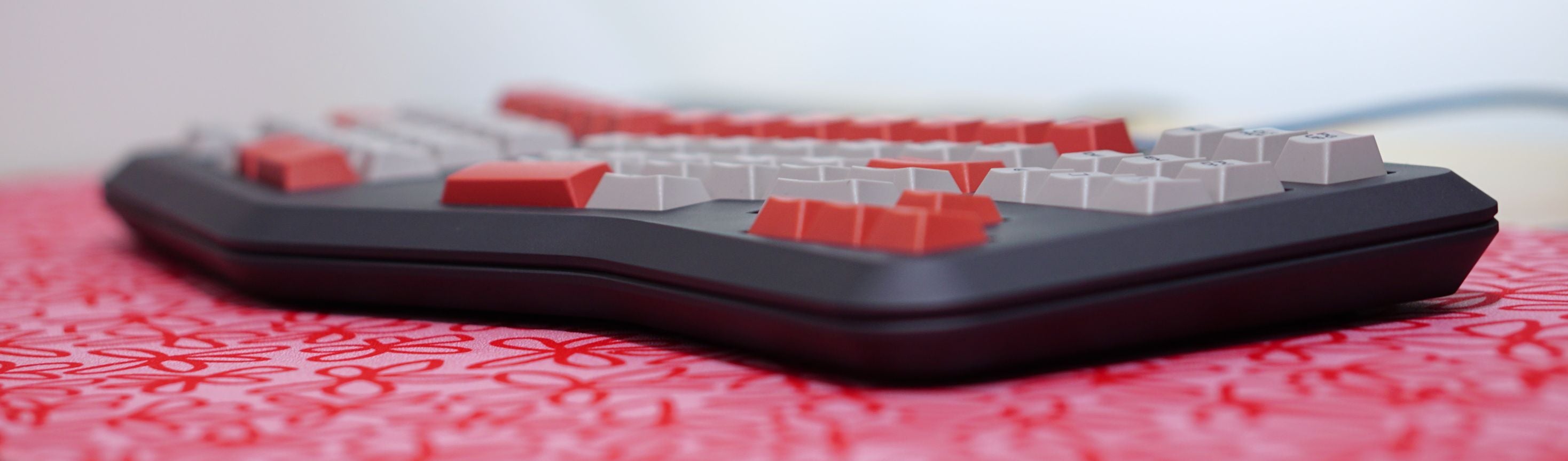

  • 3° typing angle
  • 1.25u Winkey blockers

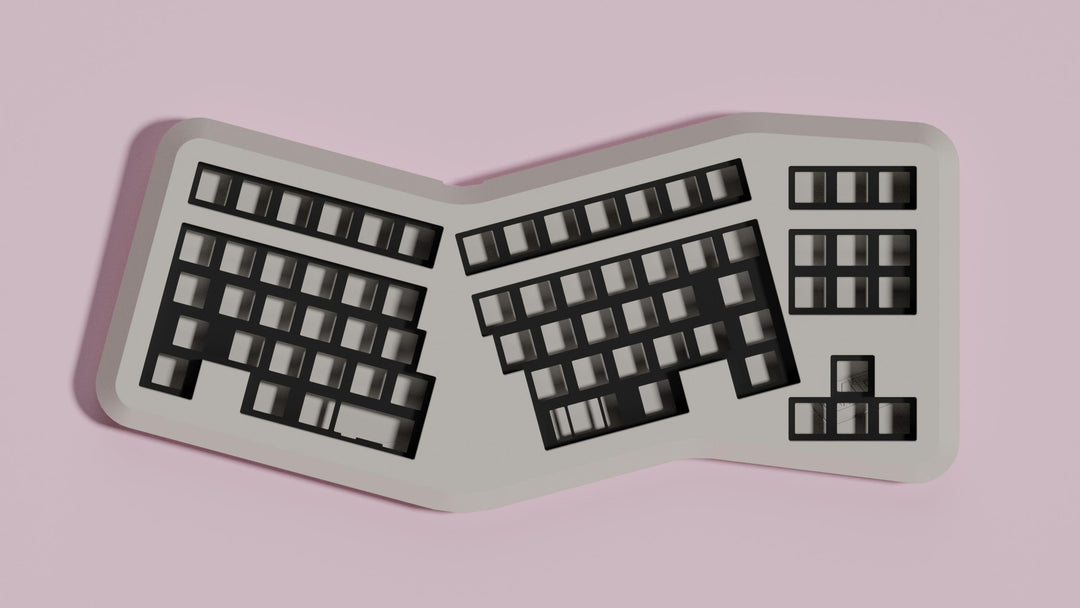

  • Aluminum top and bottom housing
  • QMK and VIAL-compatible JST PCB
  • Unified C3 daughterboard and JST cable

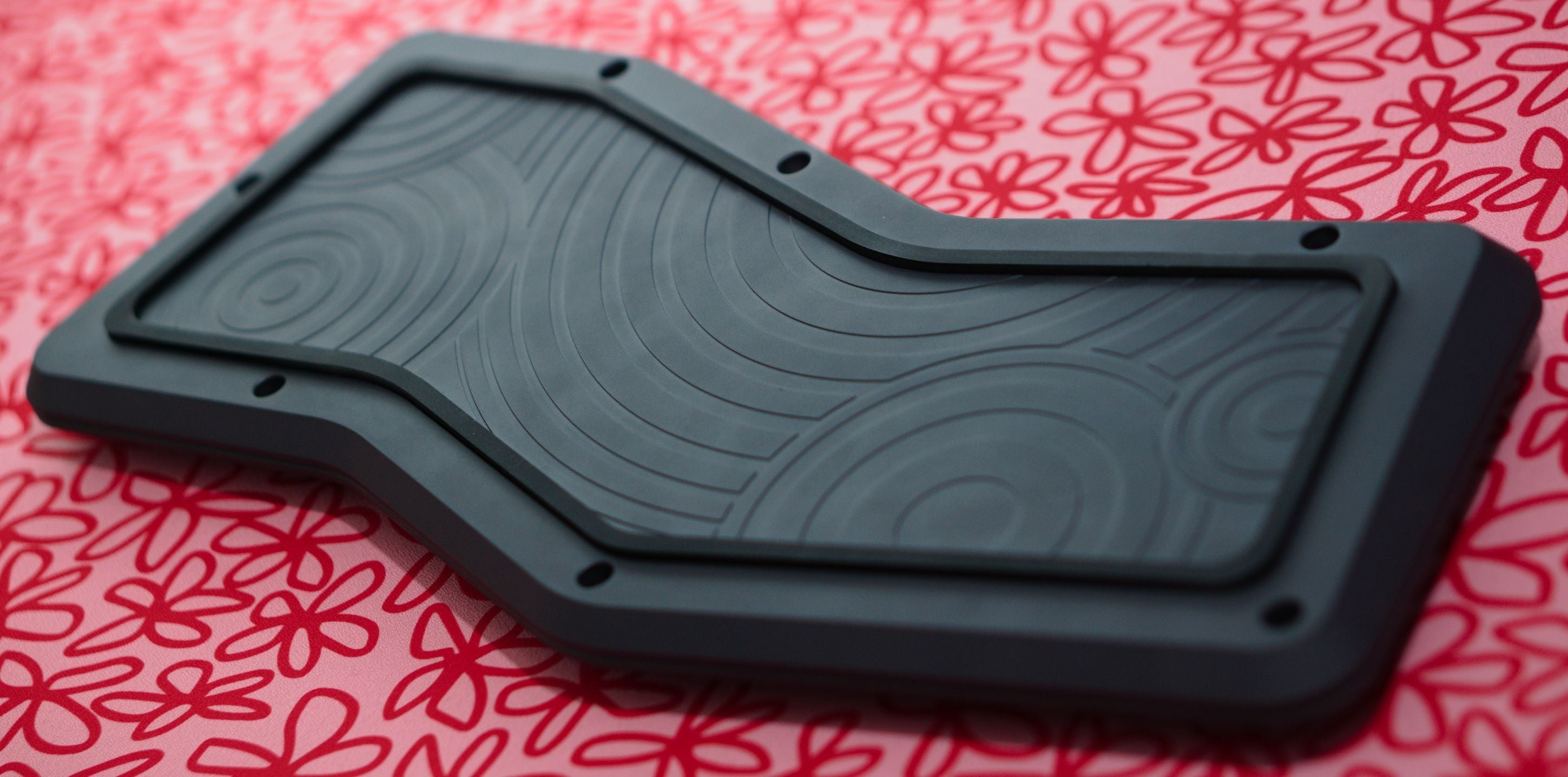

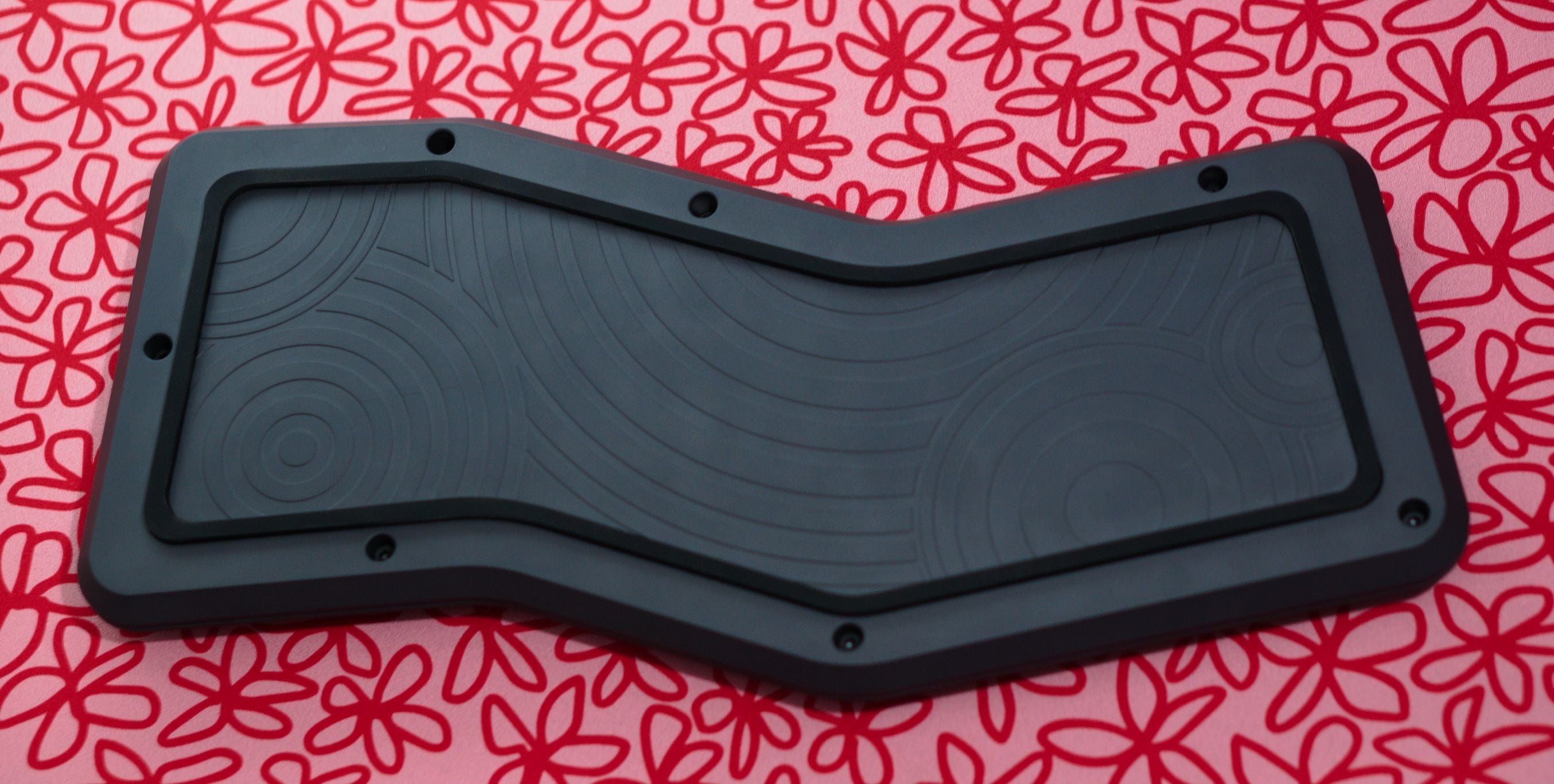

  • unique 5mm thick unibody foot
  • Weight built: 4 lbs 13 oz



Whats included?

  • FR4 plate
  • Nearfield PCB
  • Aluminum cnc machined top case

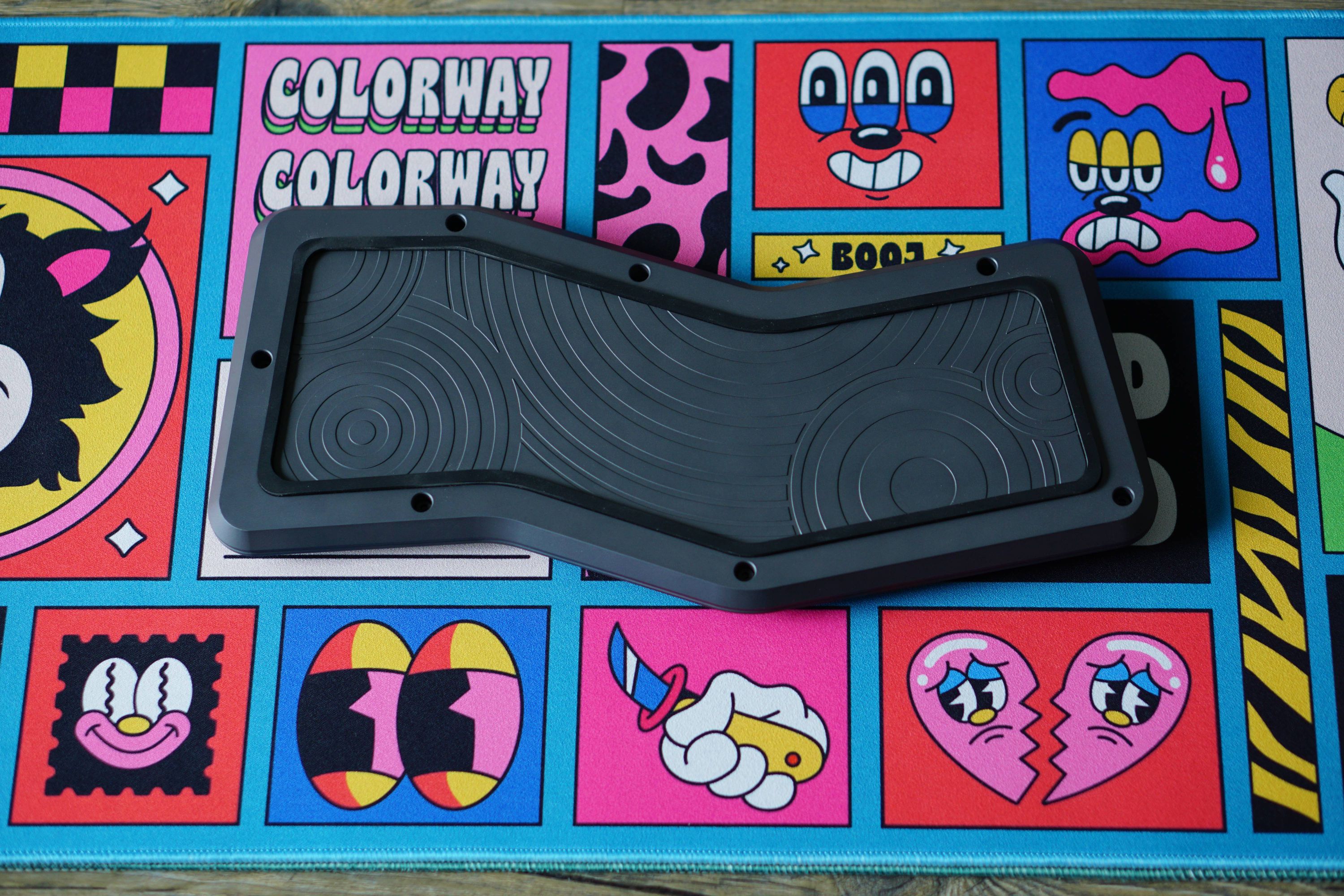

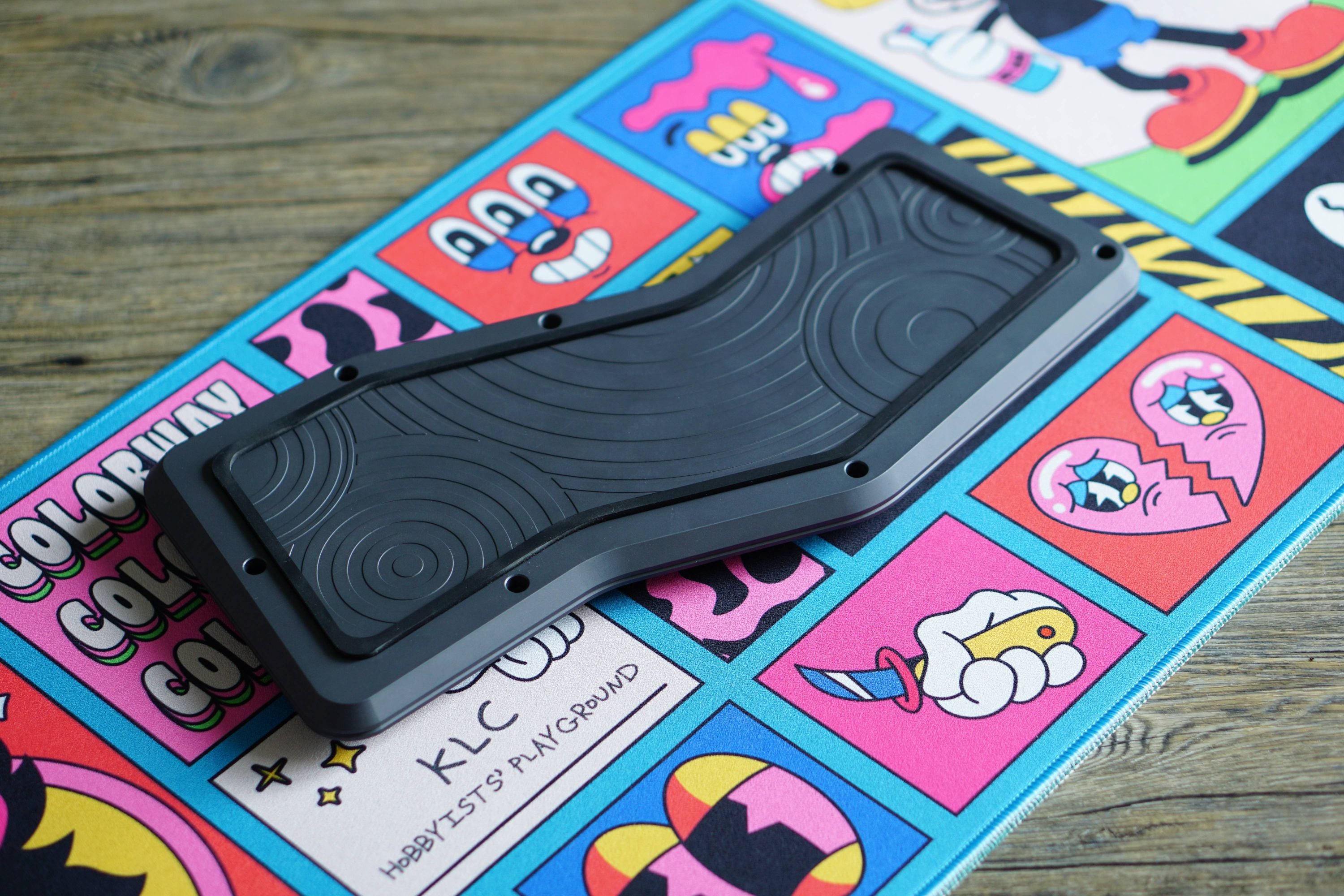

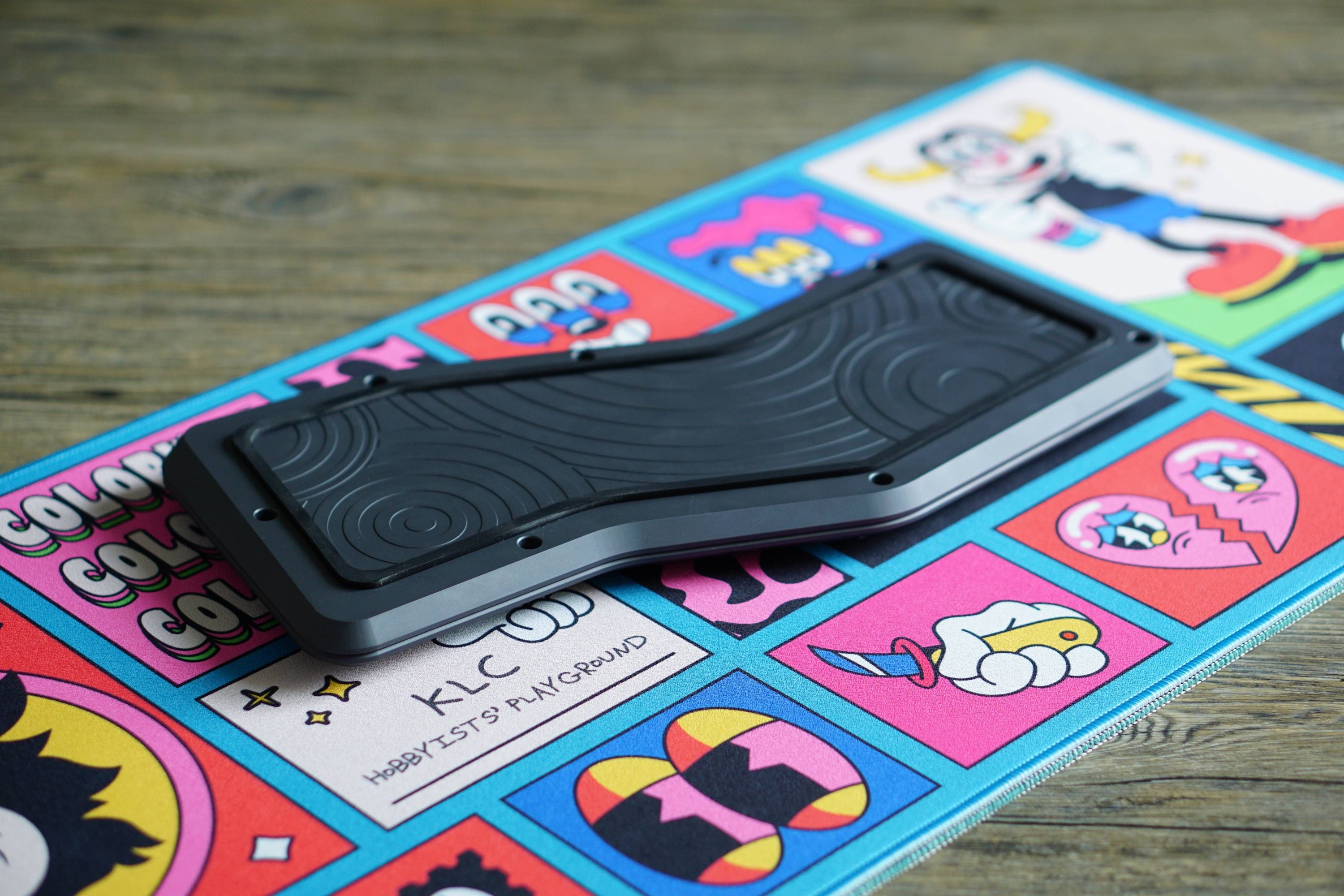

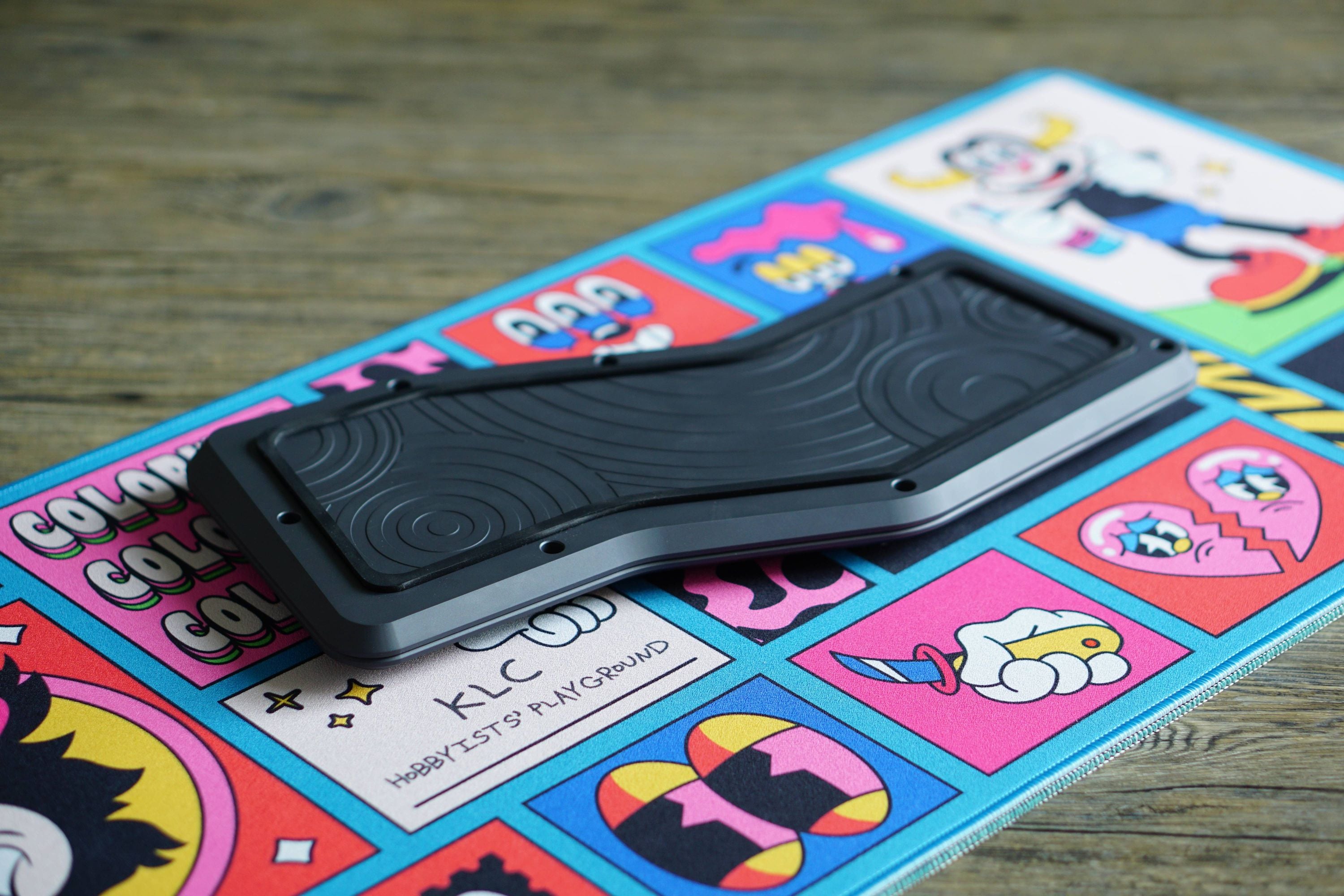

  • Aluminum cnc machined bottom case
  • Unified C3 daughterboard
  • JST to JST cable

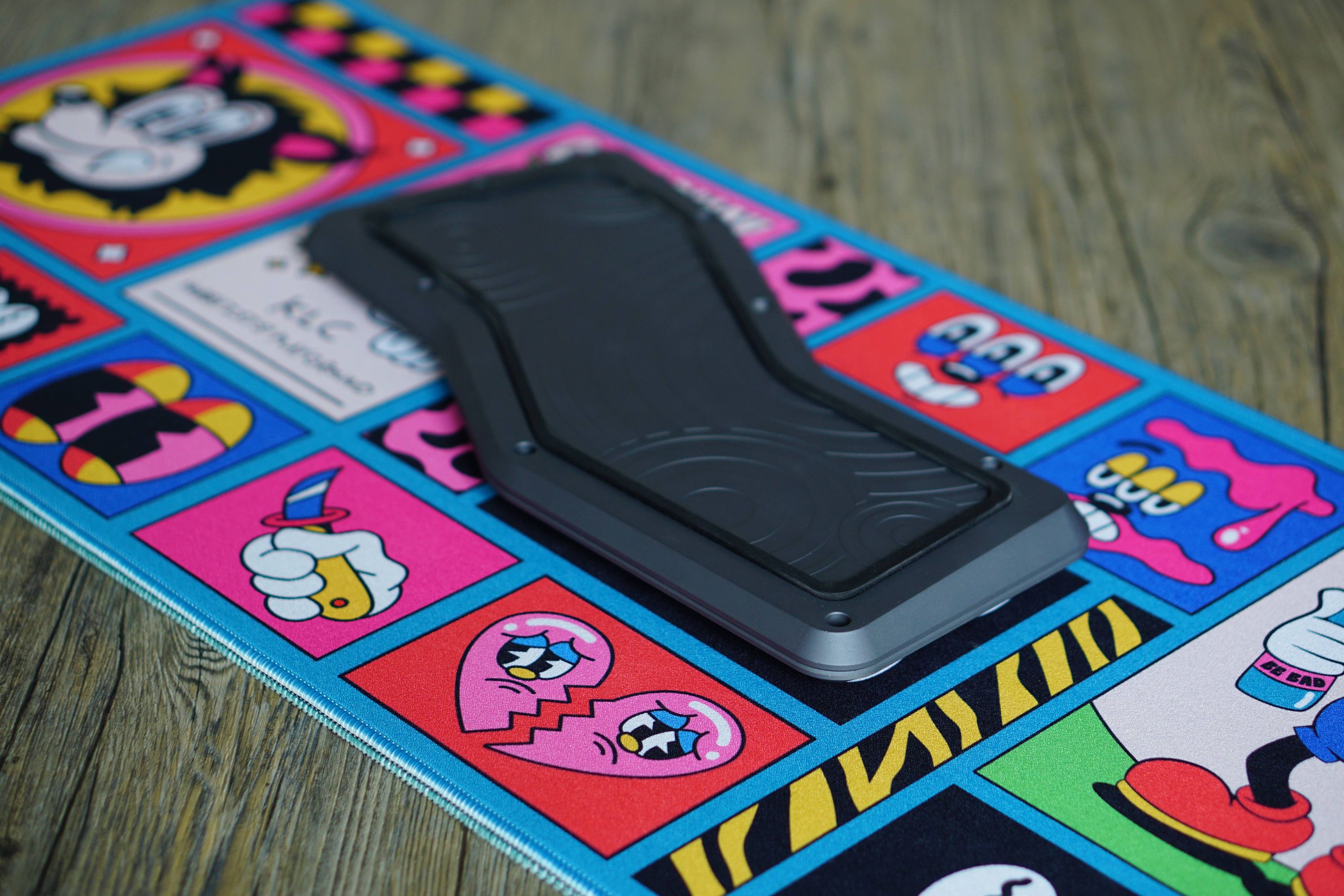

  • unibody foot
  • 2x m2 phillips screws (daughterboard)
  • 13x m4 hex screws (plate and case)



    Colours:

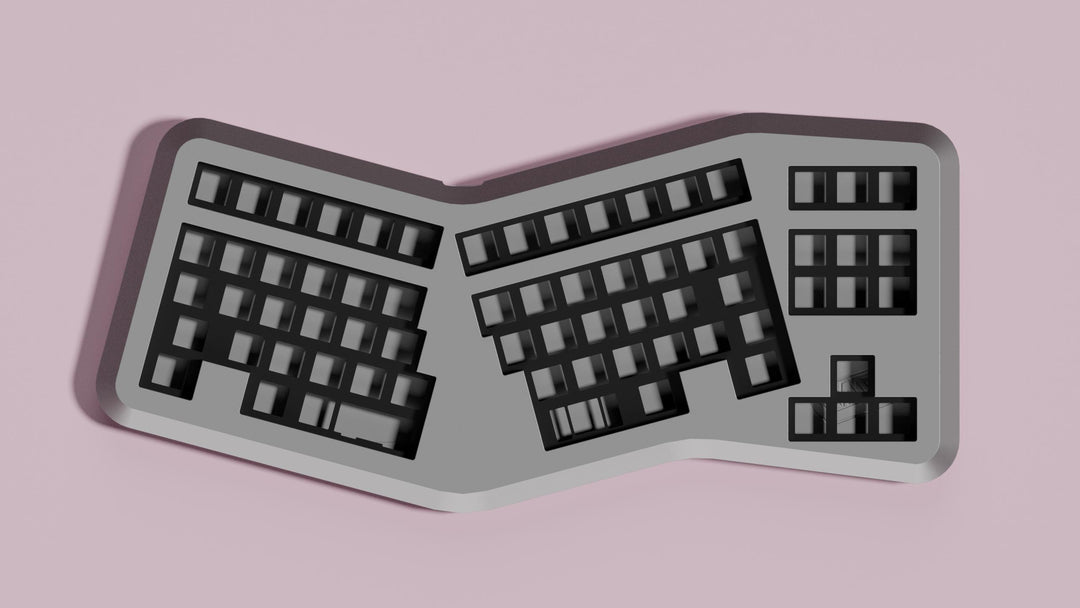

    • Silver anodised Aluminium

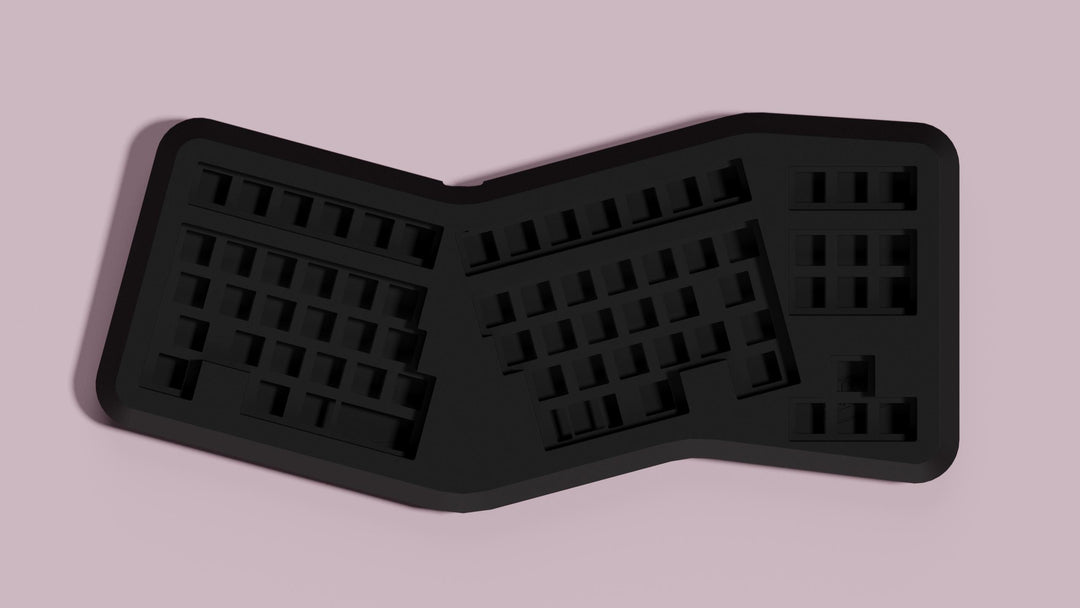

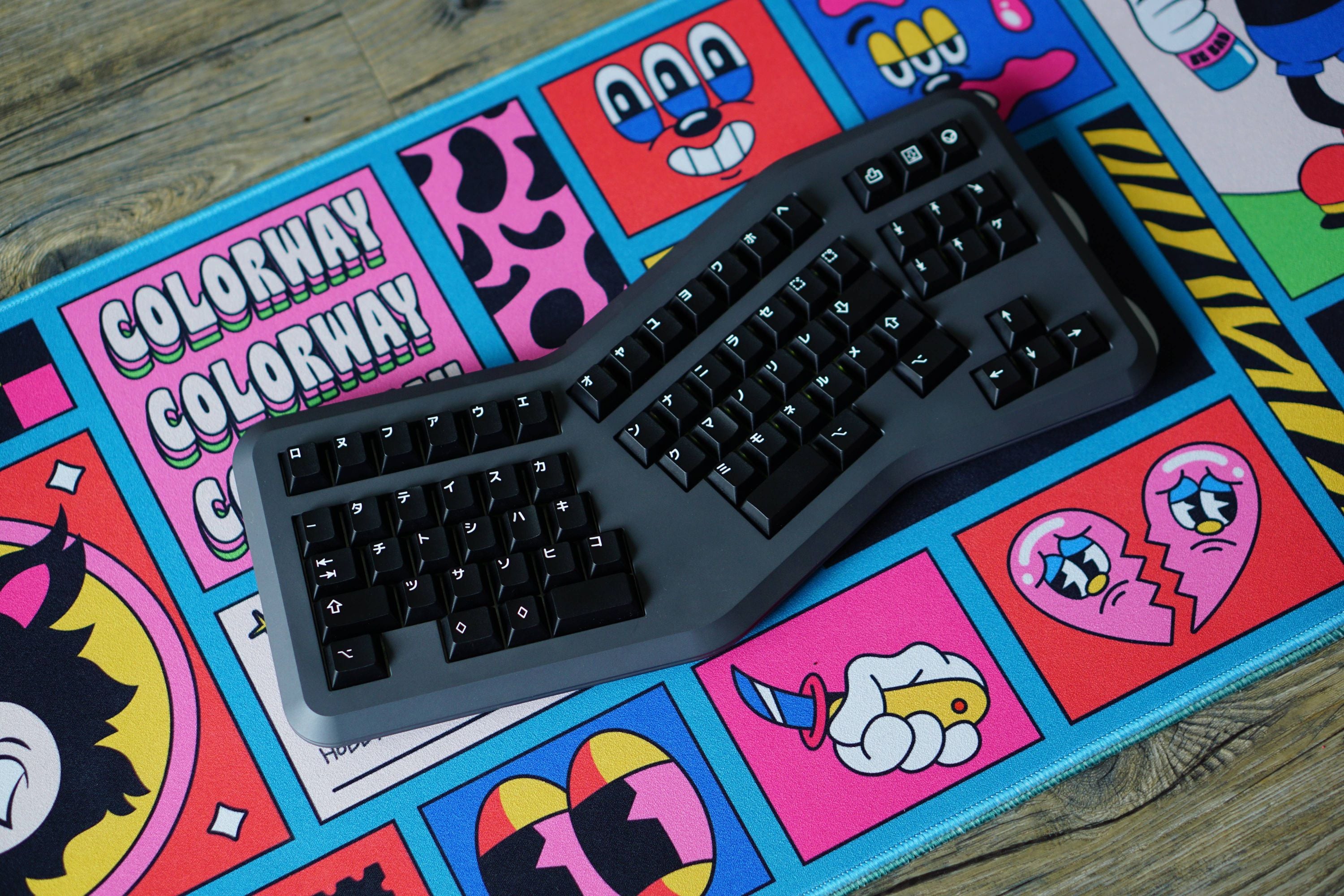

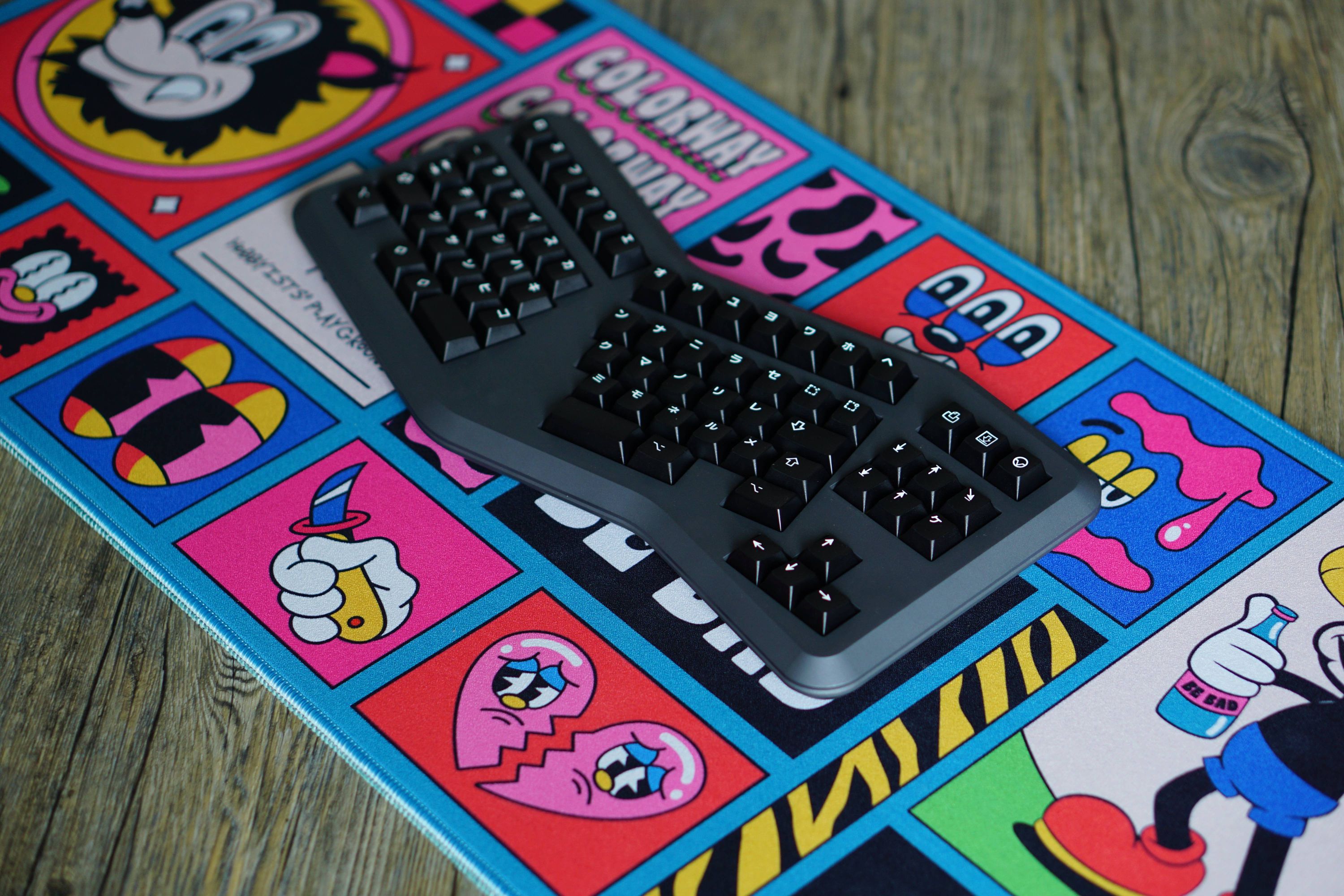

    • Black anodised Aluminium

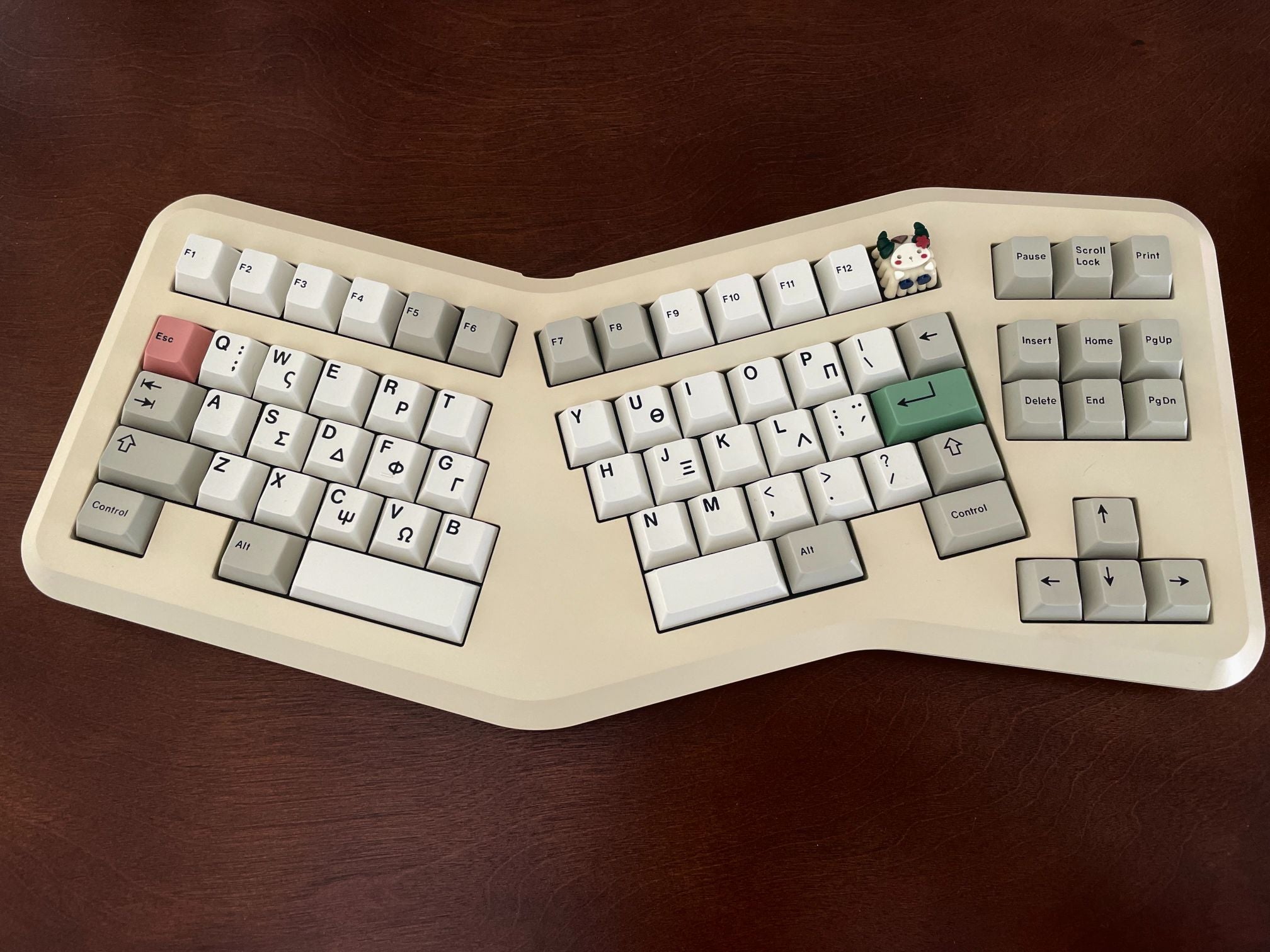

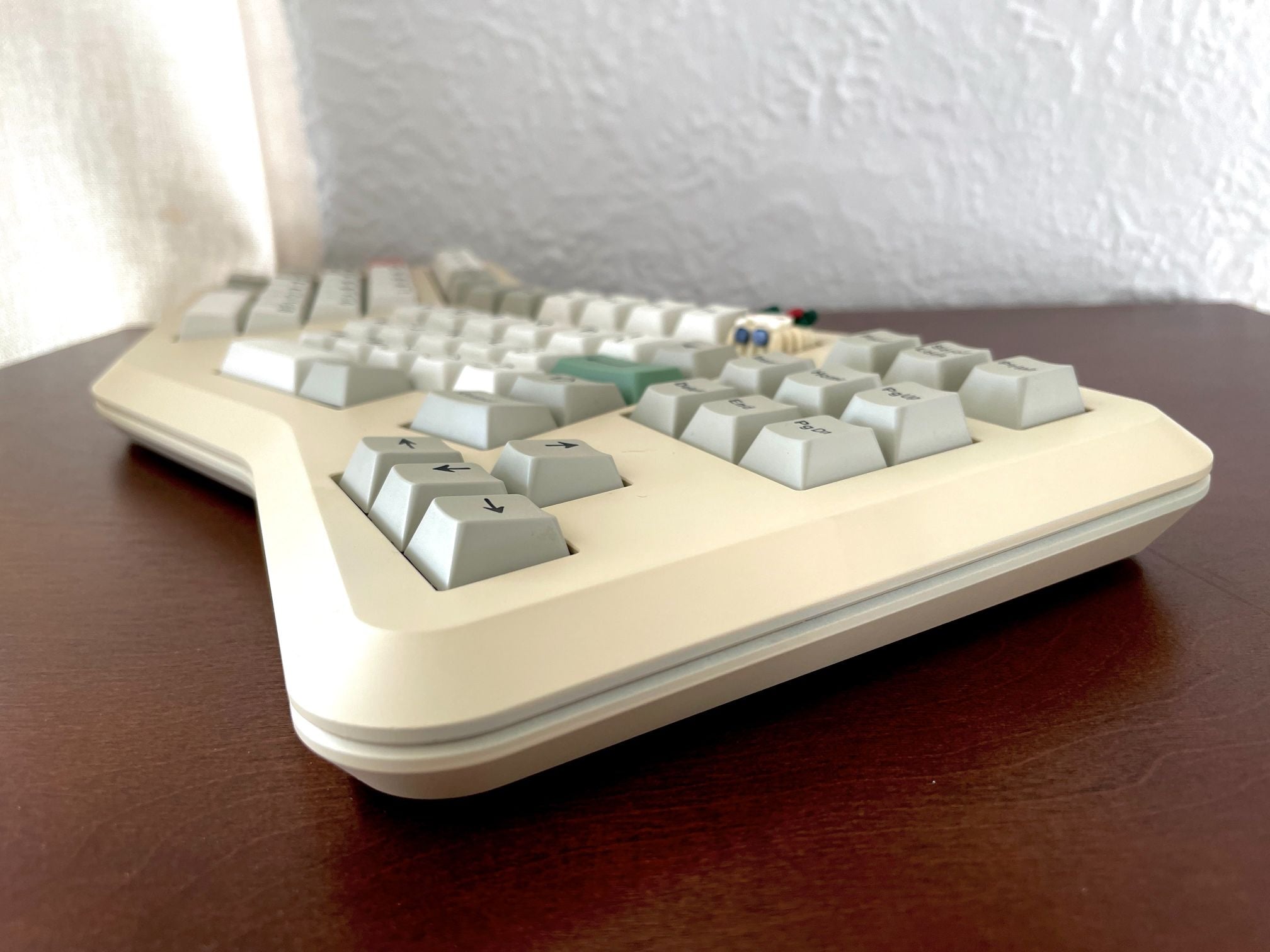

    • E-Beige Aluminum





    Solder PCB Layout

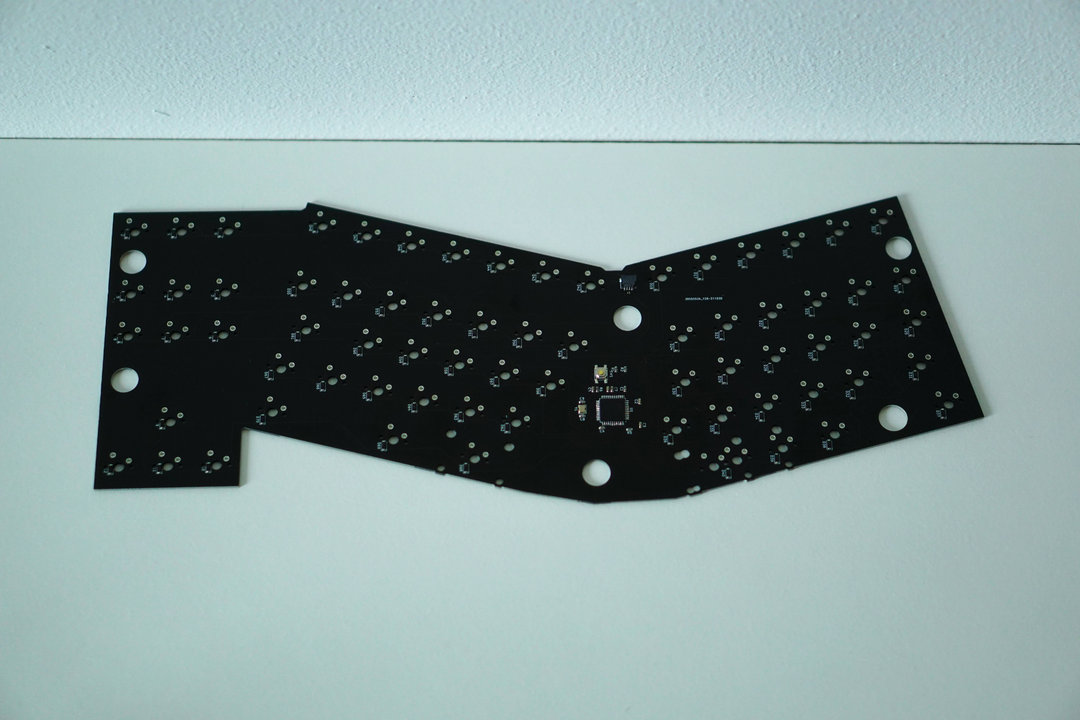

    Nearfield PCB layout





    Disclaimers

    Shipping Time and GB Agreements (PLEASE READ):
    These products are set to be shipped out in Q4 2022 - Q1 2023 but please check our updates for the latest information.

    Please note that this is a Group Buy. There can be delays and set backs. The timeline is only an estimate. By adding this item to your cart and purchasing you agree that you understand everything above. You will be charged immediately for this item. There are no refunds or cancellations on these orders. Please do not purchase this item with other group buys. Only the items specified in each product picture are included with that particular product.
