(Group Buy) Onyx Keyboard Kit

Sale price

Regular price £370.83
( / )

Meet Onyx.

A collaboration between funderburker and Quaddepos, Onyx is designed to be something new yet classical.

A keyboard that speaks louder than it sounds.

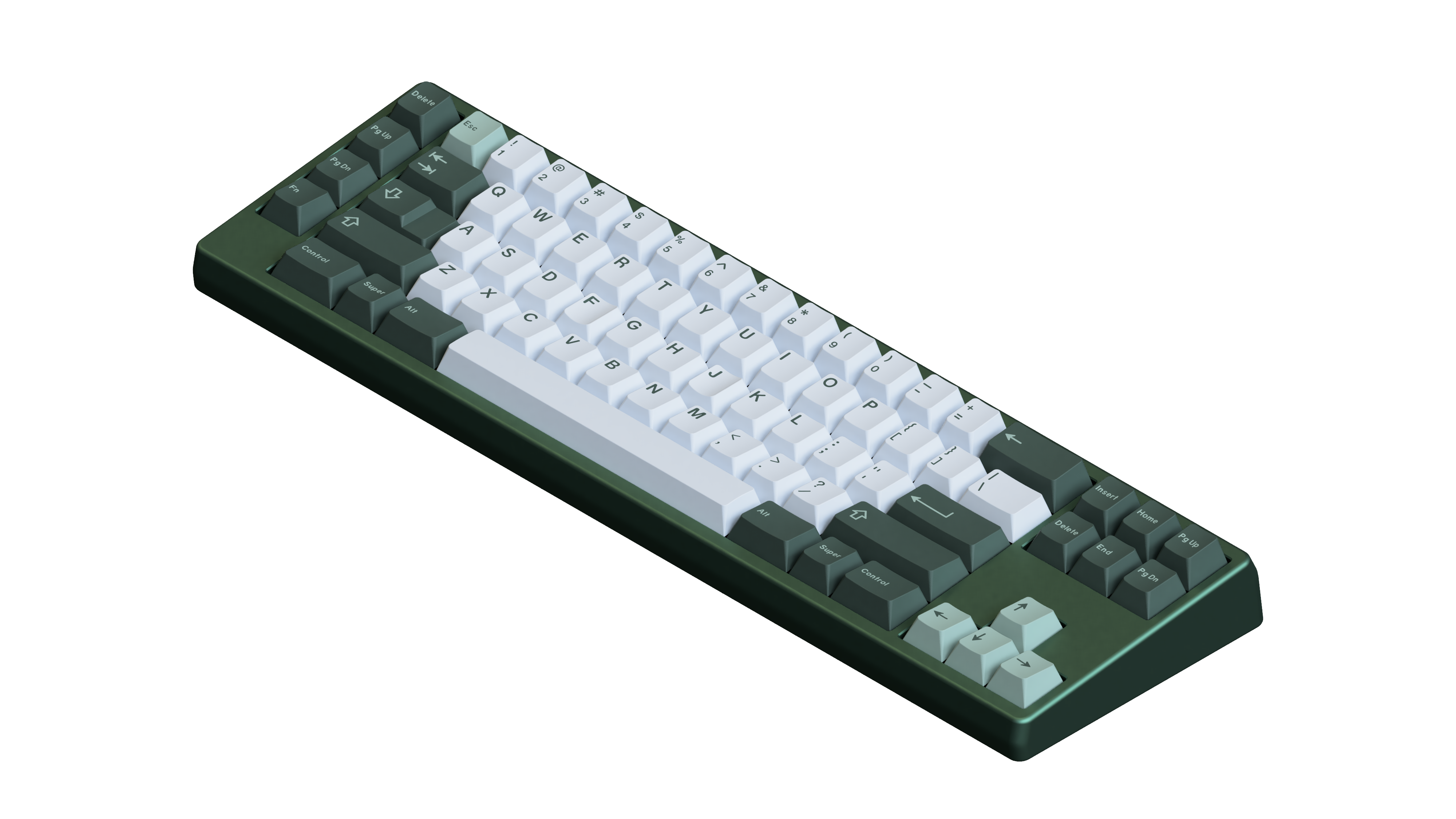

Designed without any compromises, Onyx is a F-row less tenkeyless (FRL TKL for short) with an additional 4 key macro cluster on the side and a clean, minimal brass weight. Onyx is a gasket mounted keyboard that's completely seamless and internally screwed, giving the illusion it's sealed shut without any hardware.

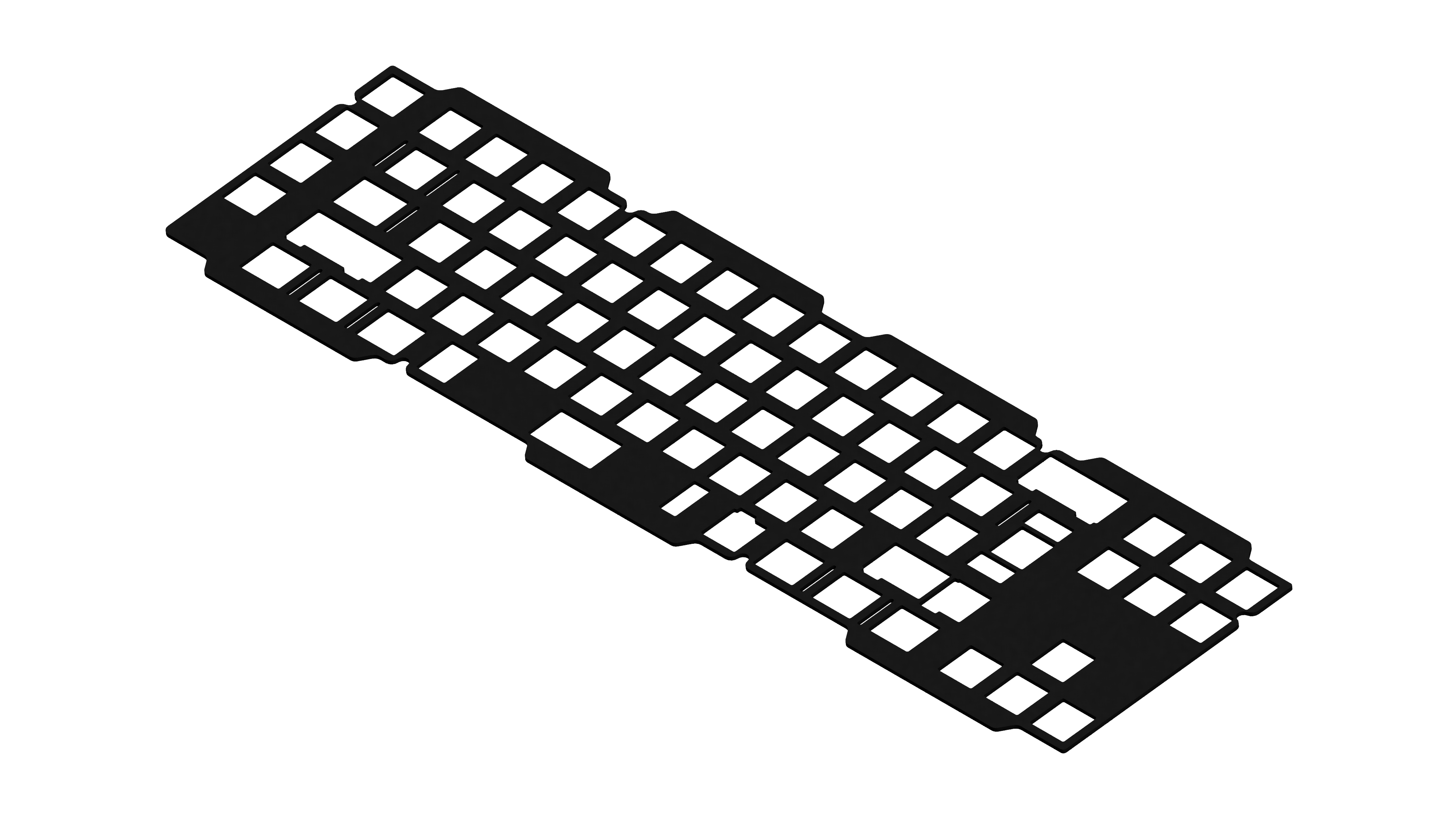

The board sits comfortably at a 7-degree typing angle and is available both in Winkey and Winkeyless variants, with plates being separated into ANSI and ISO layout plate options, both Full and Half-plates.

The VIA-compatible PCB that's been designed by Upas will fit any user and their specific needs while still offering easy configuration and programming. A fully assembled Onyx will be just shy of 2 kilograms in weight.


Group Buy Specifics

  1. Group Buy launches on February 20th 2021 at 11am
  2. Group Buy Closes on February 26th 2021 at 8pm
  3. Group Buy will be FCFS format, Make sure your account is all setup on the site and you are ready with your payment method.
  4. Will be region locked to the UK for 10 minutes
  5. There will be a max limit of 30 units for the UK
  6. Limit One per person
  7. After you order your board you will get a link via email to select your colour options, layout options and any additional Extras to add to your order, this must be completed within 24 hours of receipt
  8. If you add any extras you will receive a further invoice to pay for those parts. This must be paid within 24 hours of receipt
  9. Order modifications will be possible until Saturday 27th February at 12 Noon UK time - any requests after this cut-off will not be possible.


Features:

  • F-Row Less TKL + Macro Column Layout
  • Gasket mounted plate

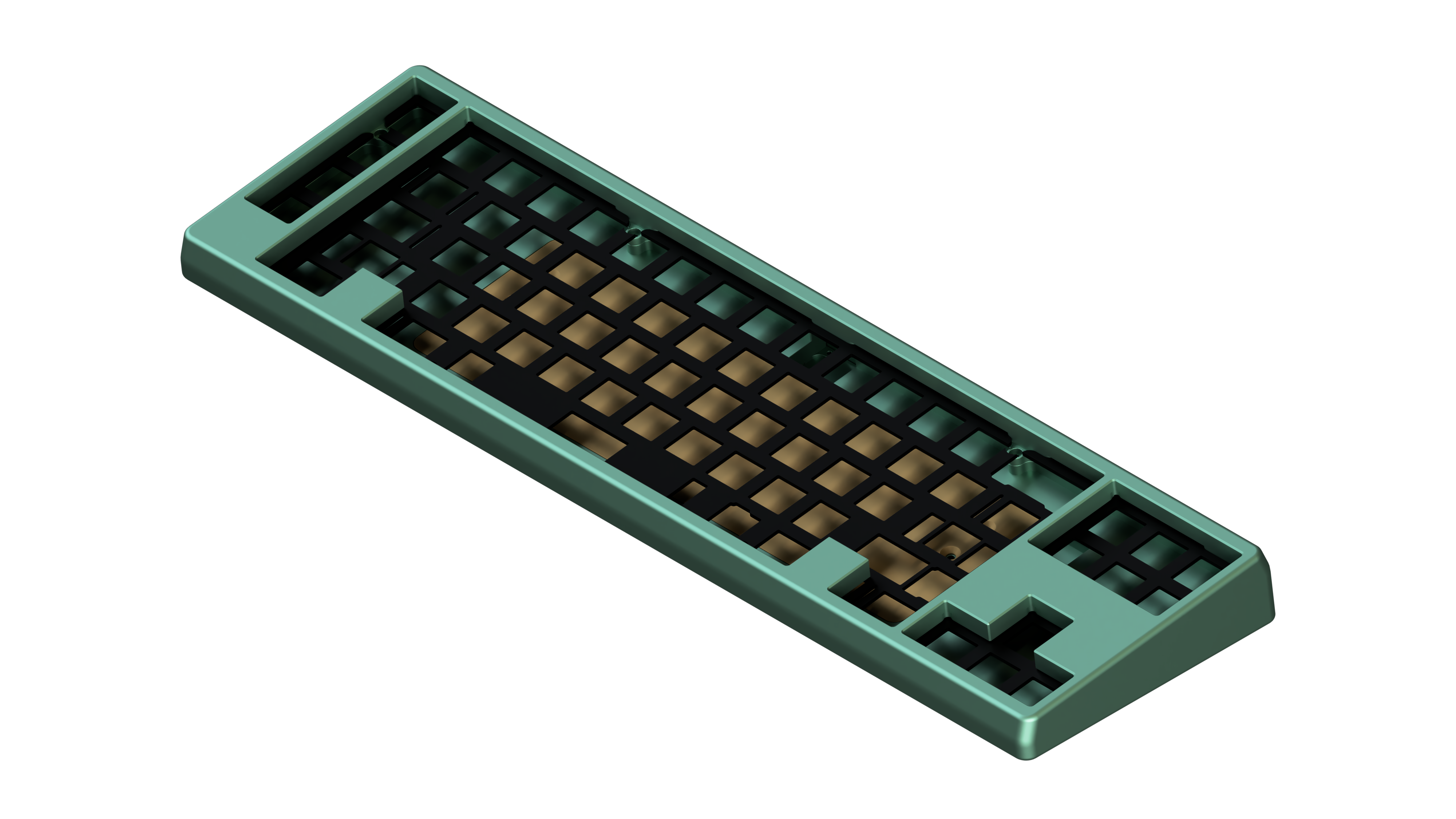

  • Seamless, internally screwed case design
  • 7 degree typing angle

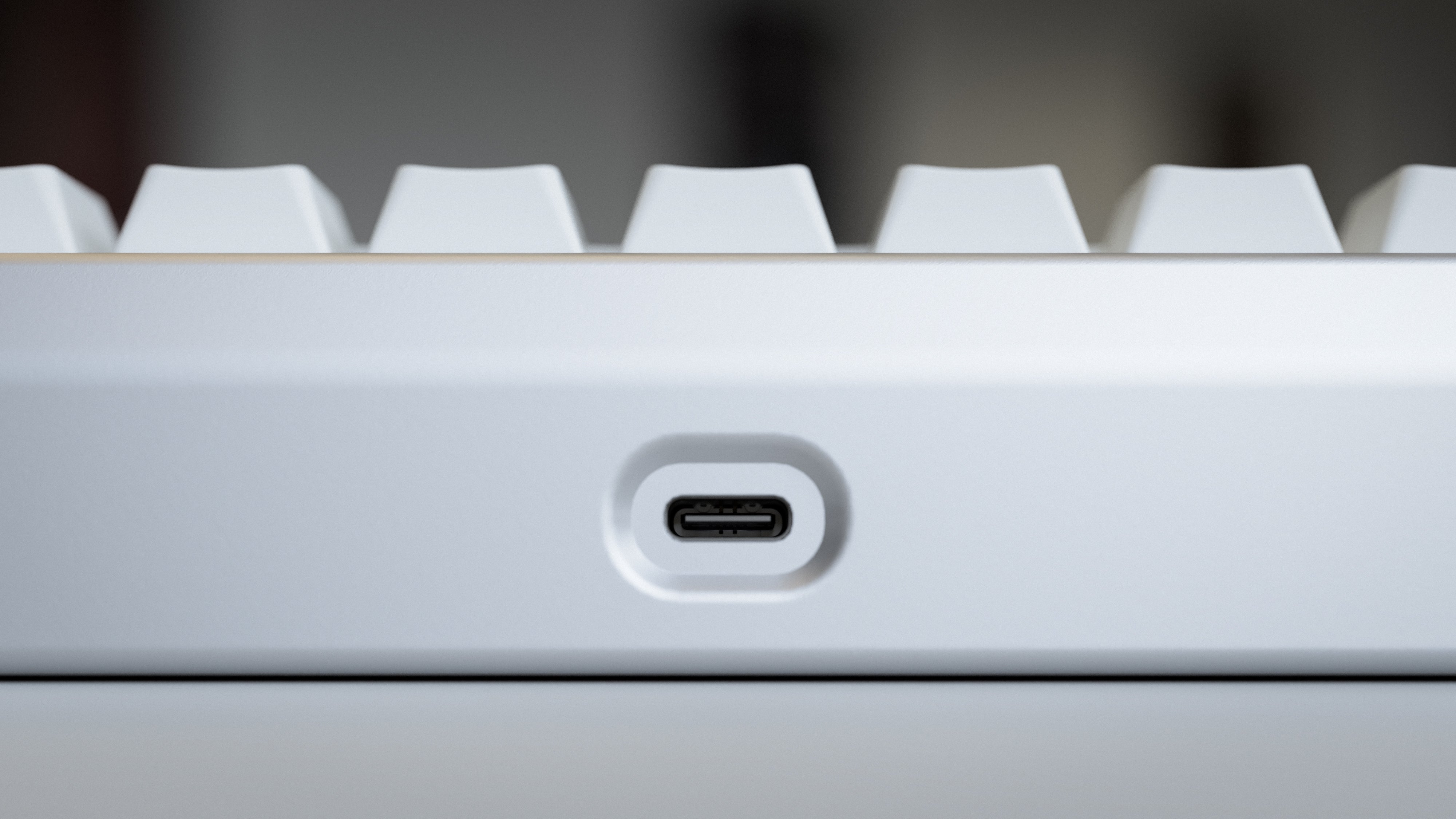

  • VIA-compatible PCB with USB-C daughterboard, designed by Upas
  • ANSI and ISO support, WinKey & WinKeyLess layouts
  • Internally screwed minimal weight design
  • Your choice of  WK or WKL Top



Each Onyx Keyboard will come with the following:

  • 1x 6063 aluminium board top
  • 1x 6063 aluminium board bottom
  • 1x Brass weight
  • 1x Anodized Aluminium Plate or Brass Plate (depending on variant)
  • QMK + VIA Compatible PCB designed by Cannon Keys w/ ESD protection
  • Screws
  • Custom Feet (8mm bumpon compatible, so if you lose the custom feet, they are easily replaceable with bumpons)
  • Microfiber cloth and padded zip case with foam



FORM CHOICES

Layout Choices:

  • ANSI or ISO
  • WinKey or WinKeyLess

Colour Choice:

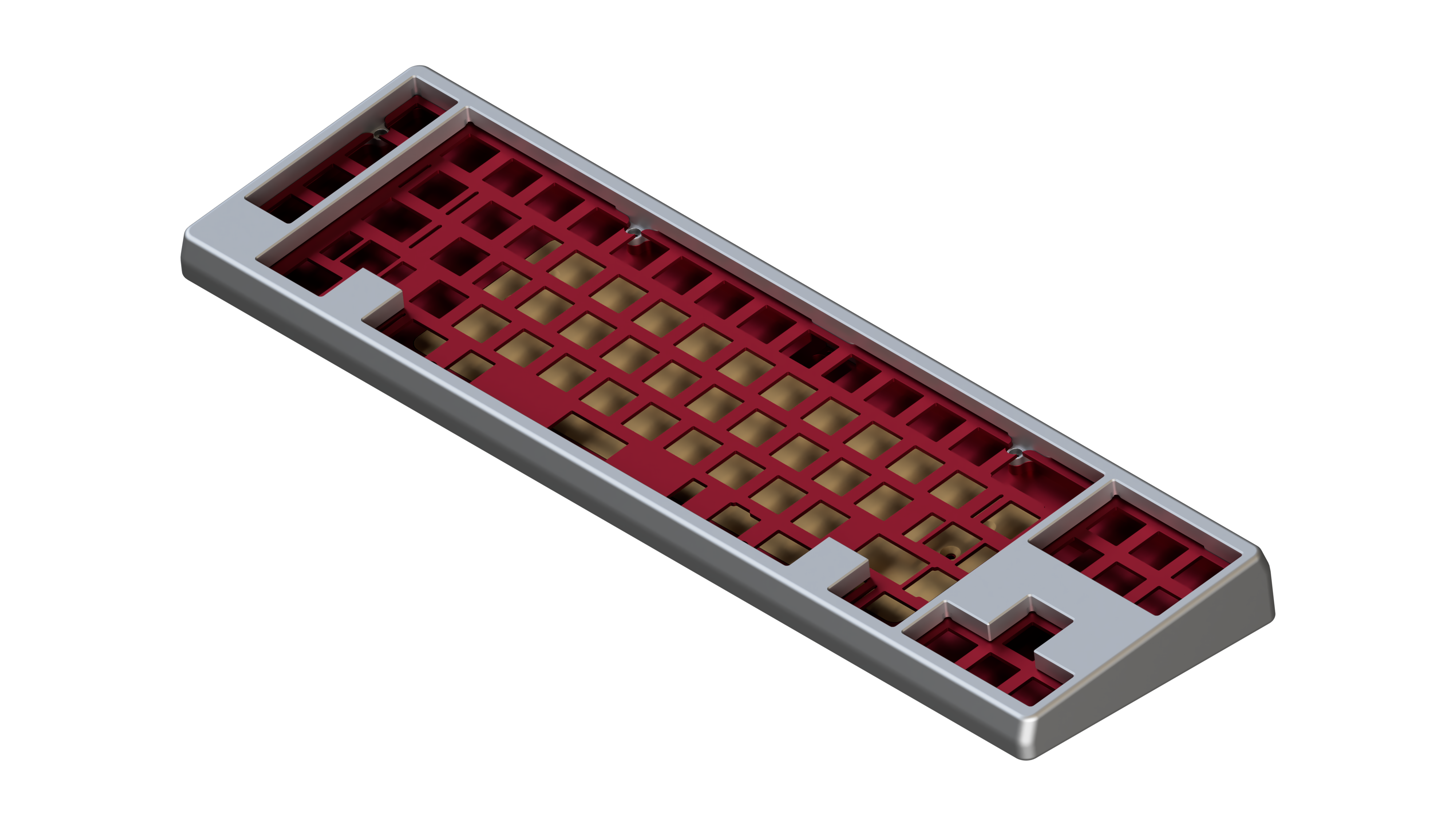

  • Silver Top / Red Bottom / Red Aluminium Plate

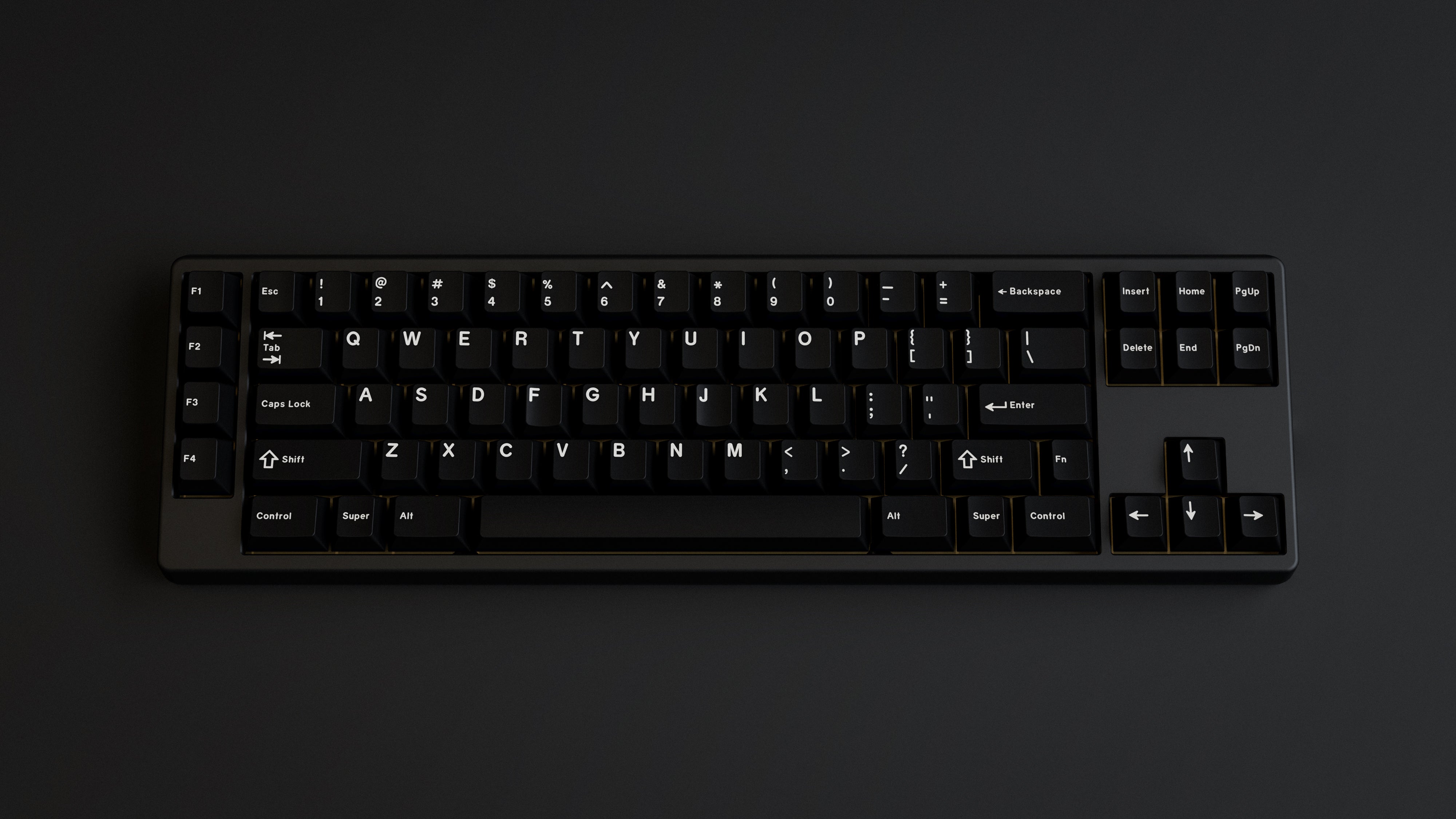

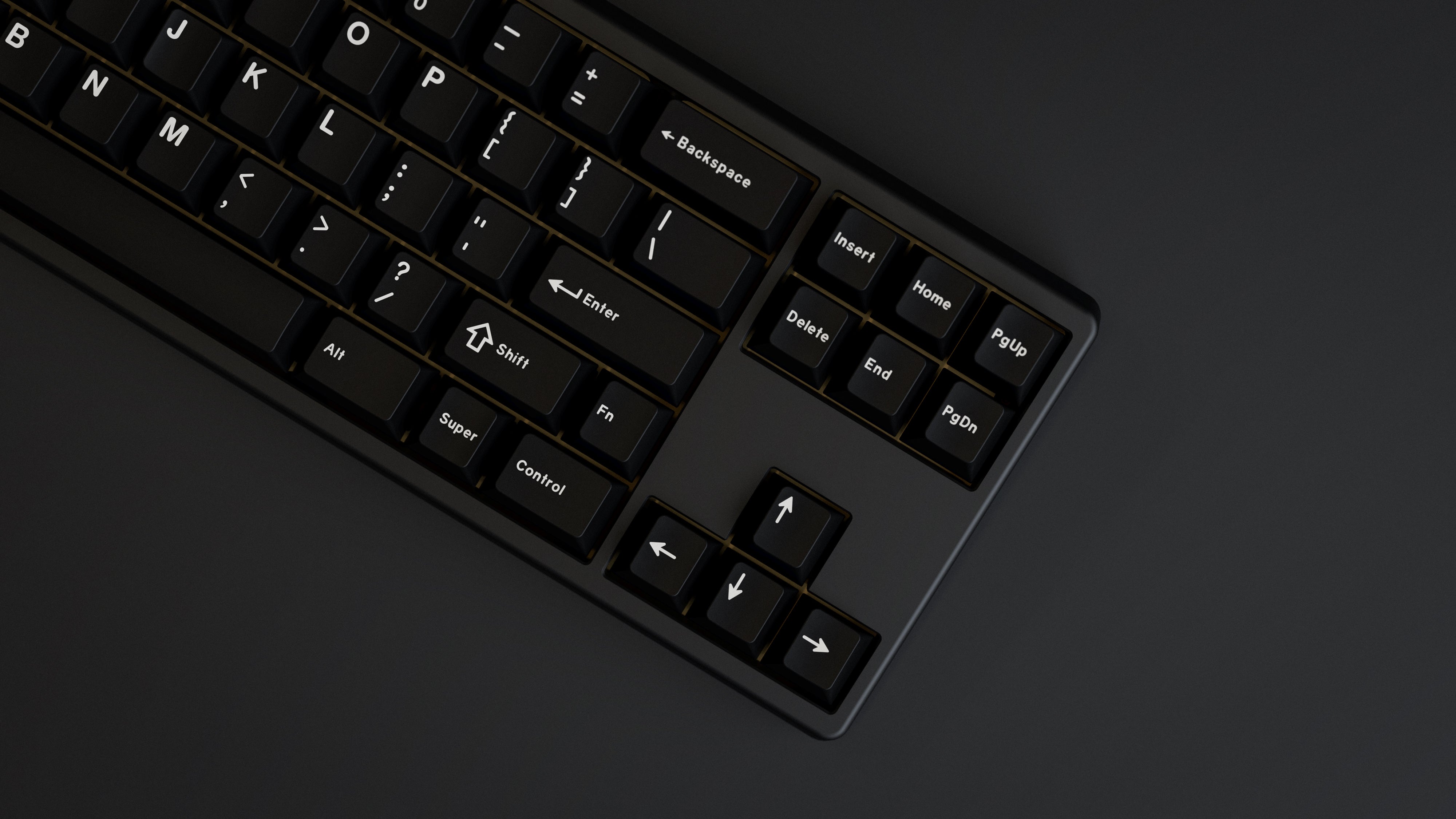

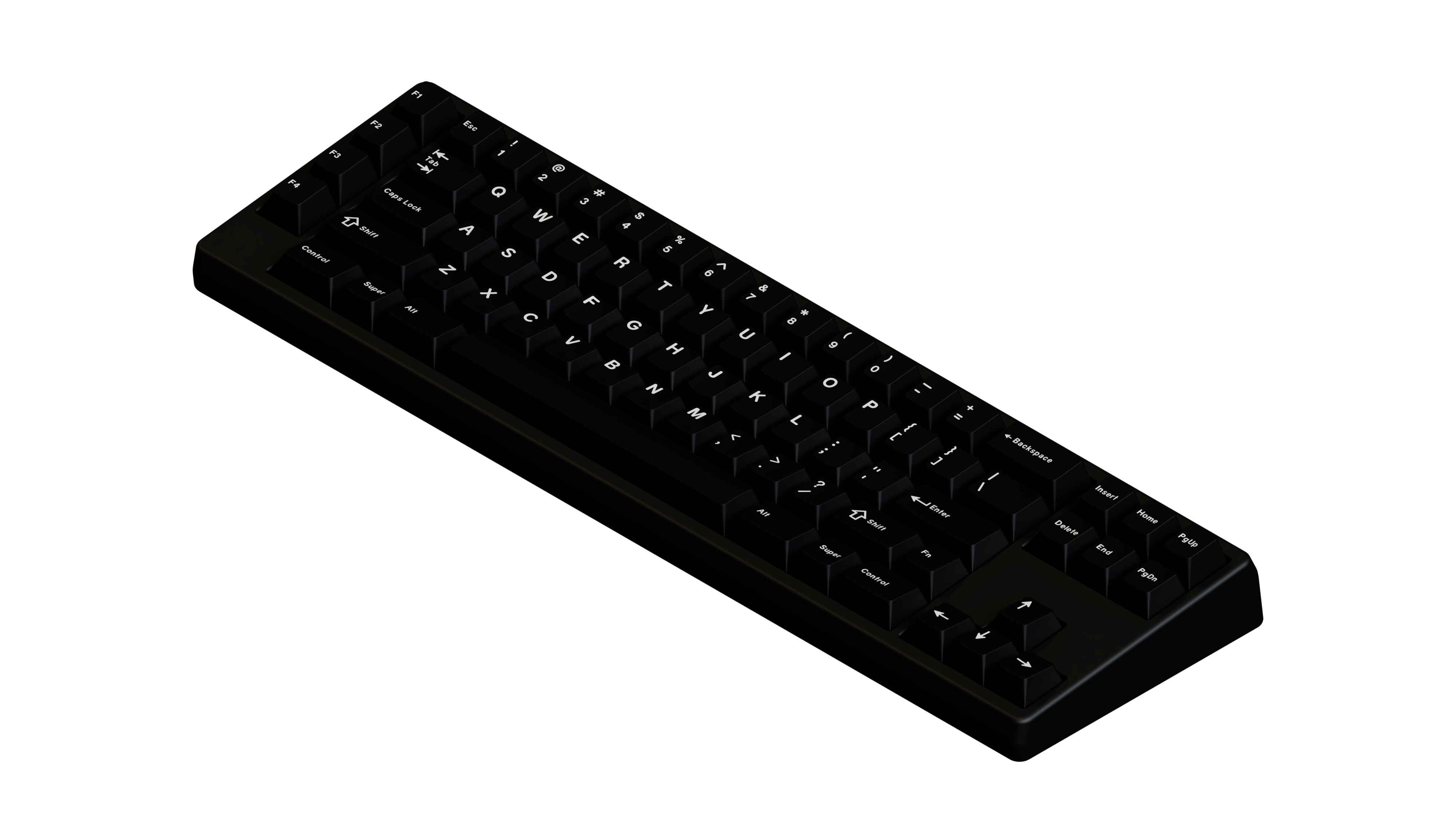

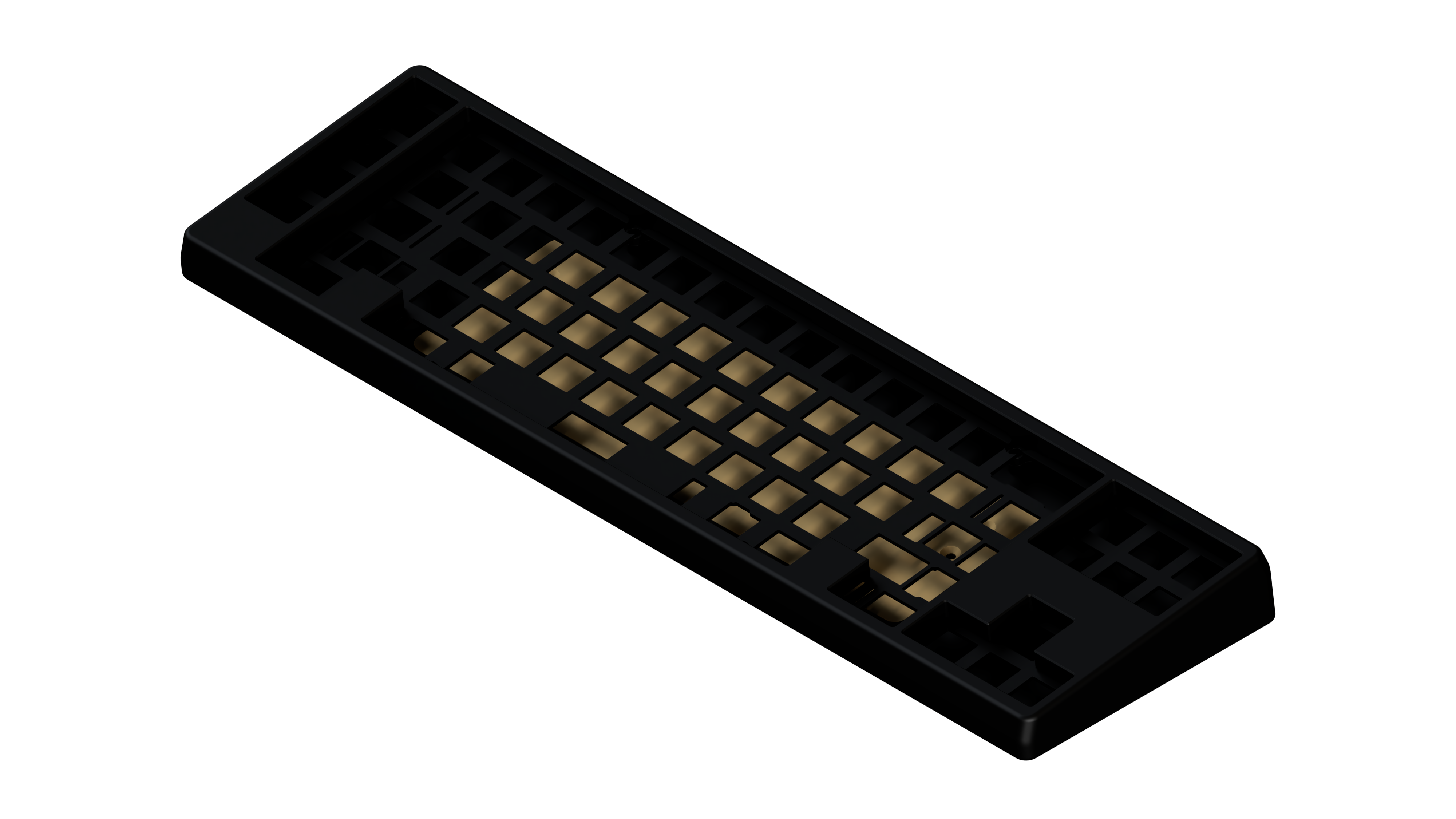

  • Black Top and Bottom / Black Aluminium Plate

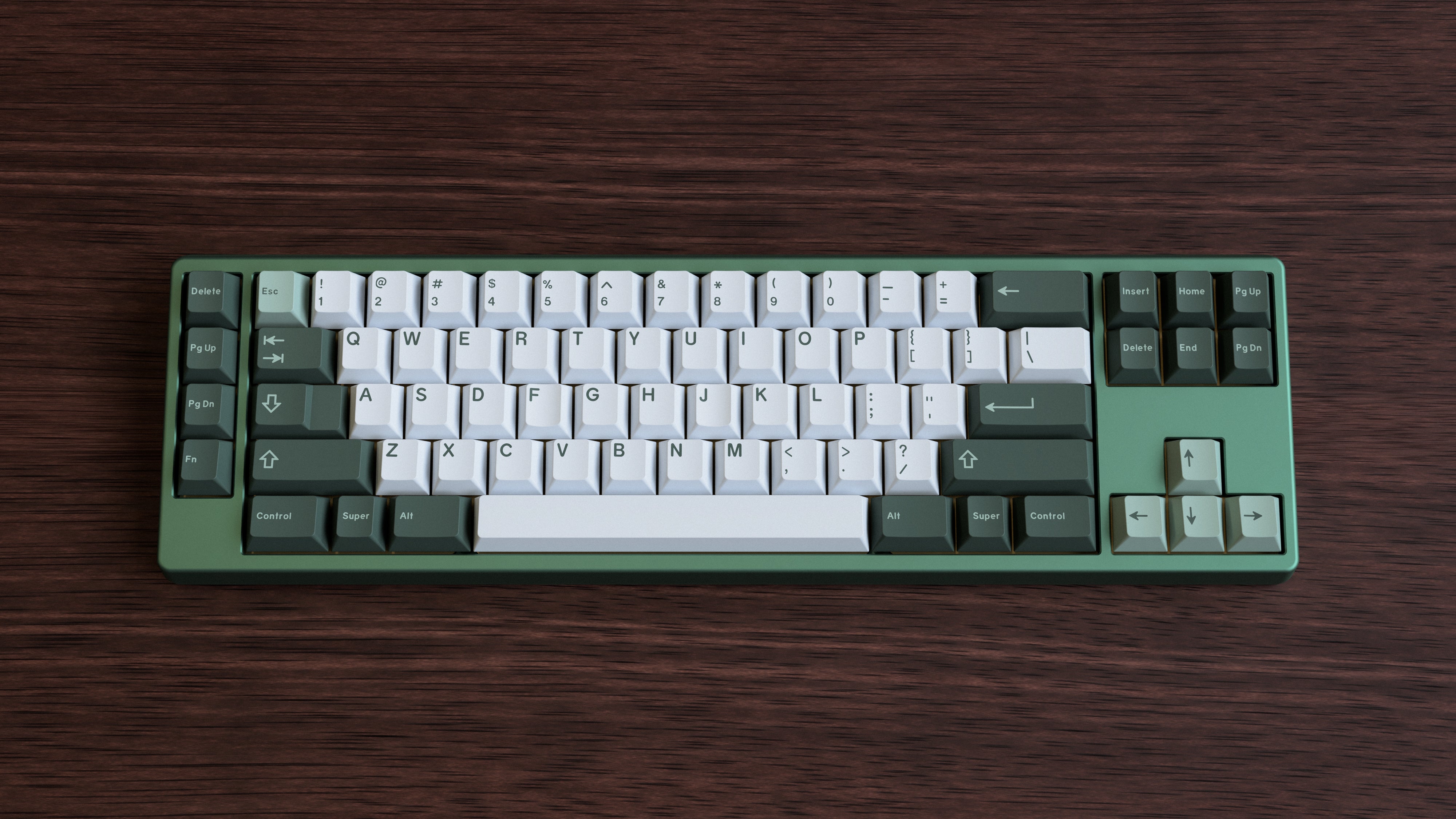

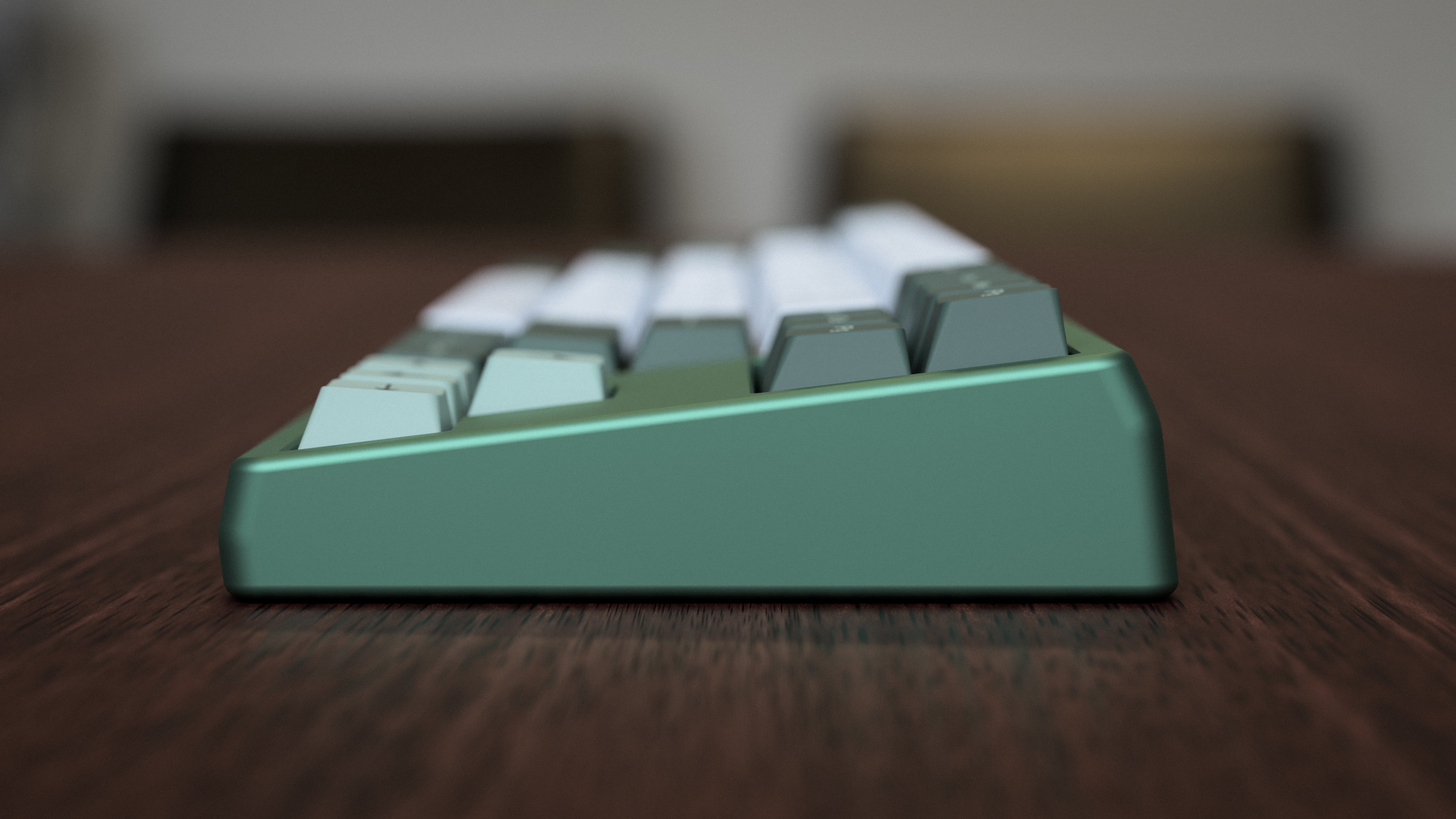

  • Green Top and Bottom / Black Aluminium Plate

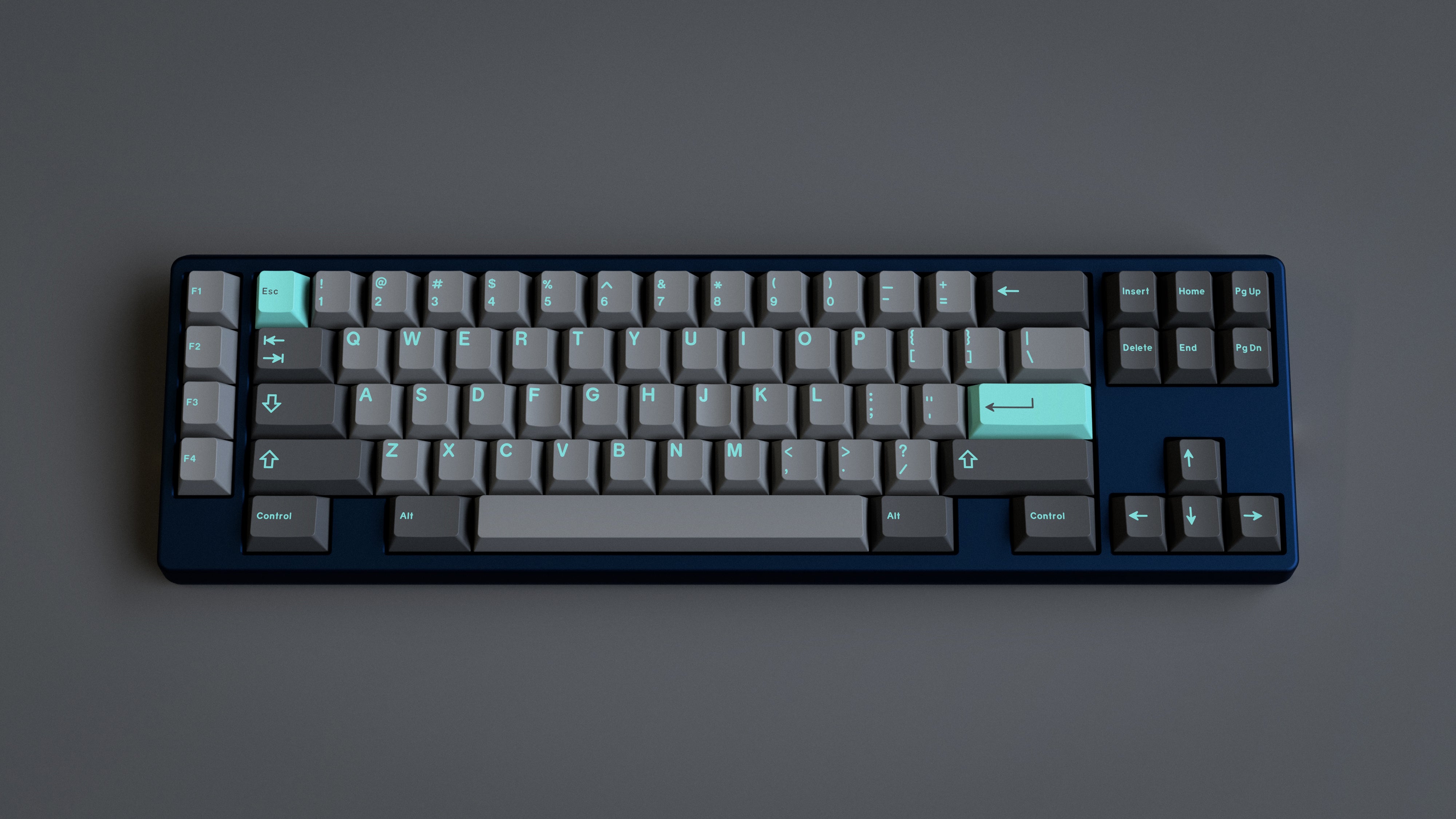

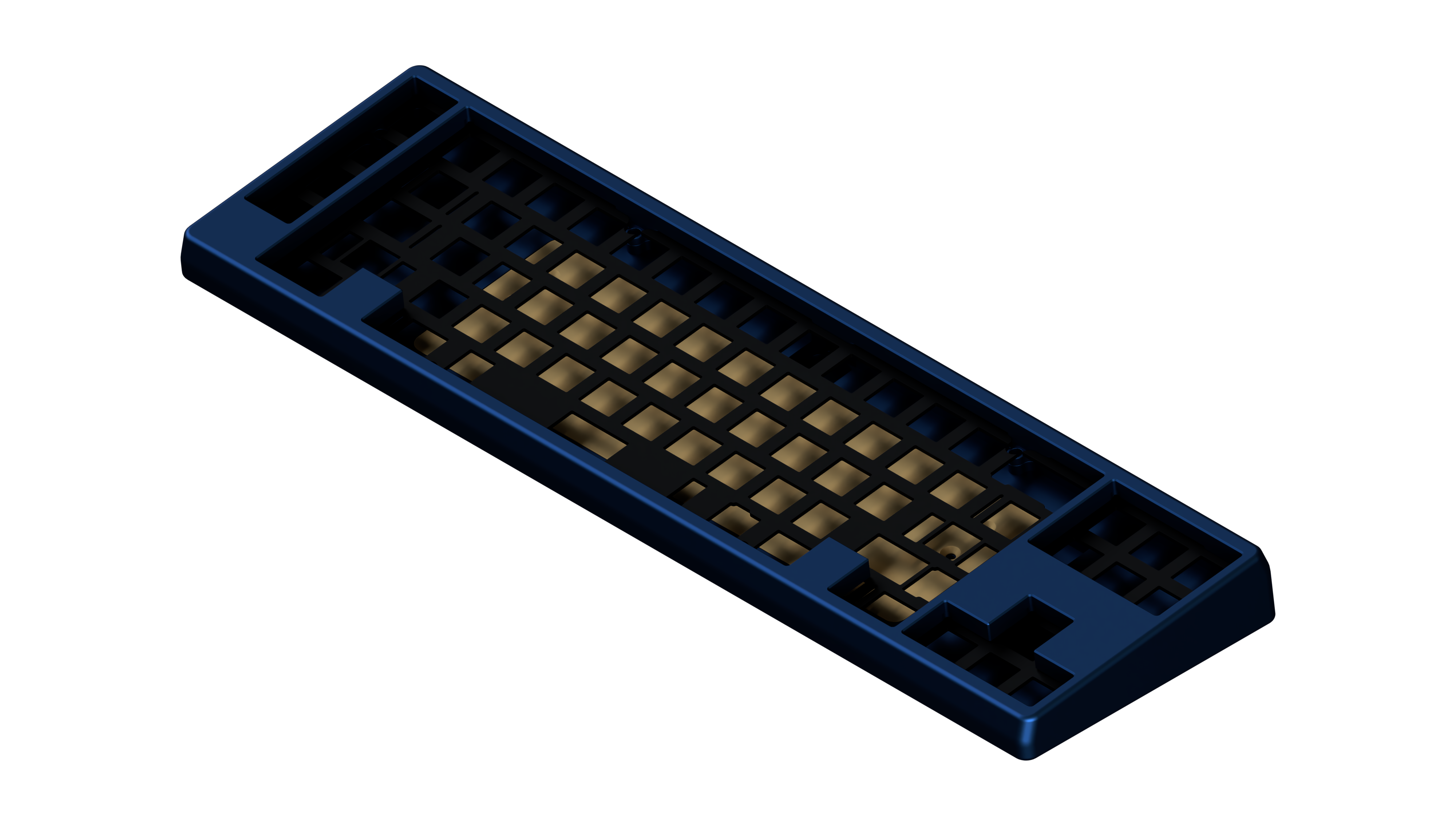

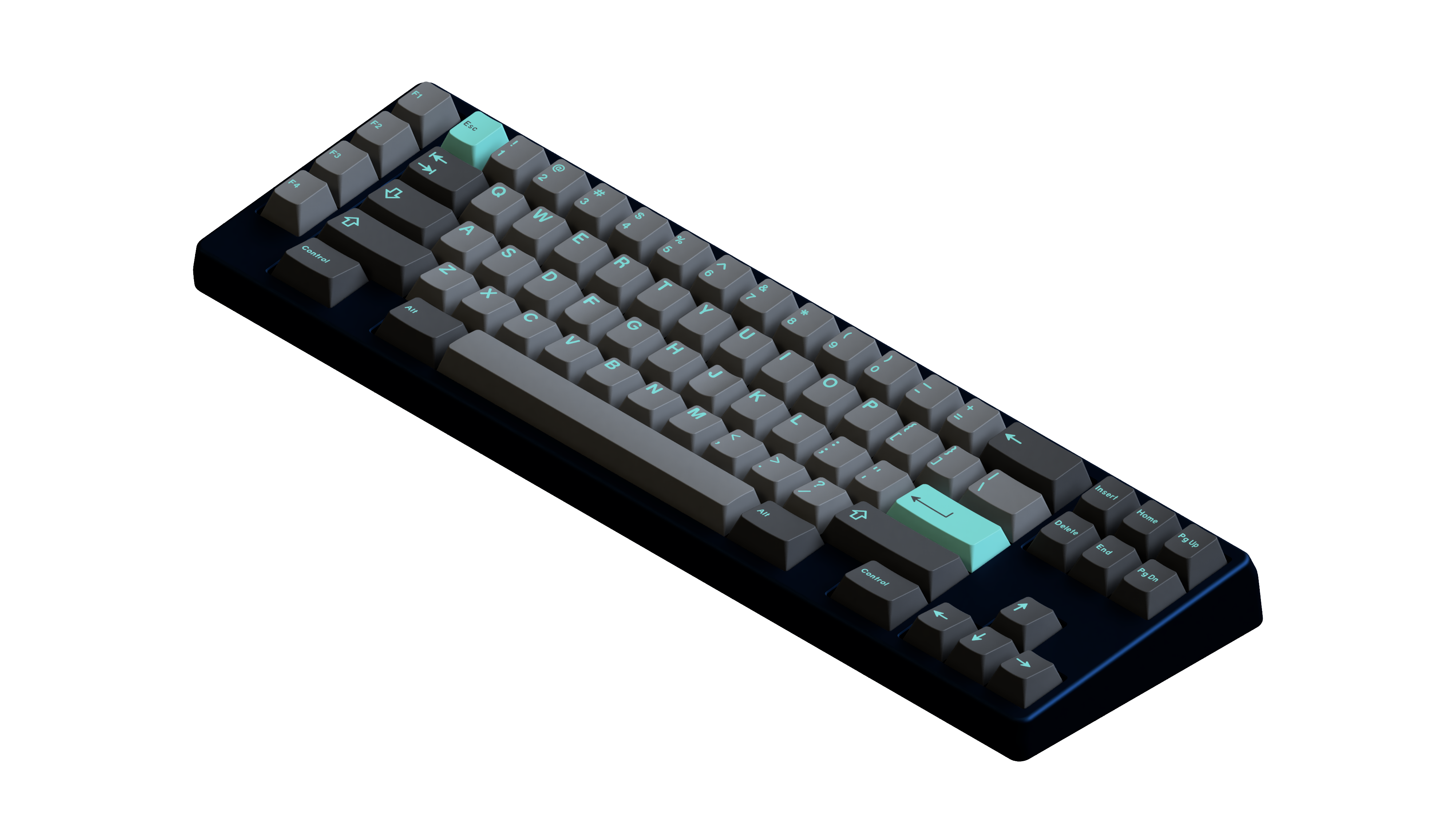

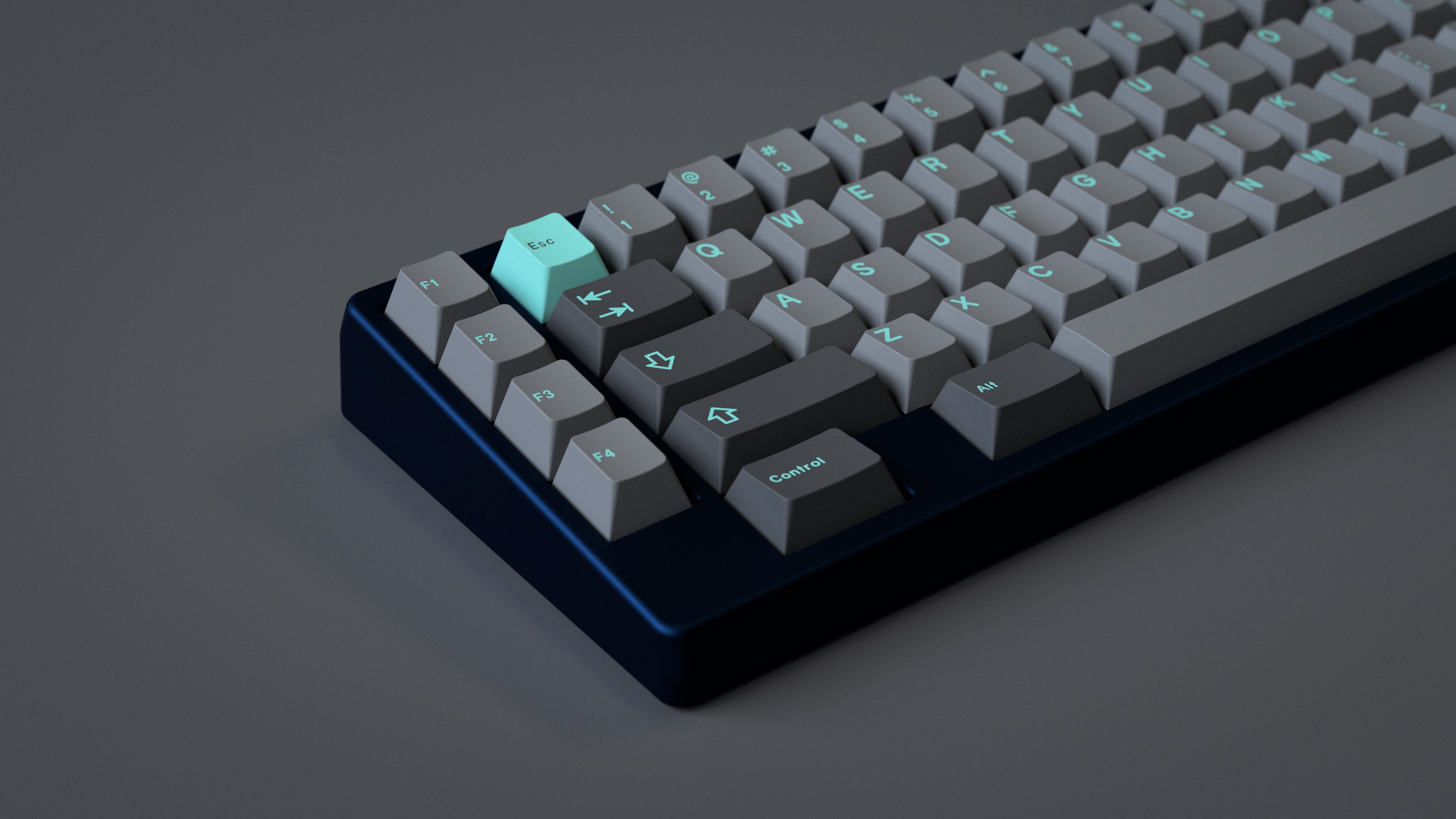

  • Navy Top and Bottom / Black Aluminium Plate

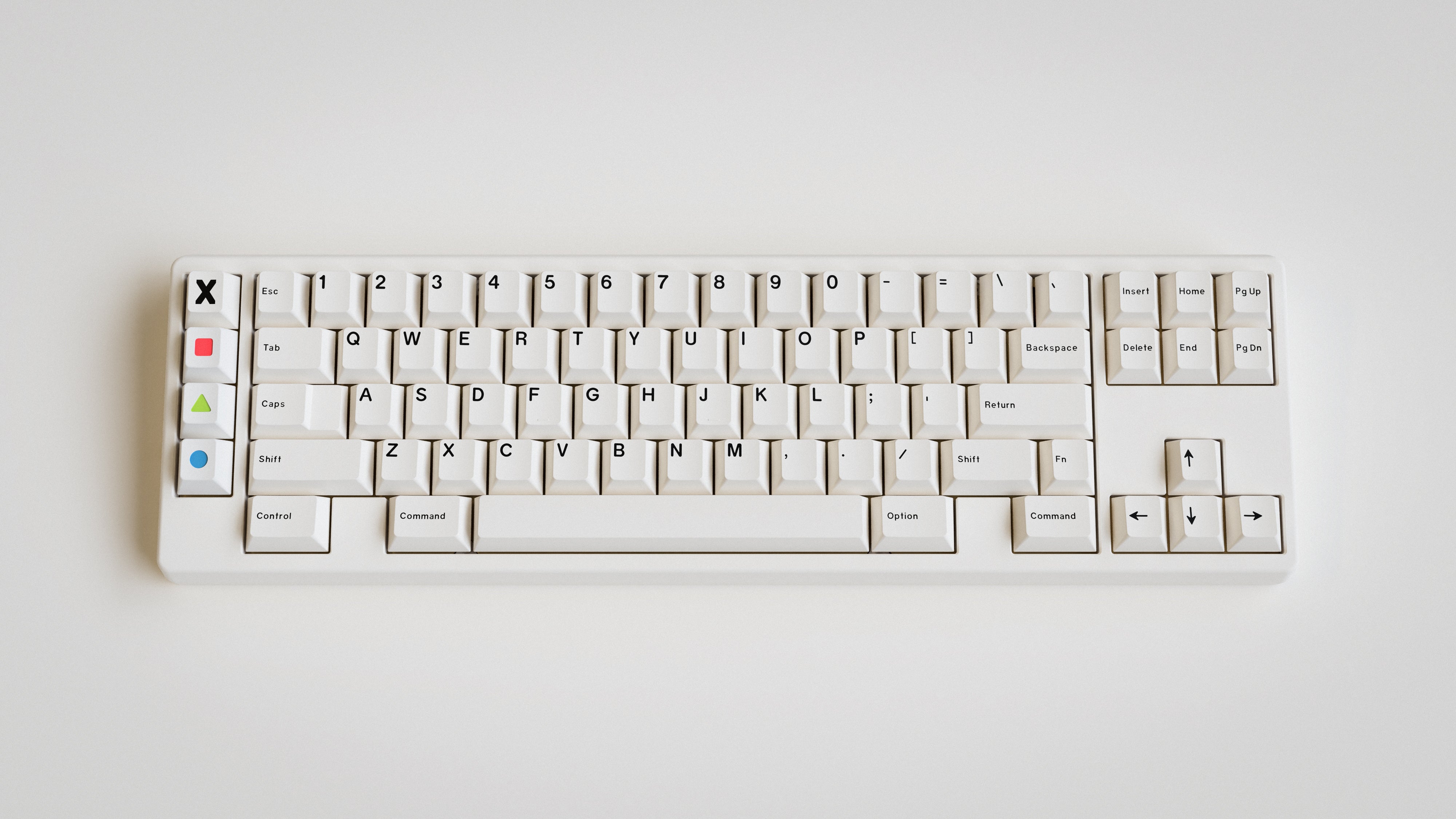

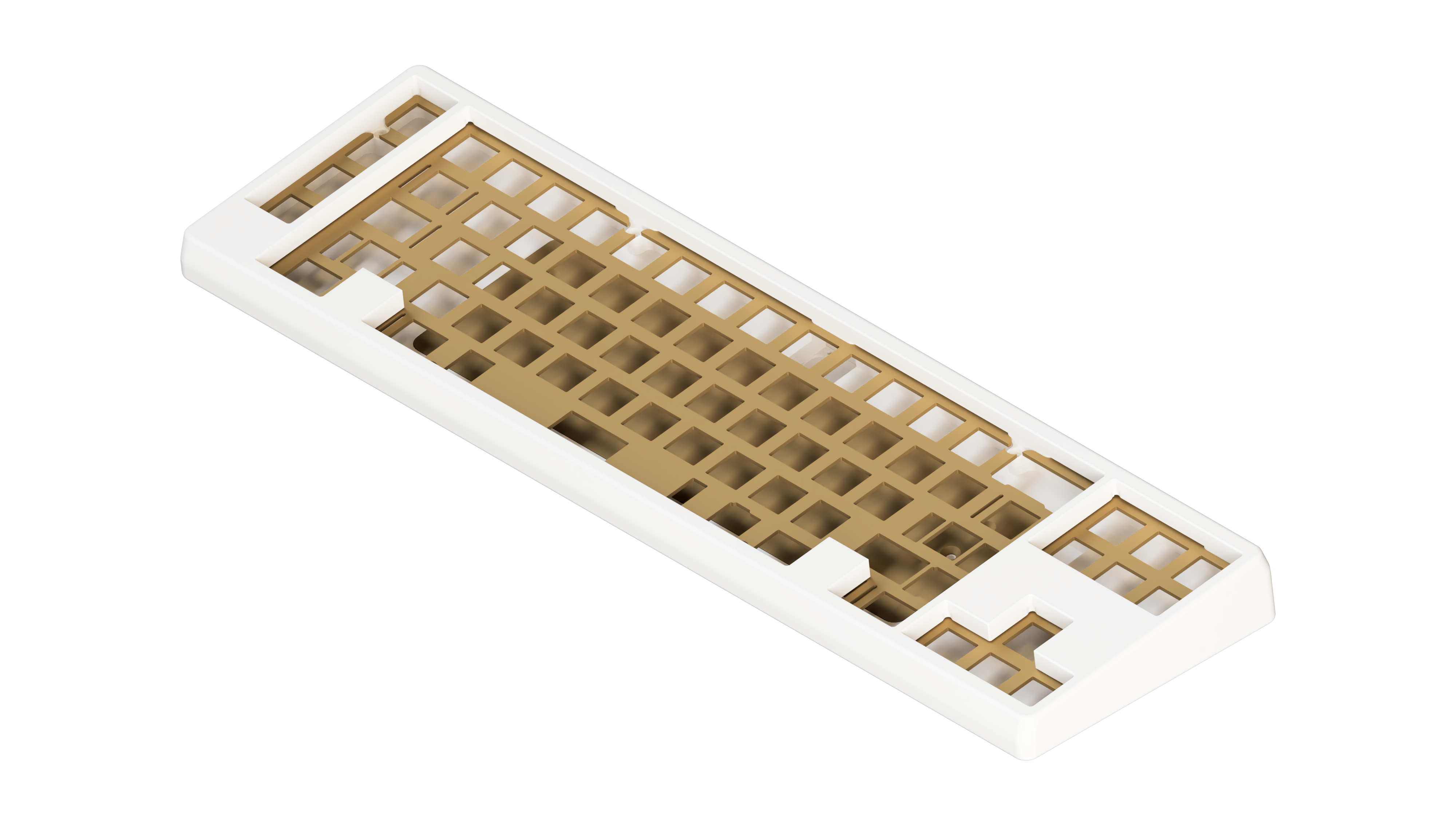

  • E-white Top and Bottom / Sandblasted Brass Plate (If you select this on the colour choice form you will be billed for it in addition at a cost of £15)

Additional Extras:

  • Additional PCB (incl Daughterboard and JST) = £48.00 inc VAT

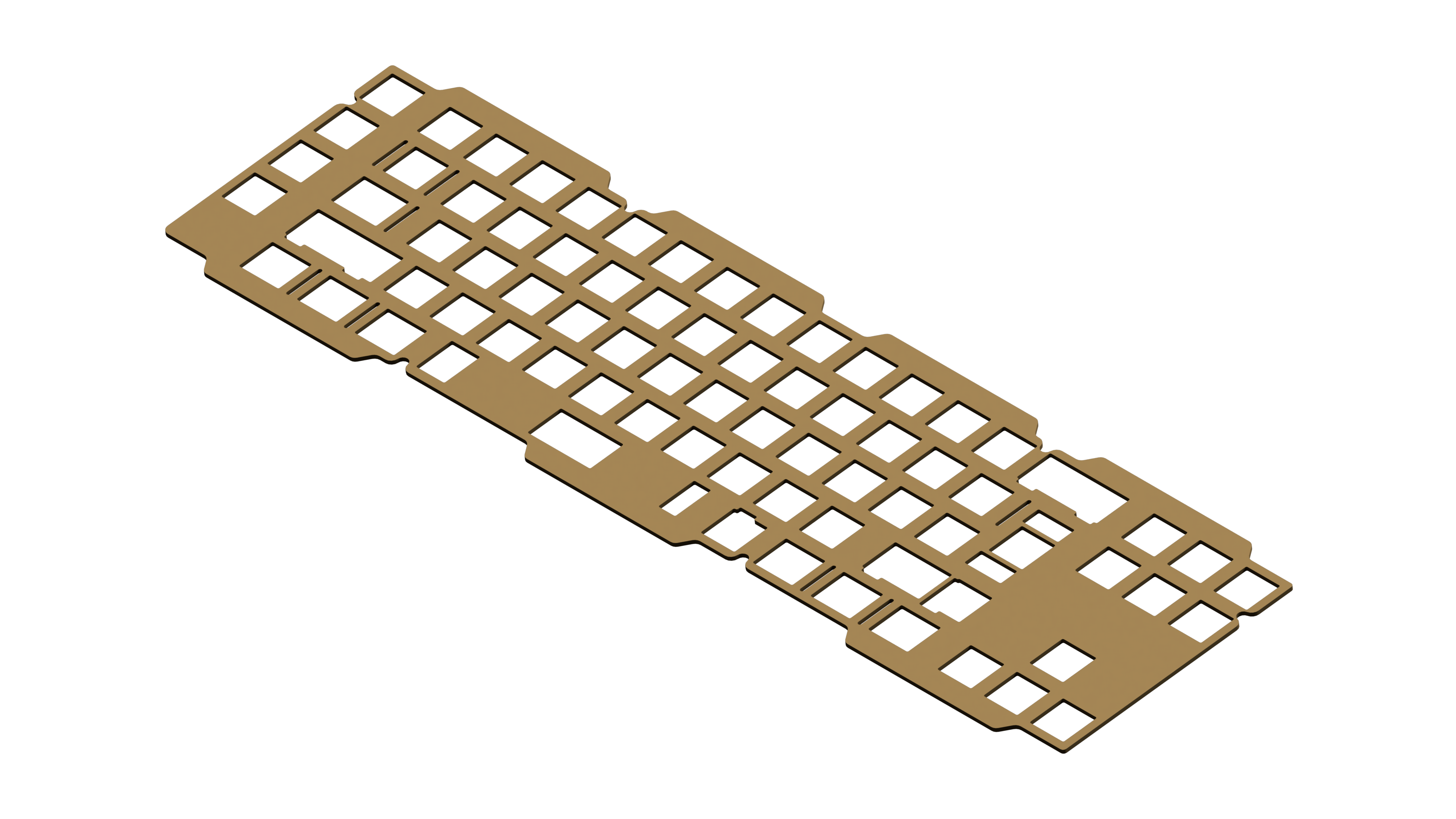

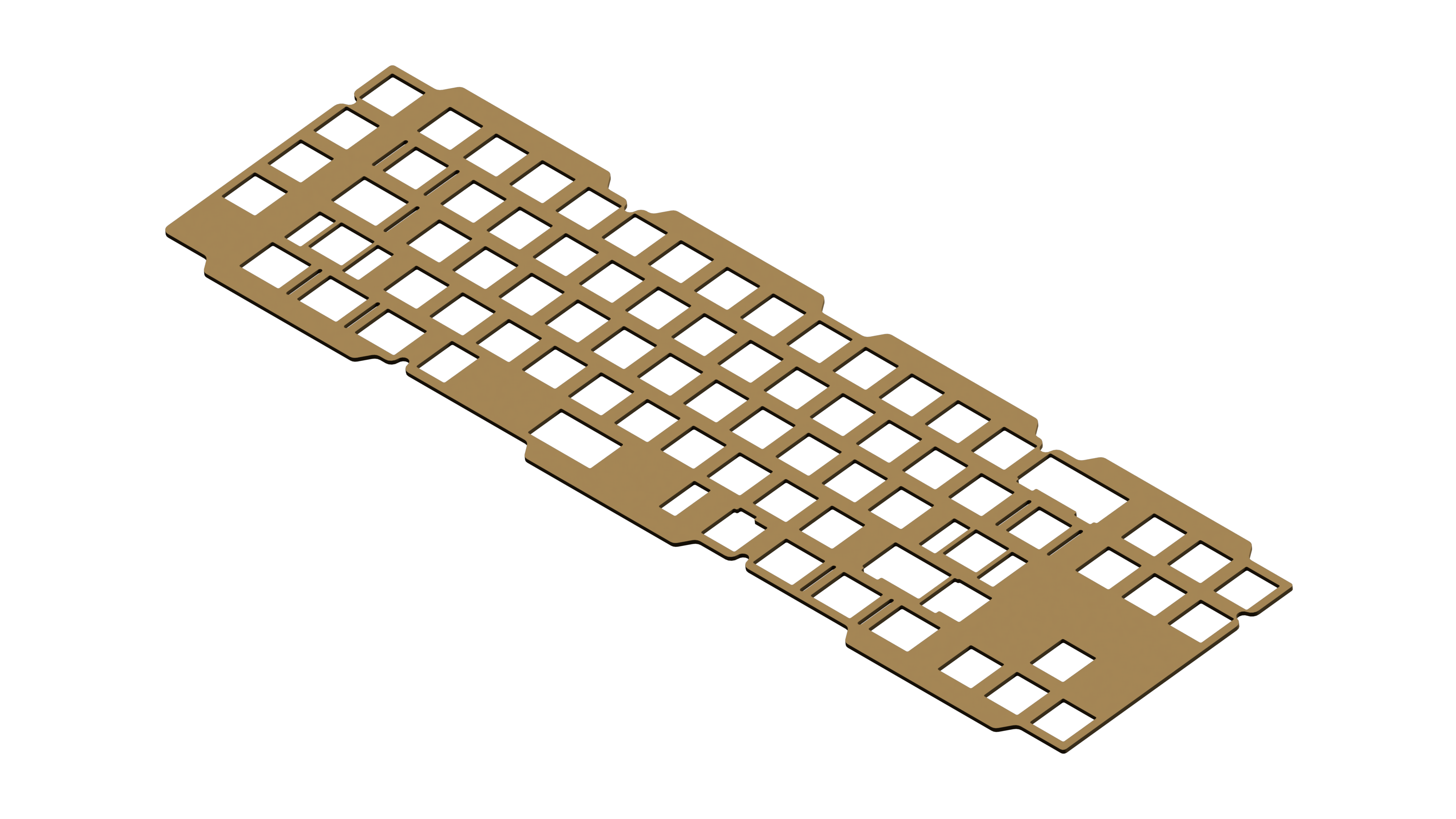

  • Brass Plate (ISO / ANSI) = £50.00 inc VAT

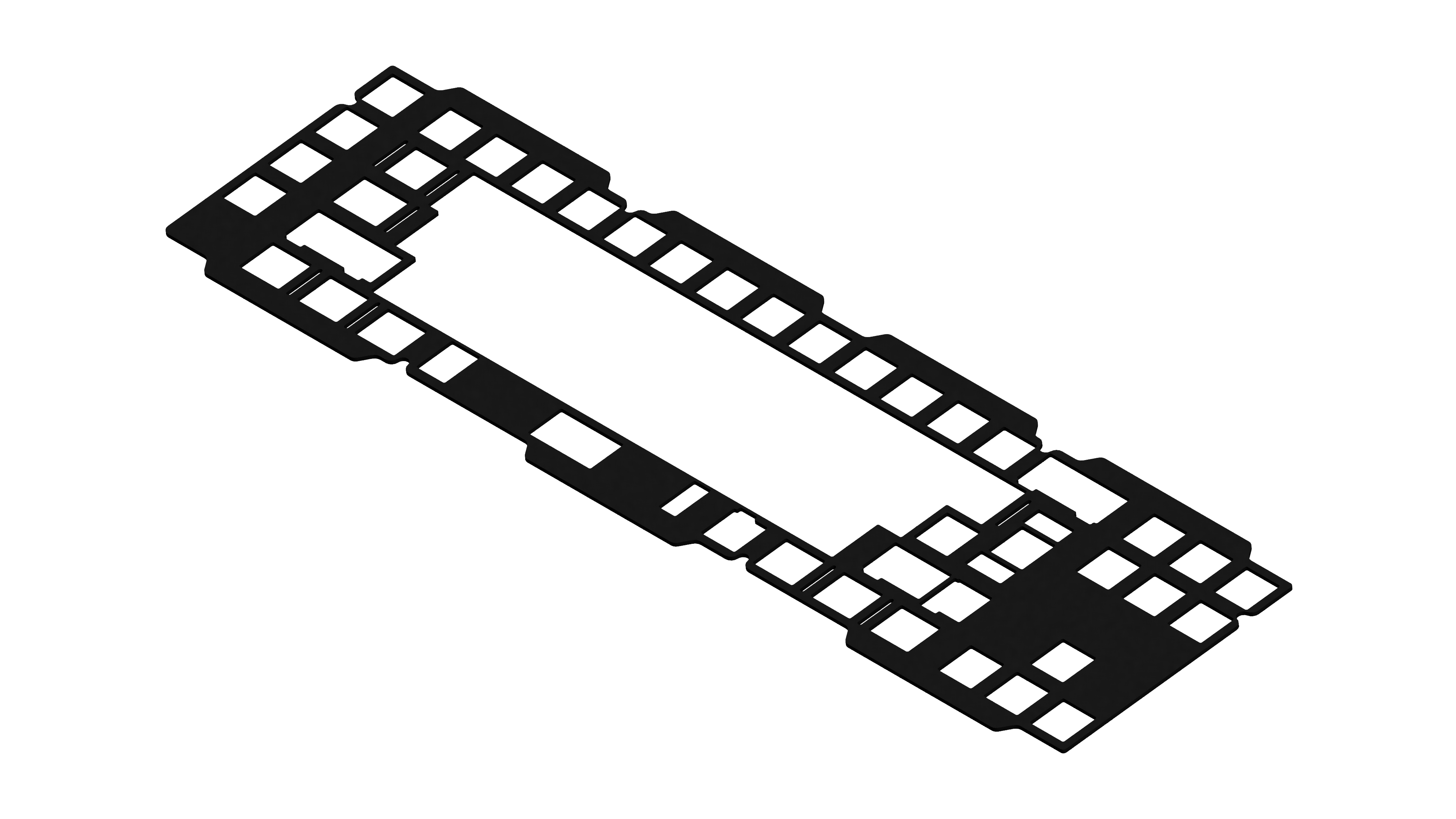

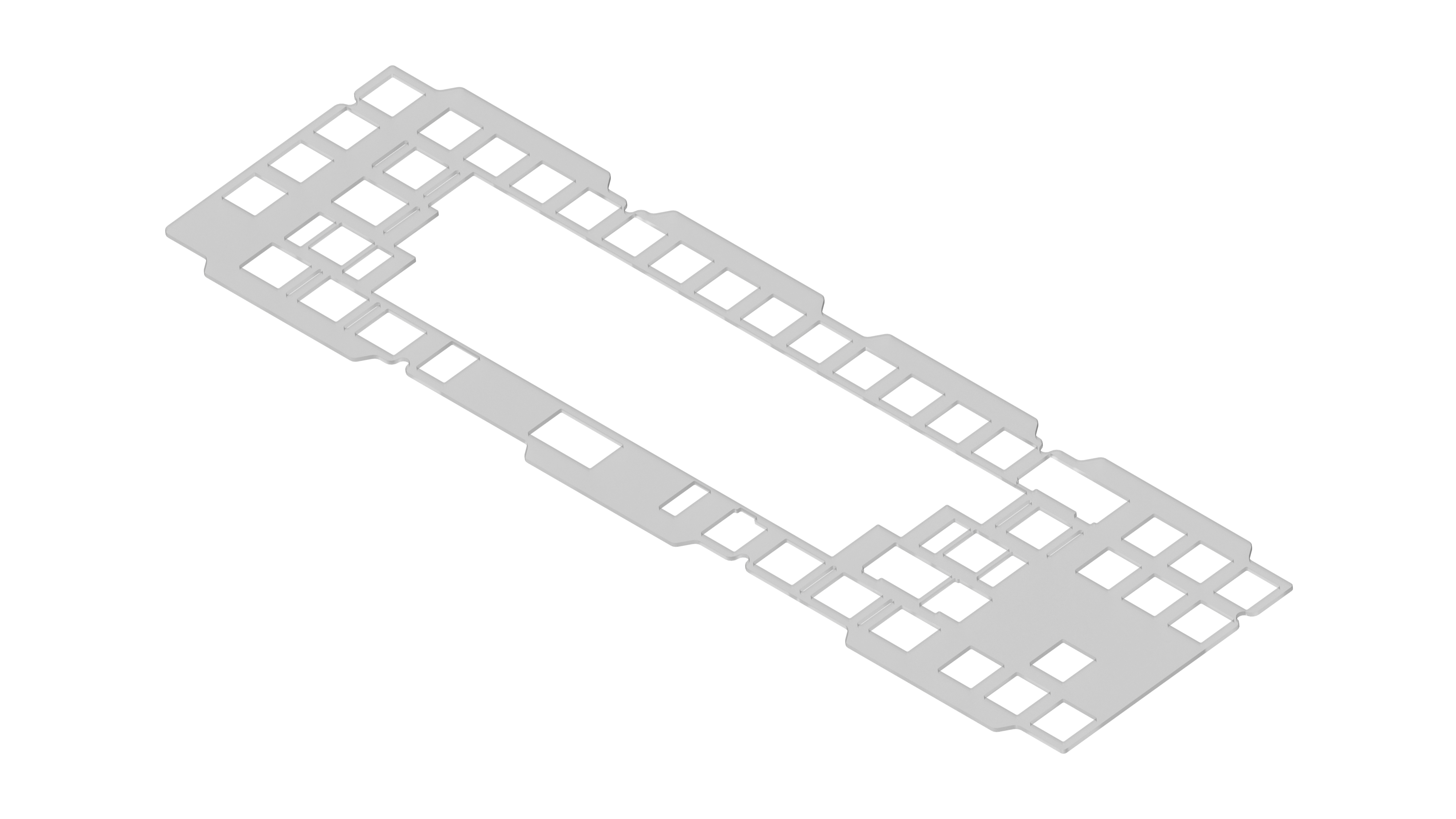

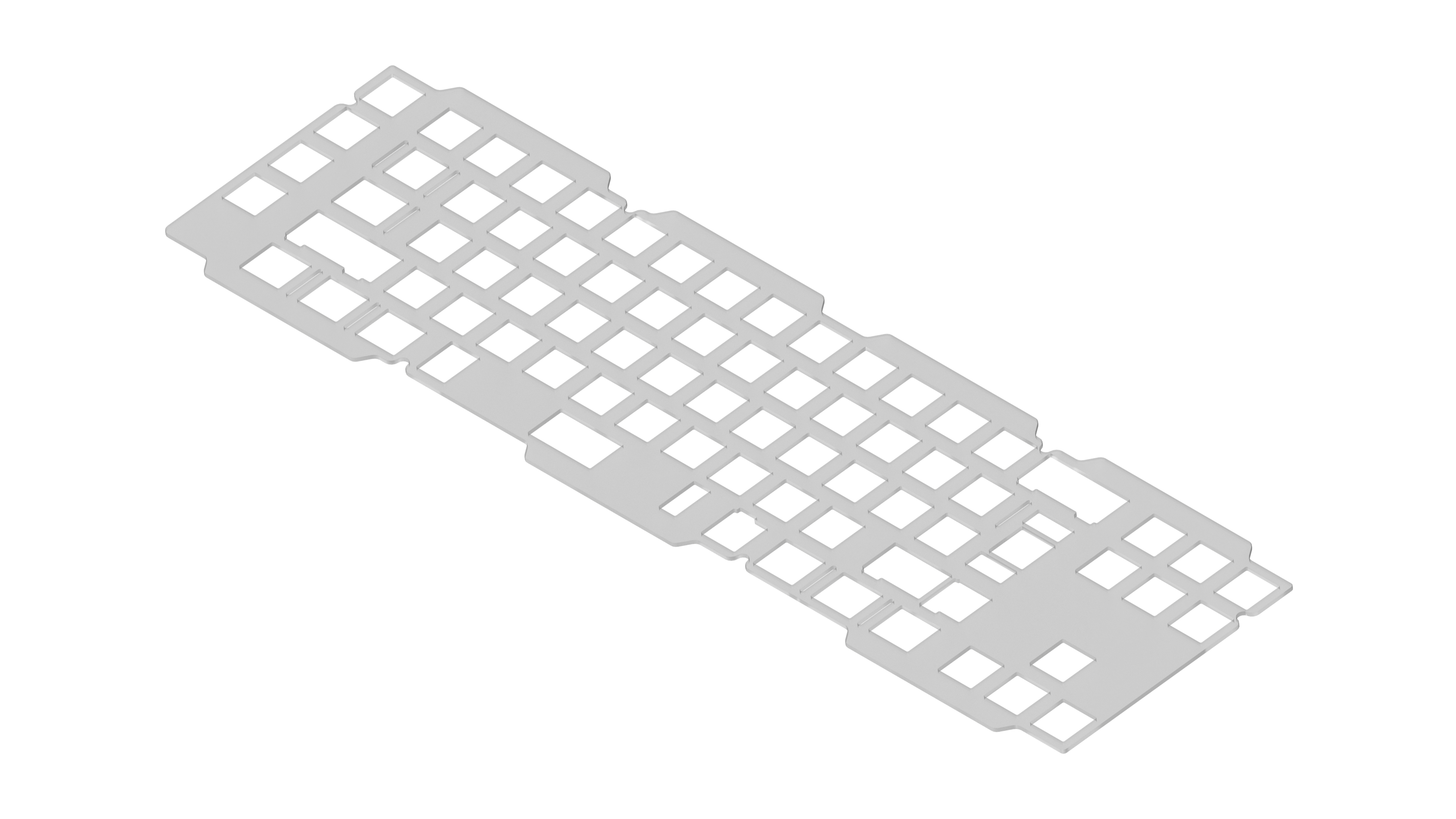

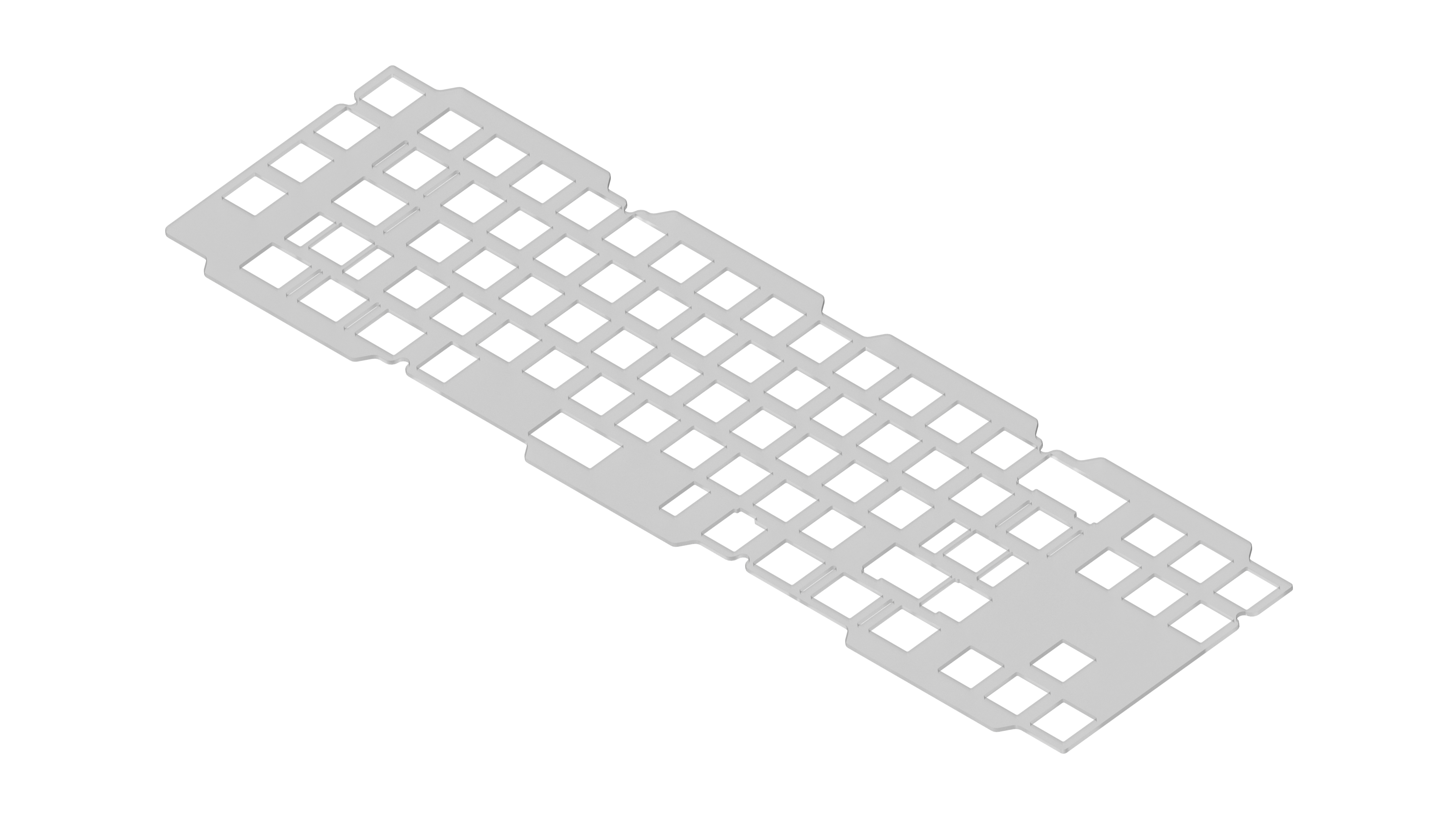

  • Polycarbonate Plate  (ISO / ANSI) / (Full / Half Plate) = £45.00 inc VAT

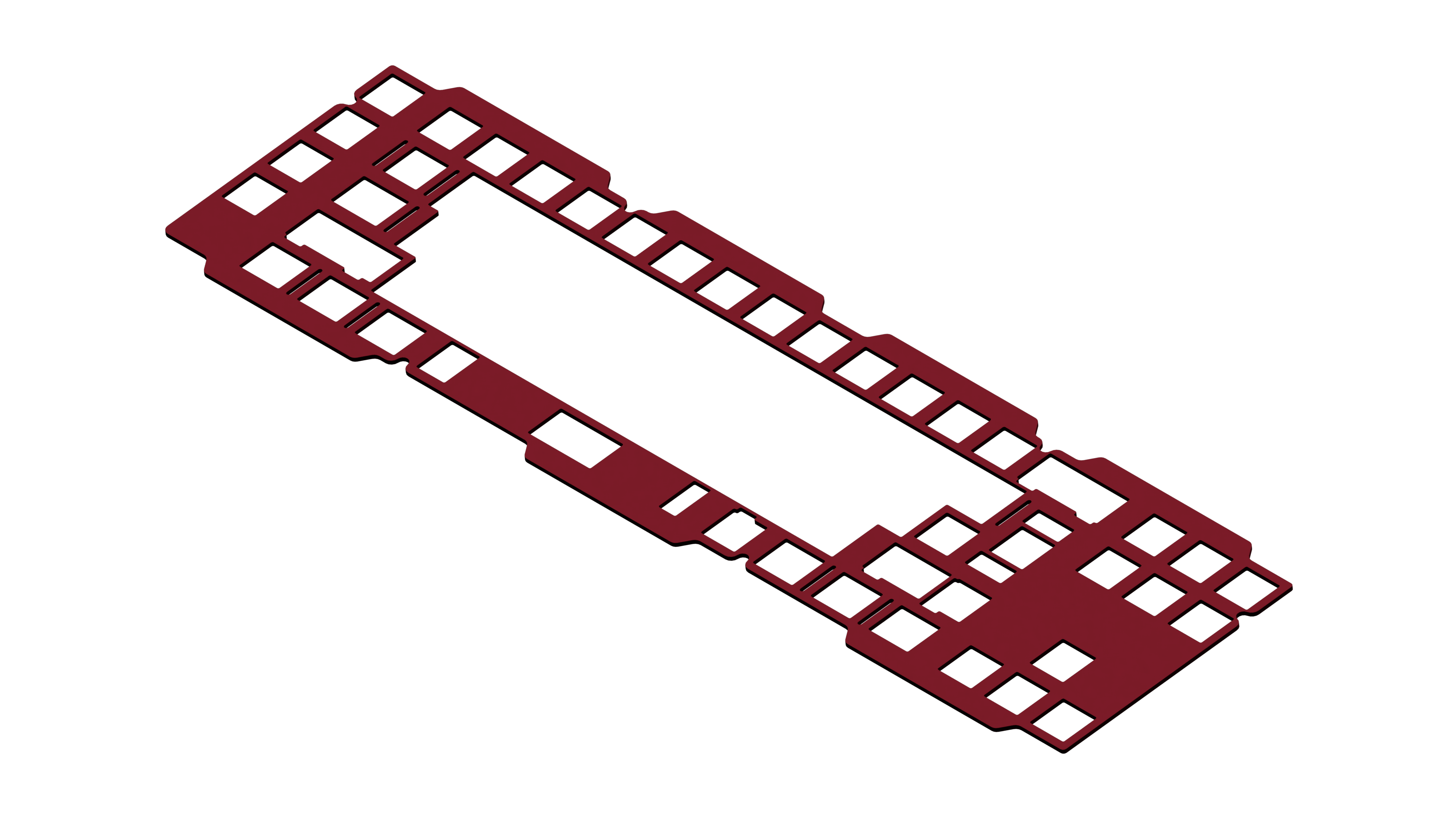

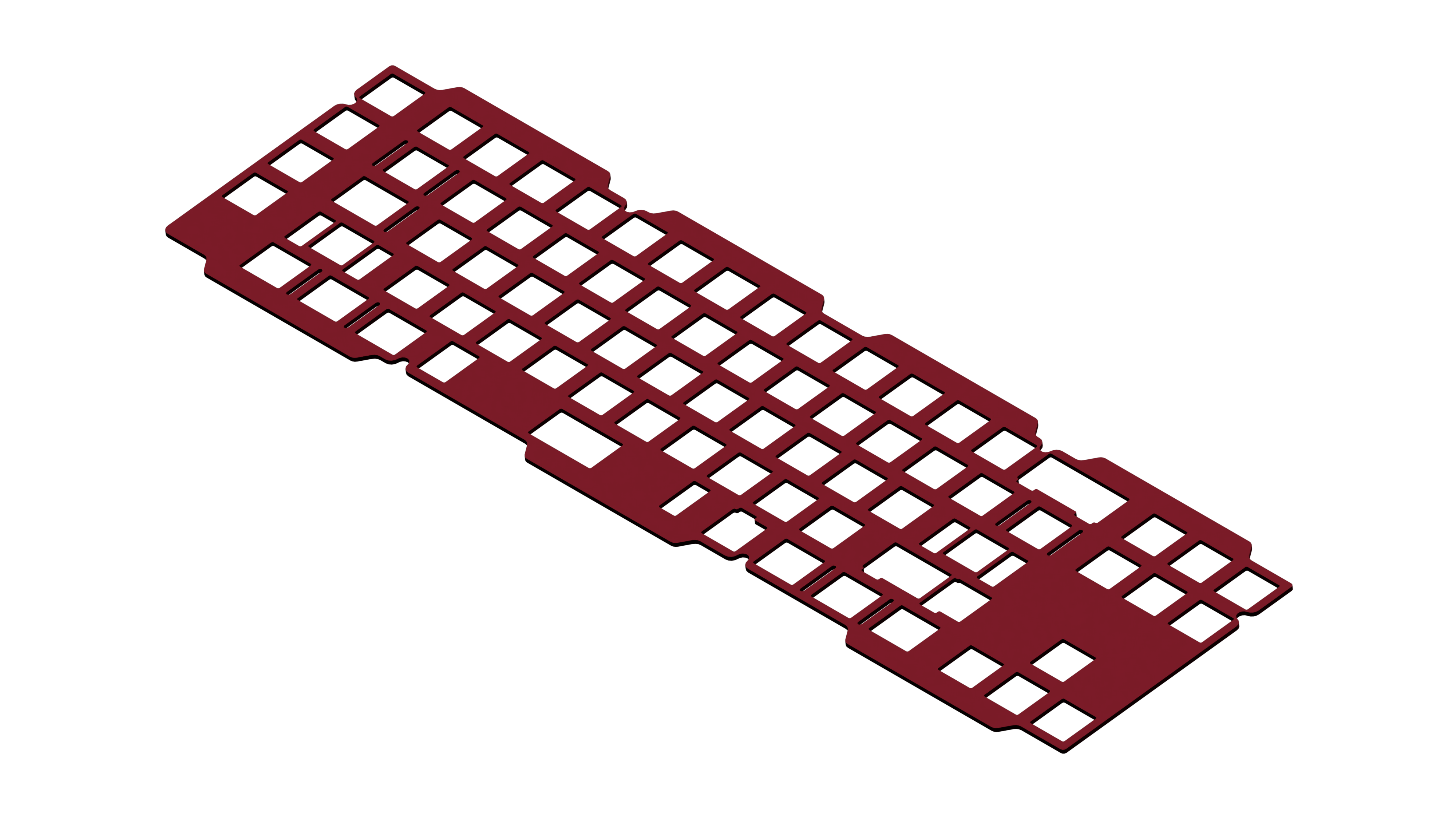

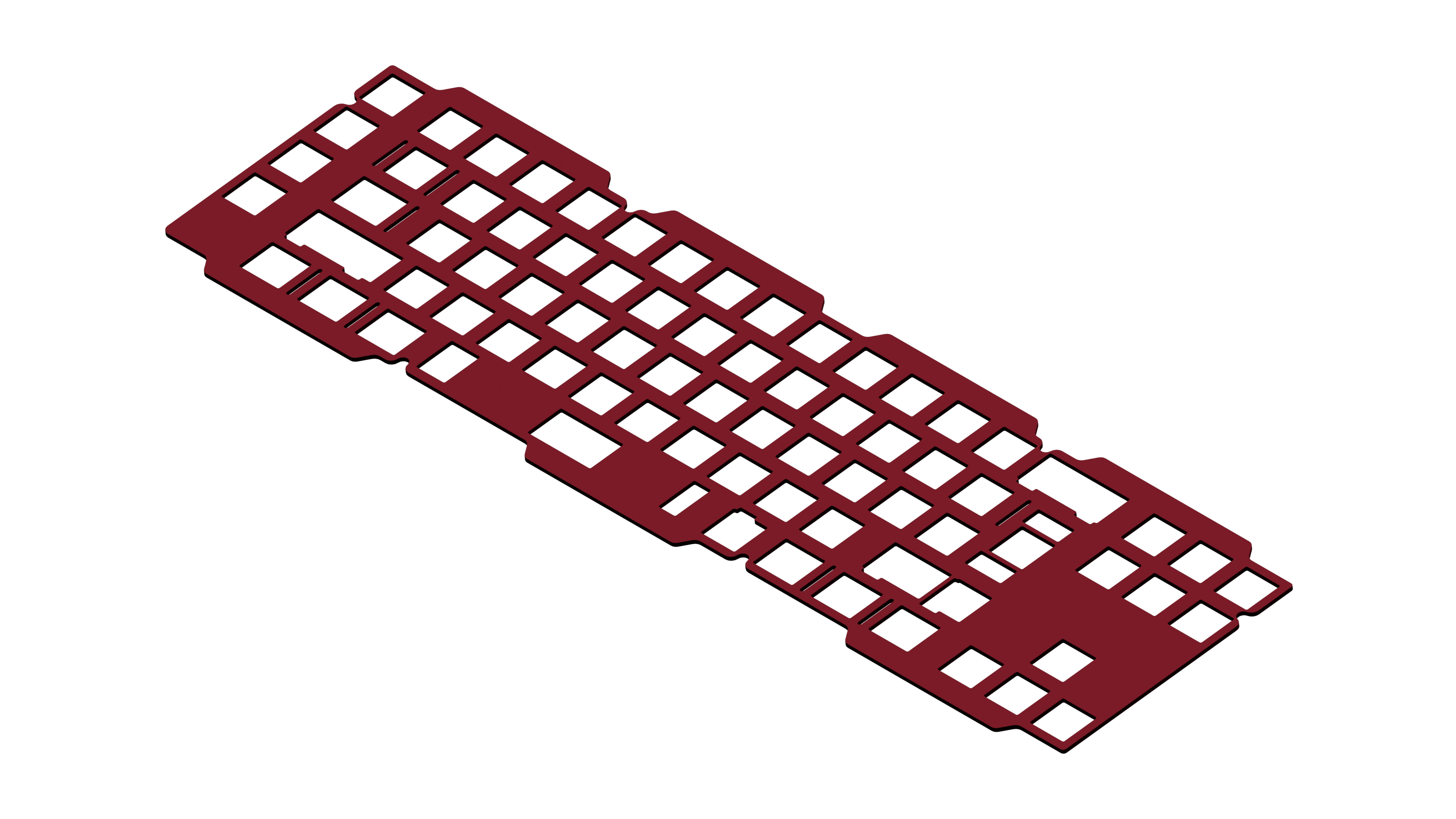

  • Aluminium Plate  (Red / Black) / (ISO / ANSI) / (Full / Half Plate) = £45.00 inc VAT
  • Additional Gasket set = £5.00 incl VAT



Note: The colours shown here are prototype photos. Production colours will be close, but might not be an exact match to the shown colours.

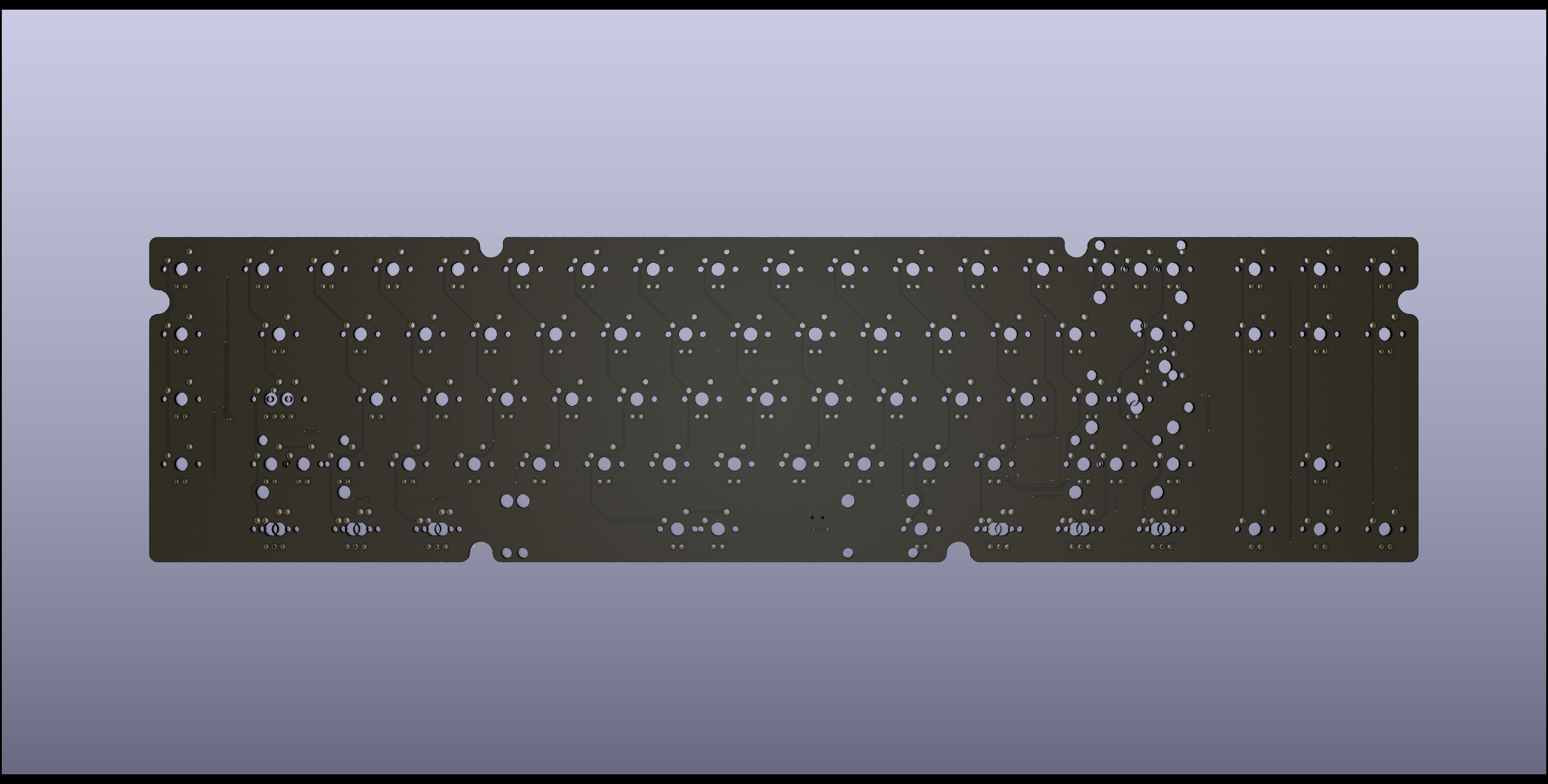

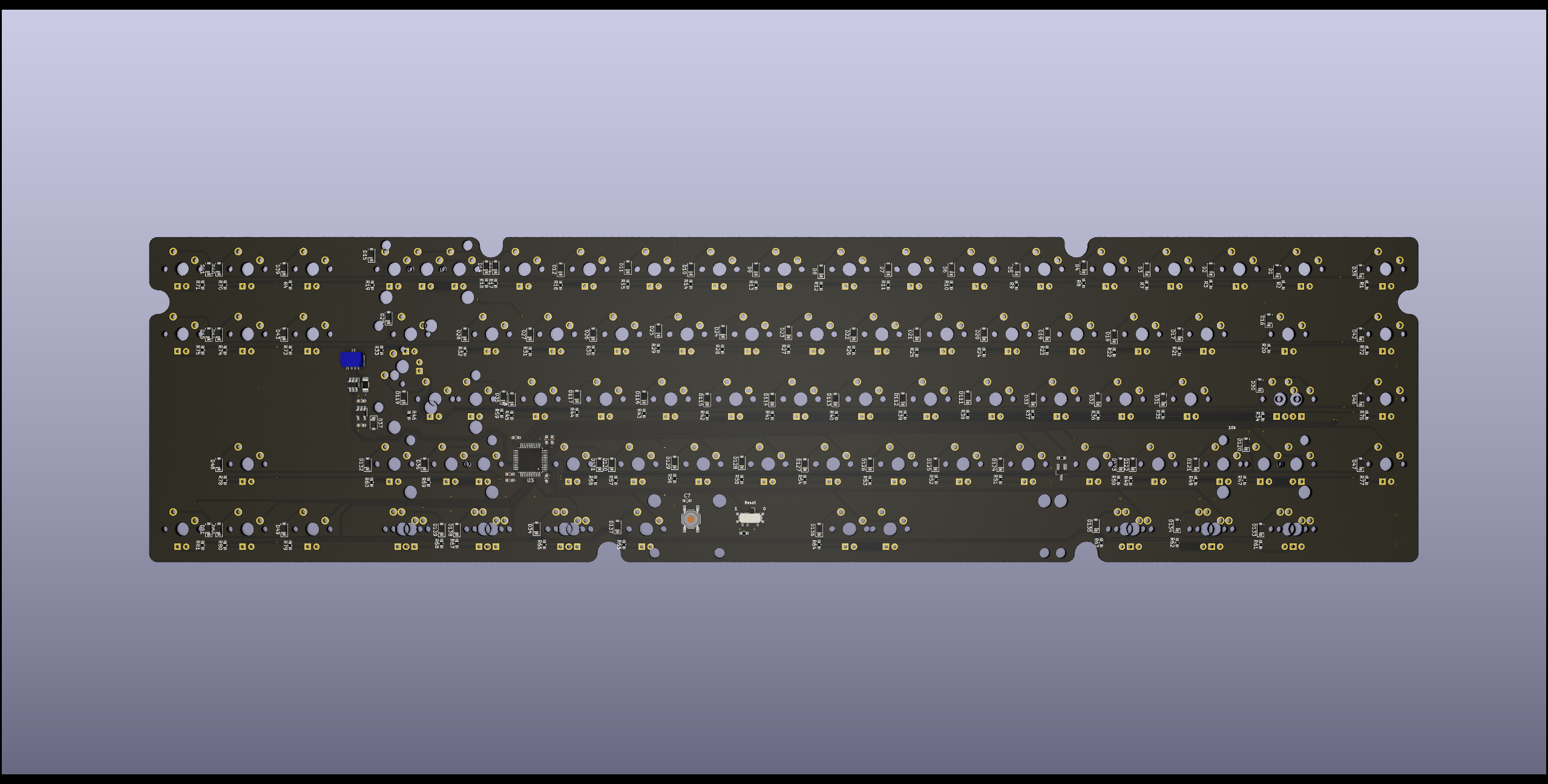

PCB Layout:

Shipping Time and GB Agreements (PLEASE READ):
These Boards are expected to be shipped out in Q4 2021 at the earliest.

Please note that this is a Group Buy. There can be delays and set backs. The timeline is only an estimate. By adding this item to your cart and purchasing you agree that you understand everything above. You will be charged immediately for this item. There are no refunds or cancellations on these orders. Please do not purchase this item with other group buys, and see our FAQ's on Group Buys and Pre-orders for further information - https://prototypist.net/pages/faqs.
