(Group Buy) Paper80 Keyboard Kit
Closing Date: September 19th 2024
Expected Shipping time: Q1 - Q2 2025
Introduction:
A Keyboard inspired by the Oscar-winning short film Paperman
We're excited to share with you the Paper 80 designed by Whatever Studio. With so many small details focused on taking the experience to the highest level, we're happy to share more regarding this project and hope our passion is expressed below.
Design Highlights:

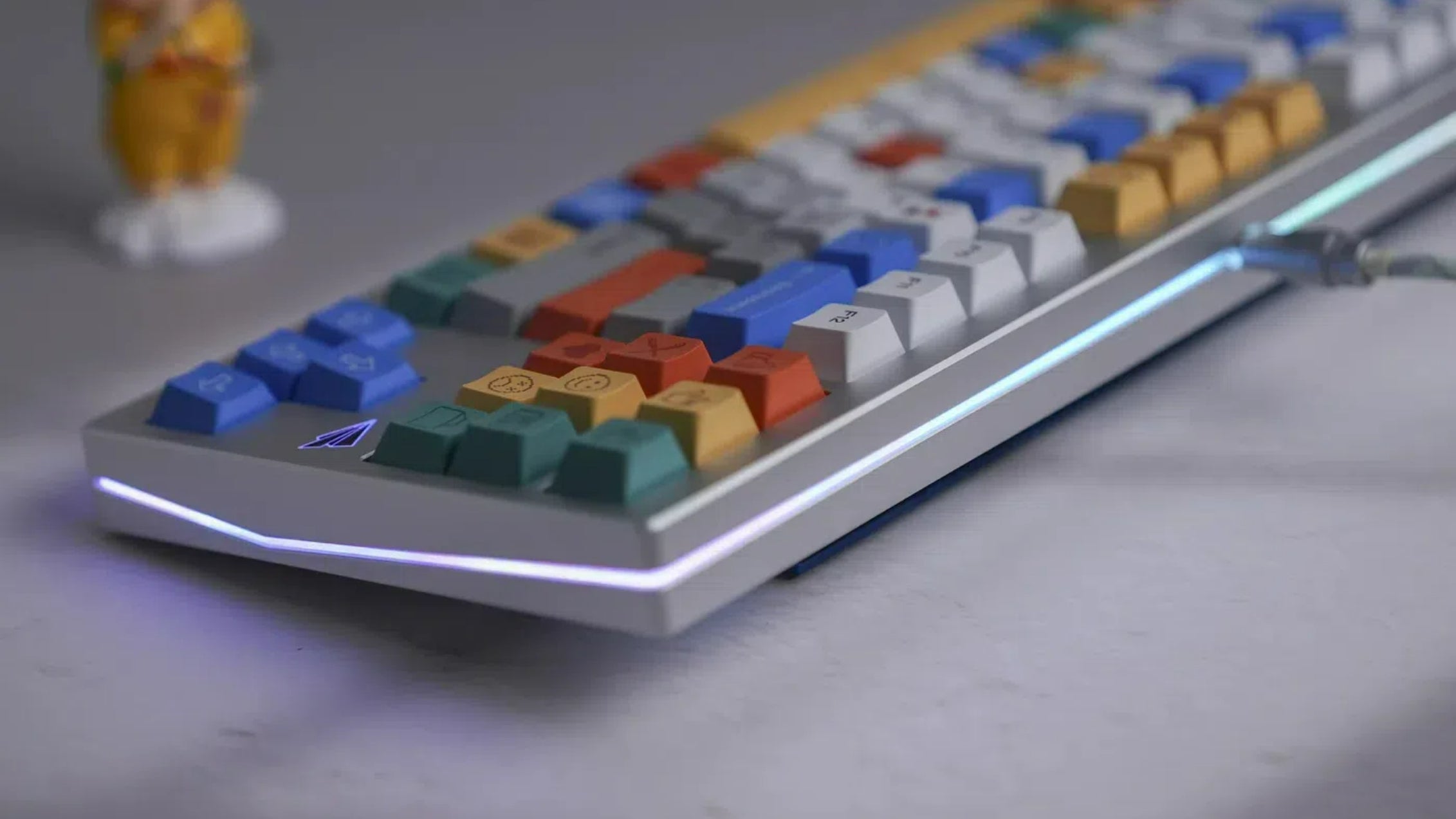

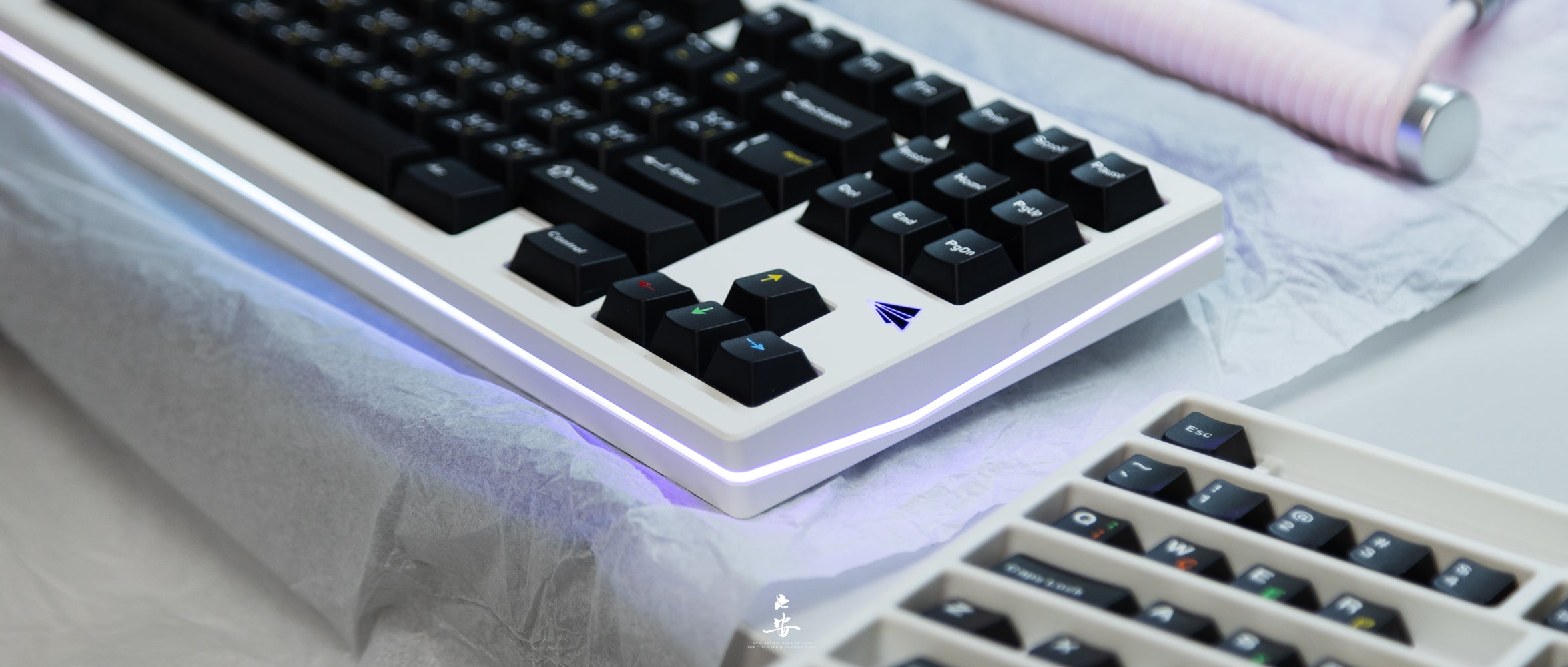

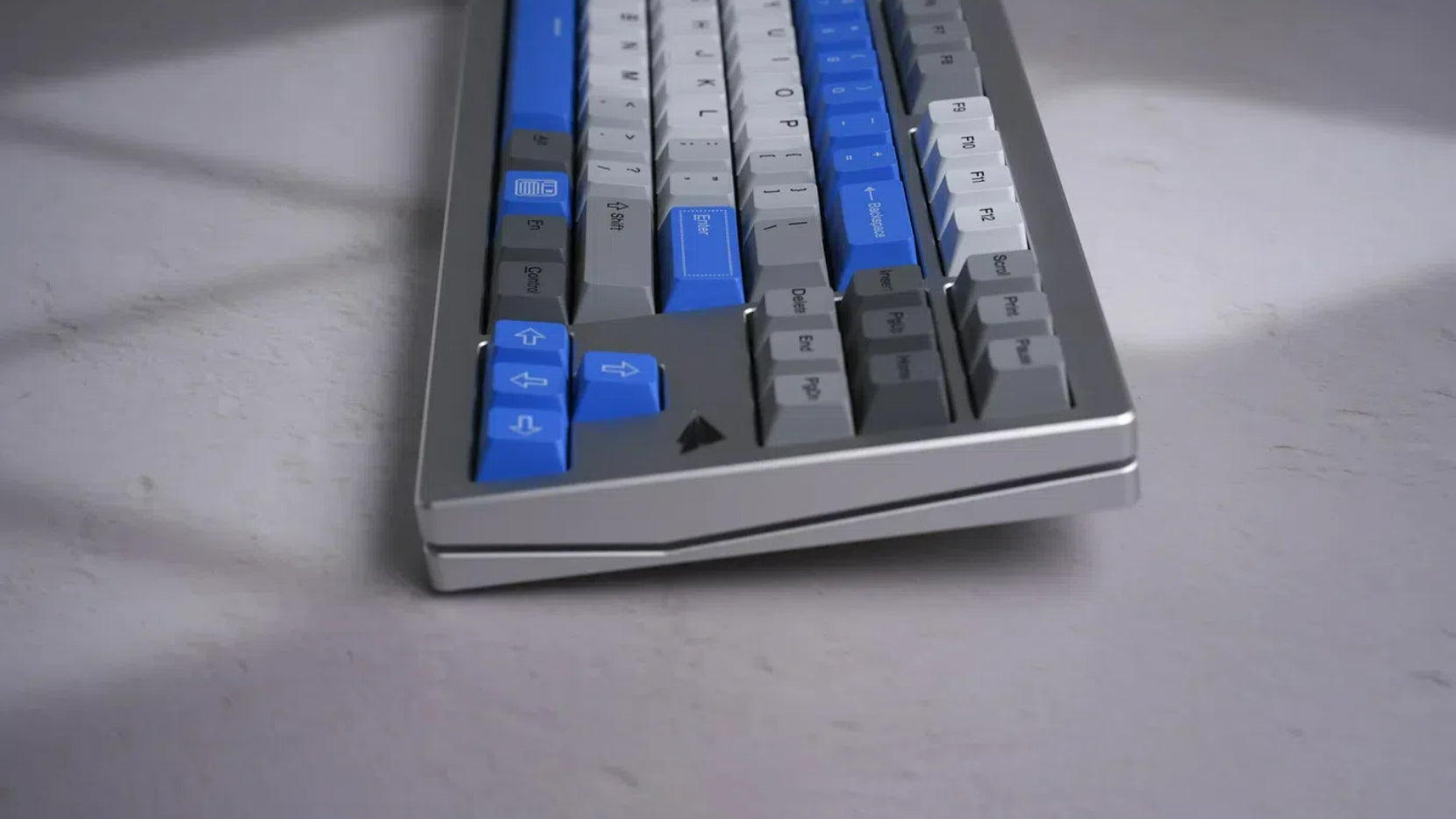

Mid-case Fold Light Design

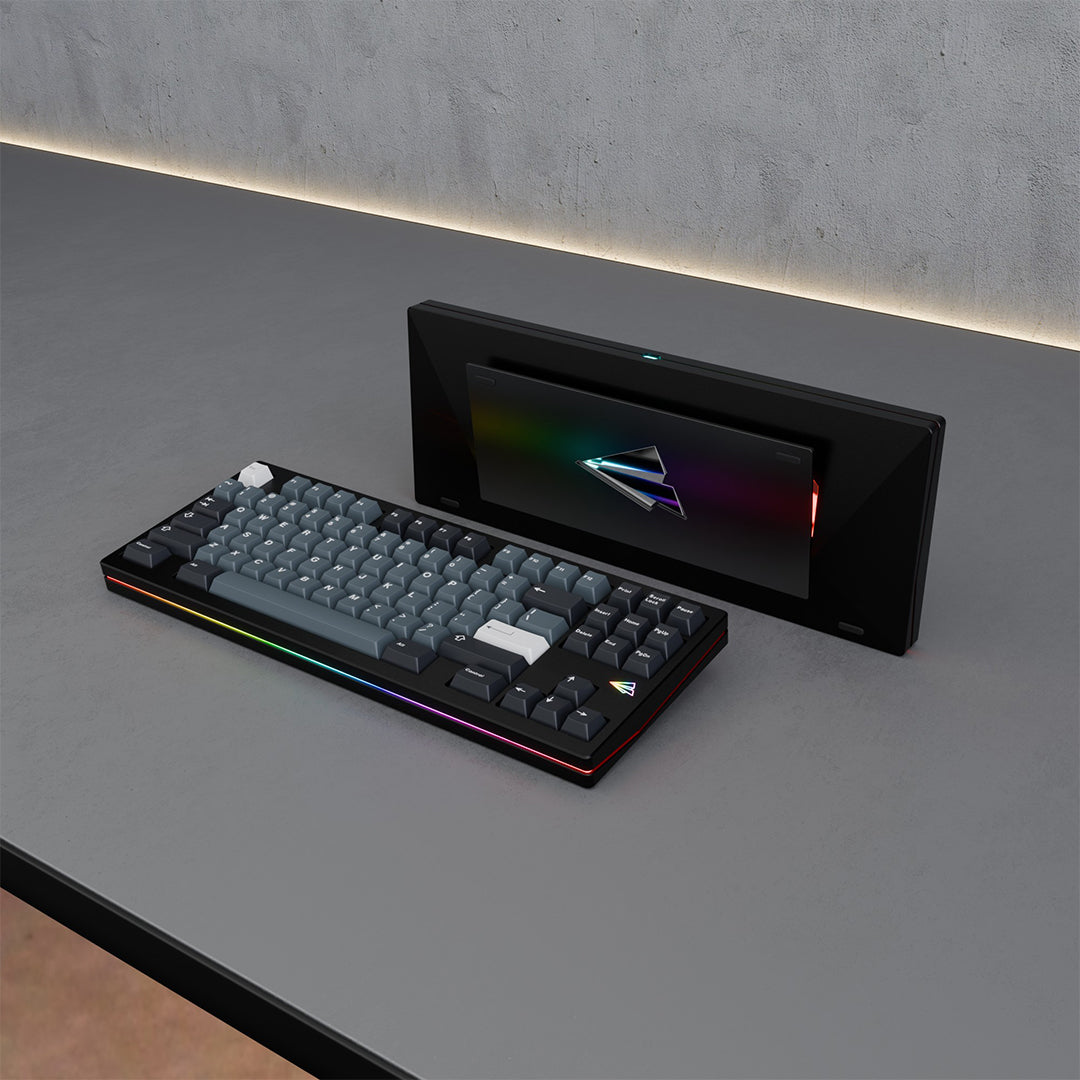

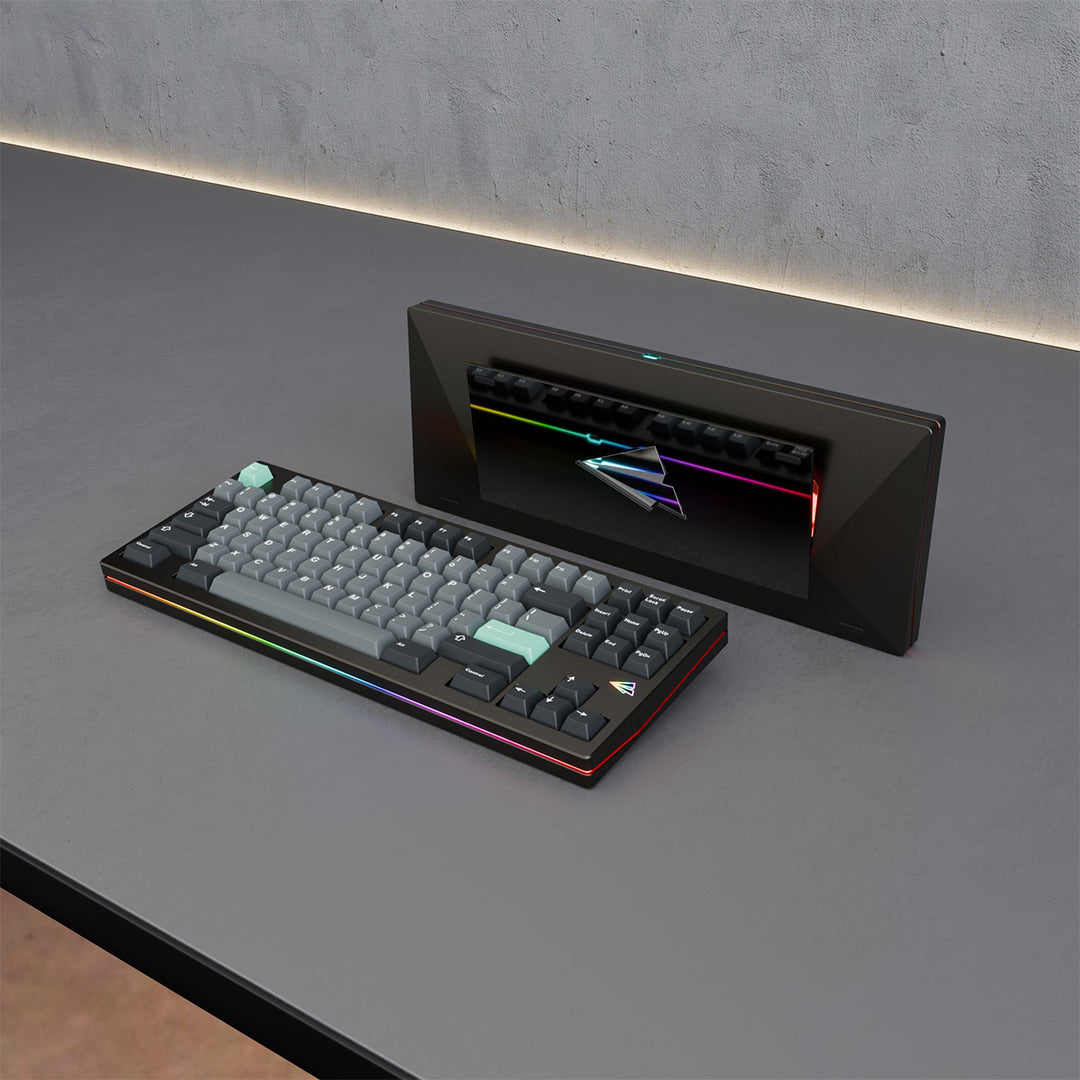

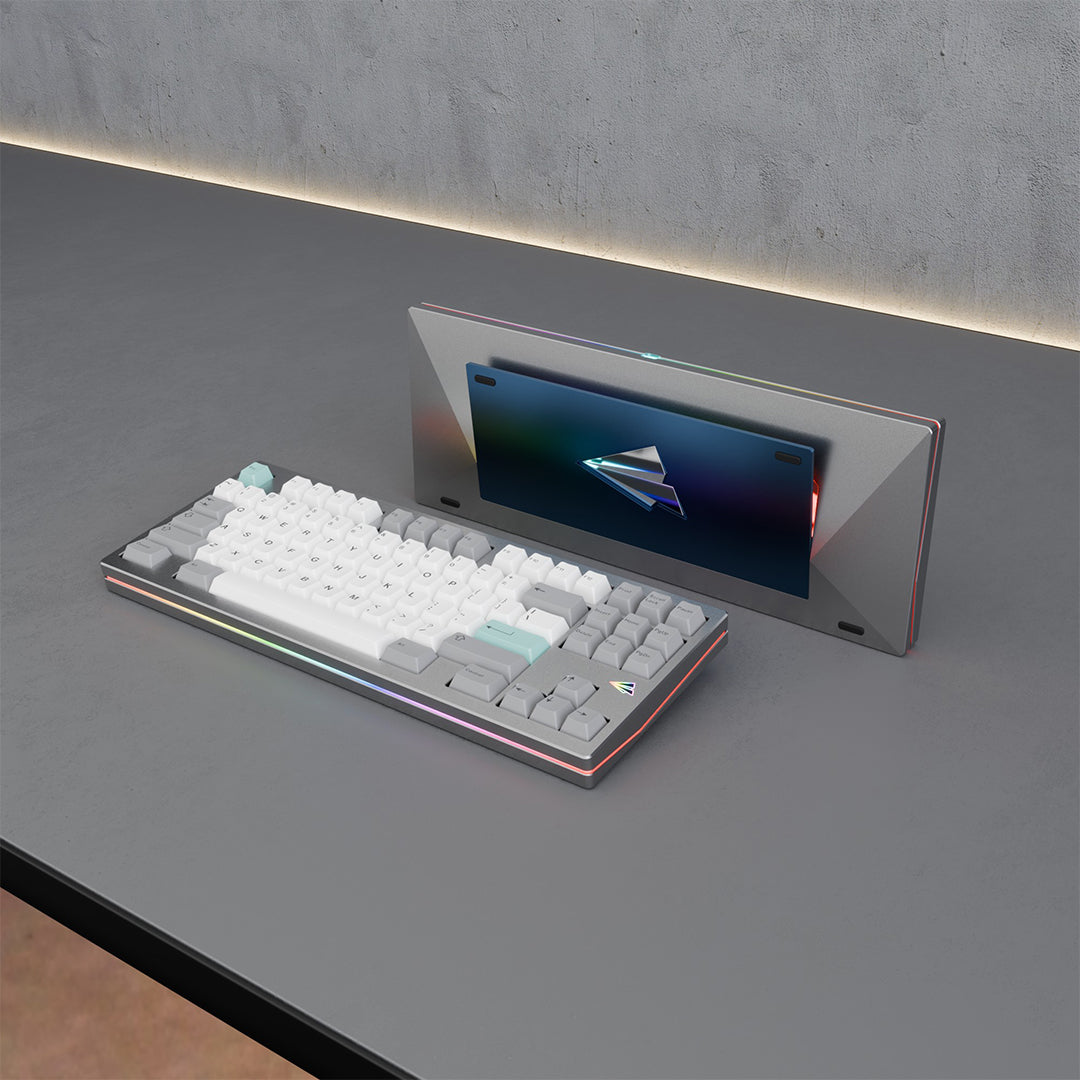

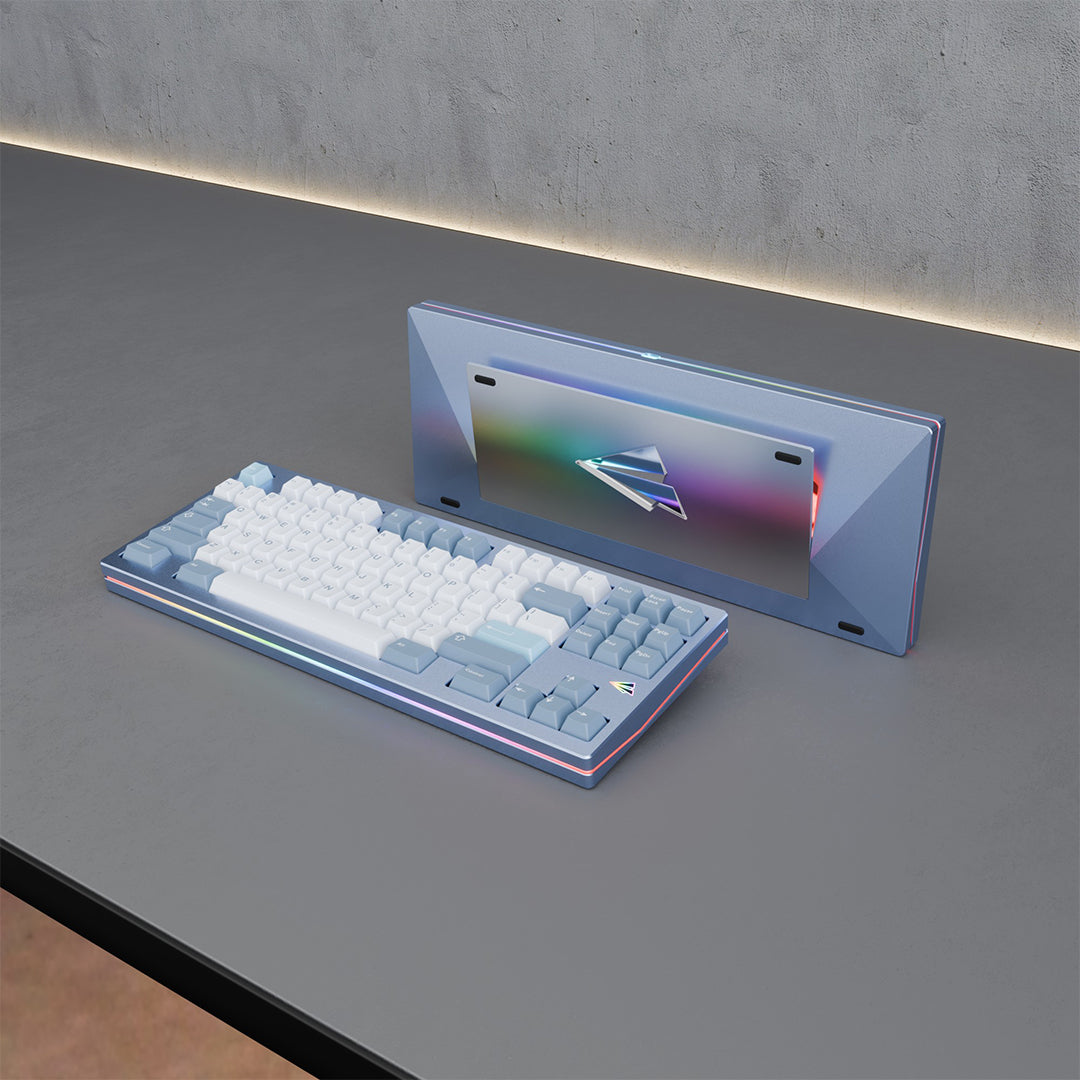

One of the key features we wanted to add is the Mid-case Fold Light. The sides and back of the PAPER80 fold lines inspired by the Paper Airplane. Lit up, we enjoy a calming glow around the entire keyboard.

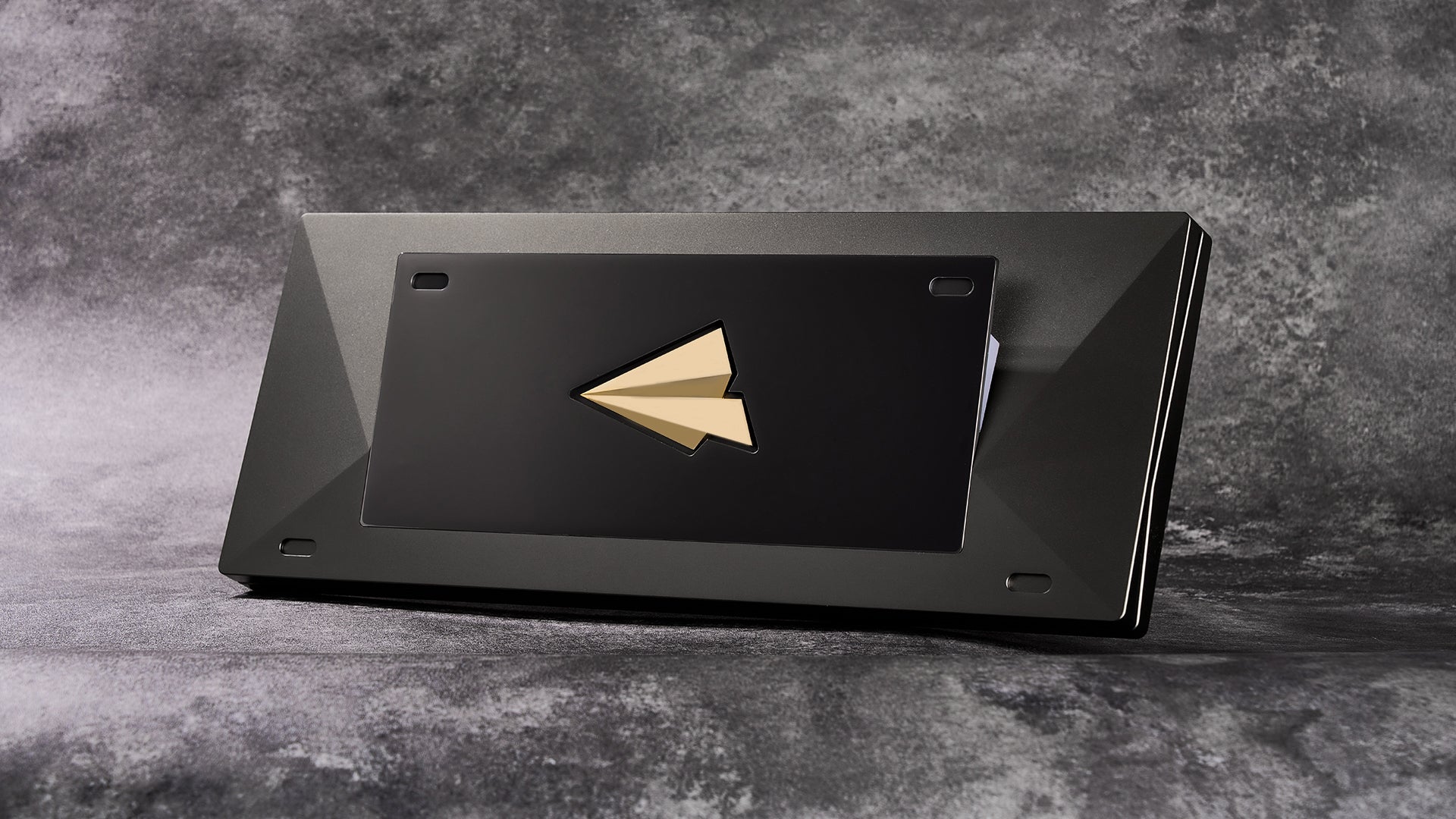

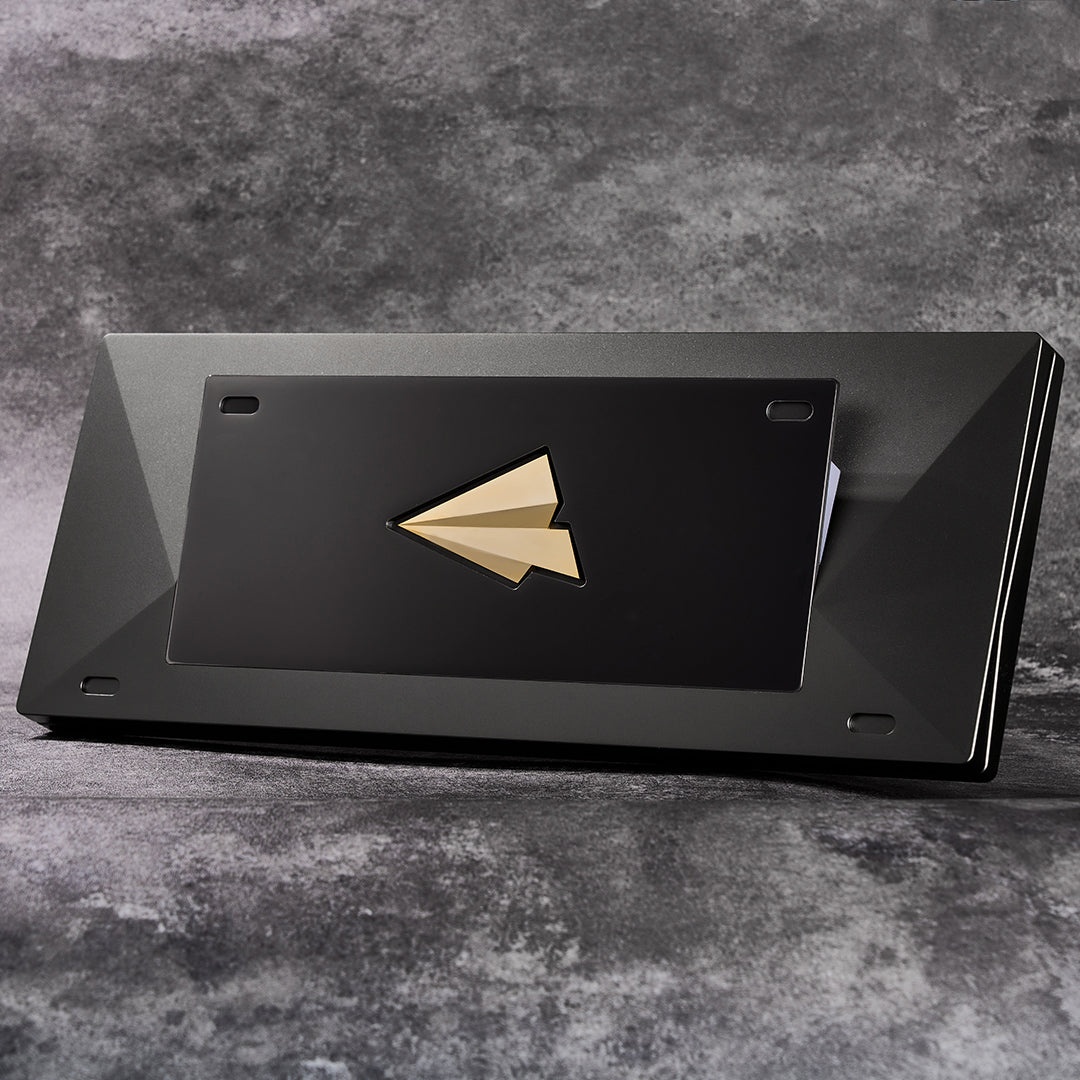

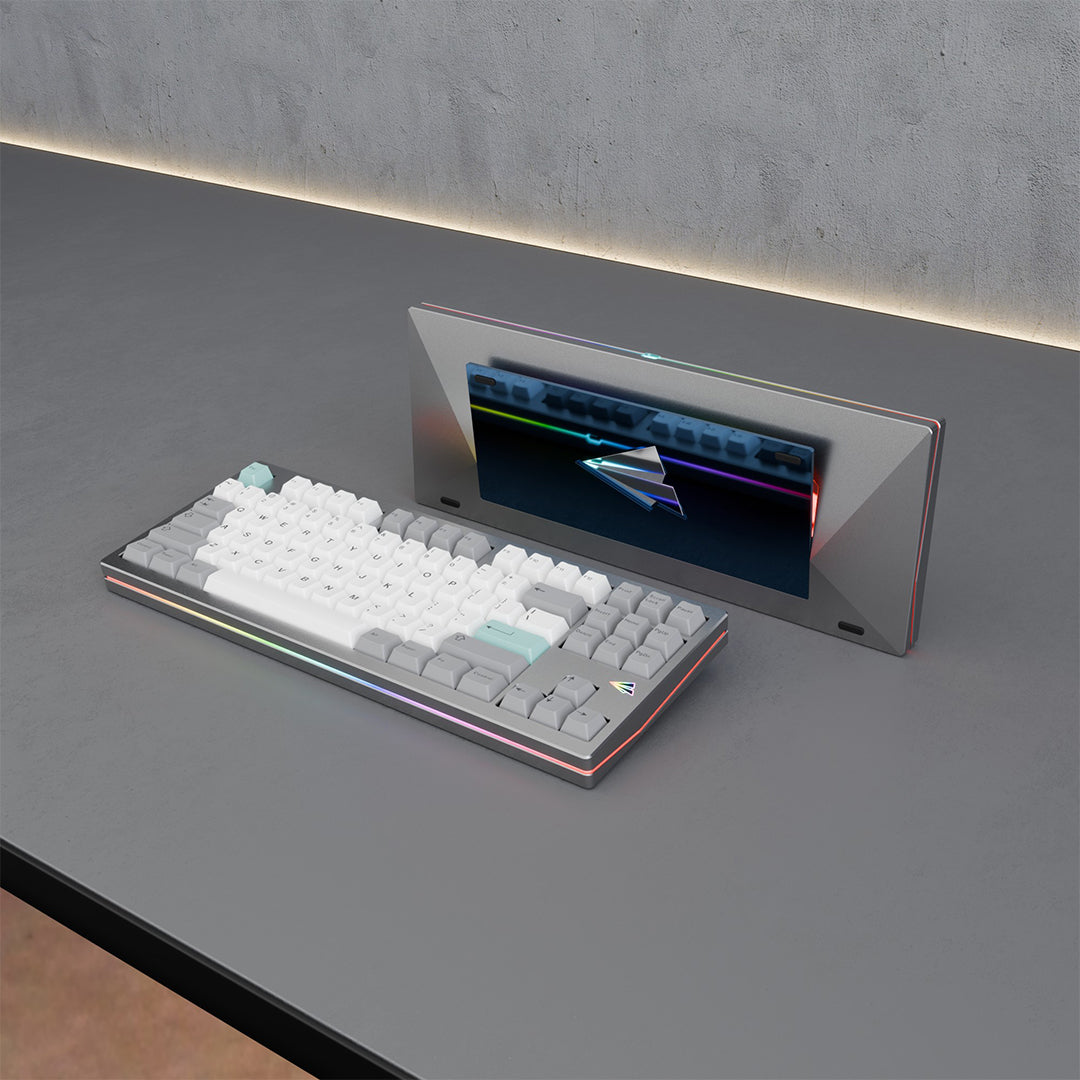

Paper Plane External Weight Logo
We want every design on the PAPER80 to feel seamless, like clouds naturally floating in the sky. It has very defined folds, a 3D look, and appears to fly out of the surface.
Paper Plane LED diffuser
A paper airplane LED diffuser for the front side was made from a light-transmitting material. Only fill colours were used on the four sharp triangles that make up the paper plane. This way, the design stands out more, and only the lines light up, adding a small detail that users can appreciate.

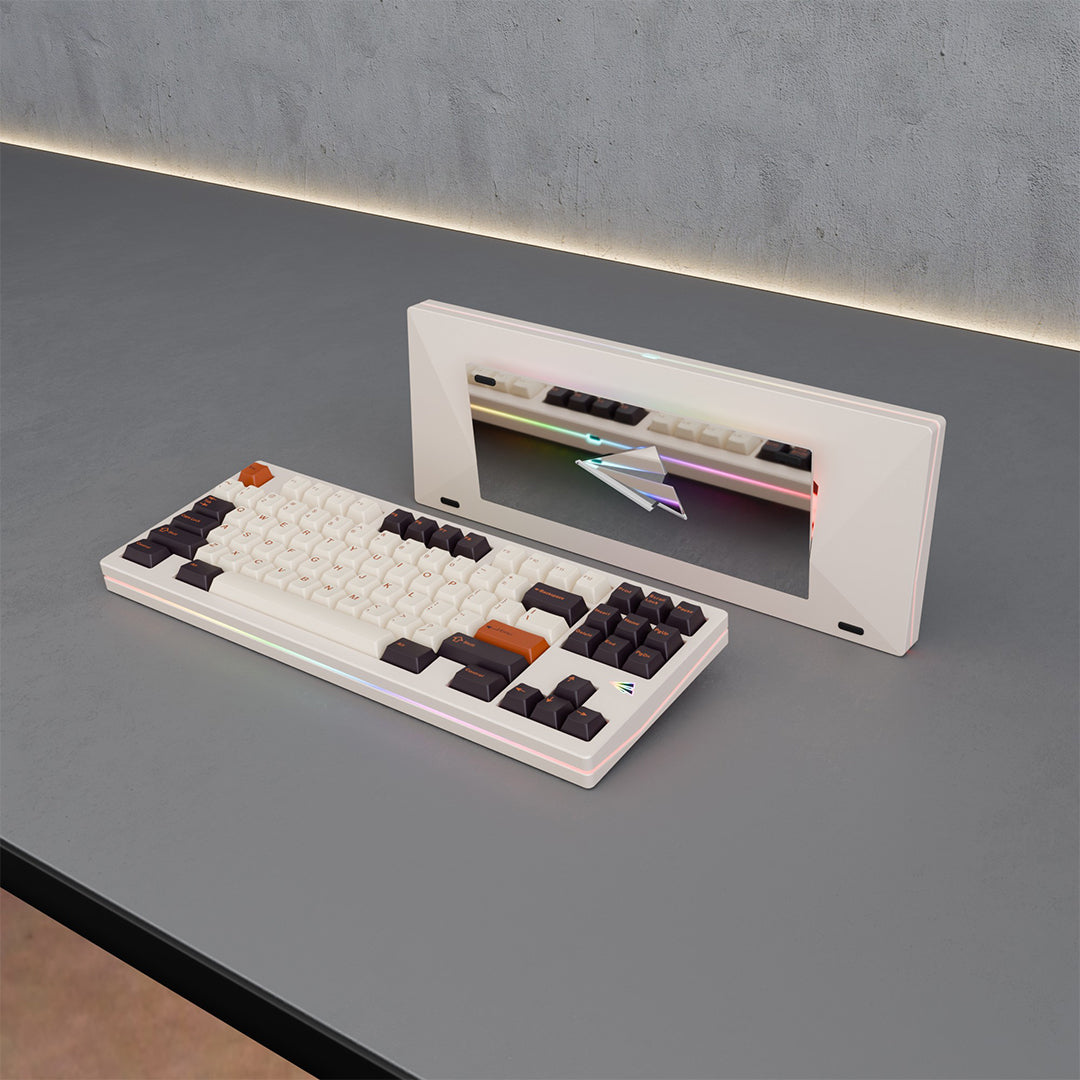

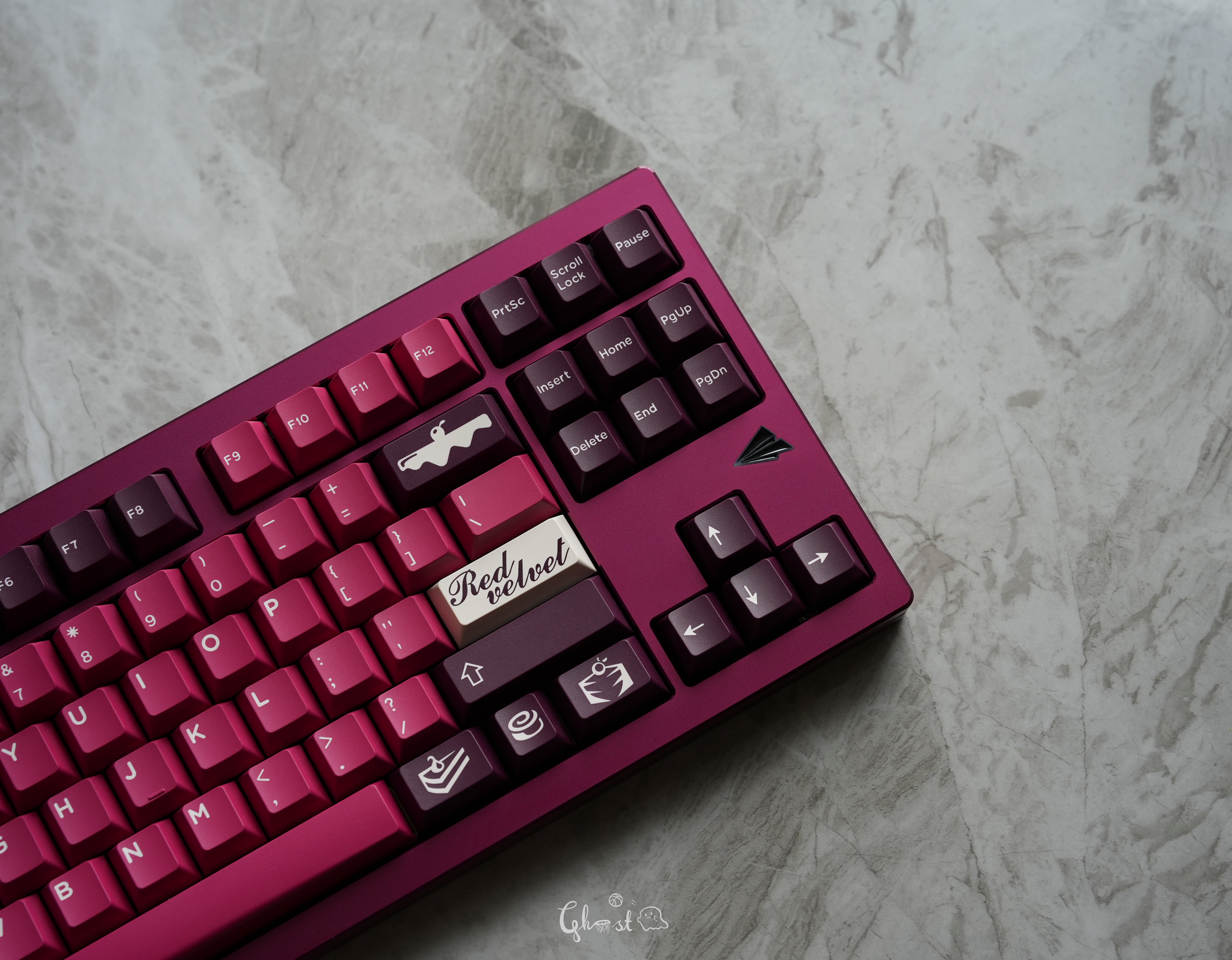

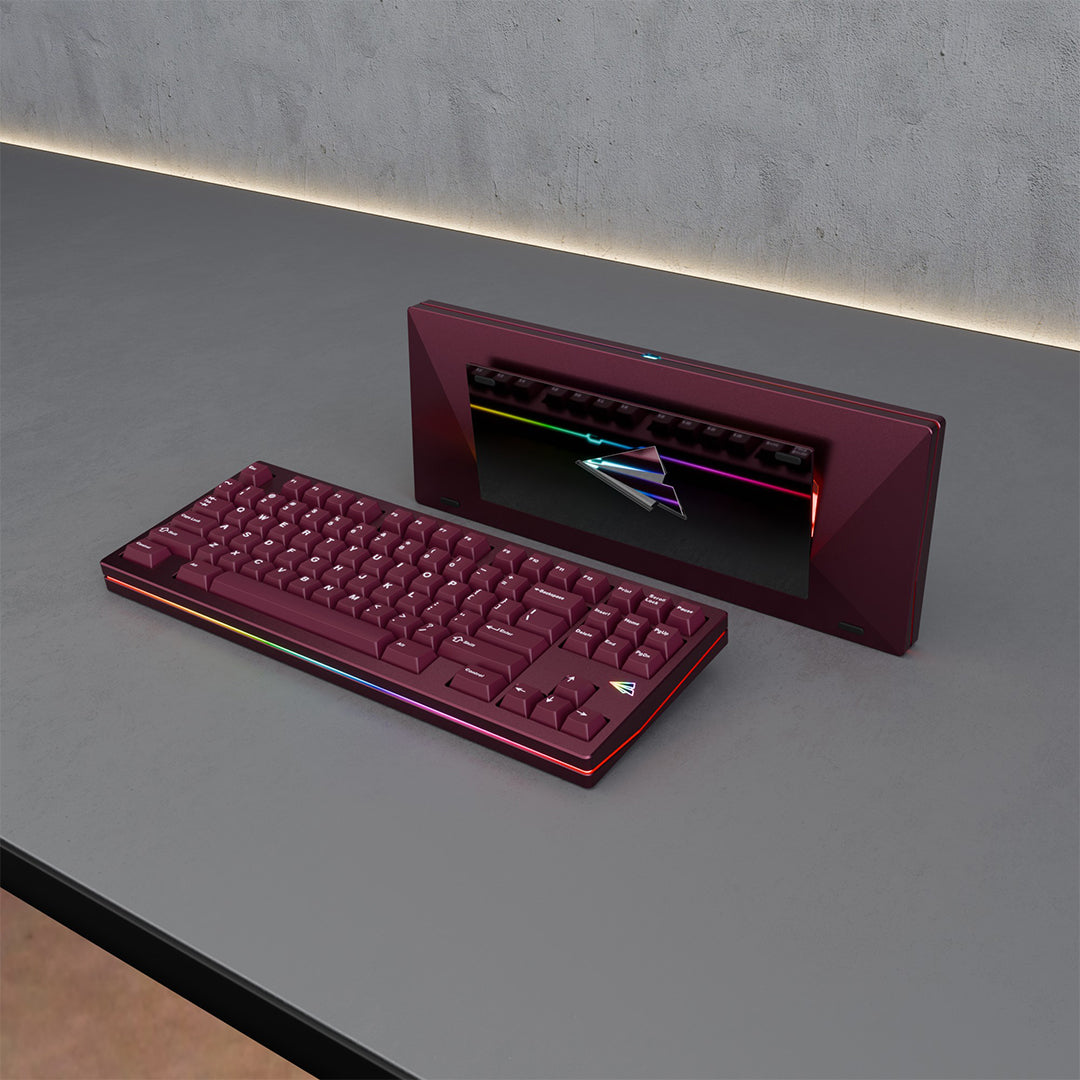

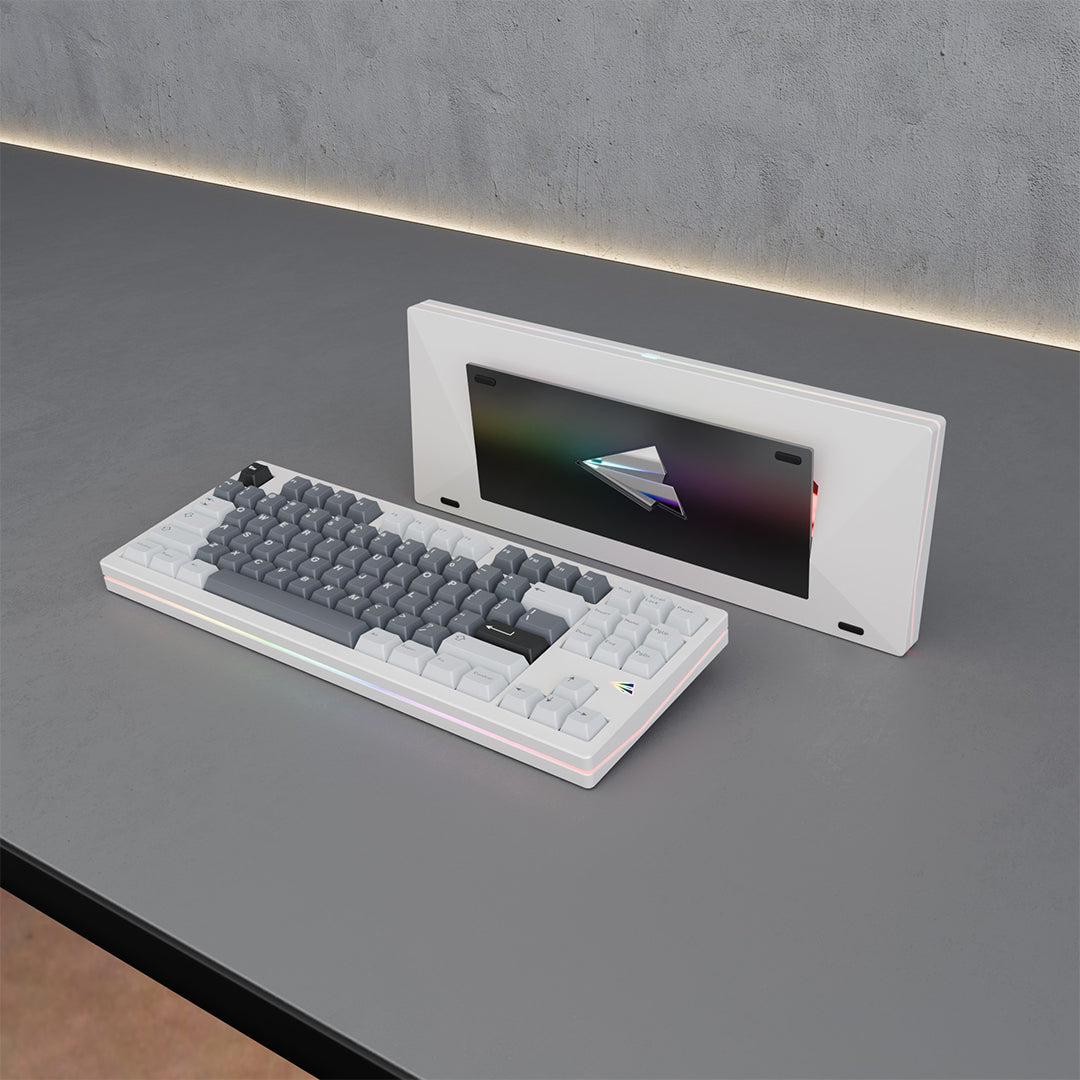

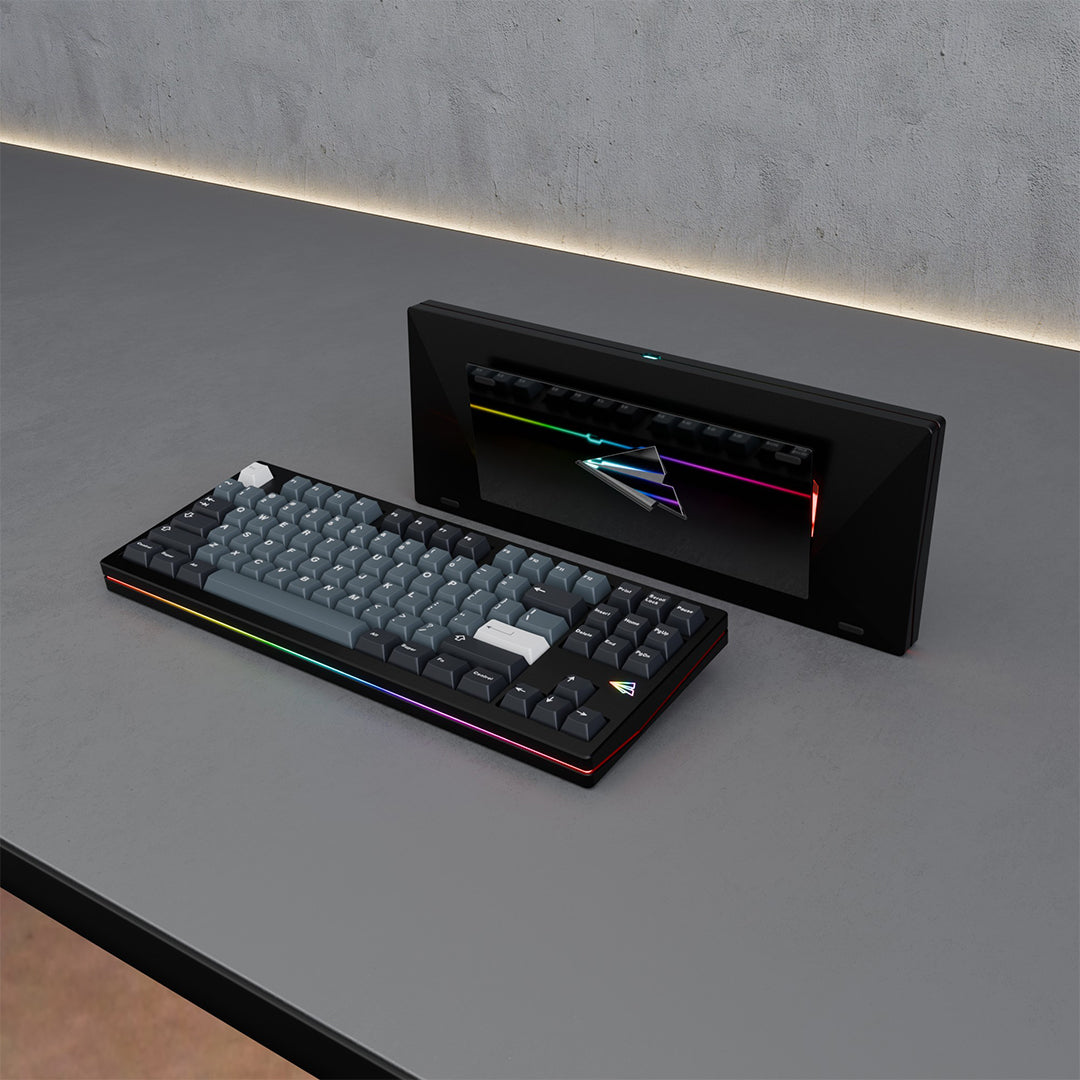

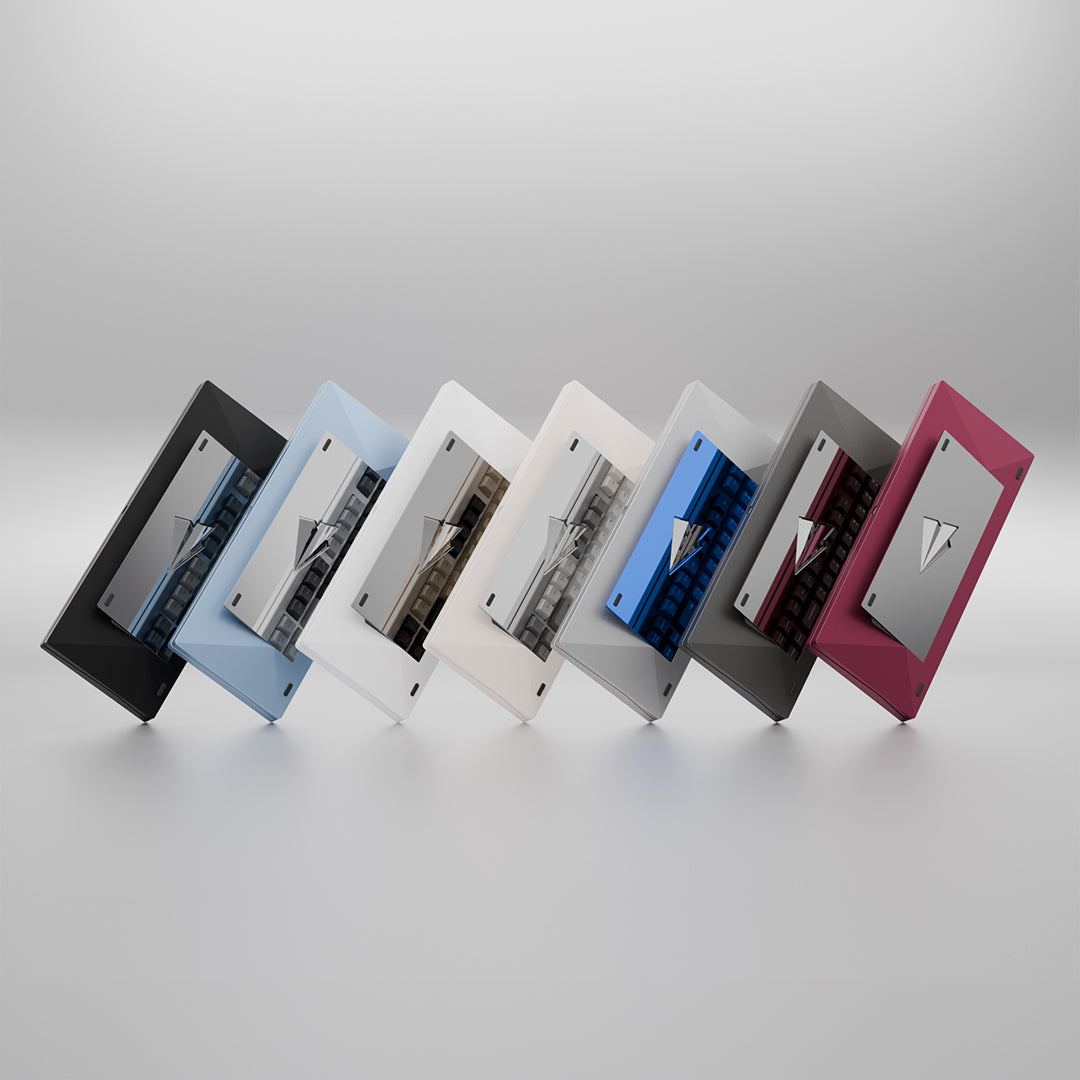

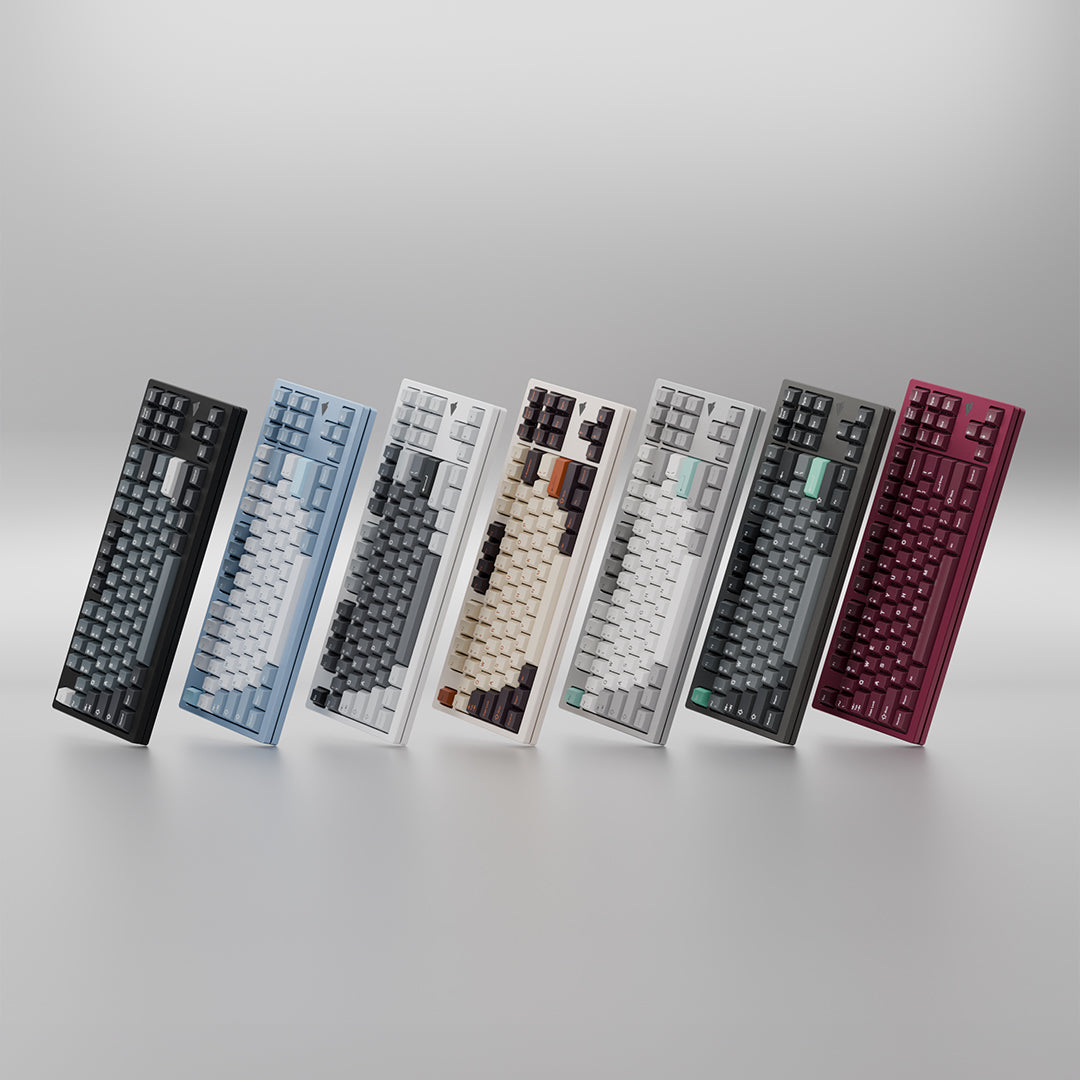

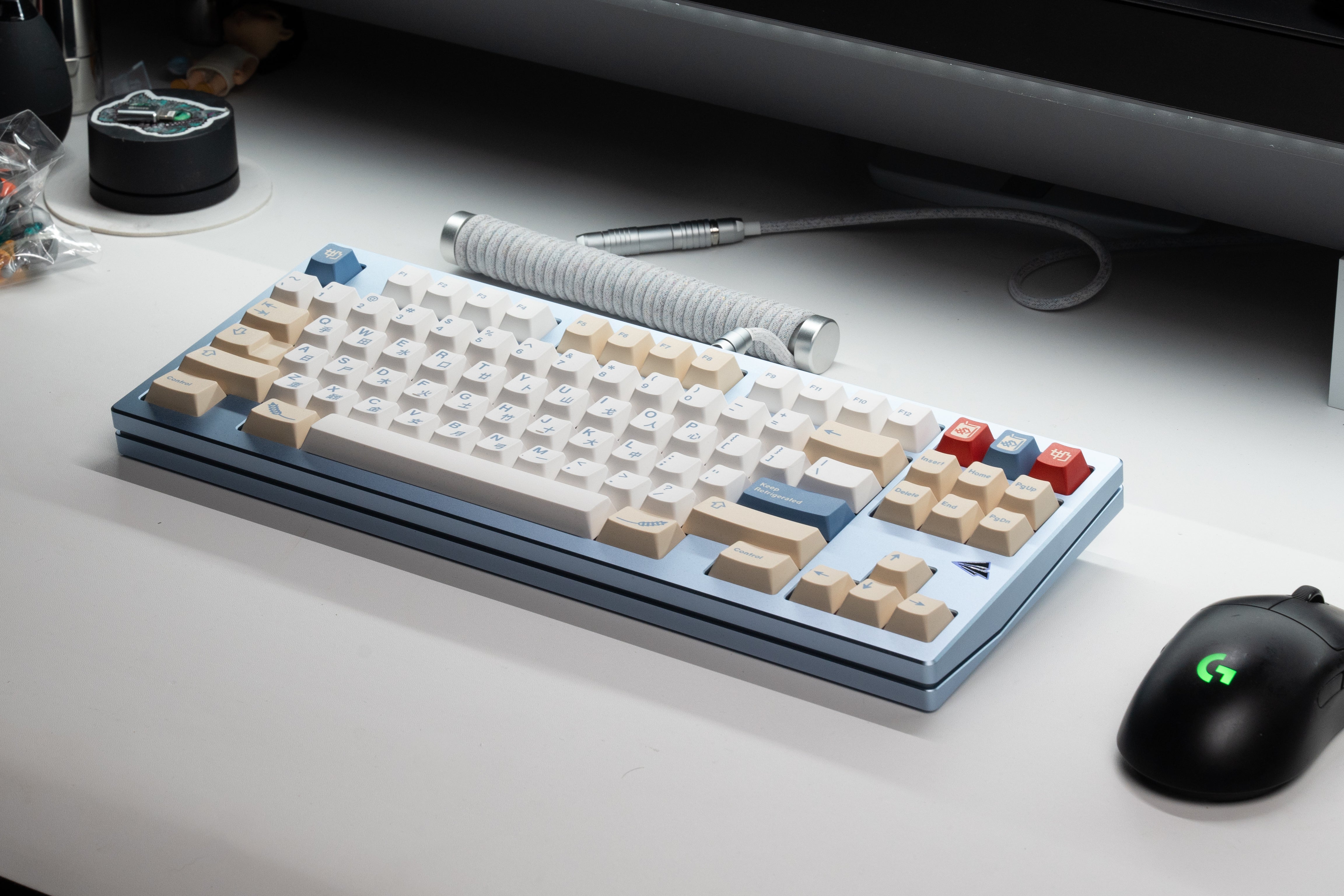

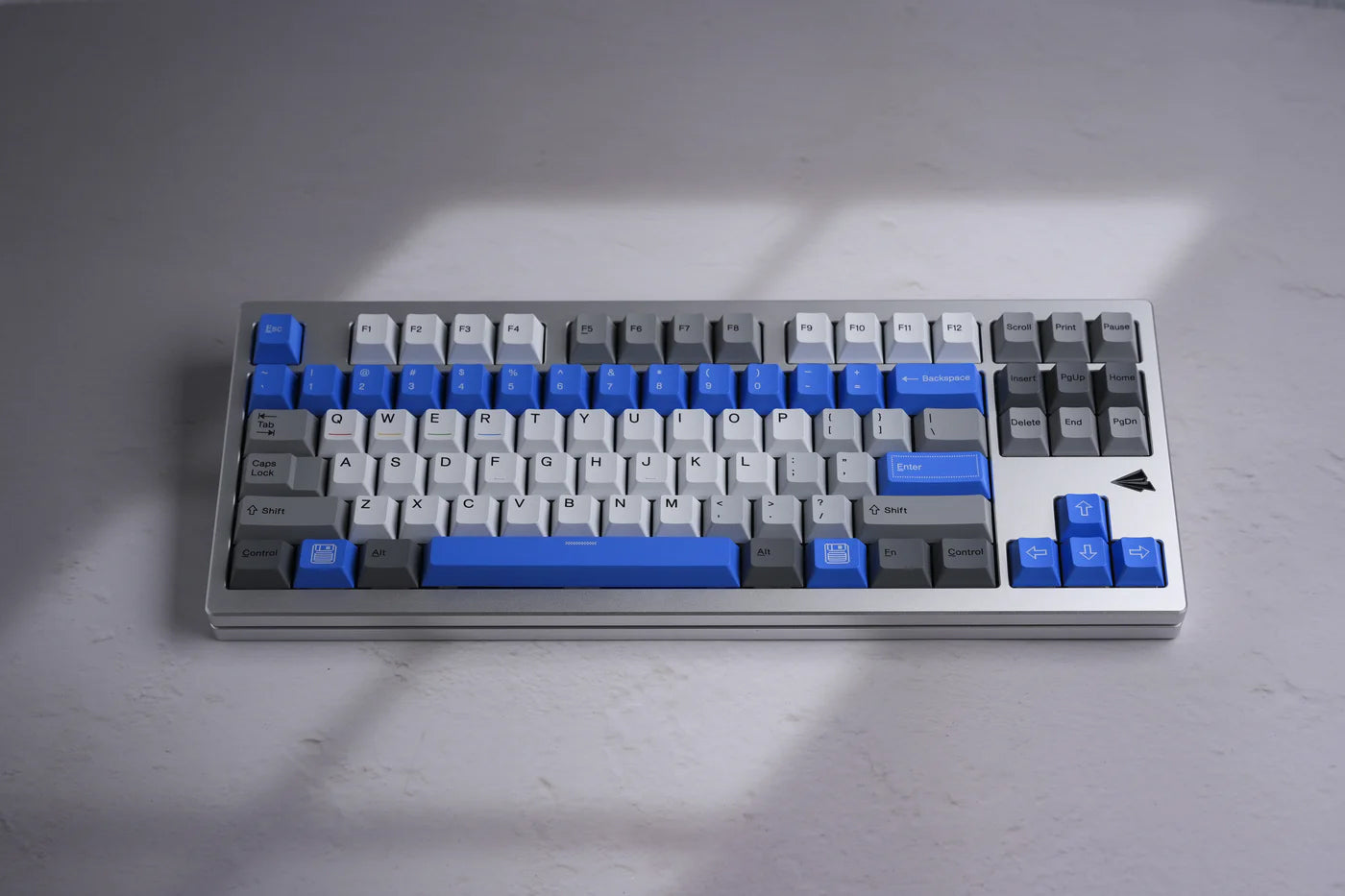

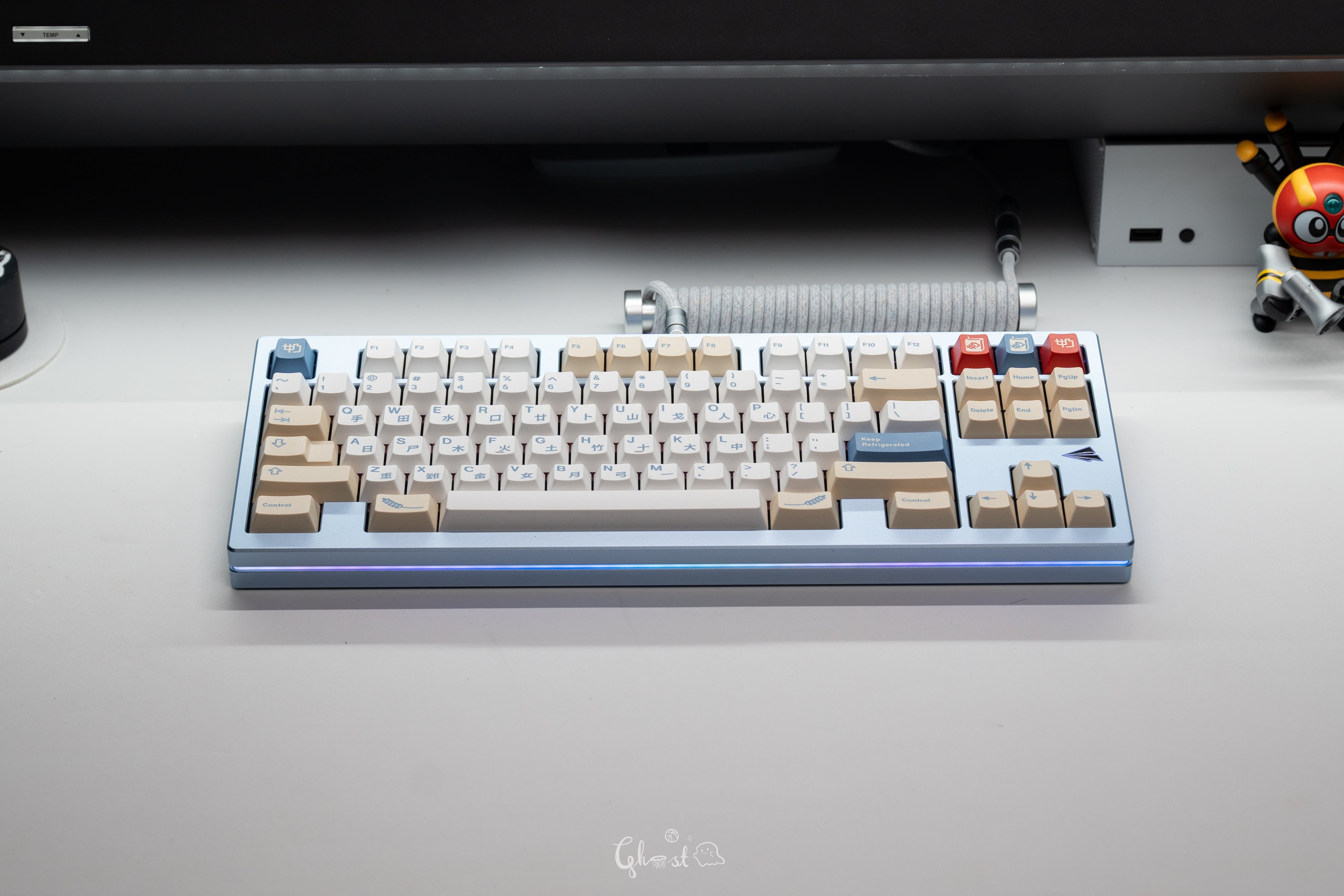

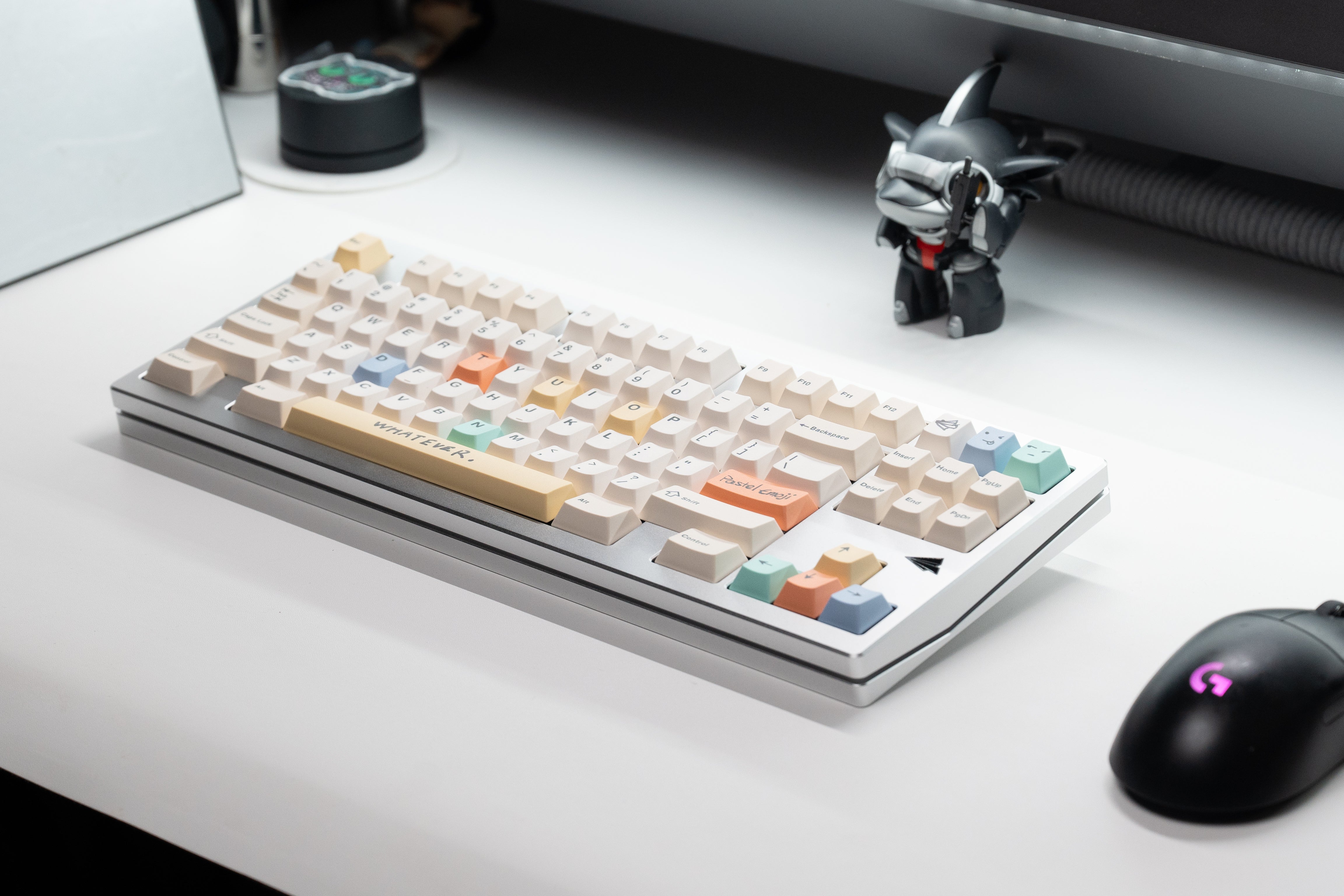

7 Case Colour Options

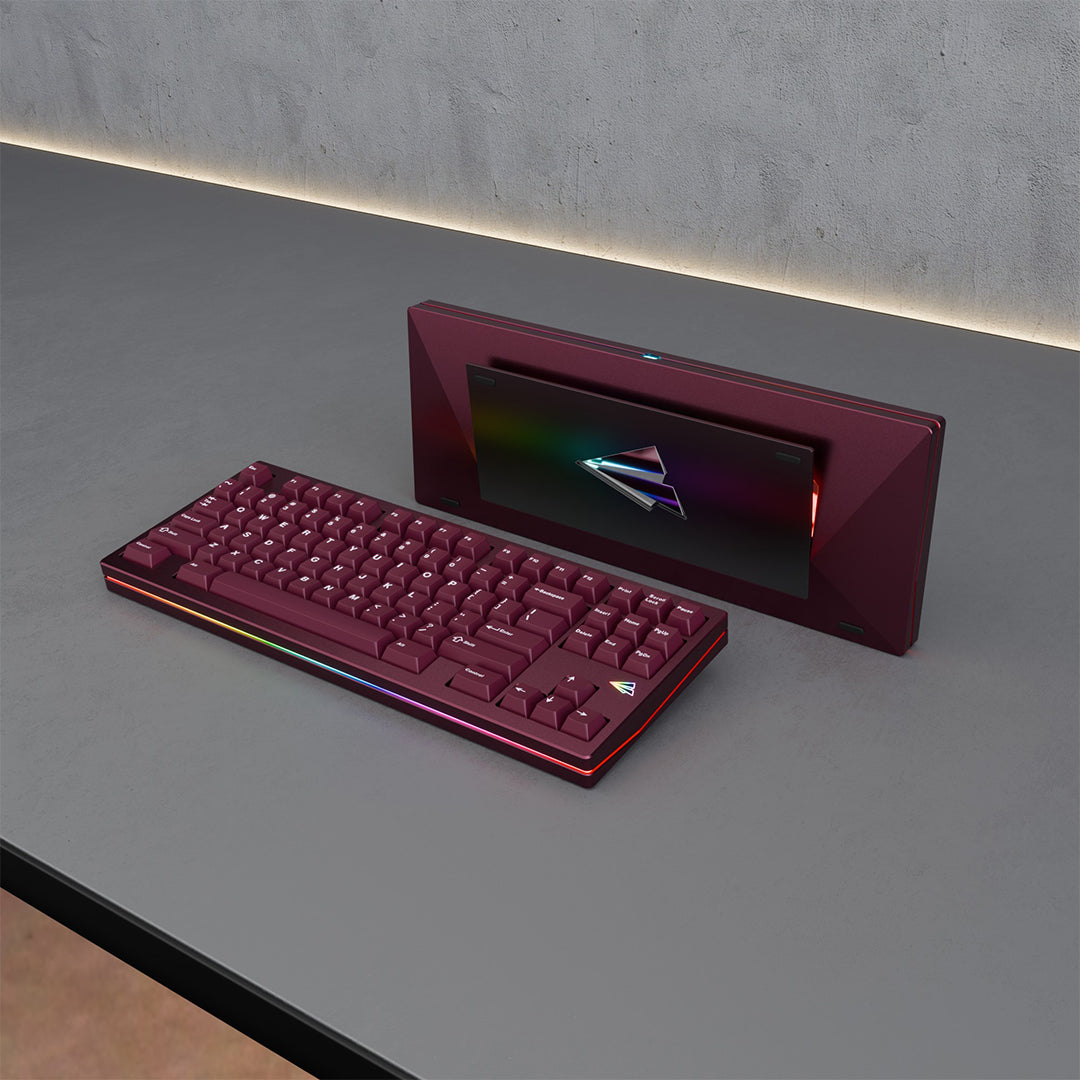

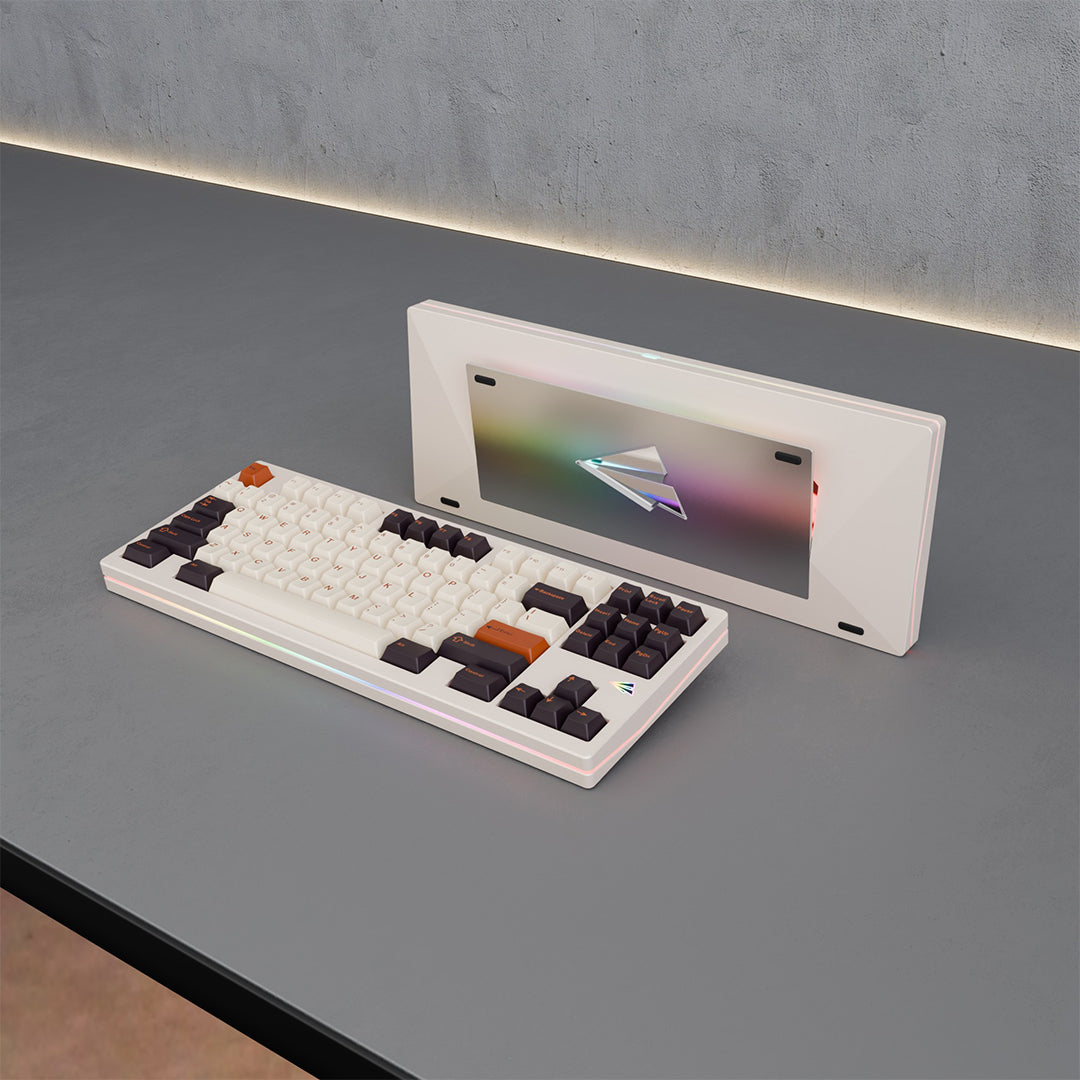

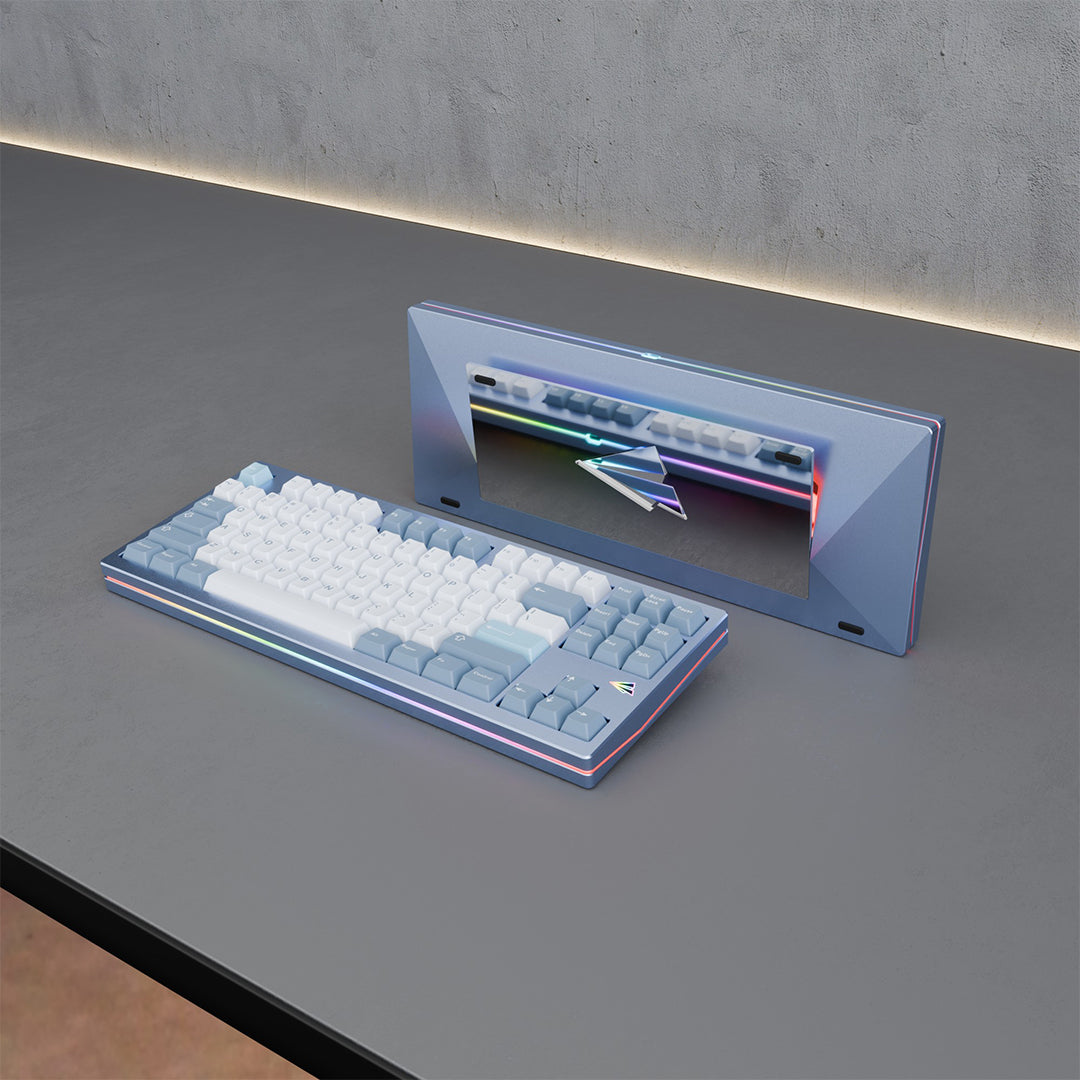

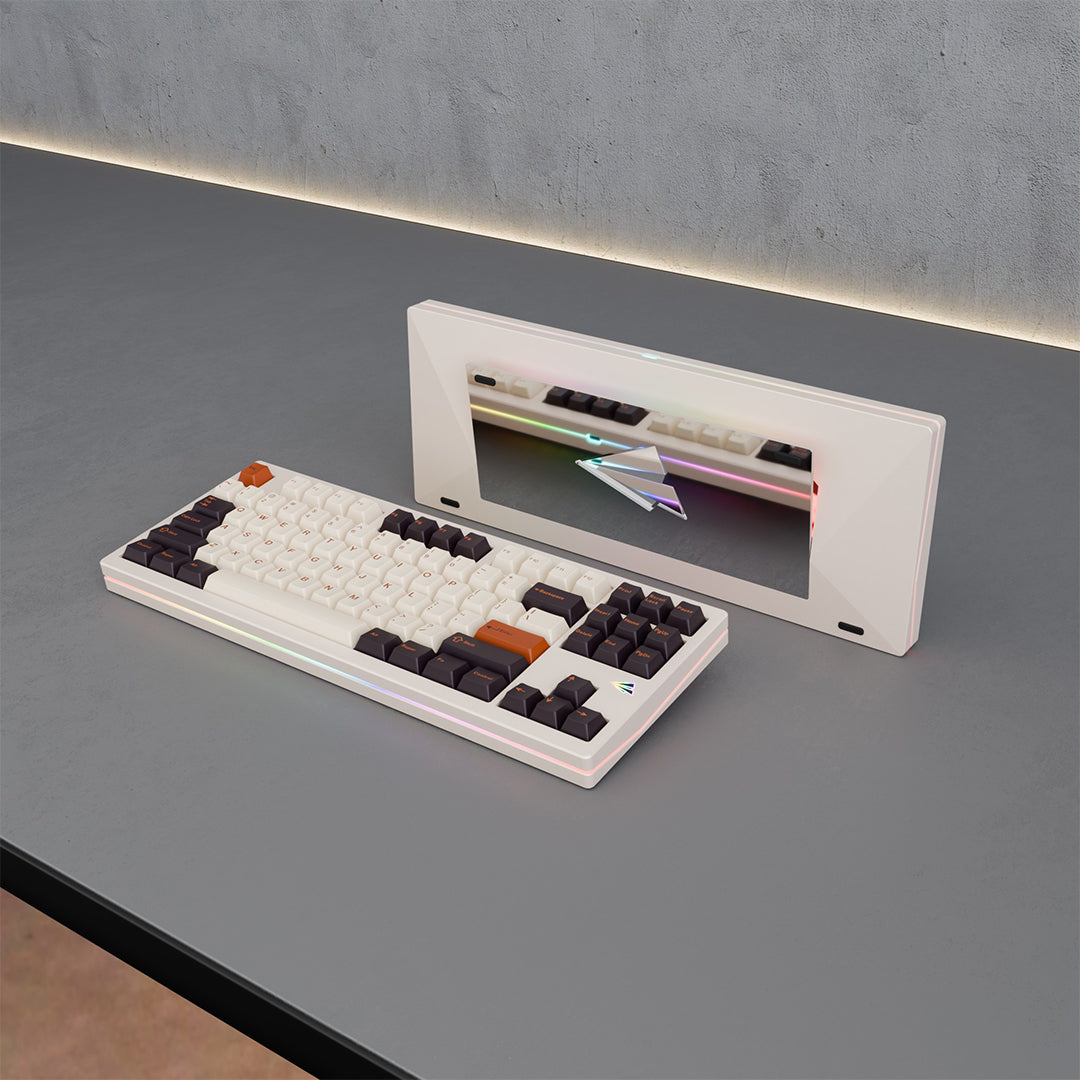

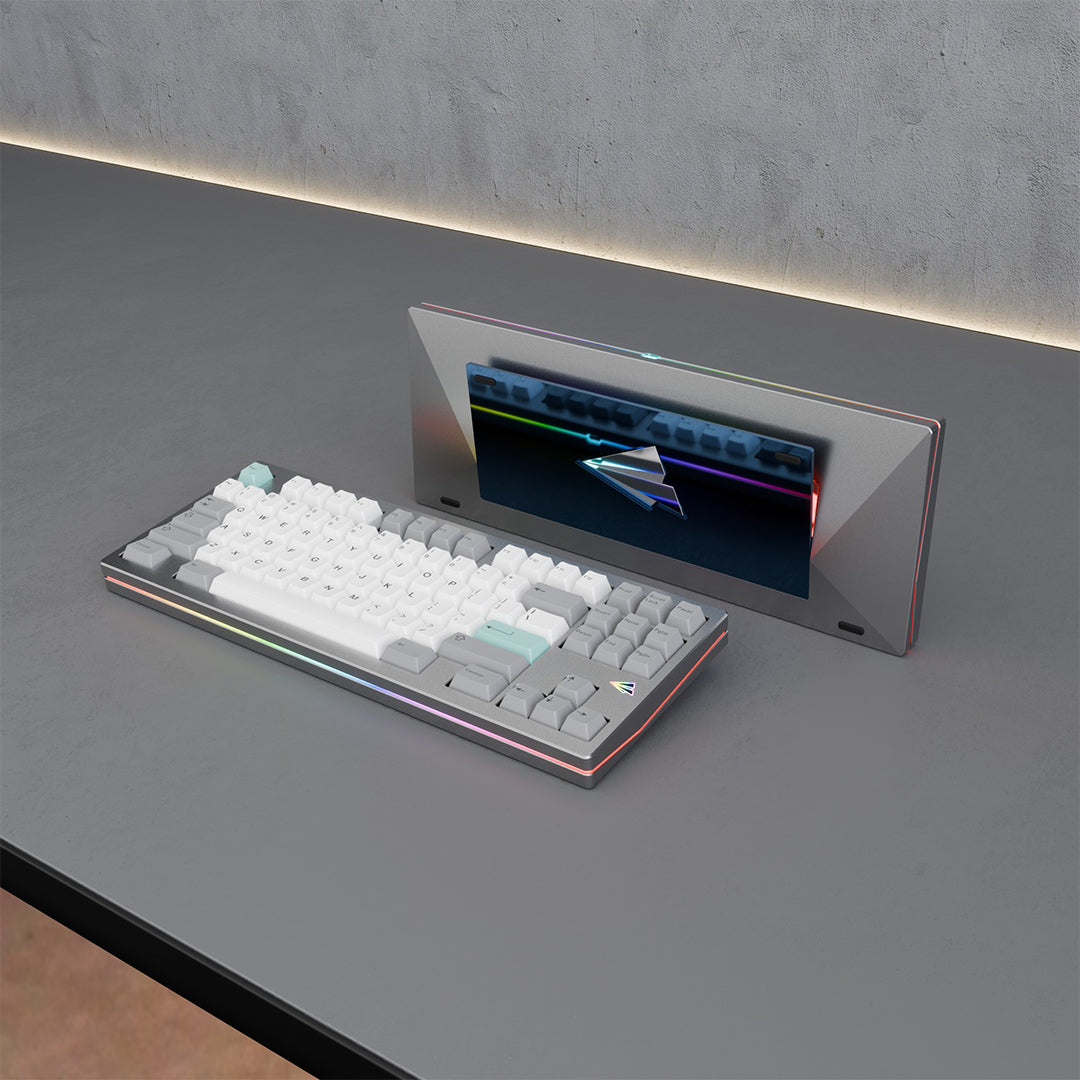

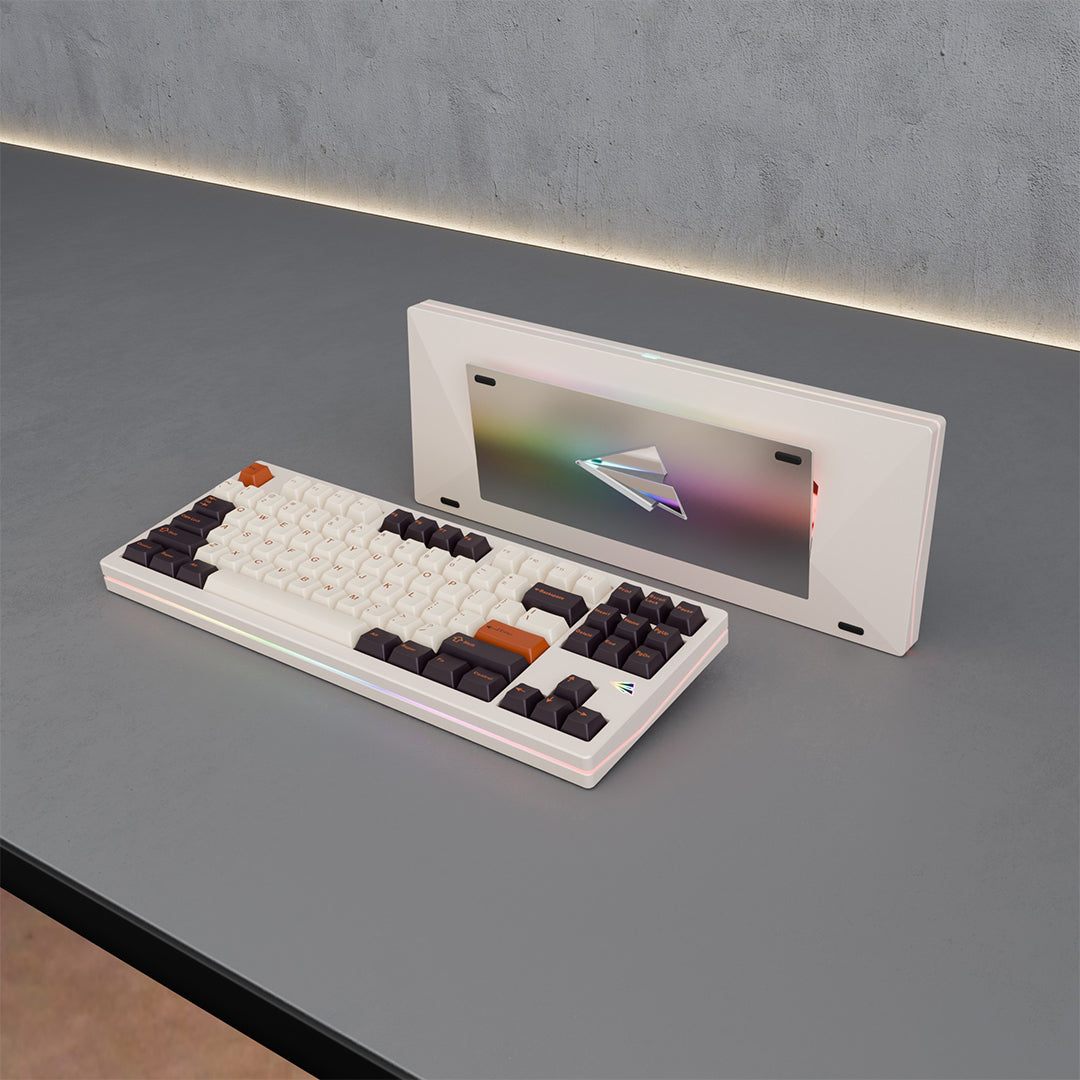

6 External Weights
We are offering a total of 3 weight colours available in 2 finishes, PVD mirror or AFP (Anti-fingerprint) - AFP is durable and protects the surface from scratches, extending its lifespan. Unlike the bright and visually striking appearance of mirror PVD, AFP offers a soft touch with a smooth feel that is warm and comfortable.
Mounting
When designing the structure you might ask why we didn't use a traditional gasket system?
The answer is we wanted to reduce keyboard vibrations from typing as much as possible.

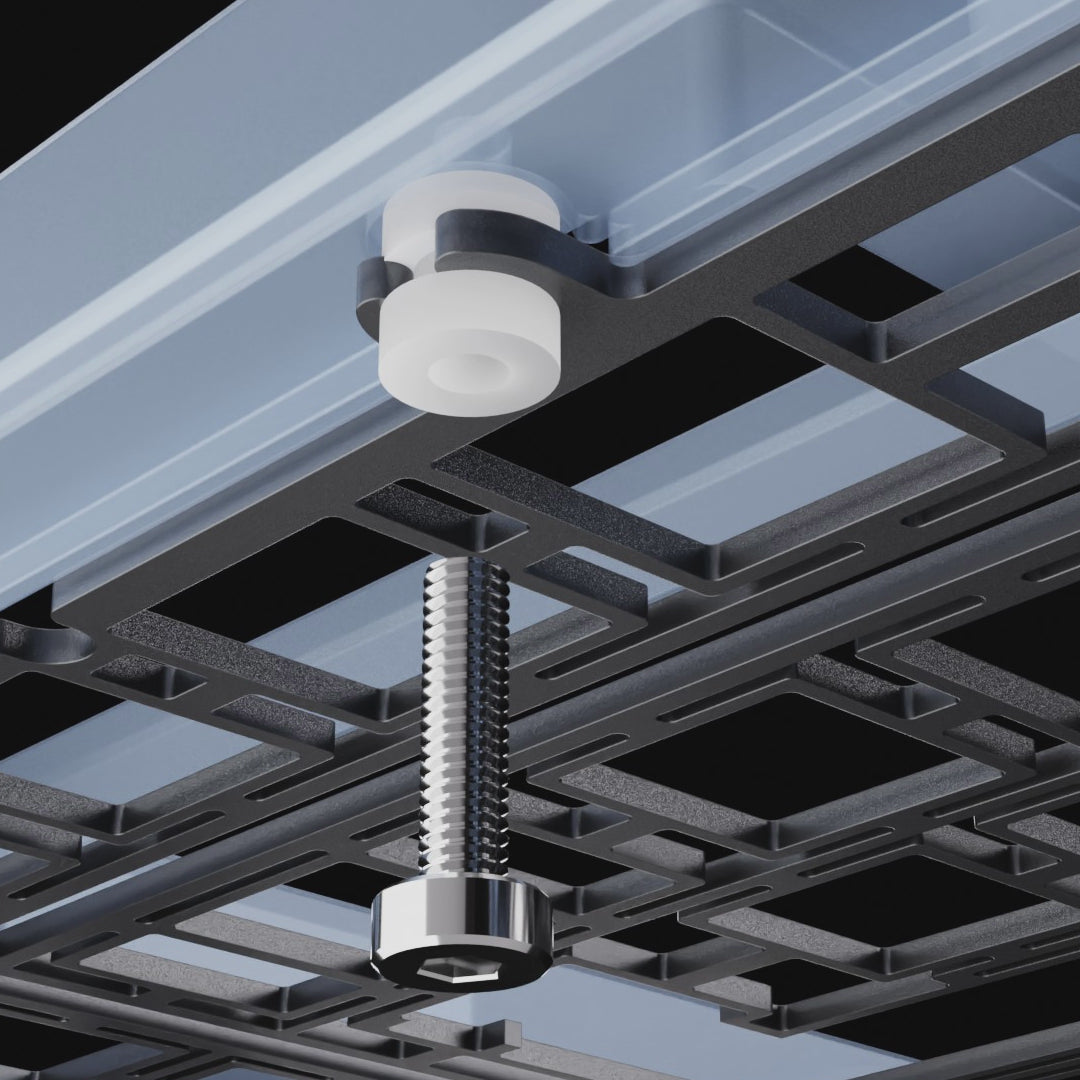

With that in mind we designed the lock-hole gasket mount that strikes a balance between internal space usage and a consistent feel. Our goal isn't to have an extremely soft typing experience but rather provide appropriate support within a perceptible depression. This is what we truly aim to achieve.
Product Information:
- Layout - 80%
- Case Material - Aluminium
- Mid-Case Material - Acrylic
- Weight Material - Stainless Steel
- Mounting - Lock-hole Gasket Mount
- Typing Angle - 7.5°
- Front Height - 20mm
- ISO/ANSI Support - Yes
- Stepped Caps Lock Support - Wired Hot-swappable
- PCB Specifications - 1.6mm non-flex cut
- Plate - Non-flex cut PC Plate or Non-flex cut Alu Plate
- Firmware Support - QMK/VIA
- Minimum Latency - Wired 0.98ms
- Reliable Latency - Wired 5ms
- Versions - WK/WKL
- Weight - About 2200g

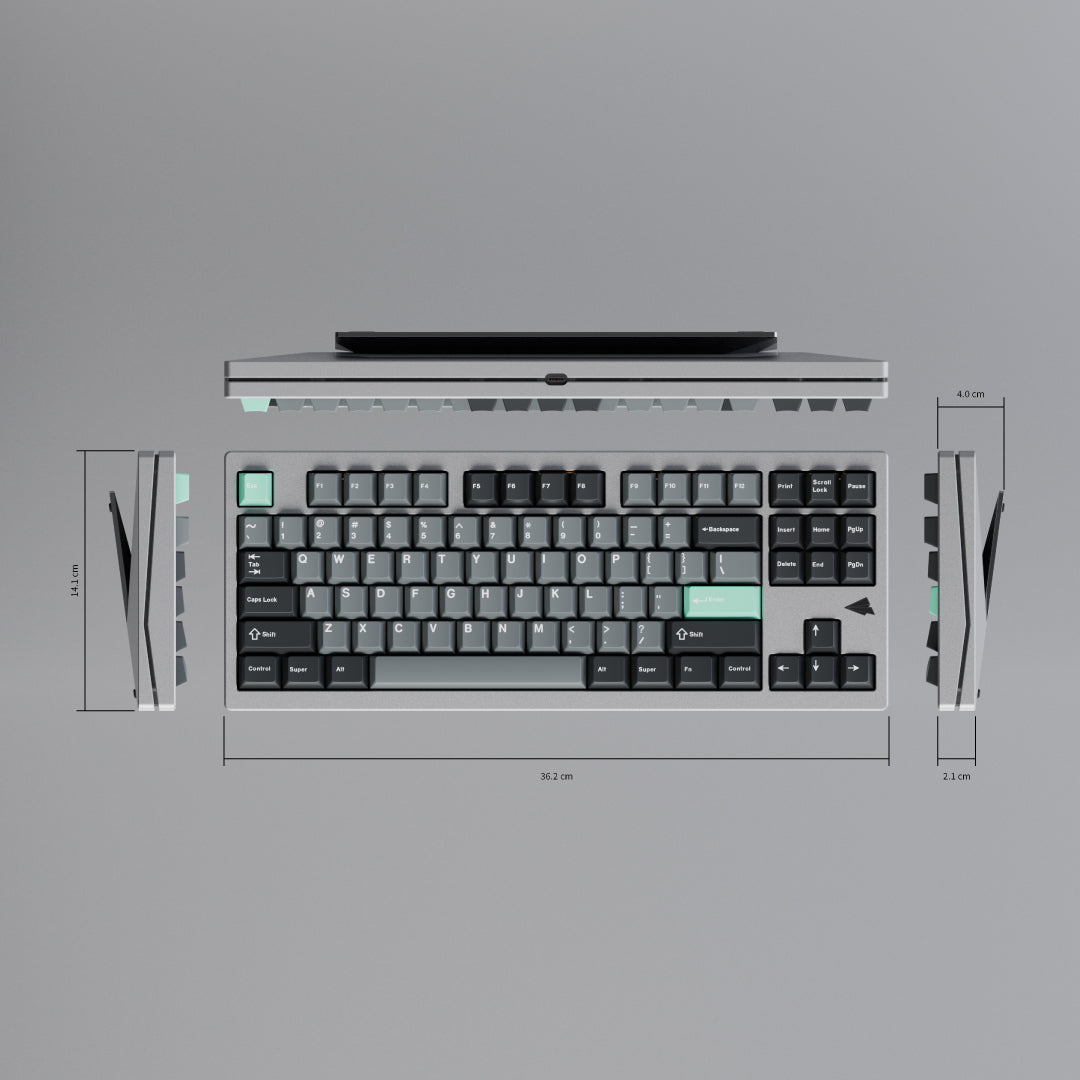

- Dimensions - 362 x 141 x 40mm

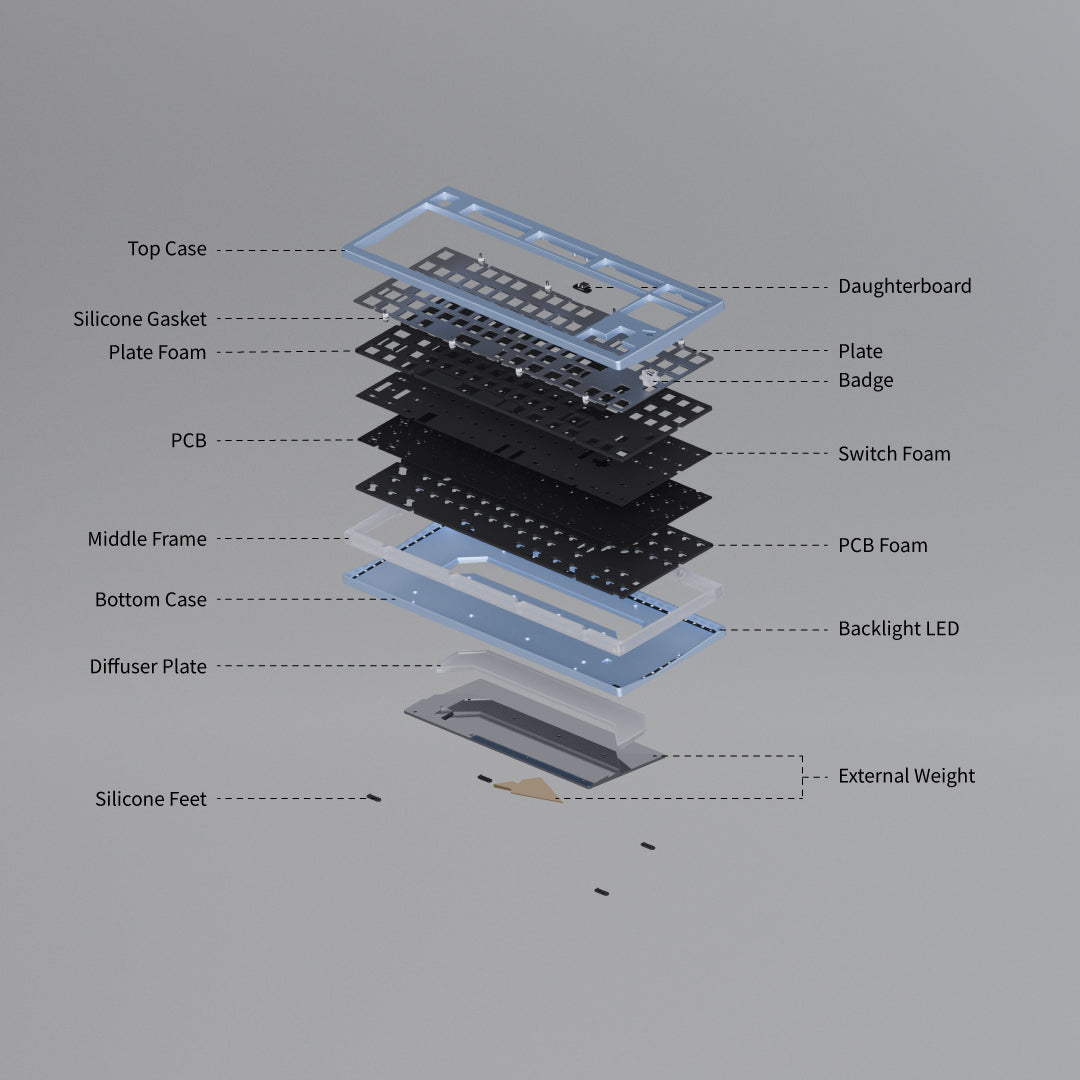

Kit Contents:
- Top Case: Aluminium
- Bottom Case: Aluminium
- Middle Frame: Acrylic
- External Weights (including airplane weight): Stainless Steel
- Diffuser Plate: Acrylic
- Badge: Acrylic
- PCB ×1
- Daughter Board (including cable) ×1
- Backlight LED (including cable) ×1
- Plate ×1
- Plate Foam ×1
- Switch Foam ×1
- PCB Foam ×1
- Silicone Feet ×1
- Screws and Gasket Silicone Plugs
- *Not include USB-C cable and Stabilizers
Addons Available Here
Disclaimers
Kindly note that the images are of 3D renders and are for illustration purposes only. The final colours may differ slightly.
Shipping Time and GB Agreements (PLEASE READ):
These keycaps are set to be shipped out in Q1 - Q2 2025.
Please note that this is a Group Buy. There can be delays and set backs. The timeline is only an estimate. By adding this item to your cart and purchasing you agree that you understand everything above. You will be charged immediately for this item. There are no refunds or cancellations on these orders. Please do not purchase this item with other group buys. Only the items specified in each product picture are included with that particular product.
