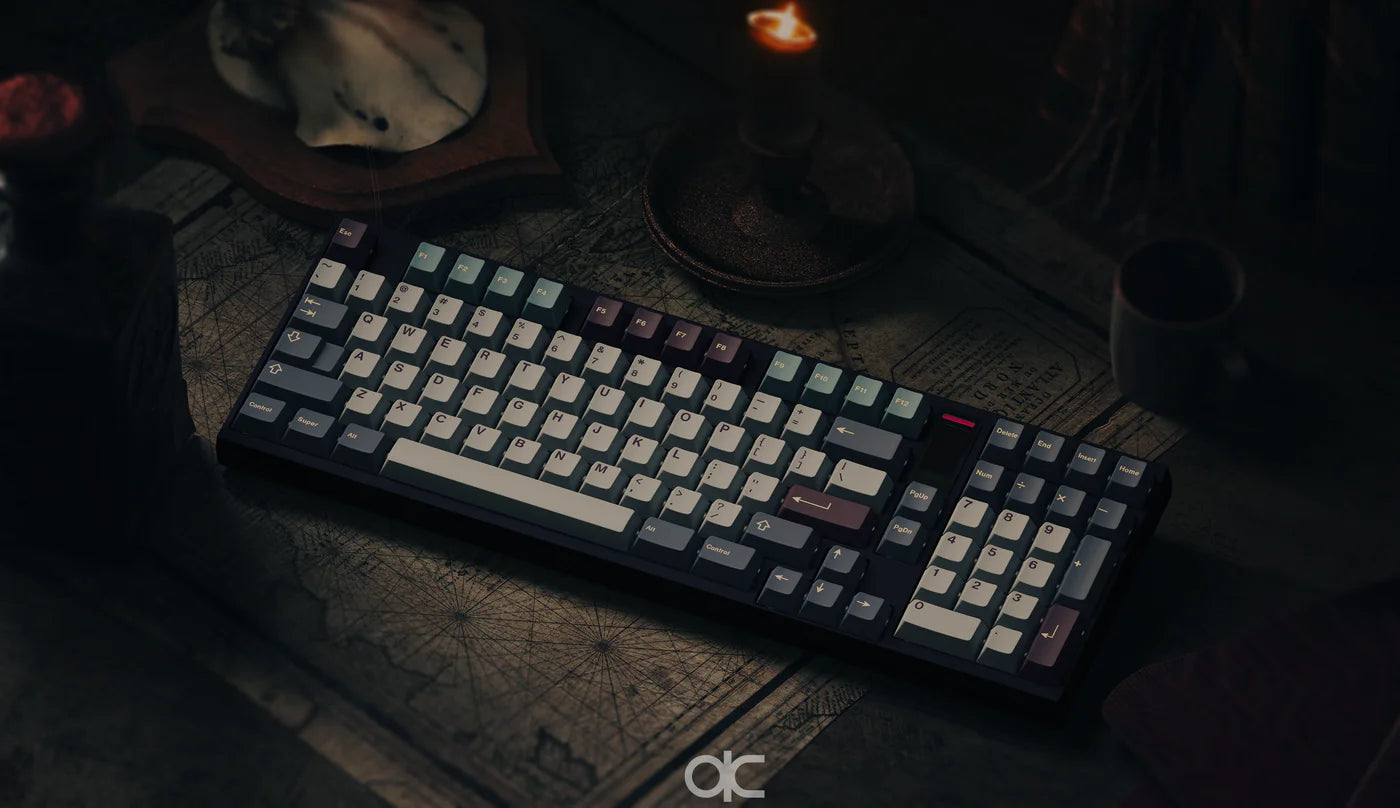

(Group Buy) QwertyKeys QK100 Keyboard Kit

Sale price£57.50
Sold out

Closing Date: July 18th 2023

Expected Shipping time: Q4 2023

See the QK Project page here!

Get your extra parts here!

This is our 5th product and we are still going strong! QK100 is the office workhorse and the family gift you guys have been demanding, so we don't want it to be missed. It has everything you need, including the F-row, numpad, and even a screen, on top of the high-quality keyboard that we've always been proud of.

Design

  • All CNC’d Aluminium Case and More Colour Options
    • 12 Choices for the case:

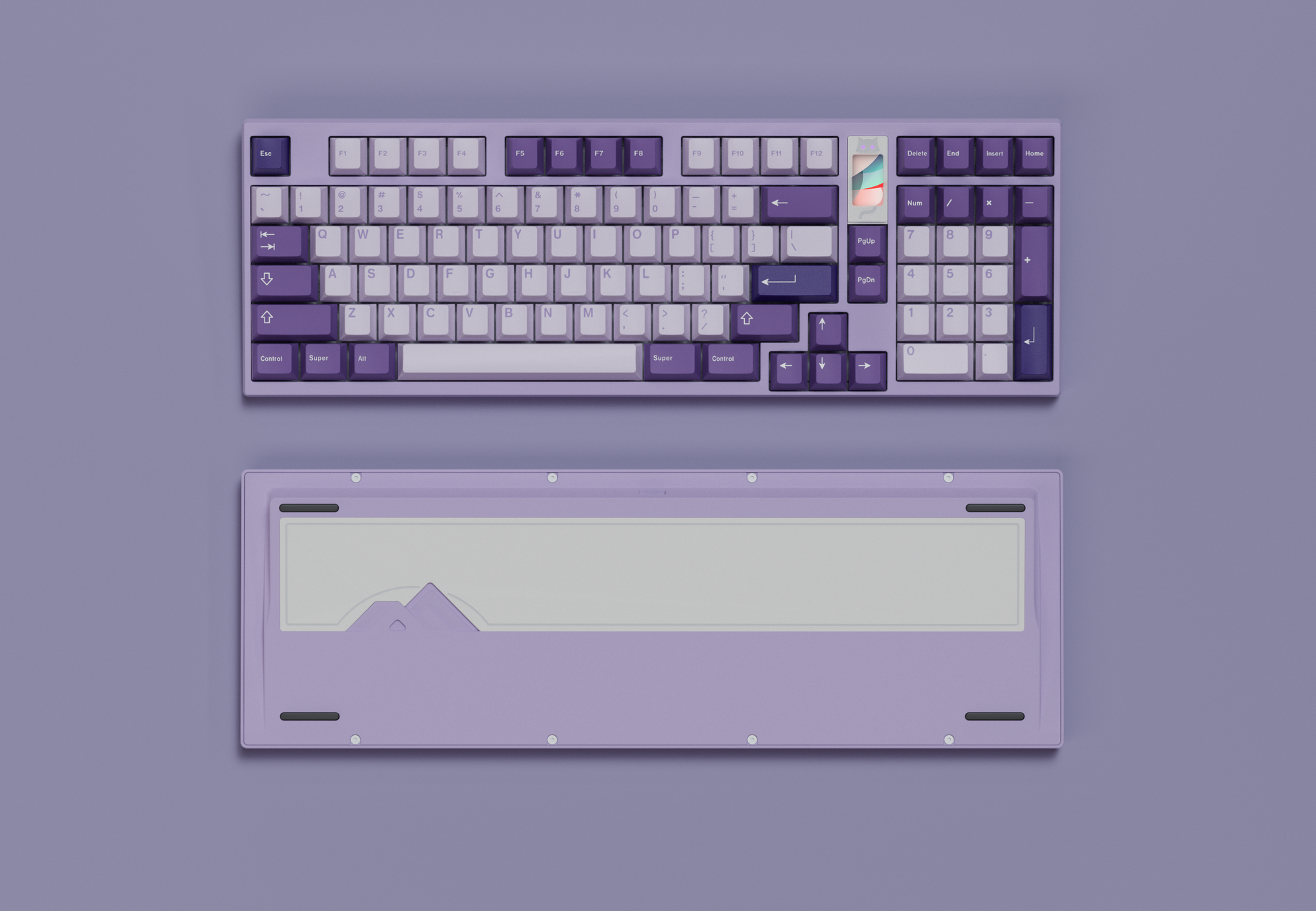

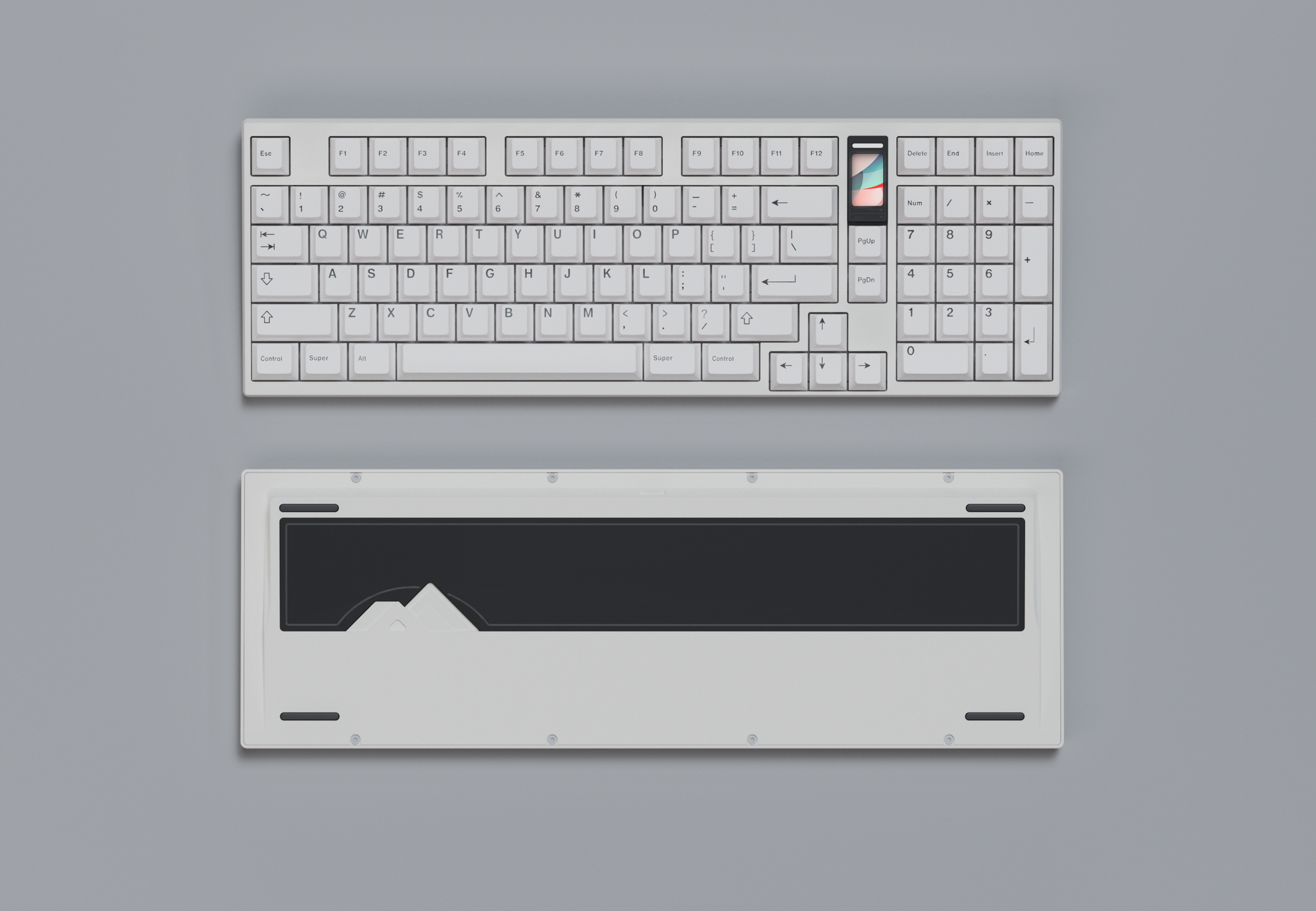

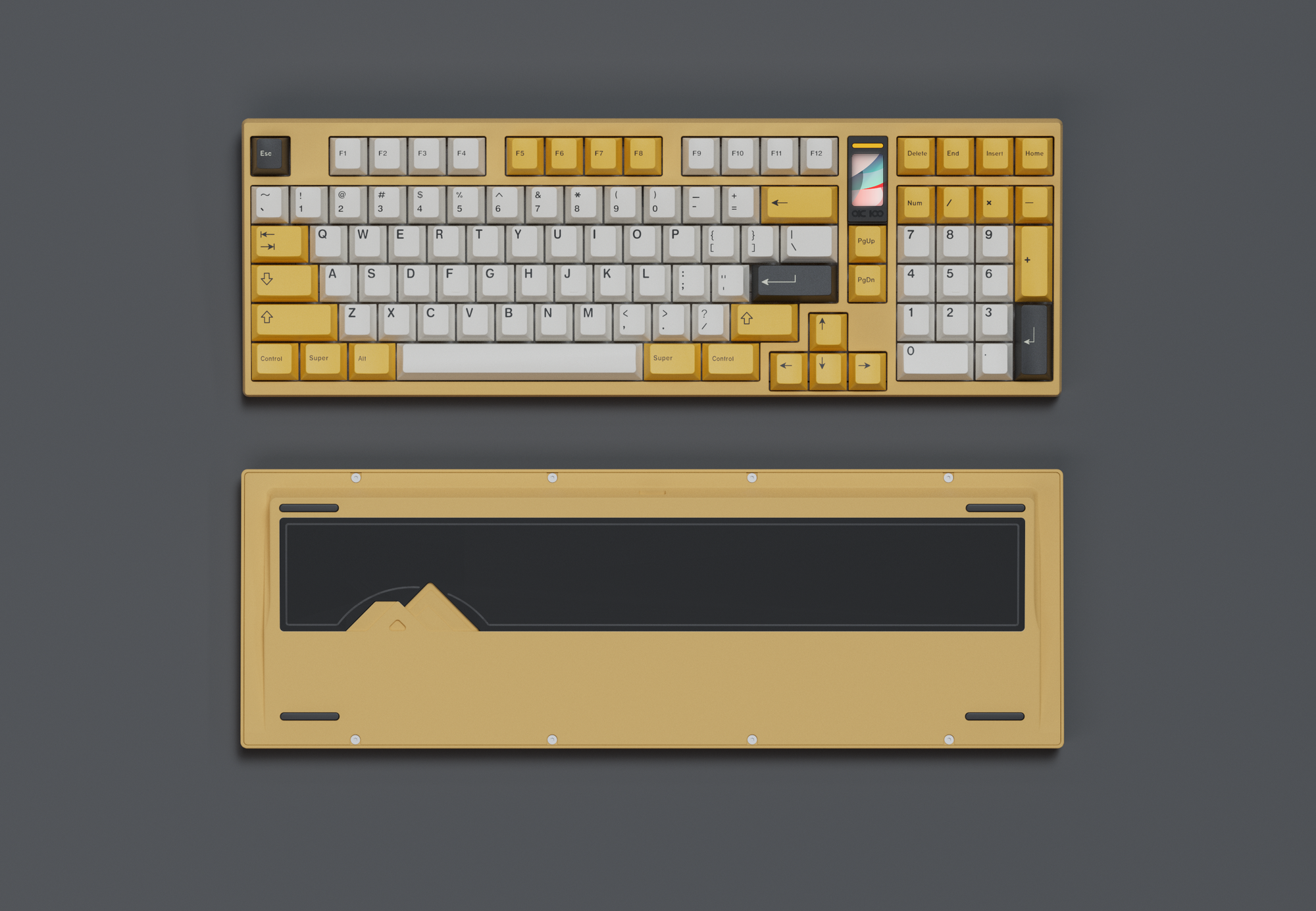

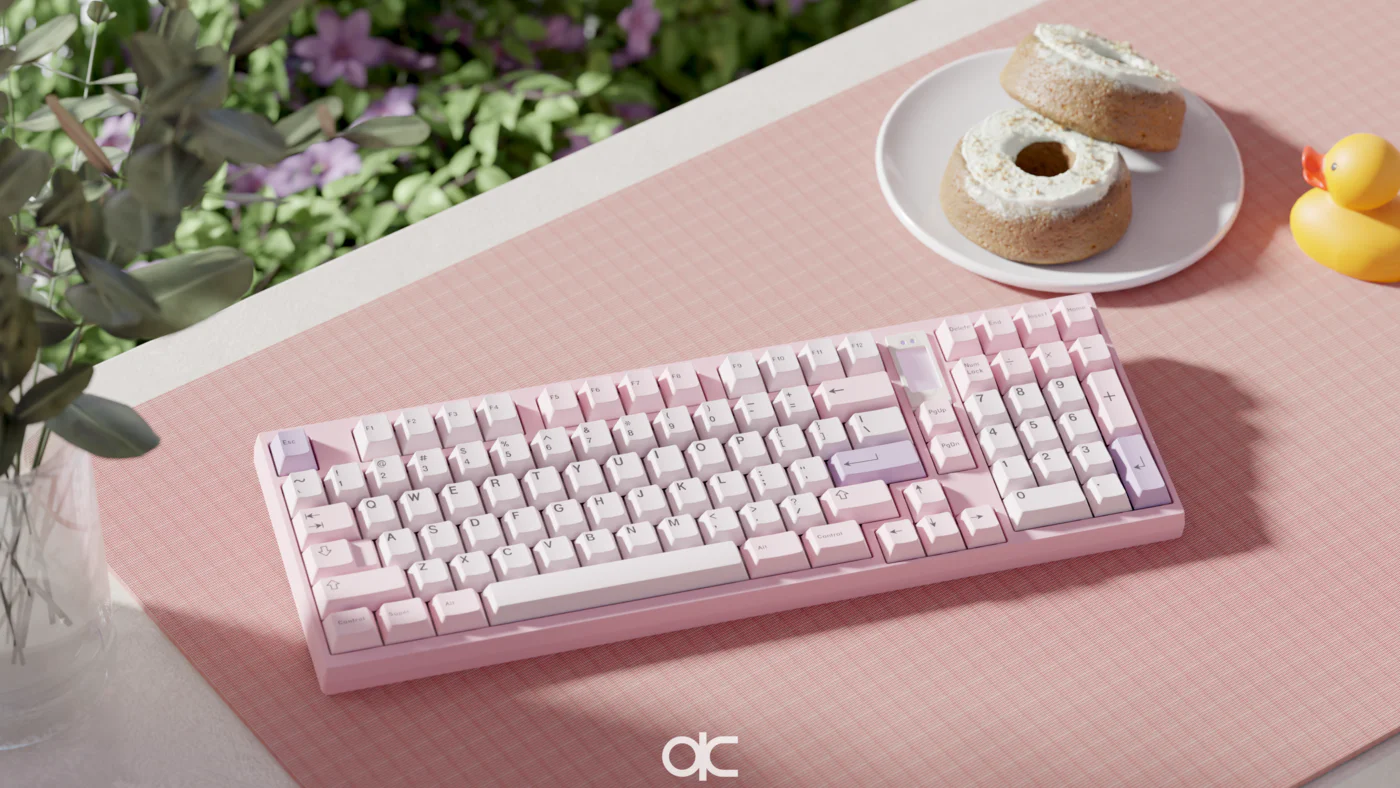

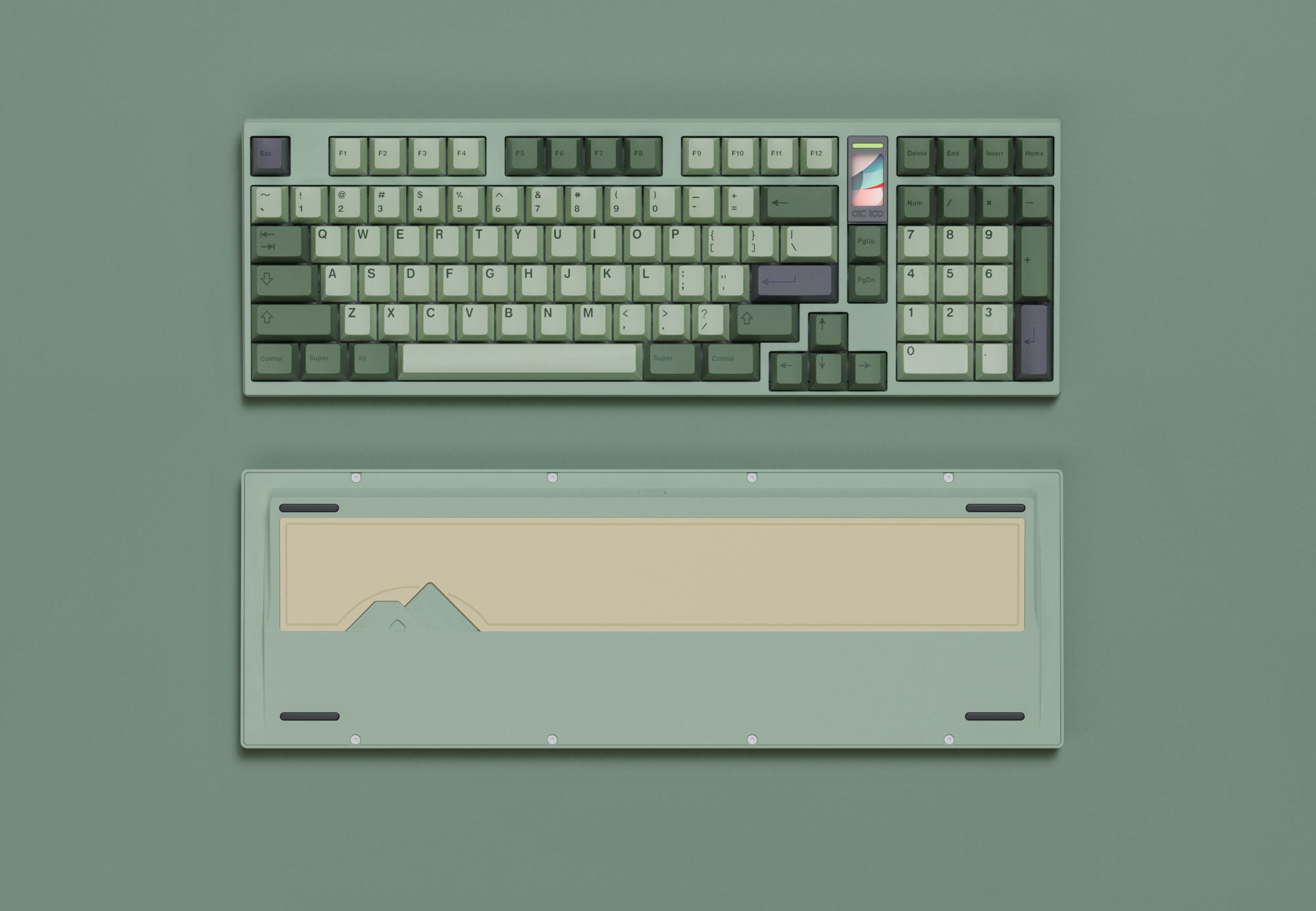

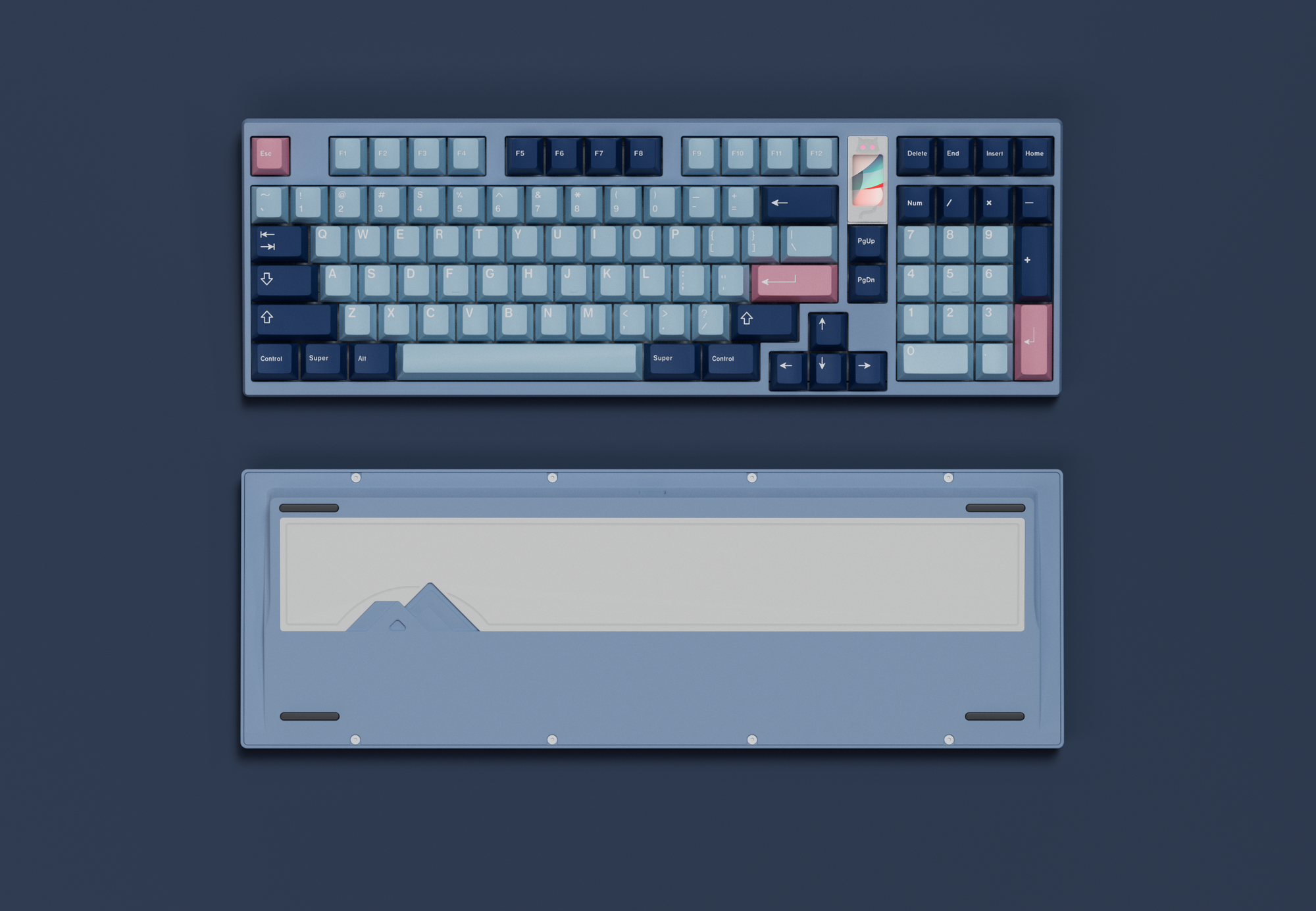

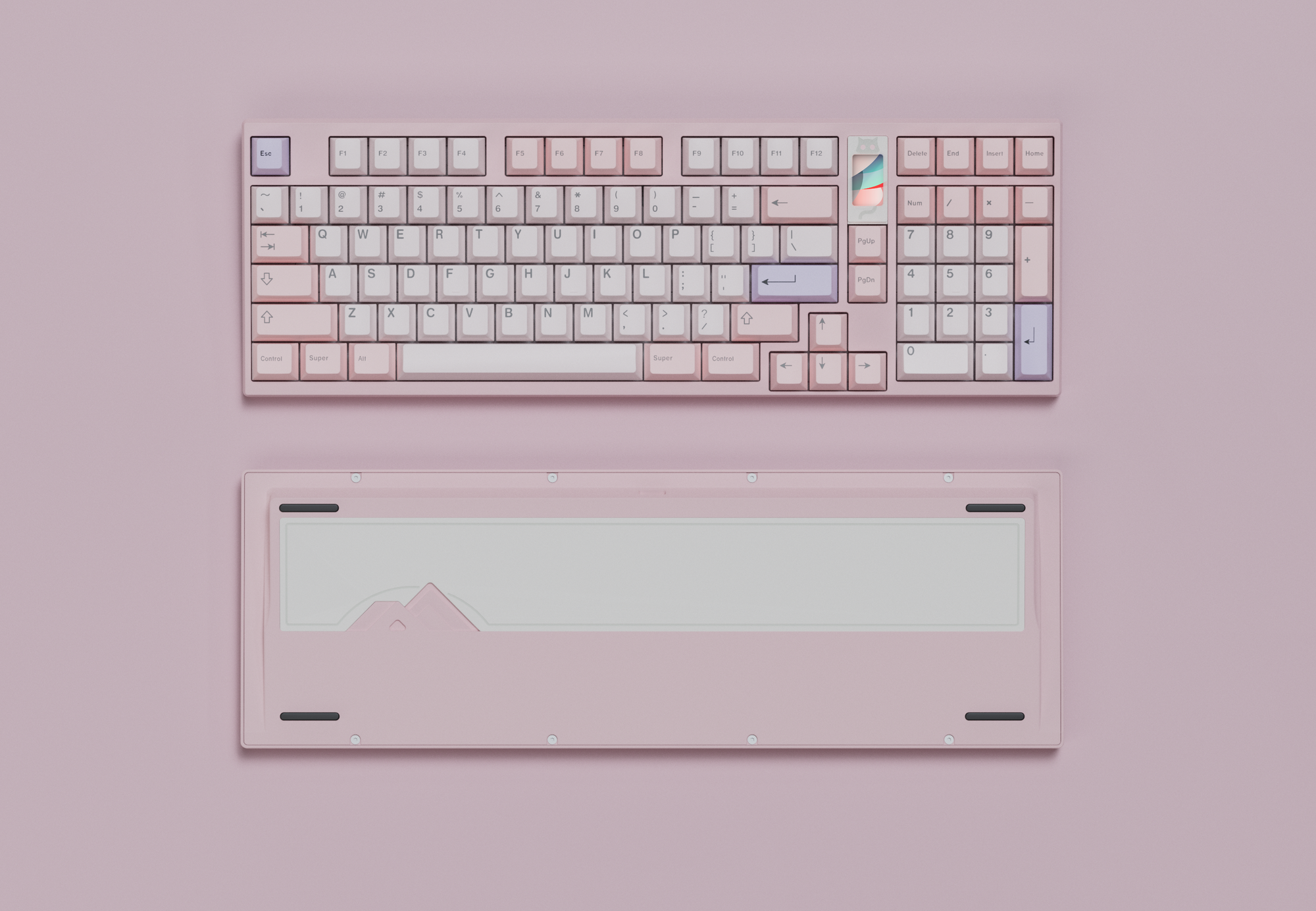

      • E-coated: Yellow, Green, Blue, White, Cream, Lavender, Pink
      • Anodized: Brown, Navy, Red, Silver, Black
    • 12 Choices for the weight:

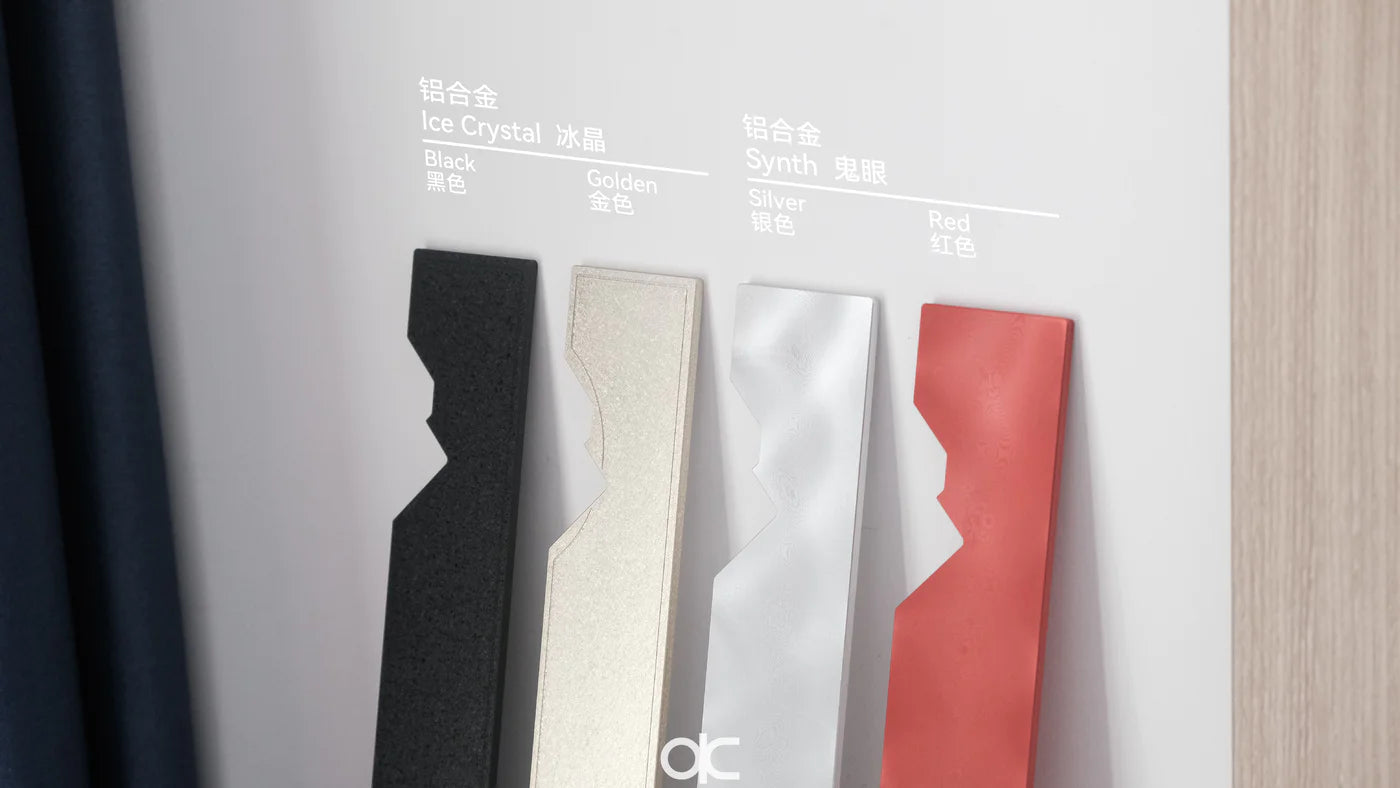

      • Ice Crystal Aluminum: Black, Golden
      • Synth Aluminum: Silver, Red
      • E-coated Aluminum: White
      • Anodized Aluminum: Black, Golden
      • Mirror PVD Stainless Steel: Chroma, Dusk, Black, Golden, Silver
  • LCD Screen + Customized Bezel/Badge Options
    • Screen: supports various functions, including custom GIFs, time display etc.
    • 12 options available for the screen bezel
    • 4 options available for the badge
  • Camping Theme Design on the External and Internal Weight

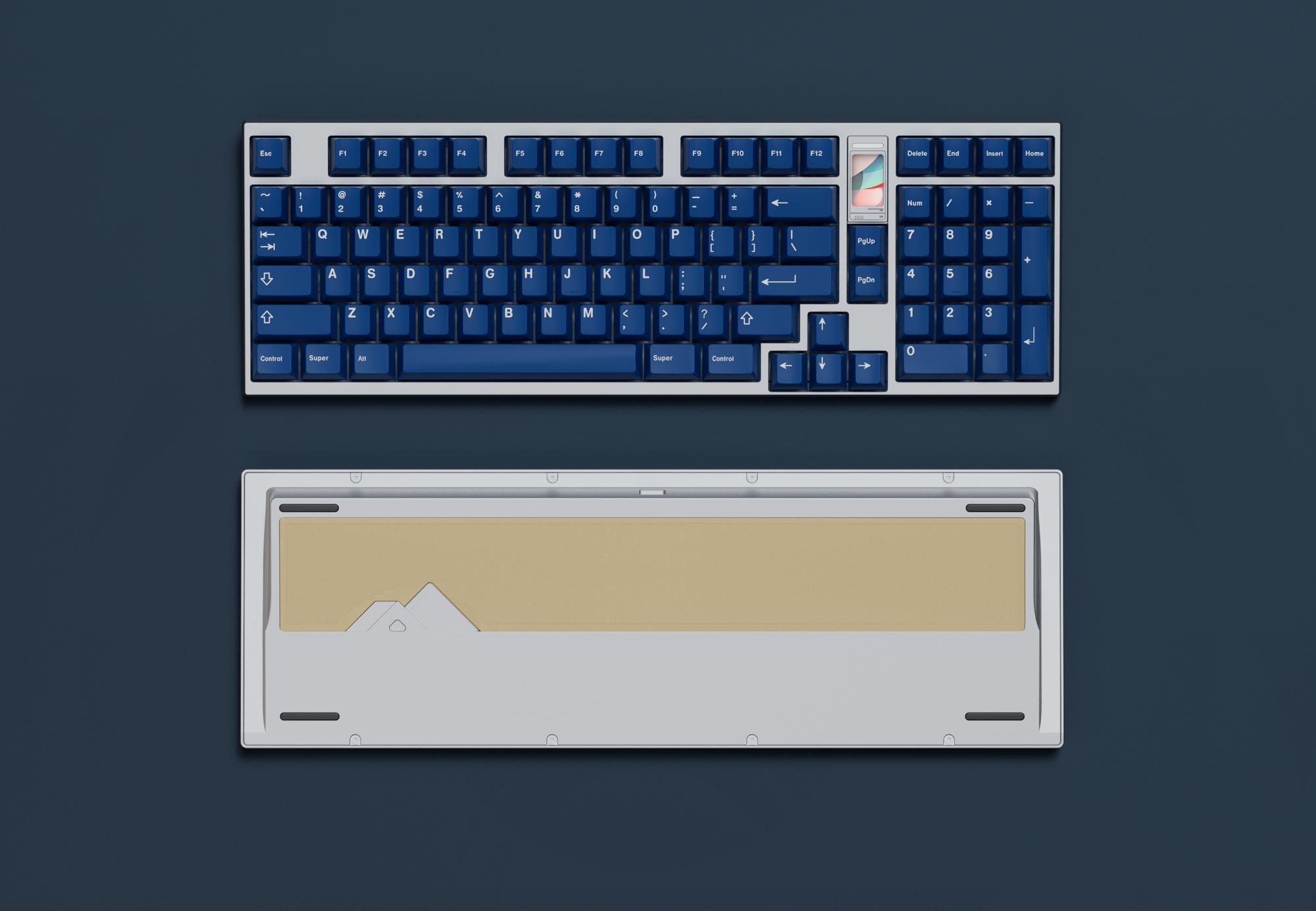

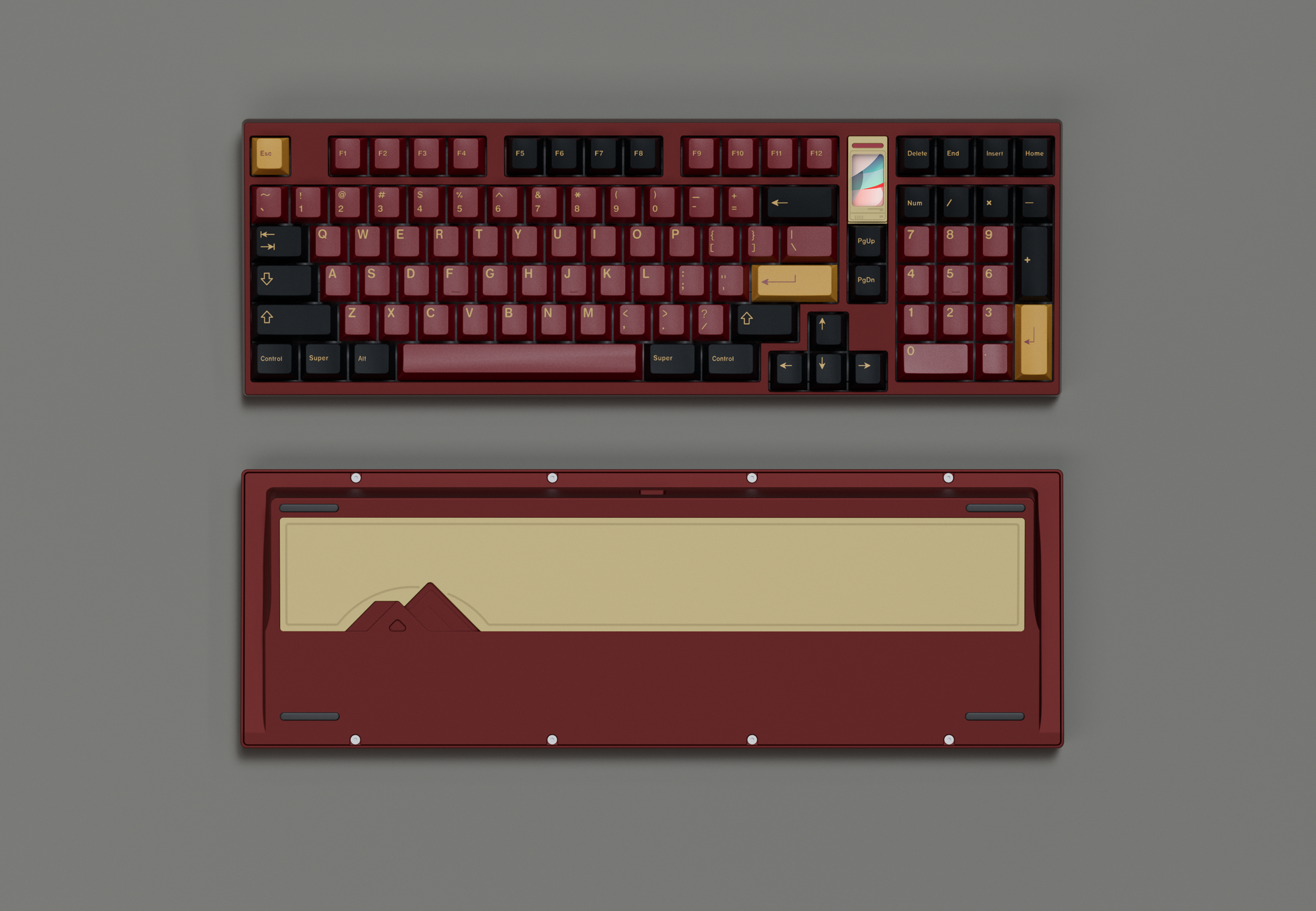

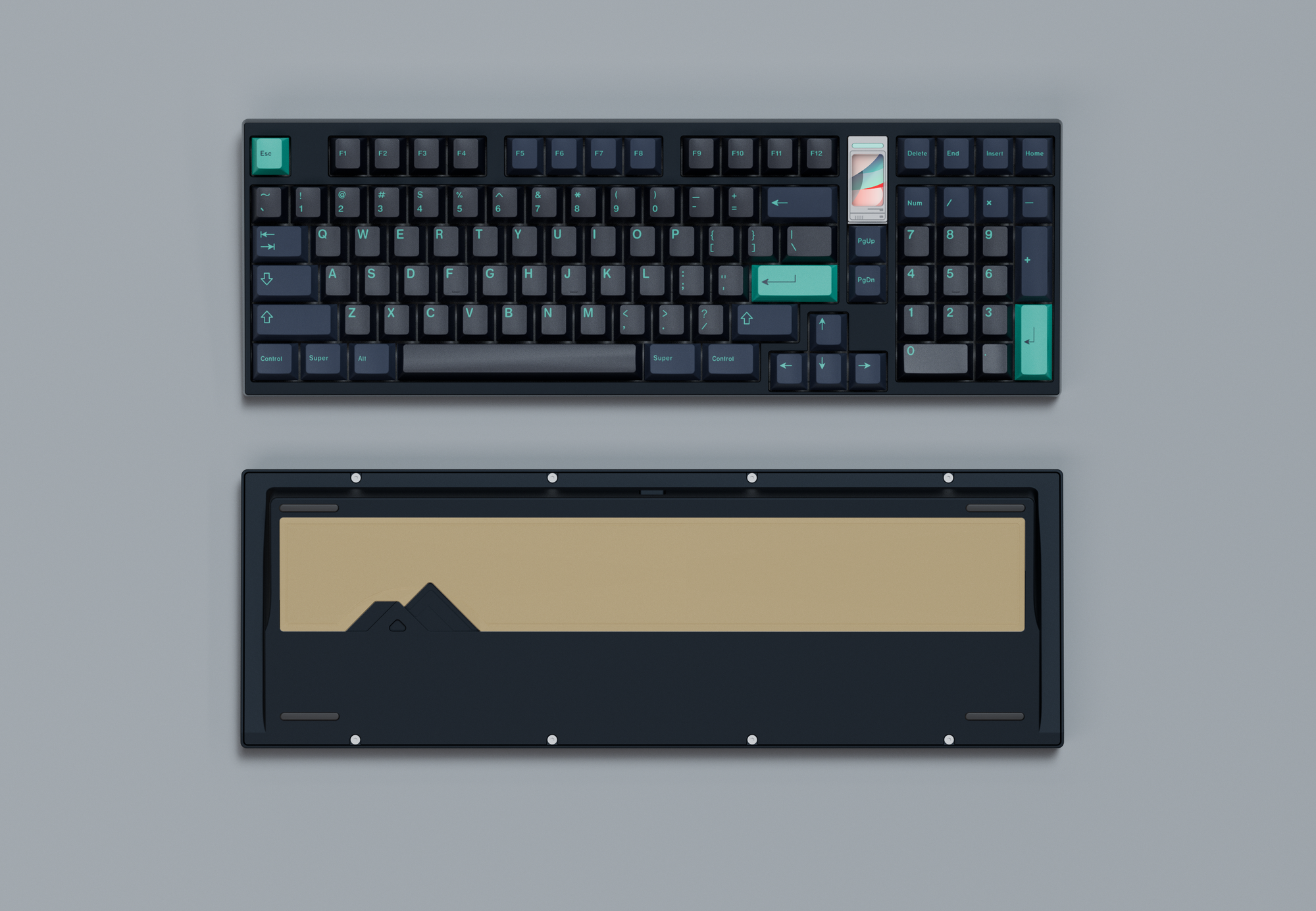

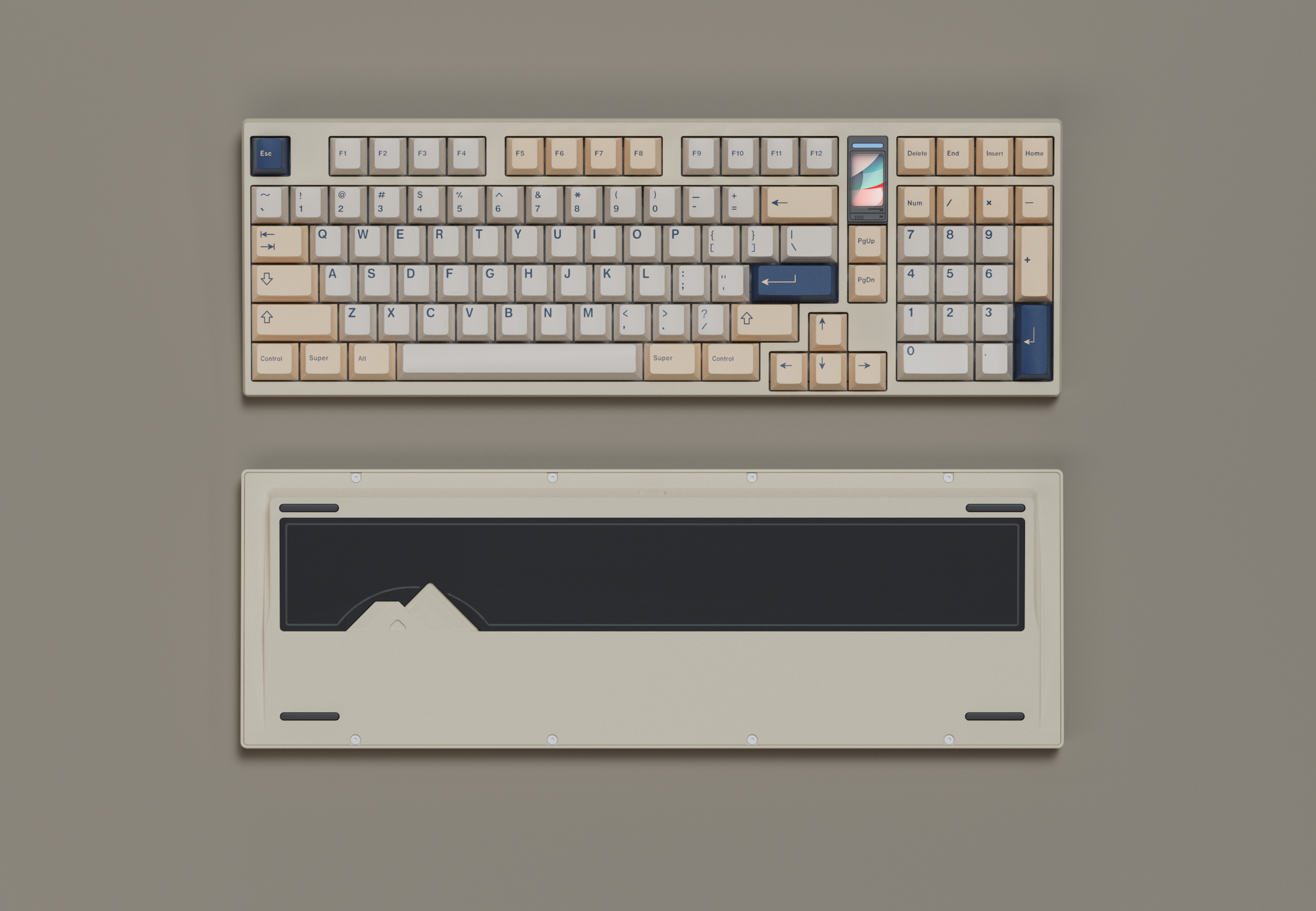

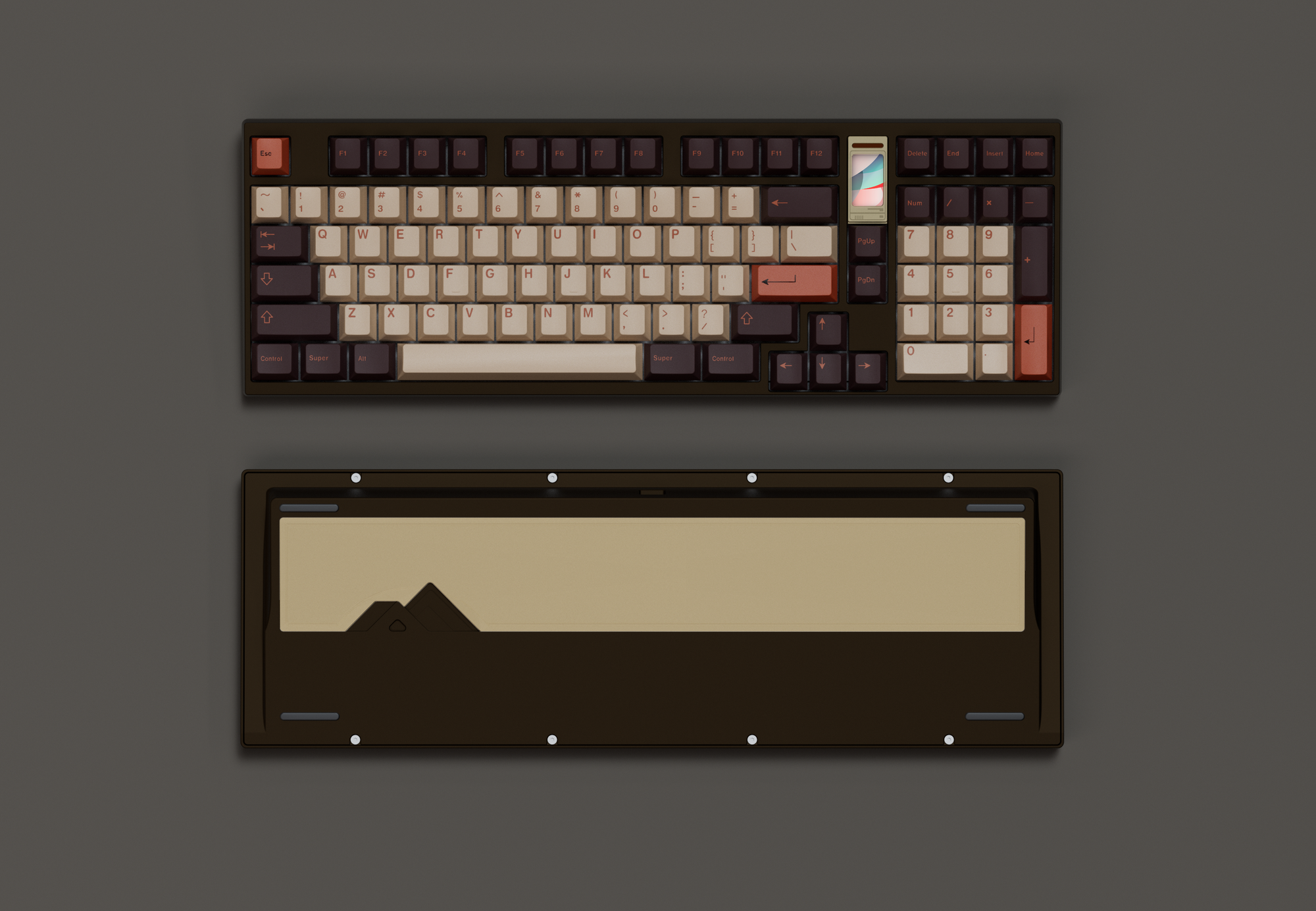

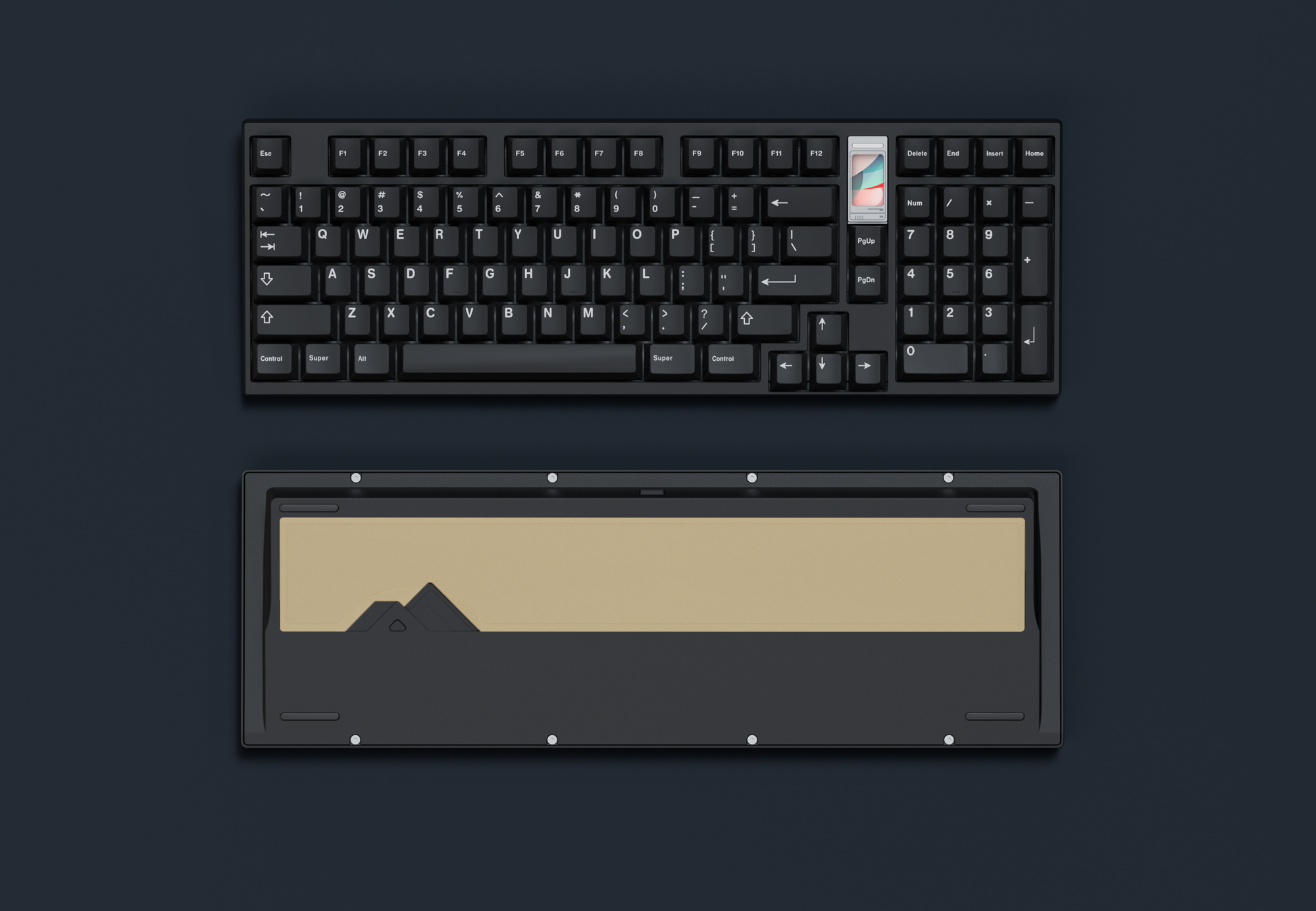

    • Mountain-shaped engraving on the bottom case

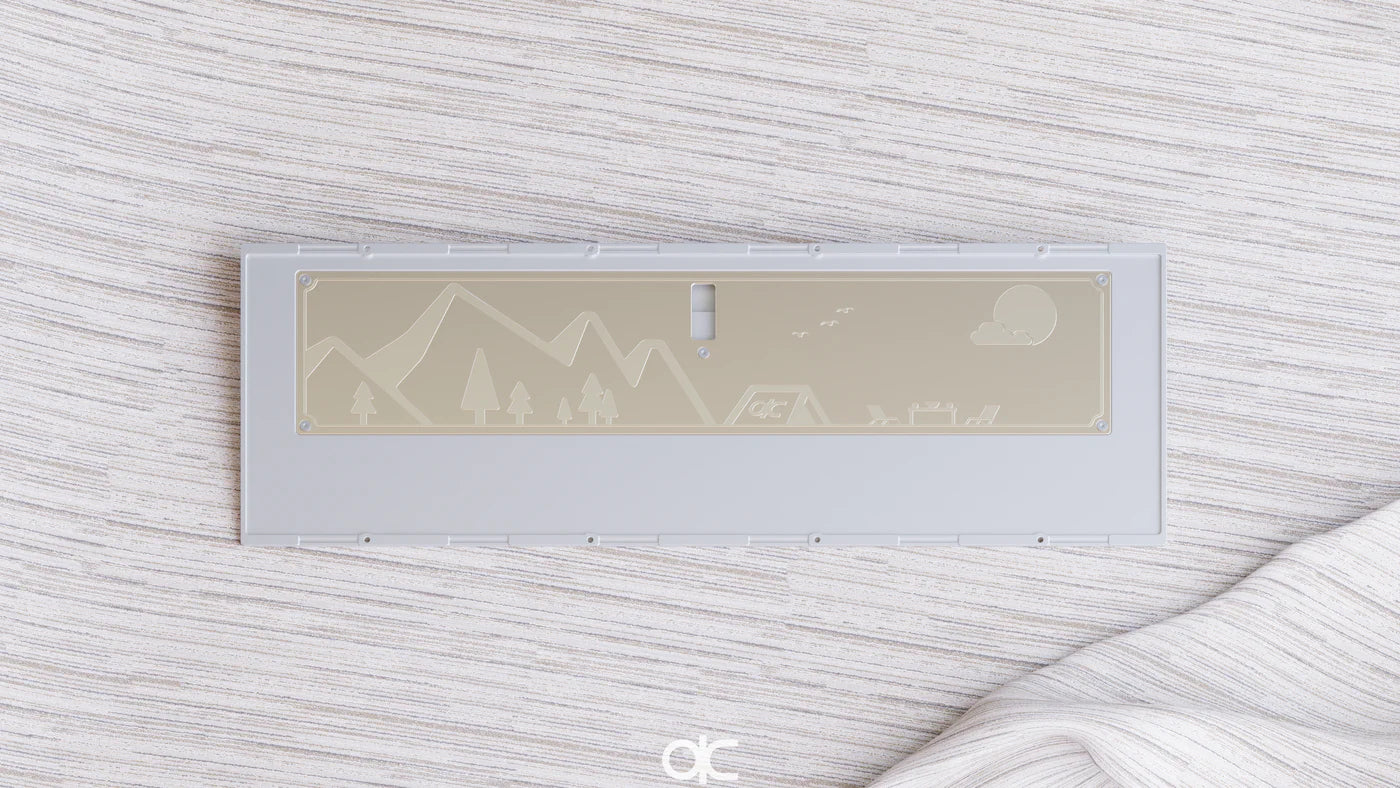

    • Camping-themed laser carving on the internal weight
  • Dual-Mounting System
    • Support both Top-mount and PCB gasket-mount
    • Adjustable hardness levels for the PCB gasket-mount with the redesigned gaskets
    • Support plateless build with solder PCBs
  • Per-key Flex-cut PCB vs. Non-flex Cut PCB Both Available
    • Wired Non-flex cut ANSI Hotswap PCB
    • Tri-mode ANSI Hotswap PCB
    • Tri-mode Non-flex cut ANSI Hotswap PCB
    • Tri-mode Non-flex cut ISO Hotswap PCB
    • Solder Non-flex cut PCB
  • Upgraded Case Foam and Plate Foam
    • Made of new materials, the new case foam and plate foam will create a denser and more concentrated sound

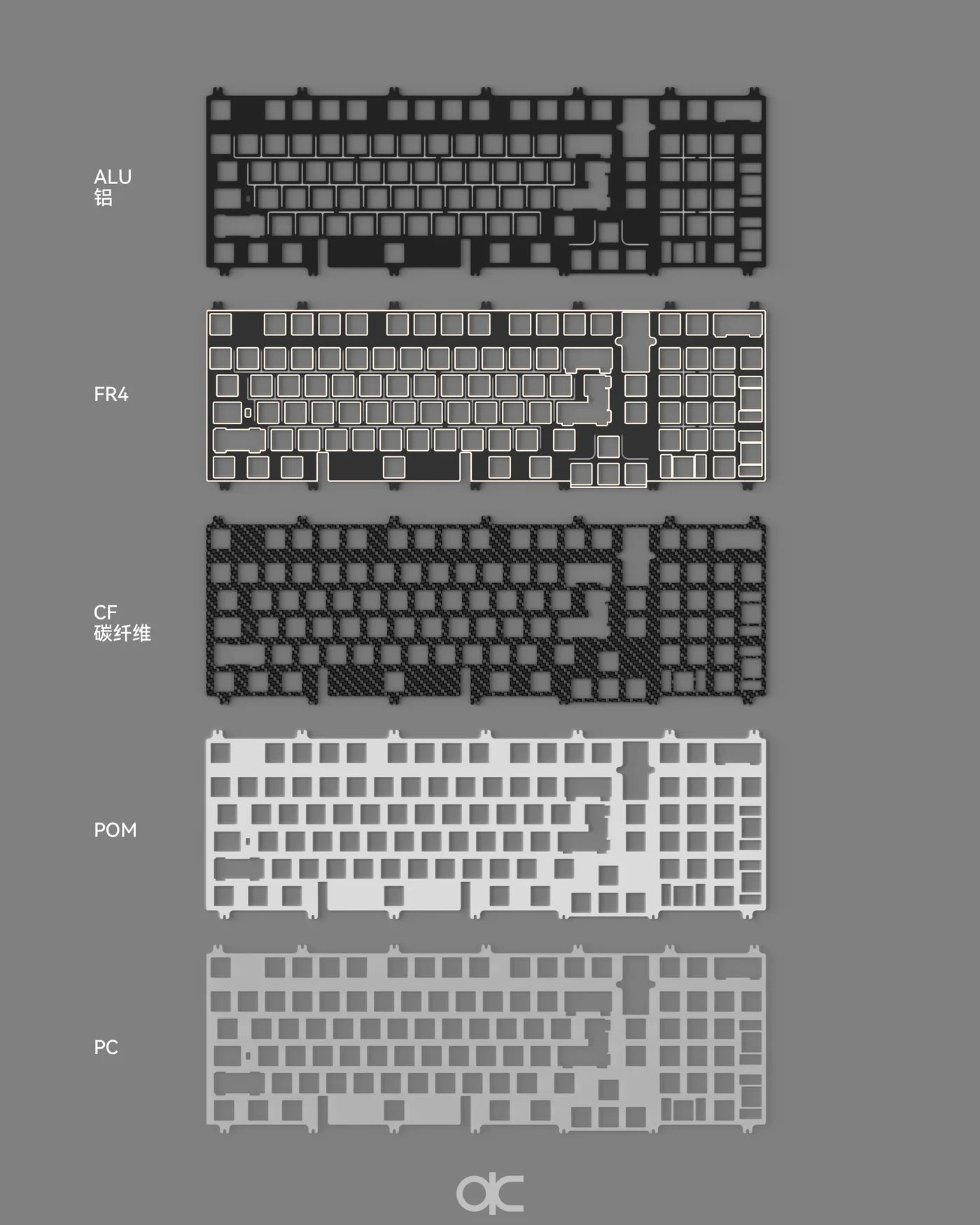

  • NEW Carbon Fiber Plate
  • Switches + Keycaps Bundle Available
    • No default matching keycaps anymore - choose your favorite keycap kit out of four options
    • QK01 switch



Specification

  • Typing angle: 8 degree
  • Front height: 18mm without feet
  • Size: 400mm x 135.7mm x 35mm
  • Weight
    • Alu weight unbuilt ~1.7kg
    • Alu weight built ~1.9kg
    • Stainless steel weight built ~2.3kg



Content - included per kit purchased

  • Top Case + Bottom Case
    • Including one pre-installed external weight and one pre-installed internal weight
    • Two 2200 mAh batteries will be installed inside of the bottom case for orders with Tri-mode PCBs
    • Orders with wired PCBs will receive fillers for the battery compartments
  • PCB Kit
    • PCB of your choice
    • PE sheet
    • PCB Foam
    • Tri-mode PCB
      • 2.4Ghz dongle
      • Screen Bezel of your choice
      • Screen
      • Screen FPC cable
    • or Wired PCB
  • Plate of Your Choice
  • Poron Case Foam
  • Daughterboard & JST Cable - installed
  • Silicone Gaskets
  • Rubber feet
  • Screw bag
  • Free Gifts (Not covered by warranty):
    • A set of 100% Owlstab v2
    • Keyboard protective case
    • Screwdriver
    • Switch puller
    • Keycap puller
    • Coiling USB-C cable


If you add QK03 Keycap bundle to your order, please note at checkout which accent kit you would like - otherwise you will default to the Yellow Accent kit.


PCB

We redesigned the PCBs for the QK100 to more clearly distinguish between the "thocky" and "clacky" sound profiles, rather than something in between. To achieve this, we upgraded the PCB's flex cuts to per-key flex cuts, similar to the PCB of Mr. Suit, while retaining the non-flex cut version from the QK80. This design also applies to the plates.

Furthermore, we used a new material on the case foam and upgraded the plate foam. These changes will create a denser and more centered sound profile.

Please note that wired/solder PCBs do not support screen.



Vendors

  • Cambodia - zettgear
  • Canada - Ashkeebs
  • HK - Kibou
  • Indonesia - Mechaland
  • Korea and Japan - Swagkeys
  • Malaysia Brunei - Rebultkeyboard
  • Oceania - SKAU
  • Singapore and Pakistan - Qwertyqop
  • Taiwan - In-pad
  • Thailand, Laos, and Myanmar - NTCH
  • Vietnam - MOKB Store
  • Europe - Candykeys
  • UK - Prototypist
  • US and the rest - Qwertykeys





Disclaimers

Shipping Time and GB Agreements (PLEASE READ):
These products are set to be shipped out in Q3 2023 but please check our updates for the latest information.

Please note that this is a Group Buy. There can be delays and set backs. The timeline is only an estimate. By adding this item to your cart and purchasing you agree that you understand everything above. You will be charged immediately for this item. There are no refunds or cancellations on these orders. Please do not purchase this item with other group buys. Only the items specified in each product picture are included with that particular product.

Quality standard

  • Purchasing this product means that you agree to our Acceptable Quality Standard
  • QwertyKeys/Prototypist will not be responsible for all the damages and impacts to the acoustic/typing performance if users change the structure of the keyboard;
  • All the internal (surfaces cannot be seen after built) CNC marks and imperfections are within the acceptable range.
  • On all other surfaces and edges, blemishes under 2.01mm is approved.
  • All parts with cosmetics imperfections, other than the case itself, will not be replaced unless usage functionality is impacted.
  • Our warranty covers the PCB for one year of use or if dead on arrival. Broken parts due to human error, such as Hotswap sockets that are pushed out of the PCB solder pads, are not covered.
  • When malfunctions happen, especially stripped screws, please follow our FAQ's for support
  • In addition, free gifts such as stabilizer kits, cloth wrap, screwdriver, cable, etc. do not possess any value. In case of absence, we will not ship out make up or issue partial refund.
  • We highly recommend recording the whole unboxing process to back up in case of dispute.
