(In Stock) Jris65 R2 Keyboard Kit

Sale price

Regular price £155.00
( / )

IN STOCK - Ships within 3 working days, all sales final.

JRIS65 is a budget-friendly and high-quality PCB gasket-mounted full CNC aluminium keyboard that IRISLab designed. To let everyone able to experience the higher-end customisation, IRISLab is working on the typing sound, typing feel, craft, and quality of the kit, which benchmarks mainstream customised keyboards.


Kits Available

Kit Case Colour Weight PCB Plate
Kit 1 Anodised Dark Green Anodised Aluminium Silver Hotswap Flex cut PC

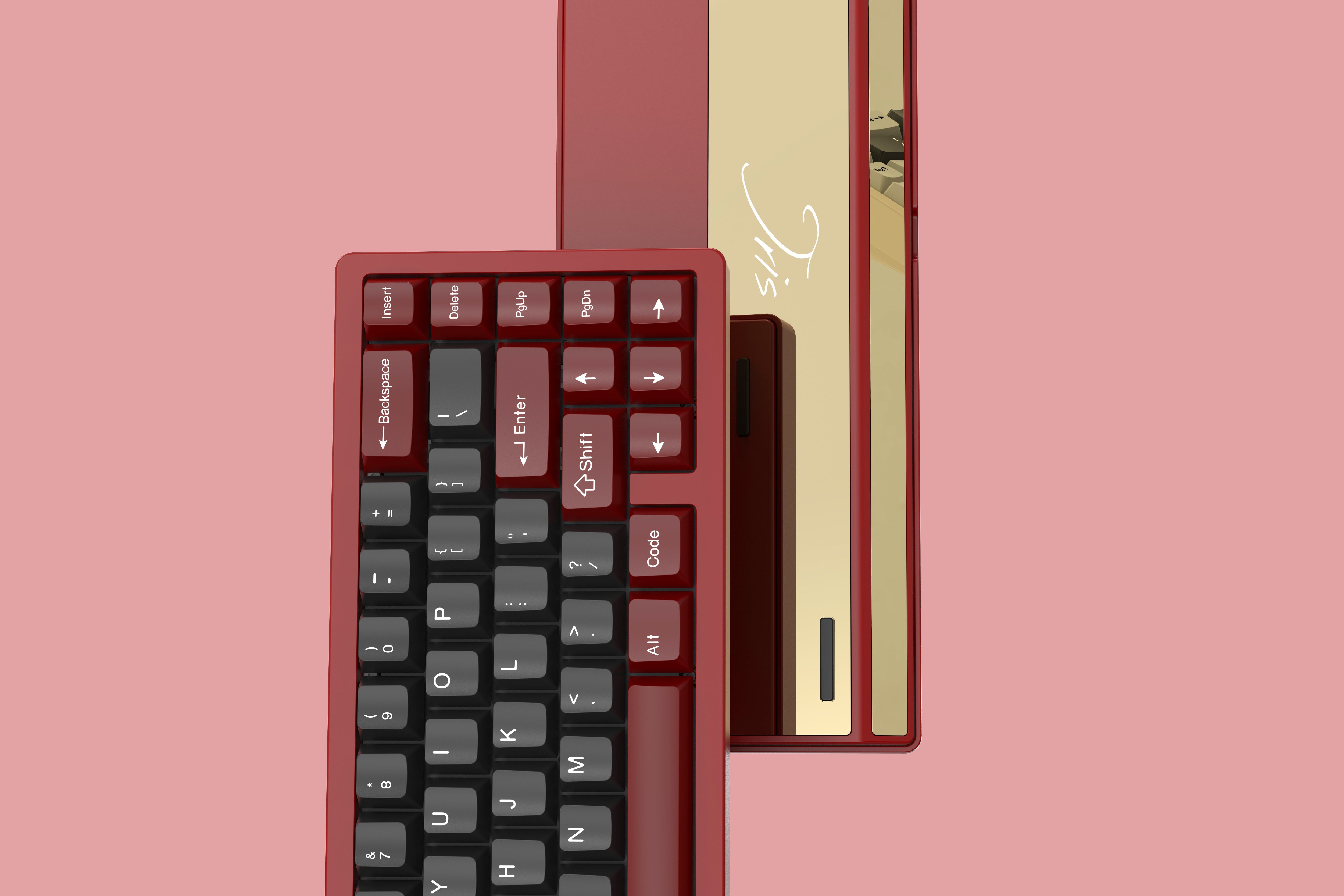

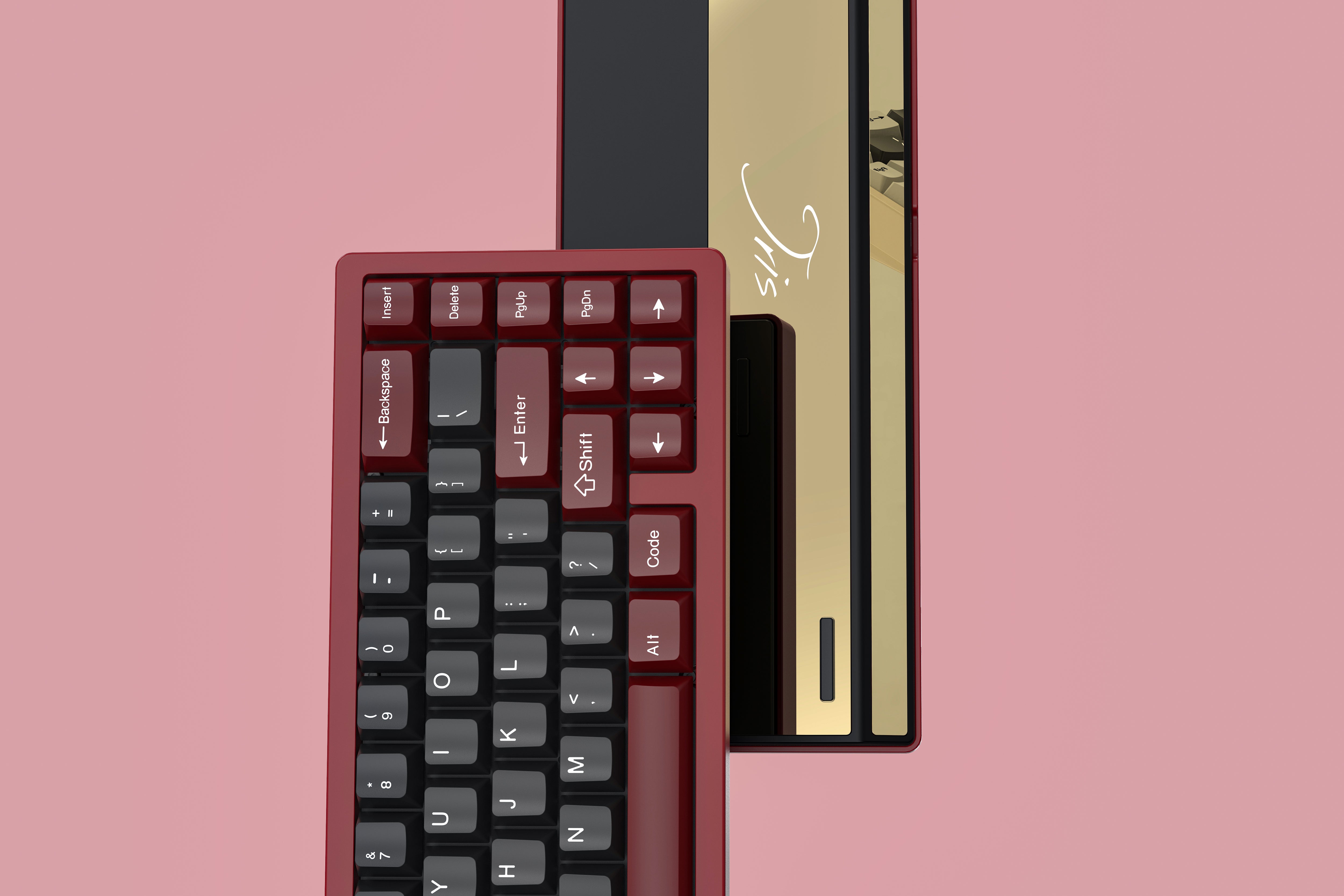

Kit 2 Combo Maroon & Black Anodised Aluminium Gold Hotswap Flex cut POM

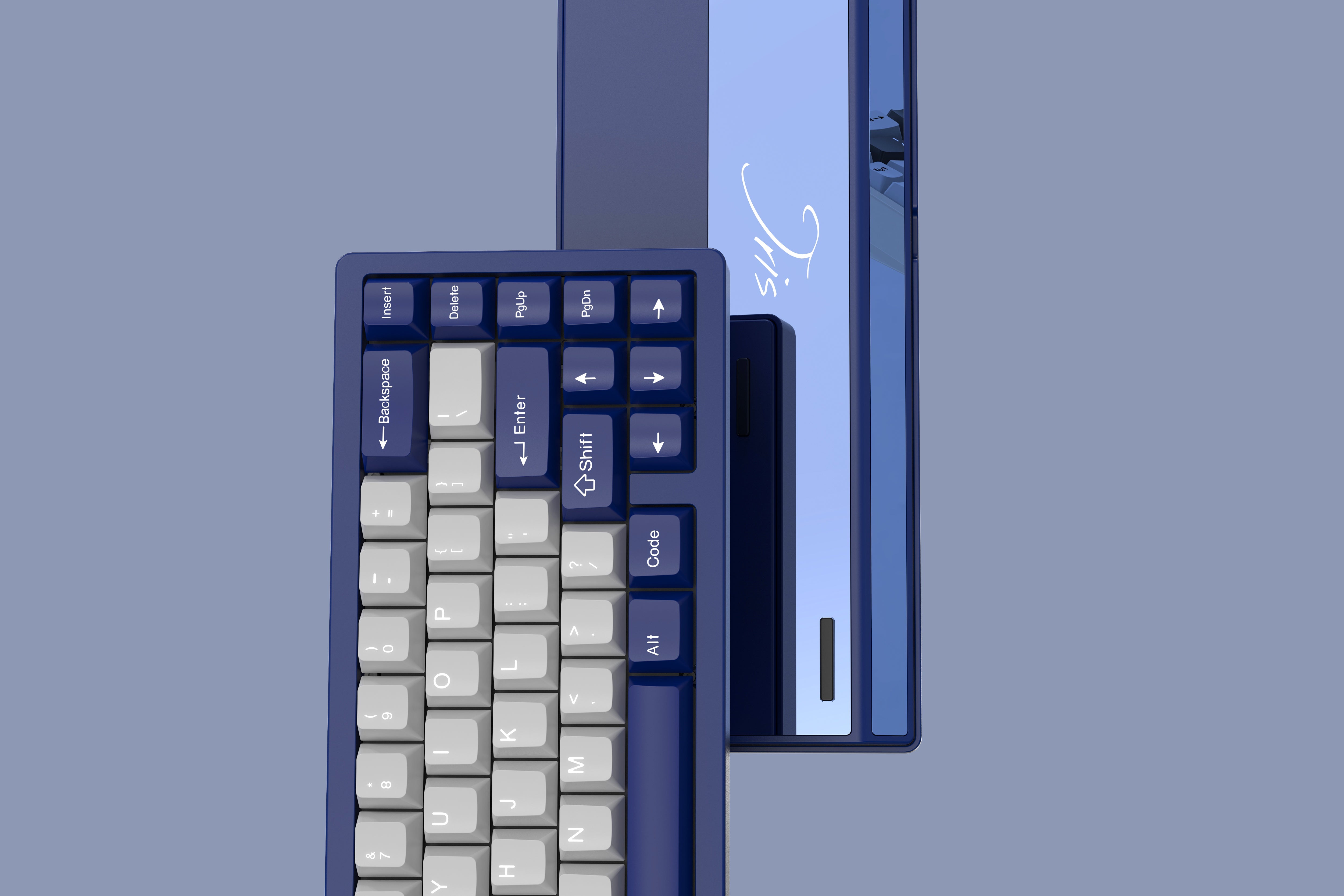

Kit 3 Anodised Navy Blue PVD SS Blue Hotswap non flex cut FR4
Kit 4 Combo Titanium Grey & Black PVD SS Silver Bluetooth Hotswap  PC
Kit 5 E-Milky White PVD SS Black Hotswap Flex cut PC


What are the differences between Jris65 R2 and R1

  • The JST cable has been extended for a better build experience
  • Upgraded the material and finish of the screws
  • Added a 1.6mm Non-Flex Cut Black core Hotswap PCB.
  • Upgrade a piece of Poron Case Foam to Non-Flex Cut.
  • The plates has been upgraded to better support ISO compatibility.
  • Added the case colours options: Lilac, Orange, Silver, Maroon, Navy Blue, Dark Green, Titanium Grey, Orange&Black, Dark Green&Black.

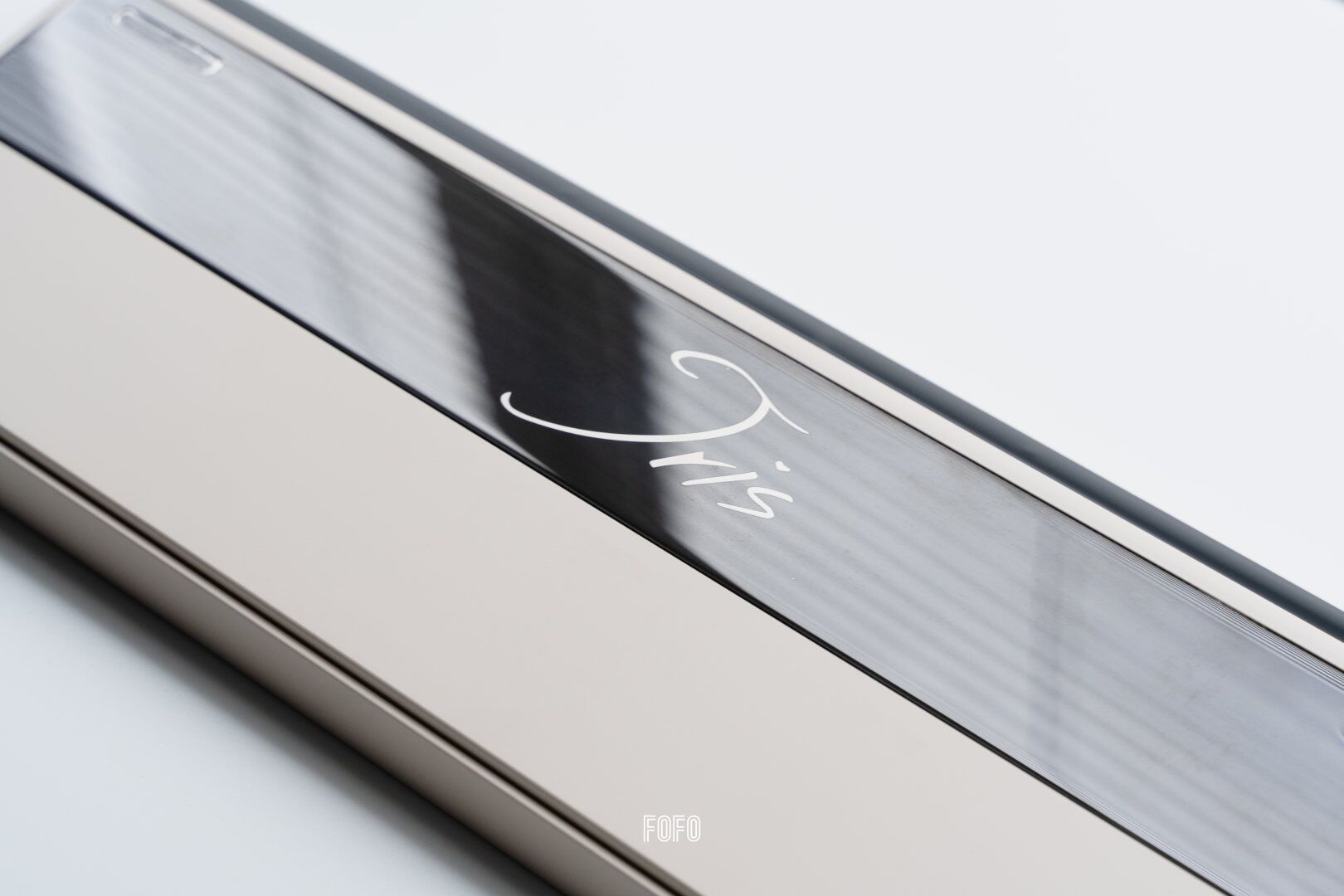

  • Added the PVD Mirror Weight colours options: Blue, Purple, Gradient.

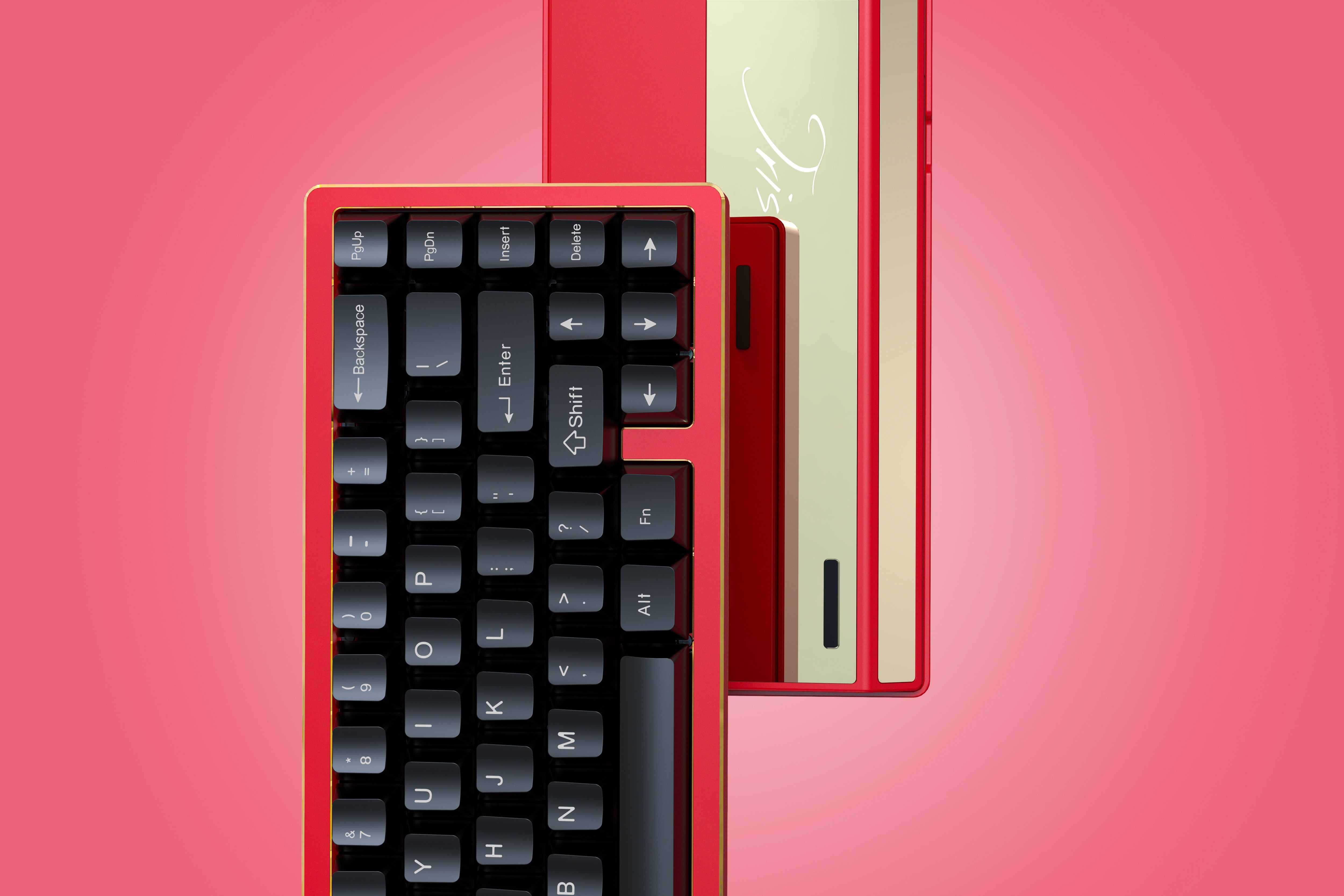

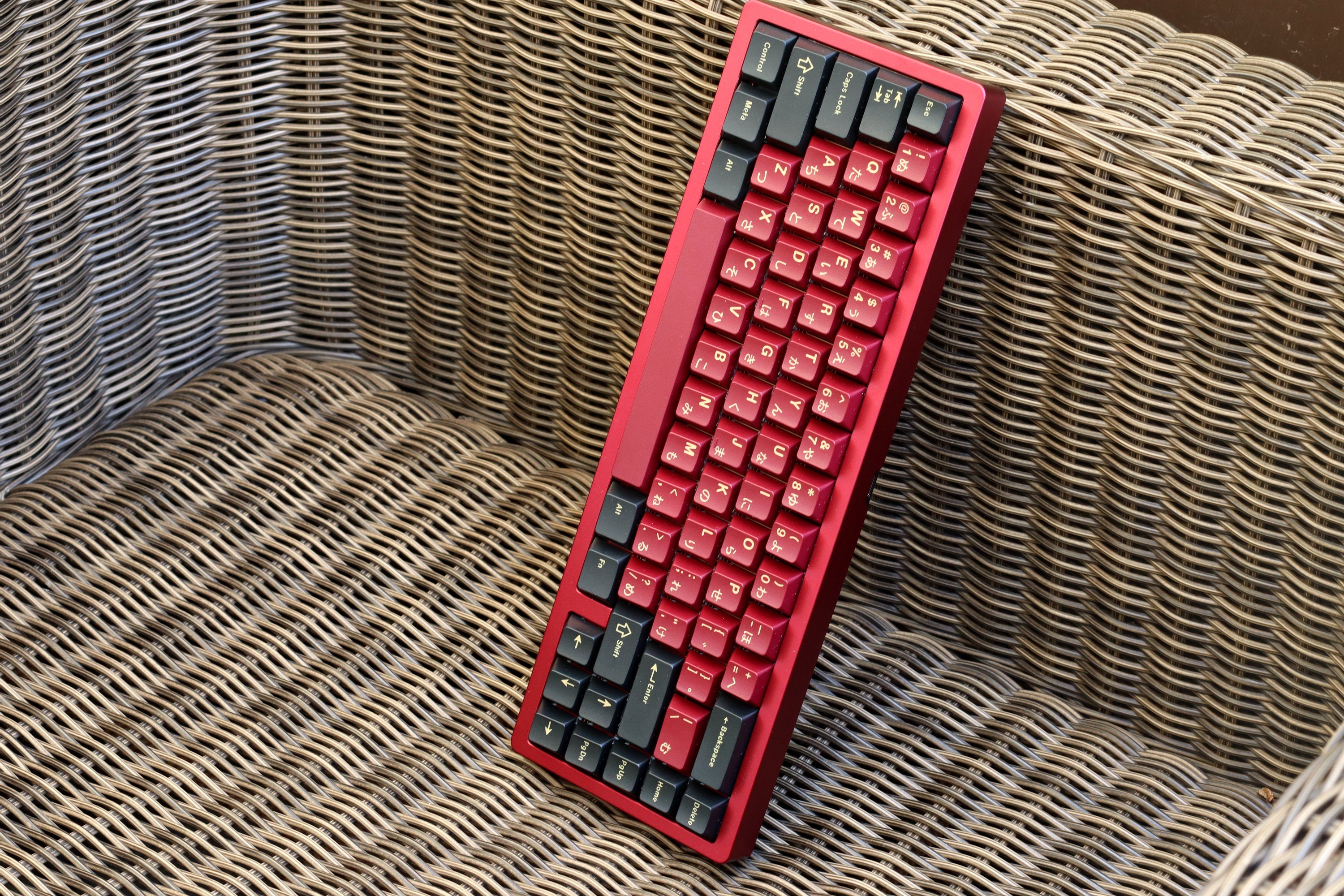

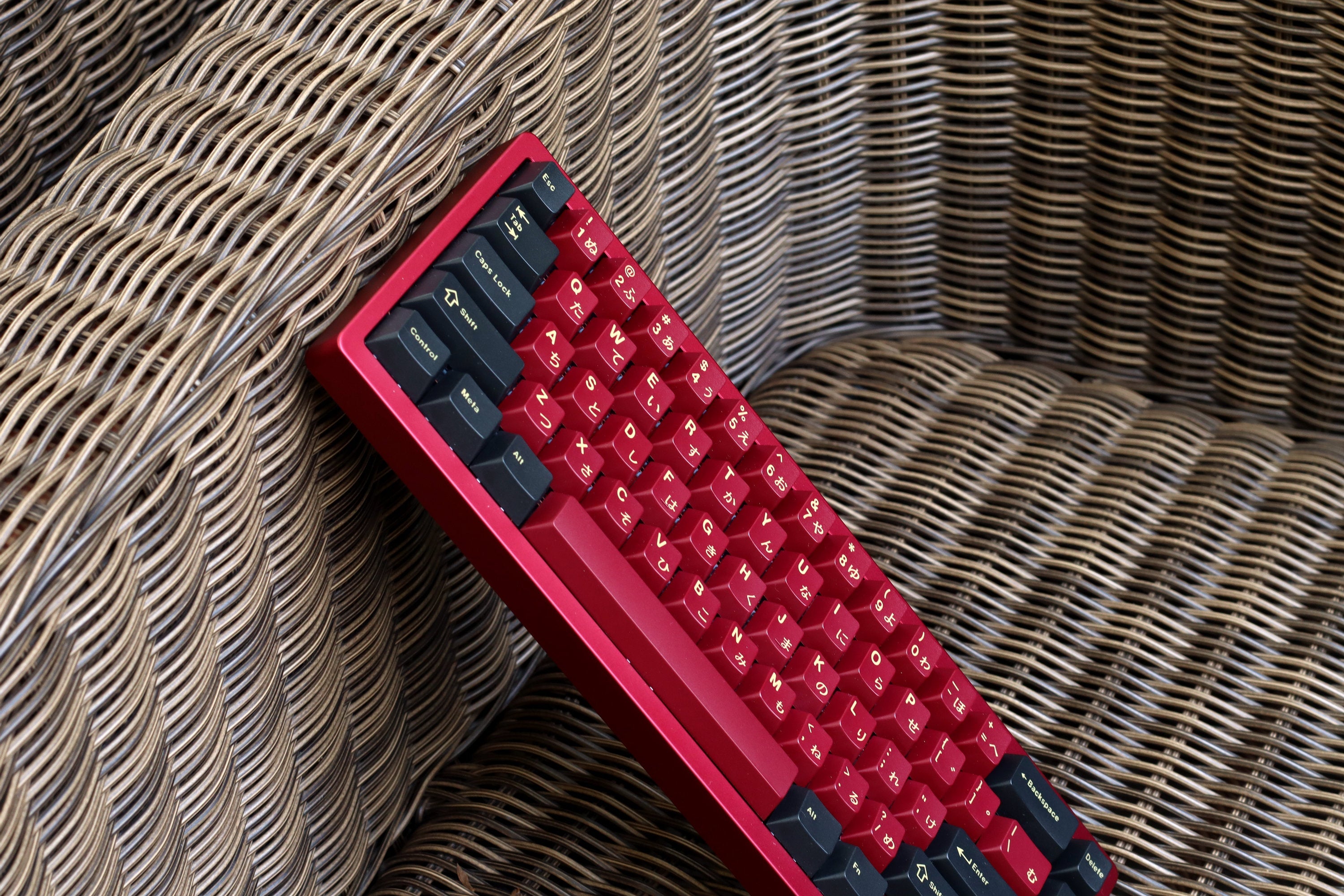

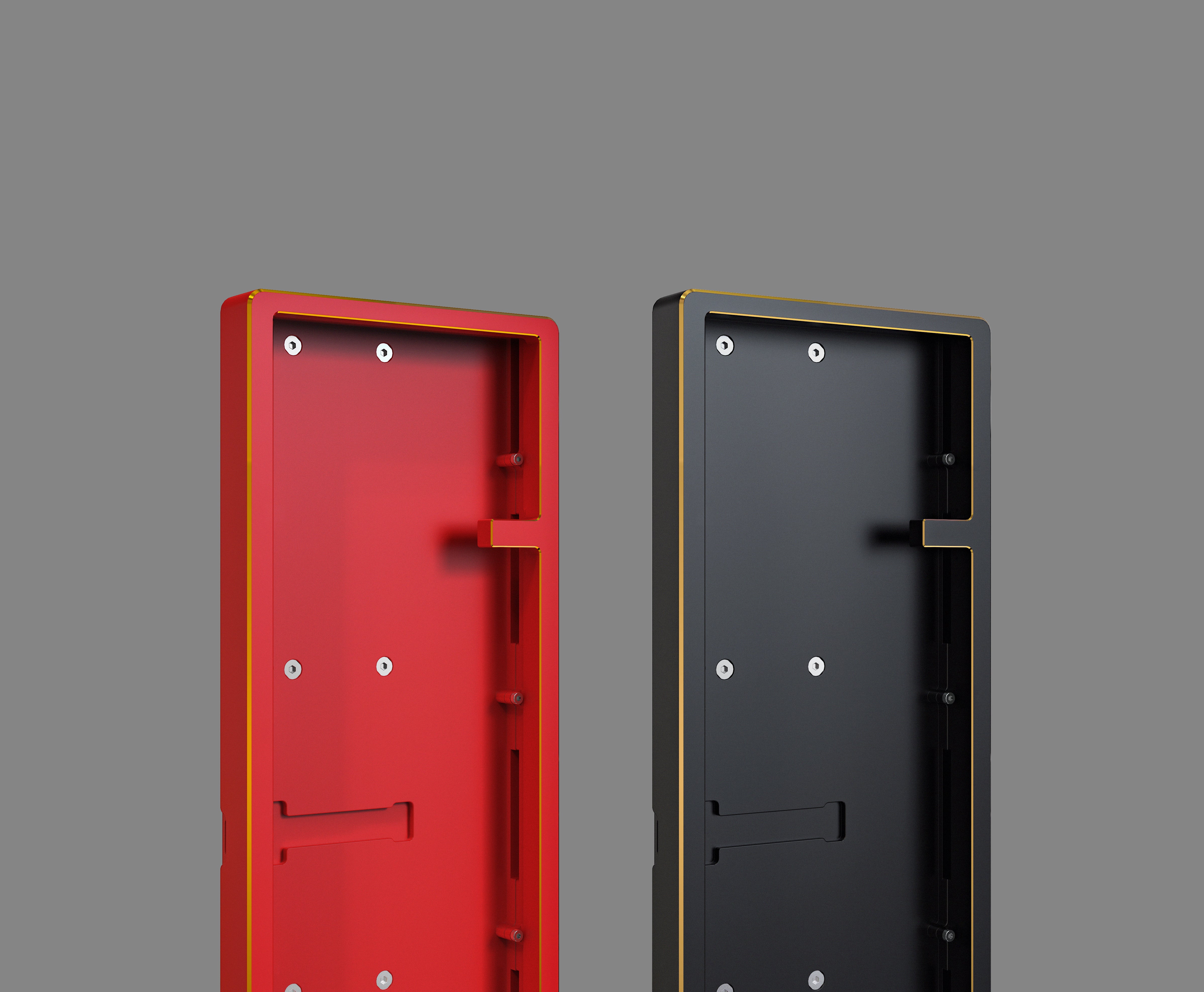

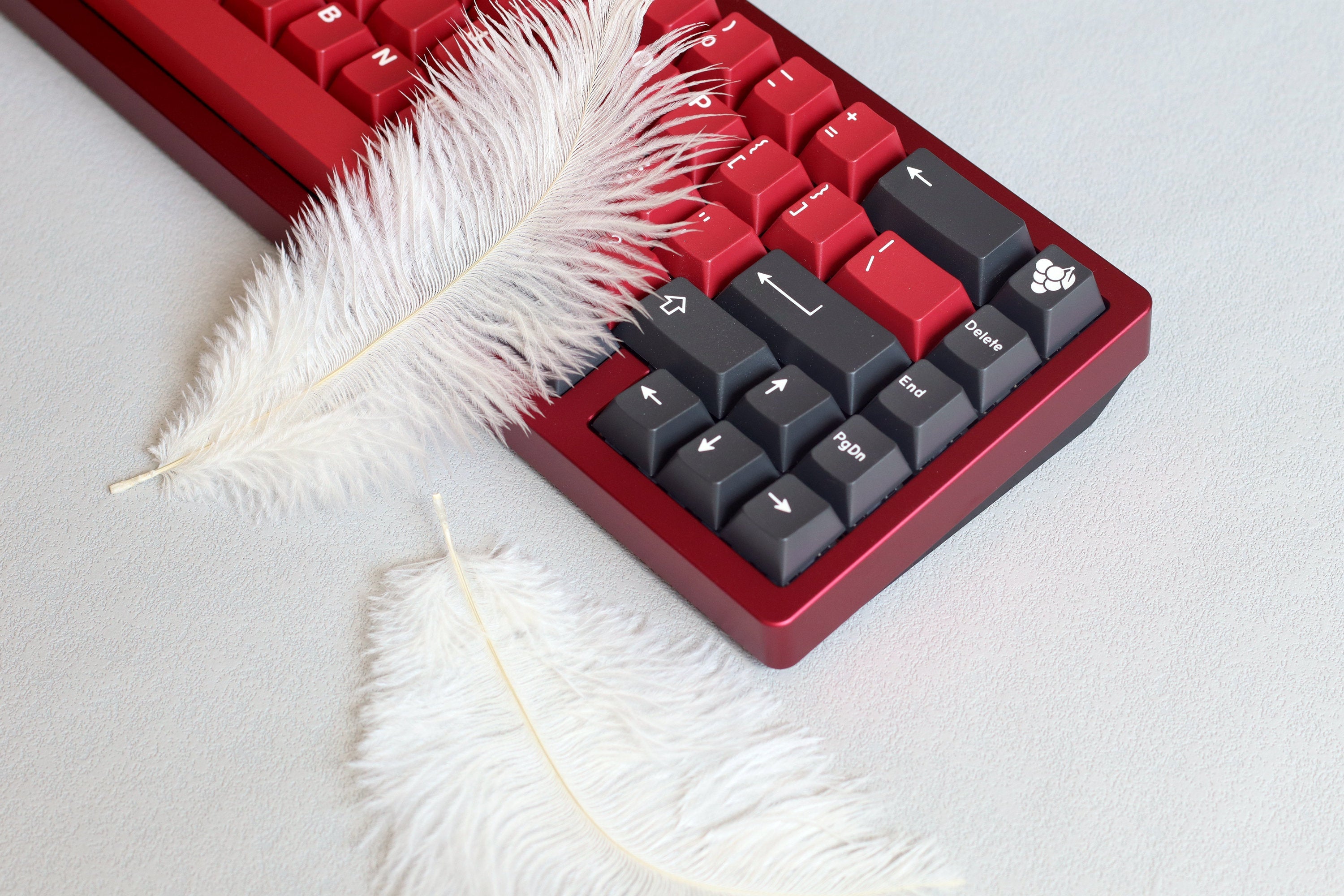

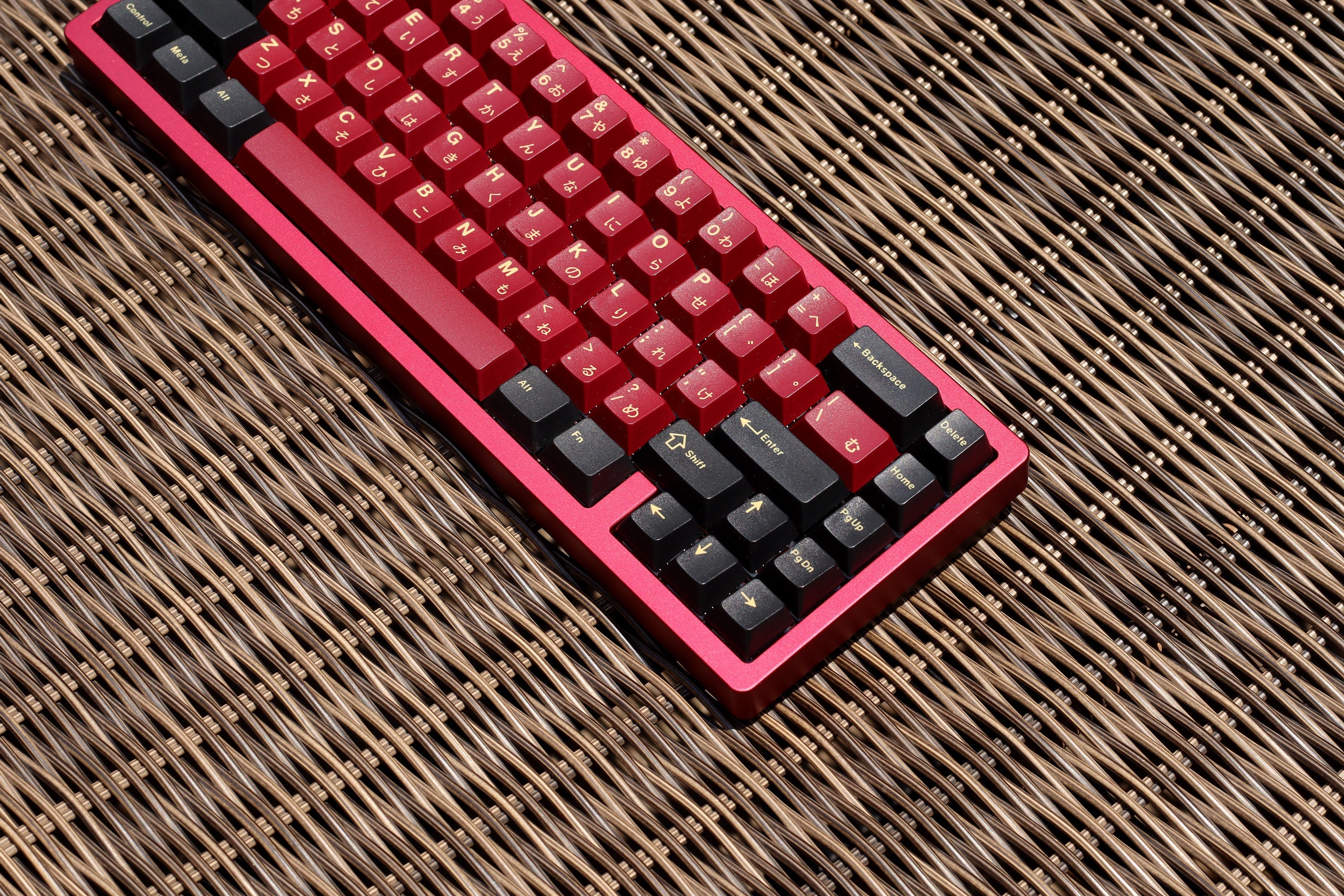

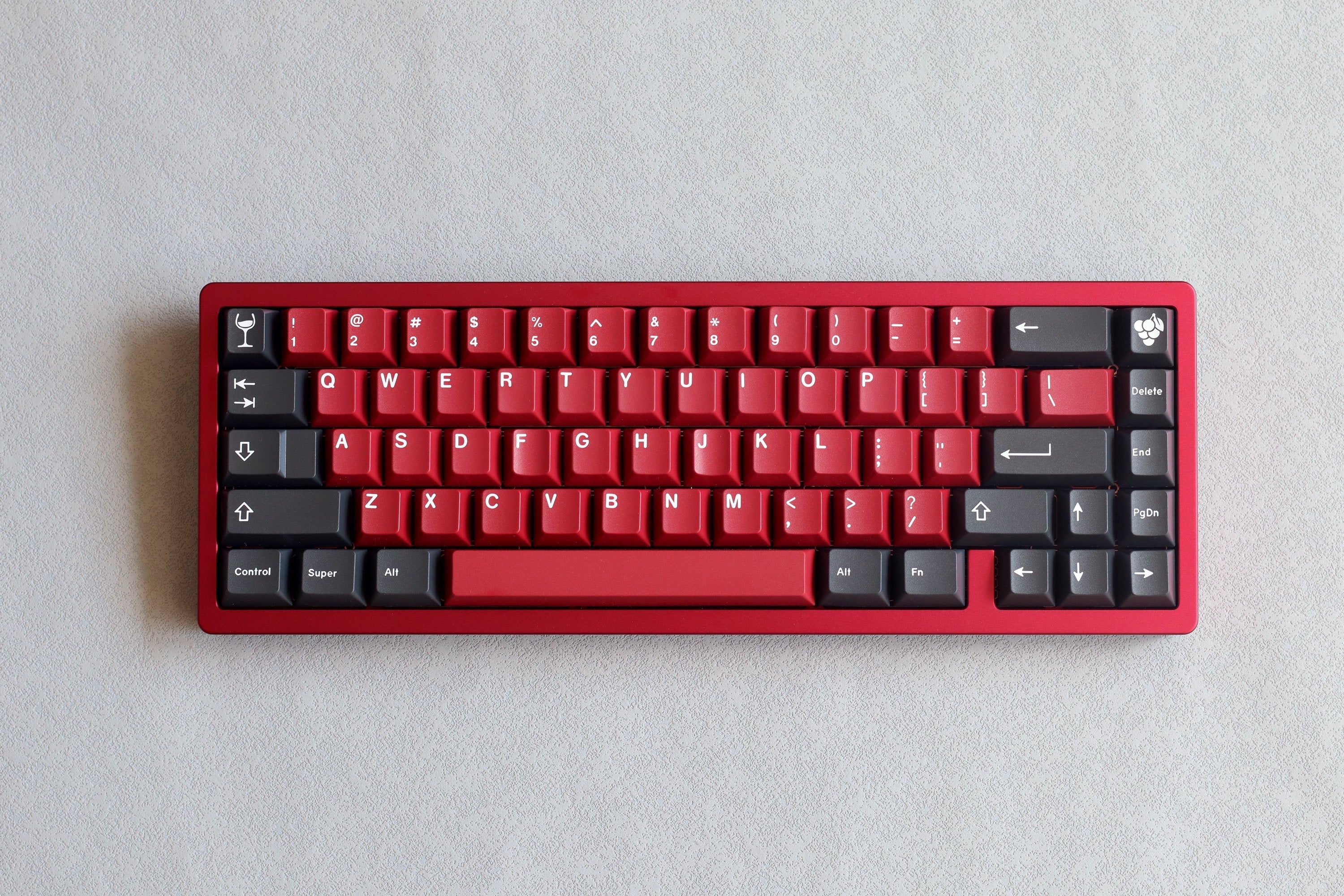

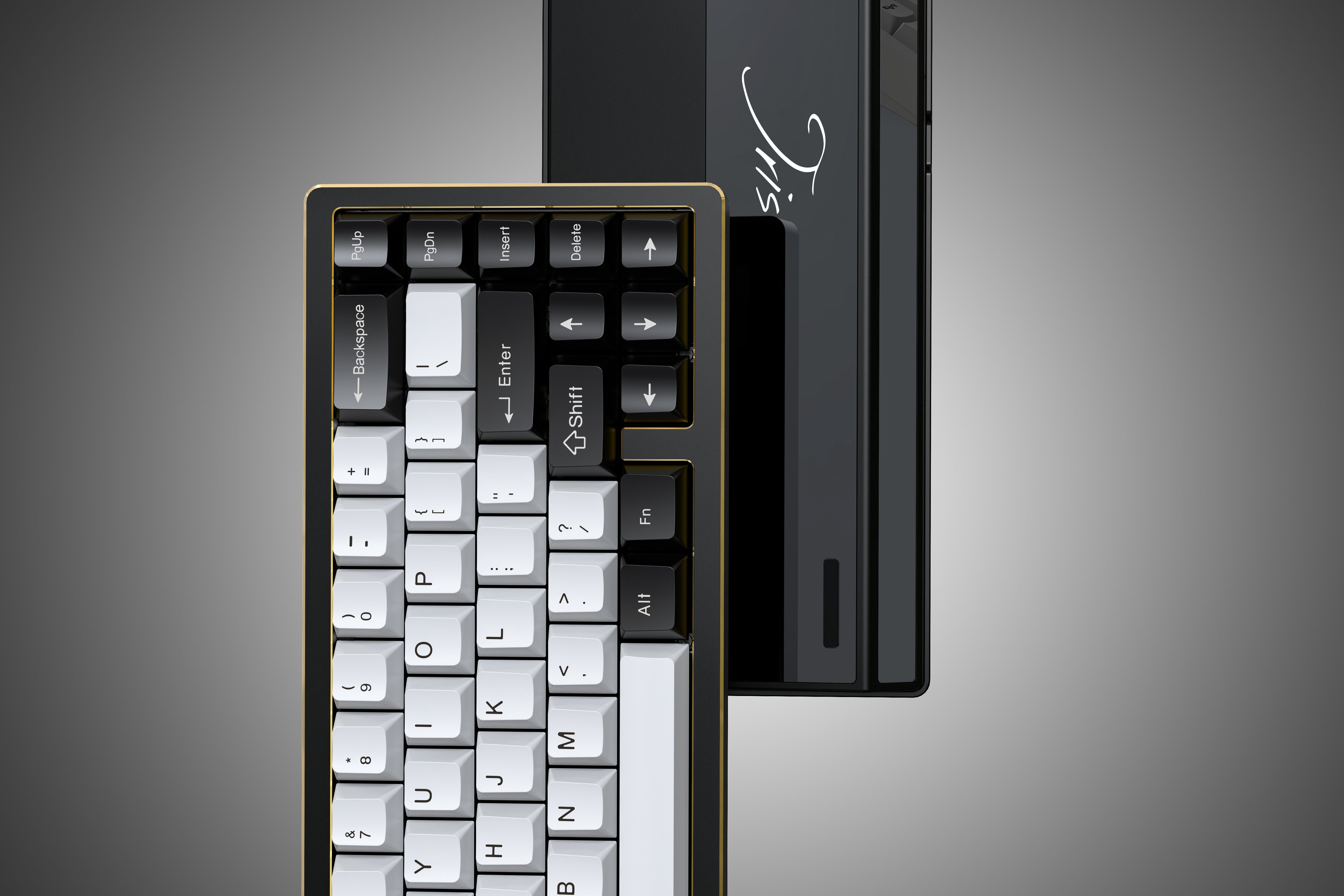

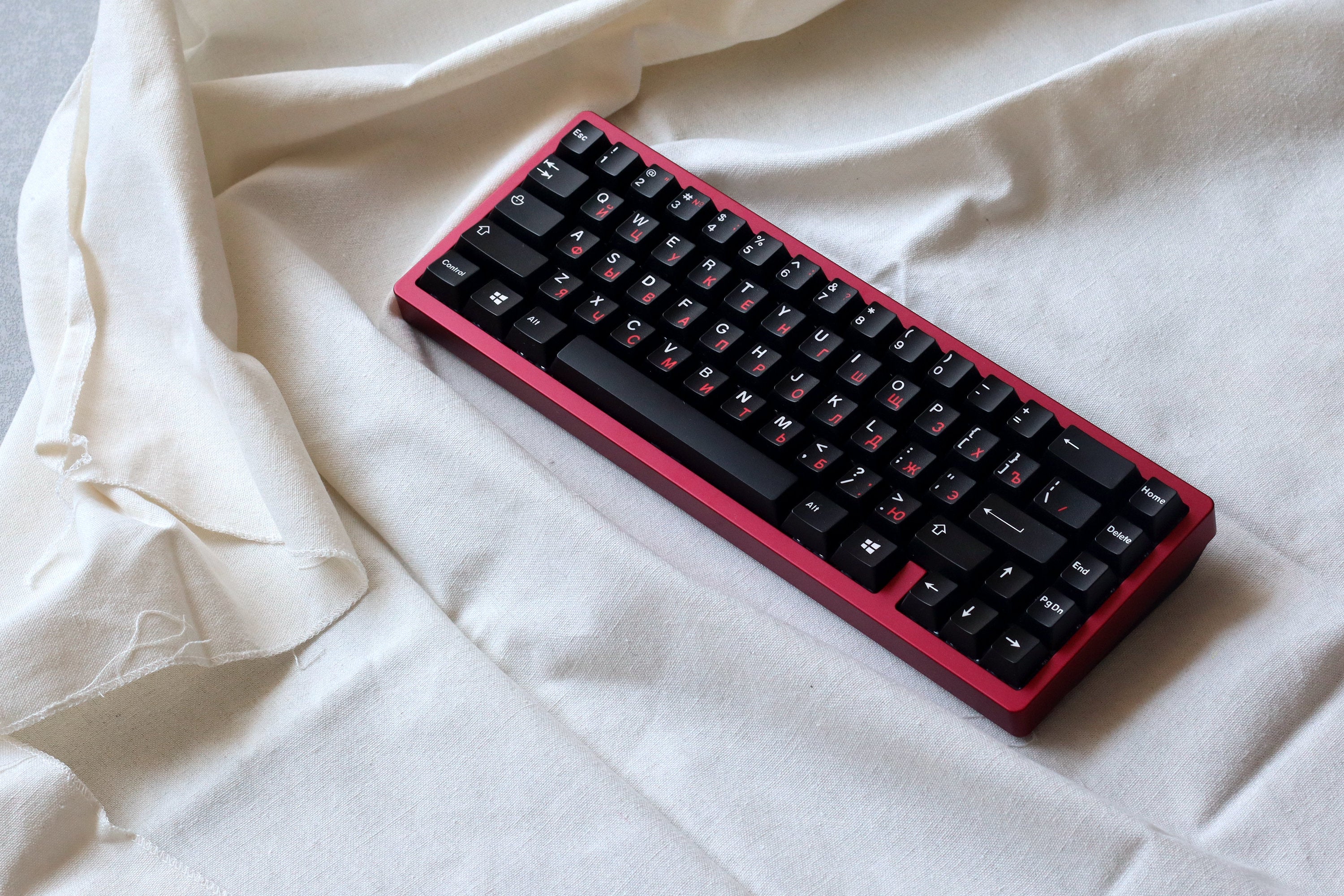

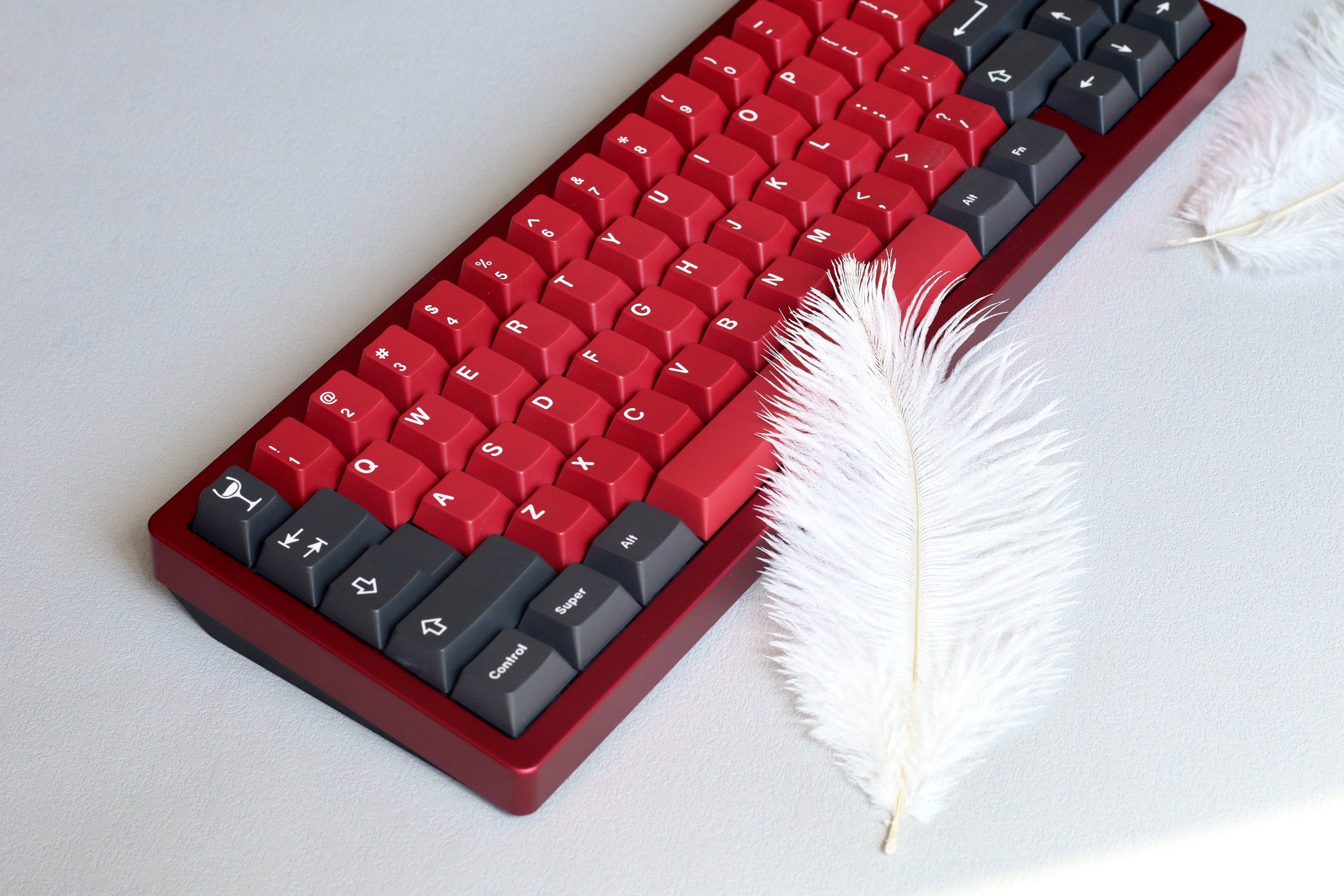

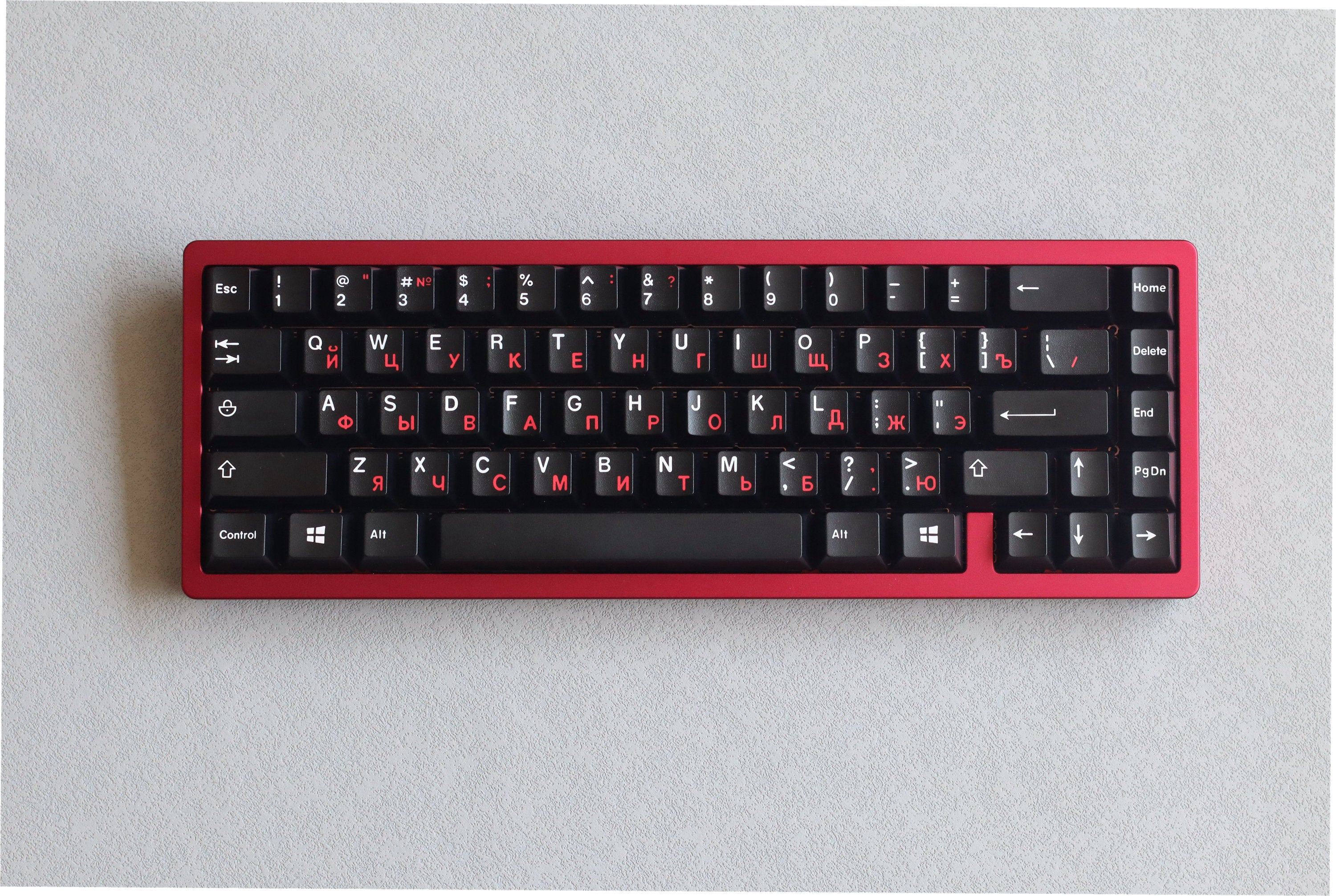

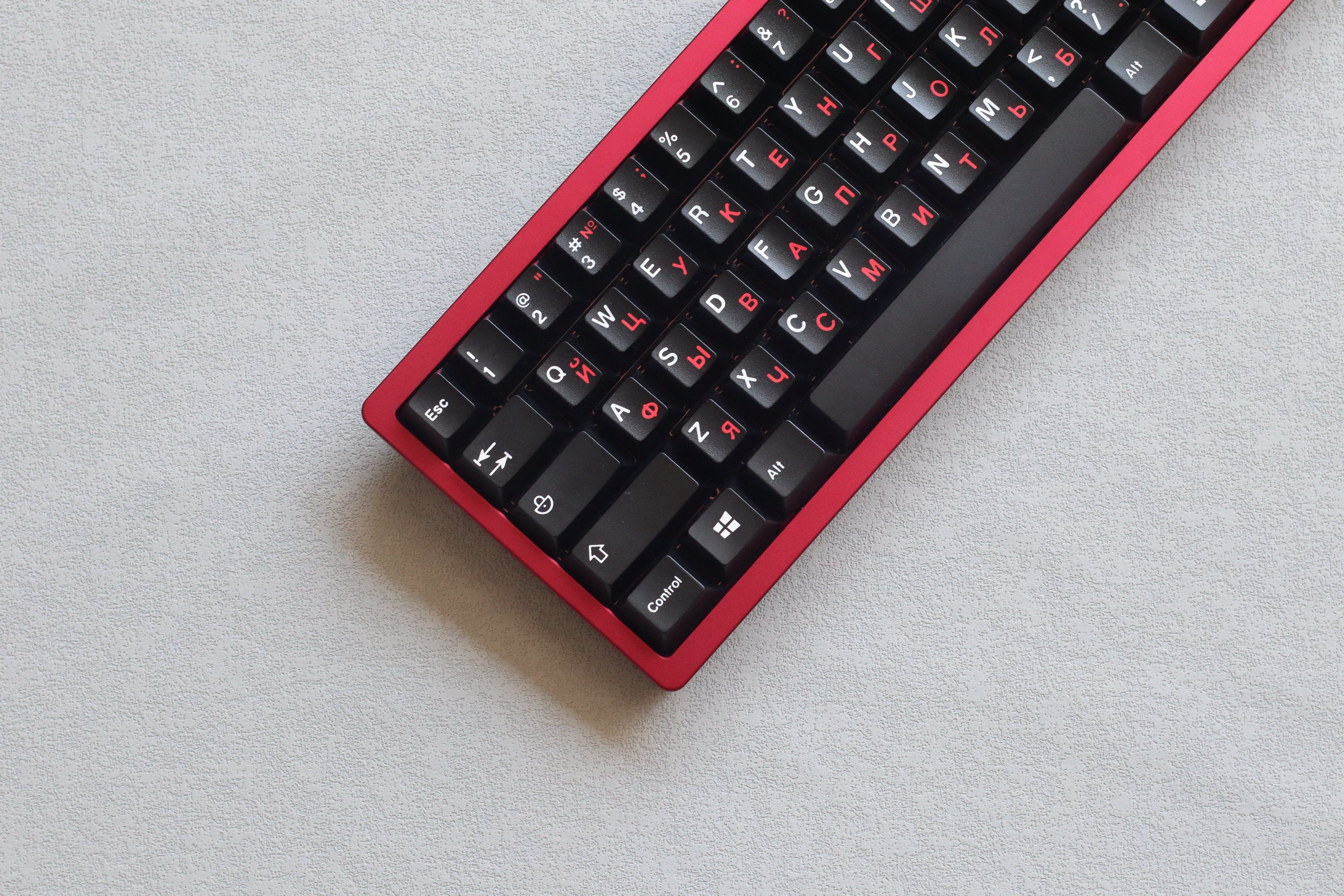

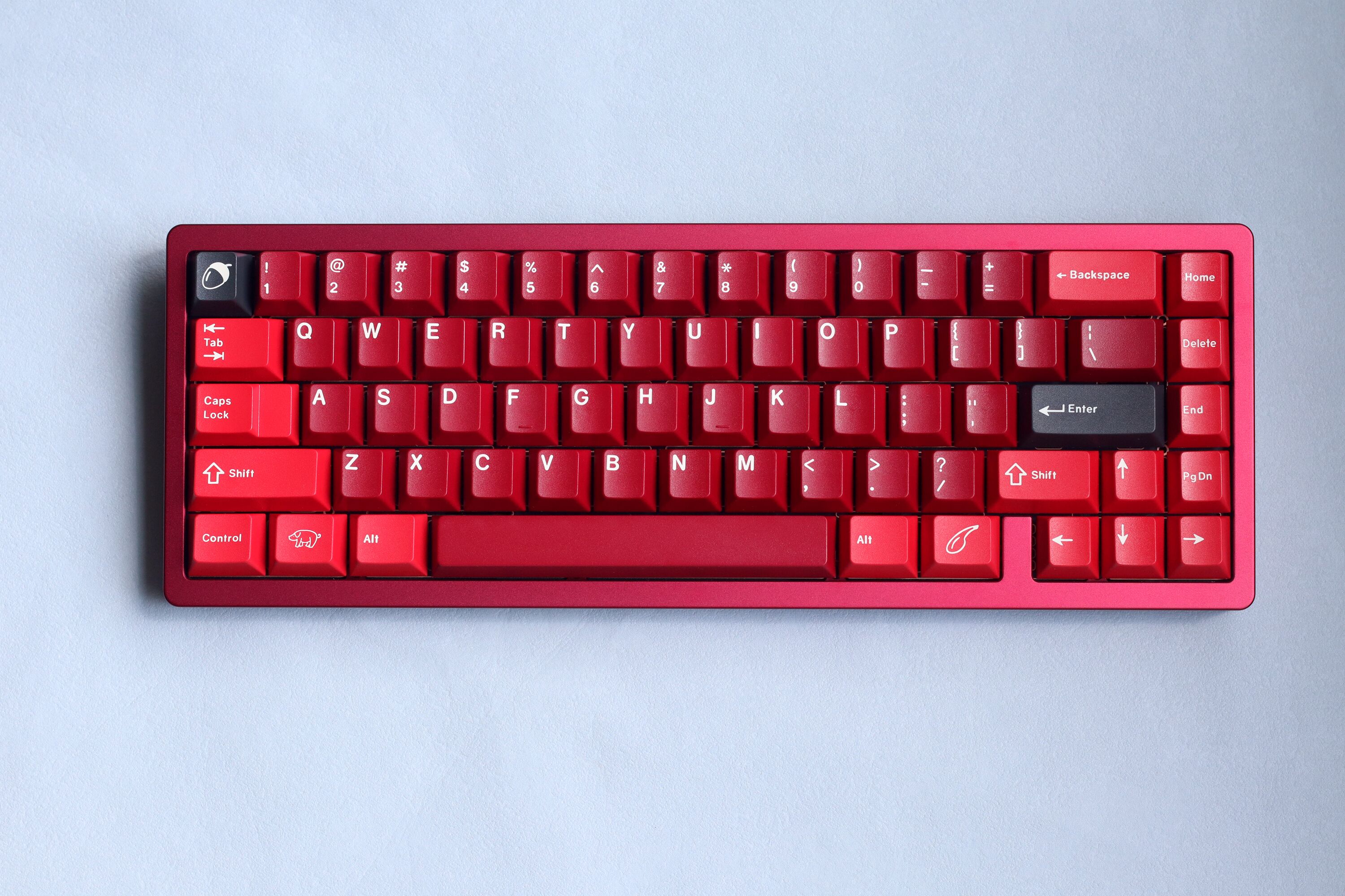

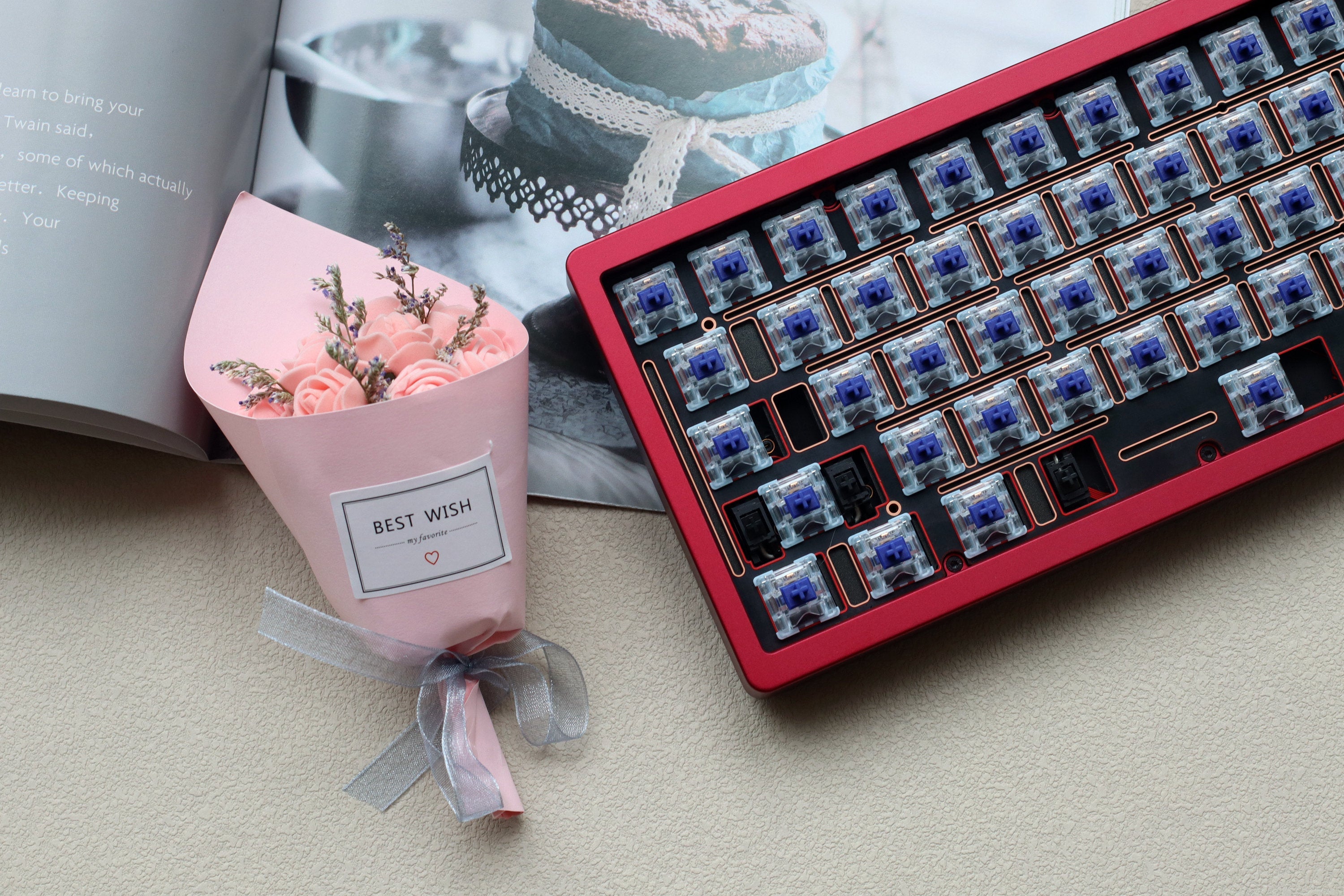

  • New limited edition: Red and Black


  • Design concept is elegant, simple, durable, and comfortable

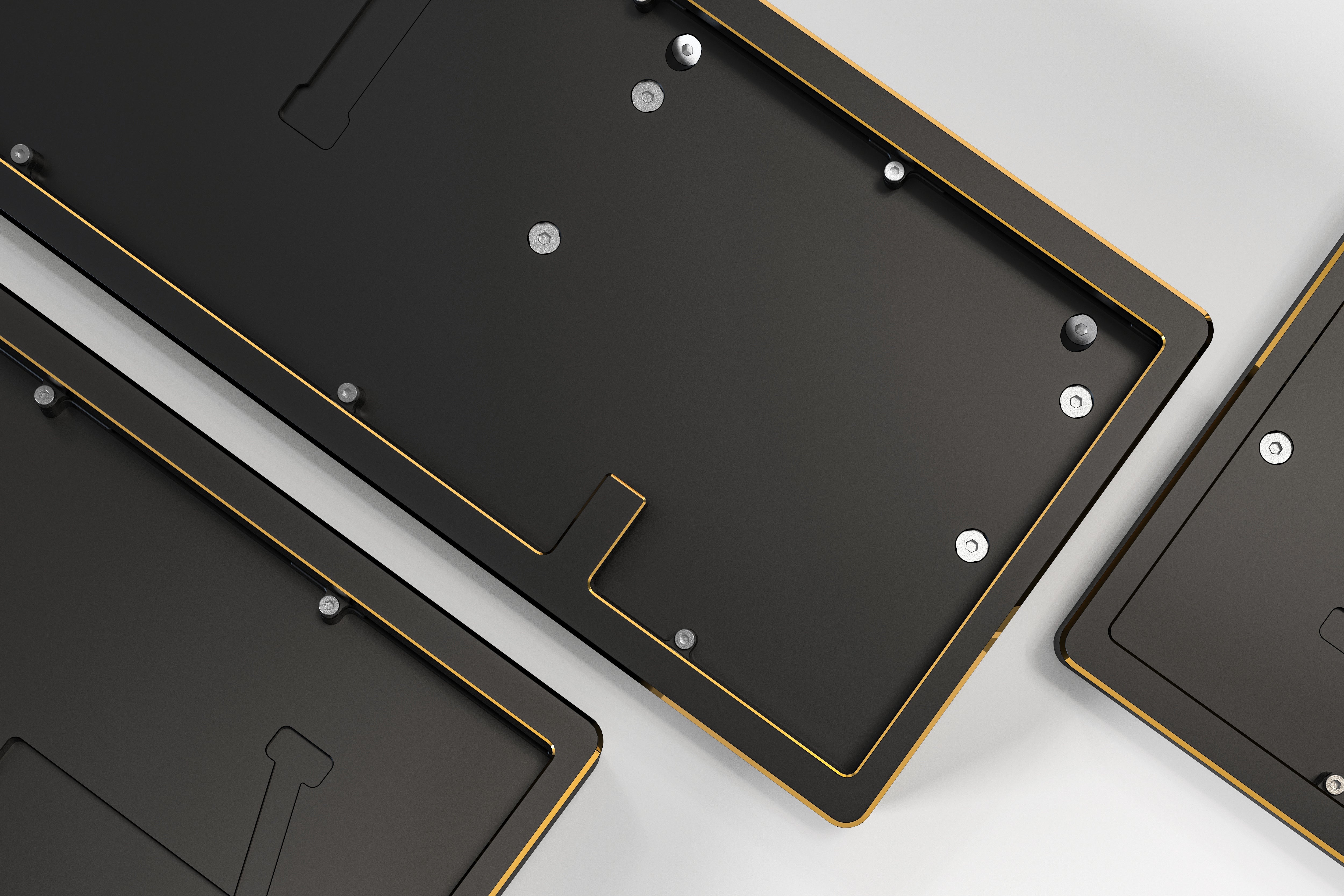

  • Full CNC aluminium case: aluminium top case and aluminium bottom case

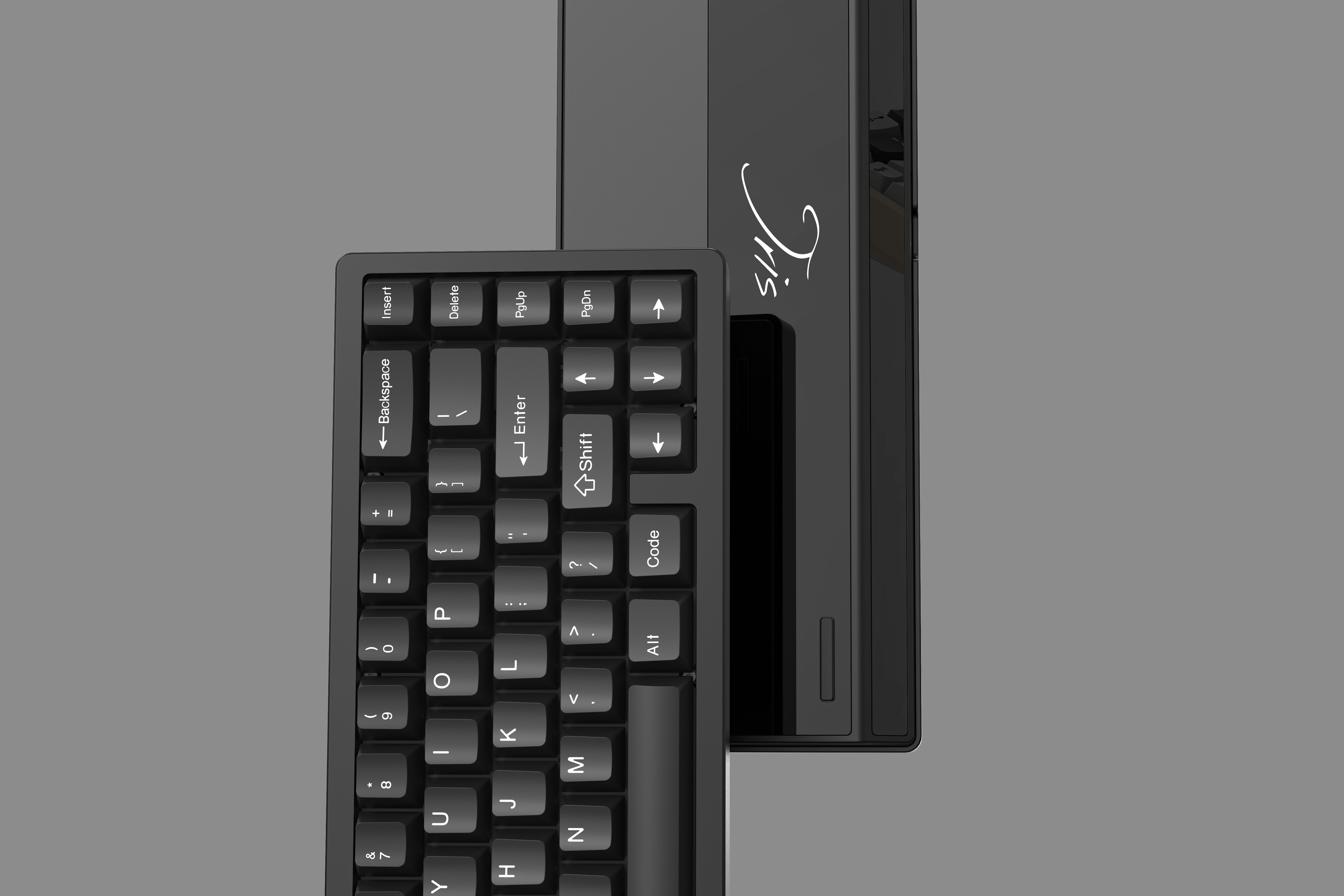

  • Simple and atmospheric front side, and laser engraving of Jris65 on the back

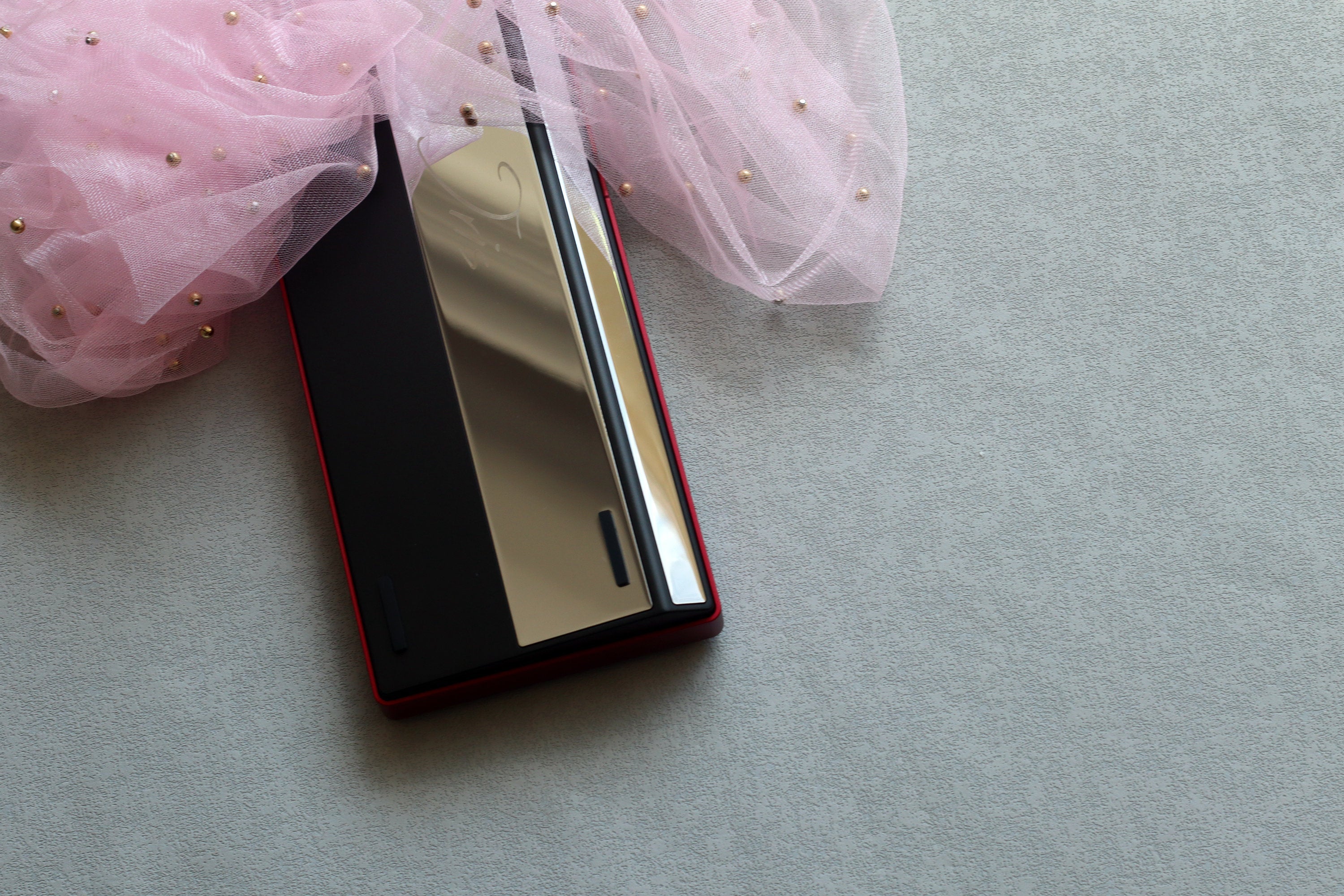

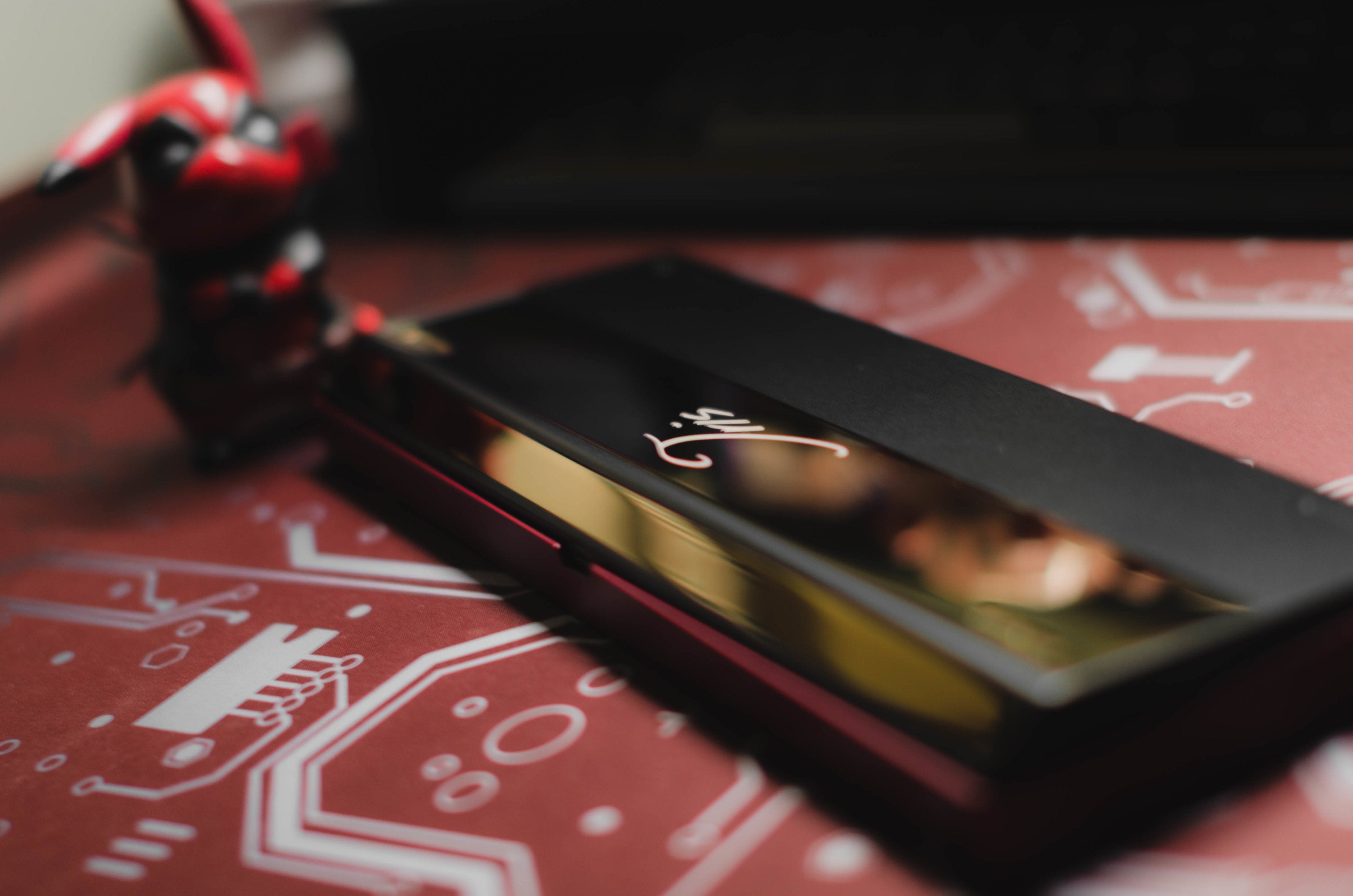

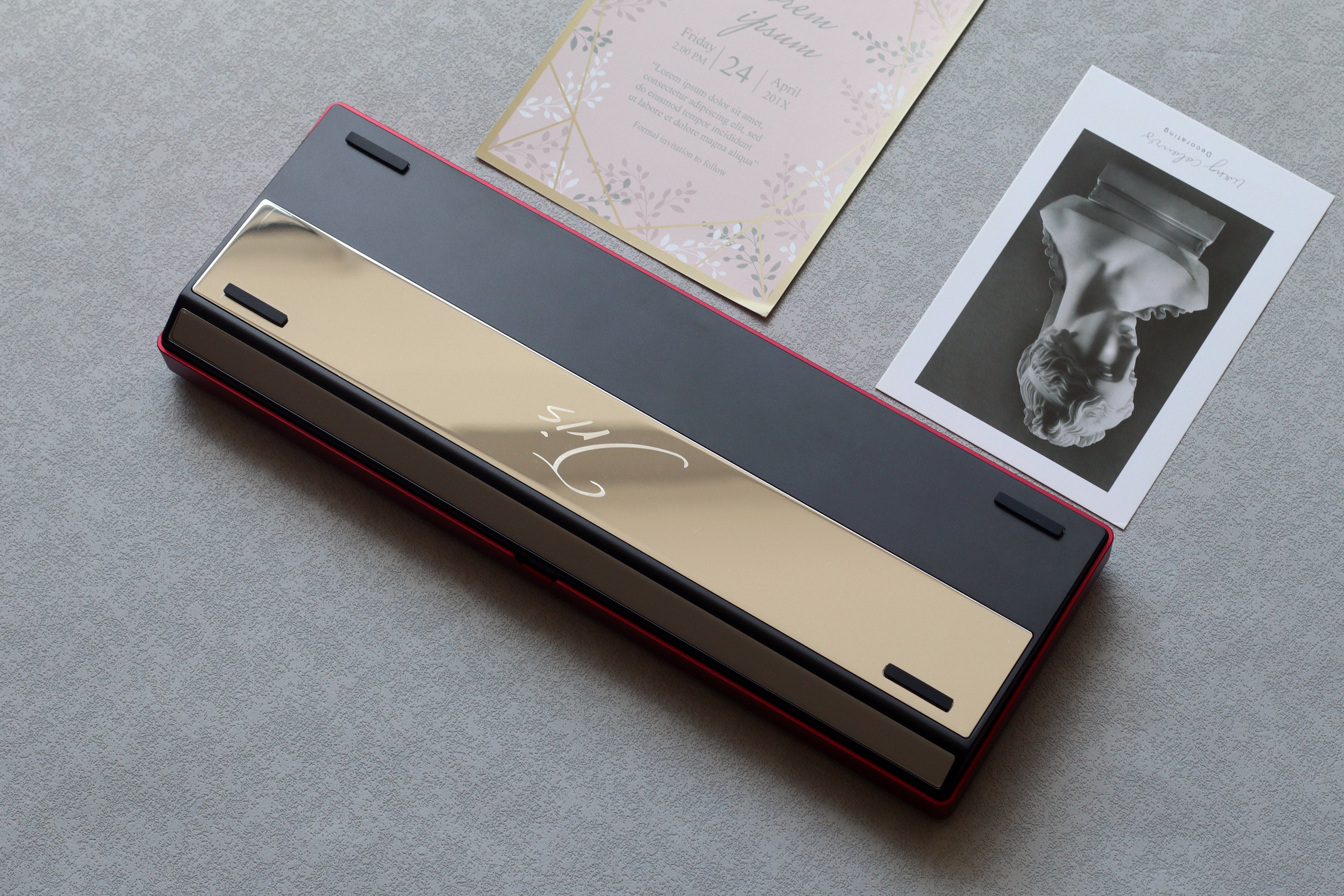

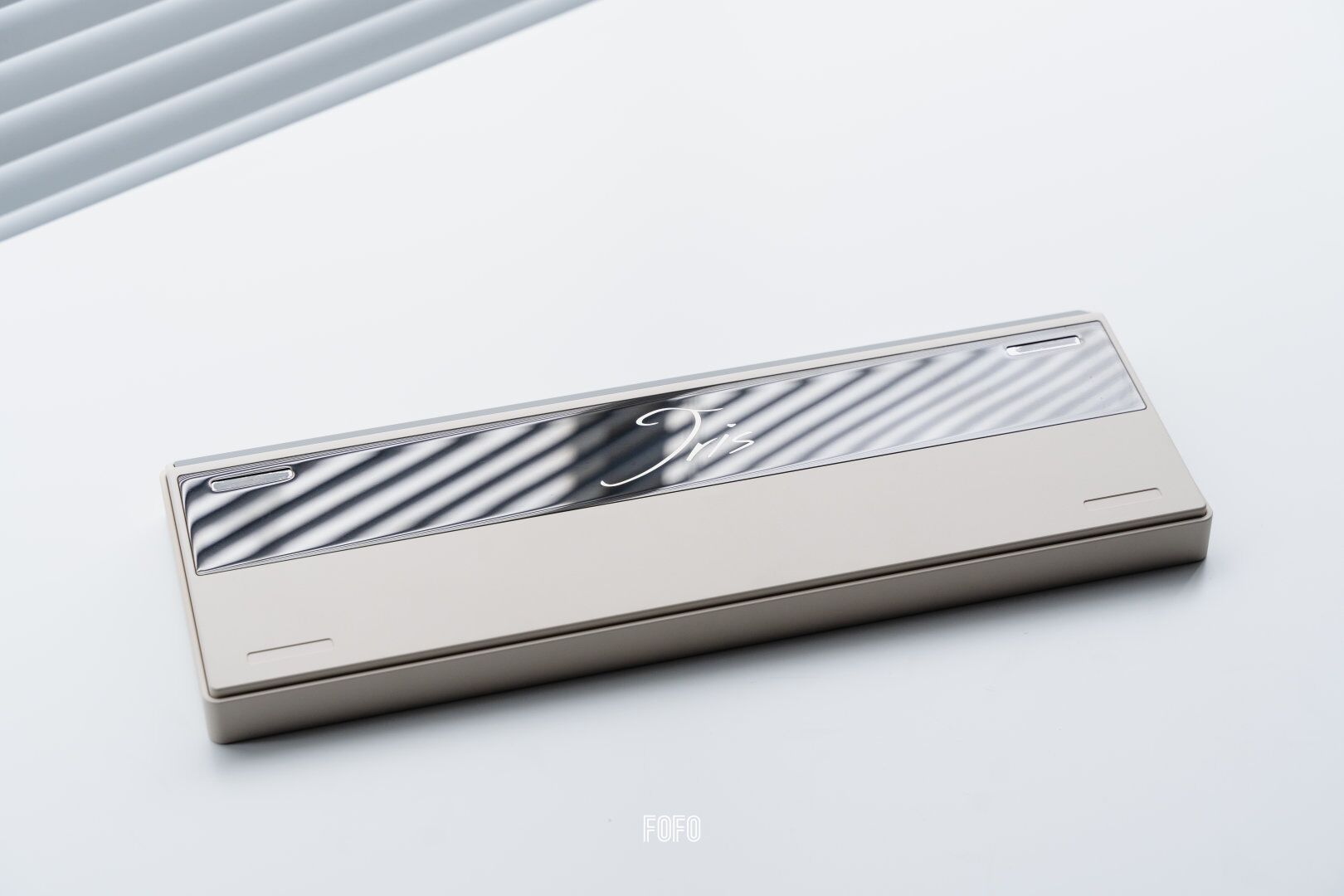

  • The weight on the side is the same colour as the bottom so that you can feel the nobility in daily use!
  • The separate daughterboard brings you a better typing experience
  • PCB gasket jackets or socks make your building more convenient and simple!

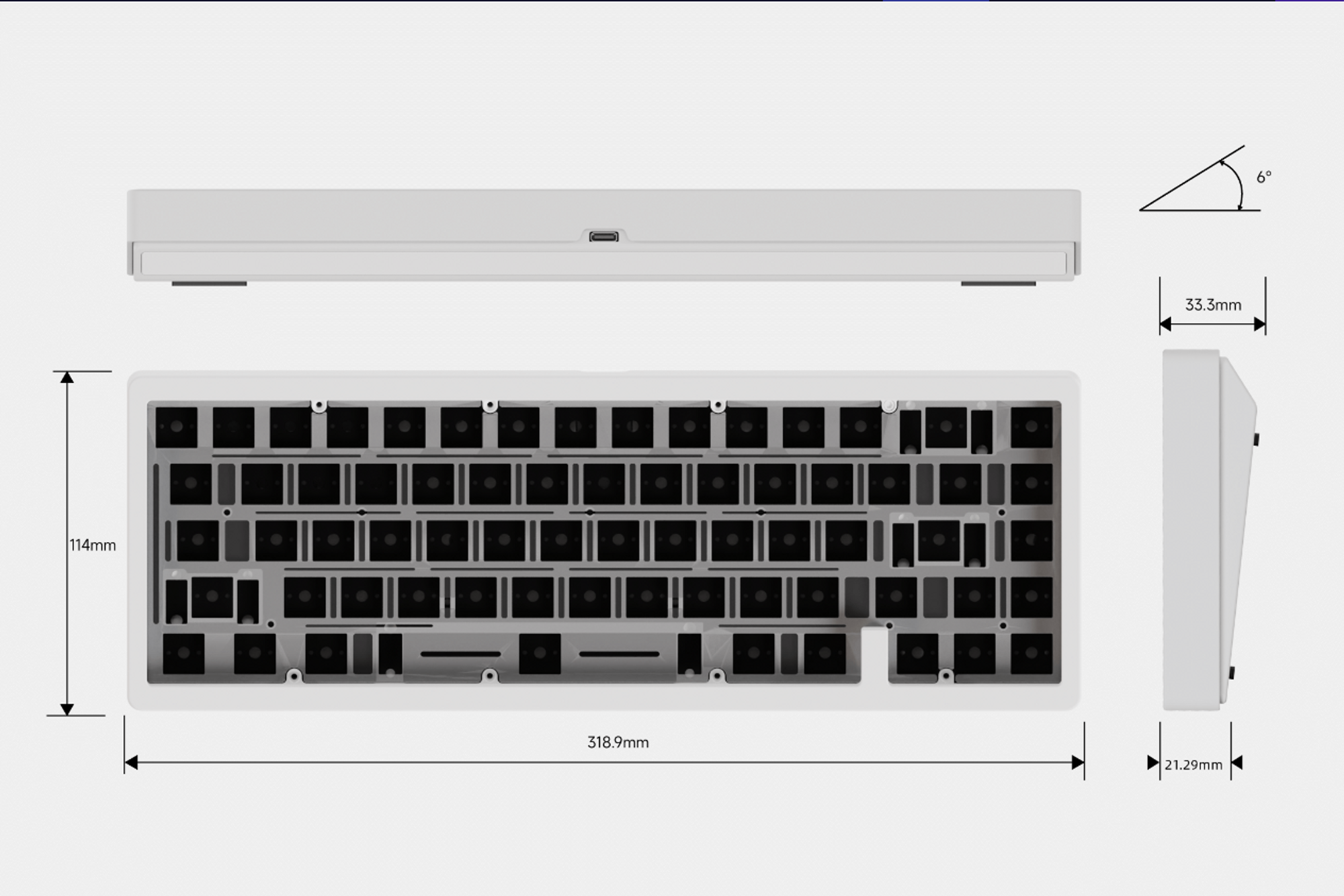

  • Typing angle: 6°
  • Front height: 21.3mm
  • PCB gaskets structure

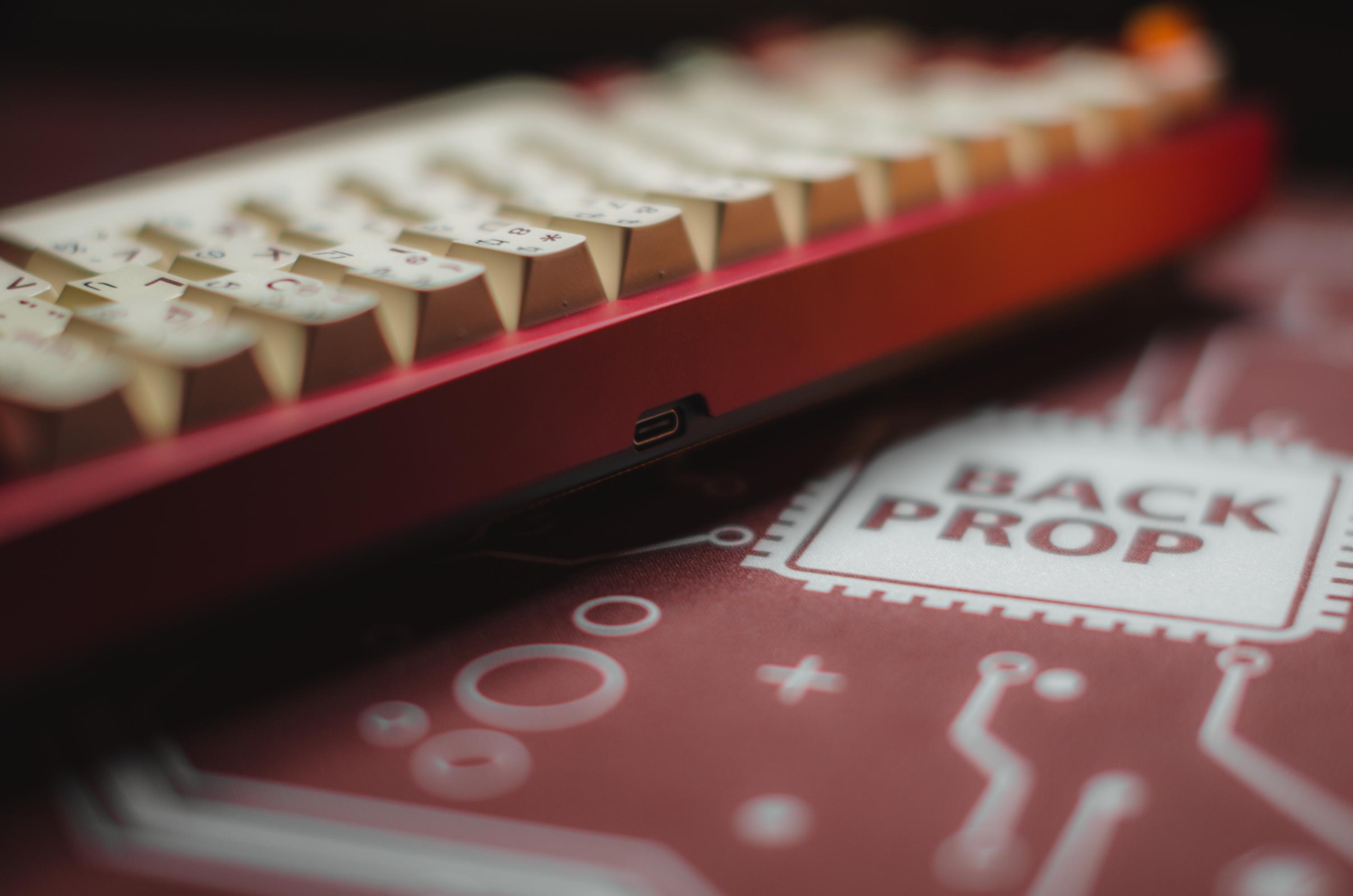

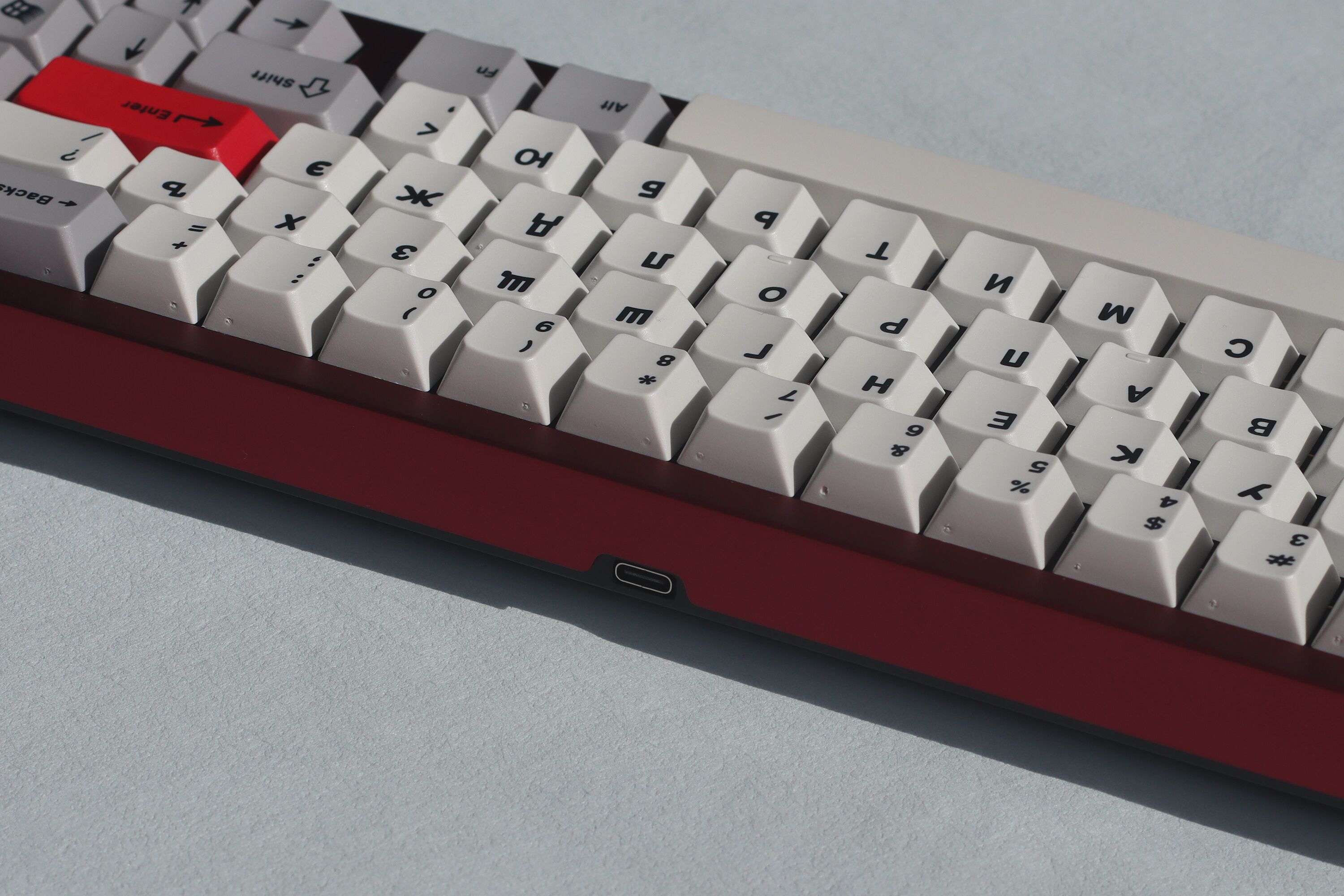

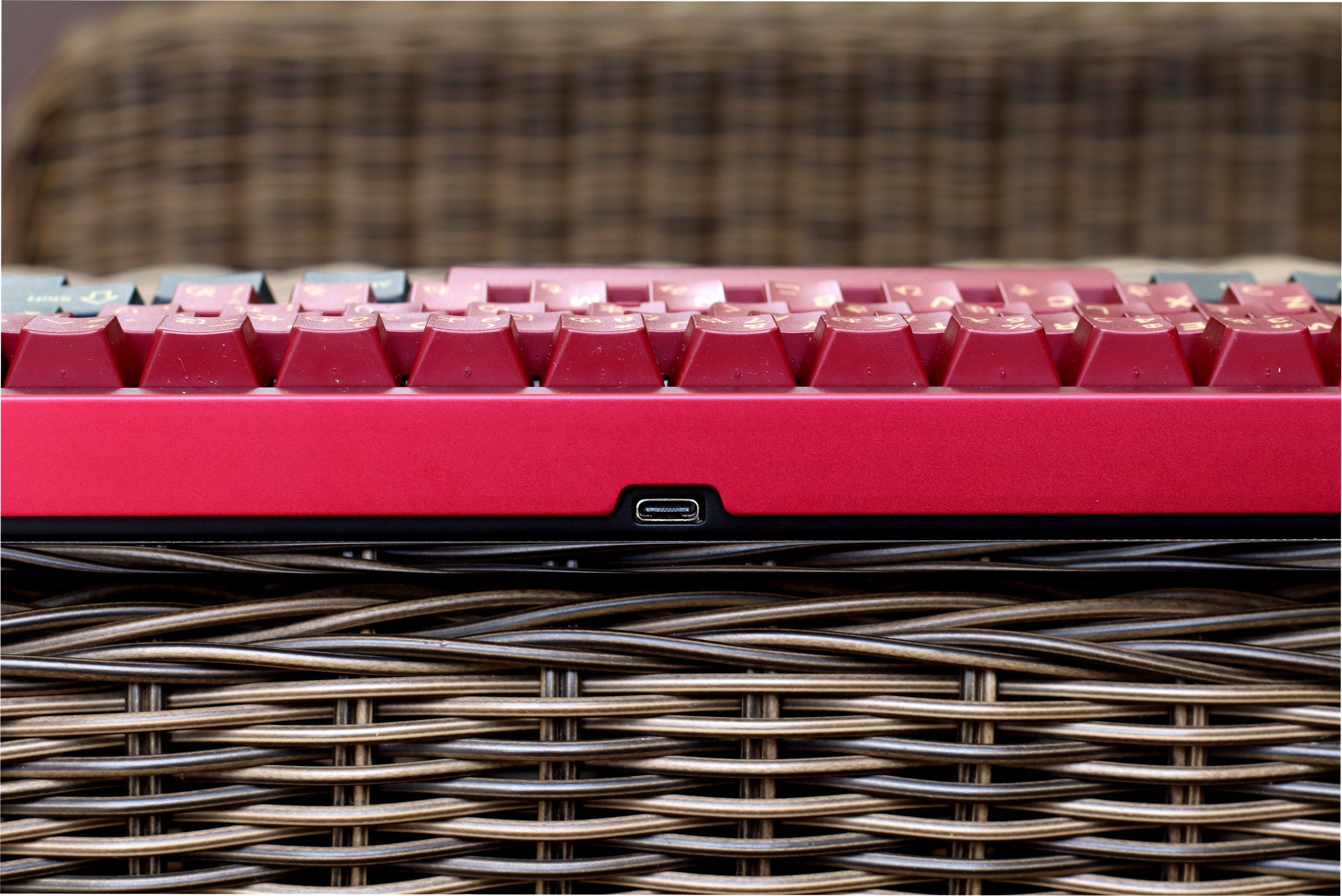

  • PCB with USB-C daughterboard
  • Both PCB and plate adopt flex cut design
  • PCB gasket jackets or socks
  • Supports PCB stabilisers
  • QMK/VIA Supported (Note: The BT PCB has its drive, so it doesn't support VIA/QMK)


What you can customise for JRIS65?

  • Case Colours Options:

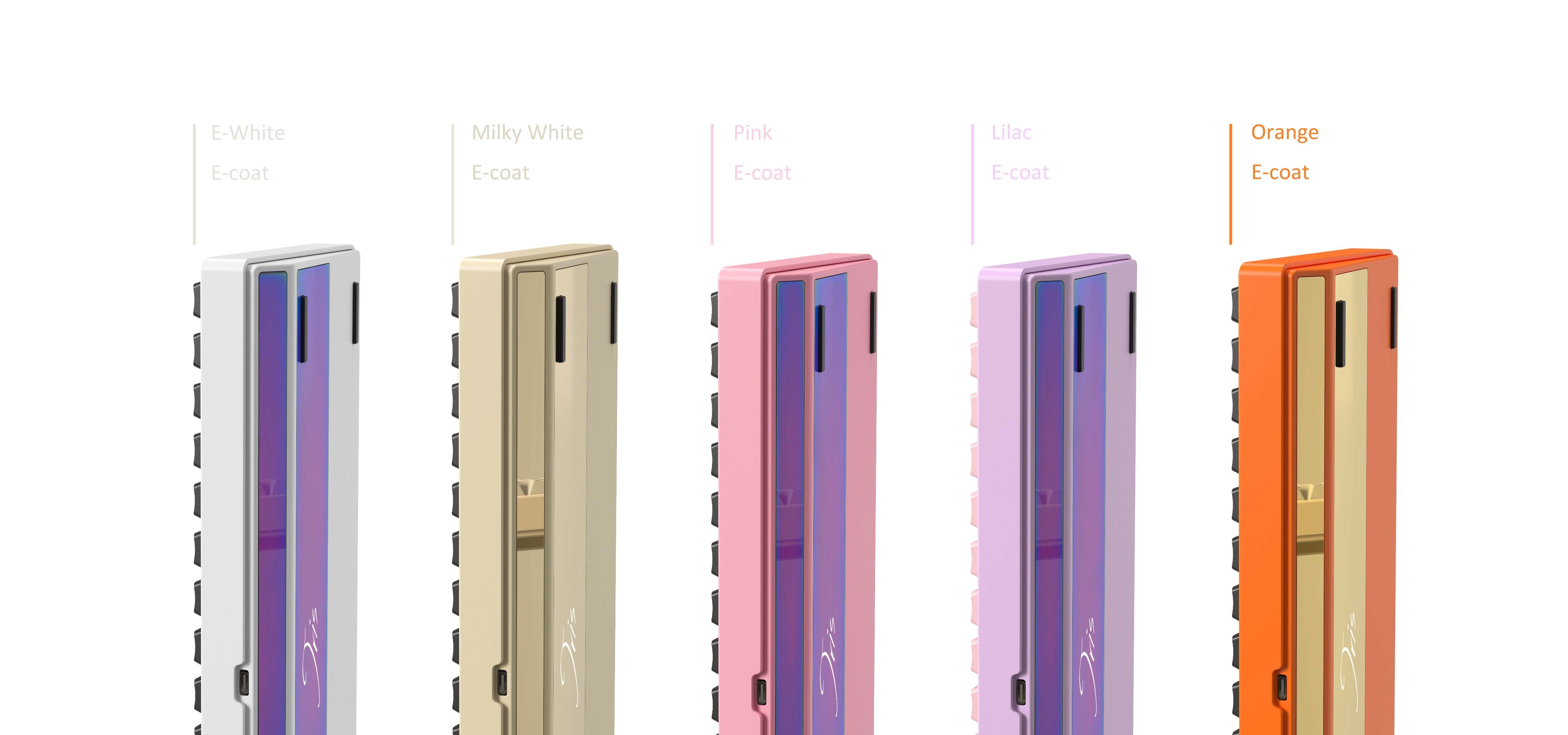

  • 5 E-coat cases

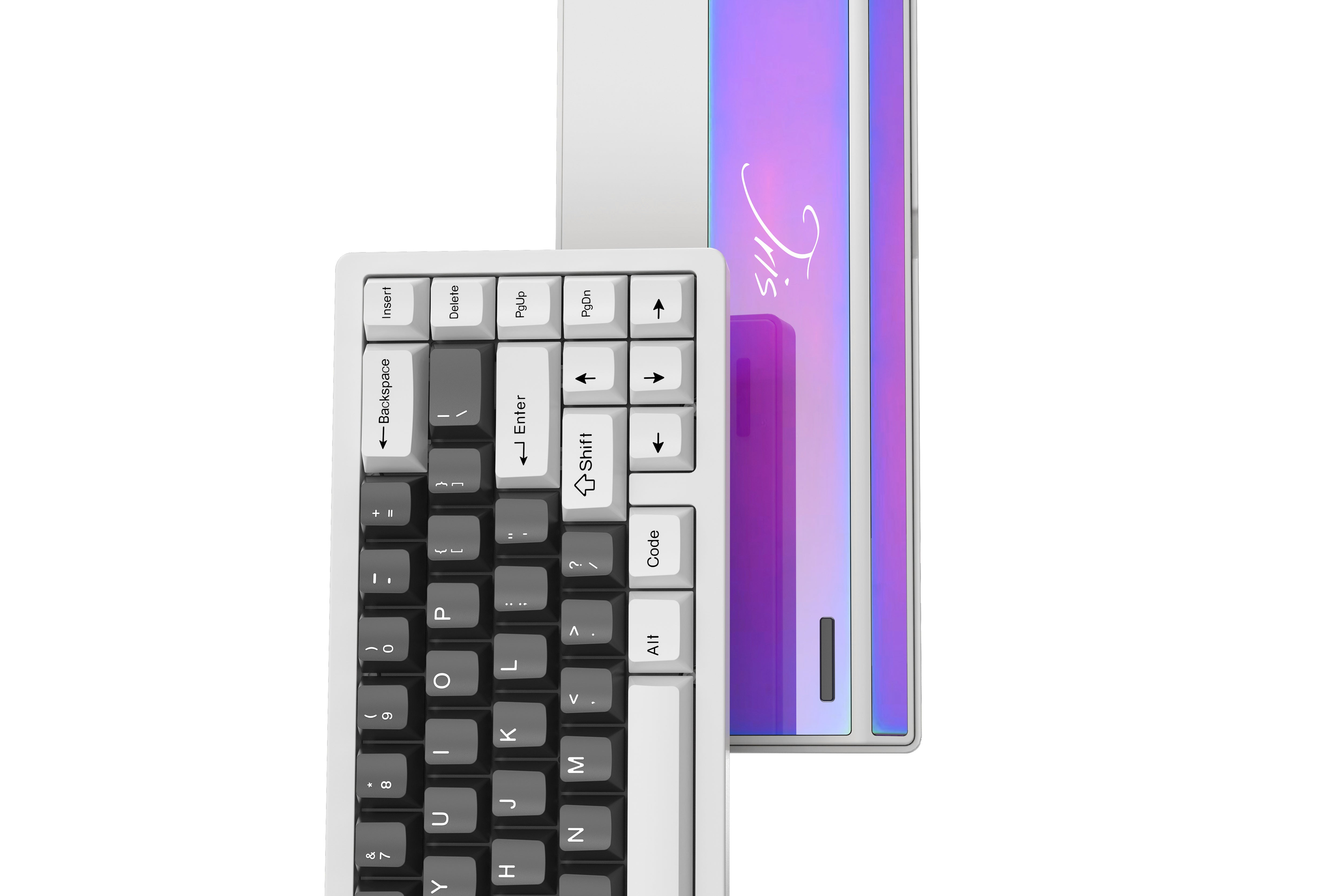

    • E-White

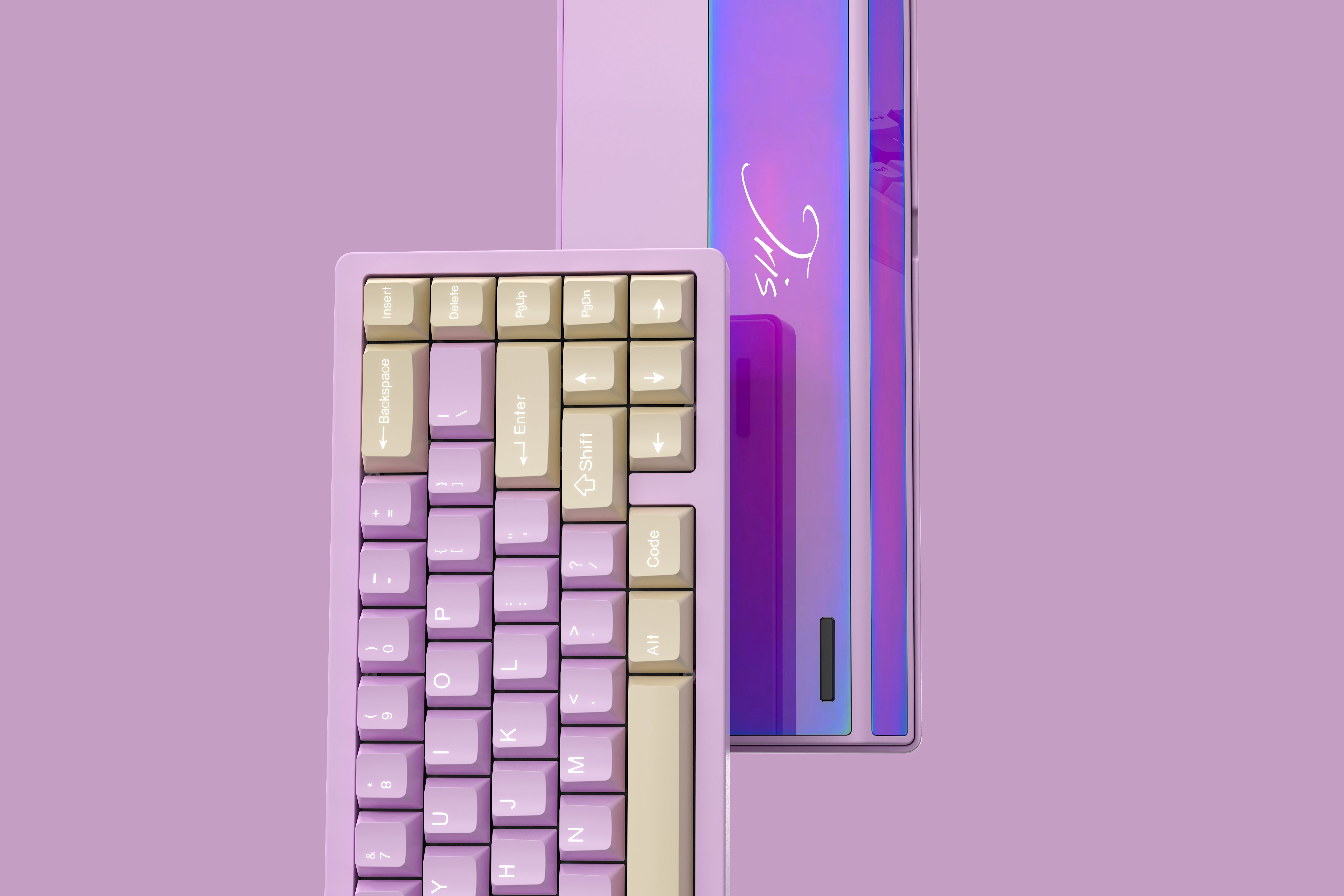

    • Lilac

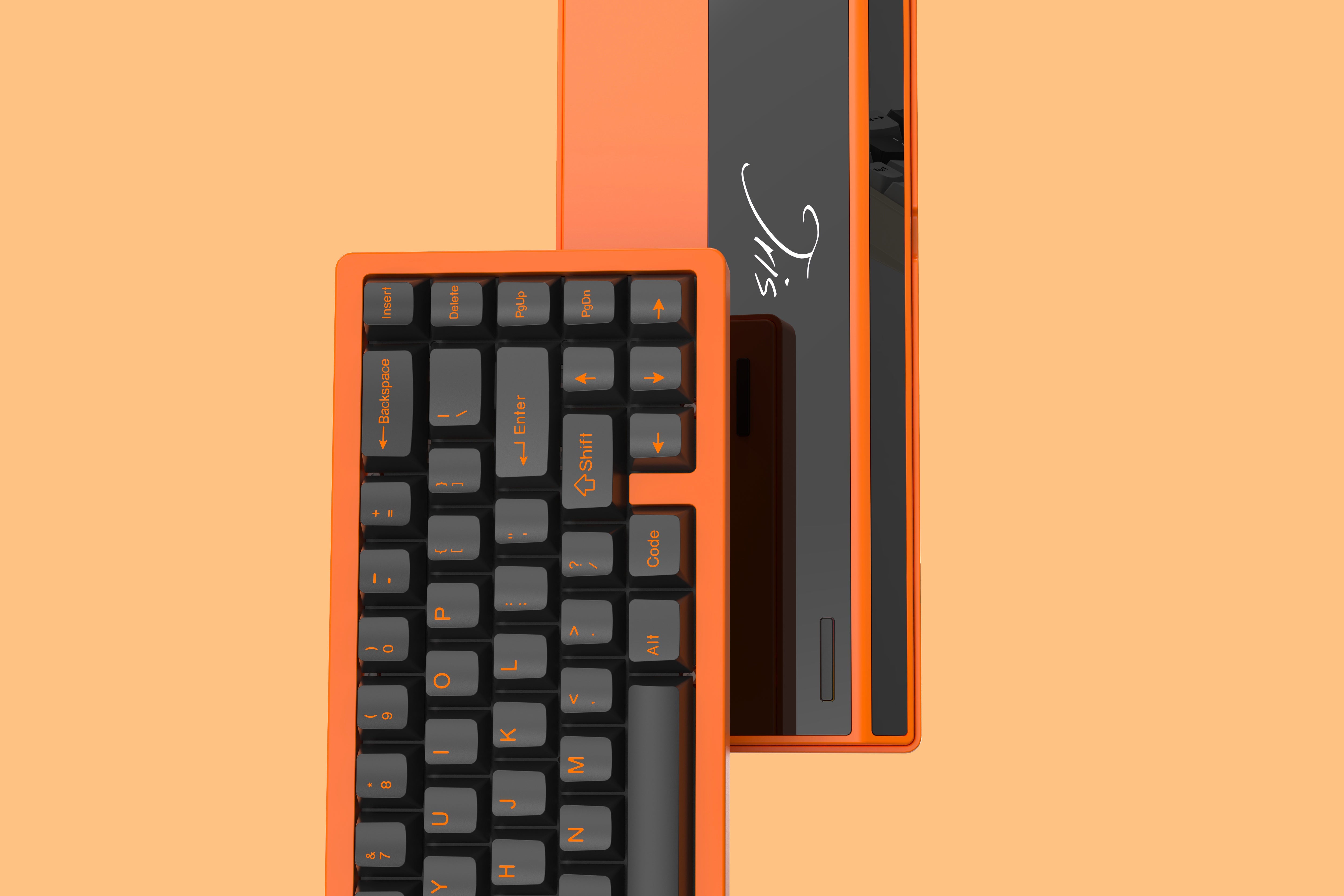

    • Orange

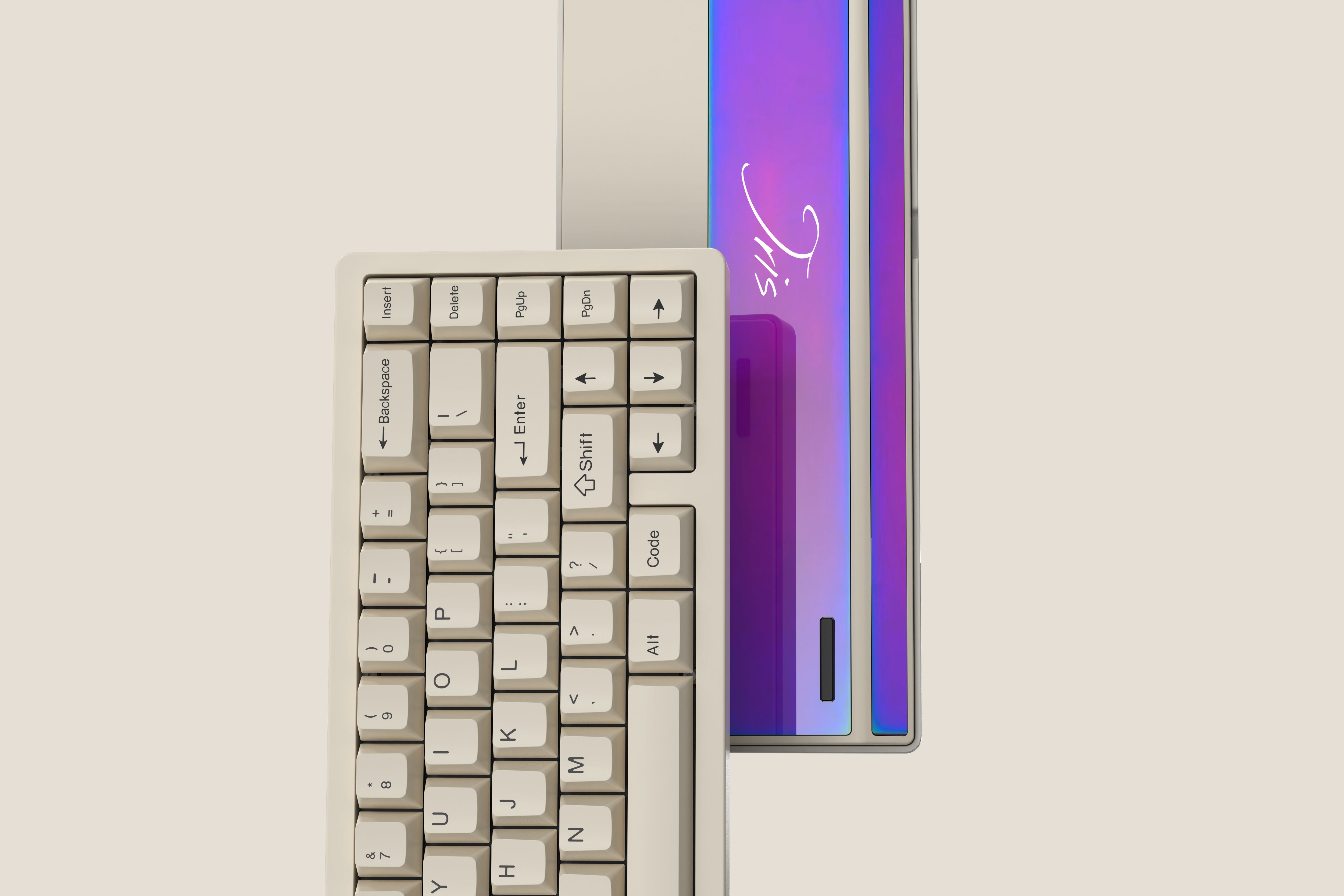

    • Milky White

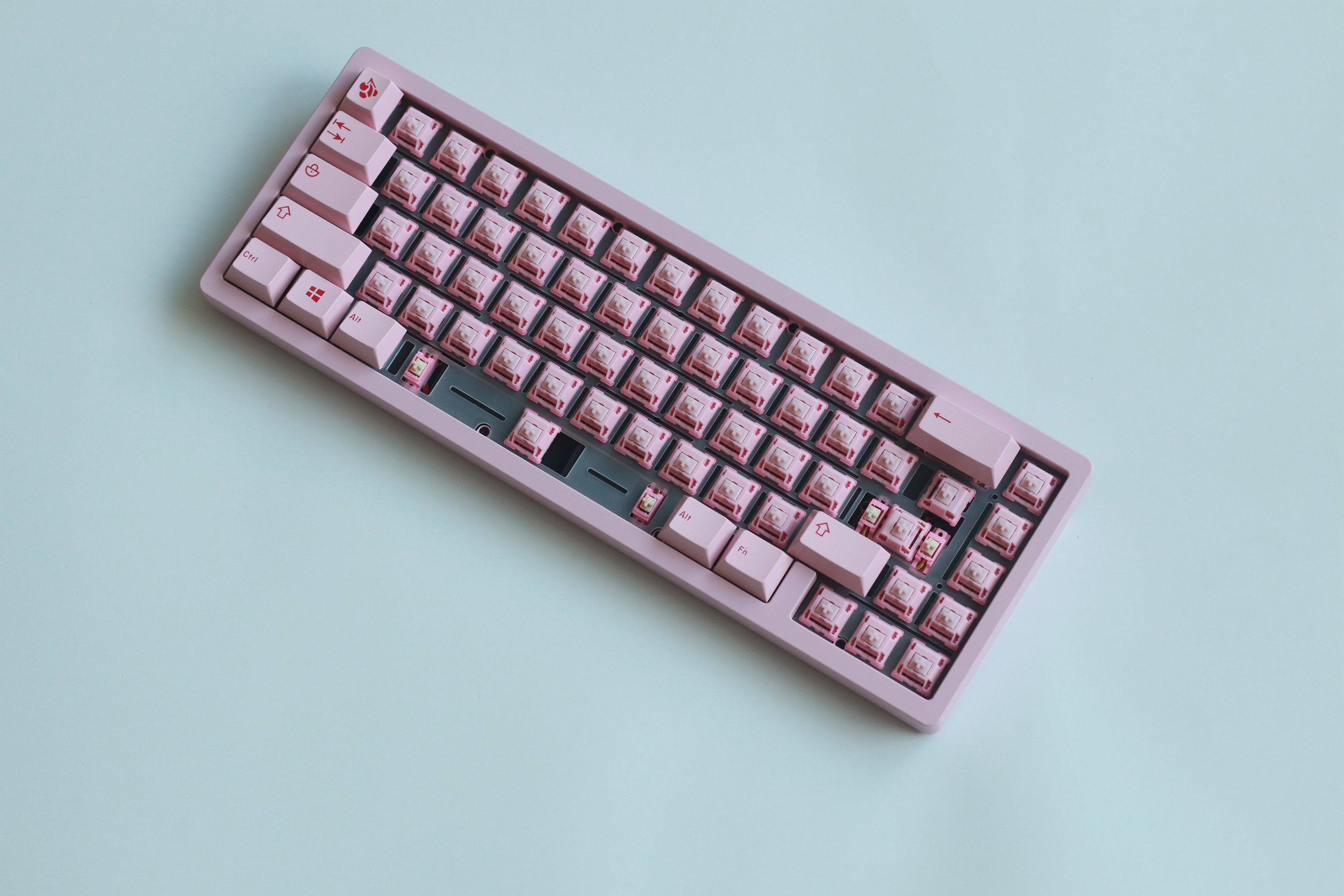

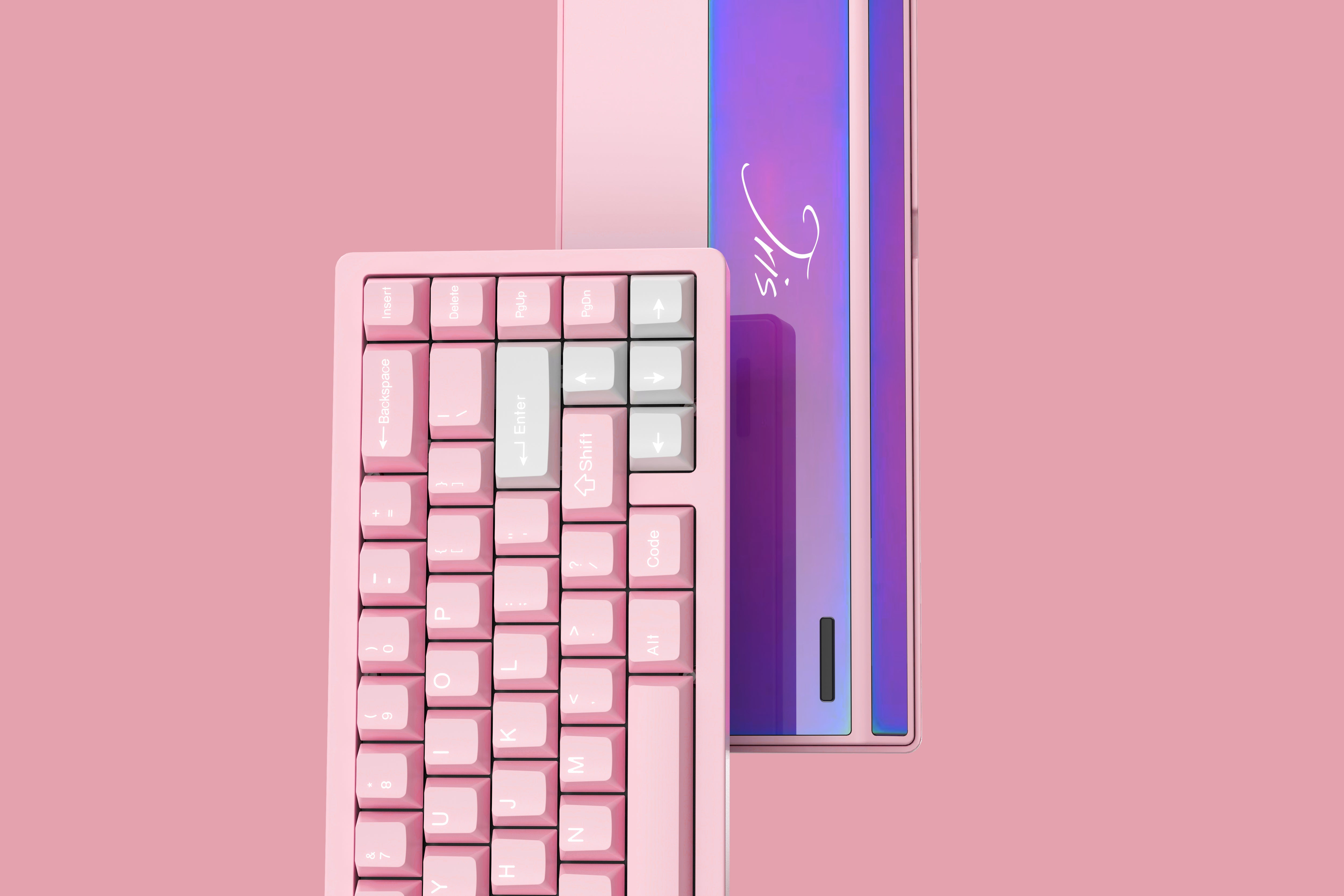

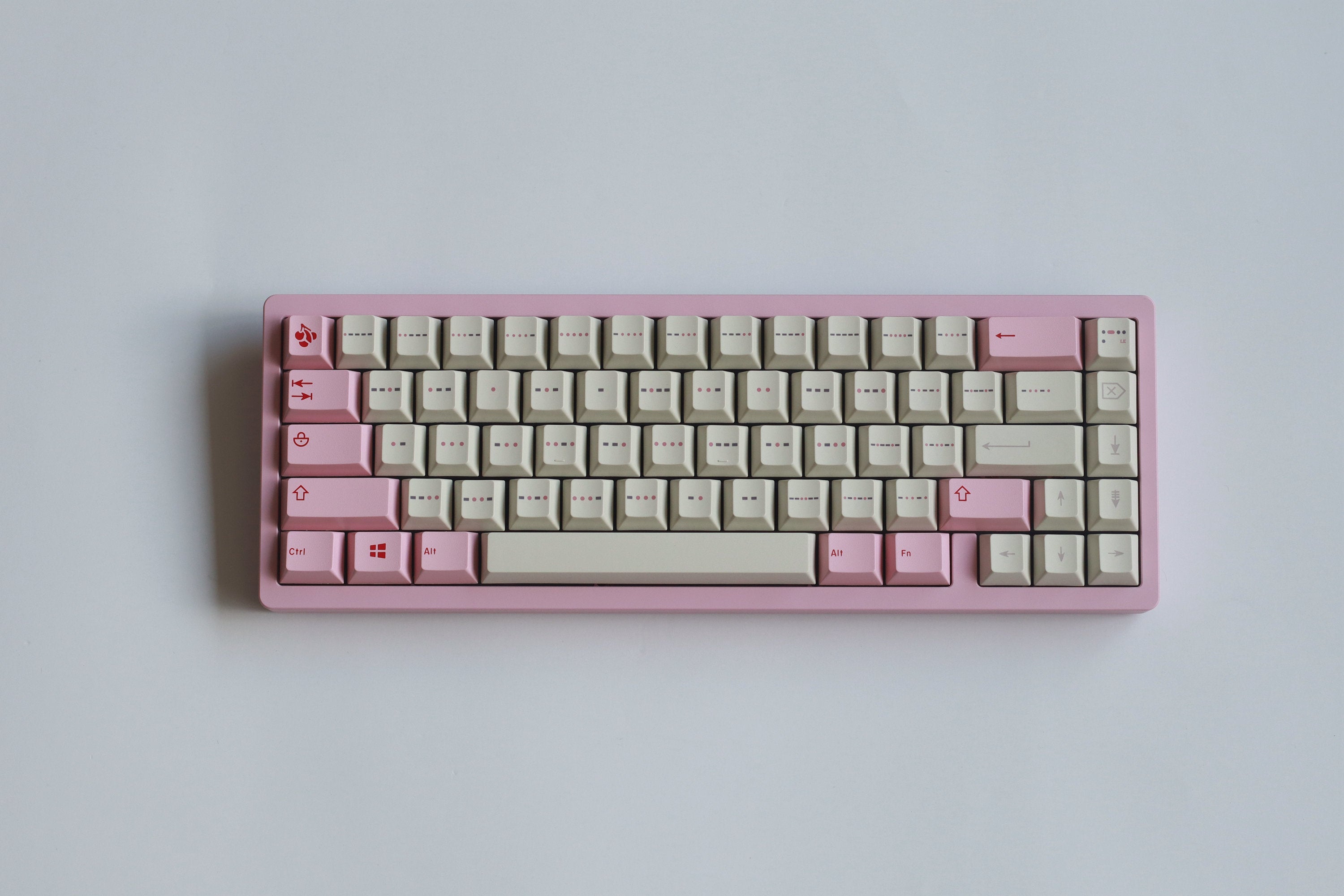

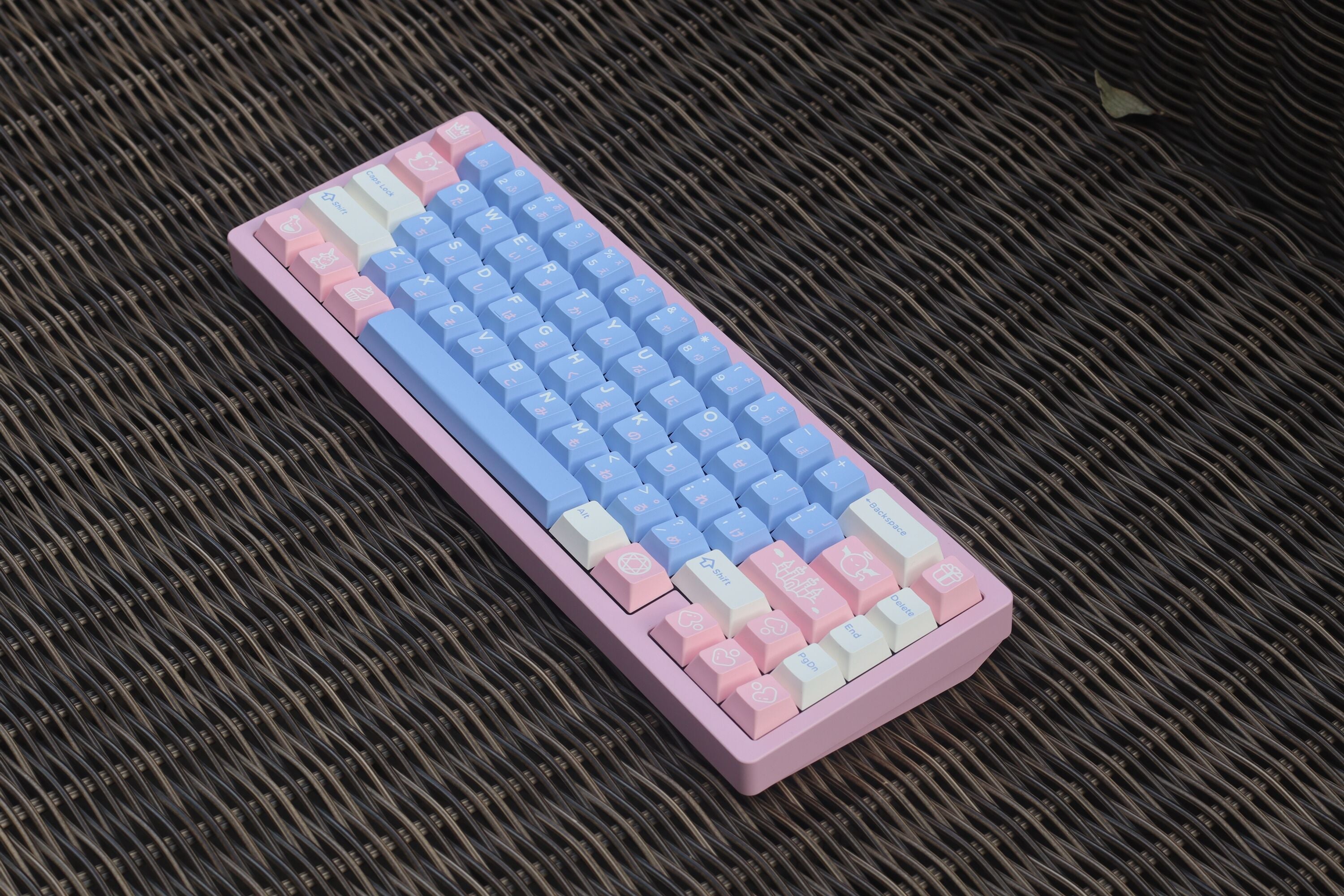

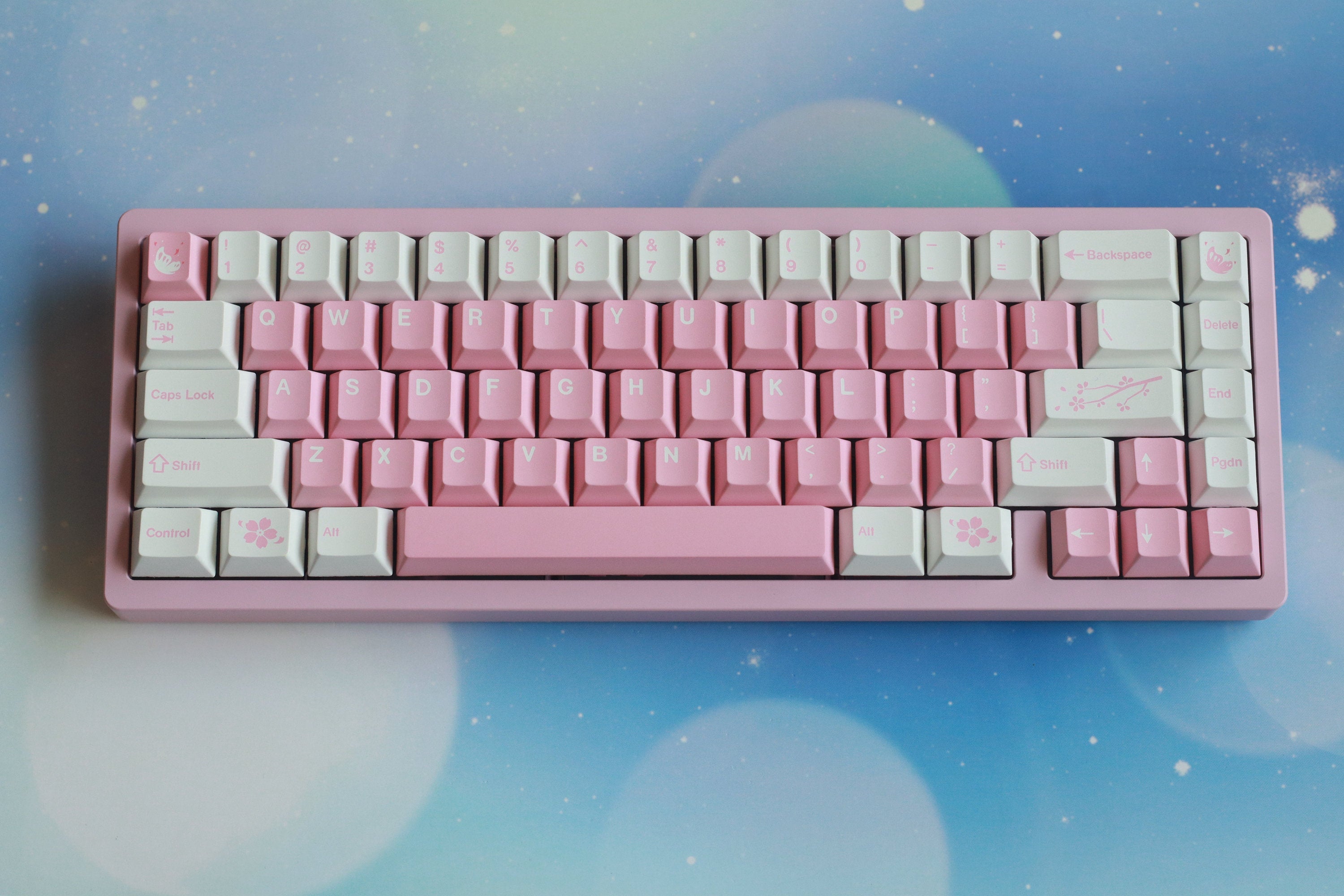

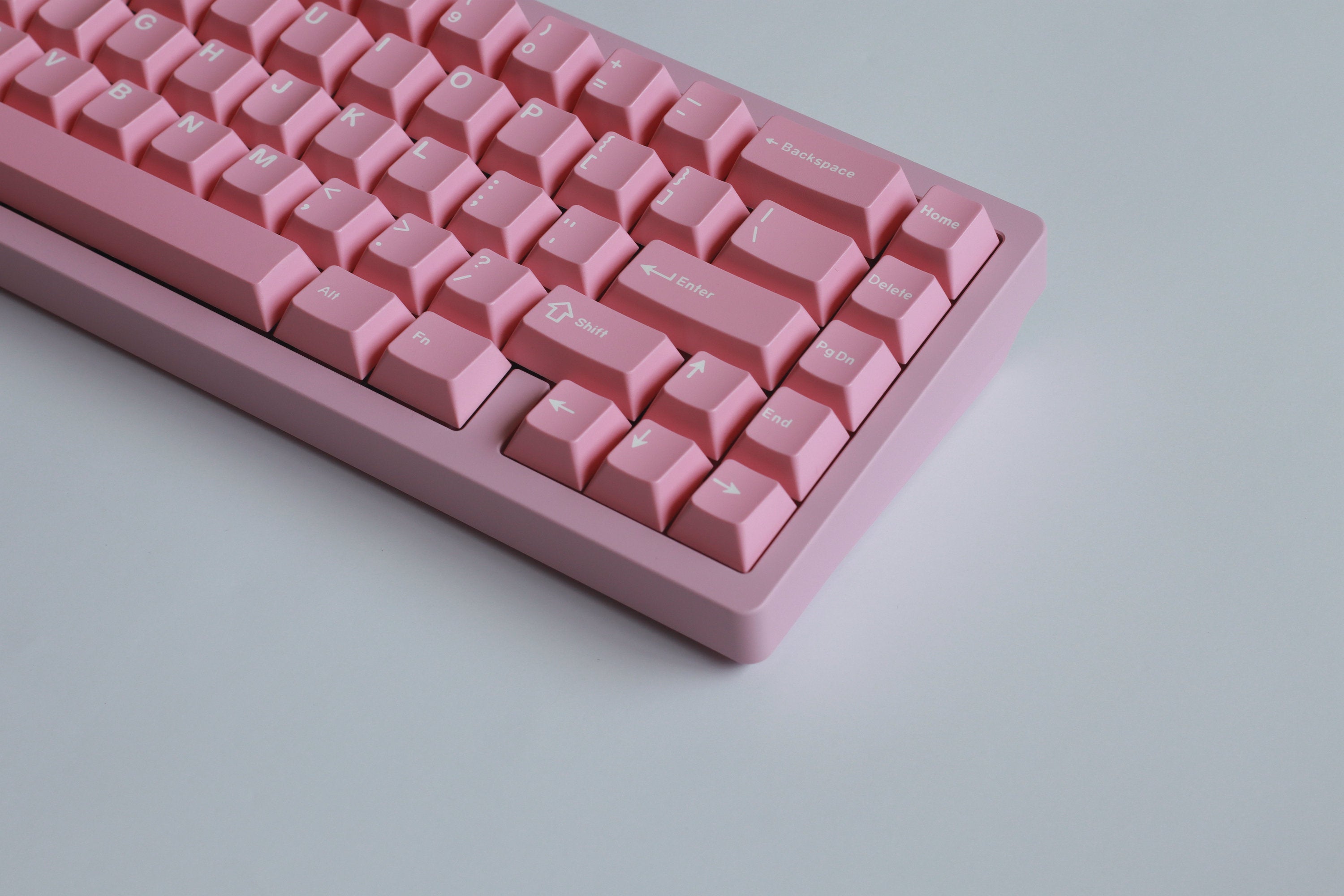

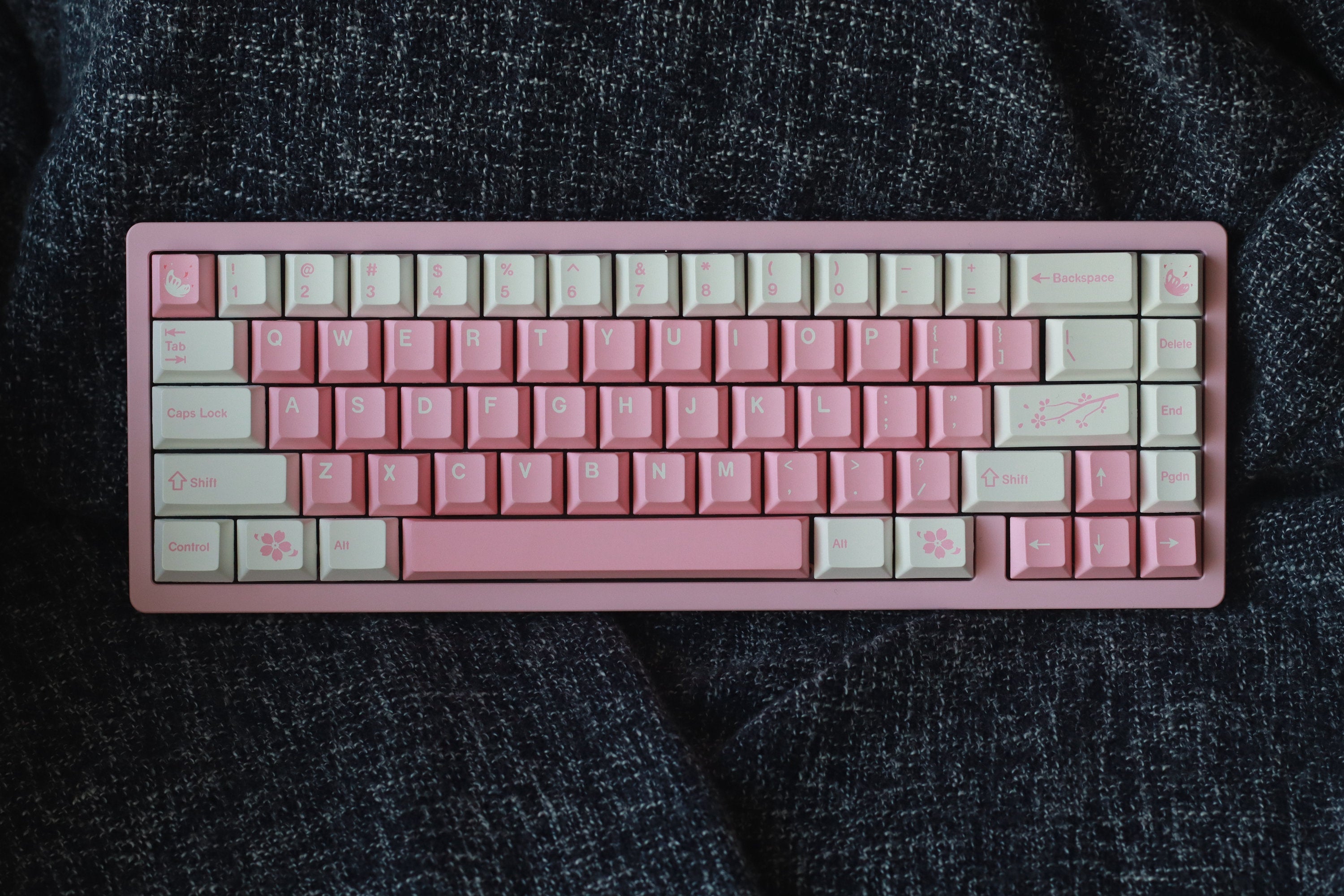

    • Pink

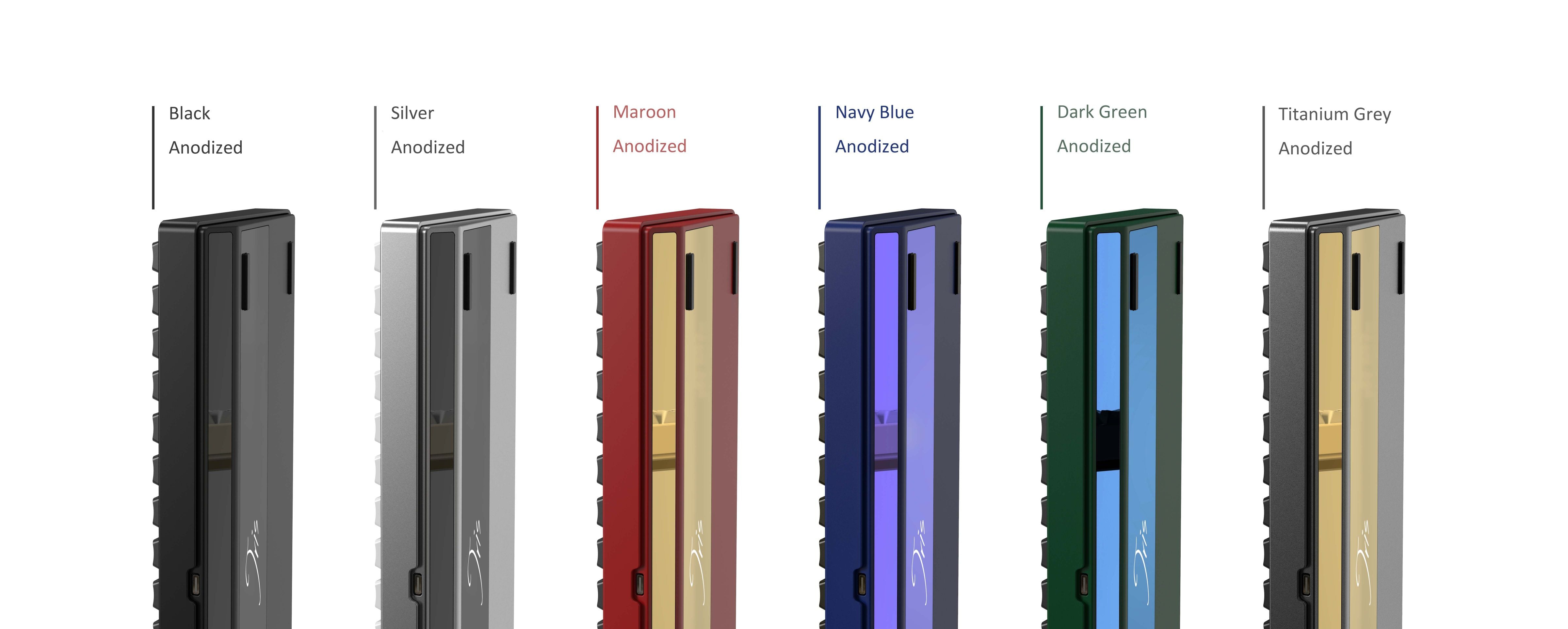

  • 6 Anodised Case
    • Black

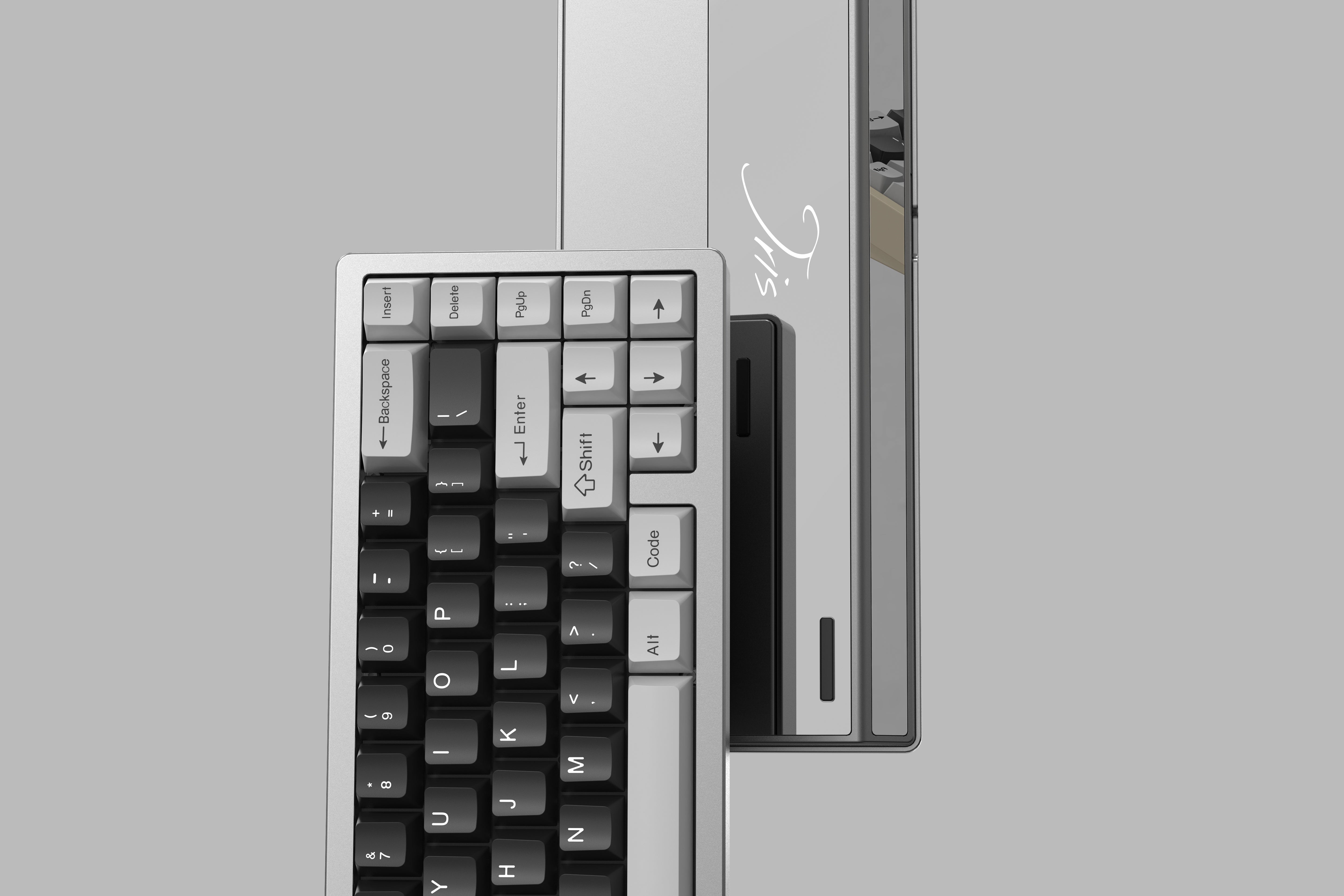

    • Silver

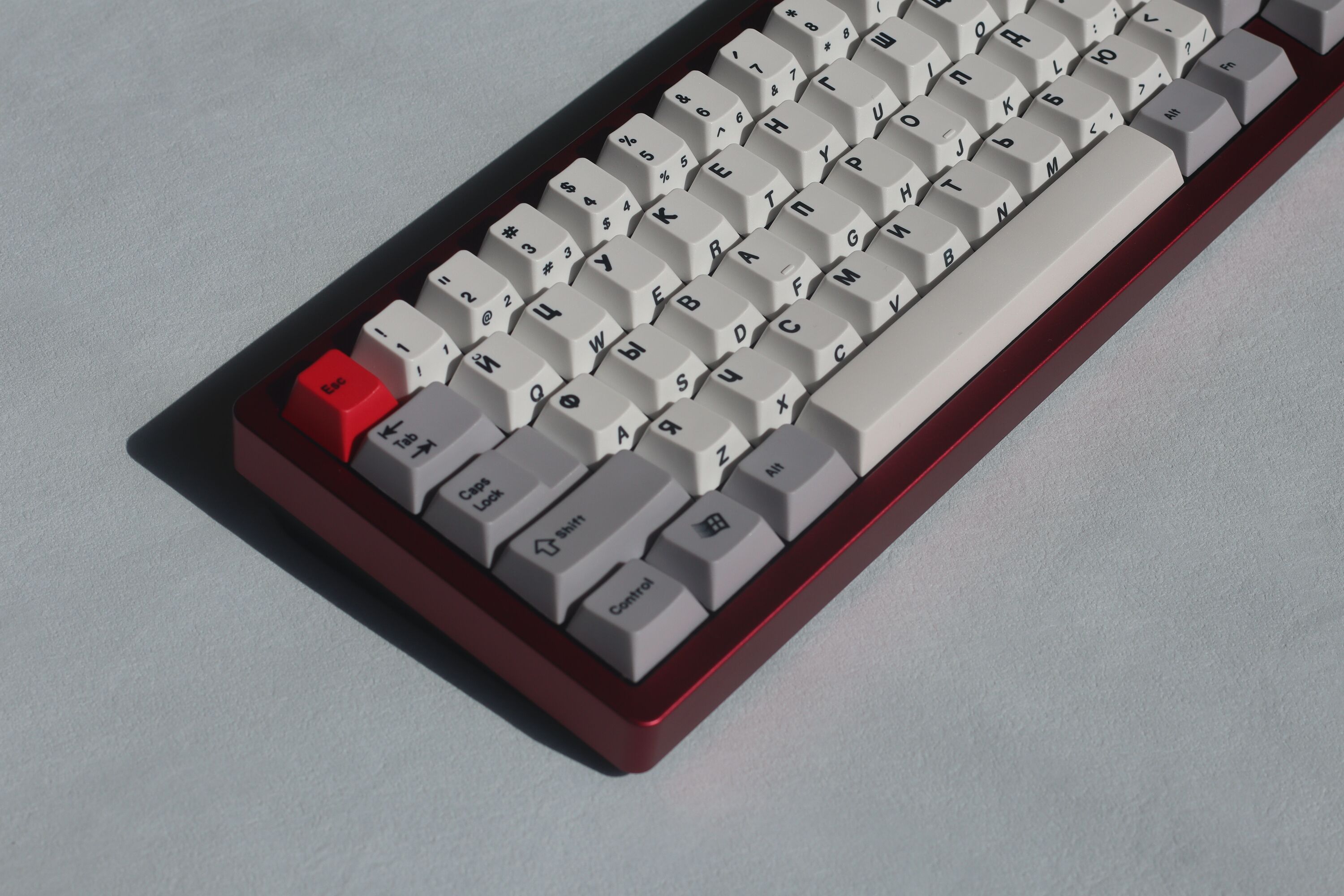

    • Maroon
    • Navy Blue

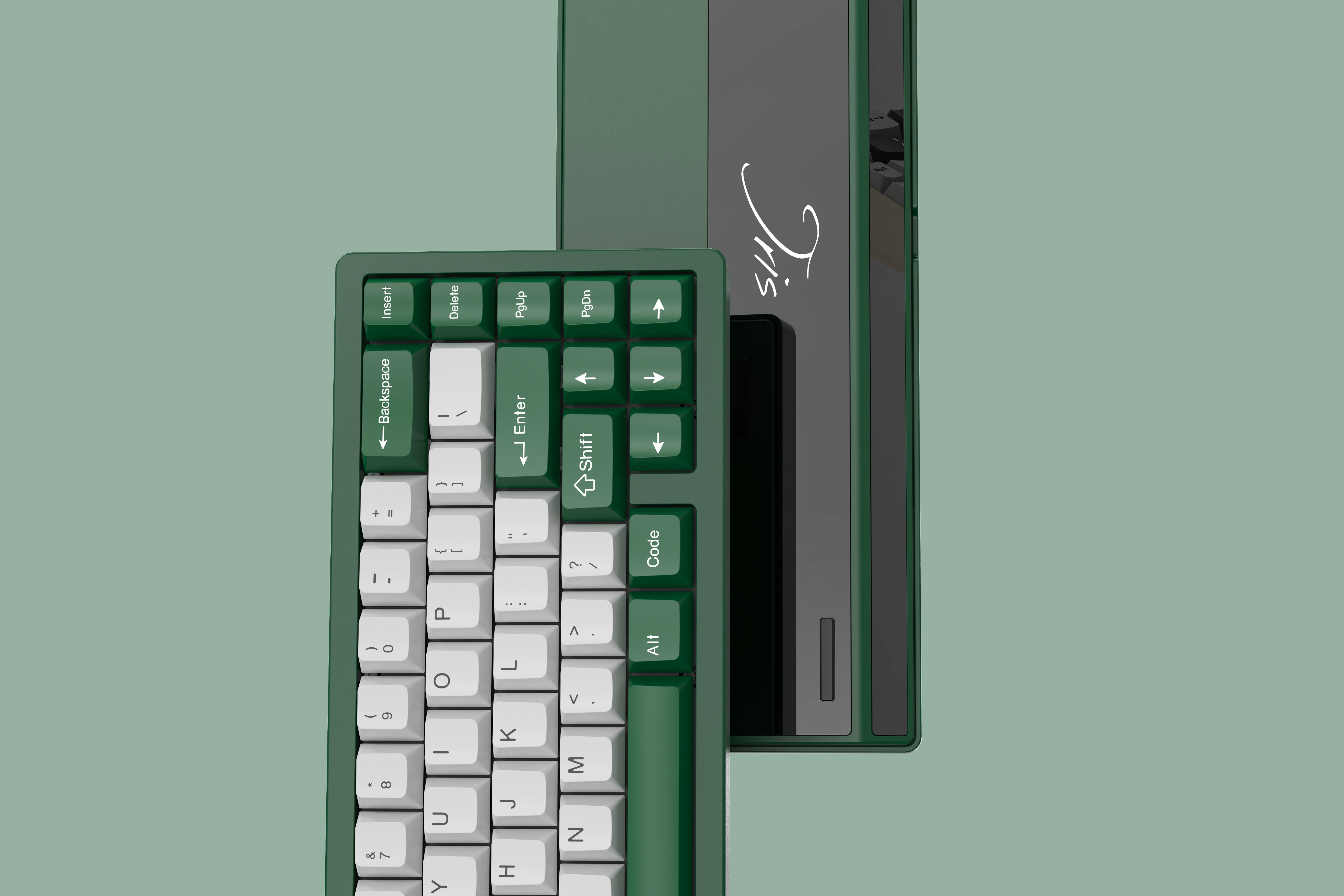

    • Dark Green

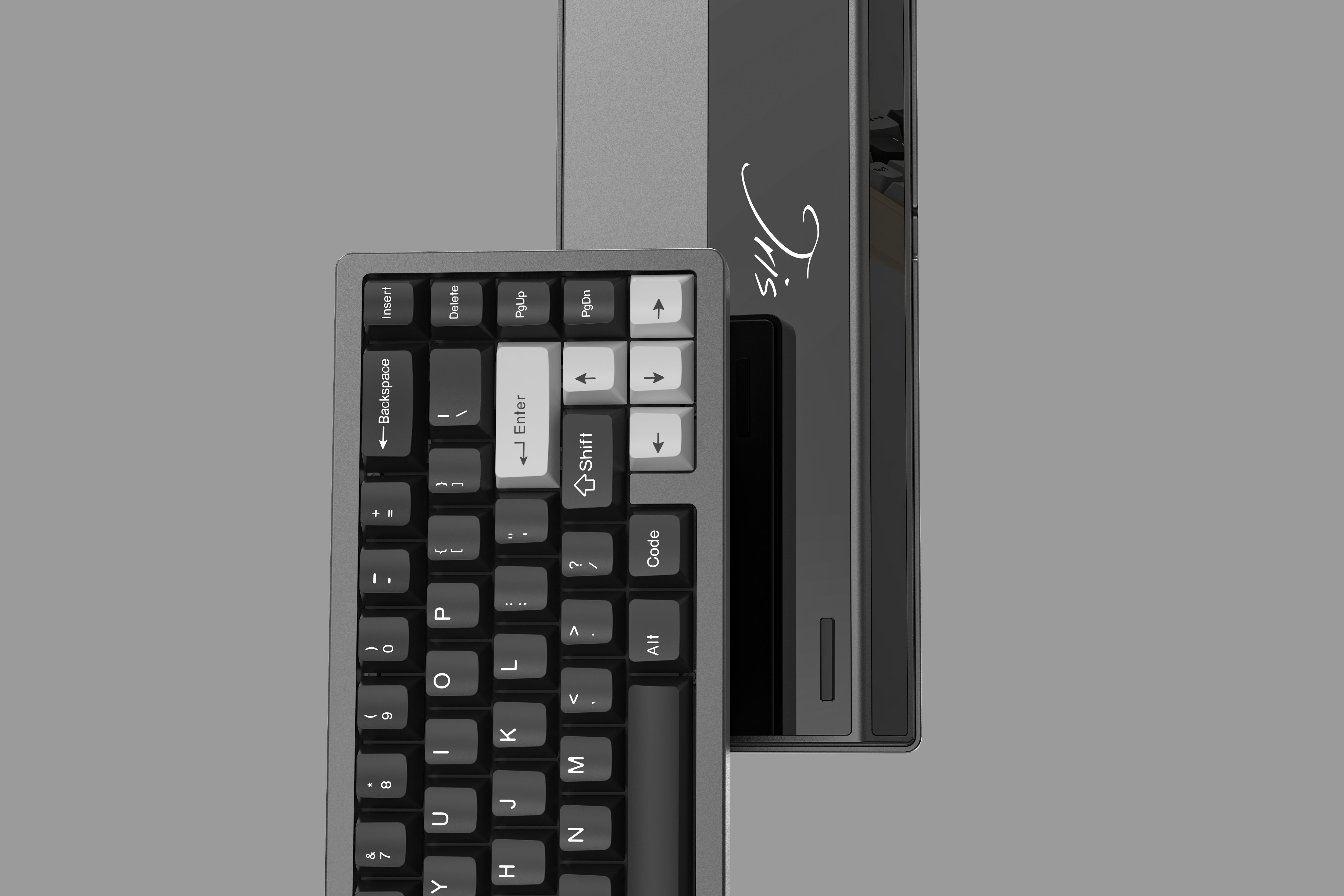

    • Titanium Grey

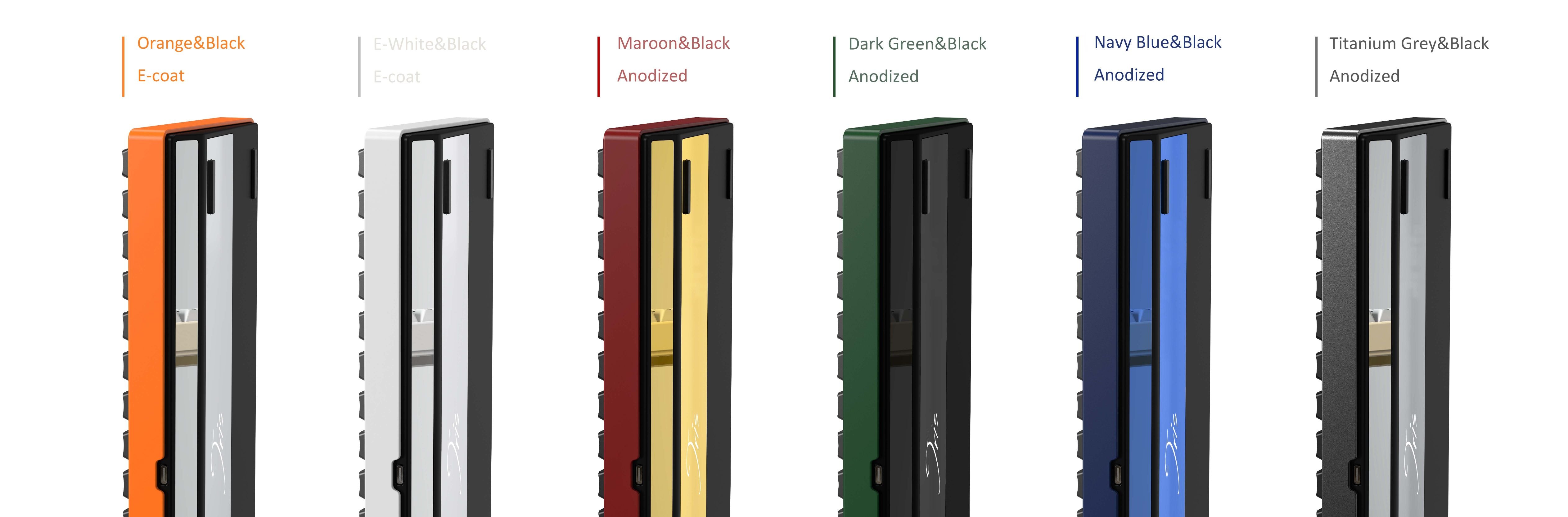

  • 6 Colour Combos Case

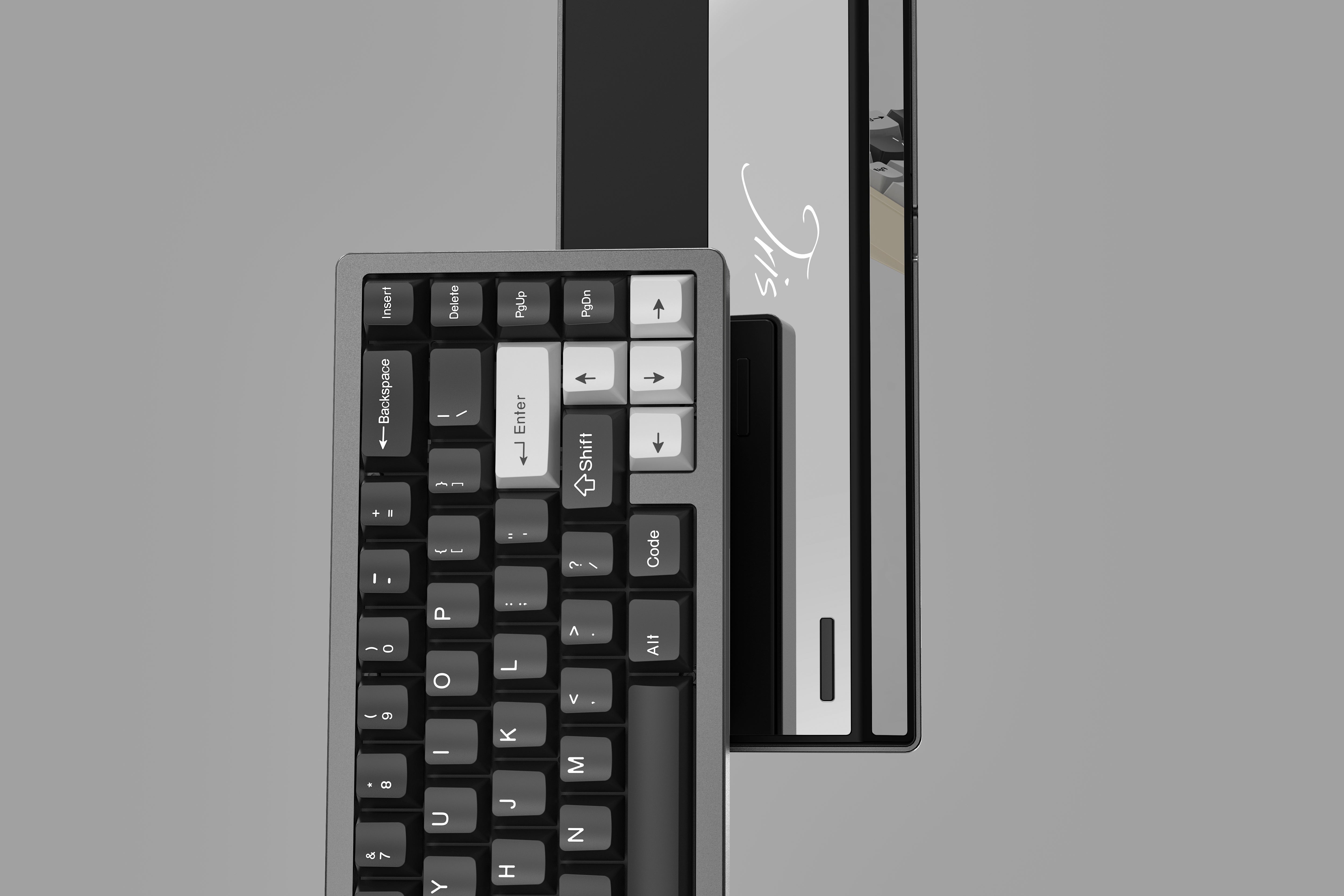

    • Titanium Grey & Black

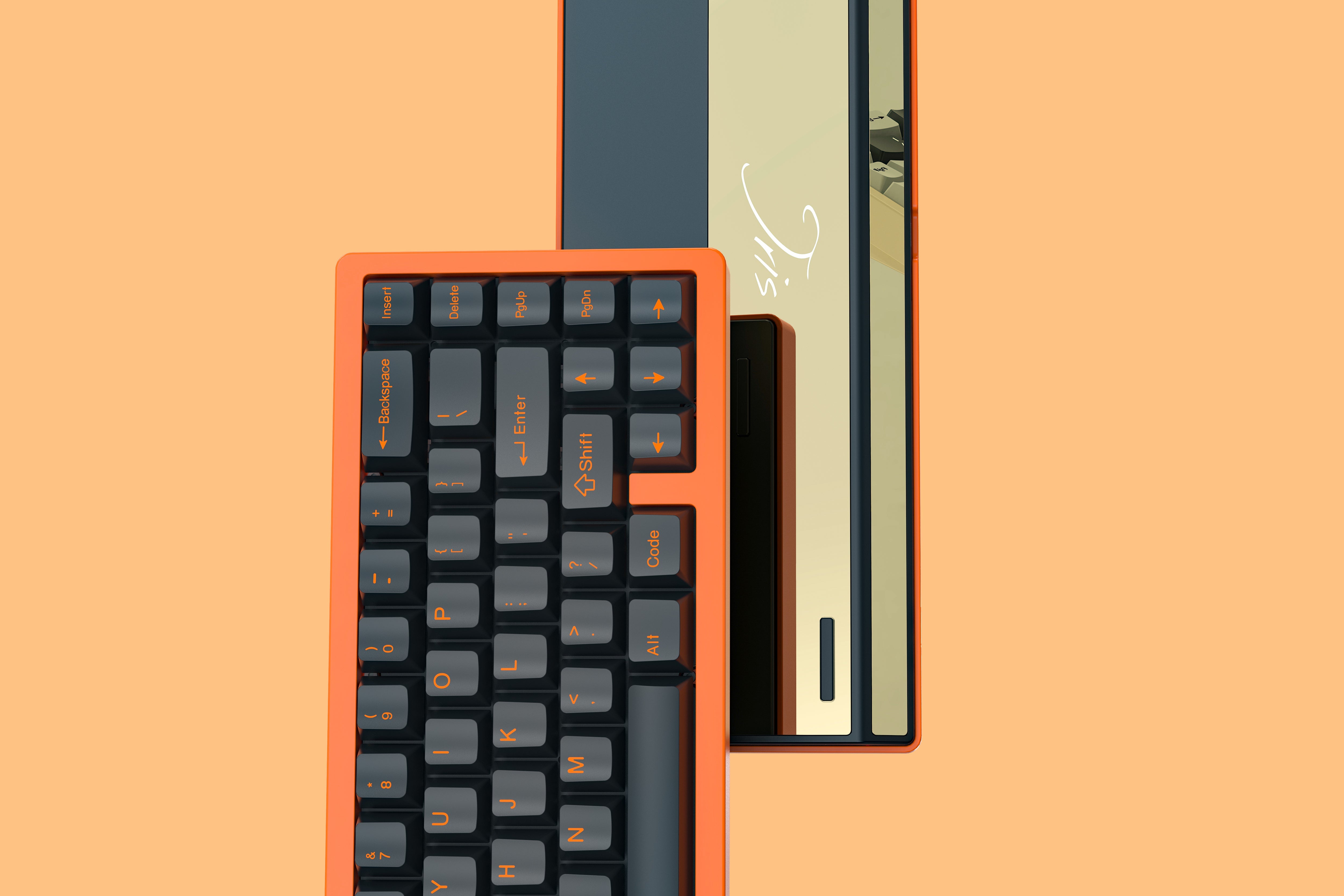

    • Orange & Black

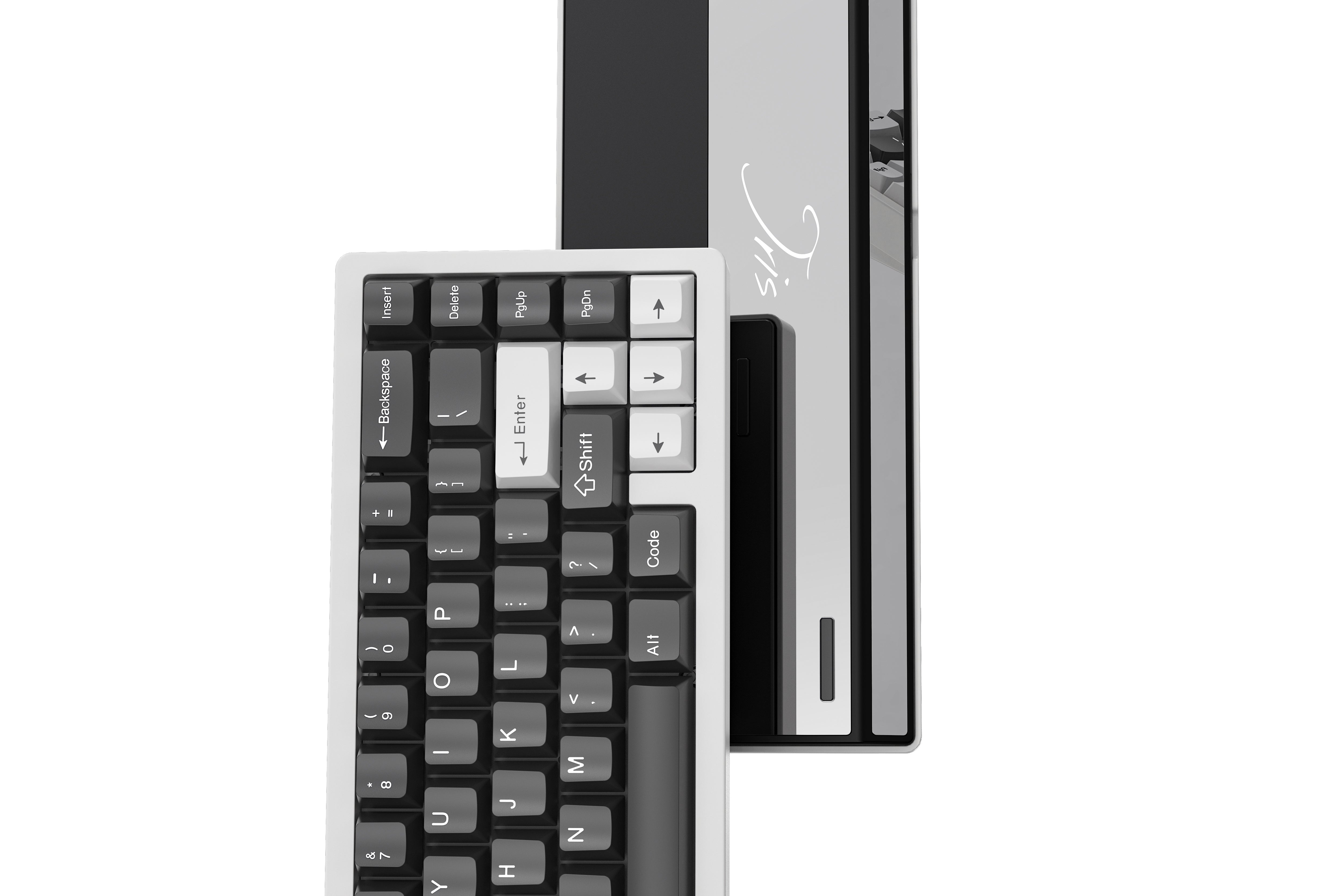

    • E-White & Black
    • Maroon & Black

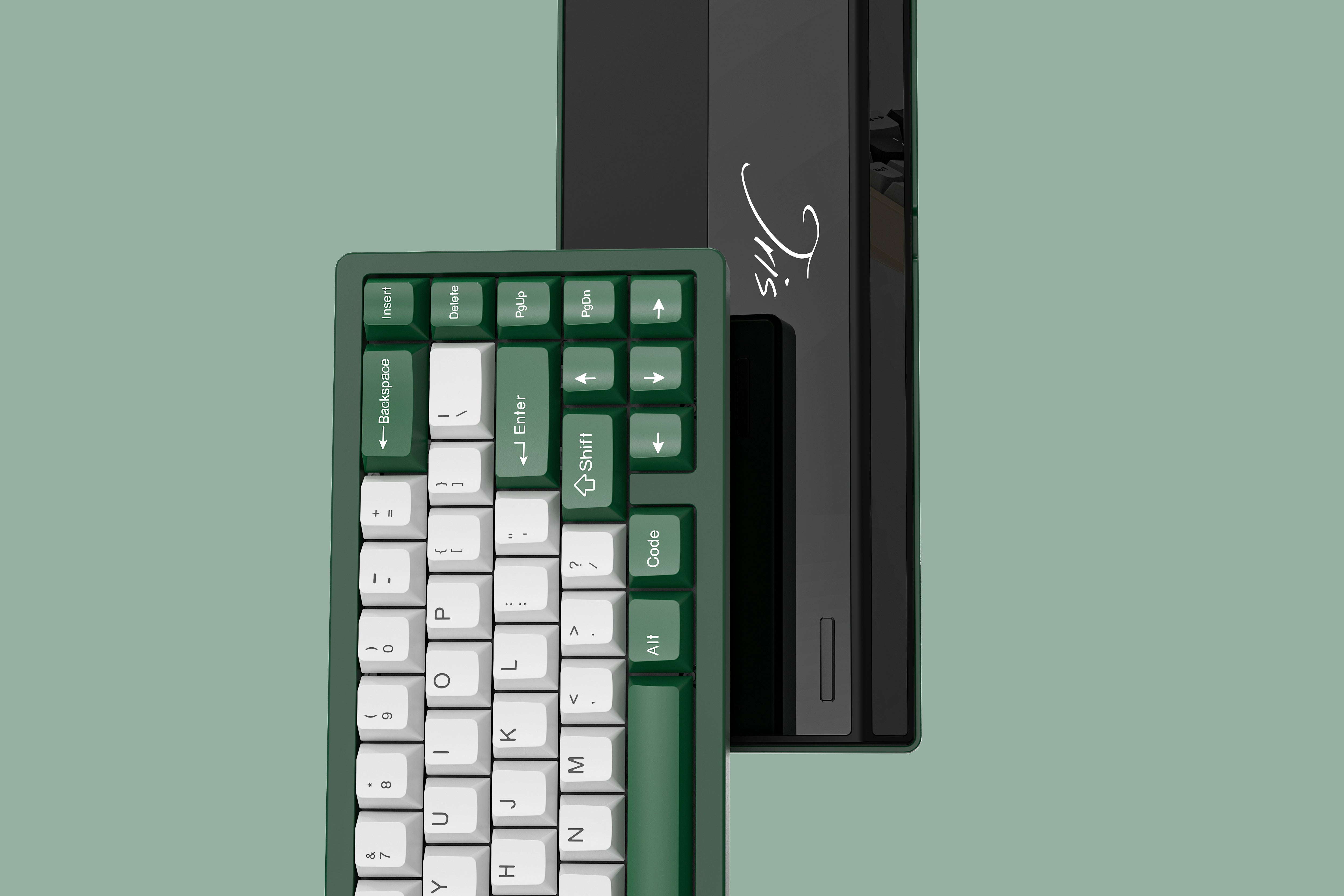

    • Dark Green & Black

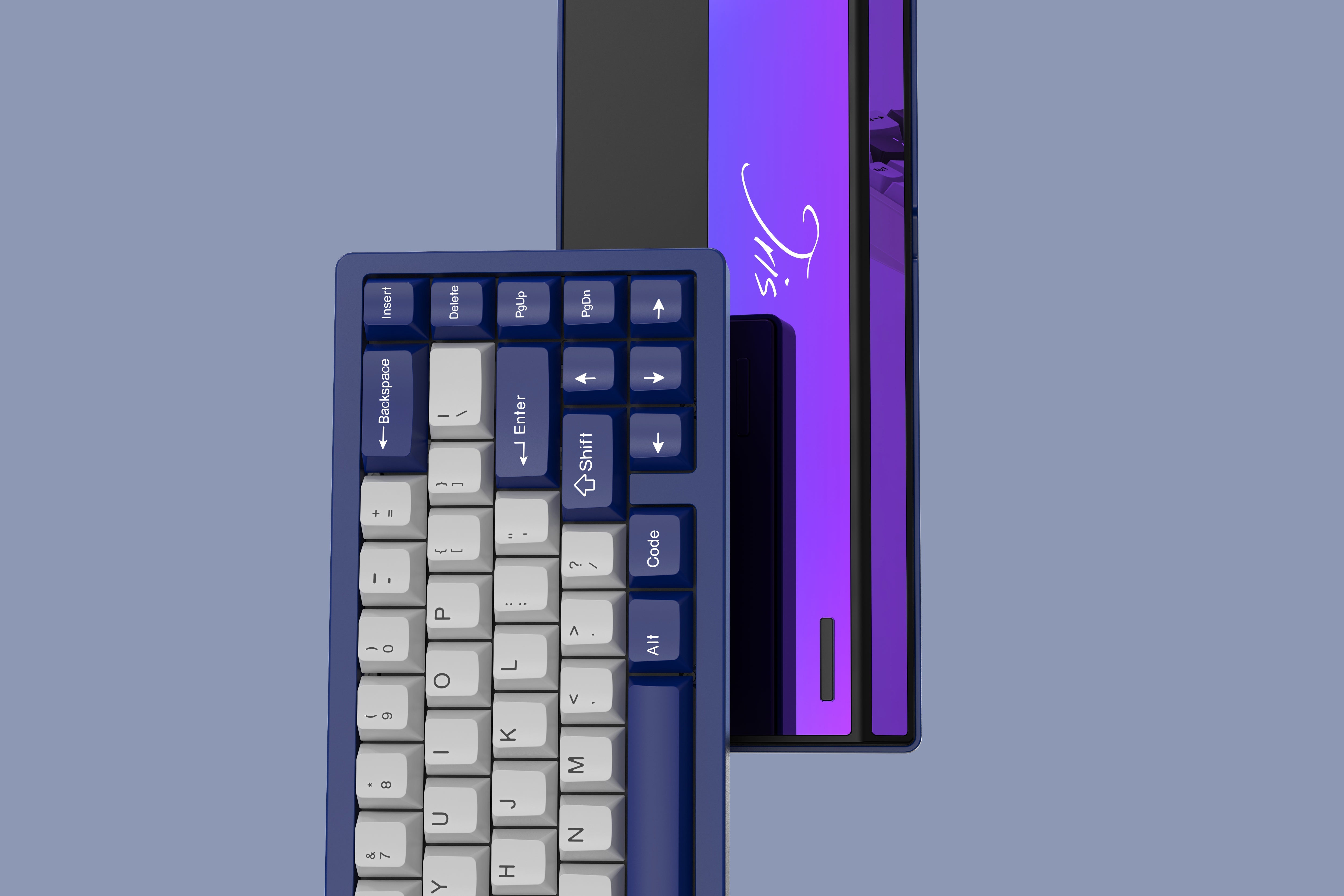

    • Navy Blue & Black
  • Weight Options:

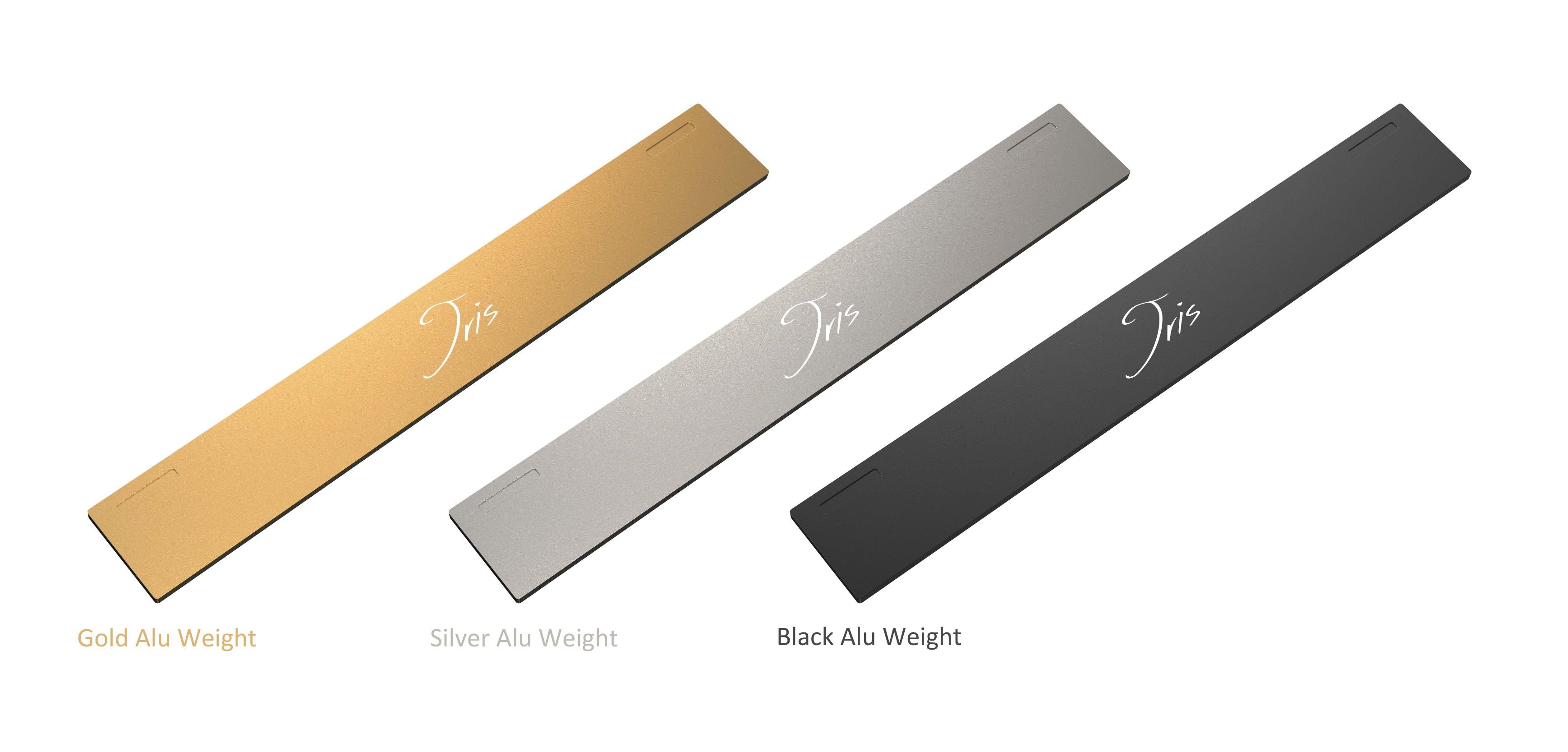

    • Anodised Alu Weight:
      • Black
      • Silver
      • Gold

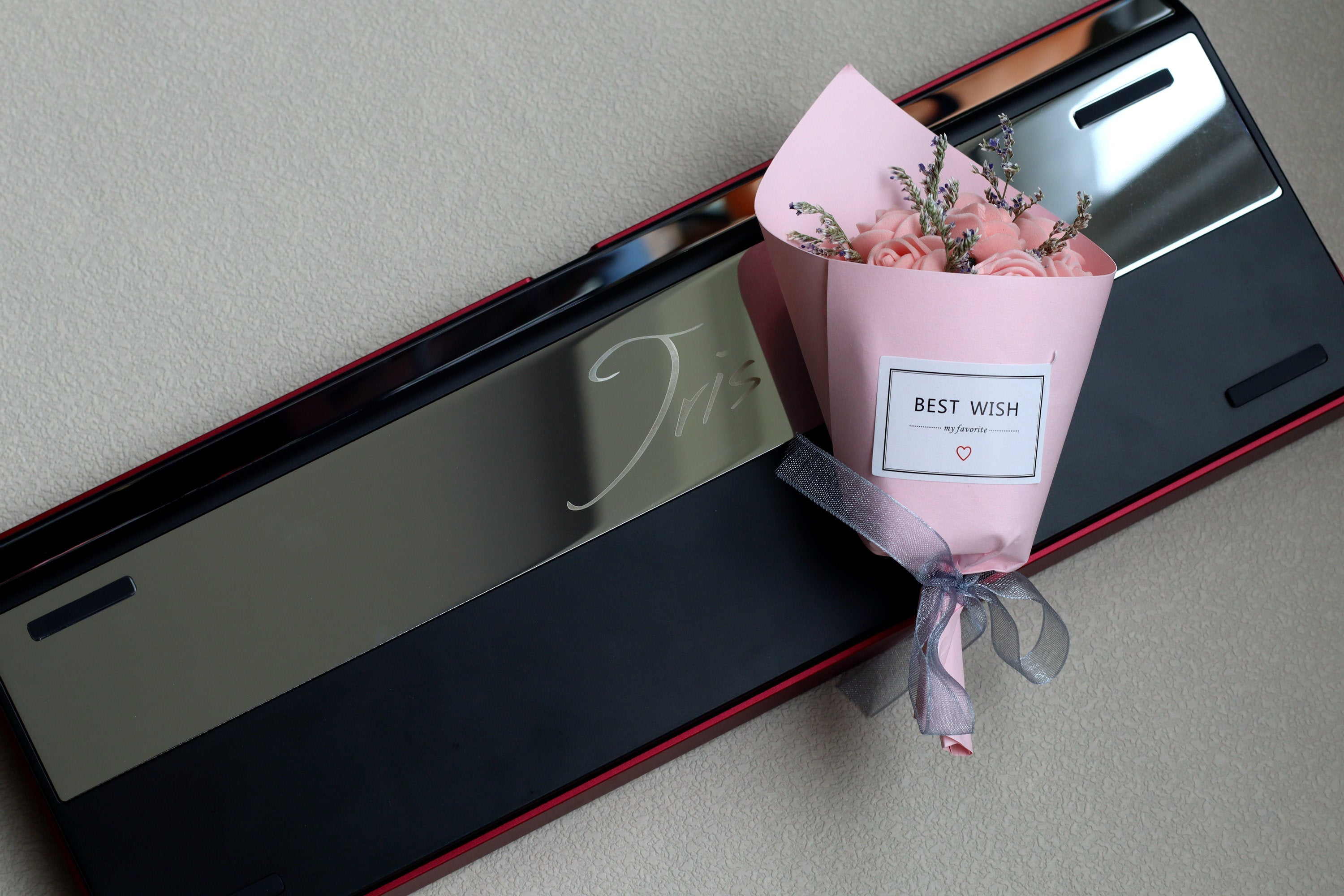

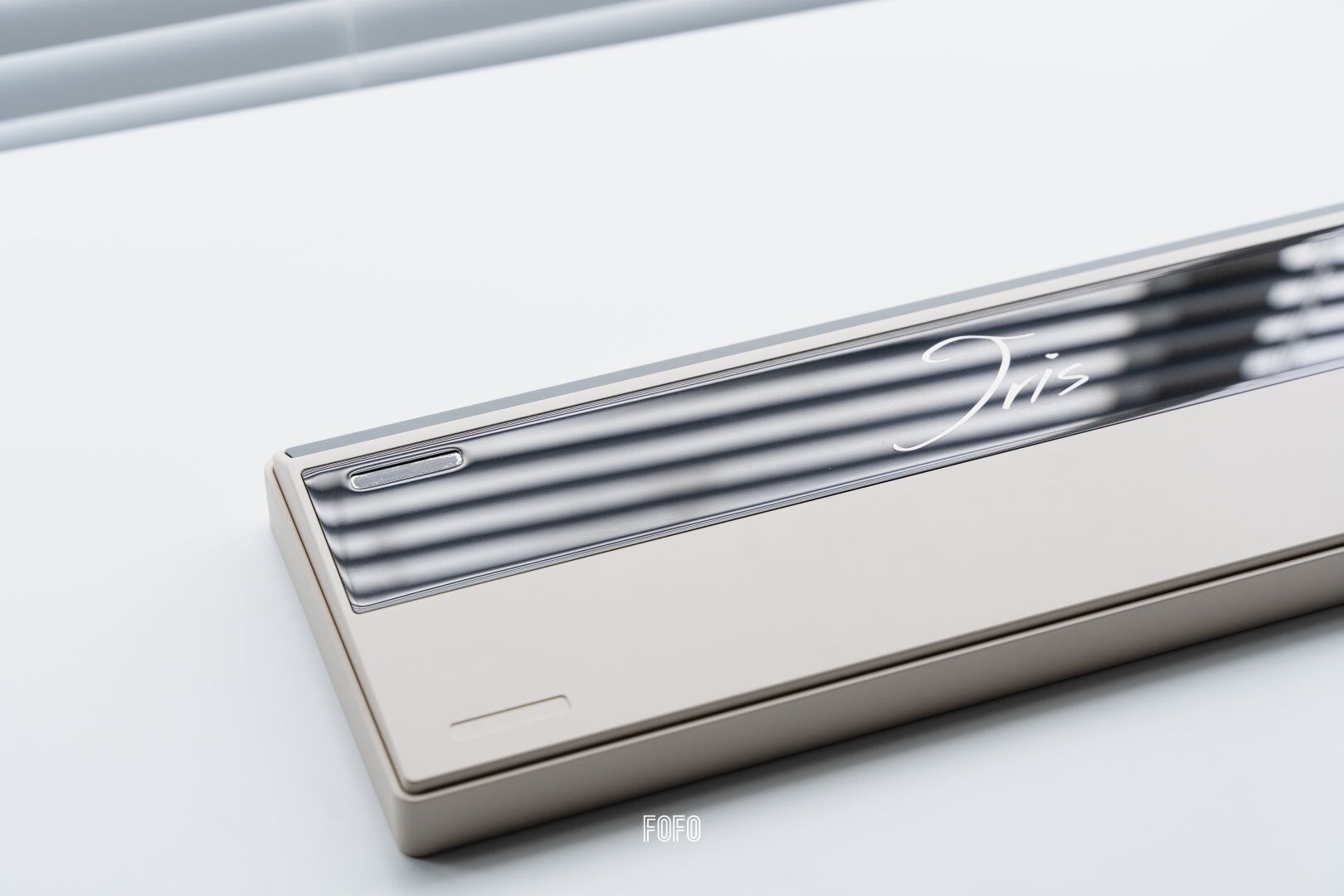

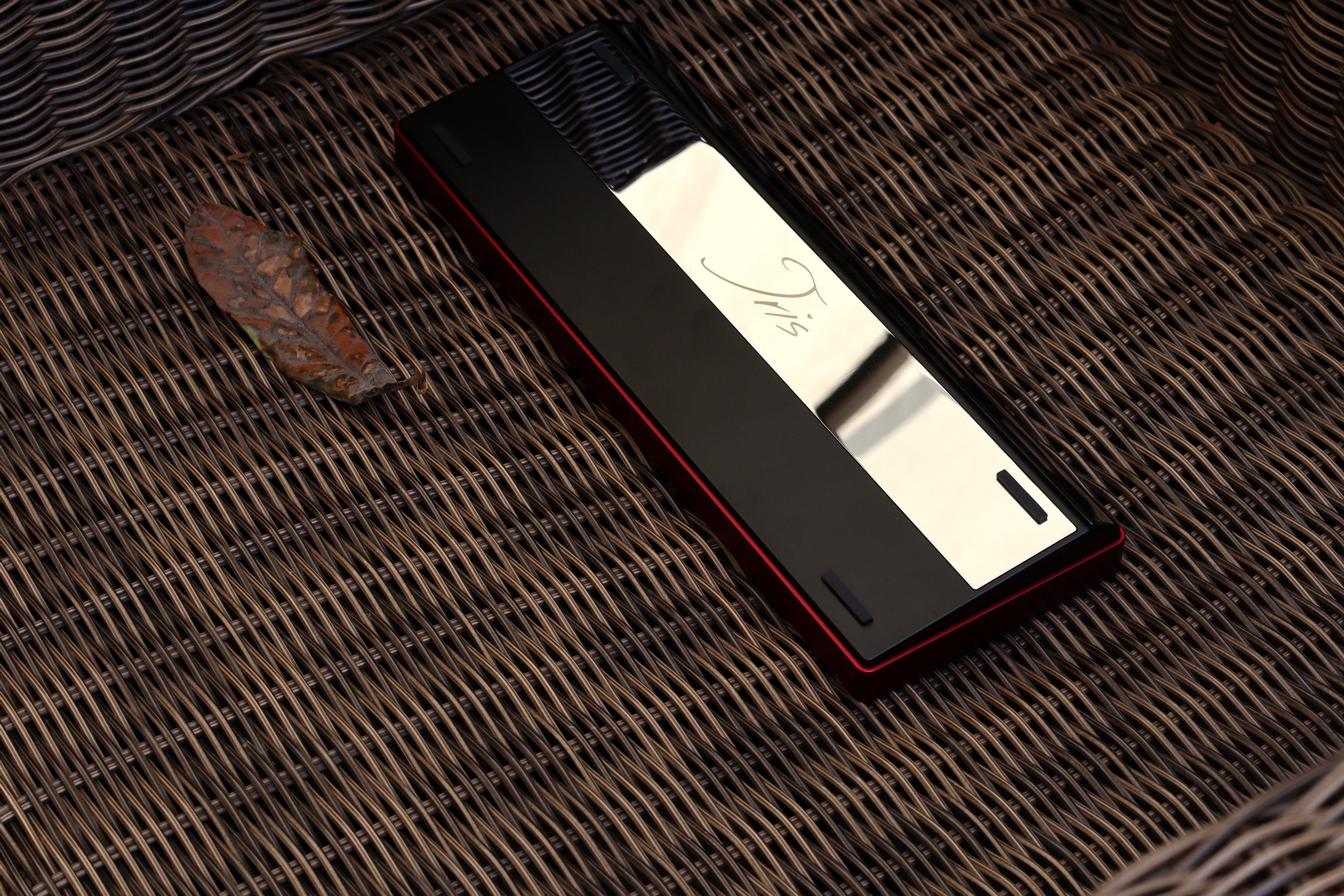

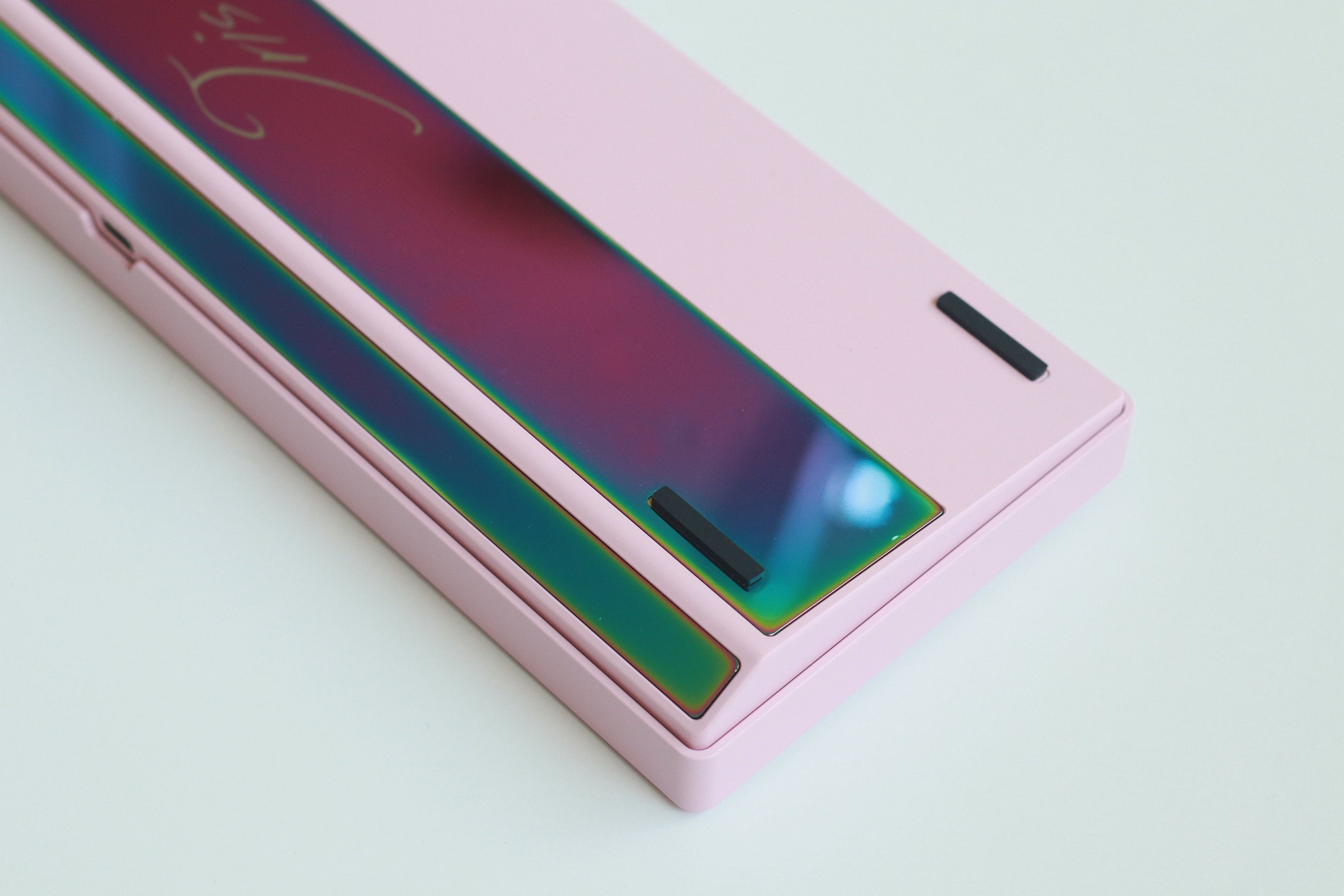

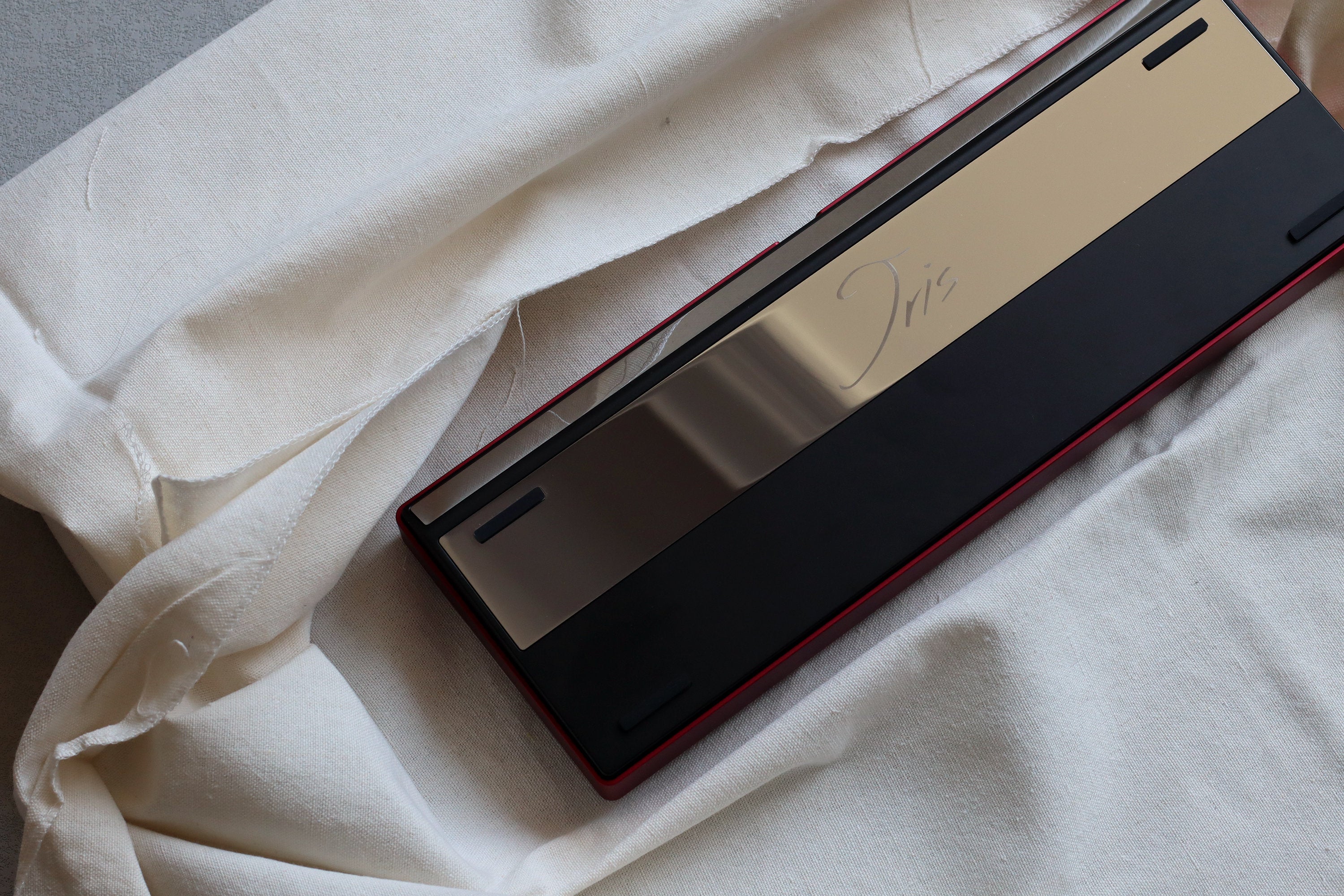

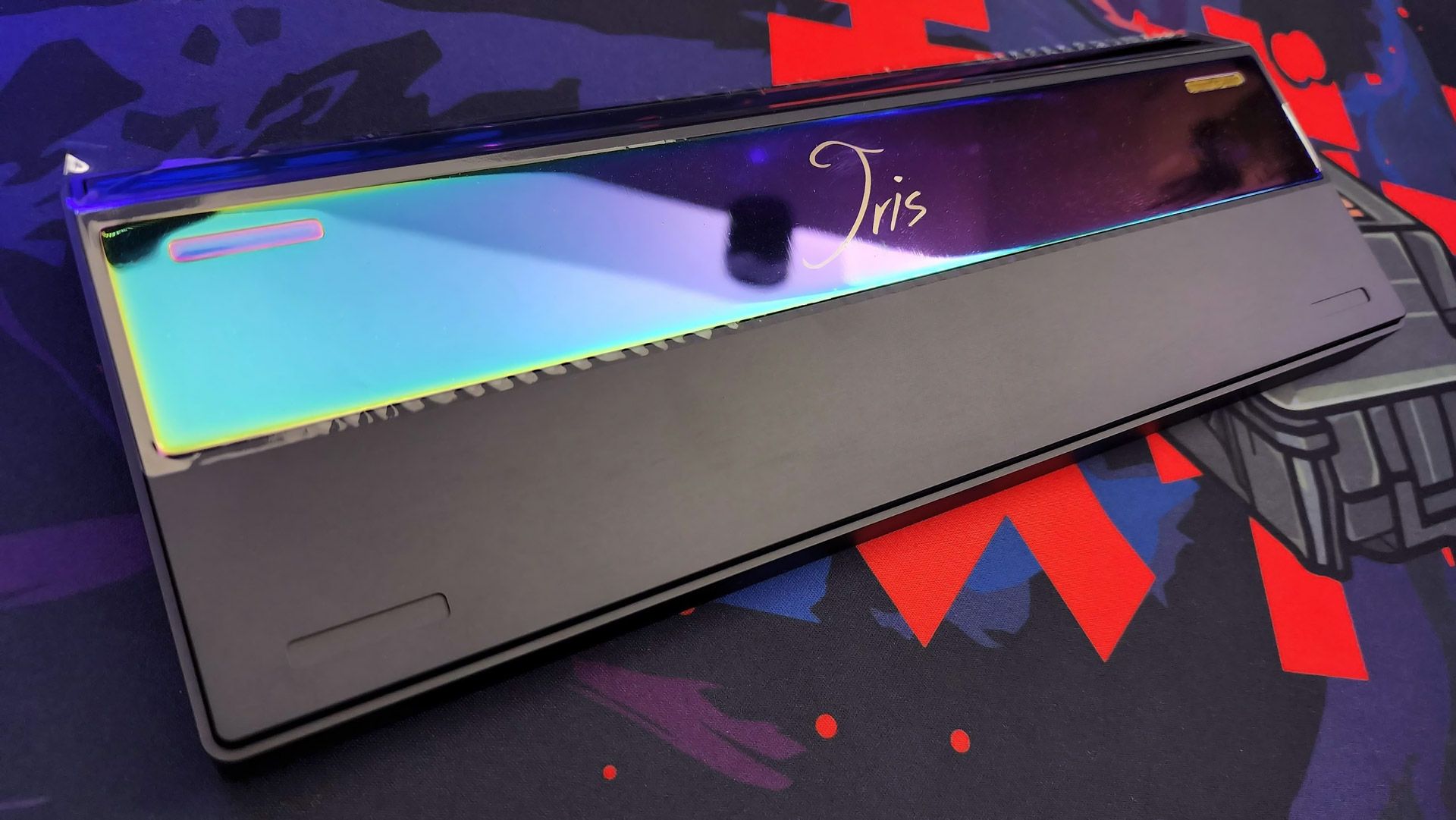

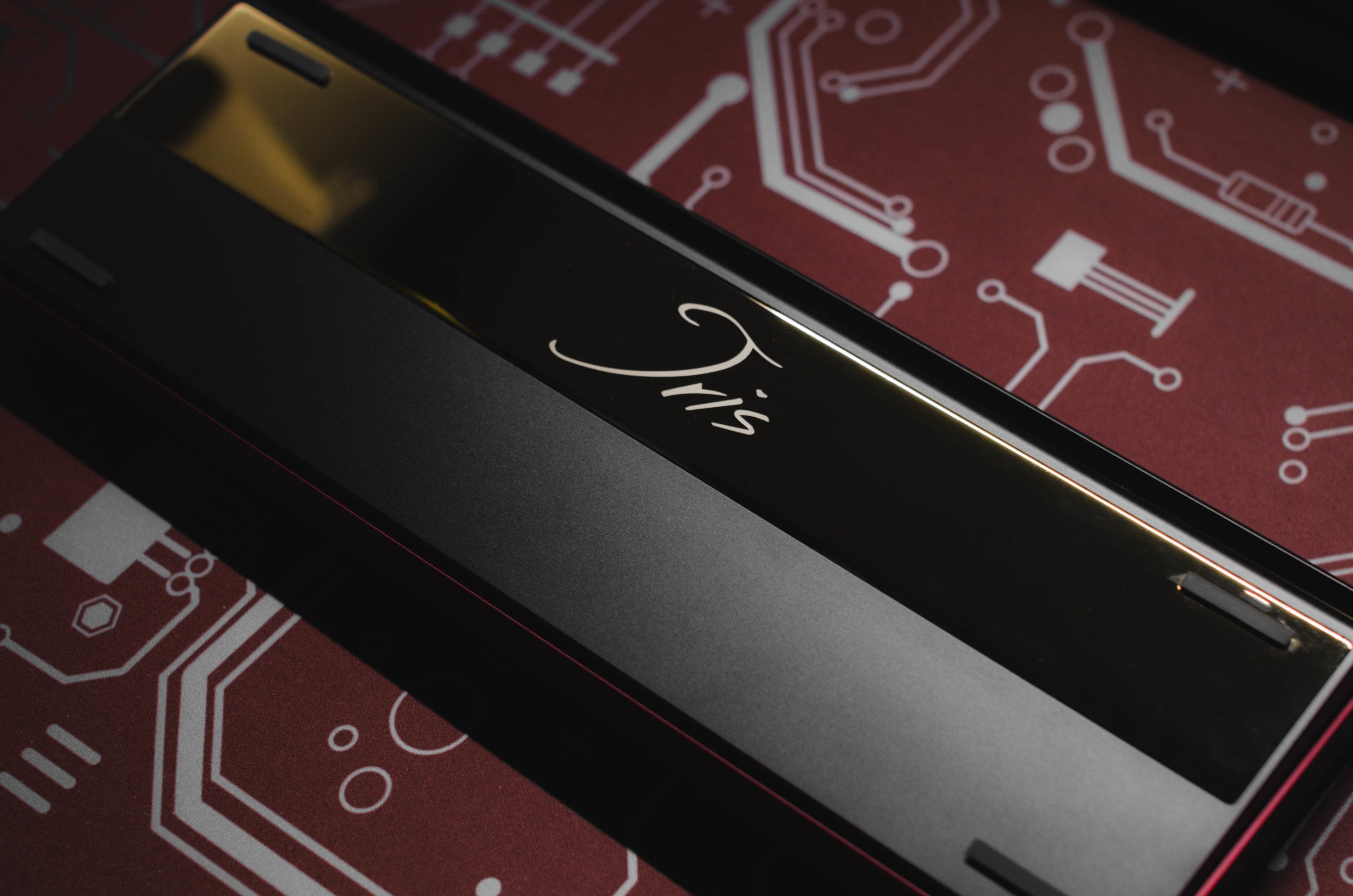

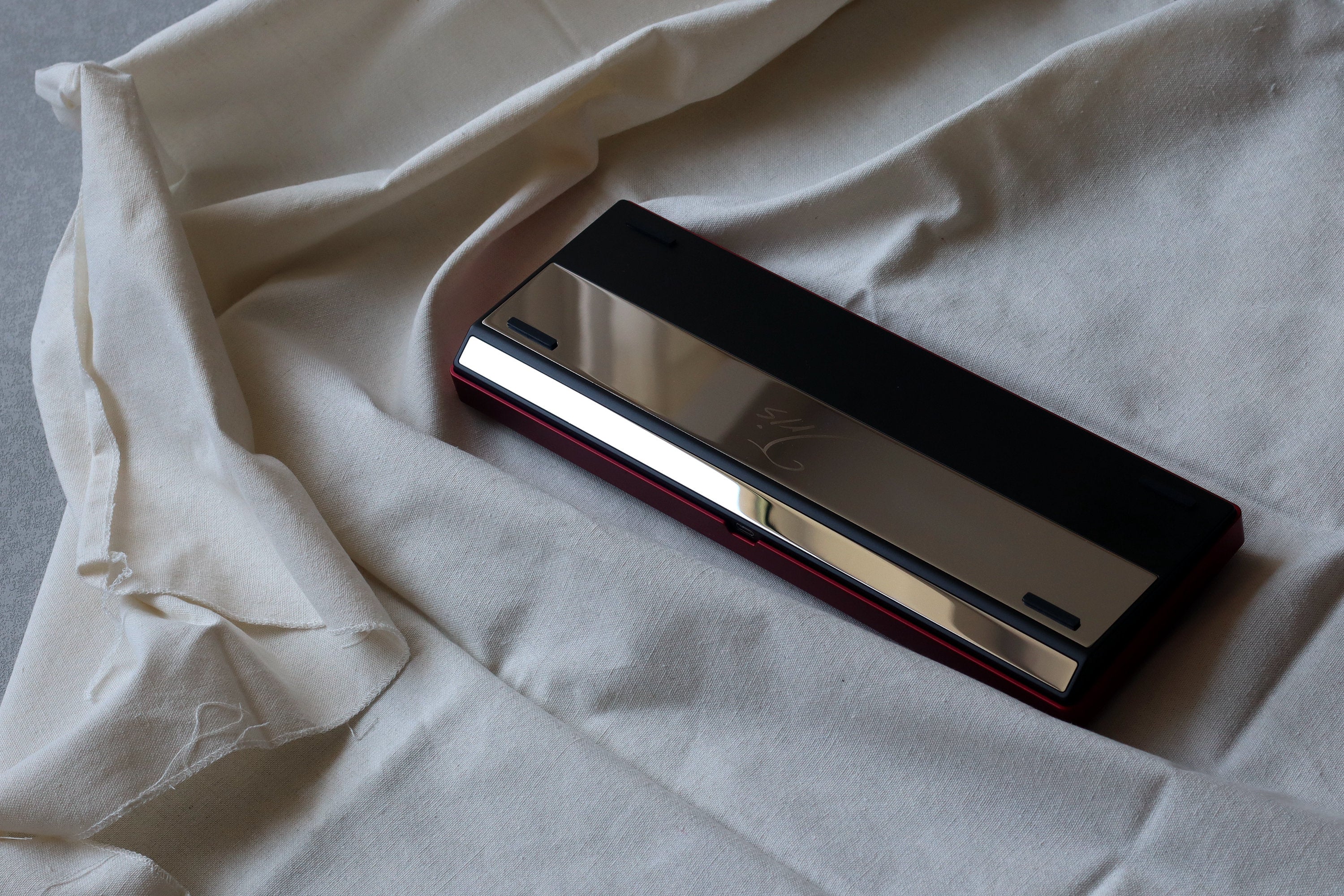

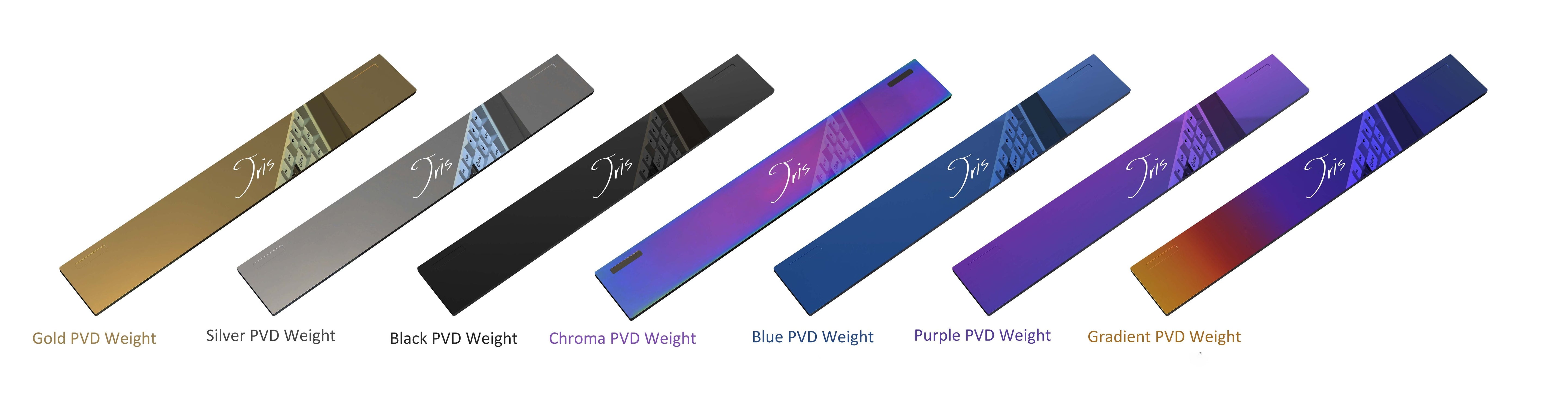

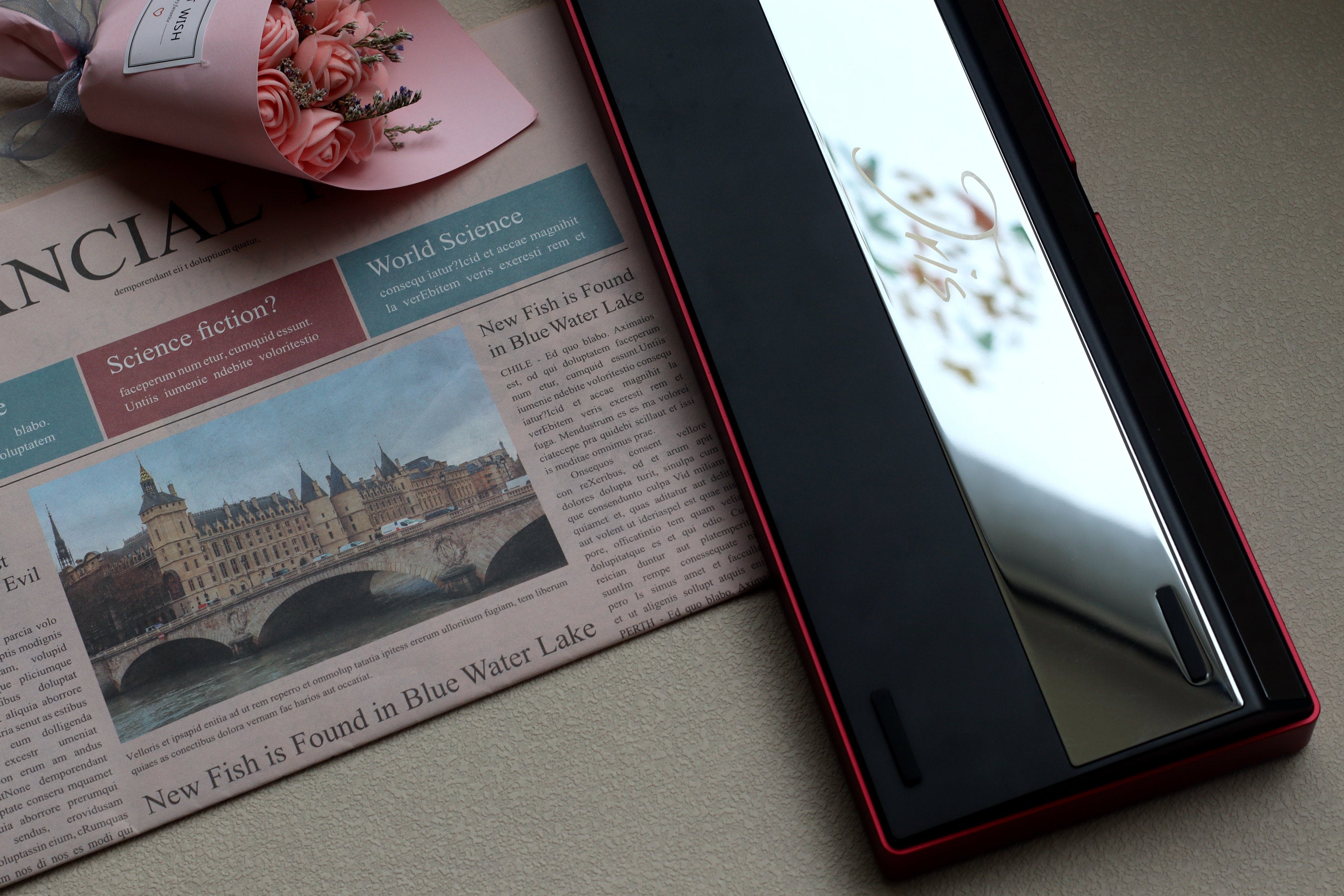

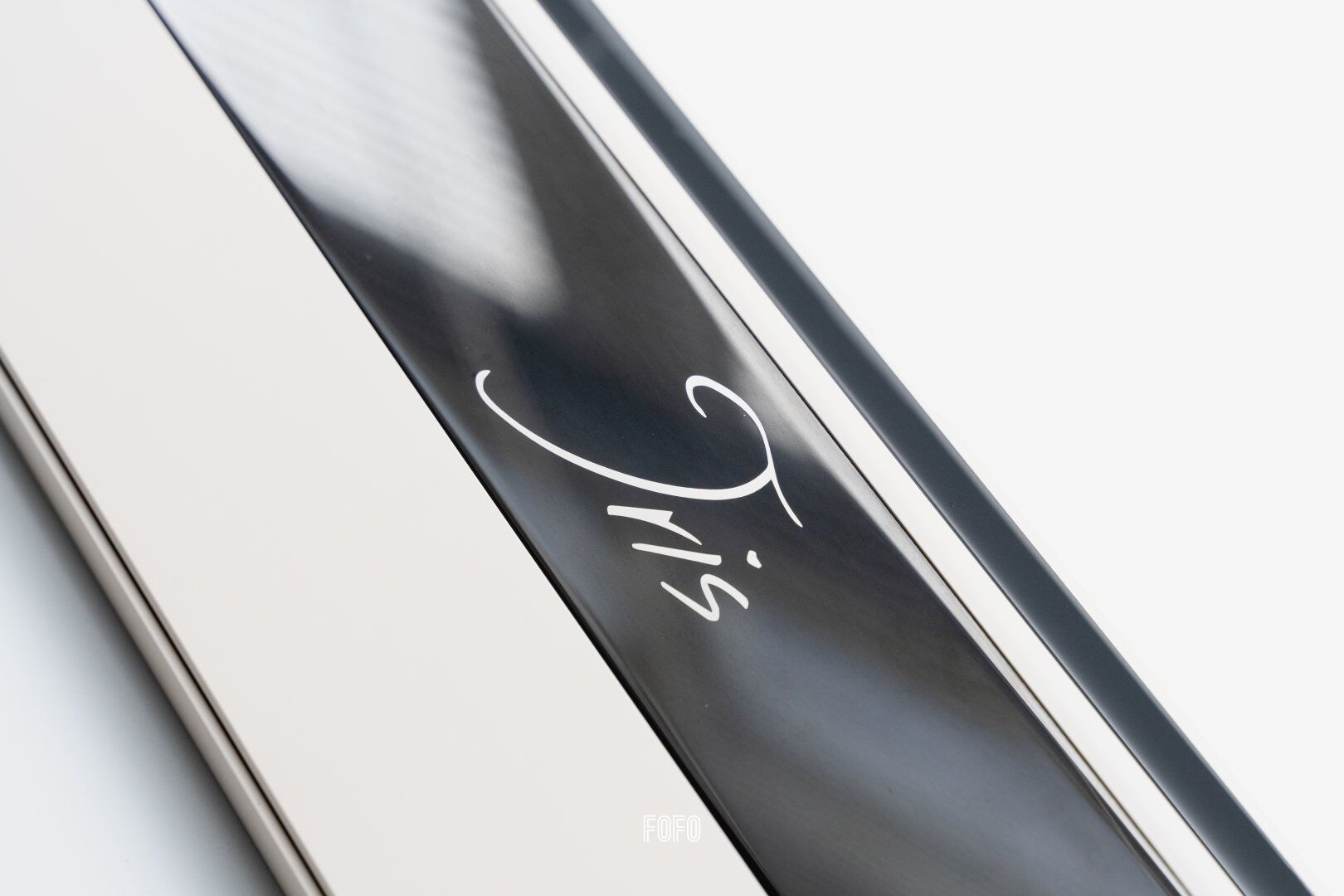

    • PVD Mirror Stainless Steel Weight:
      • Gold
      • Silver
      • Black

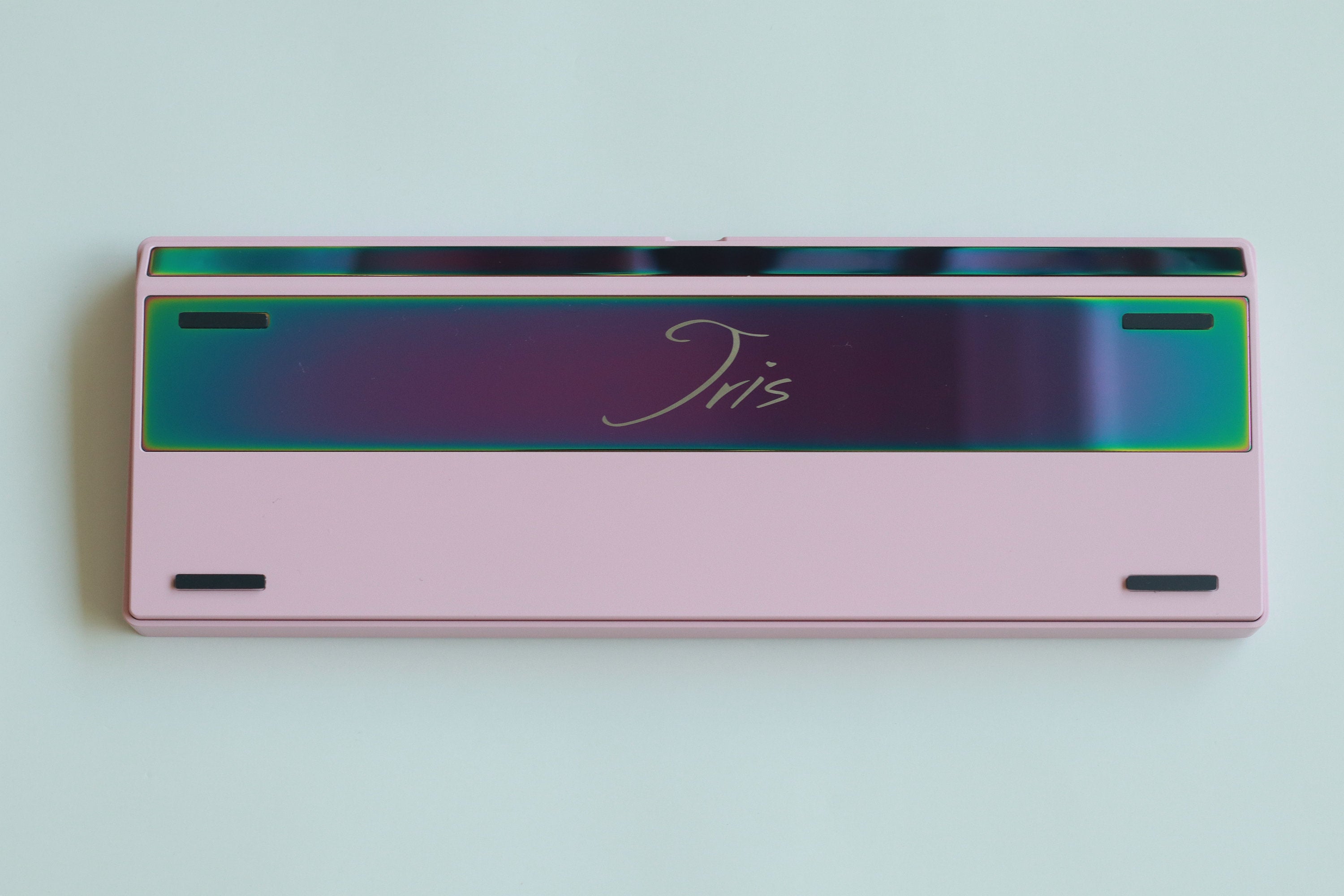

      • Chroma
      • Blue
      • Purple
      • Gradient
  • PCB Options - Solder is standard - upgrade through the Upgrade List:

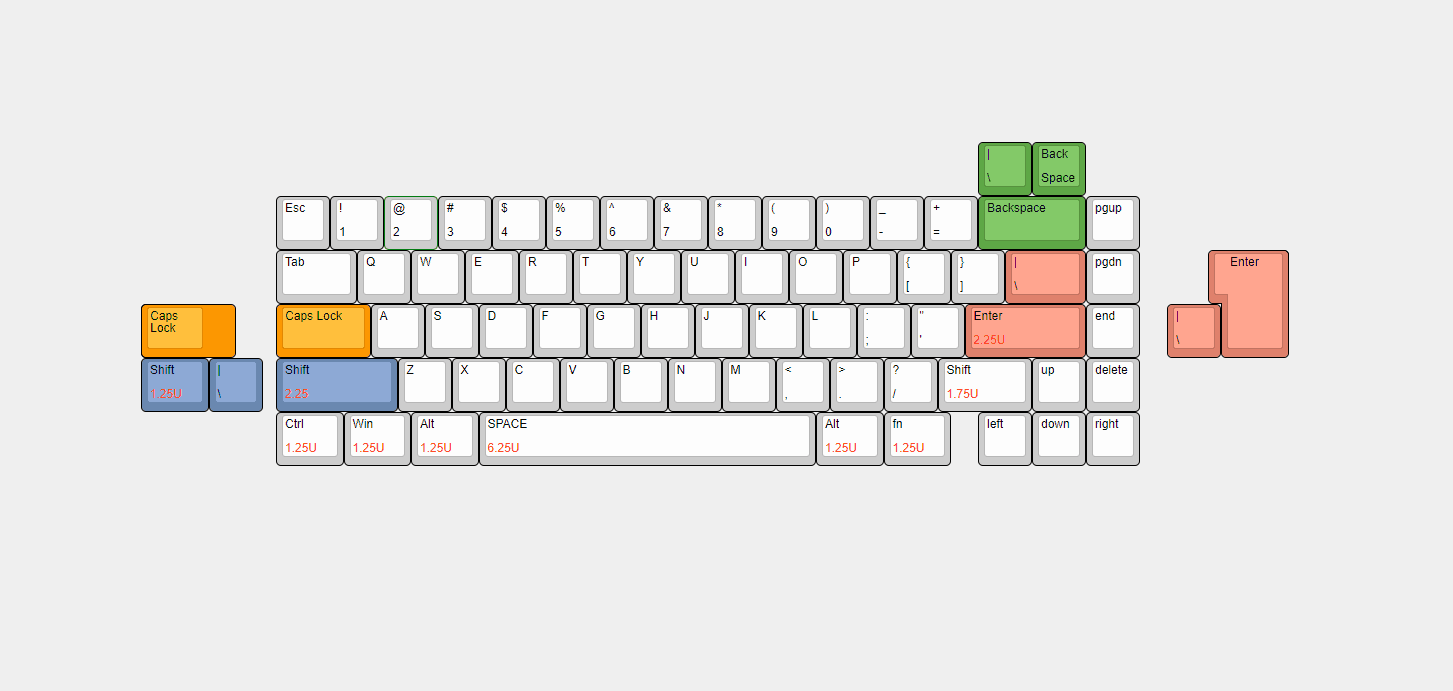

    • Wired Flex Cut Black core Hotswap PCB( 1.2mm, Multi Layout, support QMK and VIA)
    • Wired Non-Flex Cut Black core Hotswap PCB(1.6mm, Multi Layout, support QMK and VIA)

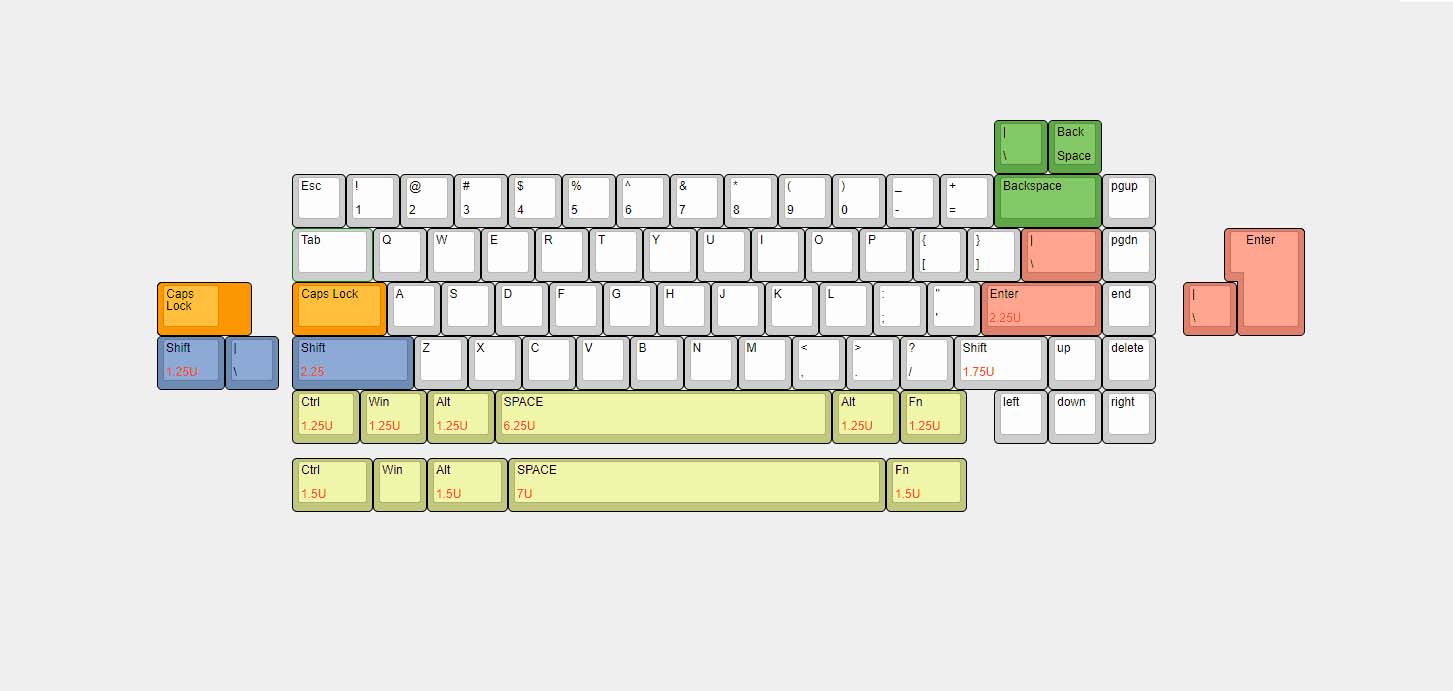

    • Wired Flex Cut Black core Solder PCB( 1.2mm, Multi Layout, support QMK and VIA)

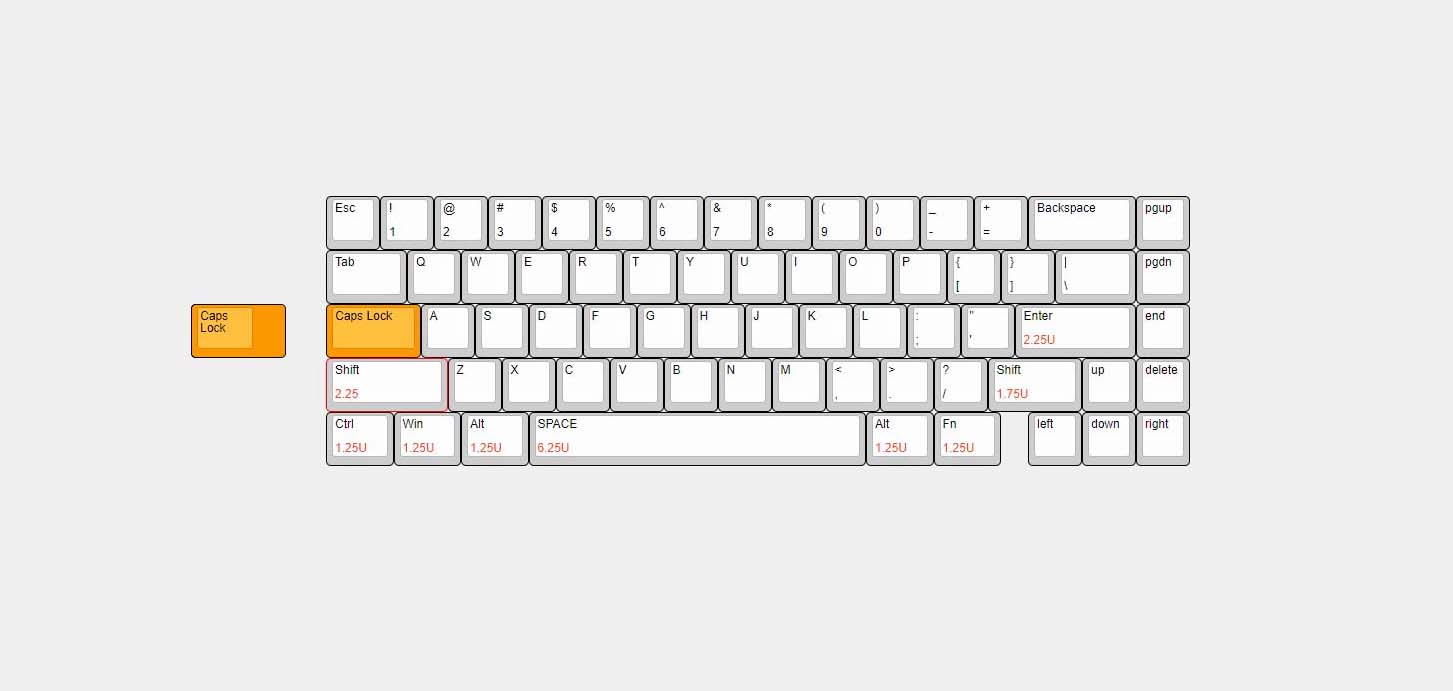

    • 5.2 Bluetooth Hotswap PCB ( 1.2mm, ANSI Layout, support LDN Software)
    • BT PCB is cooperating with Li Dana. LDN’s PCB is famous in China because his PCBs are stable and qualified and use friendly. It has its drive and software, which can edit the key mapping. Please check the software driver interface here
    • 8 devices can pair with at the same time, and it is easy to switch devices you want
    • The power switch is on the PCB, easy to turn BT function on/off
    • The fastest response time is only 1.25ms
  • Plate Options - Alu is standard - :
    • PC
    • POM
    • FR4
    • ALU

Plateless Build Option:

We highly suggest building plateless with 5mm extra plate foam and solder PCB. The 5mm extra plate foam will bring a softer typing feel, and the typing sound will be cleaner. Without the 5mm plate foam it will also work fine, the typing feel and sound are very different.

Note: We highly recommend using a PC/ POM/FR4 plate for BT PCB because the Brass and ALU plate will have a little affection for connectivity.

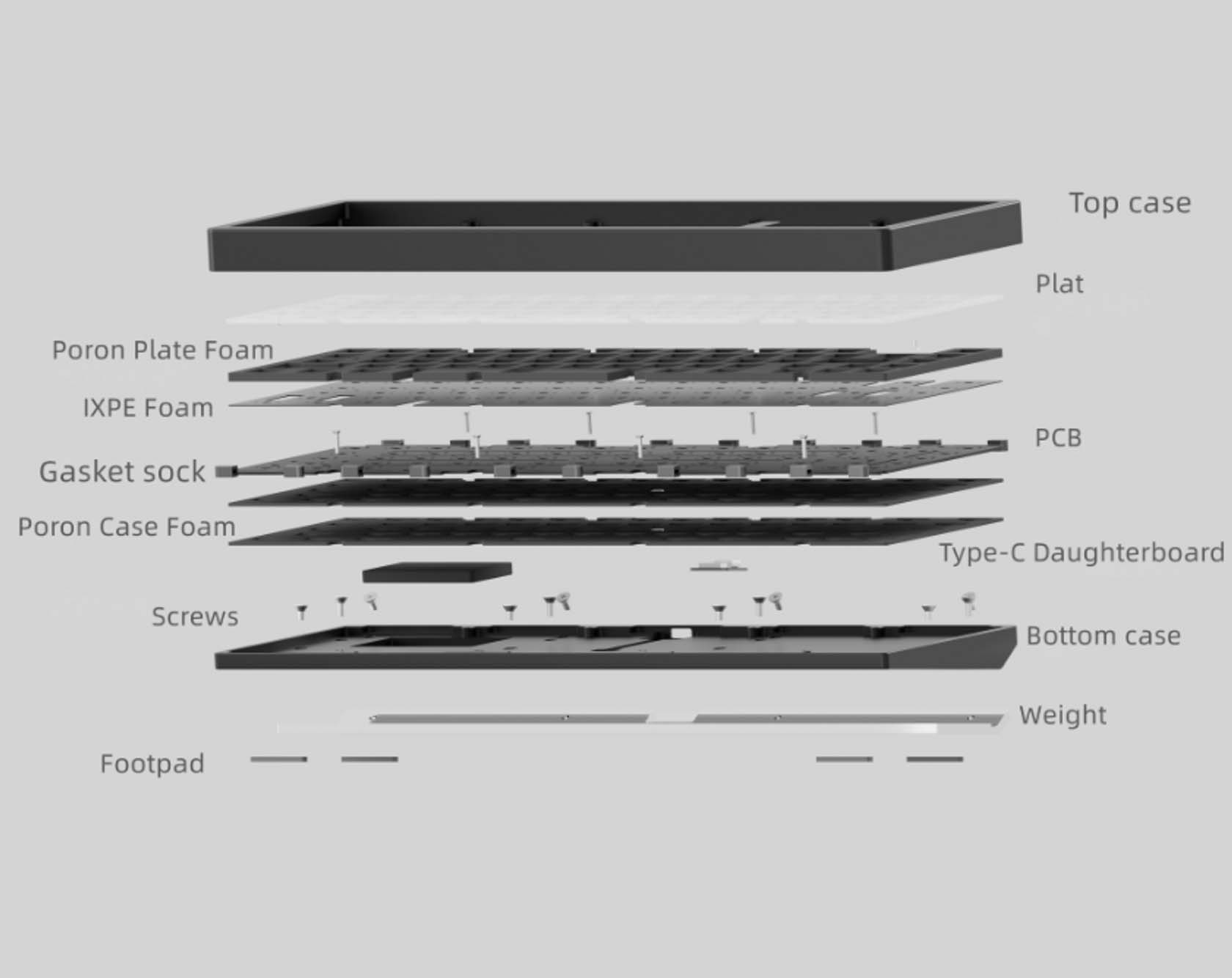

What's Included?

  • 1x Full CNC Aluminium Case
  • 1x Weight (Anodised Alu/PVD Mirror)
  • 1x PCB (Hotswap/Soldered/Bluetooth)
  • 1x Plate (PC/FR4/Alu/POM)
  • 1x Type-C Daughterboard with JST Cable
  • 1x IXPE Foam
  • 1x Poron Plate Foam
  • 2x Poron Case Foam
  • 1x Masking paper for PCB
  • 10x gasket jackets (use socks above the USB- type C port)
  • 20x gasket socks
  • 1 Set of PCB stabilisers O-ring
  • 1 Set of Footpad
  • 1x Silicone pad of battery compartment (We include this as default, so you don't need to consider choosing which PCB to be the default)
  • 1x Battery (Only for the Bluetooth version)
  • Gift (will not send make-up or replacements)
  • 1x USB-Type C keyboard cable
  • 1x Carrying Case




Each kit comes with fragile labels. Please check the appearance thoroughly before building. If you see any noticeable flaws/scratches on the external surfaces, please take a photo and contact IRISLab / ProtoTypist Keyboards immediately. We are not be responsible for any flaws/scratches found after building.

Due to the nature of the PVD coat, there may be minor, unavoidable dust points/micro scratches on the mirror finish of the PVD weight. The small dust points/micro scratches are only visible at just the right angle of the lighting.

The Chroma PVD Mirror Stainless steel weight has random nature. Each weight may have some slight differences.

CNC marks and imperfections inside the keyboard case or dents on the subject are not visible when the keyboard is fully built. These are normal and within our quality acceptance.

On all other surfaces and edges, blemishes under 2mm are approved.

Other than the case itself, all parts with cosmetic imperfections will not be replaced unless the function is damaged/defective for usage.

Warranty only applicable for the first owner who purchased on our website or at our collaborative shops, with proof of purchase such as order number and confirmation - contact IRISLab for warranty information

The IRISLab warranty covers the PCB for one year of use or if dead on arrival without any modification.

Broken parts due to any human error will void your warranty, including but not limited to: mill-maxing PCB, tape-modding PCB, hotswap sockets that are pushed out of the PCB solder pads, not following the steps to flash PCB and caused no function/defective PCB

In the case of missing or incorrect gifts, we will not ship out replacements or issue a partial refund.

As this is an In Stock item please do not add items from group buys to this order as it will delay your orders shipping till everything is available.
