(In Stock) Matrix 8XV 3 1/3 Keyboard Kit

Sale price£509.17

Pickup available at ProtoTypist Keyboards - Customer Collection

Usually ready in 24 hours

(In Stock) Matrix 8XV 3 1/3 Keyboard Kit

(In Stock) Matrix 8XV 3 1/3 Keyboard Kit

Meteorite Grey / WKL and Non Flex Cut Plate / Mirror PVD

ProtoTypist Keyboards - Customer Collection

Pickup available, usually ready in 24 hours

ProtoTypist Keyboards
1 Alpha Court
Bradford BD5 8FH
United Kingdom

+447843244701

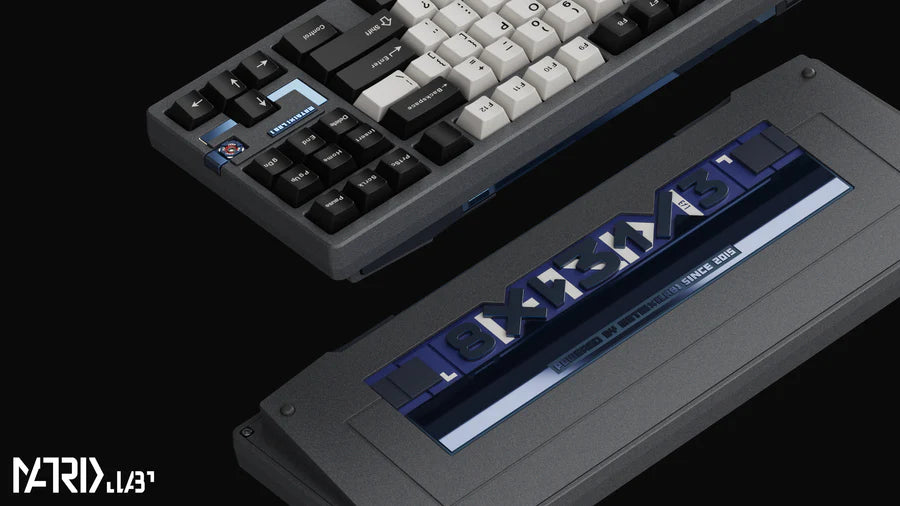

Case Colour: Meteorite Grey

Case Colour

Layout and Plate: WKL and Non Flex Cut Plate

Layout and Plate

Weight Finish: Mirror PVD

Weight Finish


IN STOCK - Ships within 3 working days, all sales final.


Overview:

Basic Information:

  • Front height: 20mm
  • Angle: 6
  • Weight: 2.39kg after build with keycaps
  • Length: 363mm, Width: 140mm

PCB:

  • 1.2mm; No flex cut; No RGB backlight; Caps Lock and Scroll Lock have indicator lights
  • High speed MCU, supports up to 8K Hz polling rate;

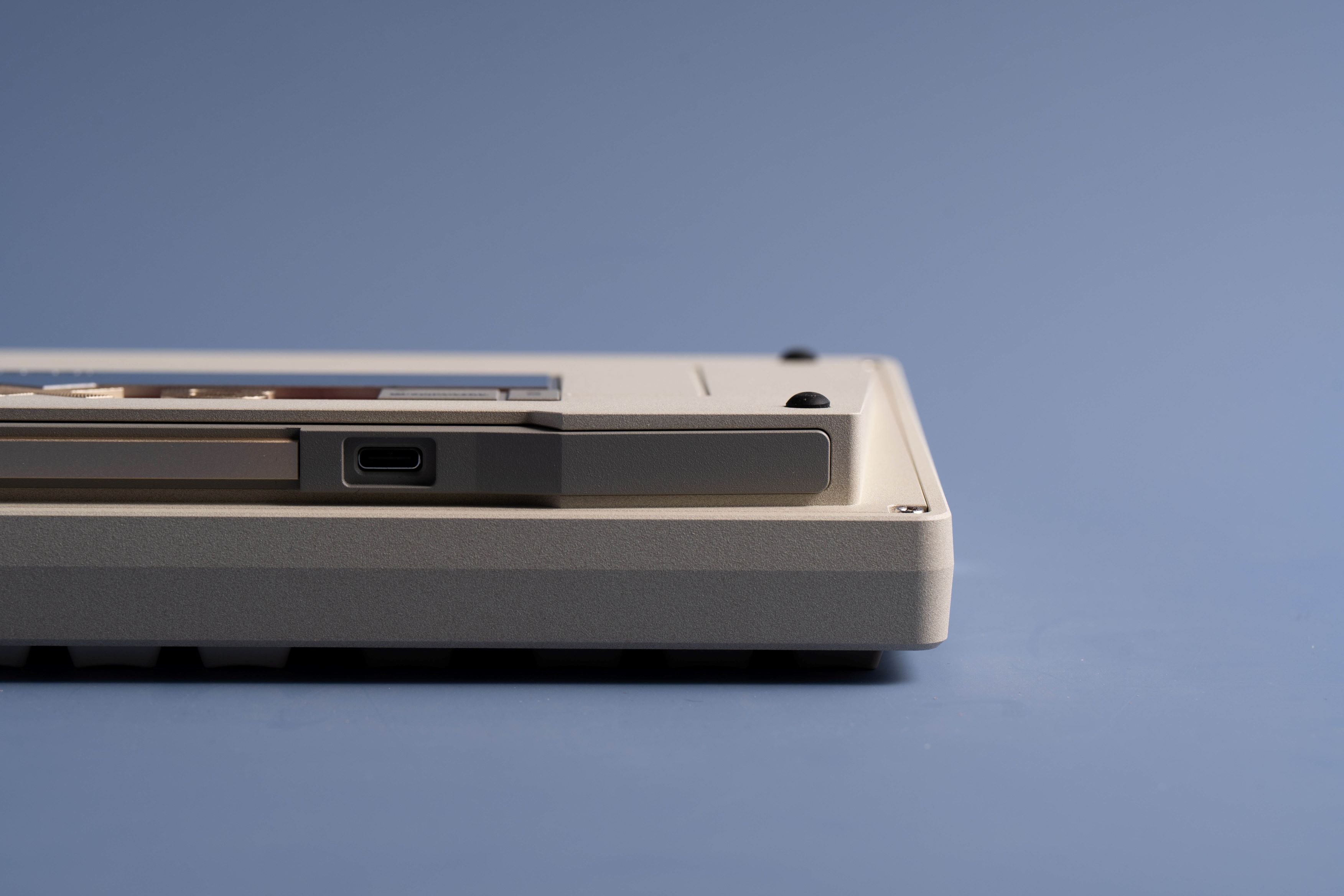

  • The type-c data port positions can be swapped between left and right side;
  • Supports two types of the front centre led ring;

Mount:

  • Supports top mount only and will offers two types films to achieve different typing feels;

Other:

  • Front replaceable accent cover;
  • Some stainless steel parts can be optionally treated with mirror PVD and marble pattern PVD;
  • Offers both normal plate and flex cut plate;
  • Each kit comes with an extra front replaceable accent cover with UV printing content (different colour from the case);

Available in Ten Case Colours:

Structure:

Front Circle Light

  • Comes with additional diffuser to change the style of the centre circle light.

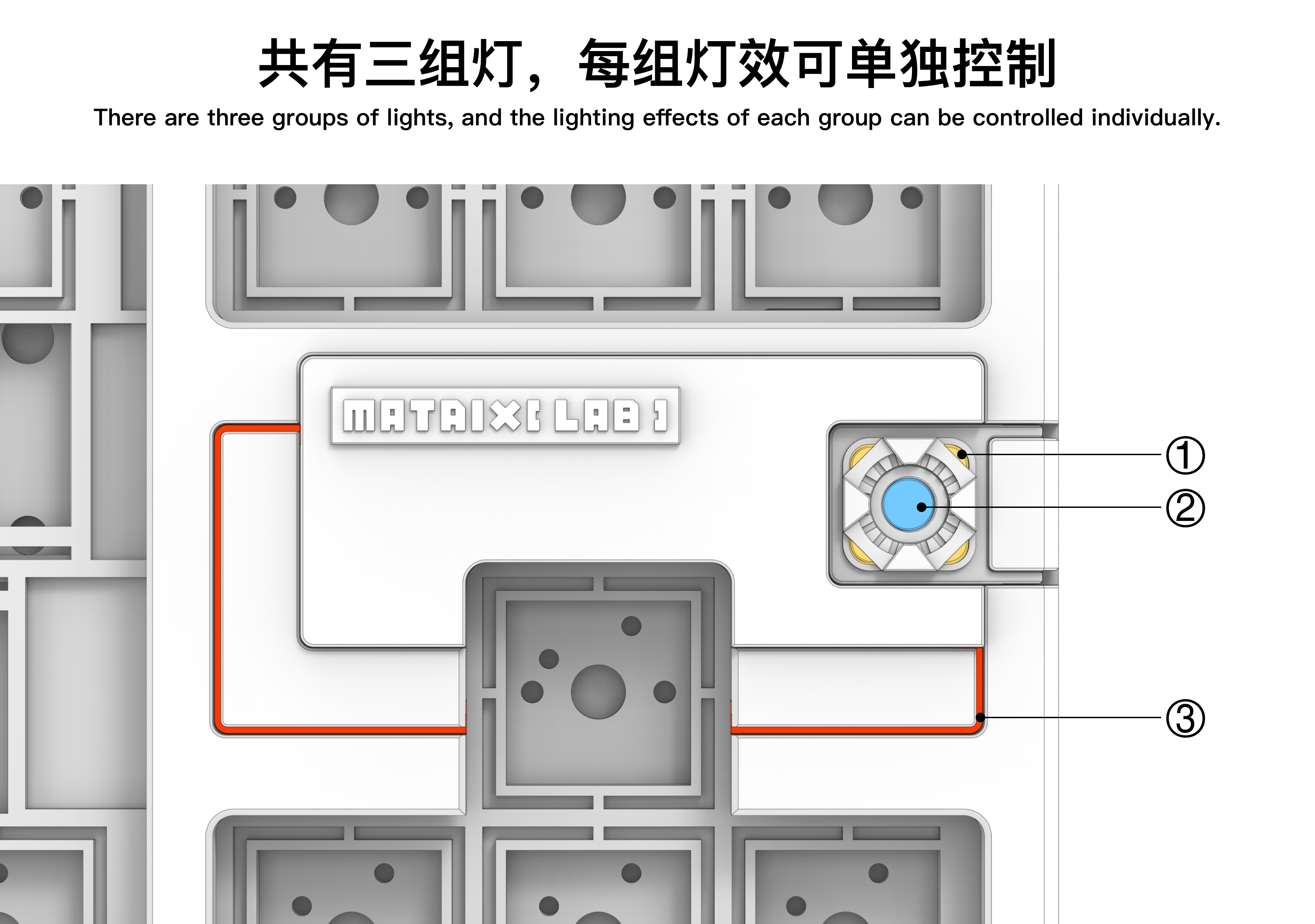

Light Groups

  • There are three groups of lights, and the lighting effects of each group can be controlled individually.

Front Replaceable Accent Cover

  • In addition to the default accent part an additional part is included with the kit.

Structure

    *All coloured parts are made of stainless steel.

    Red Part
    Case Colour PVD Colour Surface Treatment
    Meteorite Grey Blue  Mirror PVD
    McFlurry Silver  Mirror PVD
    Linen Silver  Mirror PVD
    Grey Blue Silver  Mirror PVD
    Baby Pink Silver  Mirror PVD
    Rose Pink Black  Mirror PVD
    Black Flash Black  Mirror PVD
    Olive Black  Mirror PVD
    Sunflower Yellow Black  Mirror PVD
    Red  Black  Mirror PVD



    Cyan  Part
    Case Colour PVD Colour Surface Treatment
    Meteorite Grey Blue  Optional Mirror PVD or Marble Pattern PVD
    McFlurry Silver  Optional Mirror PVD or Marble Pattern PVD
    Linen Silver  Optional Mirror PVD or Marble Pattern PVD
    Grey Blue Silver  Optional Mirror PVD or Marble Pattern PVD
    Baby Pink Silver  Optional Mirror PVD or Marble Pattern PVD
    Rose Pink Black  Optional Mirror PVD or Marble Pattern PVD
    Black Flash Black  Optional Mirror PVD or Marble Pattern PVD
    Olive Black  Optional Mirror PVD or Marble Pattern PVD
    Sunflower Yellow Black  Optional Mirror PVD or Marble Pattern PVD
    Red  Black  Optional Mirror PVD or Marble Pattern PVD



    Yellow Part
    Case Colour PVD Colour Surface Treatment
    Meteorite Grey Silver Mirror PVD
    McFlurry Silver Mirror PVD
    Linen Silver Mirror PVD
    Grey Blue Silver Mirror PVD
    Baby Pink Silver Mirror PVD
    Rose Pink Silver Mirror PVD
    Black Flash Silver Mirror PVD
    Olive Silver Mirror PVD
    Sunflower Yellow Silver Mirror PVD
    Red  Silver Mirror PVD



    Purple  Part
    Case Colour PVD Colour Surface Treatment
    Meteorite Grey Blue  Matte PVD
    McFlurry Silver  Matte PVD
    Linen Silver  Matte PVD
    Grey Blue Silver  Matte PVD
    Baby Pink Silver  Matte PVD
    Rose Pink Black  Matte PVD
    Black Flash Black  Matte PVD
    Olive Black  Matte PVD
    Sunflower Yellow Black  Matte PVD
    Red  Black  Matte PVD



    Layout:

    WKL

    Small WKL

    PCB Layout

    Included:

    • Keyboard x1
    • Alu Plate x1 (Choose between flex cut and non flex cut)
    • Hot-Swap PCB x1
    • Poron Plate Foam x1
    • IXPE PCB Foam x1
    • Case Foam x1
    • Screws
    • Wires
    • Extra Front Centre Light Diffuser x1
    • Extra Front Replaceable Accent Cover x1




      Disclaimers:

      Kindly note that the images are of 3D renders and are for illustration purposes only. The final colours may differ slightly.

      As this is an In Stock item please do not add items from group buys to this order as it will delay your orders shipping till everything is available.
