IN STOCK - Ships within 3 working days, all sales final.
Kits Available:
| Kit Number |
Case Colour |
Weight Colour / Finish |

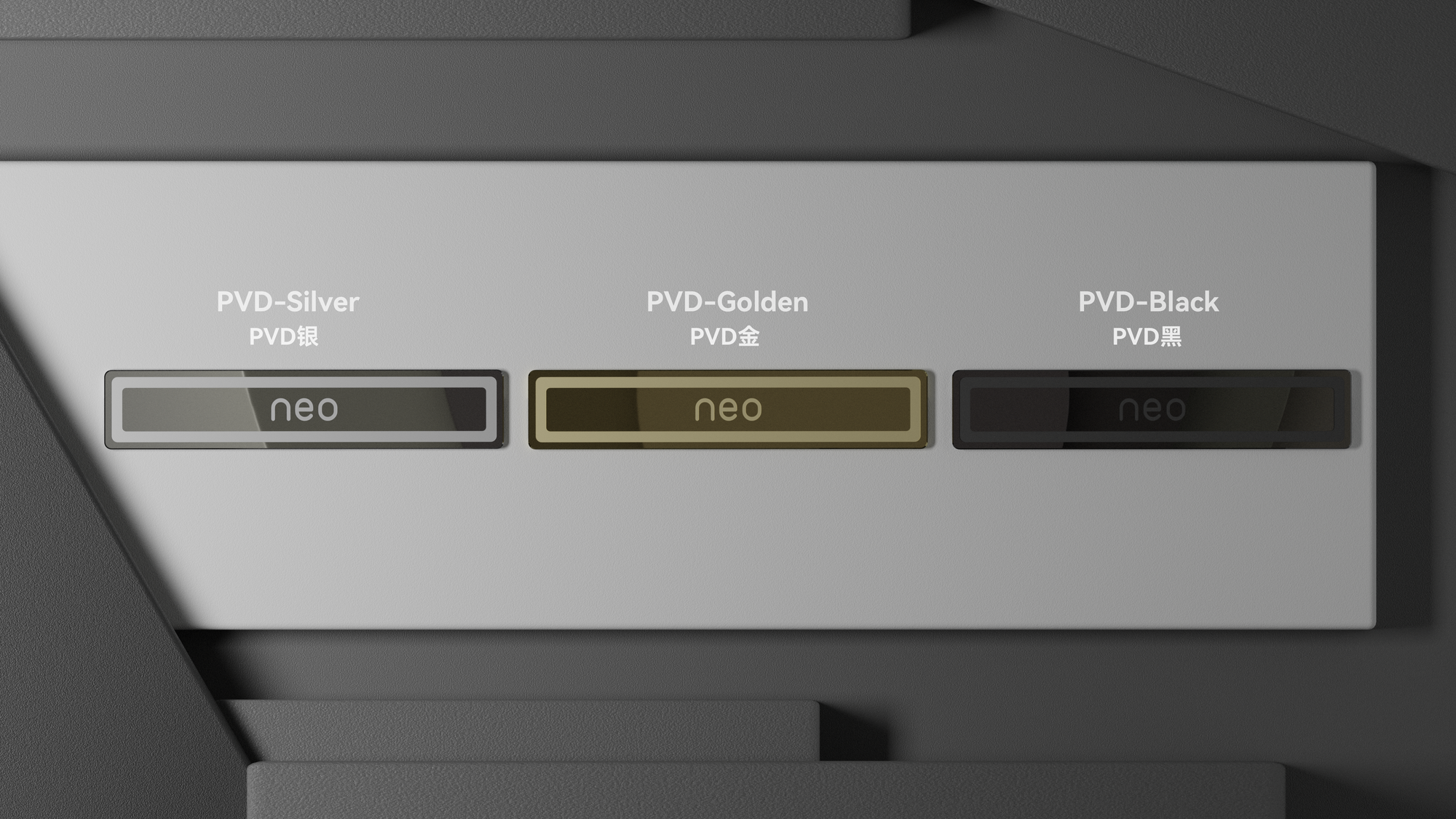

Badge |
PCB |
Plate |
| Kit 1 |
Ano Navy
|
Gold Alu |
PVD Gold |
HS Wired |
POM |
| kit 2 |
Ano Navy |
Gold Alu |
PVD Gold |
Tri-Mode |
POM |
| Kit 3 |
Ano Navy |
Mirror Dusk SS |
PVD Gold |
Tri-Mode |
POM |
| Kit 4 |
Ano Navy |
Mirror Chroma SS |
PVD Silver |
Tri-Mode |
POM |
| Kit 5 |
Spray Coated Retro White |
Copper |
PVD Gold |
Tri-Mode |
POM |
| Kit 6 |
Spray Coated Retro White |
Mirror Chroma SS |
PVD Silver |
Tri-Mode |
POM |
| Kit 7 |
Spray Coated Retro White |
Black Alu |
PVD Black |
HS Wired |
POM |
| Kit 8 |
Spray Coated Avocado |
Gold Alu |
PVD Gold |
Tri-Mode |
POM |
| Kit 9 |
Spray Coated Avocado |
Copper |
PVD Gold |
Tri-Mode |
POM |
Features:

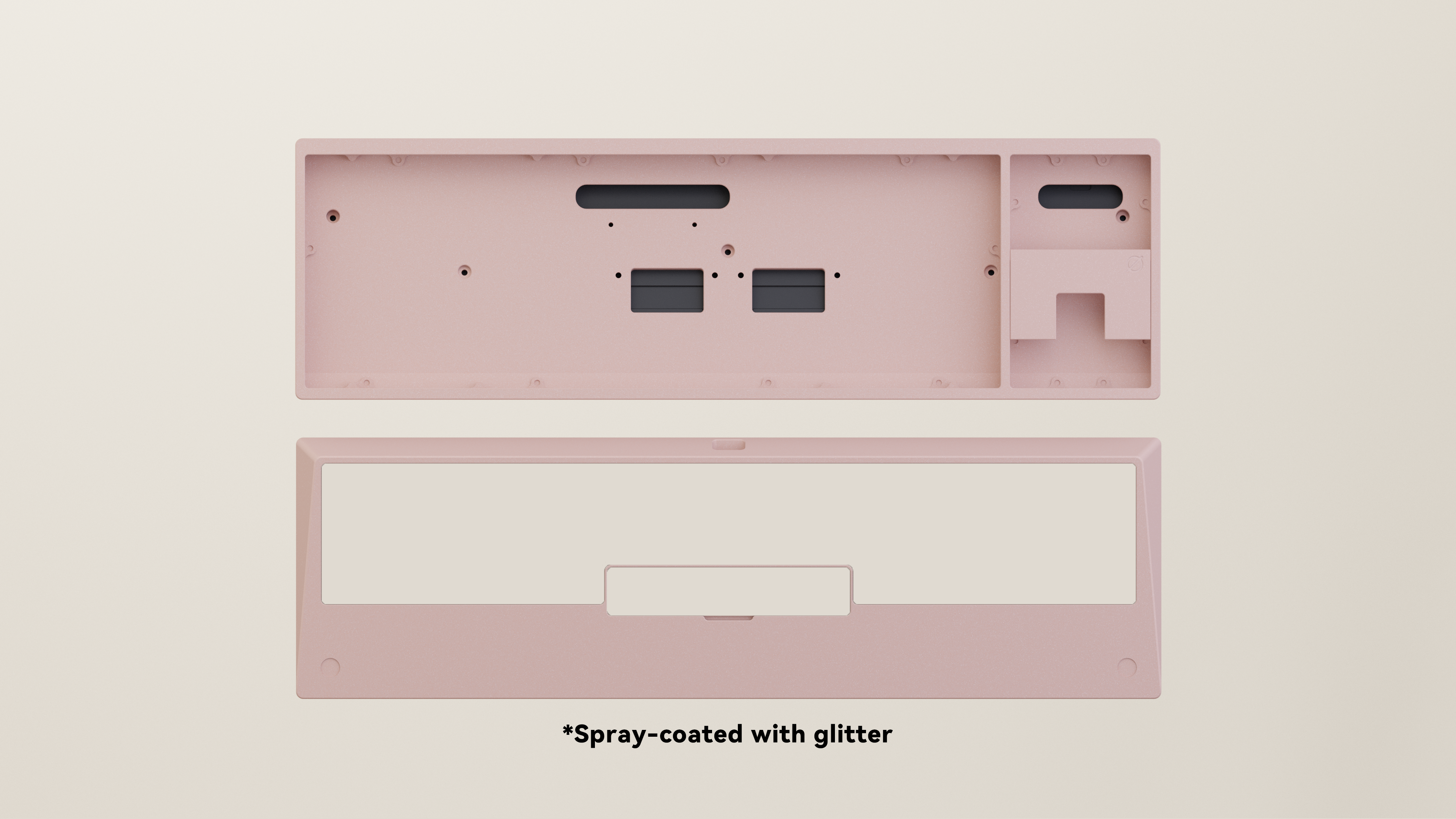

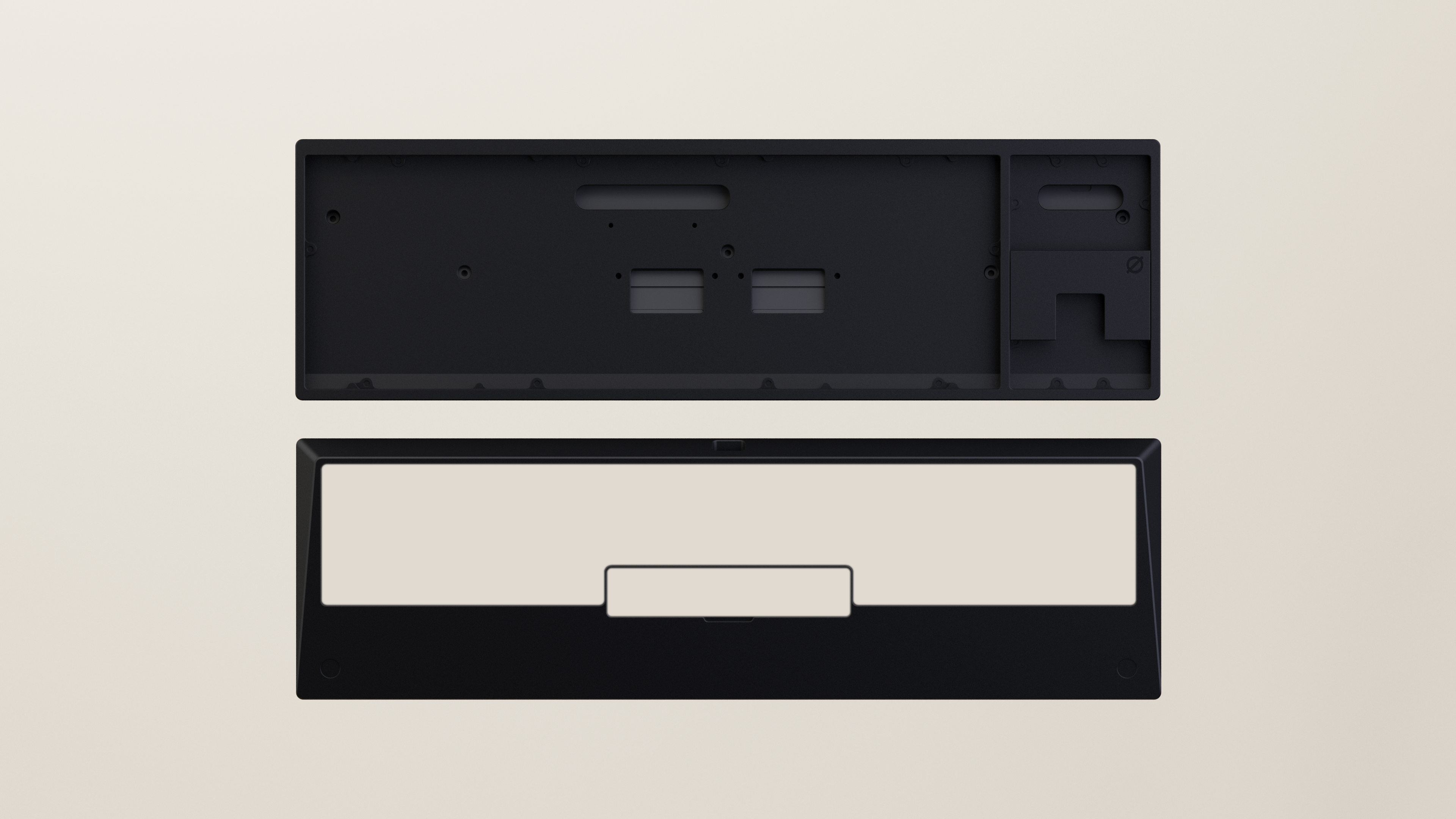

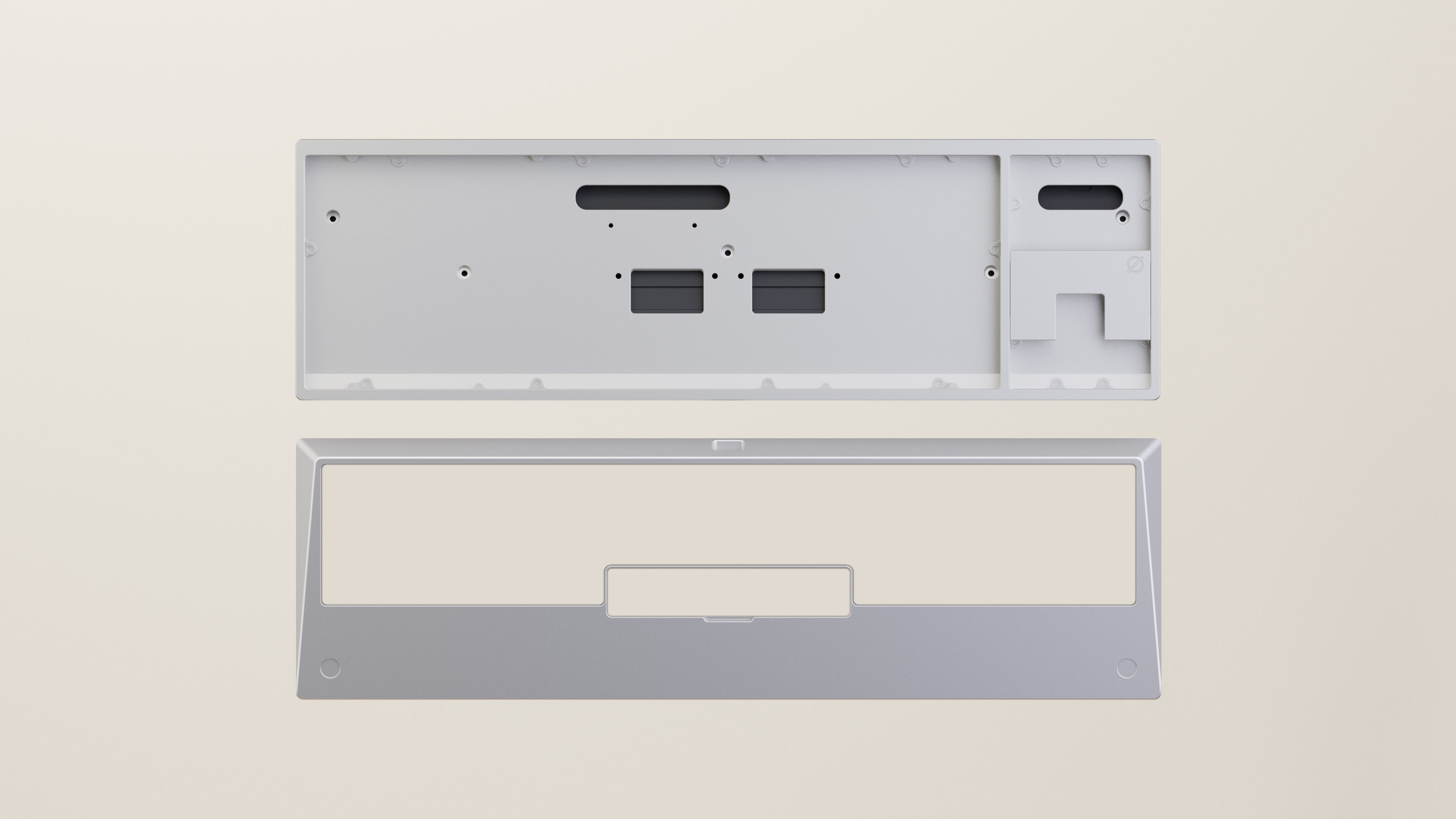

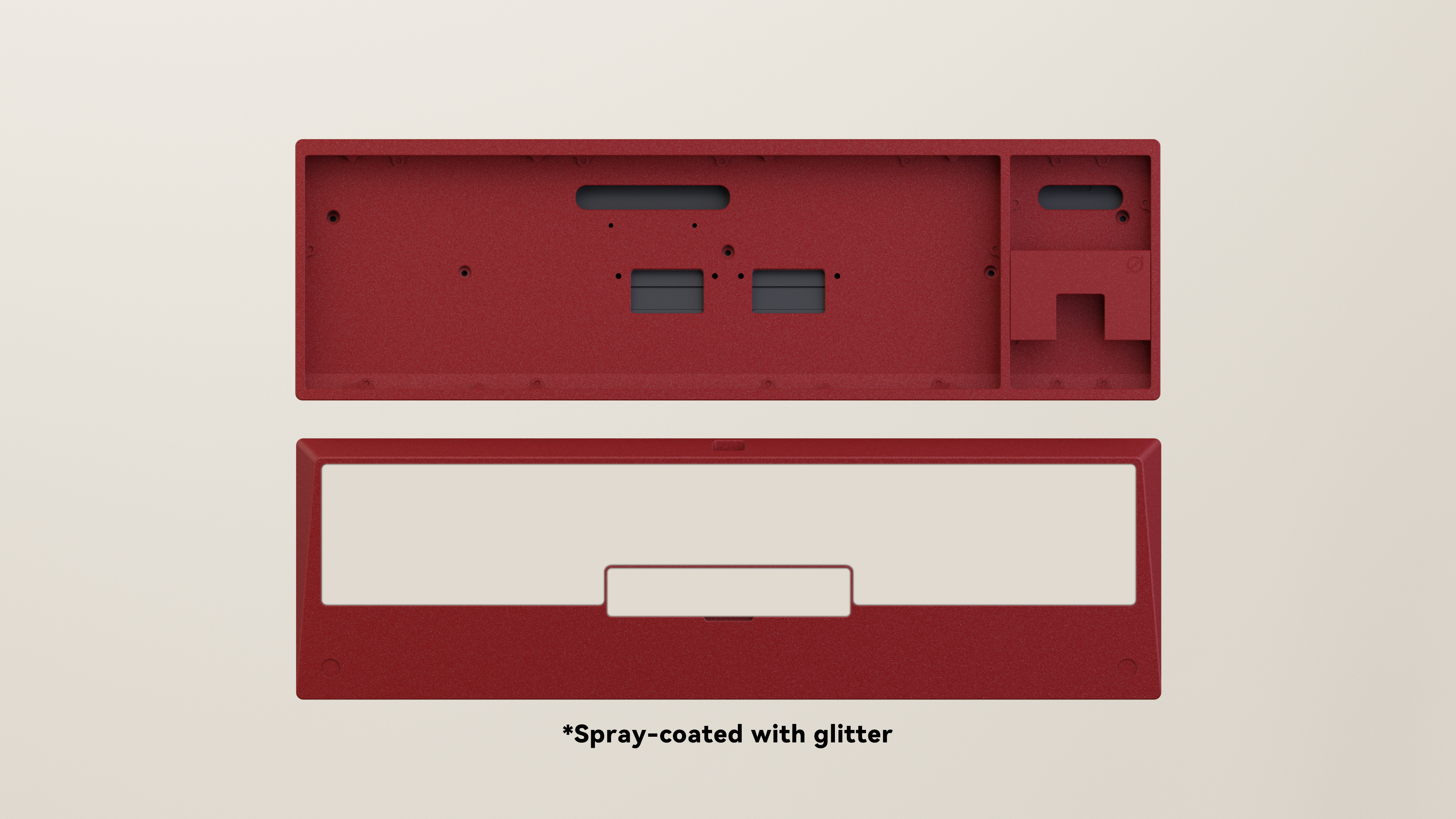

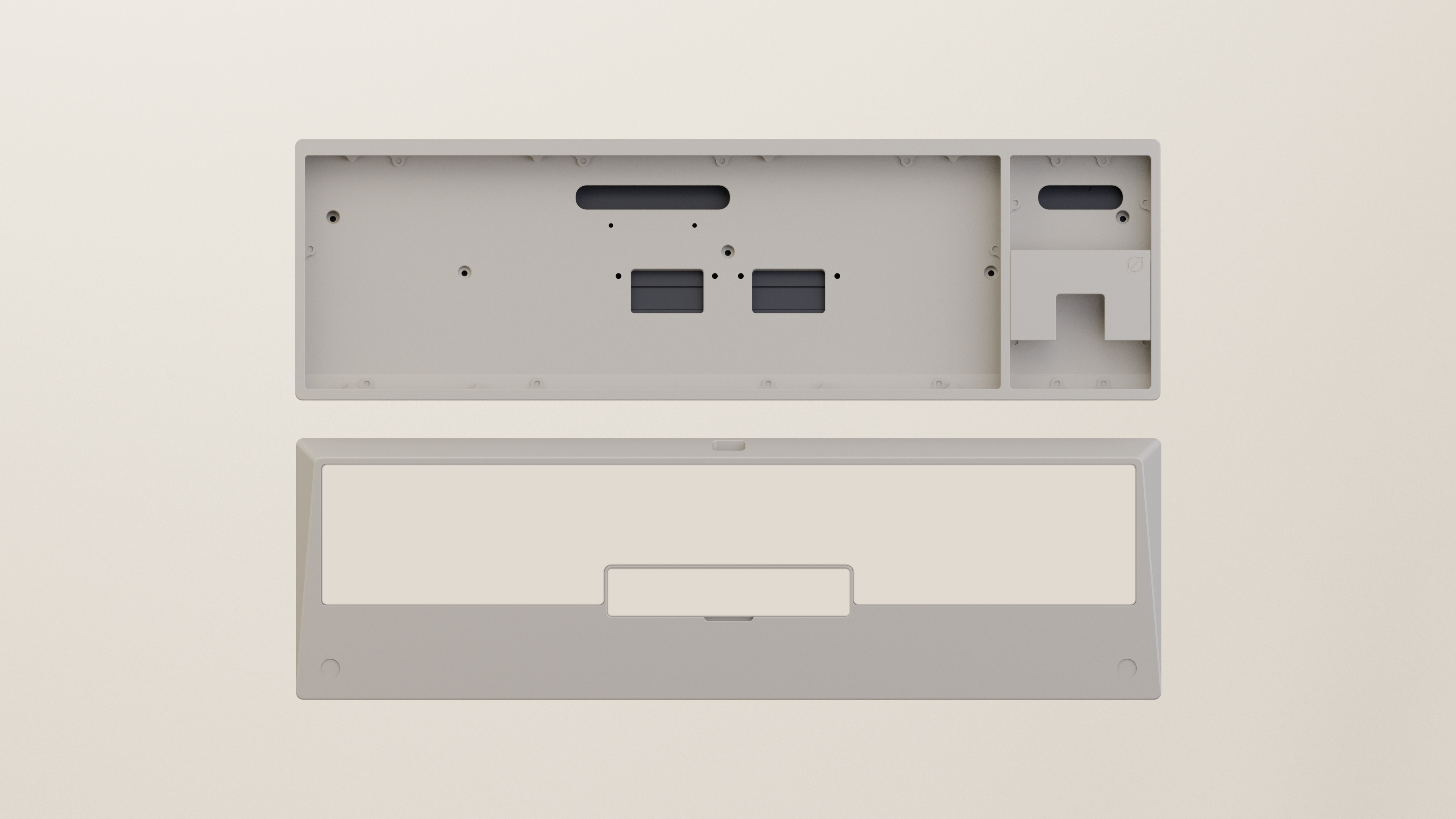

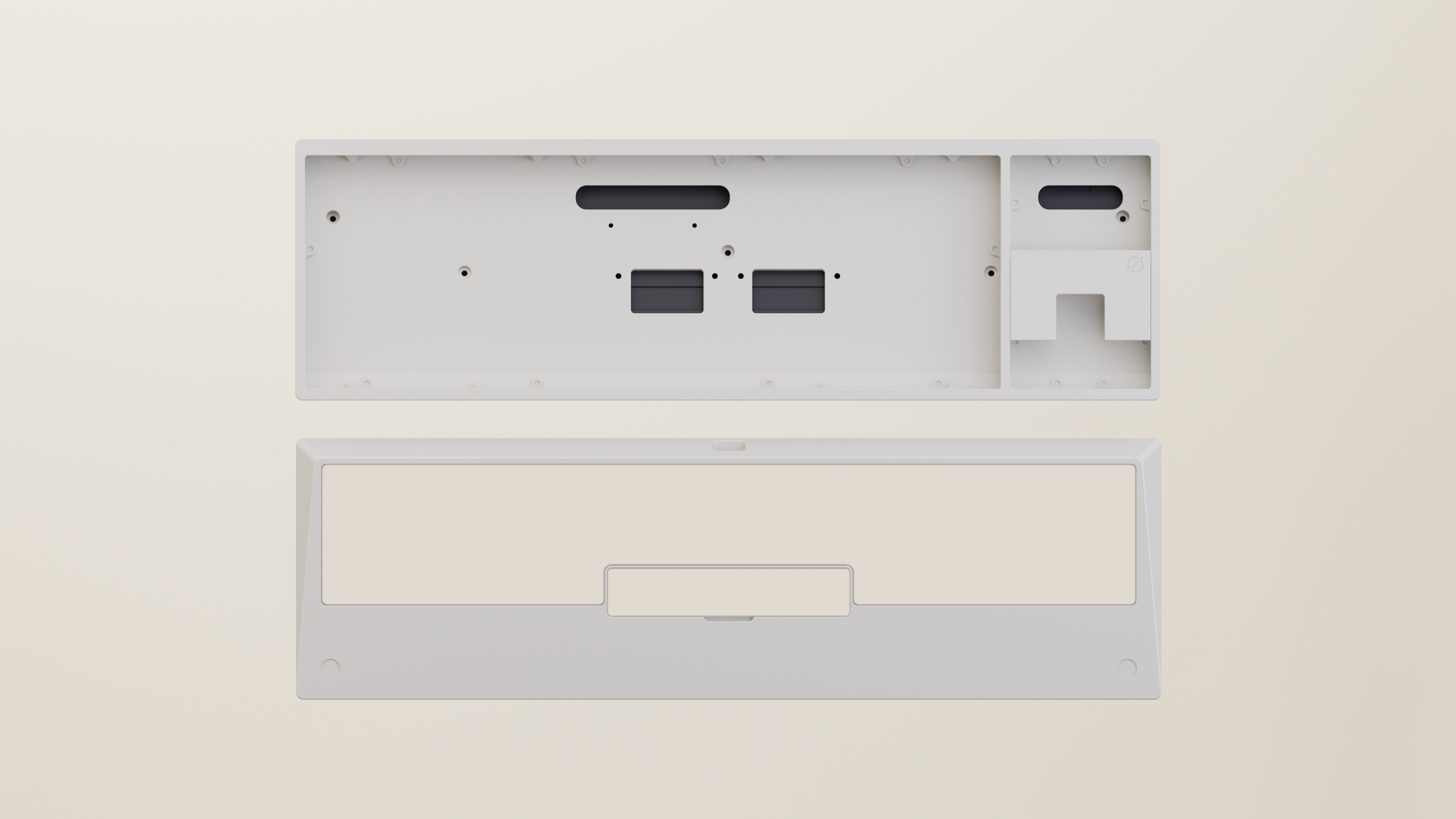

Unibody Case
Derived from the Neo65 but specifically designed for the FRL TKL layout, the unibody case of the Neo70 exemplifies the elegance of minimalism while offering a sturdy foundation for effortless assembly.
Function keys are separated from the alphas to minimize potential hollow sounds and allow for individual adjustment. The cover plate above the arrow keys is attached using magnets, making it easy to remove the PCB whenever needed.

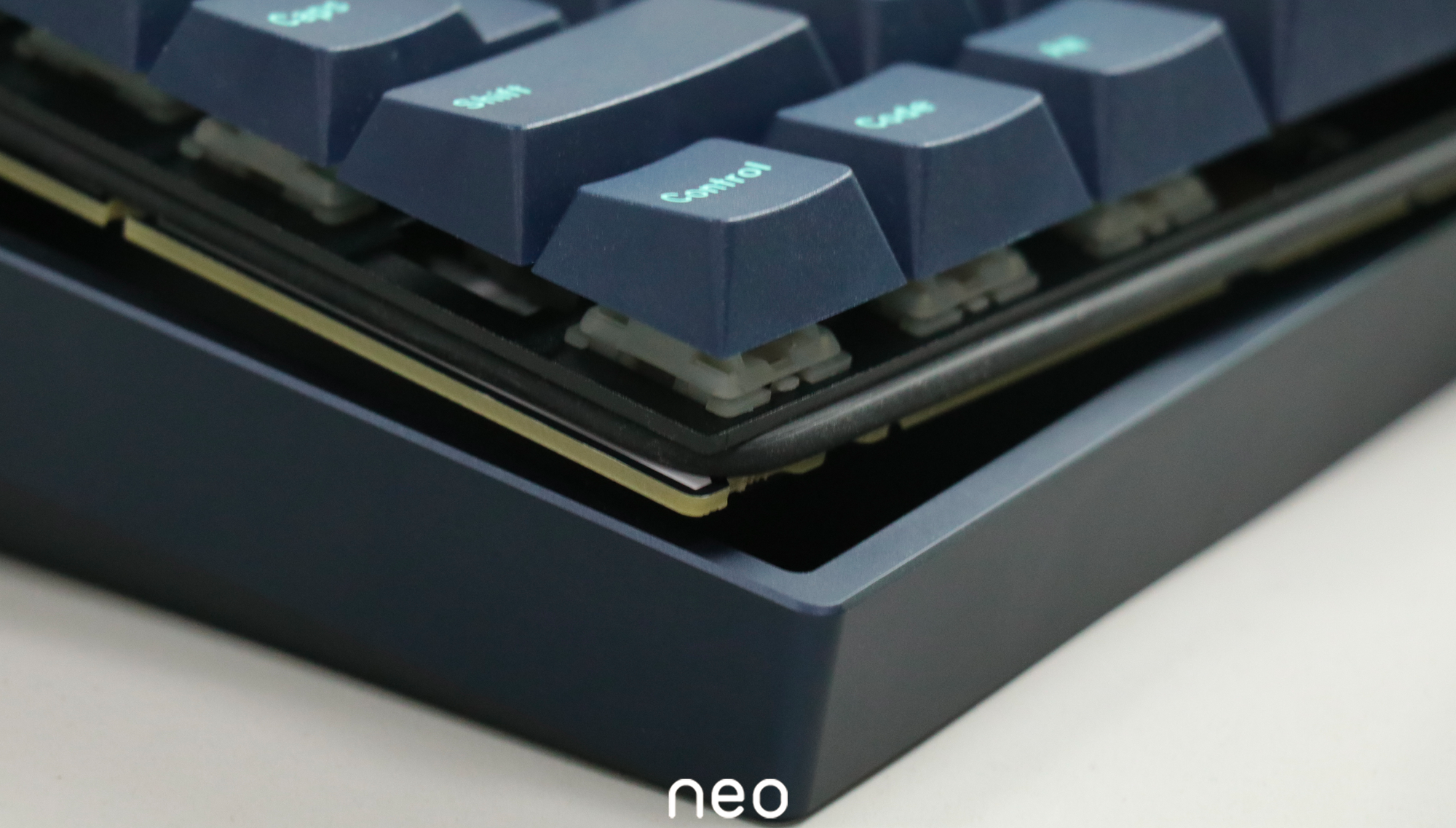

Neat Side Profile
We chose an inward-sloping edge to complement the minimal design on the front. This also makes it easier to pick up the keyboard.
2-Step Effortless Disassembly
We believe that providing an easy assembly/disassembly experience is crucial for making mechanical keyboards more accessible, which is always a top priority in our product design. Building upon the feedback we received from the Neo65, we have further simplified the disassembly process of the Neo70 into 2 steps: removing the badge, which is attached to the case using magnets, and pushing out the PCB.
Magnetic Connectors
Ribbon cables have long been a source of frustration for keyboard enthusiasts, which is also the main complaint we received for the Neo65. To address this issue and enable the 2-step disassembly, we replaced the ribbon cables with magnetic connectors. These connectors automatically connect and disconnect when you insert and remove the PCB.
Dual-Mounting System
Same as the Neo65, the Neo70 supports both PCB gasket mount and gummy O-ring mount in the alpha section (not compatible with plateless configurations). The gaskets have been further upgraded to be more durable.
Options Available:
PCB Options:
-
Tri-mode Hotswap PCB (Non-flex Cut)
- 1.6mm thick
- Support USB-C, Bluetooth, and 2.4GHz connection
- Support both ANSI and ISO layout
- NKRO
- Polling rate: 1000Hz in wired and 2.4Ghz mode; 125Hz in BT mode
-
Wired Hotswap PCB (Non-flex Cut)
- 1.6mm thick
- USB-C connection only
- Support both ANSI and ISO layout
- NKRO
- Polling rate: 1000Hz
- NO Per-key RGB
-
Solder PCB (Non-flex Cut)
- 1.6mm thick
- USB-C connection only
- Support both ANSI and ISO layout
- NKRO

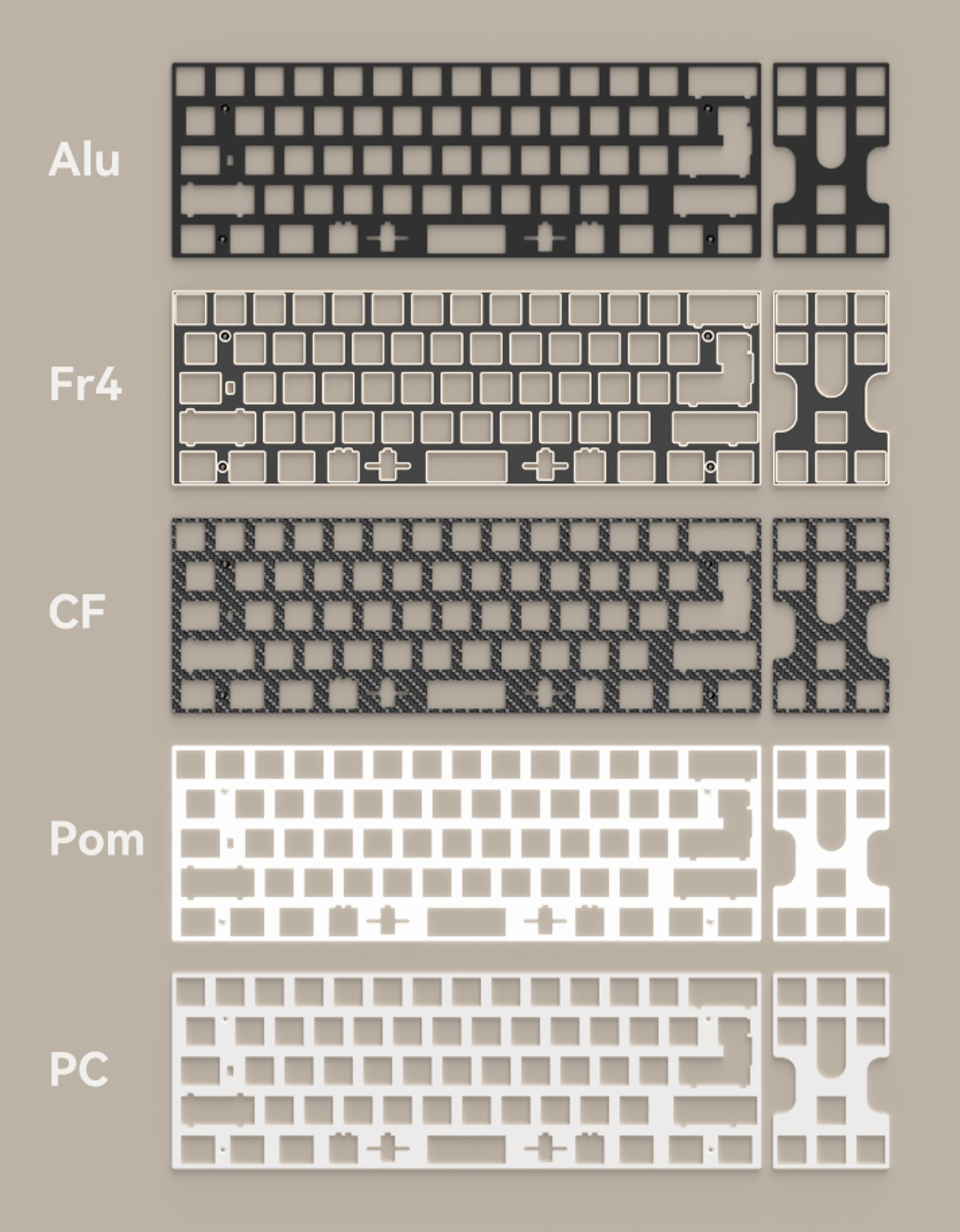

Plates with distinctive characters
-
Hard ———————————————> Soft:
Carbon Fibre > Aluminium > FR4 > POM > PC
-
Clack ———————————————> Thock:
Carbon Fibre > Aluminium > FR4 > POM > PC

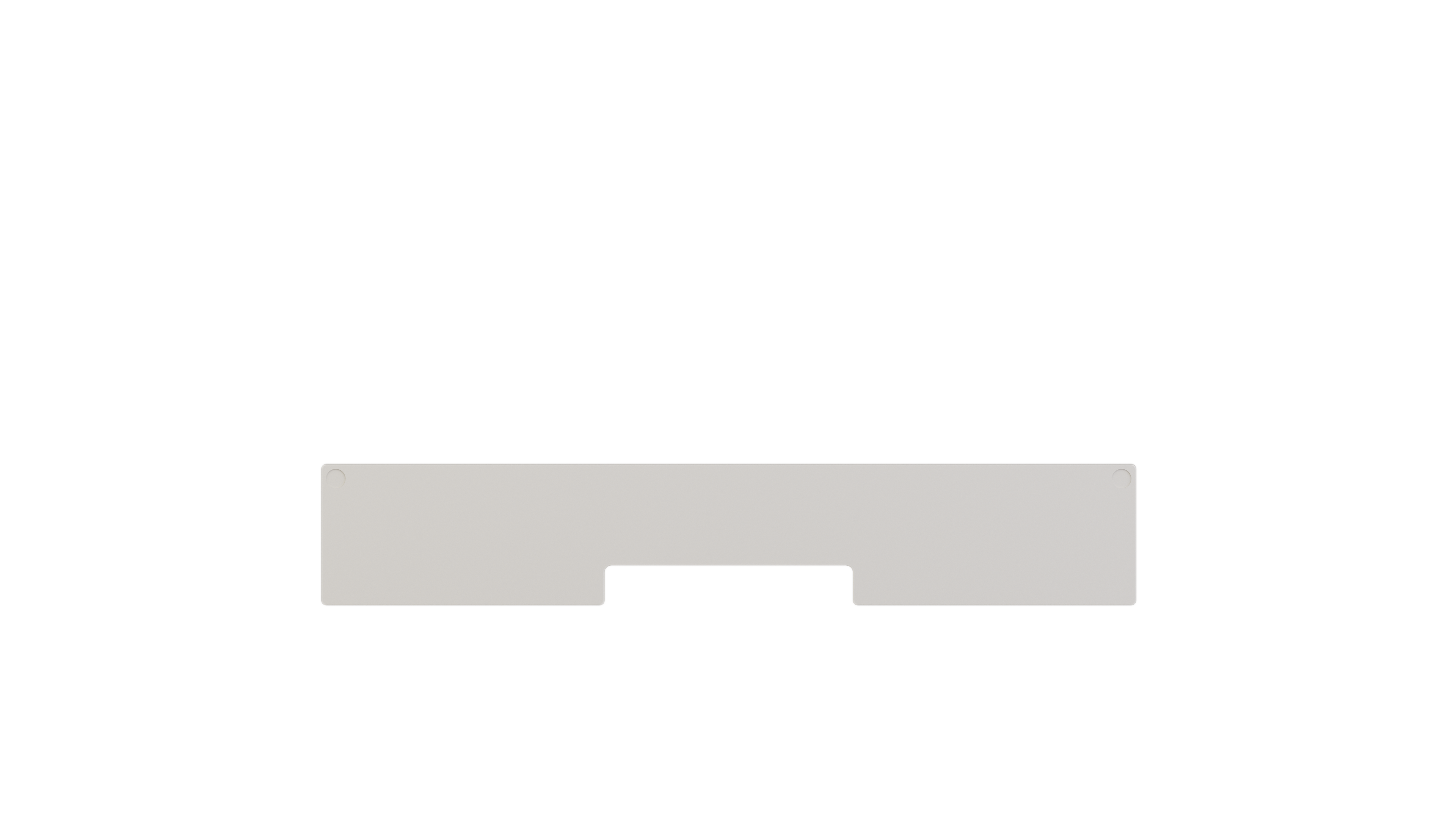

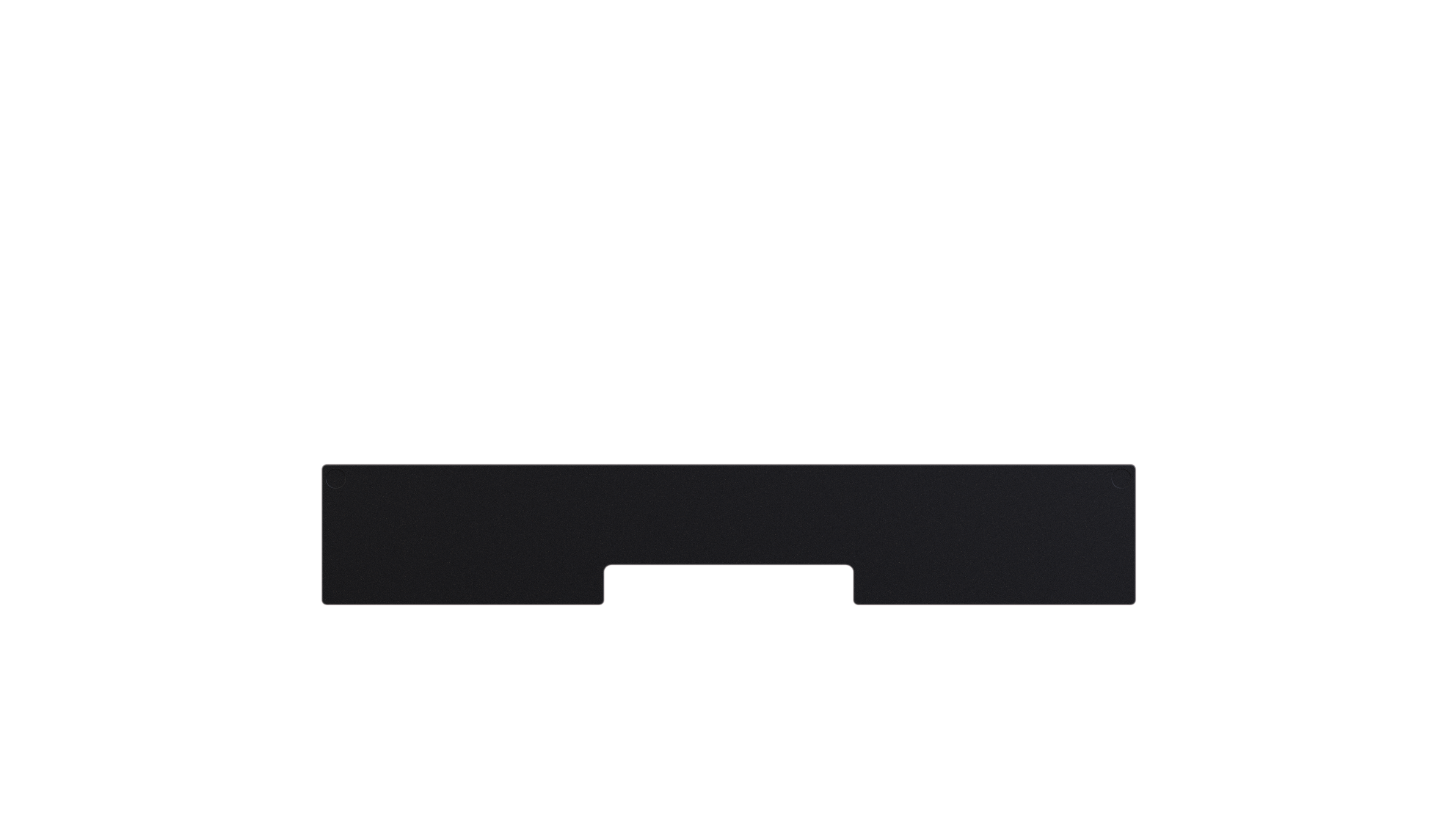

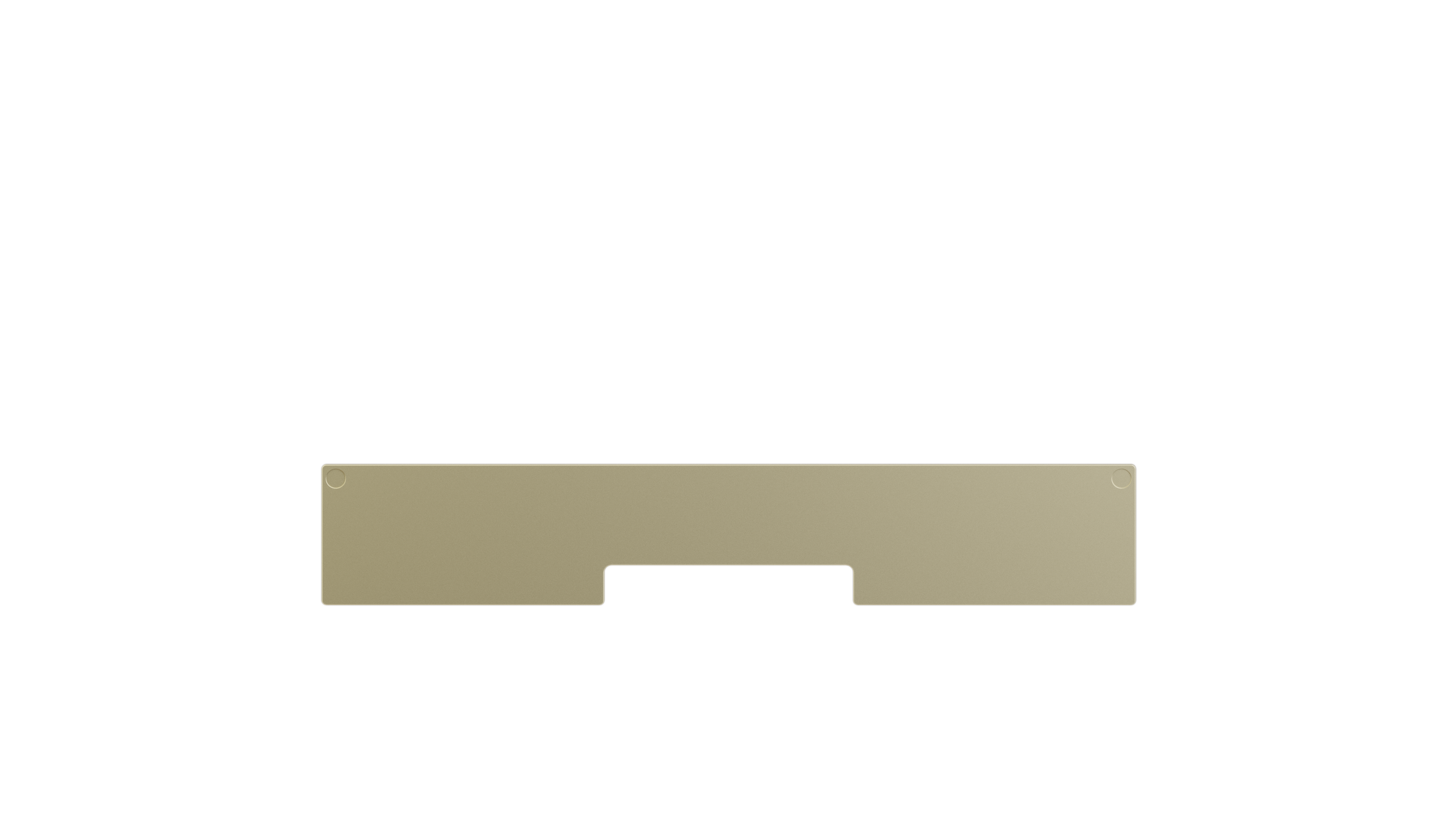

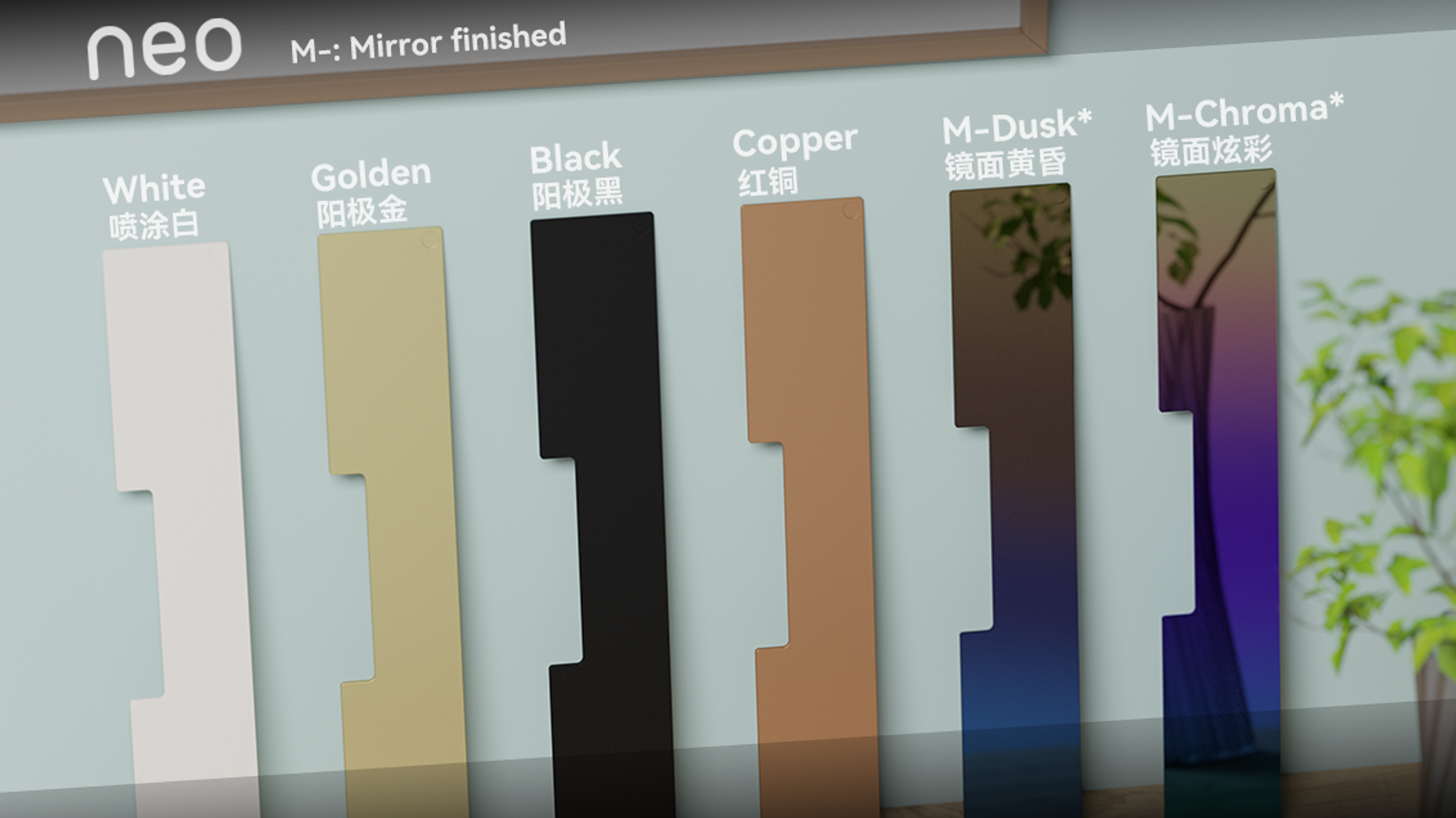

Colour Options:
white, golden and black are alu while mirror finished weights are stainless steel
Specification:
-
Typing angle：8 degree
-
Front height：17.5 mm
-
Size: 356.5mm x 107.8mm
-
Weight：
- with aluminium weight: 0.89kg before building, 1.26kg after building

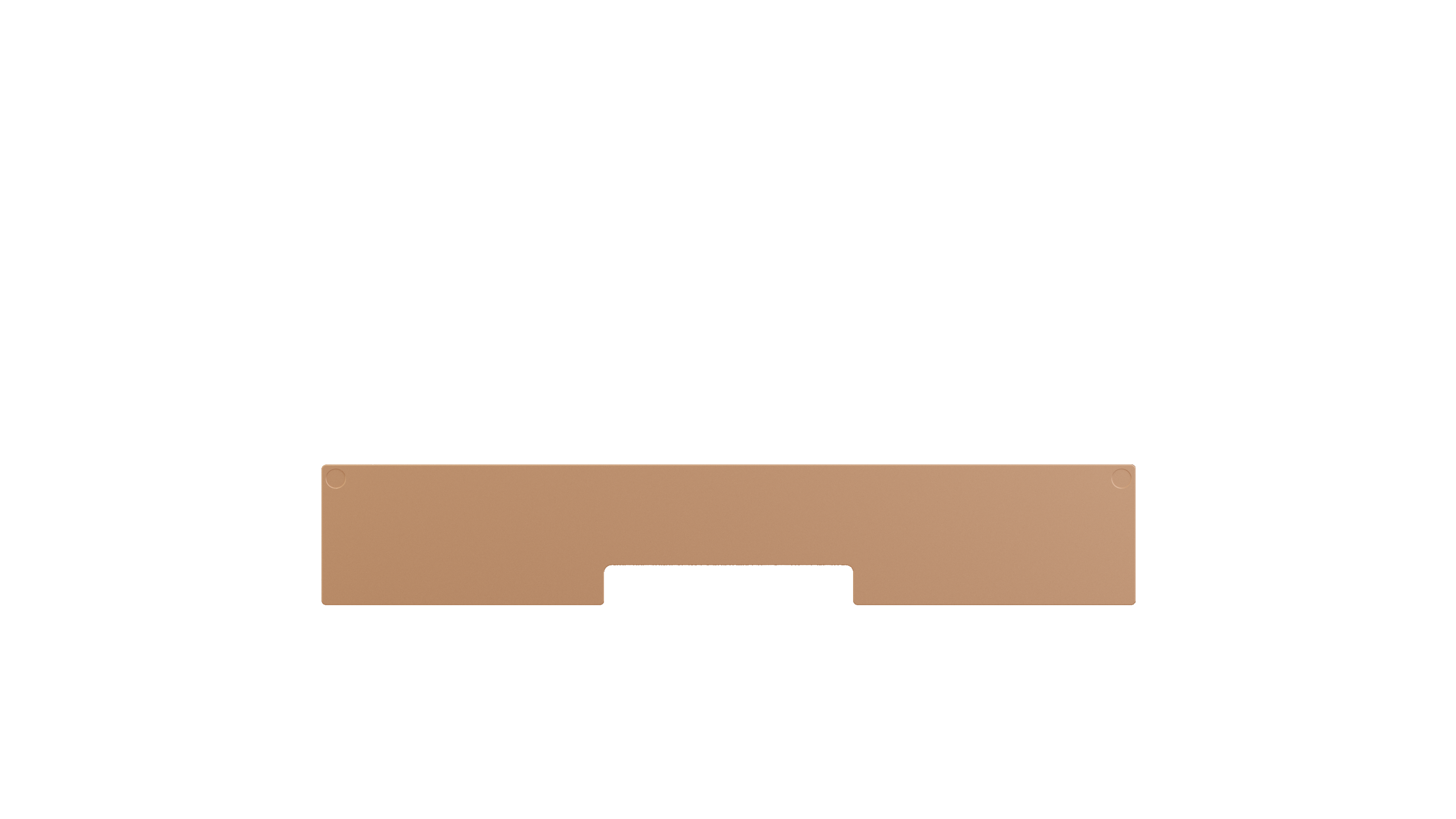

- with copper weight: 1.16kg before building, 1.53kg after building
- with stainless steel weight: 1.13KG before building, 1.5kg after building
Content List:
-
Case
- Including one pre-installed external weight from Kit details
- Including one pre-installed badge from Kit details
- One 3000mAh battery will be installed inside the case for orders with Tri-mode PCBs
-
PCB Kit
- PCB from Kit choice
- 1x PE sheet
- 1x PCB Foam
- Standoffs
- Tri-mode PCB comes with a 2.4Ghz dongle
- Plate of Your Choice (or Plateless with Solder PCB)
- Poron Case Foam
-
PCB Daughterboard * 3 - installed
-
Silicone Gaskets
- O-ring (30 duro) x 1
- Rubber feet
Disclaimers:
As this is an In Stock item please do not add items from group buys to this order as it will delay your orders shipping till As everything is available.
