(In Stock) QK65 Mirror Keyboard
Pickup currently unavailable at ProtoTypist Keyboards - Customer Collection
(In Stock) QK65 Mirror Keyboard
Kit A
ProtoTypist Keyboards - Customer Collection
ProtoTypist Keyboards
1 Alpha Court
Bradford BD5 8FH
United Kingdom
IN STOCK - Ships within 3 working days, all sales final.
More Information: https://qwertykeys.notion.site/QK65-Mirror-Restock-Sale-Info-82d77e08ffe043be99838bee46b776ed

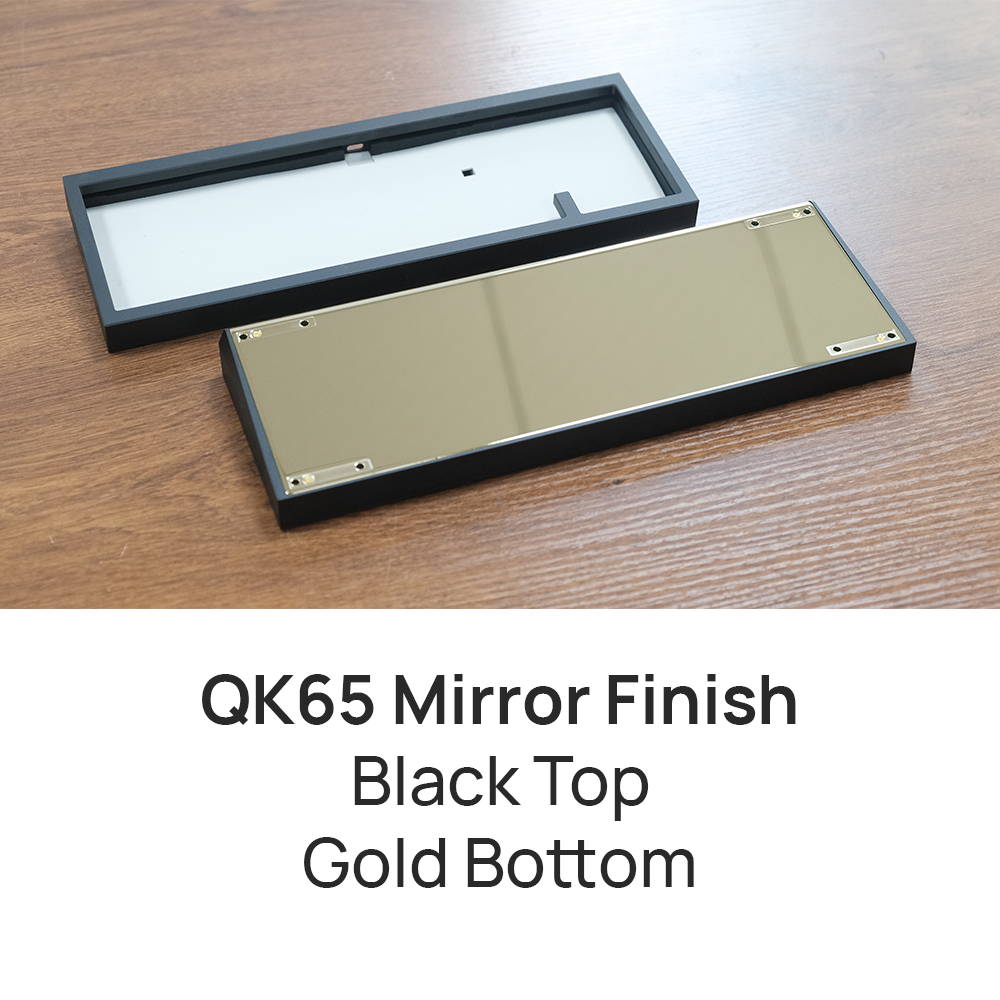

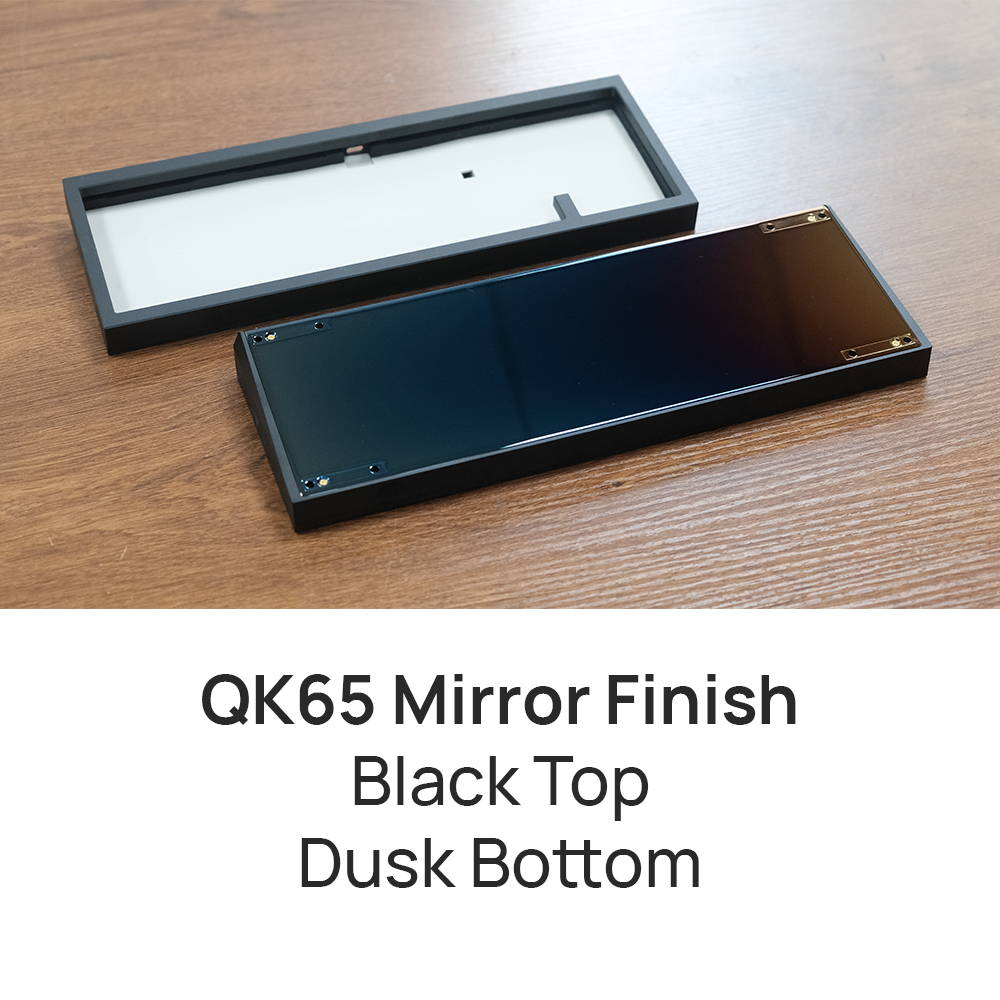

QK65’s body consists of three pieces, with the top case and weight being visible and a bottom case hidden in the sandwich. As the most eye-catching part of a keyboard, the top case is a piece of CNC’d 6063 aluminum alloy with an anodized or electrophoretic finish, like most of the custom keyboards that you’d see on the market today. The weight and the bottom case are where we implemented the idea of mass-production. The weight is a stamped 304 stainless-steel and L-shaped plate with PVD coat of our choices.
Please note that PVD doesn’t equal to mirror-polished. PVD usually refers to glossy surfaces like the weight on Spring, but it is only a coating technique that applies color, similar to anodization or spray-coating.
QK65’s bottom case is a die-cast aluminum piece. It isn’t as precise nor as smooth as the top case, but it can be manufactured at a much faster speed thus enabling us to bring much more inventory than using a CNC bottom case.
To suppress the hollowness, the internal chamber is filled with a large custom-molded silicone dampener. No compromise is acceptable for us when it comes to the acoustic performance. We would not have brought down the cost to the current level without this dedicated choice of structure, materials, and processing techniques
Tri-Mode PCB means Bluetooth, 2,4GHz and USB-C connection possible. These boards will come with a battery included. All Tri-Mode PCBs support Hotswap.
Content:
- Top Case with Weight pre-assembled
- Carrying Case
- PCB including a foam kit
- Plate
- Silicone dampener and Poron Case Foam
- Gaskets: Socks and Jackets
- Rubber case feet
- Screws and stand-offs
- Battery (if Tri-Mode PCB is selected)
Kit Options:
Each kit type reflects the most popular choices at Group Buy. Some kits have only small numbers of units available, so please order early to avoid disappointment.

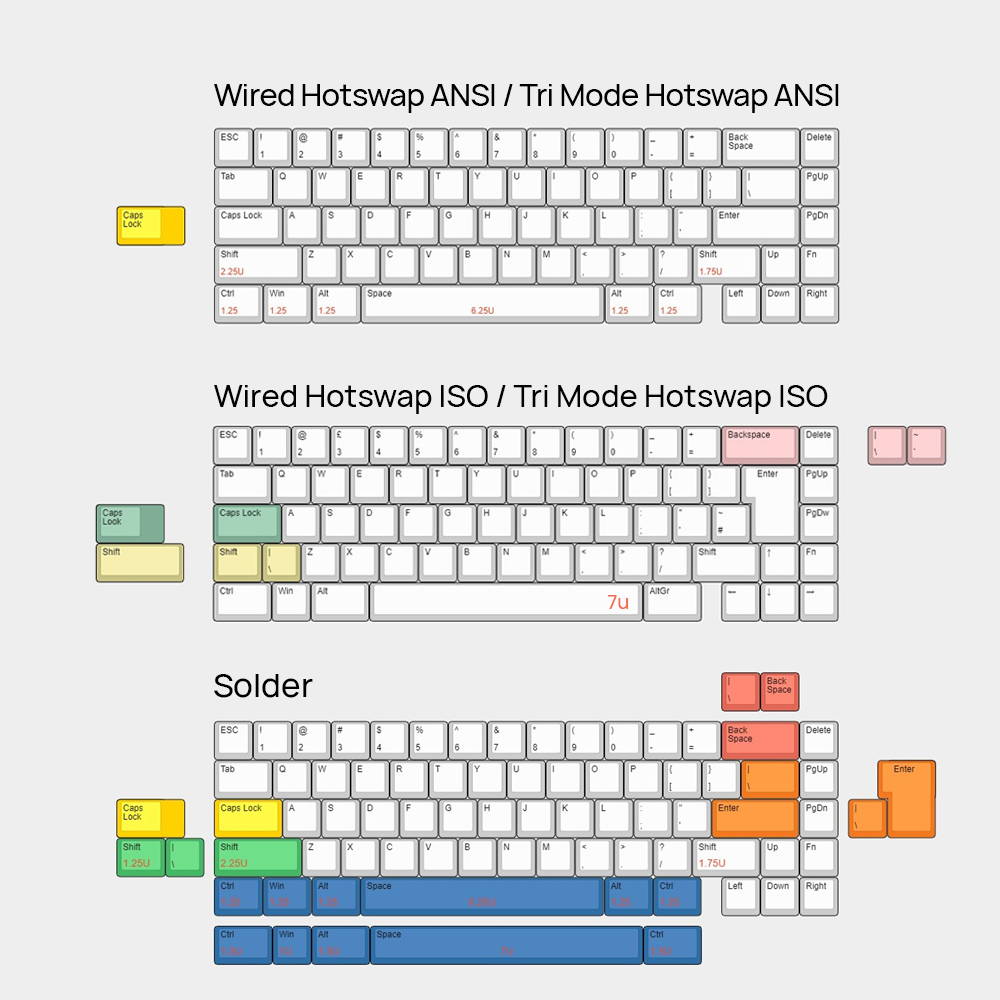

KIT | Case | Weight | PCB | Plate |
A | black | black | wired ISO | ALU |
B | black | chroma | wired ISO | FR4 |
C | black | dusk | wired ISO | FR4 |
D | black | dusk | tri-mode ISO | FR4 |
E | black | golden | tri-mode ISO | PC |
F | white | black | tri-mode ISO | PC |
G | white | black | wired ANSI | POM |
H | white | chroma | wired ANSI | POM |
I | white | dusk | Tri-mode ANSI | POM |
J | white | golden | wired ISO | POM |
K | white | golden | Solder | POM |
