(Pre Order) Neo70 Keyboard Kit May 24

Sale price

Regular price £83.33
( / )

This is a Pre-Order, please read our guidance on Pre-Orders here: FAQ's



Expected to ship Q3-Q4 2024

Pre-Order Open May 22nd - June 3rd 2024


We are extremely grateful for the incredible support and love that Neo65 has received from our users.

However, we are not stopping there! Our community members have been requesting the FRL TKL layout for quite some time, and now we can finally release it. Come to check out our second product, Neo70!


Features:

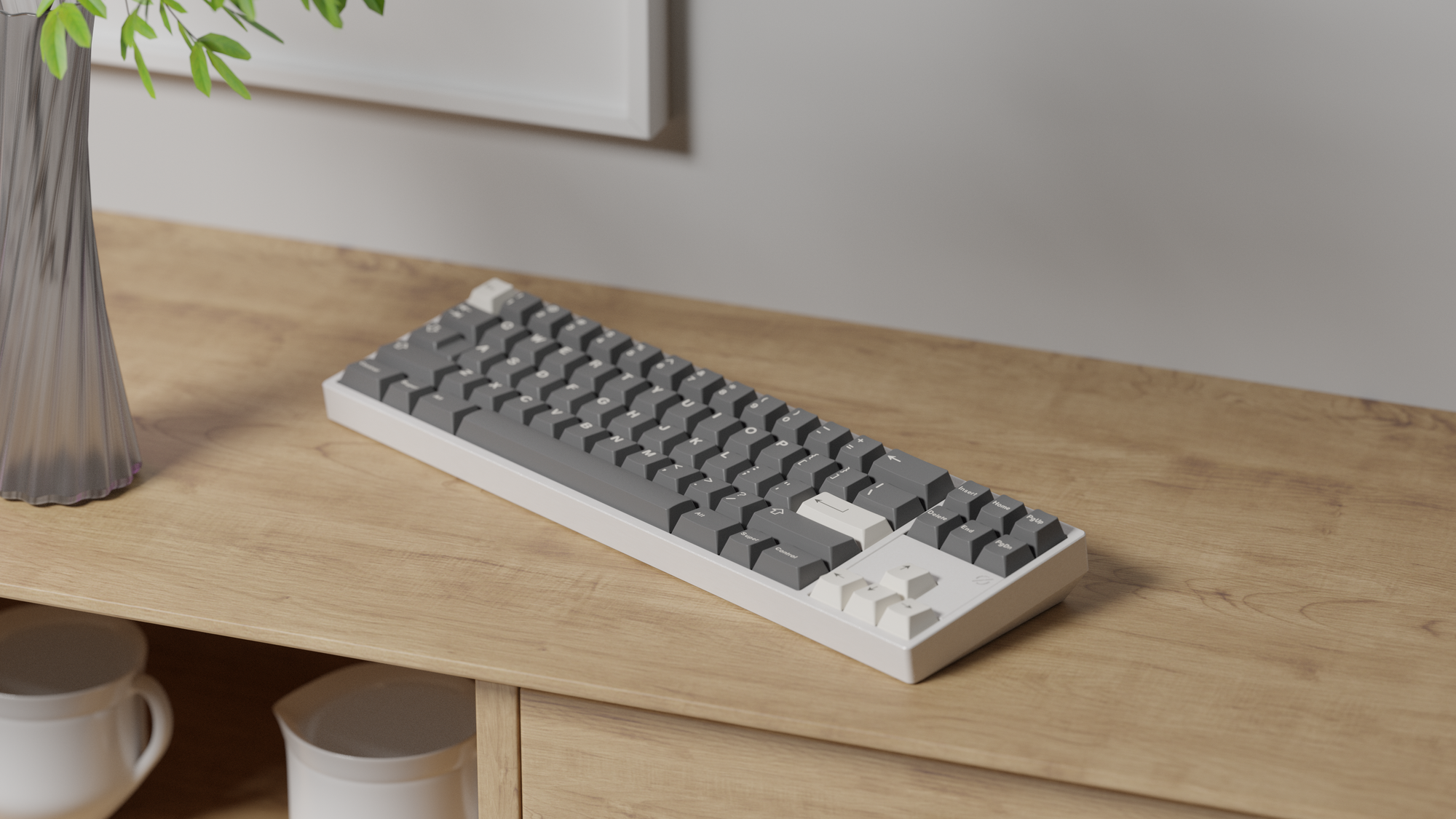

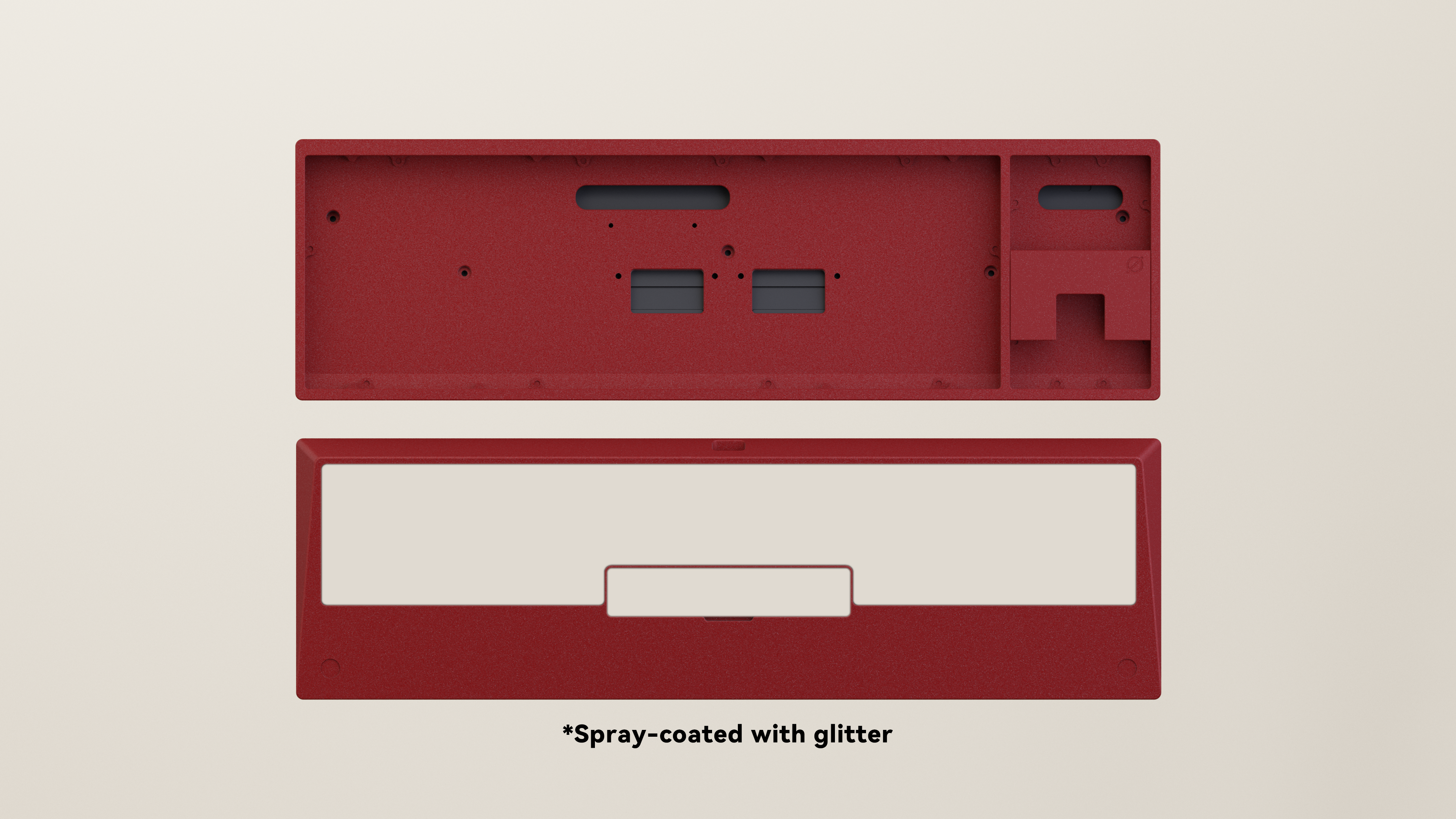

Unibody Case
Derived from the Neo65 but specifically designed for the FRL TKL layout, the unibody case of the Neo70 exemplifies the elegance of minimalism while offering a sturdy foundation for effortless assembly.

Function keys are separated from the alphas to minimize potential hollow sounds and allow for individual adjustment. The cover plate above the arrow keys is attached using magnets, making it easy to remove the PCB whenever needed.

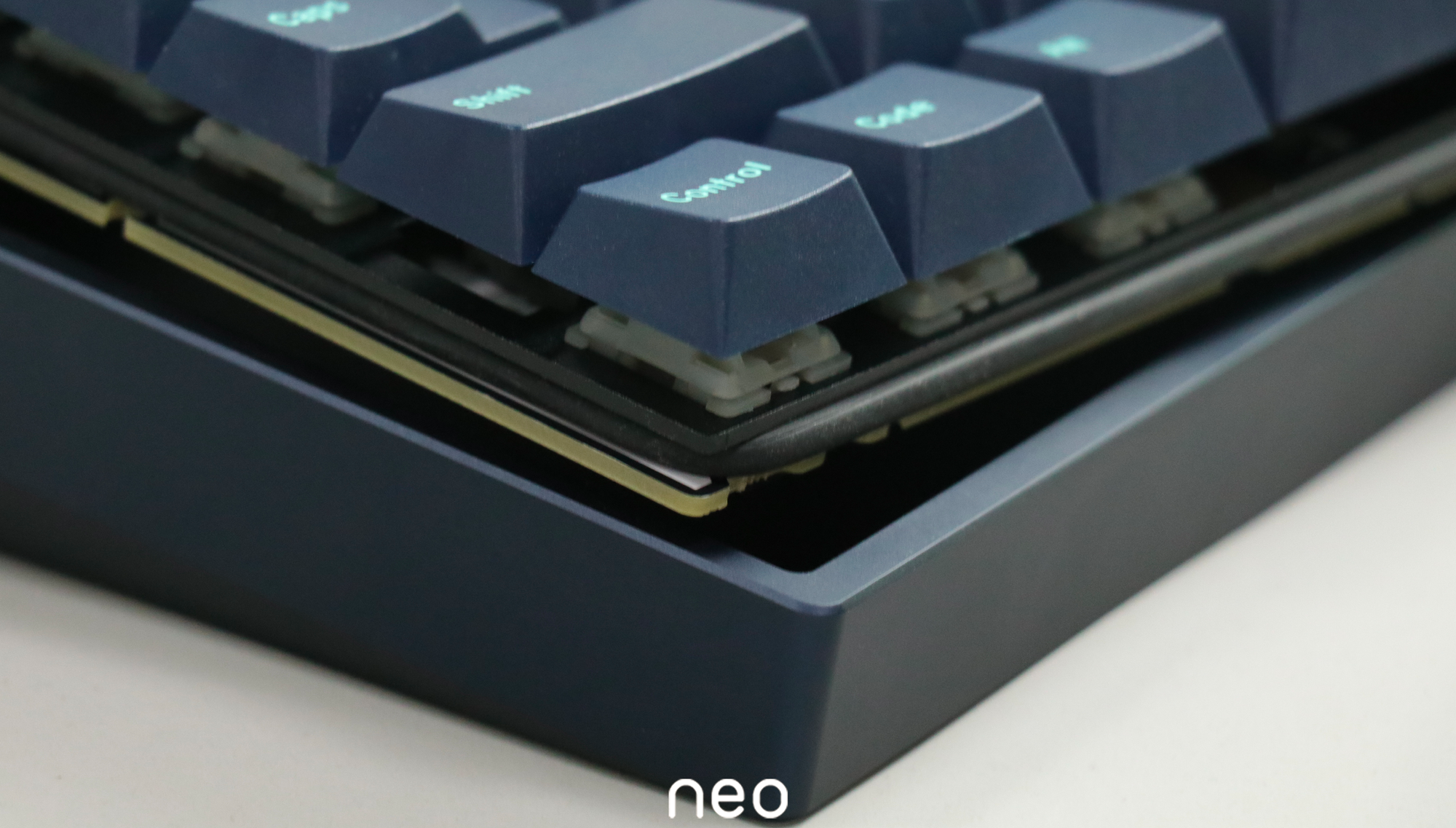

Neat Side Profile
We chose an inward-sloping edge to complement the minimal design on the front. This also makes it easier to pick up the keyboard.
2-Step Effortless Disassembly
We believe that providing an easy assembly/disassembly experience is crucial for making mechanical keyboards more accessible, which is always a top priority in our product design. Building upon the feedback we received from the Neo65, we have further simplified the disassembly process of the Neo70 into 2 steps: removing the badge, which is attached to the case using magnets, and pushing out the PCB.
Magnetic Connectors
Ribbon cables have long been a source of frustration for keyboard enthusiasts, which is also the main complaint we received for the Neo65. To address this issue and enable the 2-step disassembly, we replaced the ribbon cables with magnetic connectors. These connectors automatically connect and disconnect when you insert and remove the PCB.

Dual-Mounting System
Same as the Neo65, the Neo70 supports both PCB gasket mount and gummy O-ring mount in the alpha section (not compatible with plateless configurations). The gaskets have been further upgraded to be more durable.



Options Available:

PCB Options:
  • Tri-mode Hotswap PCB (Non-flex Cut)
    • 1.6mm thick
    • Support USB-C, Bluetooth, and 2.4GHz connection
    • Support both ANSI and ISO layout
    • NKRO
    • Polling rate: 1000Hz in wired and 2.4Ghz mode; 125Hz in BT mode
  • Wired Hotswap PCB (Non-flex Cut)
    • 1.6mm thick
    • USB-C connection only
    • Support both ANSI and ISO layout
    • NKRO
    • Polling rate: 1000Hz
    • NO Per-key RGB
  • Solder PCB (Non-flex Cut)
    • 1.6mm thick
    • USB-C connection only
    • Support both ANSI and ISO layout
    • NKRO
    • Polling rate: 1000Hz

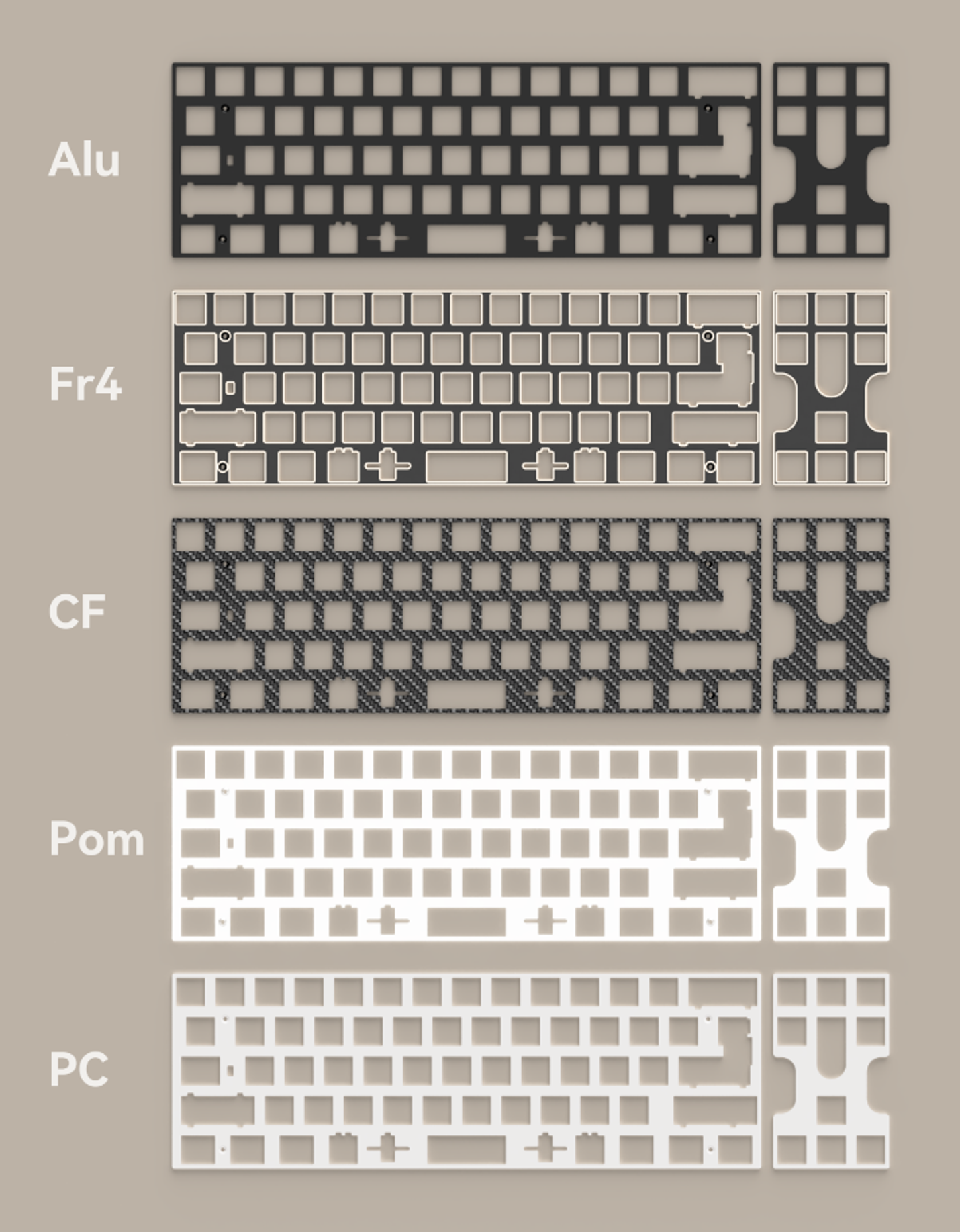

Plates with distinctive characters

  • Hard ———————————————> Soft:

    Carbon Fibre > Aluminium > FR4 > POM > PC

  • Clack ———————————————> Thock:

    Carbon Fibre > Aluminium > FR4 > POM > PC



Colour Options:

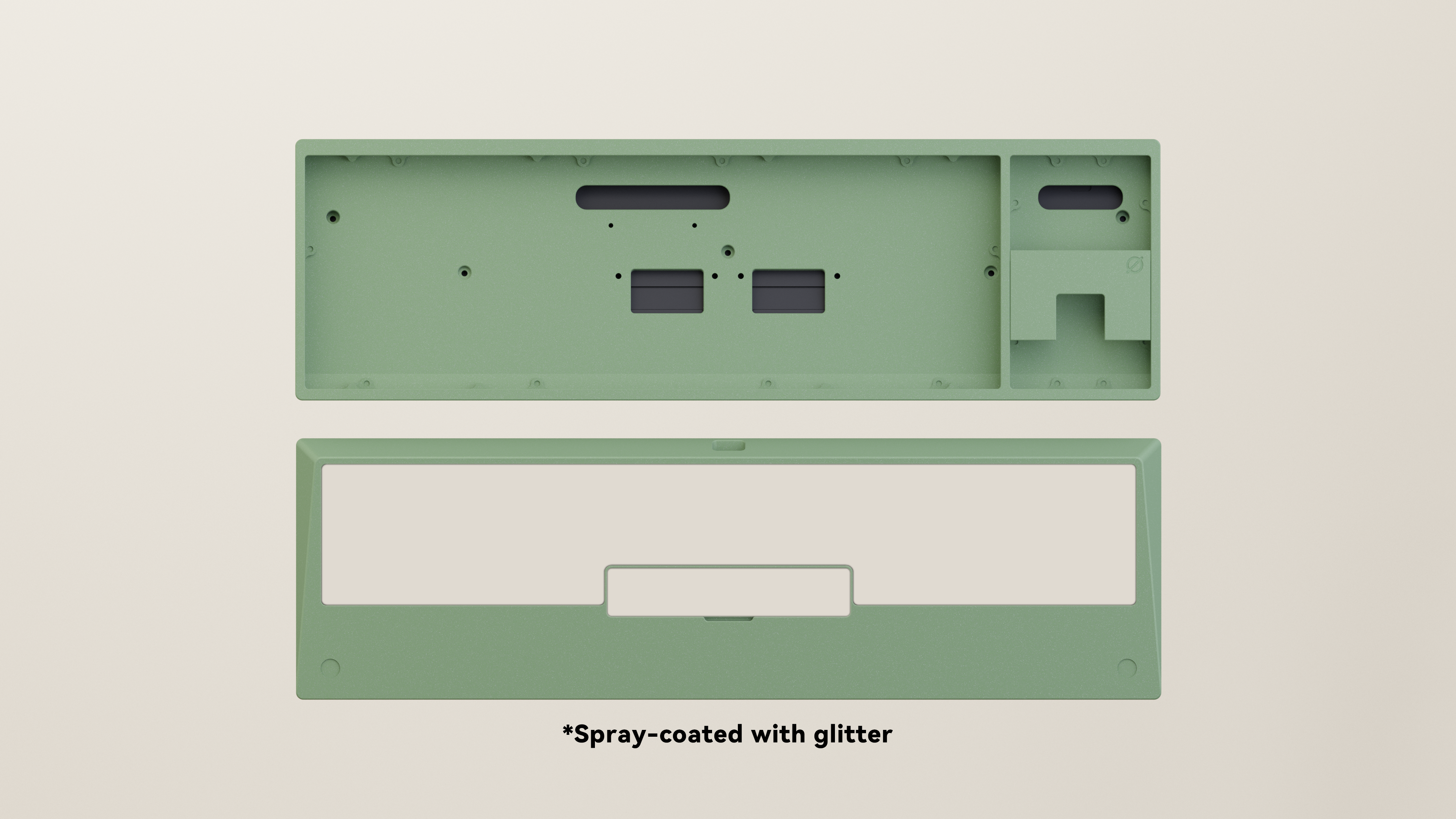

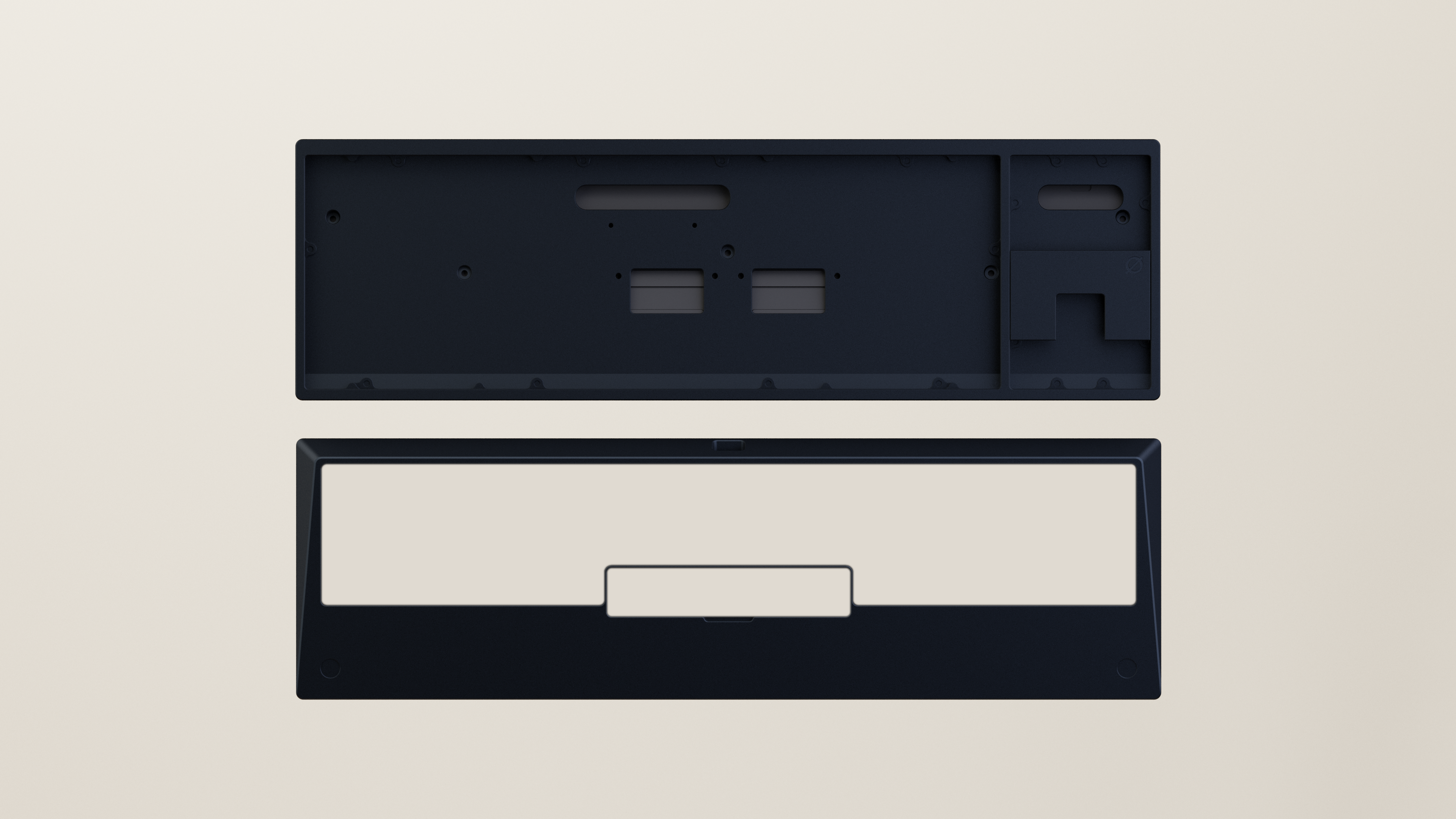

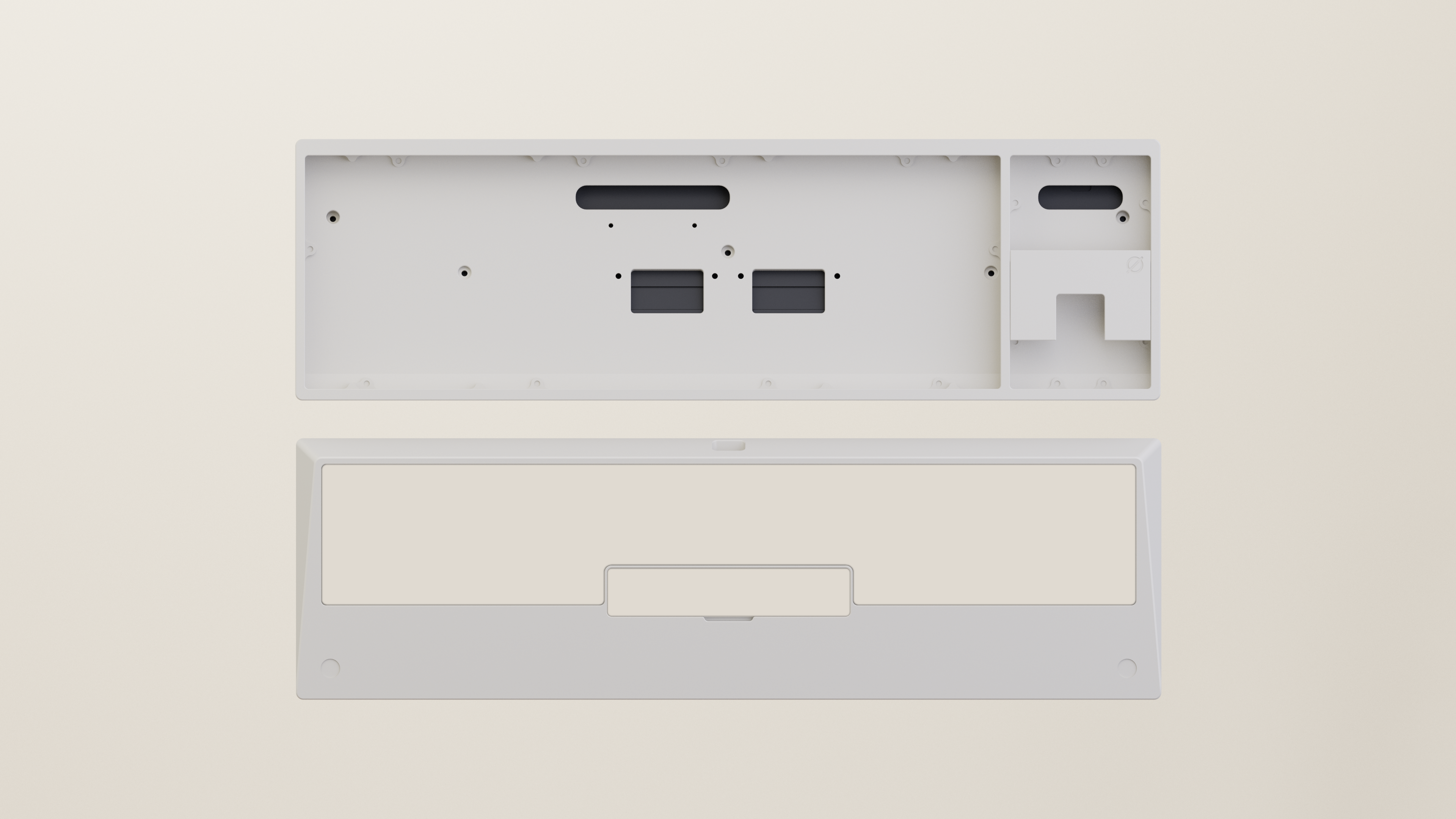

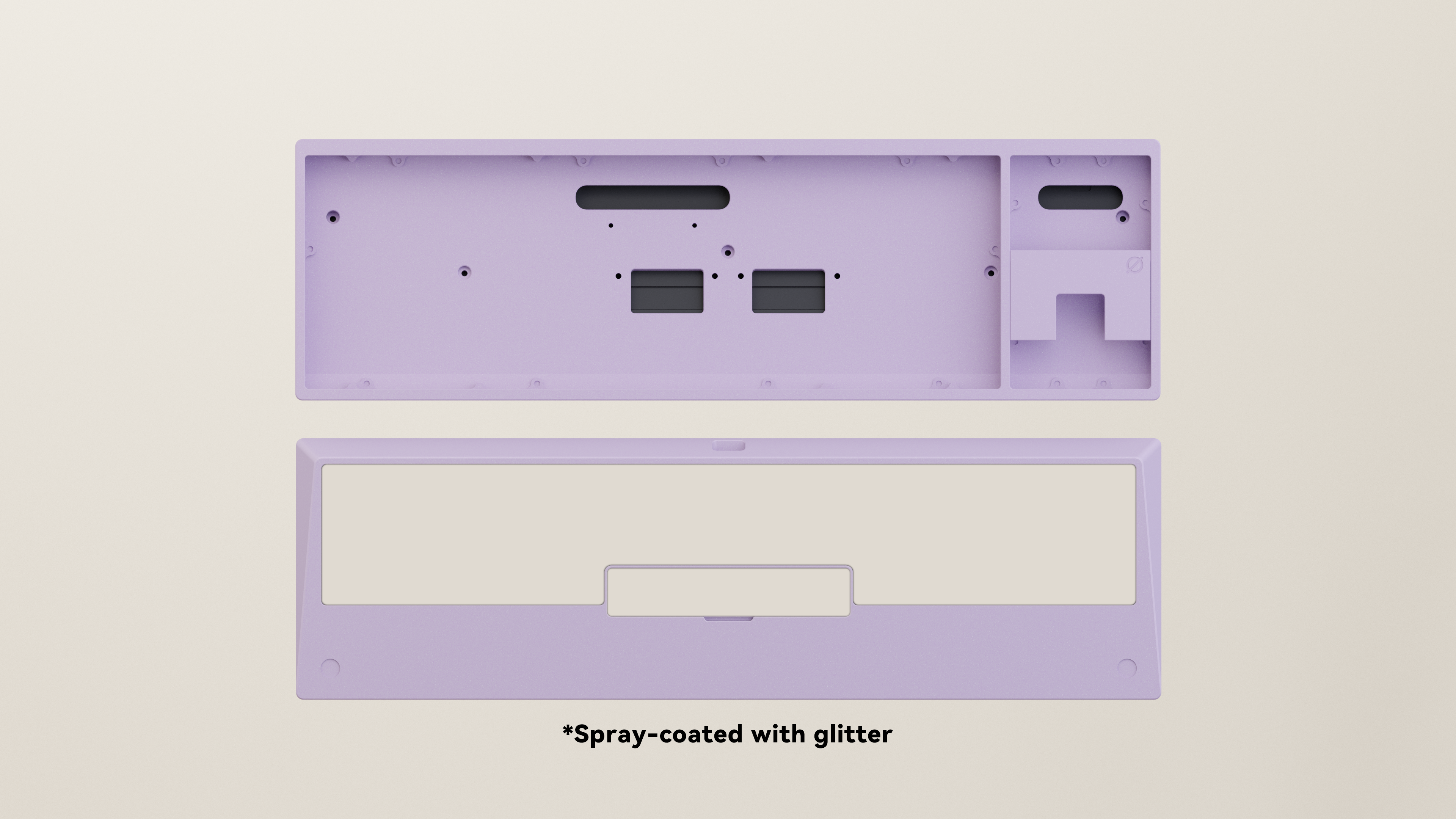

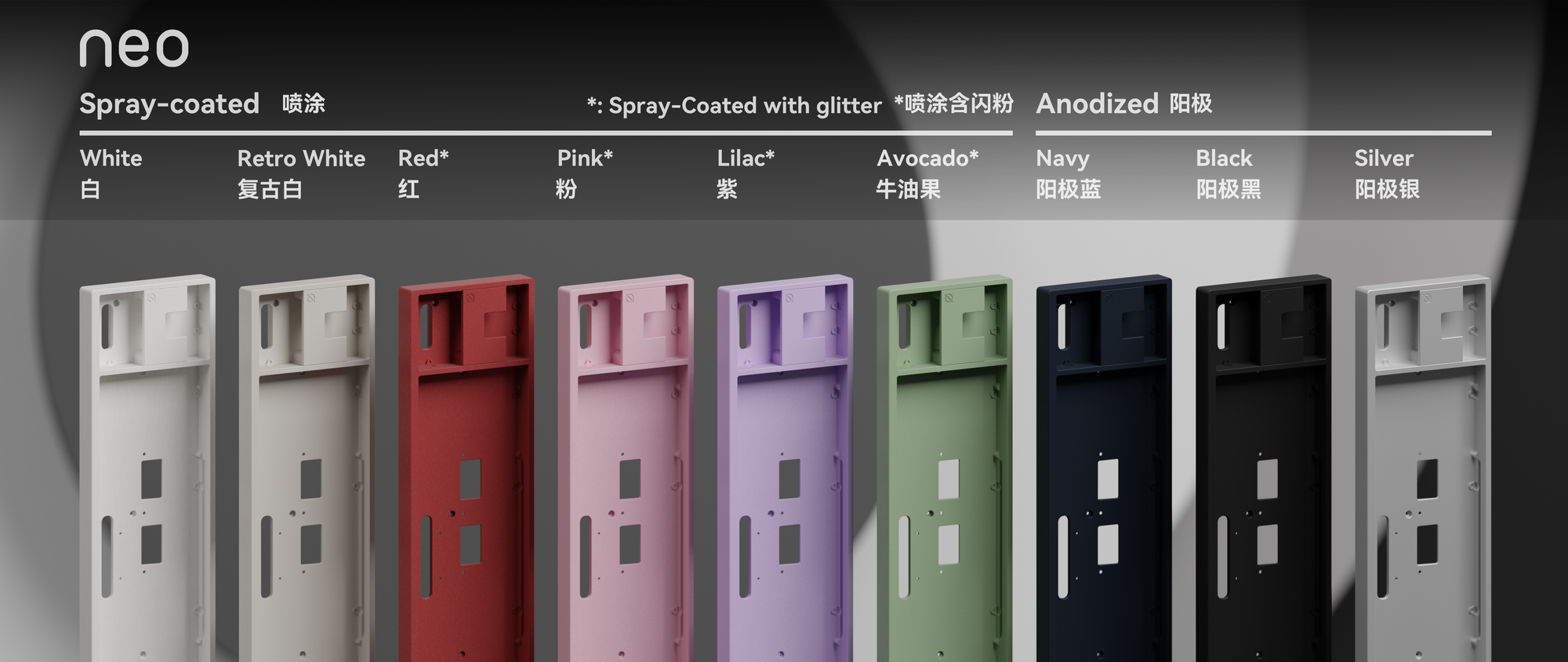

  • Case

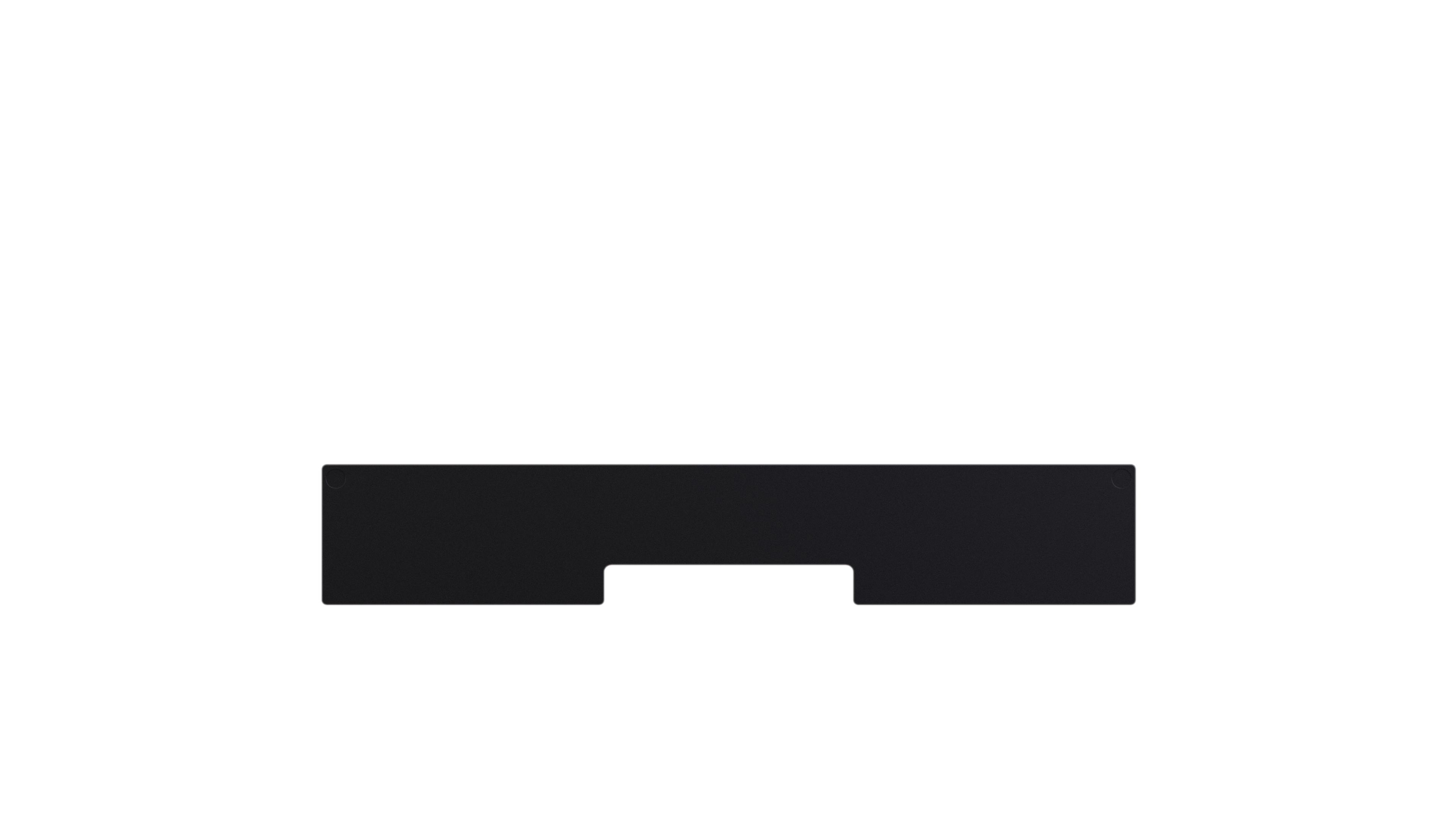

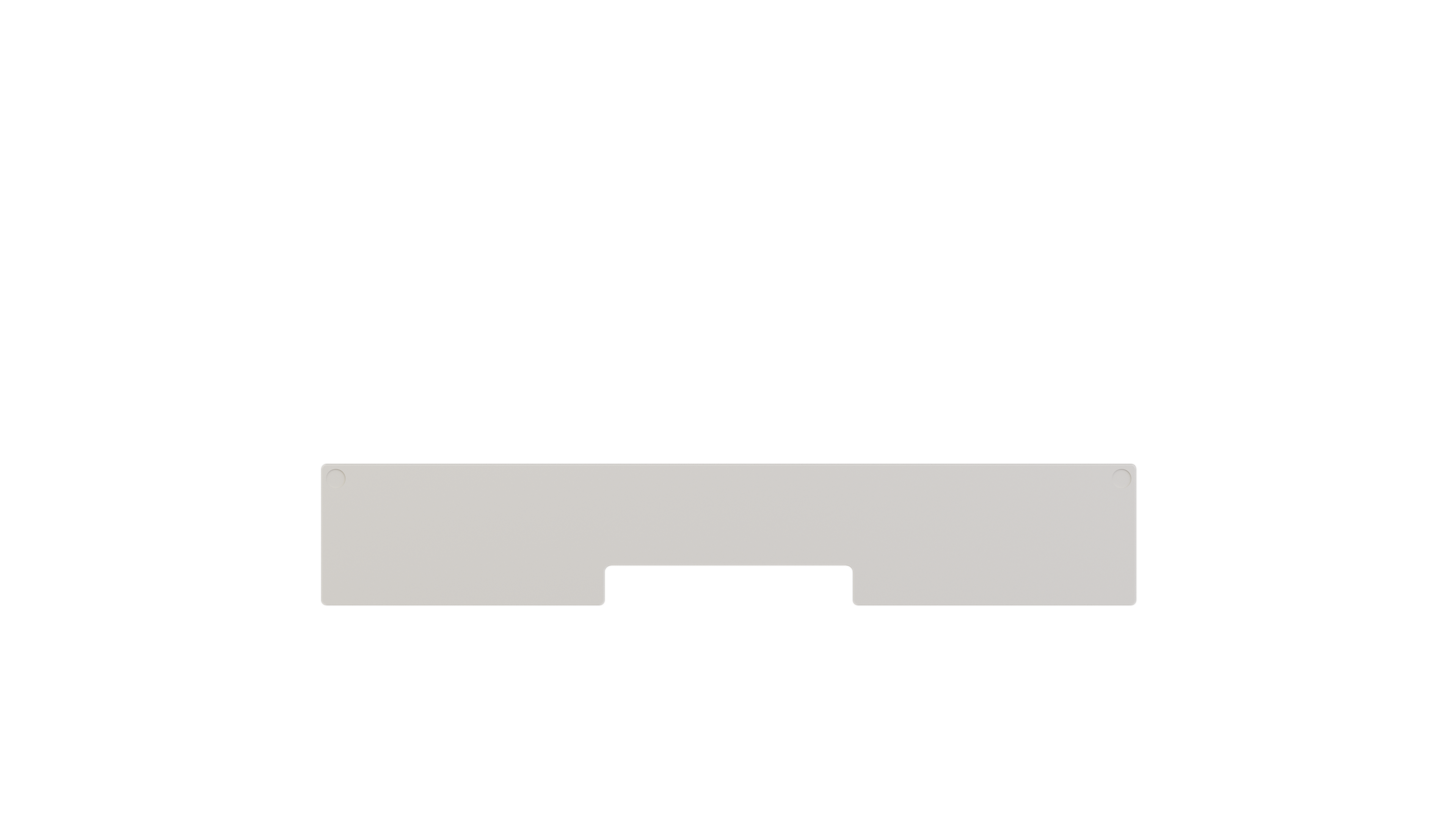

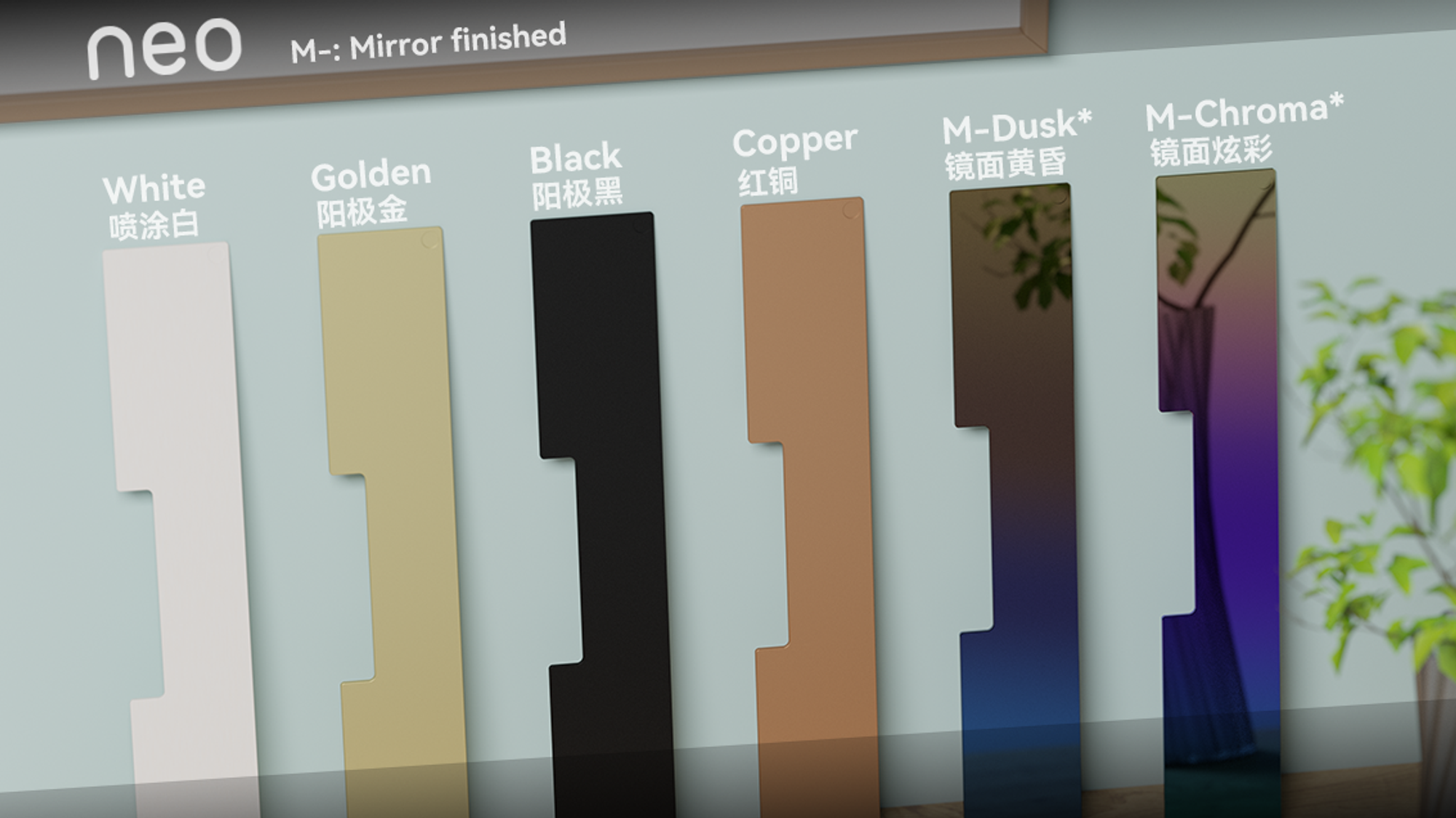

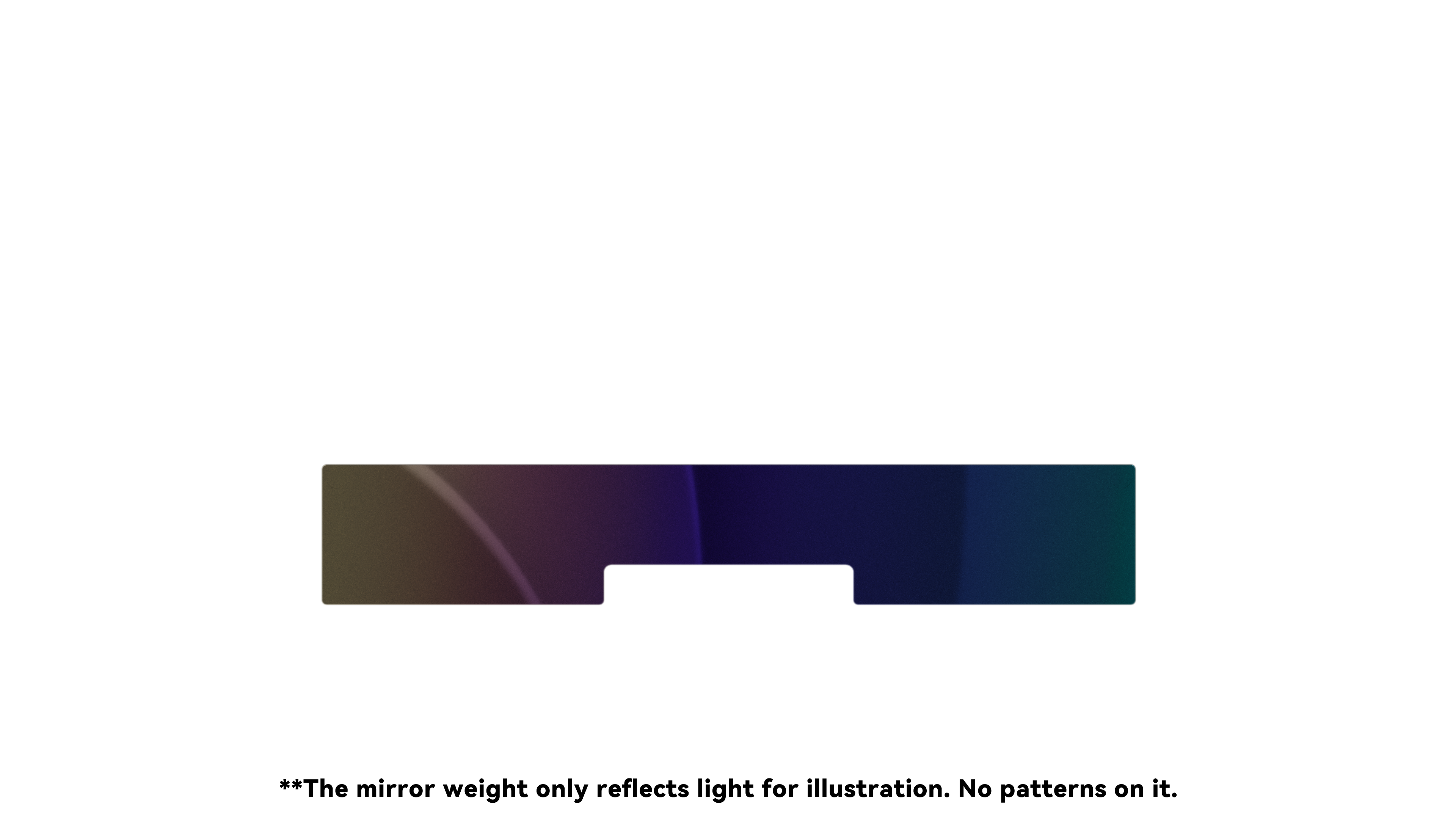

  • Weight

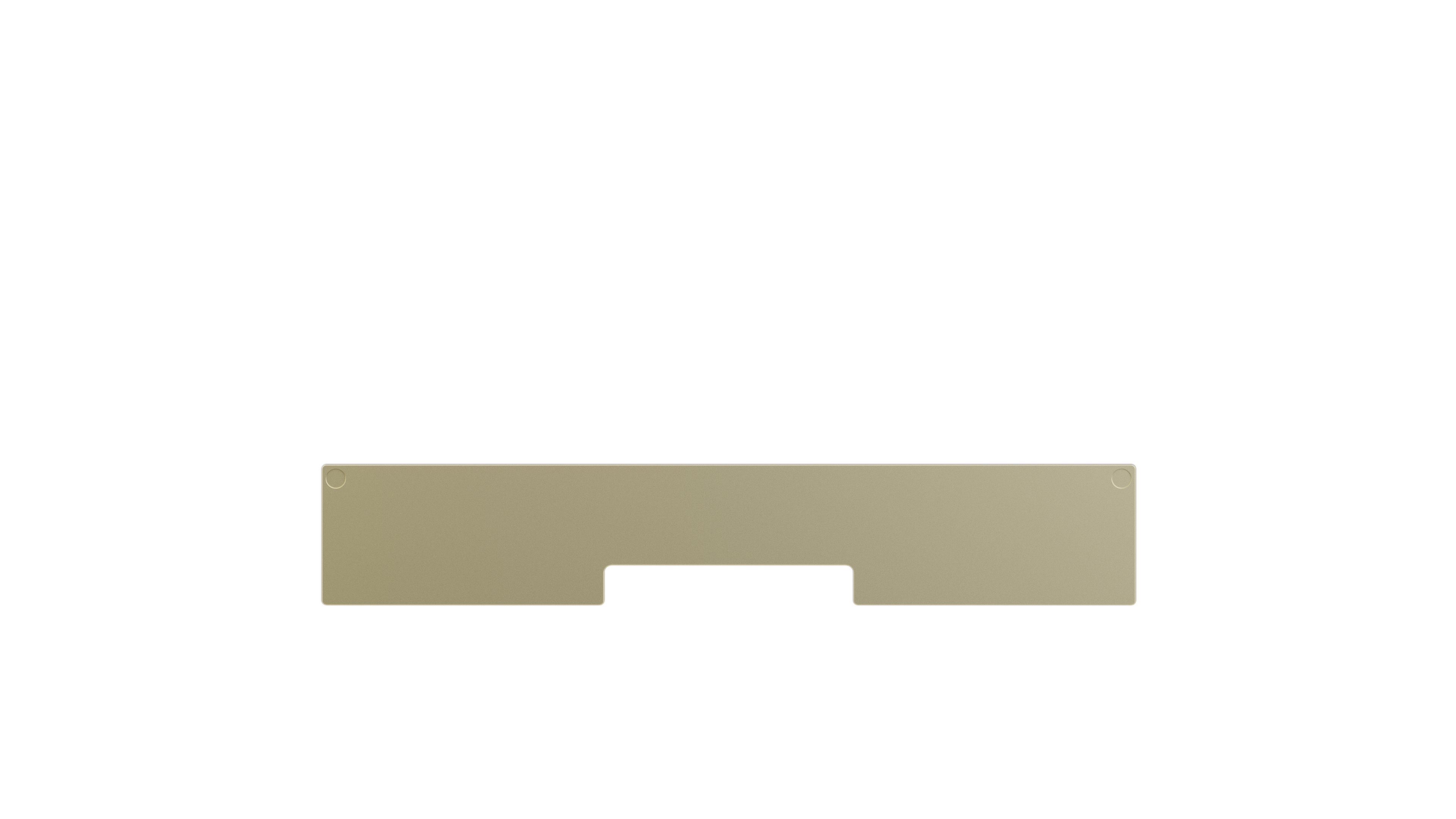

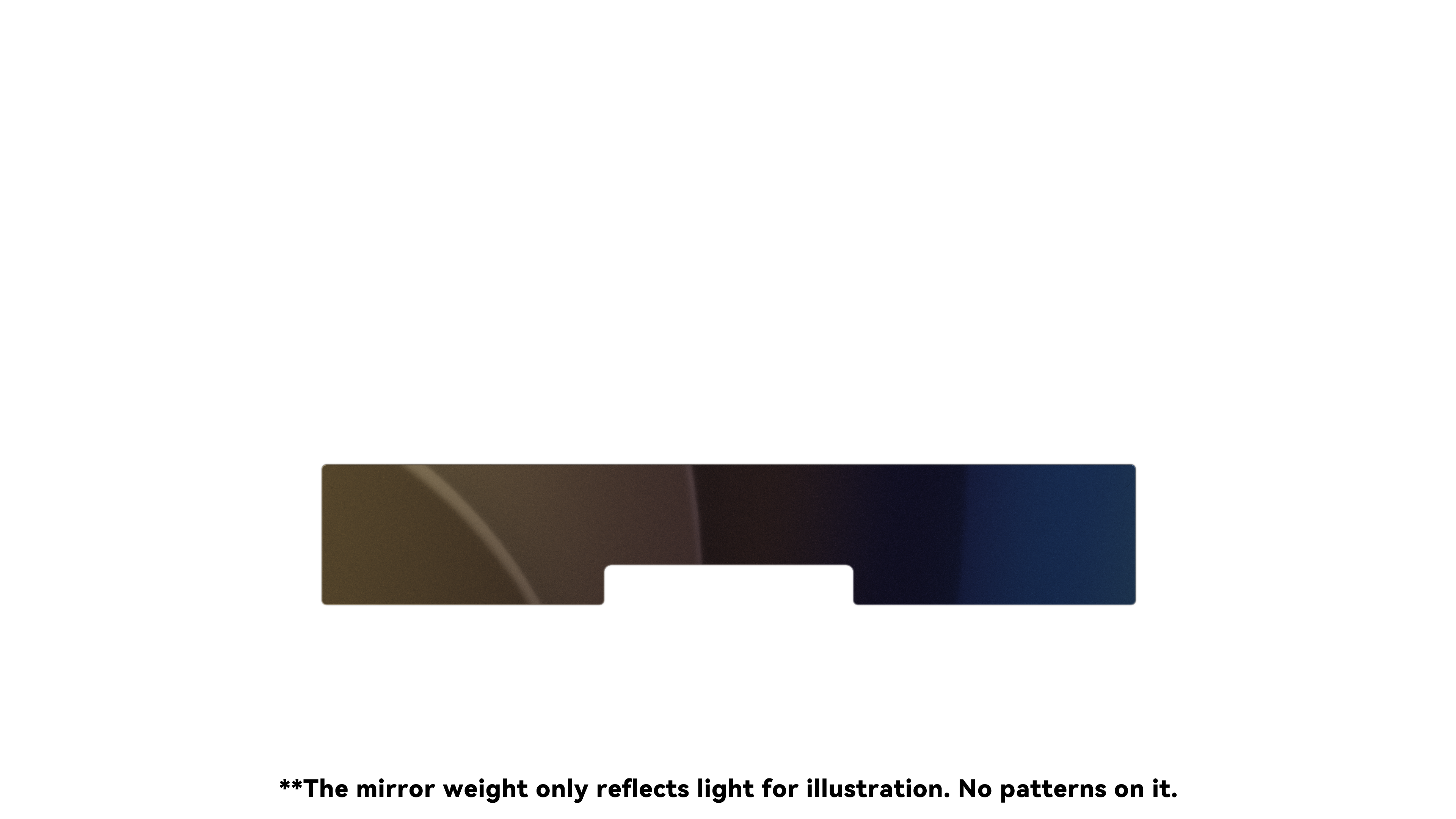

white, golden and black are alu while mirror finished weights are stainless steel

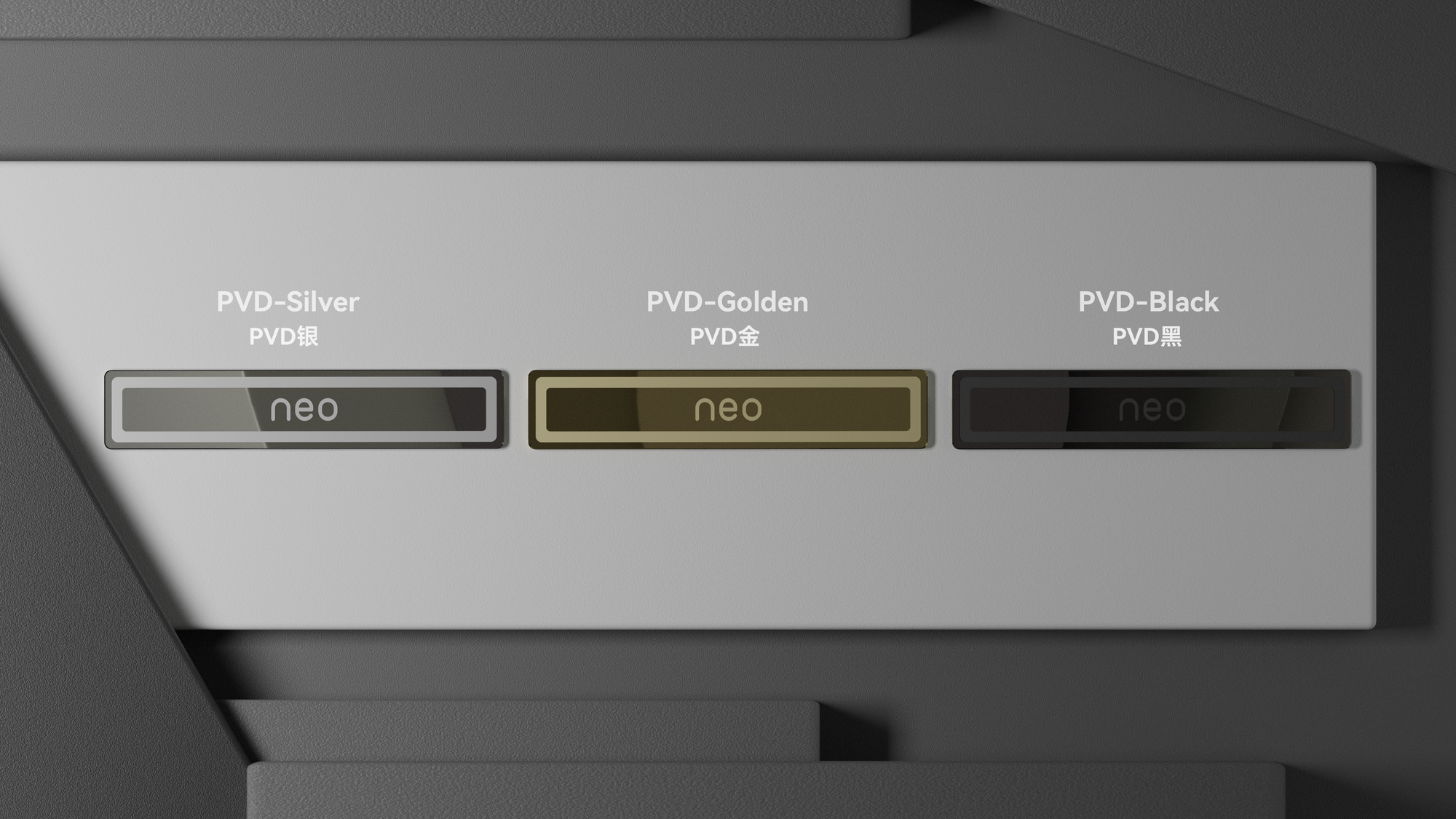

  • Badge

Specification:

  • Typing angle:8 degree
  • Front height:17.5 mm
  • Size: 356.5mm x 107.8mm
  • Weight:
    • with aluminium weight: 0.89kg before building, 1.26kg after building
    • with copper weight: 1.16kg before building, 1.53kg after building
    • with stainless steel weight: 1.13KG before building, 1.5kg after building

 Content List:

  • Case
    • Including one pre-installed external weight of your choice
    • Including one pre-installed badge of your choice
    • One 3000mAh battery will be installed inside the case for orders with Tri-mode PCBs
    • Orders with wired PCBs or solder PCBs will receive fillers for the battery compartments
  • PCB Kit
    • PCB of your choice
    • 1x PE sheet
    • 1x PCB Foam
    • Standoffs
    • Tri-mode PCB comes with a 2.4Ghz dongle
  • Plate of Your Choice (or Plateless with Solder PCB)
  • Poron Case Foam
  • PCB Daughterboard * 3 - installed
  • Silicone Gaskets
  • O-ring (30 duro) x 1
  • Rubber feet
  • Free Gifts (Not covered by warranty):
    • Keyboard carrying case
    • 1x Keycap & Switch puller
    • 1 set of 70% PCB clip-in NeoStab
    • USB-C cable


Addons Available Here


Disclaimers

Kindly note that the images are of 3D renders and are for illustration purposes only. The final colours may differ slightly.

Keyboards are shown for demonstrative purposes only and are not included with the purchase of these keycaps.

QK Acceptable Quality Standard link here


Shipping Time and GB Agreements (PLEASE READ):
These products are set to be shipped out in Q3-Q4 2024 but please check our updates for the latest information.

Please note that this is a Group Buy. There can be delays and set backs. The timeline is only an estimate. By adding this item to your cart and purchasing you agree that you understand everything above. You will be charged immediately for this item. There are no refunds or cancellations on these orders. Please do not purchase this item with other group buys. Only the items specified in each product picture are included with that particular product.
