HE Module: Boog75 HE Module

HE Module


IN STOCK - Ships within 3 working days, all sales final.

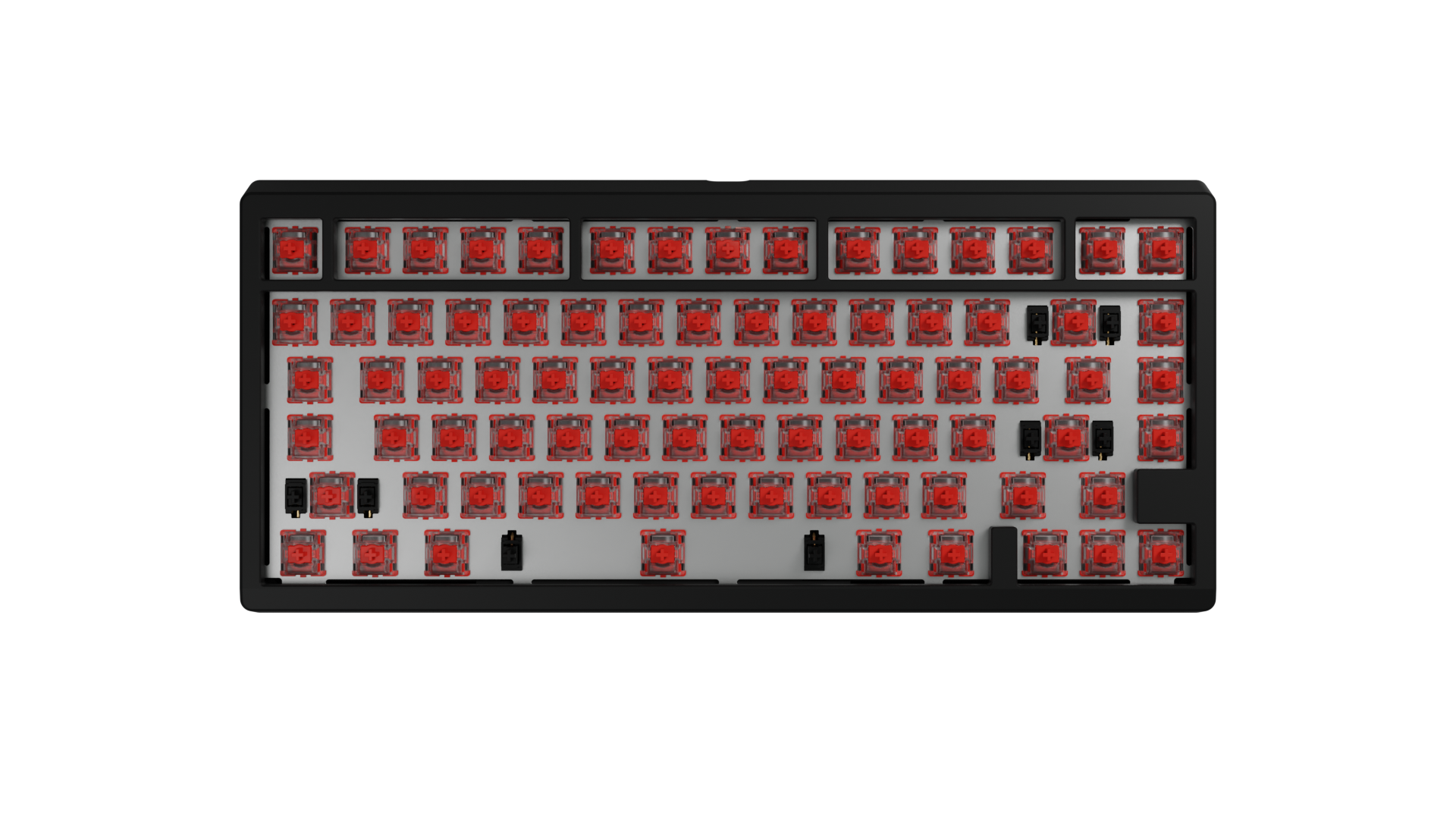

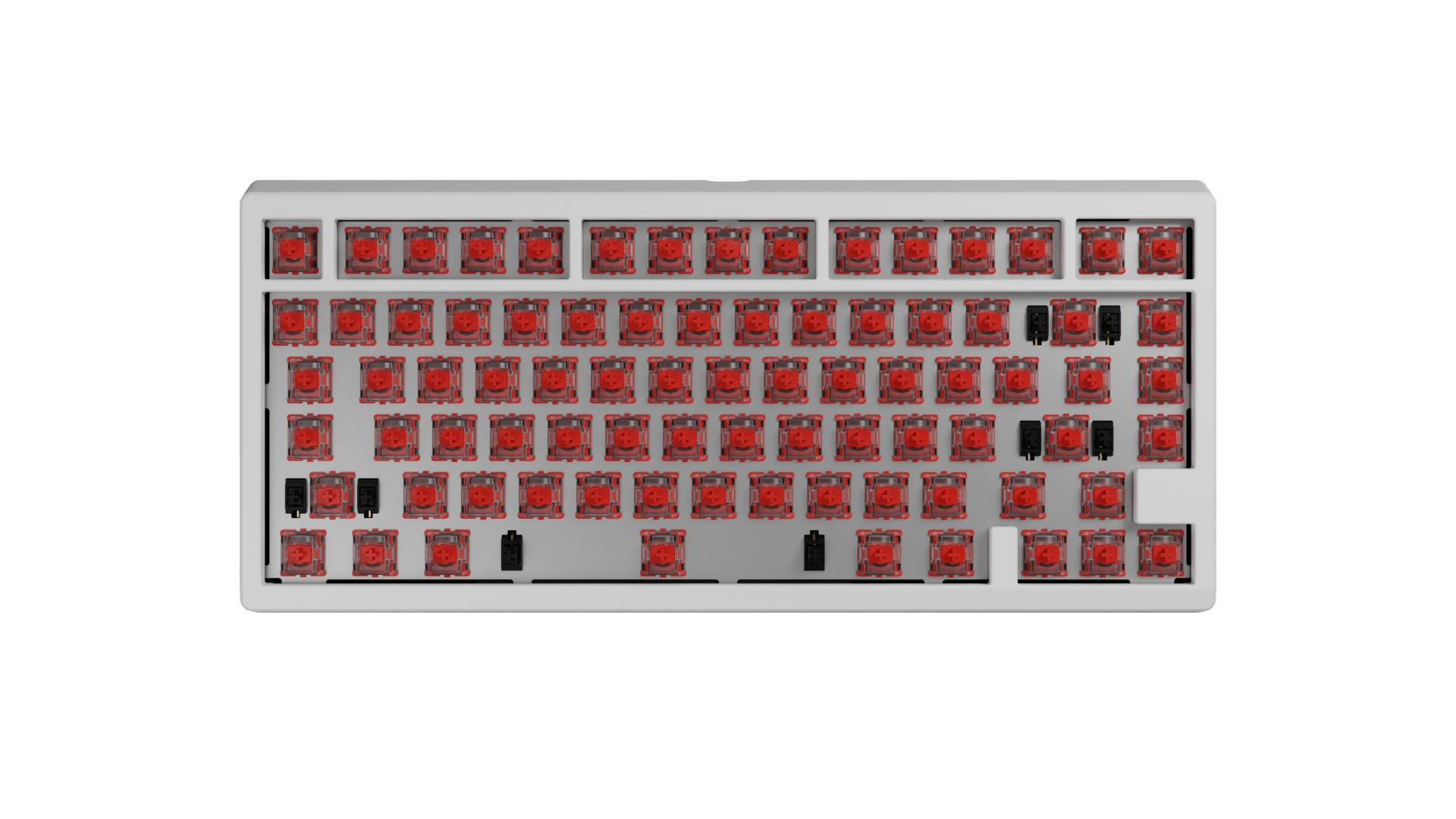

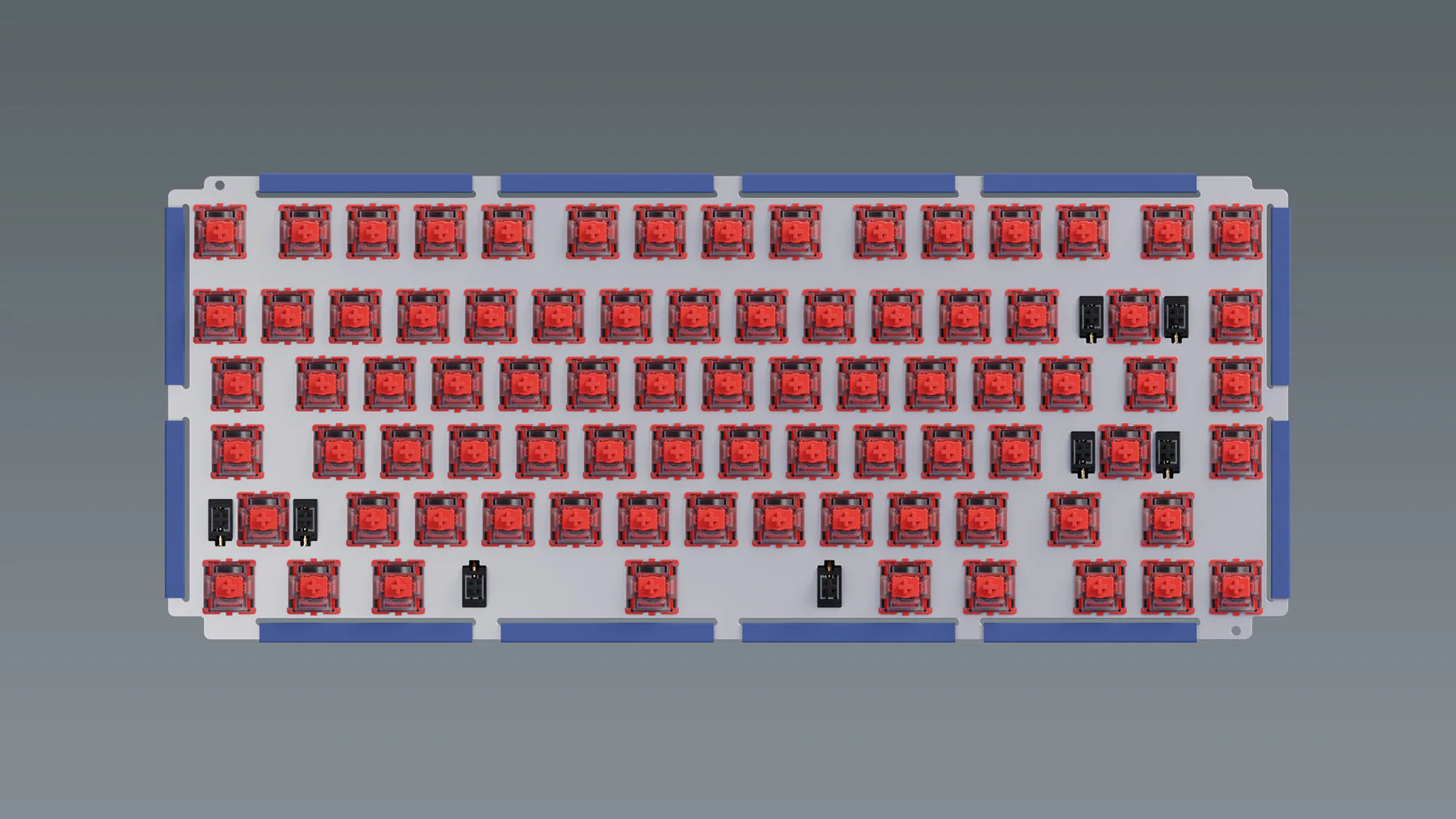

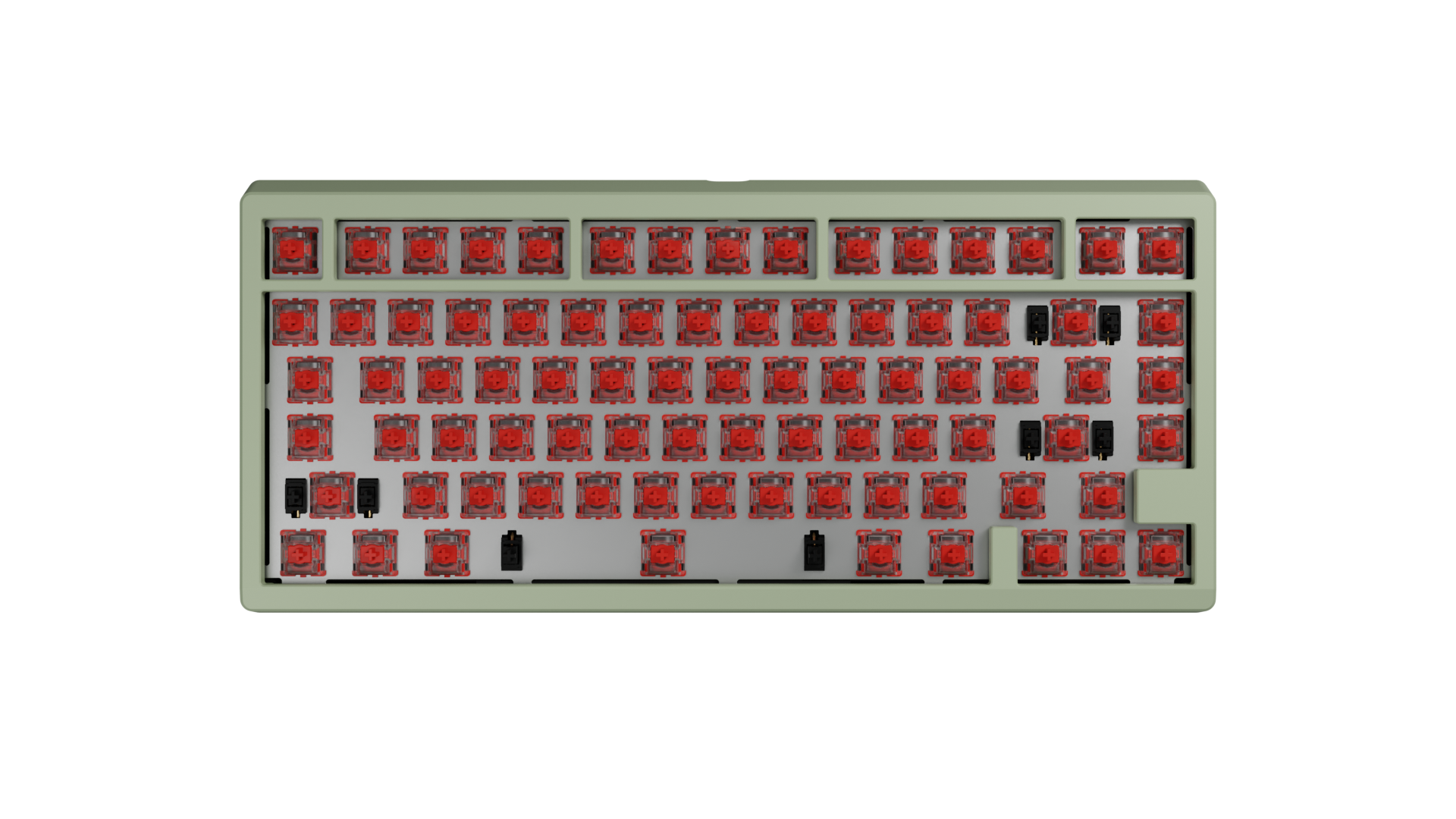

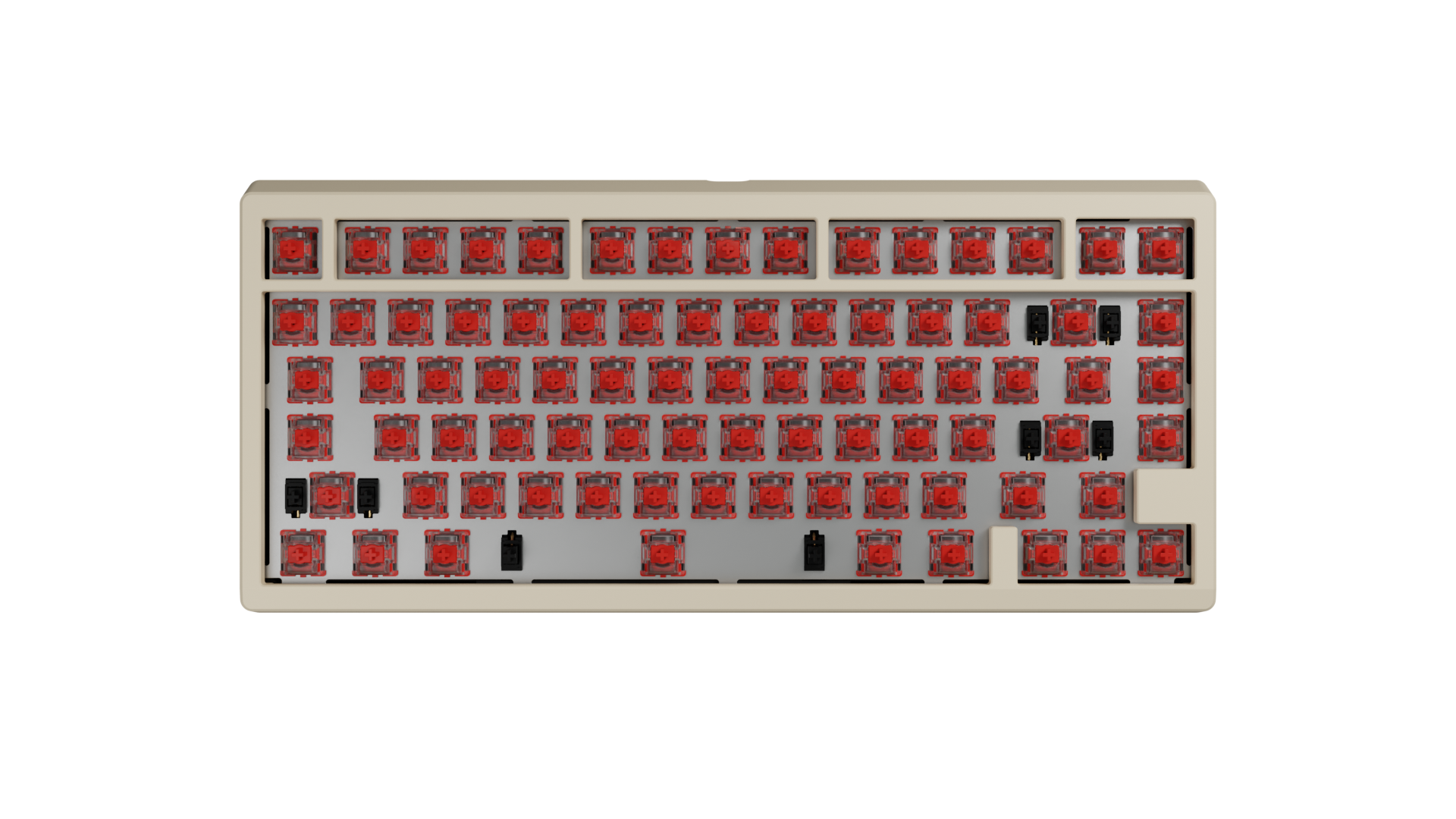

Boog75 HE Module  - Compatible with Zoom75



HE Module Contents:

  • No keycaps, No case
  • Magnetic Switch
  • Alu Plate
  • Poron Pad
  • PCB
  • Upgrade from factory lubed stabilizers to hand lubed stabilizers



Switch Specifications:

  • Product Name: GATERON KS-37B Magnetic Hall Sensor Keyboard Switch (compatible with KS37)
  • Initial Force:30±10gf.
  • Total travel:4.0±0.2mm.
  • Operation Lifetime:150,000,000 Cycles.
  • Bottom Force: 50±10gf.
  • Top Housing Material: Thermoplastic, Transparent
  • Bottom Housing Material: Thermoplastic, Red
  • Stem Material: Thermoplastic, Red
  • Spring Material: Stainless steel



Highlights:

  • Dual-rail structure for stability.
  • Square magnet design, with freely adjustable magnetic pole orientation. Supports multi-directional Hall effect sensing.
  • Extending the stem for better switch stability.
  • Integrated spotlight lens design, enhancing light guidance.
  • Every switch features a very tight housing and a very good coat of factory lube. No need to spend hours and hours lubing switches, they are good to go off the pack!
  • Compatible with the Zoom75 case



Get your Zoom75 Case Combo here



Magnetic Switch

Traditional mechanical keyboards require pressing the switch and reaching the actuation point to activate a key. In contrast, magnetic switches operate differently. They comprise a bottom Hall sensor and an upper magnet. When a key is pressed, changes in the distance within the sensing magnetic field lead to a fluctuation in current. Activation is determined by evaluating the strength of the induced current.

Additionally, automatic calibration via the Baseline Calibration algorithm ensures no abnormal functions due to temperature, humidity, magnetic differences, etc.



Adjustable Activation Point

Boog75 magnetic enables you to gain the upper hand in game.

Our Boog75 enables key activation at distances as short as 0.1mm. You can customize the activation point for each key, ranging from 0.1mm to 4.0mm. Find the ideal key travel distance that suits
you best.



Rapid Trigger

Utilizing the unique traits of magnetic switches, key activation and reset are determined by the distance travelled rather than fixed points. This precision enables keys to activate upon pressing and reset upon release, facilitating seamless consecutive key presses. This capability empowers you to swiftly execute a series of actions during gaming.
