(In Stock) Cloudline V2 Addons

Sale price£48.33
Only 1 unit left

Pickup available at ProtoTypist Keyboards

Usually ready in 24 hours

(In Stock) Cloudline V2 Addons

(In Stock) Cloudline V2 Addons

Hotswap PCB + Daughterboard/ JST Cable

ProtoTypist Keyboards

Pickup available, Usually ready in 24 hours

ProtoTypist Keyboards
1 Alpha Court
Bradford BD5 8FH
United Kingdom

+447843244701
Addons: Hotswap PCB + Daughterboard/ JST Cable

Addons


IN STOCK - Ships within 3 working days, all sales final.





Cloudline V2 Addons:



Hotswap/ Solderable PCBs (by Mechlovin)

Custom F12 TKL PCB with H87 mounting post positions & JST footprint. Extended to work with Cloudline V2 LED breakout board for front RGB accent.

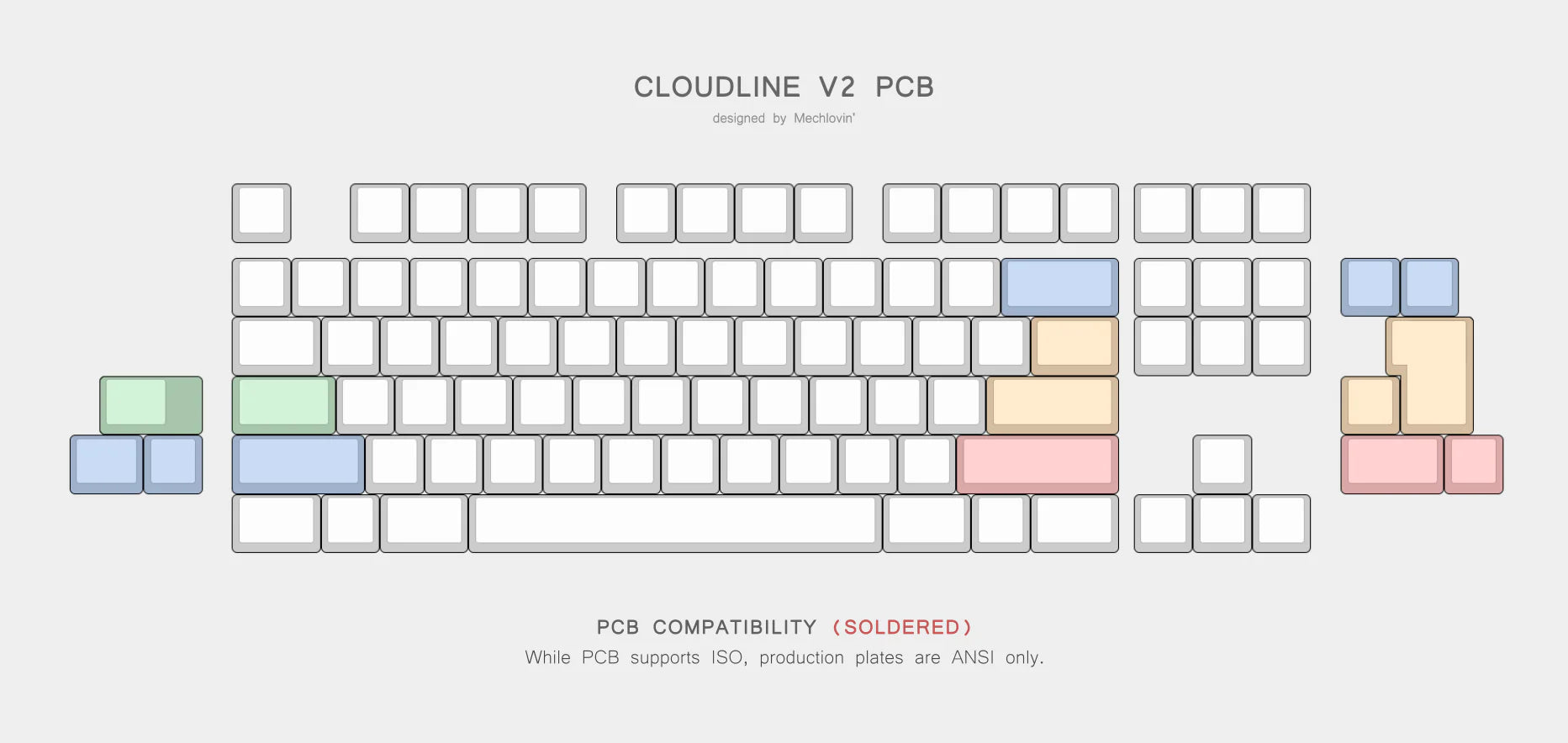

Solderable:

Supports ANSI F12 TKL Tsangan layout with options for stepped caps-lock, split left shift, split backspace, split right shift, and ISO enter. (1 included in keyboard kit)

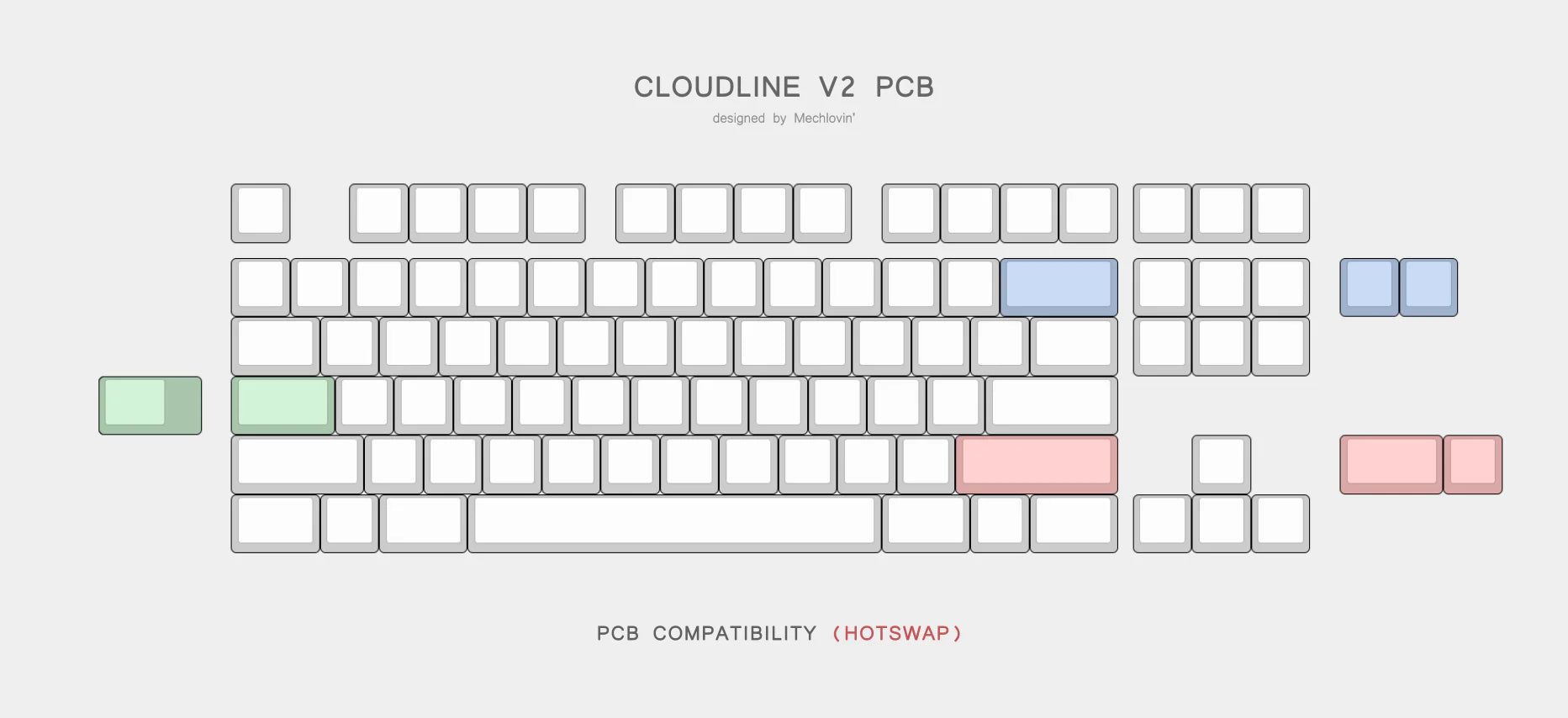

Hotswap:

Supports ANSI F12 TKL Tsangan layout with options for stepped caps-lock, split right shift, split backspace. Note that some F-row switches are inverted to allow for mounting post clearance.
Note: It's highly recommended to use a solderable PCB for o-ring mount for more secure switch fitment. In addition, screw-in stabilizers on hotswap PCBs will not work with o-ring mount. Hard typists and flexible builds may have greater chance of bottoming out with hotswap PCBs due to increased height from sockets.


Plate Materials:

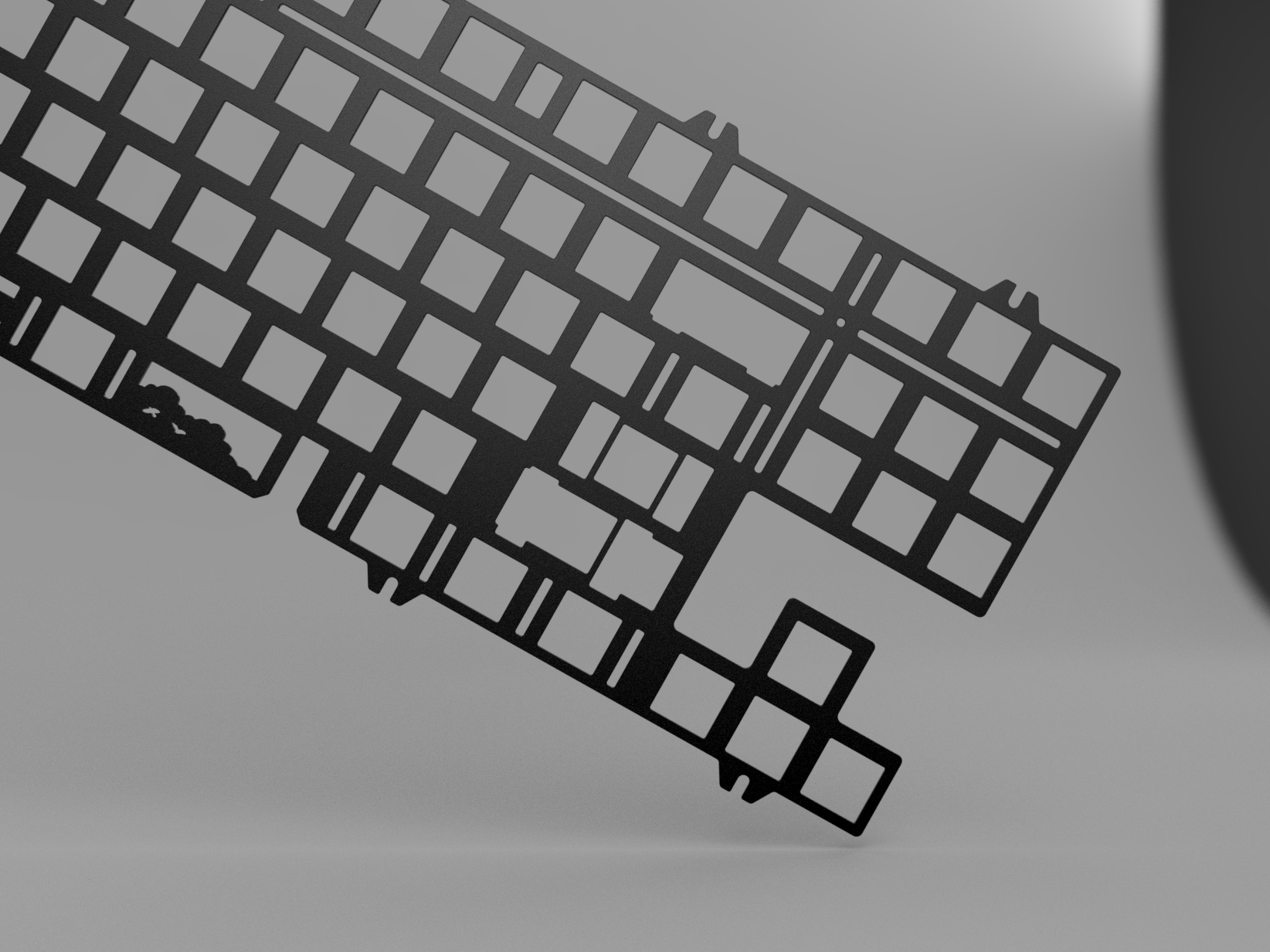

  • Aluminum full plate: anodized black (1 included in keyboard kit)

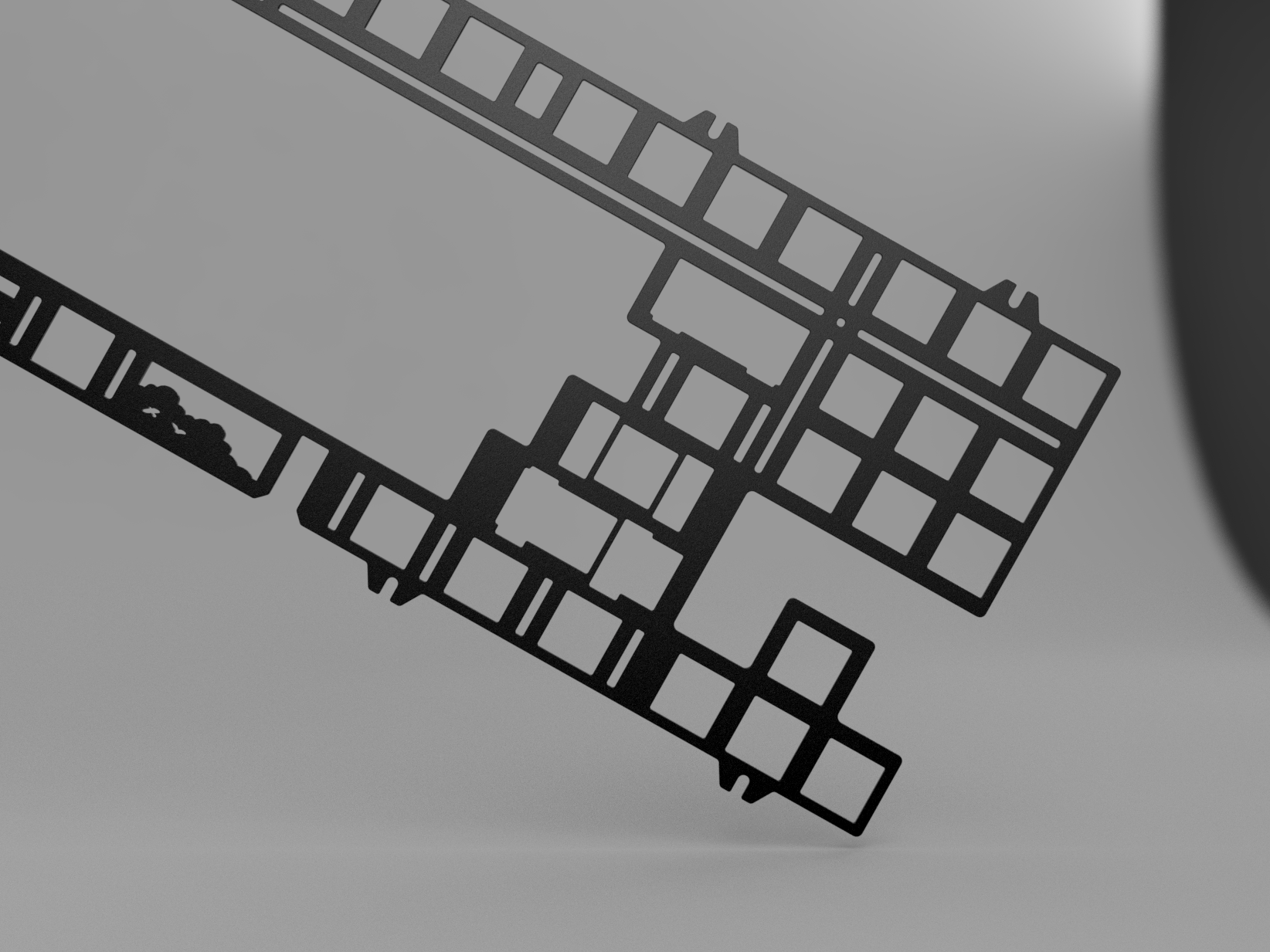

  • Aluminum half plate: anodized black

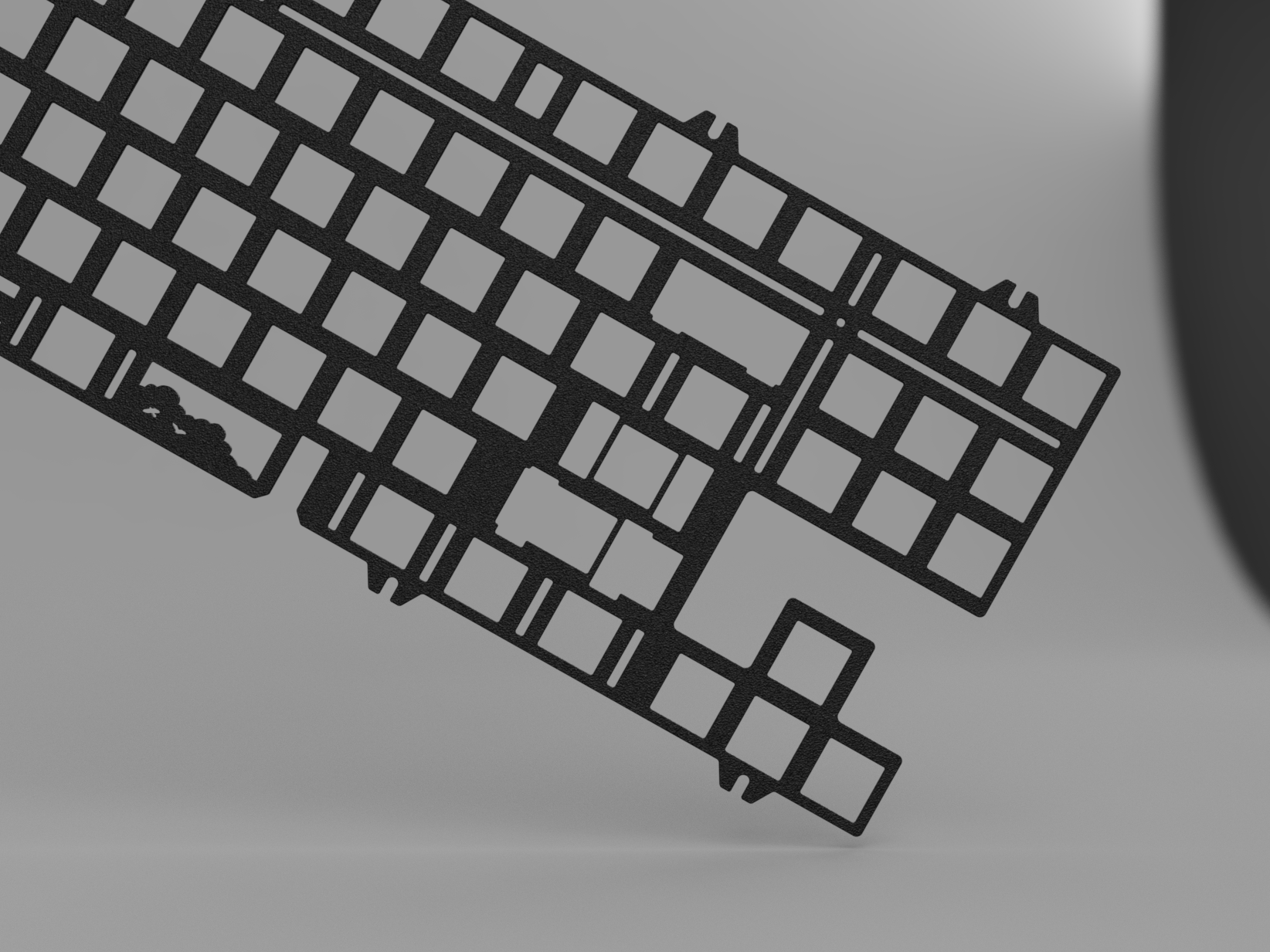

  • Polypropylene full plate: black (very dark gray)

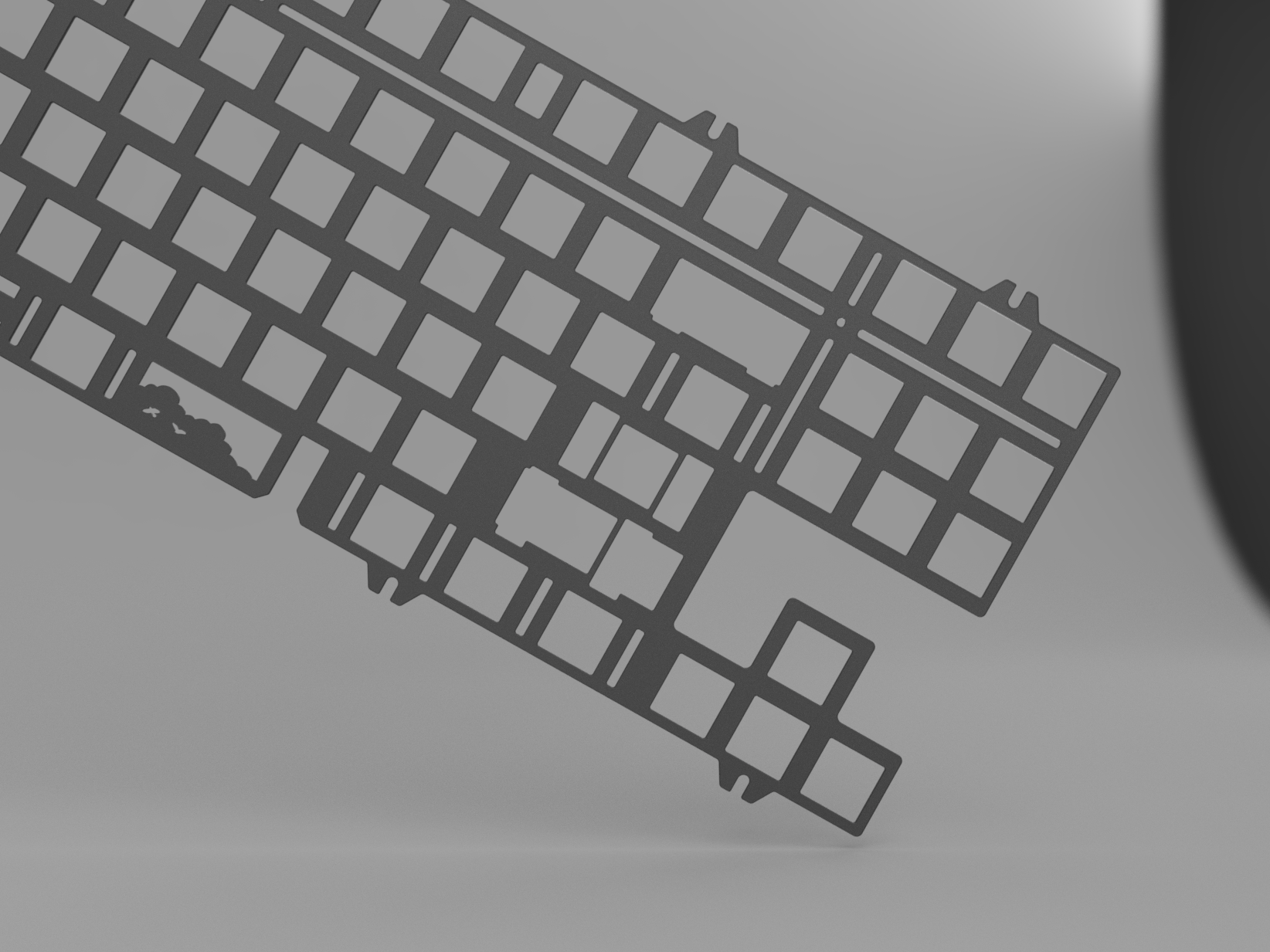

  • Polycarbonate full plate: dyed smoke gray

Plates are ANSI-layout only. Plate files may be released later for ISO customization. Note that plastic plate details may slightly vary from renders due to the manufacturing process.

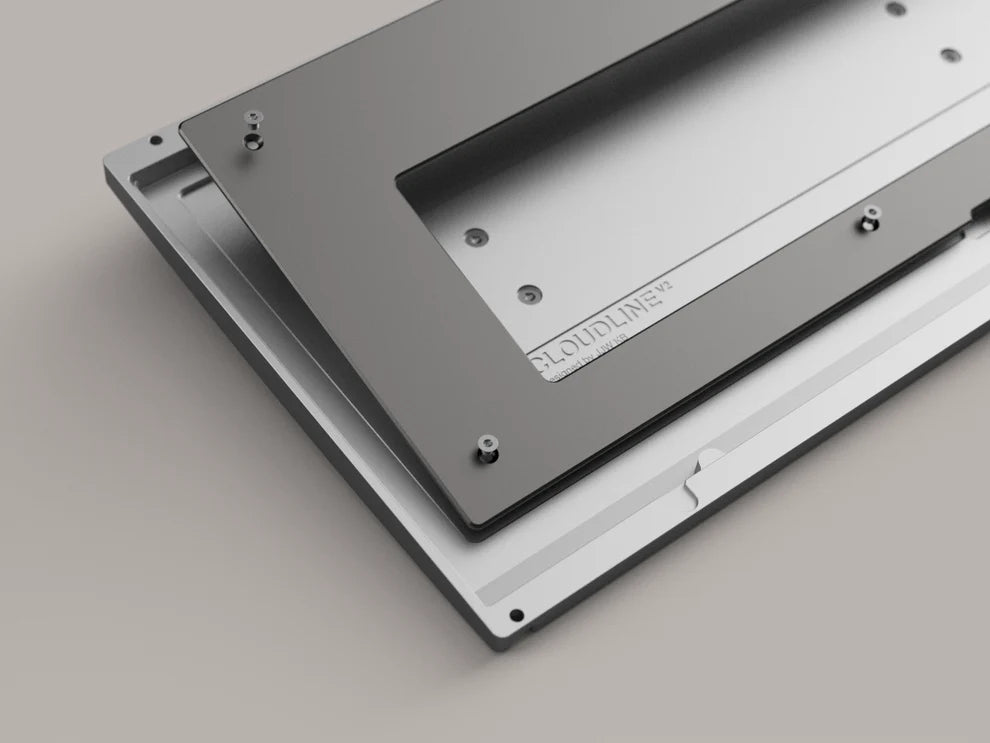

Aluminium Internal Frame:

By default, all Cloudline V2 kits come with a pre-installed brass internal frame. Brass, being a denser material, not only provides a very slight bump in weight, but also lends to greater vibration absorption and dampening.

If you'd like to experiment with an aluminum internal frame, you may find that it leads to a slightly more resonant sound which may be to your liking.



O-Ring Options:

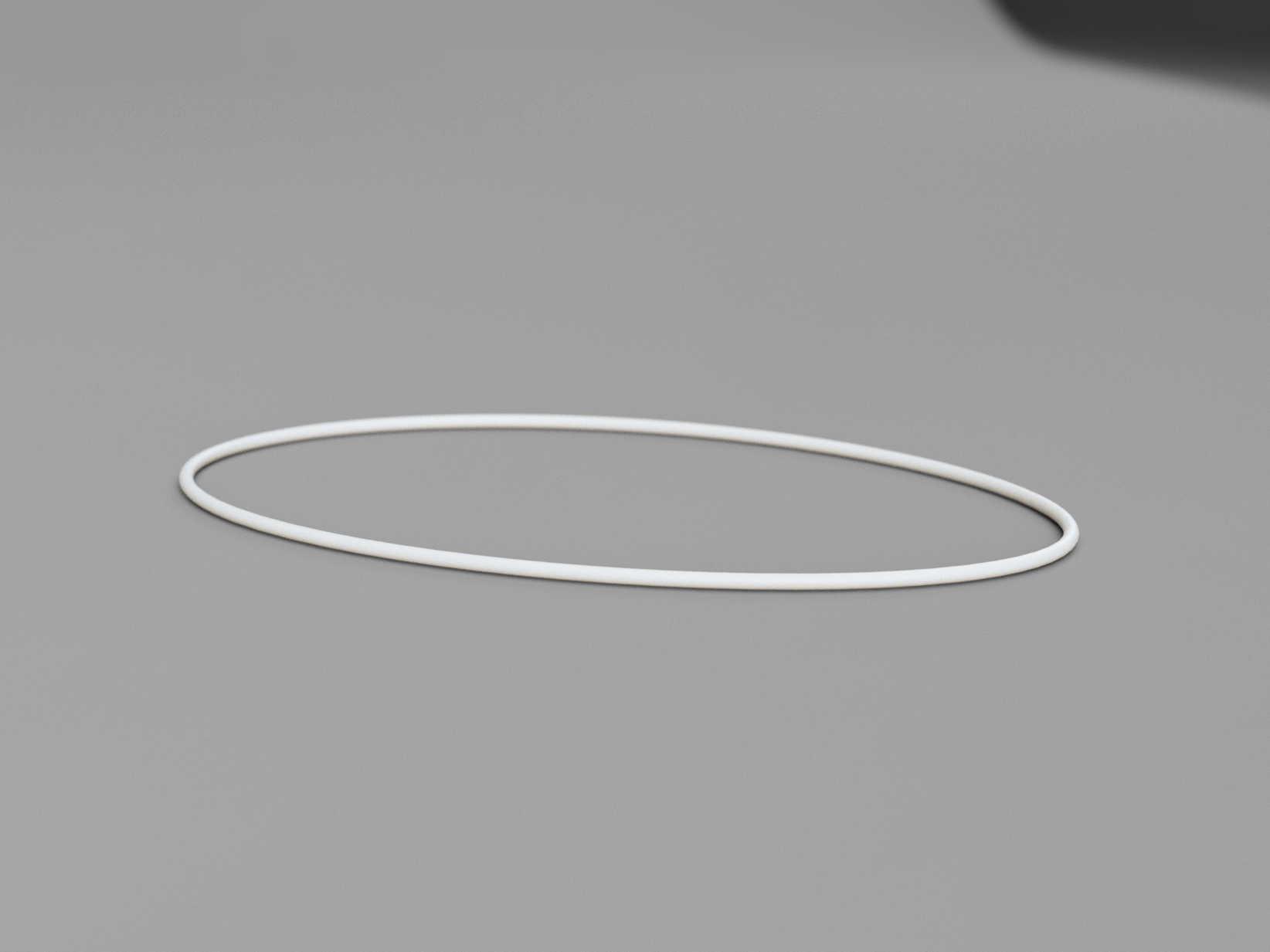

  • 30A o-ring: Off-white (light gray) silicone

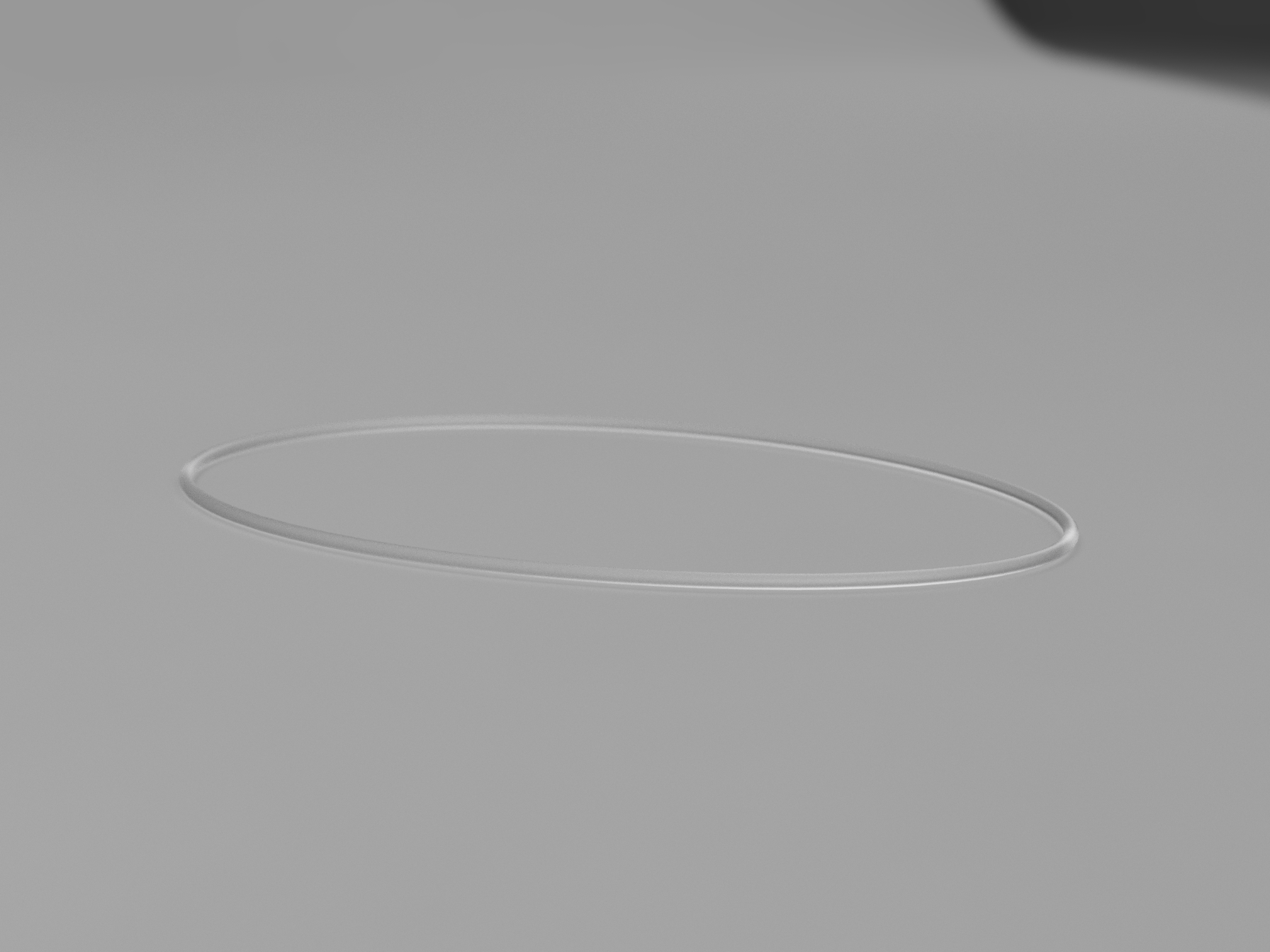

  • 50A o-ring: Translucent clear silicone (1 included in keyboard kit)
  • 70A o-ring: Dark gray silicone


Disclaimers

As this is an In Stock item please do not add items from group buys to this order as it will delay your orders shipping till everything is available.
