IN STOCK - Ships within 3 working days, all sales final
Description:
Your Kei v2 kit comes with:
- Top and Bottom cases with magnets and magnet caps installed (colour and material of your choice)
- Solder / Hotswap with silver Aluminium plate OR an EC PCB with a silver Aluminium plate(EC PCB comes with EC plate screws)
- Silicone Pack containing 4 x feet, 8 x gasket socks, 1 x USB cover, 1 x battery sleeve and 1 x plate dampener (in Frost White)*
- *(Includes a Seion sheet in PORON® Black)
- Bluetooth Daughterboard Pack (contains bluetooth daughterboard, daughterboard screws, daughterboard cable, and battery)
- Accessories (sticker pack, instruction booklet, and microfibre cloth)
- Kaban (Kei Edition)
Kits Available:
| Kit Number | Layout | Top Case | Bottom Case | PCB | Plate | Silicone Kit |

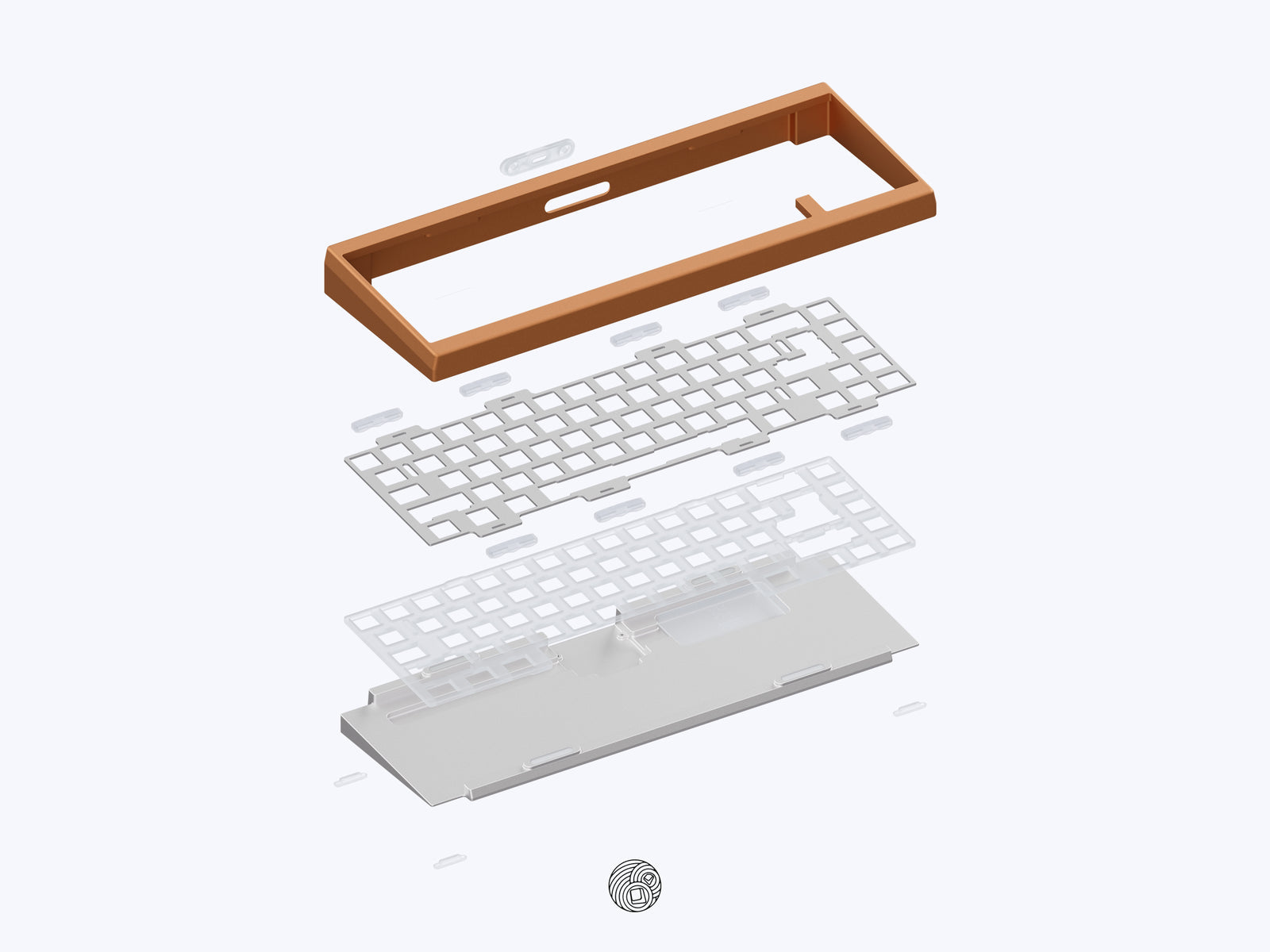

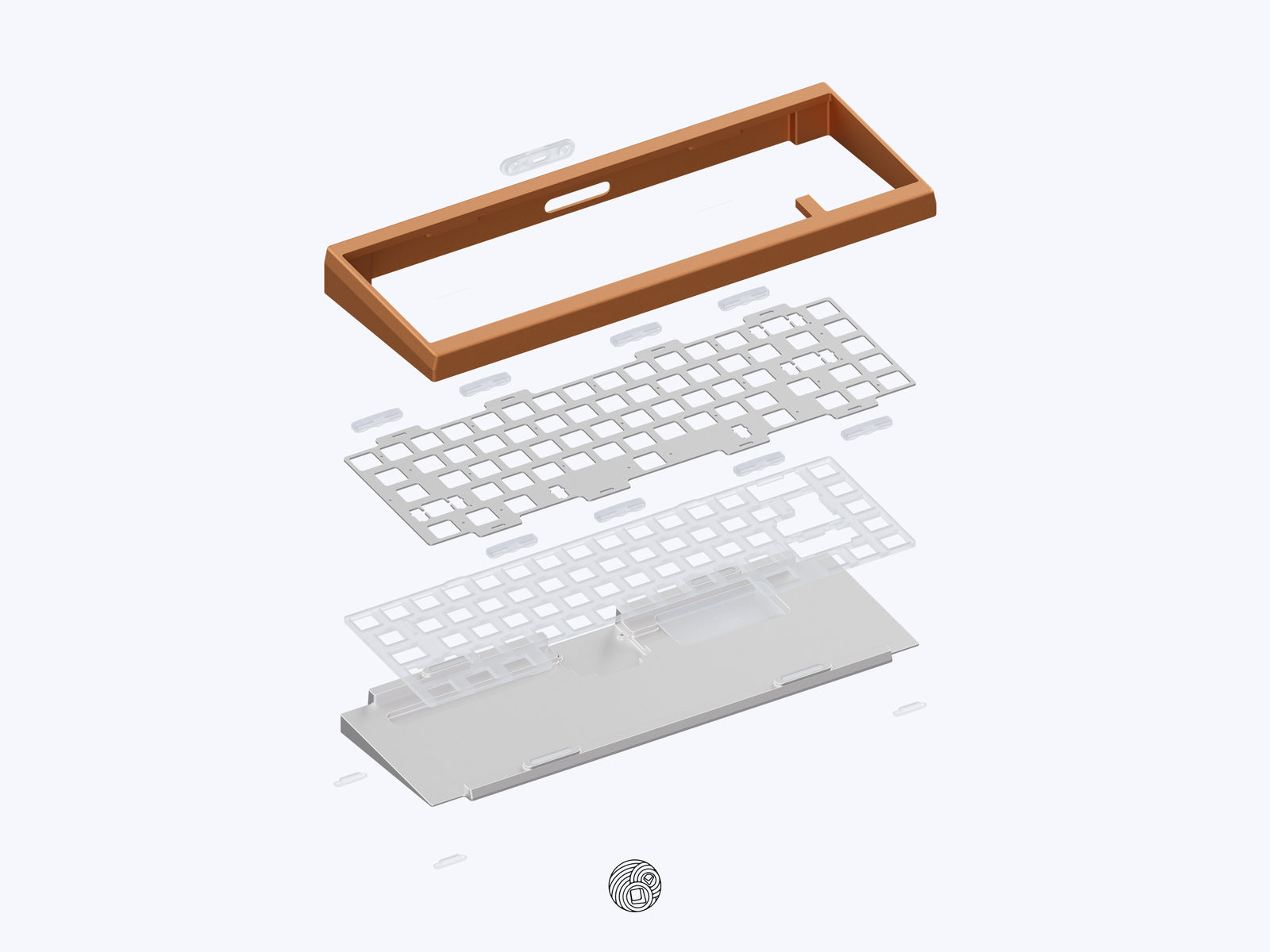

| Kit 1 | 65% | Copper | Silver Alu | MX Solder | Silver Alu | Frosted |

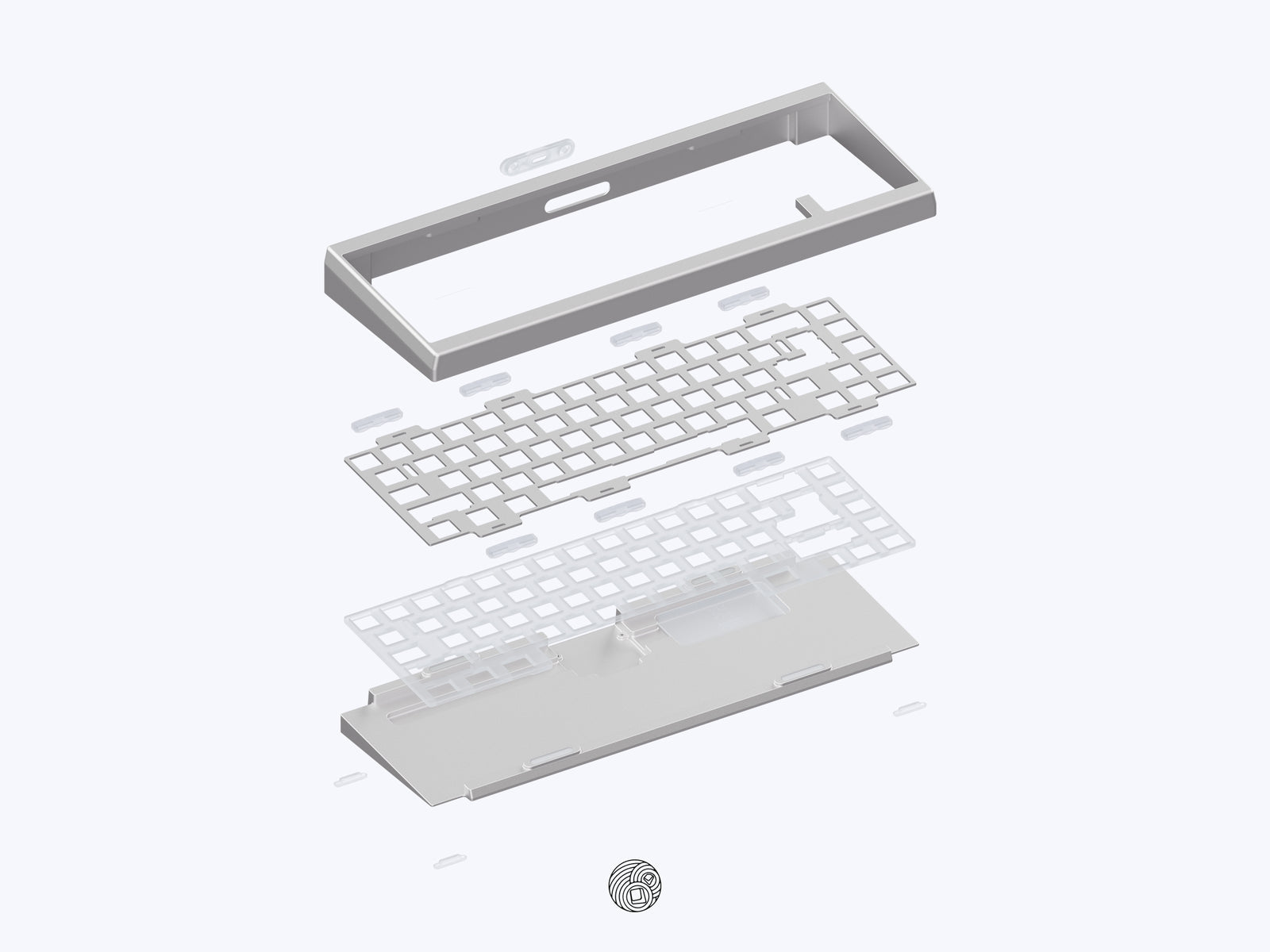

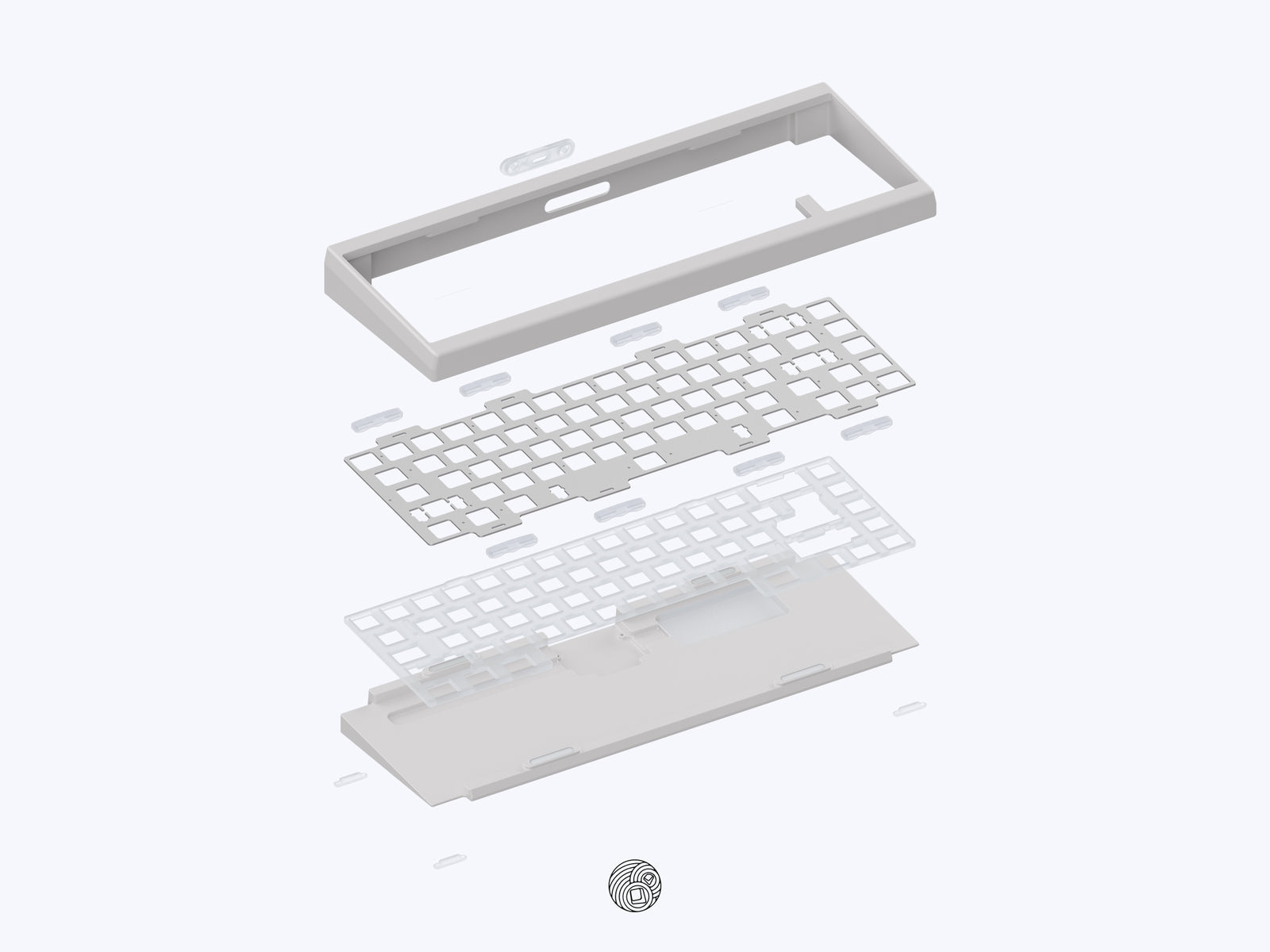

| Kit 2 | 65% | Silver Alu | Silver Alu | MX Hotswap | Silver Alu | Frosted |
| Kit 3 | HHKB | Silver Alu | Silver Alu | MX Solder | Silver Alu | Frosted |
| Kit 4 | 60% | Silver Alu | Silver Alu | MX Solder | Silver Alu | Frosted |

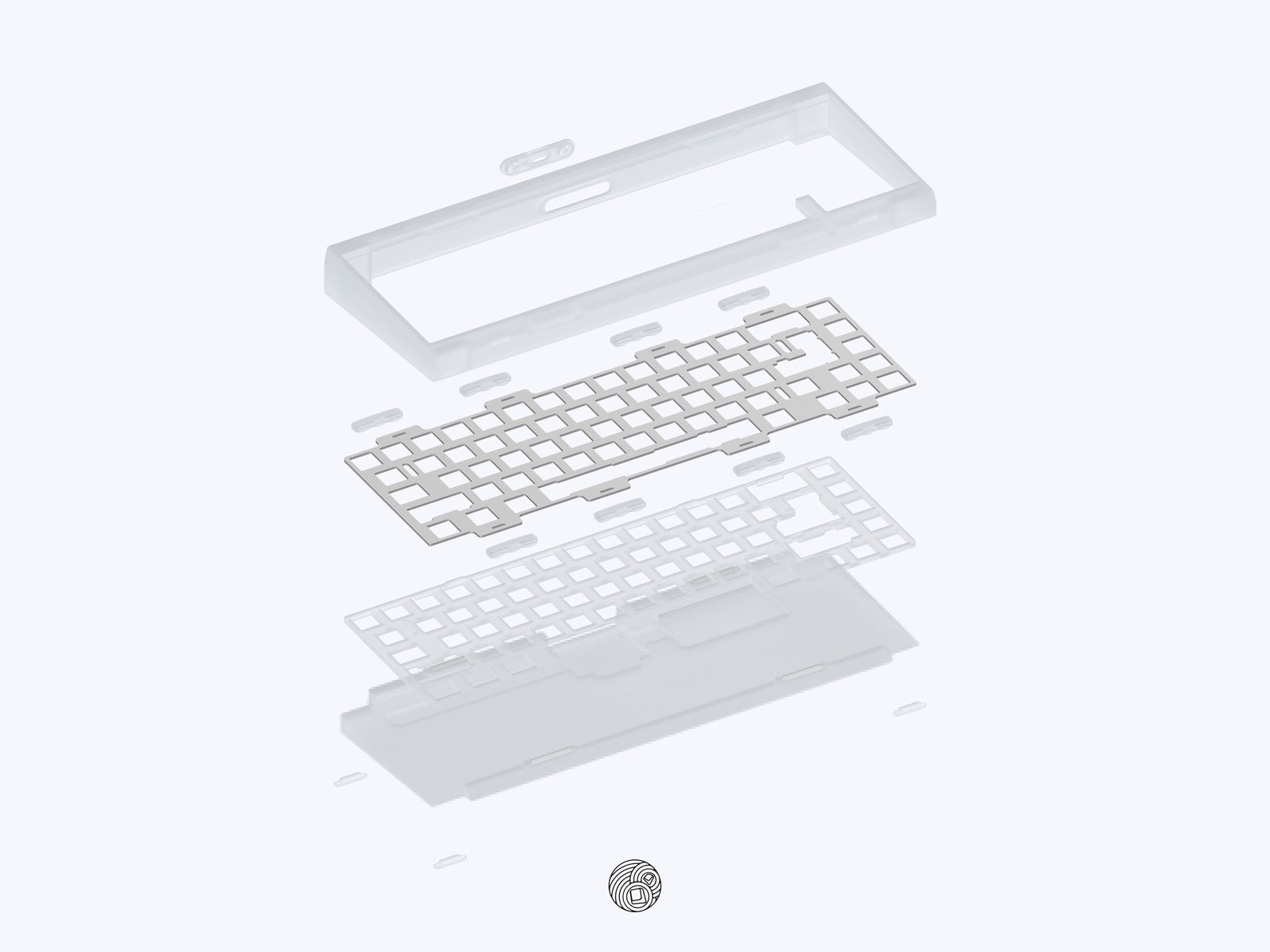

| Kit 5 | 60% Barebones | Polycarbonate | Polycarbonate | Not Included | Not Included | Frosted |

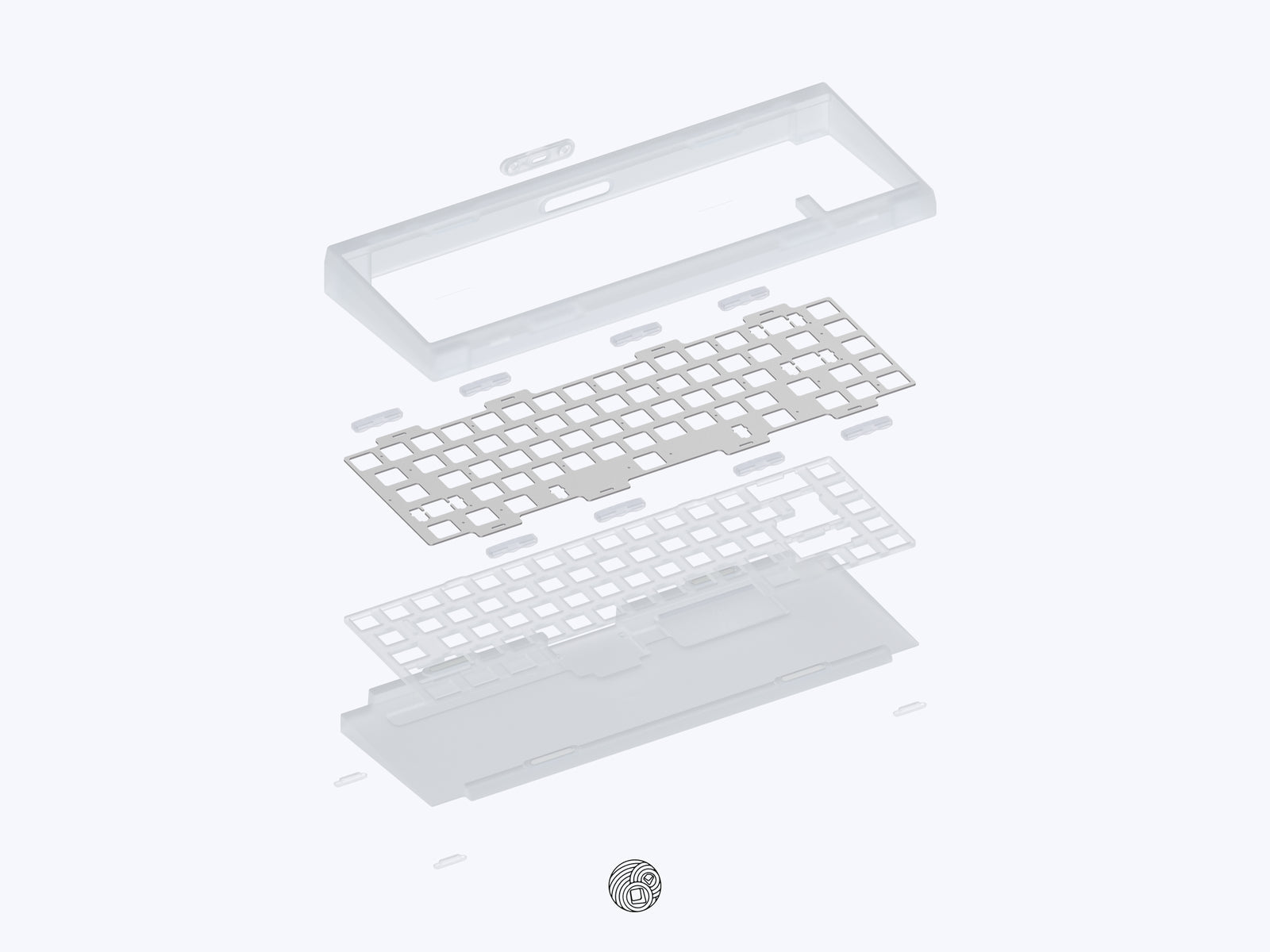

| Kit 6 | HHKB Barebones | Polycarbonate | Polycarbonate | Not Included | Silver Alu | Frosted |
| Kit 7 | HHKB | Silver Alu | Silver Alu | MX Solder | Silver Alu | Frosted |
Typing Angle / Weight / Mounting Style
- Typing angle: 6 degrees
- Unassembled Weight (approx.):
- Copper top case with aluminium bottom case: 1.8 kg
- Aluminium top case with aluminium bottom case: 1.1 kg
- Polycarbonate top case with polycarbonate bottom case: 0.7 kg
- Mounting Style: Gasket Socks
- Keyboard Dimensions for 60%: 30 (W) x 12 (L) x 3 (H) cm
- Keyboard Dimensions for 65%: 32 (W) x 12 (L) x 3 (H) cm
- Front Height: 1.8 cm (without feet)
MX PCB & Layout
Only compatible with MX switches. Supports PCB mount stabilisers
- Designed for MONOKEI by Kopibeng
- DB: Bluetooth daughterboard by MONOKEI
- Spacebar Orientation: North
- 1.6 mm FR4 PCB
- RGB underglow
- USB-C
- PCB comes flashed with the requisite firmware. Please use VIA to modify it.
EC PCB & Layout
Only compatible with electrocapacitive parts. Tested with Deskeys and OEM parts.
- Designed for MONOKEI by Cipulot
- Spacebar Orientation: North
- 1.6 mm FR4 PCB
- USB-C
- PCB comes flashed with the requisite firmware. Please use VIA to modify it.
Additional Information
- You will need to purchase the following items separately to complete the kit:
- Switches
- PCB mount stabilisers
- Compatible keycaps
- Estimated Delivery: Q4 2023
- More info: visit https://monokei.co/kei
Disclaimers
While we strive to provide a perfect experience no kit can be 100% flawless at our scale of production, as such the caveats are as follows:
- No scratches on exposed / user facing parts of the keyboard (after installation of plate & PCB).
- Possible machining marks / micro scratches on the inside of the kit / pieces not exposed to the user. This includes scratches arising from anodisation hooks.
- Screw holes are NOT anodised.
- Possible marks close to screw area.

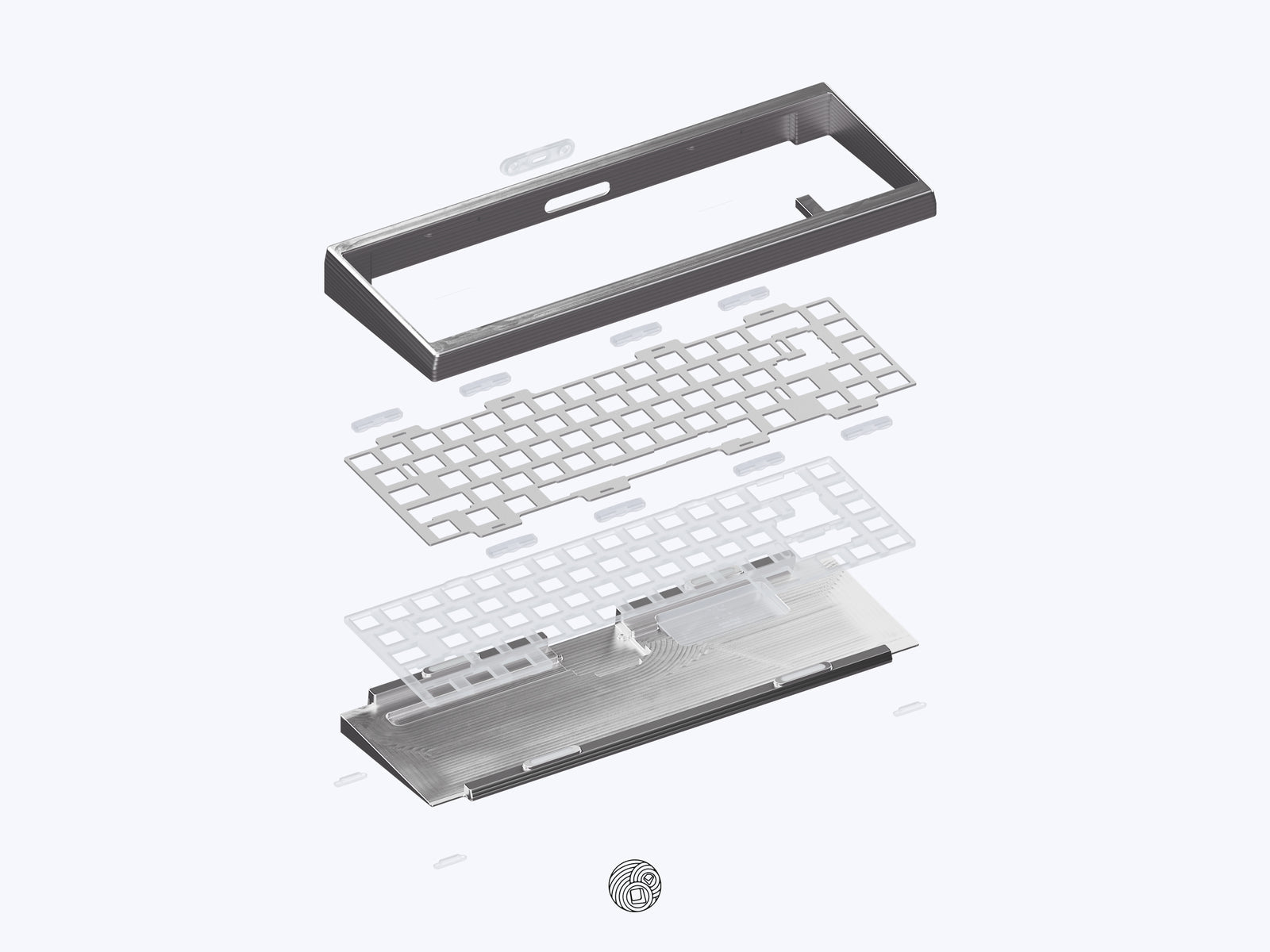

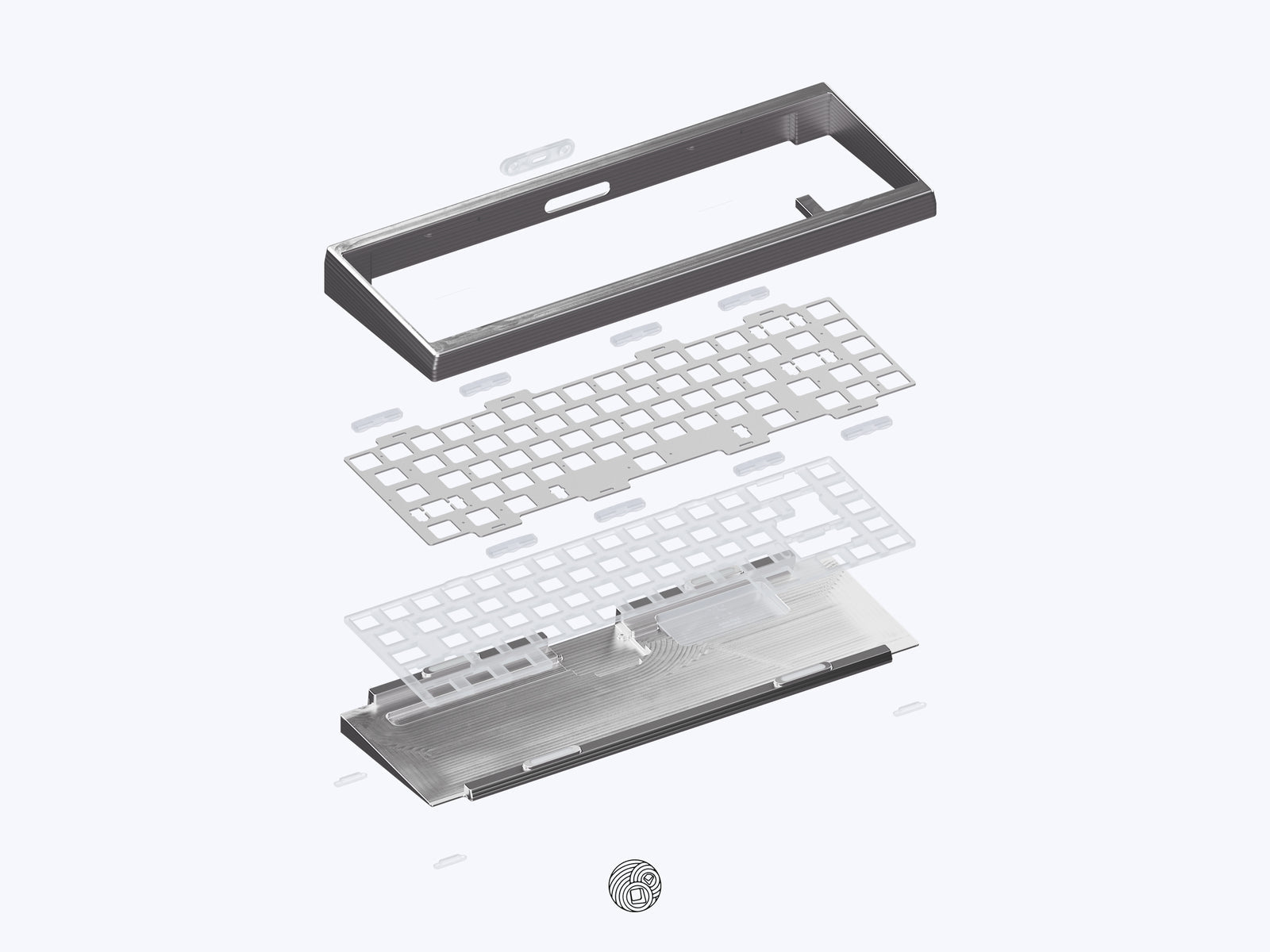

- Raw top and bottom pieces may have scratches present and are susceptible to scratches. Raw parts may also tarnish over time if left uncoated.
- Anodisation and e-coating variation may be present between top and bottom pieces.
- Copper patina: Copper as a material tarnishes over time, you can clean it but note that it's a form of oxidation that we cannot control.
- Marks / streaks that are not visible after assembly.
- Please note that your purchase denotes agreement to group buy rules which include all the above.
