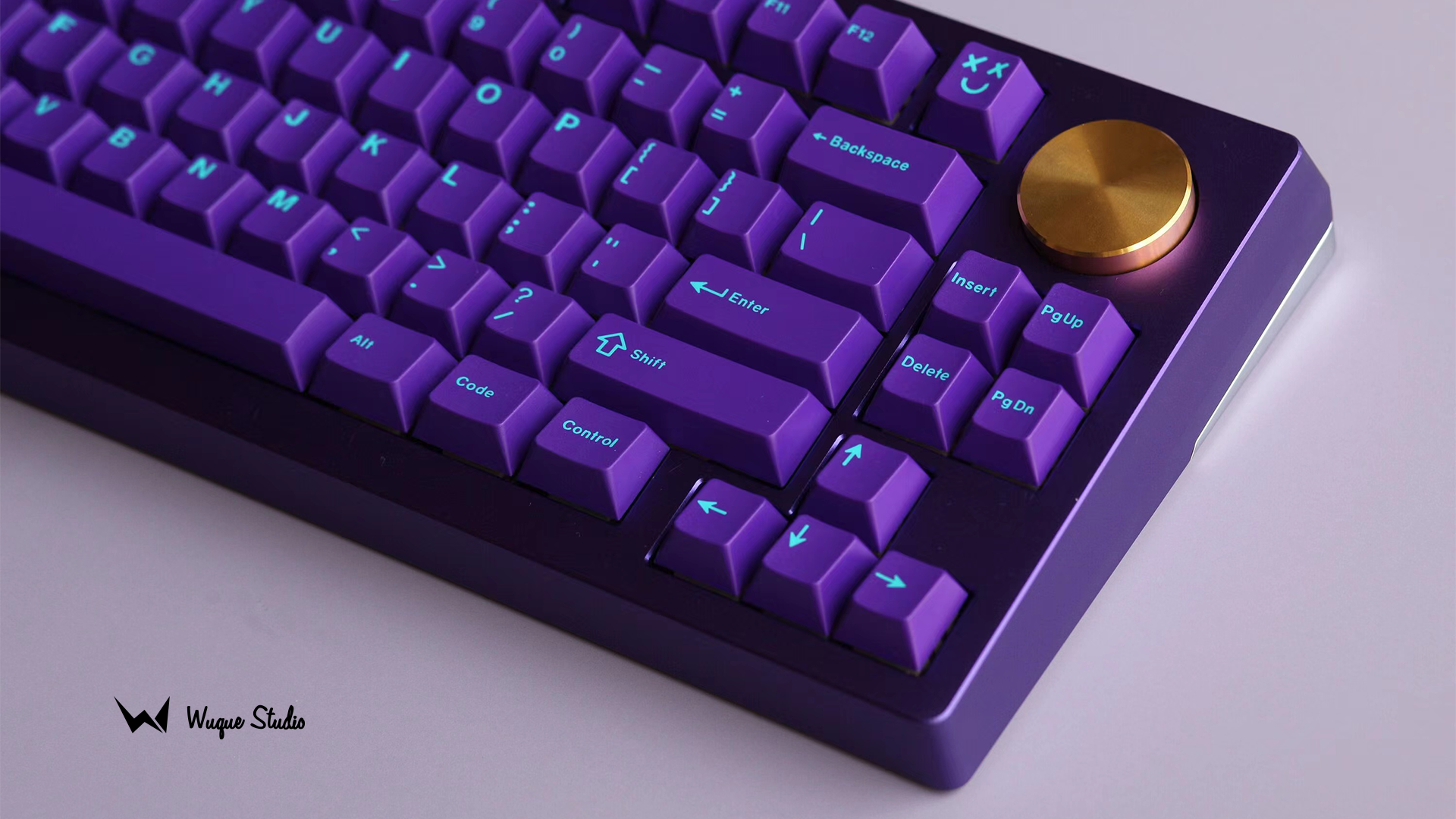

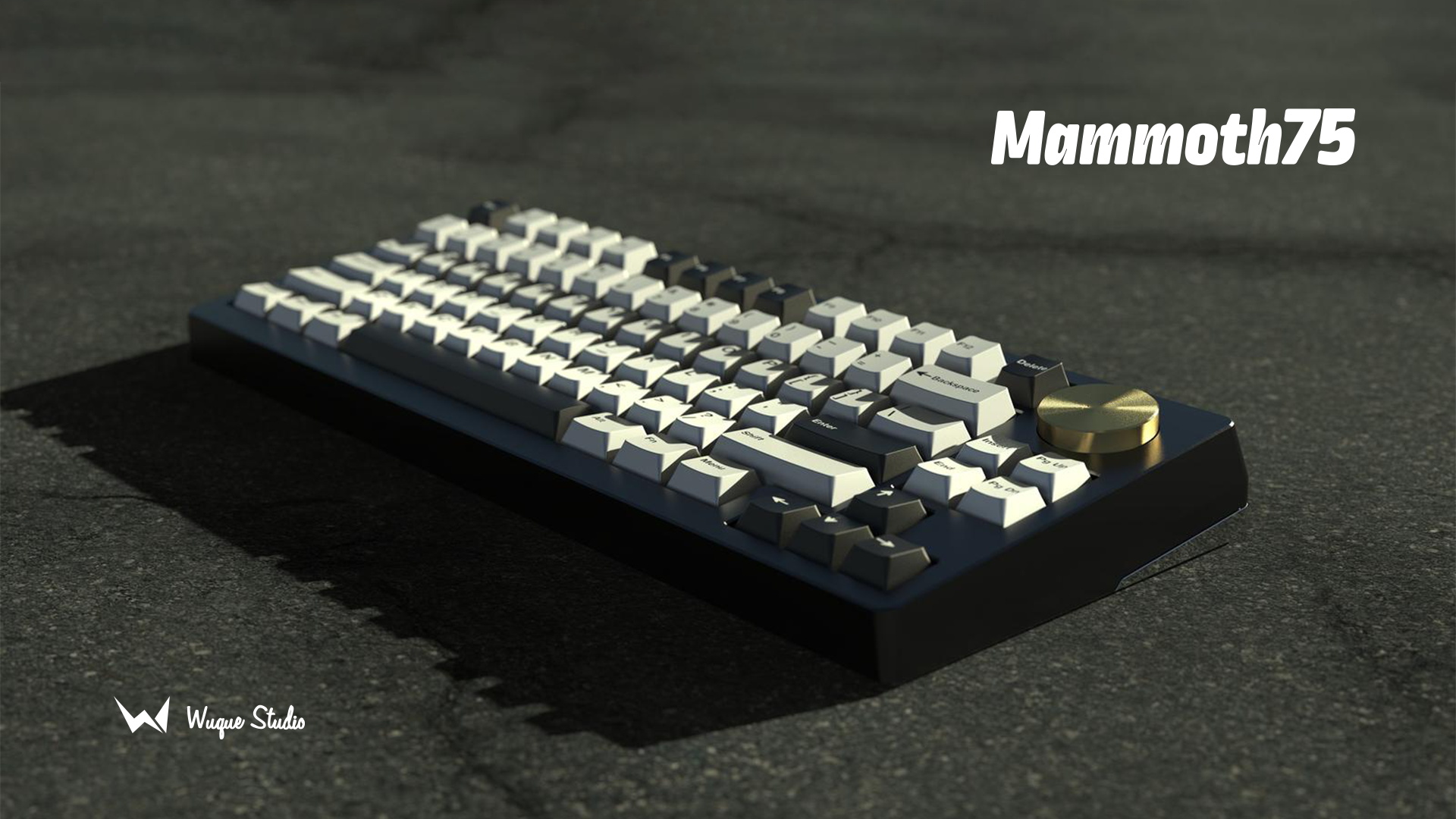

(In Stock) Mammoth75 Keyboard Kit

Sale price£325.00
Sold out

Pickup currently unavailable at ProtoTypist Keyboards - Customer Collection

(In Stock) Mammoth75 Keyboard Kit

(In Stock) Mammoth75 Keyboard Kit

E-White / M1 PCB / Aluminium - Sandblasted

ProtoTypist Keyboards - Customer Collection

Pickup currently unavailable

ProtoTypist Keyboards
1 Alpha Court
Bradford BD5 8FH
United Kingdom

+447843244701
Case Colour: E-White

Case Colour

PCB Model: M1 PCB

PCB Model

Base Type: Aluminium - Sandblasted

Base Type


IN STOCK - Ships within 3 working days, all sales final.



Keyboard Specs:

  • Full Mirror or Sandblasted Bottom Case
  • Sandblasted Diamond Cut Mammoth Weight
  • Special Gasket Structure with Daughter board
  • The plate PORON foam is the same size as the plate, and it will touch the entire bottom case to achieve a stable typefeel. There is an adhesive PORON sheet pre-installed under the PCB for a deeper, more pleasant sound.
  • Two magnetic knobs in each kit.

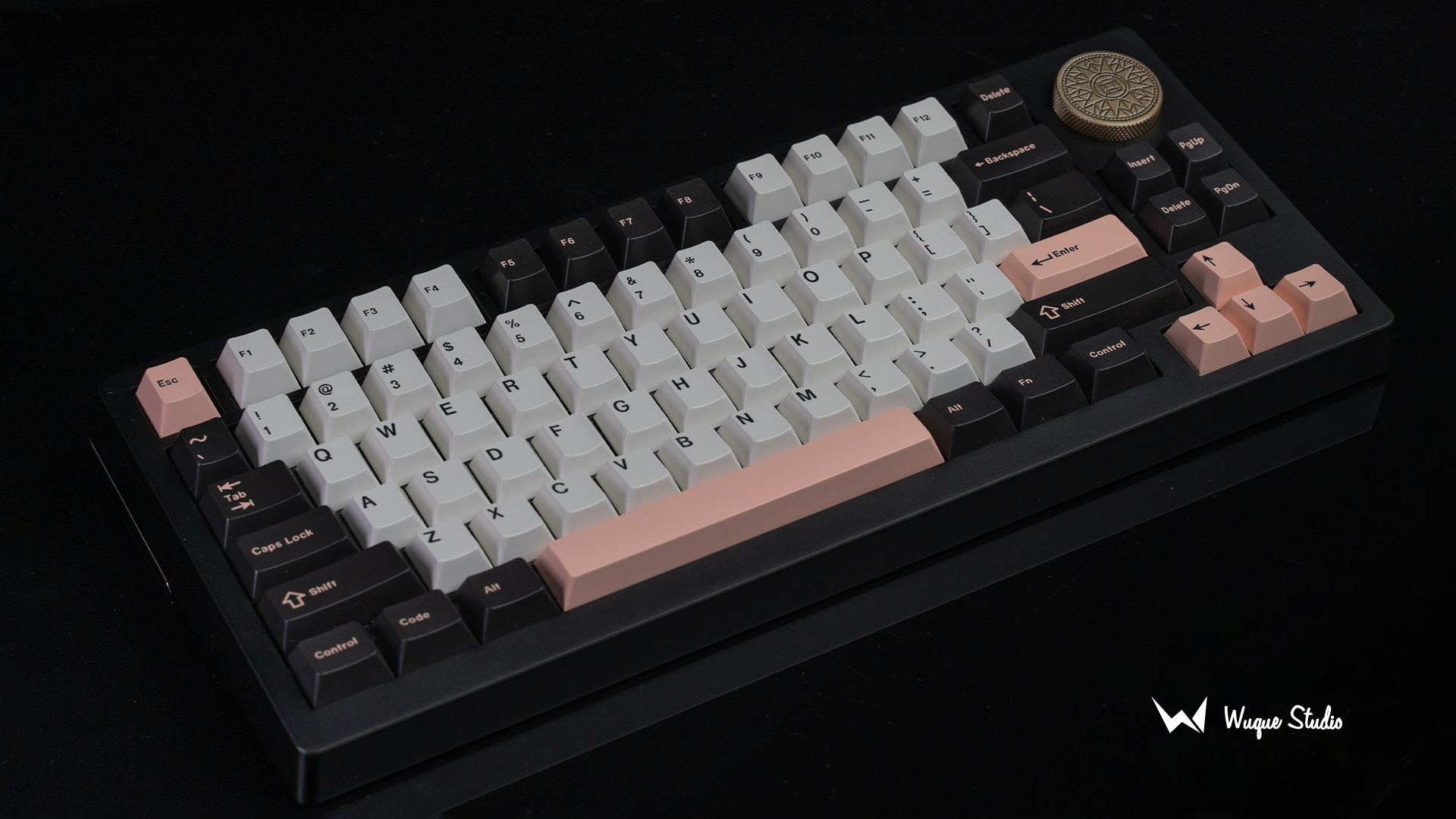

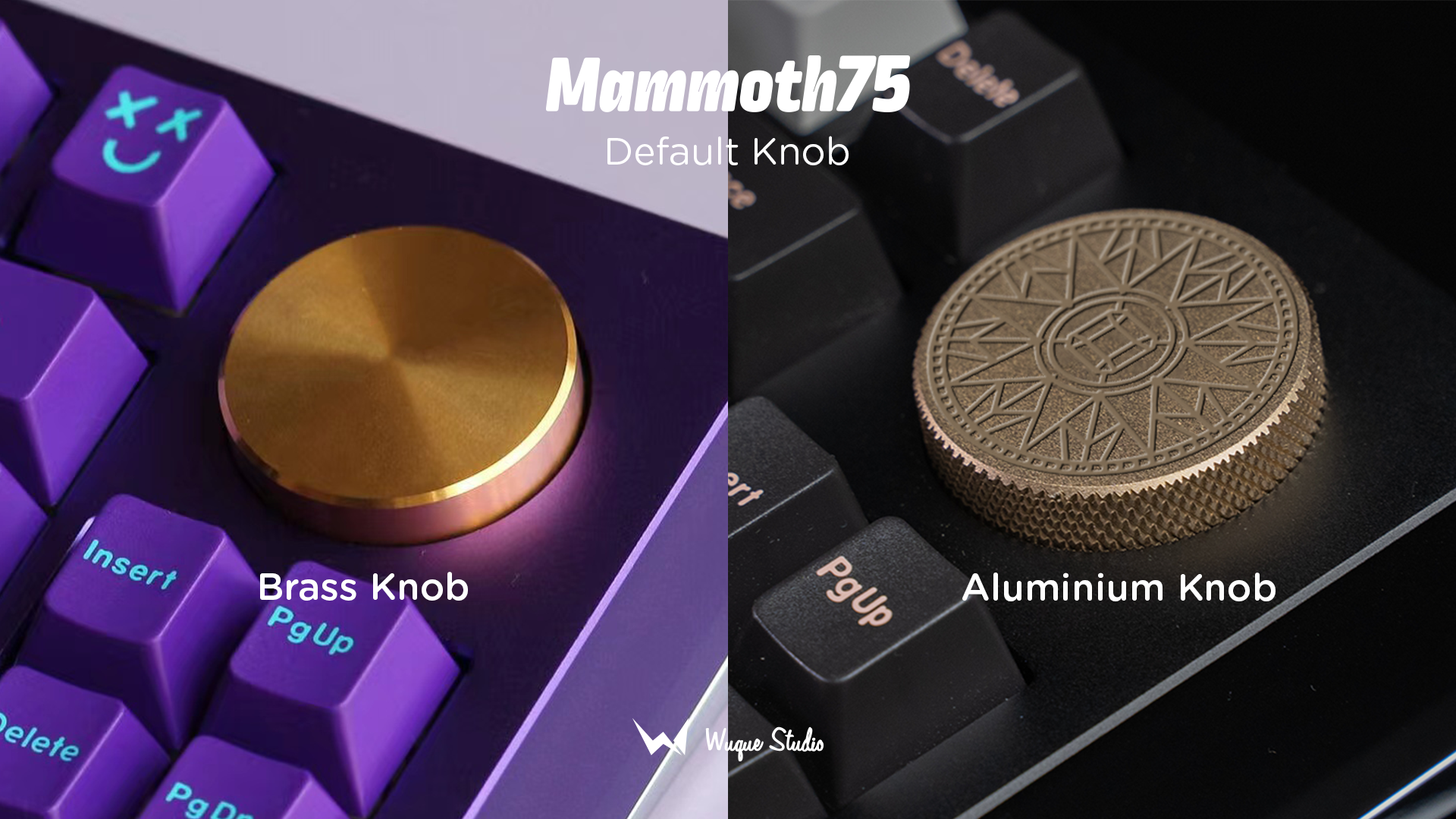

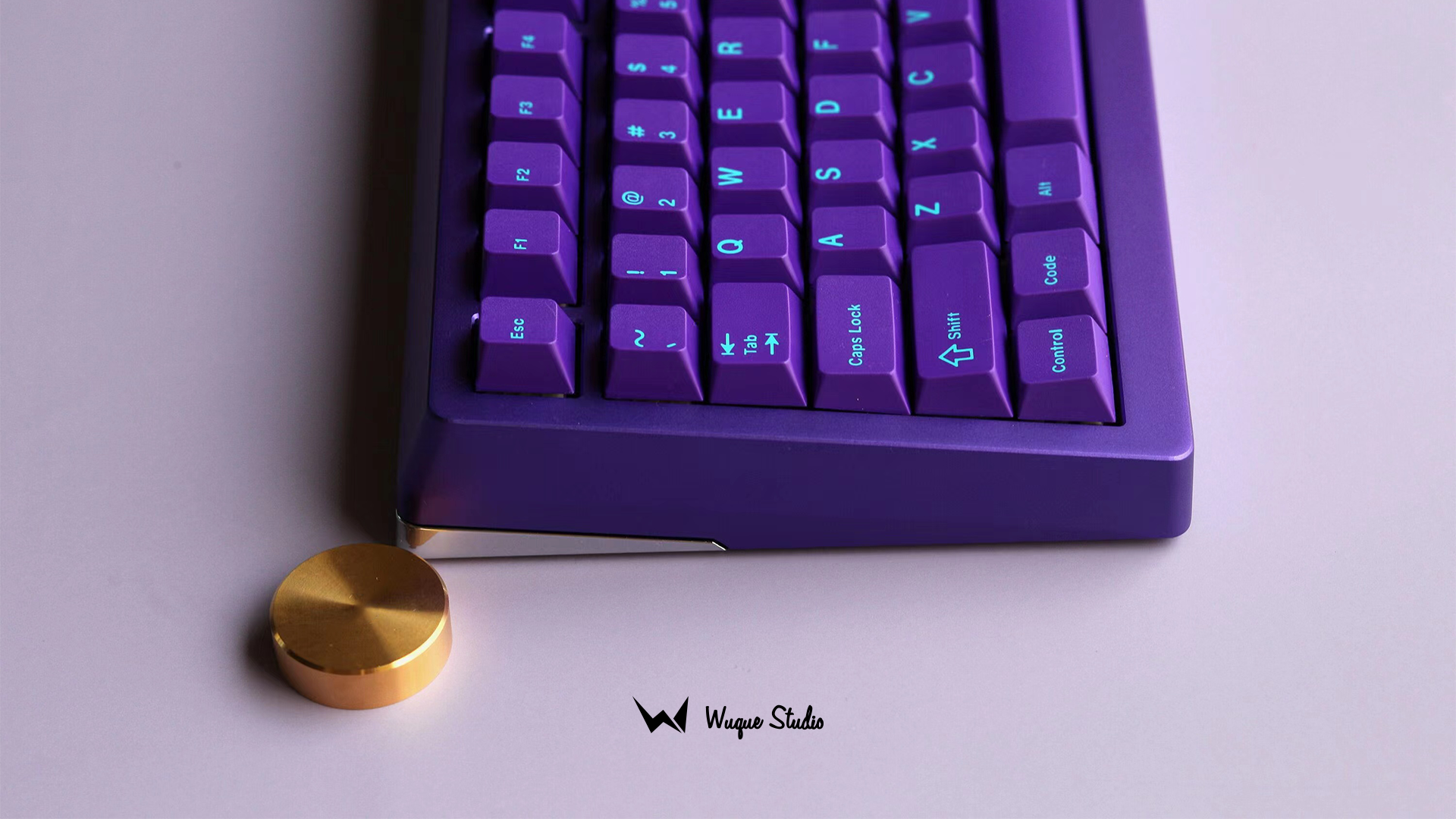

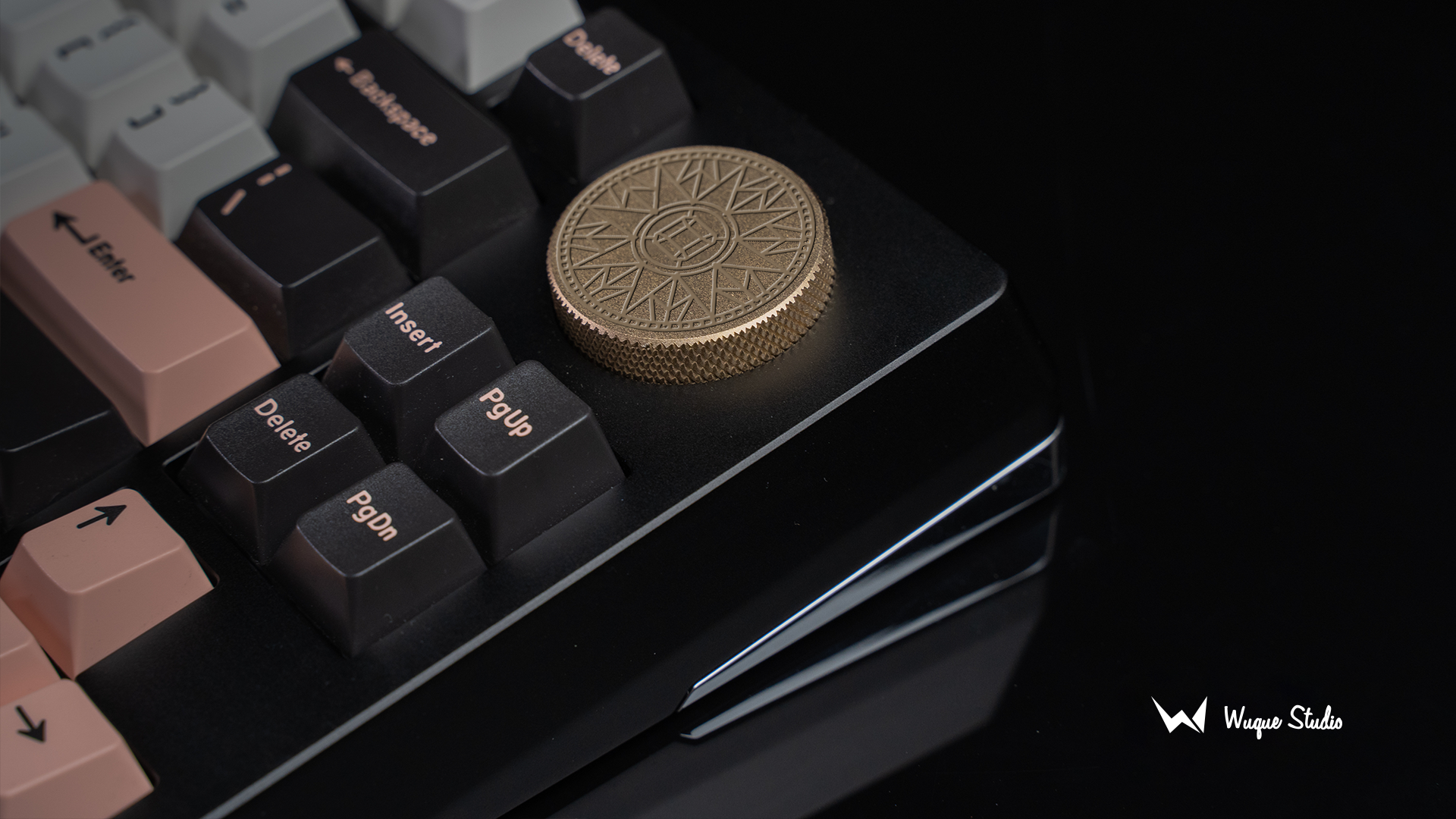

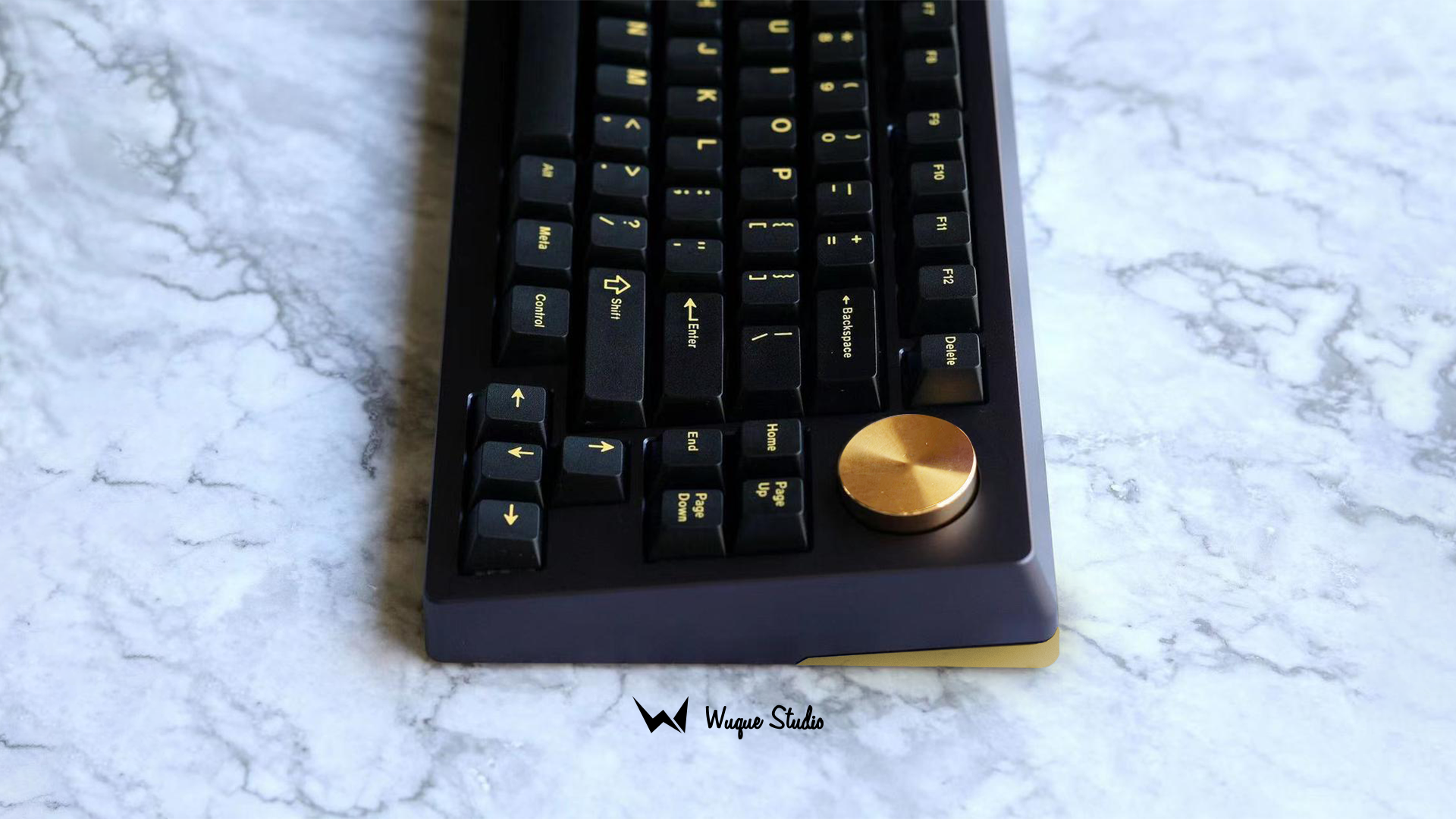

  • Each kit comes with an aluminium knurled knob with a CNC engraved pattern, and a plain brass knob with a radial brushed finish. Knobs have a magnetic base to make them much easier to swap out.



PCB Specs:

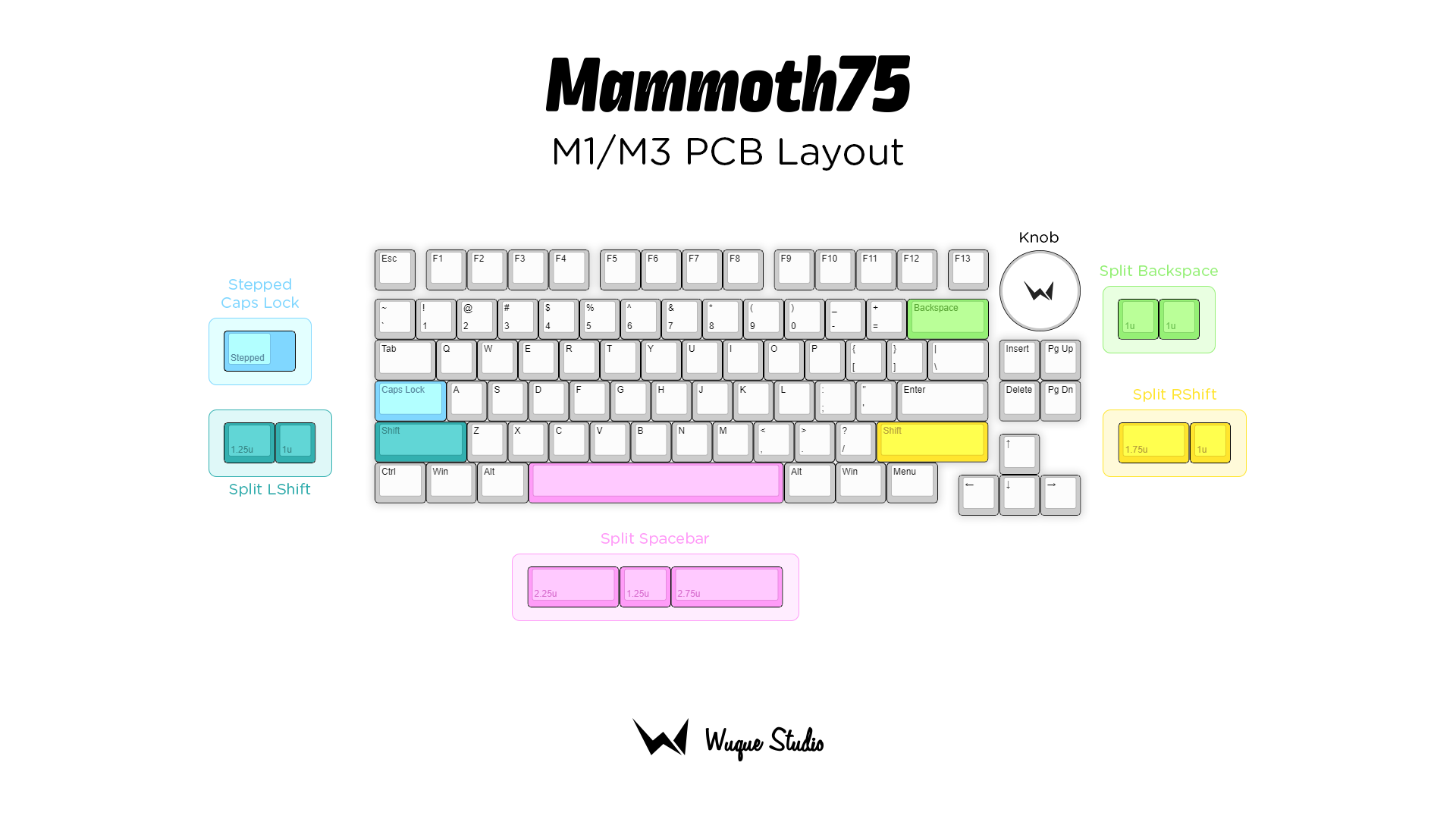

  • M1 PCB - Wired, hotswap, Supports QMK/VIA, split space bars, left/right split shift, backspace split, stepped/normal caps lock.

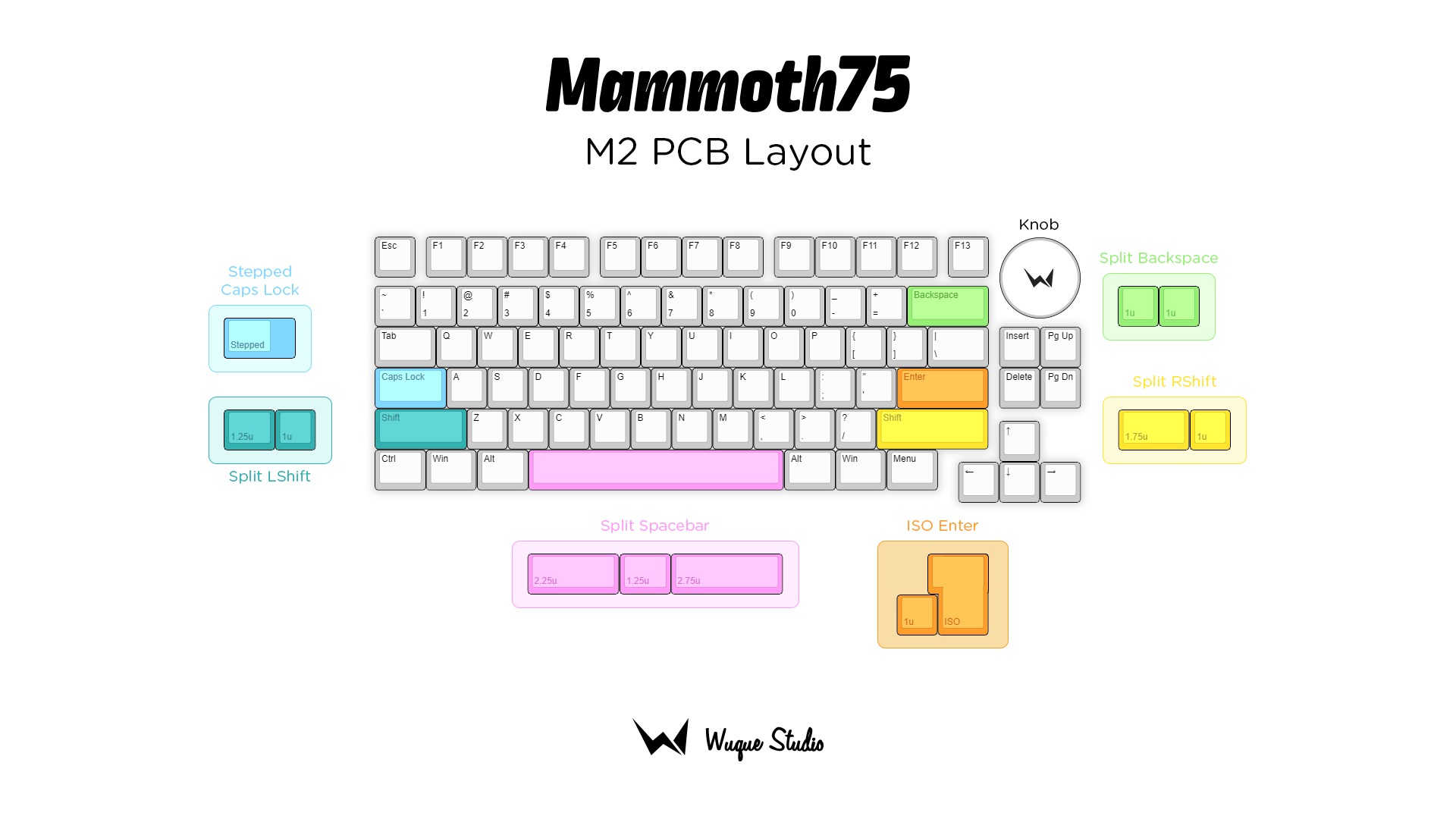

  • M2 PCB - Wired, soldered, supports QMK/VIA, split space bars, left/right split shift, backspace split, stepped/normal caps lock, ISO enter.
  • M3 PCB - Wireless, hotswap, Supports QMK/VIA, split space bars, left/right split shift, backspace split, stepped/normal caps lock.



Details:

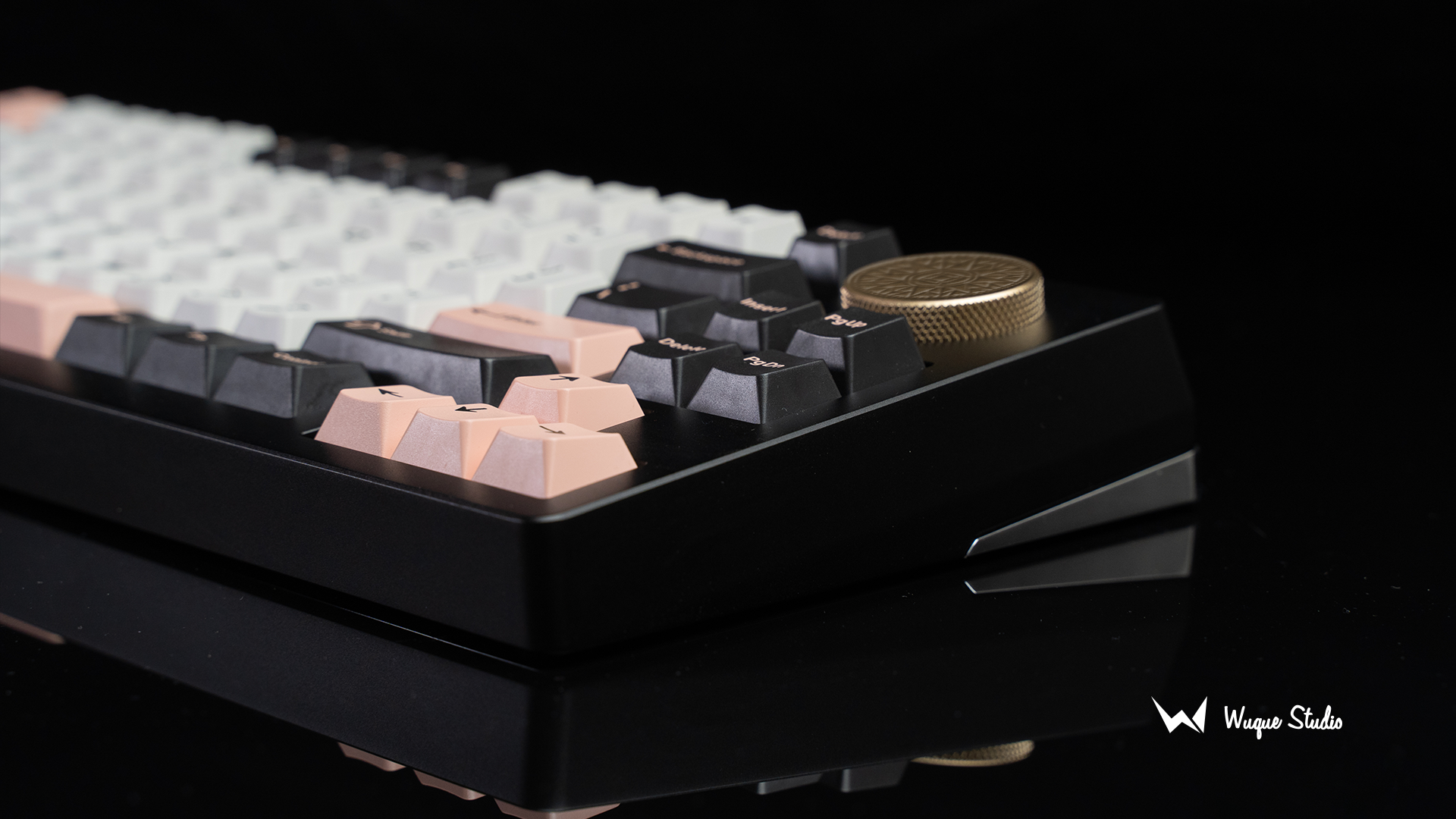

  • Typing angle: 6.5 degrees
  • Front height: 19.5 mm
  • Top case material: Aluminum
  • Bottom case material: Aluminum/Brass
  • Mounting structure: Gasket Mount
  • Full aluminum kit Weight (unbuilt): 2.0 kg, package weight: 3.5 kg
  • Aluminum top case, brass bottom case kit weight (unbuilt): 4.2 kg, package weight: Up to 5.5 kg

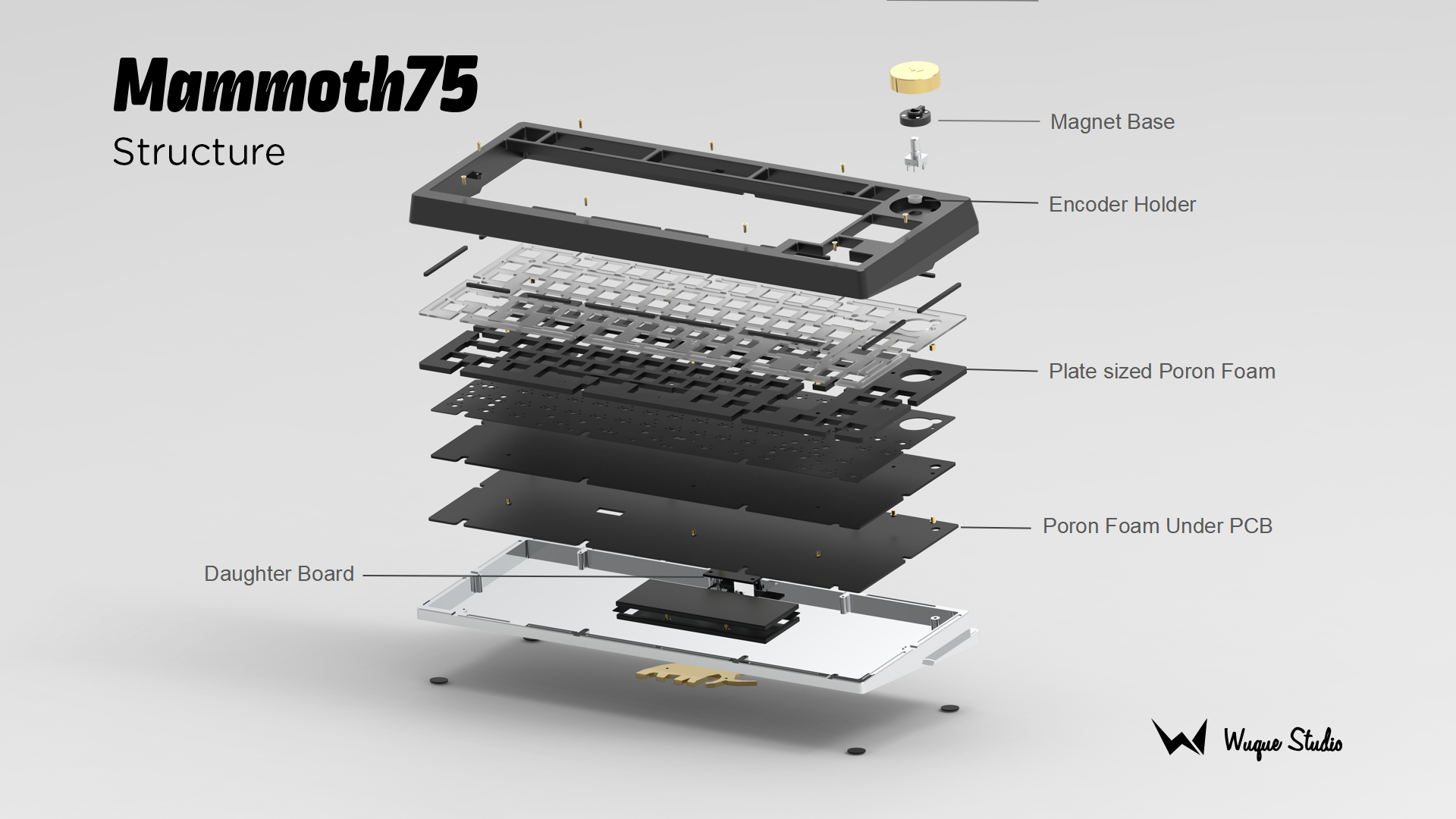

Includes
  • Top Case (Aluminium)

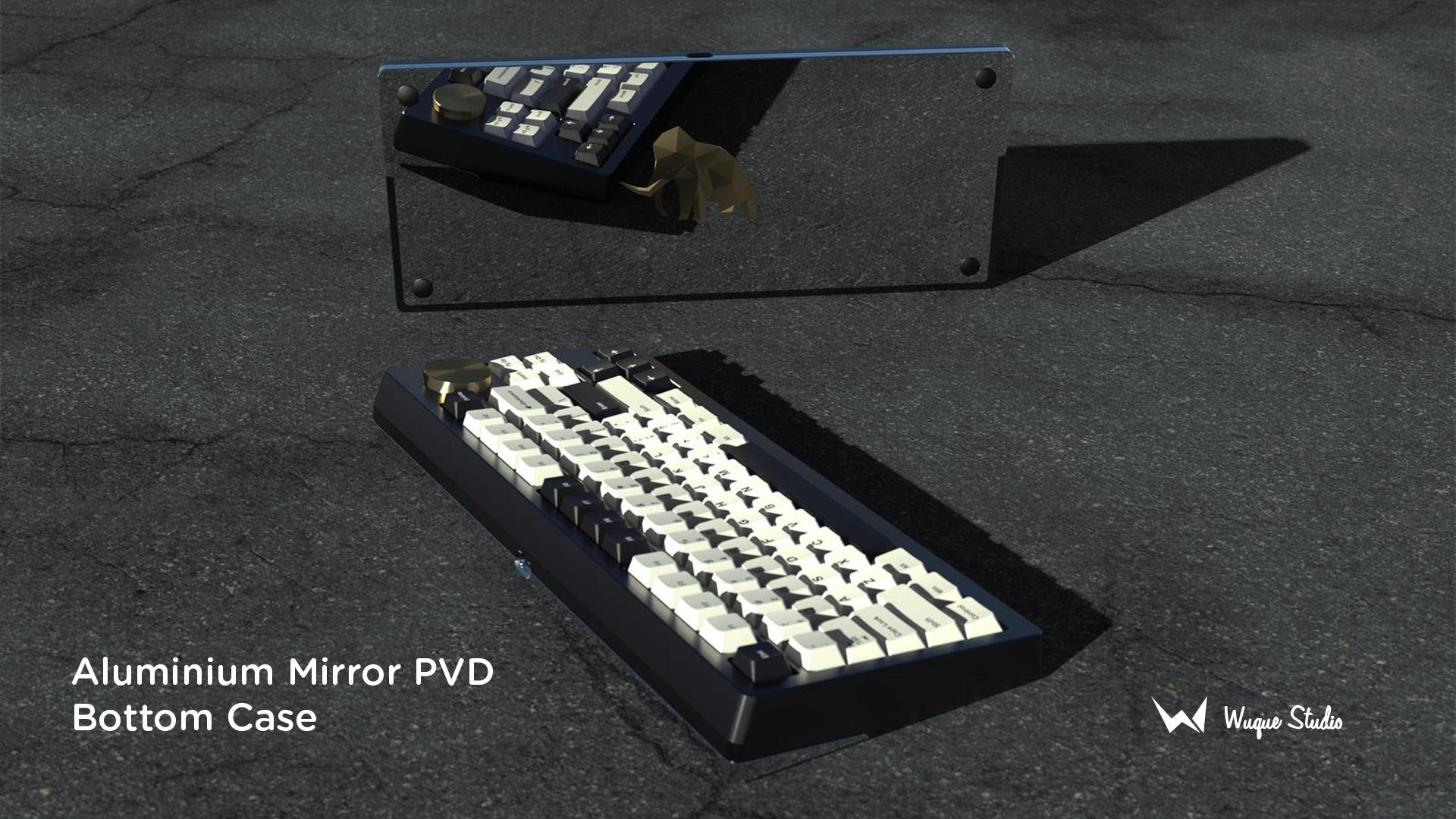

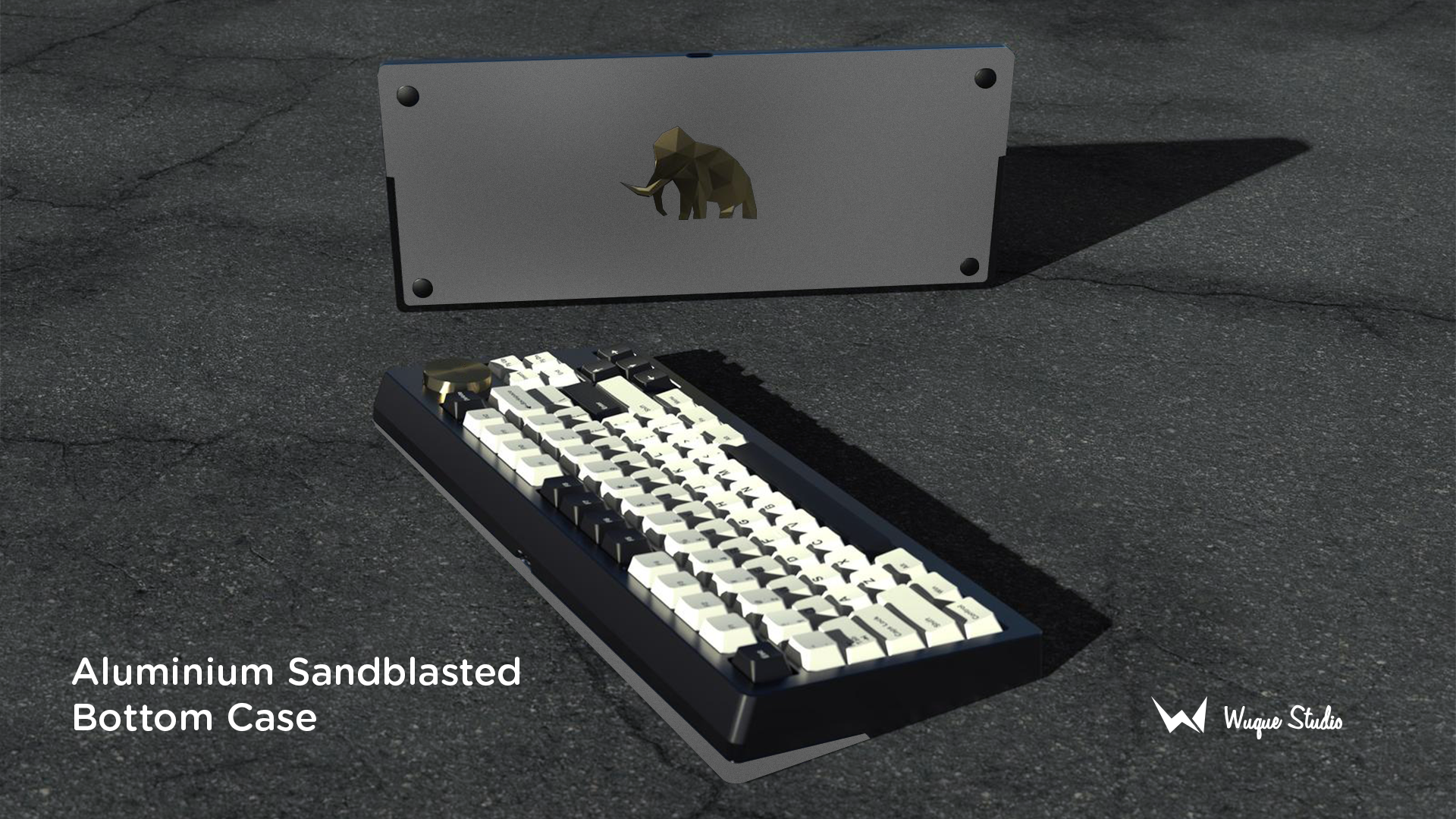

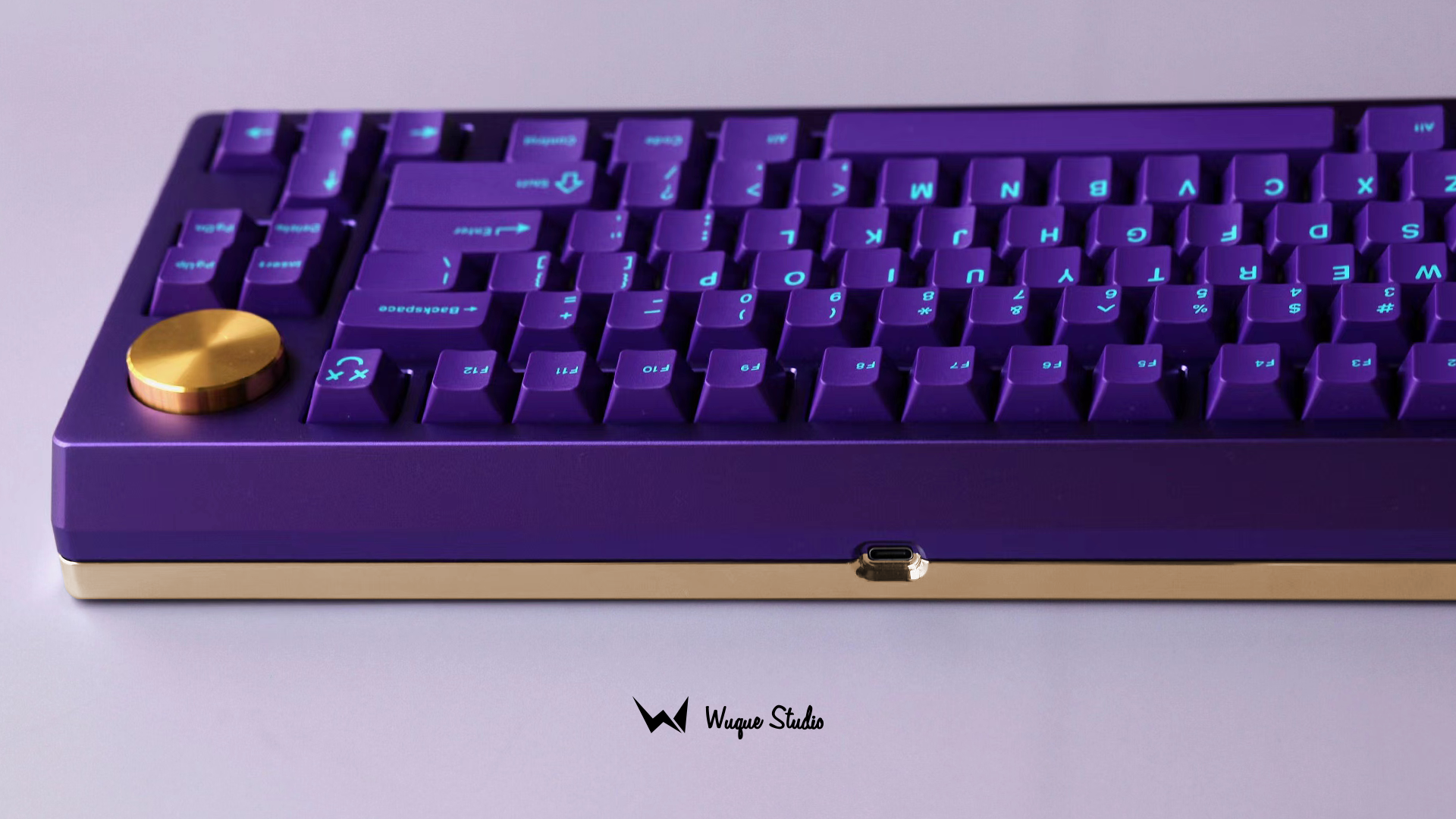

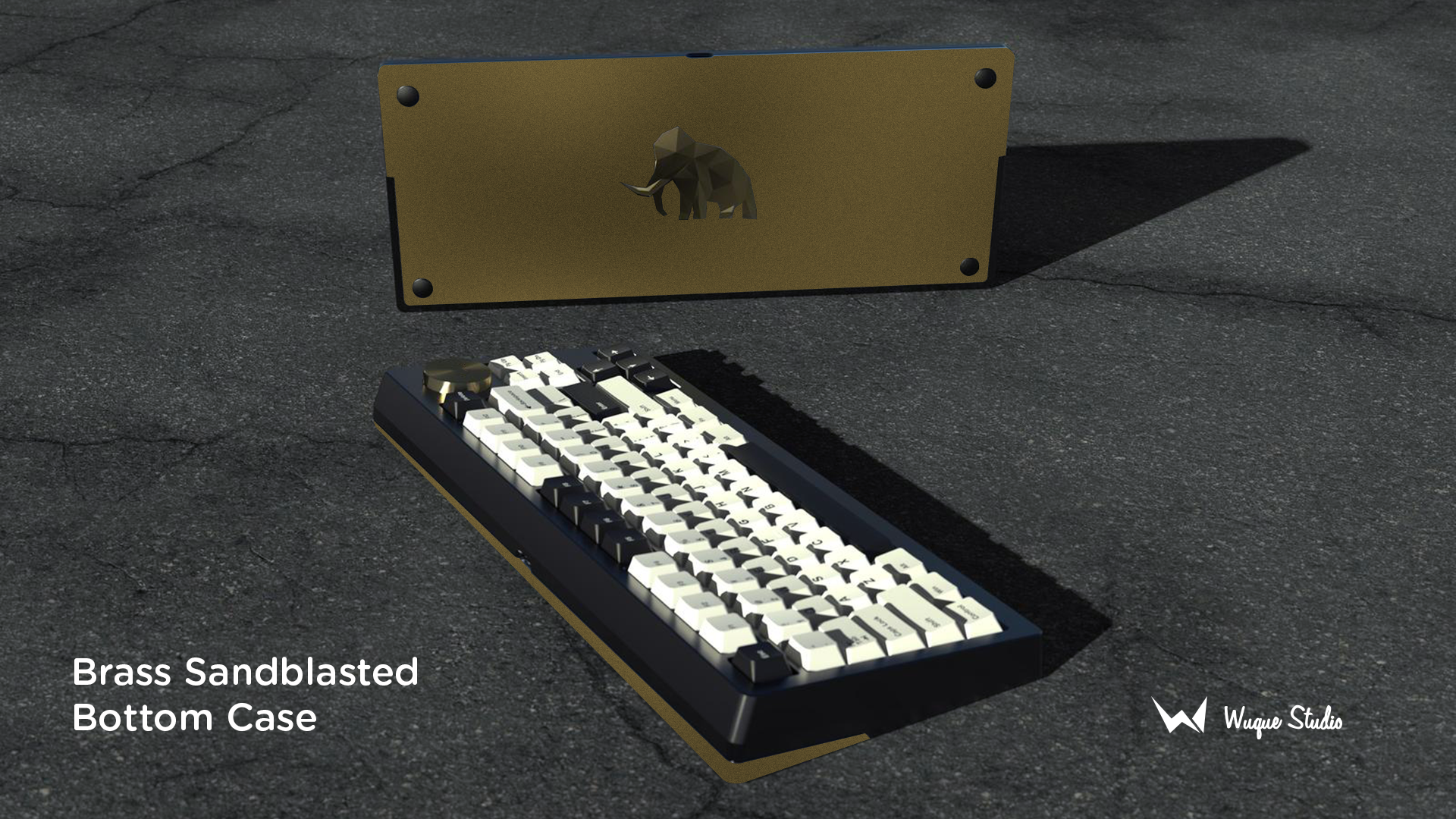

  • Bottom Case (Aluminium/Brass Mirror PVD, Aluminium/Brass Sandblasted)

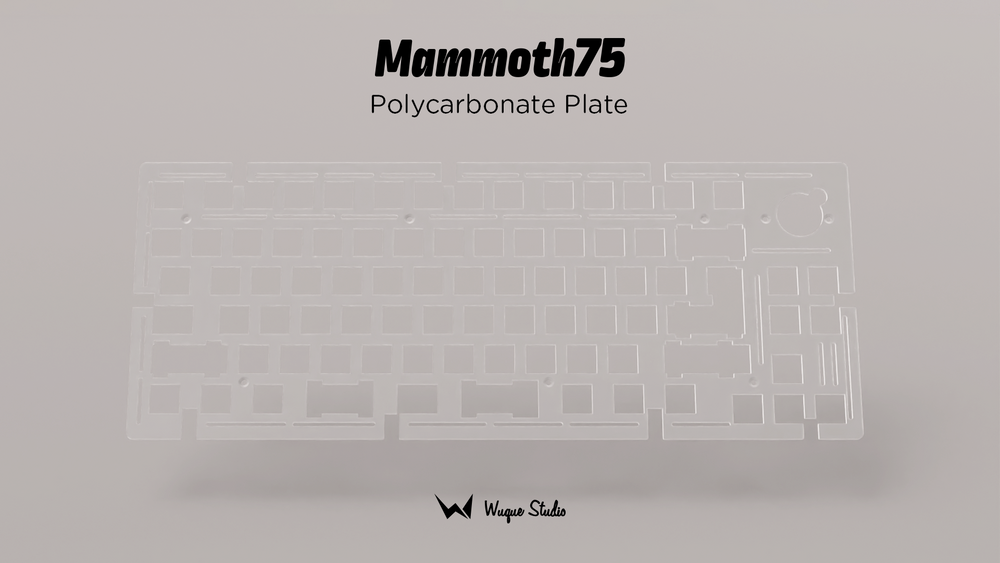

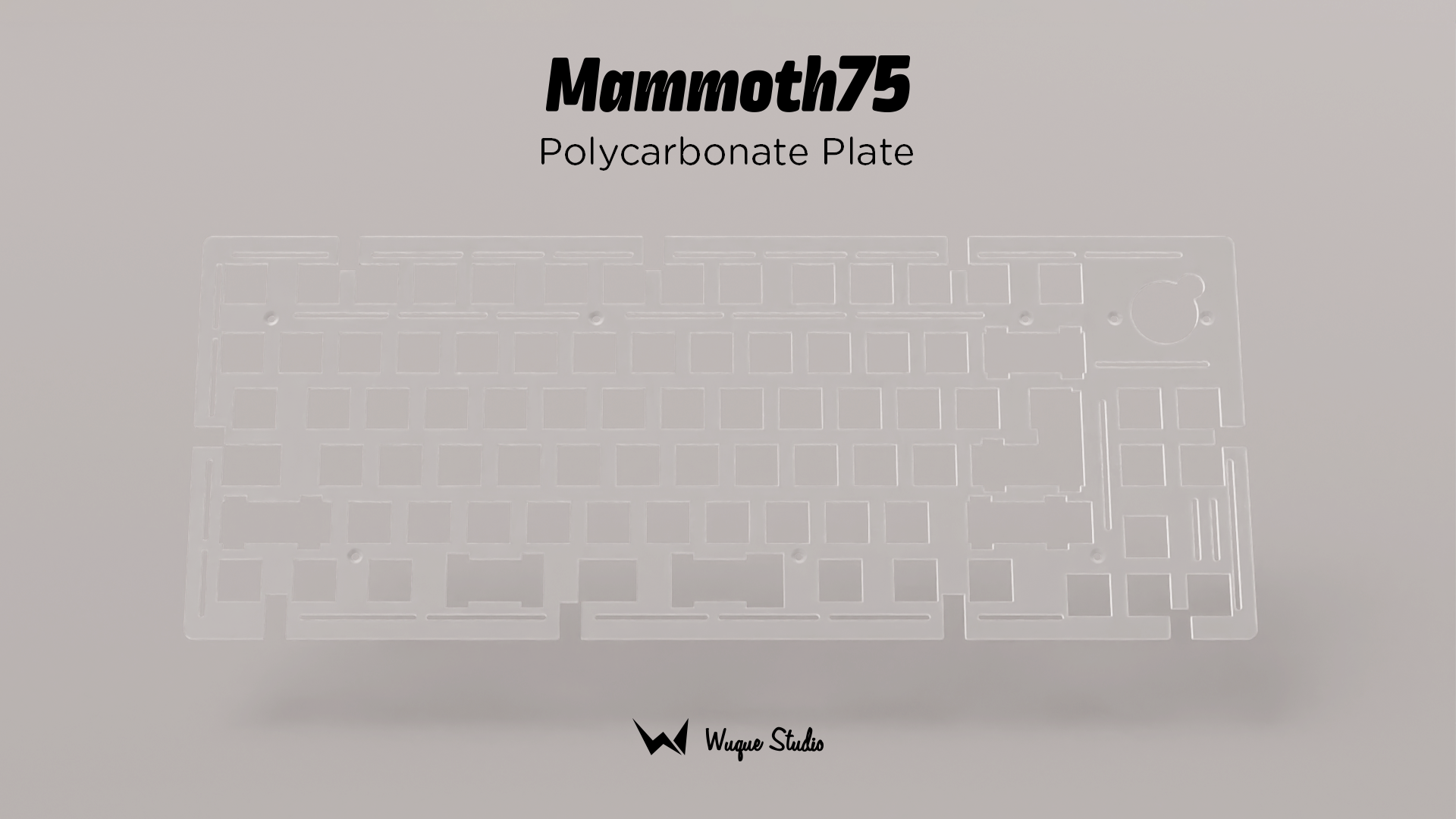

  • PC Plate

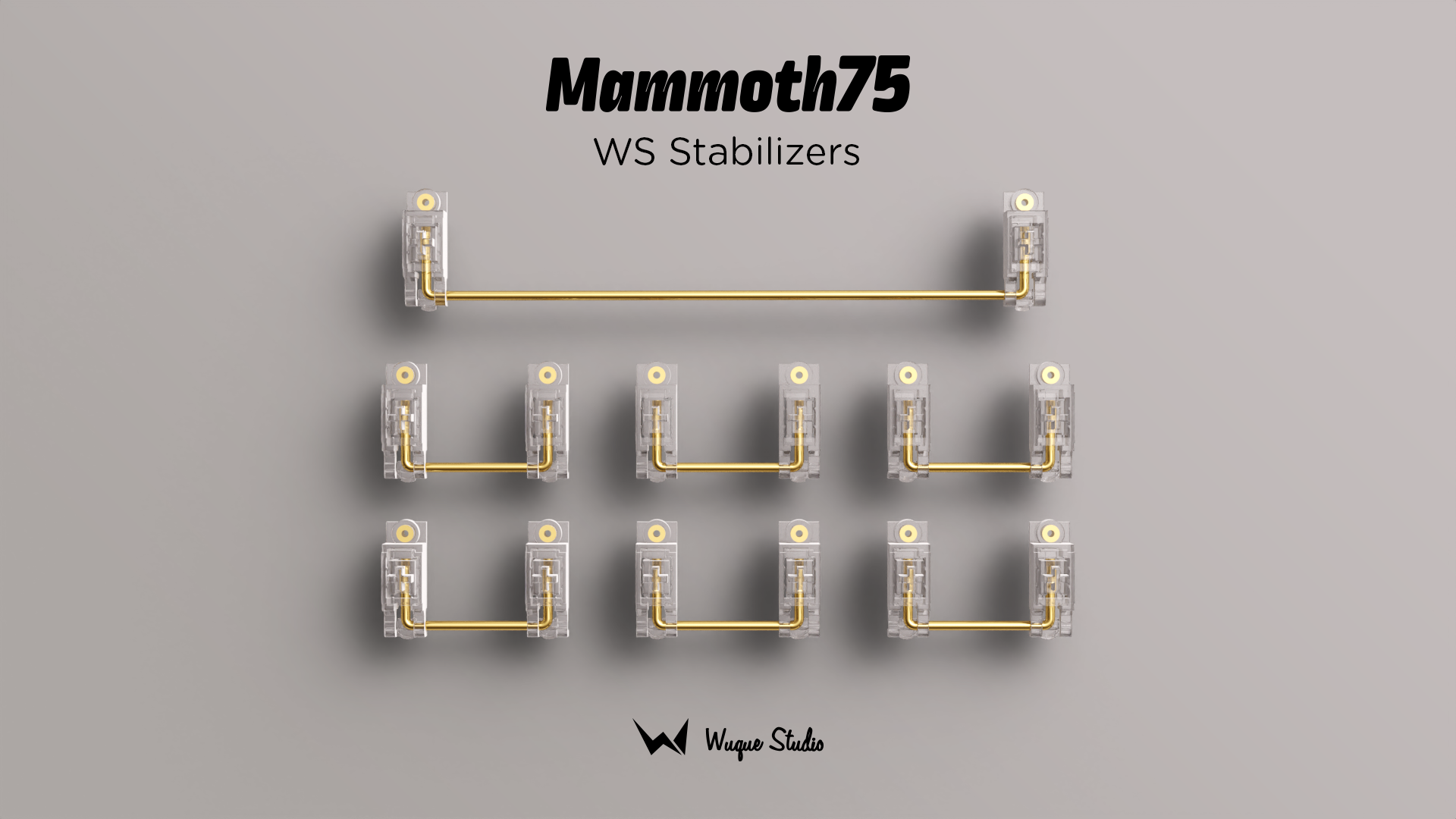

  • WS Stabs 6+1
  • PCB and daughter board

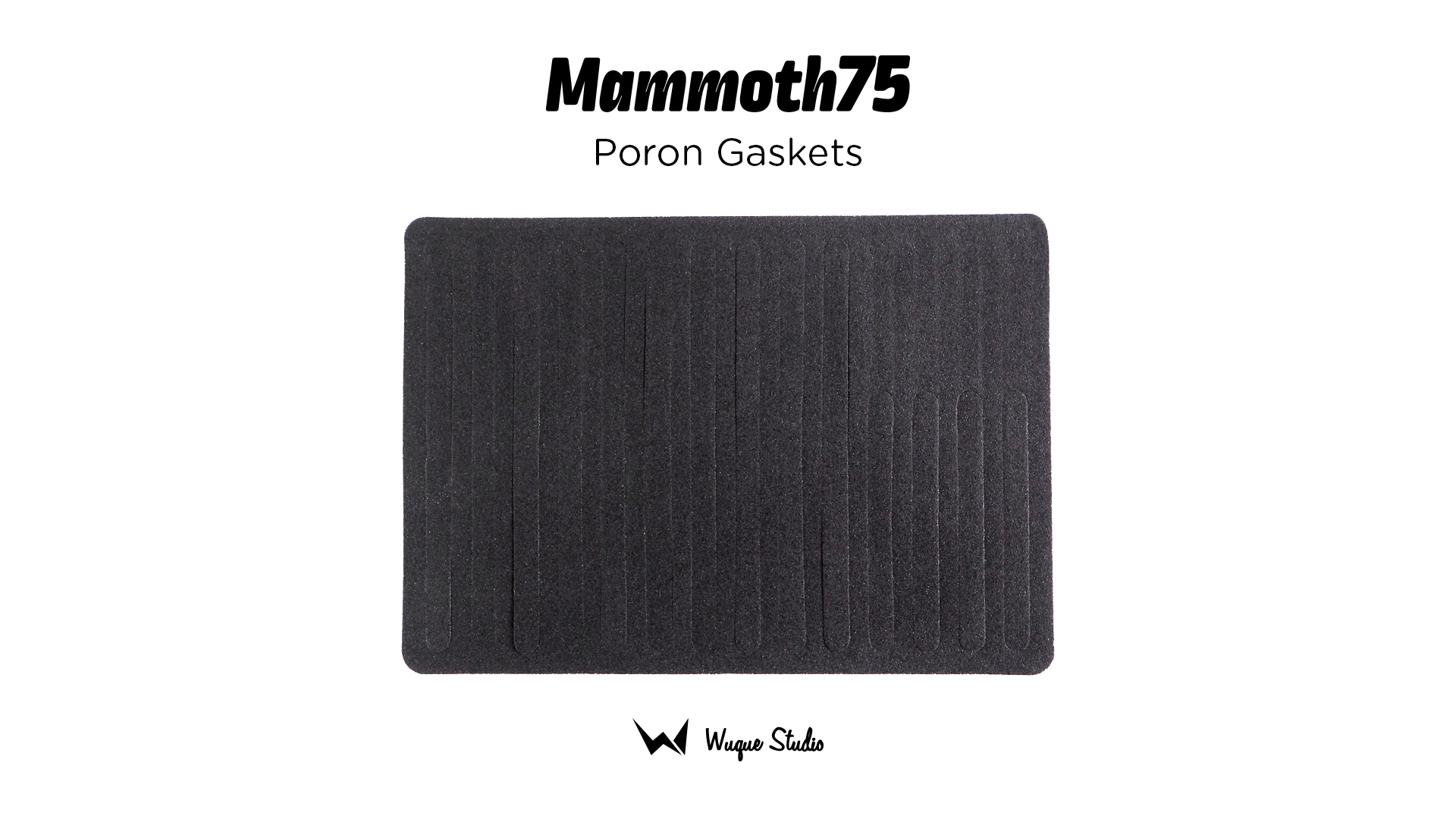

  • PORON gaskets
  • PORON dampener between plate and PCB
  • PORON foam between PCB and switches
  • PORON foam under PCB
  • Gaskets
  • 1x Aluminium knob
  • 1x Brass knob
  • Magnet base
  • Encoder holder
  • Screws and rubber feet



Further Information:




Regional Vendors:



A standard sized, widely available LiPo battery is required for Bluetooth editions but it's not included with the kit. The battery spec for this keyboard is 3543114.

For more information on Mammoth75, and links to international vendors, check out the Informational Page and quality guide.





As this is an In Stock item please do not add items from group buys to this order as it will delay your orders shipping till everything is available.
