(In Stock) Matrix Lab Navi Keyboard Kit

Sale price£488.33
Sold out

Pickup currently unavailable at ProtoTypist Keyboards - Customer Collection

(In Stock) Matrix Lab Navi Keyboard Kit

(In Stock) Matrix Lab Navi Keyboard Kit

Polar Route / WKL

ProtoTypist Keyboards - Customer Collection

Pickup currently unavailable

ProtoTypist Keyboards
1 Alpha Court
Bradford BD5 8FH
United Kingdom

+447843244701
Colourway: Polar Route

Colourway

Layout: WKL

Layout


IN STOCK - Ships within 3 working days, all sales final.



Theme & Colour

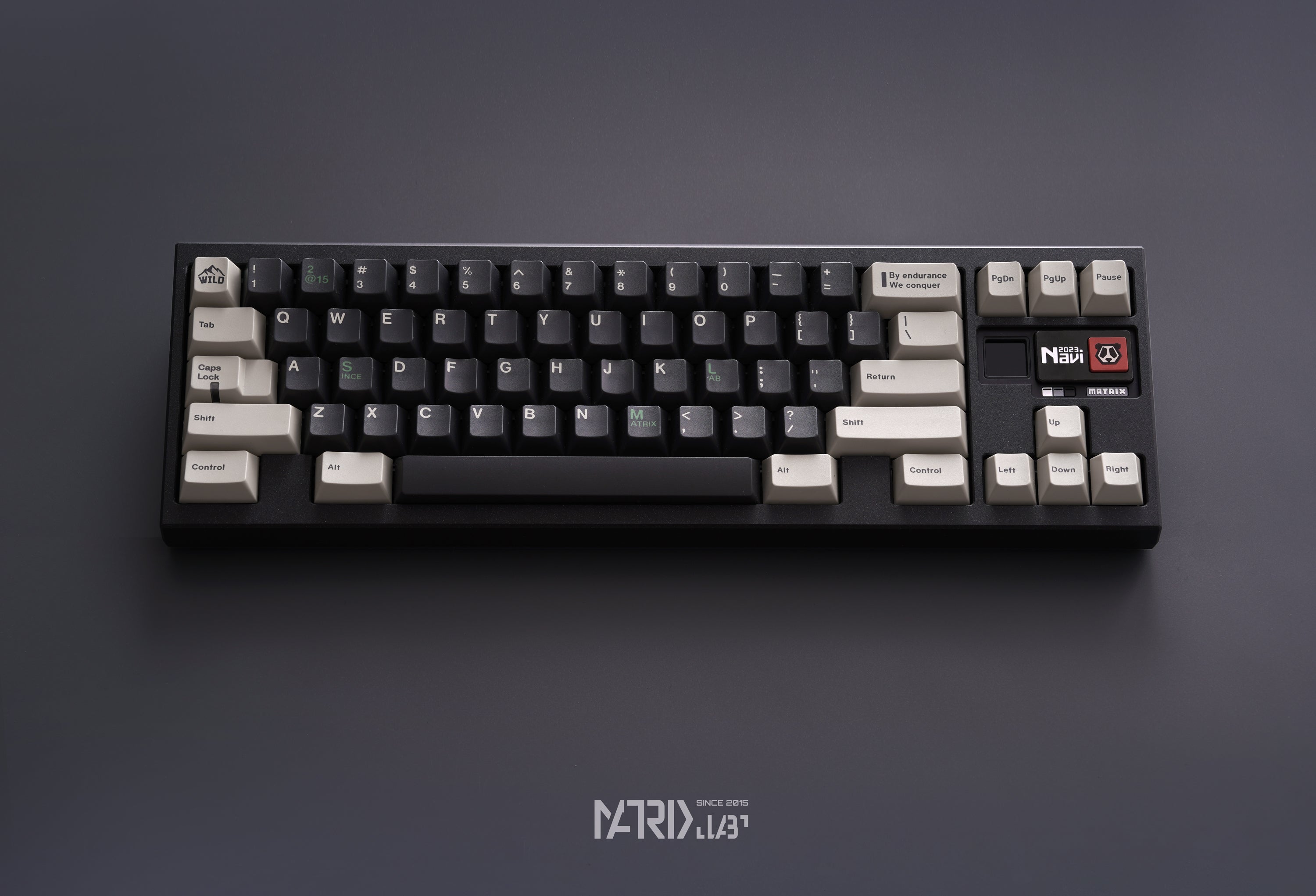

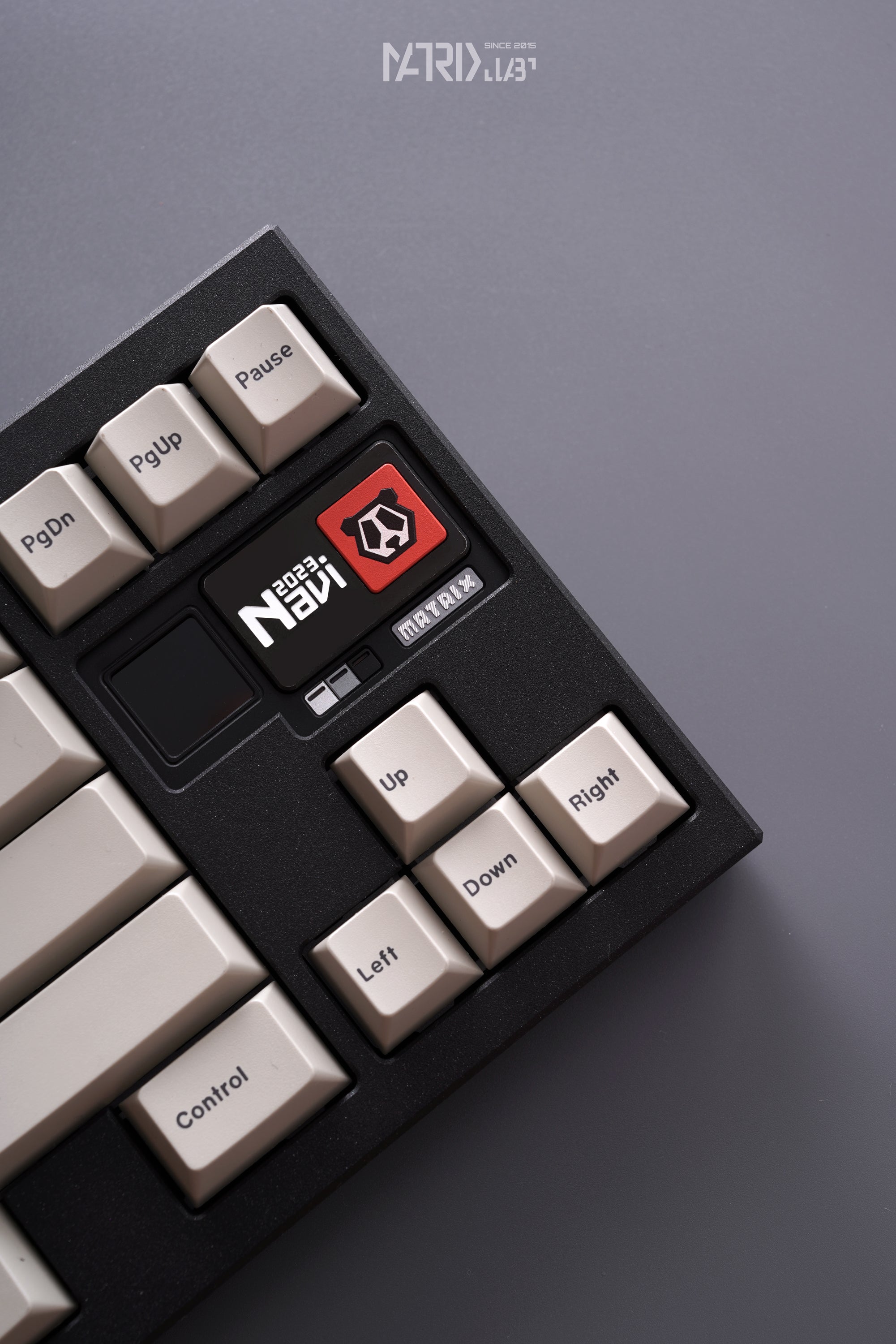

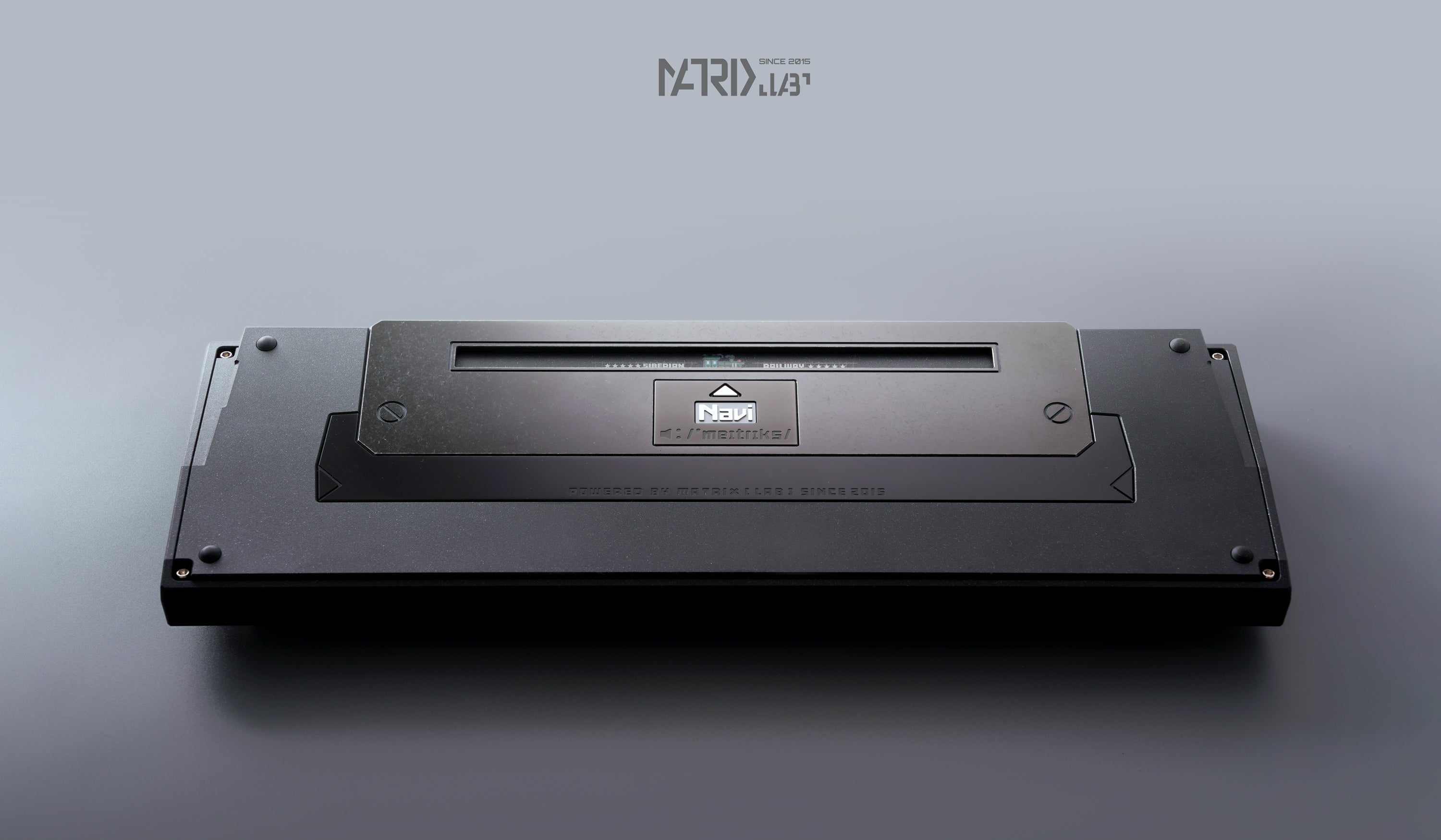

1. ‘SIBERIAN RAILWAY’- Black flash

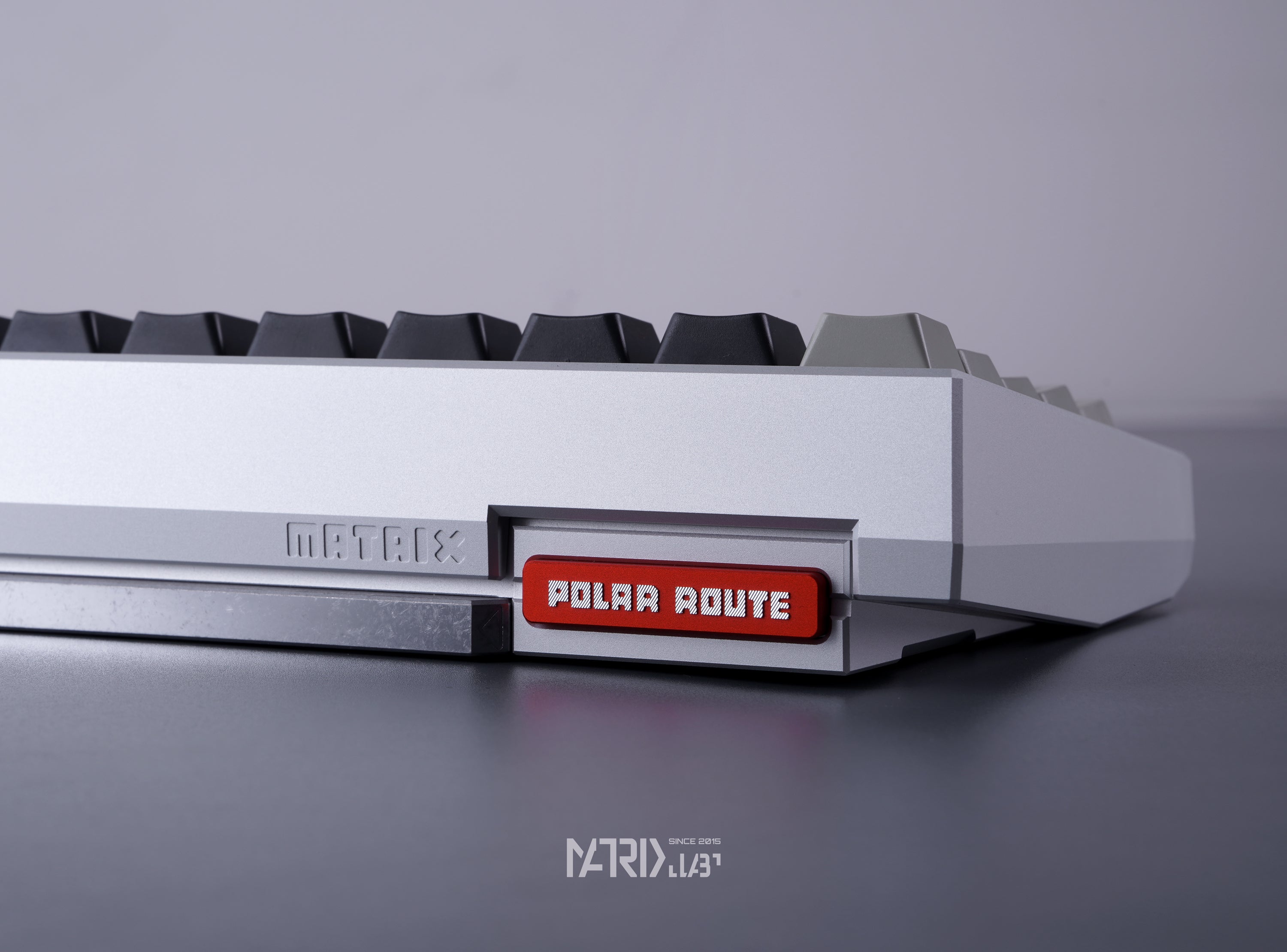

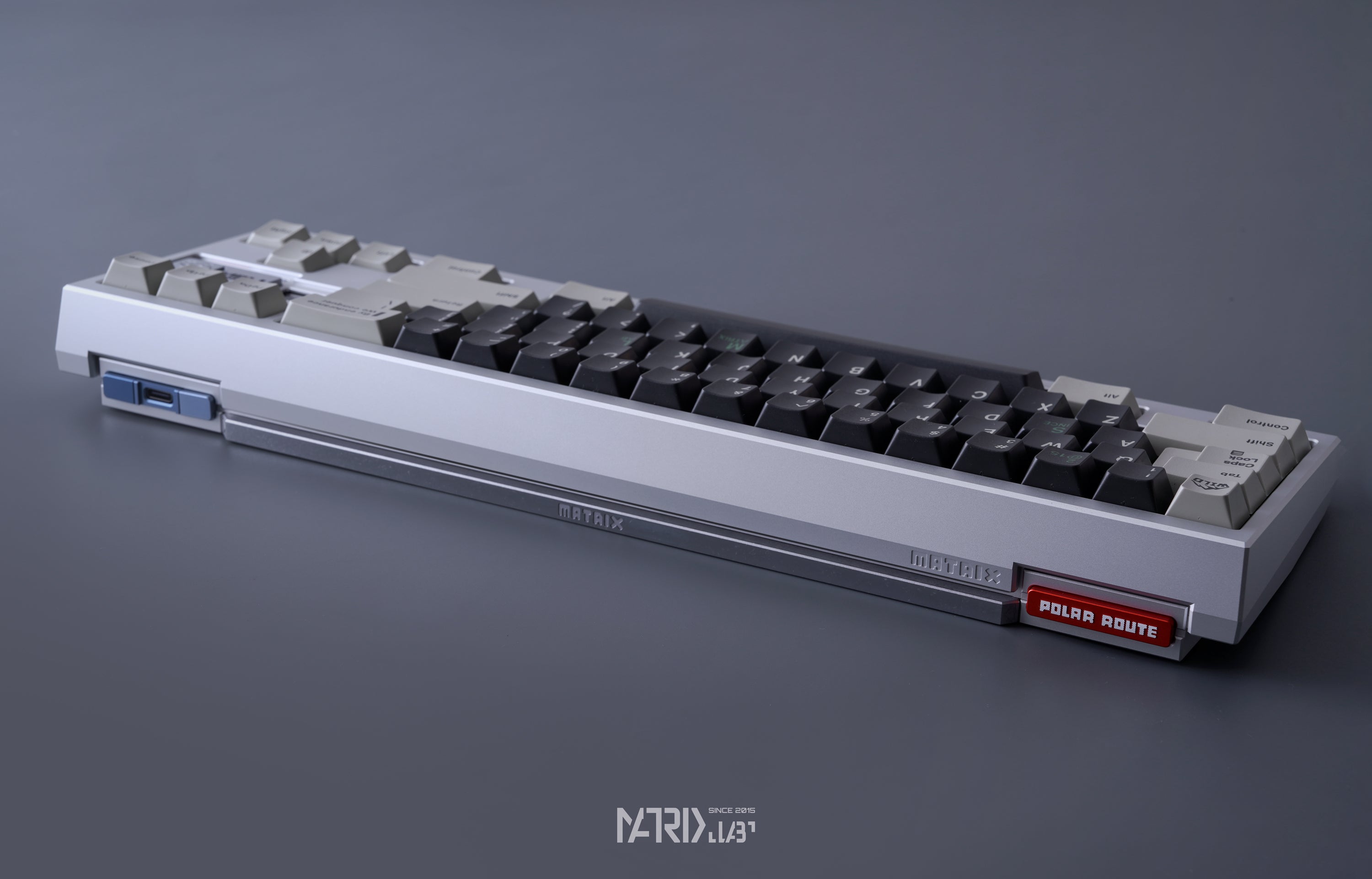

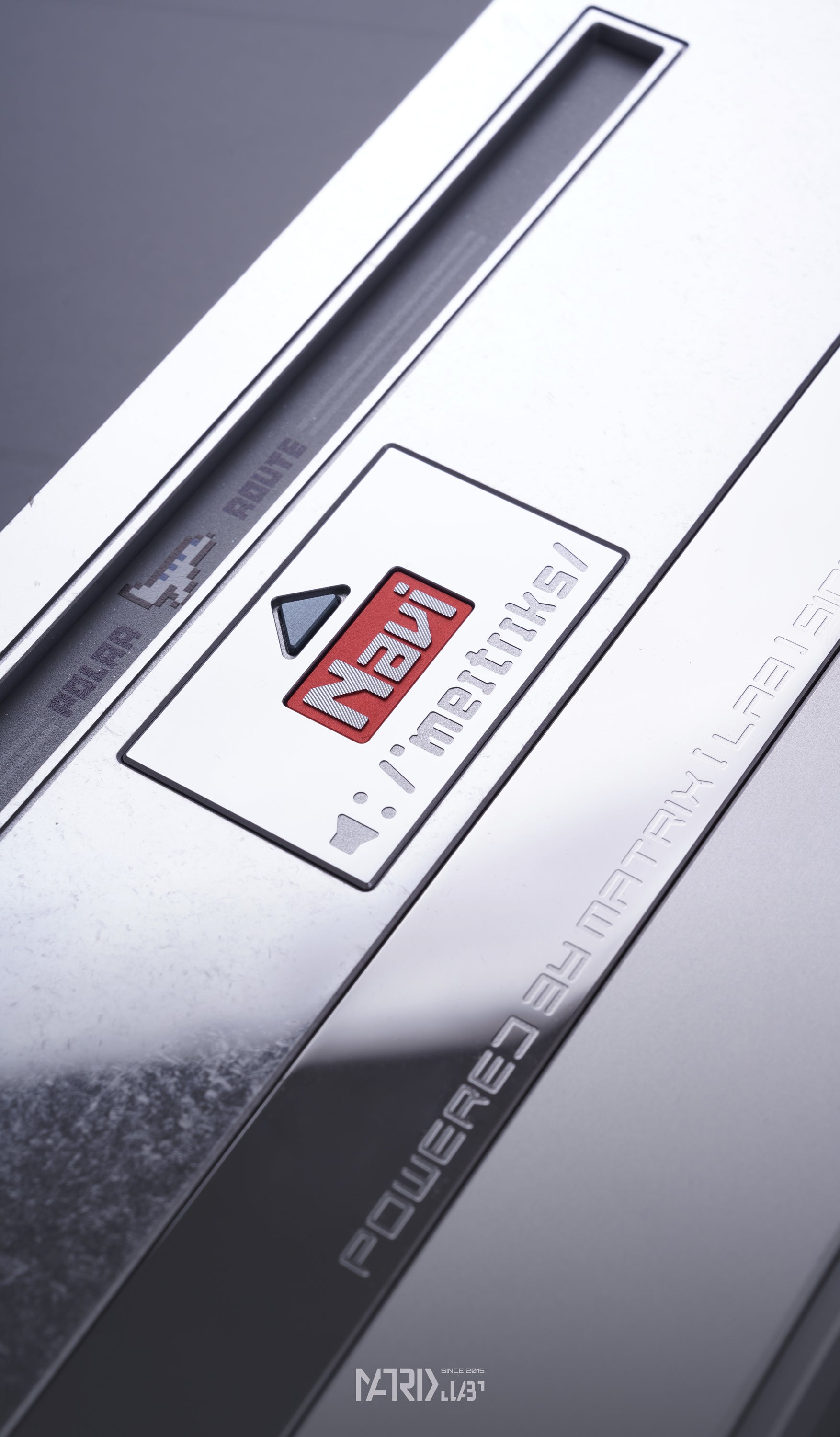

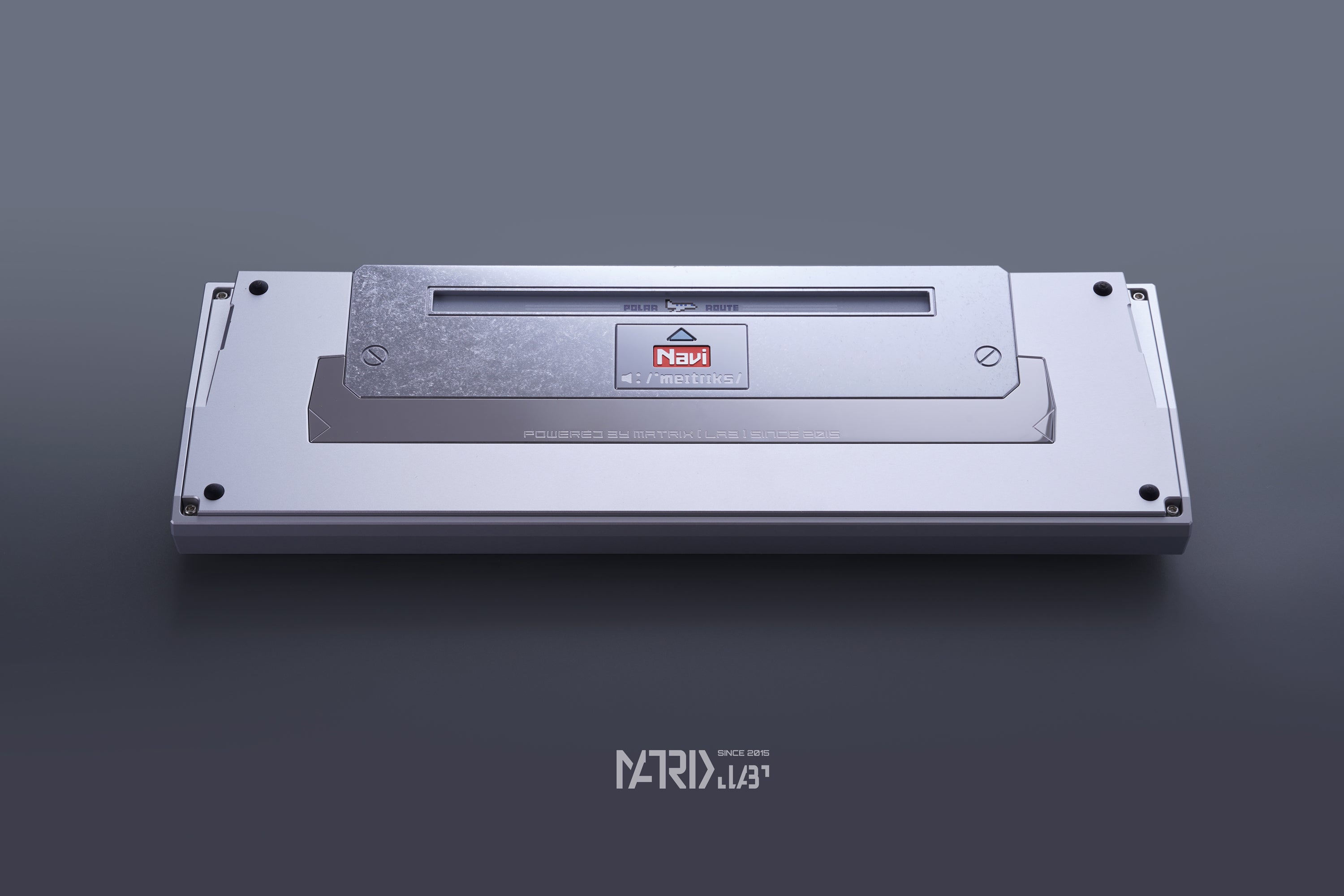

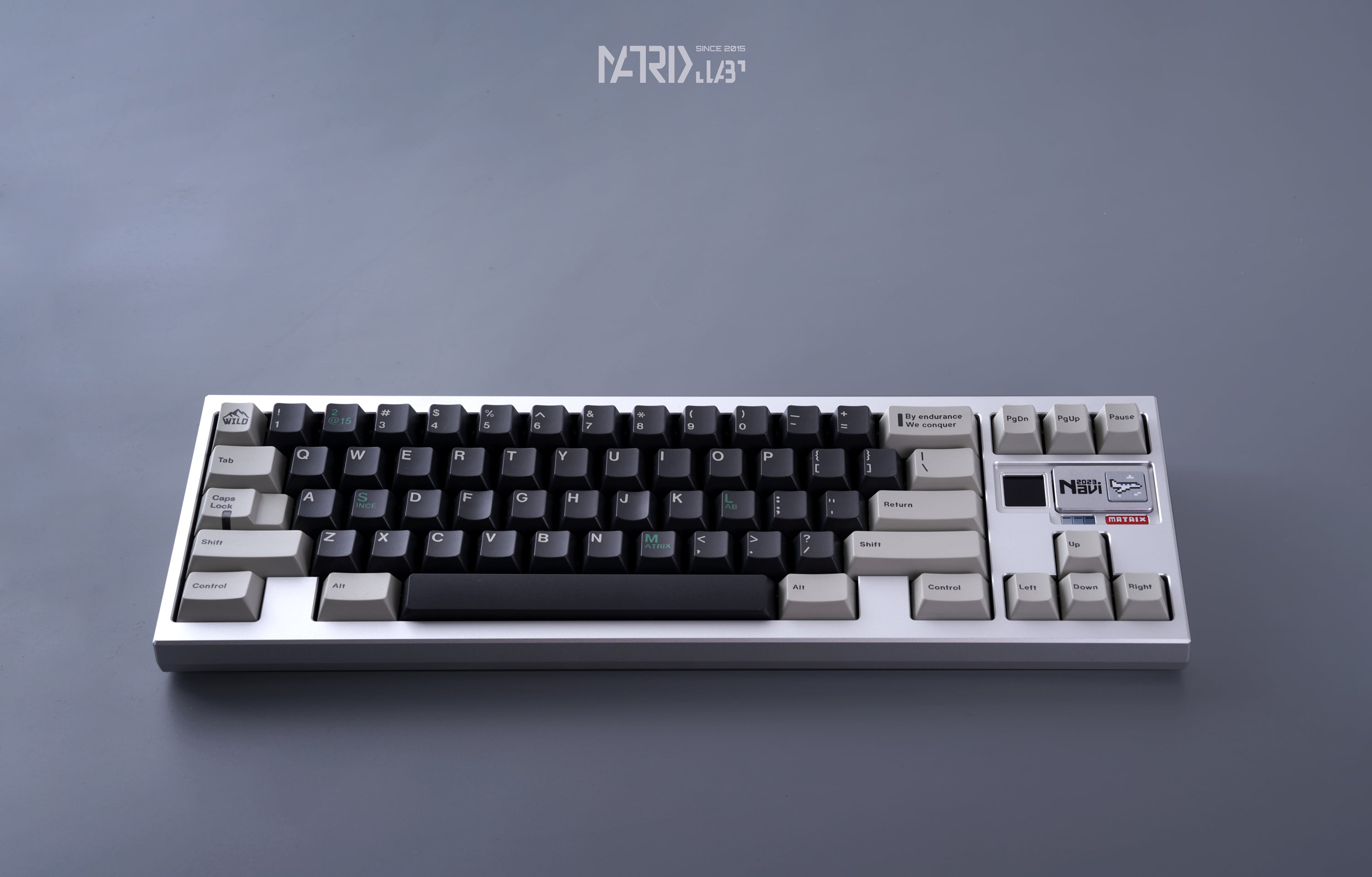

2. ‘POLAR ROUTE’- Silver
3. ‘PAN AMERICAN HIGHWAY’- McFlurry

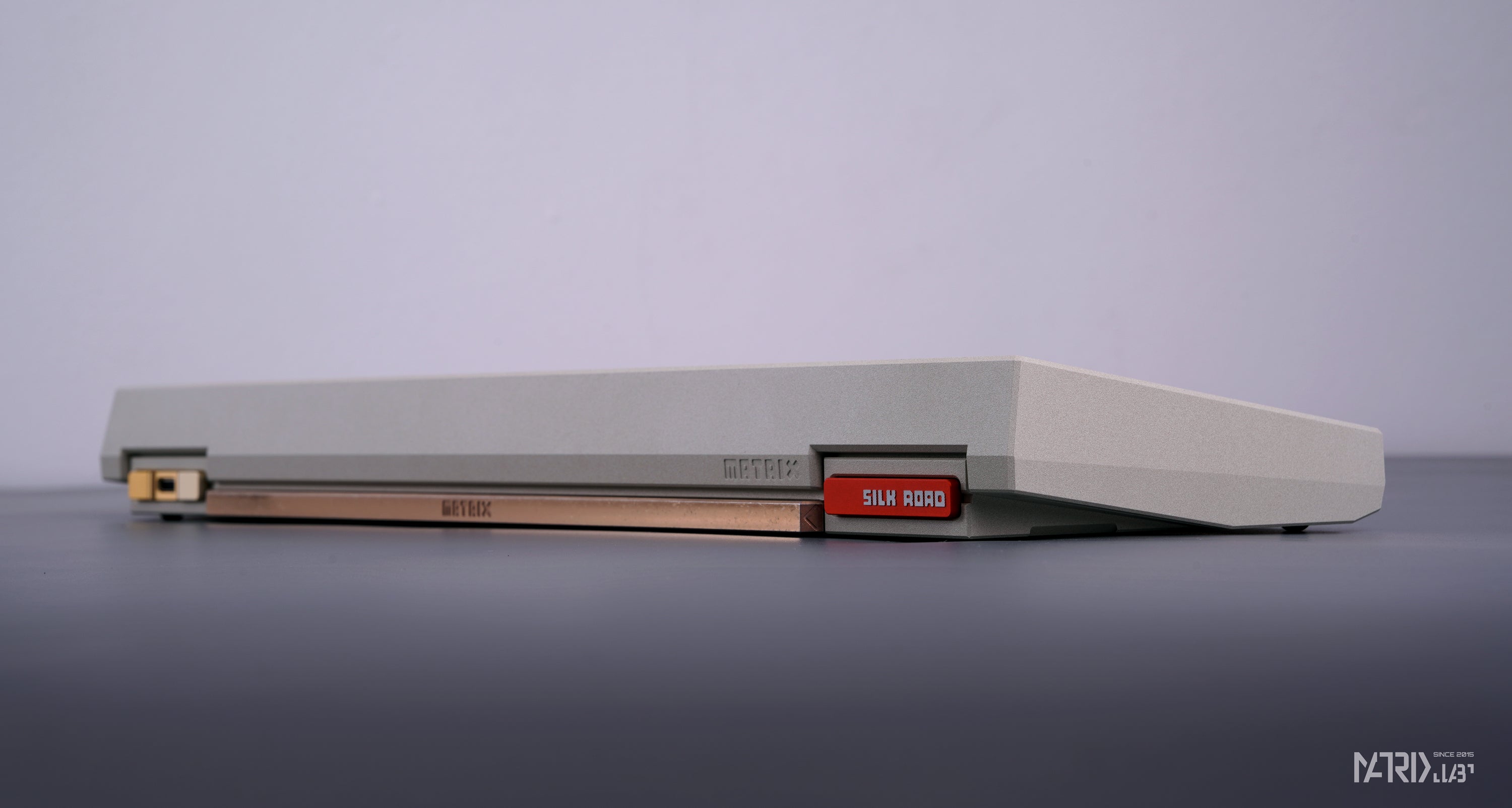

4. ‘SILK ROAD’- Linen
5. ‘Nürburgring Nordschleife’-Meteorite grey

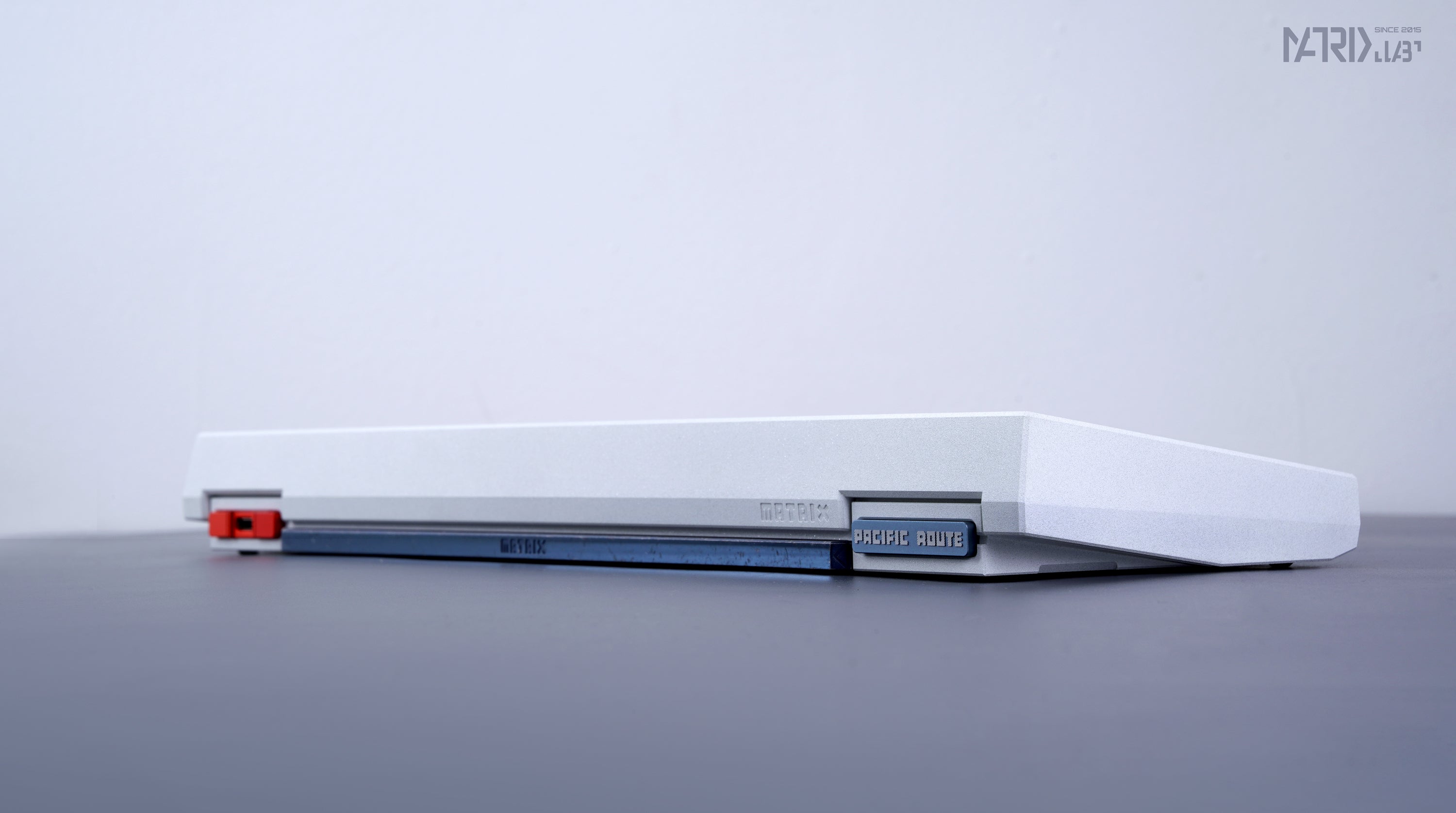

6. ‘PACIFIC ROUTE’- White flash

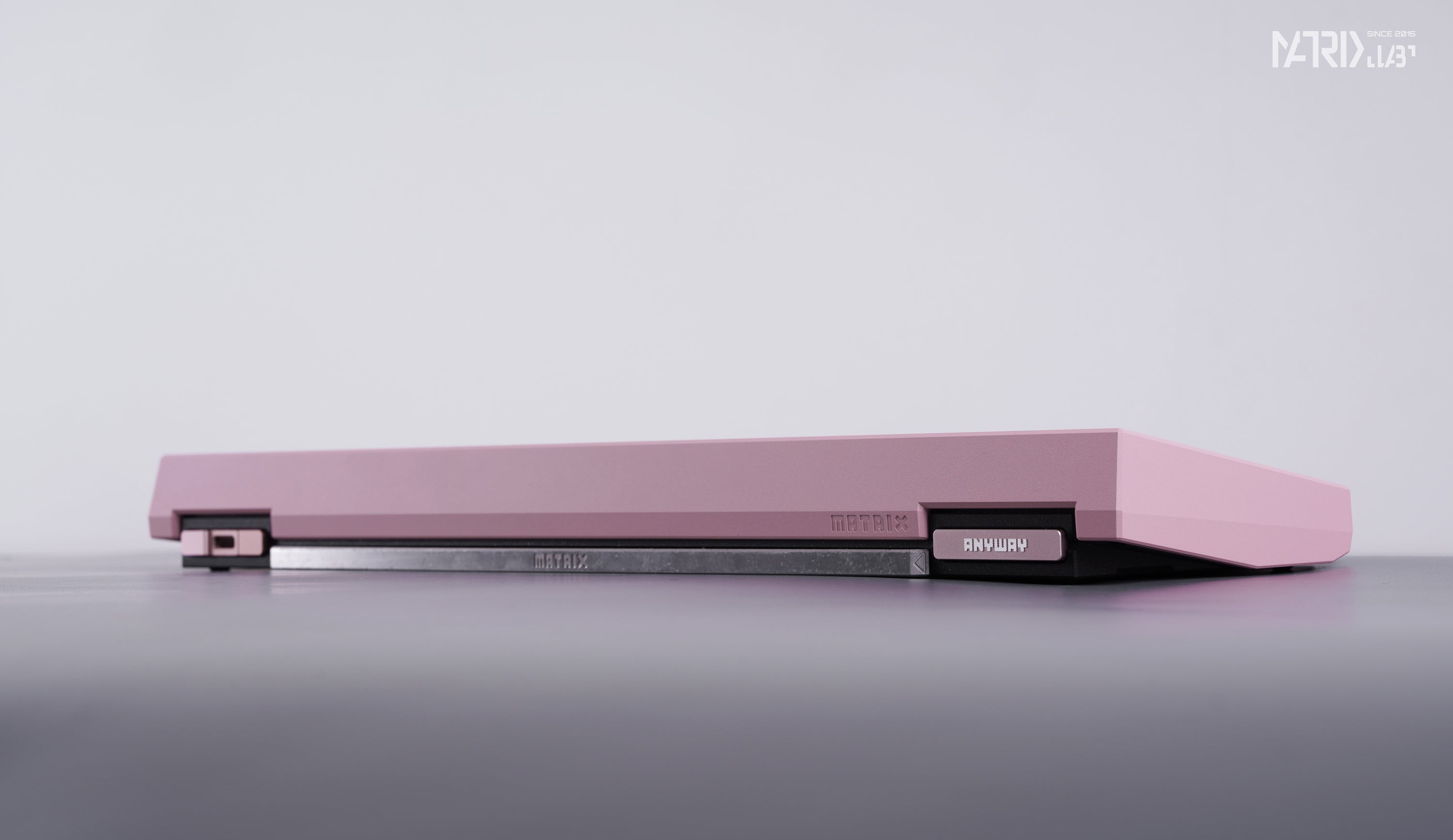

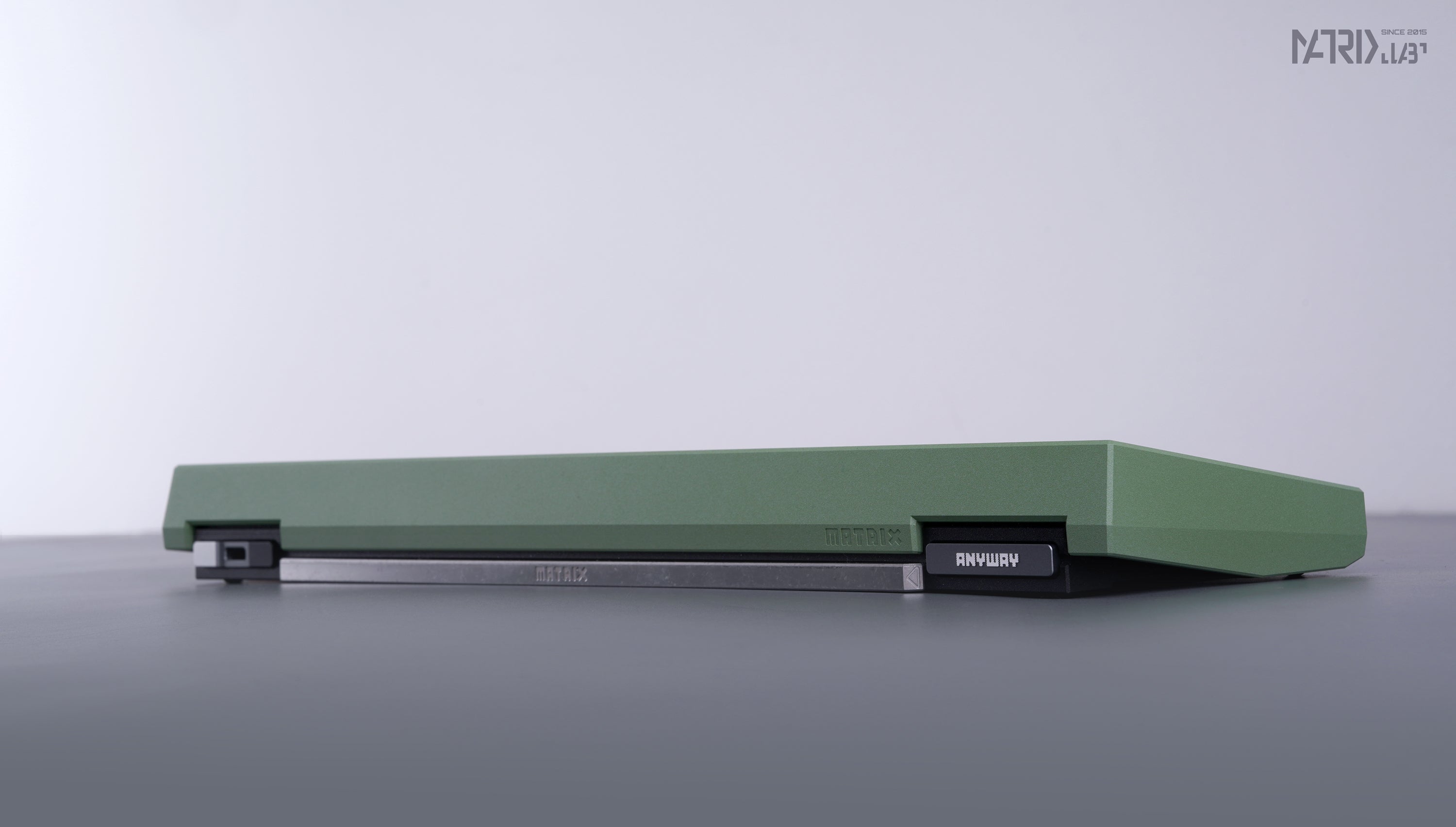

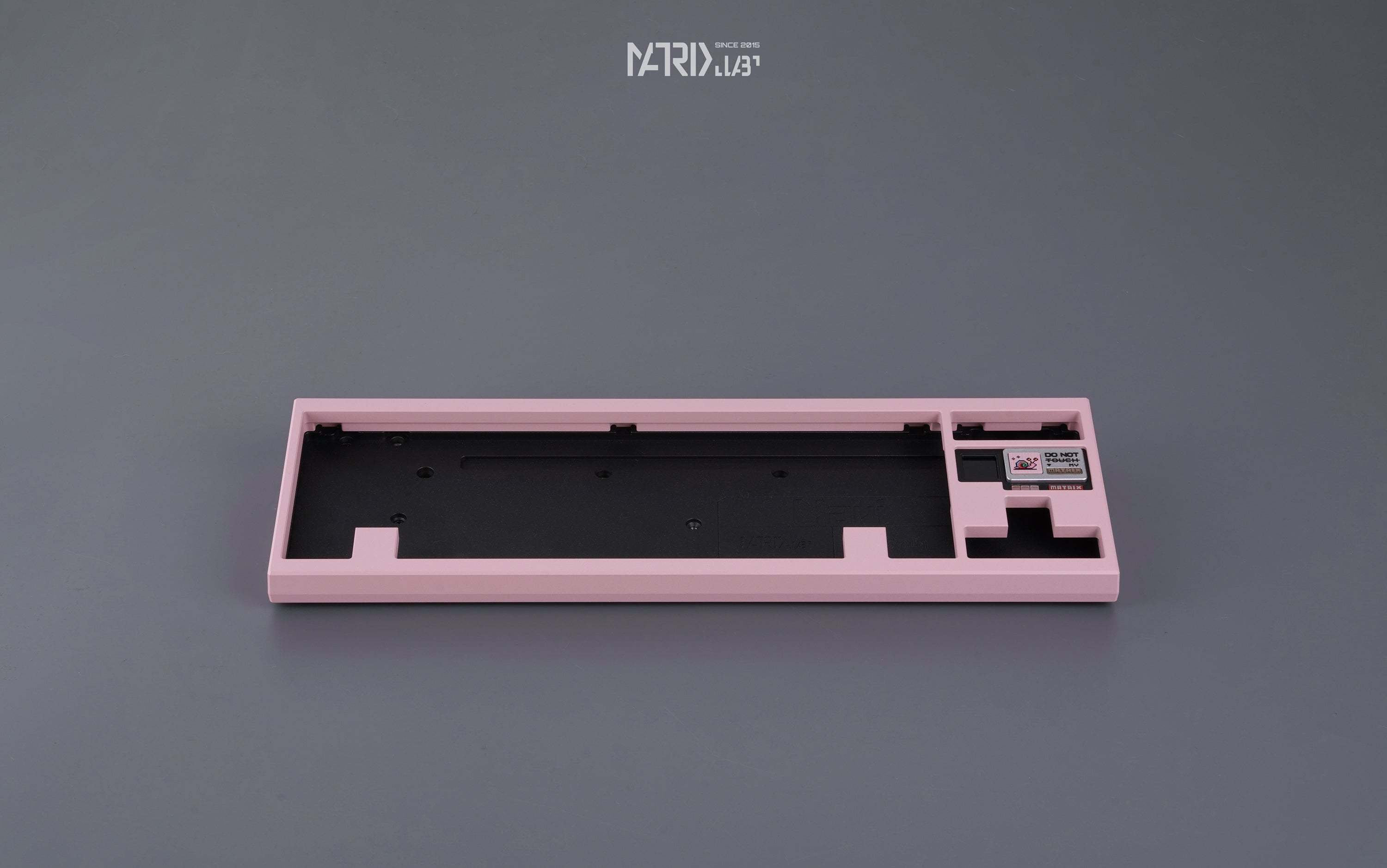

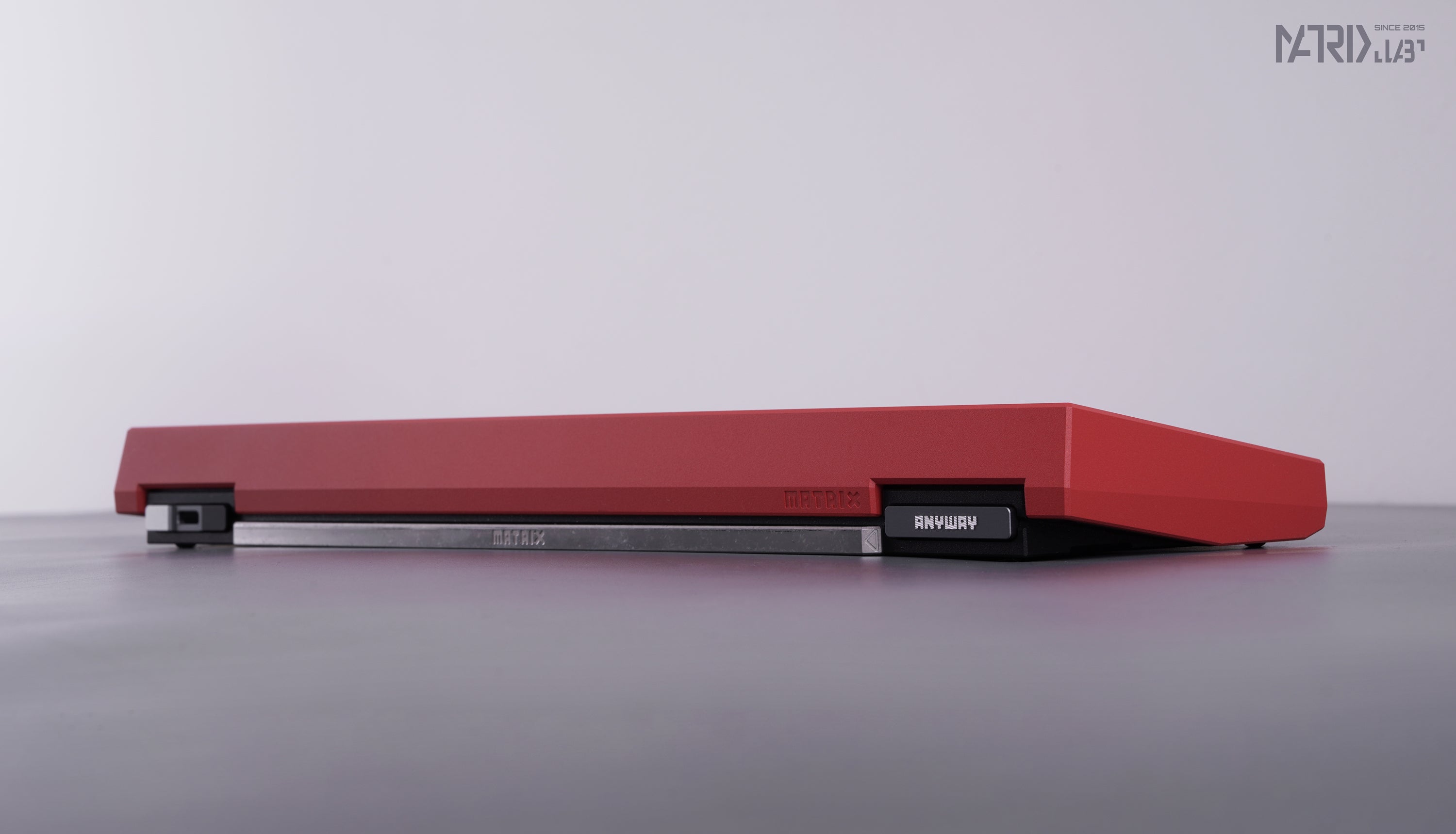

7. ‘ANYWAY’ TOP CASE OPTIONS:

  • China red
  • Light blue
  • Light pink

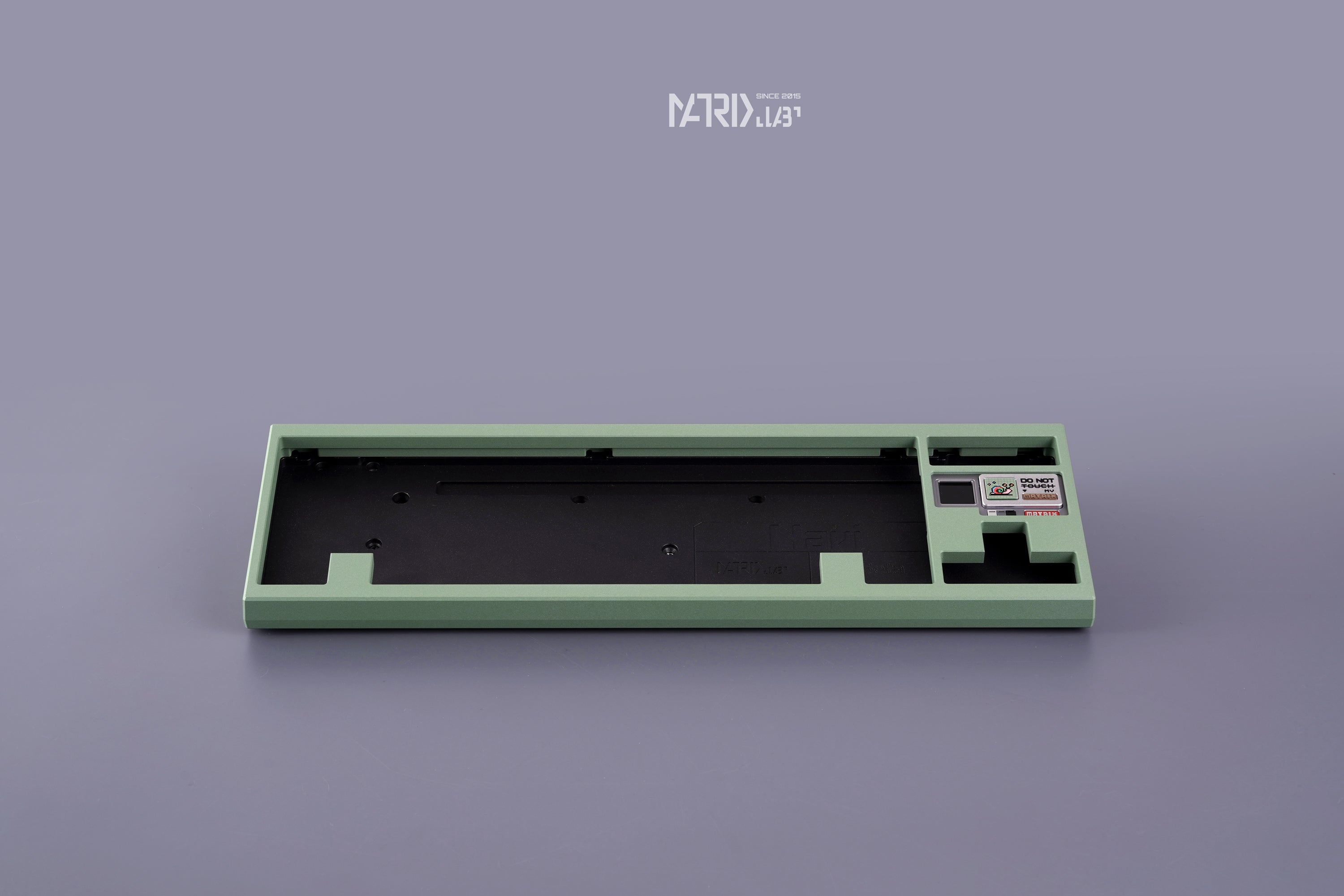

  • Light green

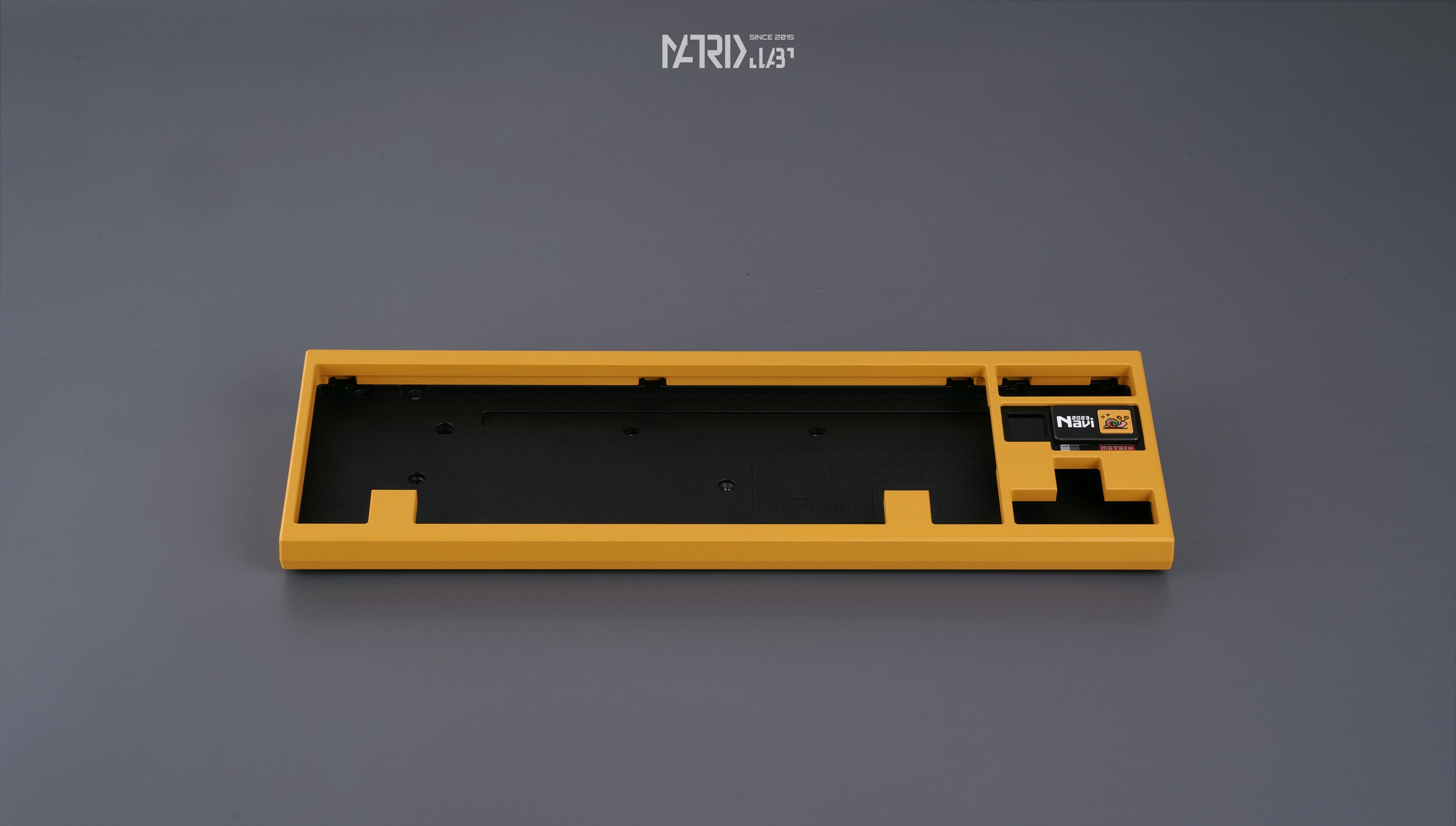

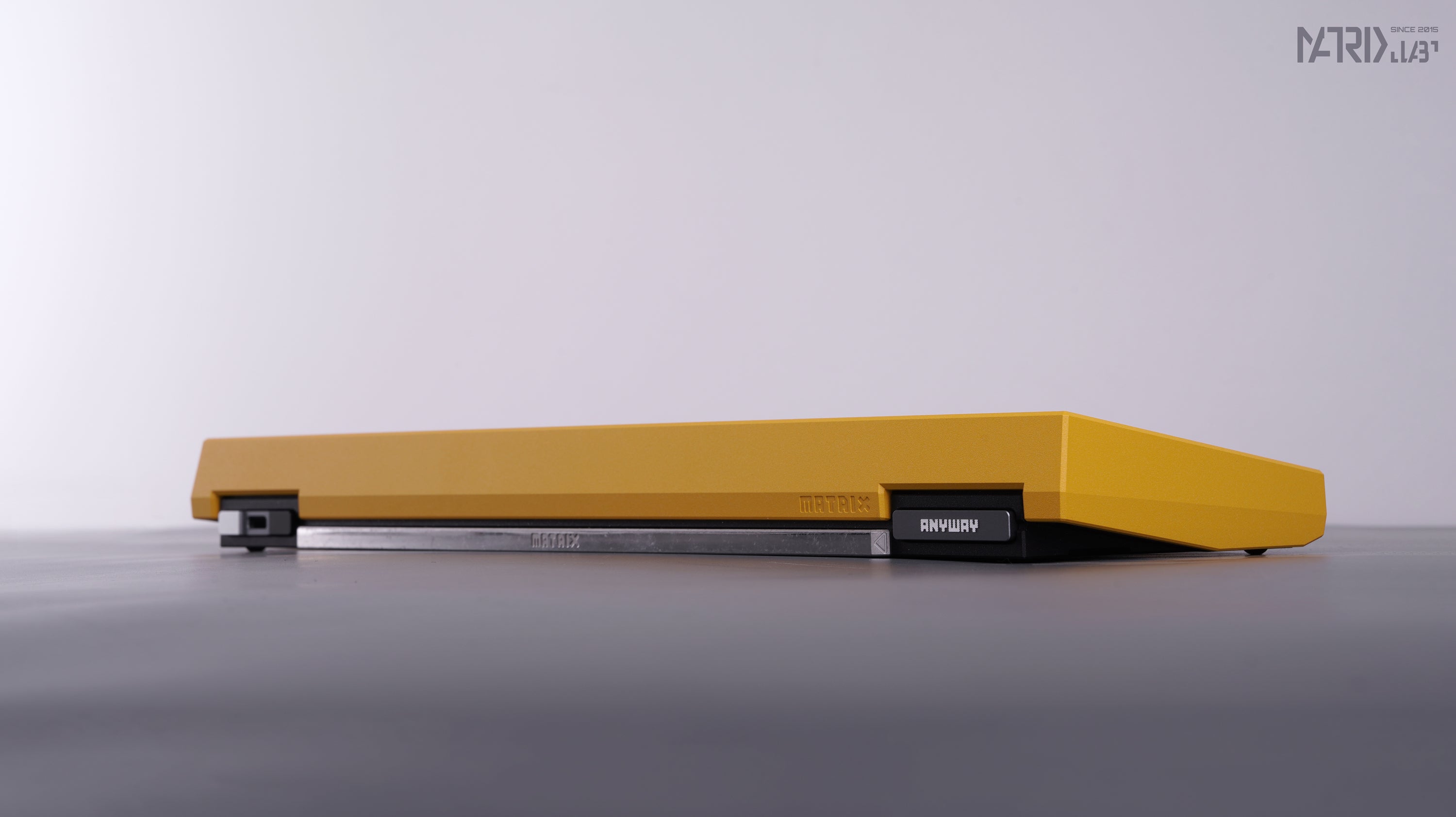

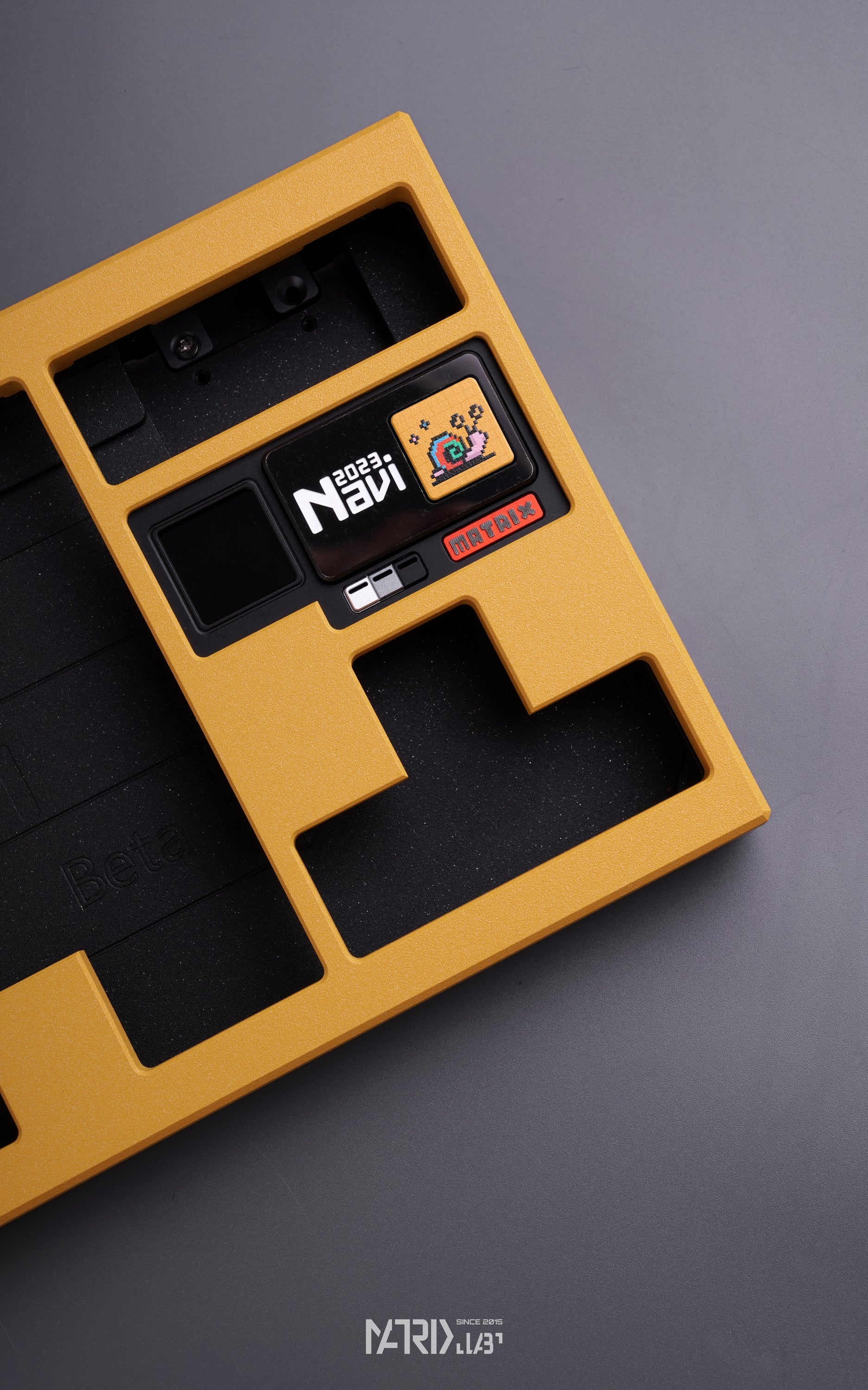

  • Sunflower yellow

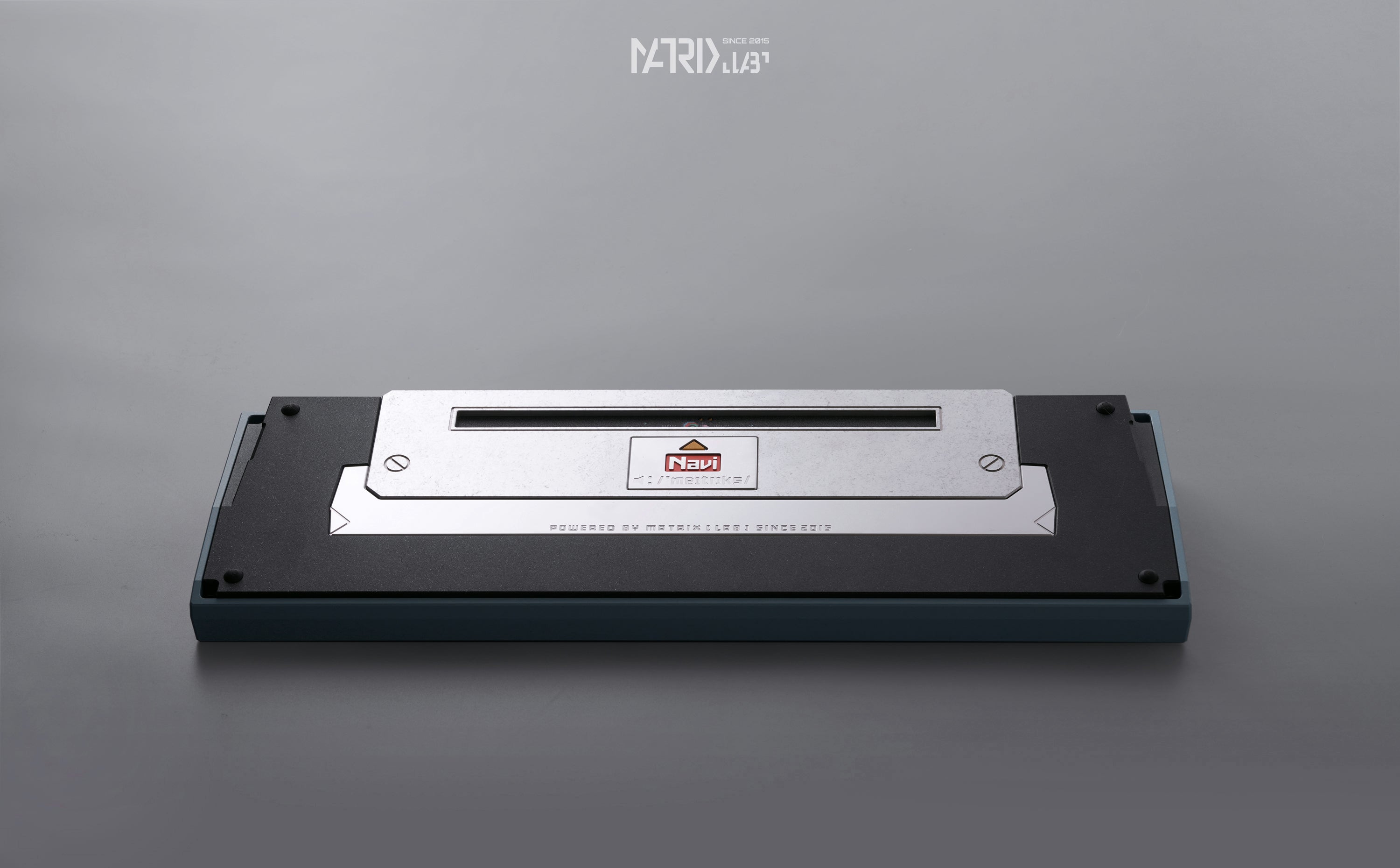

‘ANYWAY’ BOTTOM CASE COLOR: There is only one option- BLACK FLASH

Pictures of the 'Anyway' colourways may be of different boards.

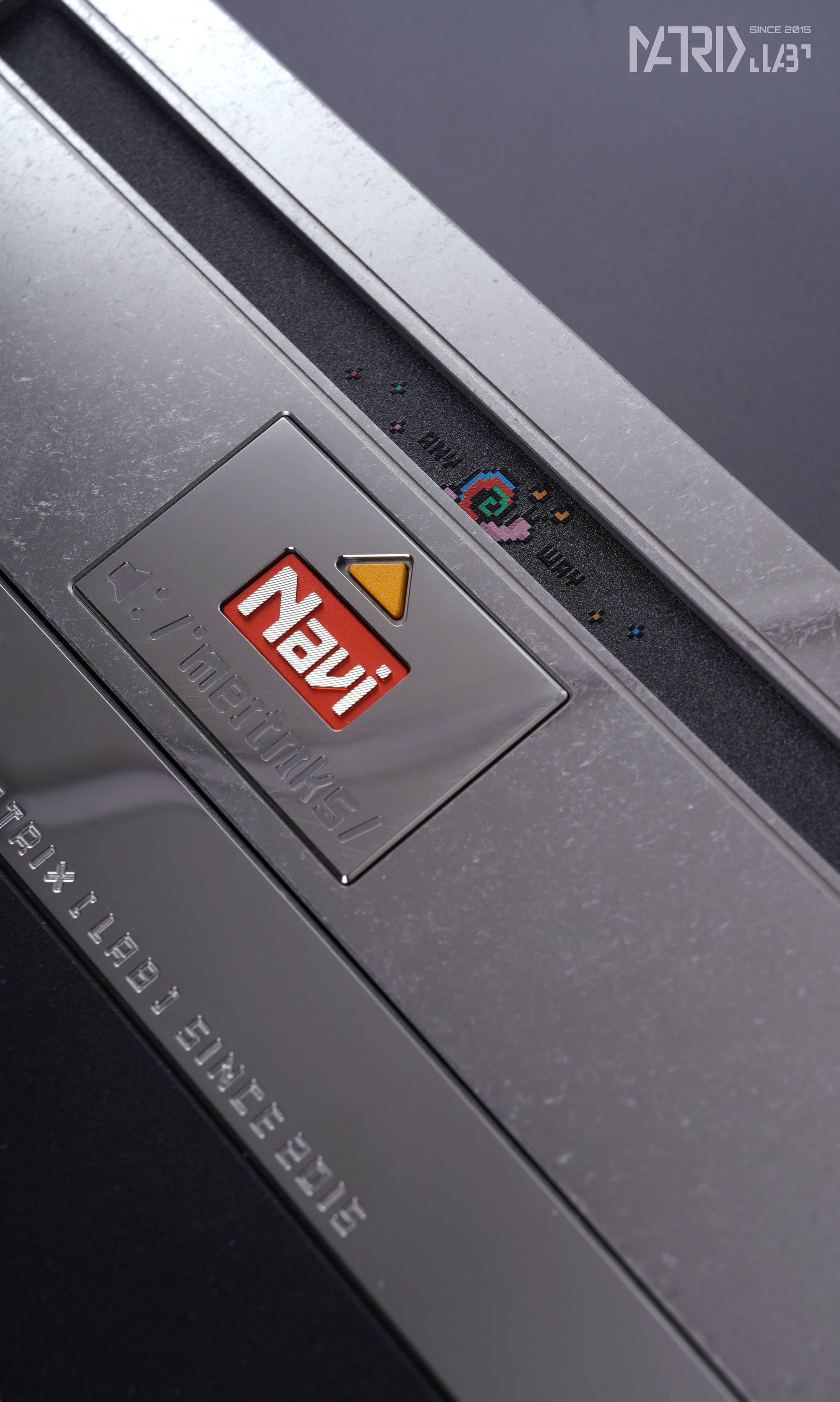

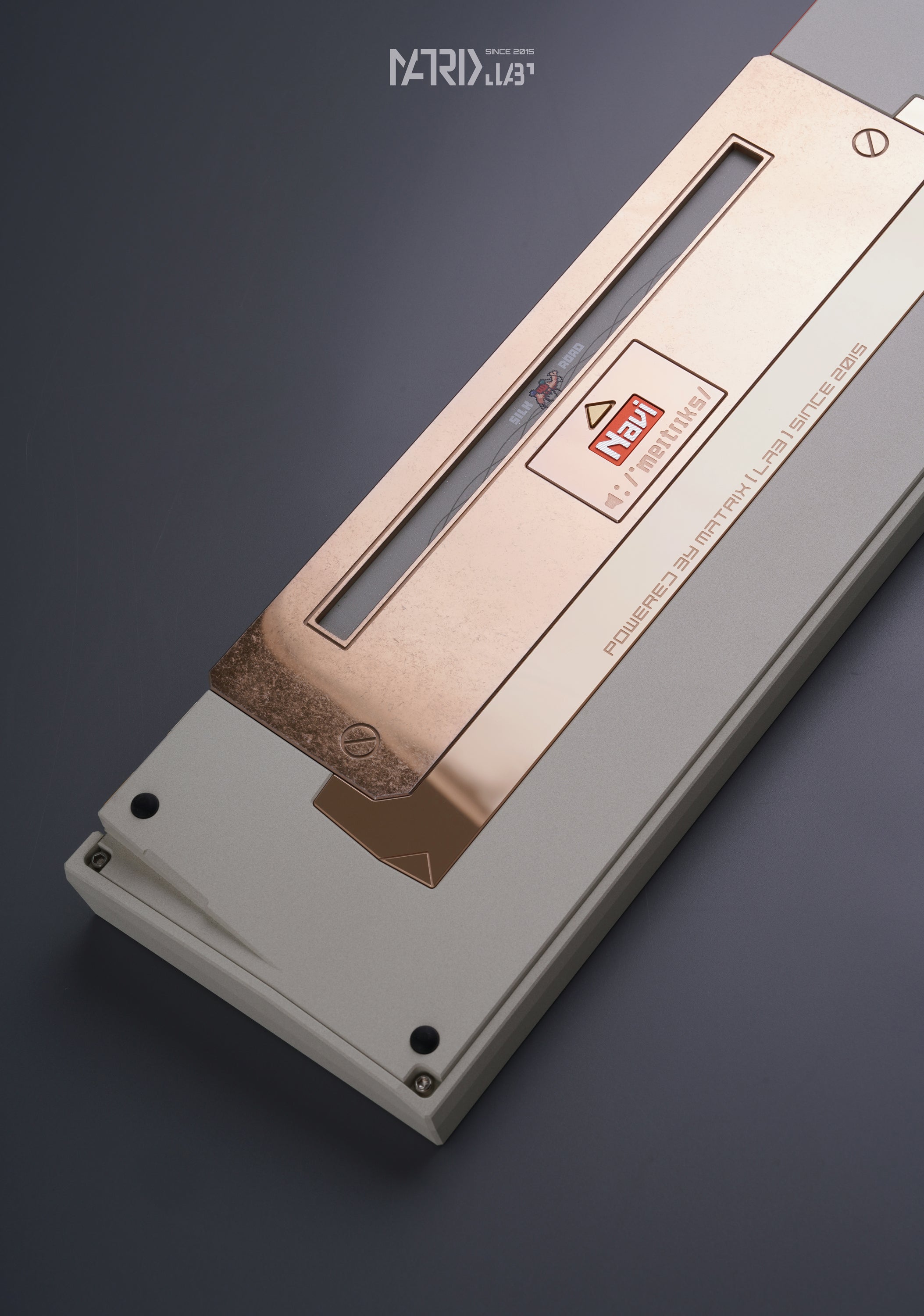

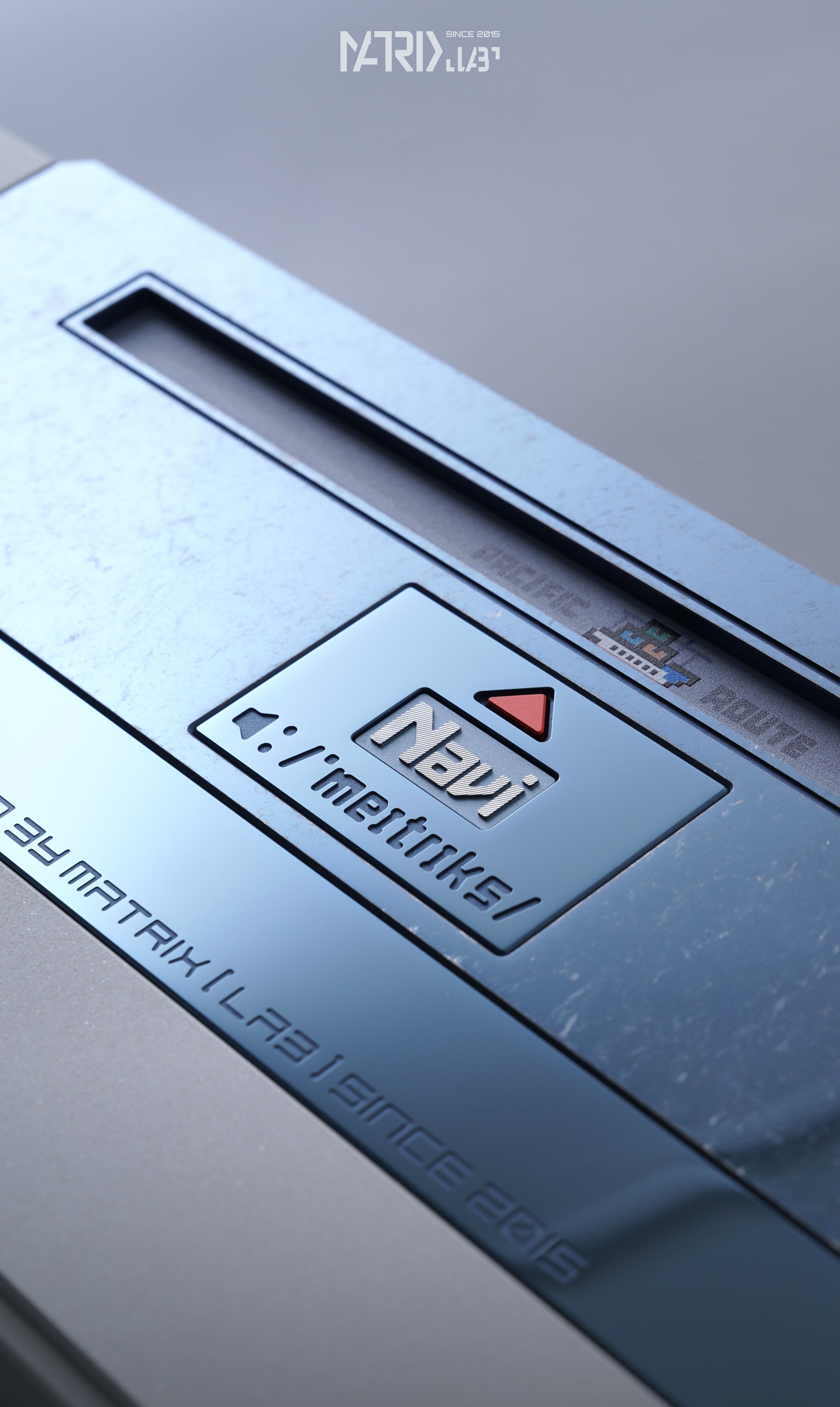

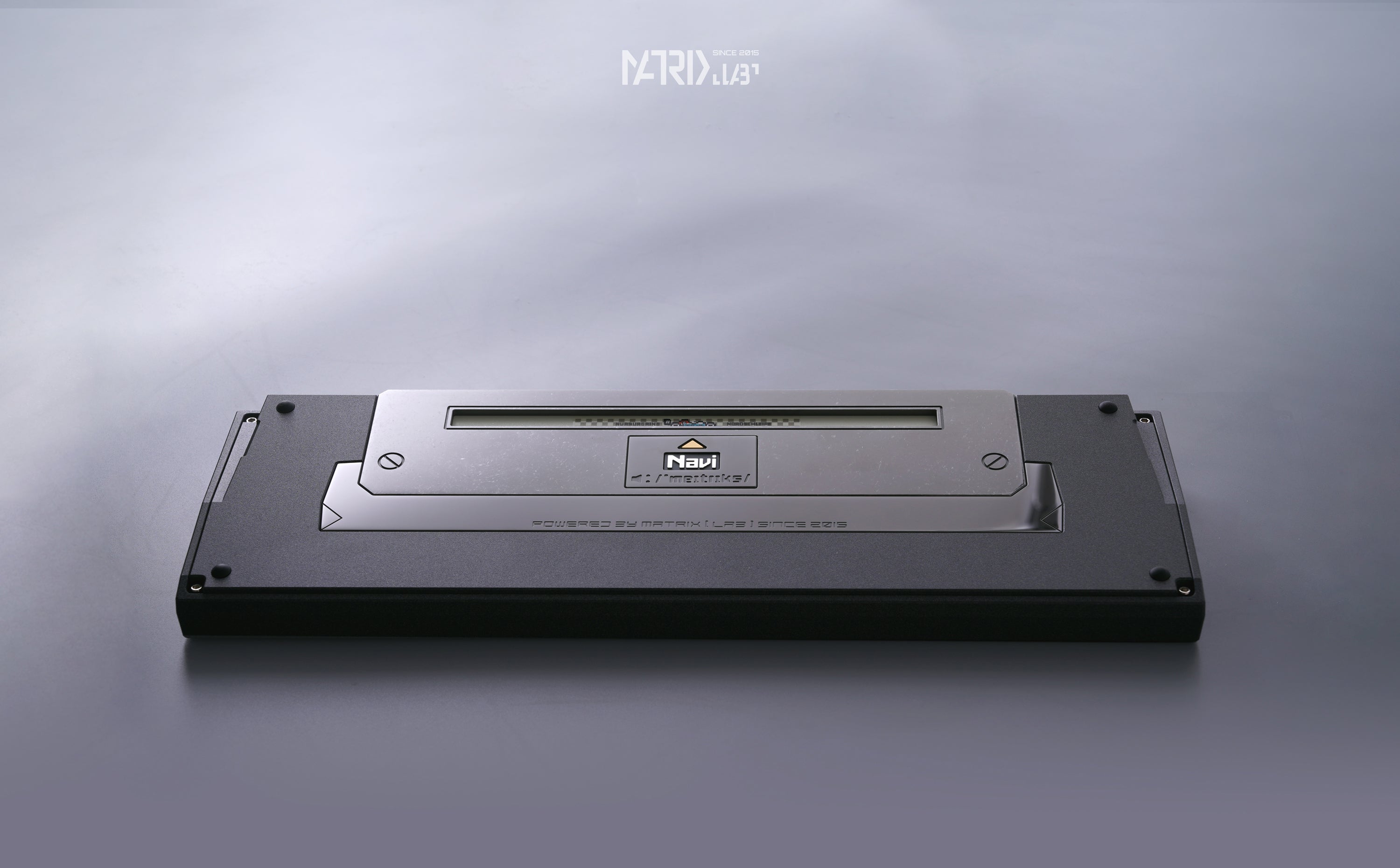

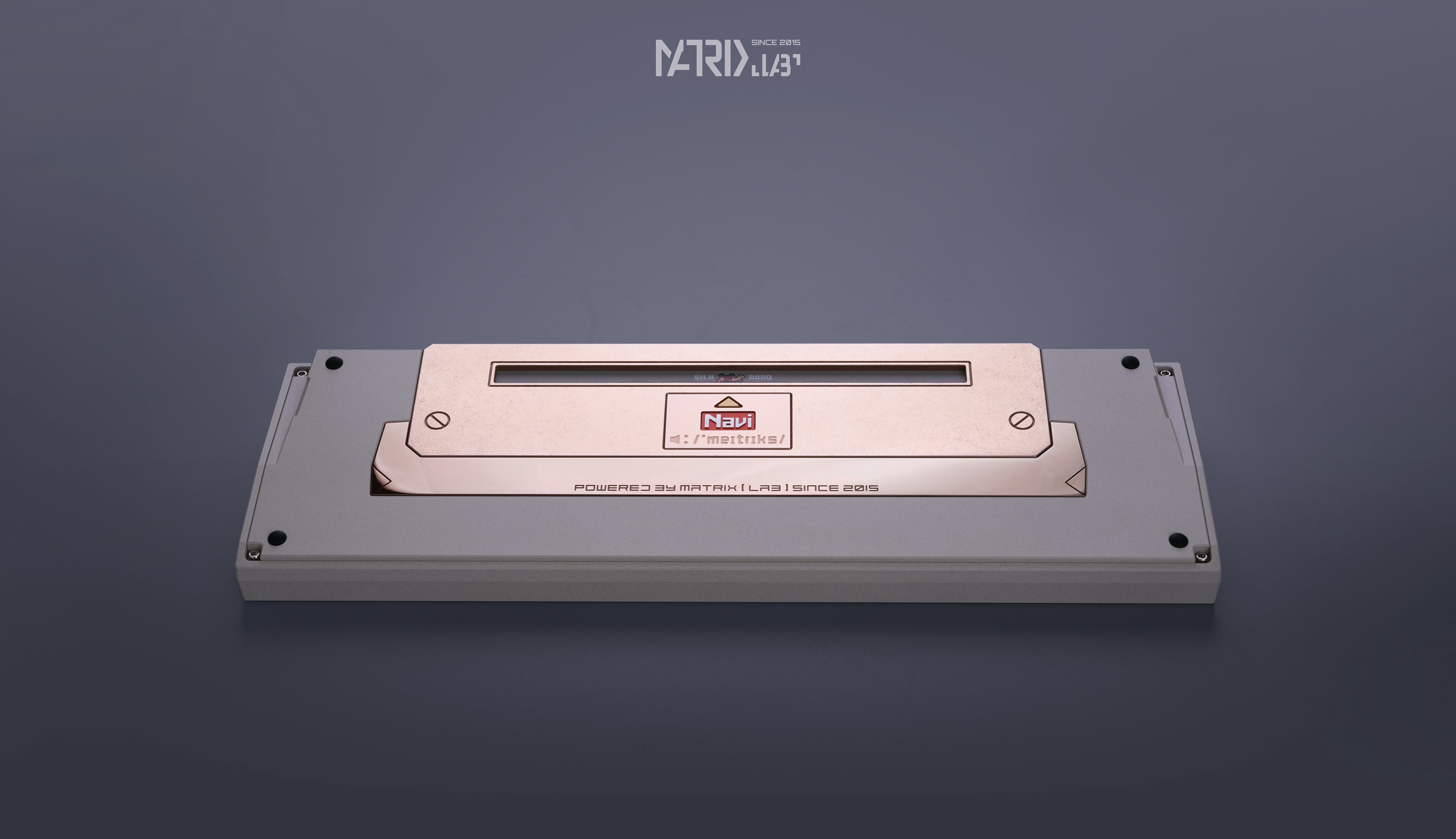

The inner strip (with a snail pattern on it) at the back of the bottom case will be the same colour as the top case. The sample is meteorite grey, and it is for reference only.

Layout

WKL

CWKL

PCB

Structure

  • Top mount with screw films;
  • Split plate for base area and function area;
  • Purple part: Made in stainless with stone washing and PVD mirror finish;
  • Red part: Made in stainless with PVD mirror finish;



Features

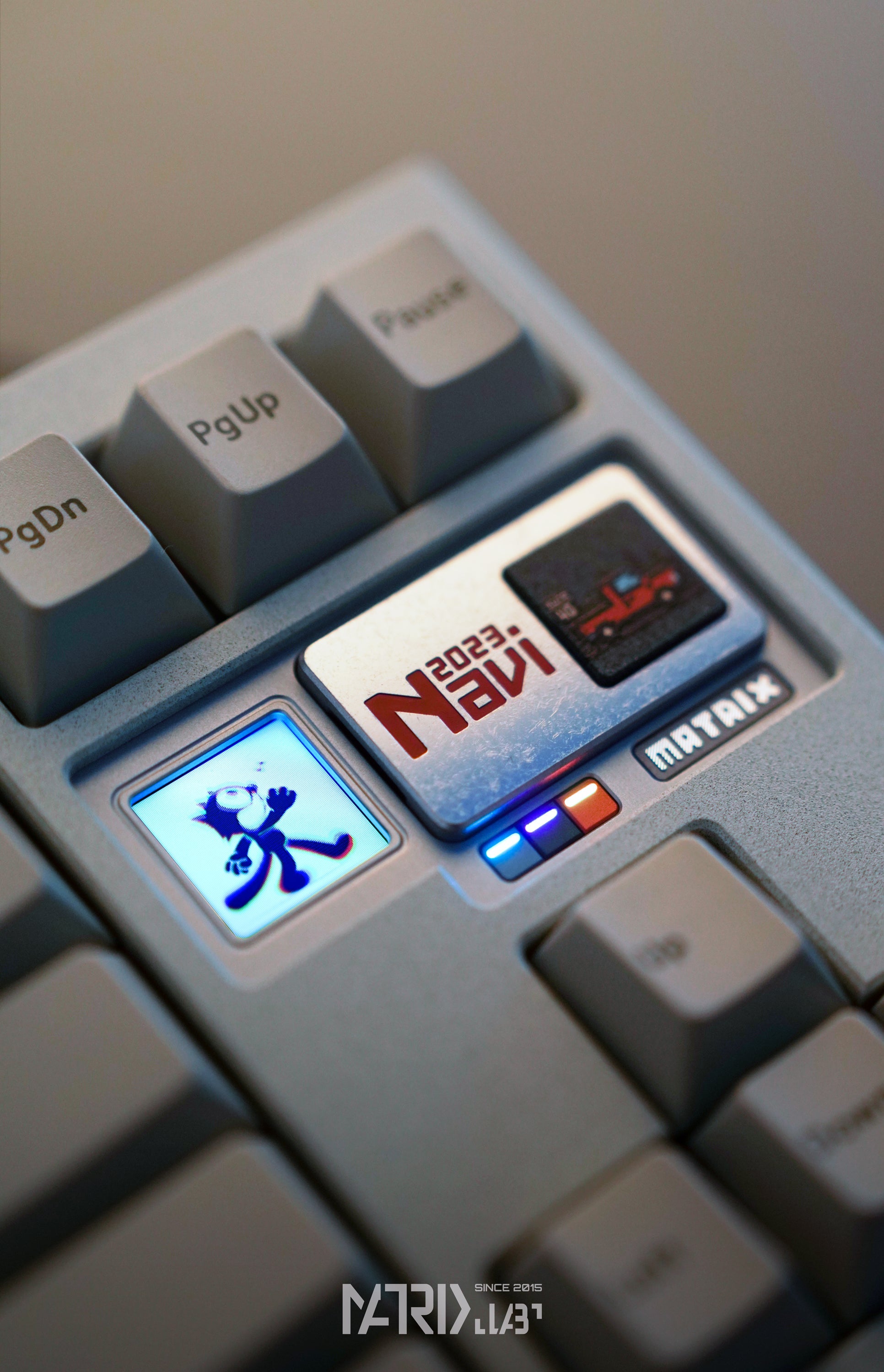

Blue part:
- 0.85 inch LCD screen (Same as Corsa);
- The resolution is 128 * 128;
- Can display gif image (need to convert to a specific format);

Green part:

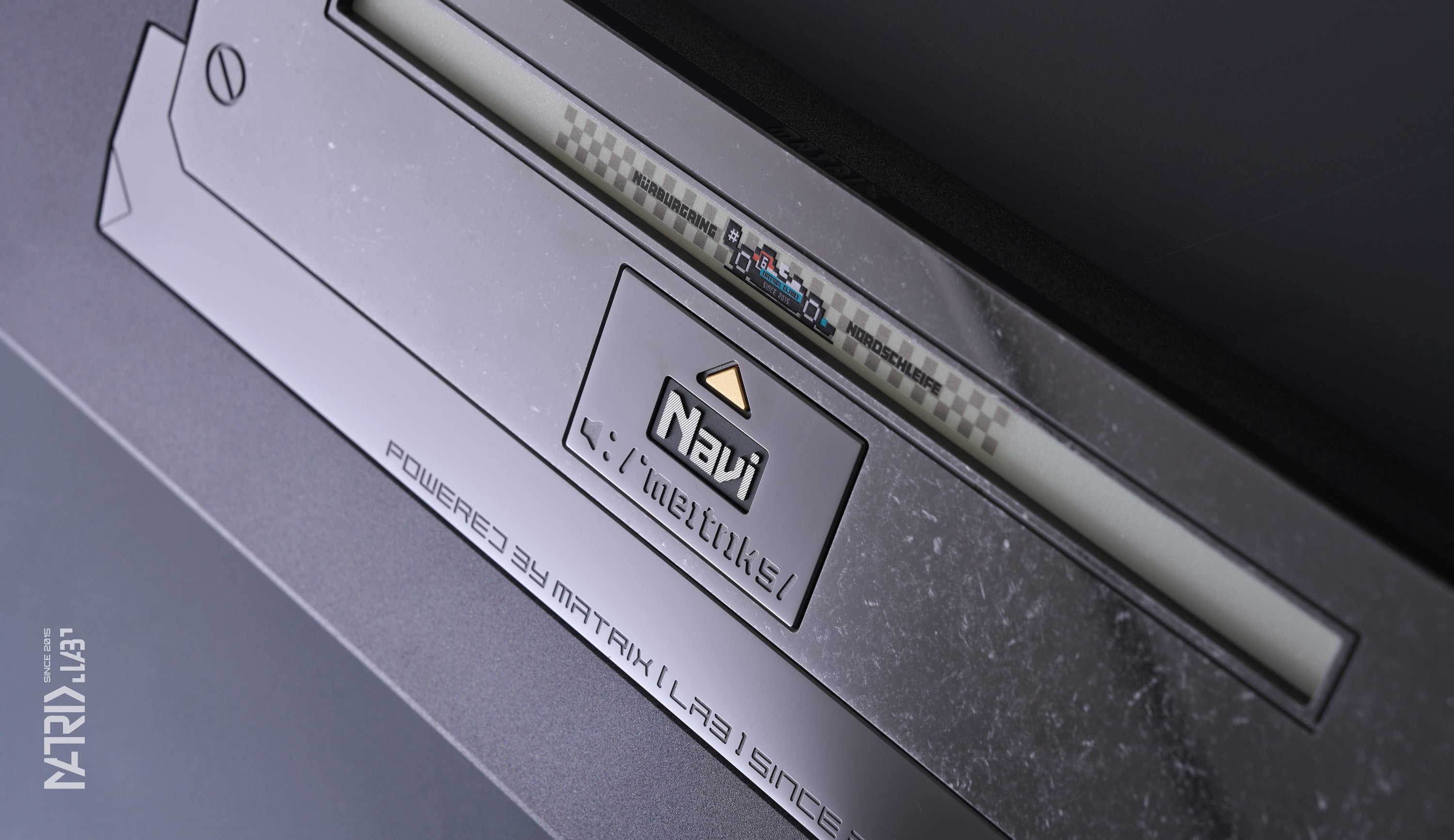

- 4mm stainless badge with stone washing and PVD mirror finish;
- Compatible with previous badge;
- Magnetic assembly;

Yellow part:
- LED.

Angle:
- 8 degrees.

Front height:
- 20mm;
- 24.9mm (with switch);

PCB:
- Designed and supported by Astro;
- Hot-Swap PCB only;
- VIAL supported;
- Flex cut on the base area;

Plate:
- Split plate for base area and function area;
- We will be sending two plates for the base area for Navi. One with the flex cut and the other one without;





    Disclaimers
    Every kit will be QC-ed by Matrix Lab.


    As this is an In Stock item please do not add items from group buys to this order as it will delay your orders shipping till everything is available.
