Included Contents:
- 1x Top Case
- 1x Bottom Case
- 1x External Weight
- 1x Choice of Plate
- 1x Solderable or Hotswap PCB
- 1x S2 Unified Daughterboard + JST to JST Cable
- 1x Molded Carrying Case
- 10x 30A, 60A, 90A Gaskets
-
All Screws/Parts/Etc for assembly
*Note does not include switches, keycaps, or stabilizers
Case Specifications:
- Materials: 6063 Aluminum, Brass, Copper, Stainless Steel
- Layout: 60%
- Typing Angle: 7.8 Degrees
- Front Height: 18.8 mm
- EKH: 23.8 mm
- Weight: 1.8 kg
- Mounting: Isolated gasket strip
Disclaimers:

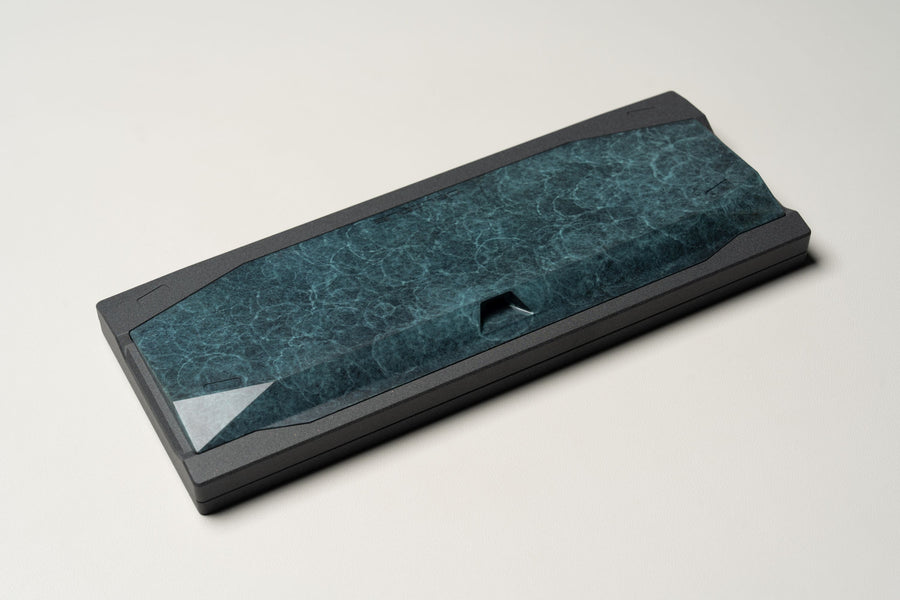

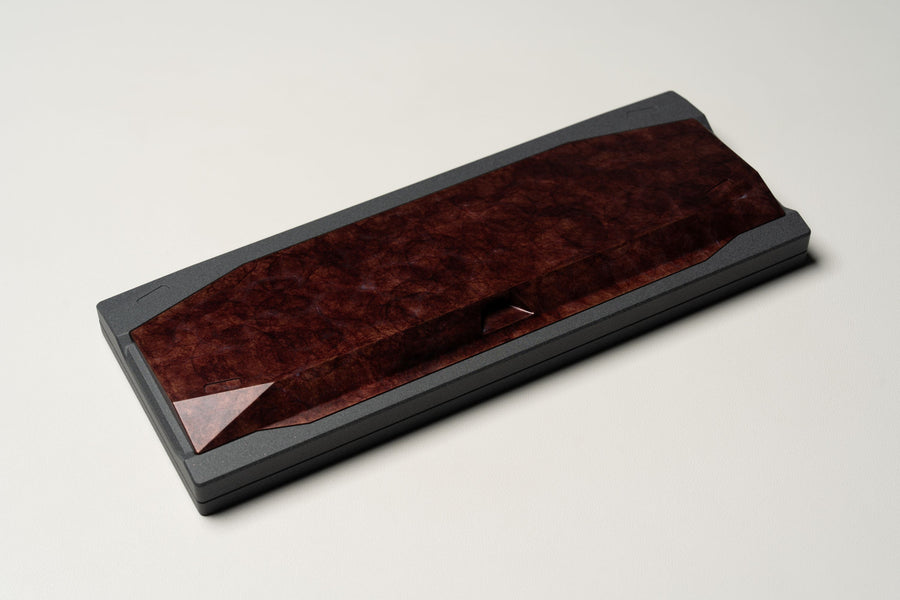

Note that the Patina finishes are random and that each unit is unique and will not match the product image. The product image is an example of colors and patterns that are expected with each colorway. Returns or exchanges are not accepted due to dissatisfaction with the patina finish.

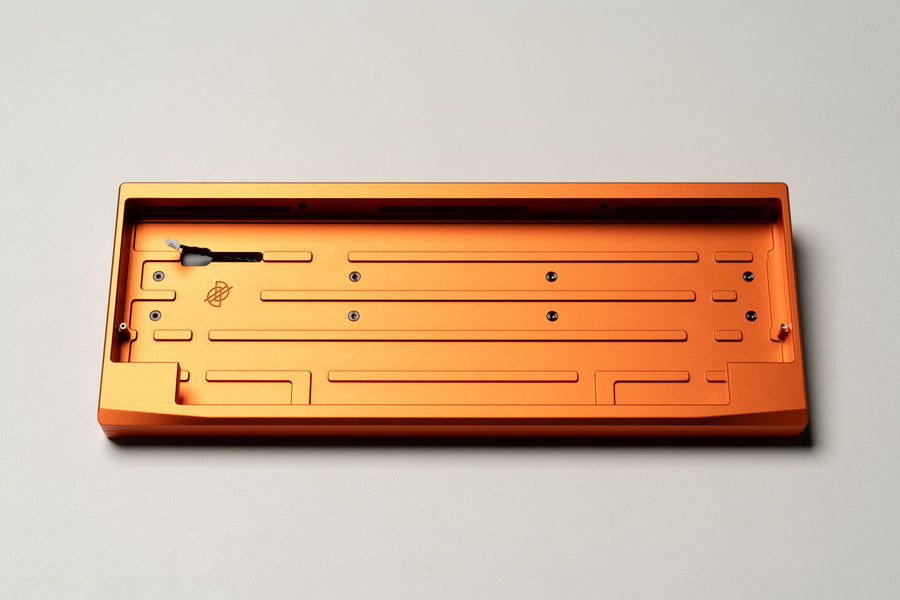

Case Design
Oblique is a successor to the OC-62 which originally ran in 2023. The oblique takes heavy aesthetic inspiration from the OC-62 while having its own distinct look. Oblique gets its' name from the intersecting faces visible from all angles of the keyboard. It was designed to draw the eye to different parts of the board using angled faces and intersecting edges.
Mounting Design:
Oblique used 10 custom designed gaskets that press-fit into the top and bottom case for easy assembly. These gaskets are provided in 30a, 60a and 90a durometers for customisable feel and sound. They sandwich the plate on leaf spring or releaf cut tabs fully isolating the plate and PCB assembly from the case.
Case Specifications:
- Materials: 6063 Aluminum, Brass, Copper, Stainless Steel
- Layout: 60% WK, WKL, HHKB
- Typing Angle: 7.8 Degrees
- Front Height: 18.8 mm
- EKH: 23.8 mm
- Weight: 1.8 kg
- Mounting: Silicone Strip
PCB Specifications:
- Material: Black FR4
- Thickness: 1.6mm
- Connectivity: JST to Unified Daughterboard
- Customizability: VIA
- Type: Solderable and Hotswap
Hotswap Compatibility
Solder Compatibility
