Design Inspiration:
Pangea Mini is the successor to the Pangea Full Size. The mini has a similar top frame design that gives the keyboard a unique top-down look. The top frame also determines the layout, allowing users to easily switch the layout or aesthetic of their keyboard by simply changing out the top frame!
In Stock Addons Available Here
In Stock Kits
| Kit |
Case
|
Layout |
PCB |
Plate
|
| Kit 1 |
Citrus |
WK |
Hotswap |
CF |
| Kit 2 |
Citrus |
WKL |
Solder |
ALU |
| Kit 3 |
Citrus |
HHKB |
Solder |
PP |
| Kit 4 |
Deep Ocean |
WK |
Solder |
ALU |
| Kit 5 |
Deep Ocean |
WKL |
Hotswap |
PC |
| Kit 6 |
Deep Ocean |
HHKB |
Solder |
PEI |
| Kit 7 |
Classic |
WK |
Solder |
ALU |
| Kit 8 |
Classic |
WKL |
Solder |
CF |
| Kit 9 |
Classic |
HHKB |
Hotswap |
ALU |
| Kit 10 |
Millennium Edition No: 41 *see real pictures below |
WKL |
Hotswap |
PEI |
| Kit 11 |

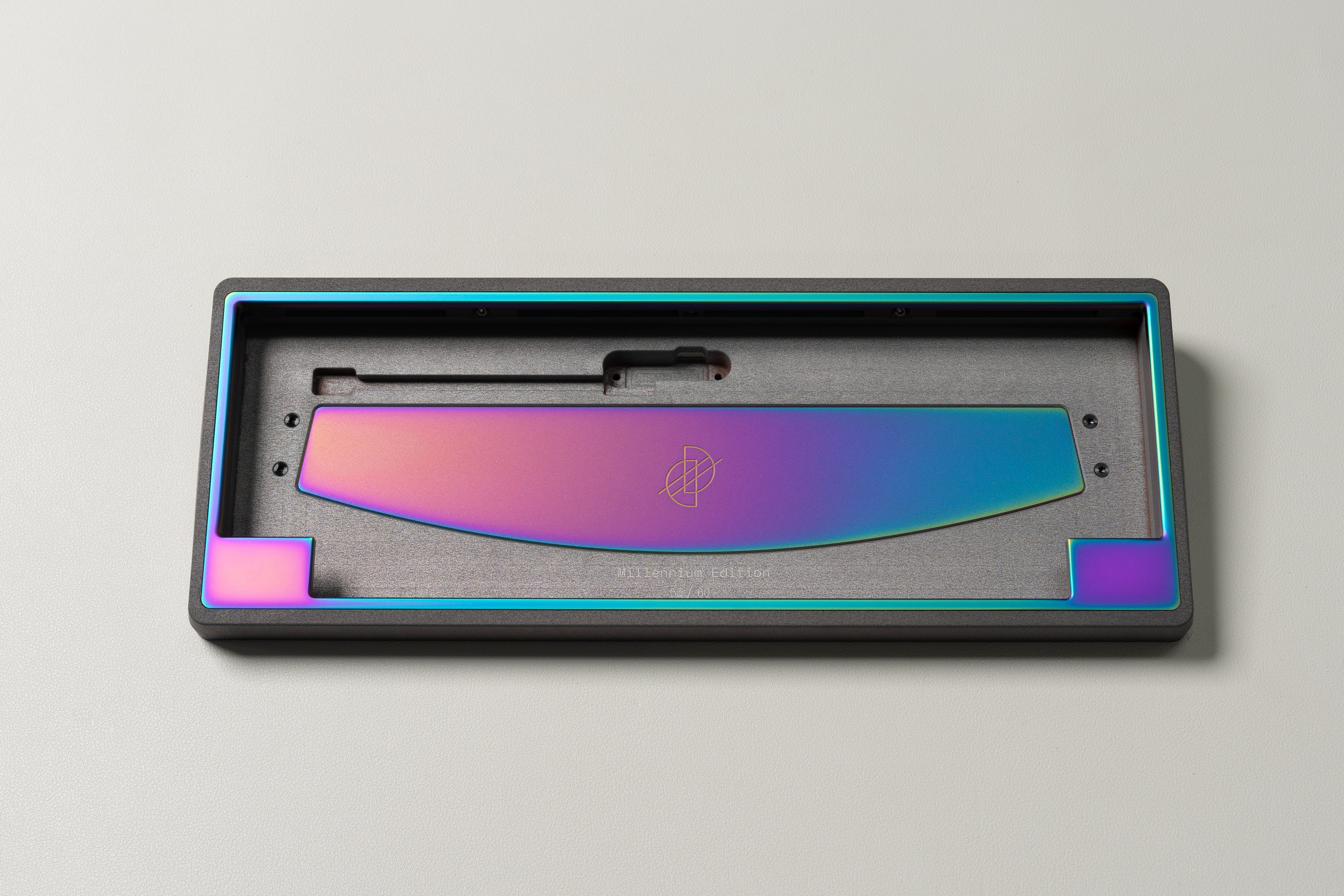

Millennium Edition No: 53 *see real pictures below |
HHKB |
Solder |
ALU |
Kit 10 front

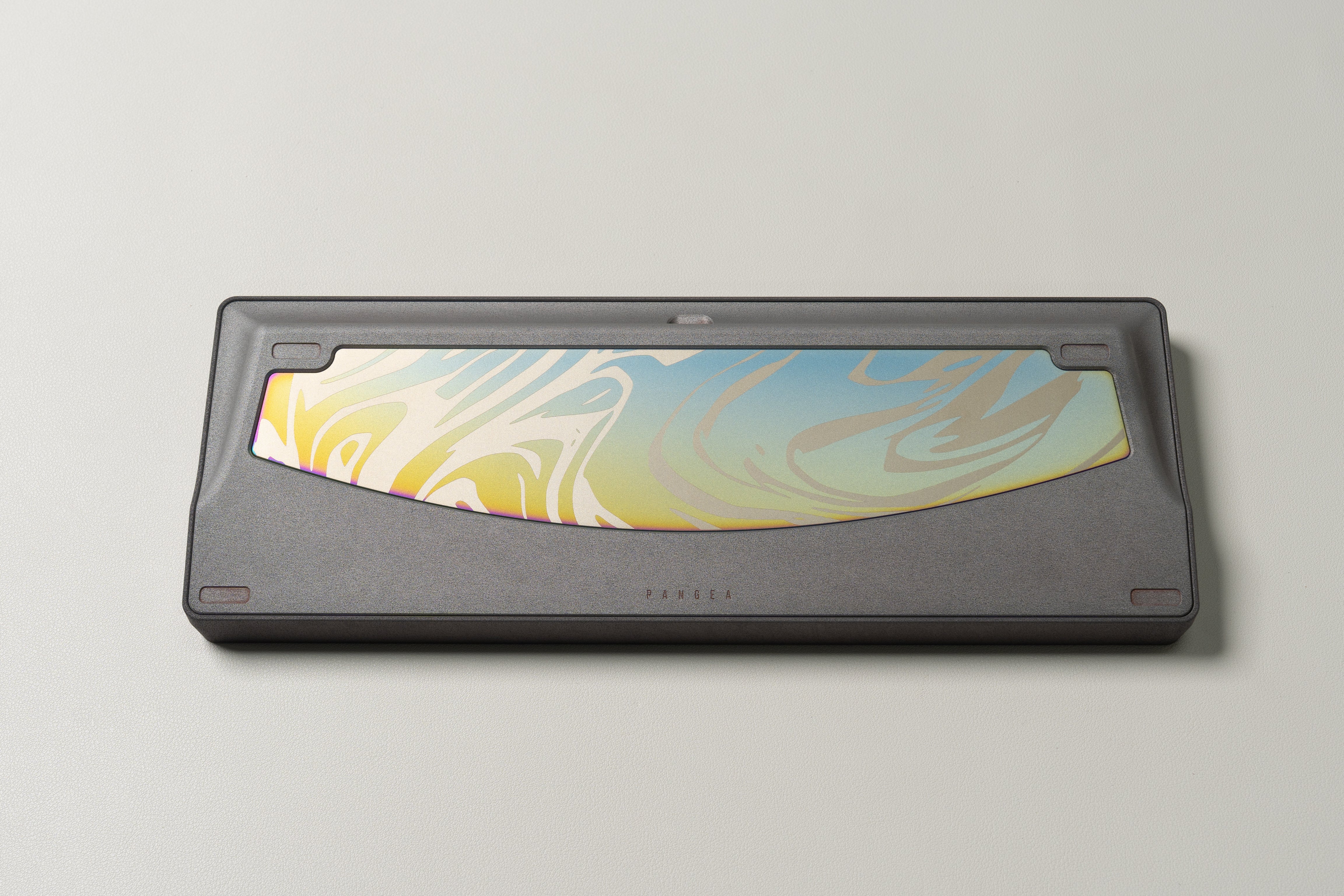

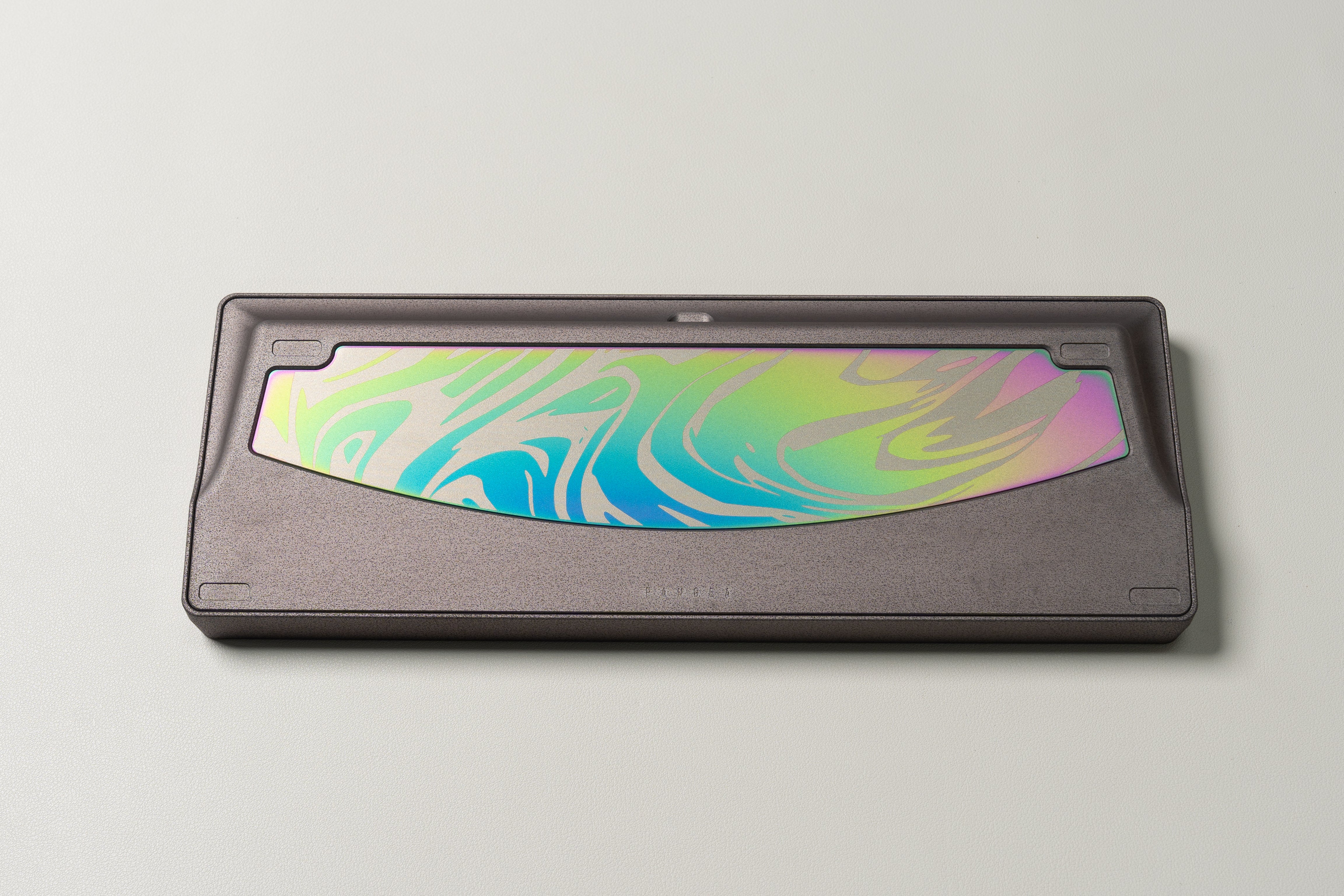

Kit 10 Back

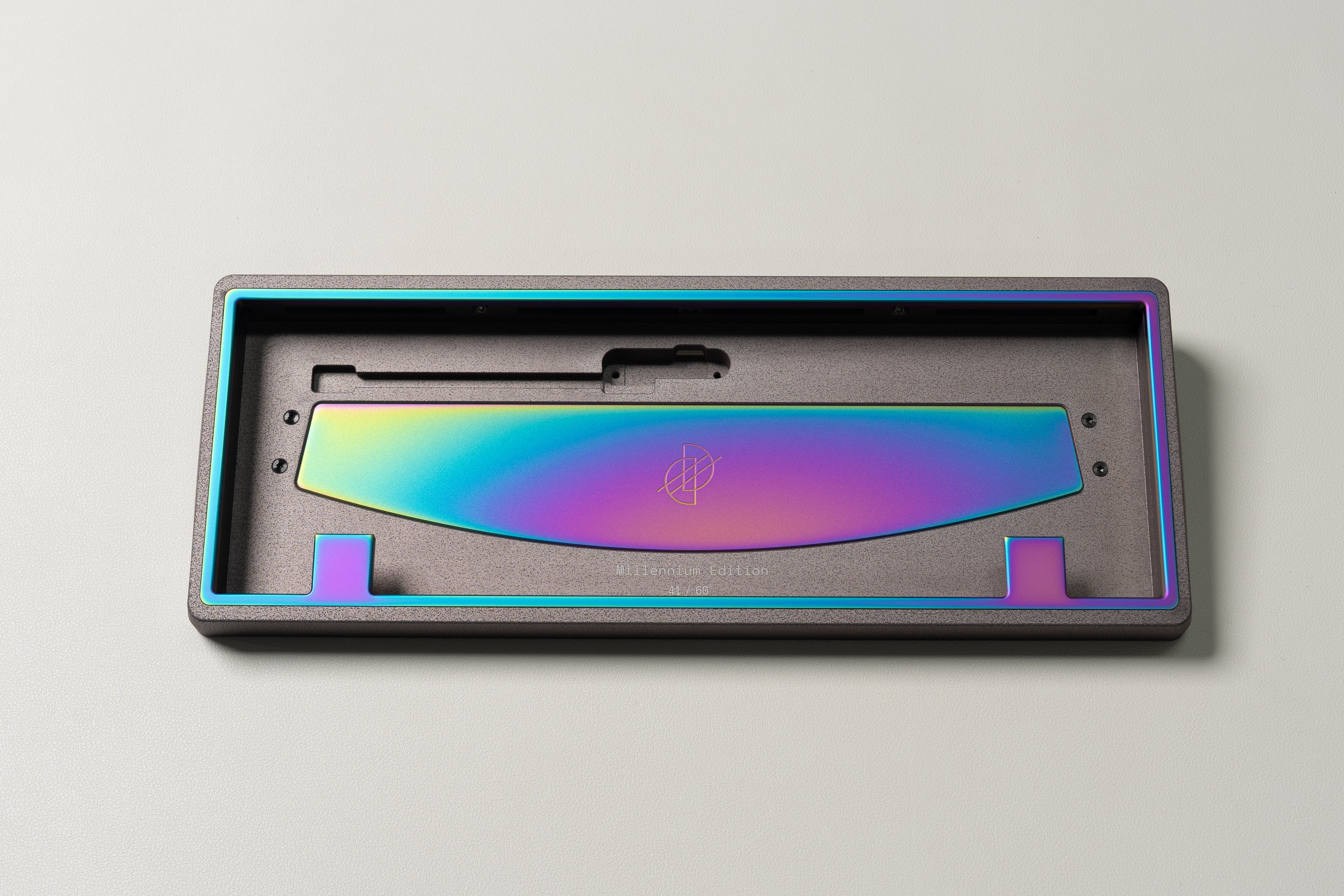

Kit 11 Front
Kit 11 Back
Case Design:

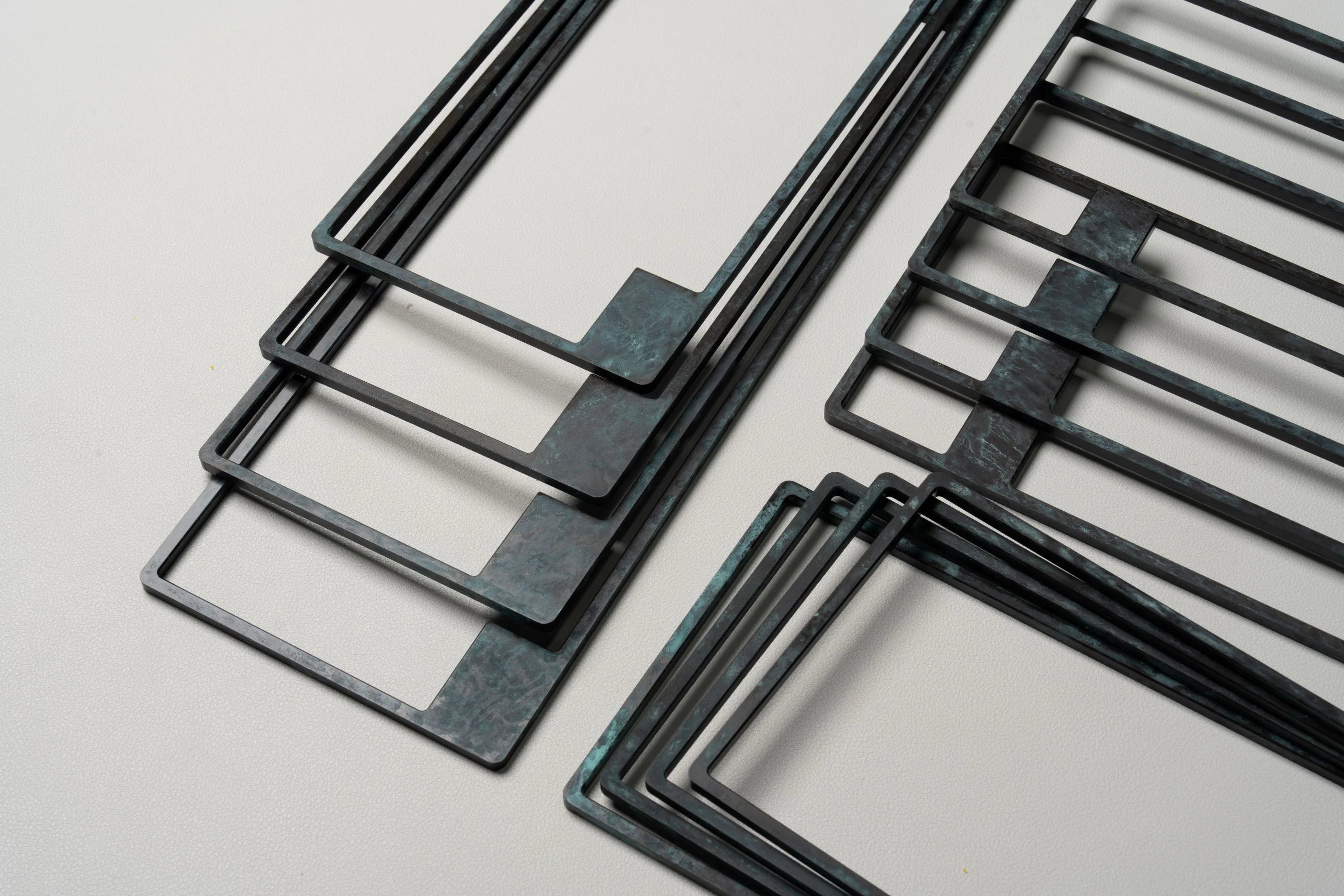

Pangea Mini takes many design elements from the Pangea Fullsize. The side profile shares the same arching HG style taper to give some depth when viewed from the side. The top view also showcases the interchangeable top frame. While Pangea Fullsize used this part to allow for a swappable numpad, Pangea Mini has different layout options offered in many different material and finishing options for a distinctive top down aesthetic.
Mounting Design:
The goal of pangea mini was to have a soft, uniform feel across the entire board. To achieve that I chose to use leafspring poron gasket mount. The relief cuts near the spacebar allow for more flex in that area while giving it a responsive feel and maintaining a uniform typing feel on the whole keyboard. Poron is an optimal material to absorb the vibrations produced by typing, preventing transfer to the case, which can cause pinging.
Case Specifications:
- Materials: 6063 Aluminium, Acrylic, Brass, Copper, Stainless Steel
- Layout: 60% WK, WKL, HHKB
- Typing Angle: 8.5 Degrees
- Front Height: 17.5mm
- EKH: 22.7mm
- Weight: 700g - 1600g
- Mounting: Gasket
PCB Specifications:
- Material: Black FR4
- Thickness: 1.6mm
- Connectivity: JST to Unified Daughterboard
- Customizability: VIA
- Type: Solderable and Hotswap
Solder Compatibility
Hotswap Compatibility
Case Options:

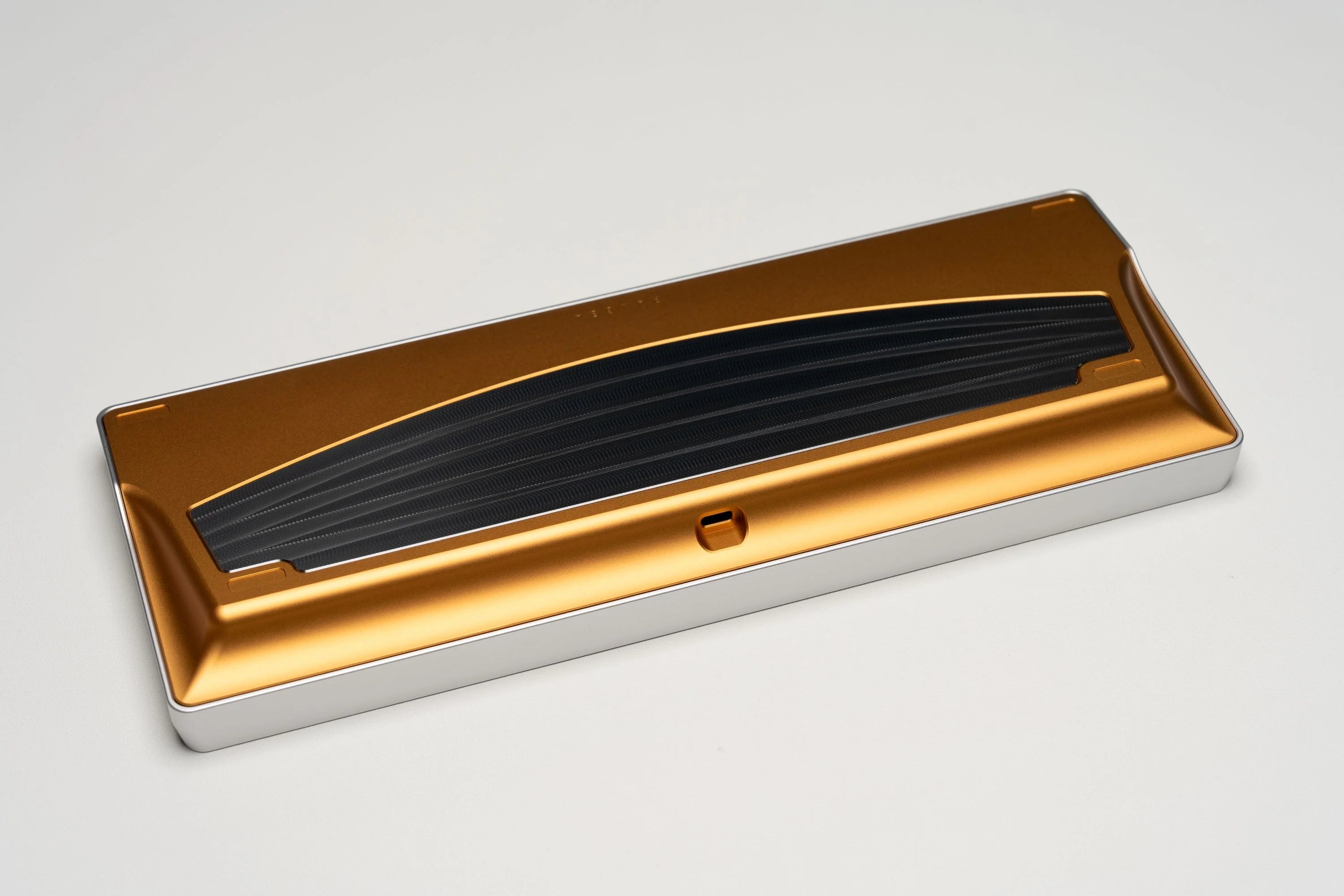

Citrus
- Silver Anodised Top
- Orange Anodised Bottom
- Orange Anodised Frame
- Machine Path SS Weight

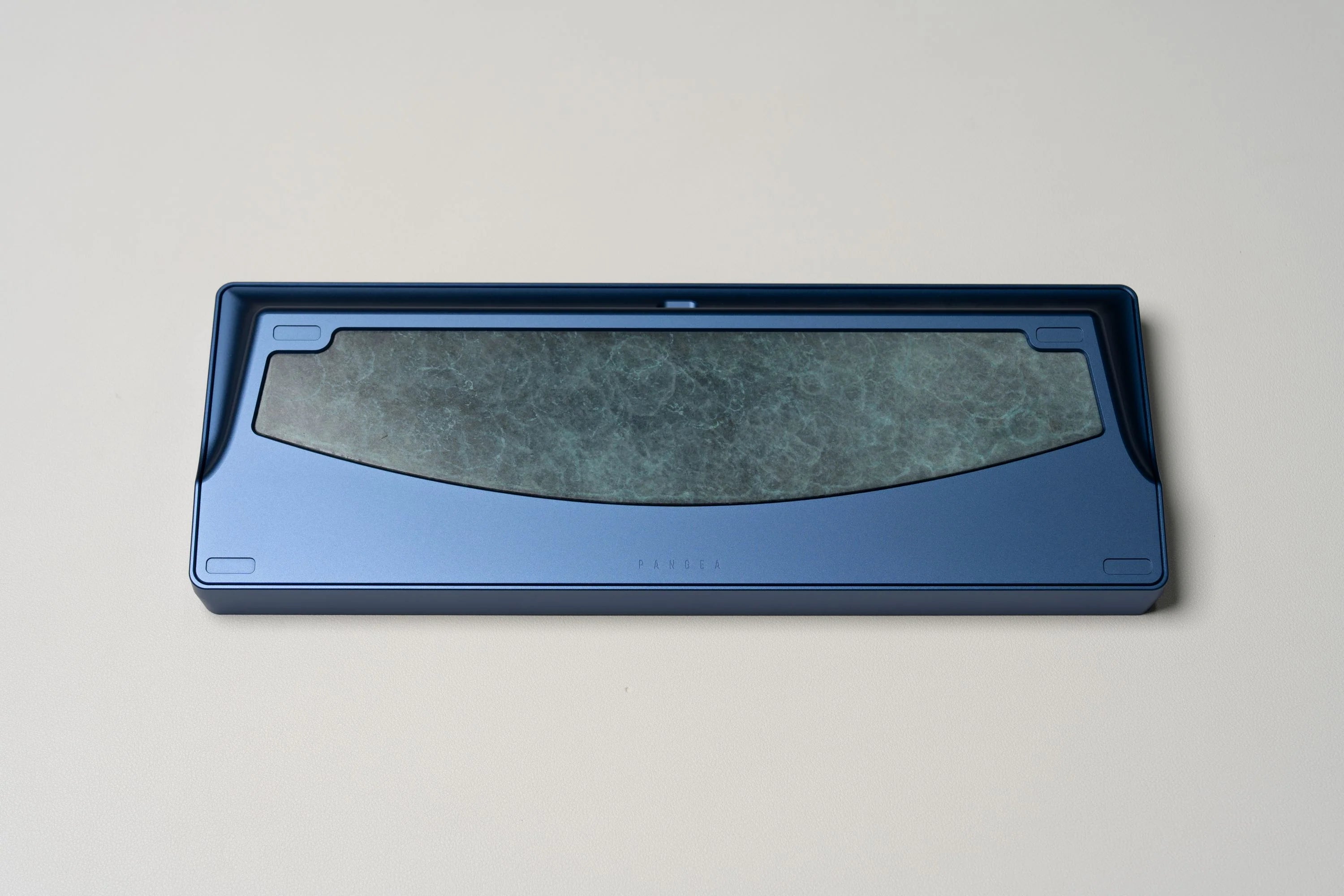

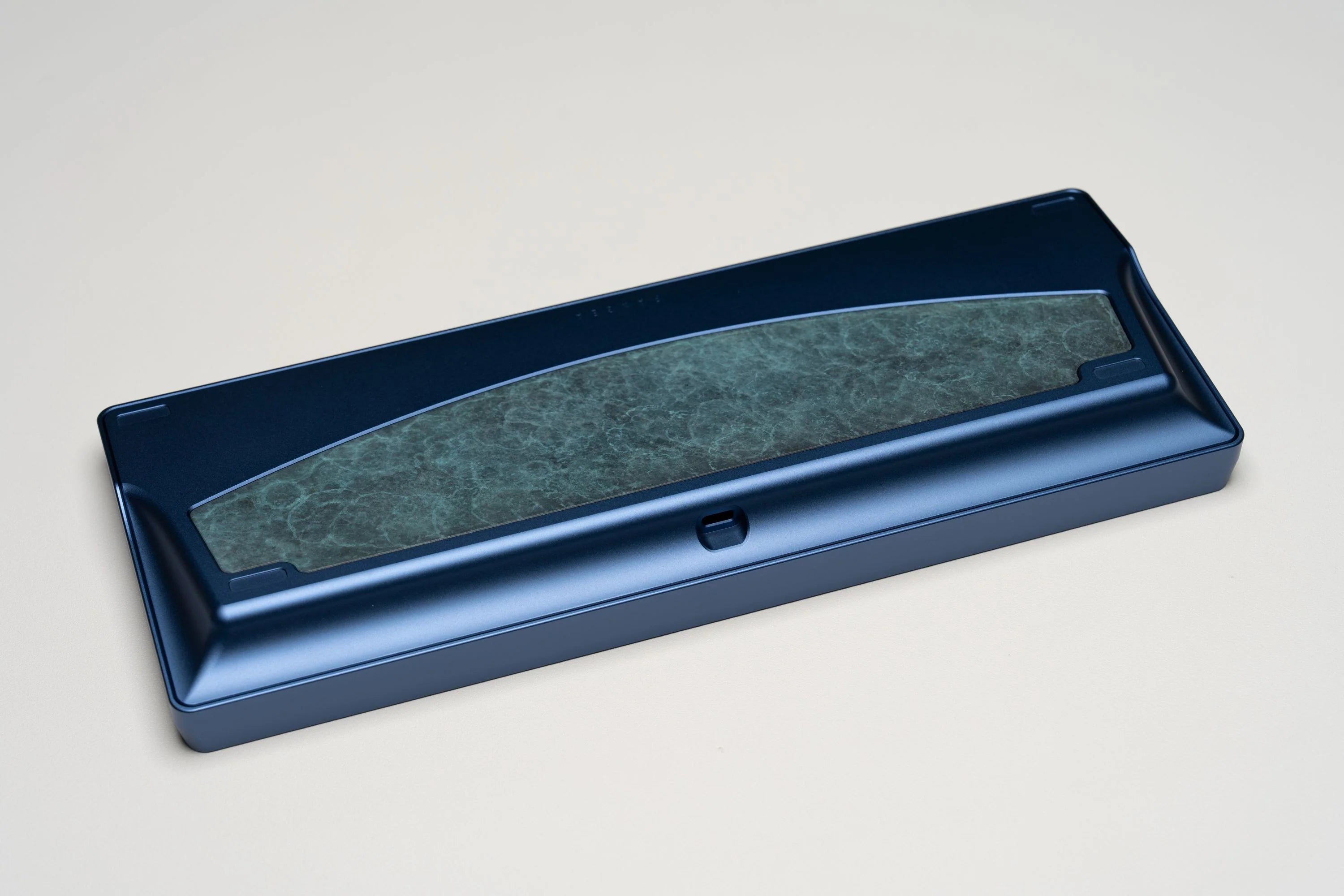

Deep Ocean
- Blue Anodised Top
- Blue Anodised Bottom
- Blue Patina Brass Frame
- Blue Patina Brass Weight

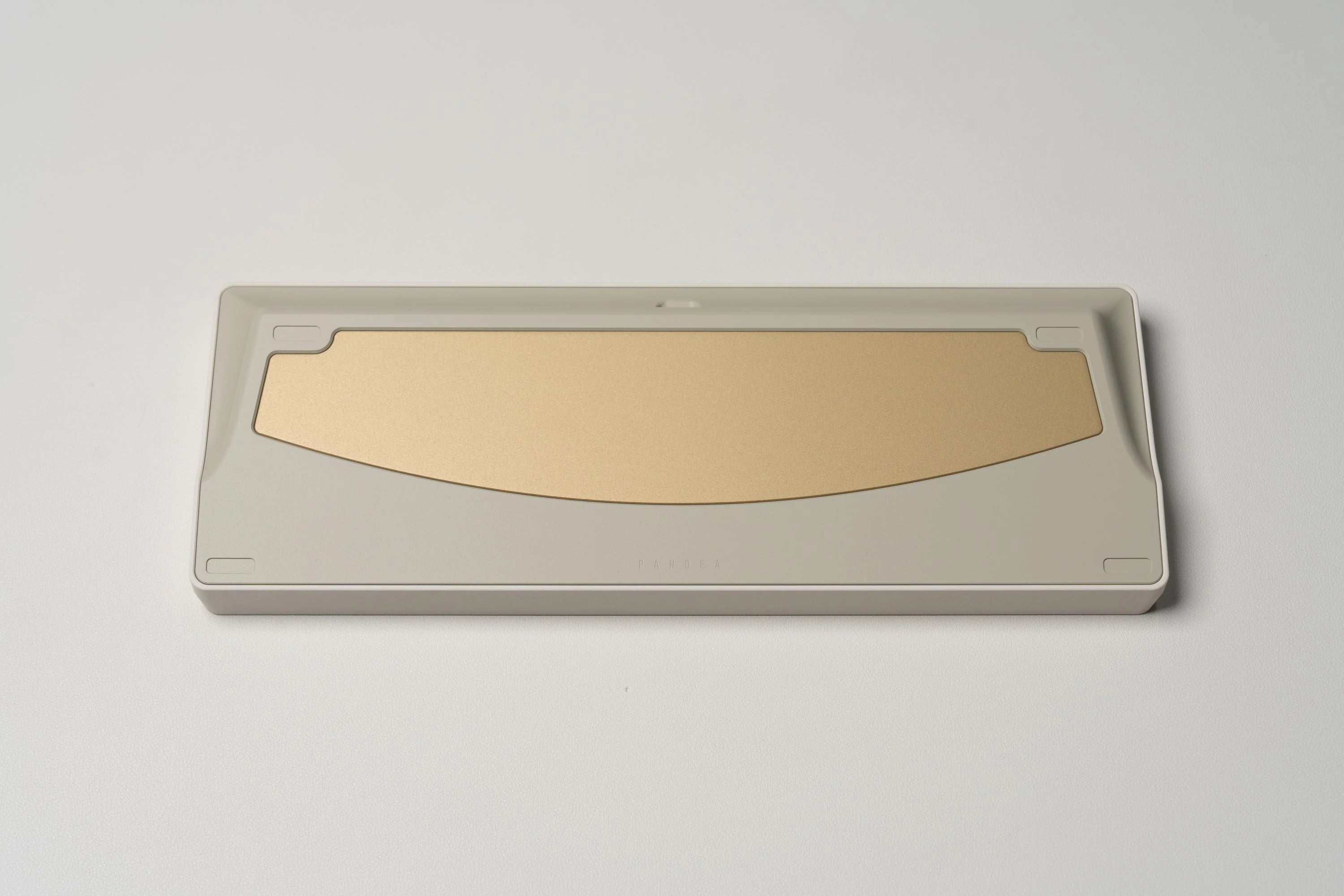

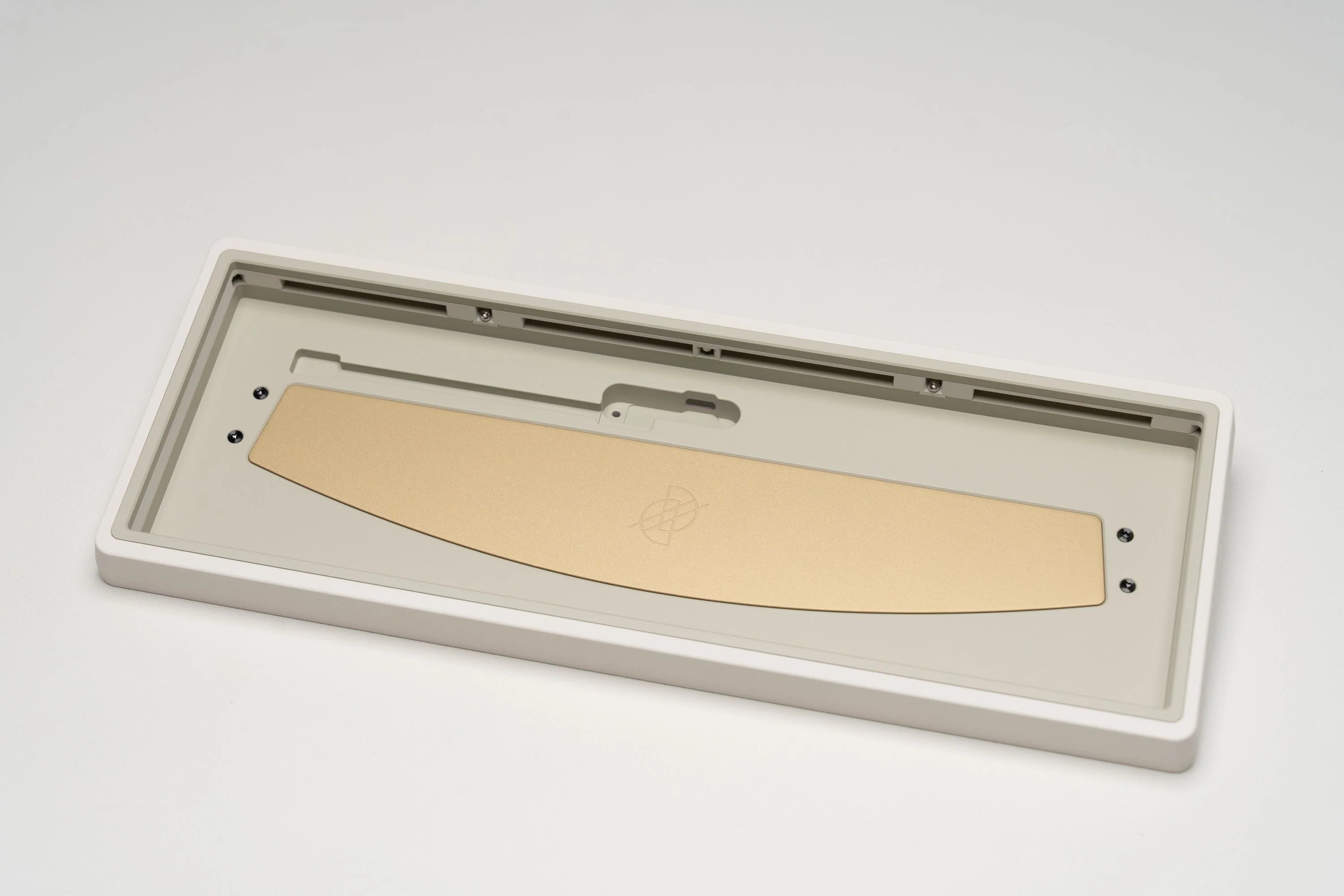

Classic
- Cream Coated Top
- Beige Coated Bottom
- Cream Coated Frame
- Brass Weight
Millennium Edition
- Aged Aluminium Top
- Aged Aluminium Bottom
- Rainbow PVD SS Frame
- Rainbow PVD SS Weight

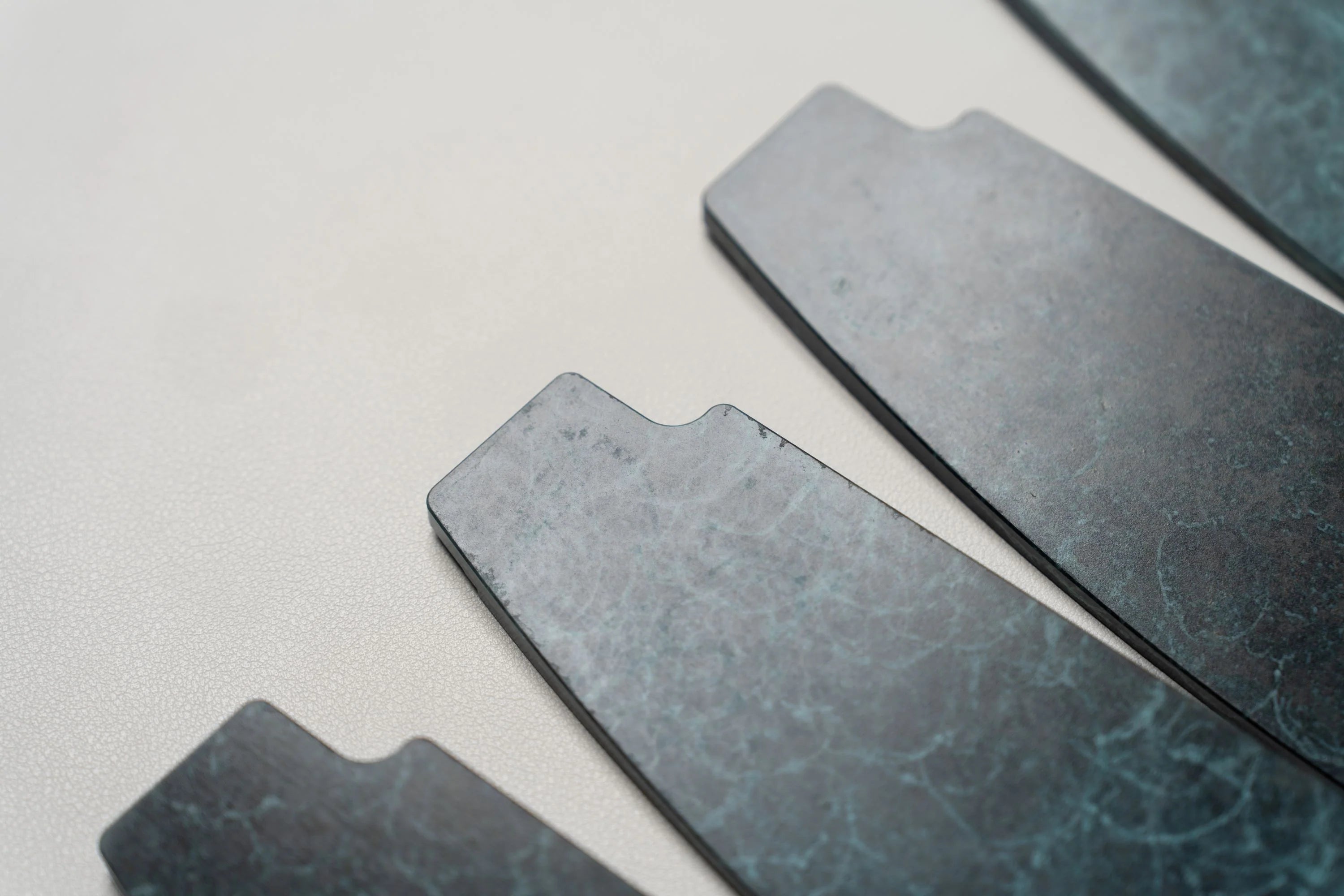

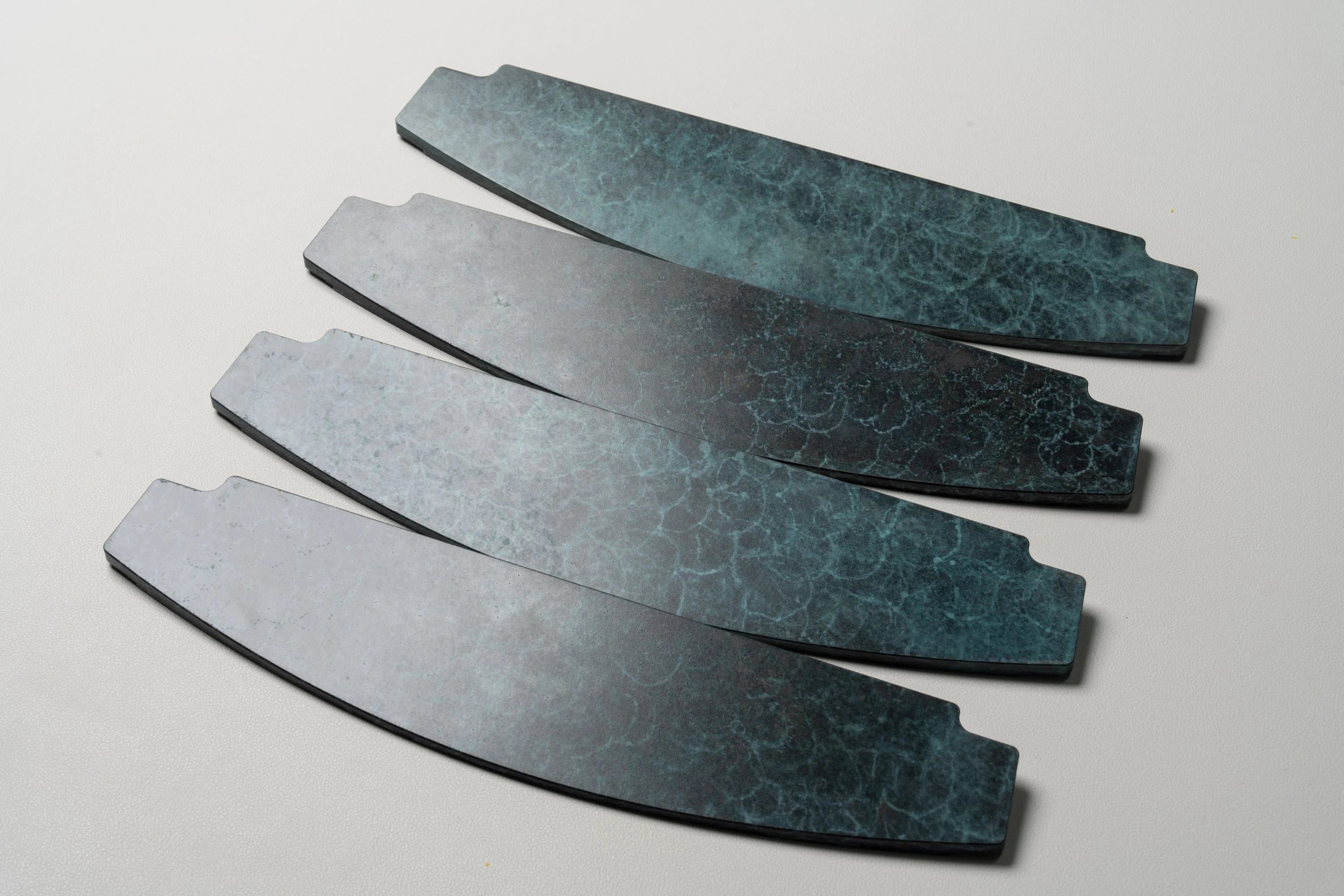

Blue Patina Surface Finish Expectations

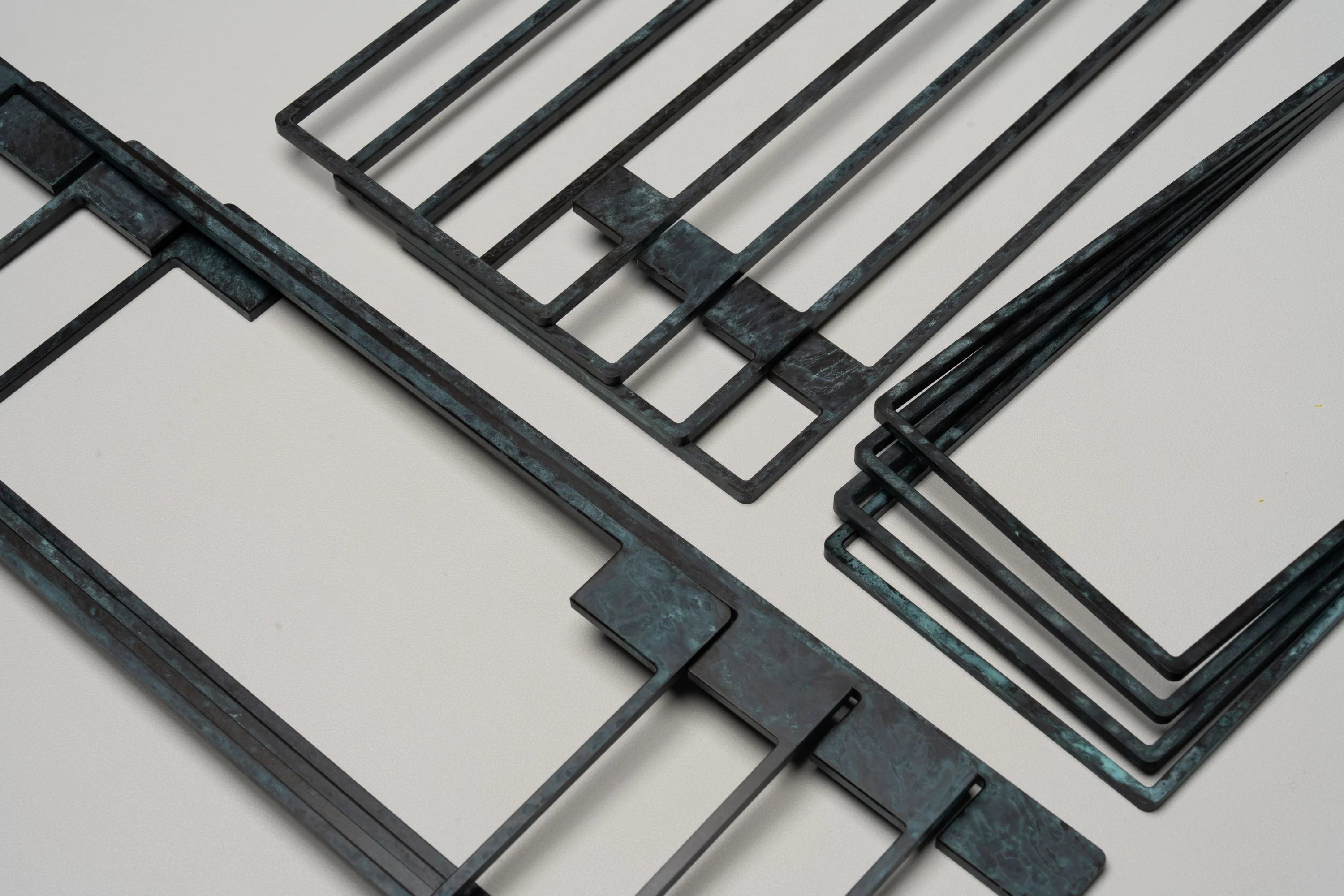

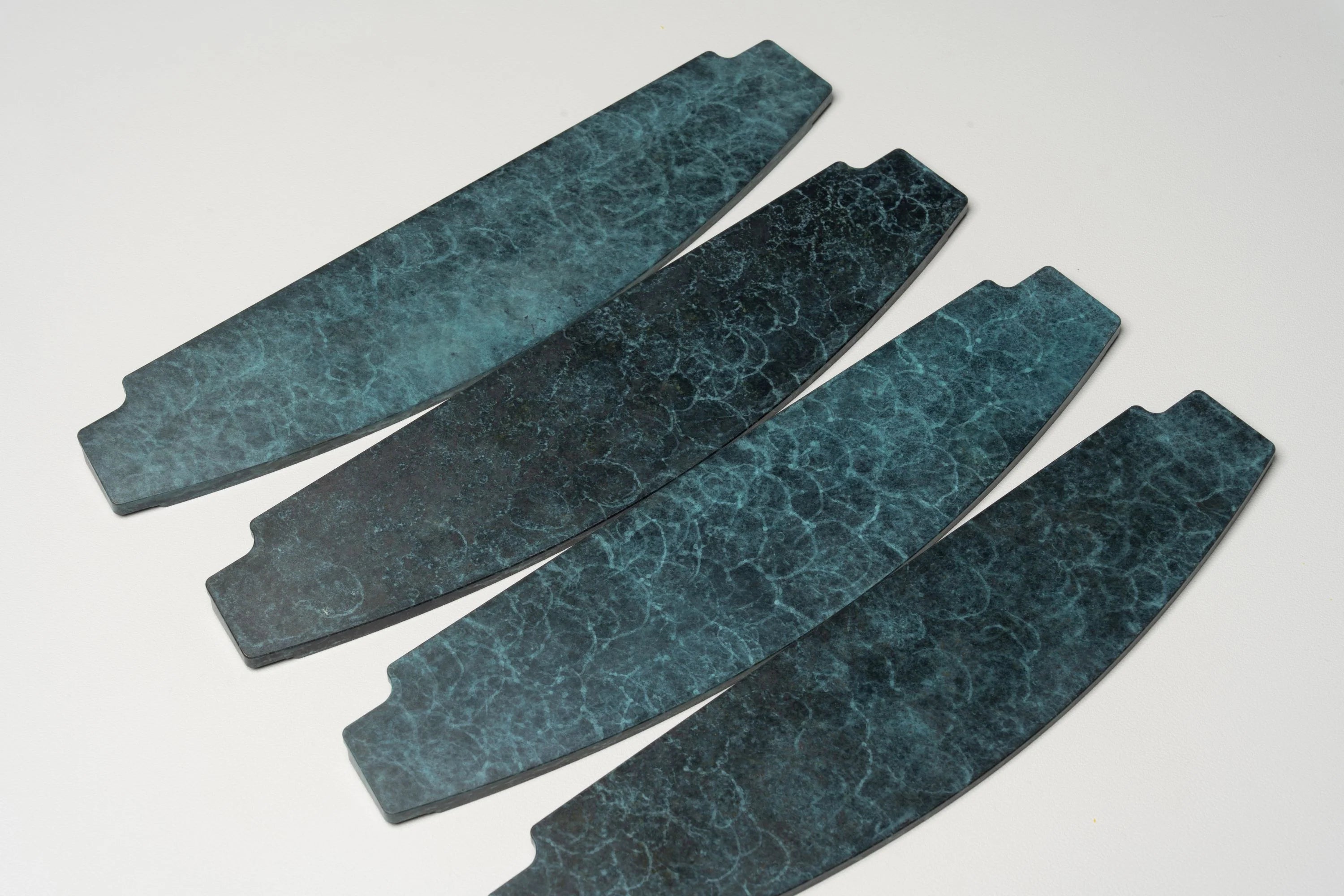

Patina finishes are all done individually and there is a range of color, pattern, tone, and texture that each unit can fall into. For this run we took pictures of the variance to give better expectations to customers before purchasing.
Millenium Edition Surface Finish Expectations
Millennium Edition uses two surface finishes with a lot of variance: Aged and Rainbow PVD. Because of this we decided to make it a special edition where each unit is serialized and individually photographed for the sale so you can pick exactly which unit you want upon seeing the pictures.
Kit Contents:
- 1x Top Case
- 1x Bottom Case
- 1x Through Weight
- 1x Top Frame
- 1x Plate of choice
- 1x Solderable or Hotswap PCB
- 1x S2 Unified Daughterboard + JST to JST Cable
- 1x Carrying Case
- 16x Gaskets
- 4x Custom Molded Feet
-
All Screws/Parts/Etc for assembly
*Note switches, keycaps and stabilizers are not included
