(In Stock) ProtoTypist PT60 & PT80 PCBs

Details:

Introducing the latest ProtoTypist designed products: the PT60 and PT80 PCBs.

These vibrant and visually striking PCB's, finished in bright pink and embellished with a lustrous gold ENIG finish, aren't merely a component, they're a statement.

Every PT60 and PT80 has been crafted with painstaking attention to detail, ensuring a breathtaking aesthetic finish that sets them apart. Furthermore, each unit comes with a matching pink C3 Daughterboard and a JST cable.

Designed for a multitude of mechanical keyboards, the PT60 and PT80 deliver on performance as well as they do on looks. They're not just PCBs, they're the heart of your keyboard, delivering exceptional functionality with every keystroke.

With the PT60 and PT80, you're not just upgrading your keyboard, you're elevating your typing experience with our stunning PT60 and PT80 PCBs.



both will work out of the box with VIAL - just hit the key code to unlock the PCB



for VIA see below:

PT60 VIA compatible file is here: https://raw.githubusercontent.com/the-via/firmware/master/prototypist_pt60_via.bin

PT80 VIA conpatible file is here:

 https://raw.githubusercontent.com/the-via/firmware/master/prototypist_pt80_via.bin

Specification:

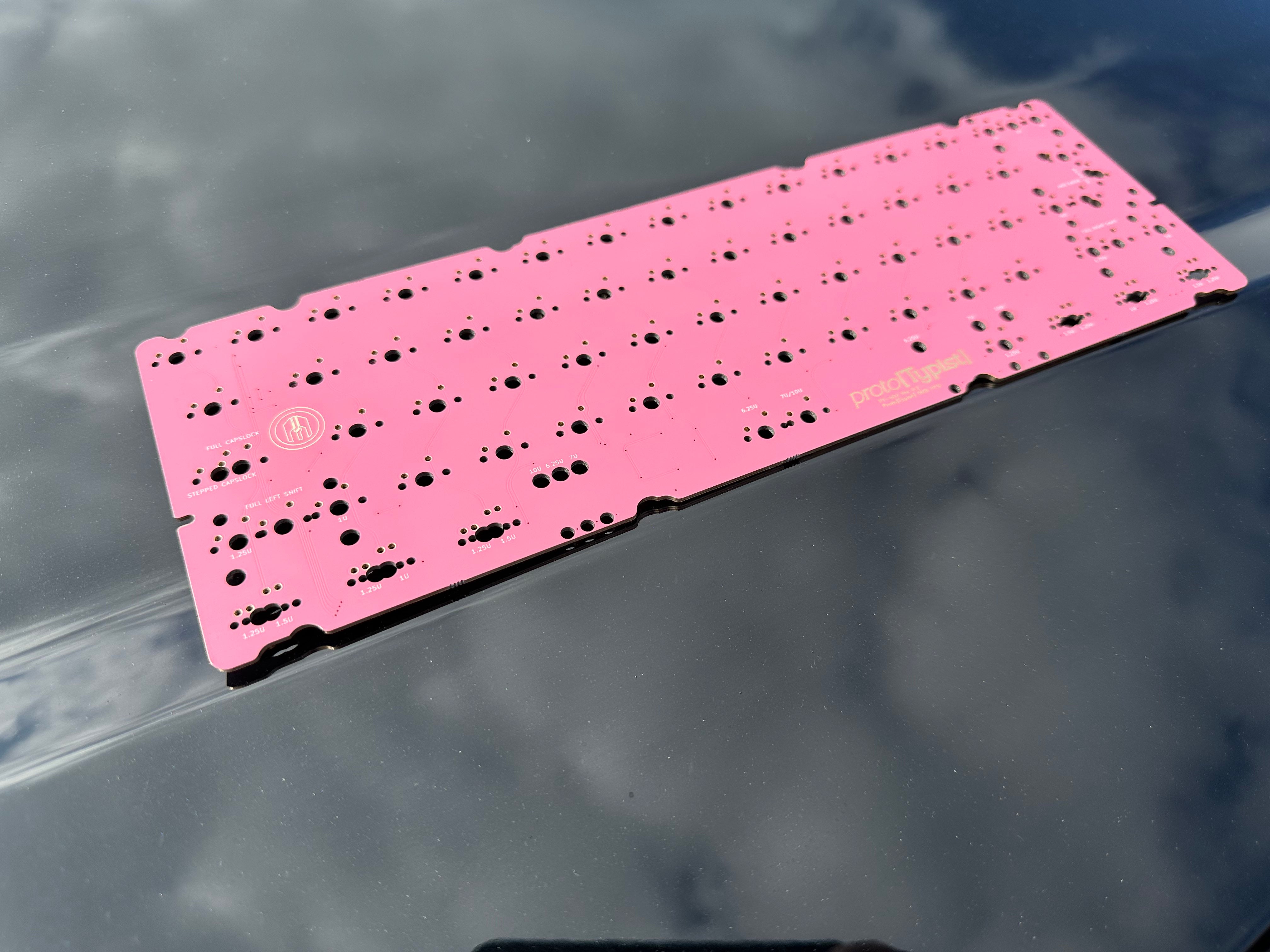

PT60

• 60% Keyboard PCB
• Solderable
• 5pin / 3pin MX switch compatible
• PCB Mount Stabiliser support
• 1.6mm thick
• QMK / VIA Compatible
• Pink with a gold enig finish

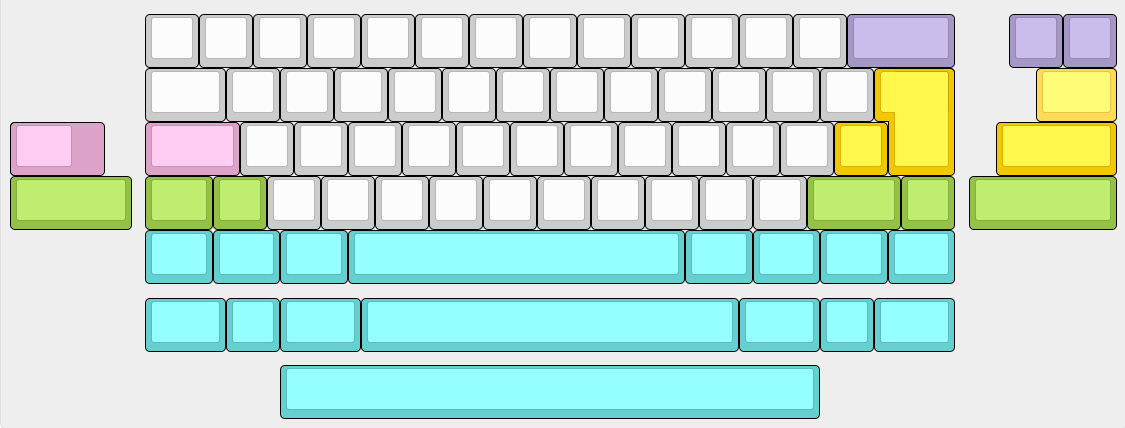

• Layouts:
• Supports ANSI/ISO
• Stepped / Full caps
• Split / Full backspace
• Split / Full left and right shift
• 6.25u / 7u Bottom rows
• 10u Spacebar
• Includes pink USBC C3 Unified Daughterboard and JST Cable
• Compatible with most 60% Keyboards that utilise a GH60 style layout (not compatible with tray mount cases or the Derivative)

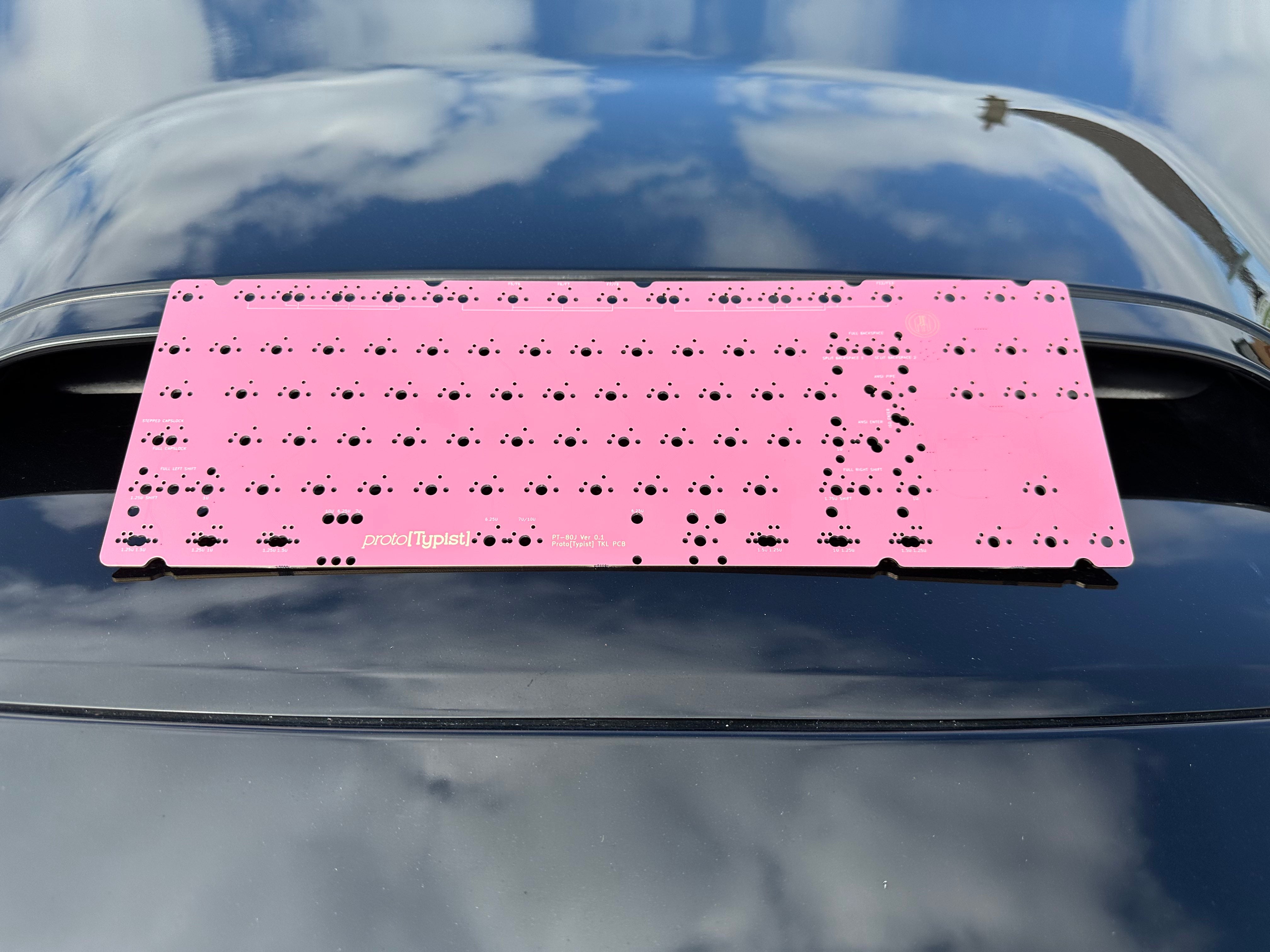

PT80

• TKL Keyboard PCB
• Solderable
• 5pin / 3pin MX switch compatible
• PCB Mount Stabiliser support
• 1.6mm thick
• QMK / VIA Compatible
• Pink with a gold enig finish

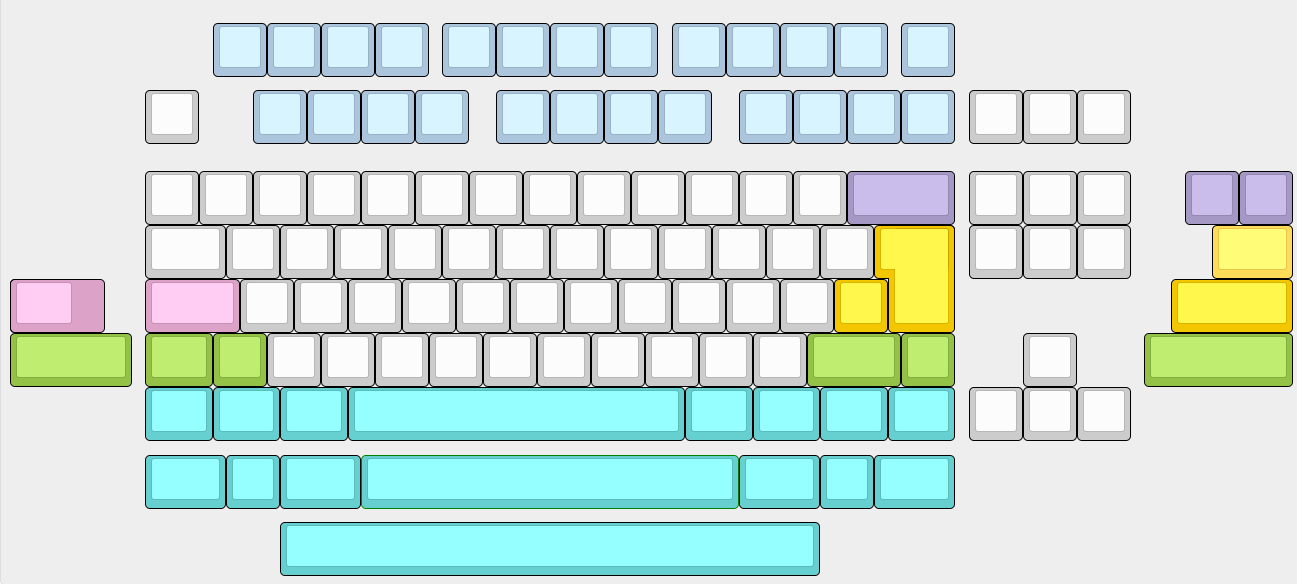

• Layouts:
• Supports ANSI/ISO
• Stepped / Full caps
• Split / Full backspace
• Split / Full left and right shift
• 6.25u / 7u Bottom rows
• 10u Spacebar
• F12 or F13 top row
• Includes pink USBC C3 Unified Daughterboard and JST Cable
• Not compatible with o-ring mount builds
• 0.25u Spacing from F-row to Numrow (not compatible with 0.5u boards like ZoomTKL)
• Known Compatibility:
• Glare TKL,
• F2-84,
• Bulwark TKL,
• BIAS TKL,
• and other TKLs that are compatible with the H88/H87 Daughterboard version with north facing stabilizer orientation.



Note - as the PCB has a finished edge, please ensure you are not touching this edge during testing as it may report false positives on shorting the PCB.
