(Coming Soon) QK65 Mk3 Keyboard Kit

Group Buy Starts: 28th November 2025

Expected Shipping time: est Q2 2026

Cats & Dogs Theme

It continues the iconic cat typing theme of the QK80 Mk2 while introducing a new cyber dog skin. Each time you press a key, the cat or dog mirrors your action, creating a more engaging and interactive experience.

Animal Supermarket

We have built in a spelling game that perfectly complements the theme of retro gaming consoles. Take a break, enjoy the fun, and see if you can beat your own high score. Ready to challenge the kid you once were?

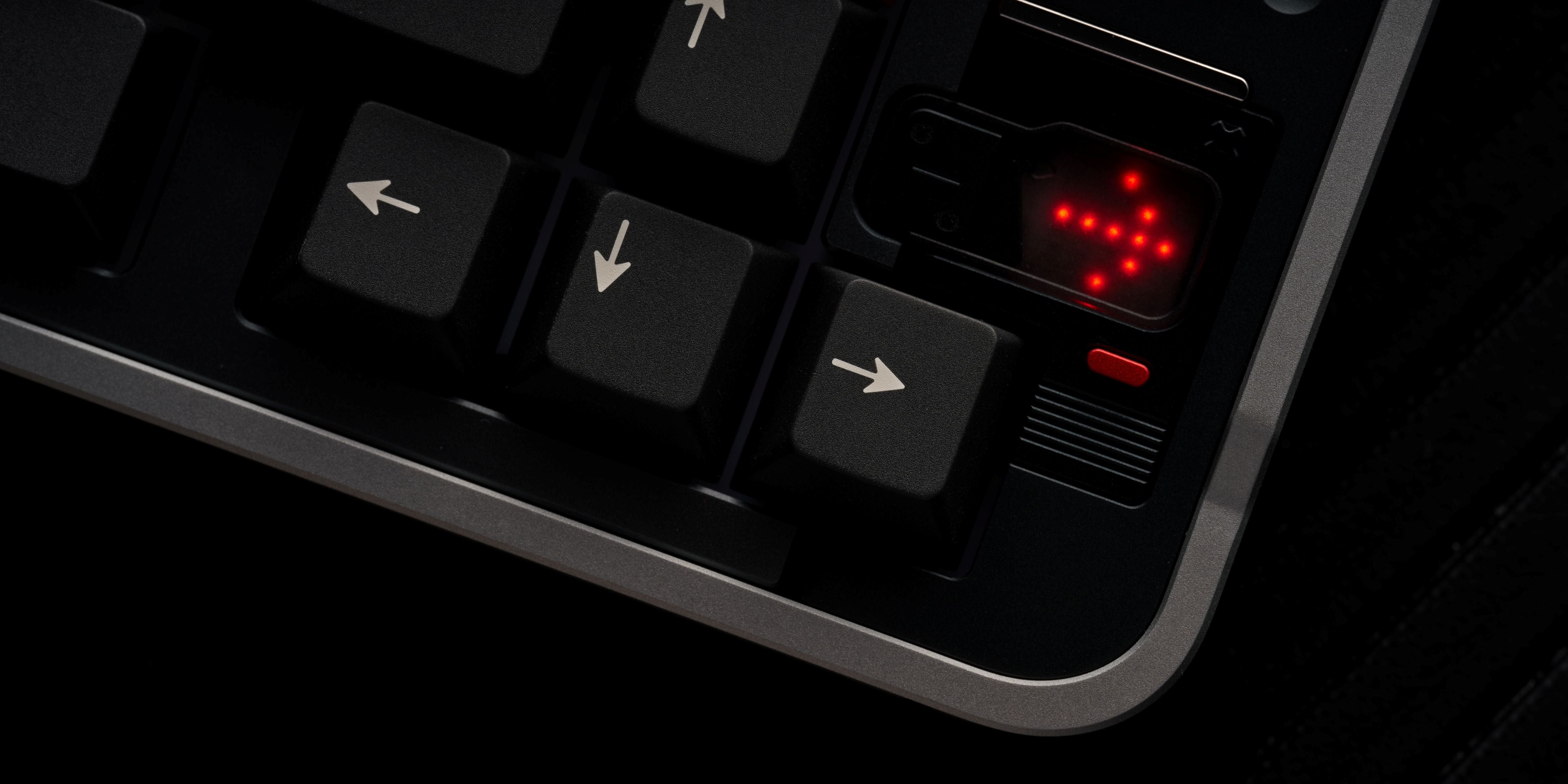

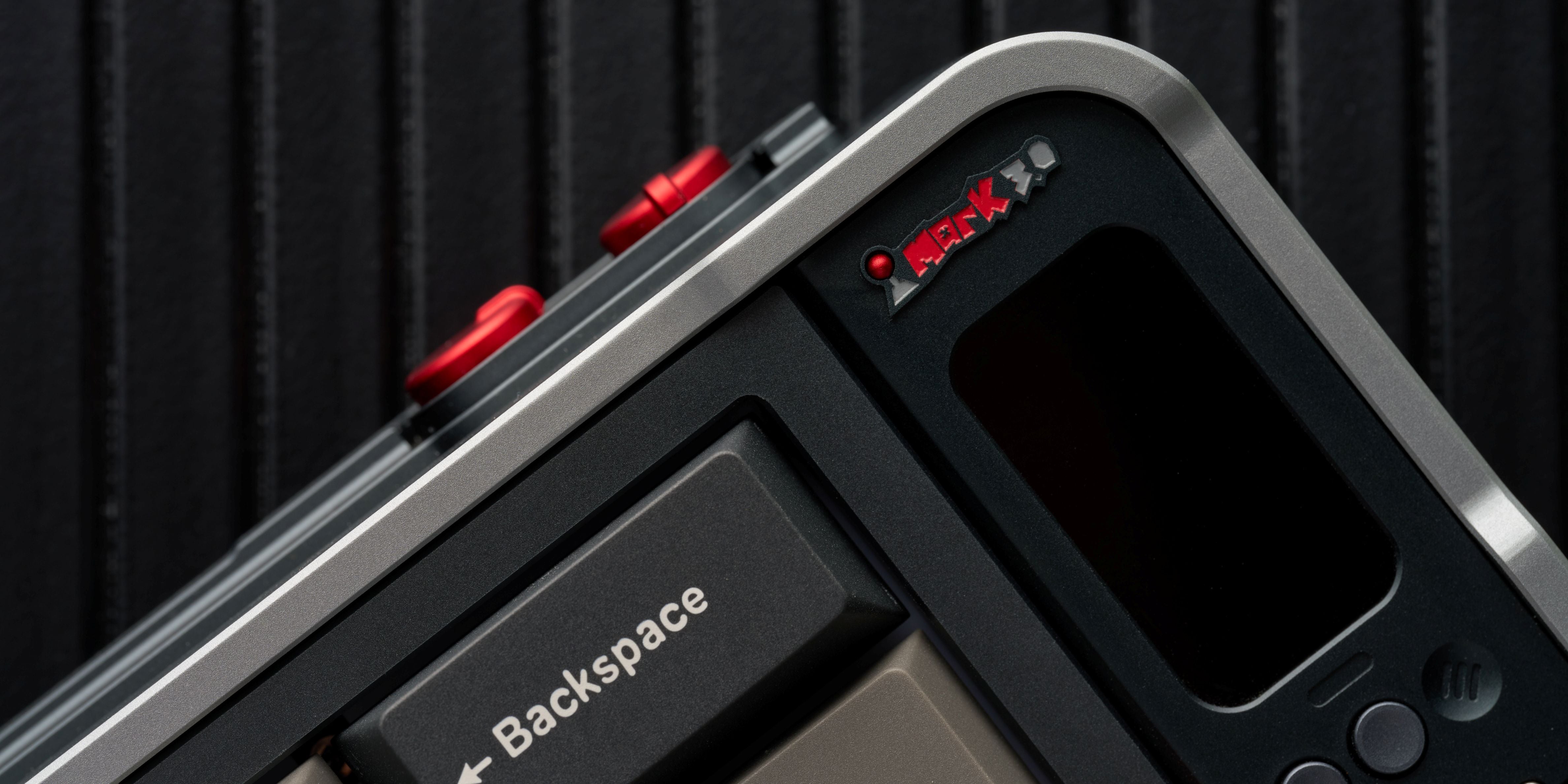

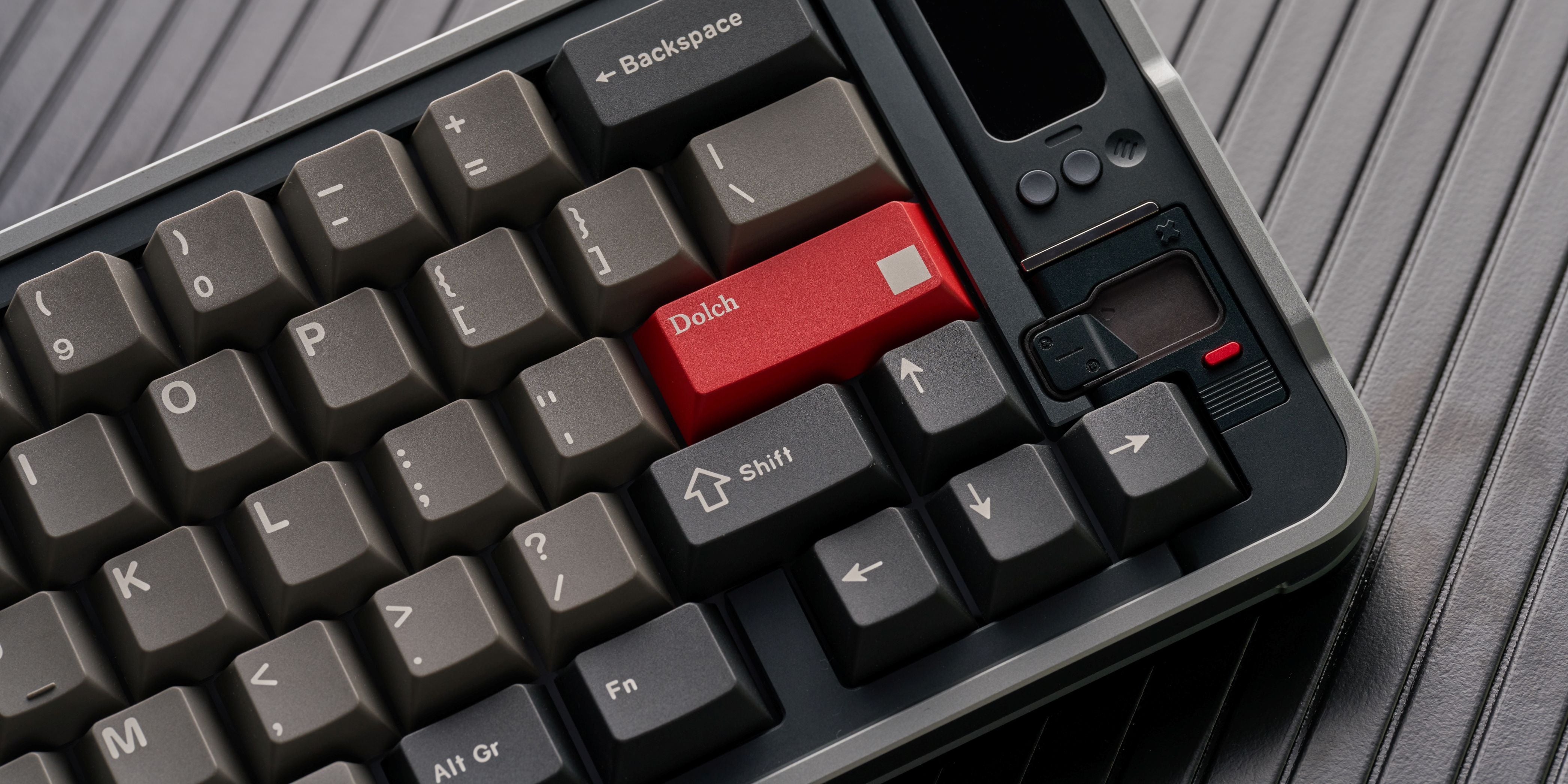

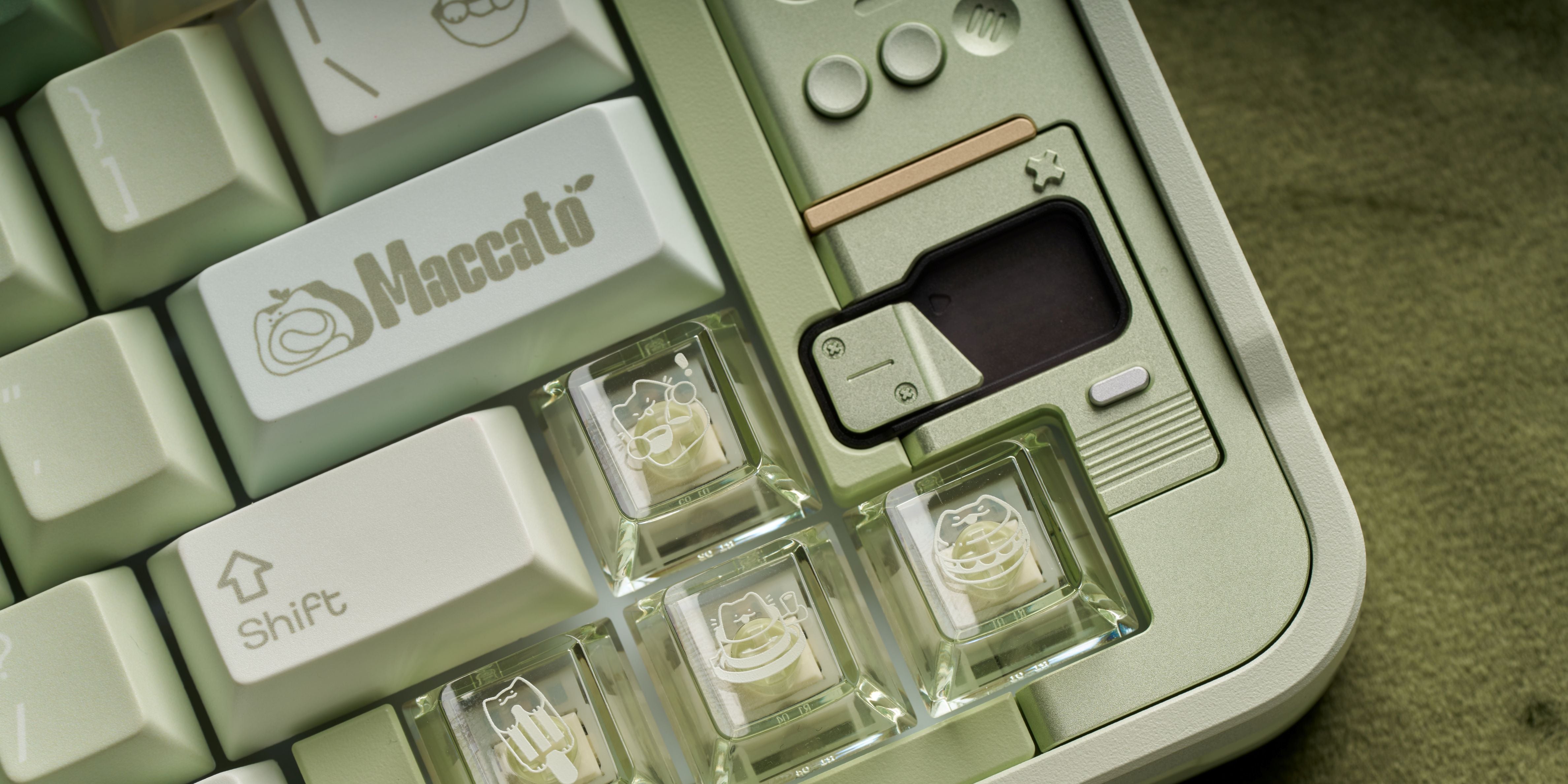

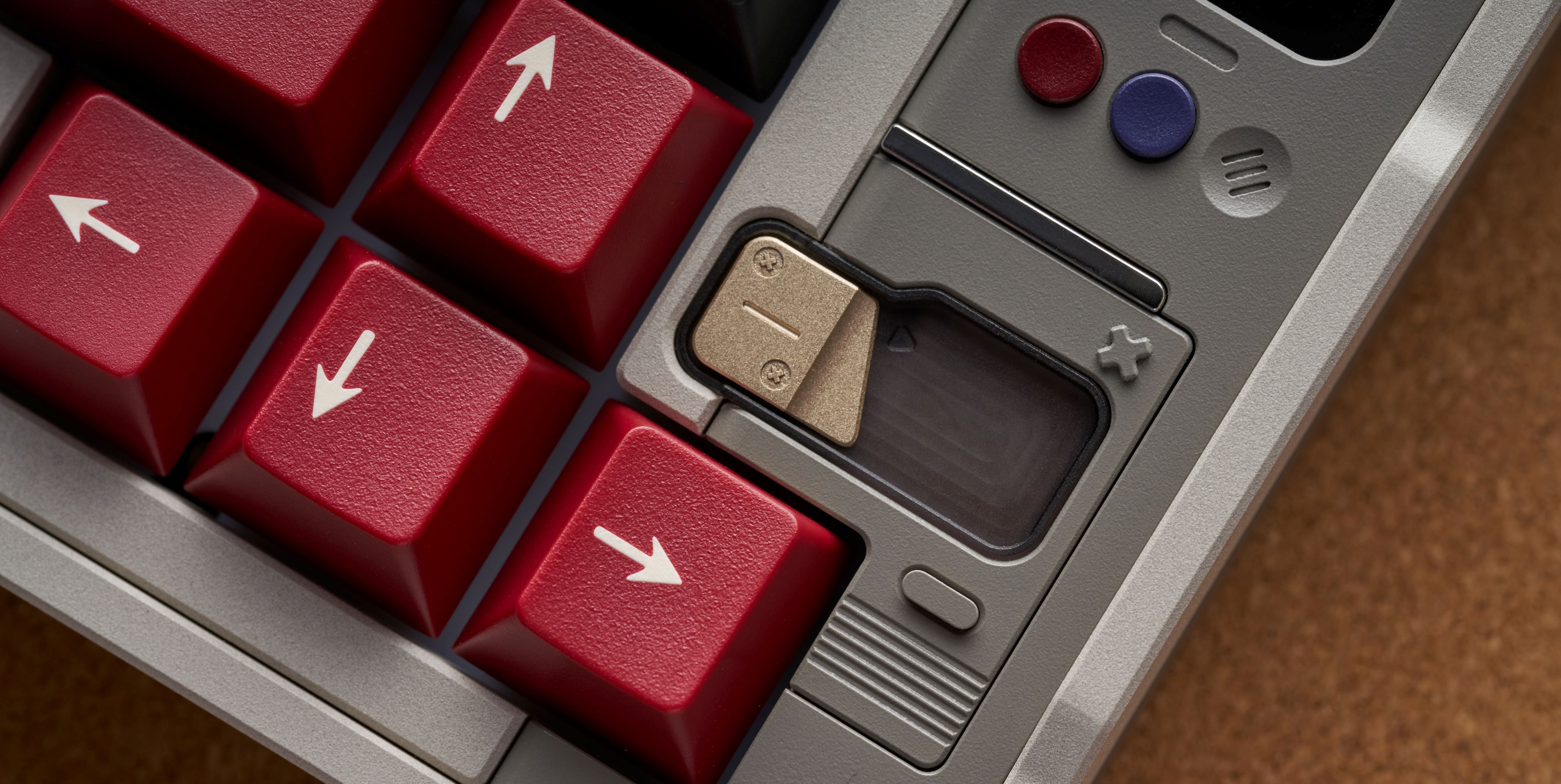

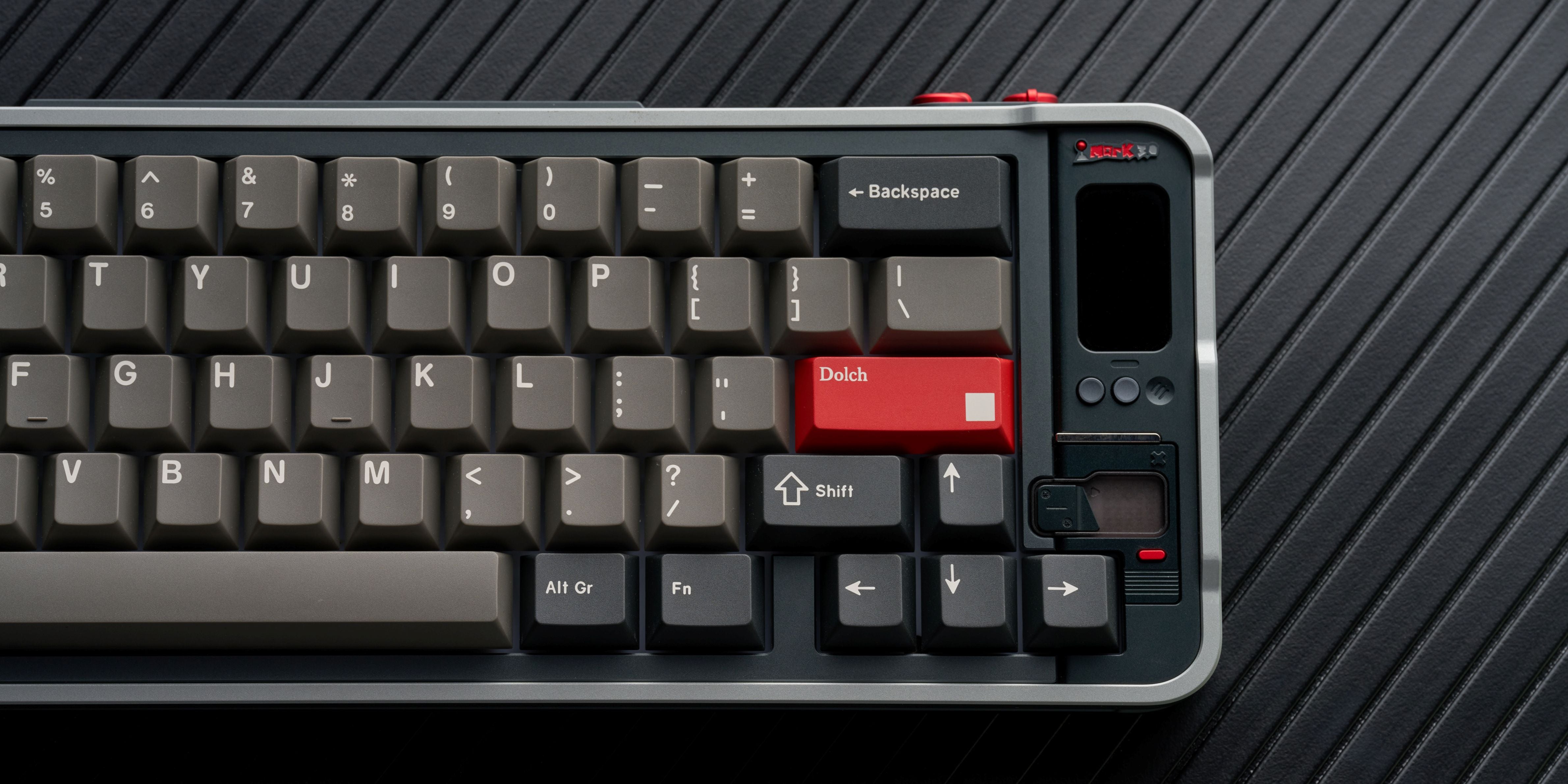

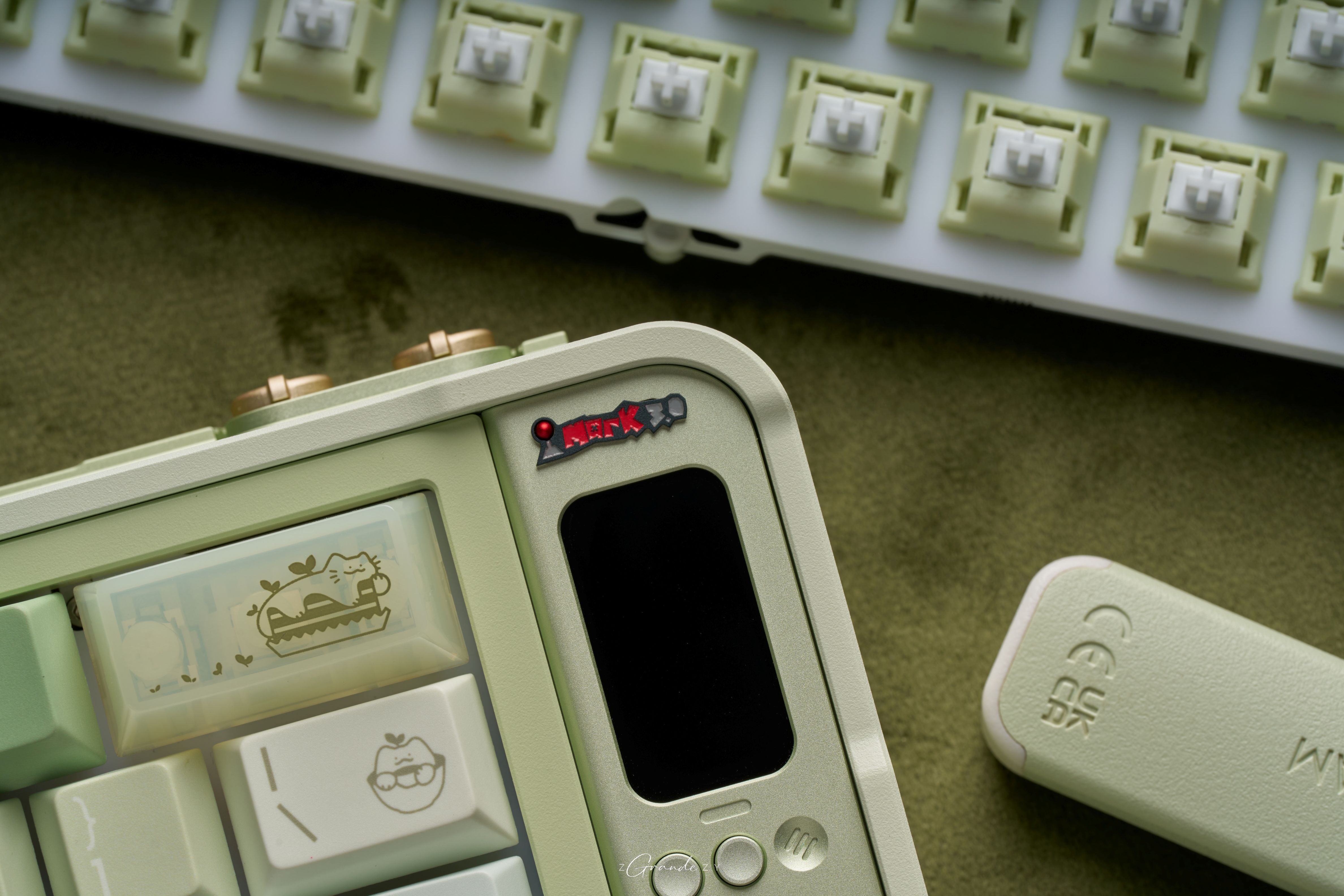

3 Dot-Matrix Displays

The dot- matrix display resembles a mini handheld console, perfectly fitting the retro console theme. It continues the three themes previously featured on the QK101 and QK80 Mk2. The button below the screen allow you to switch between different modes.

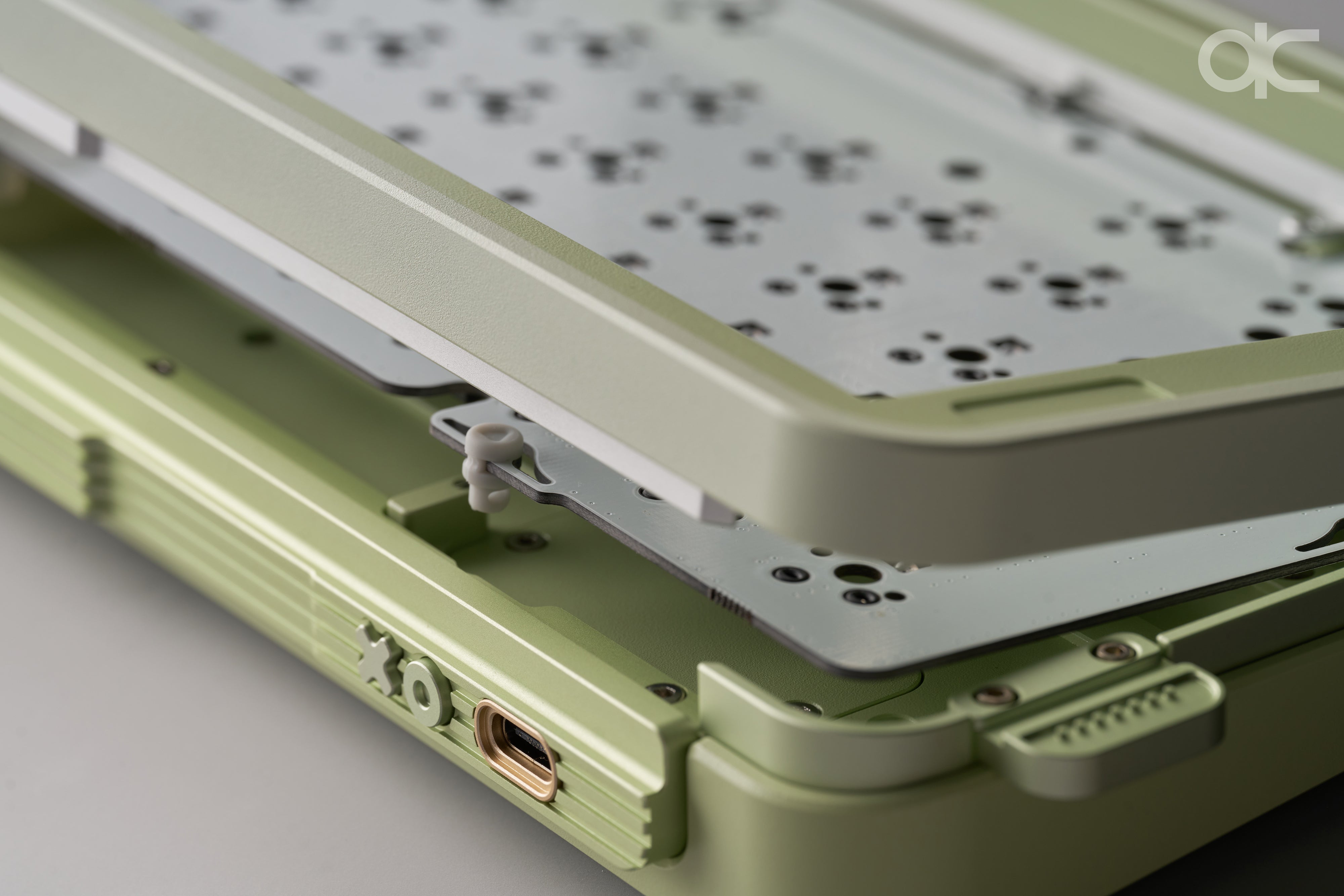

PCB Gasket Structure

PCB gasket structure enables the PCB to serve the dual core functions of switch fixation and force transmission simultaneously, ultimately achieving an enhanced combination of typing feel consistency and improved sound profile.

For this release, we have prepared four different PCBs and five types of plates, truly embracing the spirit of customization by allowing everyone to find the configuration that suits them best.

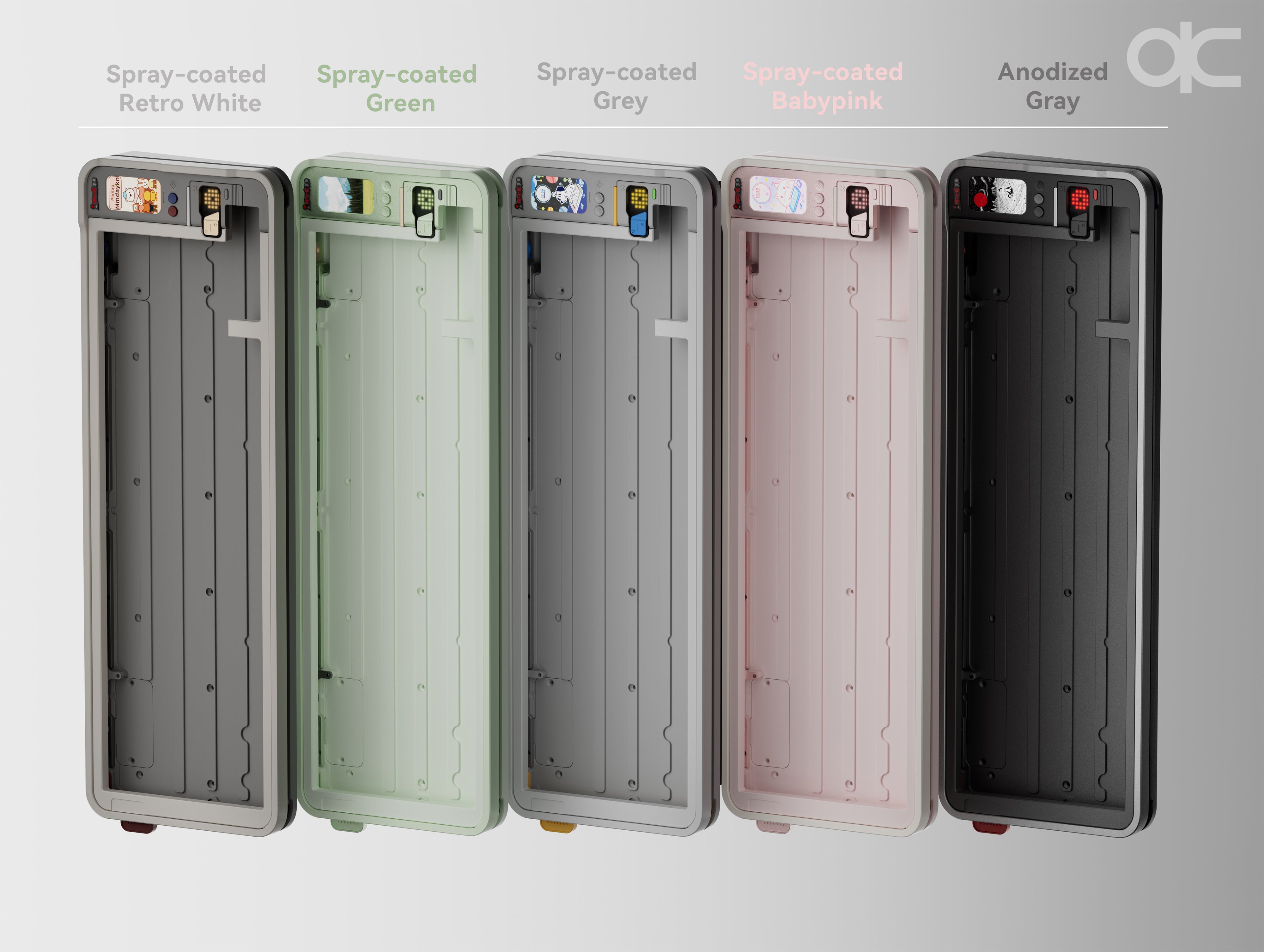

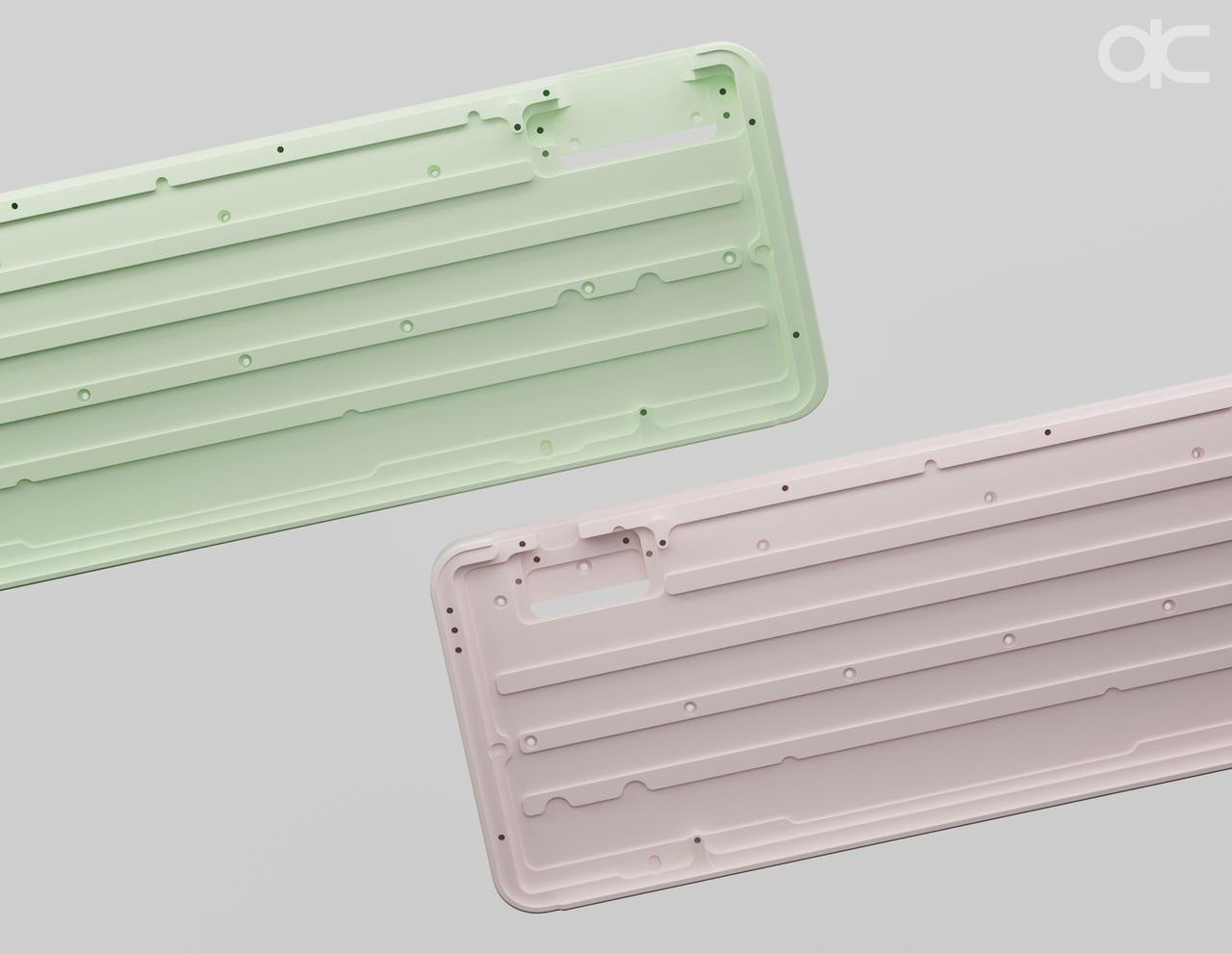

Bottom Acoustic Chamber

The resonance space in the bottom case follows the design philosophy of the QK80 Mk2 and further expands the acoustic chamber area. By filling more gaps around the switch sockets, sound reflections become more concentrated and uniform.

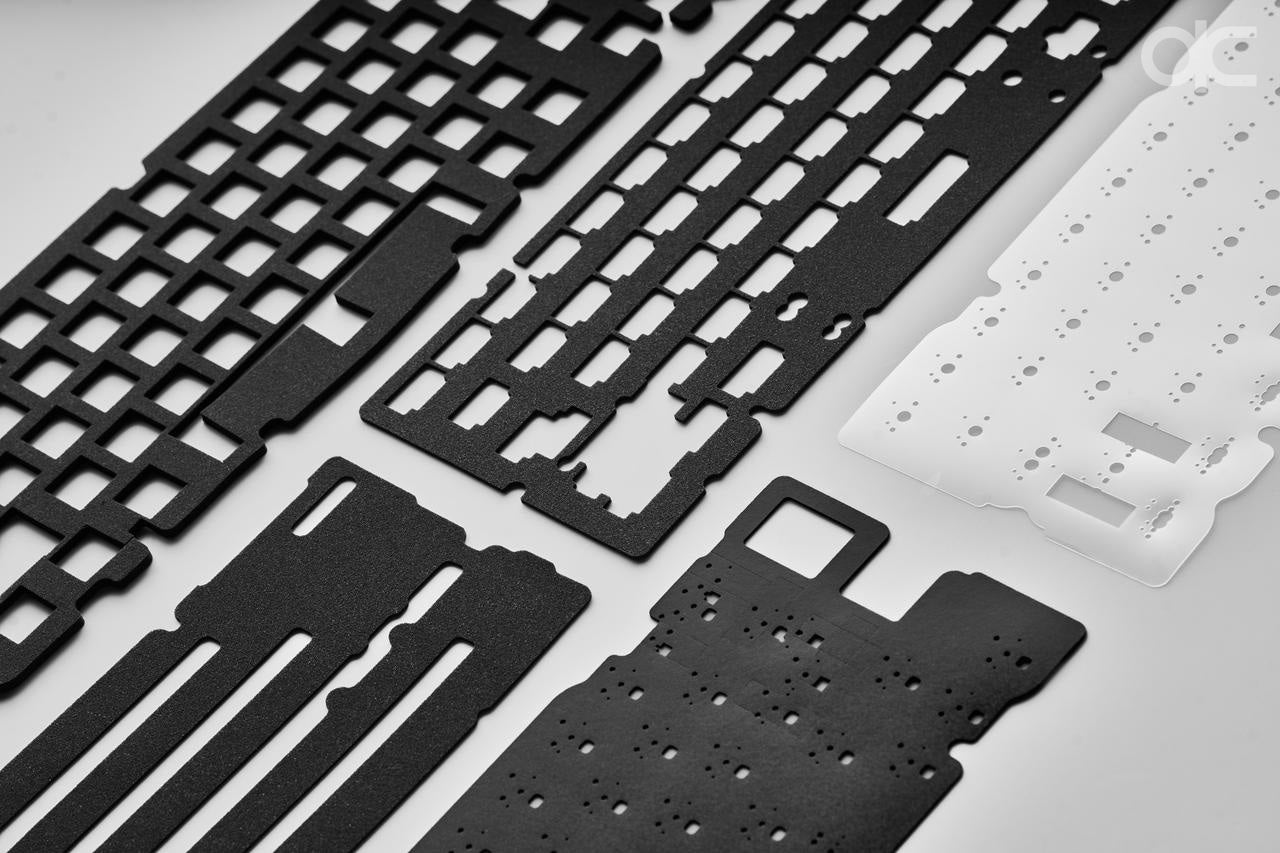

Foam Kit

The QK65 Mk3 features tear-notched plate foam, IXPE sheet, and PET sheet, allowing users to easily customize them according to their specific layout needs. This design minimizes excessive pre-cutting, ensuring optimal sound performance and fully unleashing the acoustic potential of the QK65 Mk3.

PCB

To further refine the typing experience and sound profile, we have eliminated layout compatibility in this PCB iteration while equipping all versions with per-key RGB lighting.

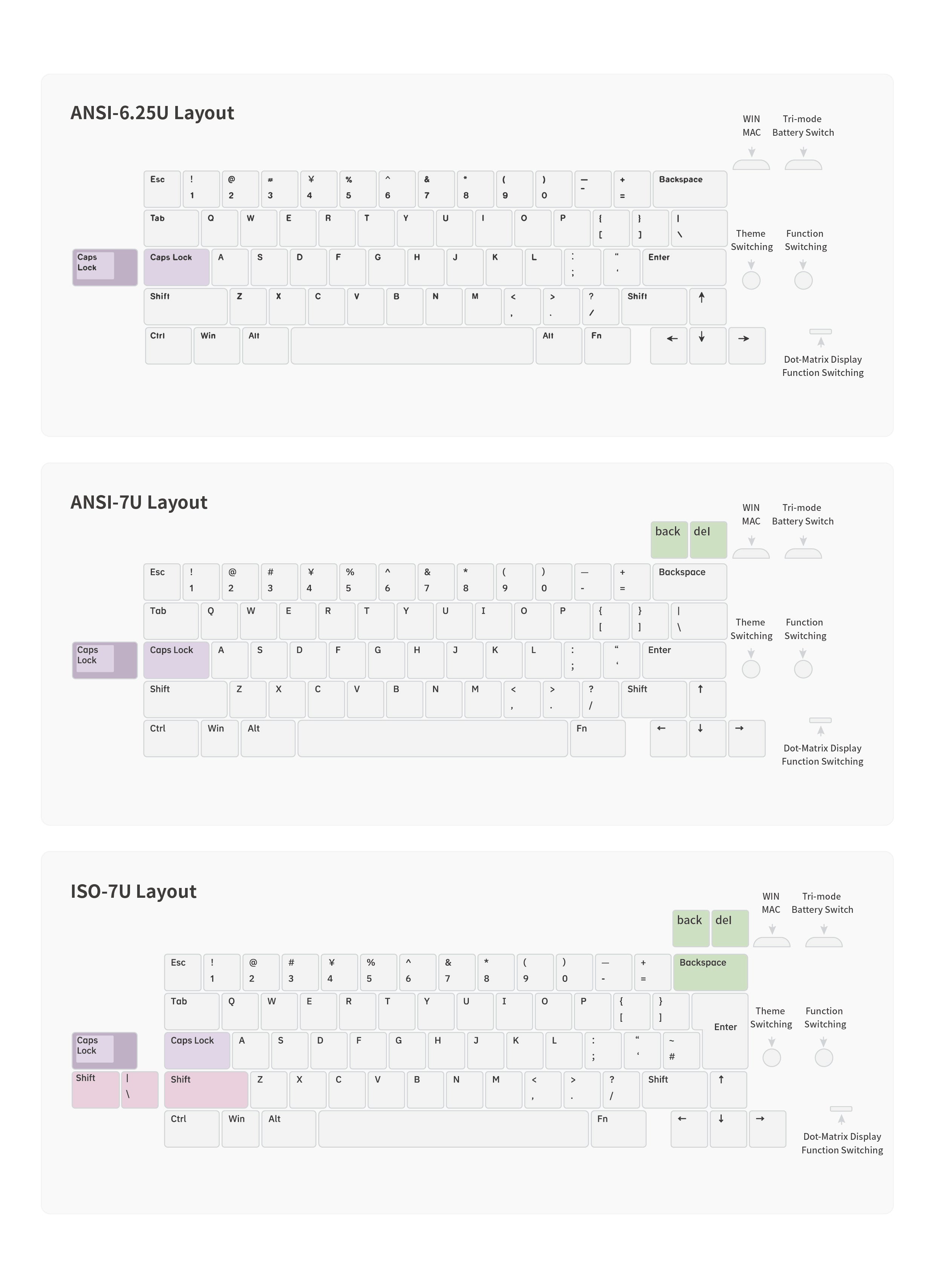

The following 4 configurations are available:

• 1.2mm flex-cut 6.25U ANSI PCB
• 1.6mm non-flex-cut 6.25U ANSI PCB
• 1.6mm non-flex-cut 7U ANSI PCB
• 1.6mm non-flex-cut 7U ISO PCB

Plate

This time, the stabilizers will again be available in both PCB-mounted and plate-mounted options, with the following choices:

Plate (PCB-mounted stabilizers):

• Aluminum (non-flex cut)
• FR4 (flex cut)
• PP (non-flex cut)

Plate (Plate-mounted stabilizers):

• FR4 (flex cut, 6.25U)
• PP (non-flex cut, 6.25U)

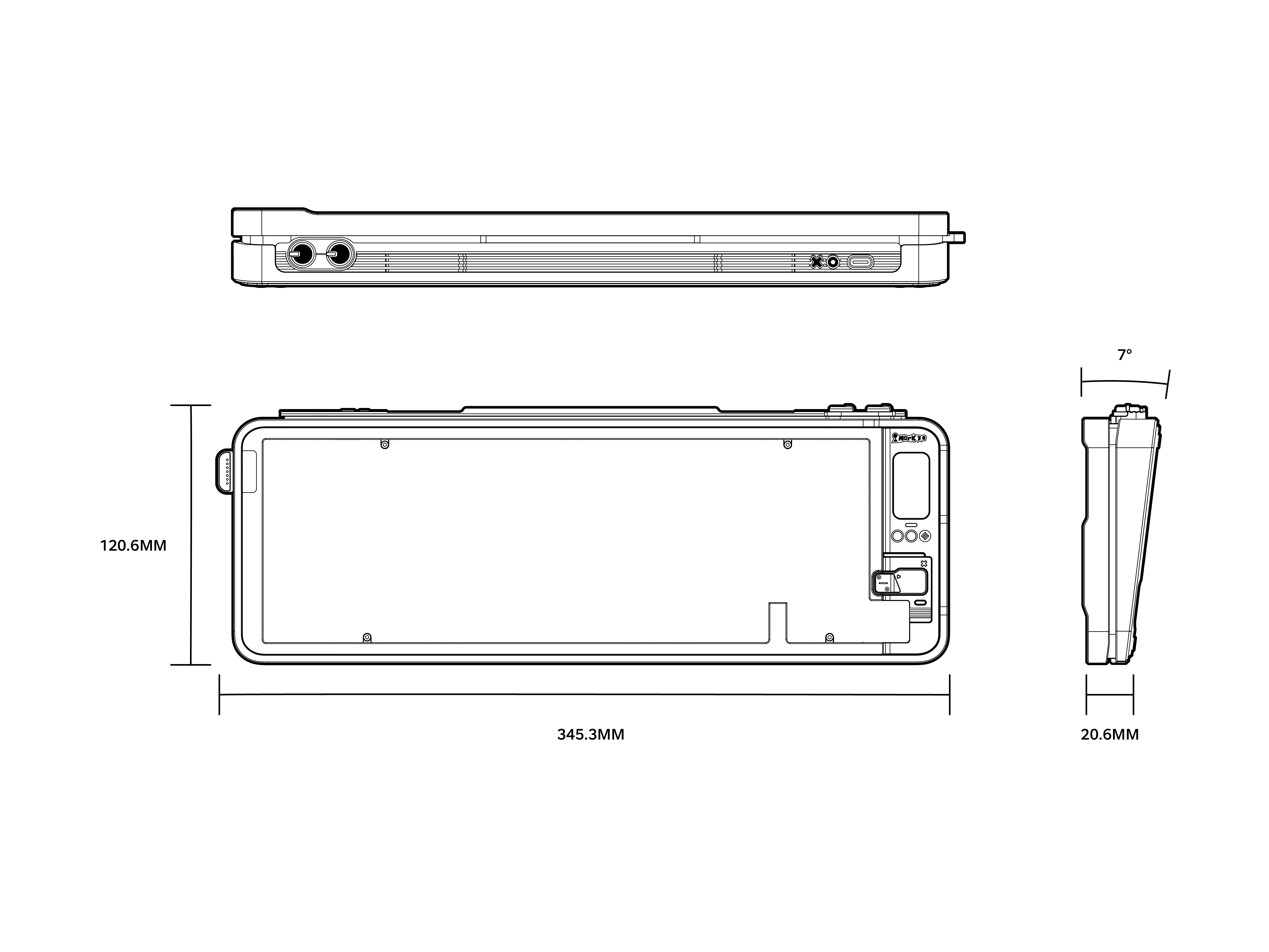

Specification:

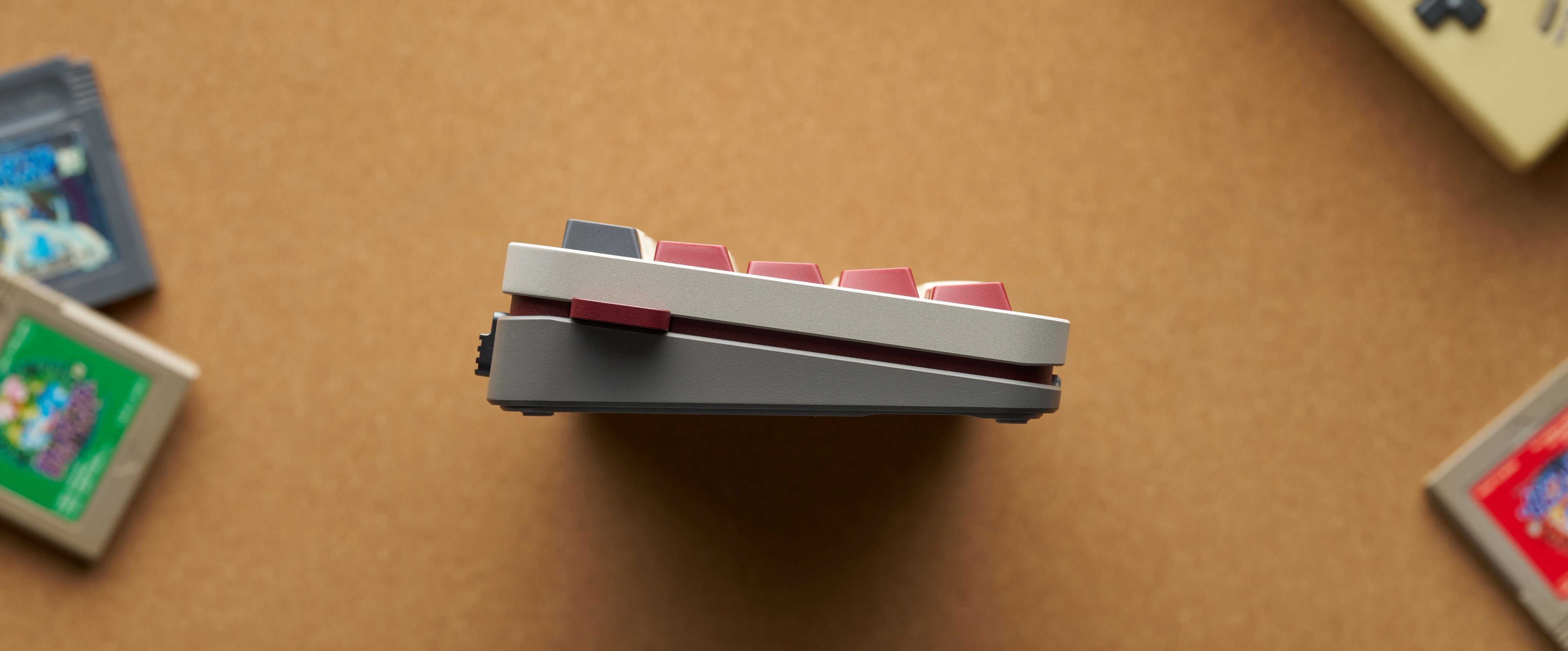

• Typing angle: 7°
• Front height: 20.6mm
• Size: 345.3*120.6mm
• Weight: 1471g（1615g after build）

Content List:

• Keyboard case
  • Includes pre-installed screen module and screen daughterboard
  • Includes two pre-installed 3100 mAh batteries
  • Includes four pre-installed rubber feet
• PCB Kit
  • PCB of your choice
  • PET sheet
  • IXPE sheet
  • Plate foam
• Plate of your choice
• Case foam in two types
• Silicone gaskets
• FPC cables
• Free gifts (Disclaimer: If any of these gifts are missing or damaged, they will not be re-shipped or replaced):
  • Switch and keycap puller
  • Screwdriver
  • USB-C cable
  • Keyboard protective case
  • Stabilizers (type varies based on plate selection)
  • Backup rubber feet
  • Backup screws
