(Group Buy) Compact Ergo Keyboard Kit

Sale price

Regular price £323.33
( / )

Closing Date: June 30th 2024


Expected Shipping time: Q4 2024





Design

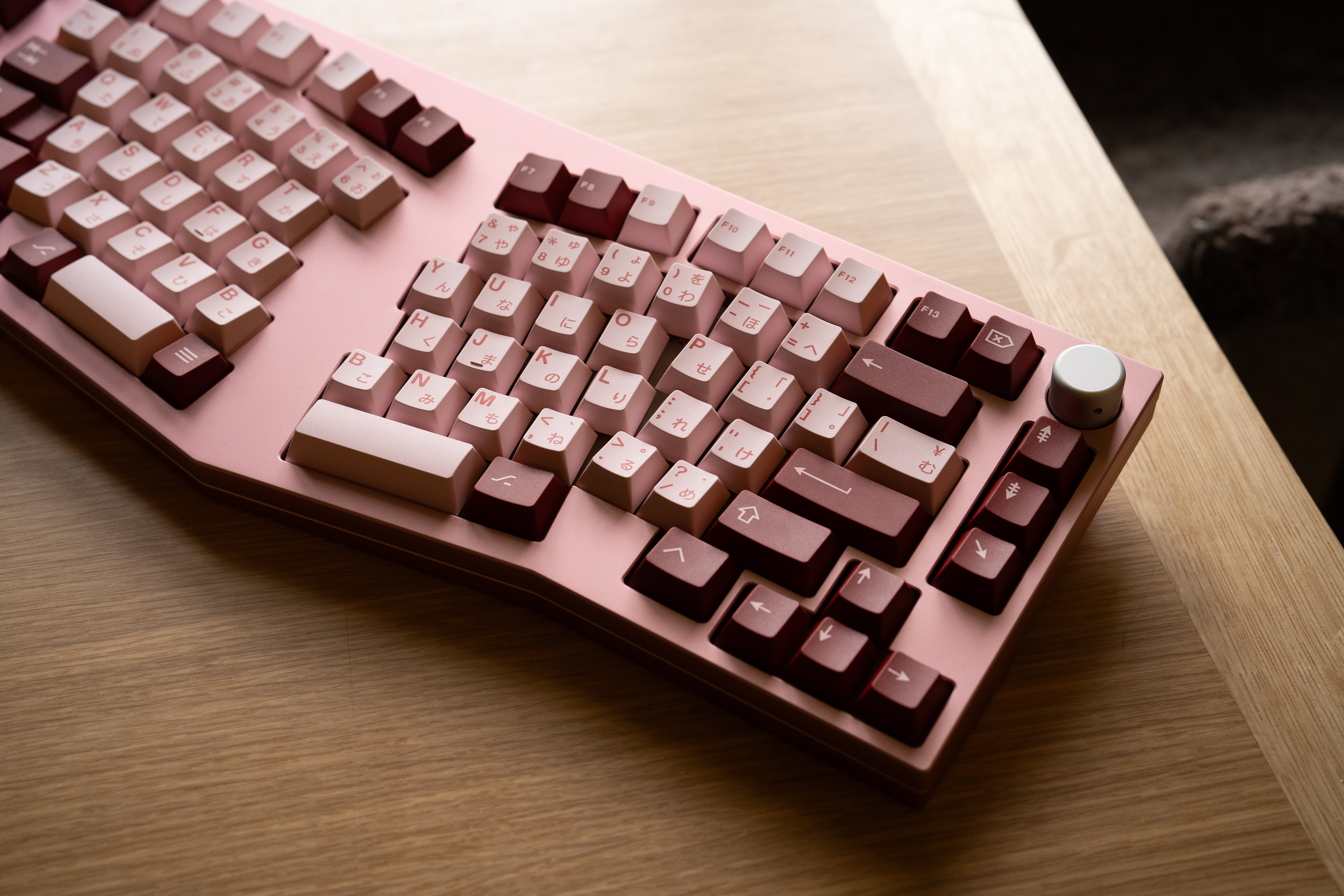

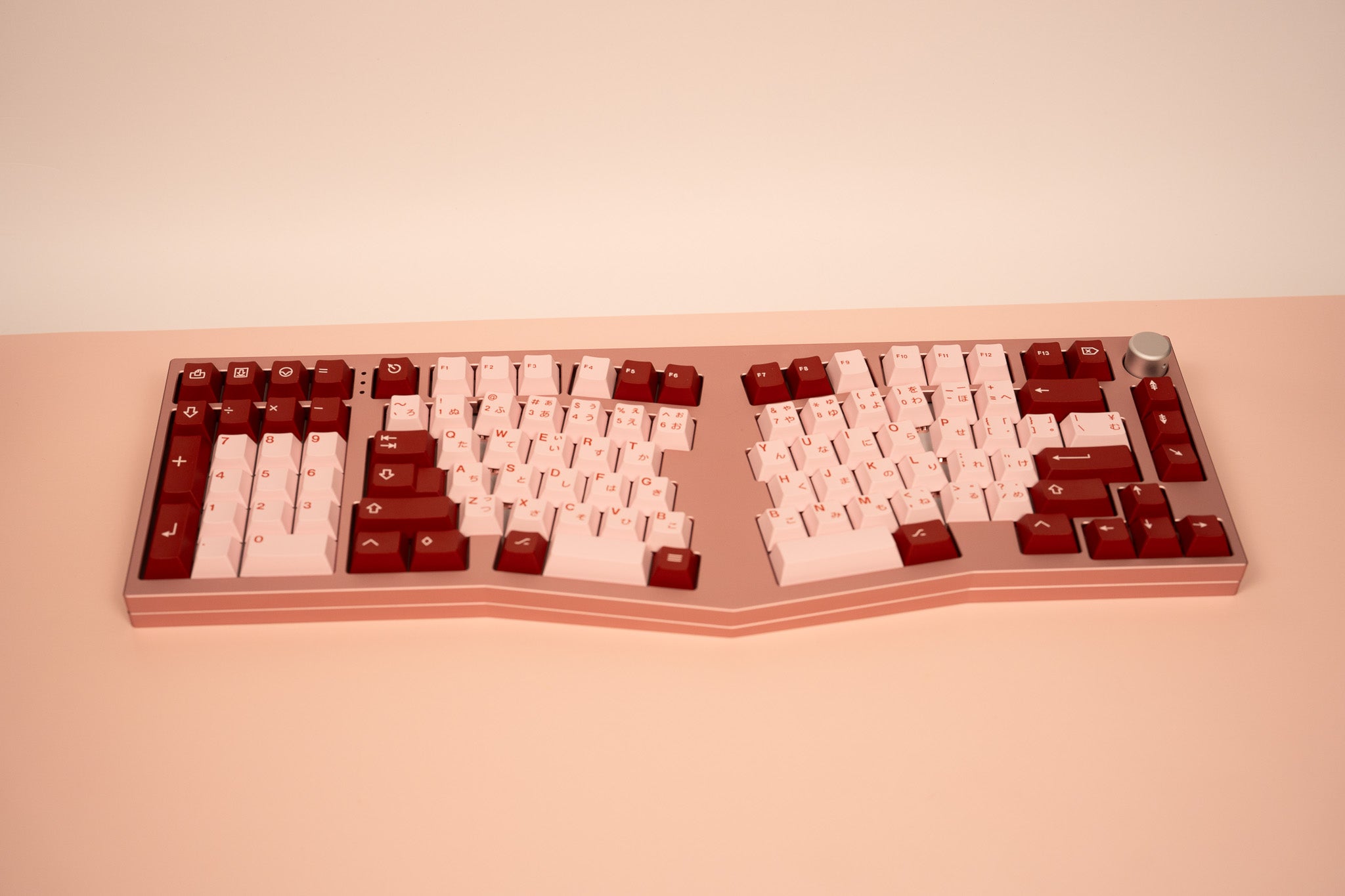

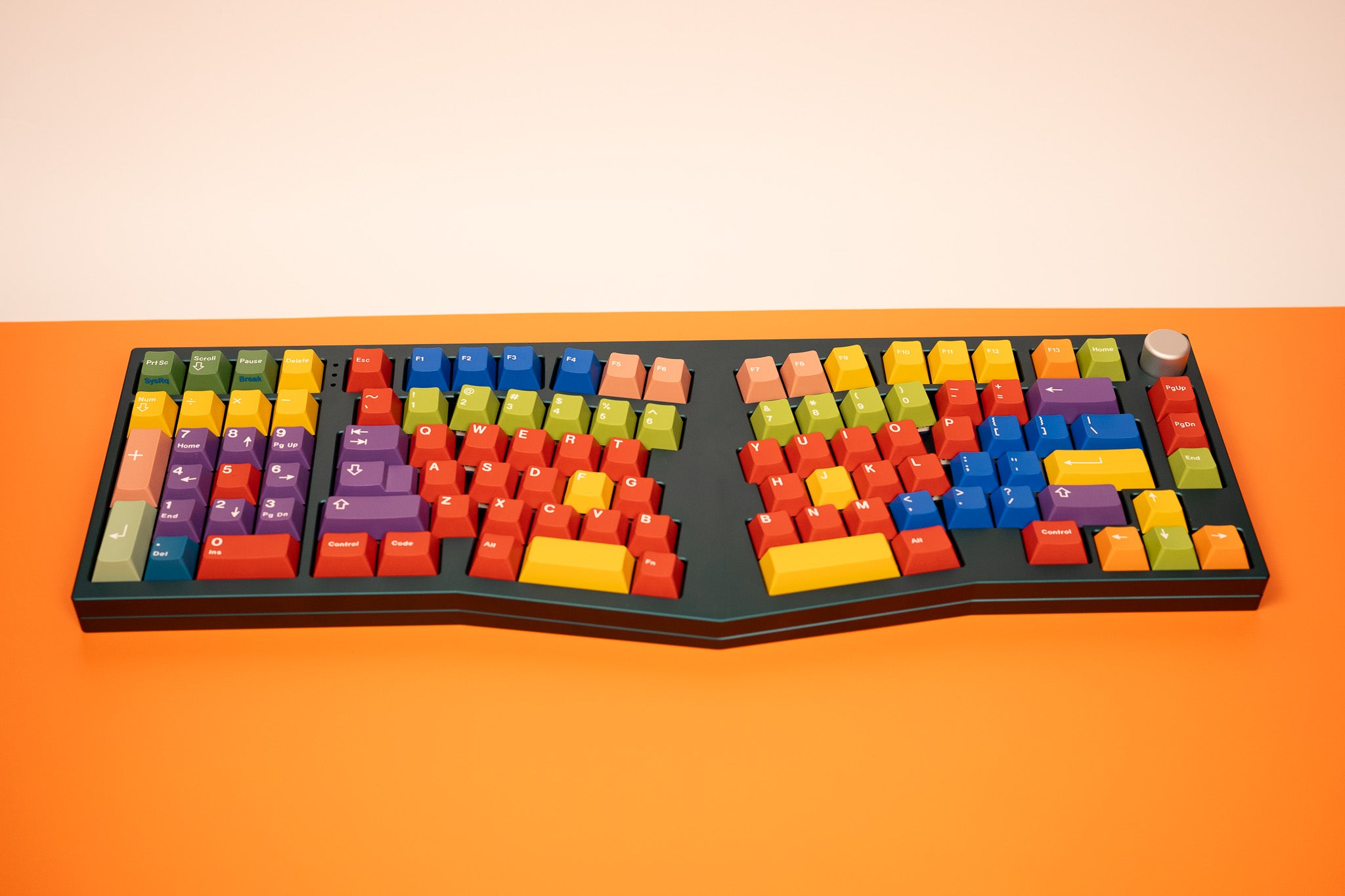

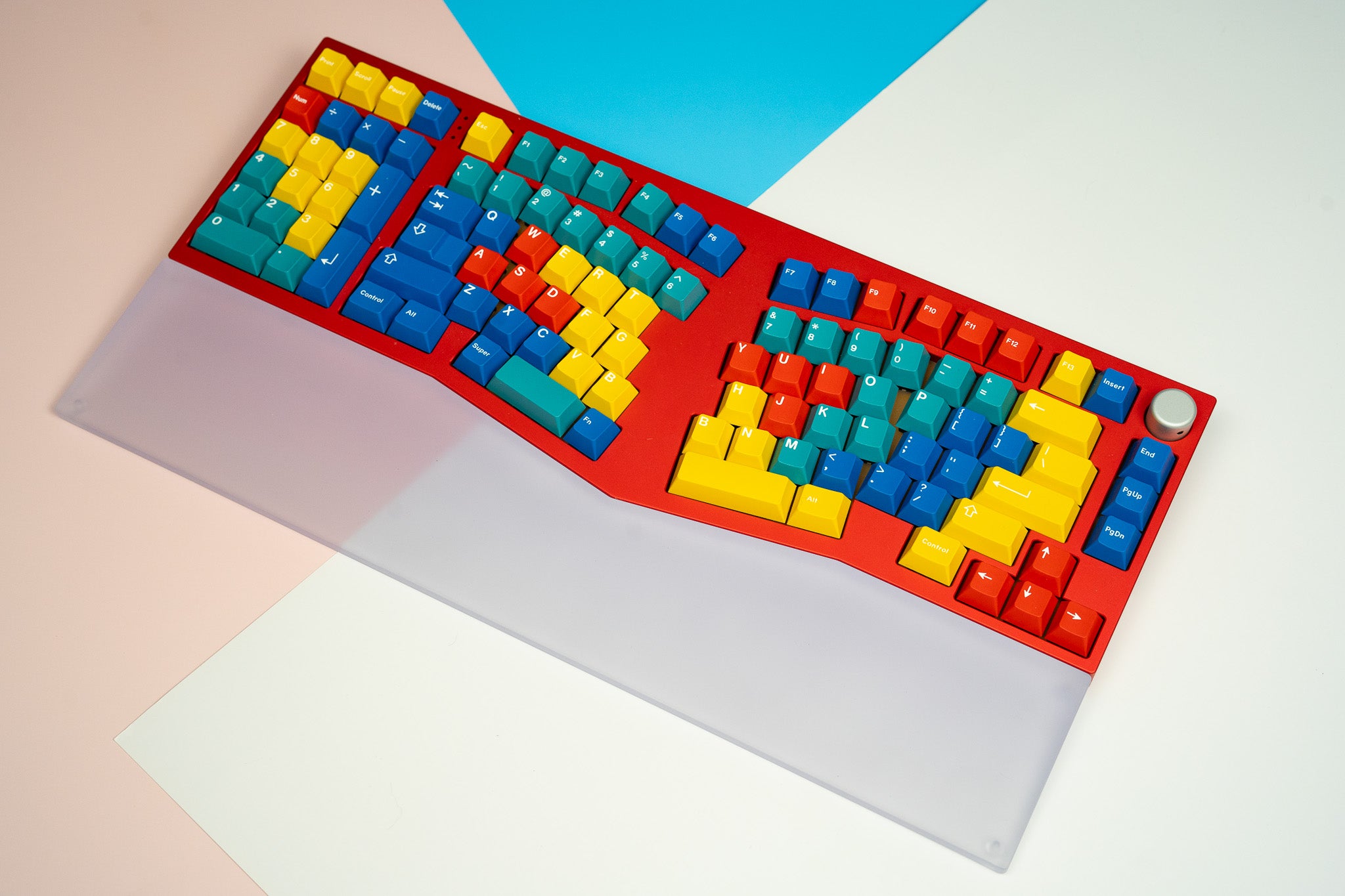

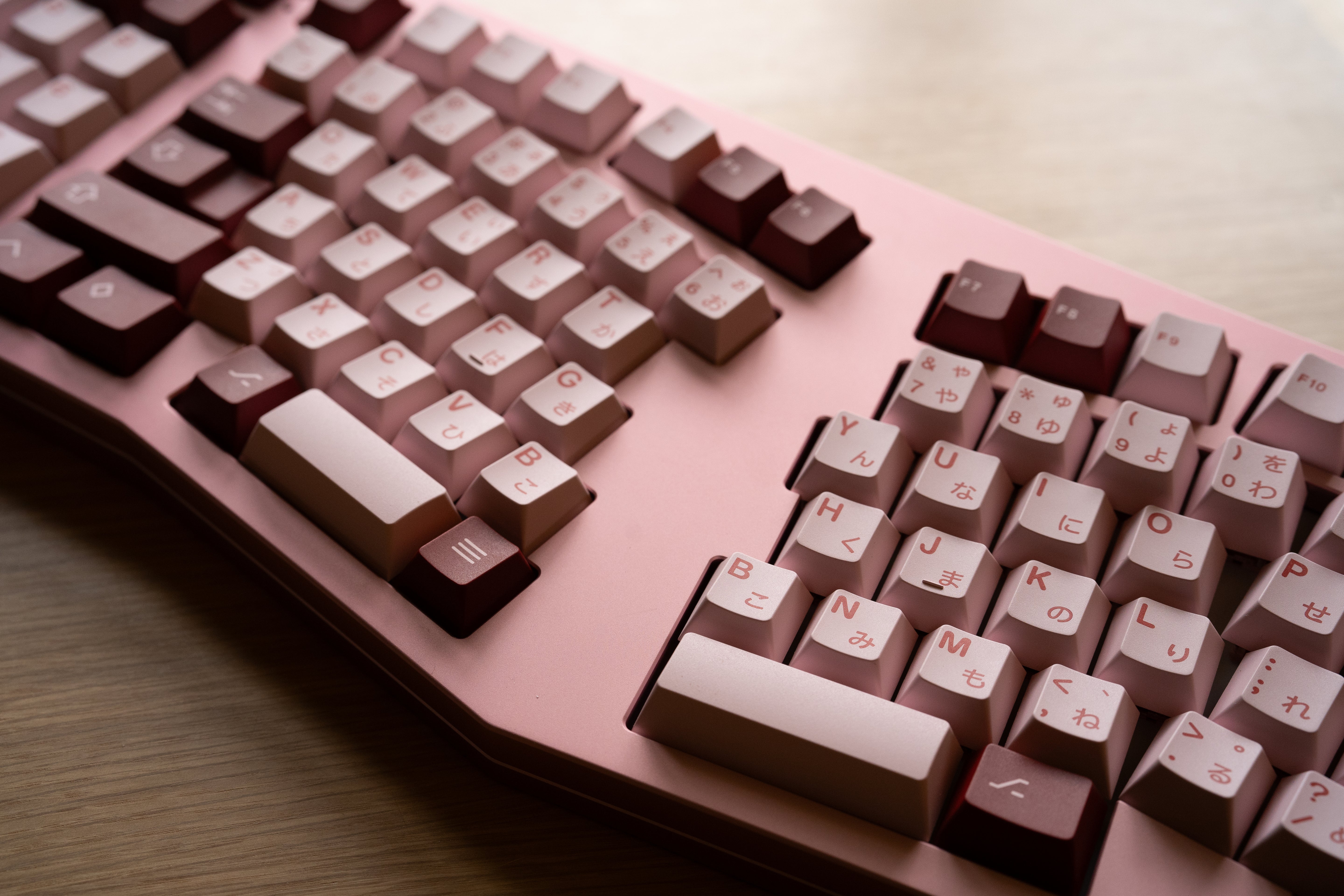

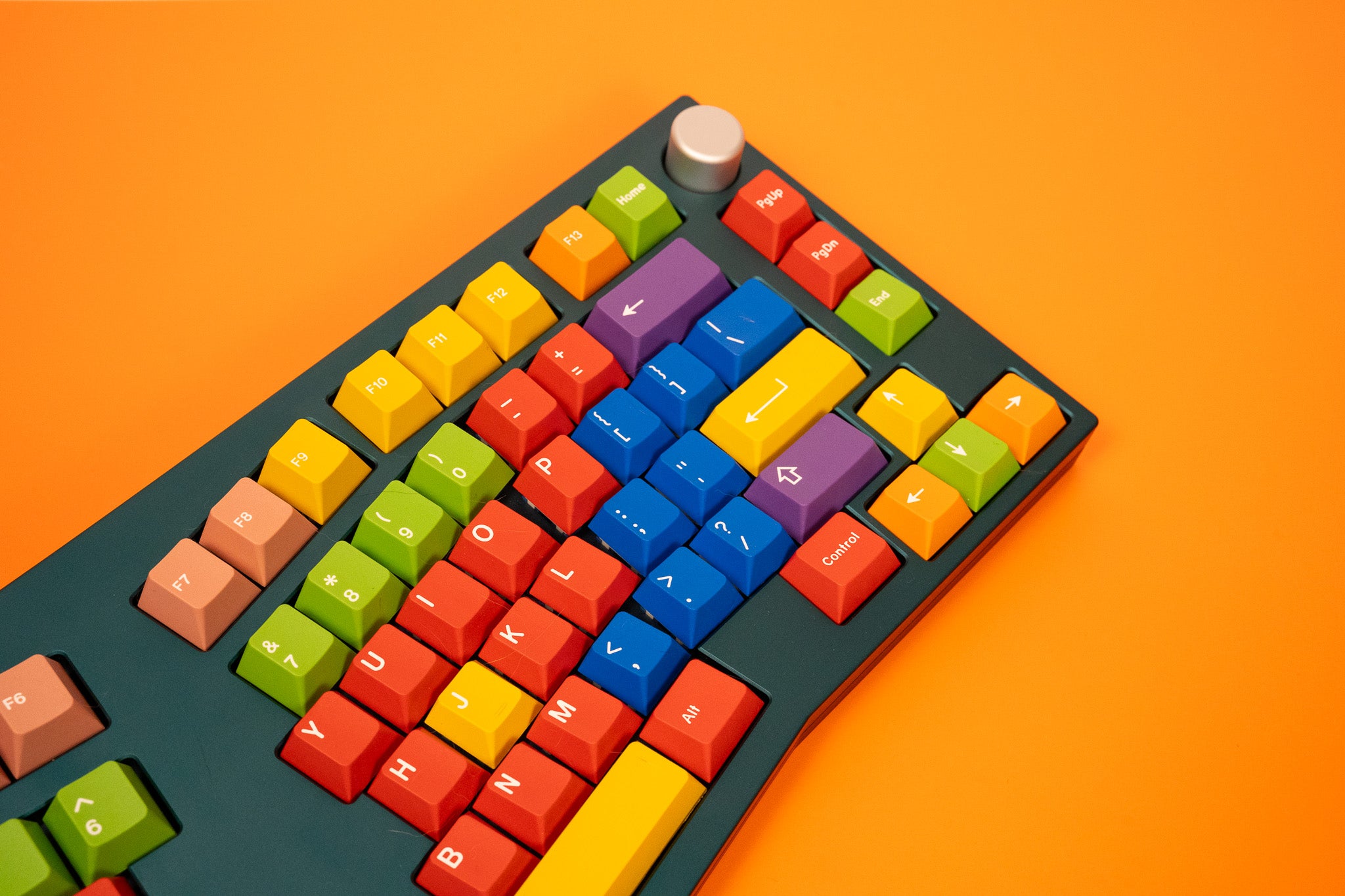

Compact ergo is an Alice inspired ergo with slightly lesser angle (9.5 degrees), southpaw numpad, arrows and rotary.



Please note: The rotary encoder needs to be manually soldered for both hotswap and solder options.



Included in the kit

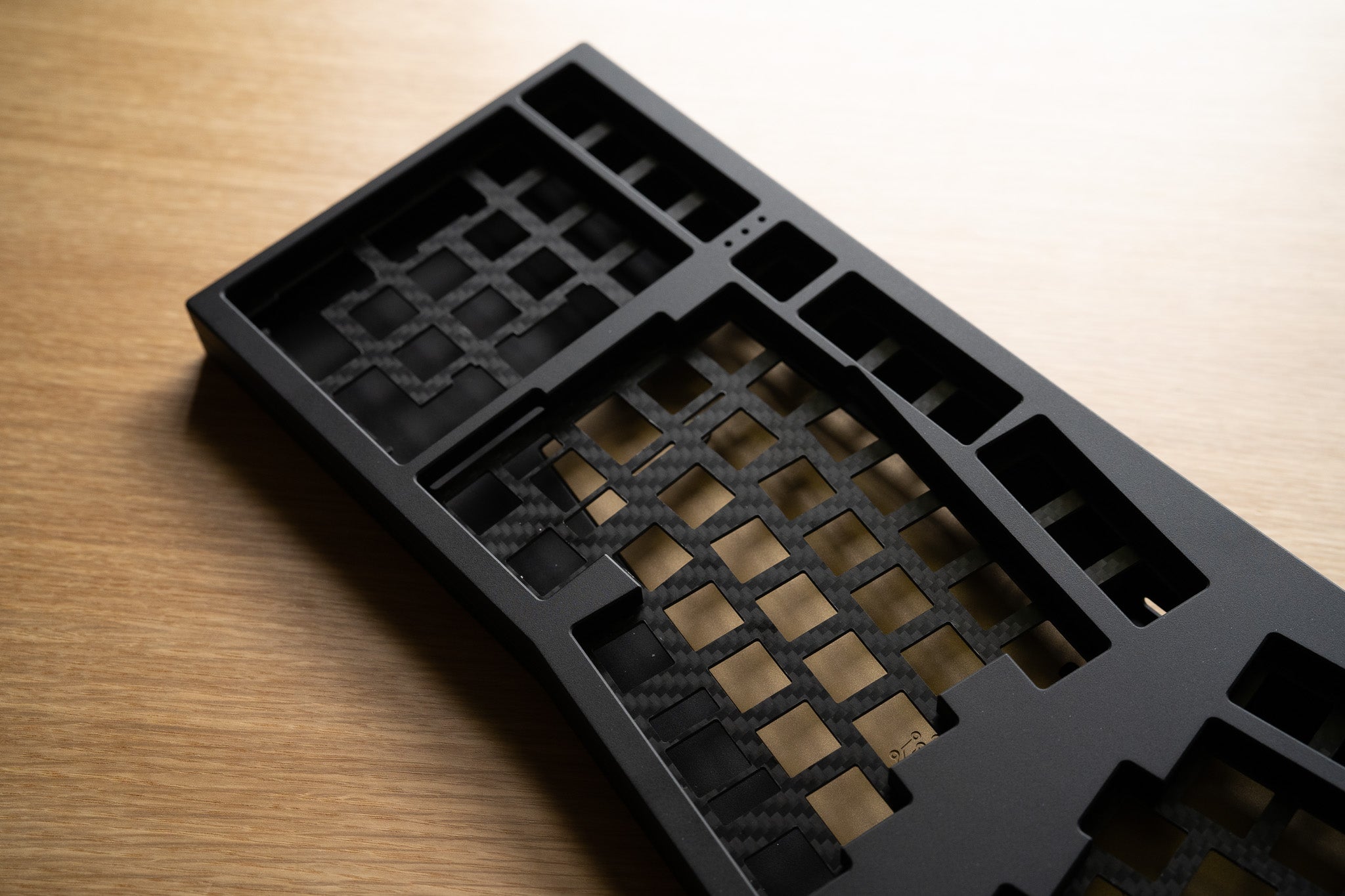

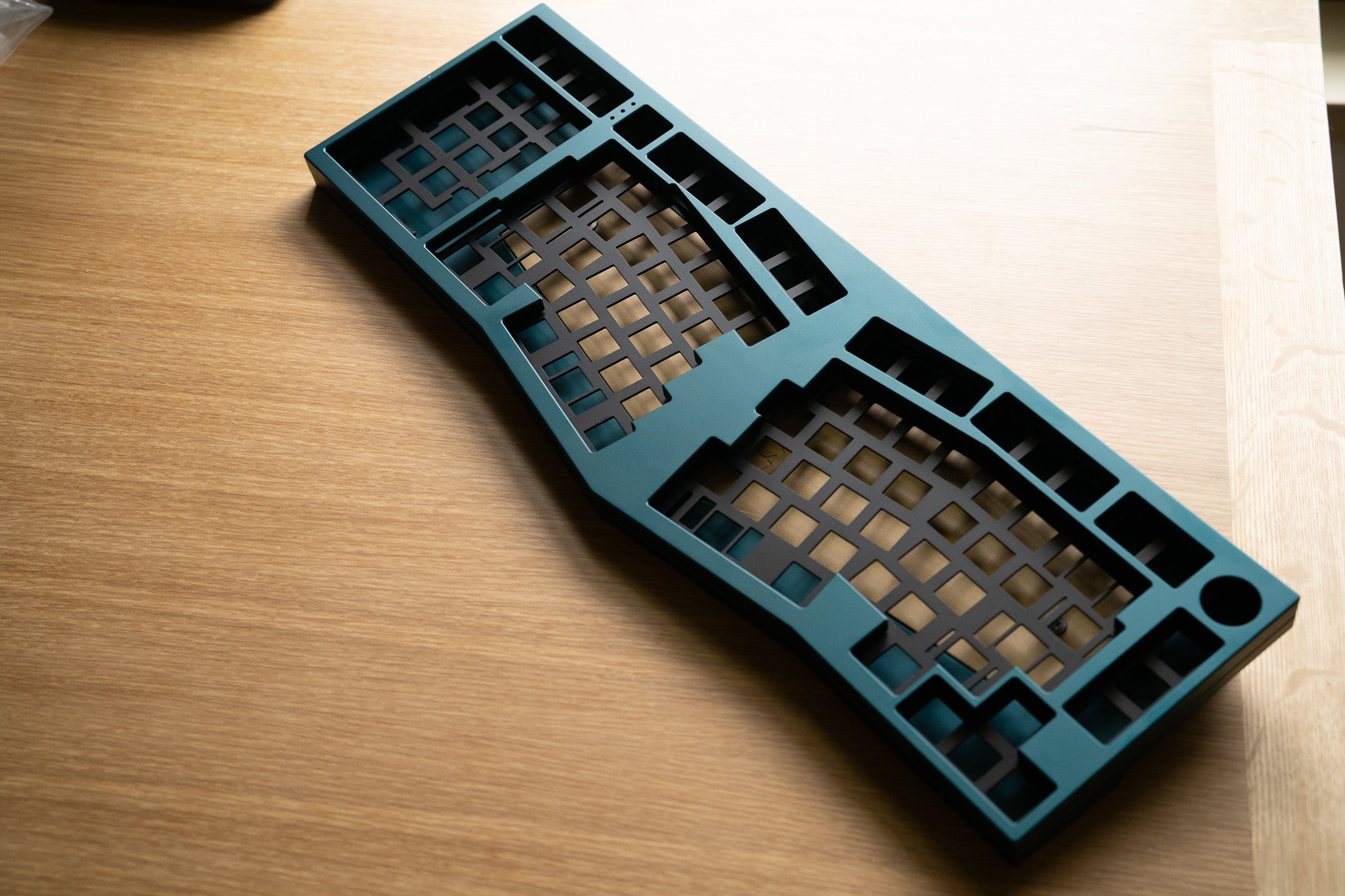

  • 1 x 6063 Aluminium top case (anodized or coated)

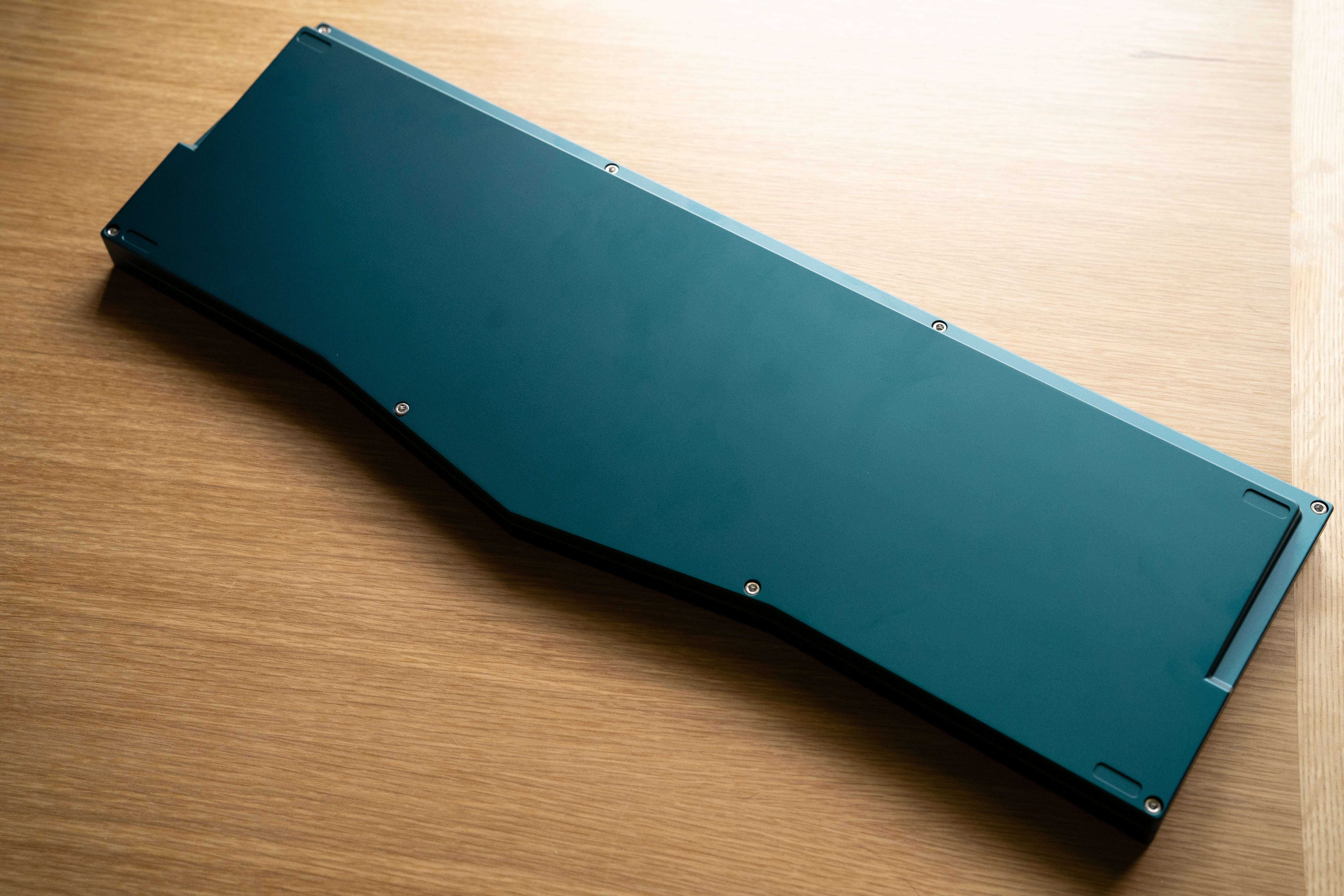

  • 1 x 6063 Aluminium bottom case (anodized or coated)

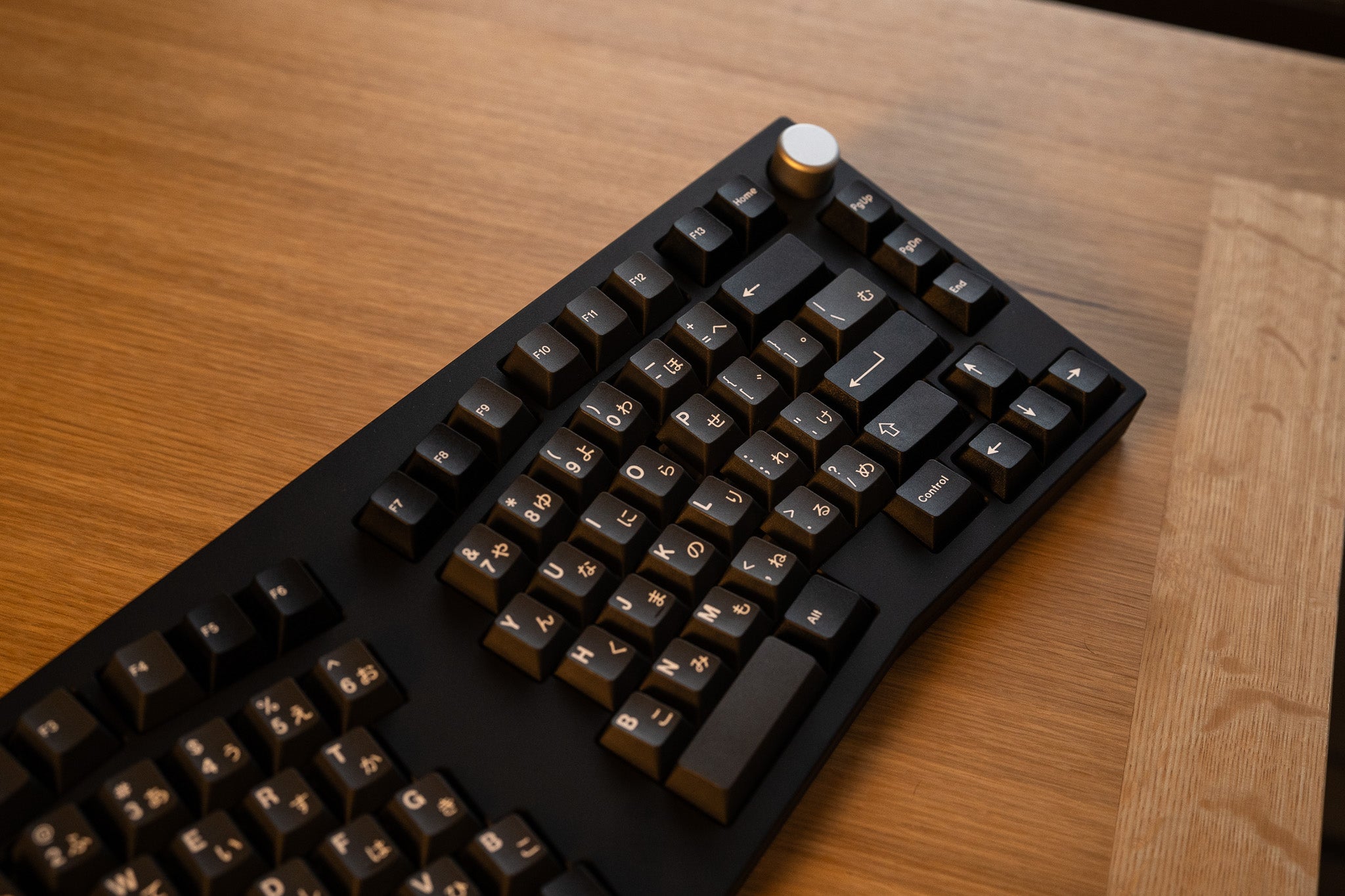

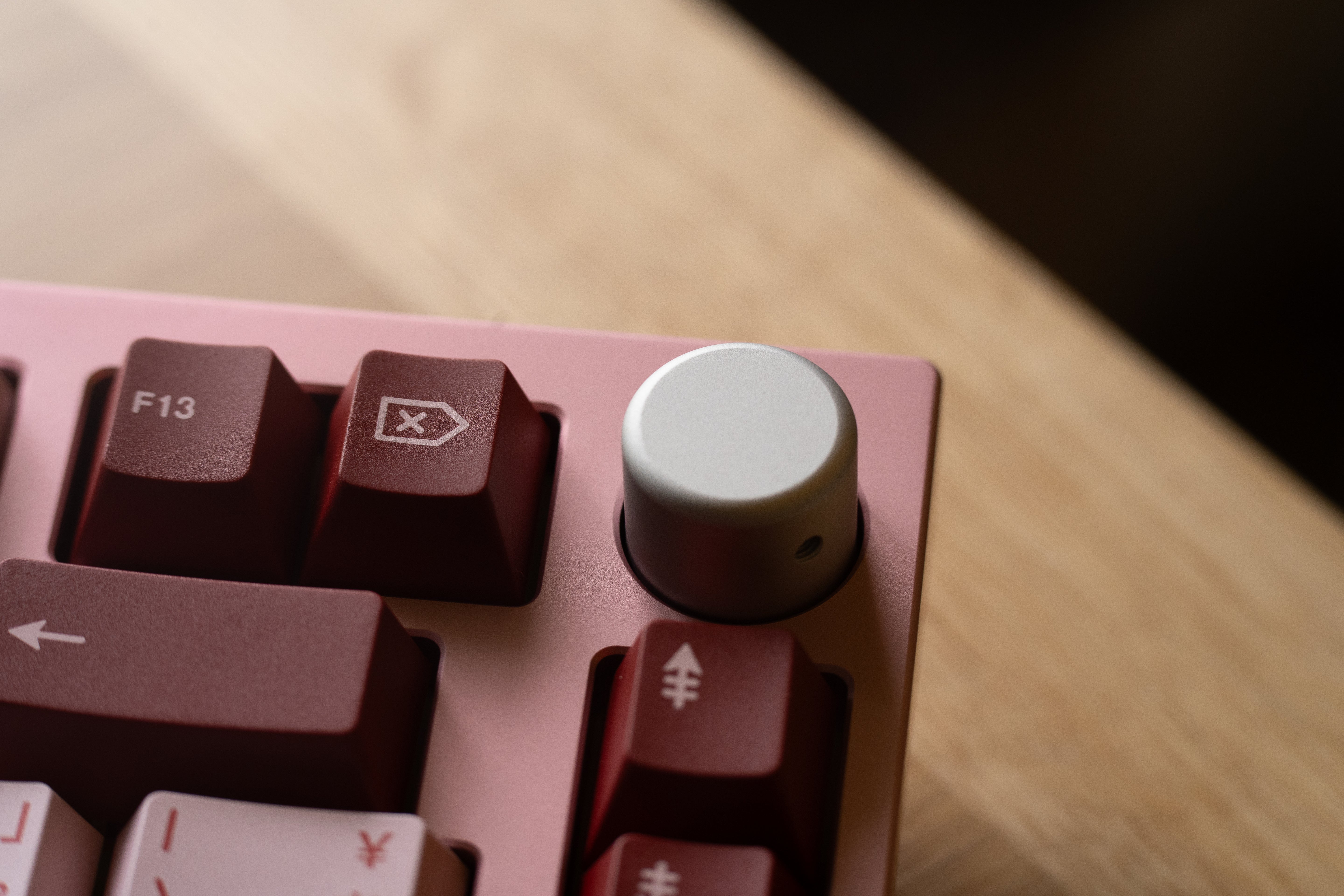

  • Silver anodized knob
  • Brass internal weight

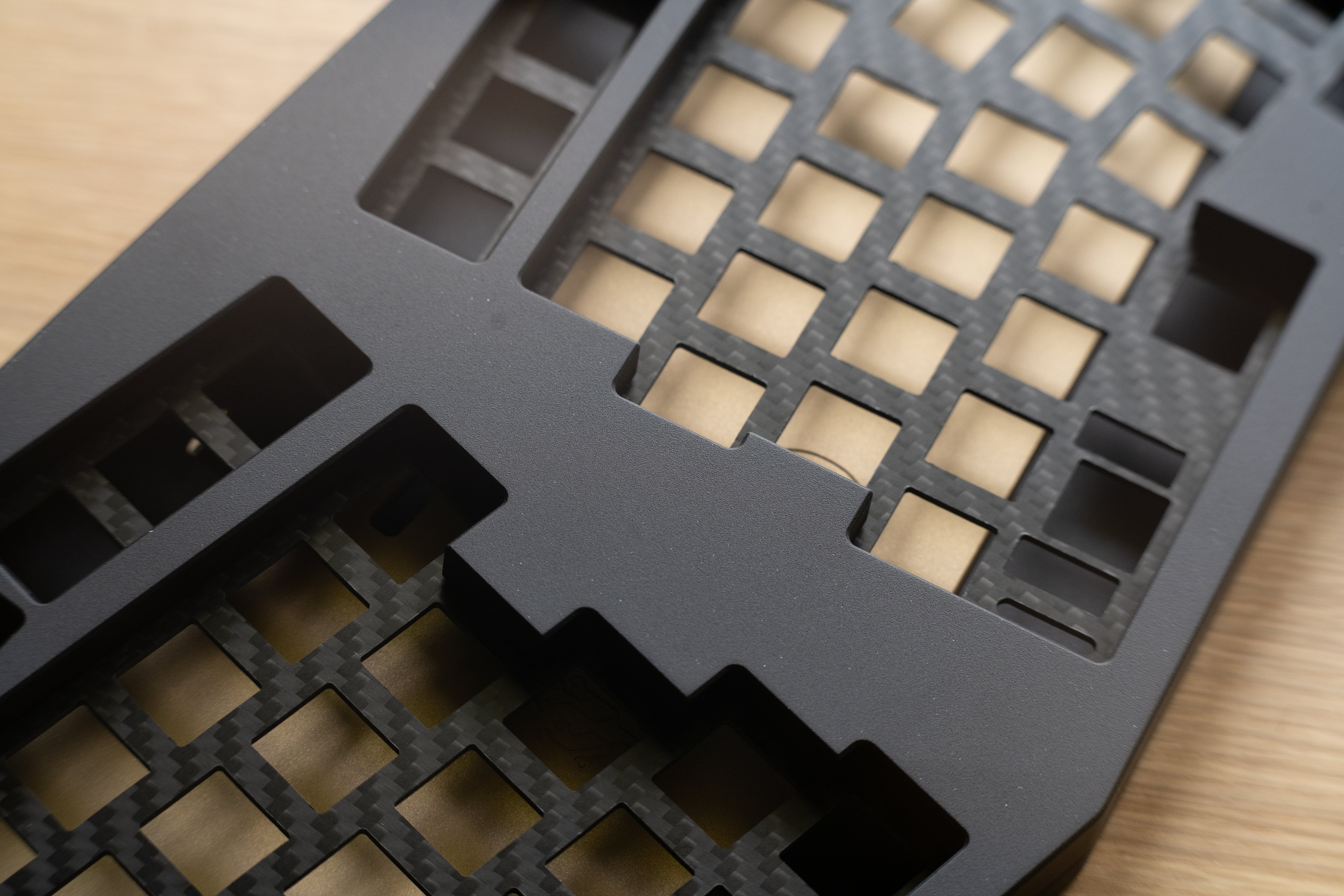

  • Aluminium plate
  • Solder or Hotswap PCB
  • C5 Daughterboard and JST to JST Cable
  • Carrying case
  • Microfiber bag
  • Necessary screws, feet and other accessories

Note: Kit does not include Keycaps, stabilisers or switches



Addons available here



Specifications:

  • Layout - Southpaw Ergo
  • Materials - 6063 Aluminium, Brass

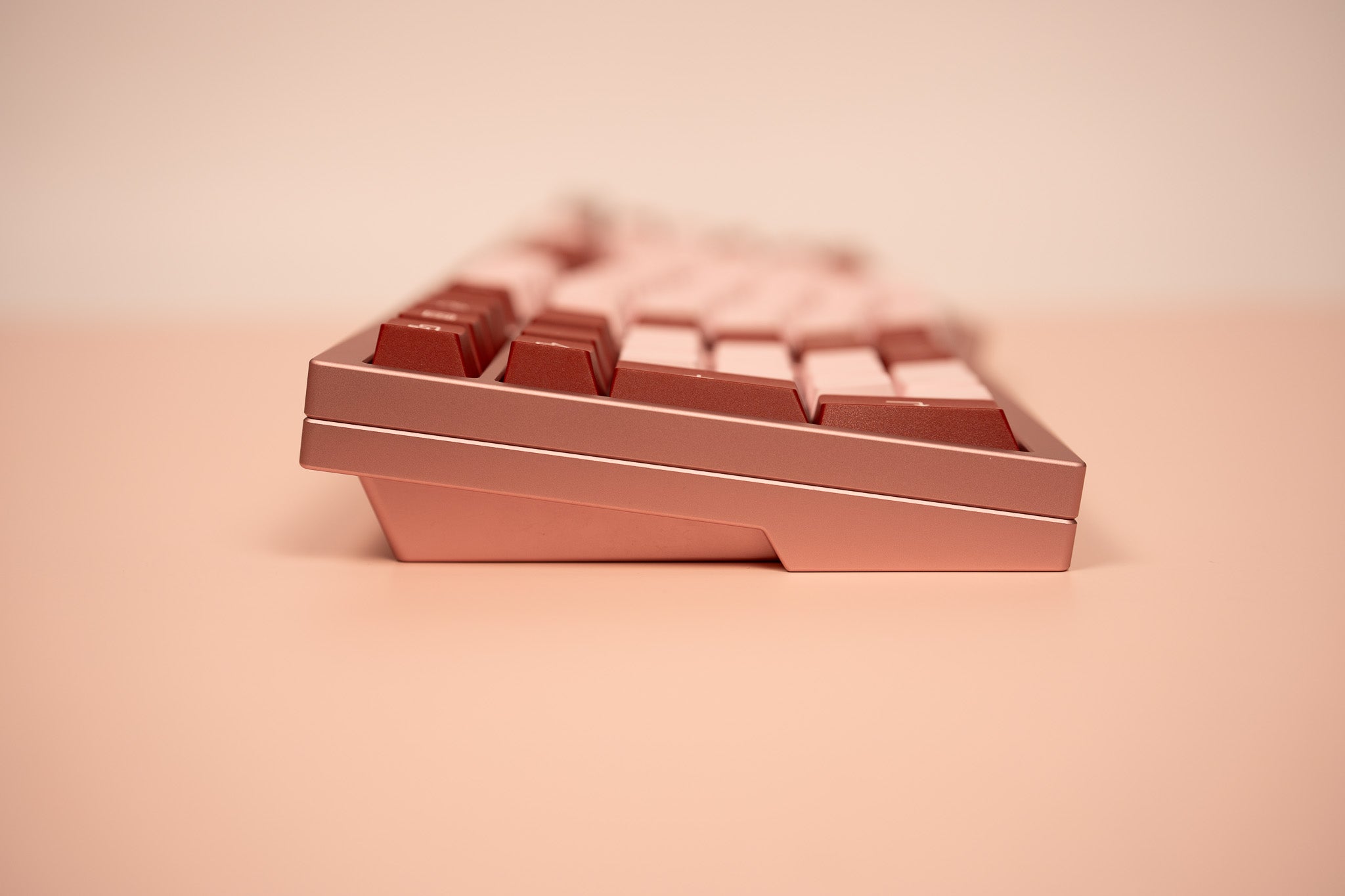

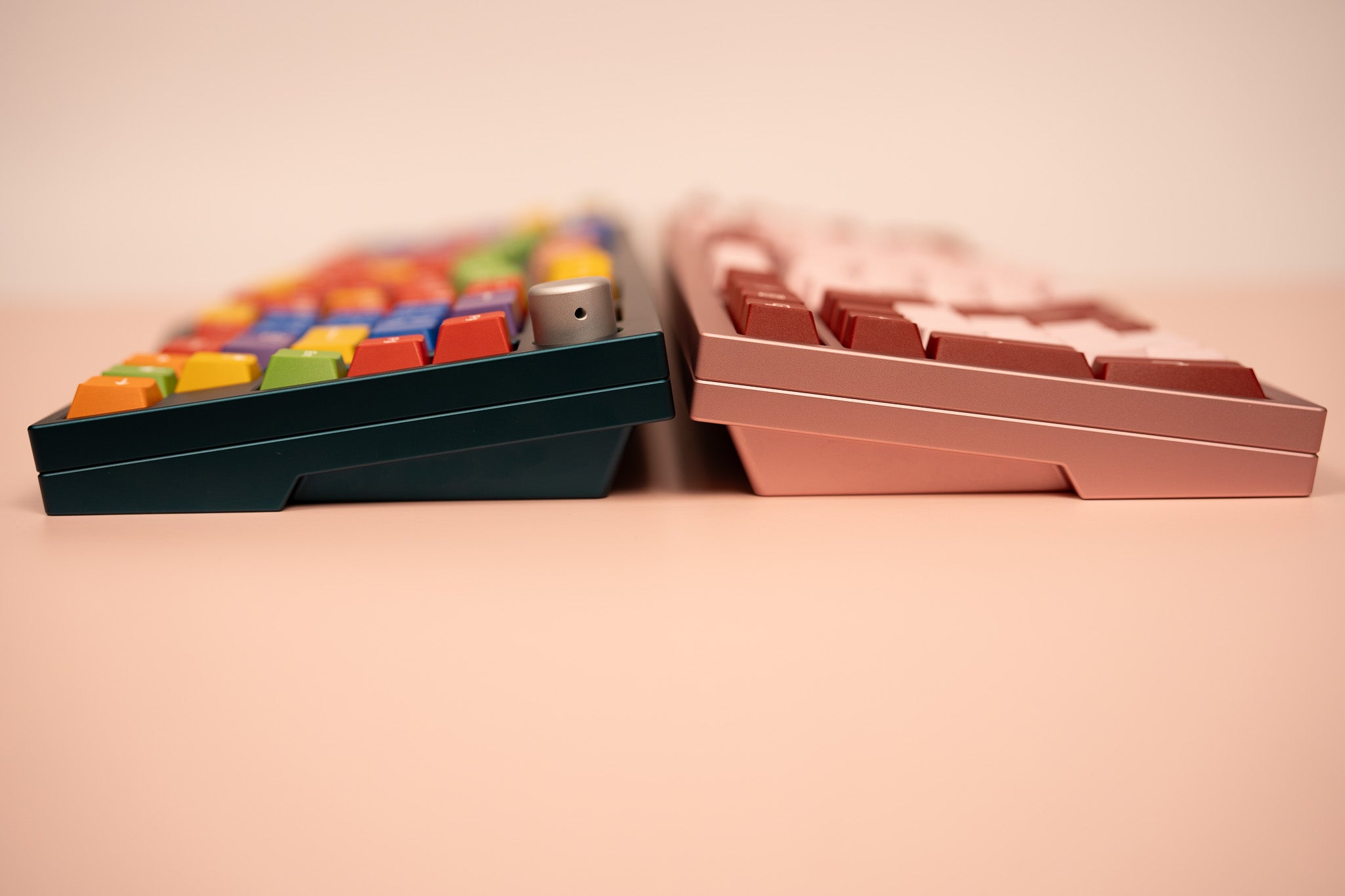

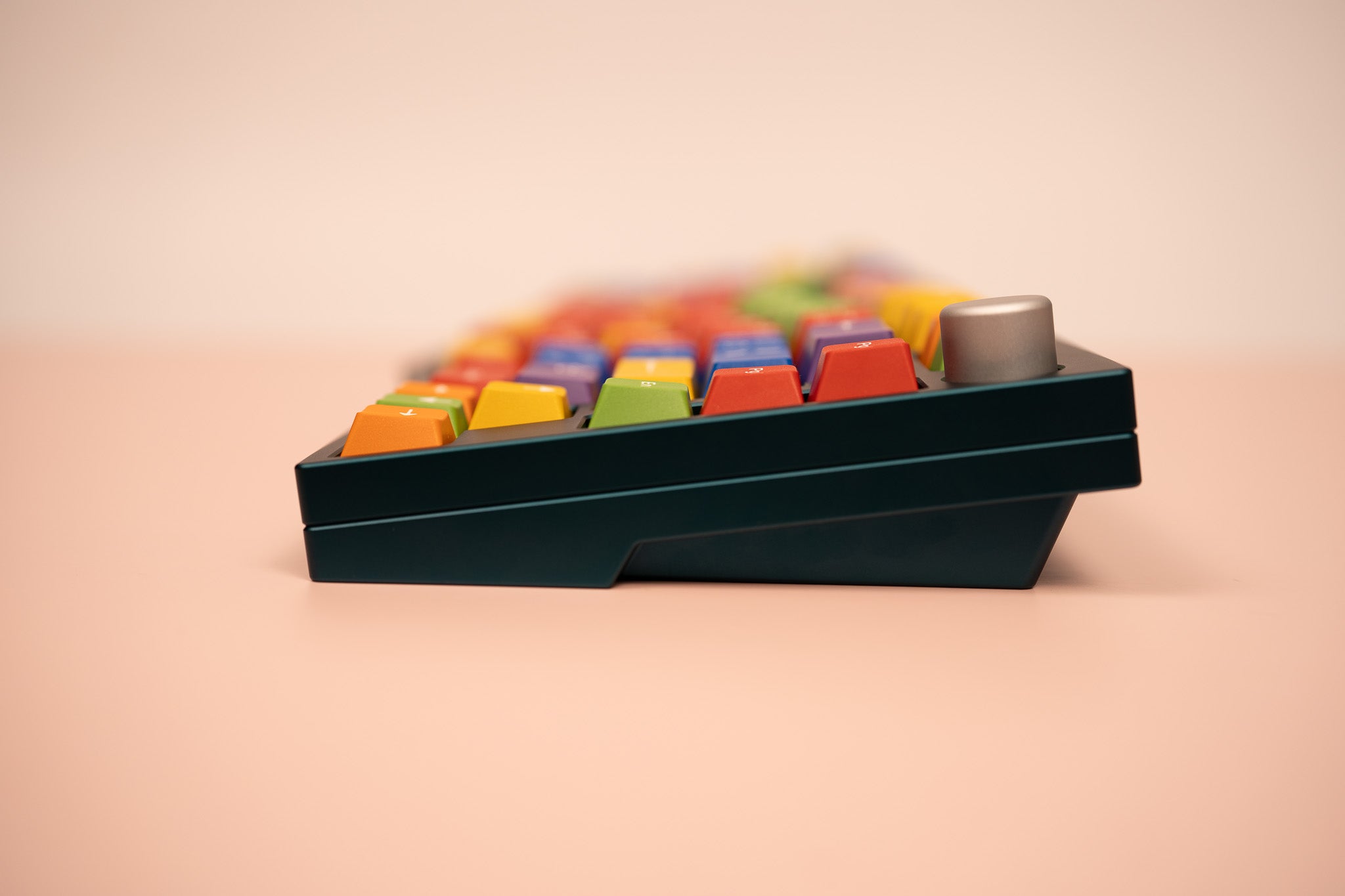

  • Typing Angle - 8 Degrees
  • Tilt Angle - 9.5 Degrees
  • Weight - 2.65kg Unbuilt



Features:

  • Comfortable layout designed for productivity
  • Minimal design focused on useful features
  • Top mounted plate
  • C5 Unified Daughterboard connection
  • Accented seam between top and bottom case



Mounting and Internal Design:

Plate is top mounted with relief cuts at each mounting point for easy assembly and classic sound signature. An internal brass weight helps keep a consistent sound across the keyboard while also adding a little heft. The brass weight also keeps the JST Cable in place.

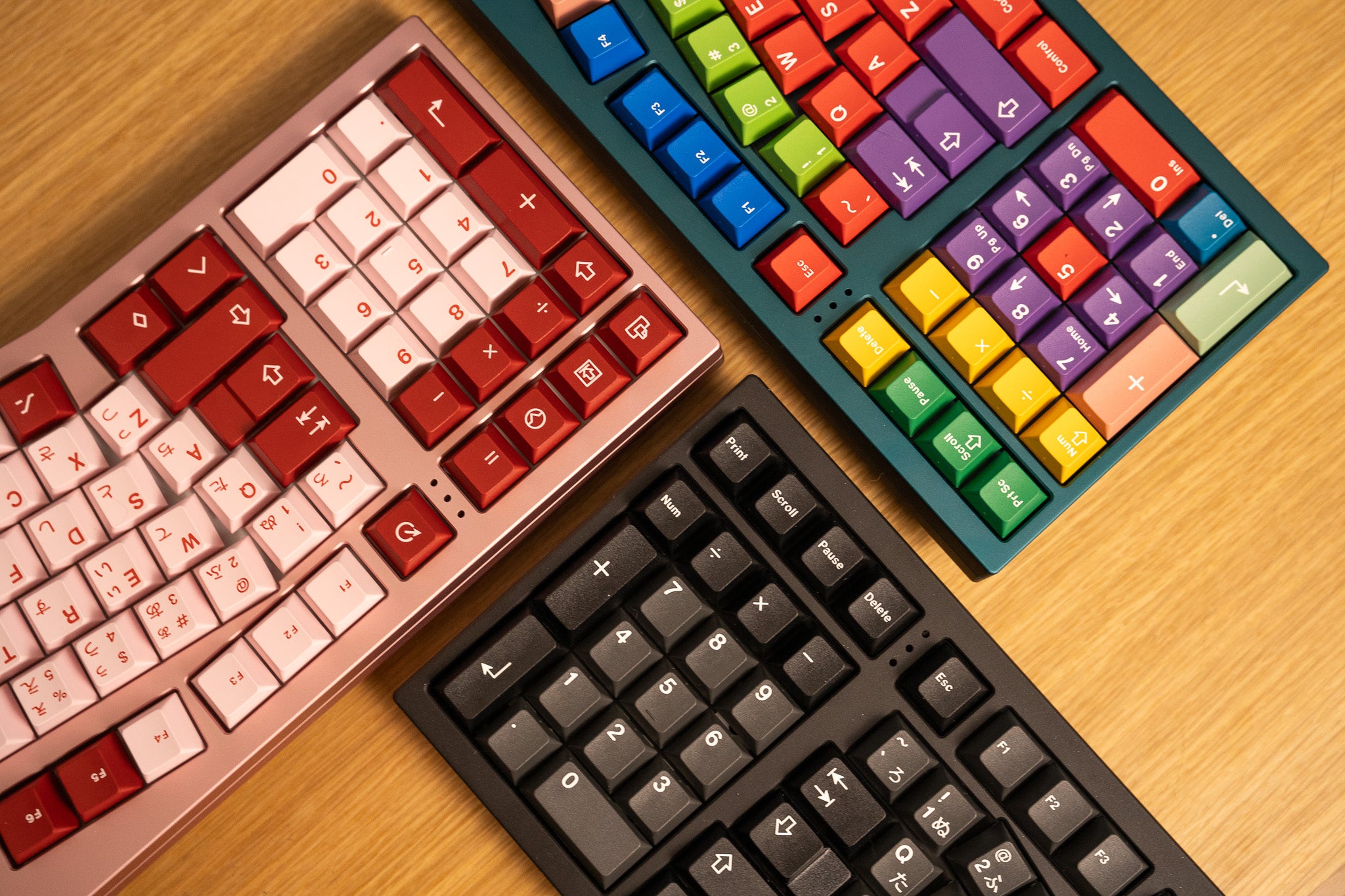

 Four Case Colour Options:

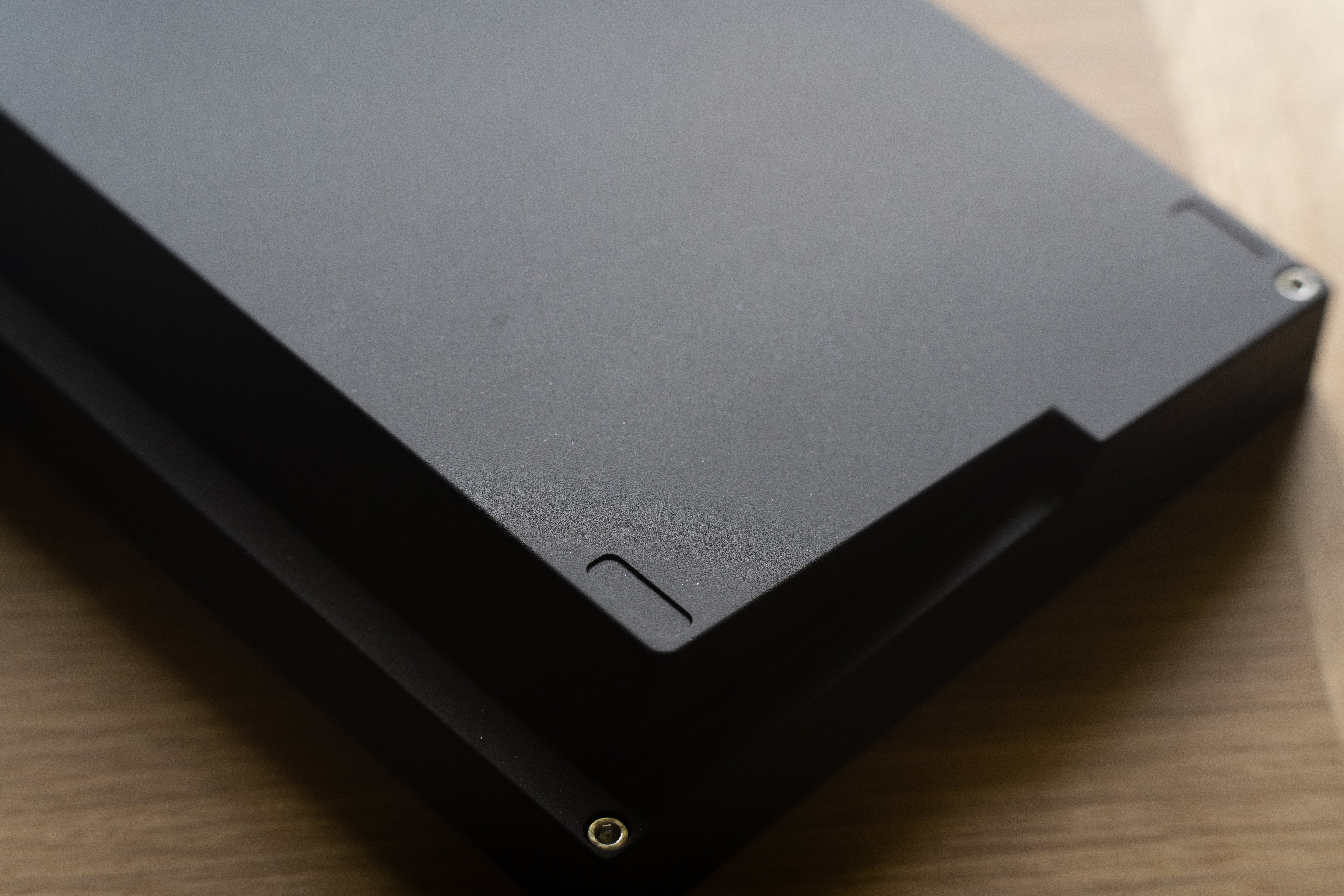

  • Sparkle Black

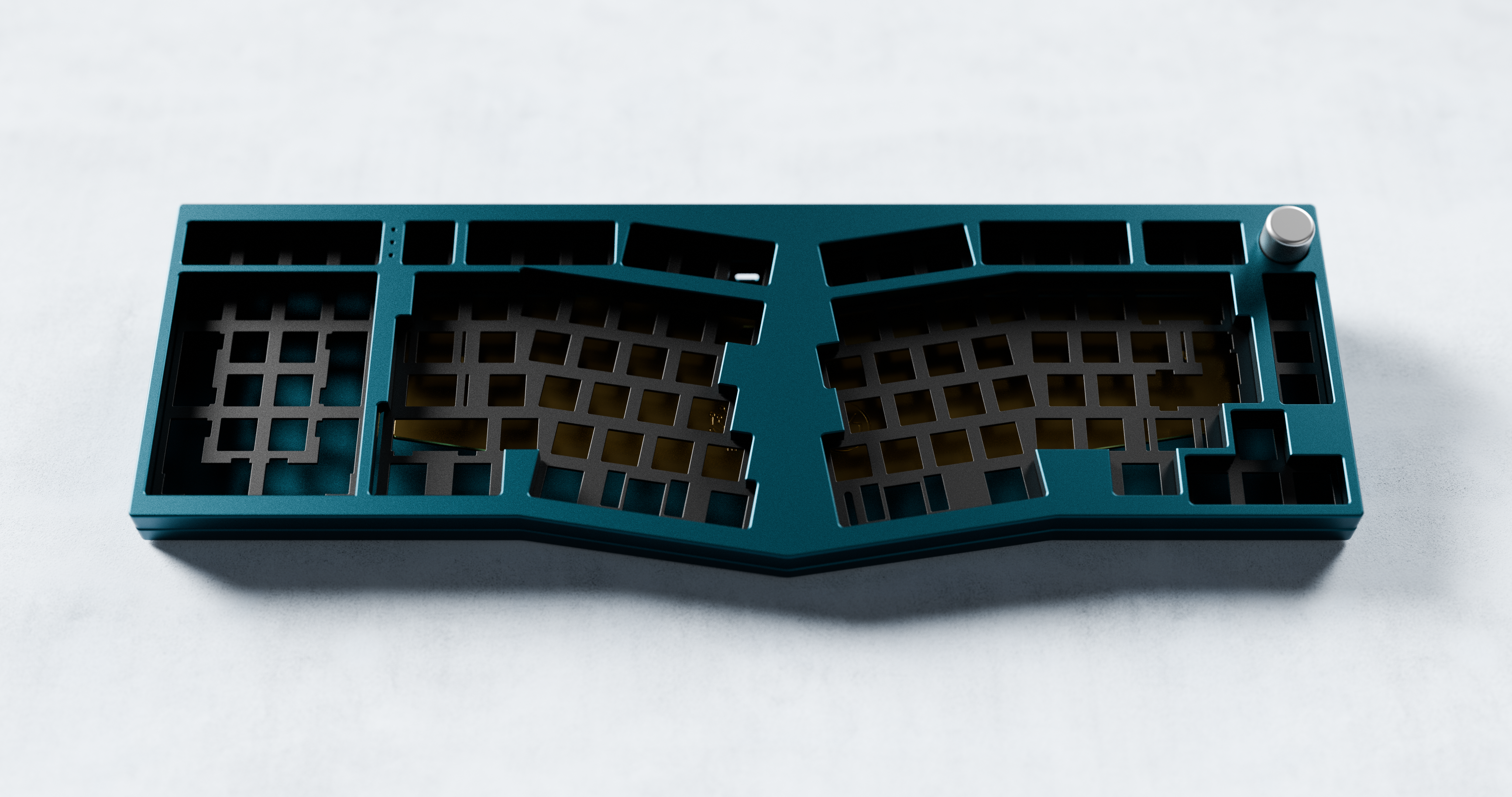

  • Cobalt Blue

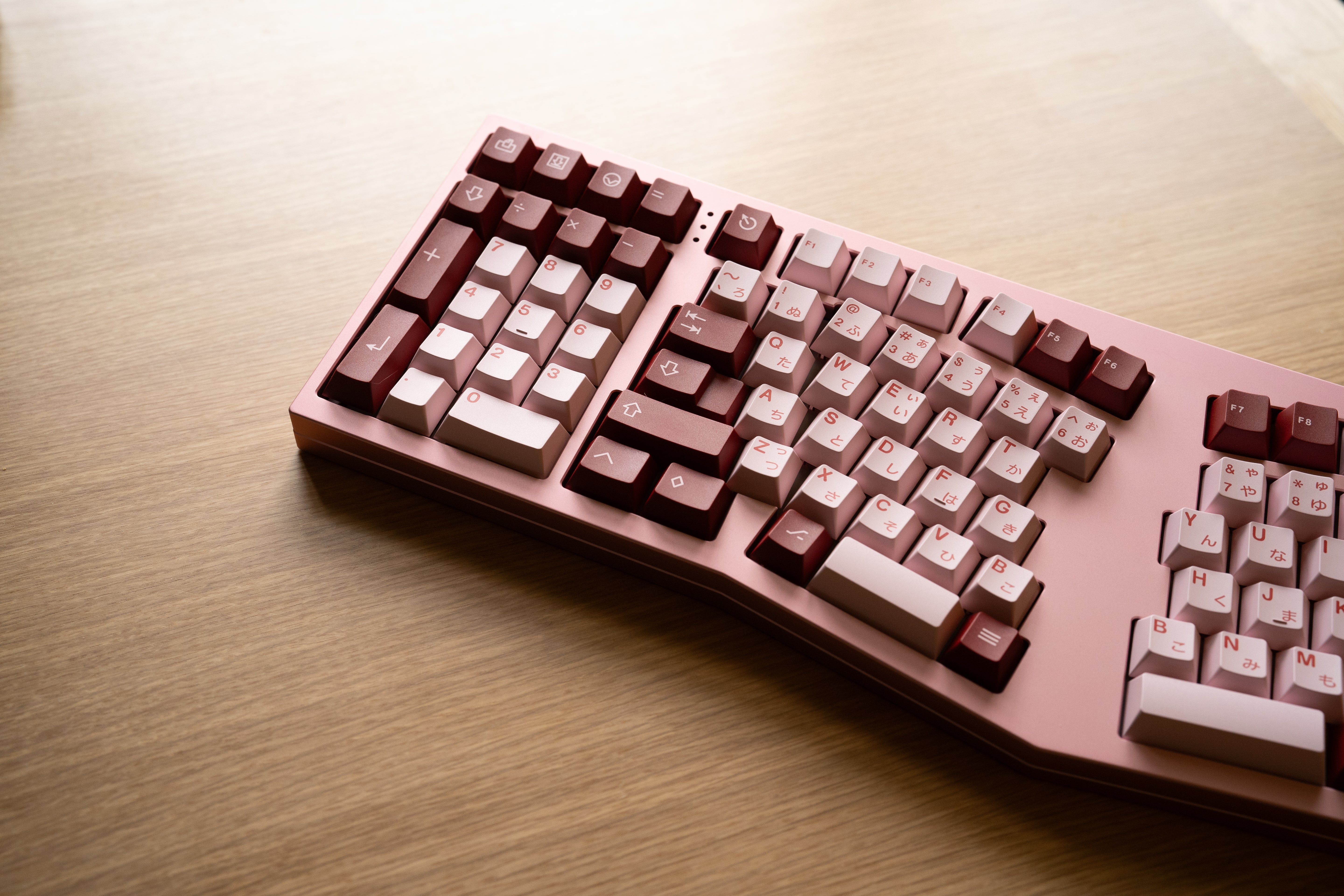

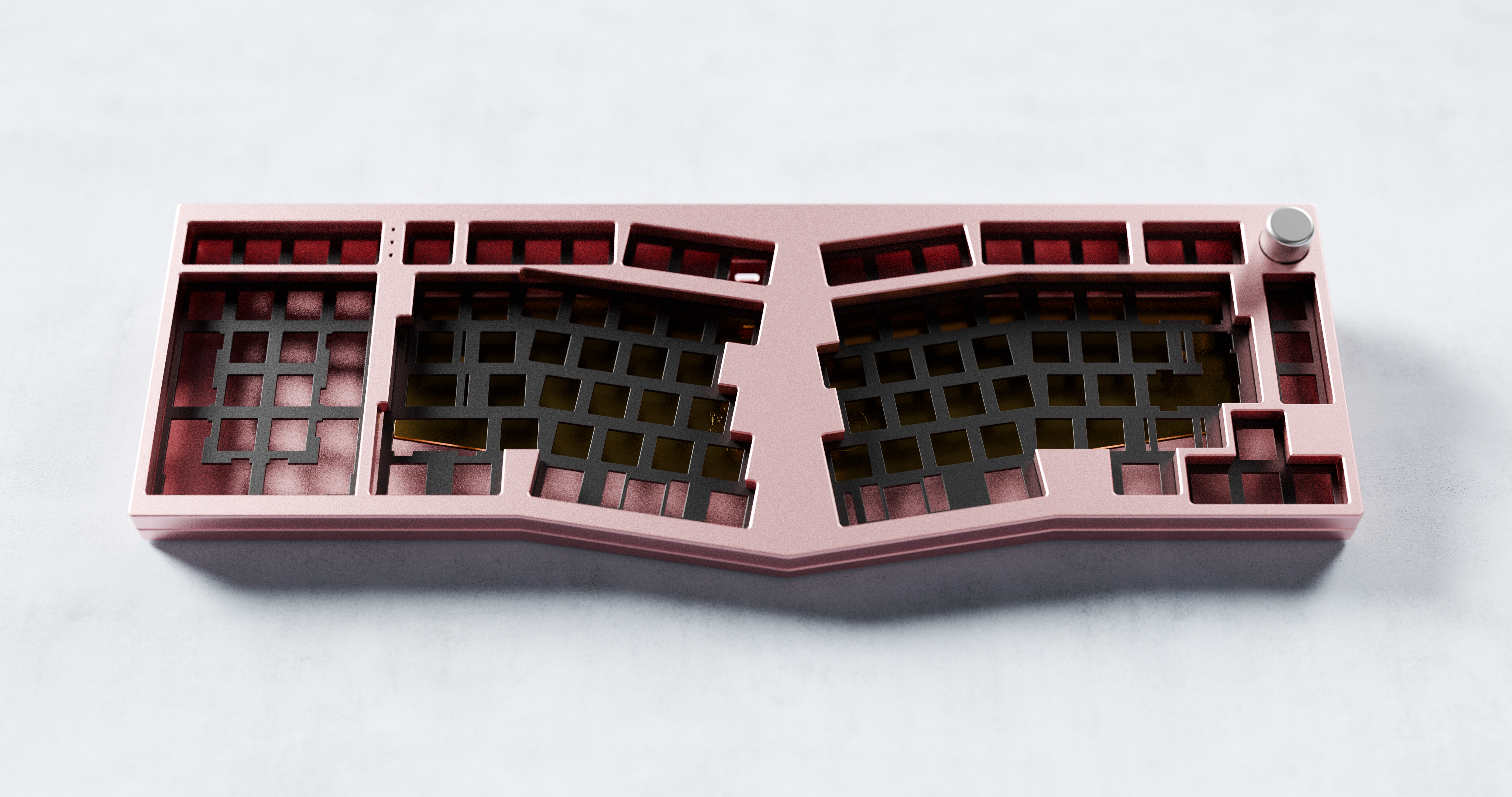

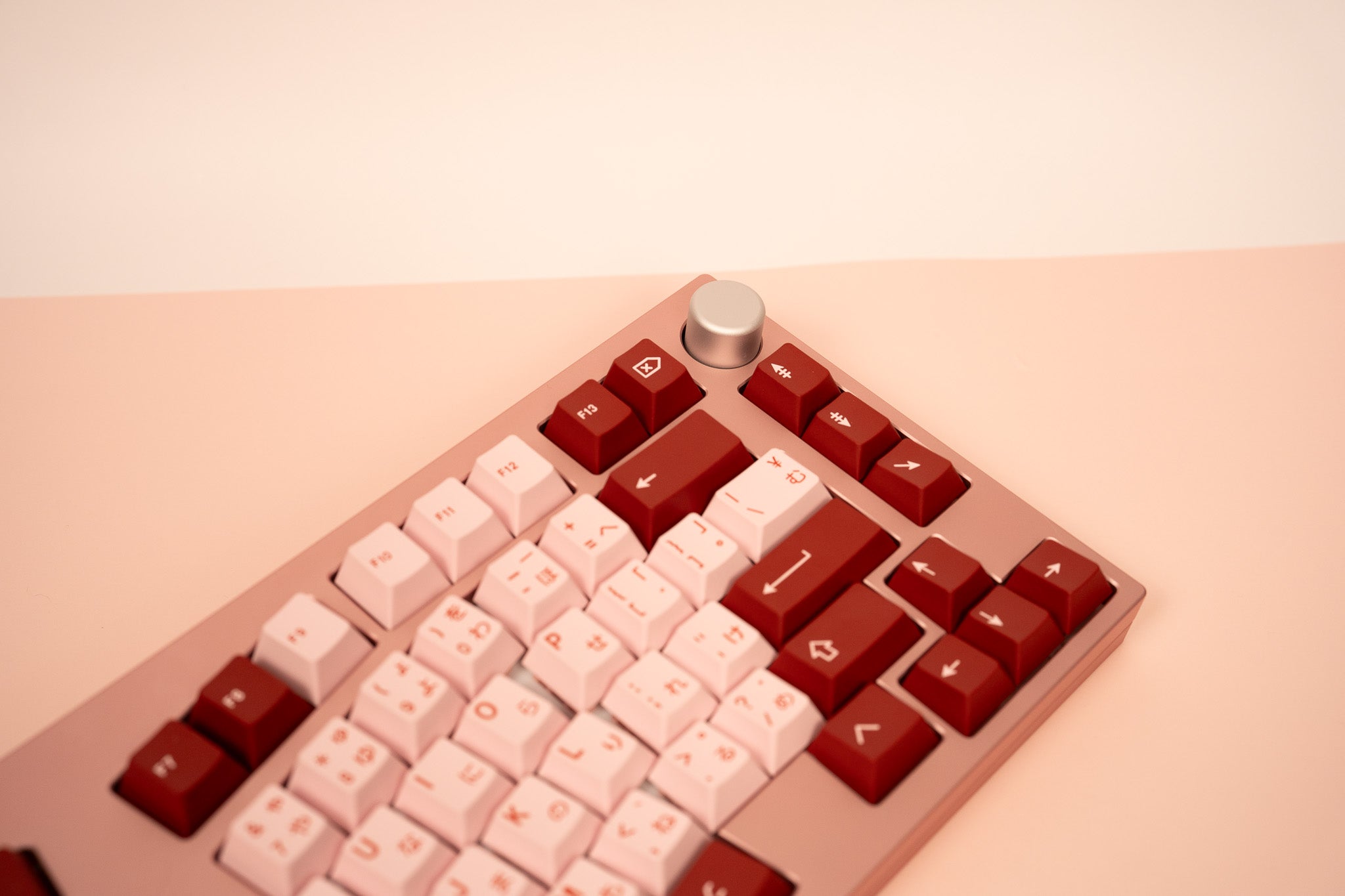

  • Cherry Blossom Pink

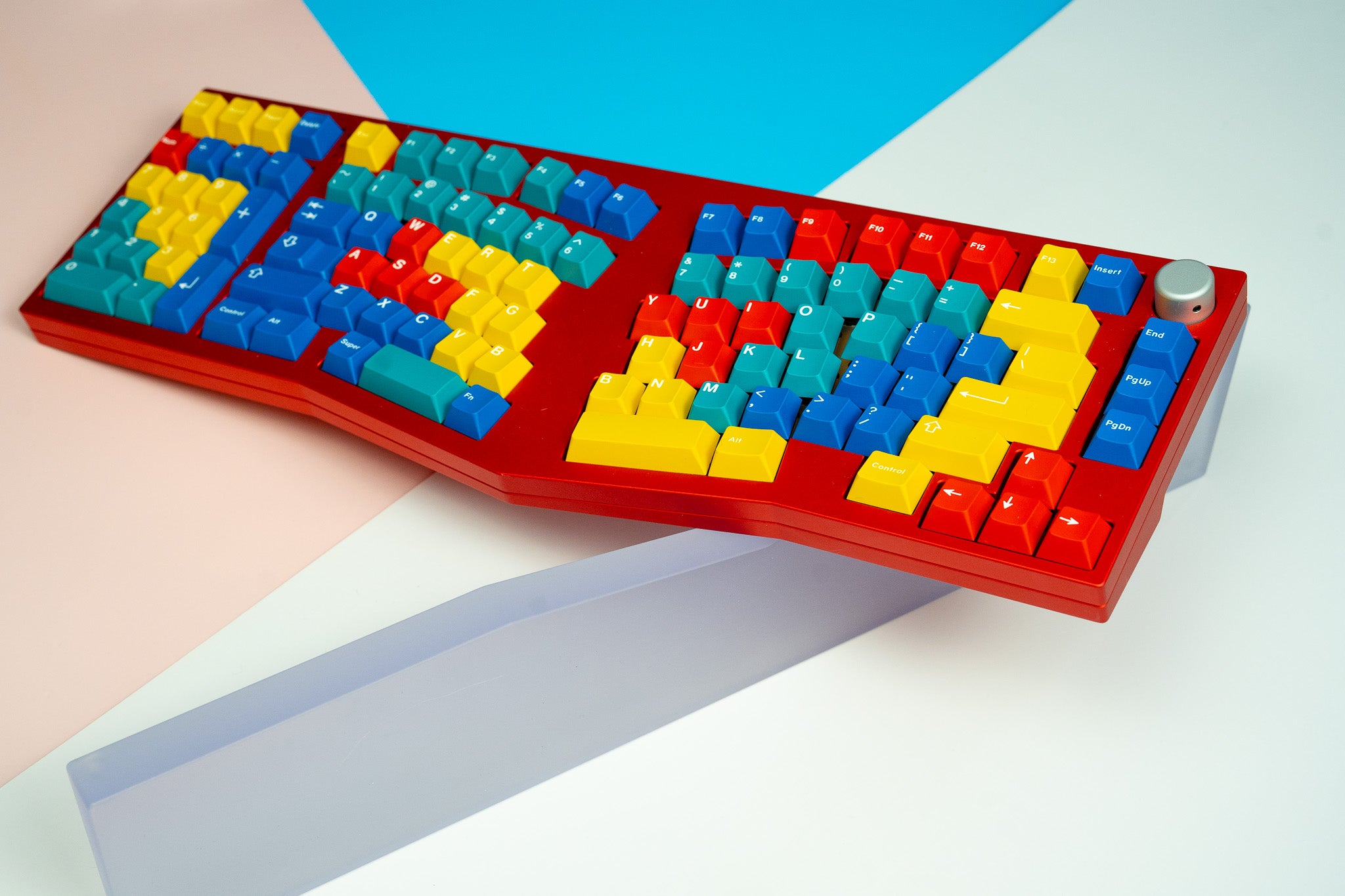

  • Cardinal Red



PCB:

Hotswap PCB Layout Support

Solder PCB Layout Support





Regional Vendors

  • US/ Worldwide - Bowl Keyboards
  • UK and EU - Proto[Typist]





Disclaimers

Kindly note that the images are of 3D renders and are for illustration purposes only. The final colours may differ slightly.



Shipping Time and GB Agreements (PLEASE READ):
These keycaps are set to be shipped out in Q4 2024.

Please note that this is a Group Buy. There can be delays and set backs. The timeline is only an estimate. By adding this item to your cart and purchasing you agree that you understand everything above. You will be charged immediately for this item. There are no refunds or cancellations on these orders. Please do not purchase this item with other group buys. Only the items specified in each product picture are included with that particular product.
