(Group Buy) Dune65 Keyboard Kit

Sale price£270.83
Case Colour: Deepsky (grey)

Case Colour

PCB & Layout: Winkey Solder

PCB & Layout

Weight Material: Brass

Weight Material


Closing Date: October 10th 2024

Expected Shipping time: Q2 2025



Inspiration:

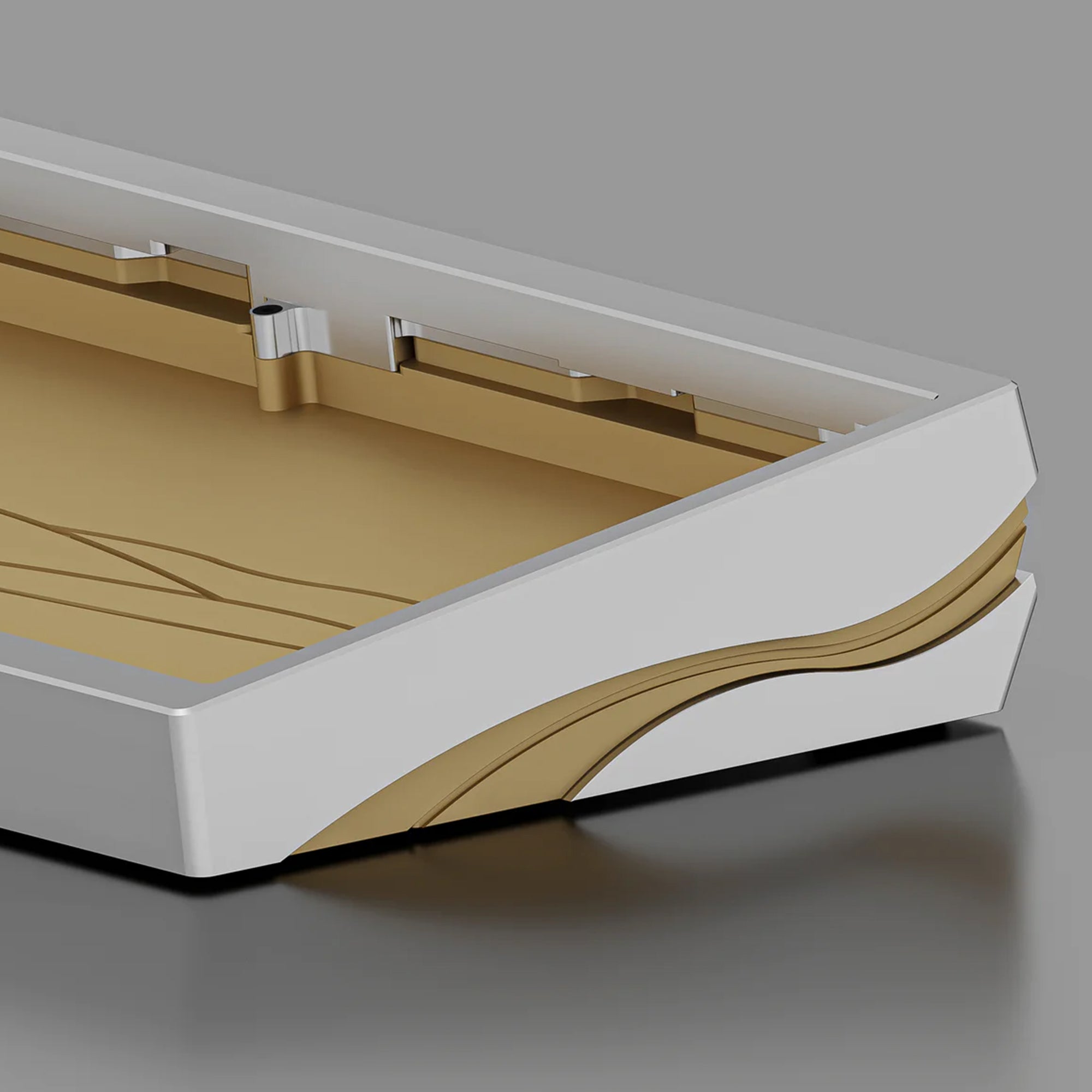

The design inspiration for Dune65 comes from the lines of sand dunes formed by the wind.

We aim for its shape to be aesthetically pleasing while maintaining simplicity, which is why we have eliminated logos and text, focusing instead on the most basic elements of points, lines, and surfaces to refine its form.

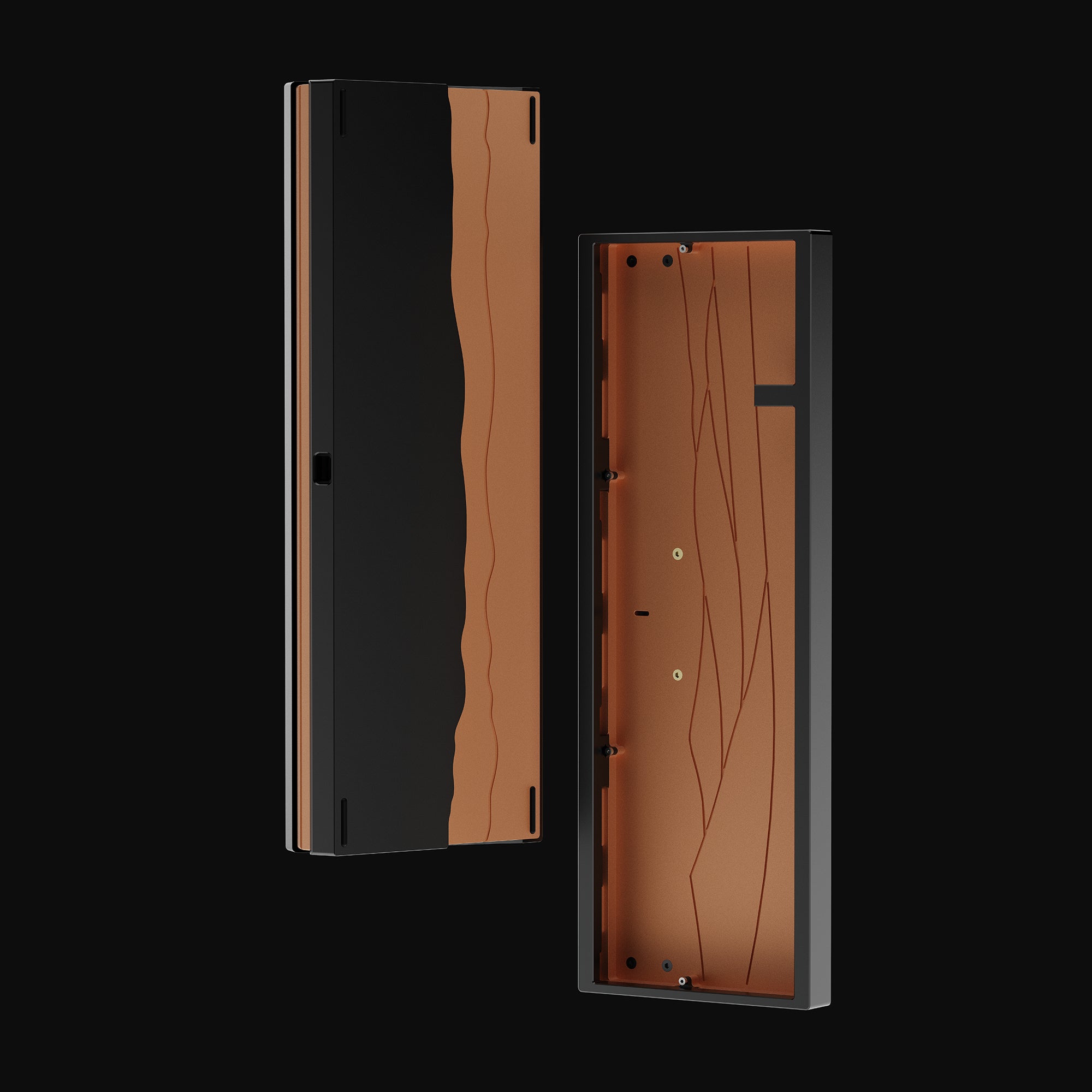

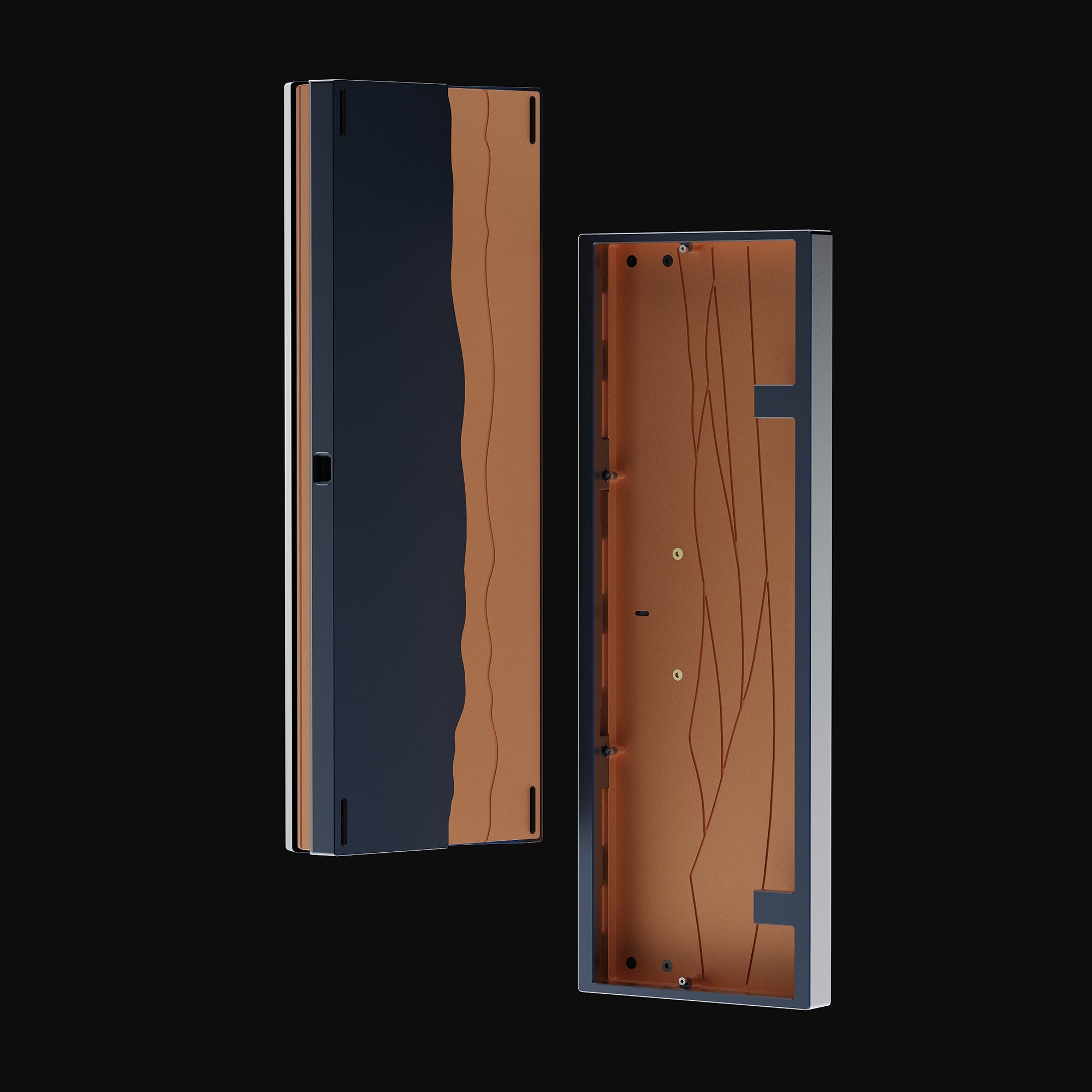

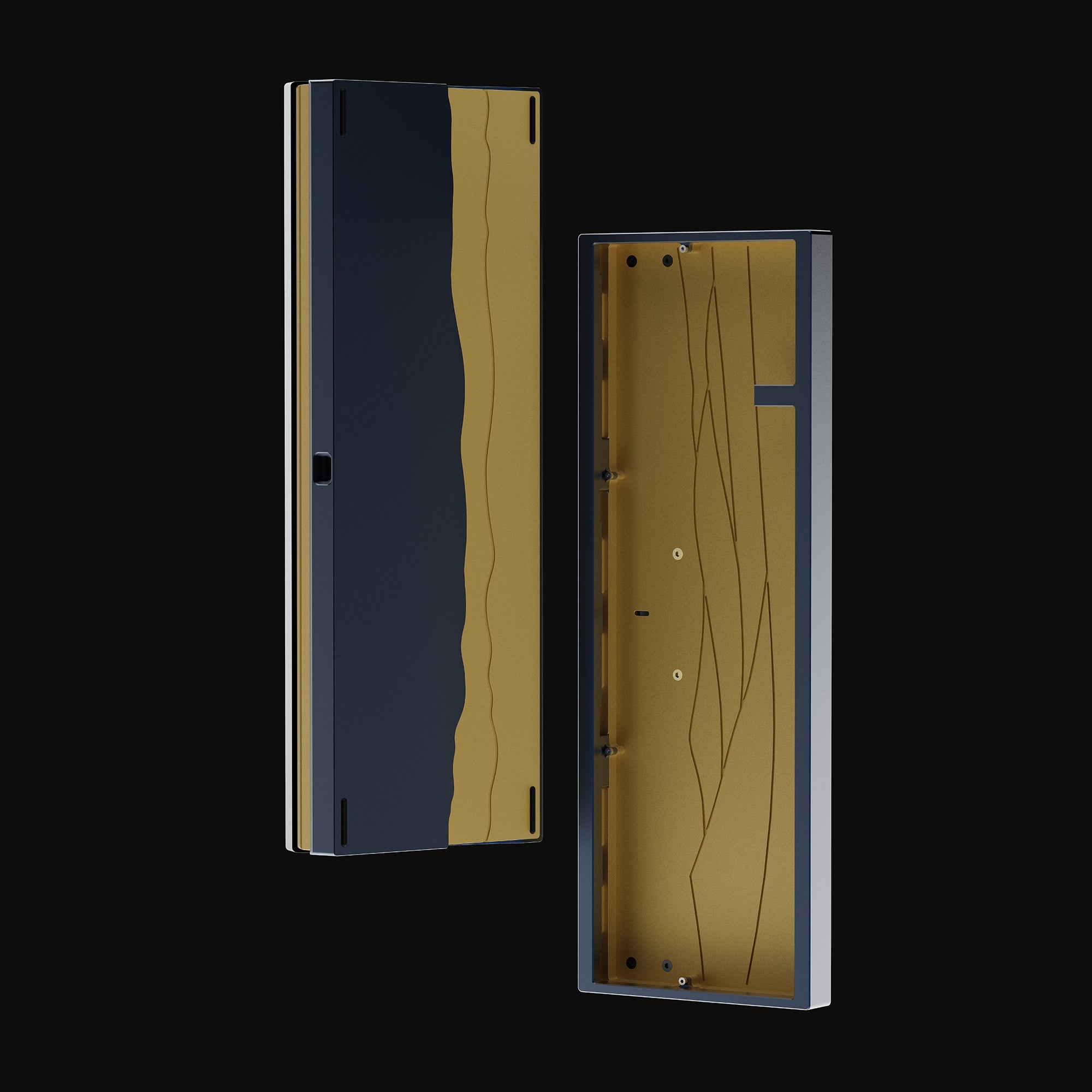

The interwoven lines on the back can represent either a desert stretching across the horizon or layers of rolling dunes, allowing each individual to enrich its connotations through their own imagination.

IC:  https://geekhack.org/index.php?topic=123302.0



Specification:

  • 65% Layout, 6.25U WK Layout/ 7U WKL Layout
  • Anodized aluminum 6063 top case and bottom cover
  • Mid piece in brass
  • Mounting style: Leaf Spring Top Mount + Gasket Mount
  • Typing angel: 8°
  • 1.6mm non-flex-cut hotswap/ solder PCB, support QMK+VIA
  • Default aluminum plate, optional half aliuminum plate
  • Designer: Kenny & Jingvv


Building and typing test videos

Firmware



Kit Includes:

  • Top case x1
  • Mid piece in brass x1
  • Bottom aluminum bar x1
  • Black Aluminm full plate x1
  • Daughterboard and JST Cable x1
  • Foam kit x1
  • PET Insulation sheet
  • Sillicone gasket x1 set
  • H 1.5 screwdriver and bits
  • Force break mod x1 set
  • Bumpon
  • Rubber feet x1 set
  • Carrying case x1
  • Screws x1 set


Layout:

Solder PCB:



Hotswap PCB:



Vendor list:



Disclaimers

Kindly note that the images are of 3D renders and are for illustration purposes only. The final colours may differ slightly.

This is a keyboard kit and does not come with switches and keycaps.


Shipping Time and GB Agreements (PLEASE READ):
These products are set to be shipped out in Q2 2025 but please check our updates for the latest information.

Please note that this is a Group Buy. There can be delays and set backs. The timeline is only an estimate. By adding this item to your cart and purchasing you agree that you understand everything above. You will be charged immediately for this item. There are no refunds or cancellations on these orders. Please do not purchase this item with other group buys. Only the items specified in each product picture are included with that particular product.

  • The kit's appearance must have no scratches, dents, or sand holes larger than 1*1mm (the visible surfaces are defined as the six sides: front, back, left, right, top, and bottom after keycaps are installed). Internal defects will be minimized; however, defects caused by anodizing and electrophoresis fixtures cannot be avoided. The quantity of these defects will be controlled, but keeping the number of defects consistent across different colors is impossible. Occasional acid marks from screw holes may occur; small areas will not qualify for after-sales service.
  • The keyboard must function properly without any usage issues.
  • The keyboard must be structurally sound when assembled, with no dimensional interference that would prevent installation.
  • Due to the impact of surface treatment processes, slight color differences between the upper case and the weight are considered normal.
