(Group Buy) Etar87 Keyboard Kit

Sale price£268.33
Layout: ANSI

Layout


Closing Date: October 15th 2025

Expected Shipping time: Q2 2026



The Lore

QFRL100 name was given by me (thebloodyez) to the project as a joke (or obviously I a bad at naming projects.

So what does Etar mean?

Etar(إطار) means in Arabic: whatever covers the outside of a thing, similar to a "border", reflecting both the keyboard engraving design language and its cultural roots to the designer. The name pays homage to the beauty of Arabic architecture and calligraphy, much like the V1 Arch did.
For those familiar with my work, this theme isn’t new as I always try to add some details of things that impacted me.


Addons Available Here

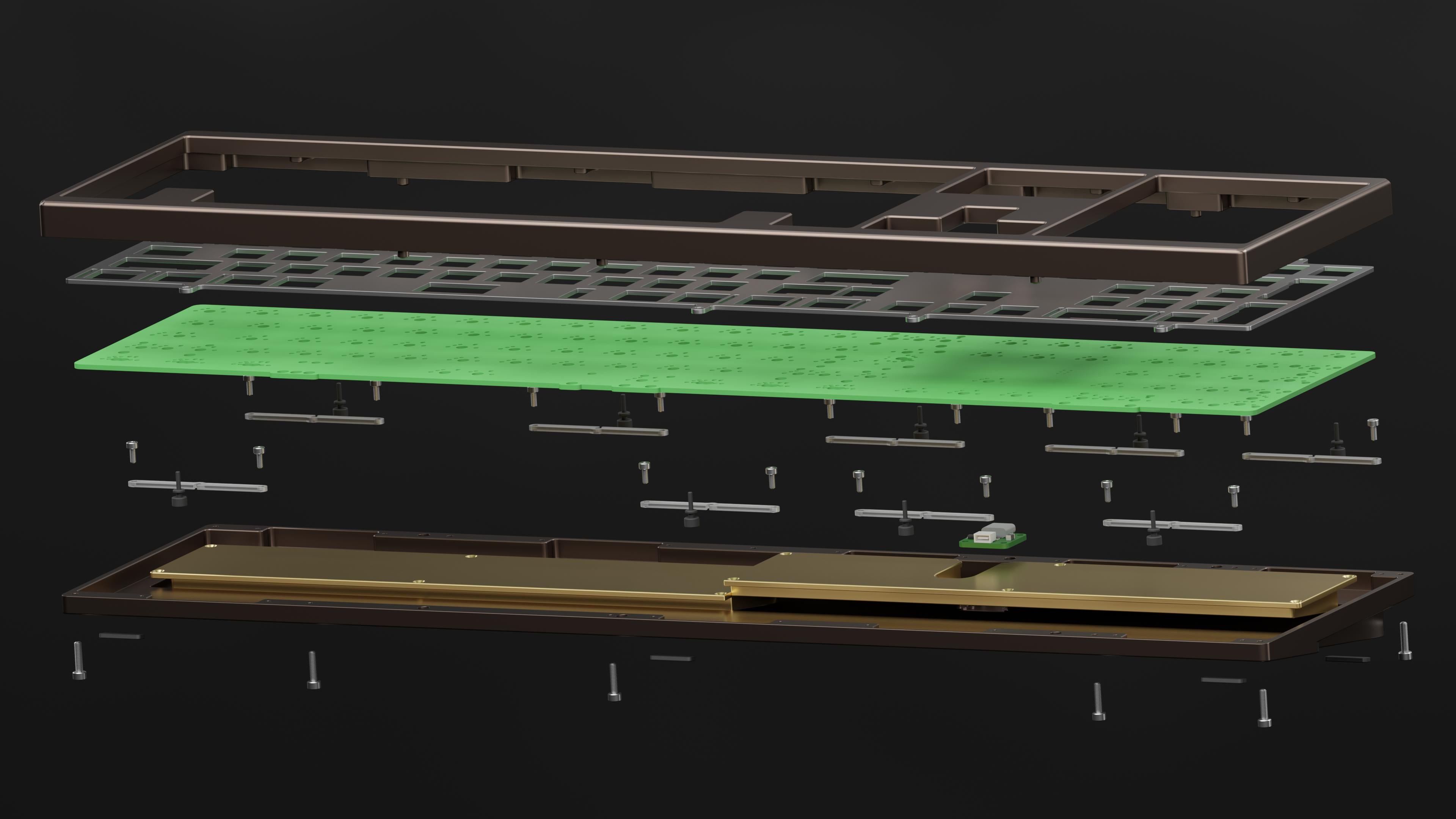

Specification:
    • 7.5 degree 100% FRL.
    • Front H: 17.98 mm (EFH 21.55 mm).
    • Top and bottom mount.

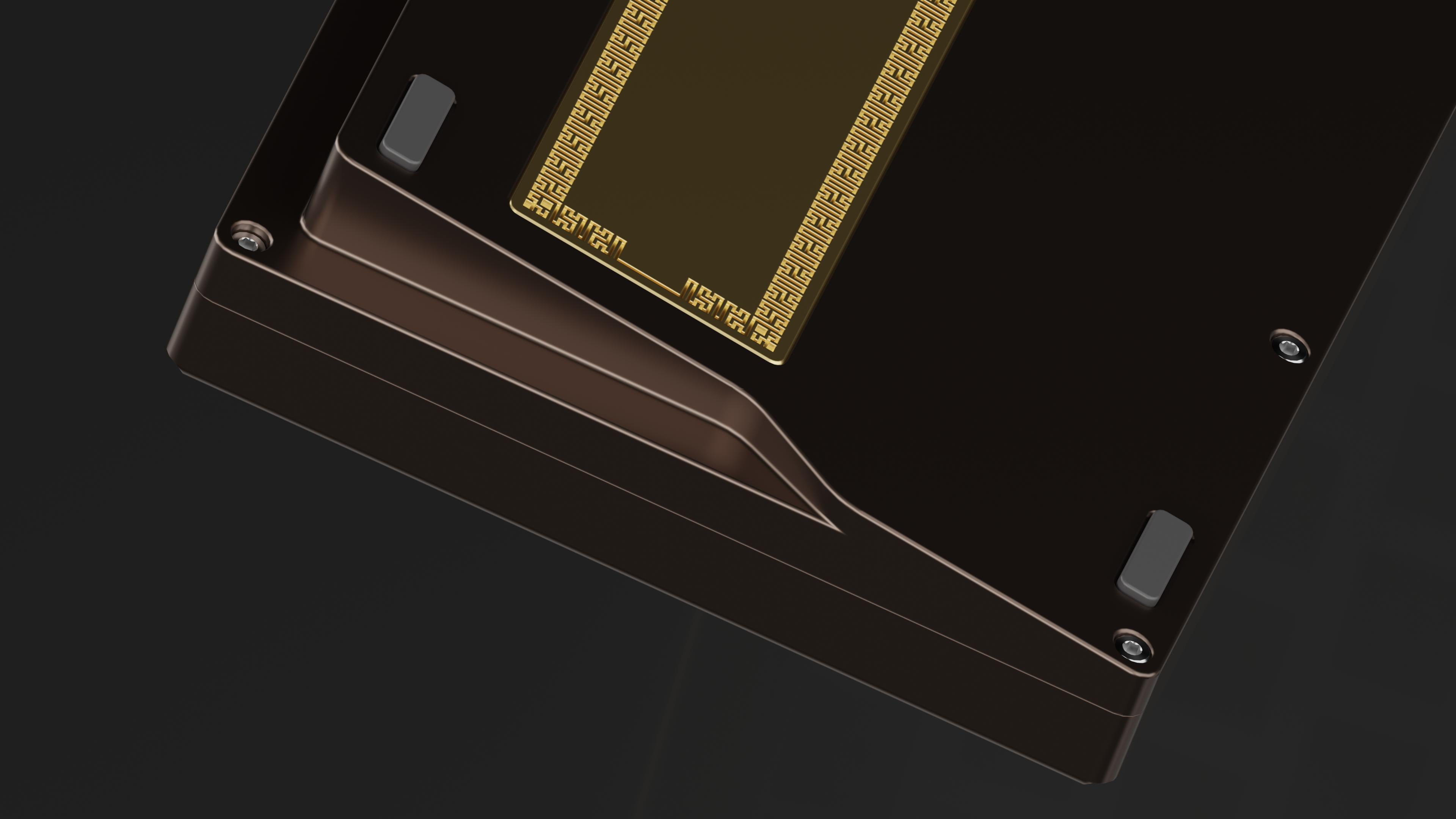

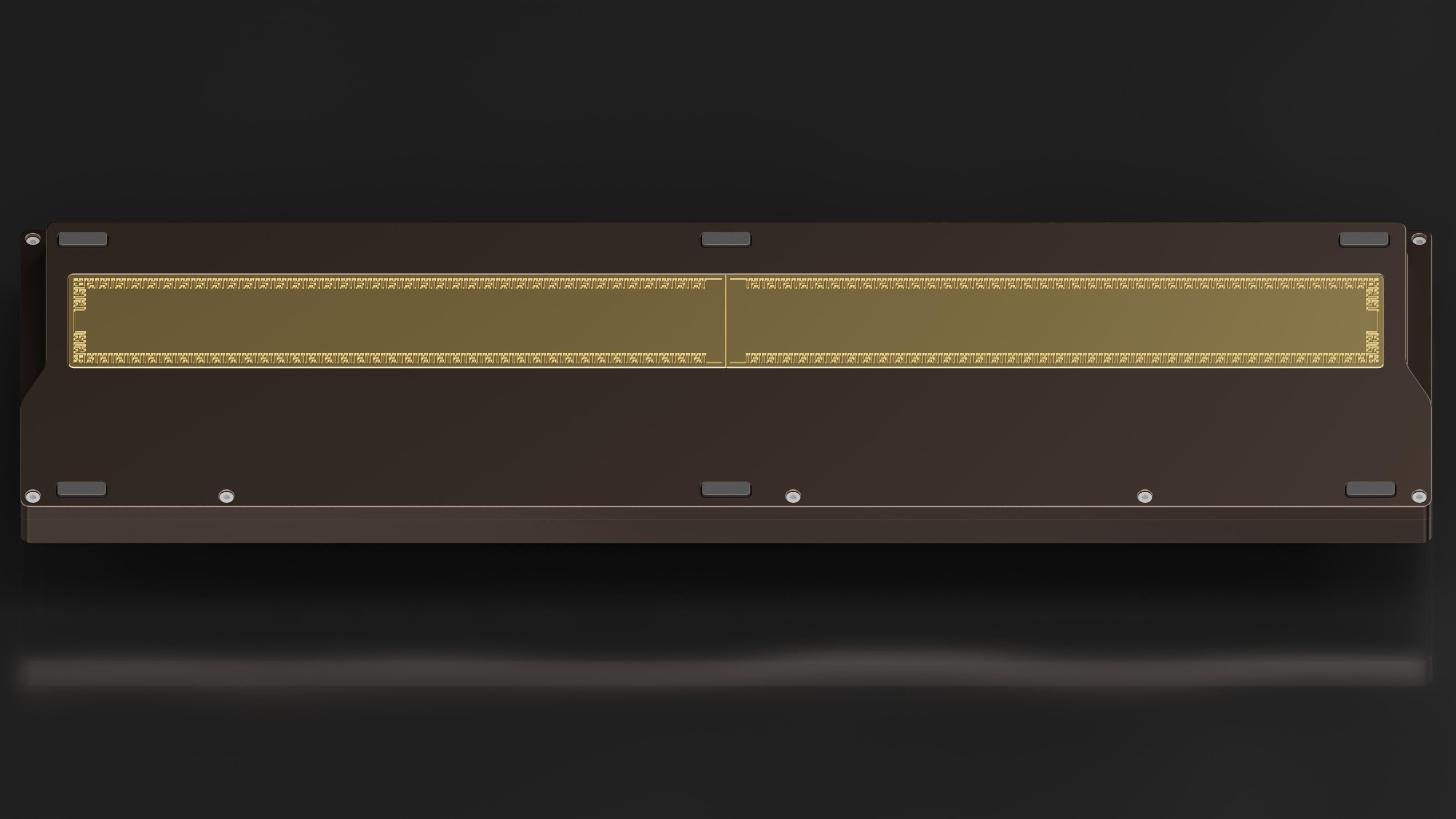

    • Brass through weight.
    • Plate to top case: 7.8 mm.
    • Plate materials (Aluminum, PC & PP).
    • Mounting pads + screws 20 M2×0.4 mm (PC or FR4).
    • QFRL100% PCB 1.6 mm soldered and hot-swap.
    • PCB layout support: 10U spacebar, Split backspace, ISO enter, 1.25U left shift and 1.75U right shift, 2U and 1U on numpad.
    • Firmware: QMK, VIA and Vial.
    • Support Mx & Alps.
    • Weight built: 2.351 KG.
    • PCB MCU: atmega32u4.
    • PCB designed by Thebloodyezkb

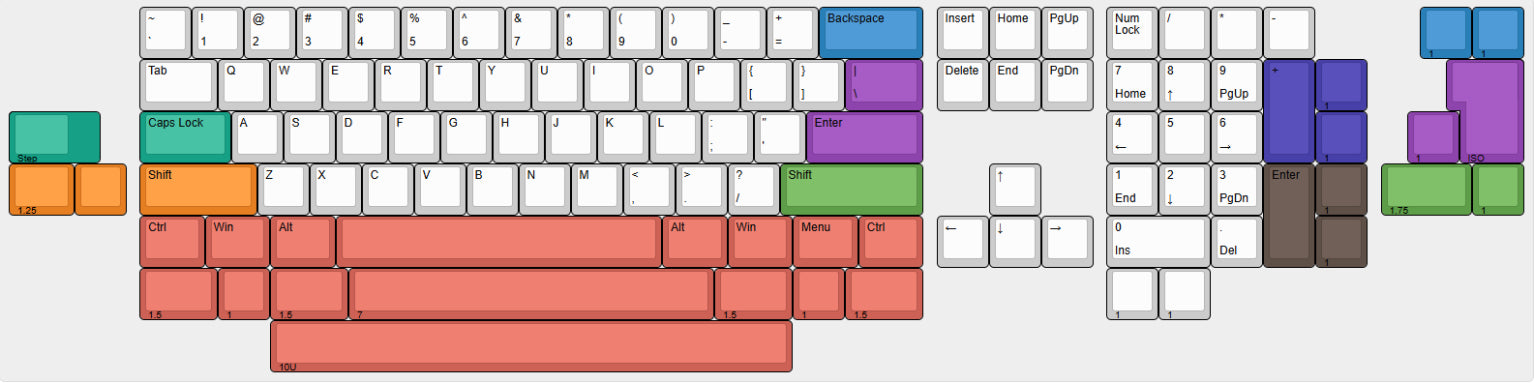

    Solder PCB Layout

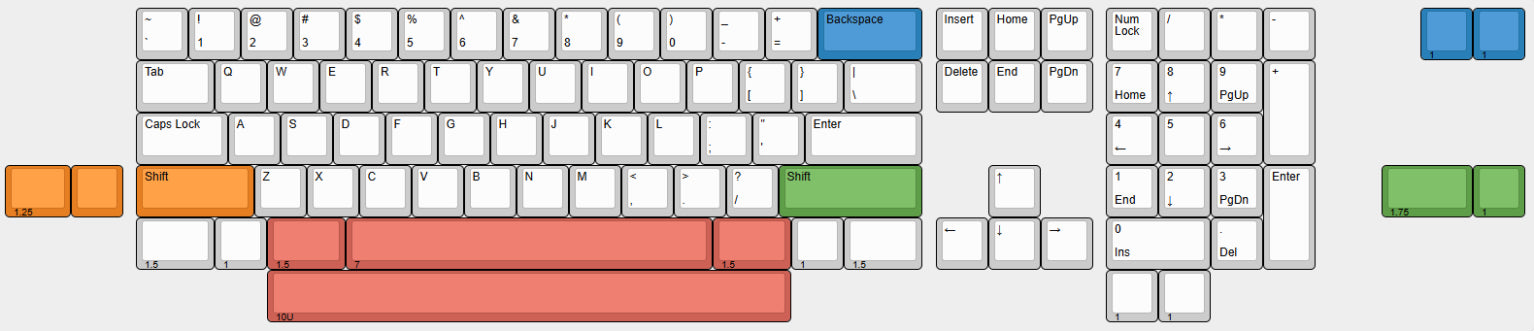

    ANSI Hotswap PCB Layout



    What's Included:

    • Aluminium top & bottom case.
    • Plate of choice (Aluminium, PC and PP)
    • 2x Through brass weights.
    • PCB of choice (Soldered or Hot-swap)
    • UDB (Unified Daughter-Board) + JST cable
    • Screws (extra included).
    • Mounting pads + bottom buttons.
    • Hard carrying case.



    Vendors:

    • Clickclack (US & International).
    • Typo! Works (Taiwan).
    • Cafege (OCE).
    • Keygem (EU).
    • Prototypist (UK).
    • Deskhero (CA).
    • ktechs.store (SG).





    Disclaimers

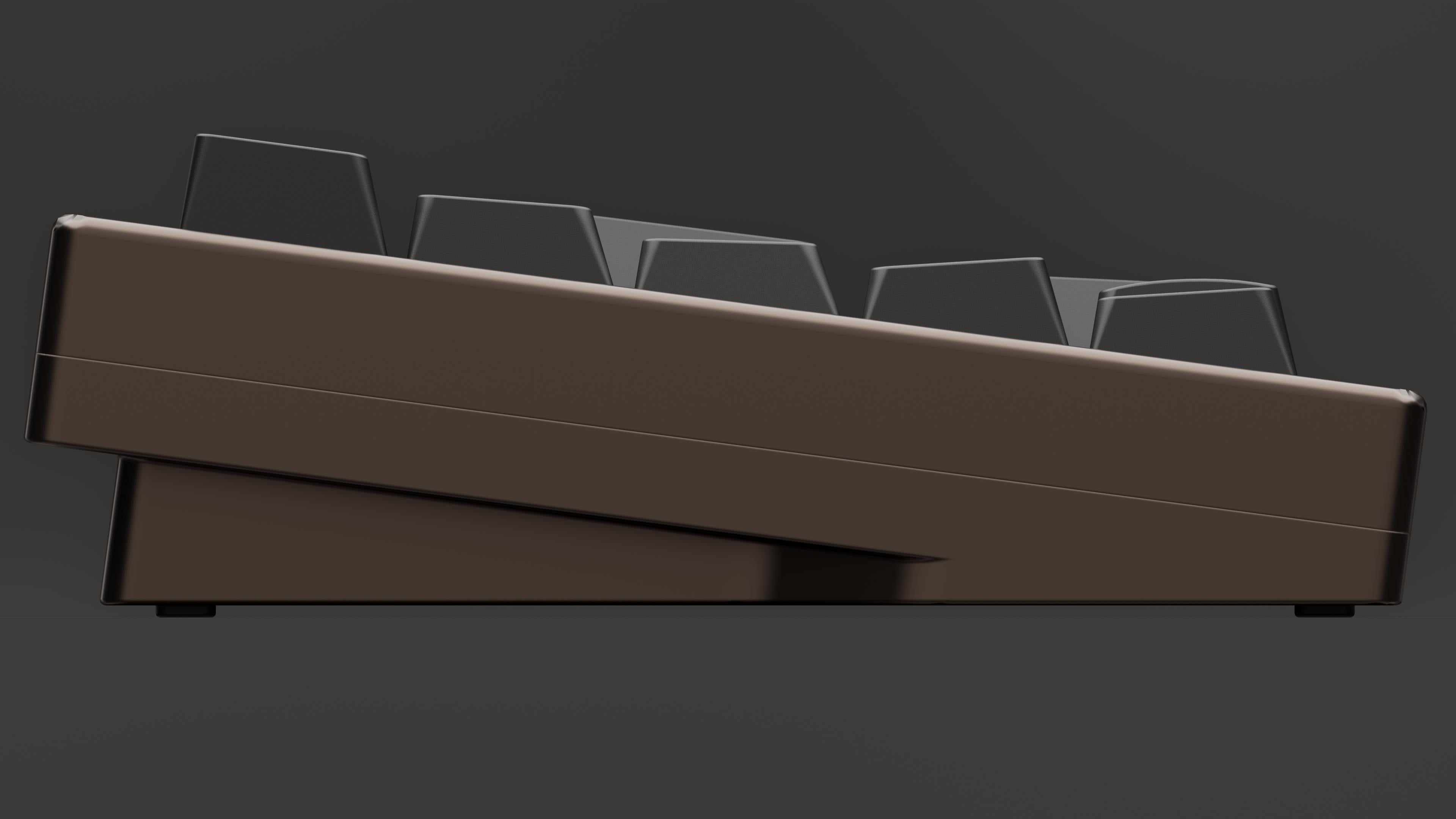

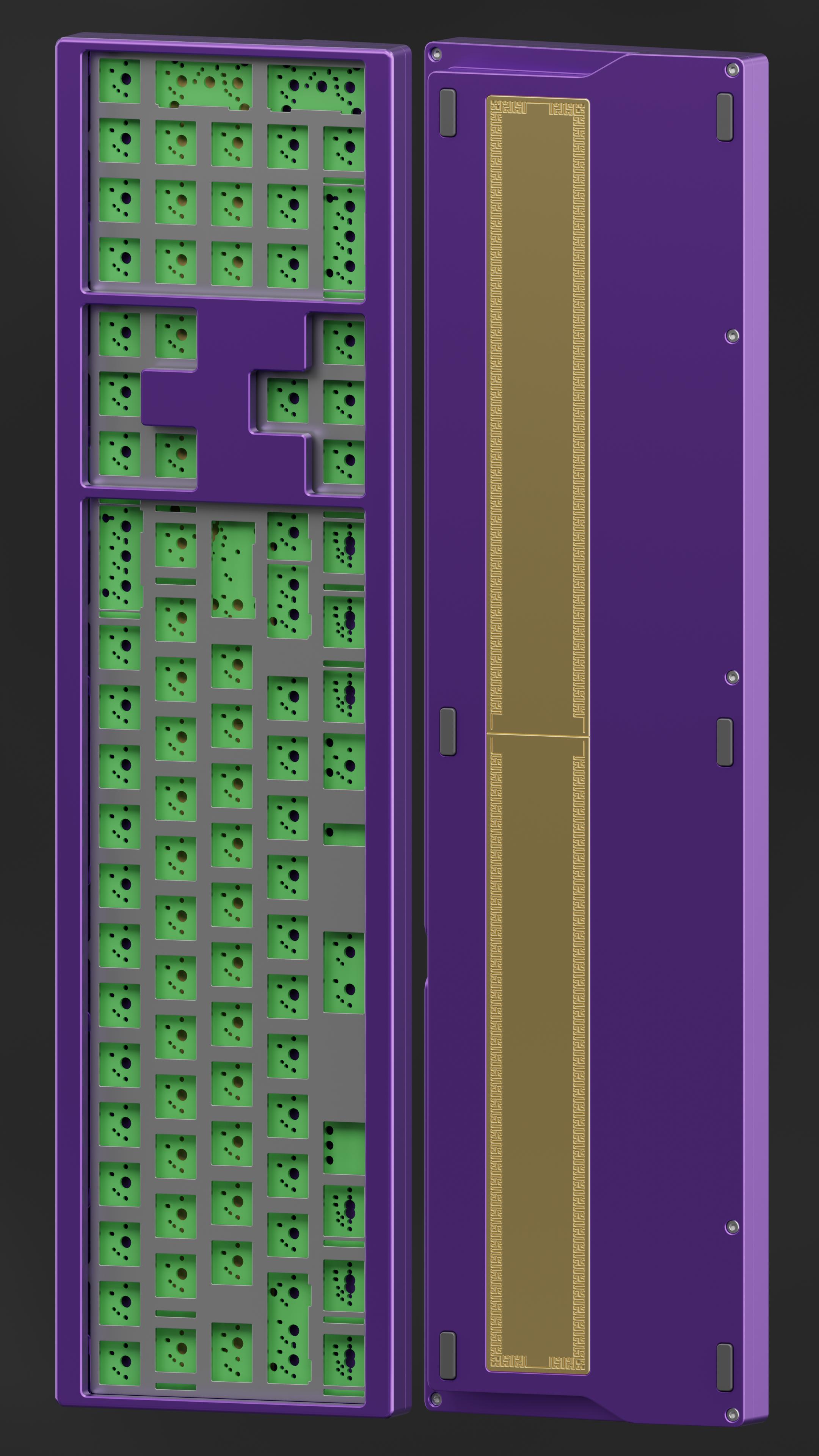

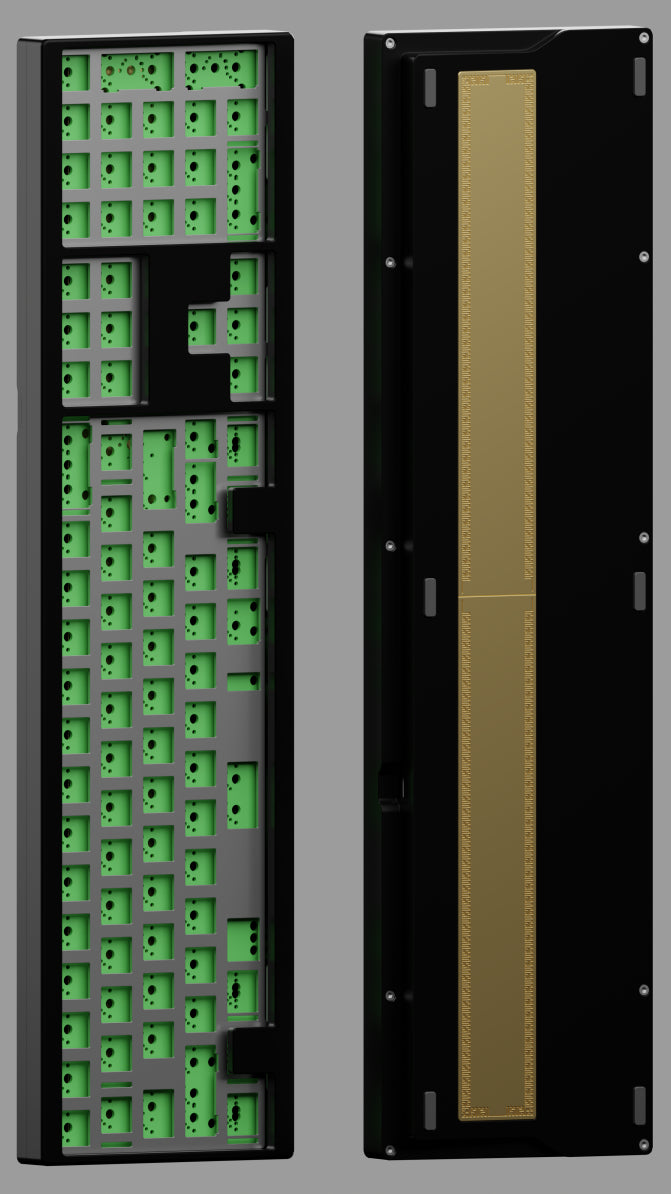

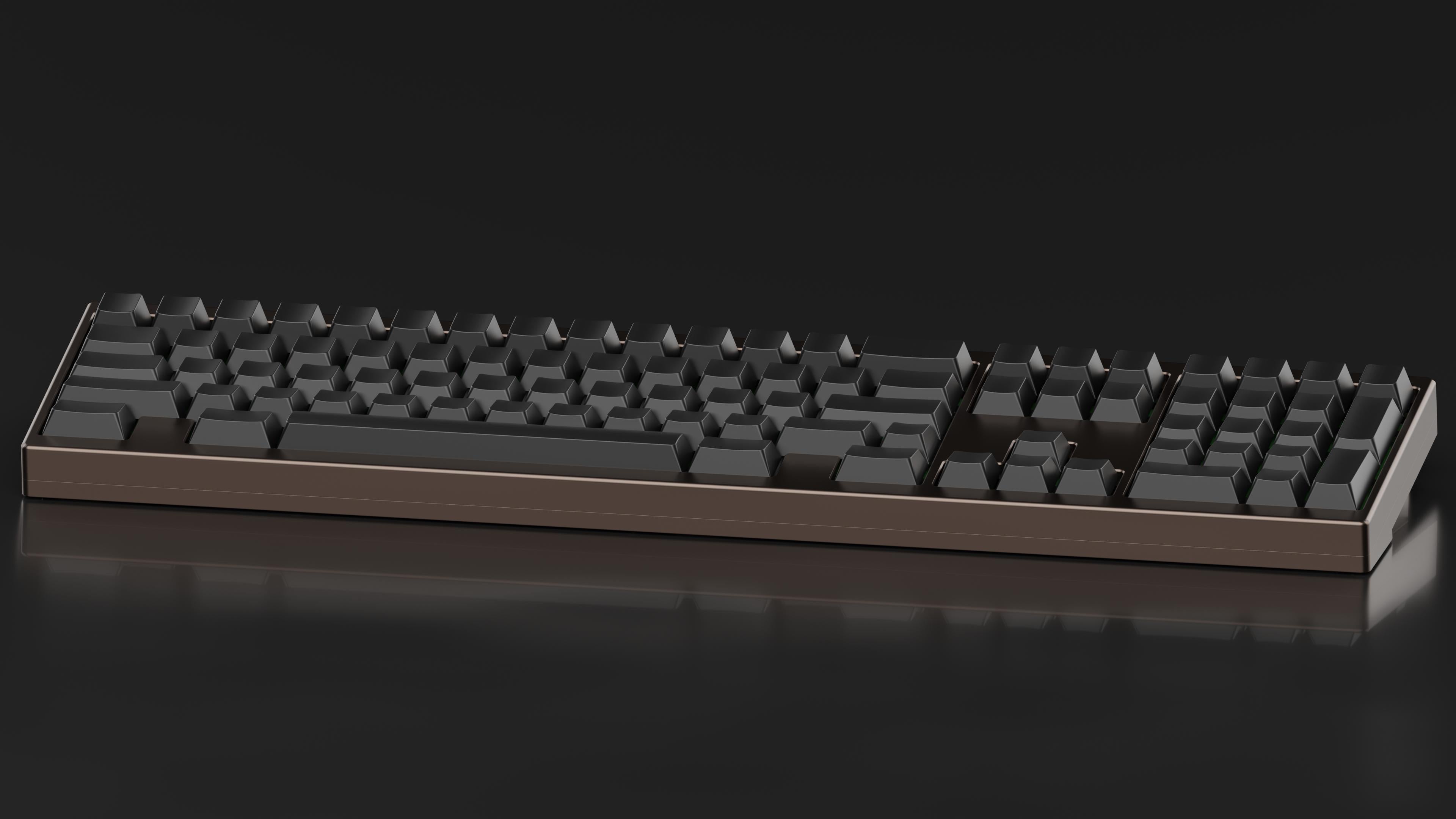

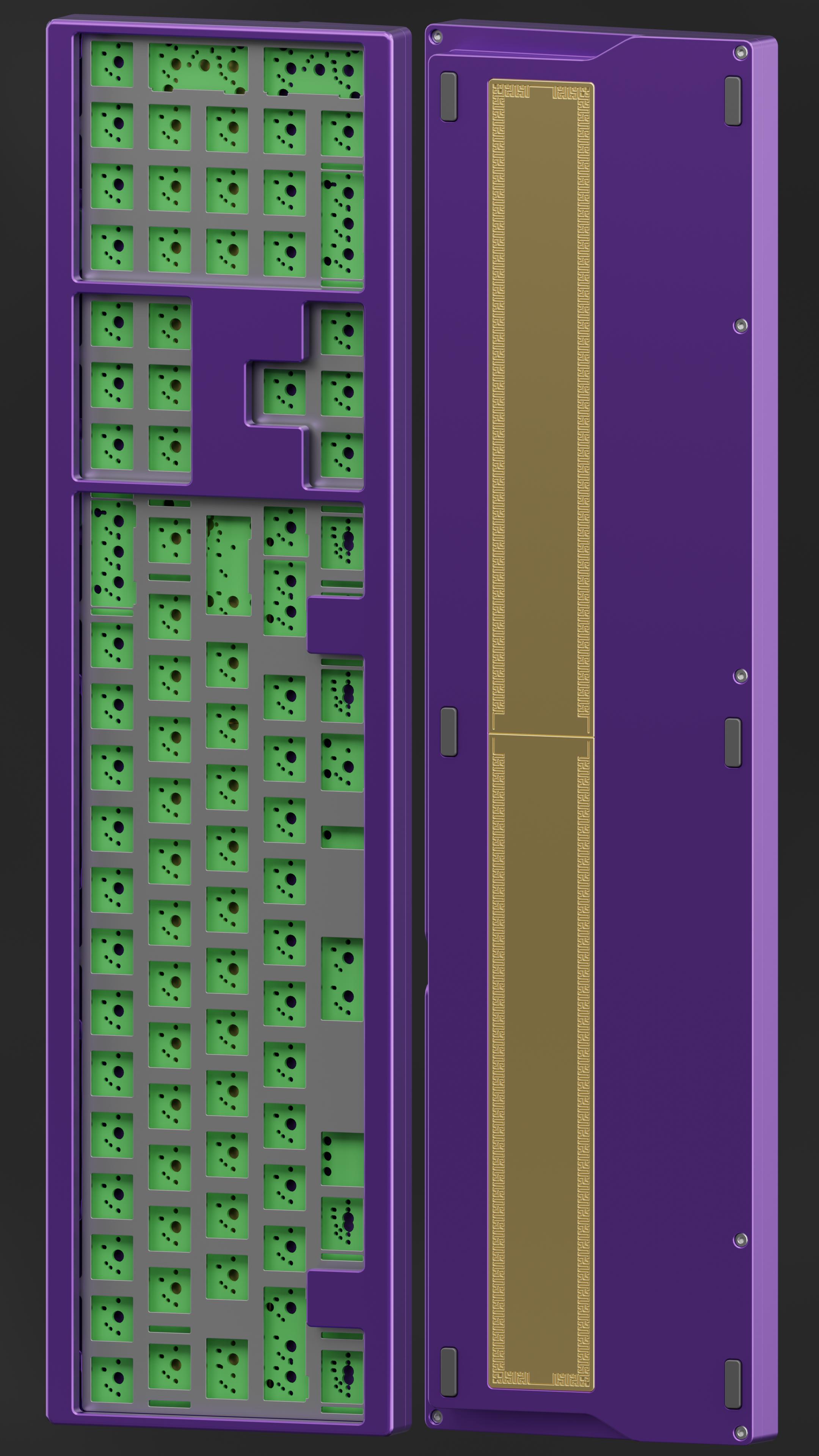

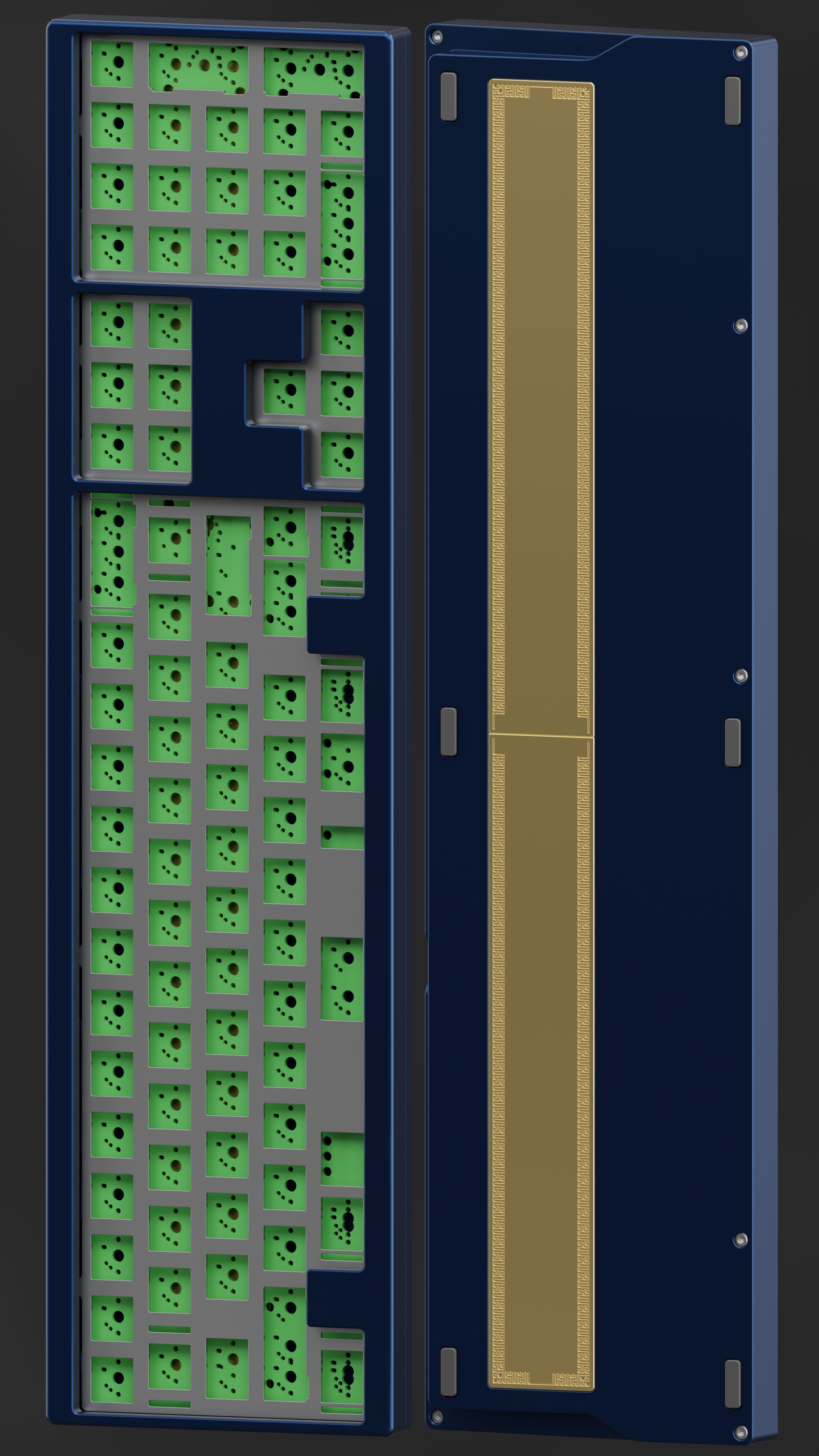

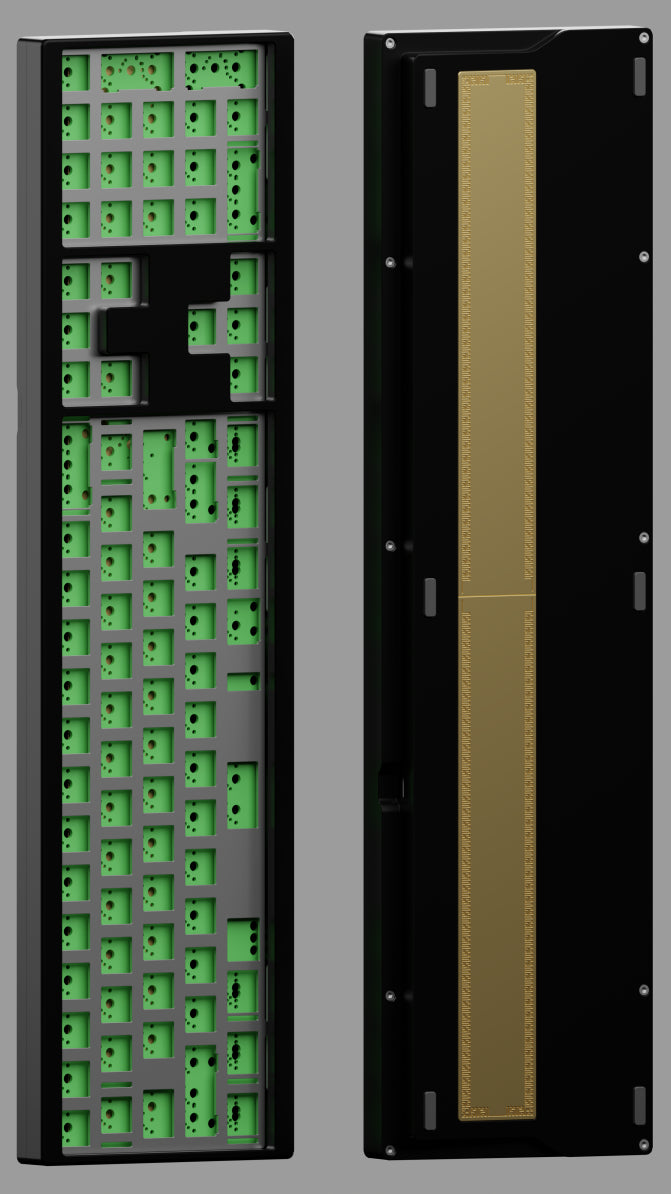

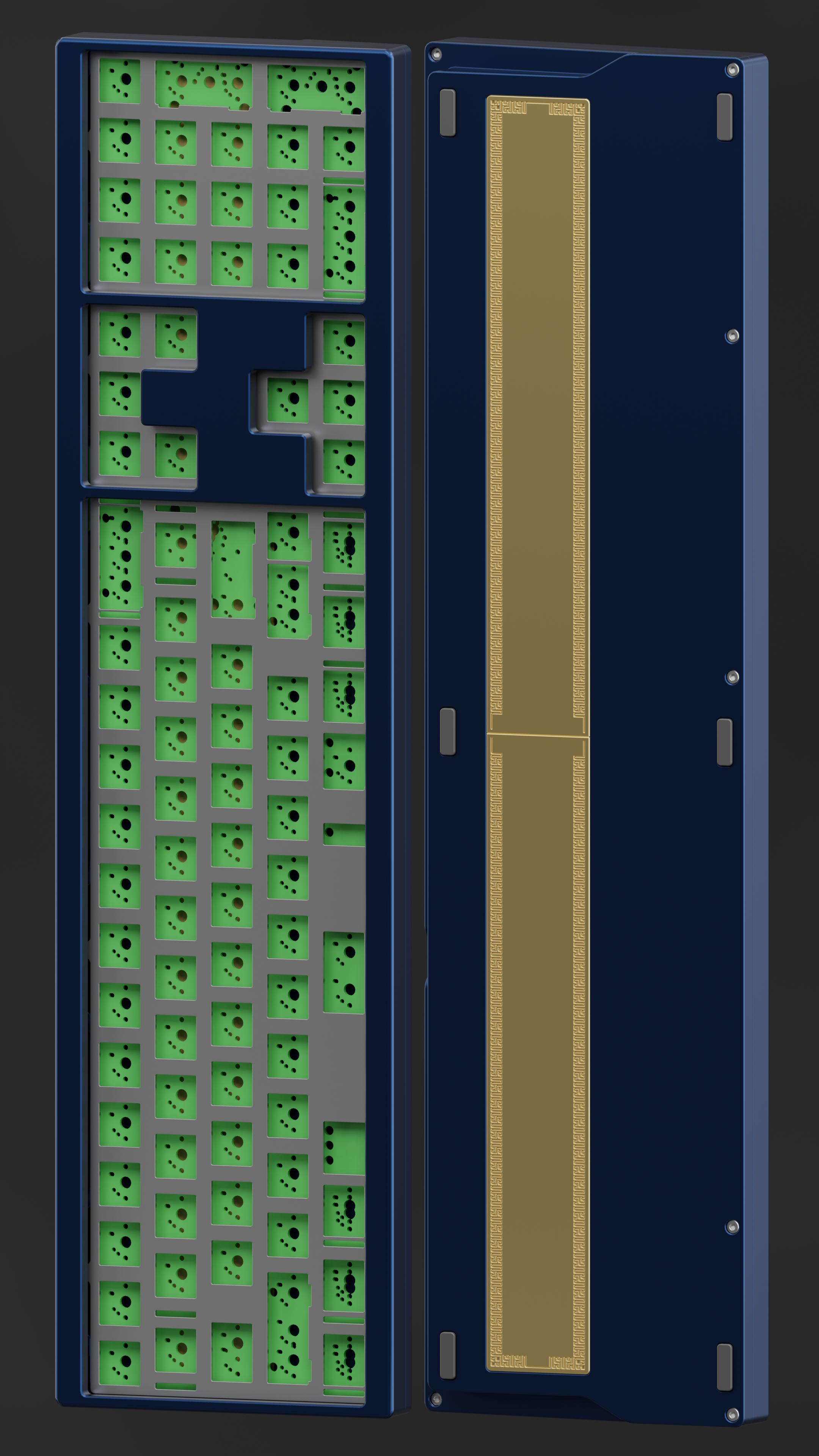

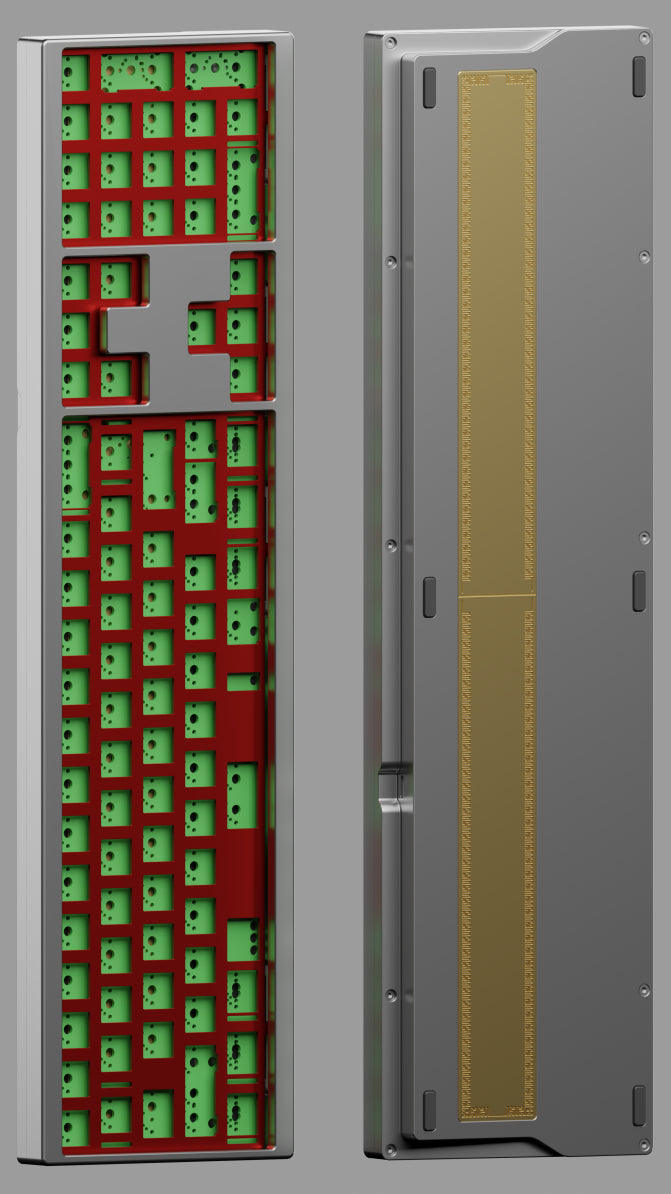

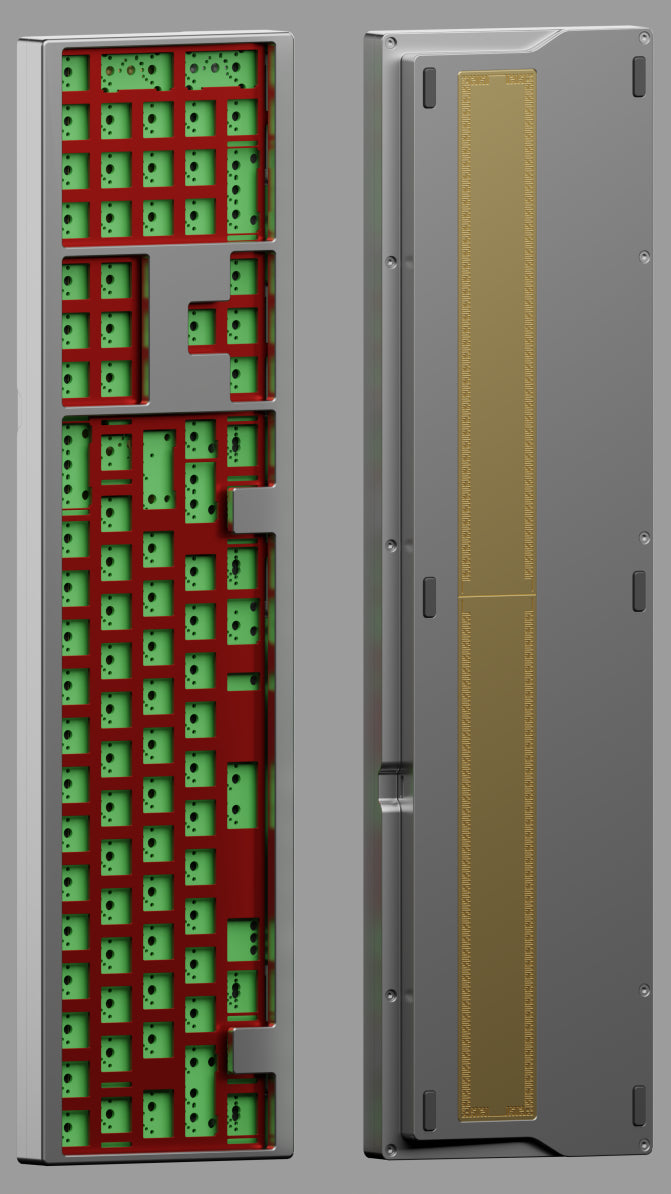

    Kindly note that the images are of 3D renders and are for illustration purposes only. The final colours may differ slightly.


    Shipping Time and GB Agreements (PLEASE READ):
    These products are set to be shipped out in Q2 2026 but please check our updates for the latest information.

    Please note that this is a Group Buy. There can be delays and set backs. The timeline is only an estimate. By adding this item to your cart and purchasing you agree that you understand everything above. You will be charged immediately for this item. There are no refunds or cancellations on these orders. Please do not purchase this item with other group buys. Only the items specified in each product picture are included with that particular product.
