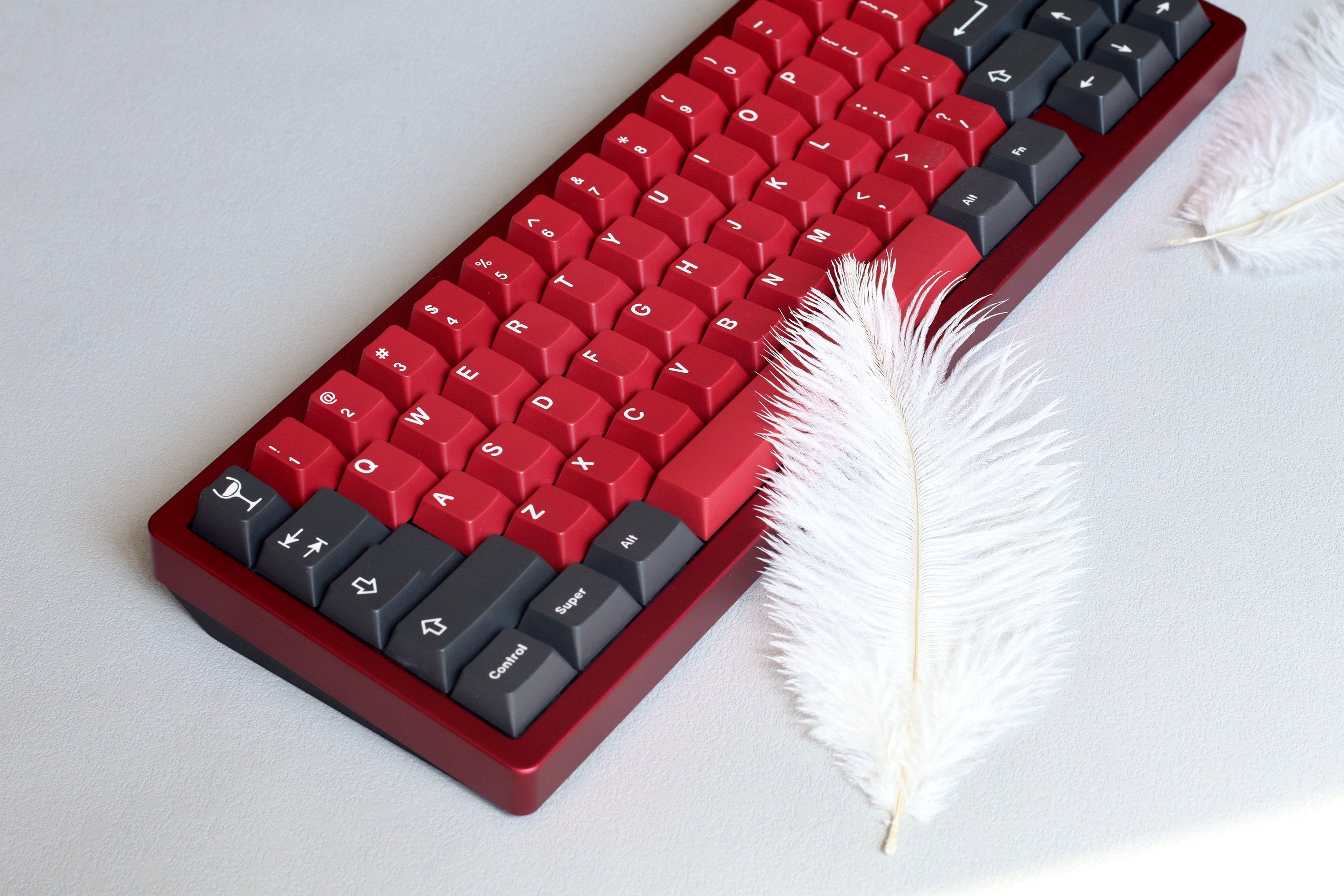

(Group Buy) Jris65 R2 Keyboard Kit

Closing Date: June 12th 2023

Expected Shipping time: Q3 2023

JRIS65 is a budget-friendly and high-quality PCB gasket-mounted full CNC aluminium keyboard that IRISLab designed. To let everyone able to experience the higher-end customisation, IRISLab is working on the typing sound, typing feel, craft, and quality of the kit, which benchmarks mainstream customised keyboards.

What are the differences between Jris65 R2 and R1

• The JST cable has been extended for a better build experience
• Upgraded the material and finish of the screws
• Added a 1.6mm Non-Flex Cut Black core Hotswap PCB.
• Upgrade a piece of Poron Case Foam to Non-Flex Cut.
• The plates has been upgraded to better support ISO compatibility.
• Added the case colours options: Lilac, Orange, Silver, Maroon, Navy Blue, Dark Green, Titanium Grey, Orange&Black, Dark Green&Black.
• Added the PVD Mirror Weight colours options: Blue, Purple, Gradient.
• New limited edition: Red and Black

Features:

• Design concept is elegant, simple, durable, and comfortable
• Full CNC aluminium case: aluminium top case and aluminium bottom case
• Simple and atmospheric front side, and laser engraving of Jris65 on the back
• The weight on the side is the same colour as the bottom so that you can feel the nobility in daily use!

• The separate daughterboard brings you a better typing experience
• PCB gasket jackets or socks make your building more convenient and simple!

Specifications:

• Typing angle: 6°
• Front height: 21.3mm

• PCB gaskets structure

• PCB with USB-C daughterboard

• Both PCB and plate adopt flex cut design

• PCB gasket jackets or socks
• Supports PCB stabilisers
• QMK/VIA Supported (Note: The BT PCB has its drive, so it doesn't support VIA/QMK)

What you can customise for JRIS65?

• Case Colours Options:
• 5 E-coat cases
• E-White
• Lilac
• Orange
• Milky White
• Pink
• 6 Anodised Case
• Black
• Silver
• Maroon
• Navy Blue
• Dark Green
• Titanium Grey
• 6 Colour Combos Case
• Titanium Grey & Black
• Orange & Black
• E-White & Black
• Maroon & Black
• Dark Green & Black
• Navy Blue & Black

• Weight Options:

• Anodised Alu Weight:
• Black
• Silver
• Gold
• PVD Mirror Stainless Steel Weight:
• Gold
• Silver
• Black
• Chroma
• Blue
• Purple
• Gradient
• PCB Options - Solder is standard - upgrade through the Upgrade List:
• Wired Flex Cut Black core Hotswap PCB( 1.2mm, Multi Layout, support QMK and VIA)
• Wired Non-Flex Cut Black core Hotswap PCB(1.6mm, Multi Layout, support QMK and VIA)
• Wired Flex Cut Black core Solder PCB( 1.2mm, Multi Layout, support QMK and VIA)
• 5.2 Bluetooth Hotswap PCB ( 1.2mm, ANSI Layout, support LDN Software)
• BT PCB is cooperating with Li Dana. LDN’s PCB is famous in China because his PCBs are stable and qualified and use friendly. It has its drive and software, which can edit the key mapping. Please check the software driver interface here
• 8 devices can pair with at the same time, and it is easy to switch devices you want
• The power switch is on the PCB, easy to turn BT function on/off
• The fastest response time is only 1.25ms
• Plate Options - Alu is standard - :
• PC
• POM
• FR4
• ALU

Plateless Build Option:

We highly suggest building plateless with 5mm extra plate foam and solder PCB. The 5mm extra plate foam will bring a softer typing feel, and the typing sound will be cleaner. Without the 5mm plate foam it will also work fine, the typing feel and sound are very different.

Note: We highly recommend using a PC/ POM/FR4 plate for BT PCB because the Brass and ALU plate will have a little affection for connectivity.

What's Included?

• 1x Full CNC Aluminium Case
• 1x Weight (Anodised Alu/PVD Mirror)
• 1x PCB (Hotswap/Soldered/Bluetooth)
• 1x Plate (PC/FR4/Alu/POM)

• 1x Type-C Daughterboard with JST Cable

• 1x IXPE Foam

• 1x Poron Plate Foam

• 2x Poron Case Foam

• 1x Masking paper for PCB

• 10x gasket jackets (use socks above the USB- type C port)

• 20x gasket socks

• 1 Set of PCB stabilisers O-ring

• 1 Set of Footpad

• 1x Silicone pad of battery compartment (We include this as default, so you don't need to consider choosing which PCB to be the default)
• 1x Battery (Only for the Bluetooth version)

• Gift (will not send make-up or replacements)

• 1x USB-Type C keyboard cable
• 1x Carrying Case
