(Group Buy) Jris75 Keyboard Kit - Lilac (PVD)

Sale price£162.50
Sold out
Weight Type: Black PVD Weight

Weight Type

PCB Type: Solder PCB (Flex Cut)

PCB Type

Plate Type: PC (non-Flex Cut)

Plate Type


Closing Date: March 12th 2023

Expected Shipping time: Q3 2023



Addon items available HERE

The GB units will make some improvements compared to the prototype:

  • Add the alignment pins where the gasket silicone column is installed, so the internal will not move up or down after assembly.
  • Changed the per-key flex cut plate to a regular flex cut to avoid the PCB may hits the bottom case and improving the typing sound.
  • Include a Customized Masking Tape to mod the flex-cut PCB for a better typing sound.
  • Adjusting the hotswap PCB socket direction of the multi-layout Hotswap PCB to be compatible with the 6.25U and 7u.
  • The two bottom-case foams will change one of them as no cut foam.
  • The GB unit of the Per key flex cut PCB will adopt the red line instead of the gold line.




Specifications:

  • Typing angle:7°
  • Front height:21 mm
  • Material:Full CNC 6063 aluminum

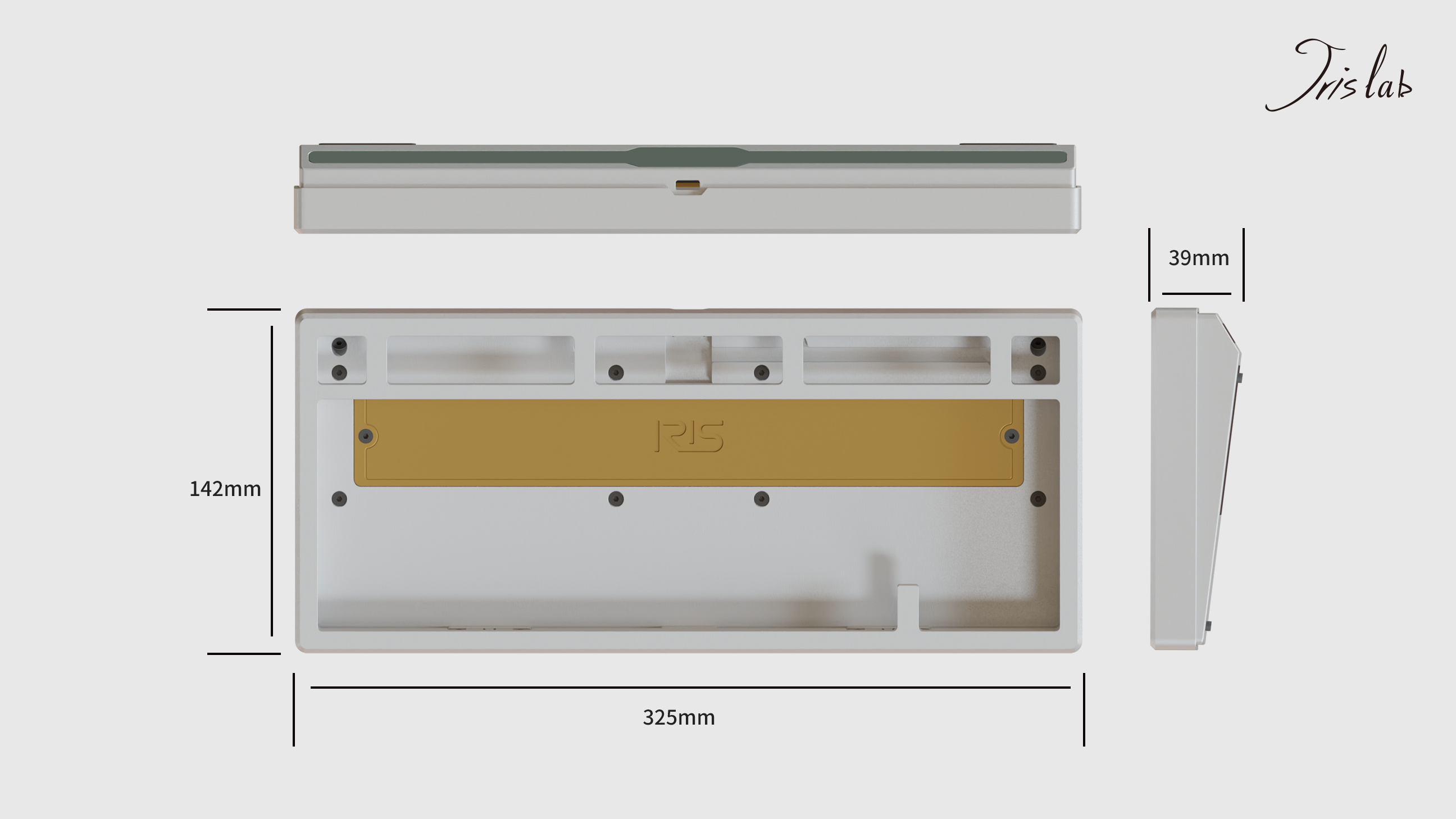

  • Dimension:325*142*39mm
  • Structure:PCB Gasket
  • QMK/VIA Supported(wired)
  • Support PCB stabilizers

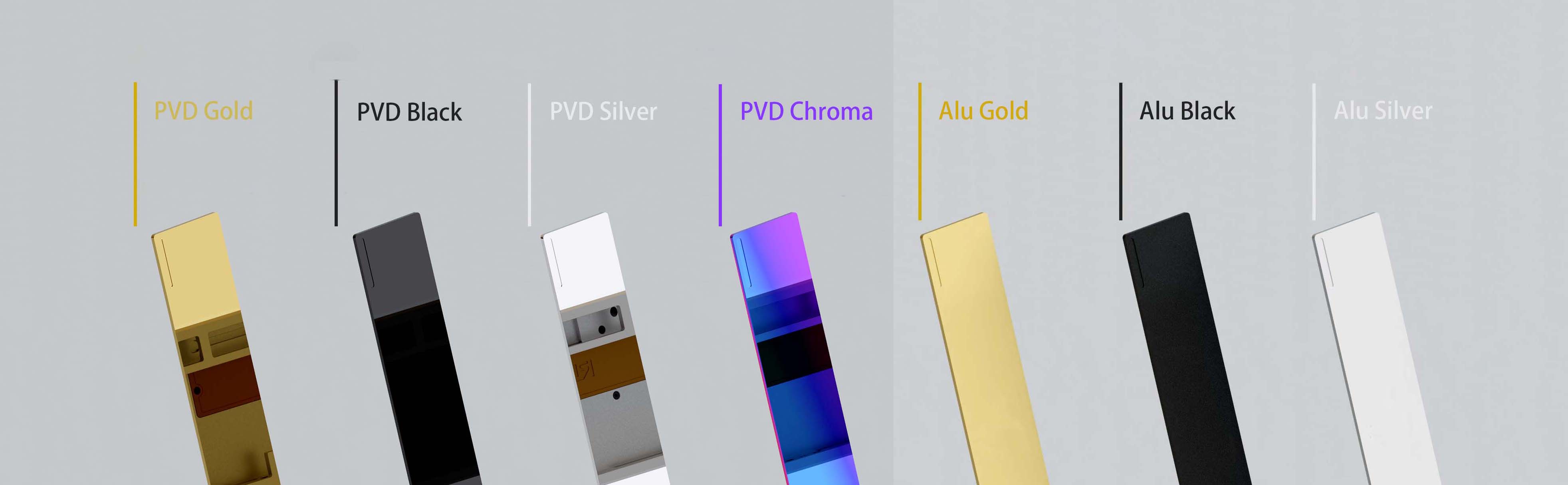

Weight Options:

  • Anodized Alu Weight: Black/Silver/Gold
  • PVD Mirror Stainless steel Weight: Black/Silver/Gold/Chroma


Plate Options:
Flex Cut Plates:

FR4/ALU/Brass(Brass Plate Add-ons Only)
The regular FR4 plate is upgrading to the black core martial at the same price.

Non-flex Cut Plates:

PC/POM

Plateless Build Options:
We highly suggest building plateless with solder PCB, 5mm extra plate foam
and bottom case foam. The 5mm extra plate foam will bring a more soft typing
feel, and the typing sound will be cleaner. But without the 5mm plate foam, it
will also work fine, and the typing feel and sound are very different.



PCBs Options:

Flex Cut PCBs:


Multi layout Black core Hotswap&Solder PCB supports QMK/VIA

  • Wired QMK/VIA soldered PCB compatible with PCB stabs, split backspace, split left shift key, Step Capslocks, 7U spacebar





ANSI layout 5.2 Bluetooth Hotswap PCB supports LDN Software

  • Wired/Wireless BT hotswap PCB compatible with PCB stabs, Step Capslocks



  • BT PCB is cooperating with Li Dana. LDN’s PCB is famous in China because his PCBs are stable and qualified and user friendly. It has its drive and software, which can edit the key mapping. Please check the software driver interface here.

  • 8 devices can pair with at the same time, and it is easy to switch devices you want.
  • The power switch is on the PCB, easy to turn BT function on/ off.
  • The fastest response time is only 1.25ms
  • The polling rate for the BT PCB is 1ms/1000hz
  • The battery is 4400mAh, bigger battery compartment, more robust wireless mode range.
  • We highly recommend using a PC/ POM/FR4 plate for BT PCB because the Brass and ALU plate will have a little affection for connectivity.


Non-flex Cut PCB

  • ANSI layout Black core Hotswap PCB with RGB Per Key, supports QMK/VIA
  • Wired QMK/VIA hotswap PCB compatible with PCB stabs, Stepped caps lock, split backspace




Per Key Flex Cut PCB( Add-ons only)

  • ANSI layout Black core Hotswap PCB with Per Key Flex Cut, supports QMK/VIA
  • The GB unit of the Per key flex cut PCB will adopt the red line instead of the gold line.
  • Wired QMK/VIA hotswap PCB compatible with PCB stabs, Stepped caps lock



What's in package?

  • 1x Full CNC Aluminum Case
  • 1x Brass internal weight
  • 2 x Weights: Anodized Alu Weight/ Stainless steel PVD Weight
  • 1 x PCB Hotswap/ Soldered/ Bluetooth
  • 1x Plate (PC/ FR4/ Alu/POM)
  • 2x Poron Case Foam
  • 1x Poron Plate Foam
  • 1x IXPE Foam
  • 26x Gasket Silicone column
  • 1xType-C Daughterboard
  • 1x JST Cable
  • 1 Set Anti-Shock Silicone Pad
  • 1 Set of Footpad



Free Inclusions (will not send make-up or replacements as these are not part of the product directly)

  • 1x Customized Carrying Case
  • 1x Customized Type-C Cable
  • 1x Silicone pad of battery compartment (Only for the wired version )
  • 2 x 2200mAh Battery(Only for the Bluetooth version)
  • 1 X Customized PVD Artisan keycaps
  • 1x Aluminium Alloy Screwdriver with 2 replaceable bits
  • 1 x 2 in 1 Switch puller and Keycap puller
  • 1 x Customized Masking Tape(Fit the flex cuts in the PCB perfectly)





    Disclaimers

    Shipping Time and GB Agreements (PLEASE READ):
    These products are set to be shipped out in Q3 2023 but please check our updates for the latest information.

    Please note that this is a Group Buy. There can be delays and set backs. The timeline is only an estimate. By adding this item to your cart and purchasing you agree that you understand everything above. You will be charged immediately for this item. There are no refunds or cancellations on these orders. Please do not purchase this item with other group buys. Only the items specified in each product picture are included with that particular product.



    Each kit comes with fragile labels. Please check the appearance thoroughly before building. If you see any noticeable flaws/scratches on the external surfaces, please take a photo and contact IRISLab immediately. We are not be responsible for any flaws/scratches found after building.

    Due to the nature of the PVD coat, there may be minor, unavoidable dust points/micro scratches on the mirror finish of the PVD weight. The small dust points/micro scratches are only visible at just the right angle of the lighting.

    Chroma PVD Mirror Stainless steel weight has random nature. Each weight may have some slight differences.

    CNC marks and imperfections inside the keyboard case or dents on the subject are not visible when the keyboard is fully built. These are normal and within our quality acceptance.

    On all other surfaces and edges, blemishes under 1mm are approved.

    The bottom of the Solid Aluminum Wrist Rest is defined as a B-level surface because the bottom side is the hanger side during the anodized process. The QC standard for B-level cover: blemishes under 1cm are approved on the surfaces and edges. Three or fewer fine trachoma, dust spots, etc., are within our quality acceptance (The diameter is under 0.5mm). Color uniformity is a normal phenomenon around the process hole, but it is guaranteed that it will not be visible after installation.

    Other than the case itself, all parts with cosmetic imperfections will not be replaced unless the function is damaged/defective for usage.

    Warranty only applicable for the first owner who purchased on our website or at our collaborative shops, with proof of purchase such as order number and confirmation.

    Our warranty covers the PCB for one year of use or if dead on arrival without any modification.

    Broken parts due to any human error will void your warranty. Including below list but not only
    -Mill-maxing PCB
    -Tape modding PCB
    -Hotswap Sockets that are pushed out of the PCB solder pads
    -Did not follow the steps to flash PCB and caused no function

    Gifts will not ship out replacements or issue a partial refund.
