(Group Buy) MKC75 Wired Version

Sale price

Regular price £78.33
( / )

Closing Date: August 31st 2023

Expected Shipping time: Q4 2023





  • Compact 75% Layout
  • Supports Alu Internal Weight
  • Multiple configurations available.
  • Supports Caps Lock Indicator Light.
  • Supports tri-mode PCB(Wired, Bluetooth and 2.4ghz).
  • 2 x 2200mha large battery capacity.
  • 100% processed using CNC machining with 6063 aluminium case.
  • Supports Plate, Half Plate and Plateless Build.

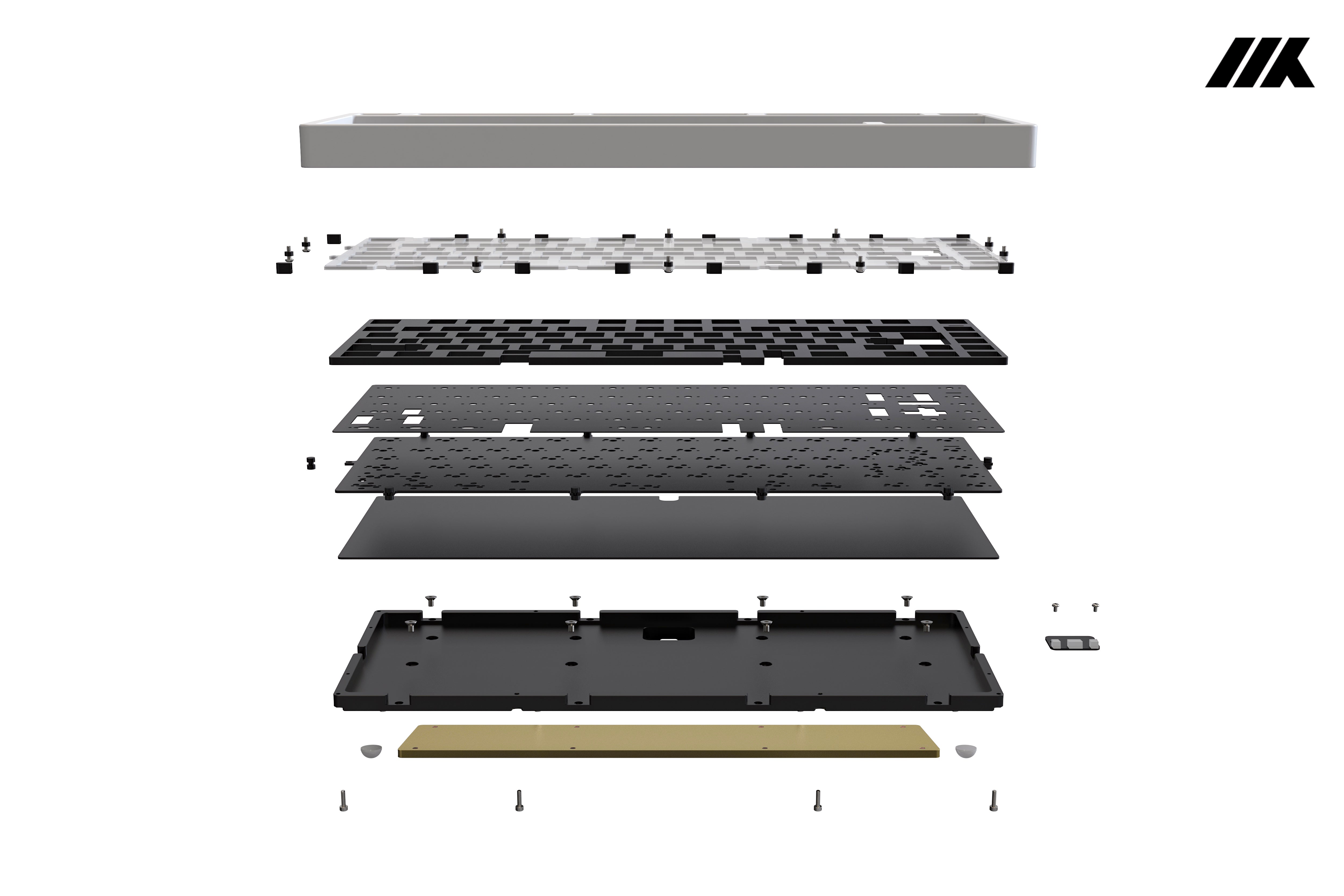

  • Three-in-one structural design( Top Mount, Plate Gasket Mount and PCB Gasket Mount ).

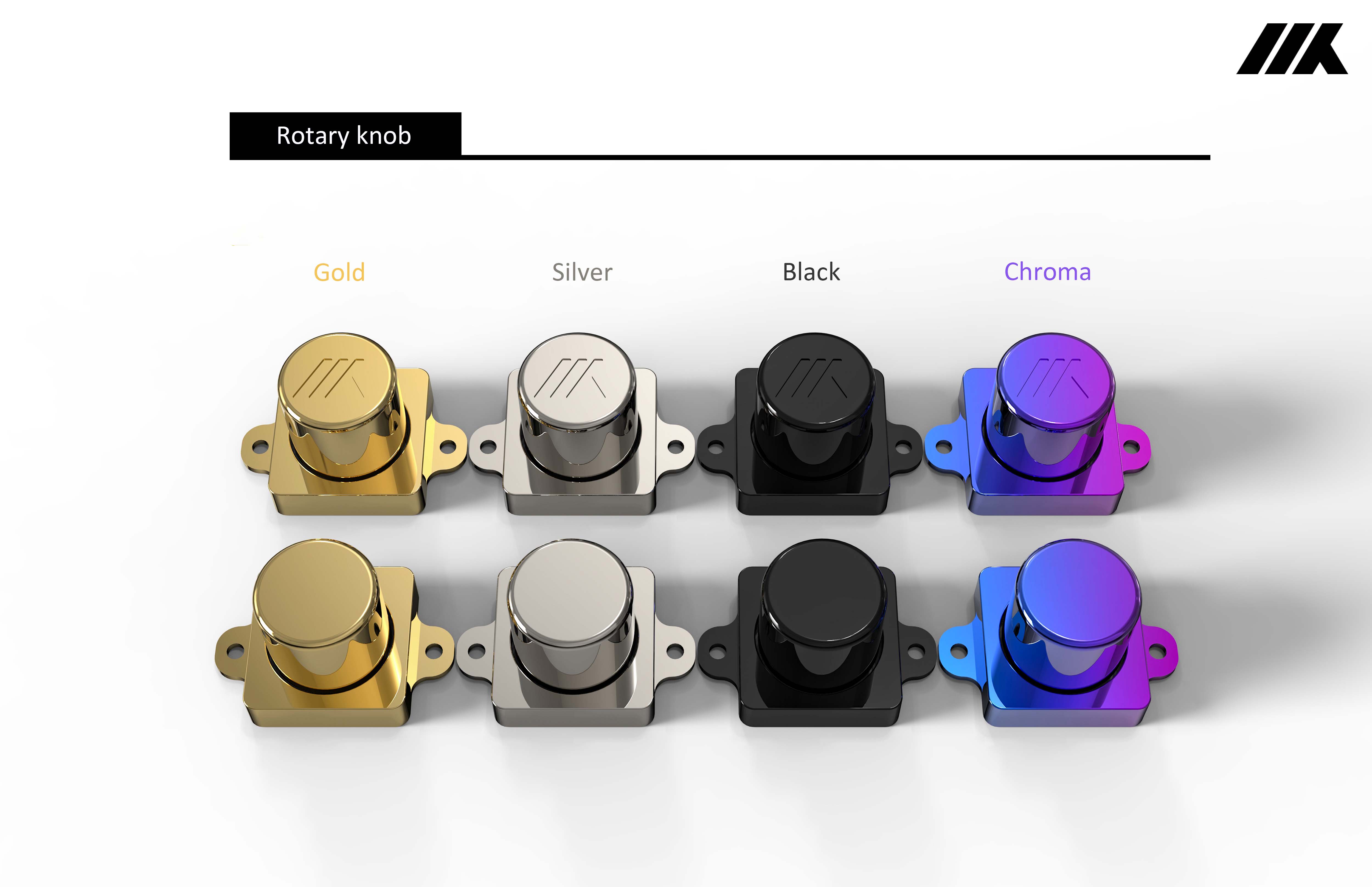

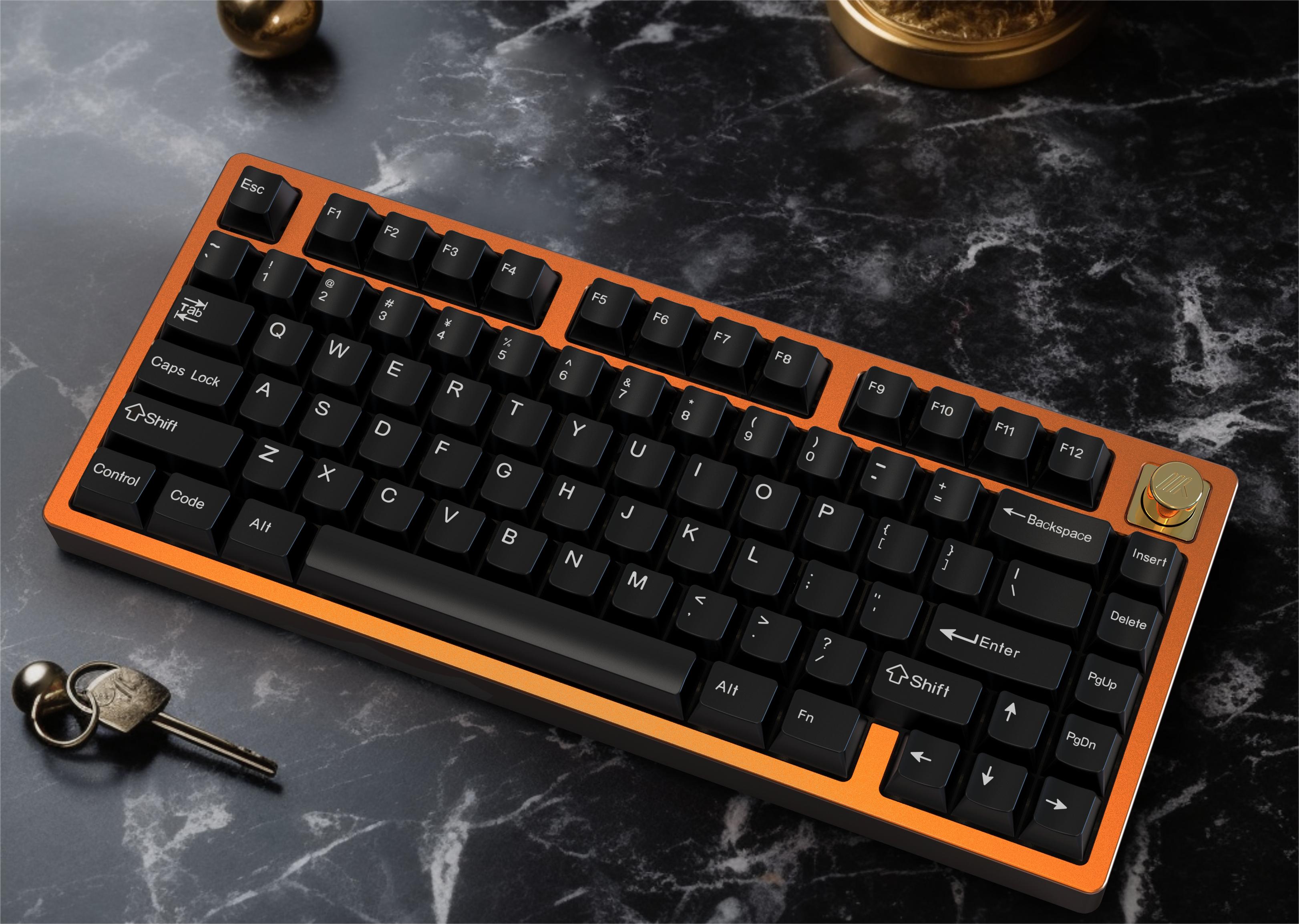

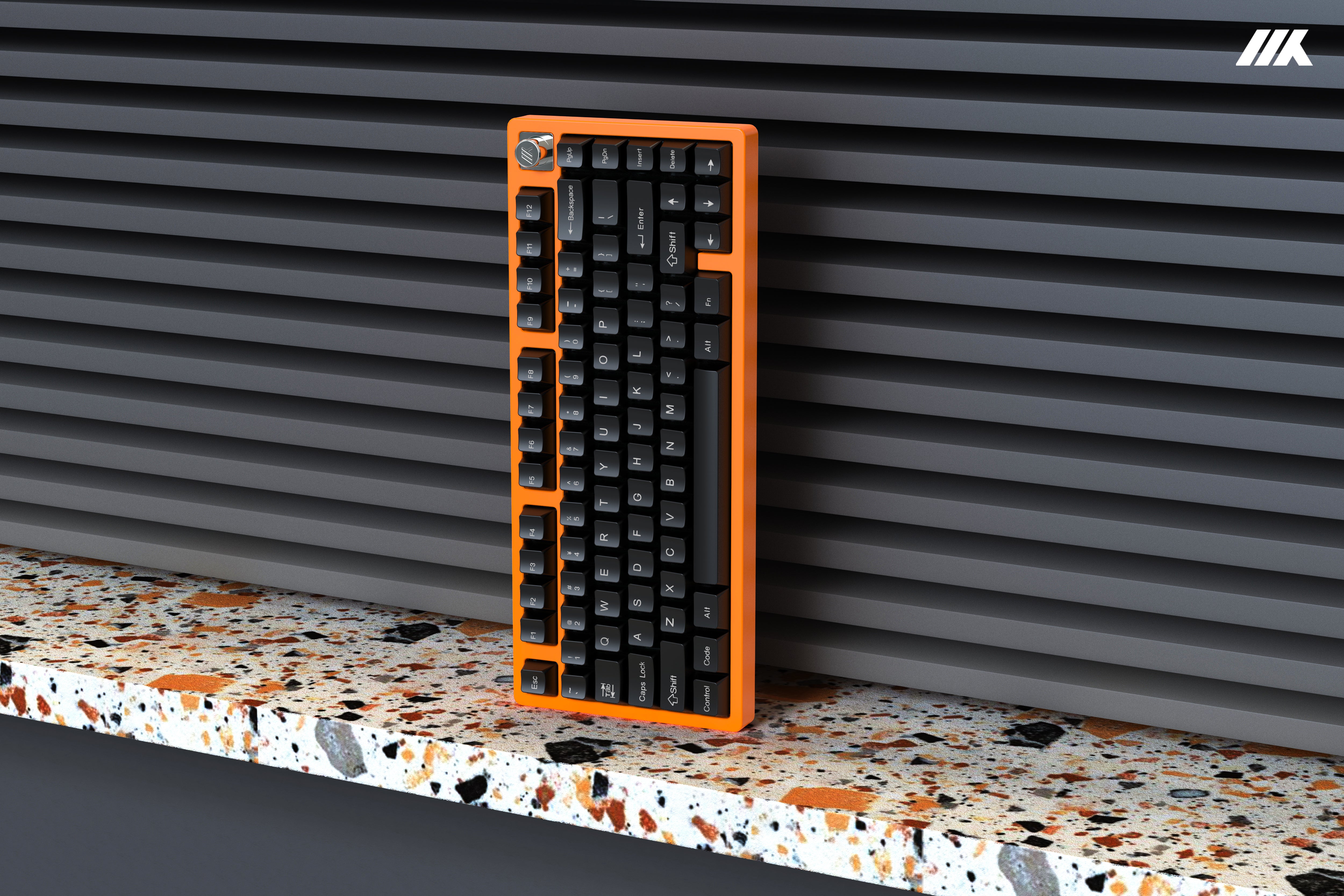

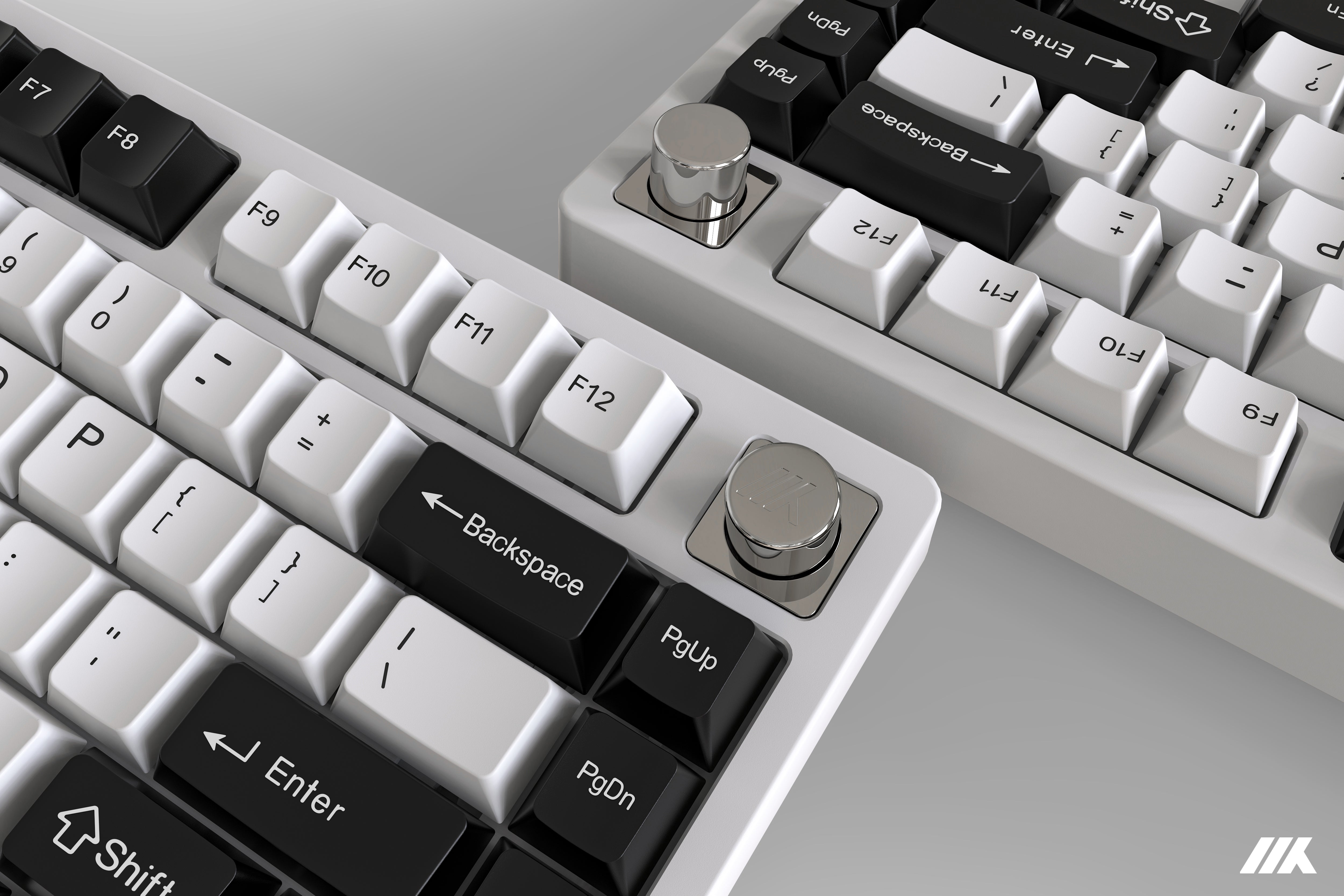

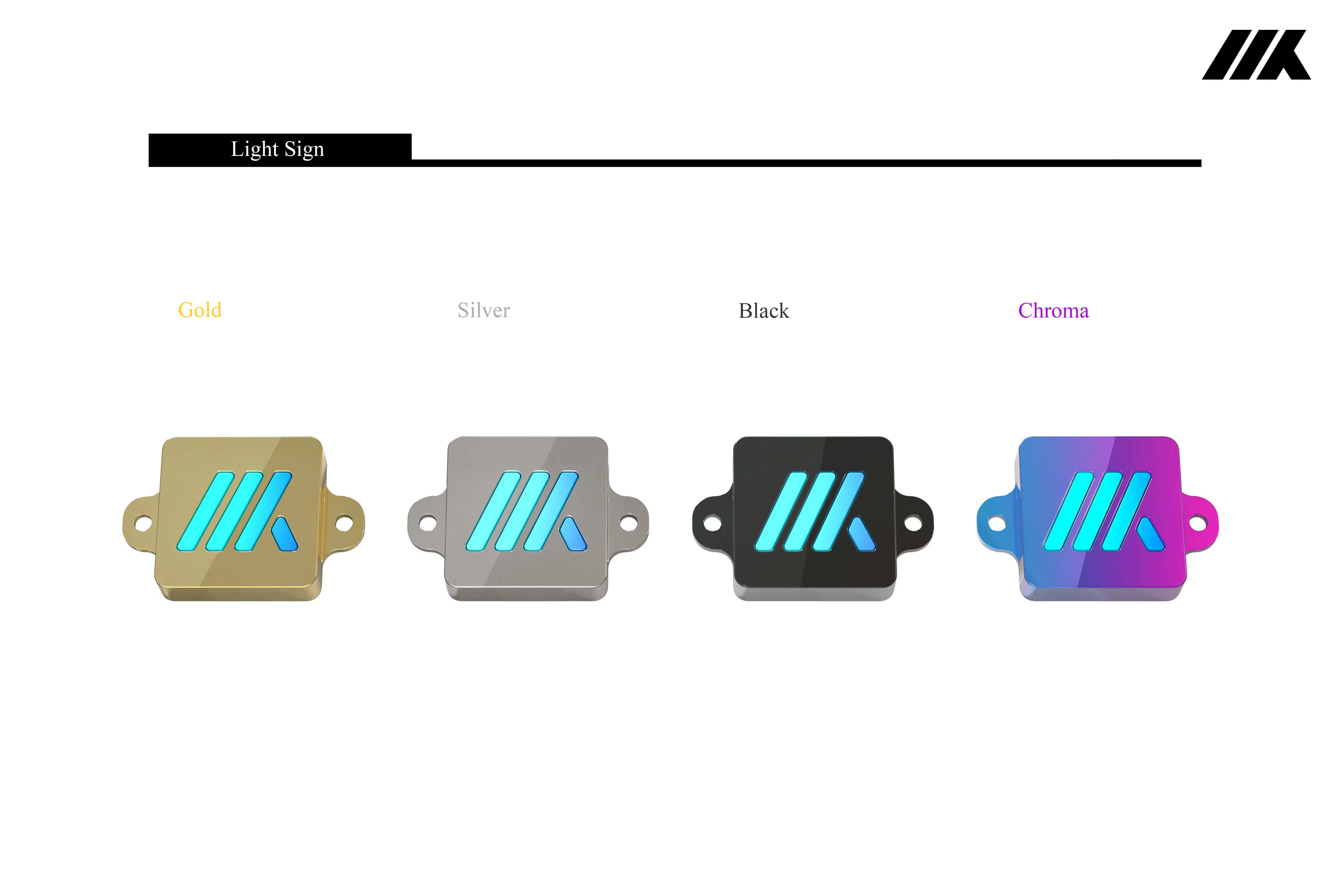

  • Supports Rotary Knobs and LED Light Signs. Wired versions are also compatible with JRIS75 Rotary Knob, Badge, and LED Light Sign.


    Special Bonus available for those who purchase within the first five days


    Customise Options for MKC75:

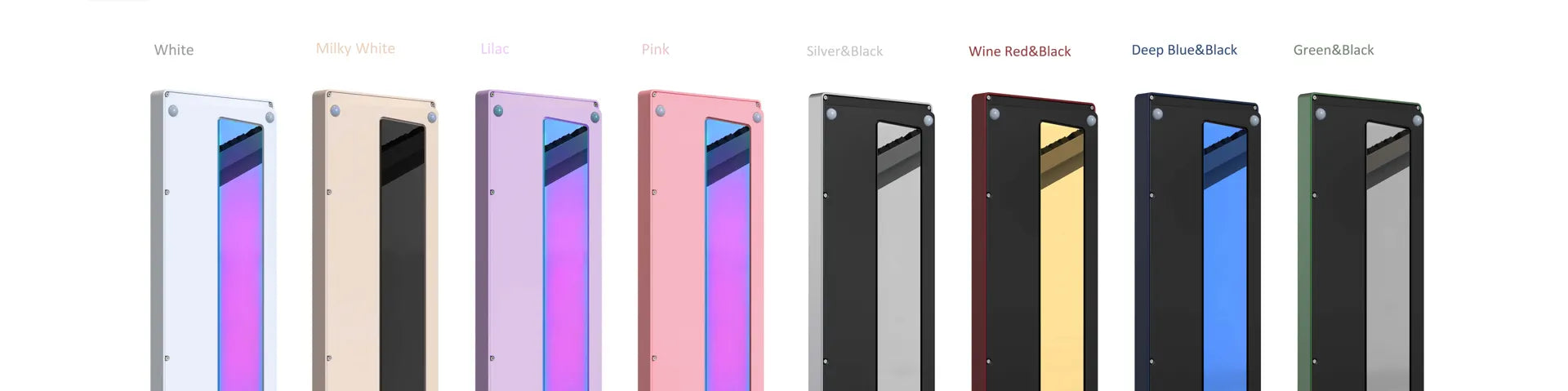

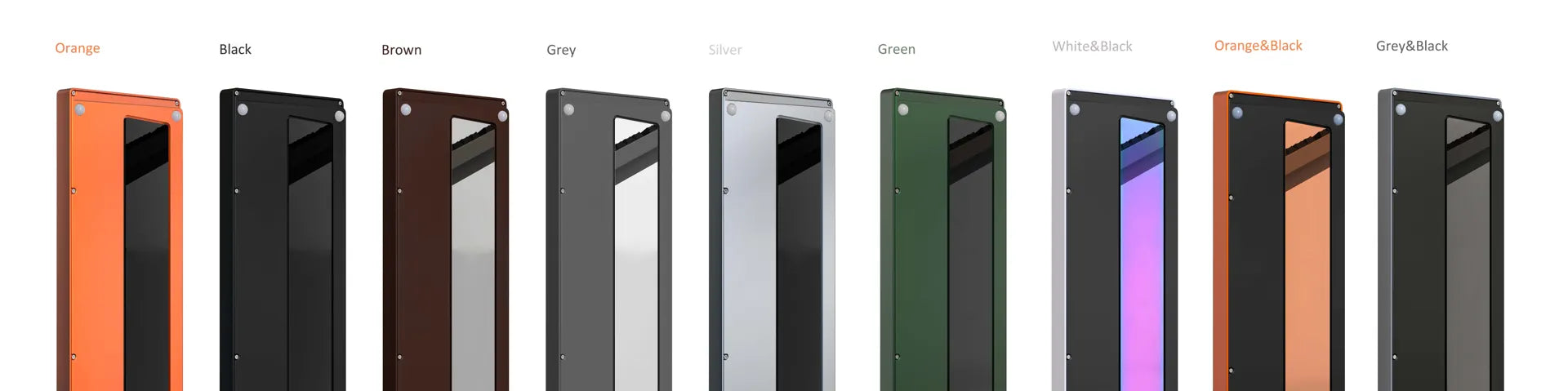

    Case Colour Options:

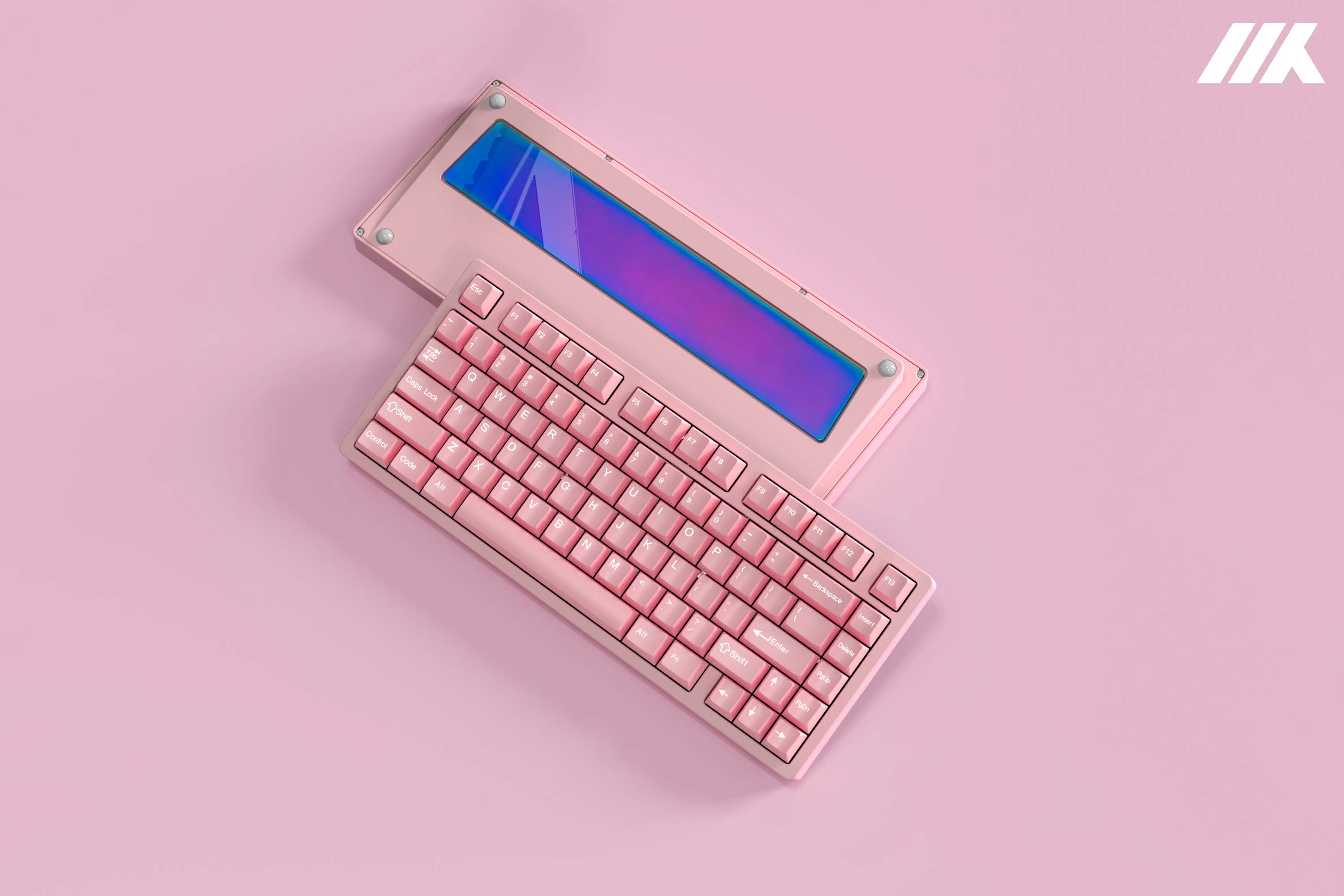

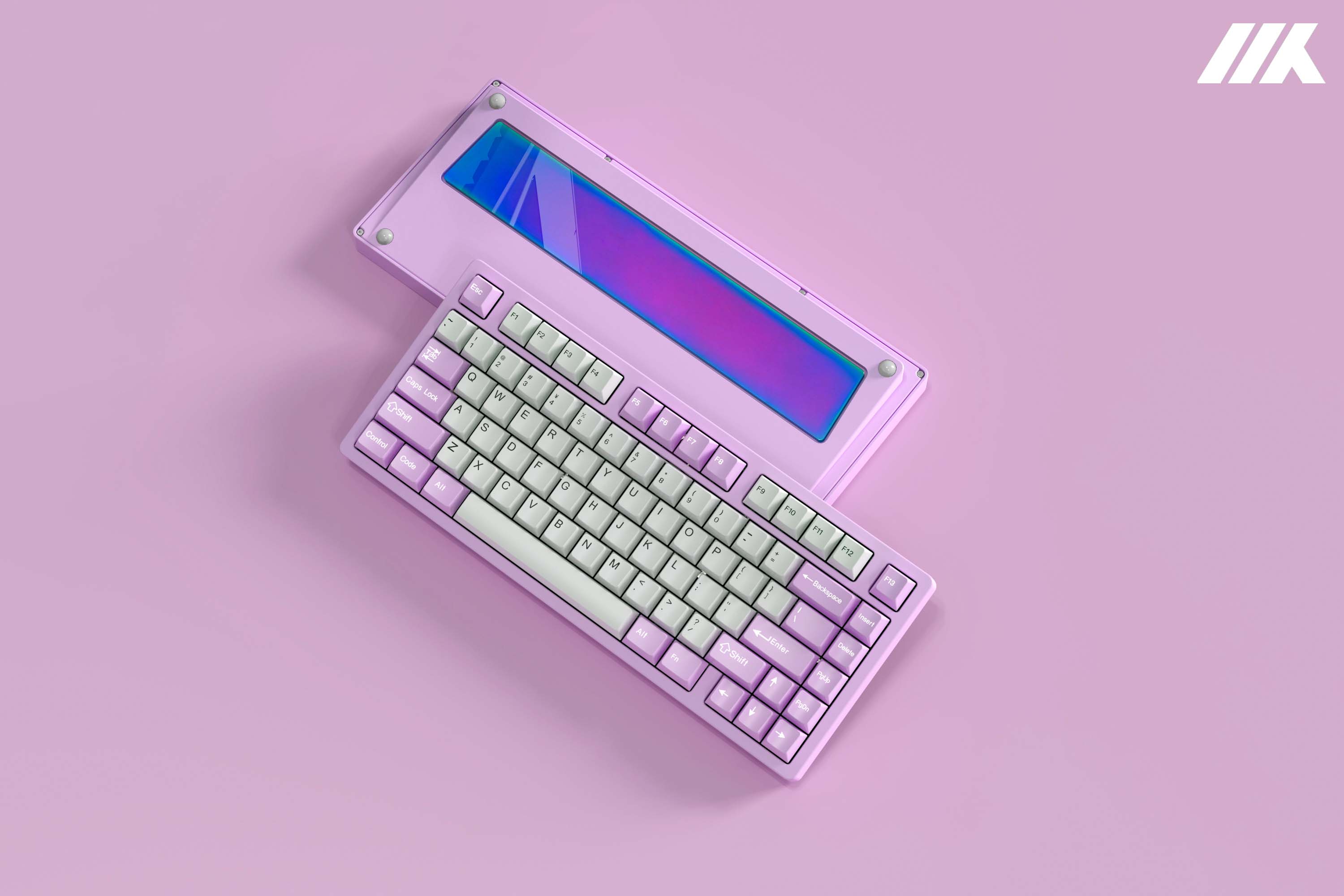

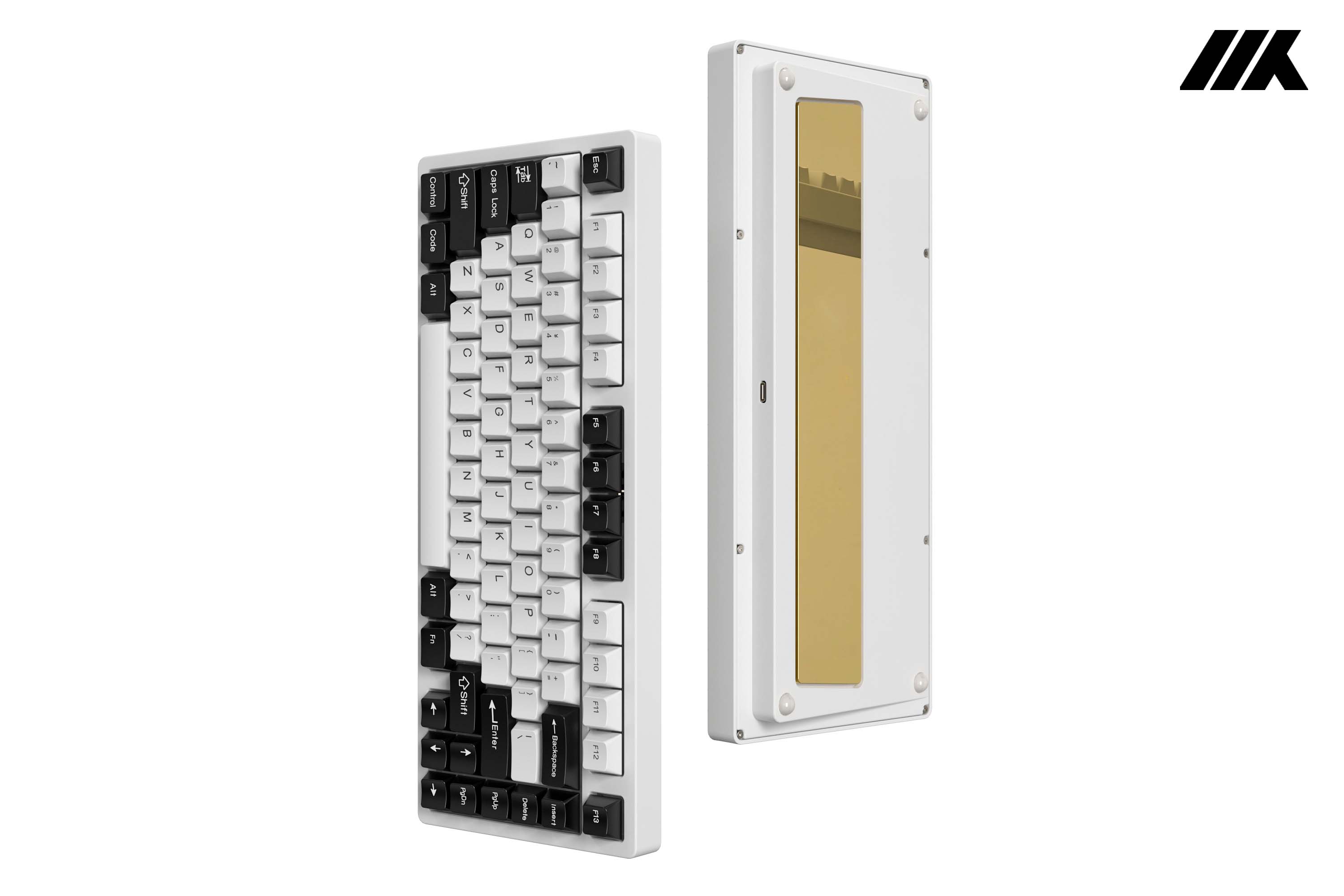

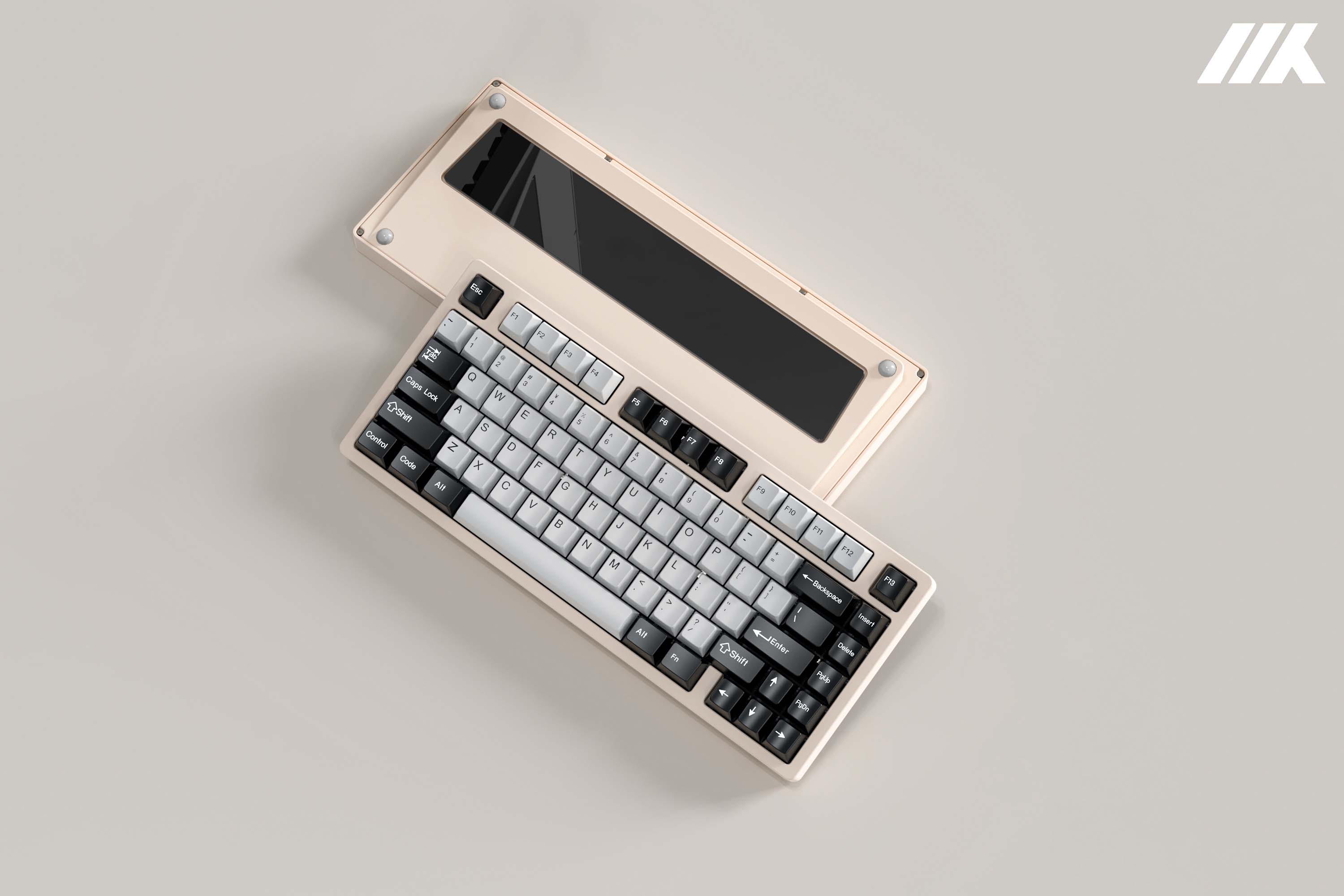

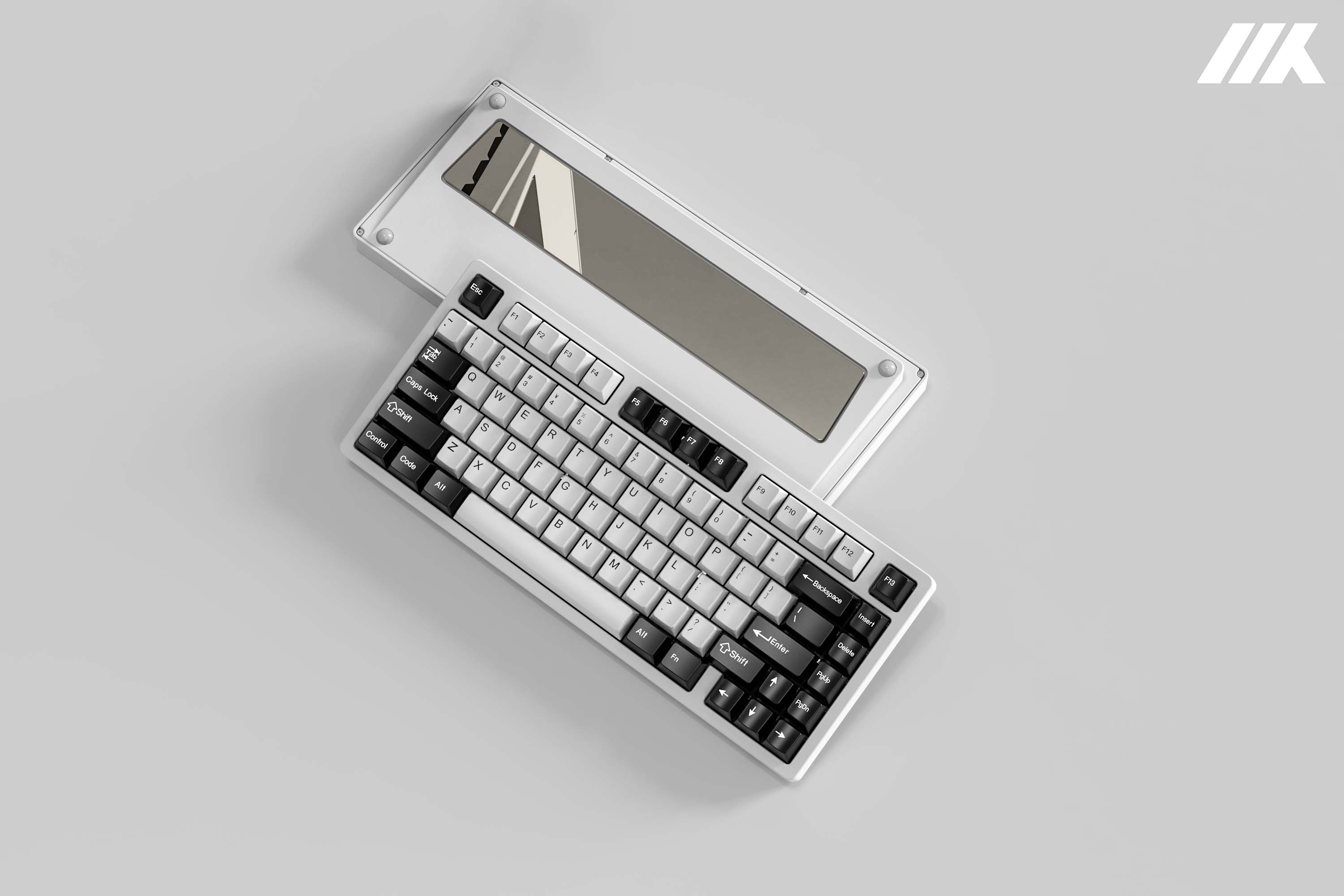

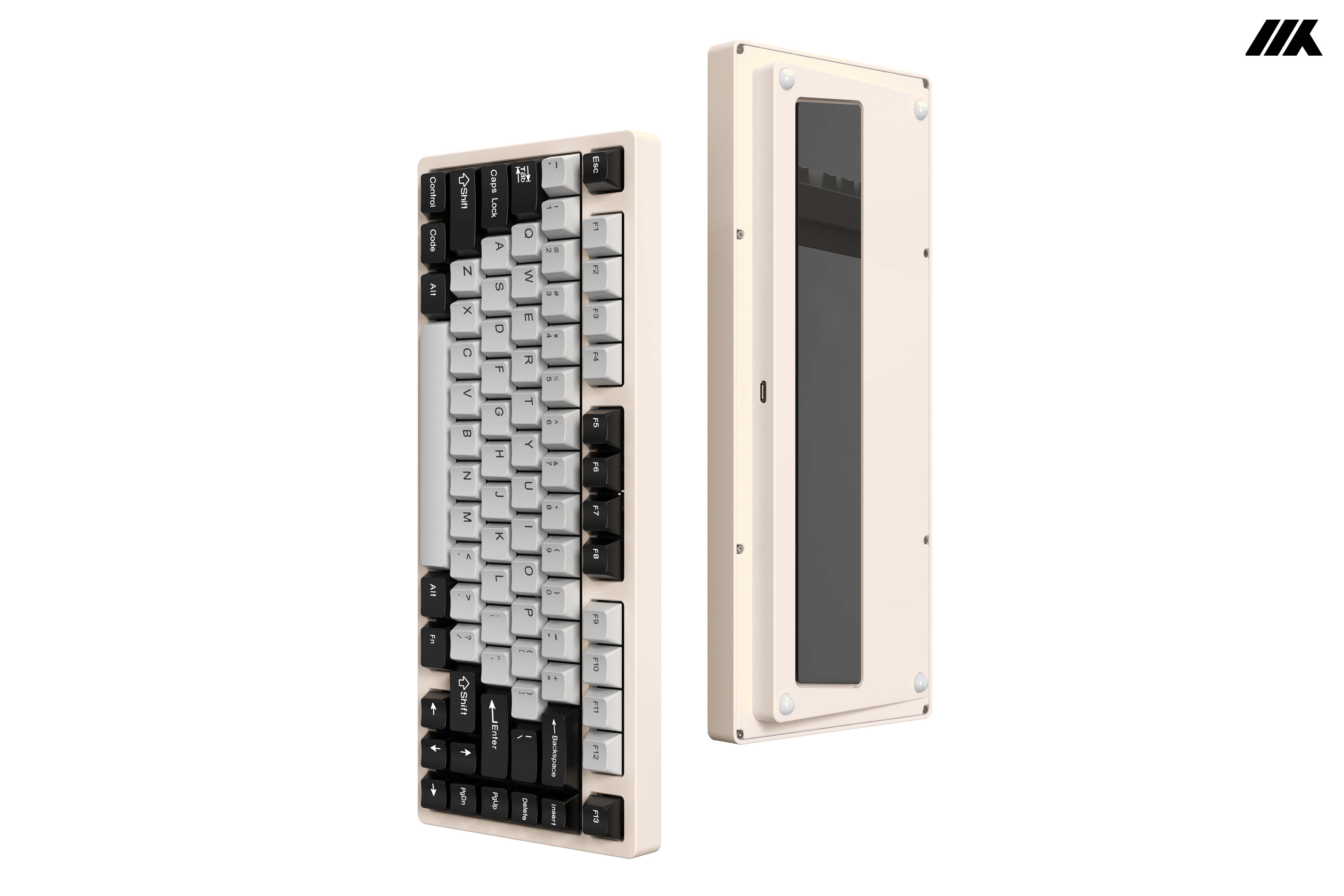

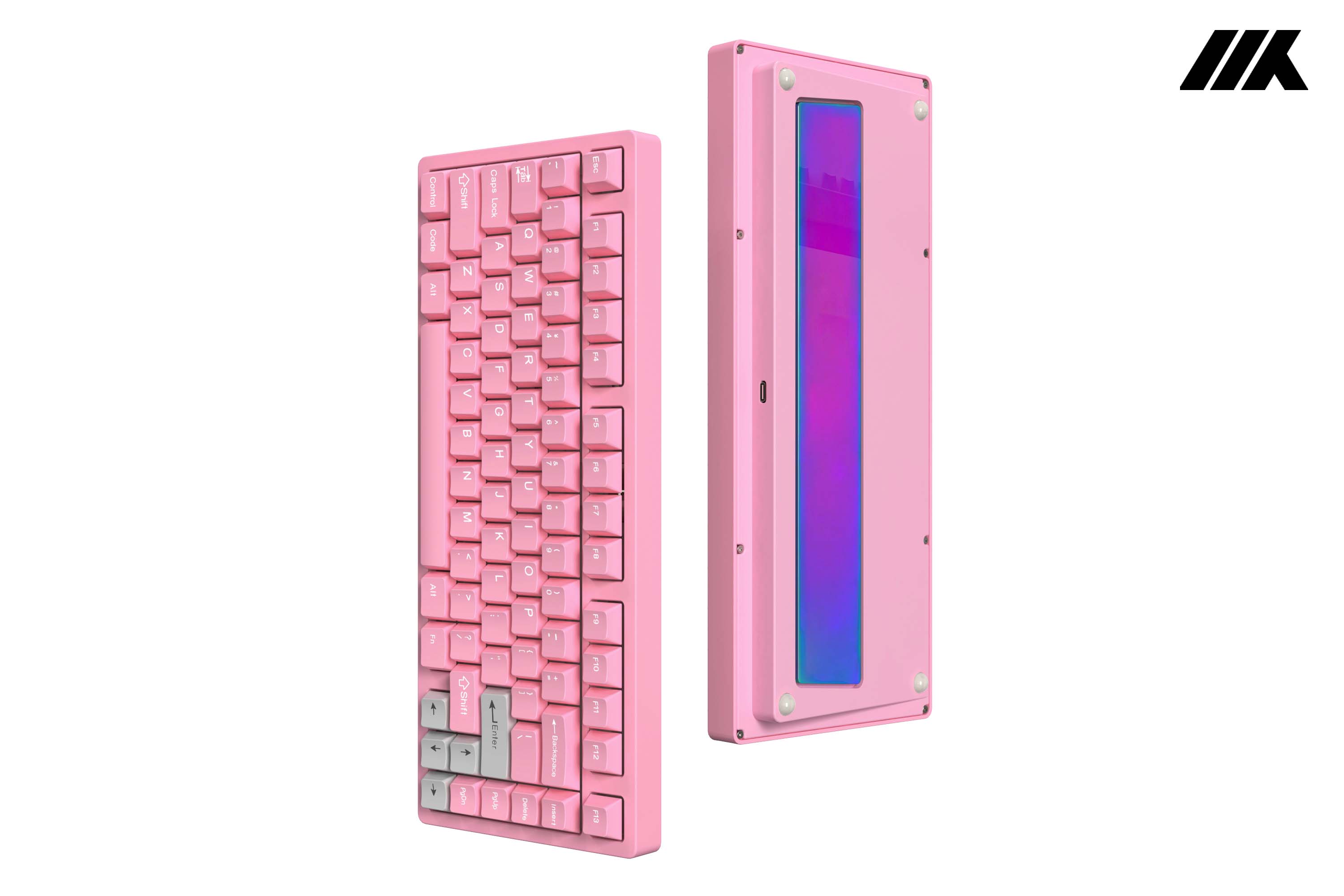

    • 4 E-coat case:E-white, Milky White, Pink, Lilac

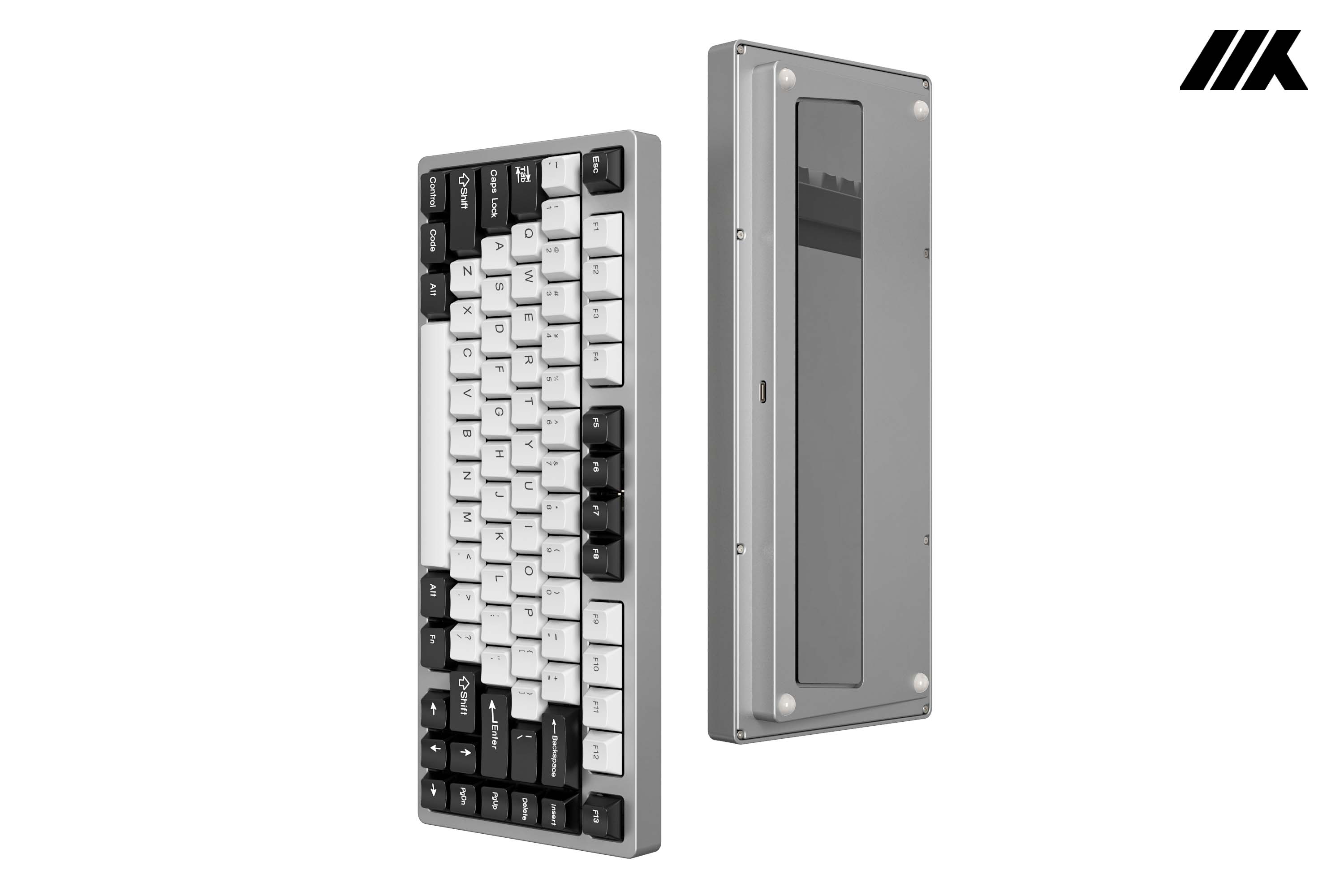

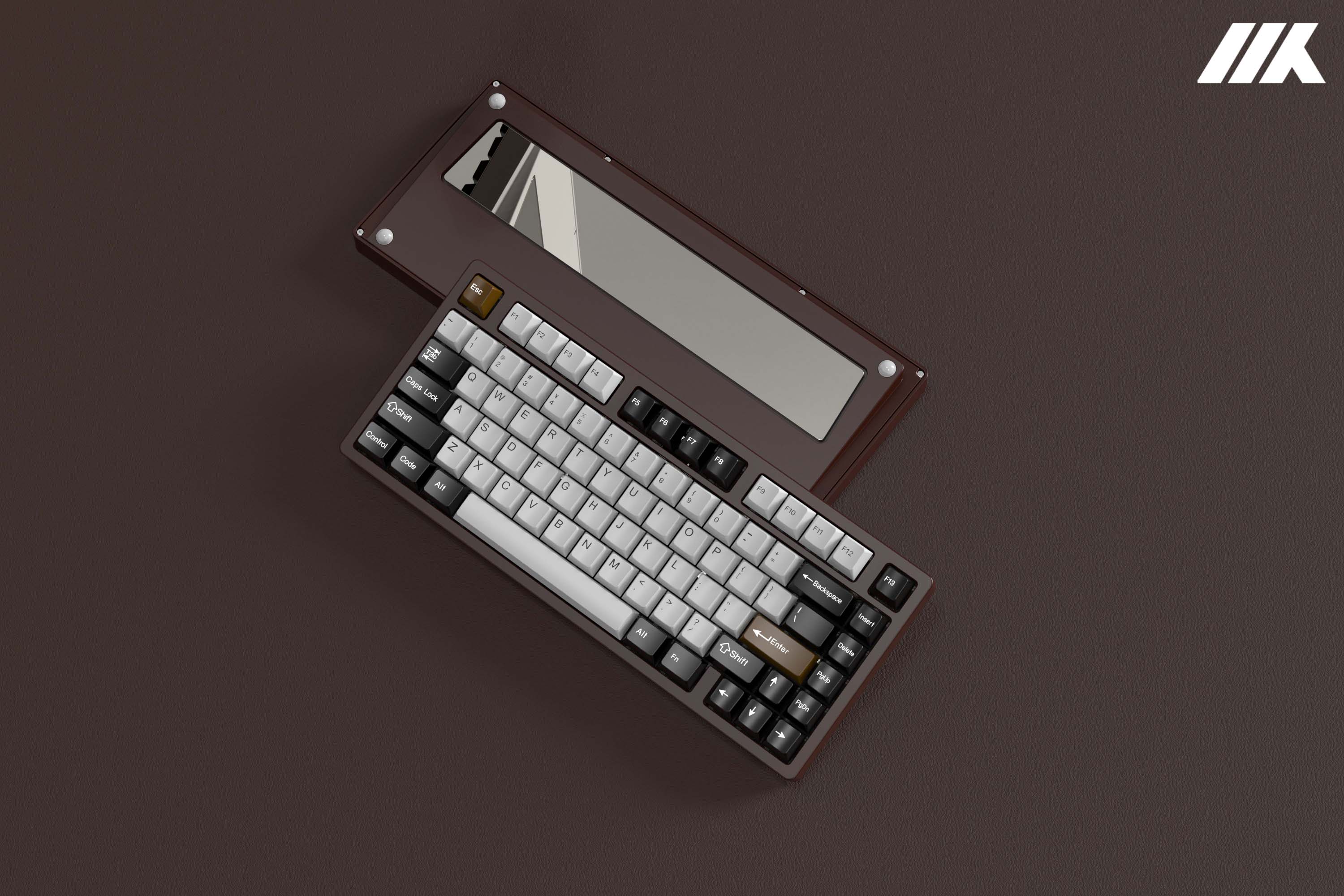

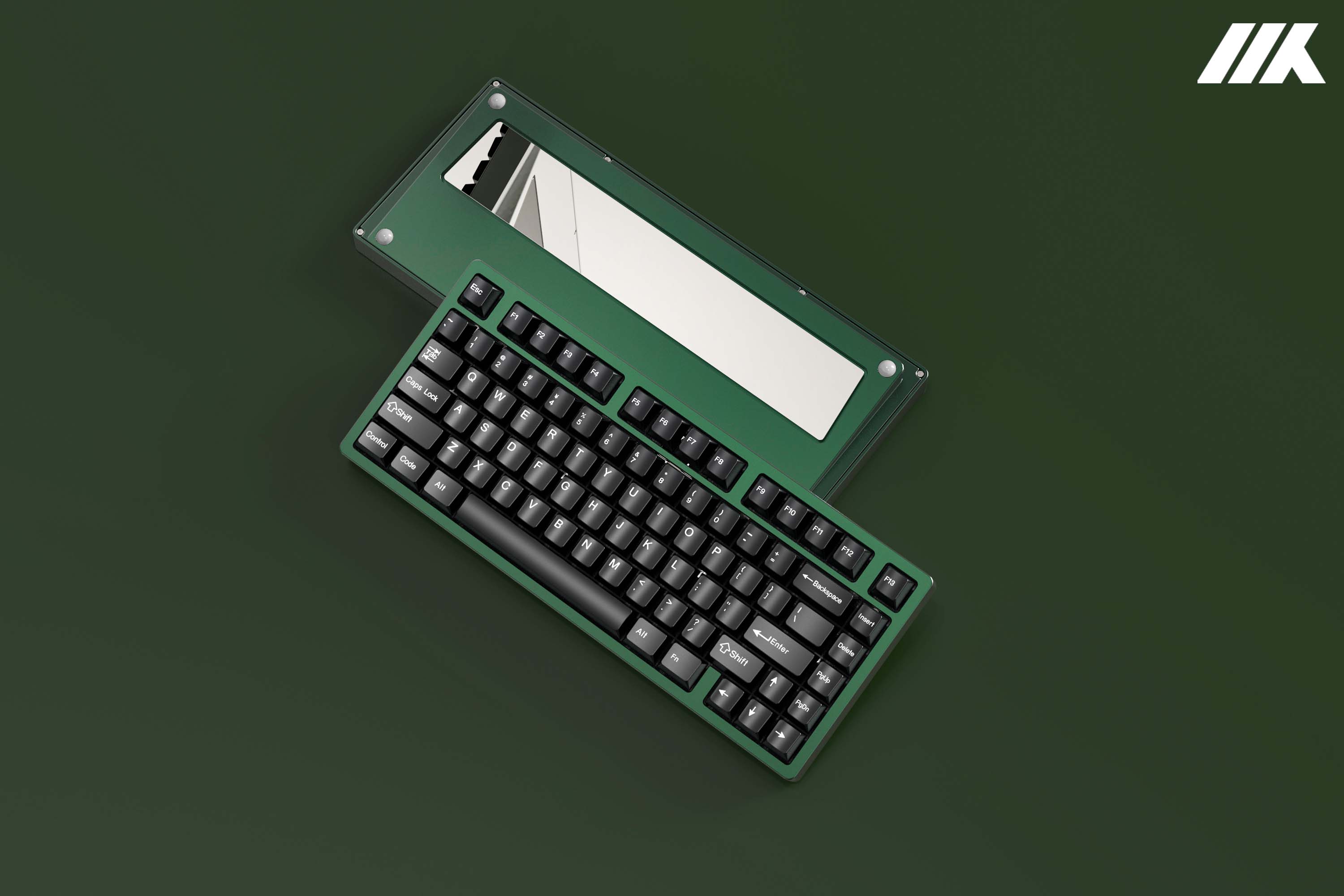

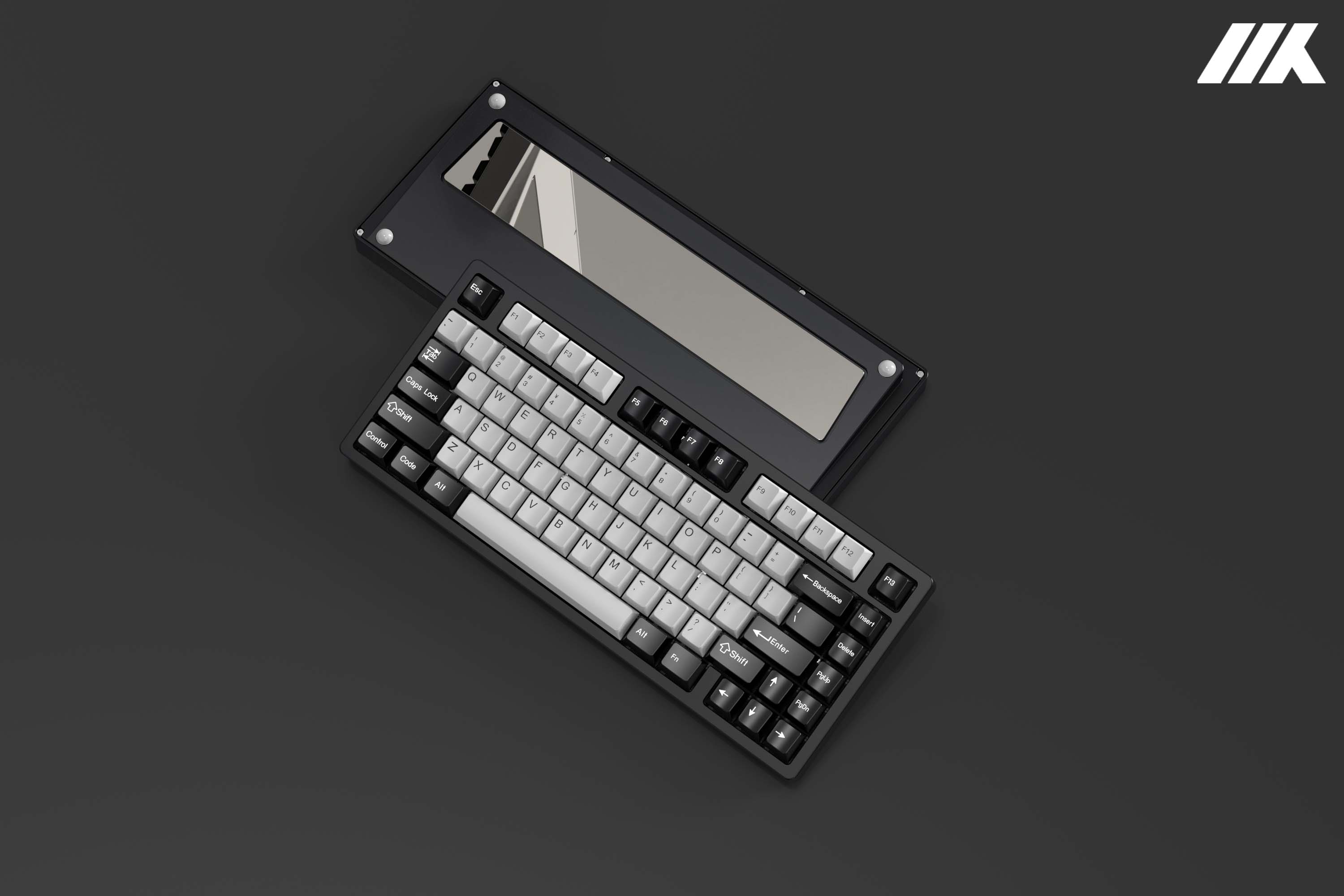

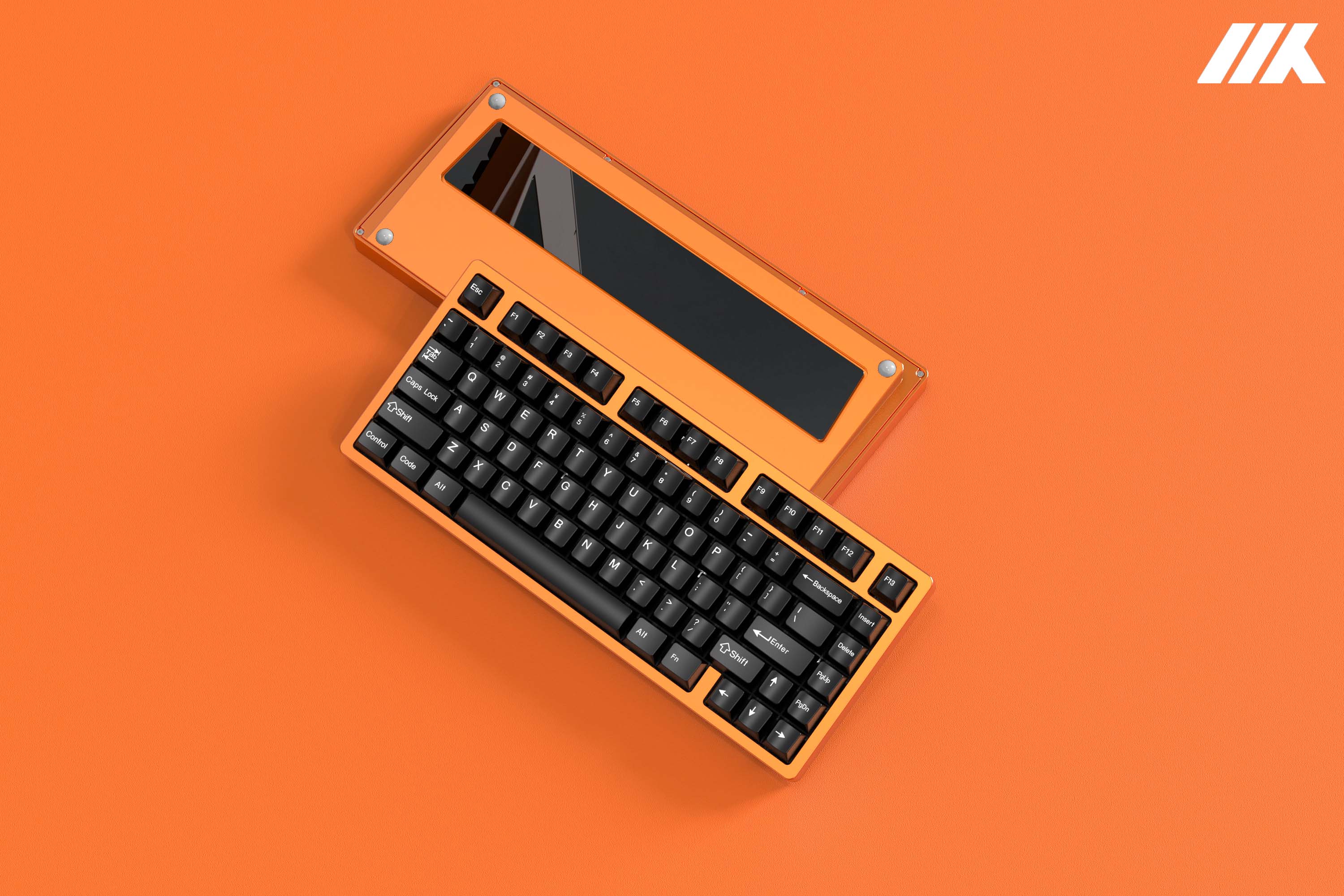

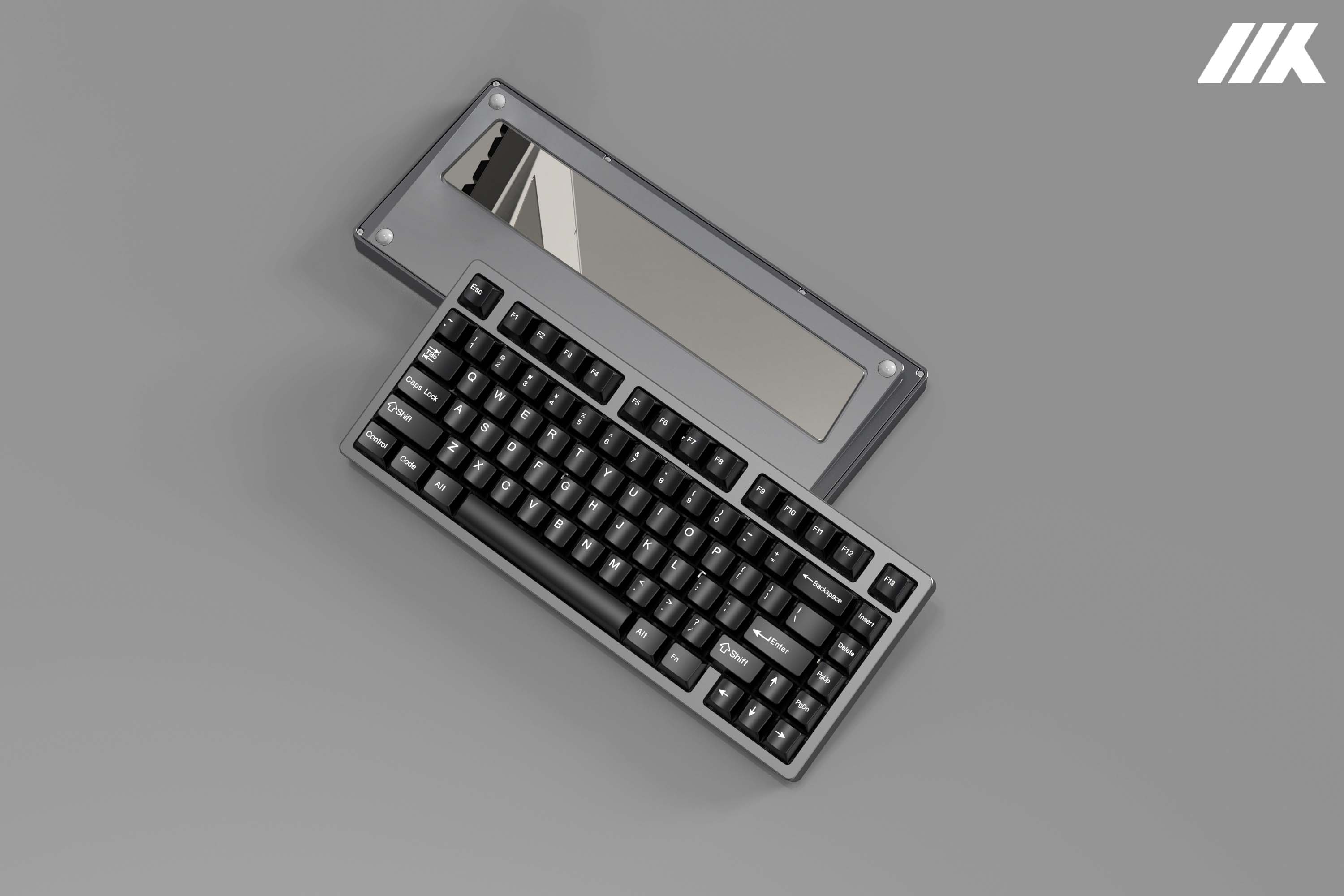

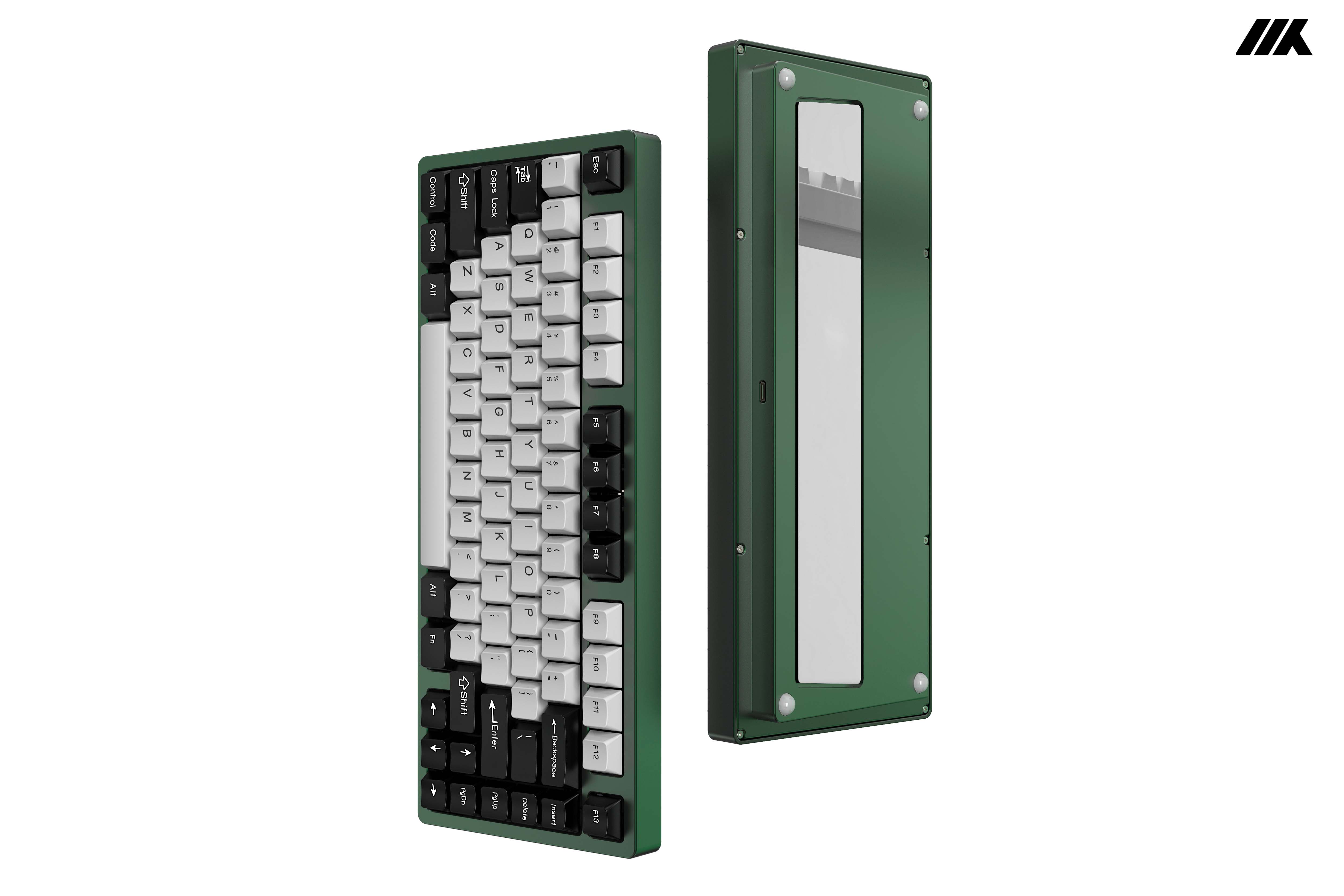

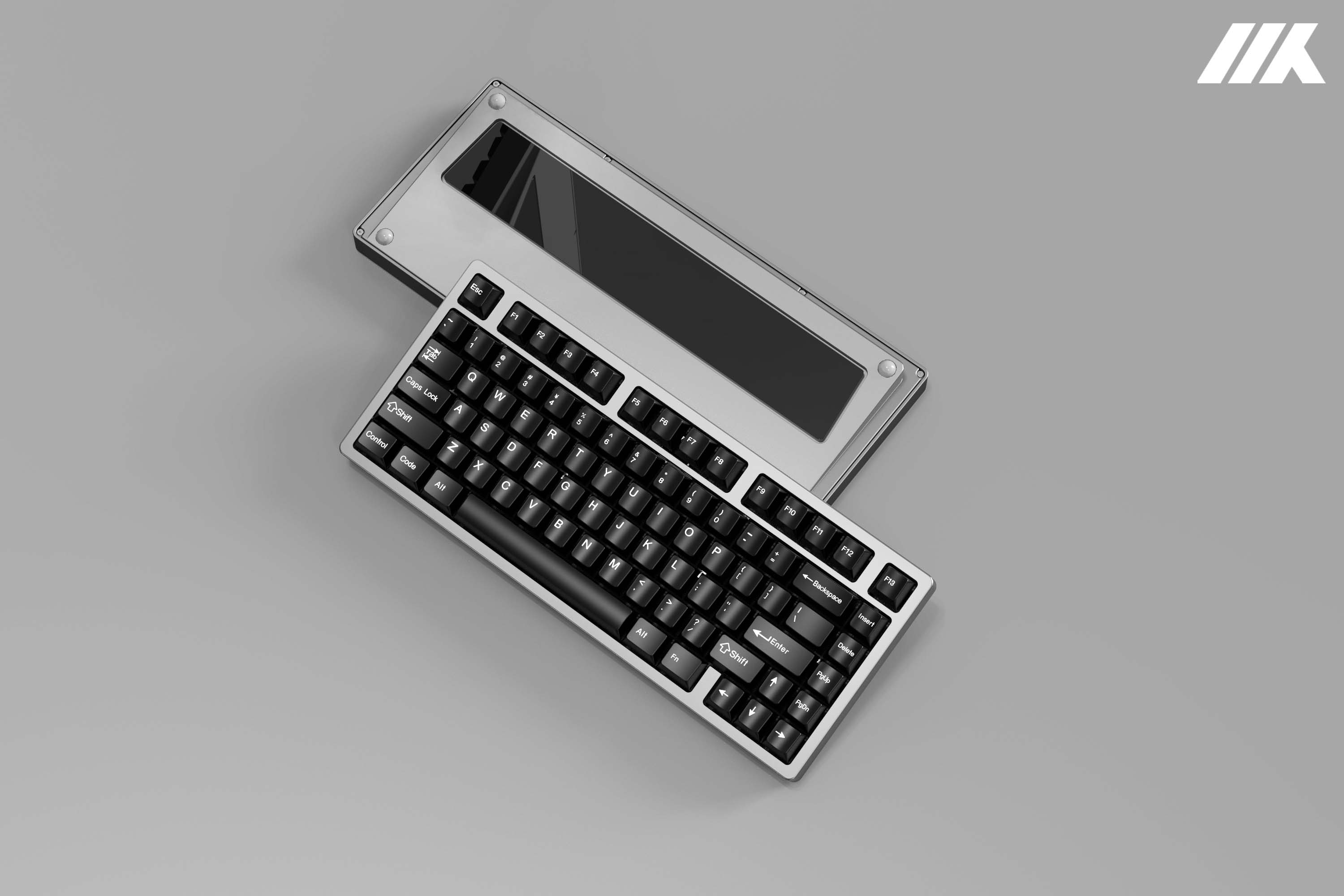

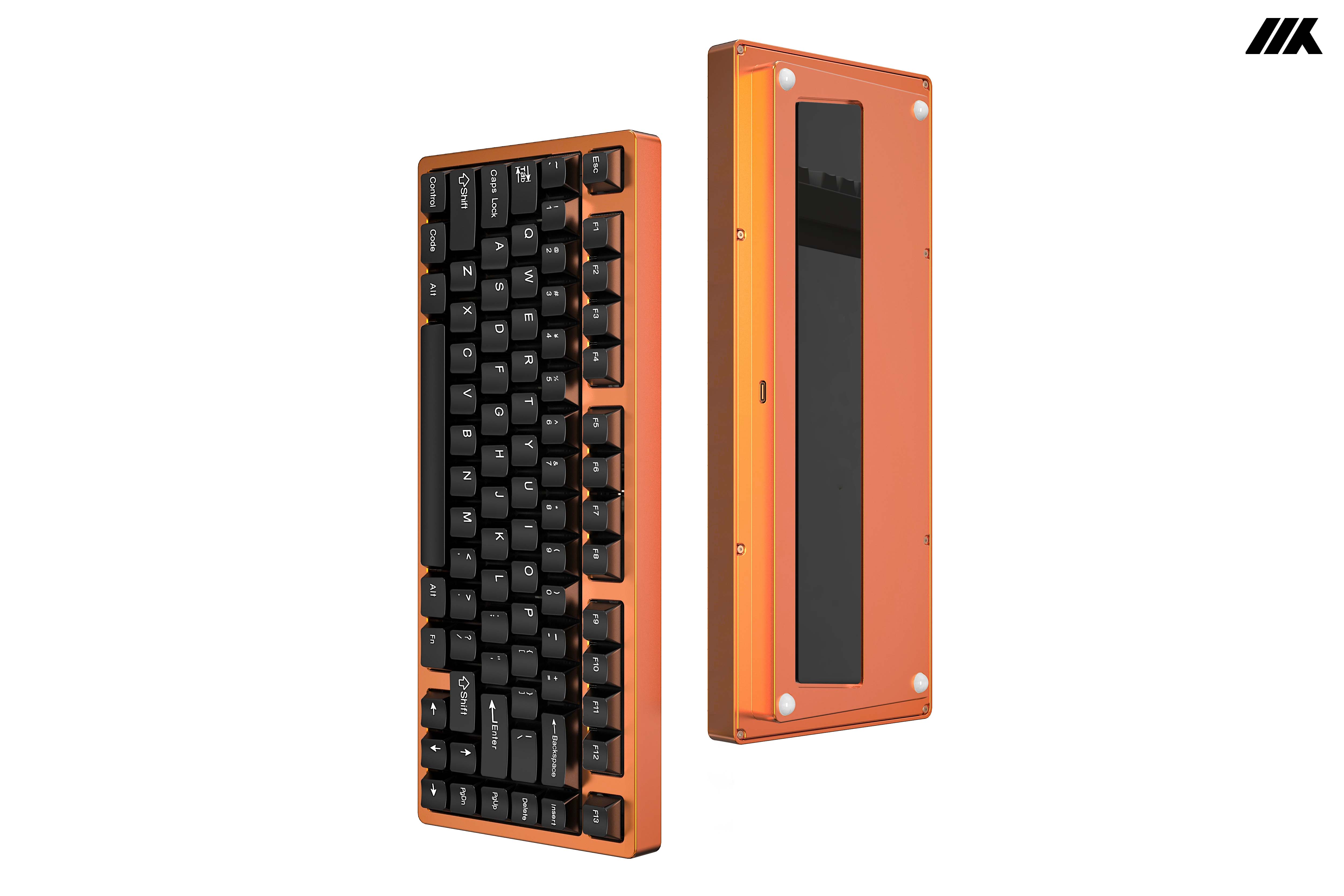

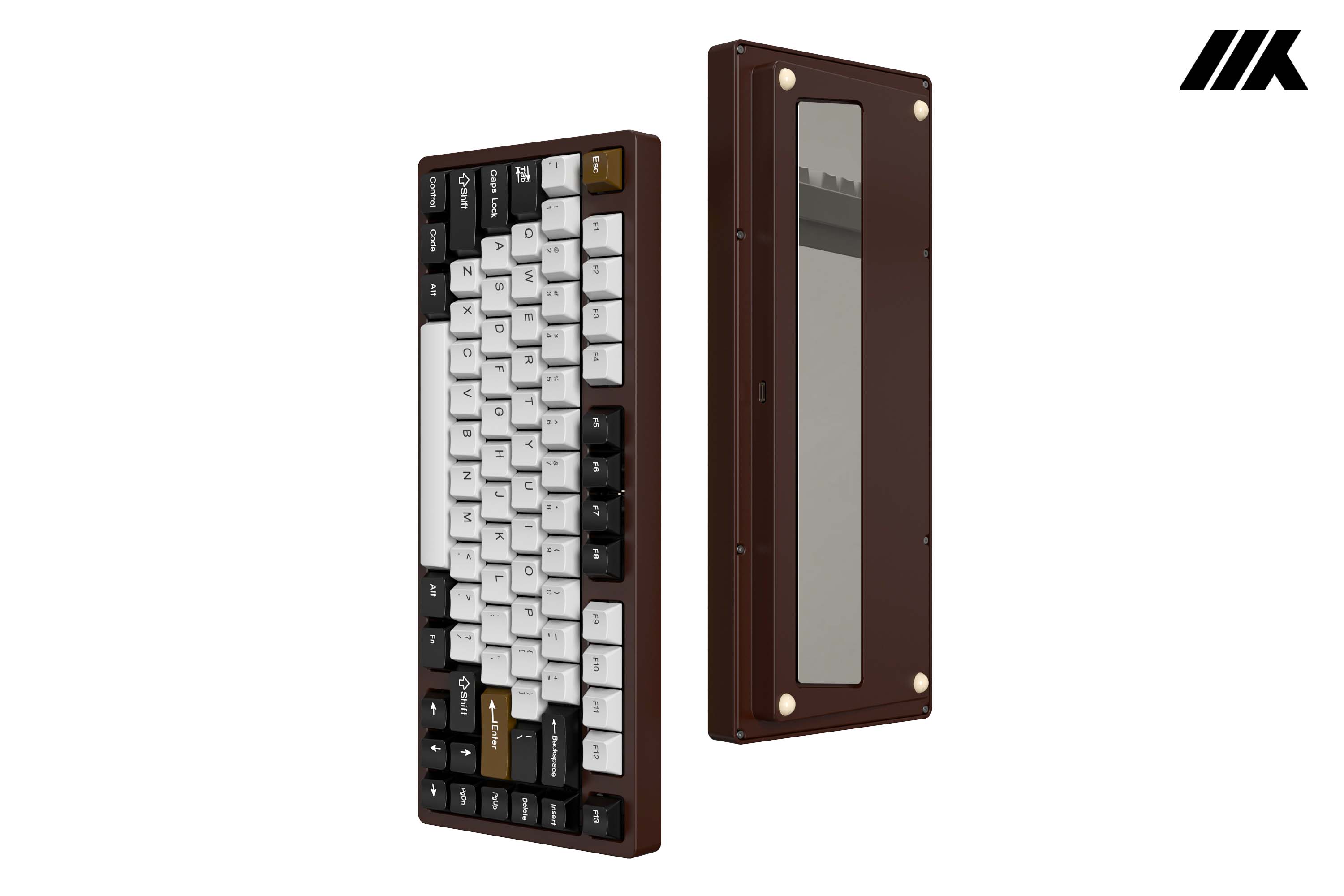

    • 6 Anodized Case: Orange, Black, Brown, Grey, Silver, Green

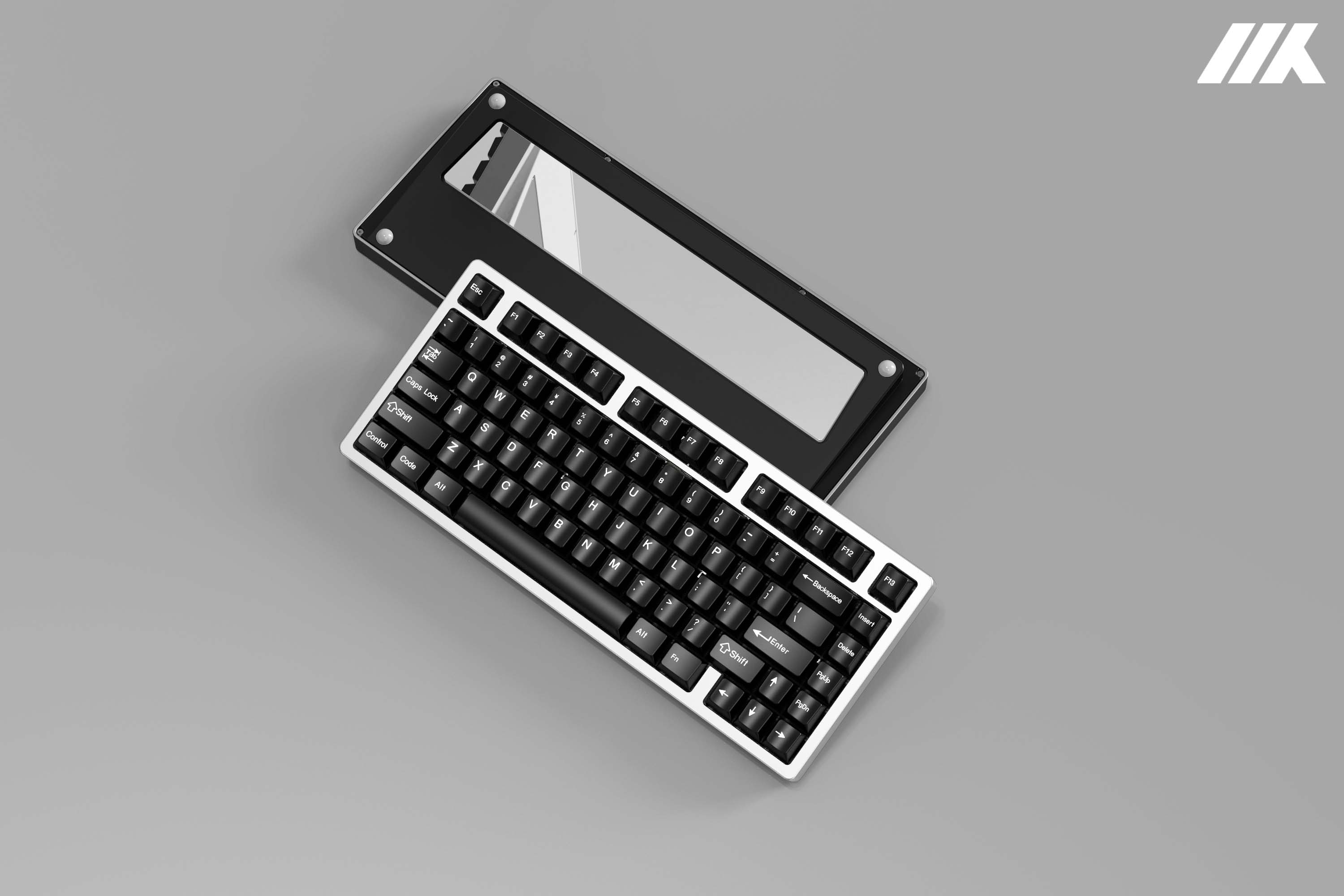

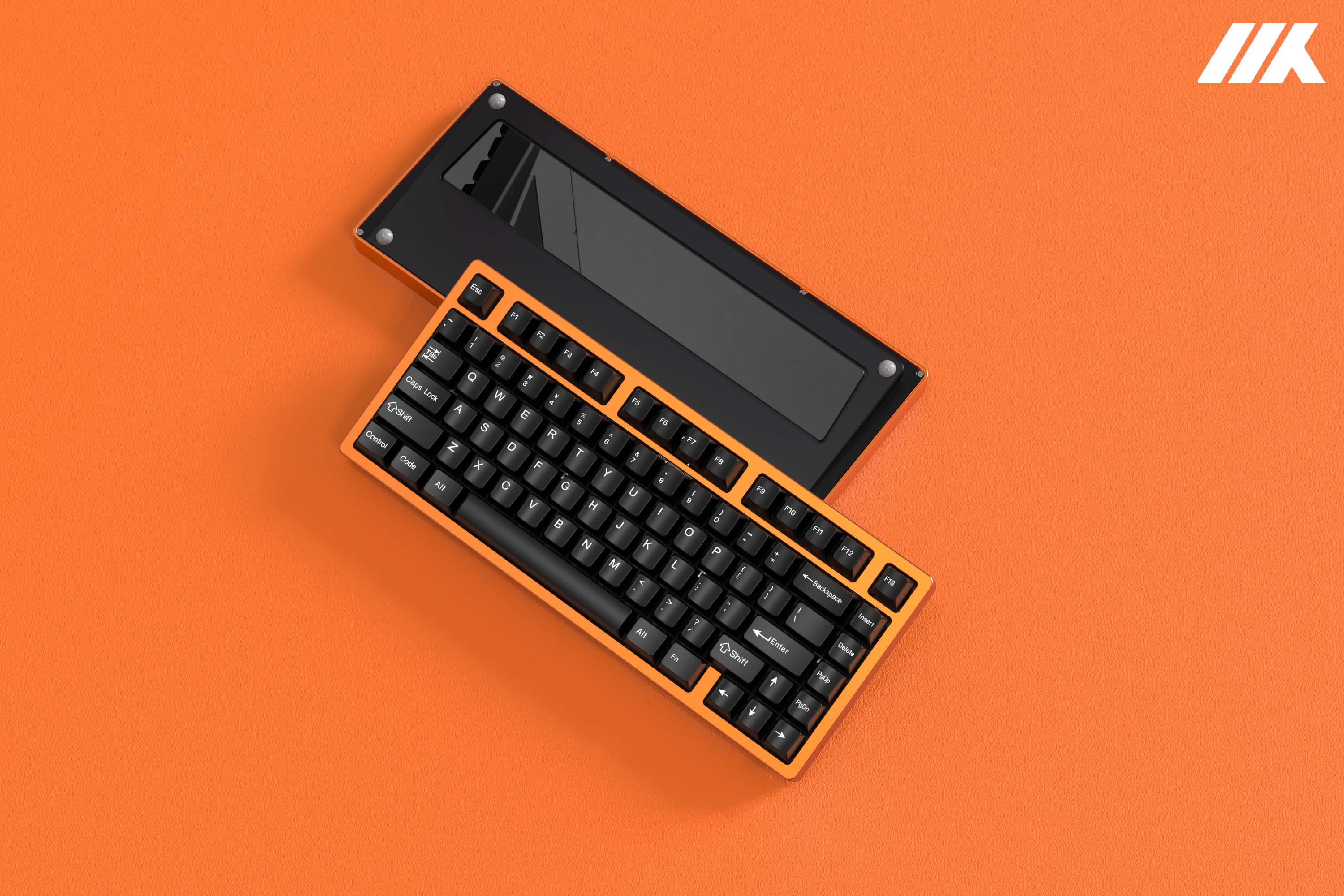

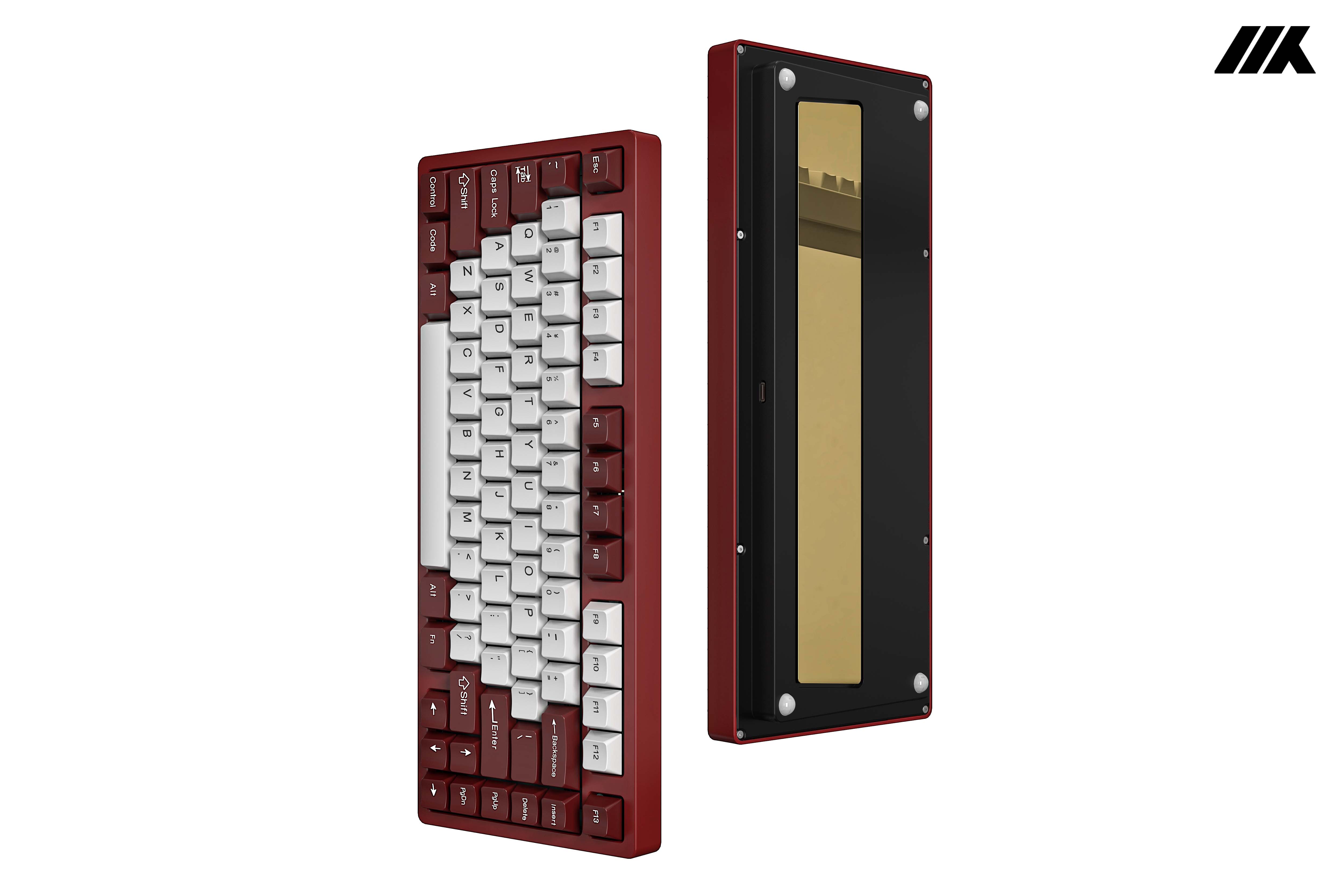

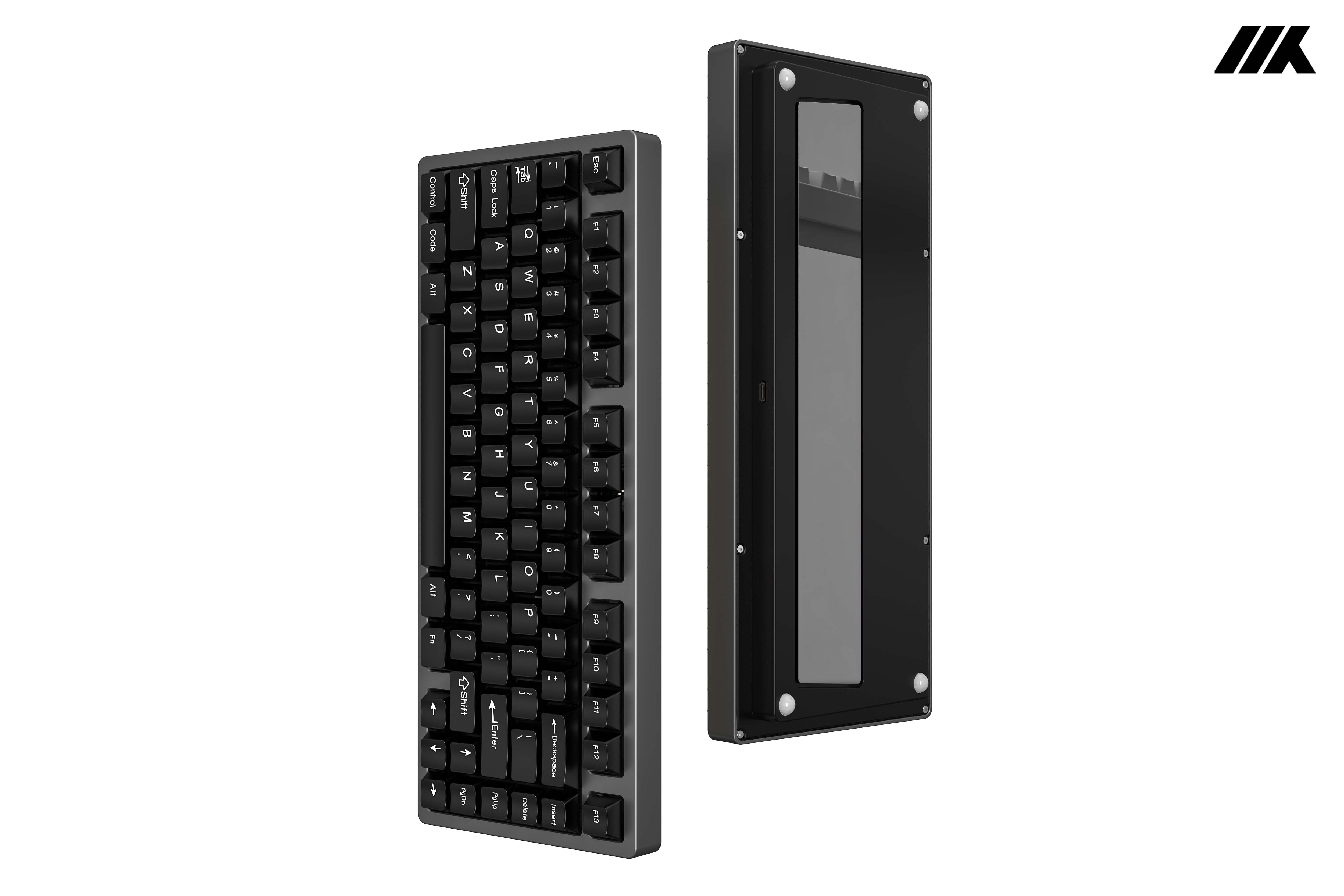

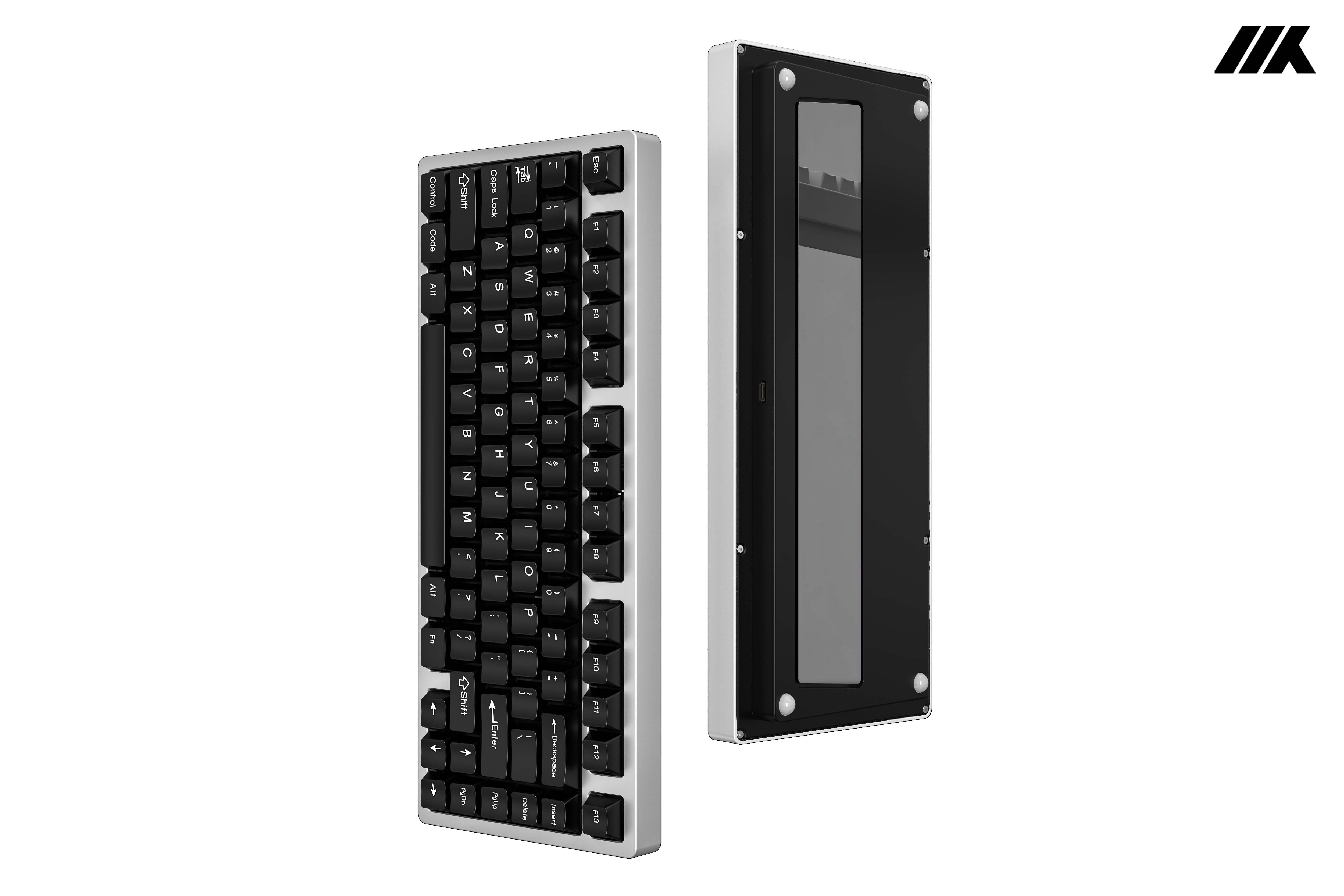

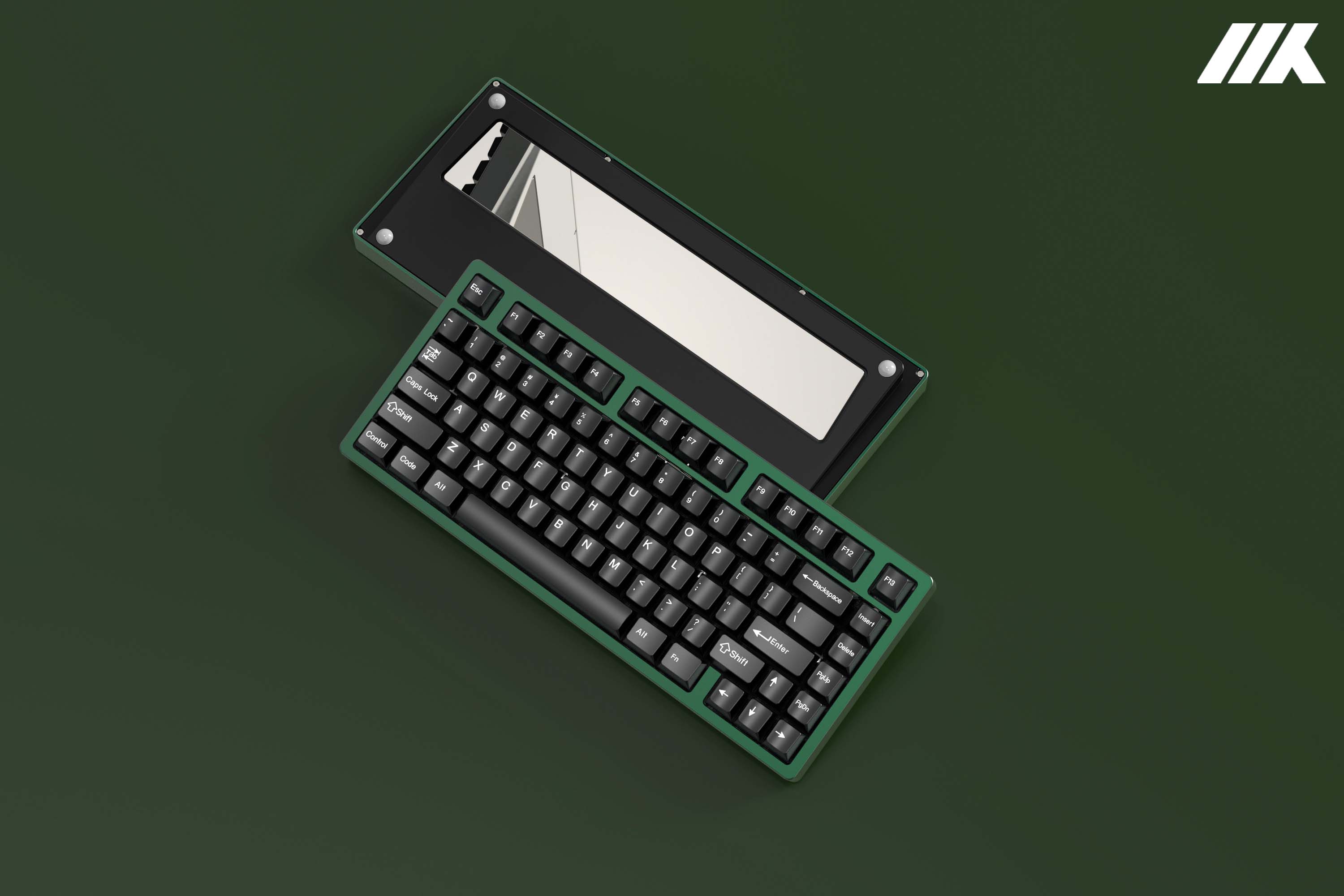

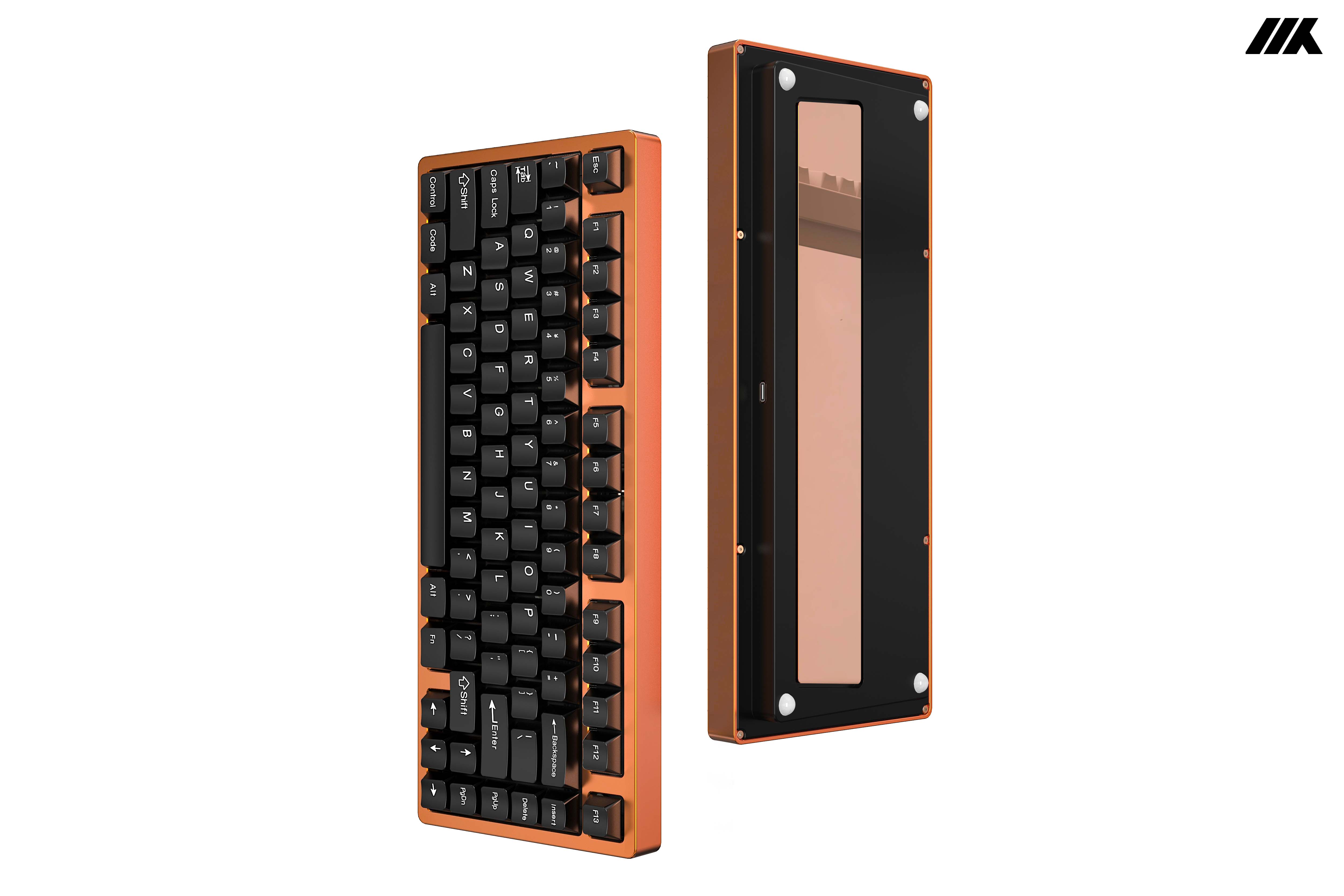

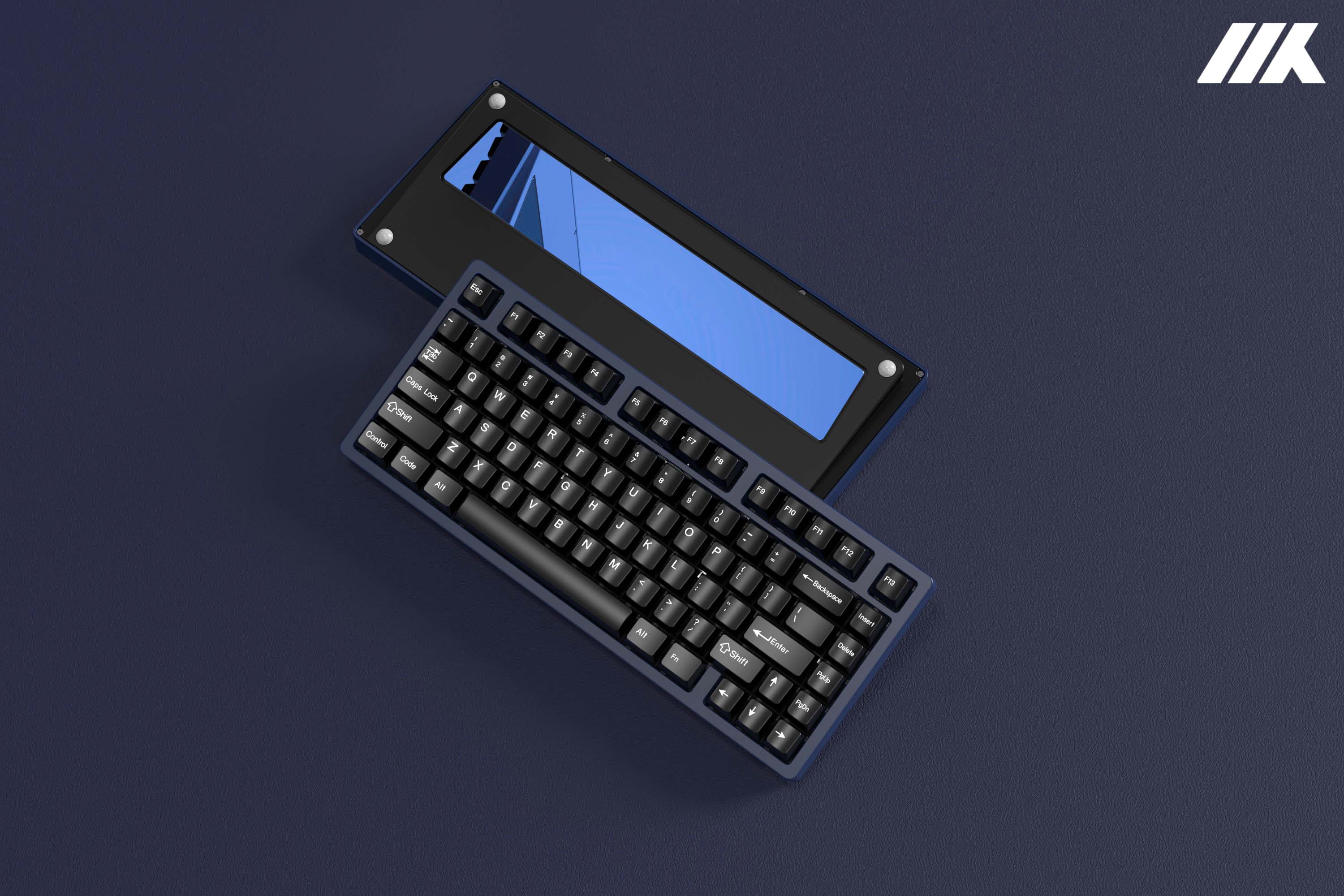

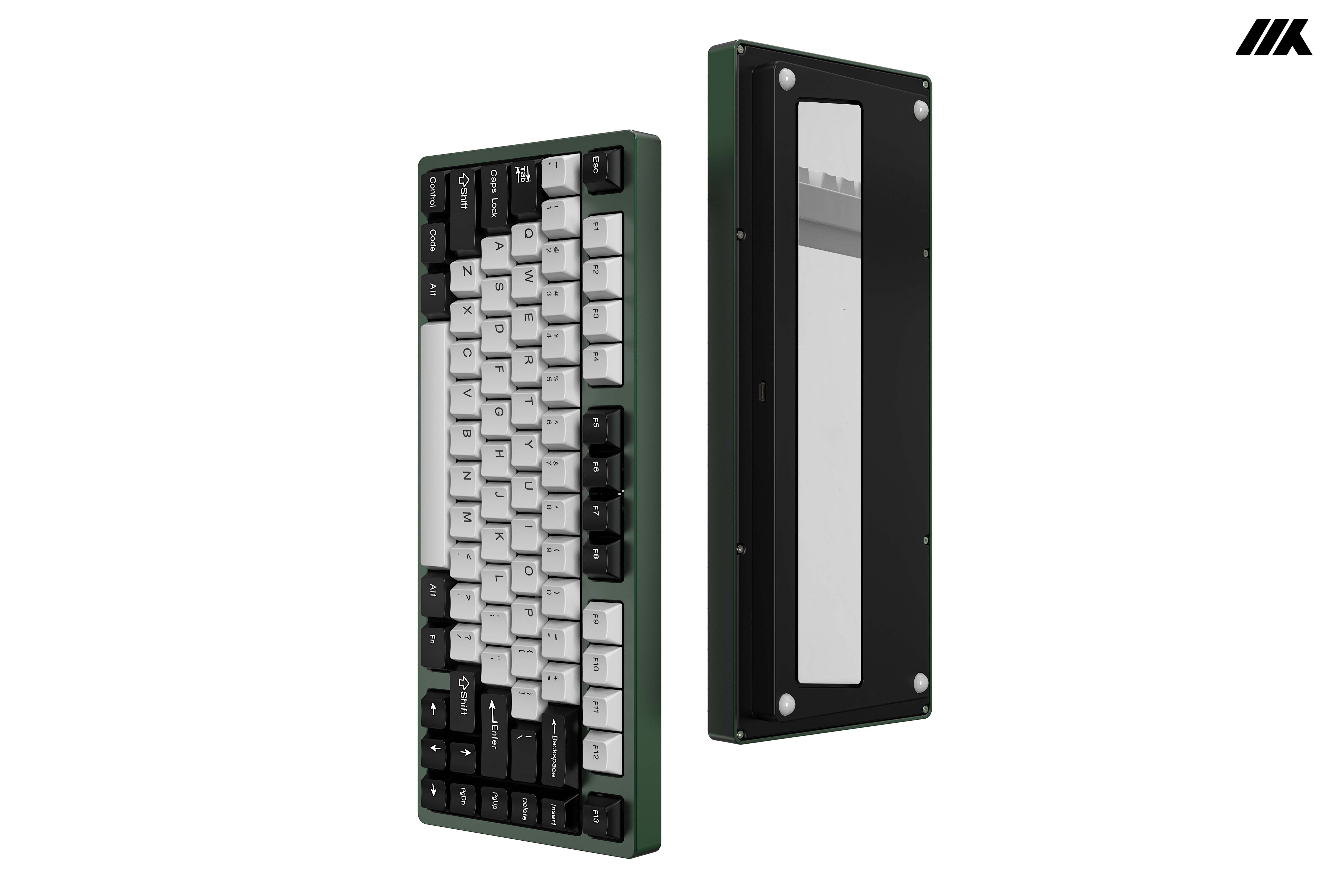

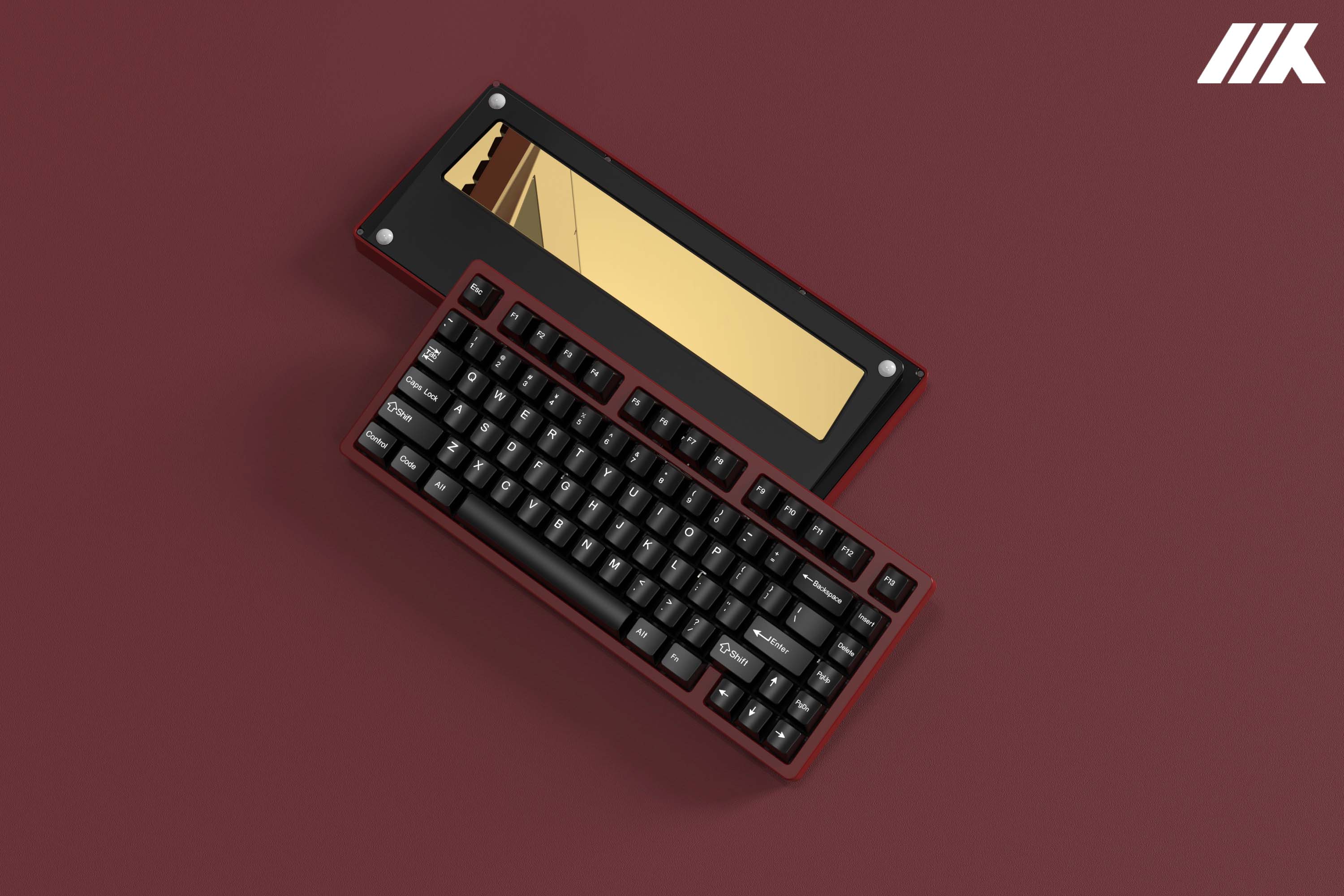

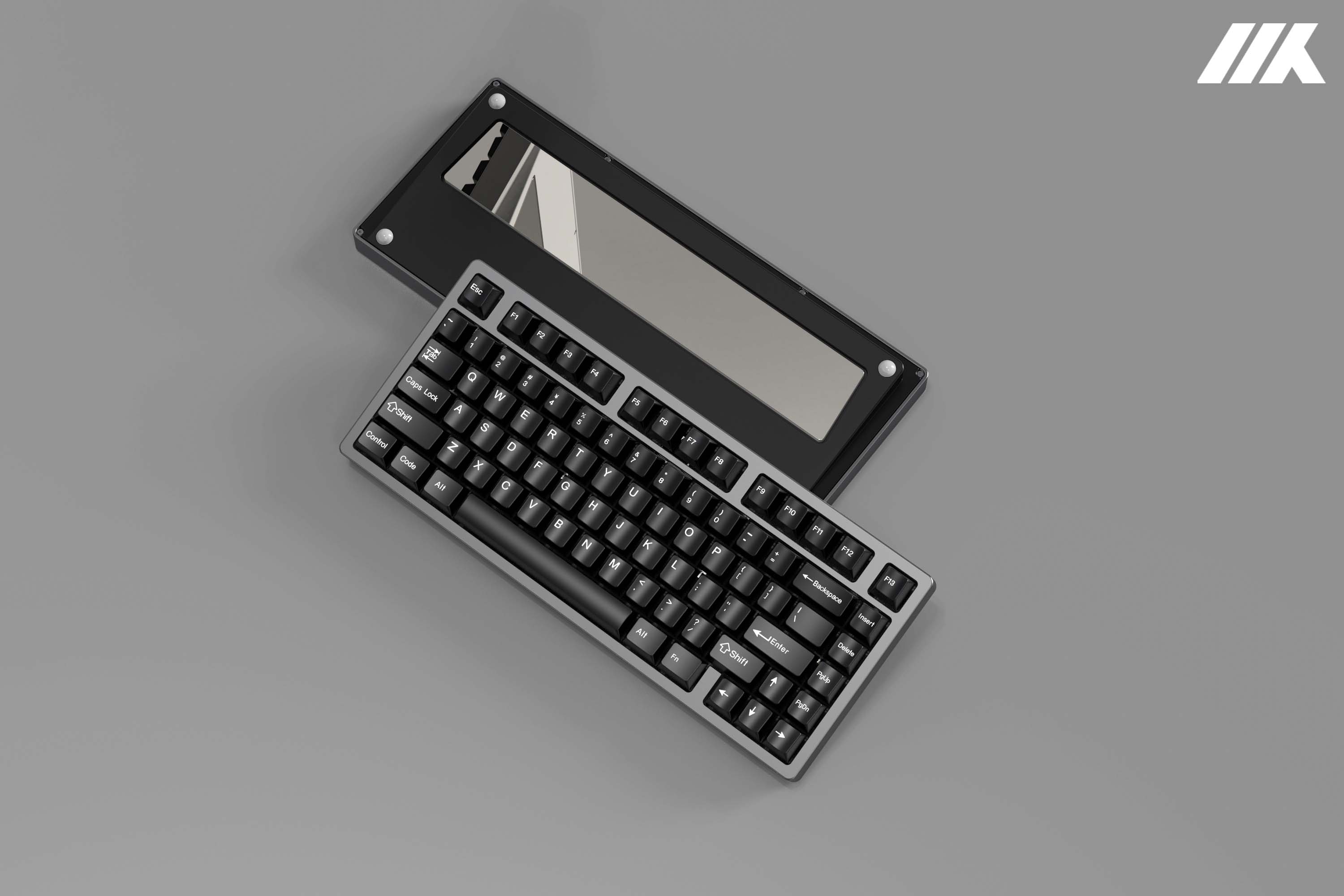

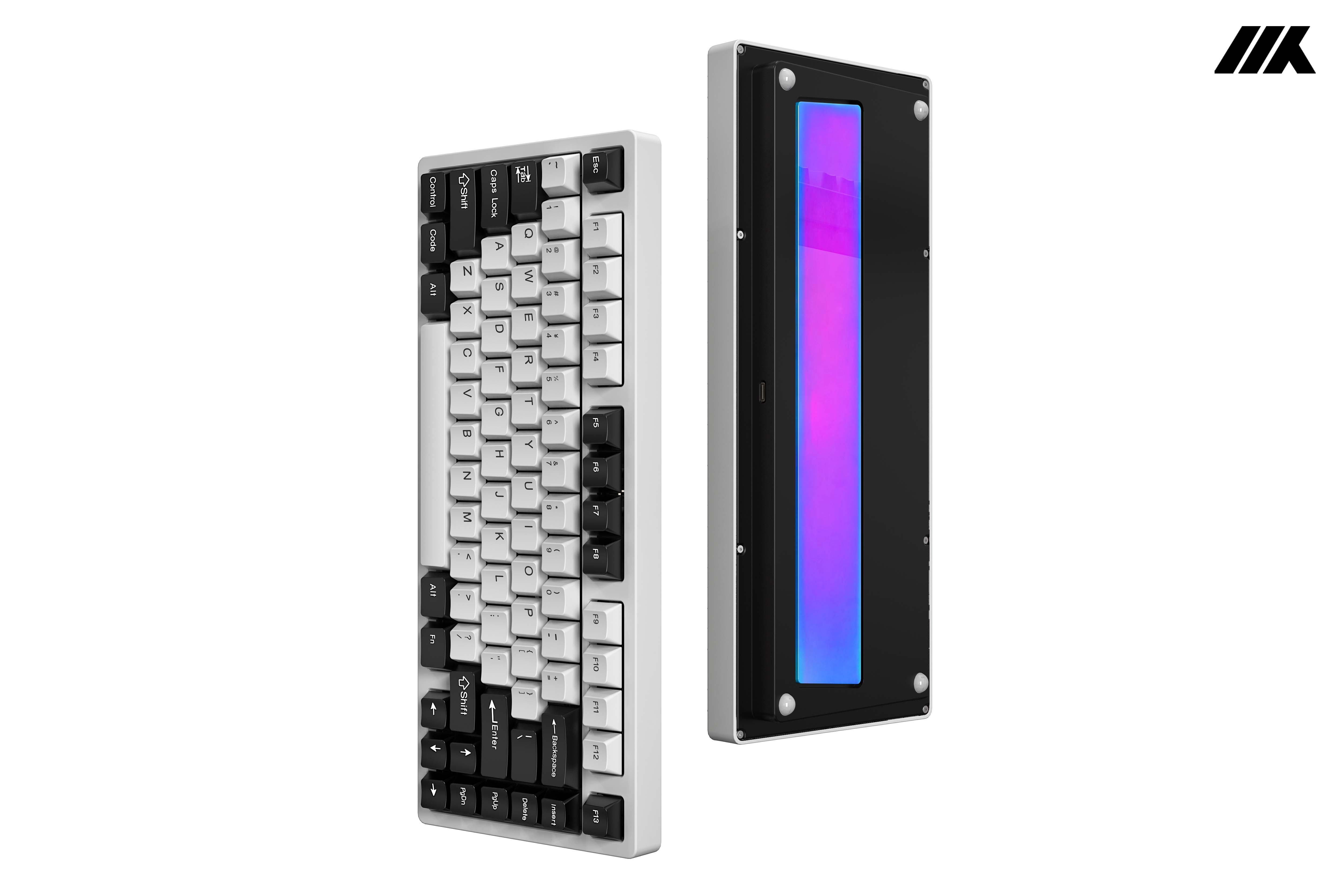

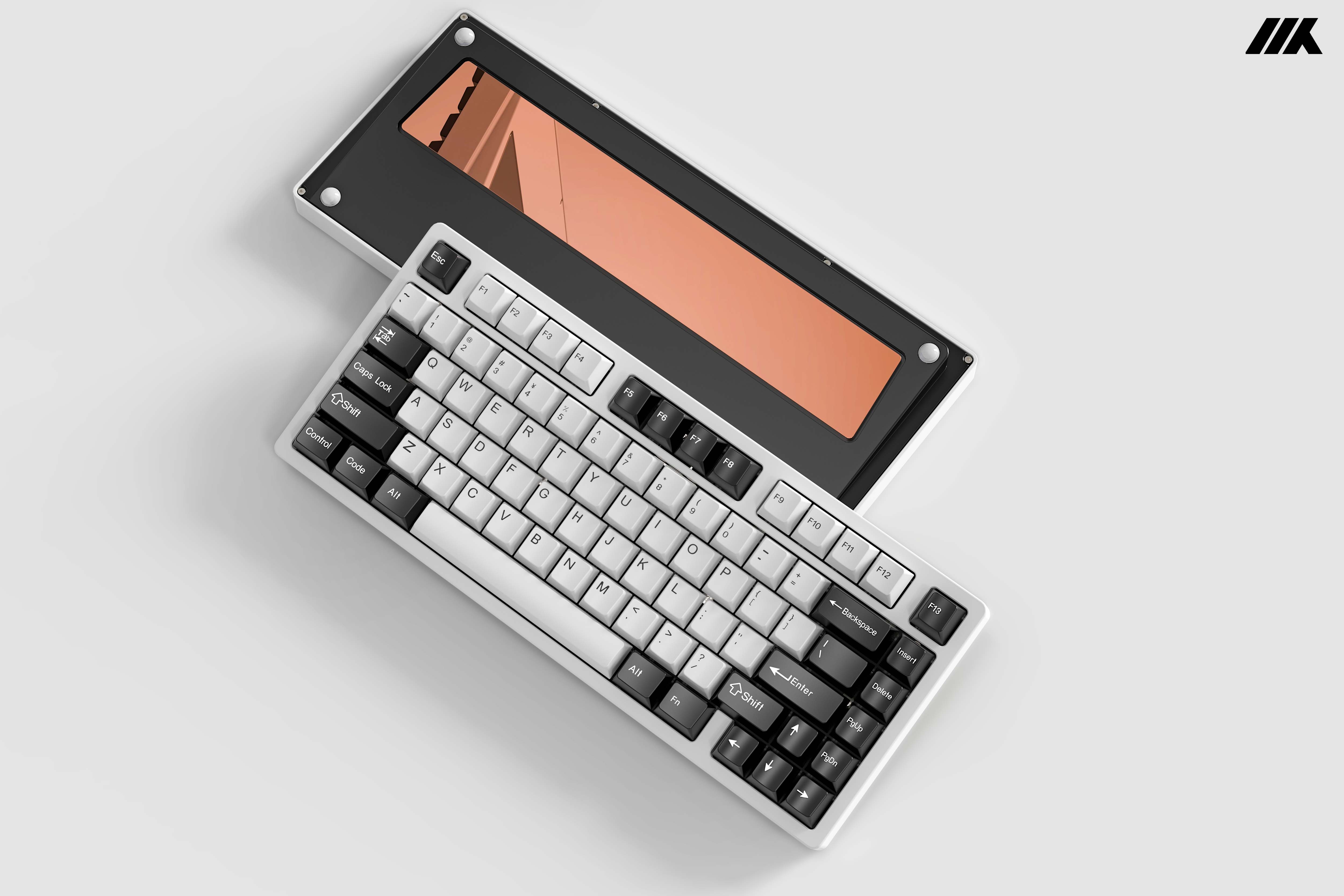

    • 7 colour combose case:E-White&Black, Orange&Black, Grey&Black, Silver&Black, Wine Red&Black, Deep Blue&Black, Green&Black

    Weight Options:

    • Designs
      • Blank Weight (Default)
      • Cursive Text Weight (Add-on only)

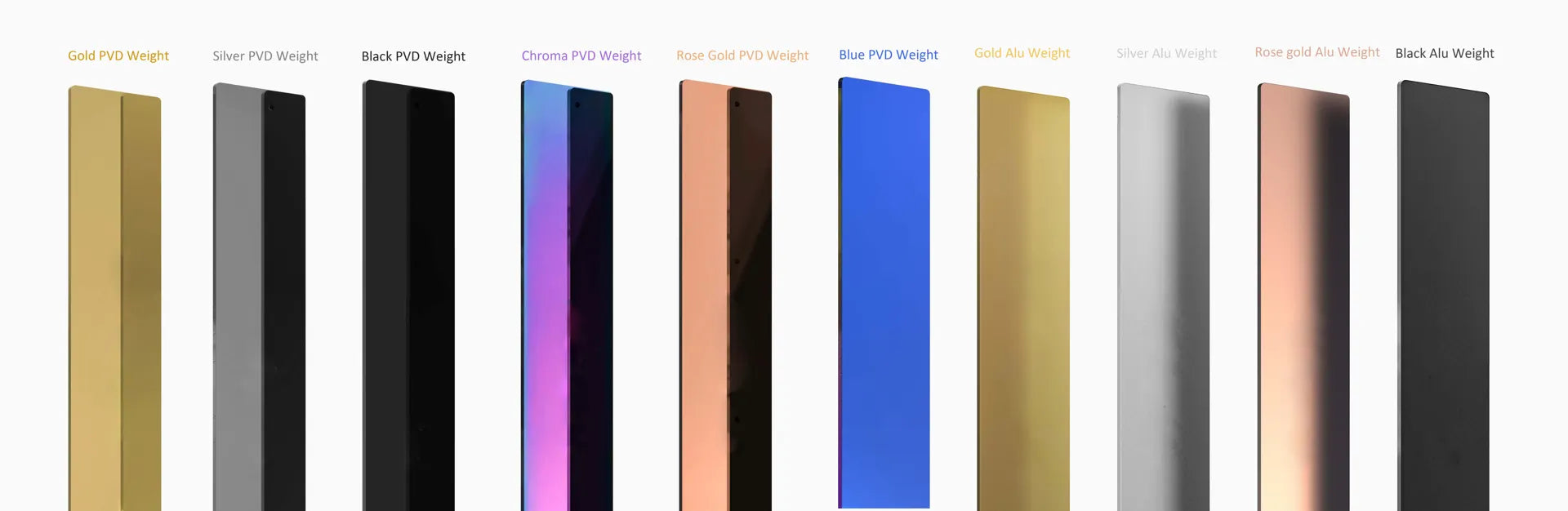

    • Colours
      • 4 Alu Weight: Gold/Silver/Rose Gold/Black
      • 6 PVD SS Weight: Gold/Silver/Black/Blue/Rose Gold/Chroma

    PCB Options:

    • Wired Flex Cut Hotswap PCB( 1.2mm, Multi Layout , 7u split spacebar, No Per-key RGB, support QMK and VIA )

    • Solder PCB / Wired Non-Flex Cut Hotswap PCB(1.6mm, Multi Layout, 7u split spacebar, No Per-key RGB, support QMK and VIA )

    • Wired Per-Key RGB Hotswap PCB ( Add-on only, 1.6mm, Non-Flex Cut, ANSI Layout, support QMK and VIA )

    • Tri-mode ANSI+ISO Hotswap PCB (1.2mm, Non-Flex Cut, No Per-key RGB, support Mykeyclub Software)

    Plate Options:

    • Flex Cut Plates: FR4, ALU, Brass (Brass Plate Add-on only)
    • Non-flex Cut Plates: PC, POM
    • Alu and FR4 Half-plate (Both Add-ons only)
    • Plateless

    Note: We highly recommend using a PC/ POM/FR4 plate for Tri-mode PCB, because the Brass and ALU plate will have a little affection for connectivity.

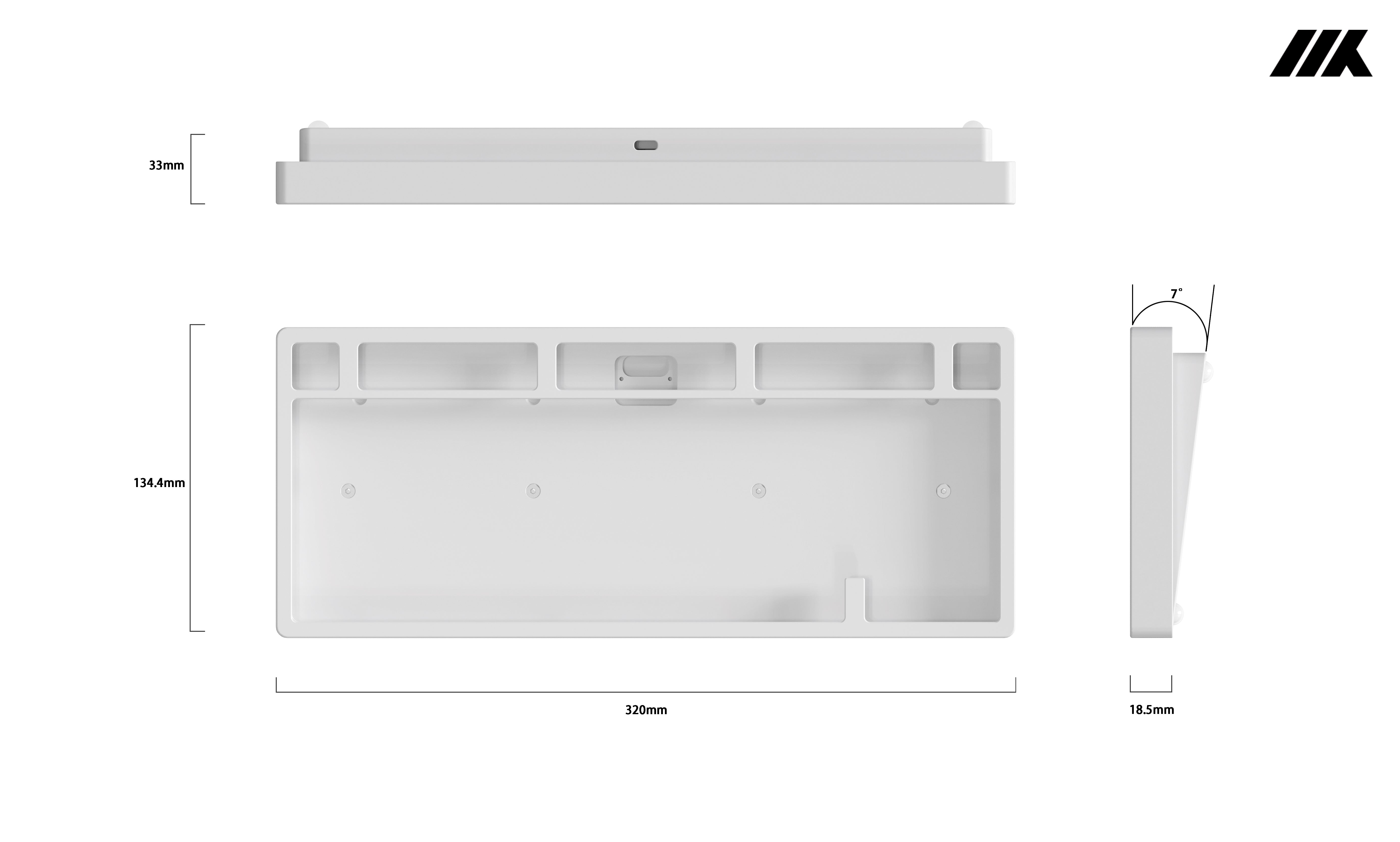

    • Typing angle: 7°
    • Front height: 18.5 mm
    • Material: Full CNC 6063 aluminium
    • Dimension: 320*134.4*33mm
    • Three-in-one Structure: TOP Mount / Plate Gasket Mount / PCB Gasket Mount
    • QMK/VIA Supported (wired)
    • Support PCB stabilizers
    • Unbuilt Weight
    • With PVD WEIGHT: 1.693kg
    • With Alu WEIGHT: 1.425kg
    • Built Weight
    • With PVD WEIGHT: 1.86kg
    • With Alu WEIGHT: 1.592kg


    What is Included:

    • Full CNC Aluminum Top case *1
    • Full CNC Aluminum Bottom case*1
    • Weight (Anodized Alu Weight or Stainless steel PVD Weight) *1
    • Internal Alu Weight (Only for the Tri-mode Version Case) *1
    • Plateless or Plate *1
    • PCB *1
    • IXPE Foam *1
    • Poron Case Foam *1
    • Poron Plate Foam *1
    • Type-C Daughterboard with JST Cable *1
    • PCB GAS Silicone Column *12
    • Plate GAS Silicone Sock *18
    • Top mount screw and spacer *12
    • PCB stabilizers o-ring *12
    • Footpad *6
    • Poron case strip *6
    • 1.6mm hex key *1

    GIFT (will not send make-up or replacements)
    • 1 Pack of Extra Screw
    • M2x3mm cylindrical head screw *2
    • M2x8mm cylindrical head screw *2
    • M3x12mm countersunk screw *2
    • M3x6mm countersunk screw *2
    • 2200mha battery (Only for the Tri-mode Version Case) *2
    • Silicone pad of battery compartment (Only for the Tri-mode Version Case) *2


    Vendor List



    Shipping Time and GB Agreements (PLEASE READ):
    These products are set to be shipped out in Q4 2023 but please check our updates for the latest information.

    Please note that this is a Group Buy. There can be delays and set backs. The timeline is only an estimate. By adding this item to your cart and purchasing you agree that you understand everything above. You will be charged immediately for this item. There are no refunds or cancellations on these orders. Please do not purchase this item with other group buys. Only the items specified in each product picture are included with that particular product.
