(Group Buy) Ophanim Keyboard Kit

• Materials: 6063 Aluminum, Brass, Stainless Steel
• Layout: WKL/ WK 65%
• Typing Angle: 7 Degrees
• EKH: 22.3mm
• Weight: 1.2kg unbuilt
• Mounting: Dampened Top or PCB Gasket

PCB Specifications:

• Material: Black FR4
• Thickness: 1.6mm
• Connectivity: Onboard USB-C
• Customizability: VIA
• Type: Solderable and Hotswap

PCB Compatibility

Hotswap and Solder

Mounting Design

Ophanim has two mounting options with multiple options of how to build it.

Option 1: PCB Gasket Mount - It can be built with or without the plate and uses molded gaskets to isolate the PCB from the top and bottom case

Option 2: Dampened Top Mount - Two plate designs to accomodate for softer materials. Gaskets can be removed when using plate with PCB gasket mounting to prevent rattle between plate and top case.

Soft Material Plate

Stiff Material Plate

Colourways

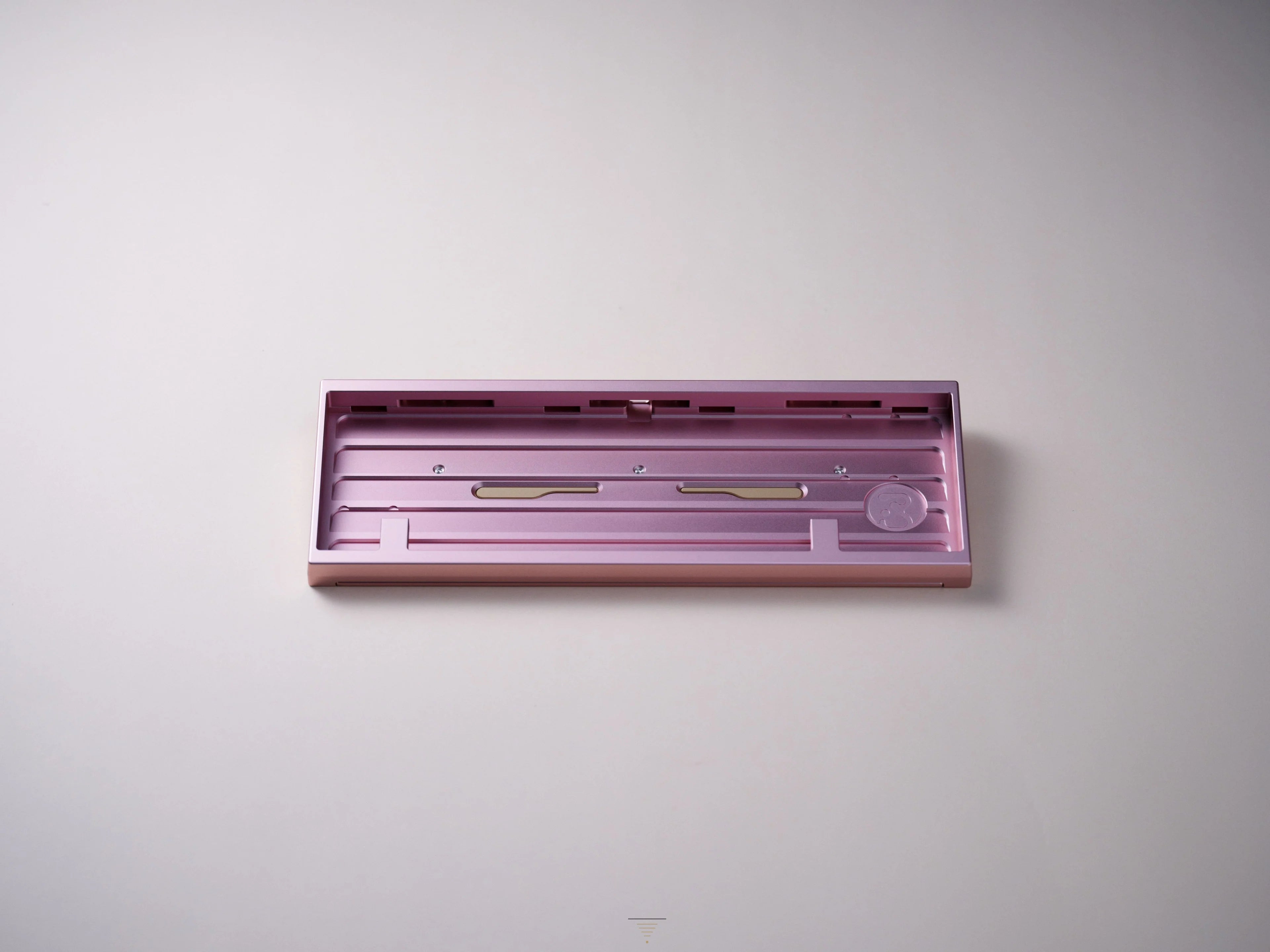

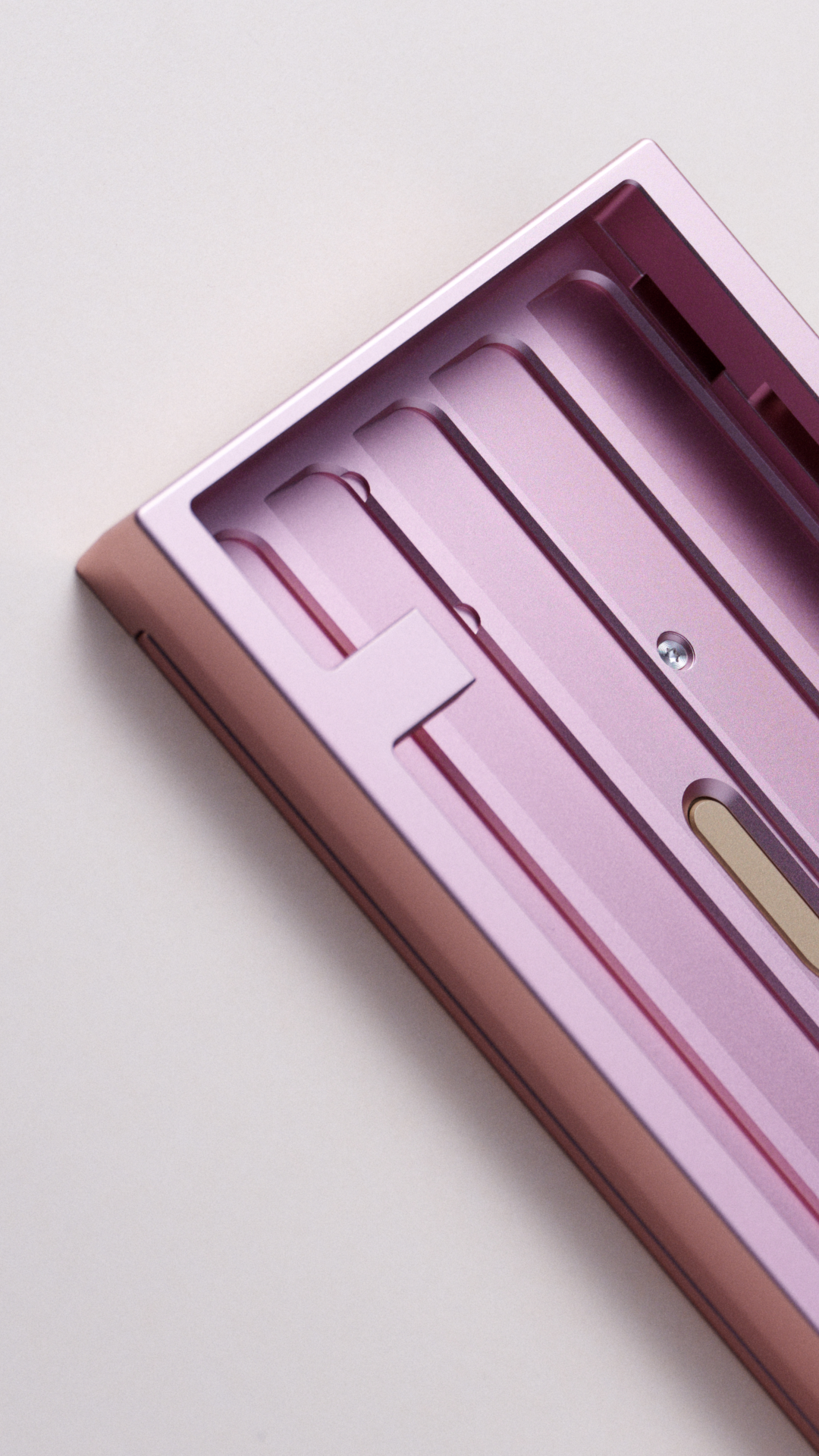

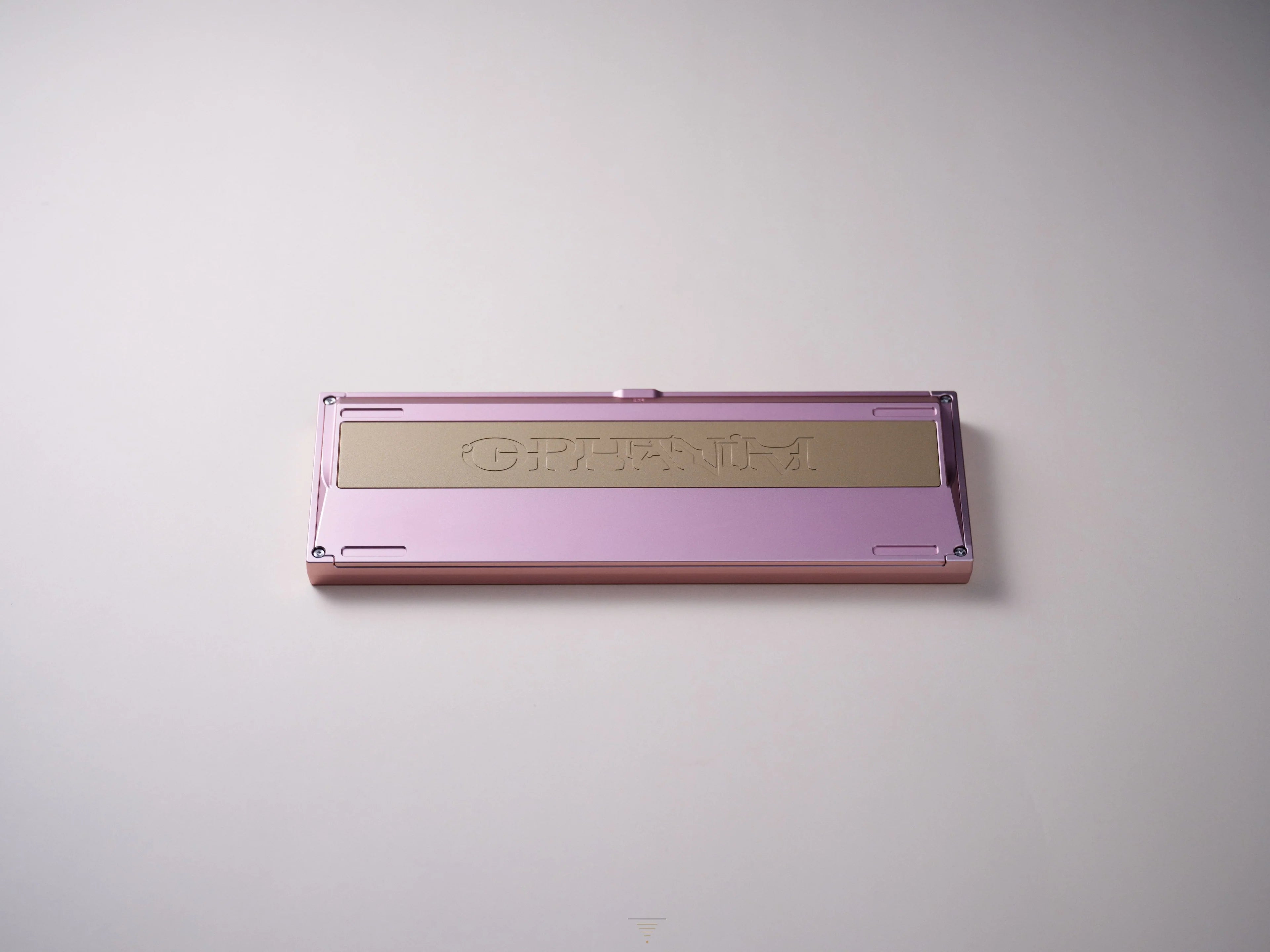

Flesh - Pink Anodised Top Case, Pink Anodised Bottom Case, Sandblasted and Clear Coated Brass Weight

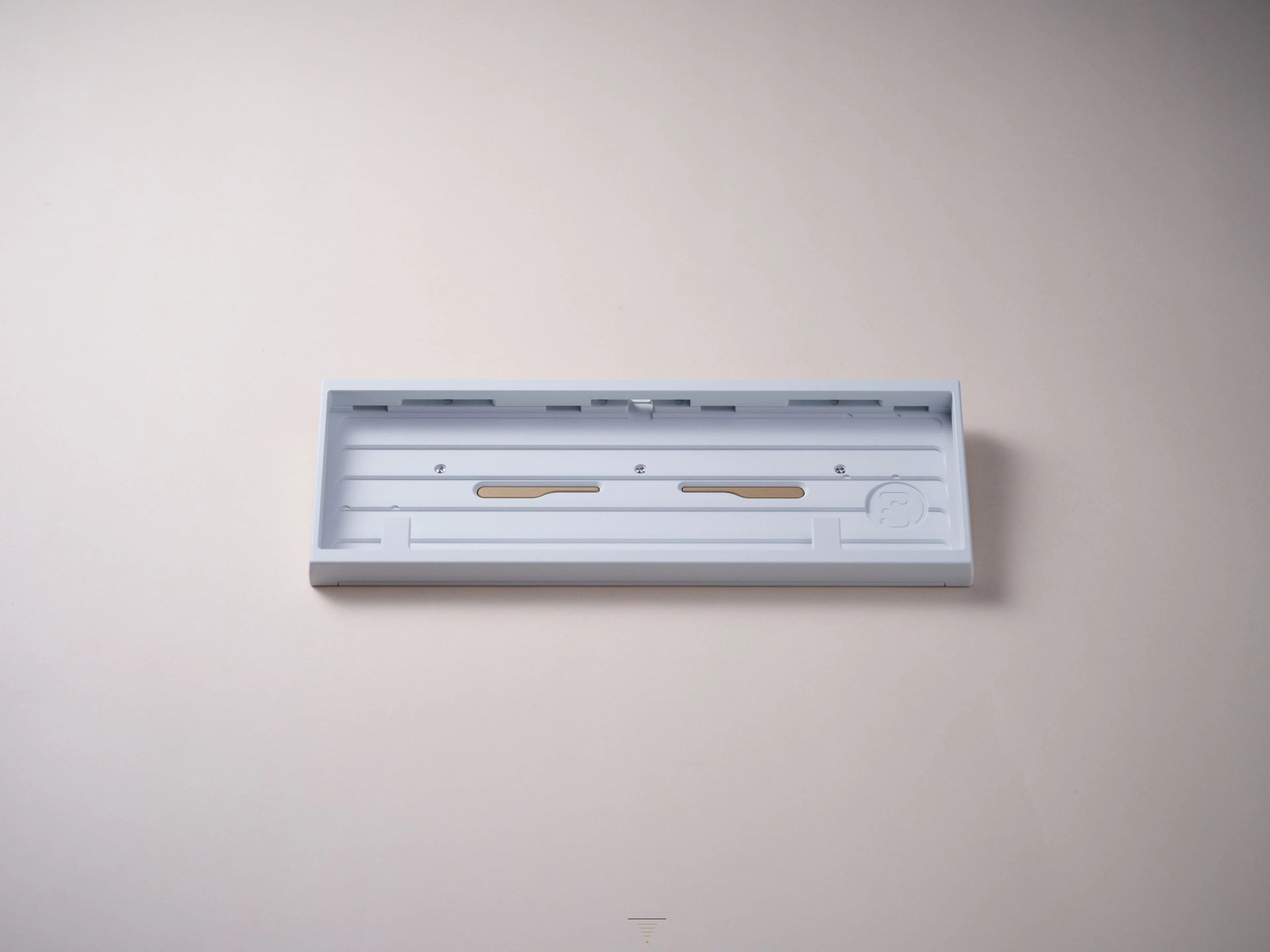

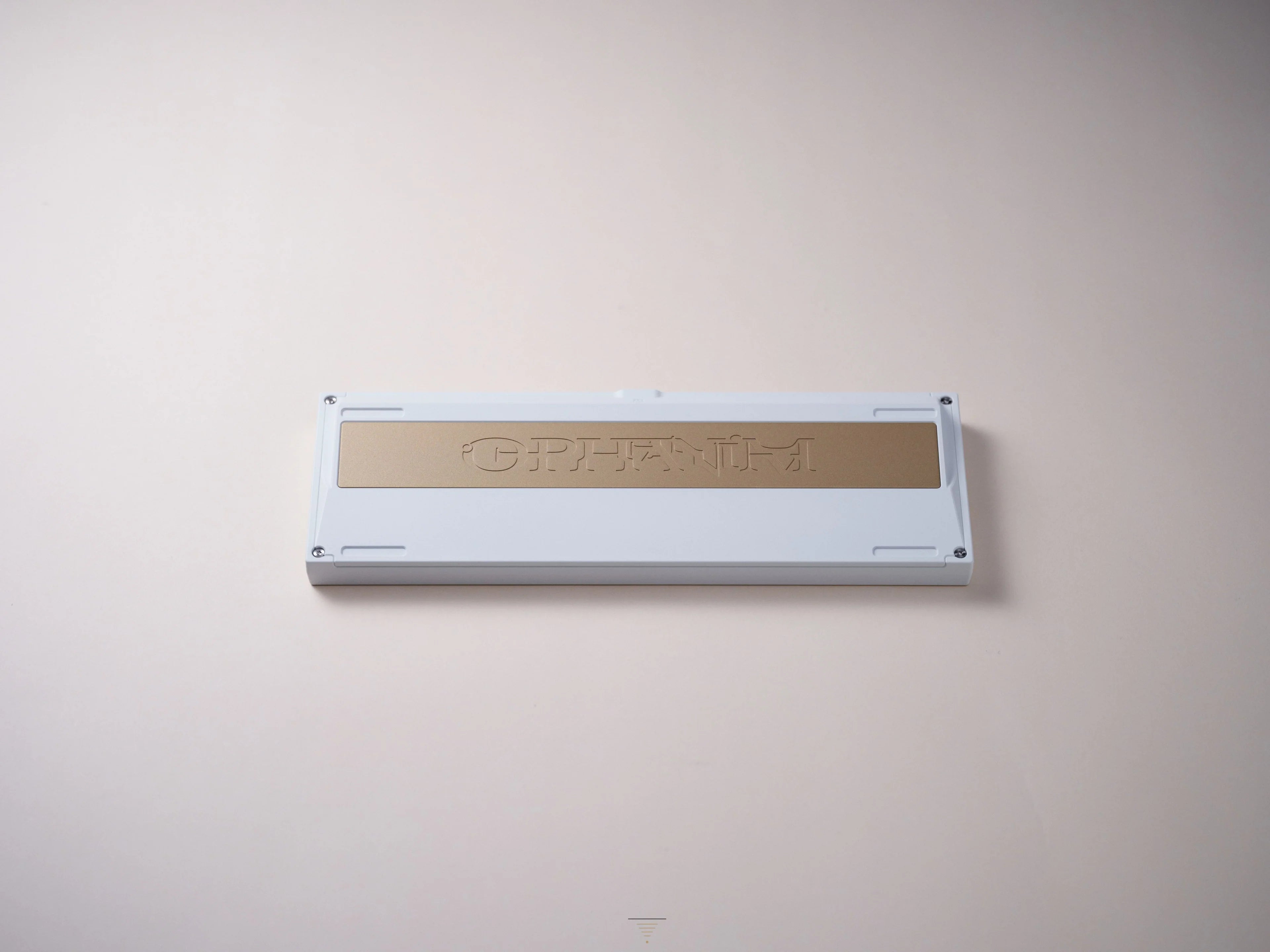

Angel - White Coated Top Case, White Coated Bottom Case, Sandblasted and Clear Coated Brass Weight

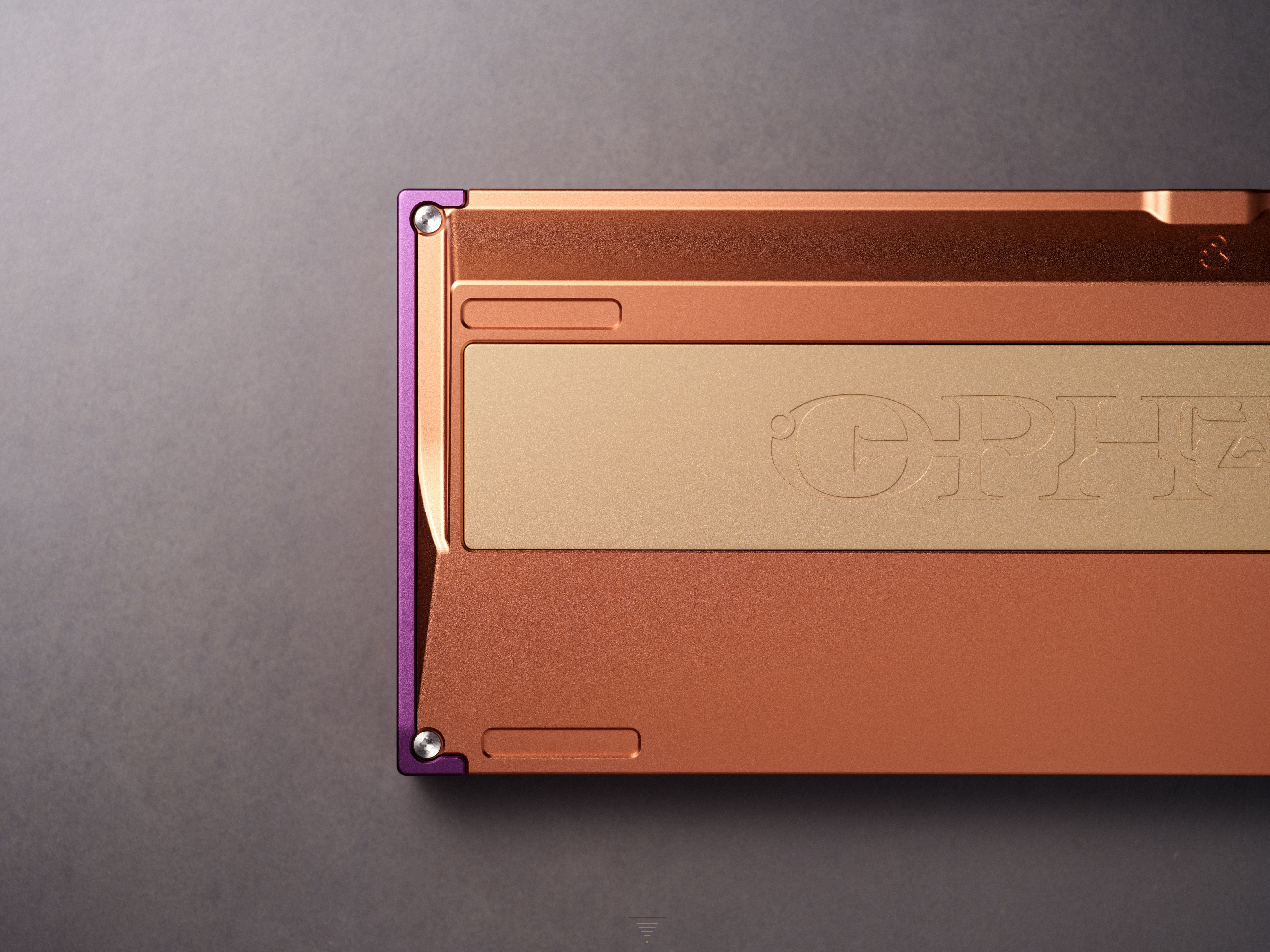

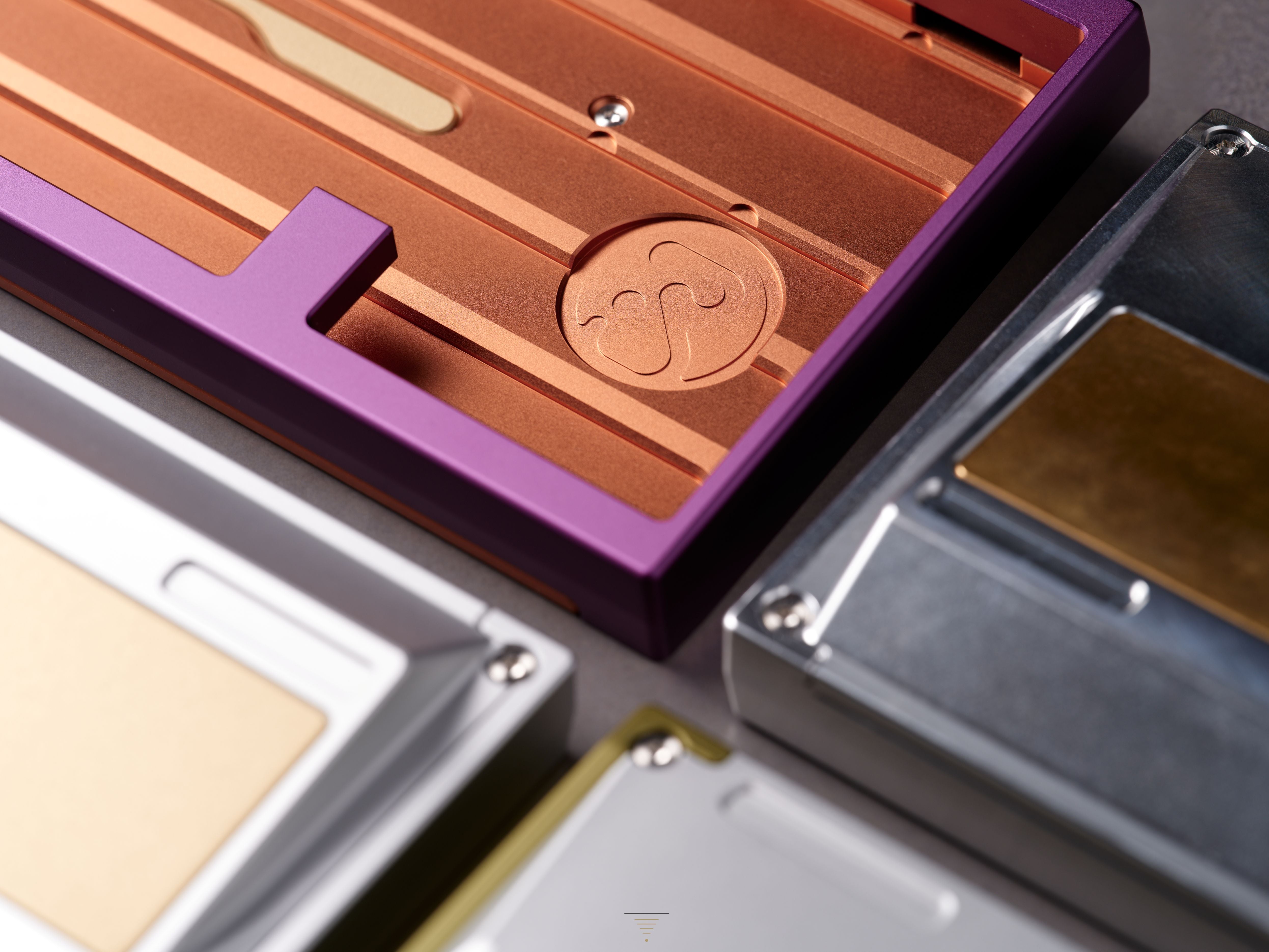

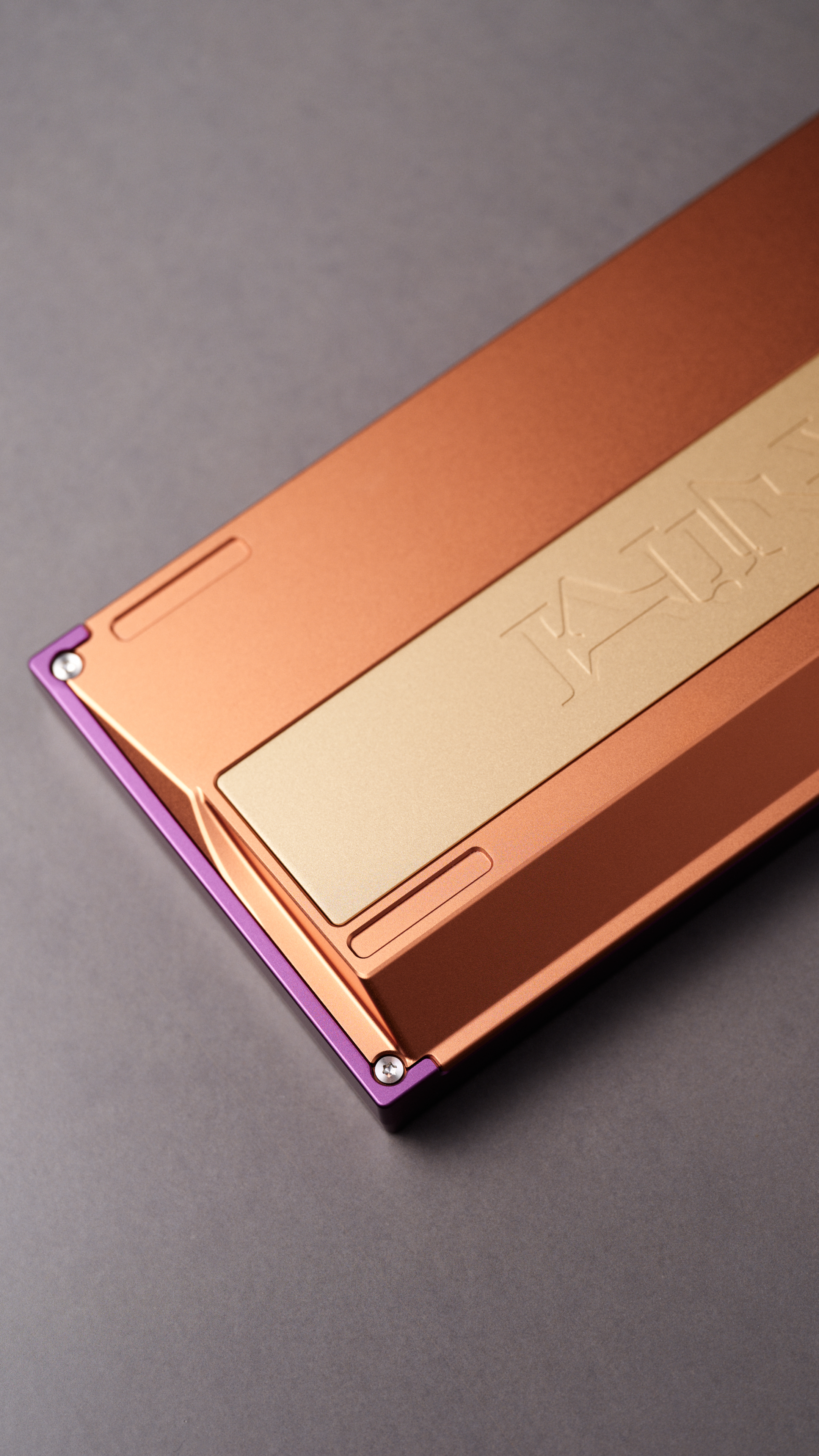

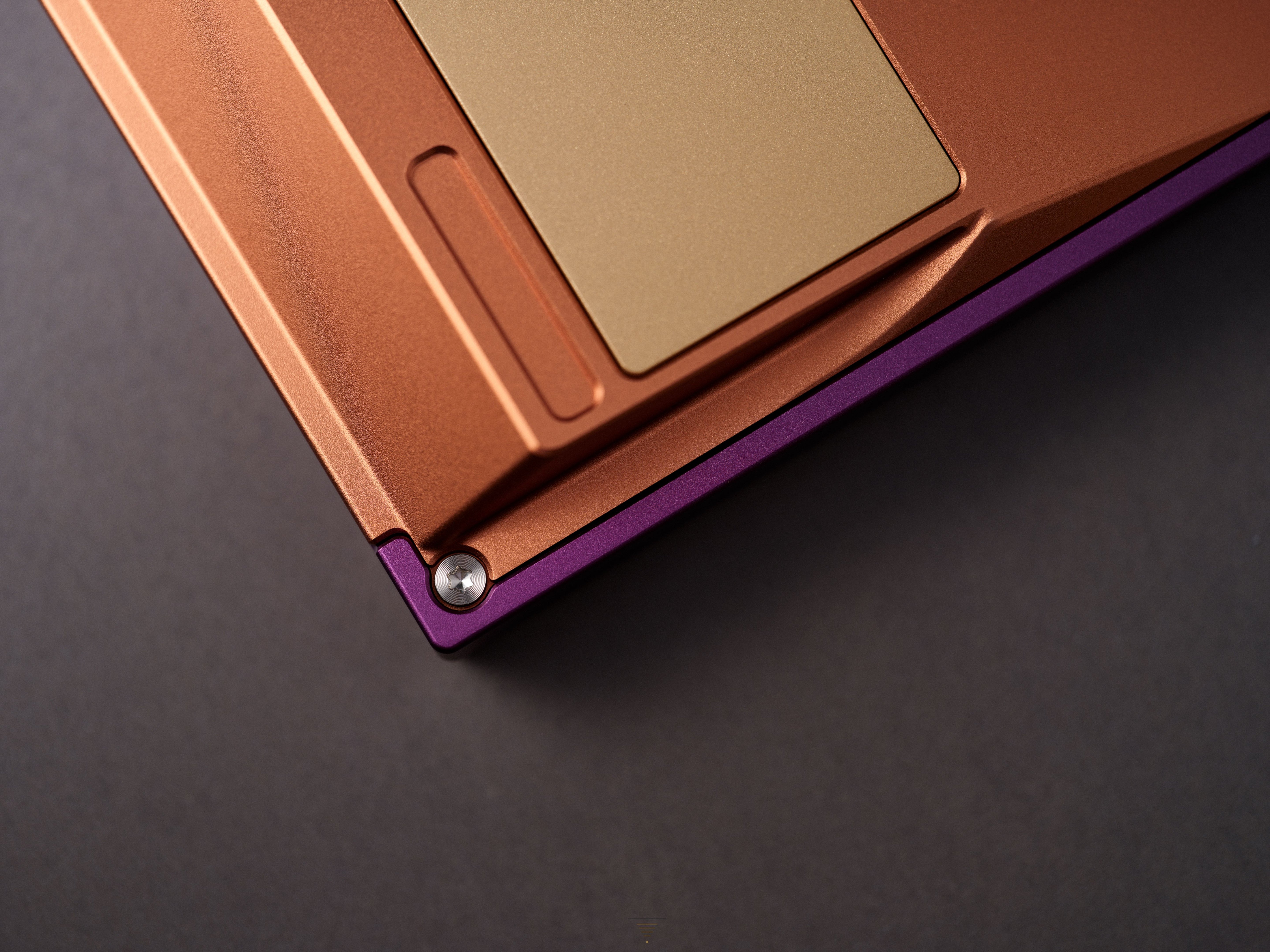

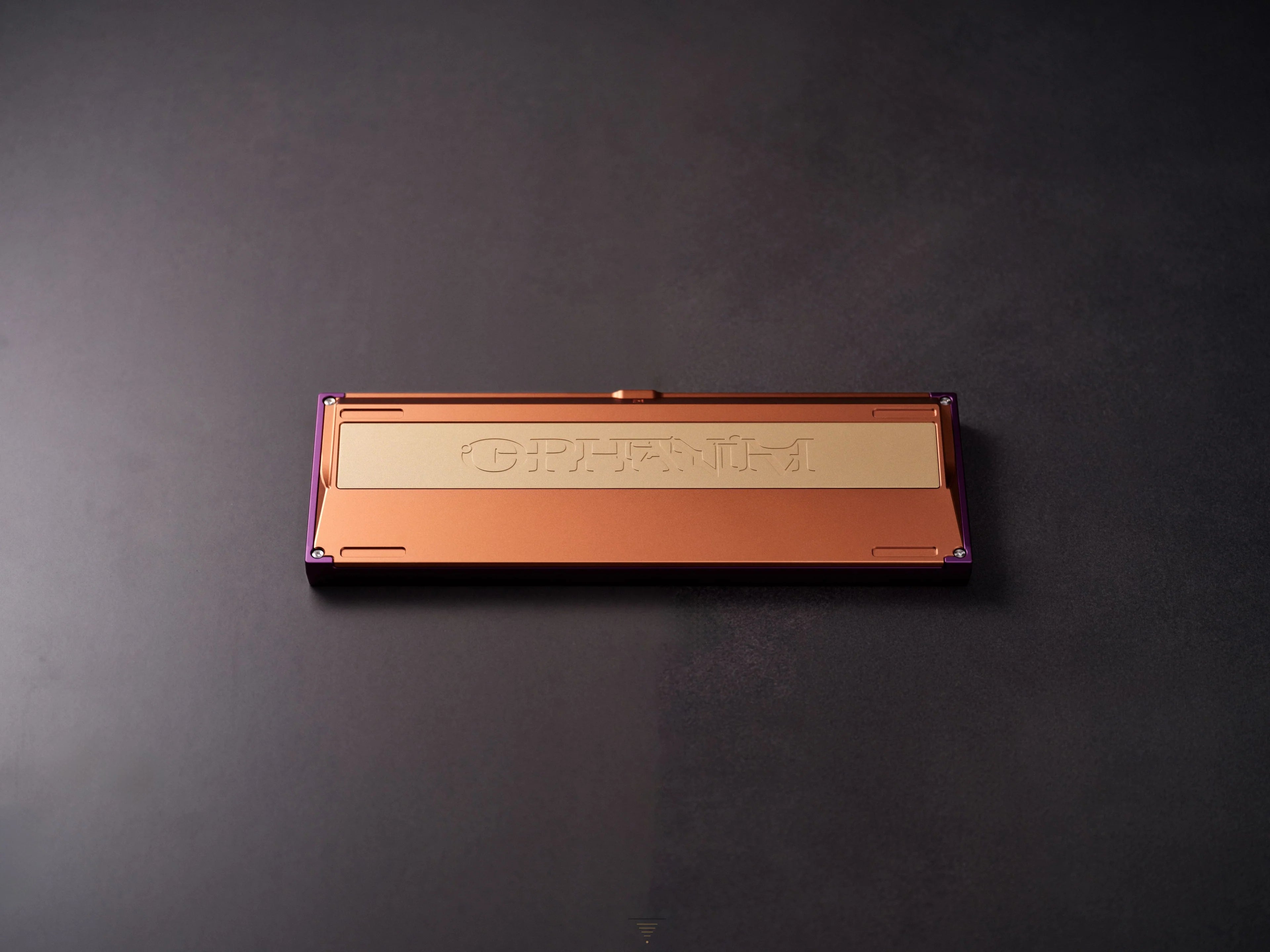

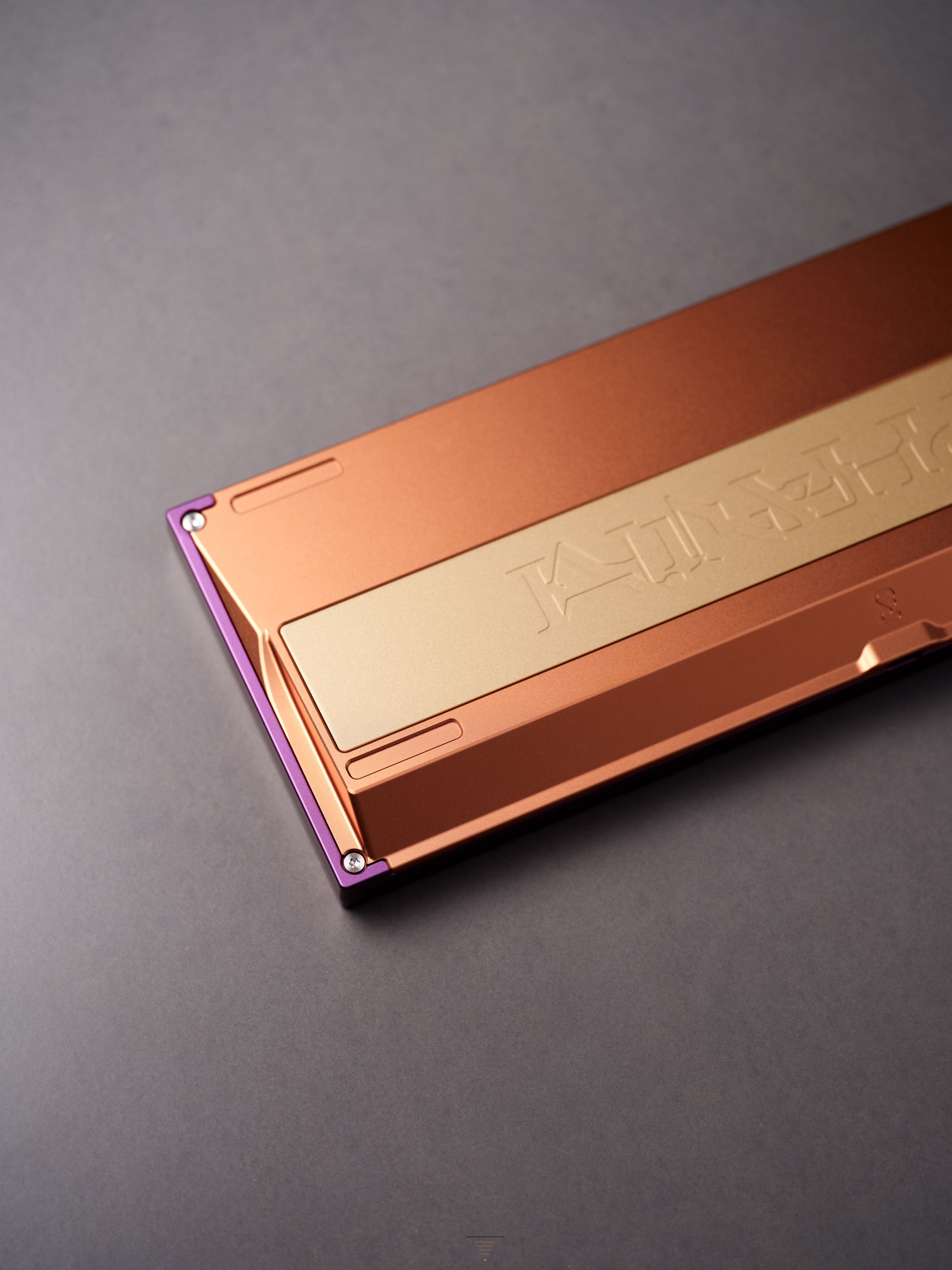

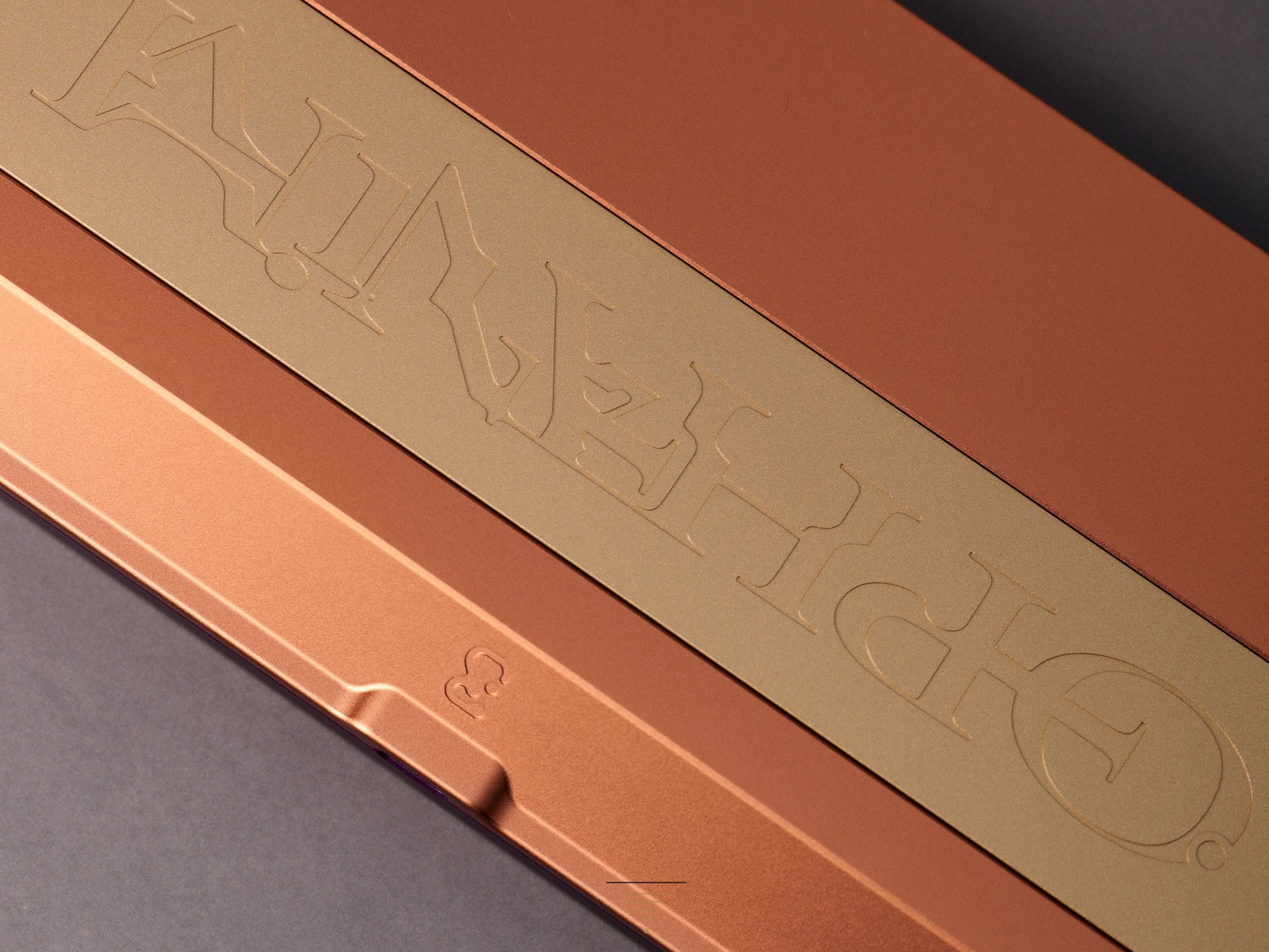

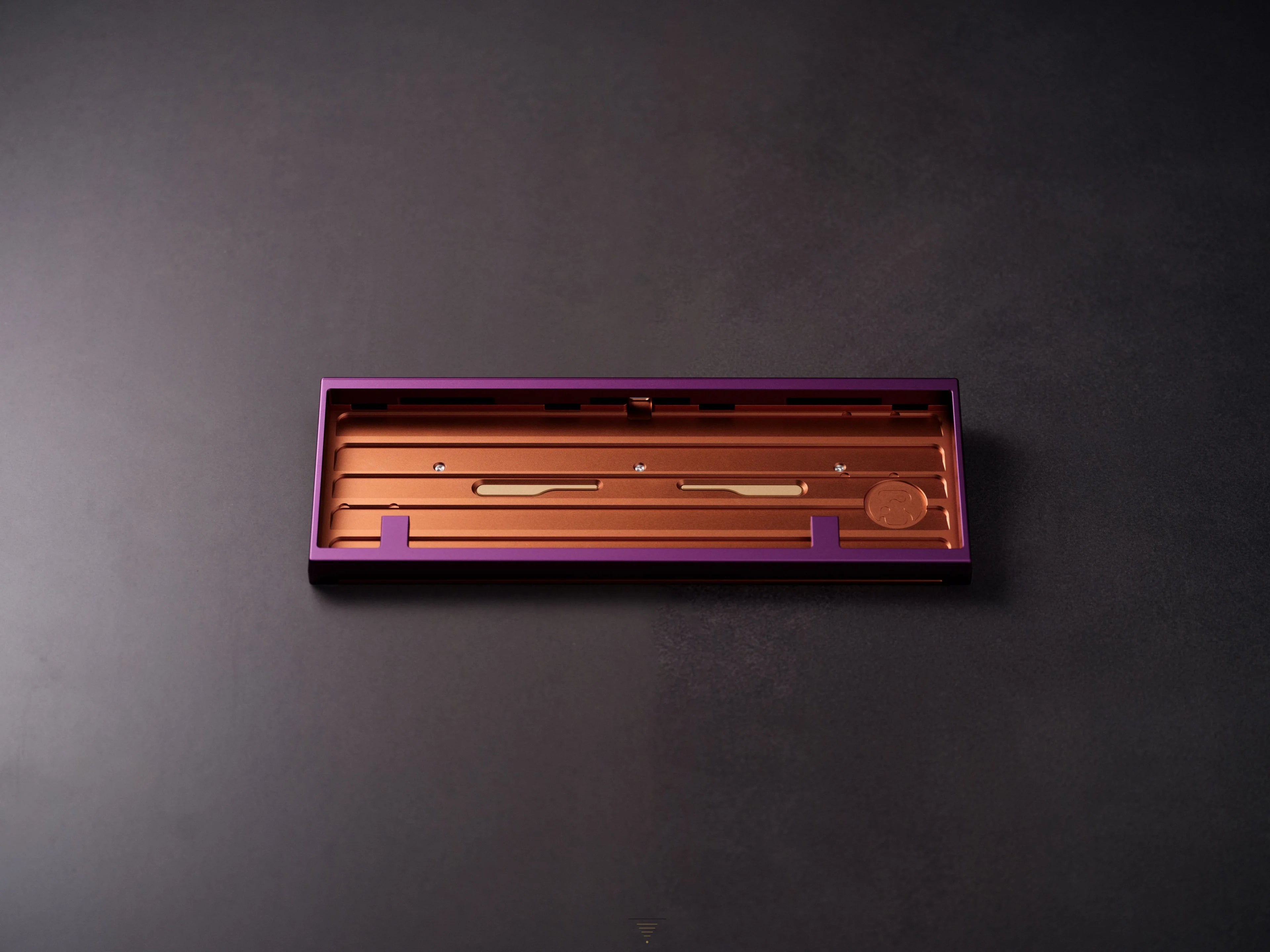

Ancient - Purple Anodised Top Case, Burnt Orange Anodised Bottom Case, Sandblasted and Clear Coated Brass Weight

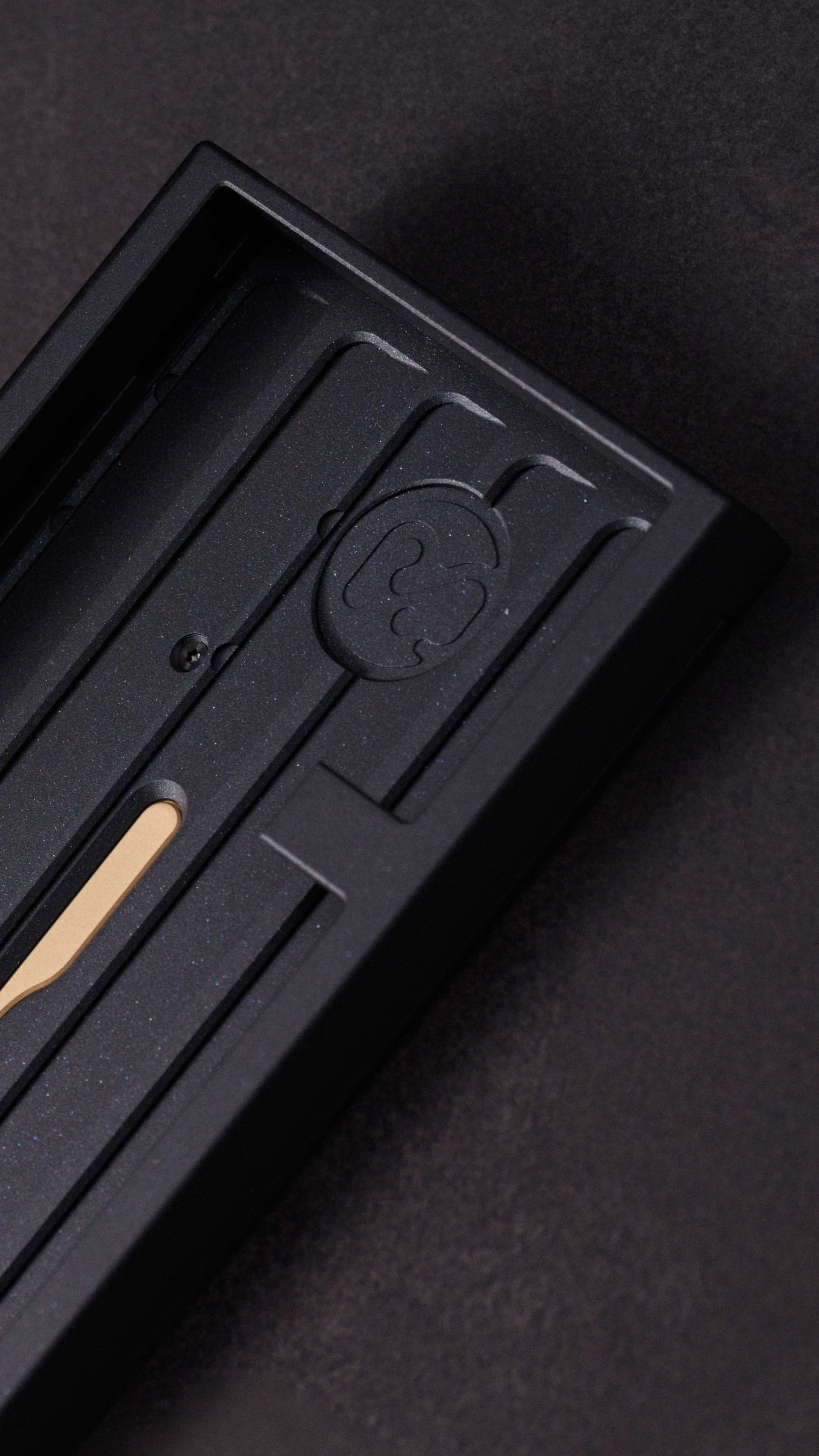

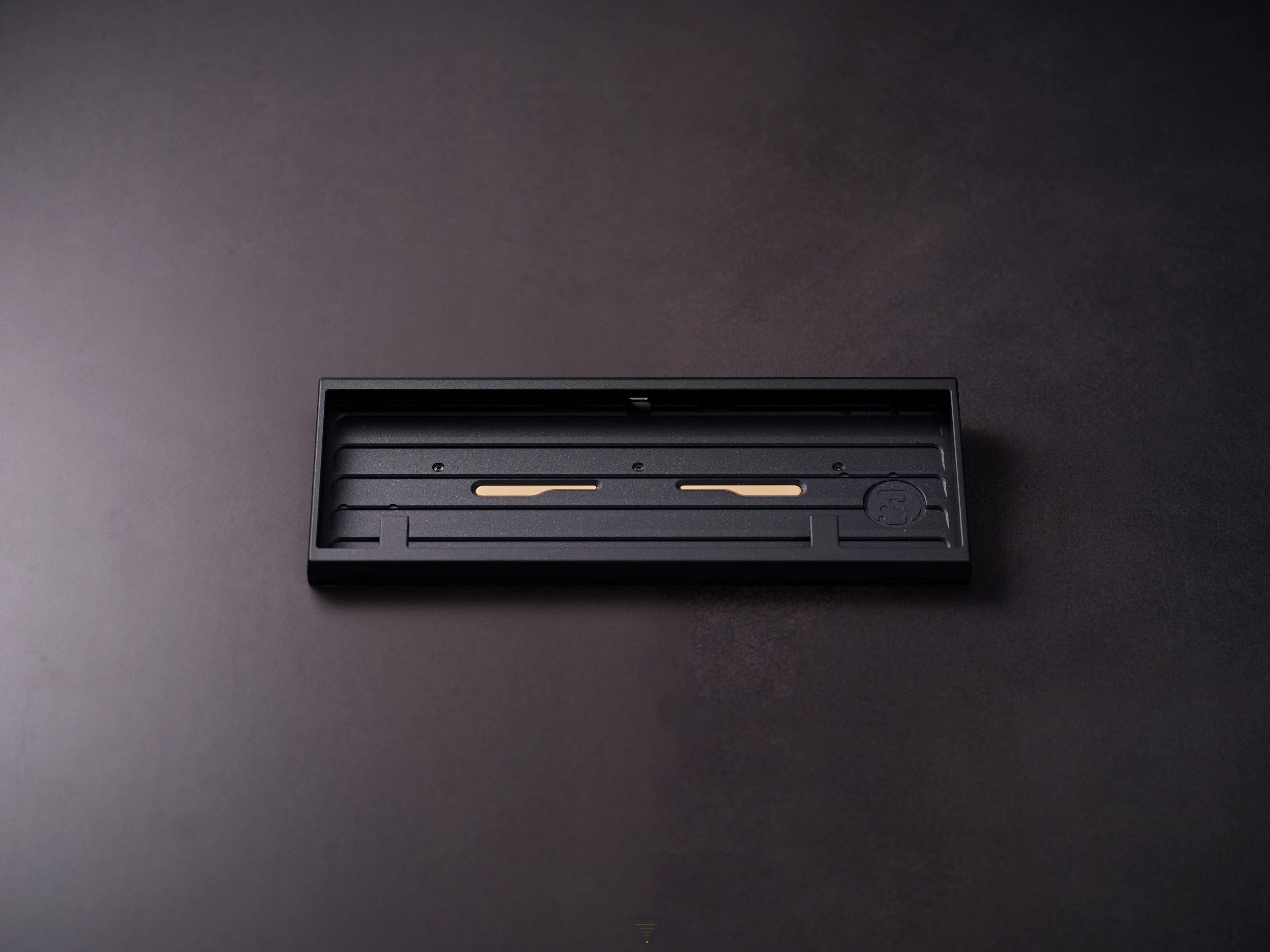

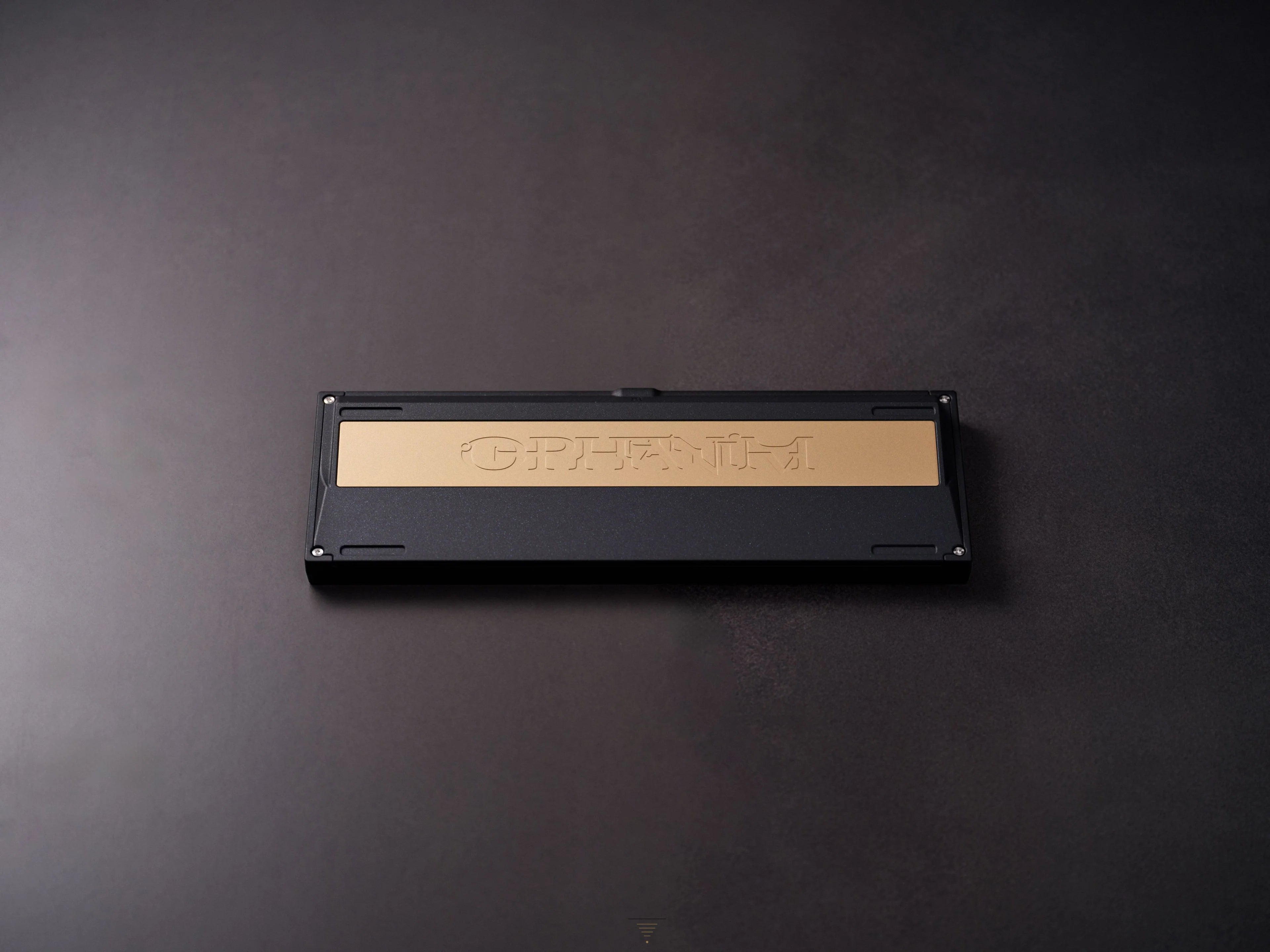

Firmamento - Sparkle Black Coated Top Case, Sparkle Black Coated Bottom Case, Sandblasted and Clear Coated Brass Weight

Delusion - Clear Anodised with Machine Marks Top Case, Clear Anodised with Machine Marks Bottom Case, Raw Brass Weight

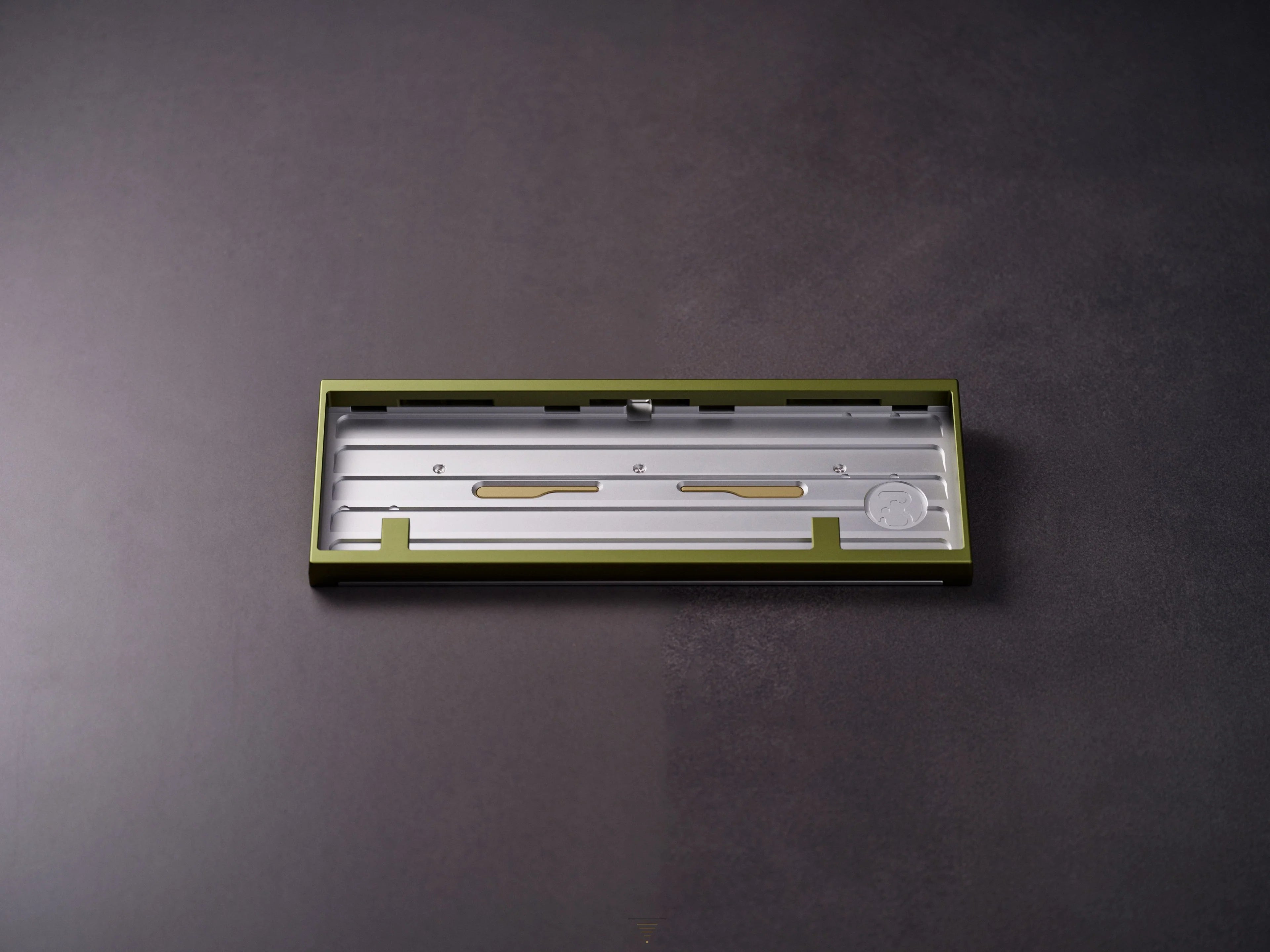

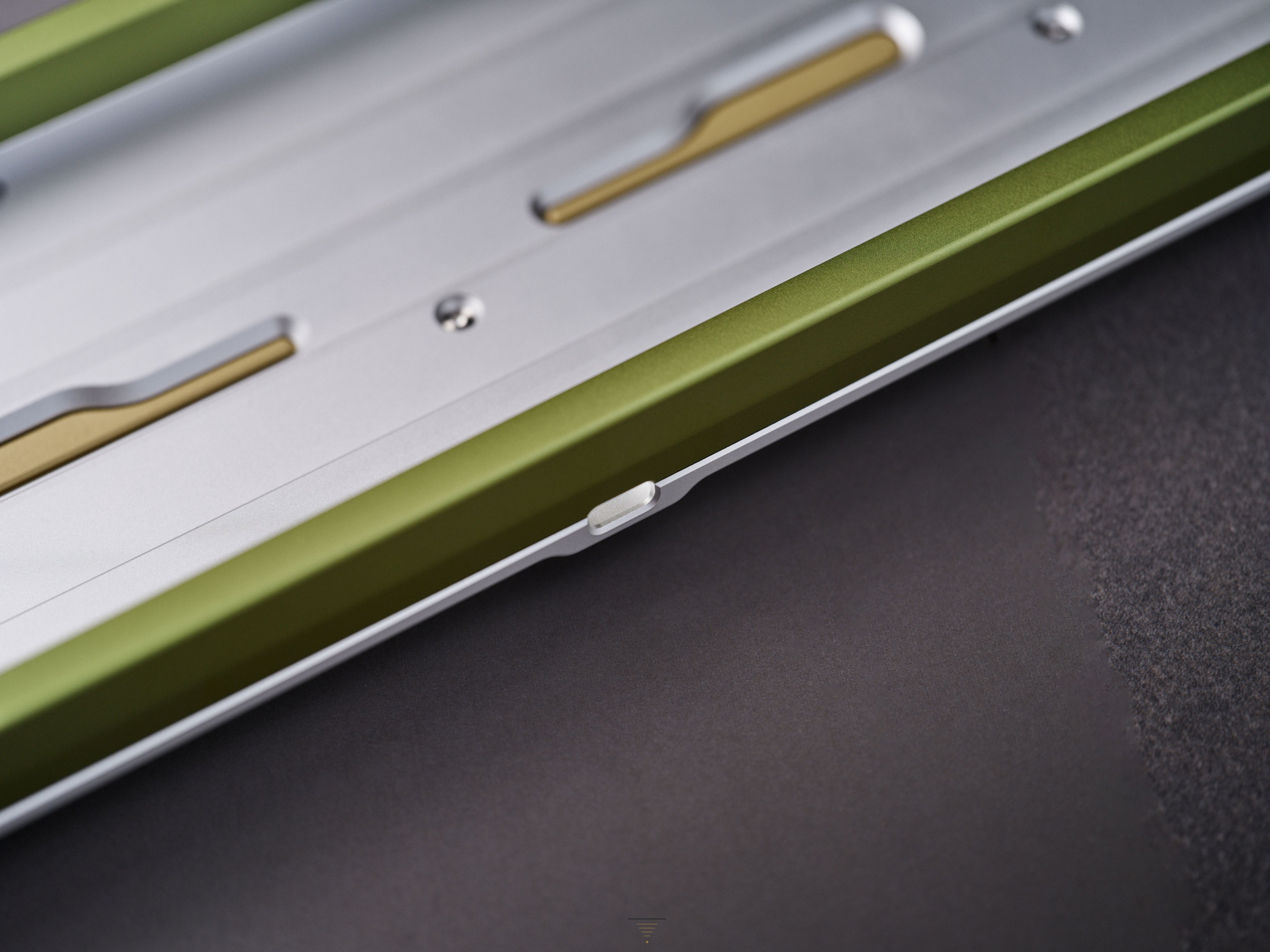

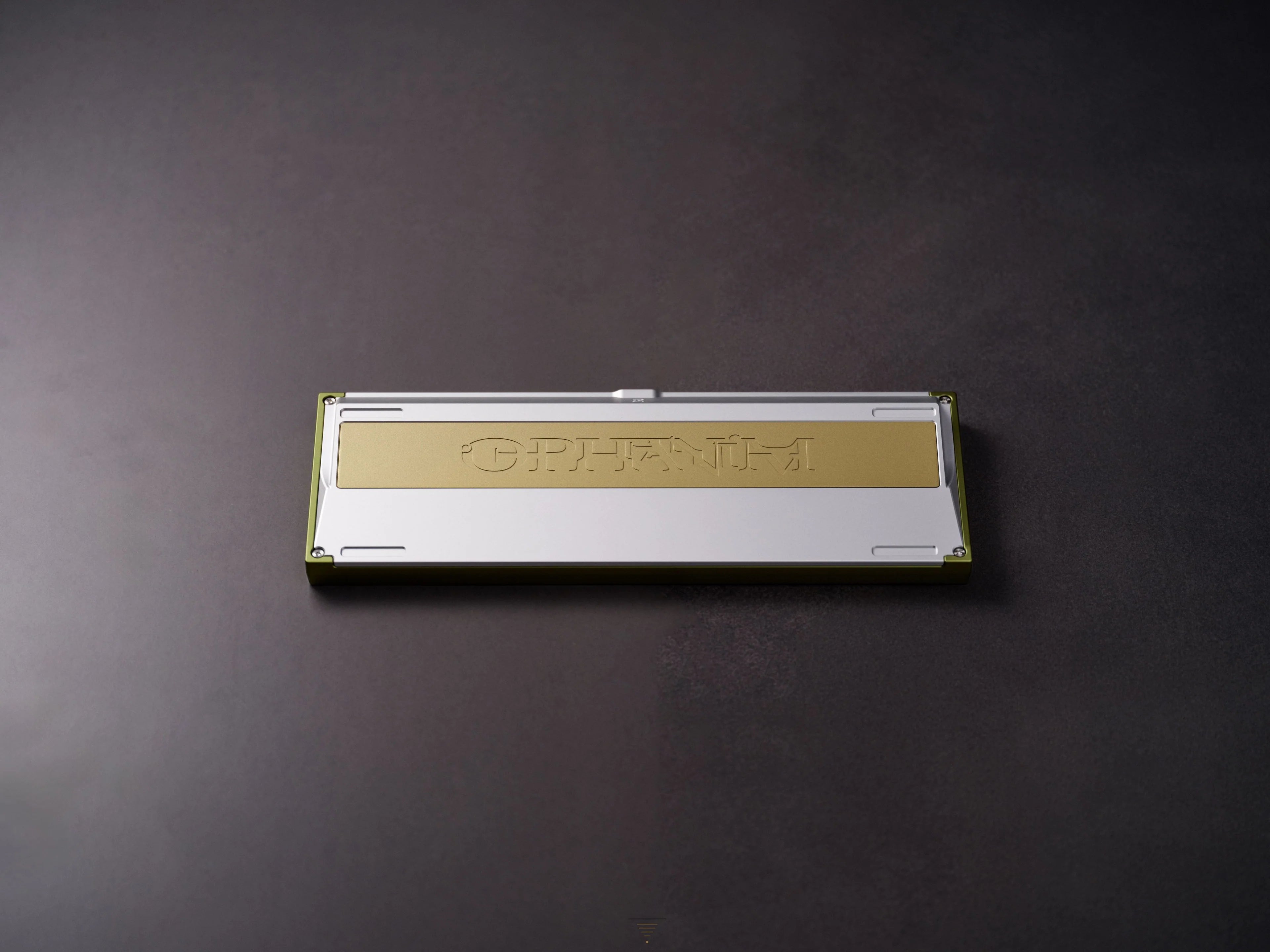

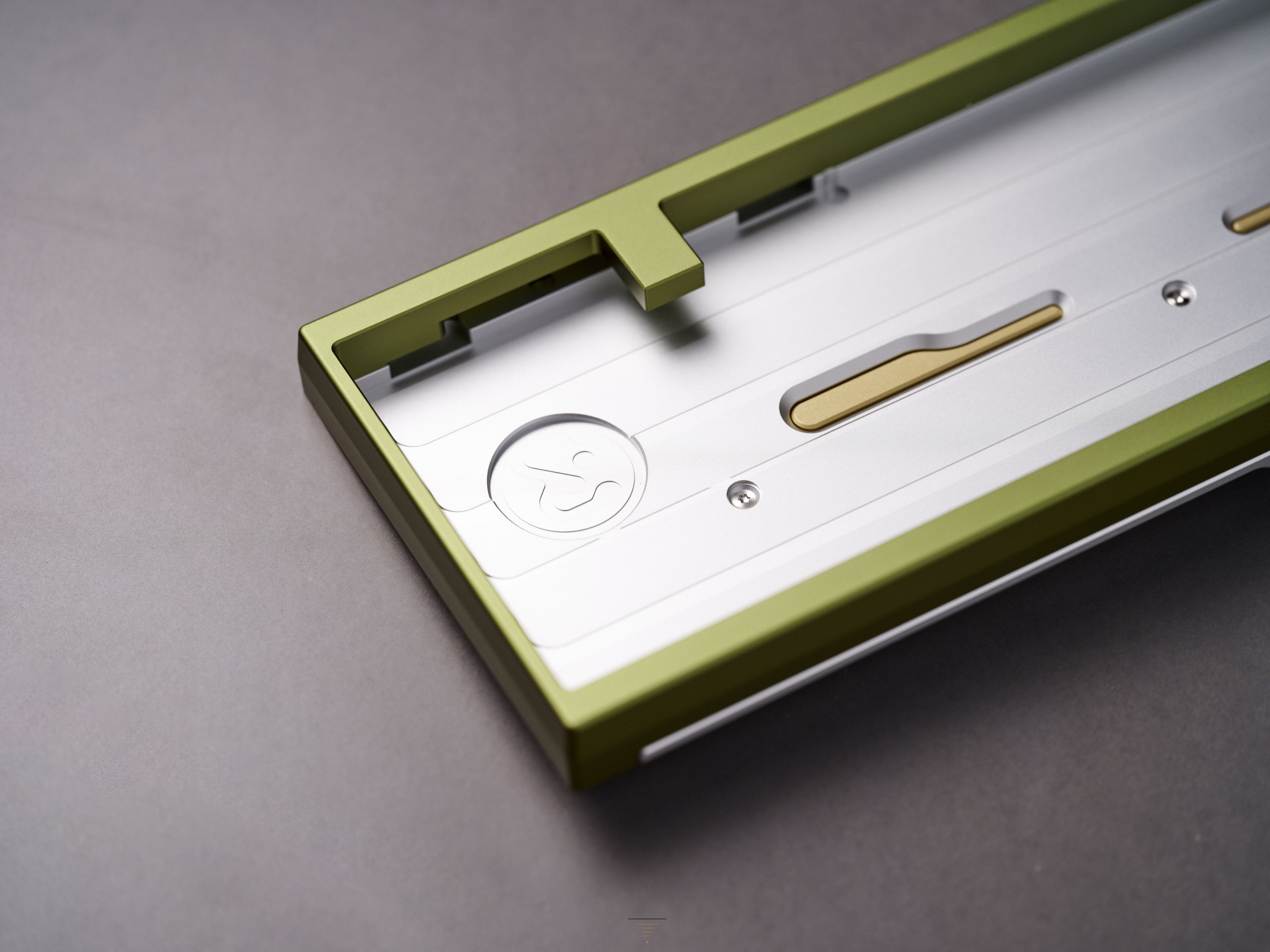

Unnatural - Green Anodised Top Case, Silver Anodised Bottom Case, Sandblasted and Clear Coated Brass Weight

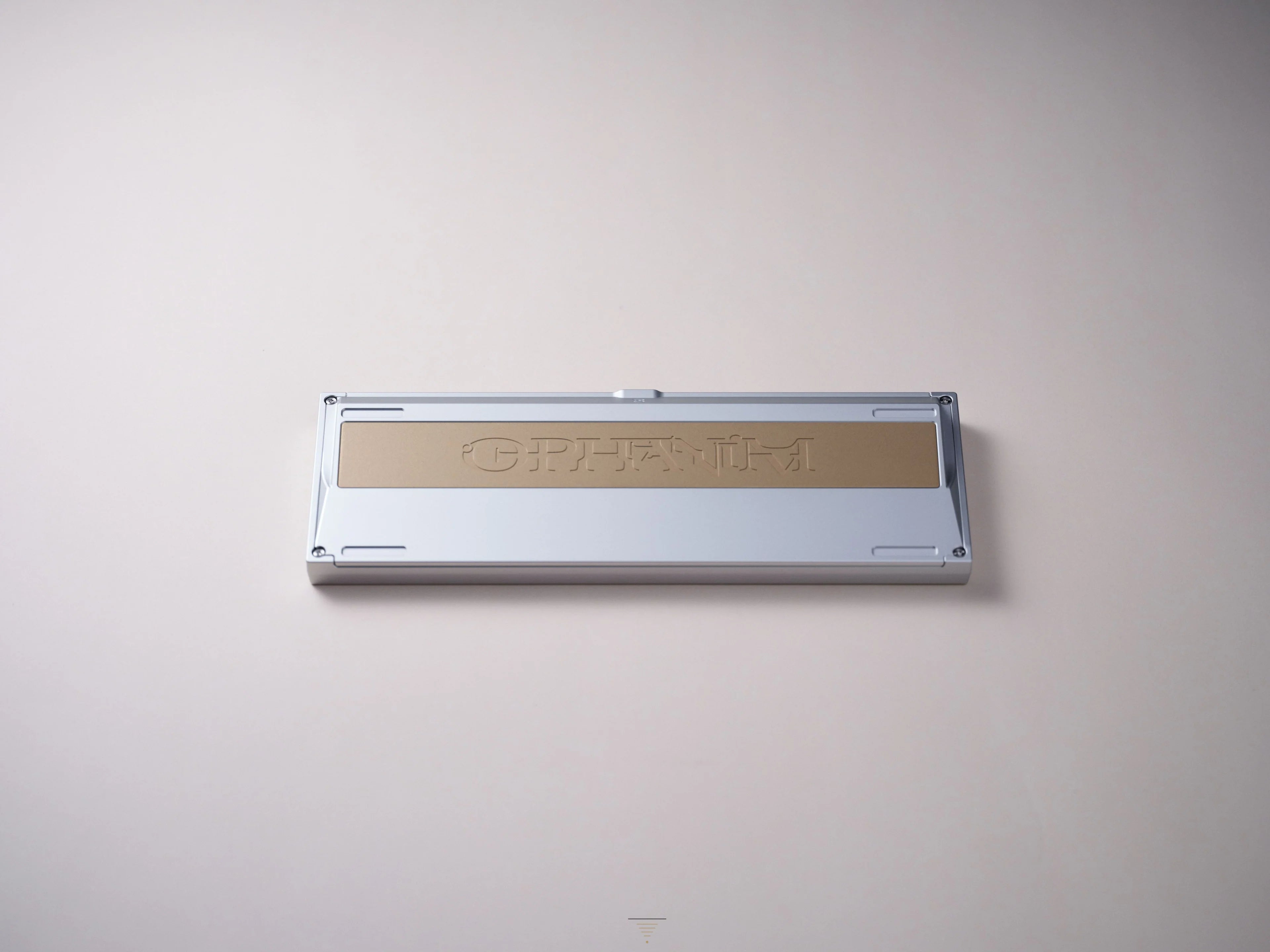

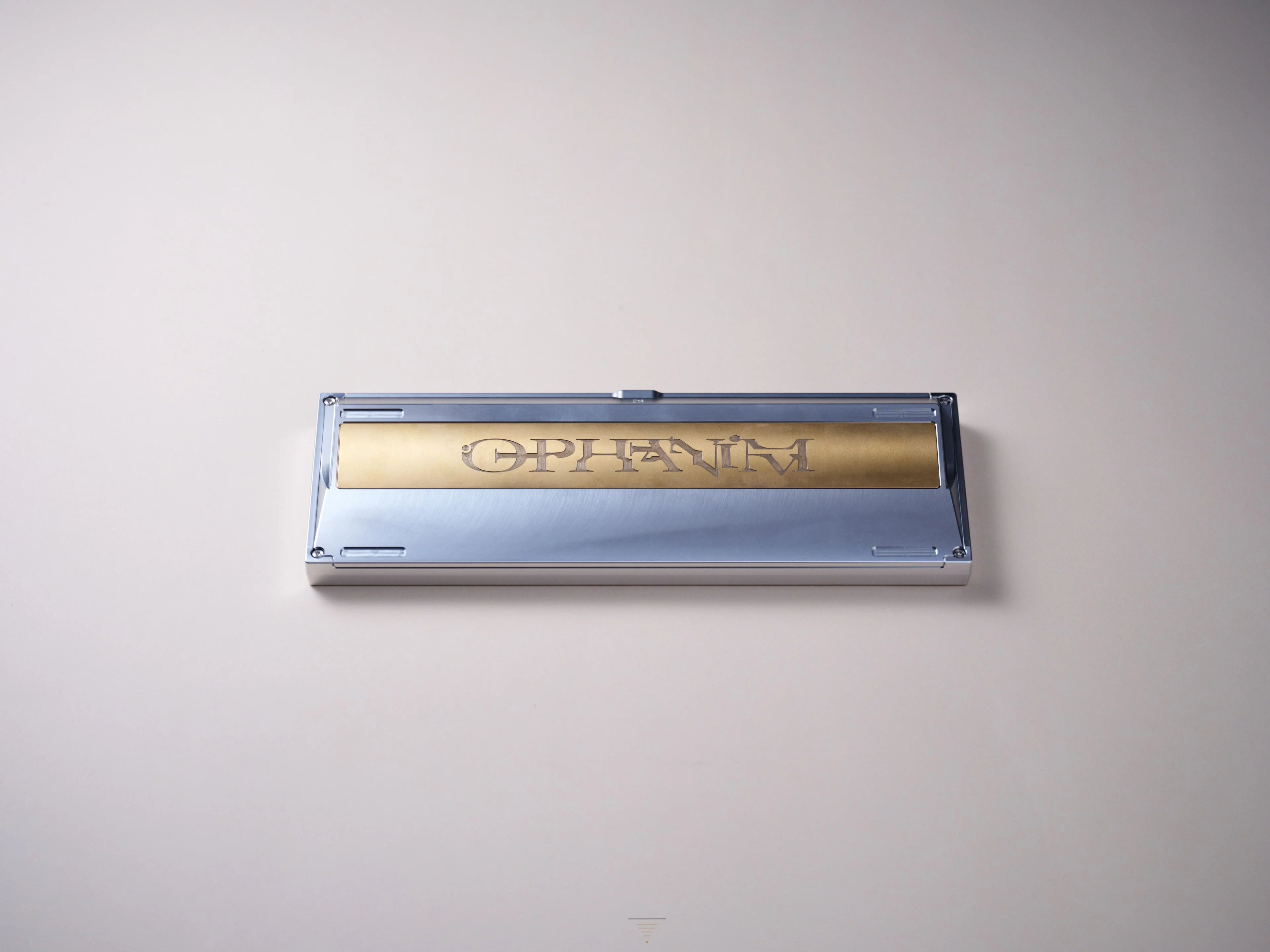

Archangel - Silver Anodised Top Case, Silver Anodised Bottom Case, Sandblasted and Clear Coated Brass Weight

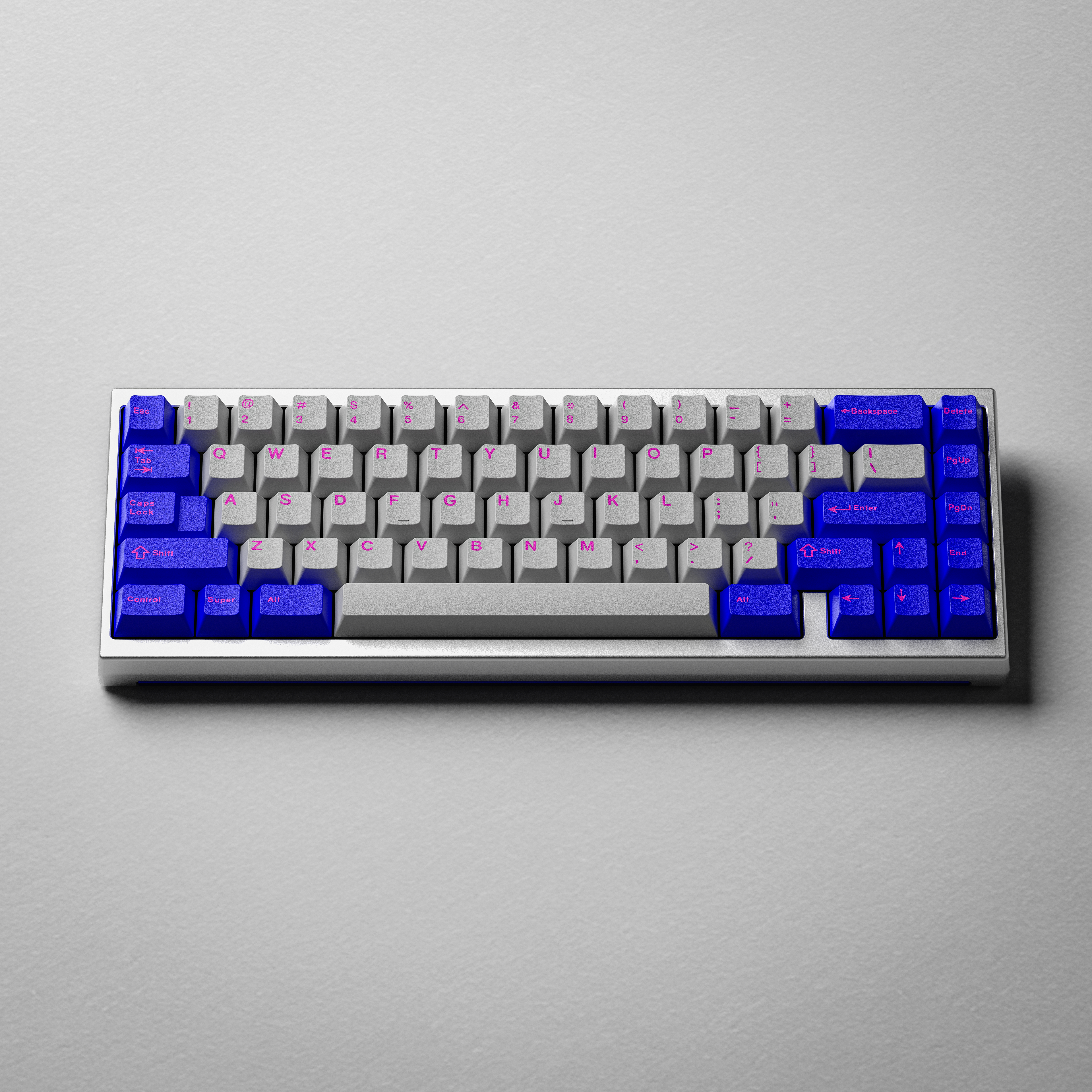

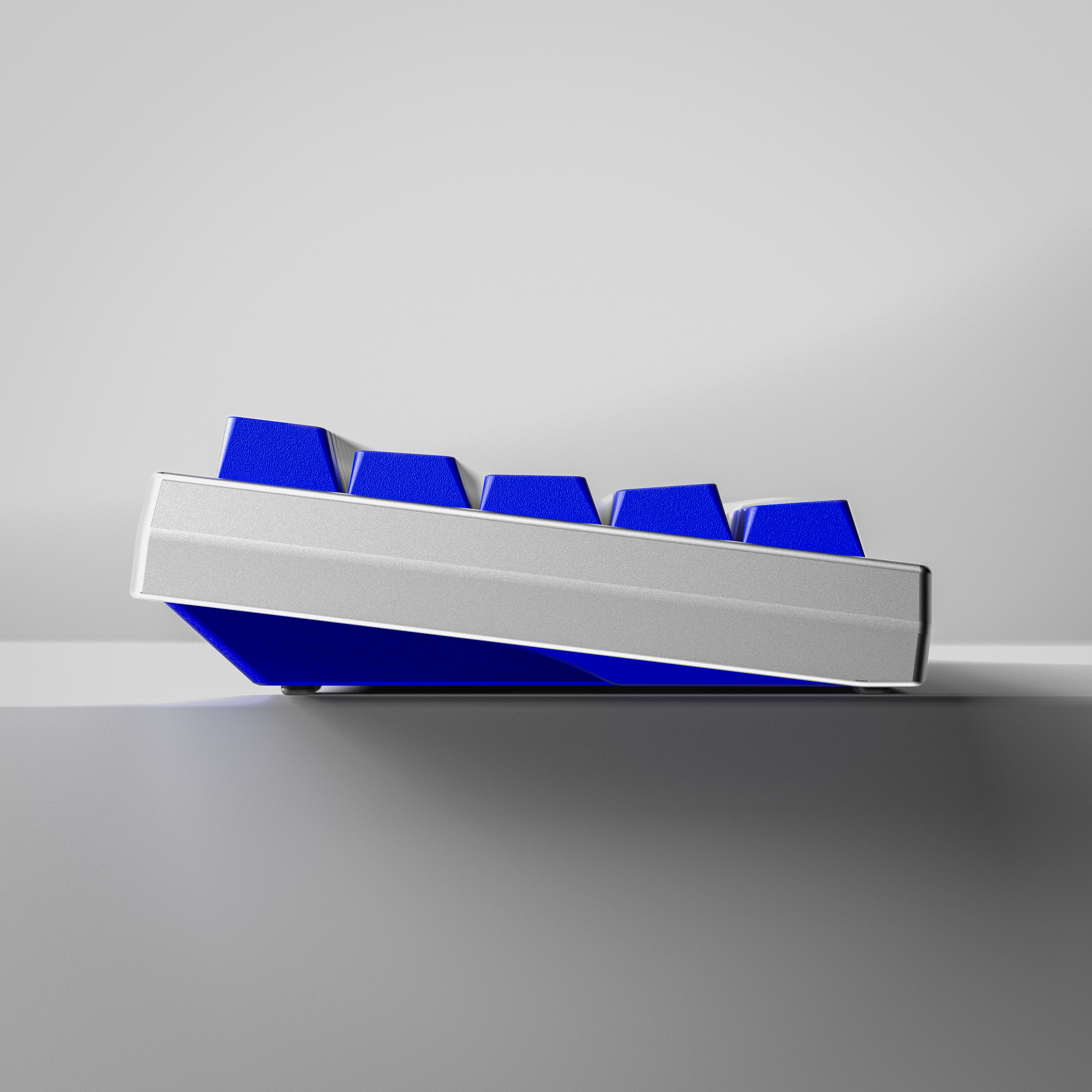

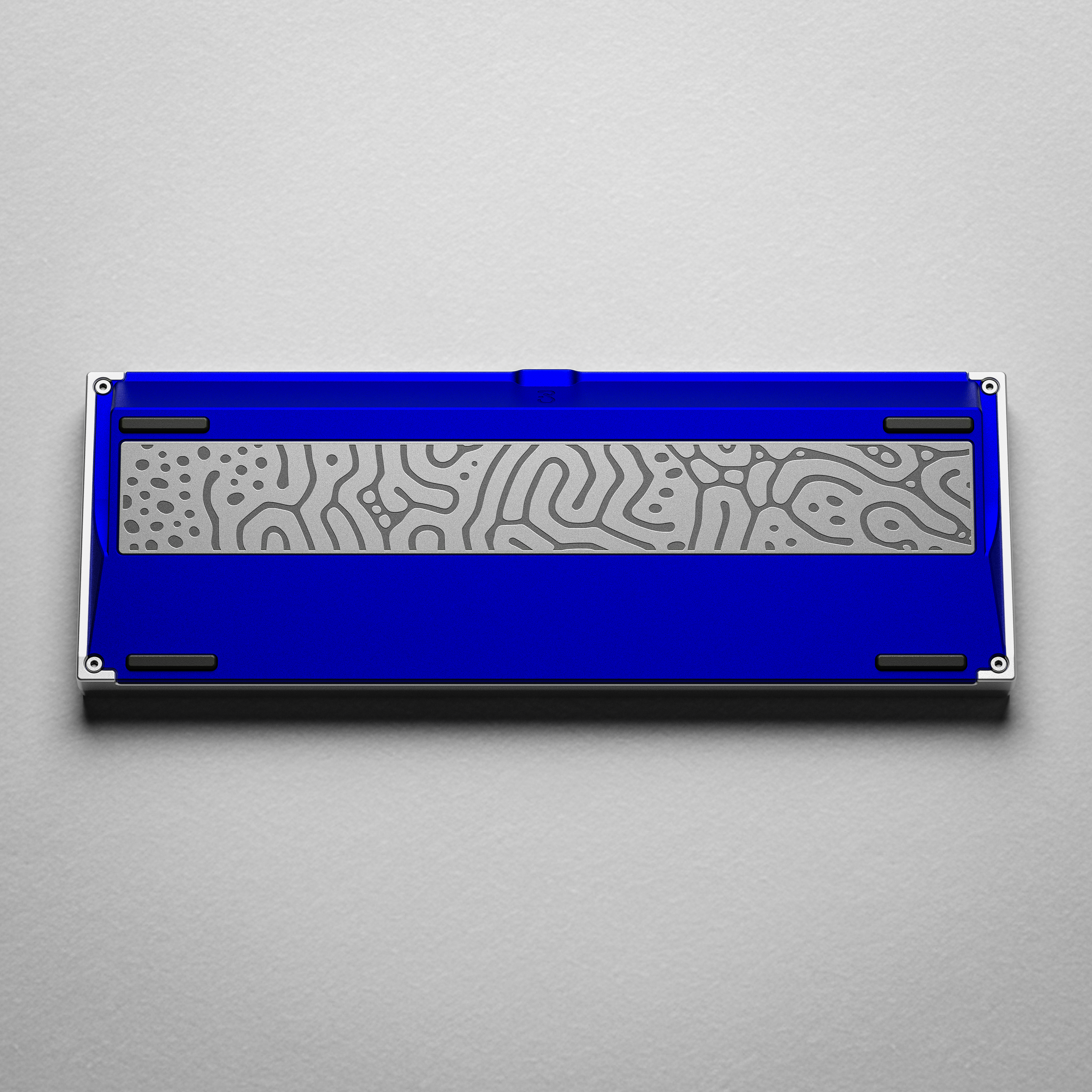

Ferro Fluid - Silver Anodised Top Case, Blue Anodised Bottom Case, Sandblasted Stainless Steel Weight

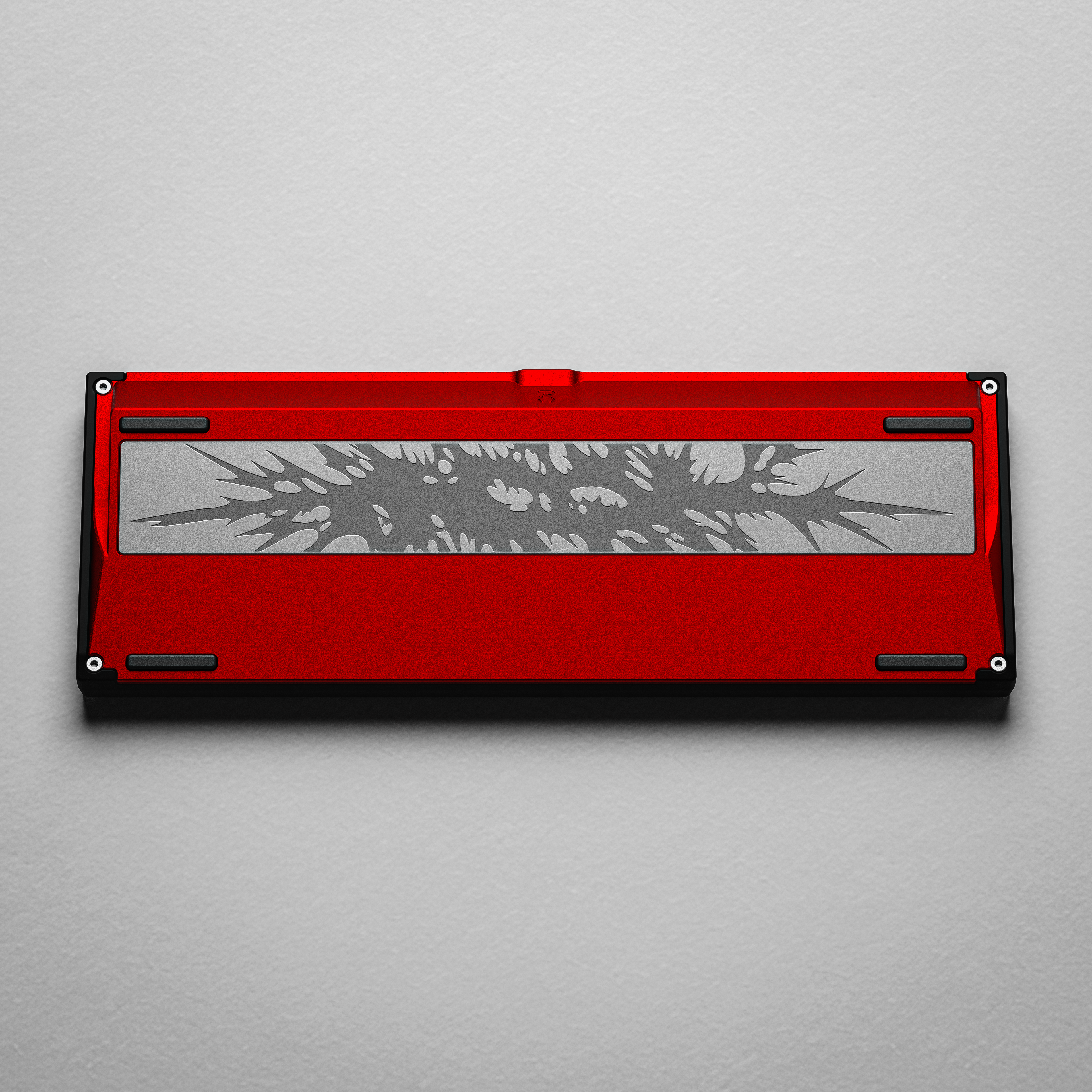

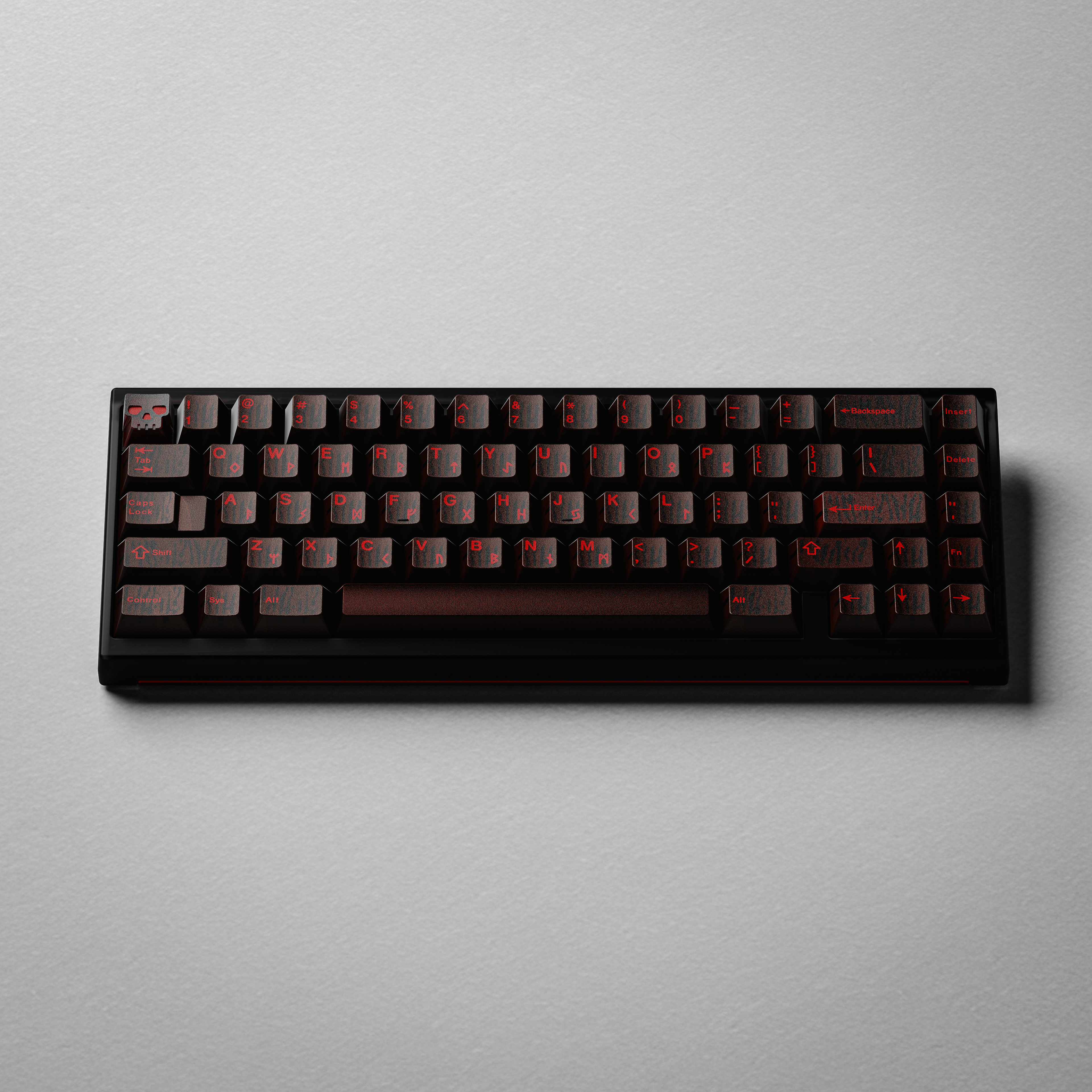

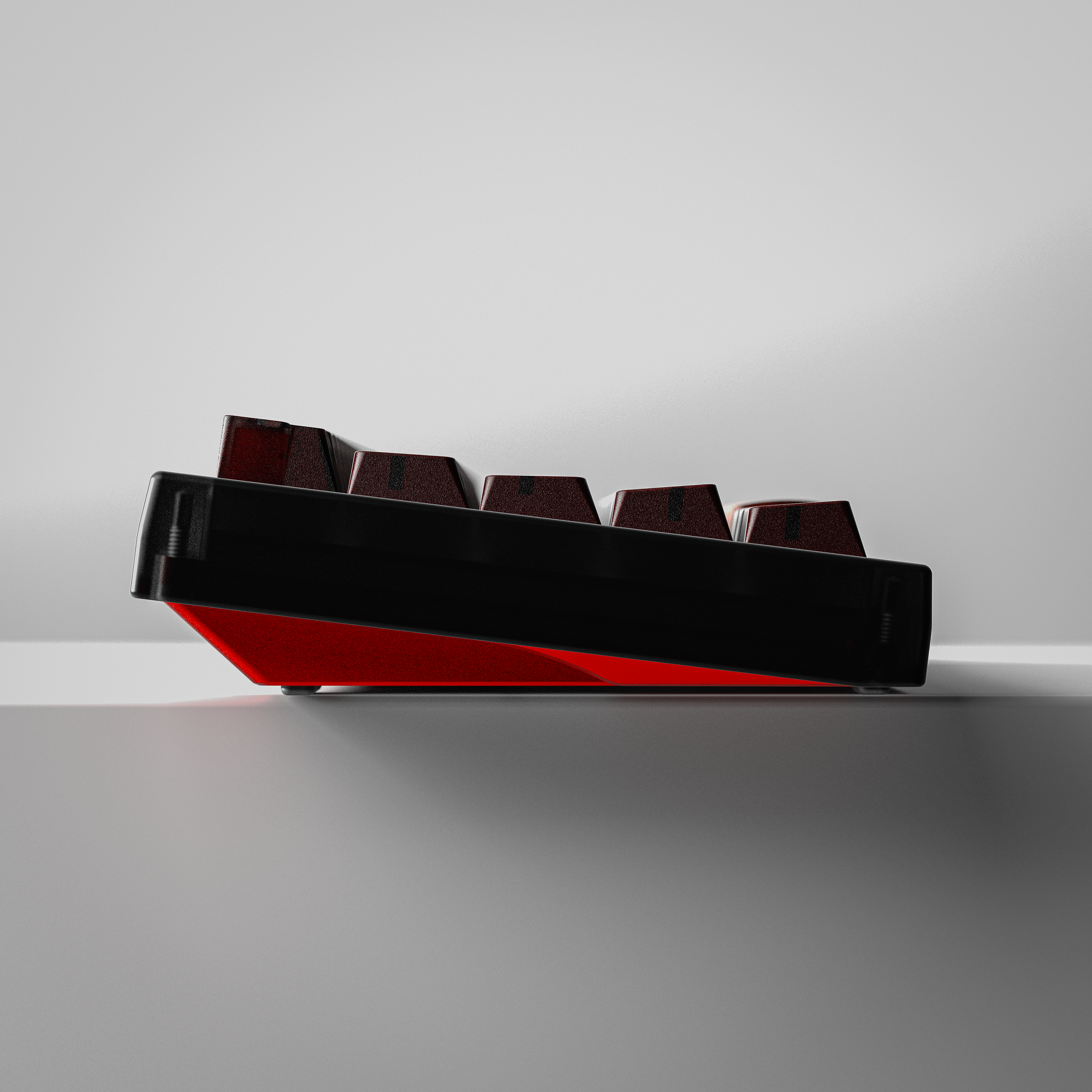

Pandemonium - Smokey Acrylic Top Case, Red Anodised Bottom Case, Sandblasted Stainless Steel Weight

Kit Contents:

• 1x Top Case
• 1x Bottom Case
• 1x Weight
• 1x Choice of Plate
• 1x Choice of PCB
• 10x PCB gaskets
• 10x Plate Gaskets
• 1x Carrying Case
• 1x Microfiber Cloth
• Other necessary hardware

  *Note does not include keycaps, stabilizers, switches

Vendors:

• North America: BowlKeyboards
• Europe: DeltakeyCo
• China:
• Australia:
• United Kingdom: ProtoTypist
• South East Asia:
• Canada:
• Korea: Swagkeys
• Thailand:

Disclaimer:

Delusion" Colorway Aluminum and Brass Pieces:

Note that the "Delusion" aluminum color way will have machine marks and scratches present as they are not processed after CNC aside from clear anodizing on the case. By purchasing the "Delusion" color way you acknowledge that QC for these parts is not possible and it is not eligible for returns or exchanges based on machine mark patterns or processing marks. Brass “Delusion” pieces are raw after CNC and do not receive any sort of surface treatment or protective coating. Brass will patina overtime and can arrive to you with some patina present already. Similar to the aluminum pieces QC on these parts is not possible and it is not eligible for returns or exchanges based on machine mark patterns, processing marks, or natural oxidation.
