(Group Buy) Schema M60 Keyboard Kit

Expected Shipping time: Q2 2027

Get Extra Top Cases Here

Get Extra Bottom Cases & Weights Here

Get Extra PCBs & Plates Here

Schema Tool Tray Available Here

Schema M60 Signature Bundle Available Here

Case Design:

Schema uses some of the familiar design choices from the Manta while also leaning into a more industrial and straightforward design that differentiates the Schema. The bottom pillars have been squared off and a cherry lip added to achieve a more angular design. Engraved lines on the back of the top case and external screws add visual interest as you look at different areas of the keyboard.

Mounting Design:

Schema uses the poron gasket mount as something that is tried and true letting you use different plates and switches to find a combination that you like

Case Specifications:

• Materials: 6063 Aluminum, Acrylic, Brass, Copper
• Layout: 60% WK, WKL, HHKB
• Typing Angle: 8 Degrees
• Front Height: 19.1 mm
• EKH: 24.0 mm
• Weight: 890g - 1300g
• Mounting: Poron Gasket

PCB Specifications:

• Material: Black FR4
• Thickness: 1.6mm
• Connectivity: JST to Unified Daughterboard
• Customizability: VIA
• Type: Solderable and Hotswap
• Designer: Gondolindrim

Hotswap Compatibility

Solder Compatibility

Top Case Options:

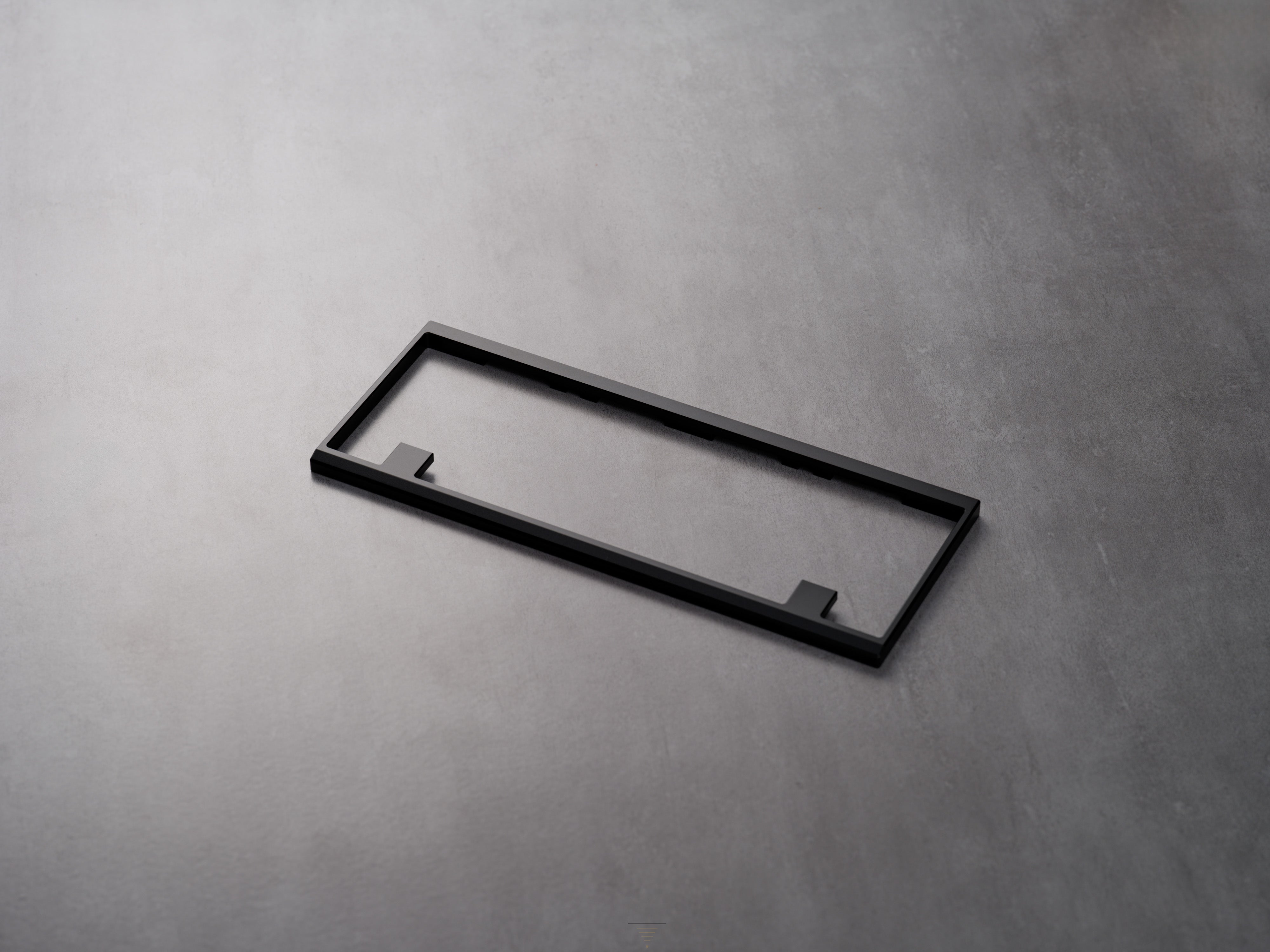

• Black - Anodised Aluminium

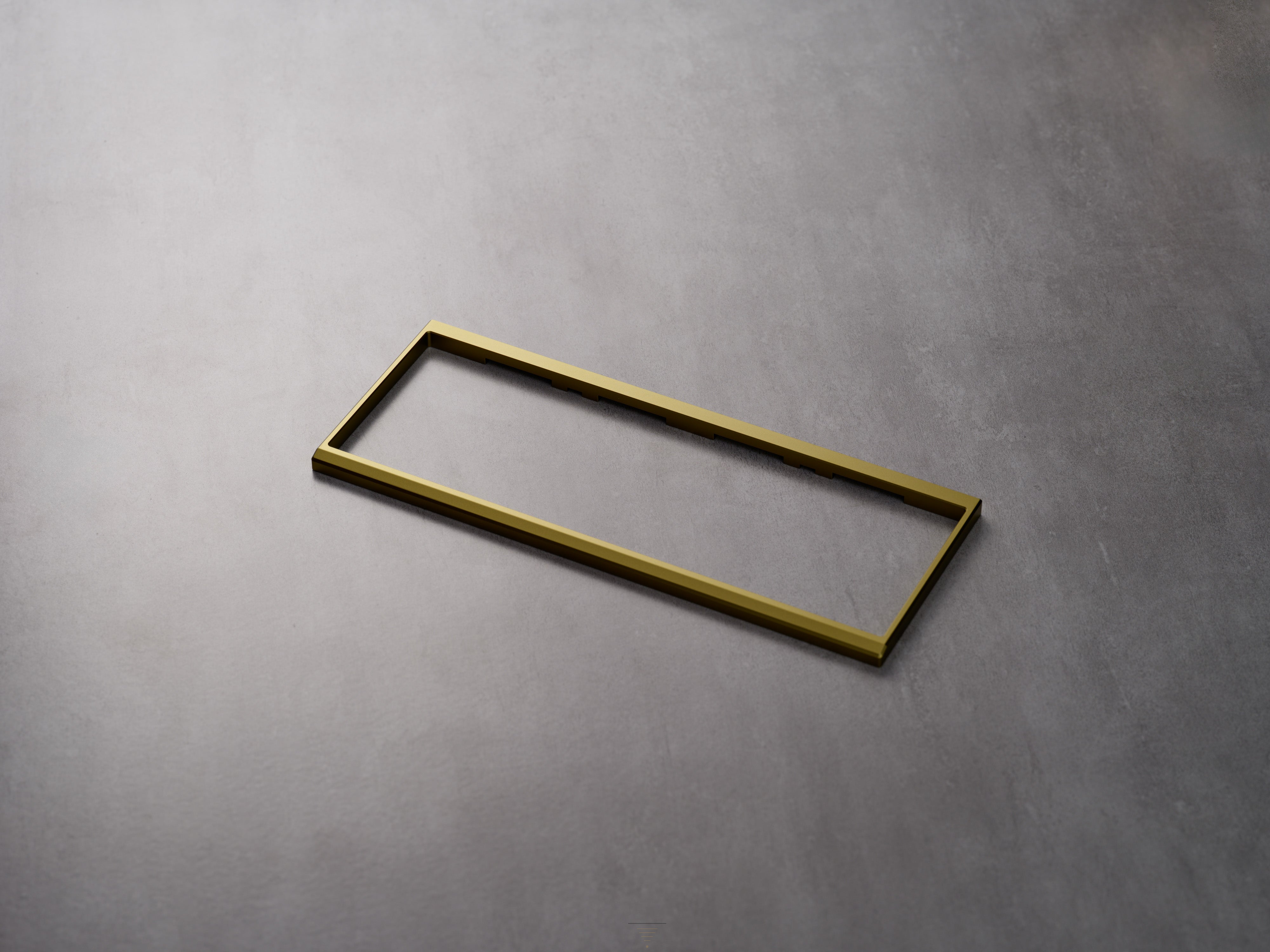

• Vaza Green - Anodised Aluminium

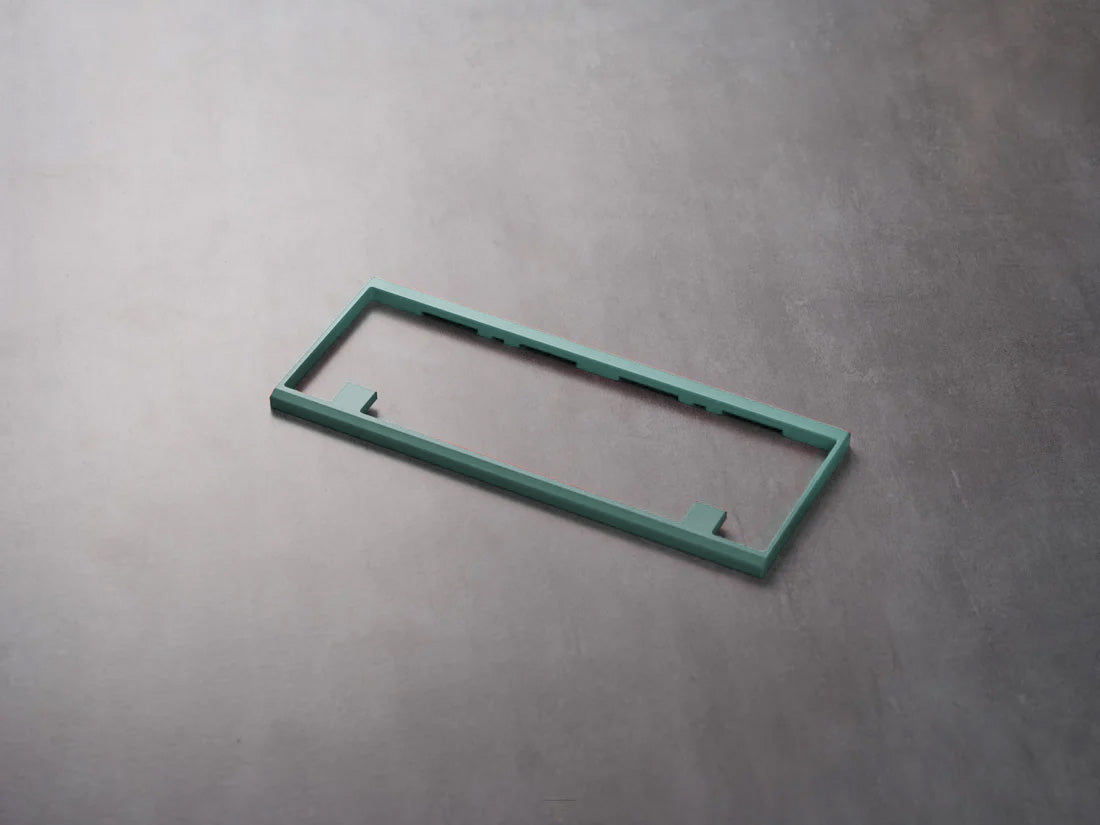

• Mint - Anodised Aluminium

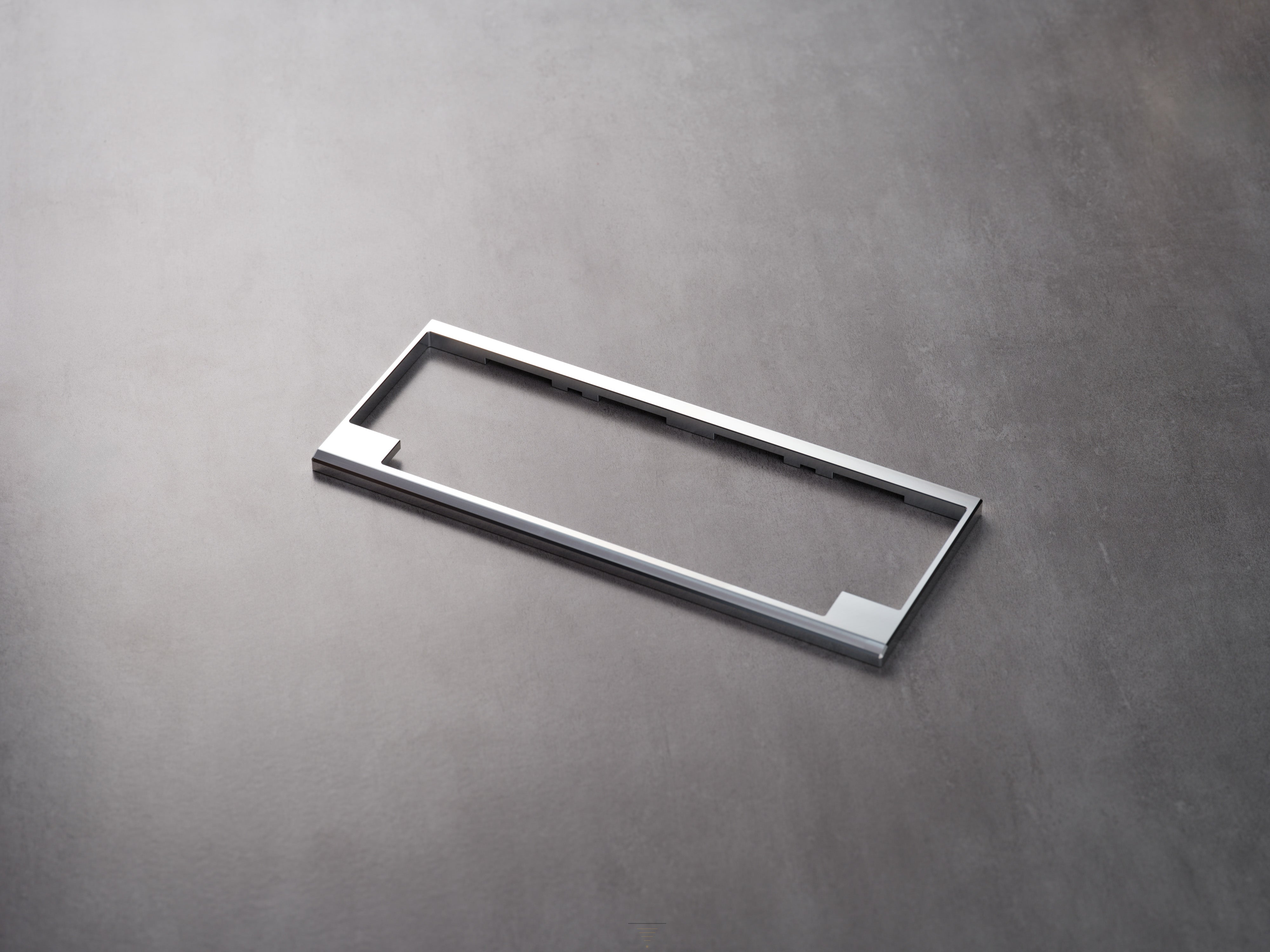

• Machinist - Raw Machine mark finish with clear anodised aluminium

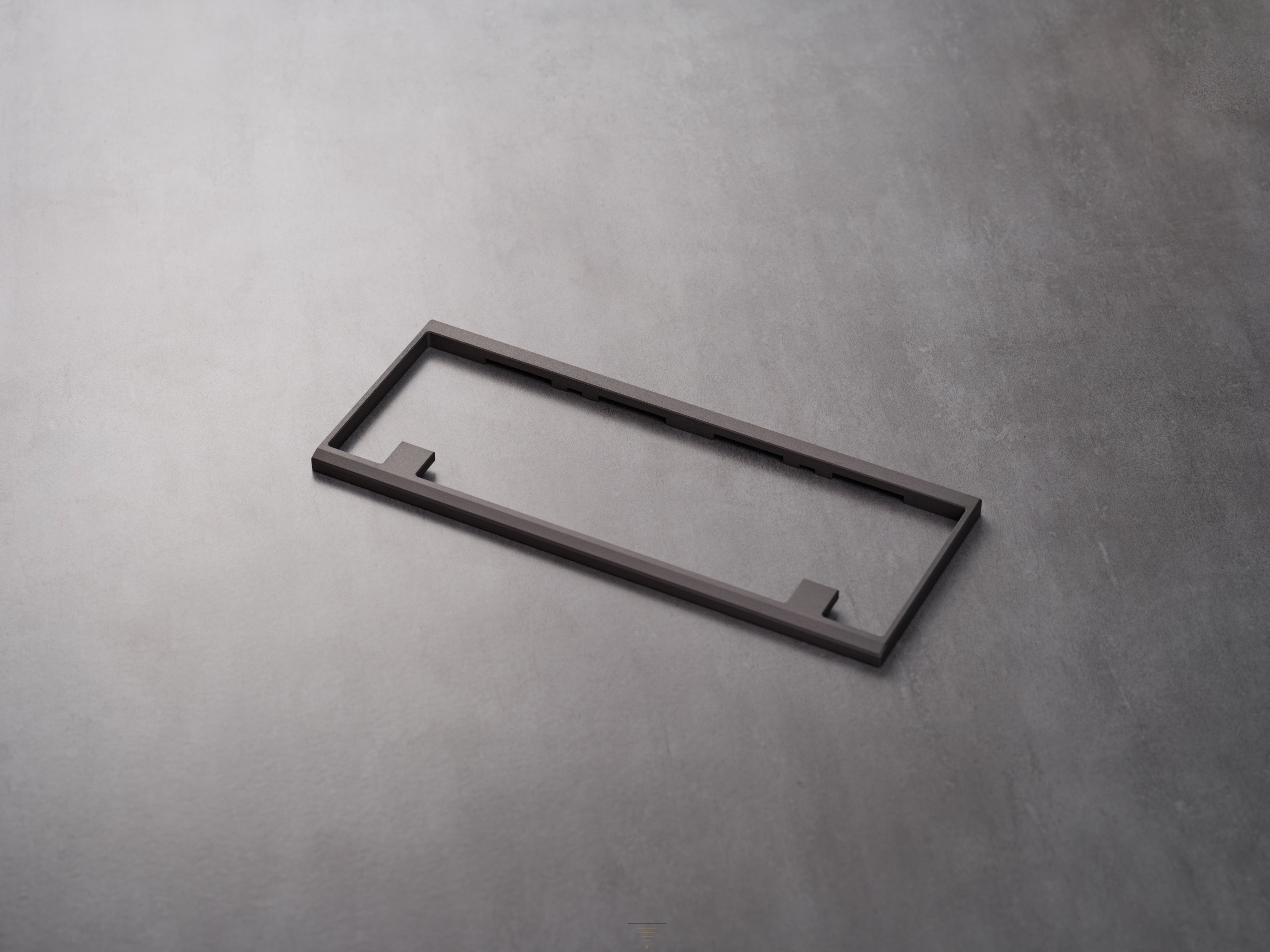

• Aged - Force Patina'd Aluminium *note there is a large degree of variability

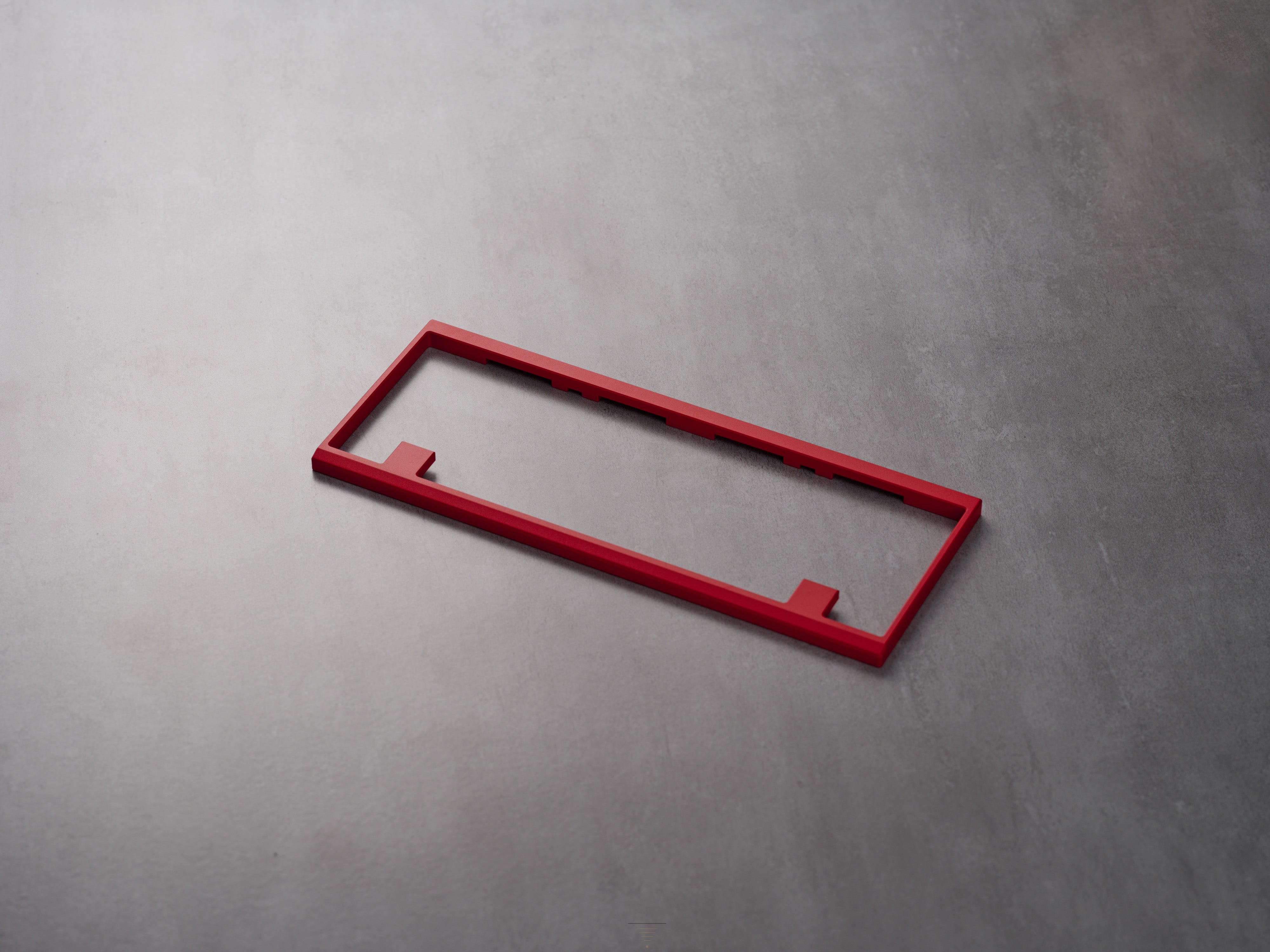

• Red - Spray Coated Aluminium

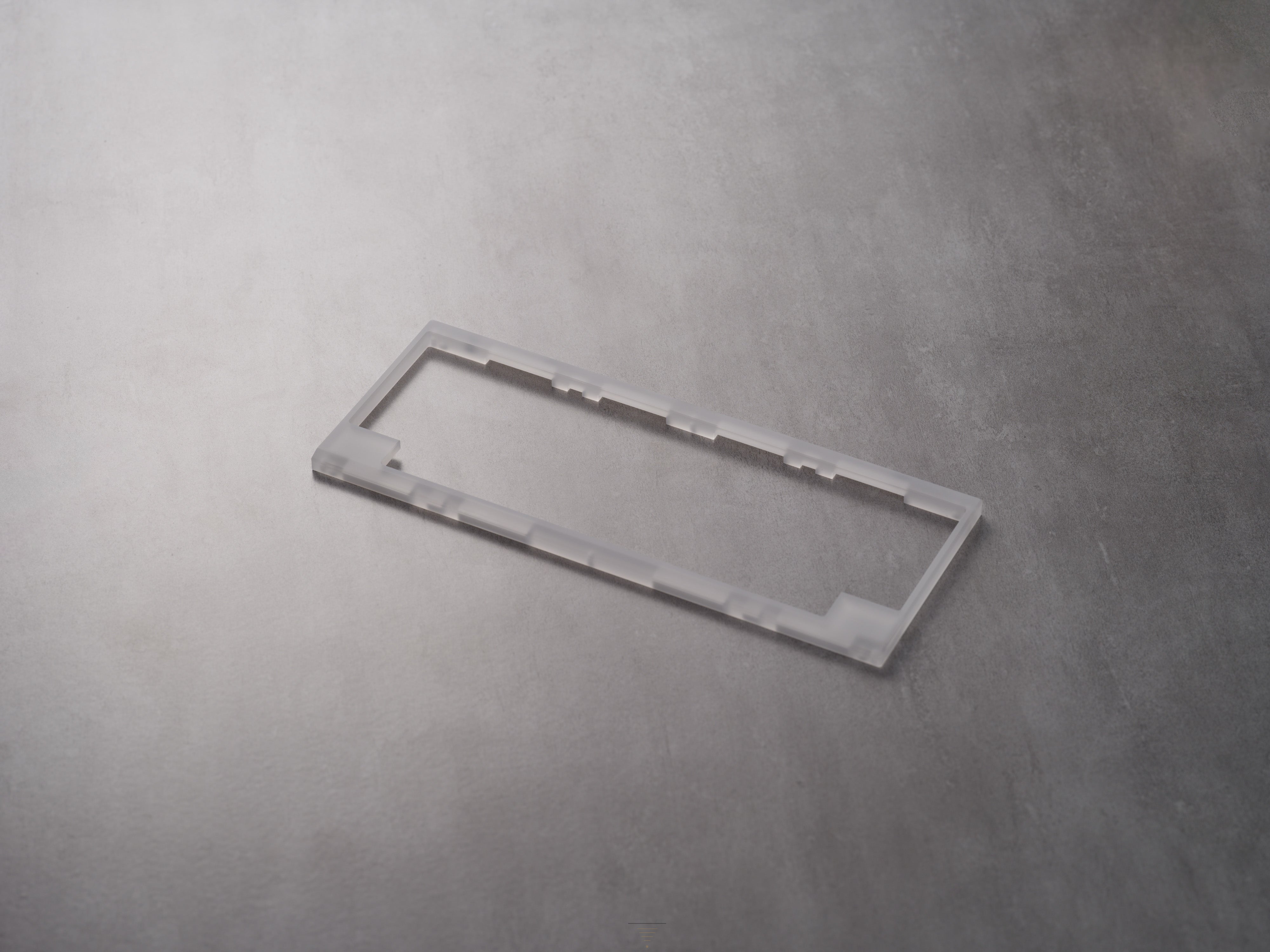

• Frosted - Acrylic

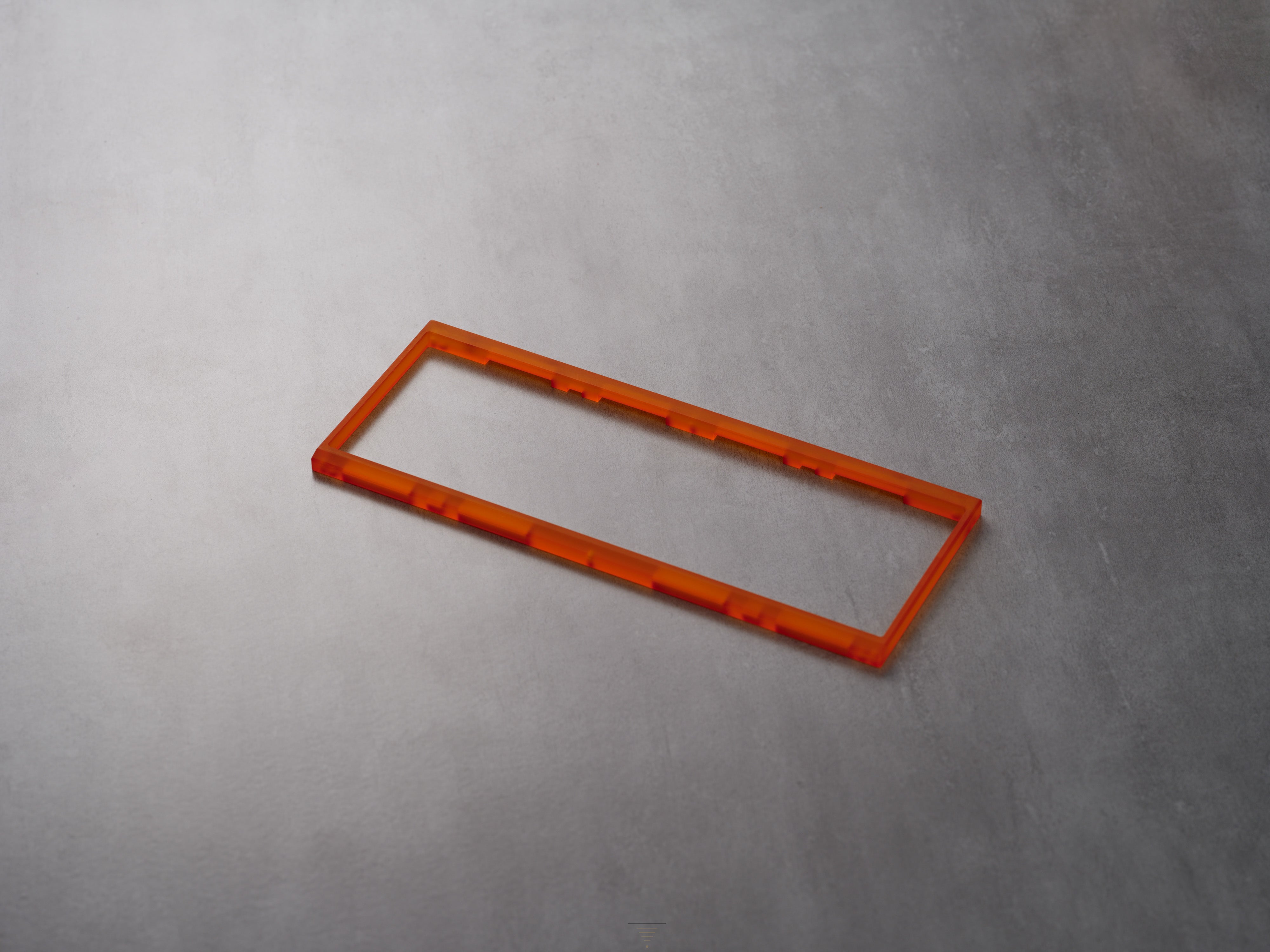

• Tangerine - Frosted Acrylic

Bottom Case Options:

• Black - Anodised Aluminium
• Vaza Green - Anodised Aluminium
• Mint - Anodised Aluminium
• Machinist - Raw Machine mark finish with clear anodised aluminium
• Aged - Force Patina'd Aluminium *note there is a large degree of variability
• Red - Spray Coated Aluminium

Weight Options:

• Pumice - Anodised Aluminium
• Aged - Force Patina'd Aluminium *note there is a large degree of variability
• Copper - Sandblasted and clear coated copper
• Machinist Copper - Raw machine mark finish with clear coat *note clear coat must be maintained and last approximatelt 2-6 months
• Red Patina - Force Patina'd Brass

Link to Configurator

Barebones Kit Contents:

• 1x Top Case
• 1x Bottom Case
• 1x External Weight
• 1x Choice of Plate
• 1x C5 Unified Daughterboard + JST to JST cable
• 1x Carrying Case
• 16x Poron Gasket Strip
• All Screws/Parts/Etc for assembly

Vendors:

• US: Bowl Keyboards
• EU: Delta Key Co
• CA: Keybaytech
• UK: Prototypist
• KR: Swagkeys
• CN: STR
• SG: PantheonKeys
• AUS: Bowl Keyboards
• JP: Yushakobo
• TH: Aiglatson

QC Specifications & Disclaimers:

Aged/ Patina Finishes:  Please note that this product is made from patina’d aluminuim or brass respectively. Due to the nature of the patina process, each piece will vary in colour, tone, texture, and finish. These variations are a natural and intentional characteristic of the material and should be expected. No two pieces are exactly alike.

By purchasing this product, you acknowledge and accept these natural variations. Because each item is unique and made with an intentionally variable finish refunds, returns, or exchanges will not be offered based on surface finish pattern, texture, color, tone, or finish consistency. Normal QC guidelines otherwise still apply and will be treated like any other colourway.

Machinist Aluminum and Copper Pieces:  Please note that the "Machinist" aluminium colourway will have machine marks and scratches present as they are not processed after CNC aside from clear anodizing on the case. By purchasing the "Machinist" colourway you acknowledge that QC for these parts is not possible and it is not eligible for returns or exchanges based on machine mark patterns or processing marks. Copper “Machinist” pieces use intentional machine lines in the copper that have a clear coat applied from the factory however due to the semi-raw nature of the material it lasts between 2-6 months depending on the amount of handling and conditions of your environment. Overtime without care this will develop a patina. Protective coatings can be maintained and re-applied to prevent oxidation.
