(Group Buy) Seal TKL Keyboard Kit
This Group Buy has ended and can no longer be ordered. Try searching Pre-Orders or our In Stock range.
Click Here for our Group Buy Guide
(Group Buy) Seal TKL Keyboard Kit
Sale price£270.00
Want to see this product come back? Let us know!!
Let us know the name of the product and what you love most about it! We'll then see what we can do!
This is a Group Buy - that means this product has not yet been manufactured. This product will ship at a later date, as detailed in the product description below.
Please read our guidance on Group Buys here: FAQ's
This Group Buy Ended on or before:
Expected Shipping time: Q4 2026
Hello world, this is SENSY.
Here we go. Seal 80, the sequel to 100% is coming. Thanks to your affirmation previously, and all your thoughts and feedback too, they’ve all been heard, loud and clear. After several rounds of sampling, this current version has been shown and shared during meetups in Shanghai and Tokyo. With these little improvements, its domestic GB was done and now it’s time for its global tour.
Addons Available Here
Versatility
We always recall the joy this hobby brought to us since the beginning. From Cherry MX, Alps,Micro Switch,Beamspring,Fujitsu leaf spring to EC Topre and so forth, those little surprises has delighted us for years.
The pity is we don’t have plenty options of Alps supporting keeb.That's why we previously employed a relatively common PCB design on Seal100 that is compatible with both MX and Alps SKCM/SKCL switches.But this is far from sufficient, especially for those who favour vintage keyboards.

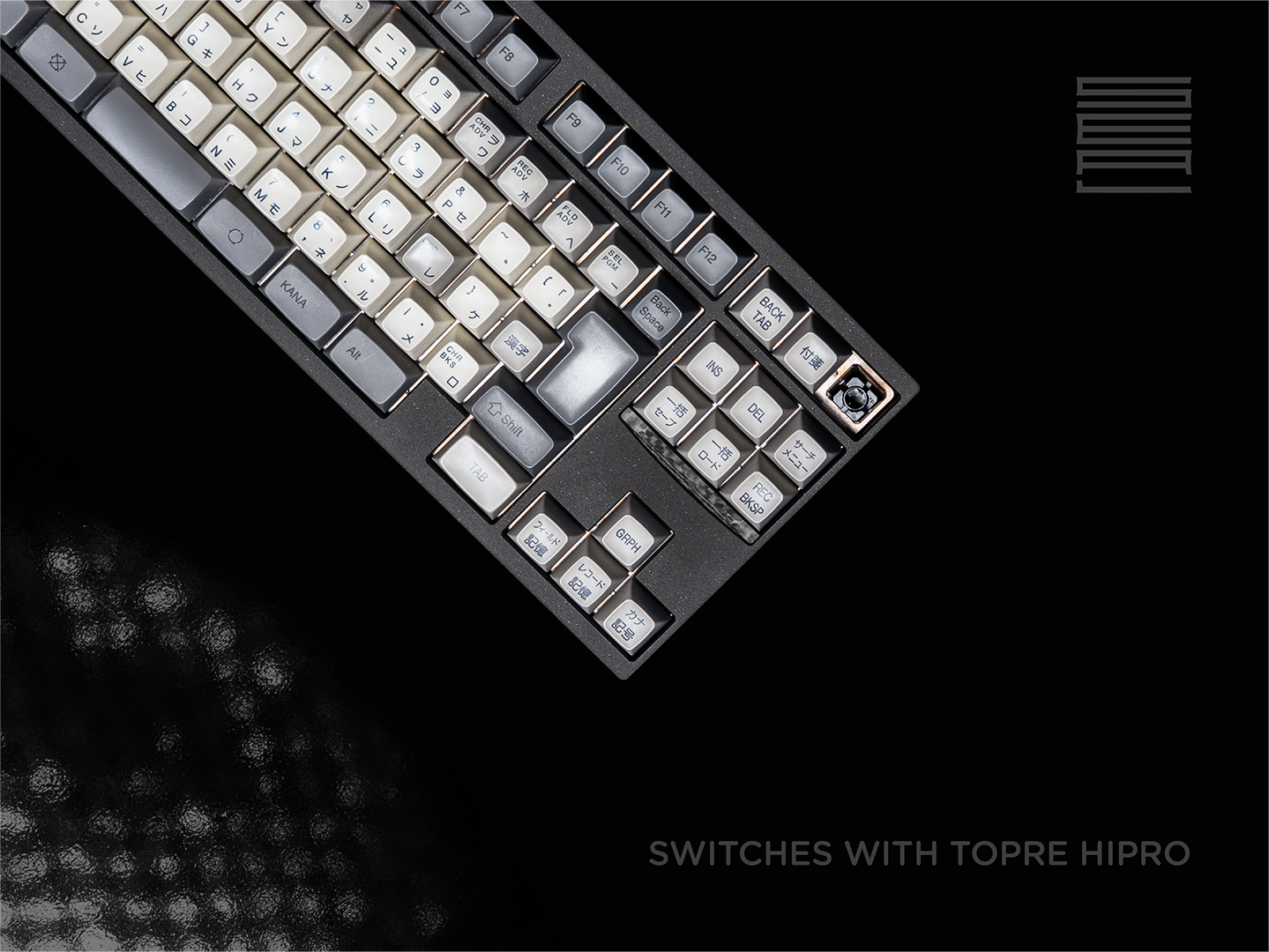

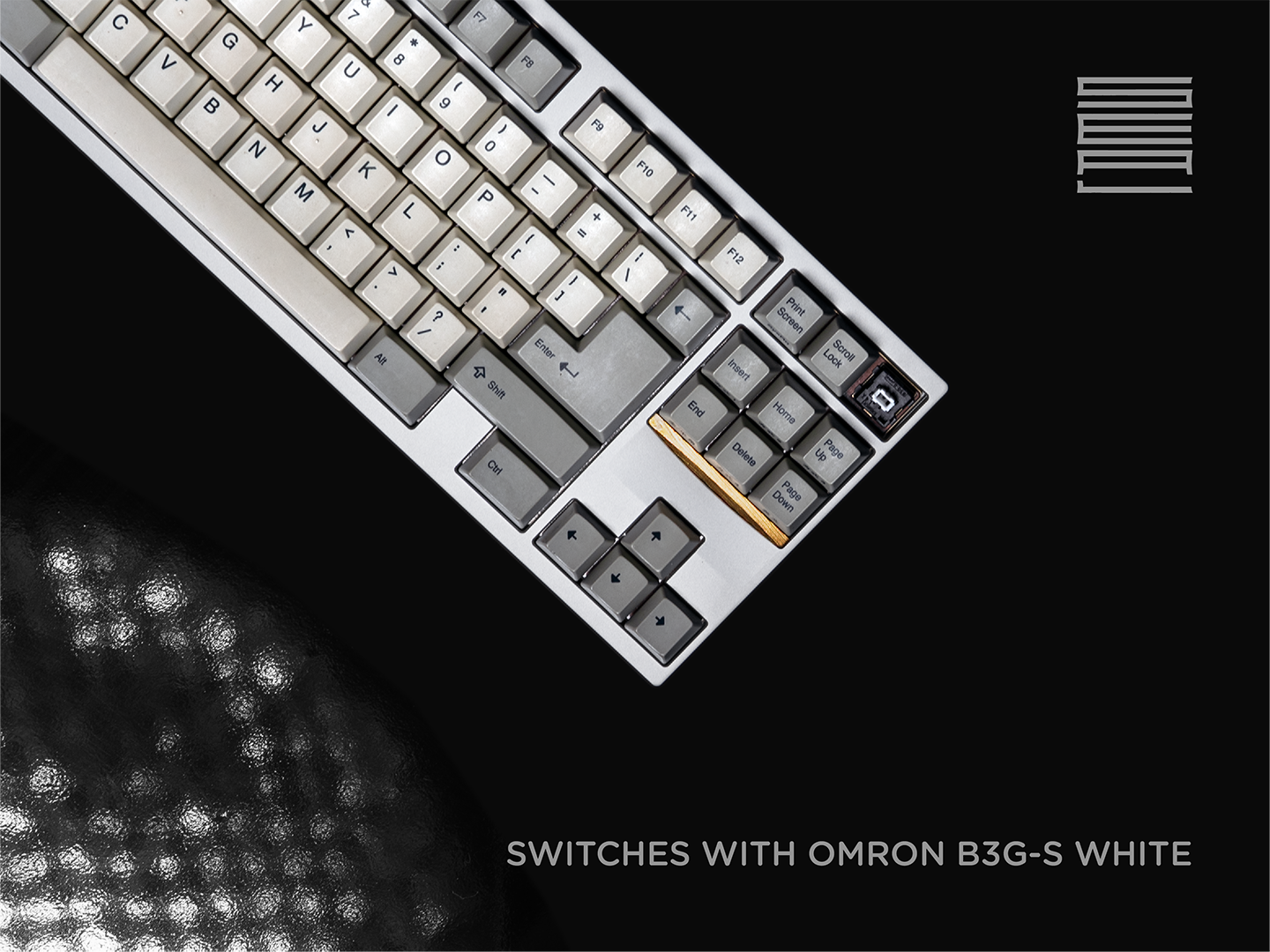

Therefore, when Seal comes to the Gud&Old 80%, it’s determined to adopt the A87 standard, which is compatible for MX, Alps, SMK, Omron B3G, EC and even Hi-Tek (AKA Space Invaders, respect to 4ppleT who made it open source for us). This might be the PCBs with the most cheese holes you've ever seen lmaooo.
Specification:
- Layout: TKL / 80%
- Mounting Style: Top Mount + the 'Smoke' Buffer
- Dimensions: 356.2x137.2x38.5mm
- Full weight: 2.5kg-2.8kg
- Angle&Height: 9° typing degree
- FH=16.5mm/EKH=21.80mm(bumper excluded)
- Front side profile: 7.9mm(with chamfer)
Anodising & Coating:
- Case：Aluminium anodized 6063/E-coating/PC

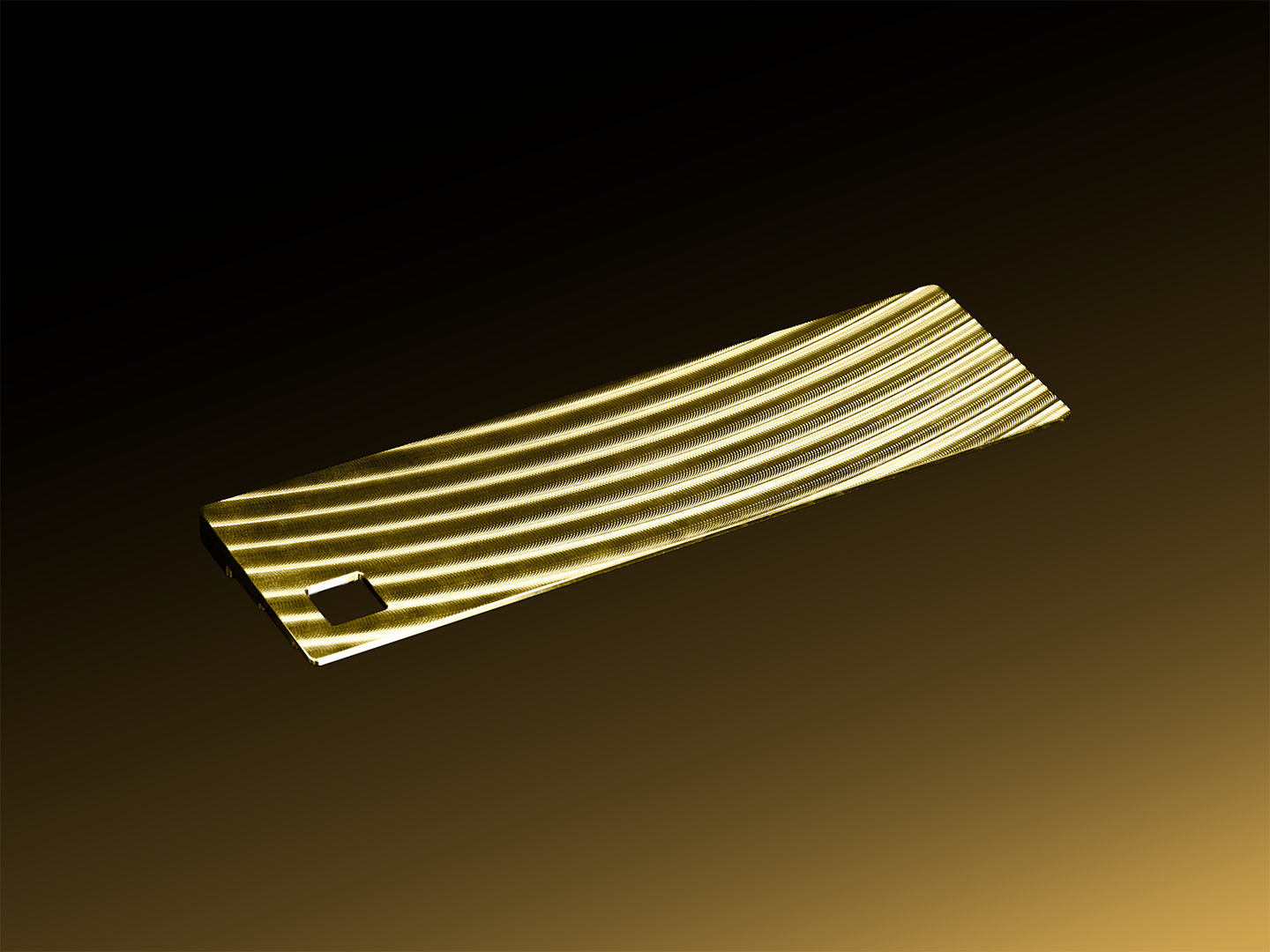

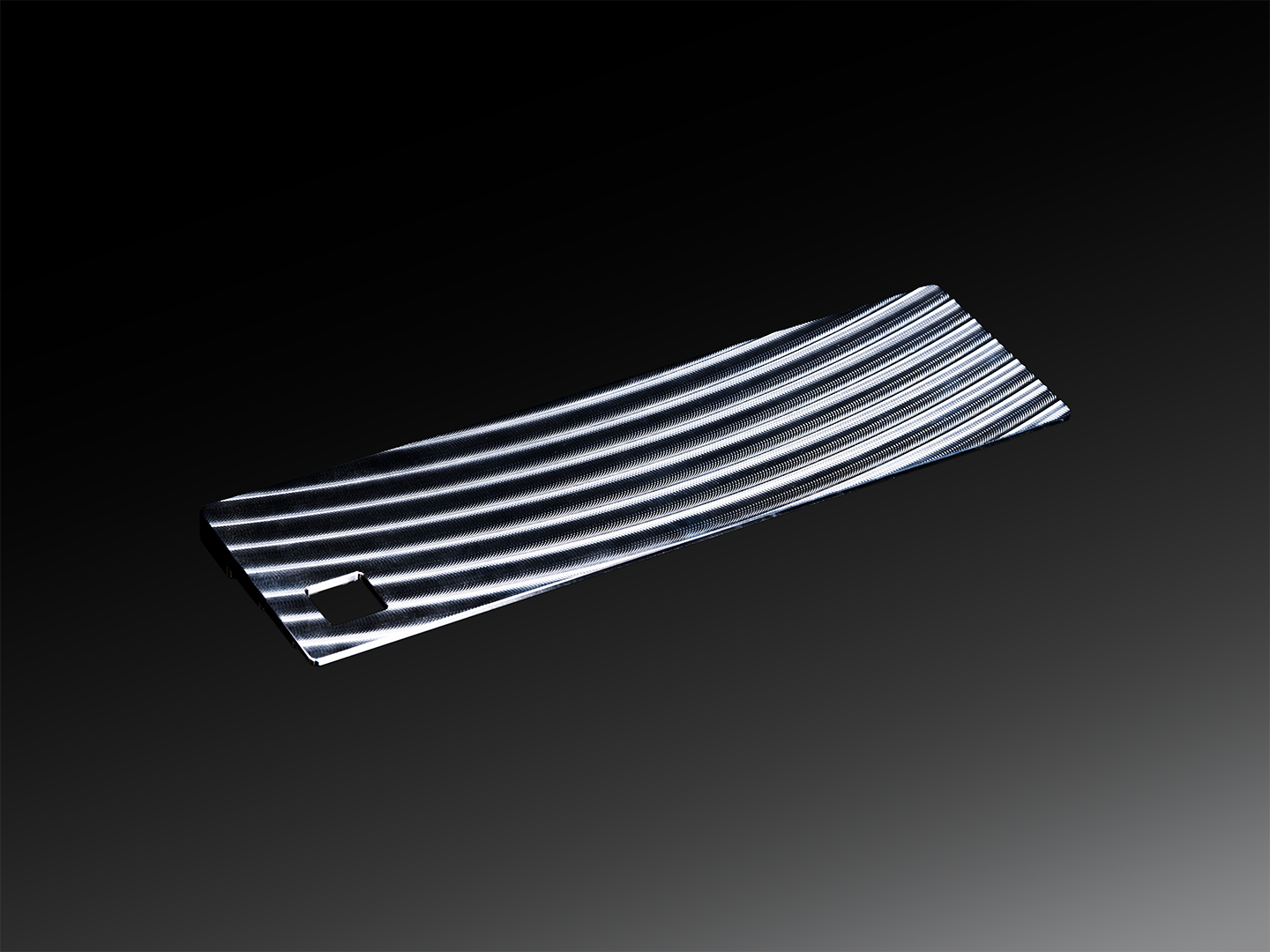

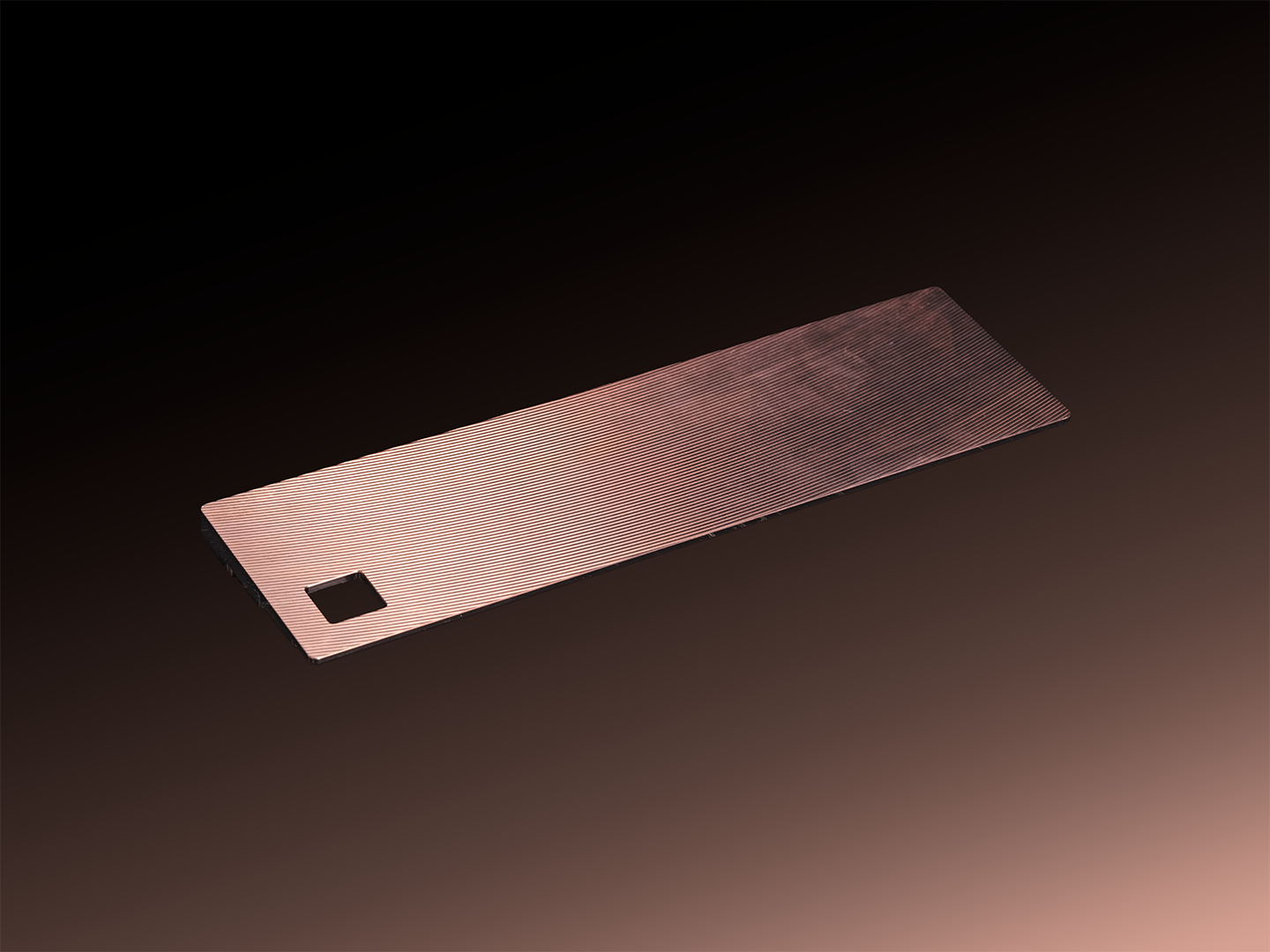

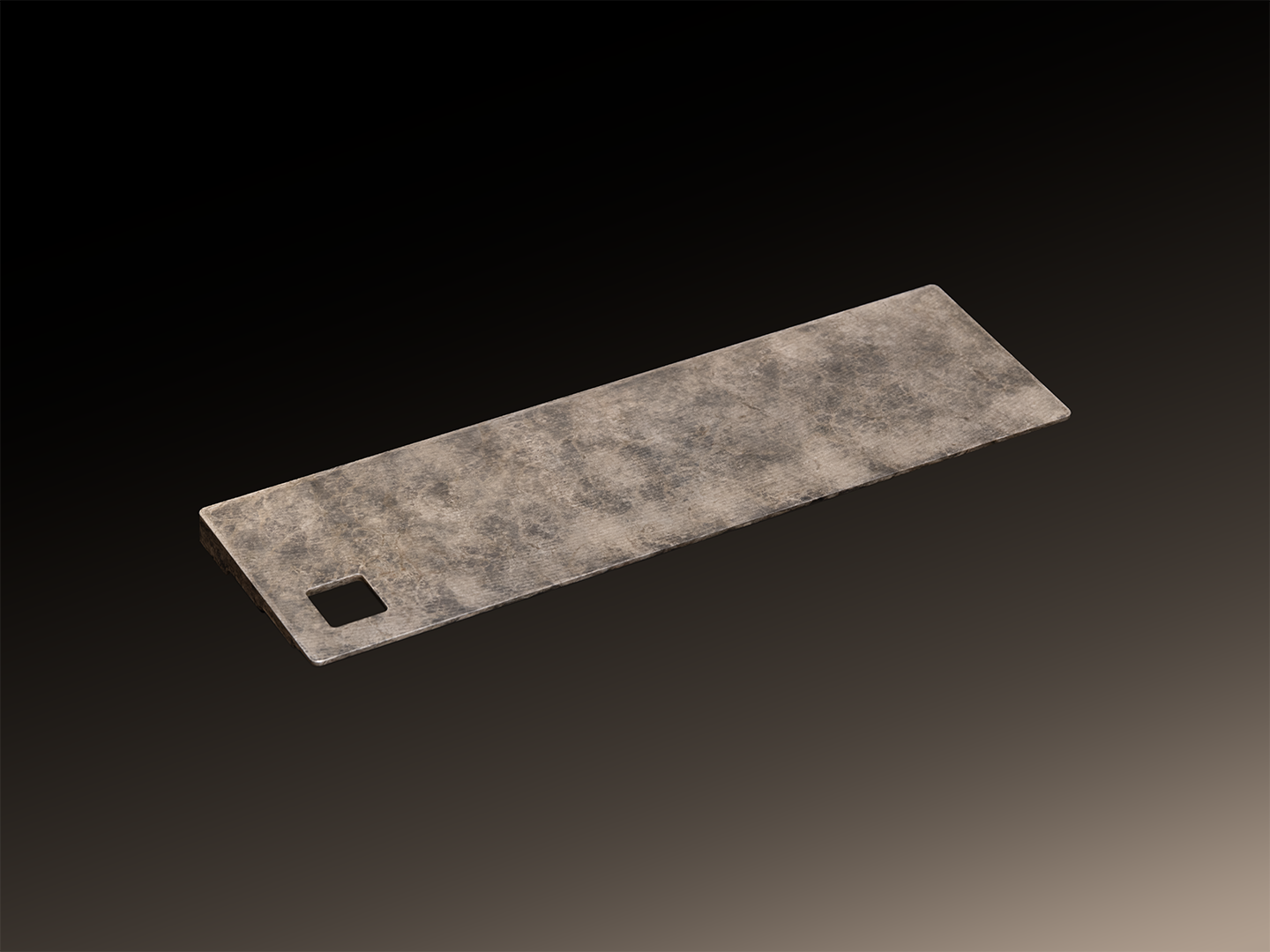

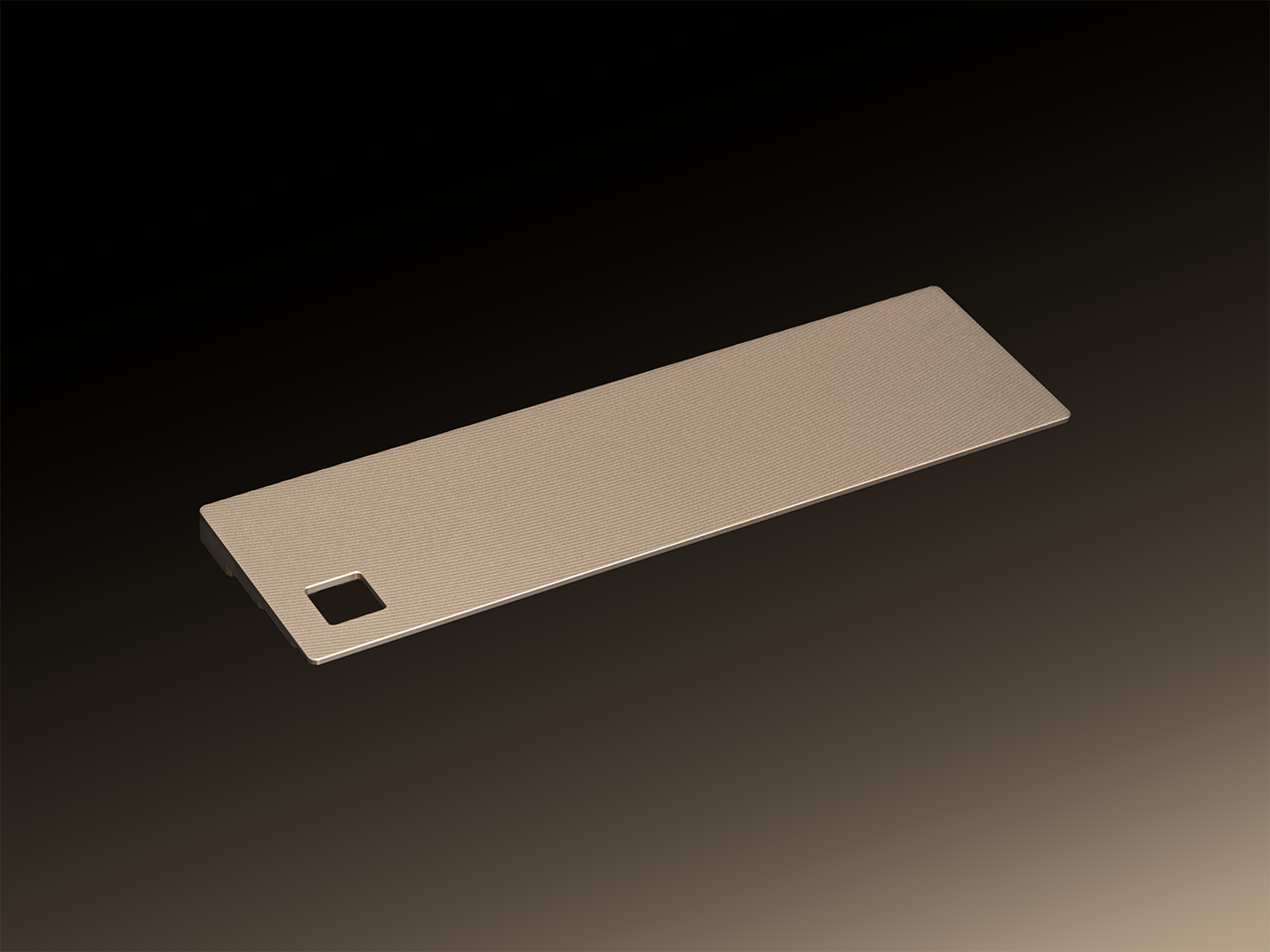

- Weight: Brass AF/Brass patina/SS Milled PVD/Copper Raw (considering copper is quite easily oxidized, it’s normally used for patina. So we provide it RAW. Please think twice before you choose this option.)

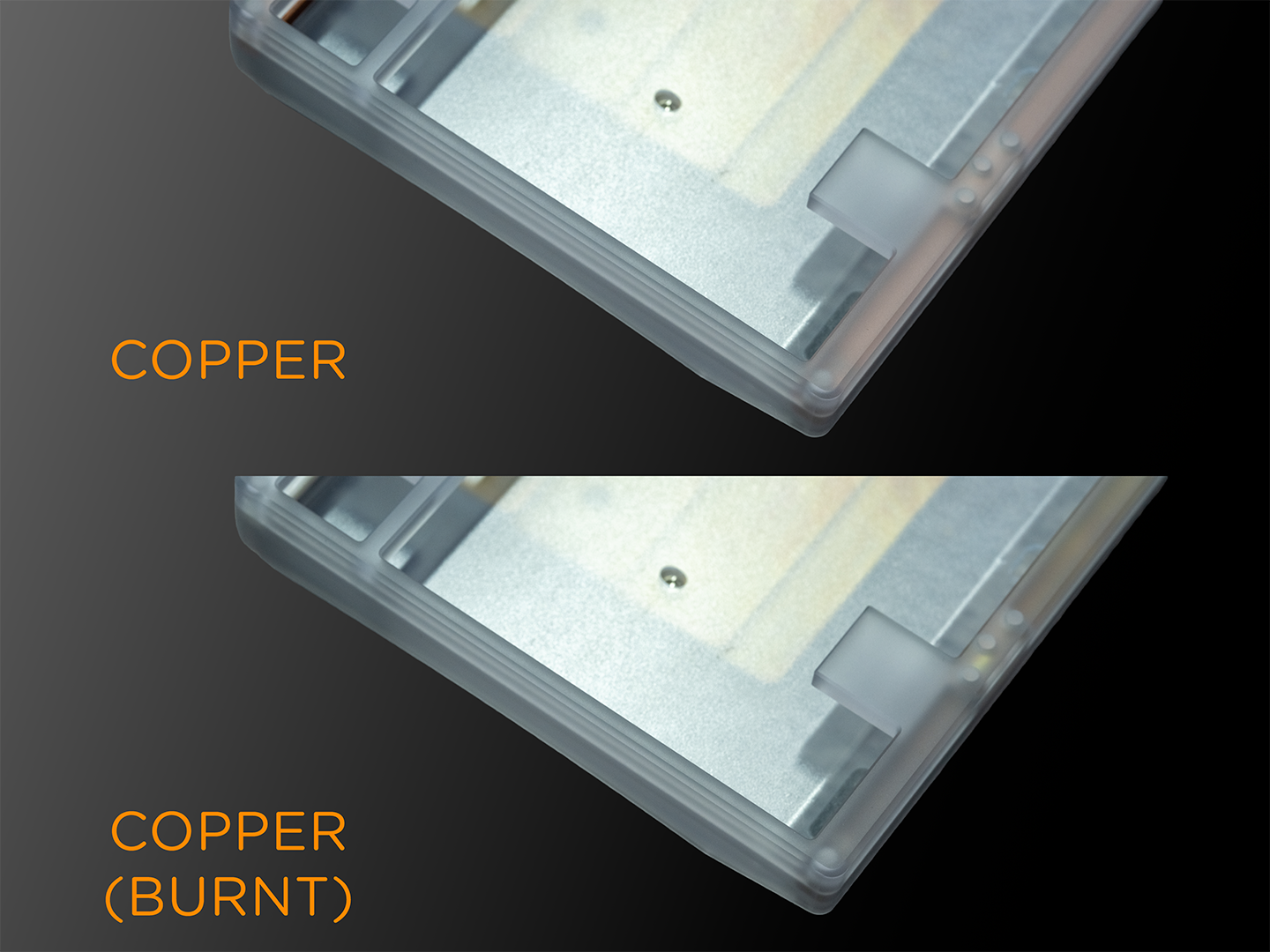

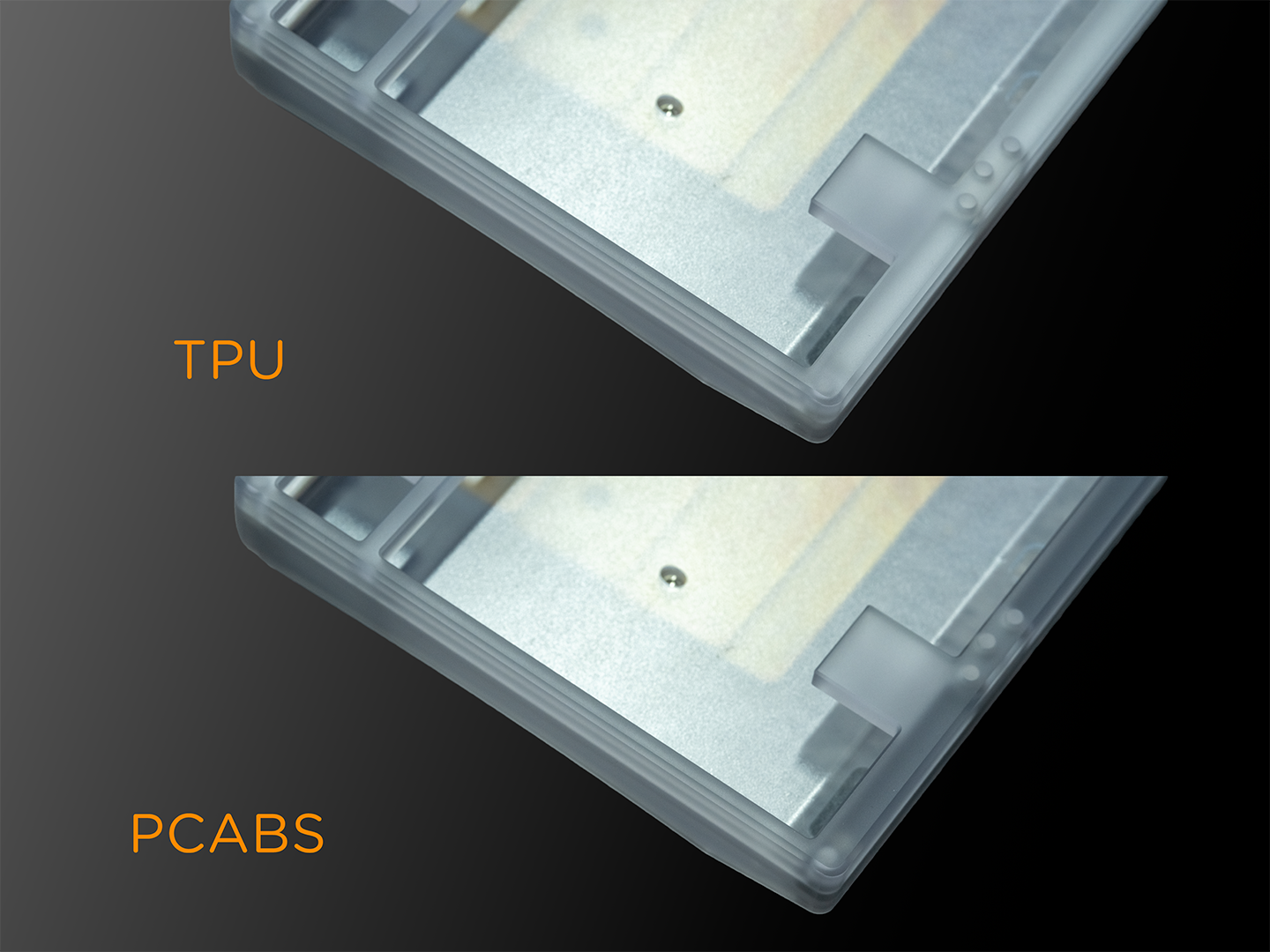

- Buffer bar: TPU/PCABS/Copper AF(for PC case only)

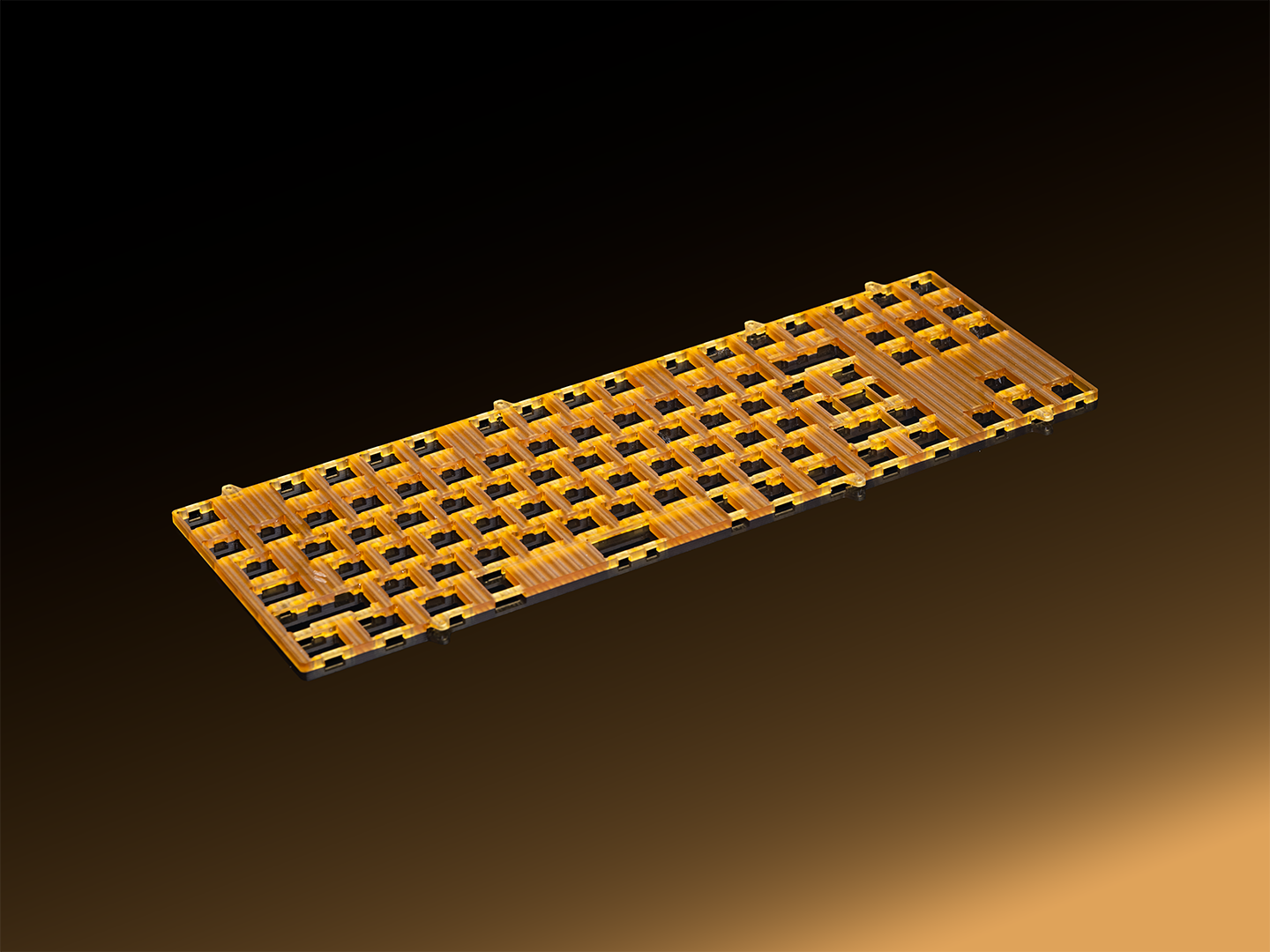

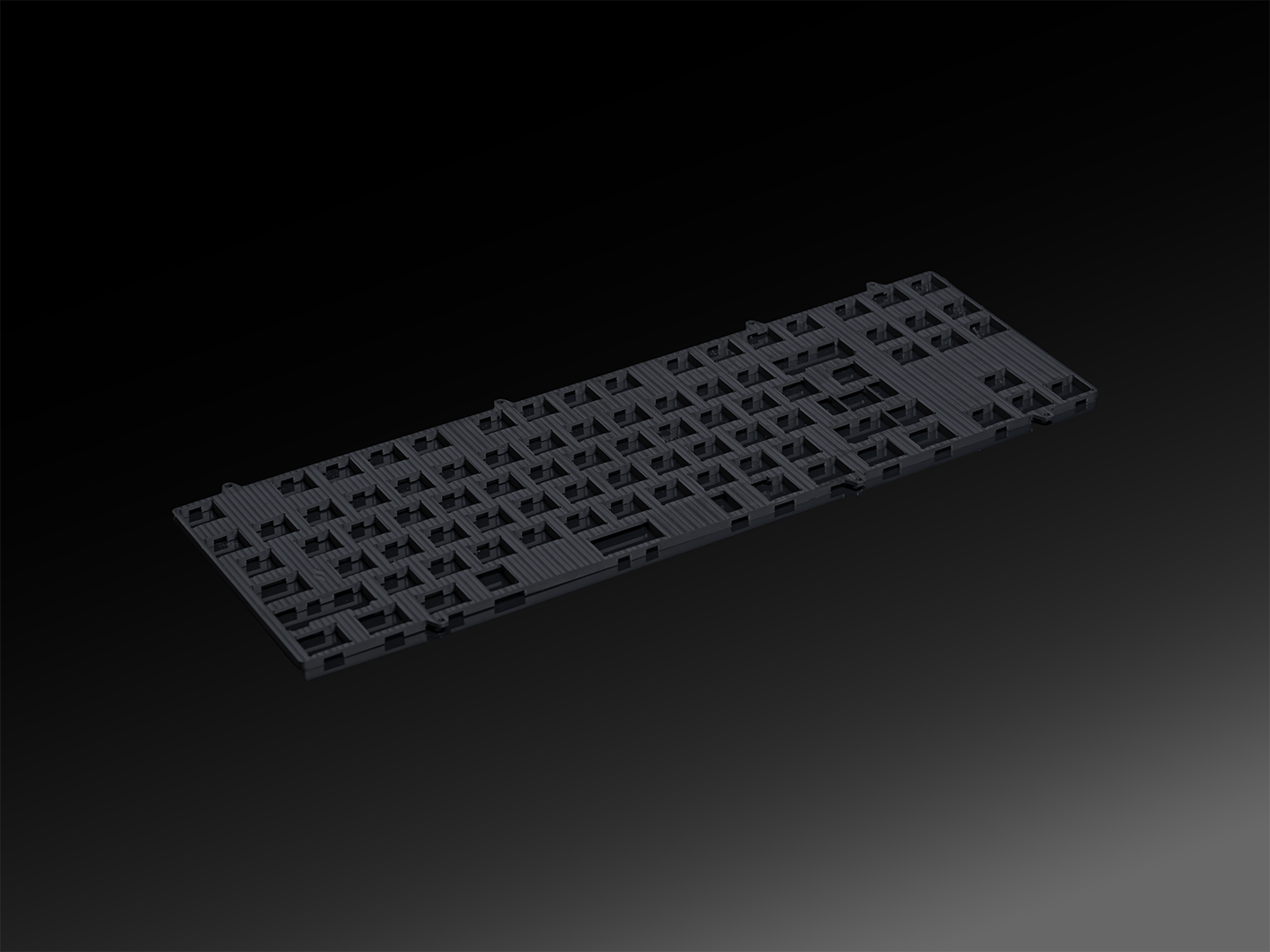

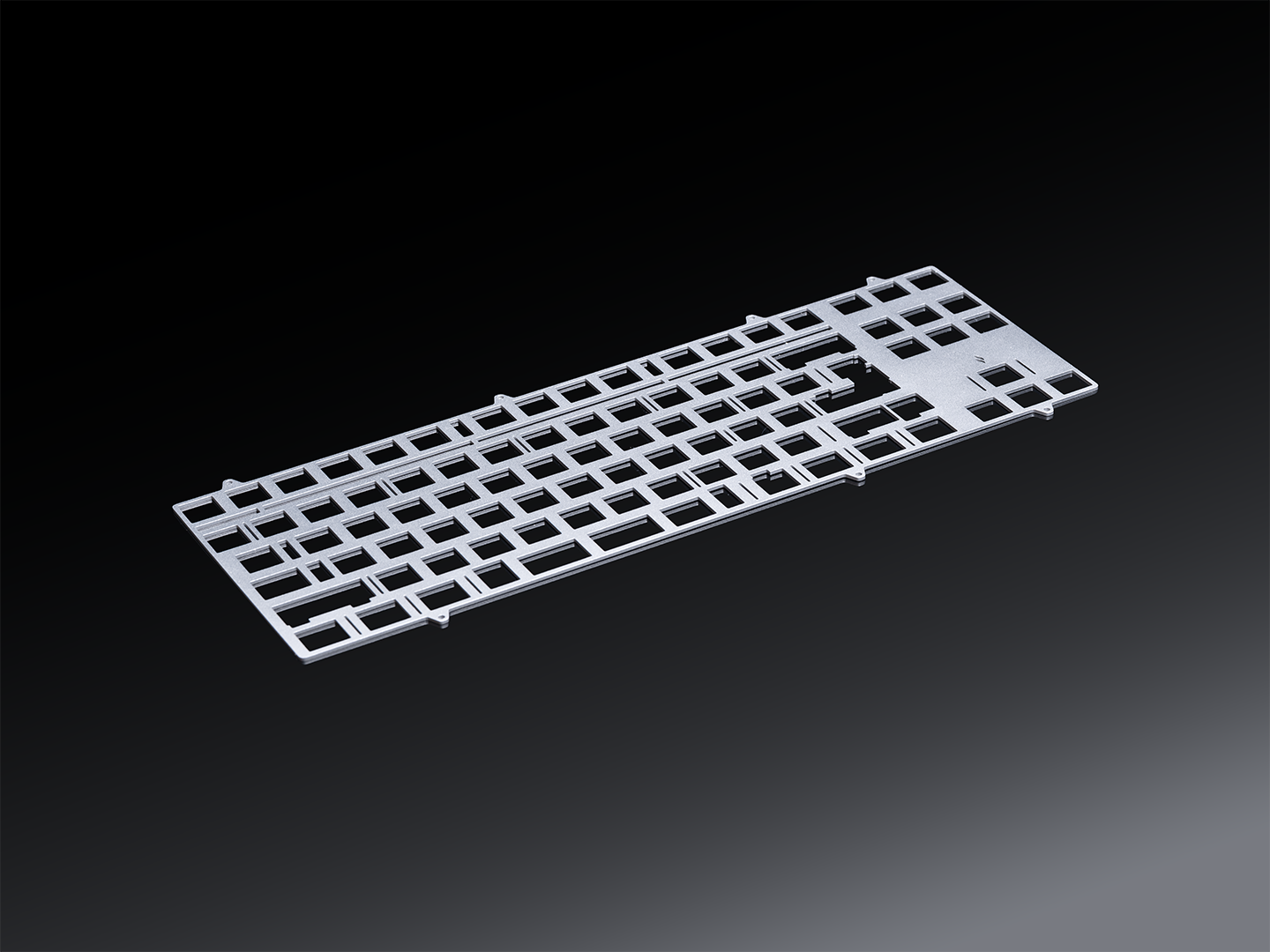

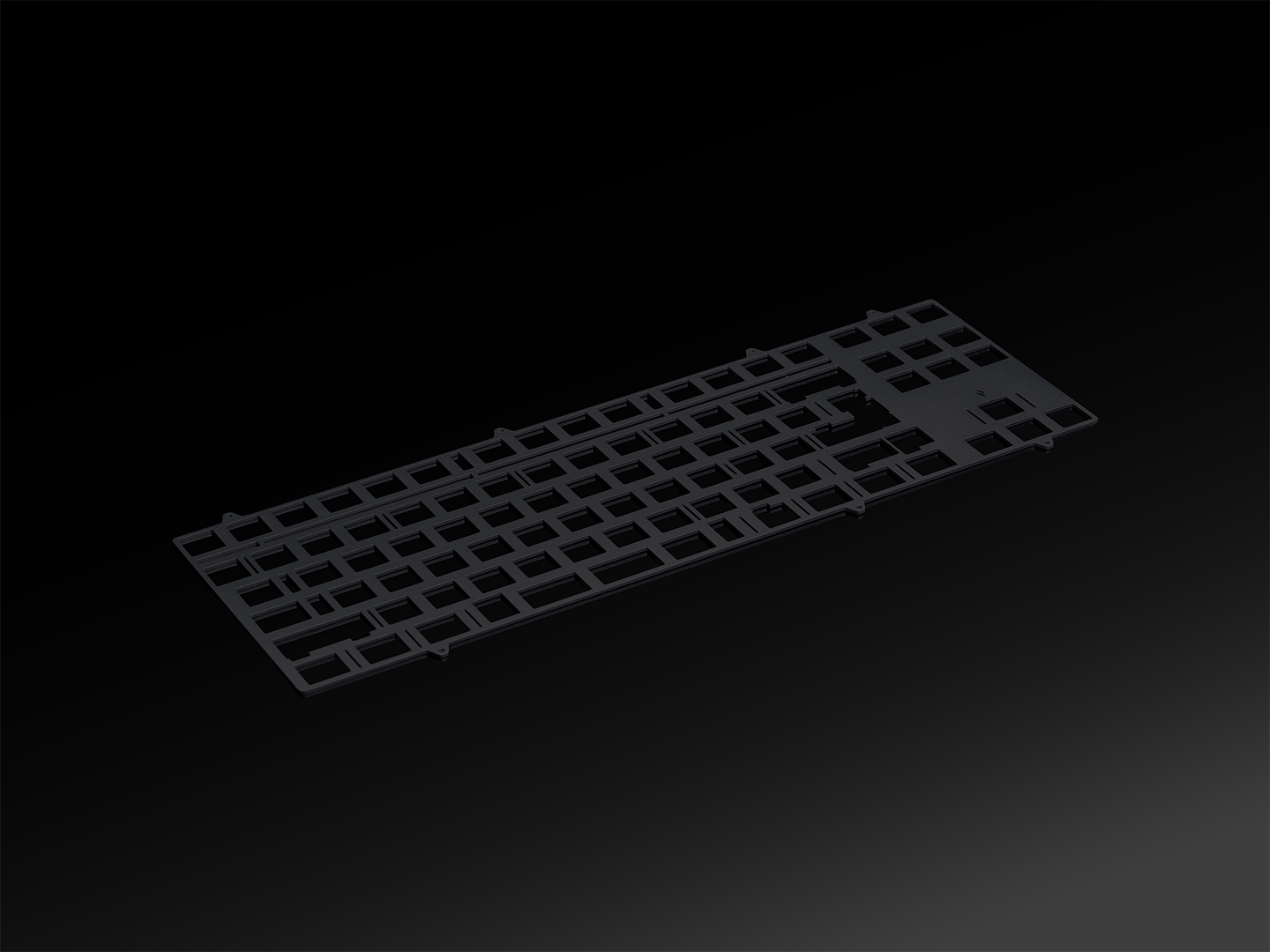

- Plate: Alu/PEI/PCABS

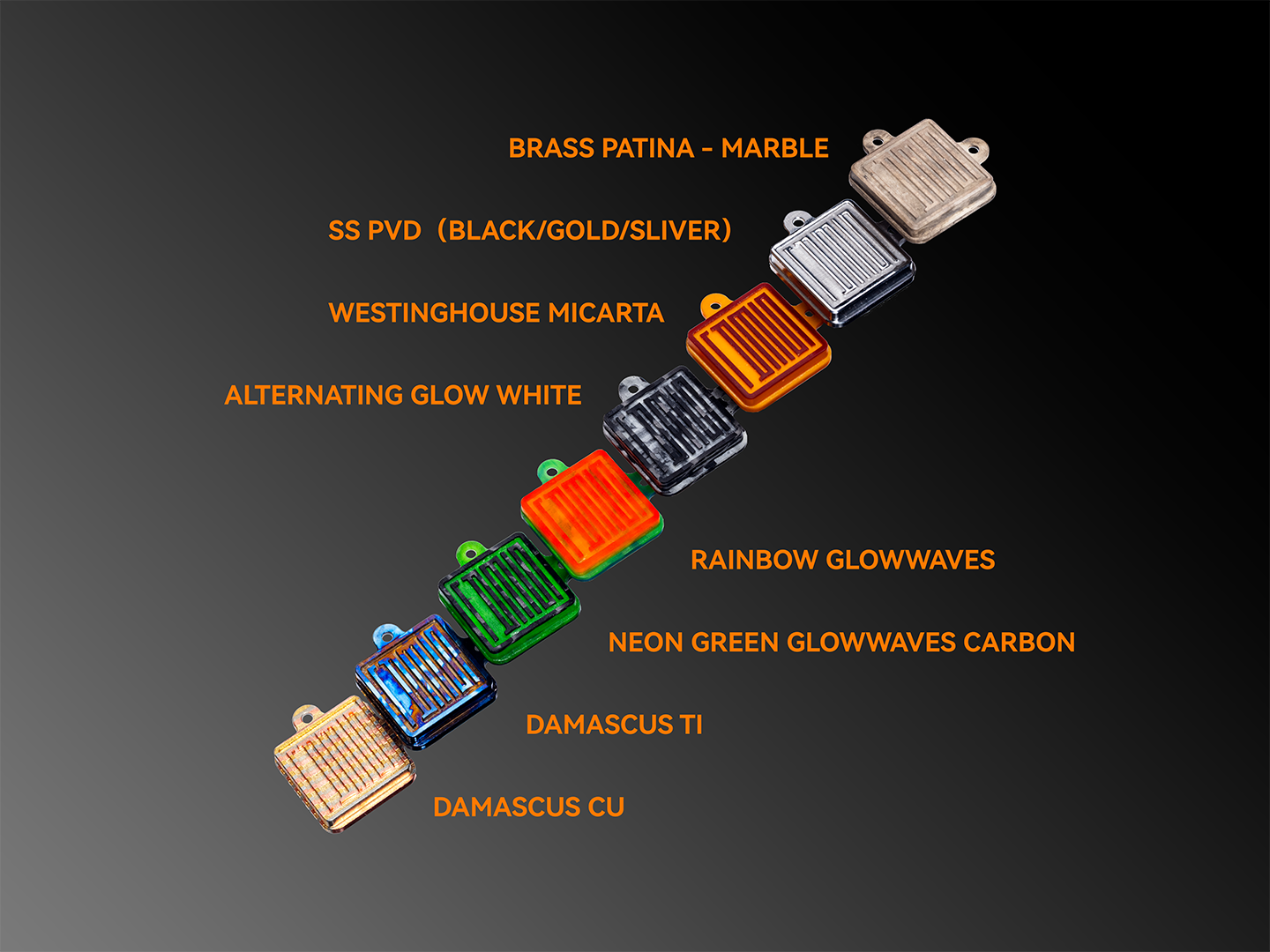

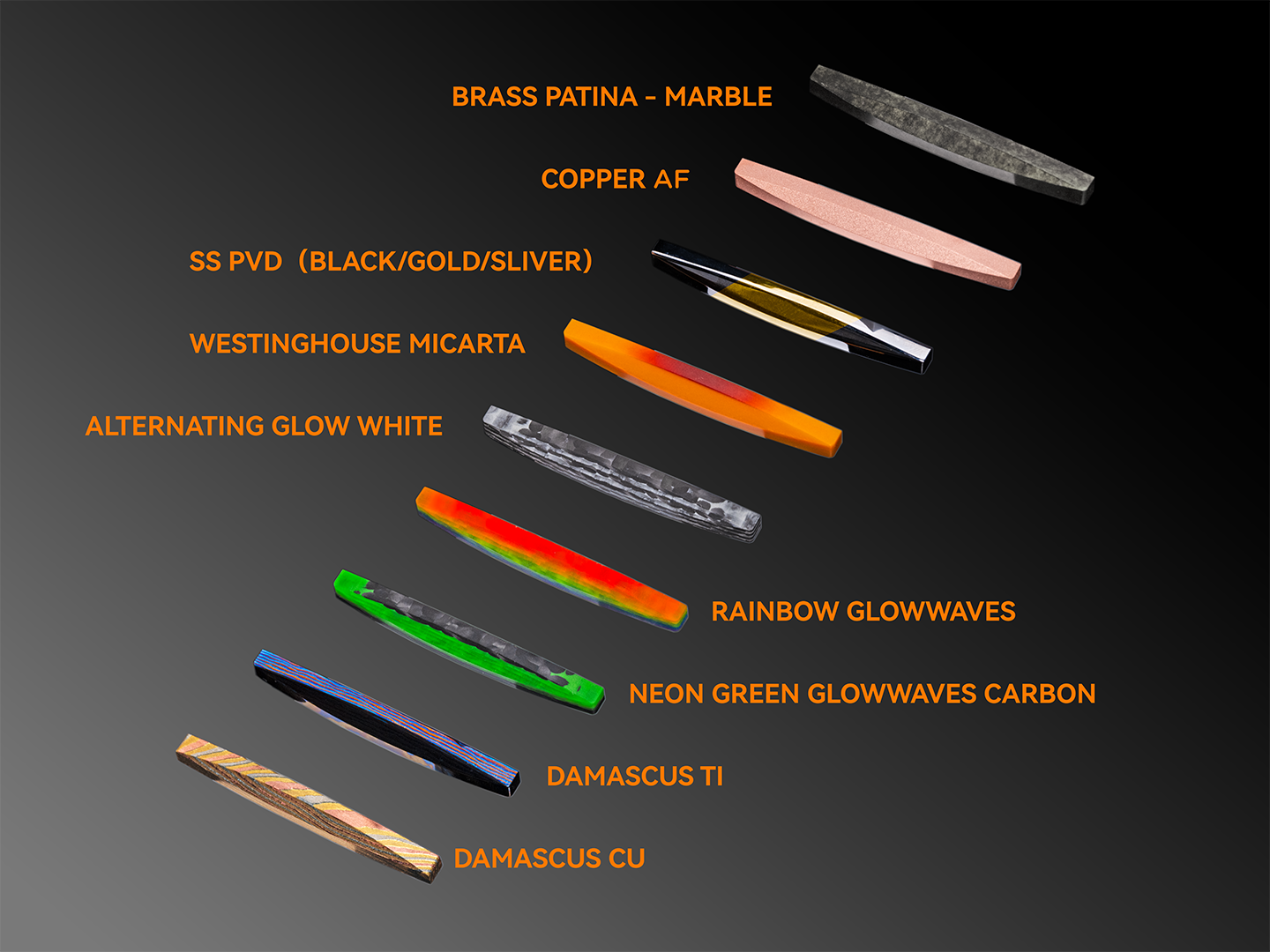

- Strip&Badge: Refer to pictures below
PCB & Layout:
Cherry MX / Soldering & Hotswap
Case Colour Options:

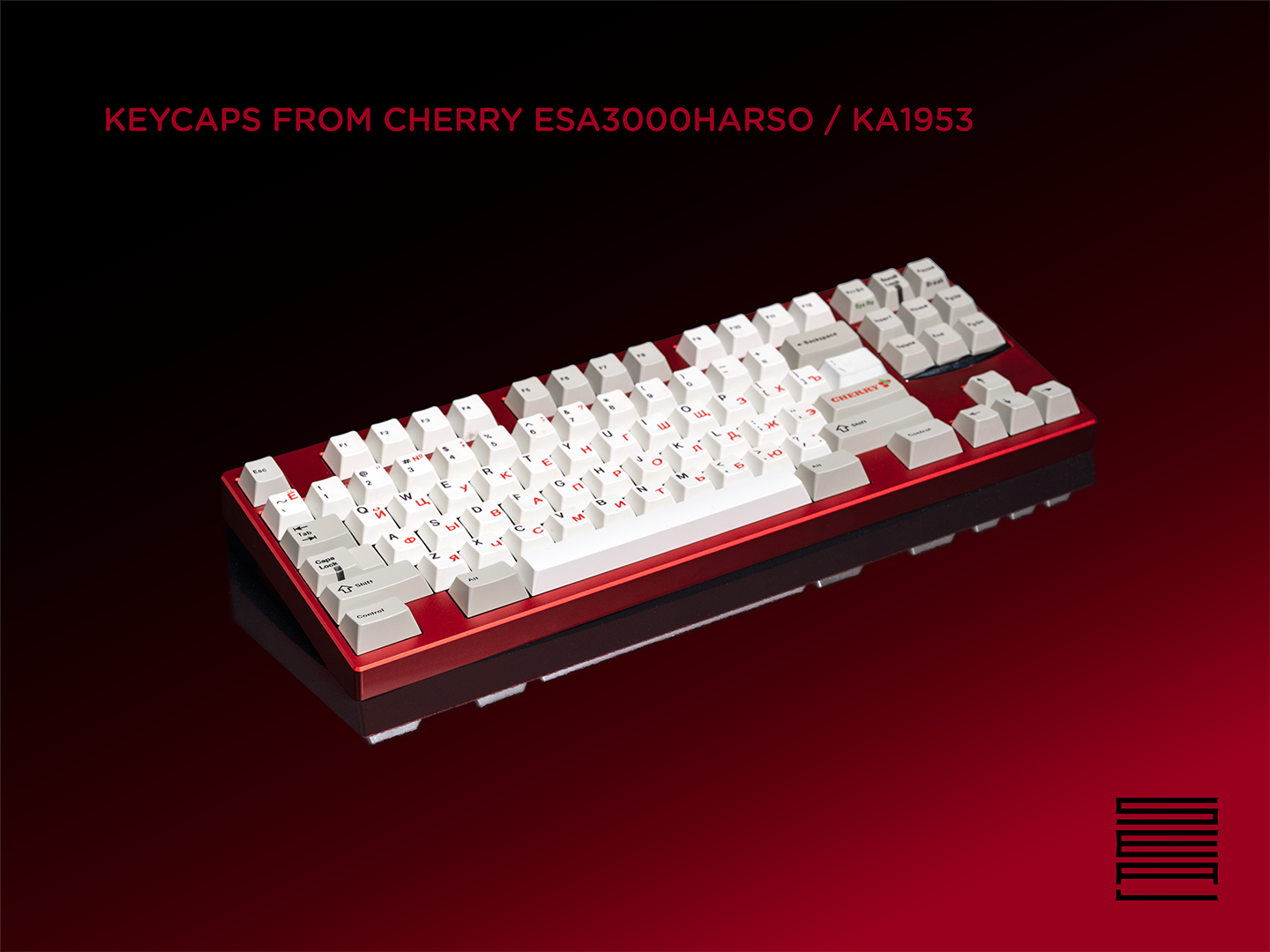

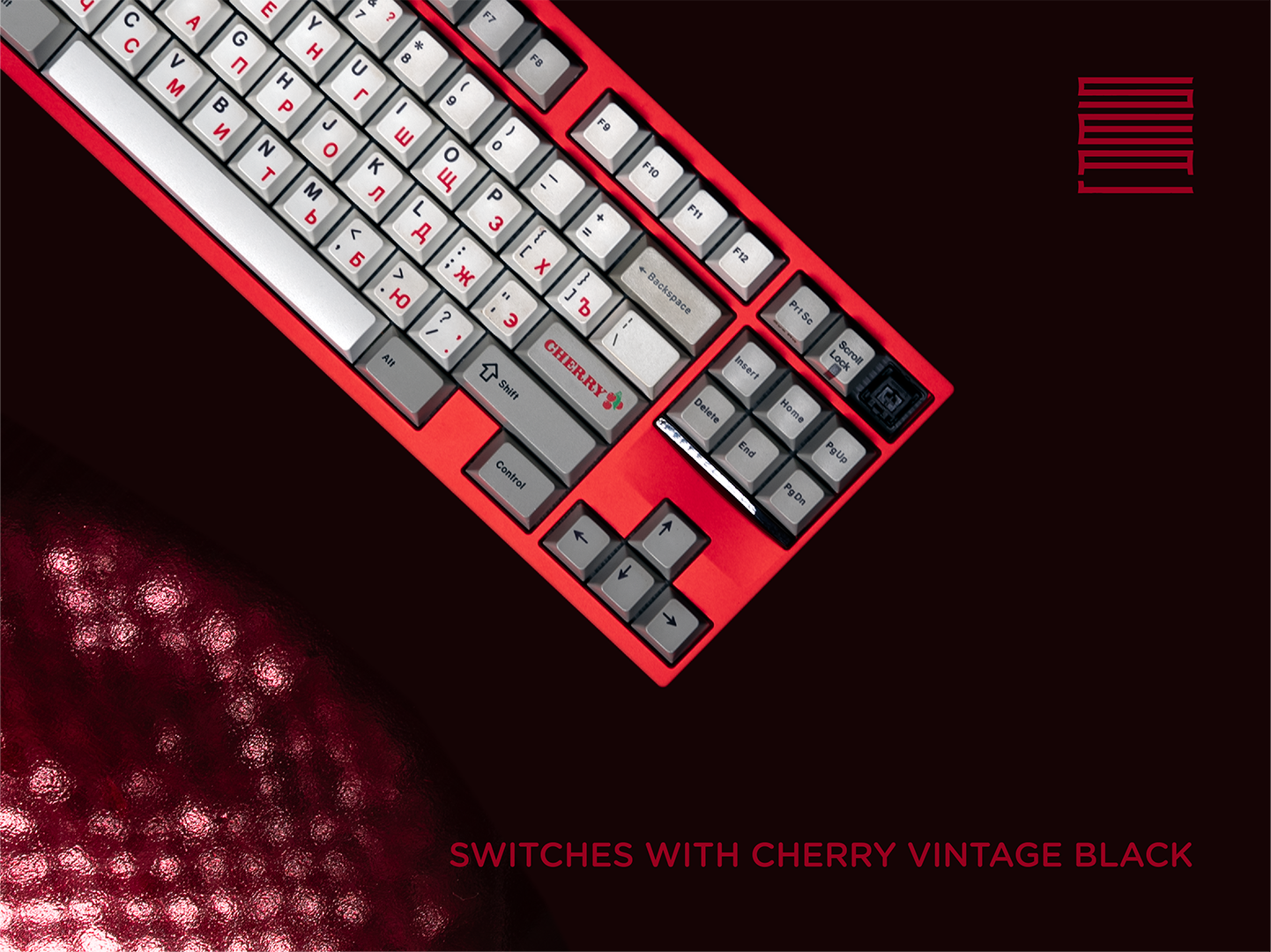

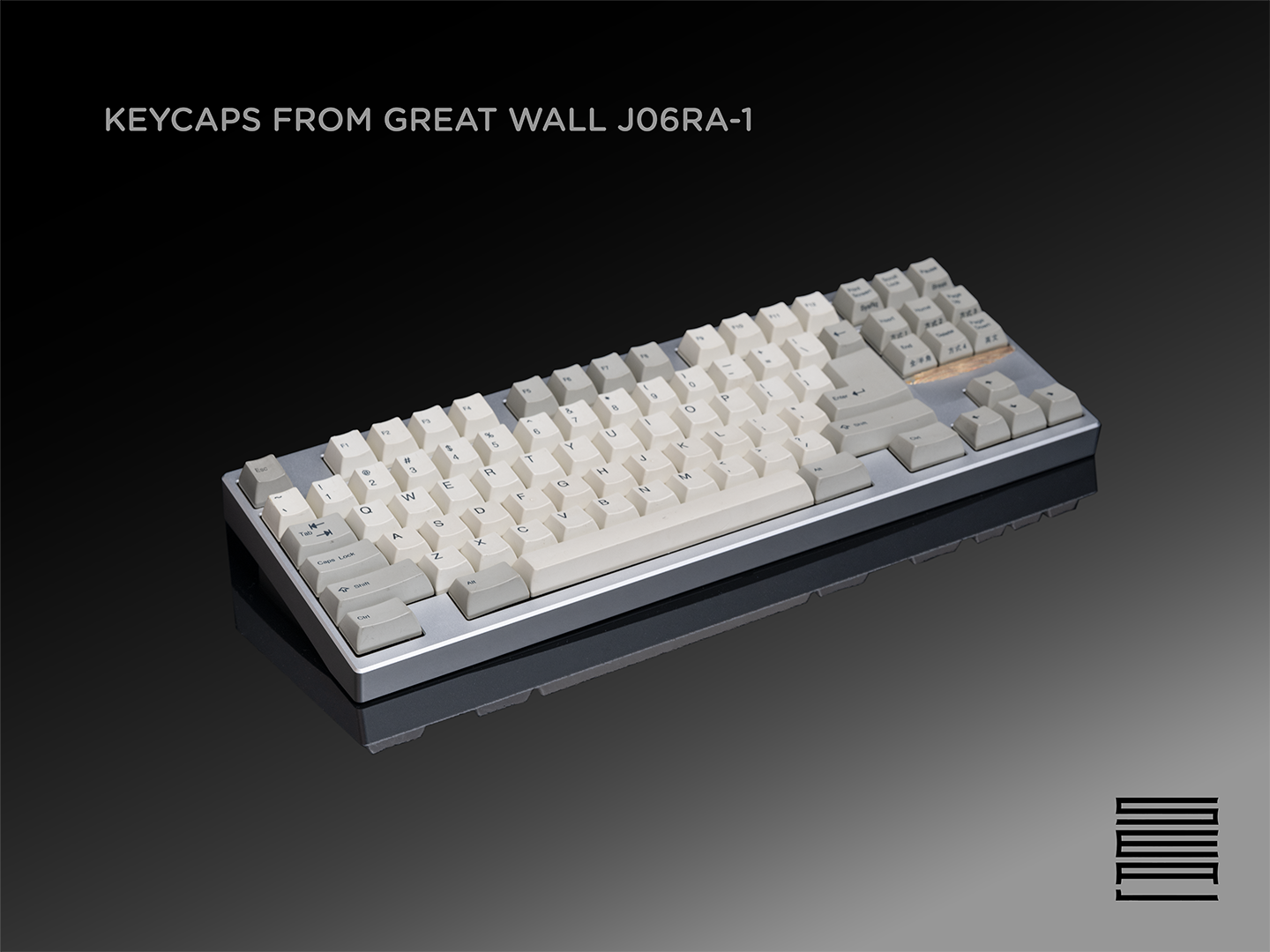

- Anodised Silver

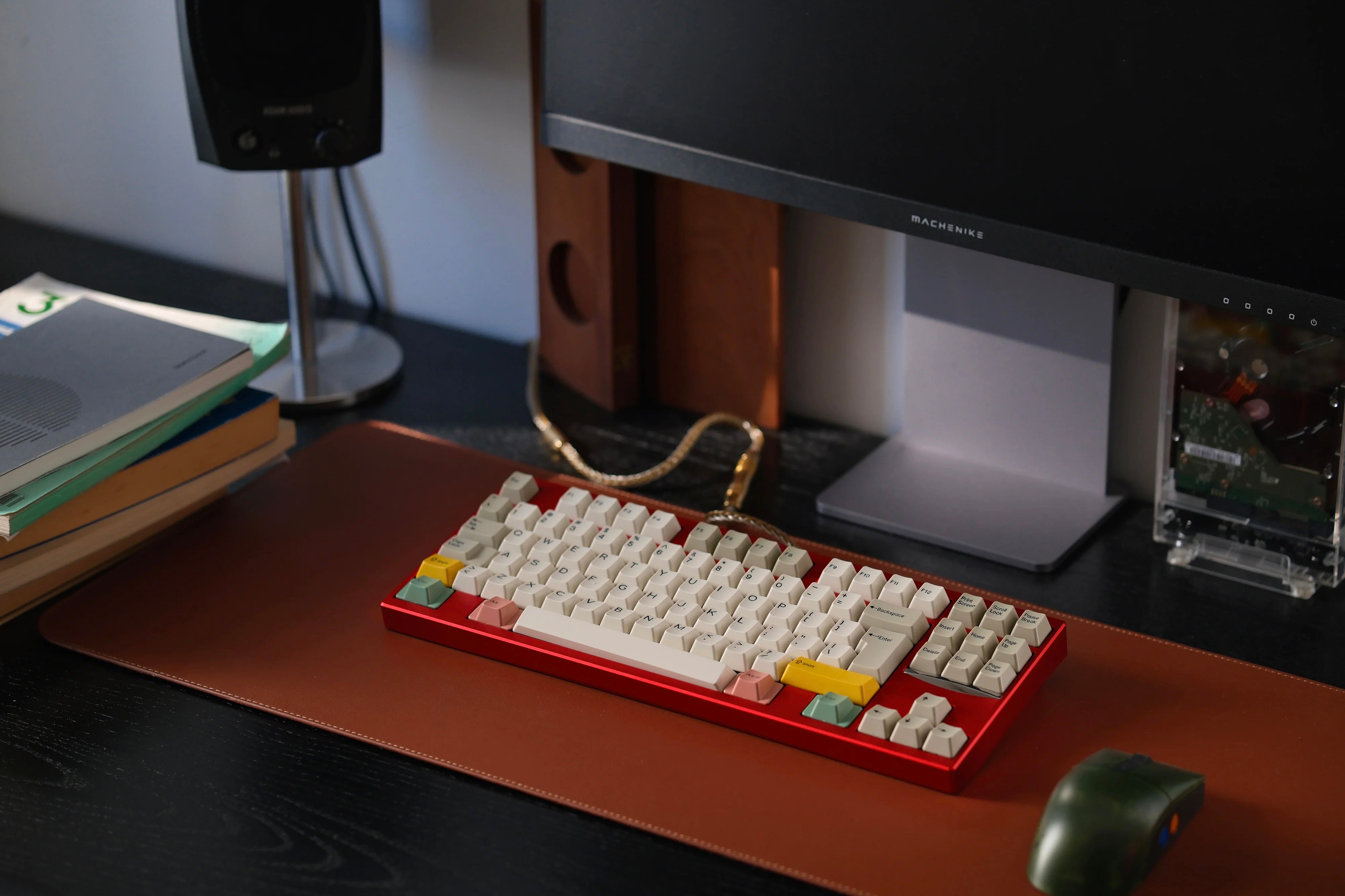

- Anodised Red

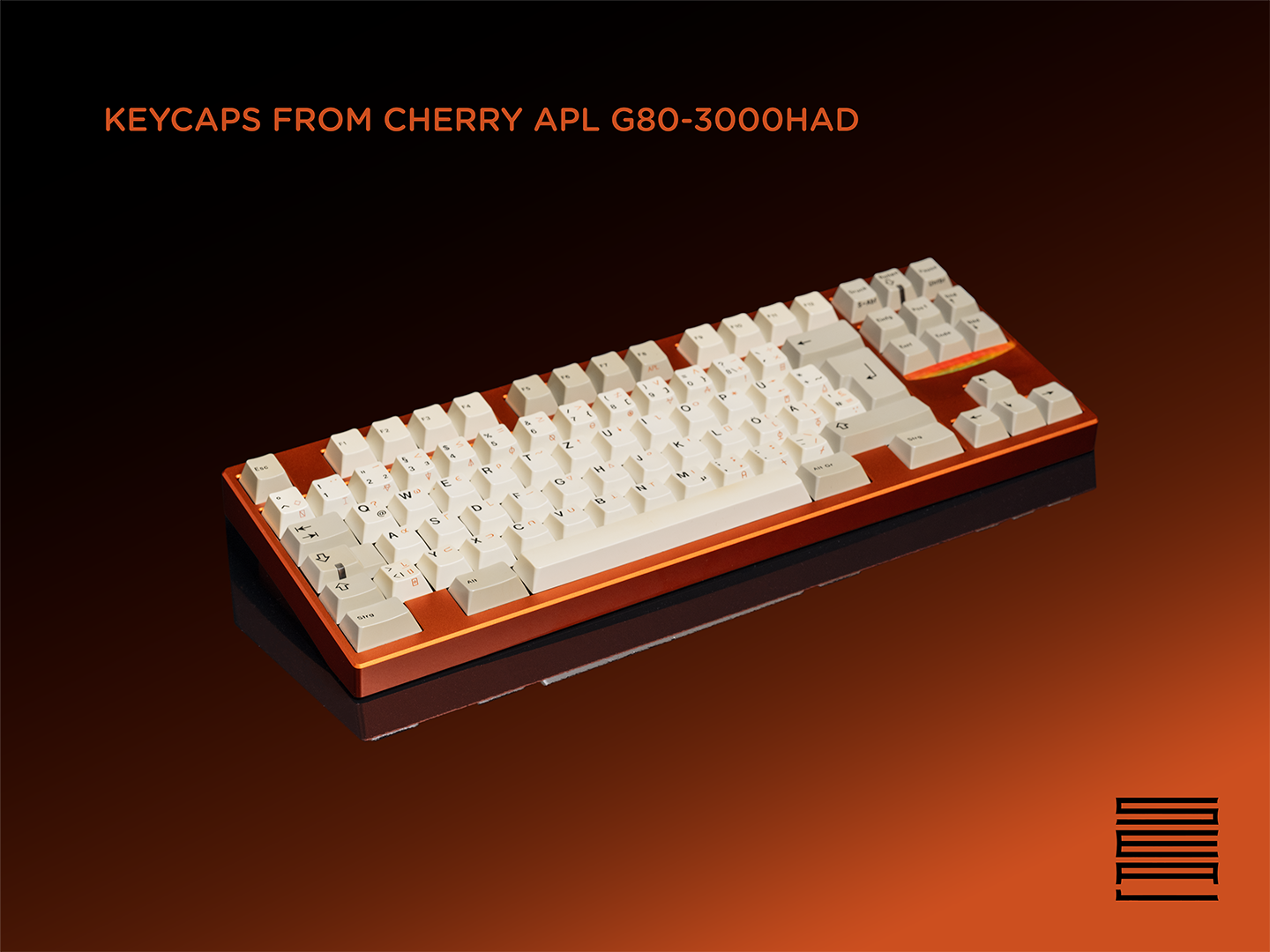

- Anodised Orange

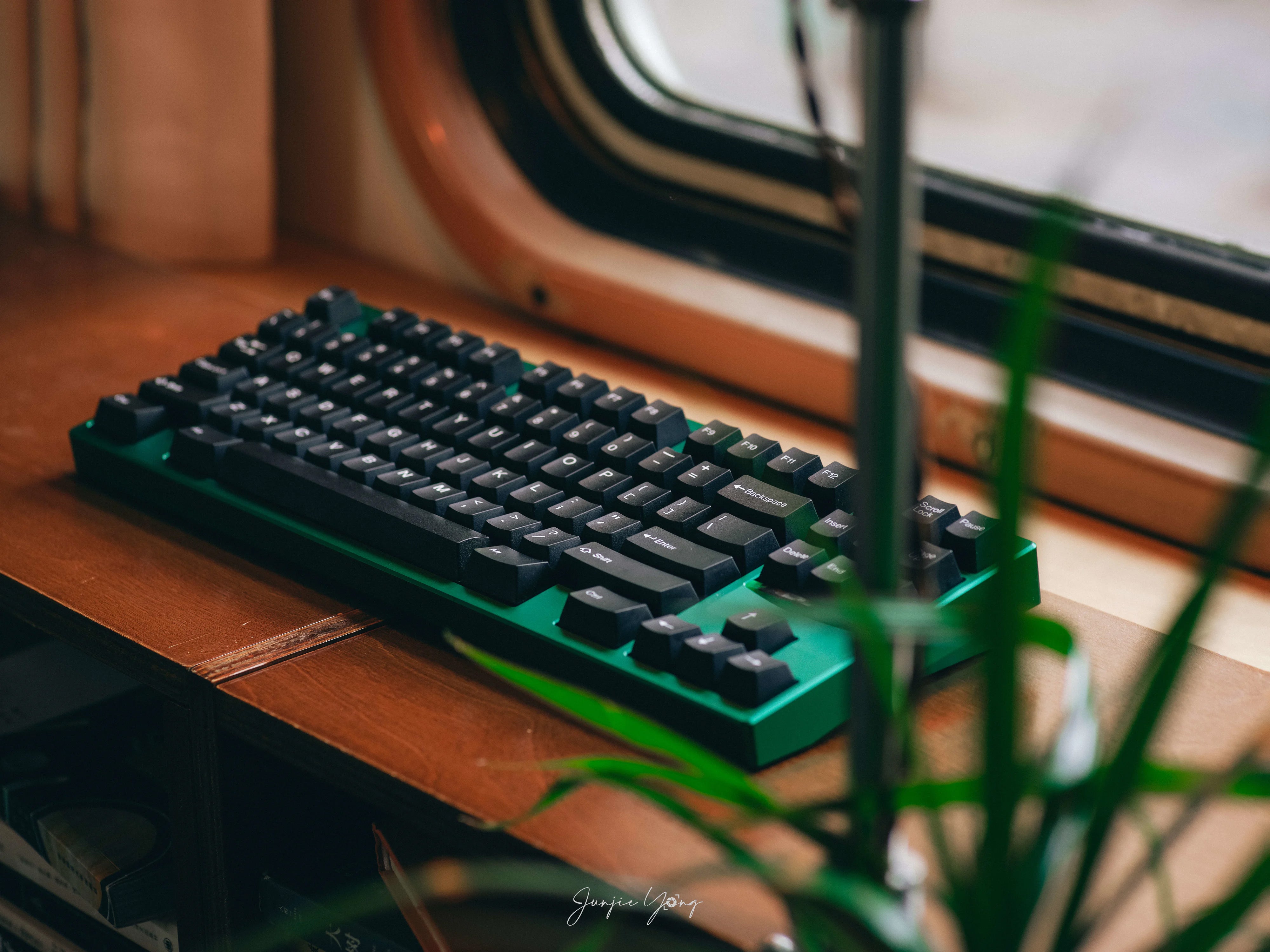

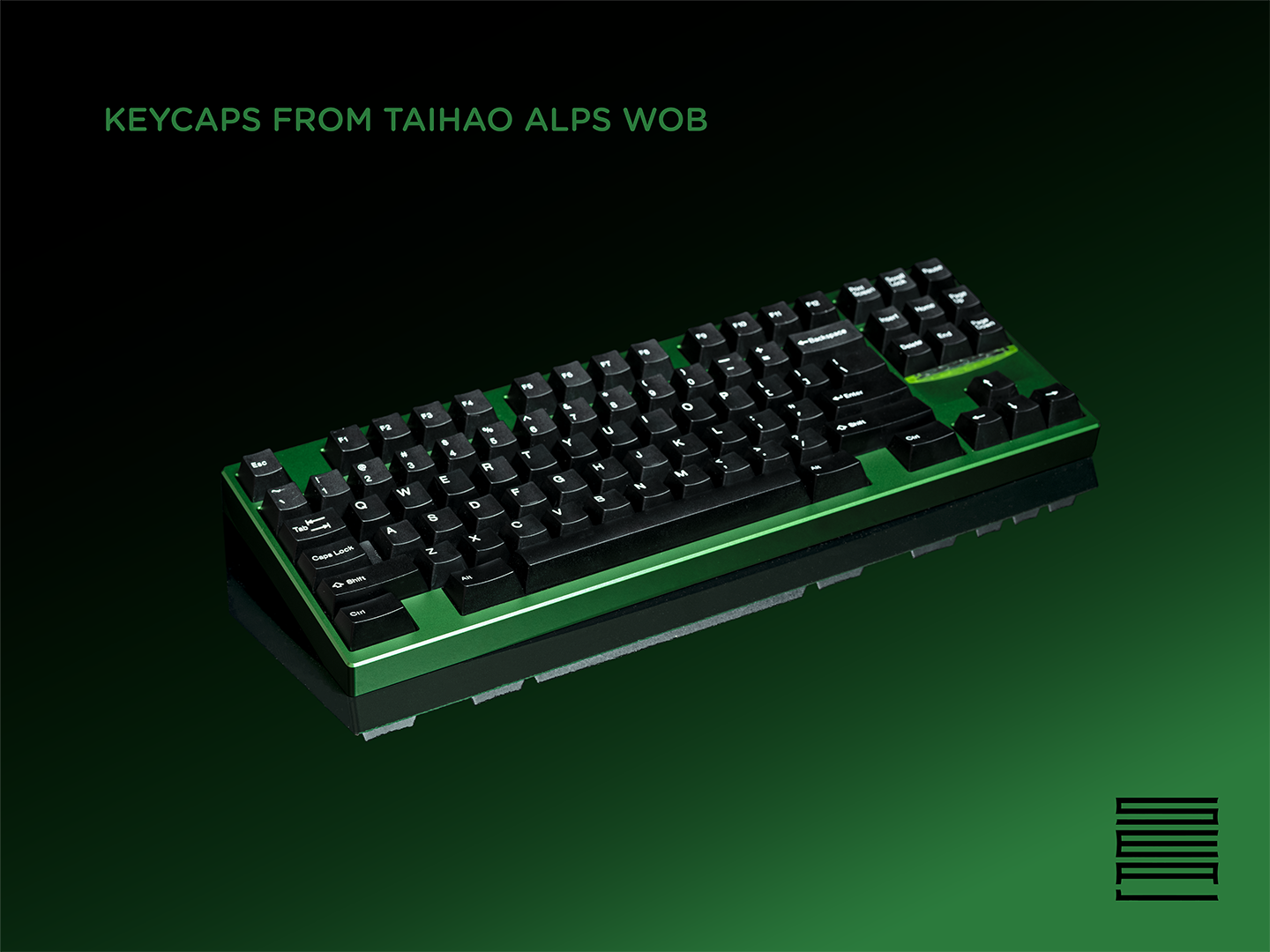

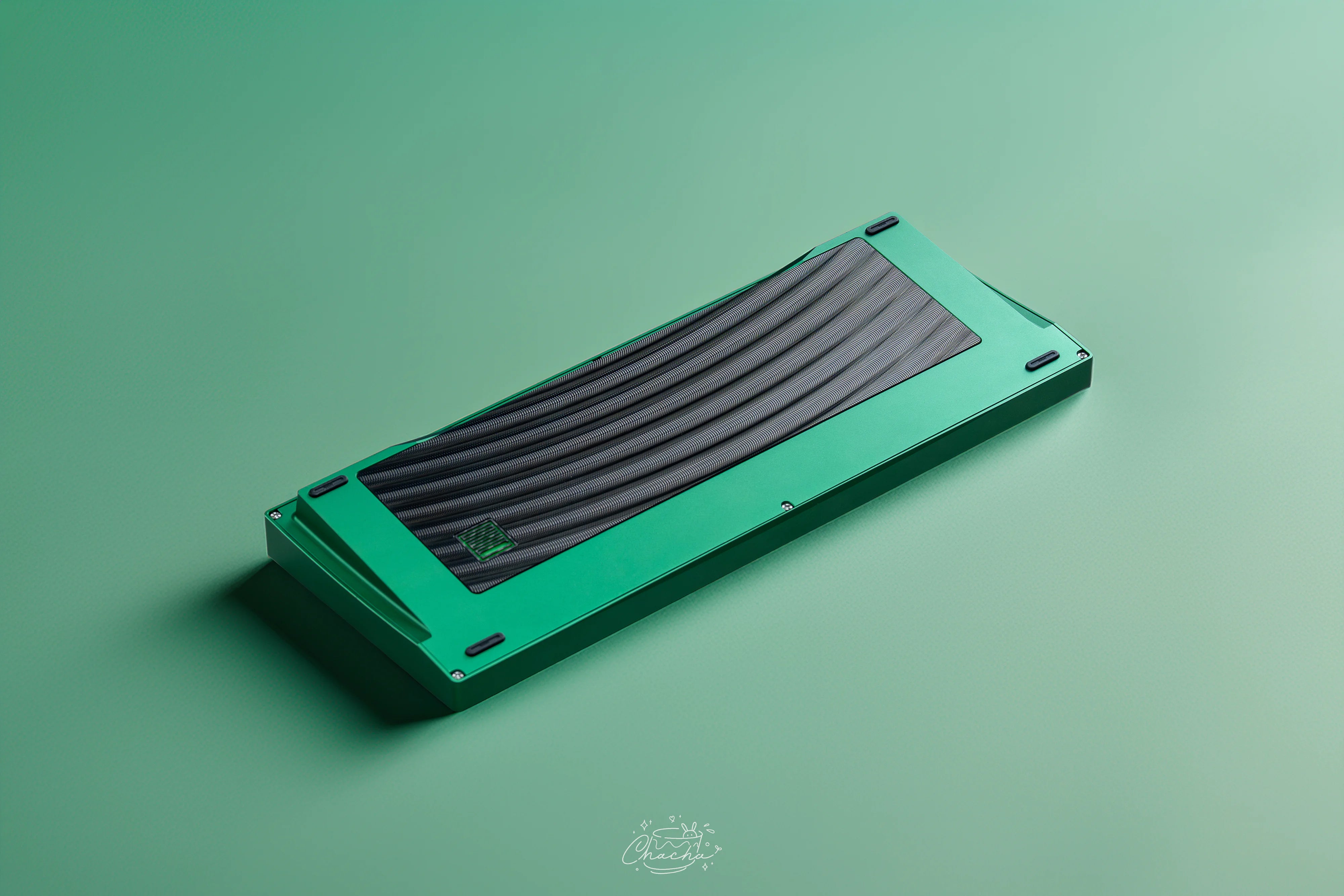

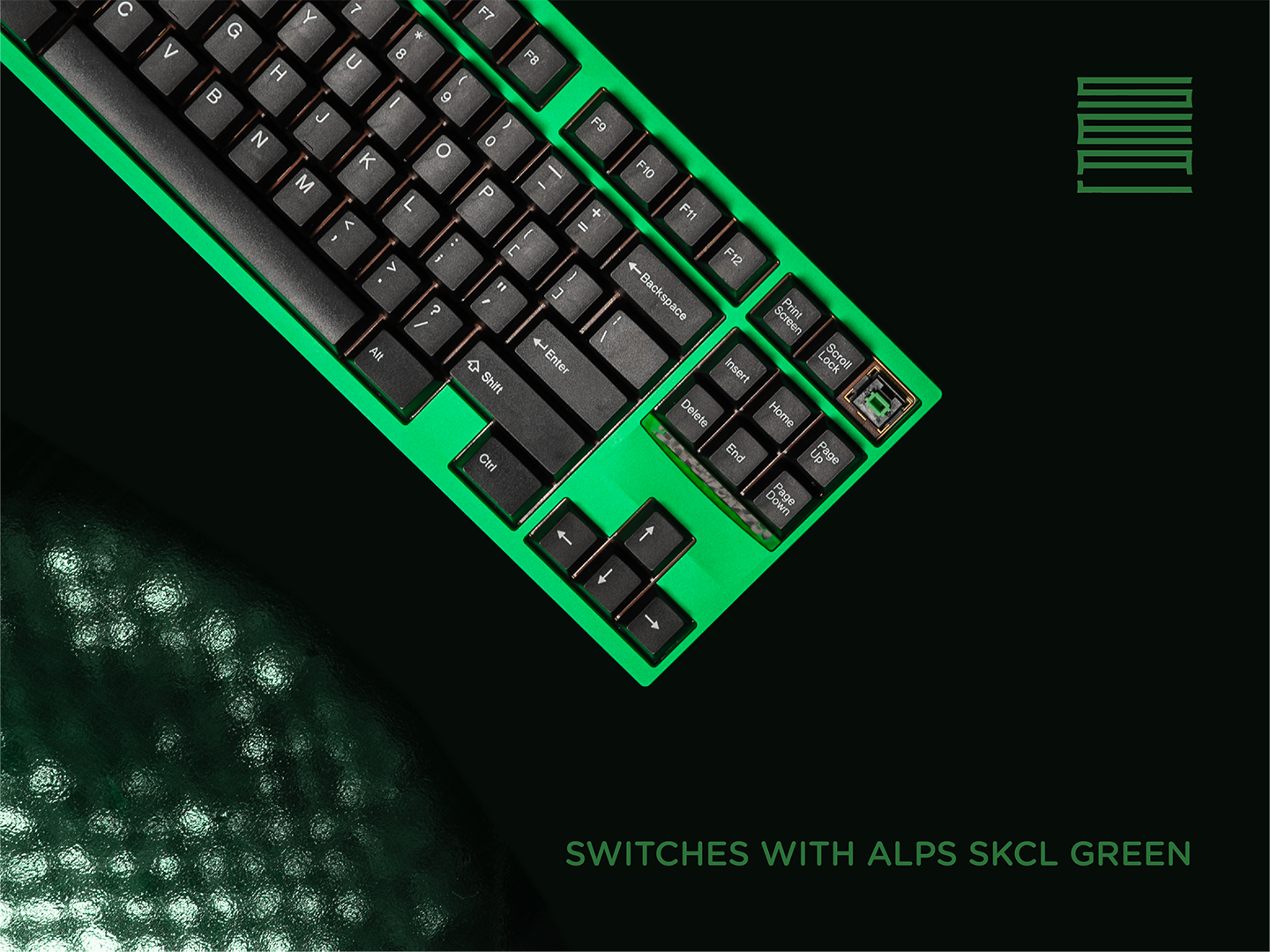

- Anodised Green

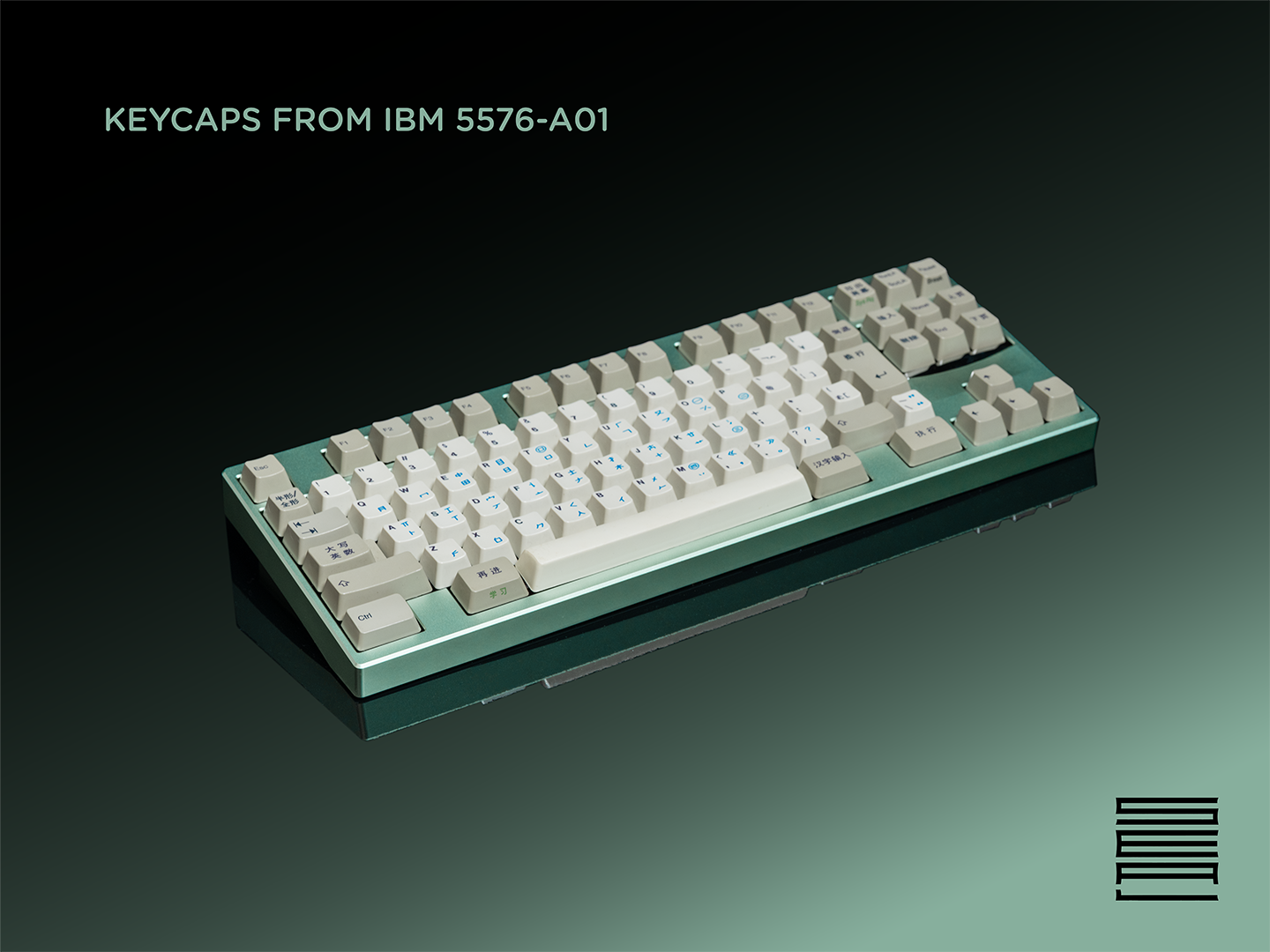

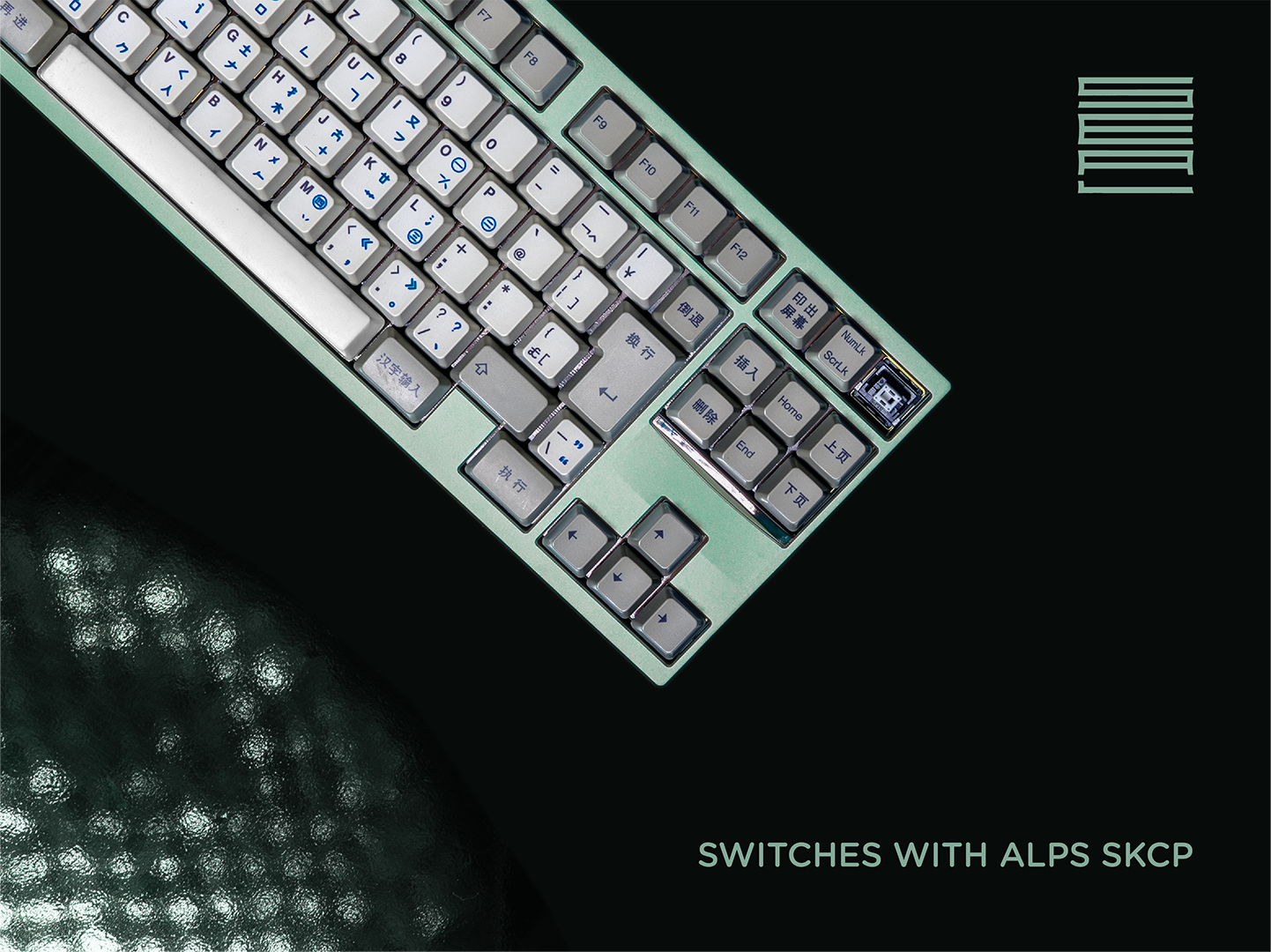

- Anodised Ching

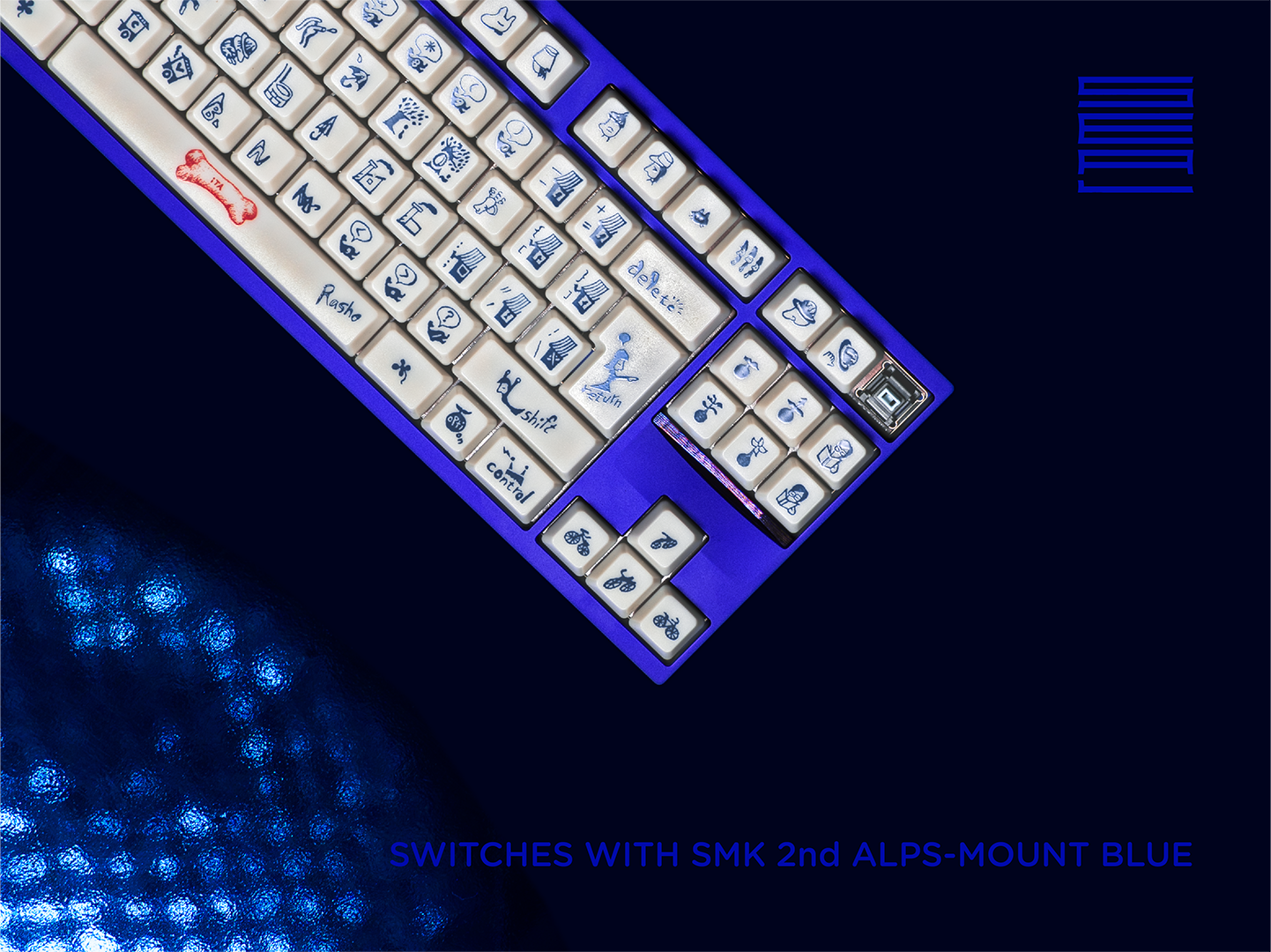

- Anodised Blue

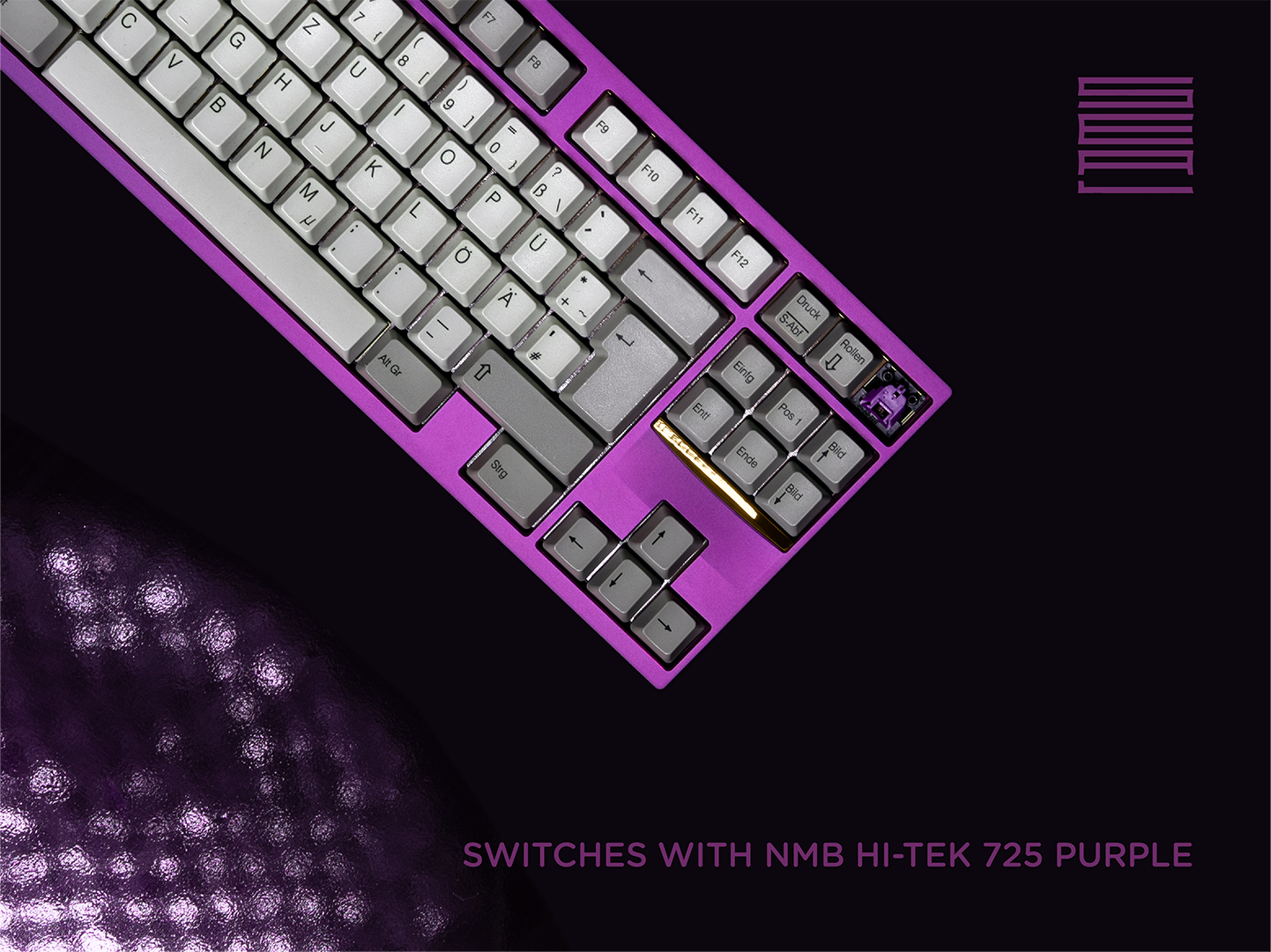

- Anodised Purple

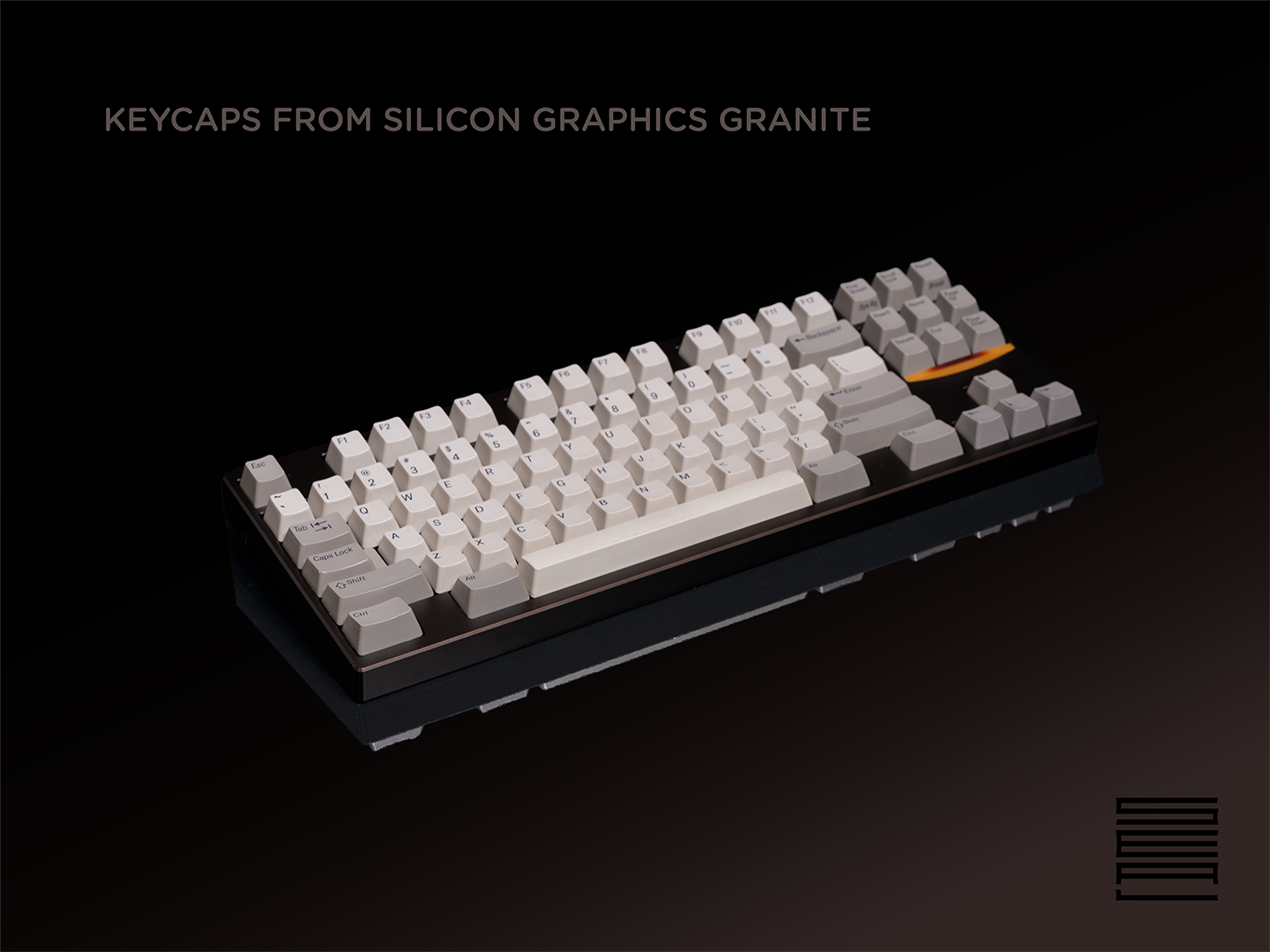

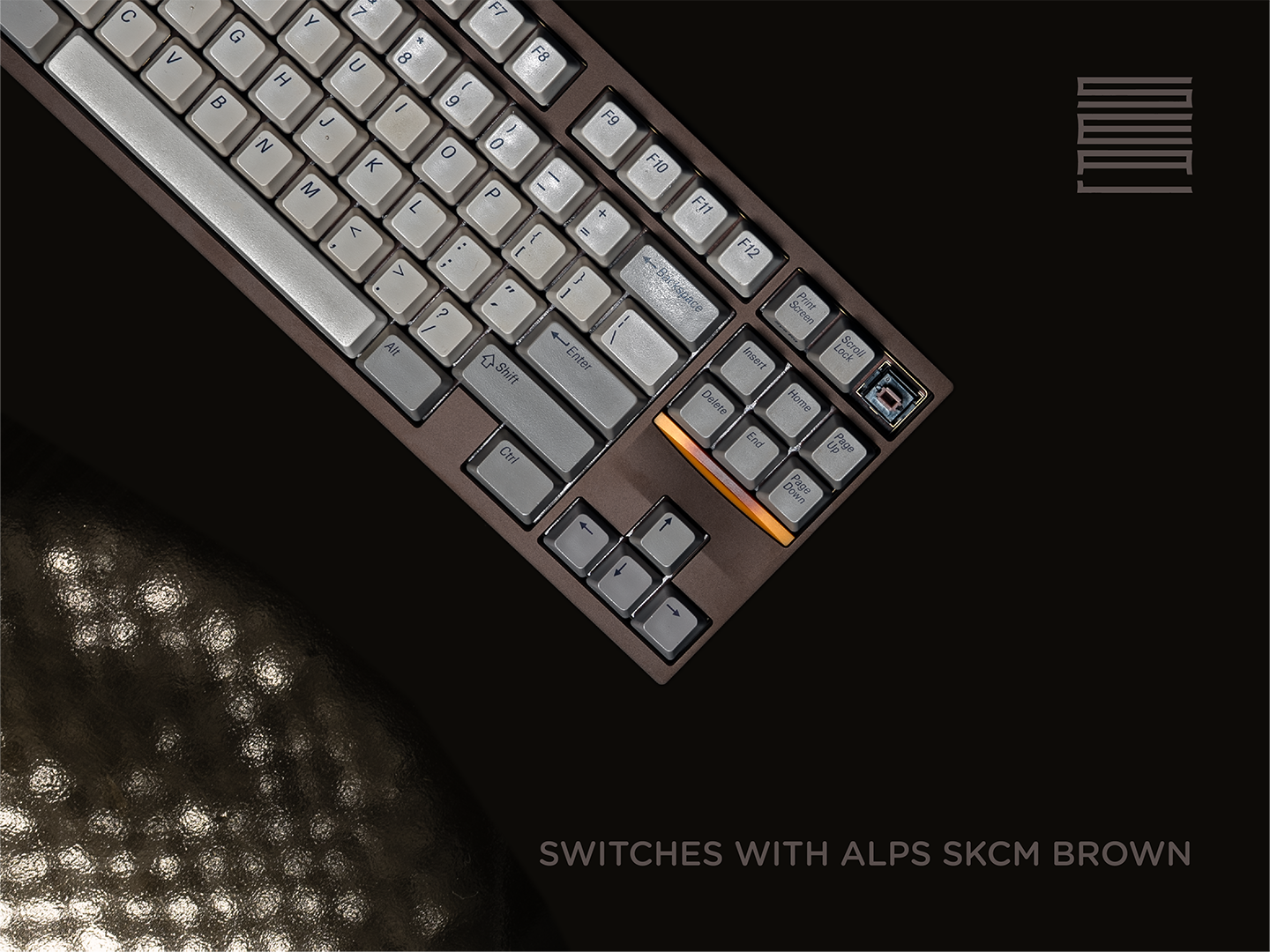

- Anodised Brown

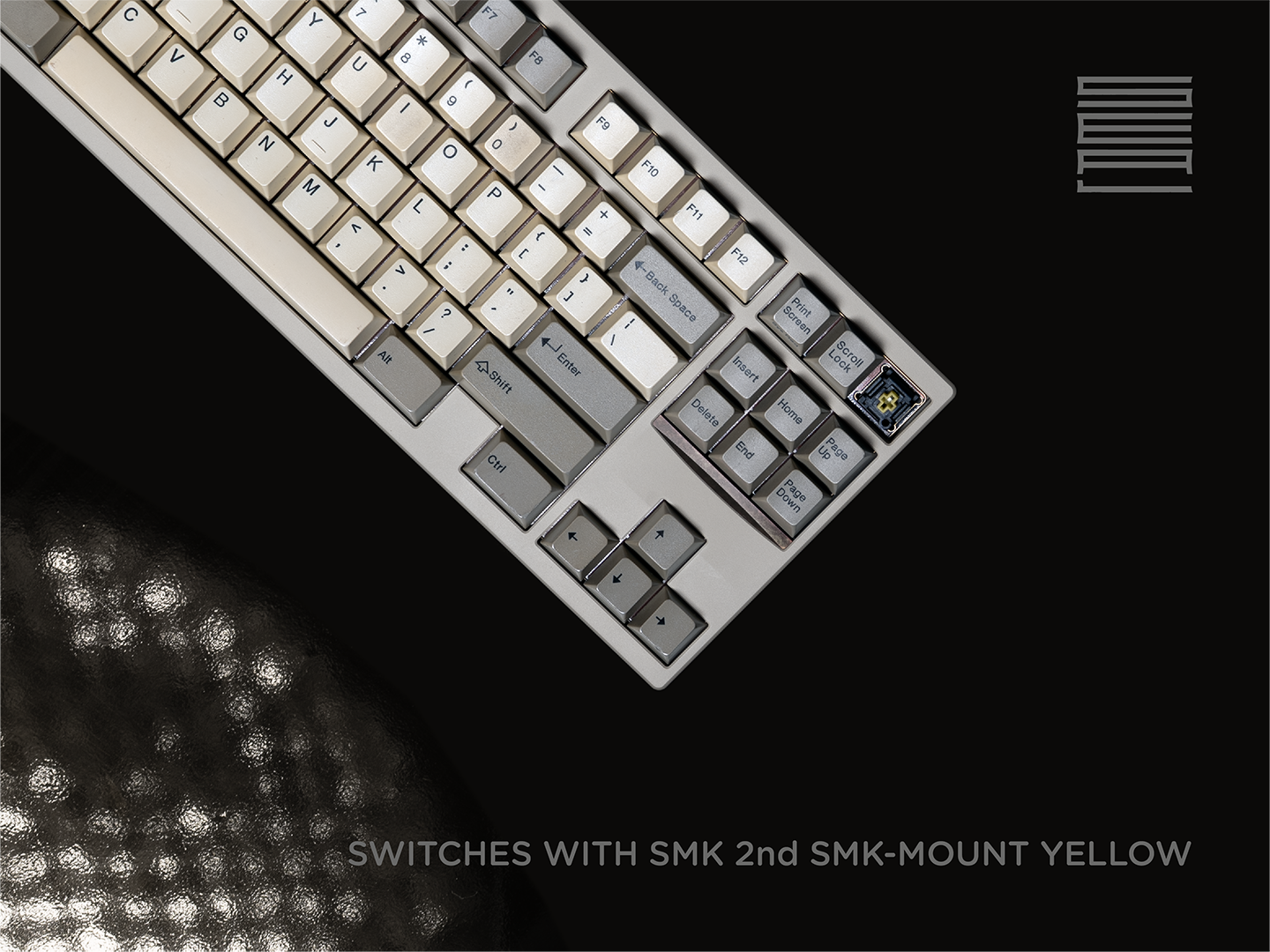

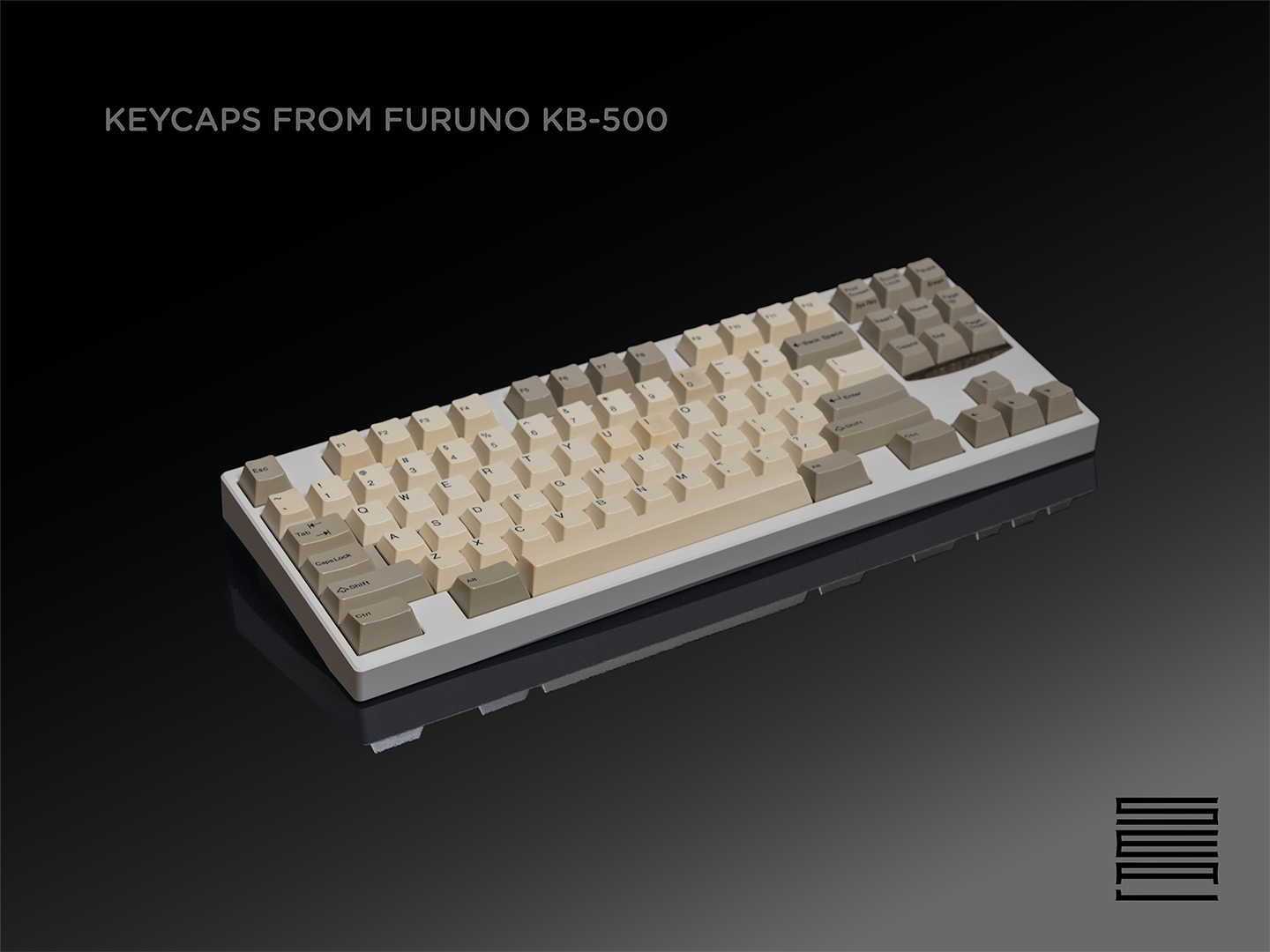

- E-Coating Vintage Grey

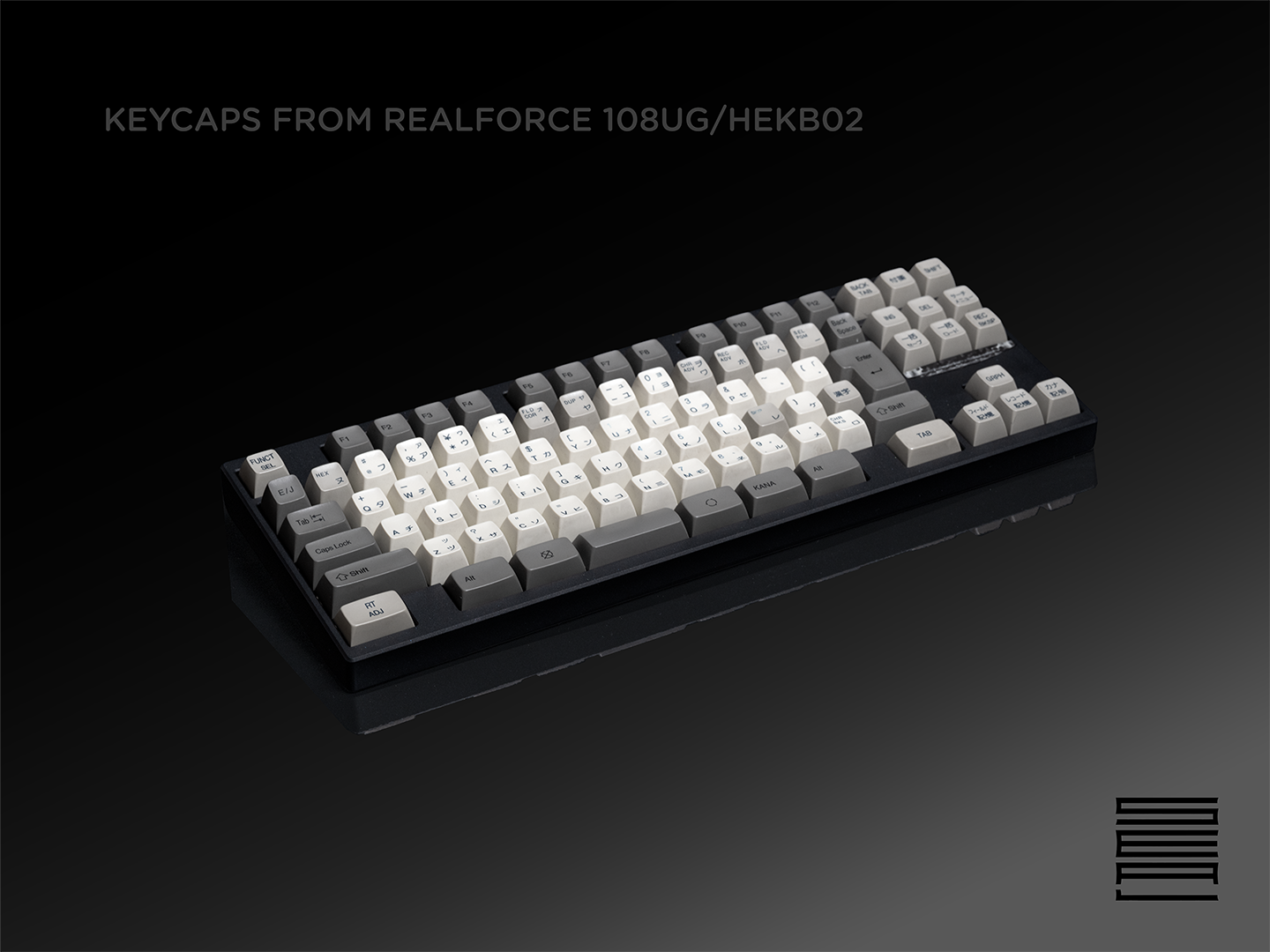

- E-Coating Sparkle Black

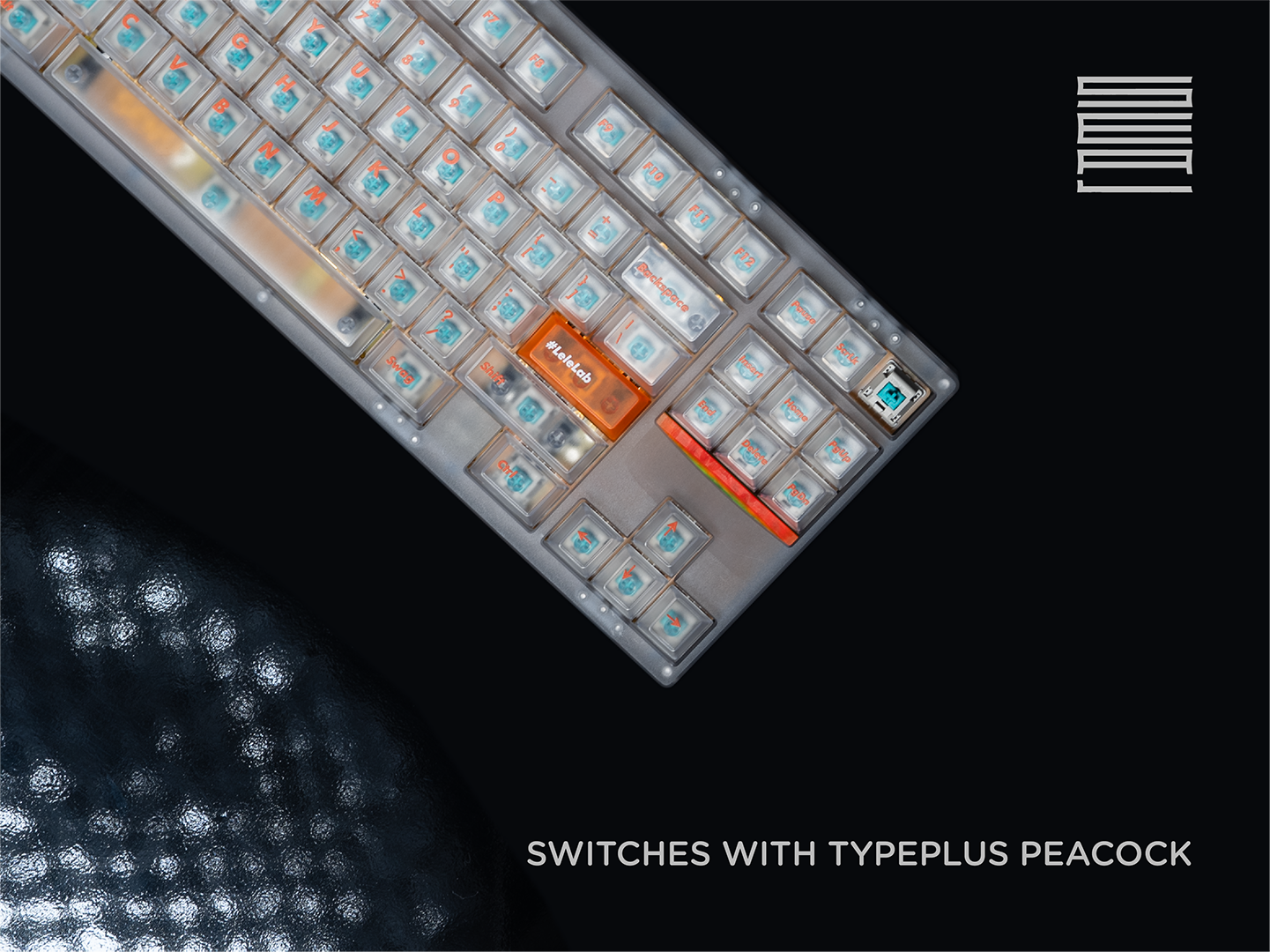

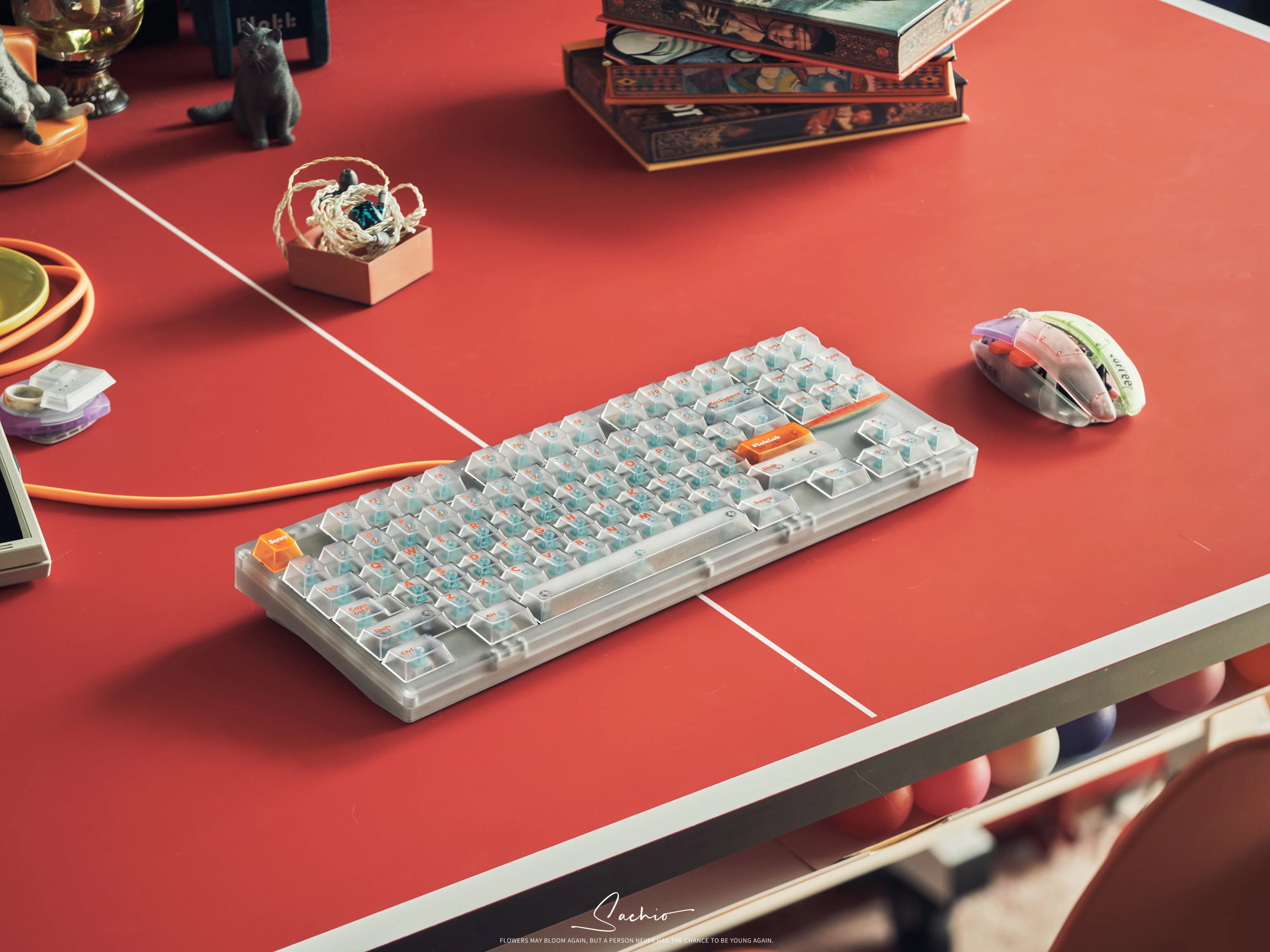

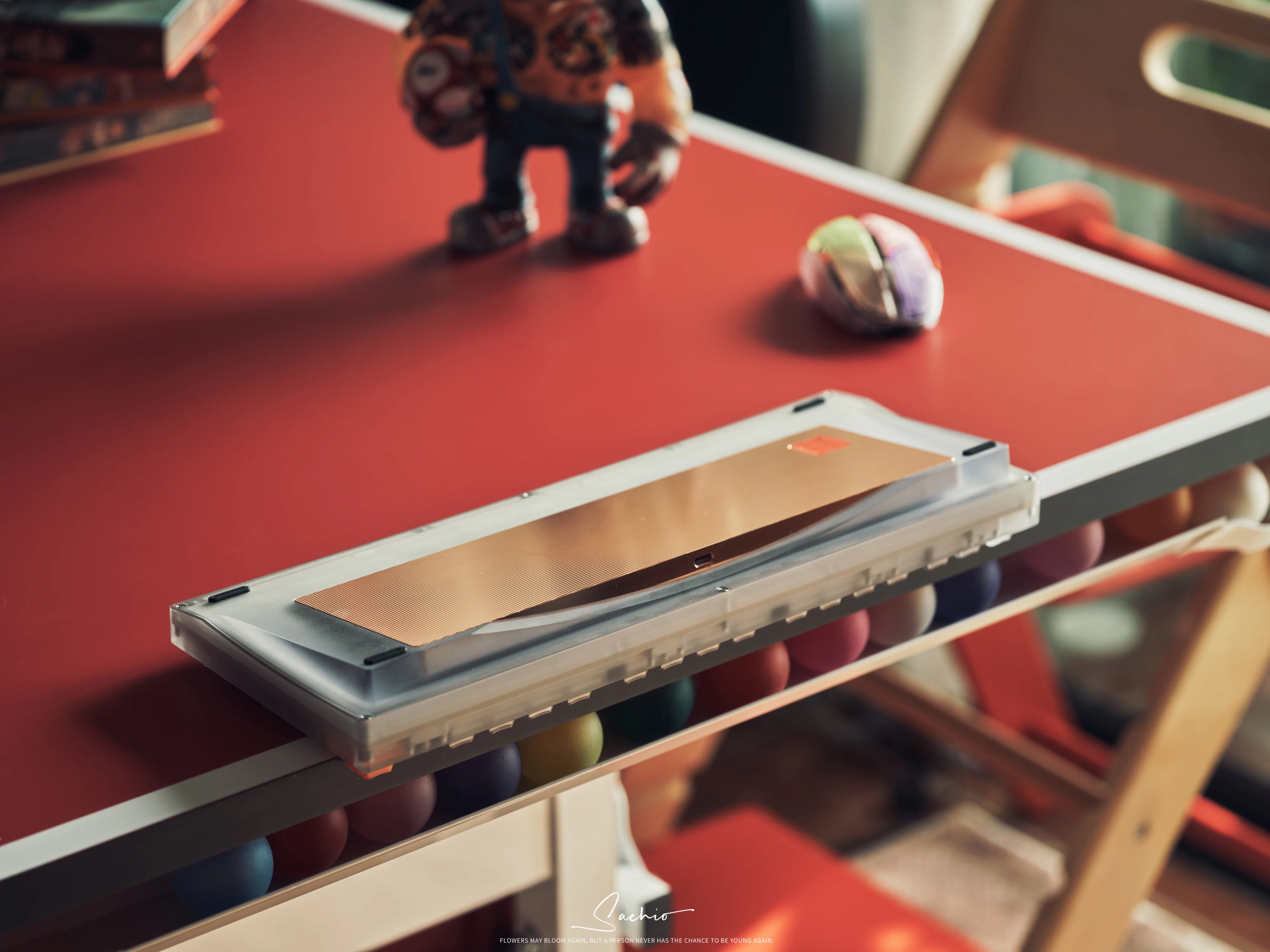

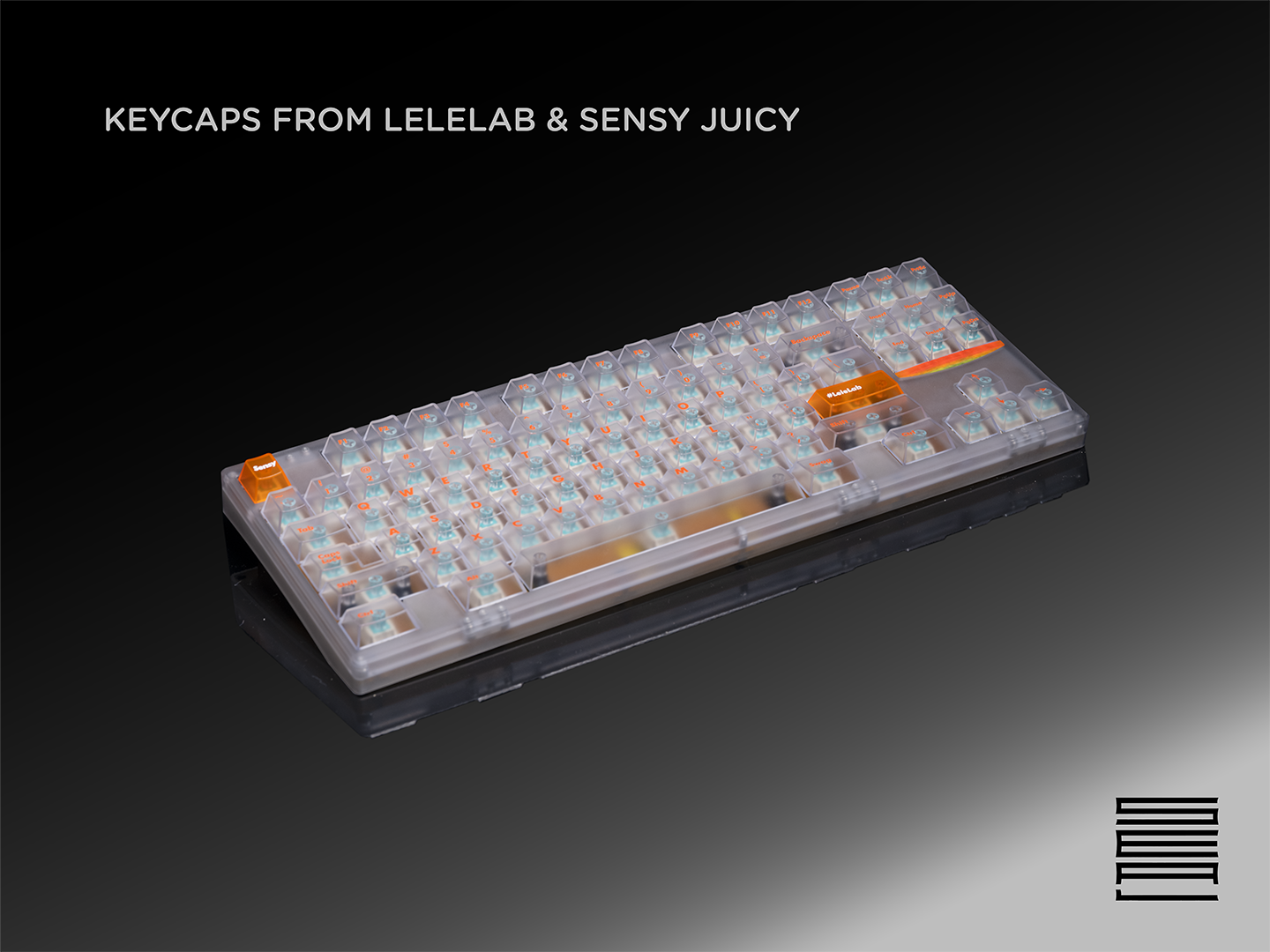

- PC
Kit Contents:
- Case top&bottom x 1 set
- Weight x 1 pc
- Strip x 1 pc
- Badge x 1 pc
- Internal aluminium badge x 1 pc
- Buffer bar x 1 pair
- PCB x 1 pc
- JST x 2 pcs
- PVC cushion x 1 pc
- 70a silicone block x 7 pcs
- 90a silicone block x 7 pcs
- 98a TPU printed block x 7 pcs
- Bumper x 1 set
- Carry bag x 1 pc
- Packing box x 1 pc
- T6/T8screw driver x 1 set
- Manuel x 1 pc
NOTE: If you select an ALPS or Topre PCB no plate is included but plate files will be made available for you to produce a compatible plate at a later stage
Vendors:
- America - Divinikey
- Australia - Toro Studio
- Canada - Unikeys
- Europe - MonacoKeys
- Japan - NEKOYUI
- Korea - Geon Works
- Singapore - iLumkb
- Thailand - Aiglatson Studio
- United Kingdom - Proto Typist
- Vietnam - MOKB
- International - Zfrontier
Disclaimers
Please note that images may be of 3D renders and are for illustration purposes only. The final colours may differ slightly under different lighting.
Only the products detailed in the description are included. Other products are shown for demonstrative purposes only and are not included. Please check Keyset kitting images carefully for included keys. Please check Keyboard layout options carefully to ensure it meets your requirements.
Shipping Time and GB Agreements (PLEASE READ):
Please note that this is a Group Buy. There can be delays and set backs. The timeline is only an estimate. By adding this item to your cart and purchasing you agree that you understand everything above. You will be charged immediately for this item. There are no refunds or cancellations on these orders due to their bespoke nature. Please do not purchase this item with other group buys or pre-orders as this will delay shipping till all items are available. Only the items specified in each product picture are included with that particular product.
These products are set to be shipped out at the date specified above, but please check our updates for the latest information.
