(Group Buy) Sonic 170 V2 Keyboard Kit
This Group Buy has ended and can no longer be ordered. Try searching Pre-Orders or our In Stock range.
(Group Buy) Sonic 170 V2 Keyboard Kit
Sale price£260.83
Want to see this product come back? Let us know!!
Let us know the name of the product and what you love most about it! We'll then see what we can do!
This is a Group Buy - that means this product has not yet been manufactured. This product will ship at a later date, as detailed in the product description below.
Please read our guidance on Group Buys here: FAQ's
This Group Buy Ended on or before:
Expected Shipping time: est Q4 2026
Sonic 170 V2 Design

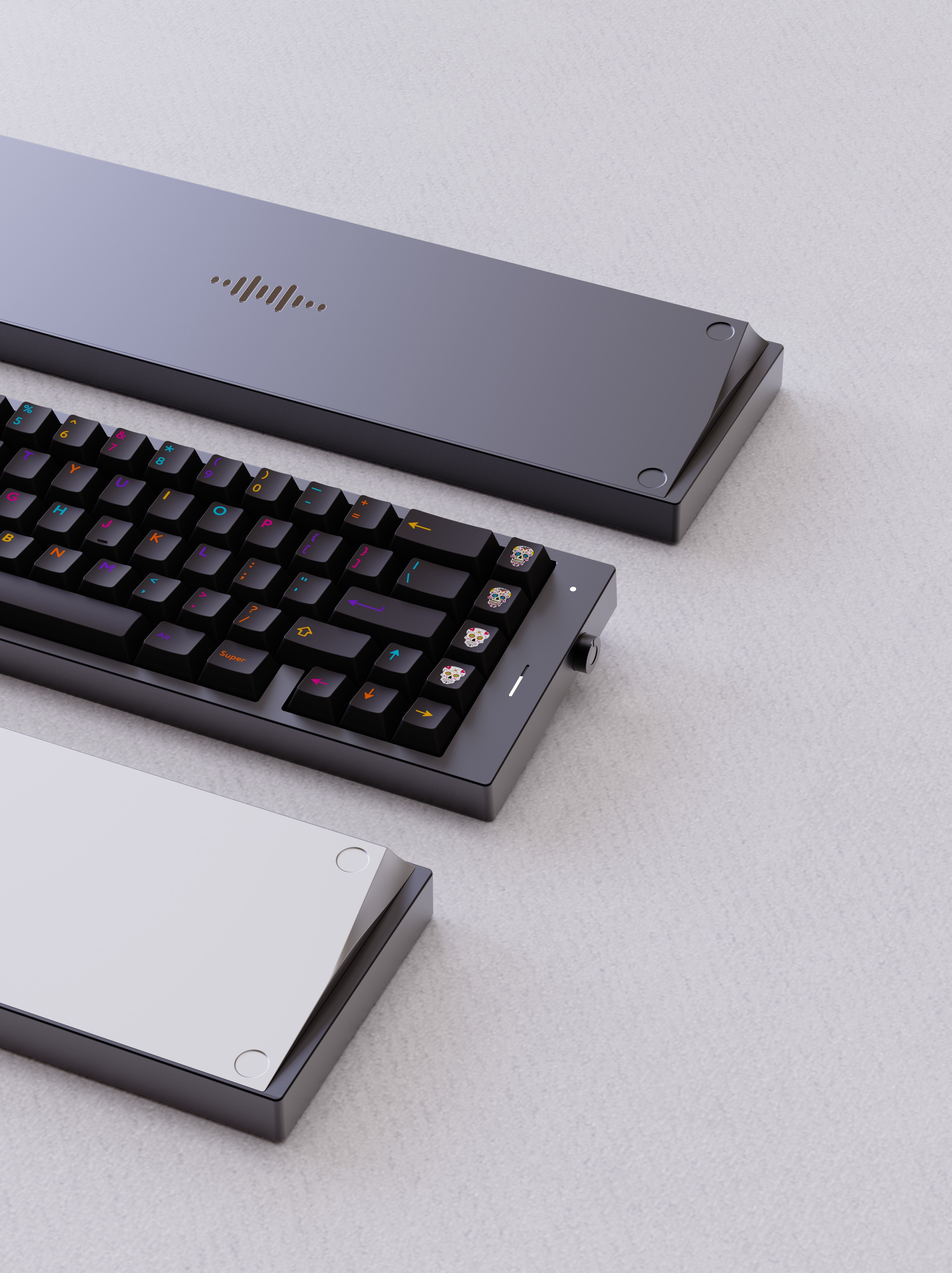

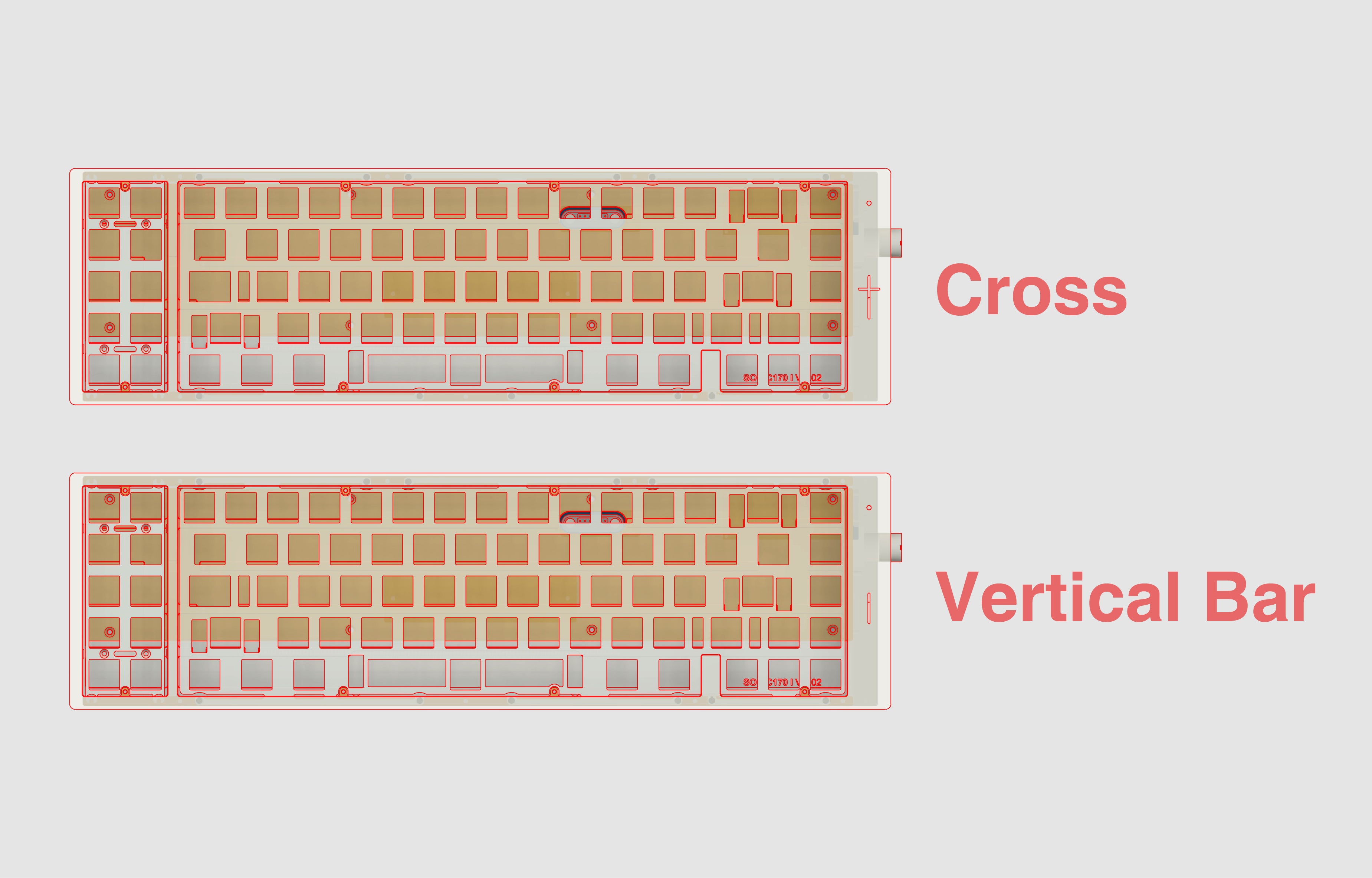

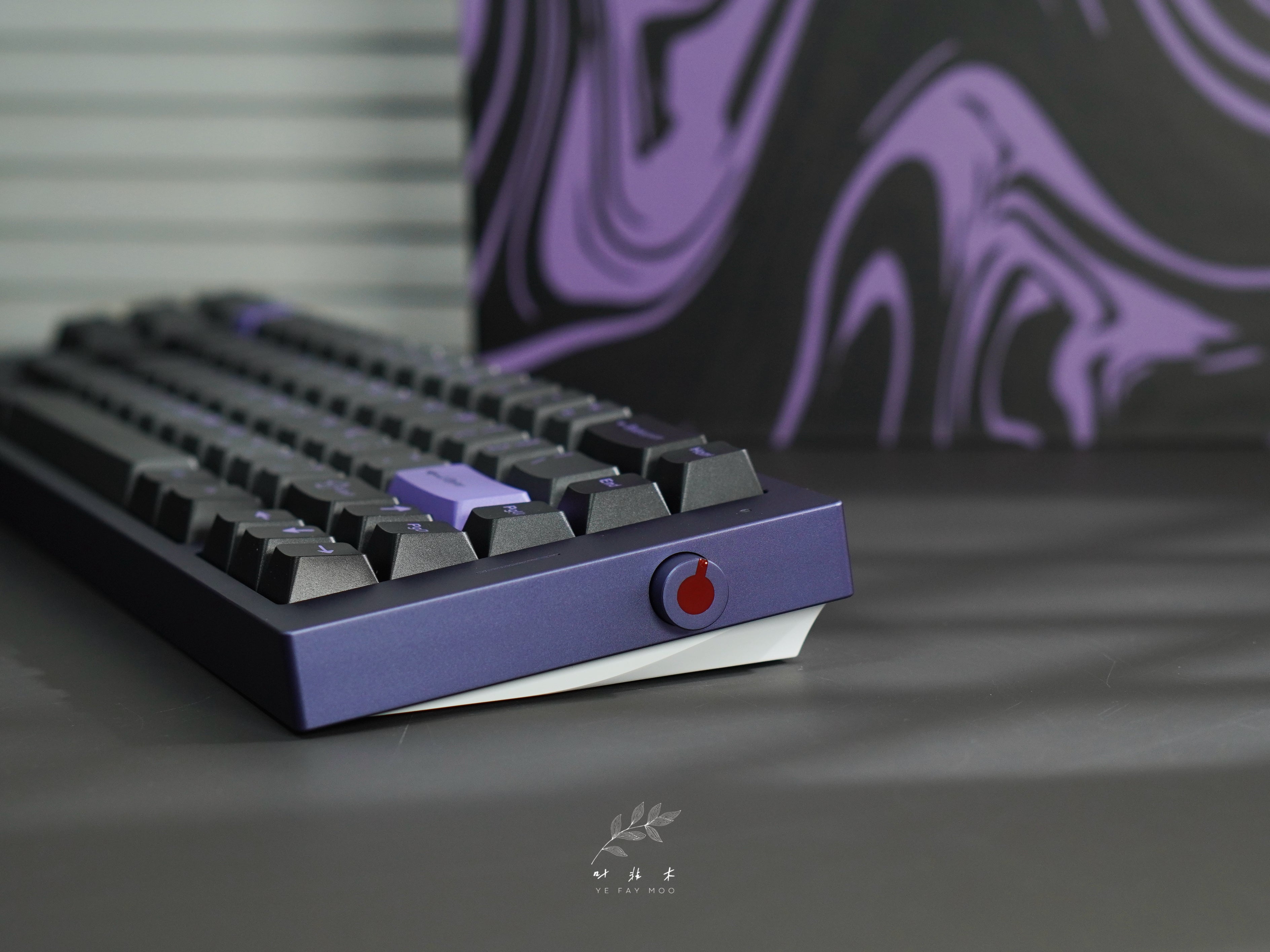

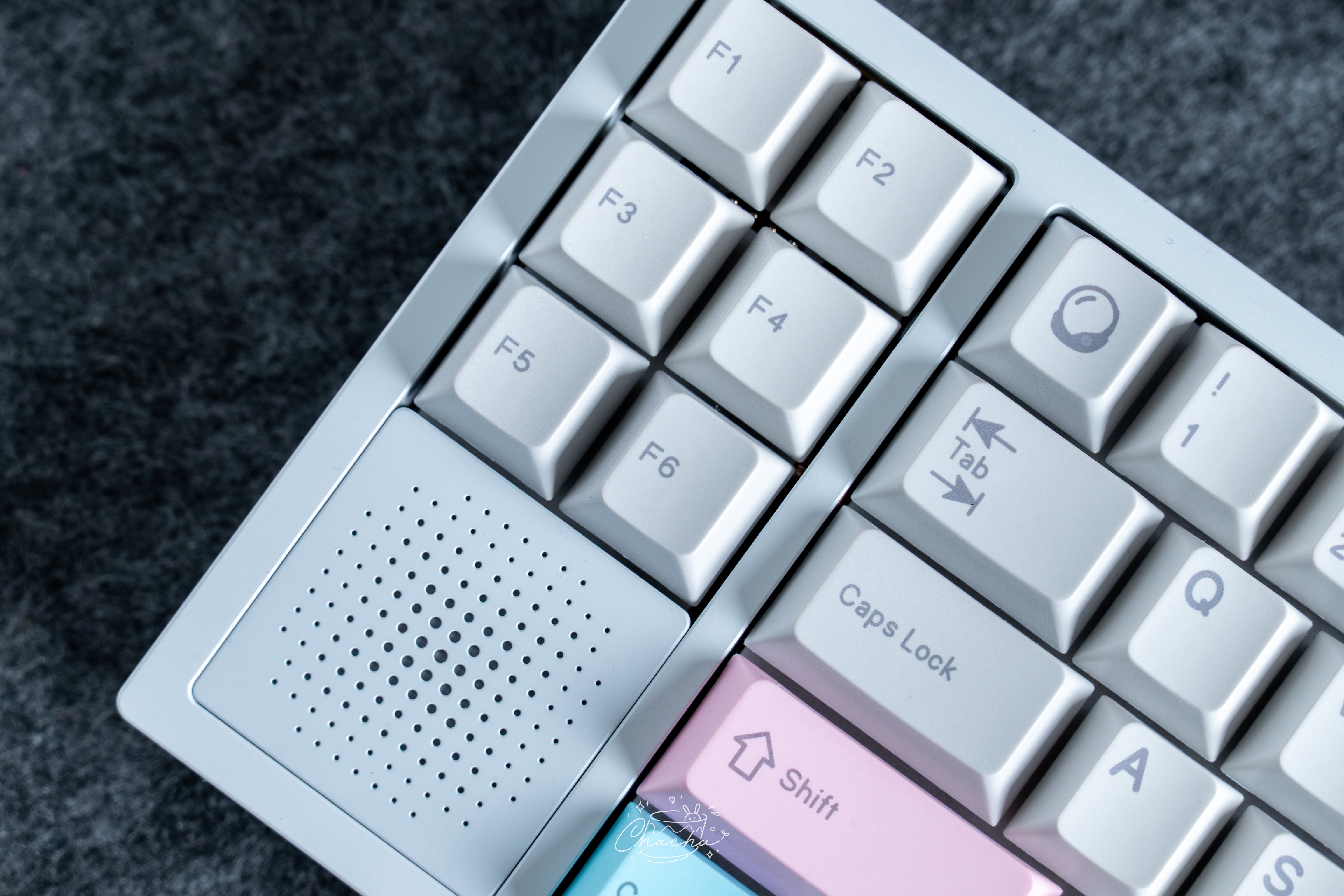

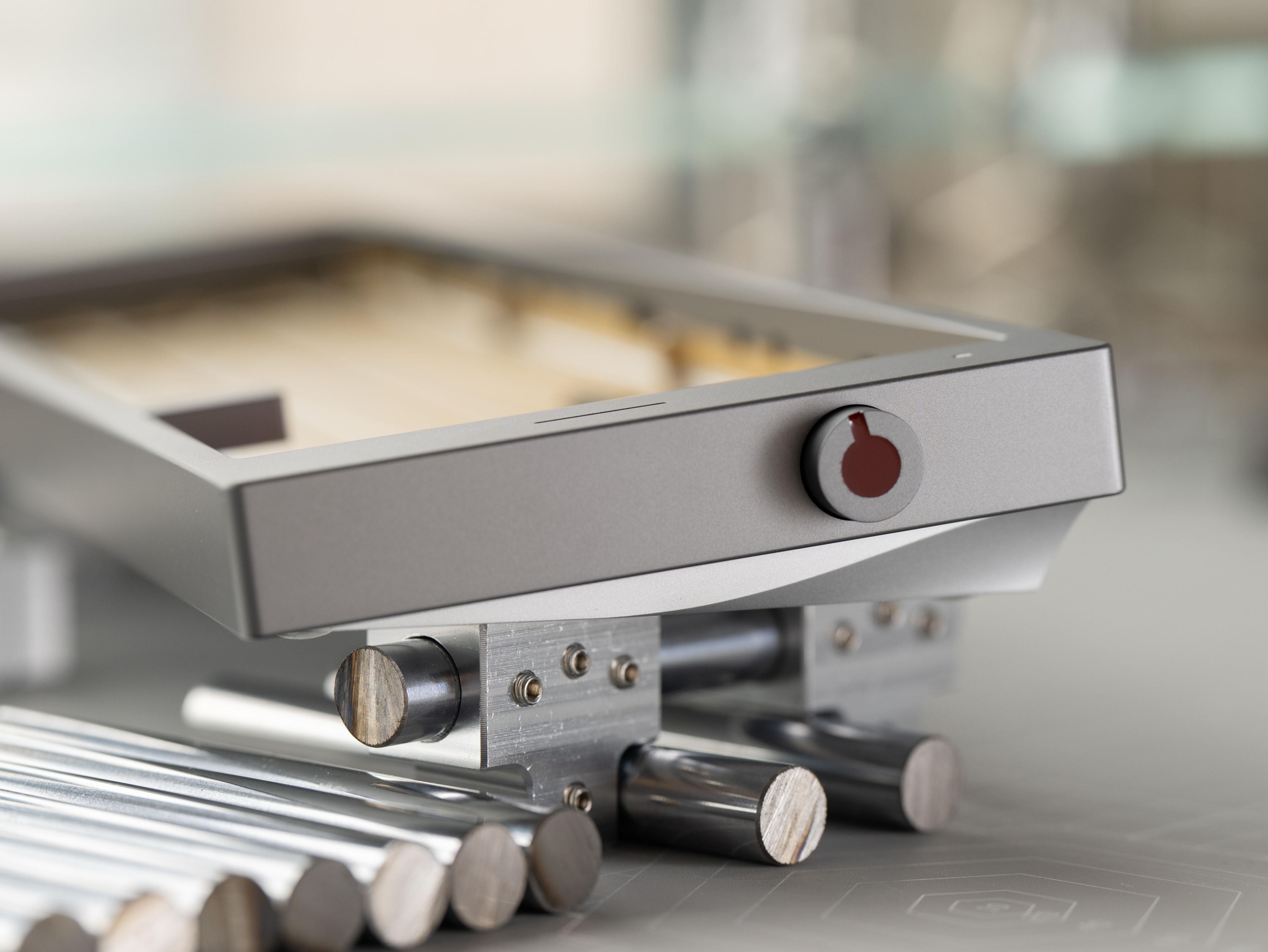

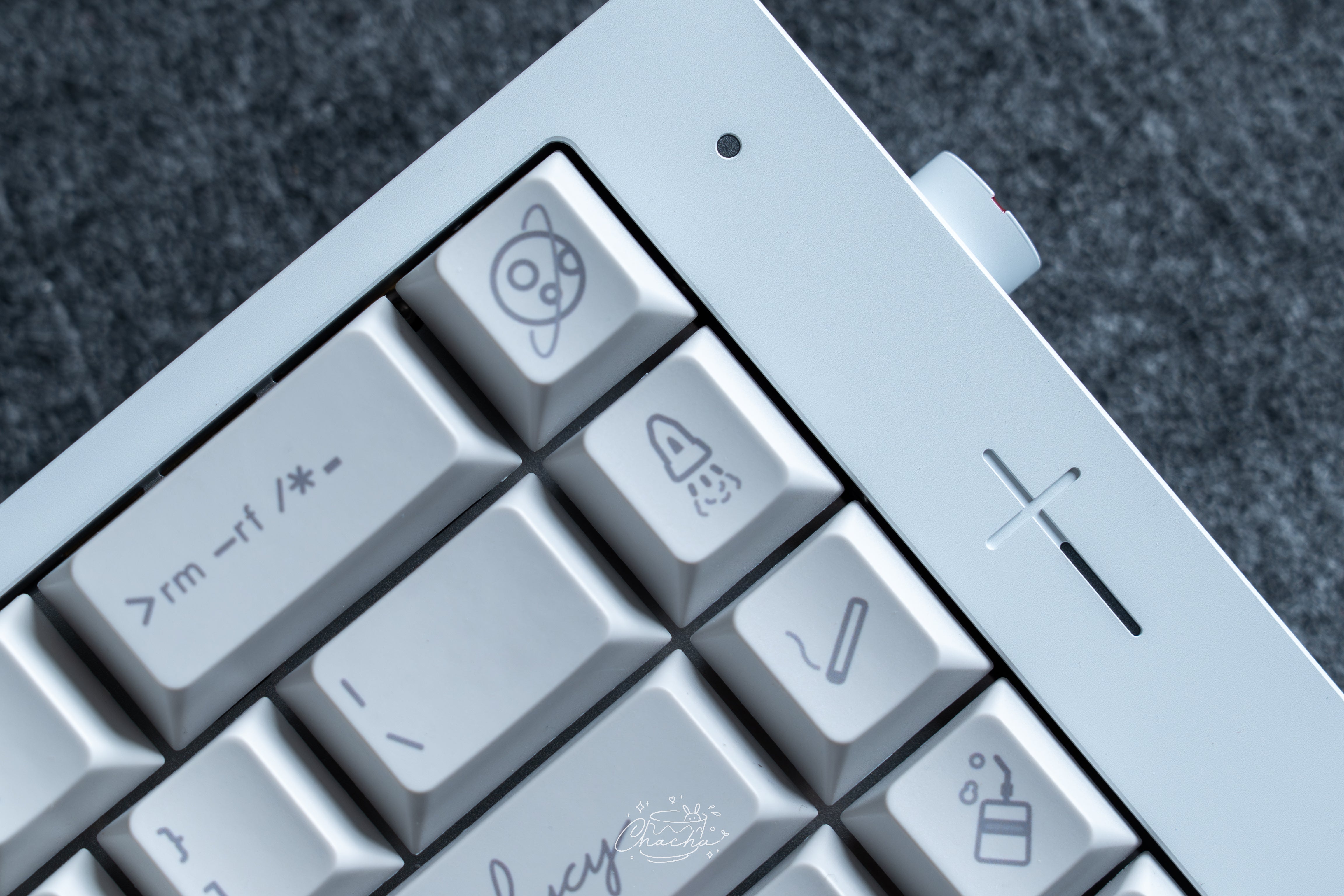

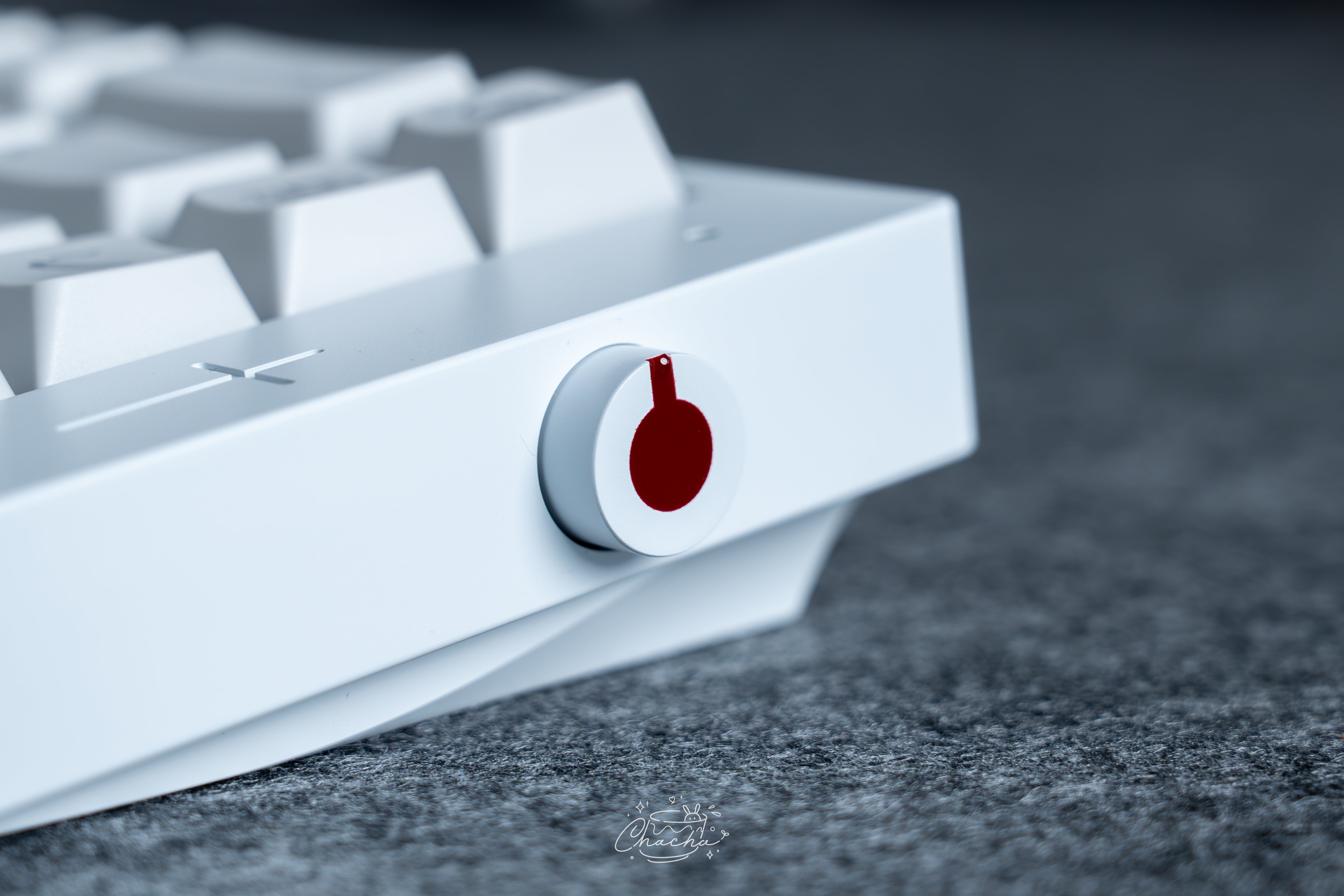

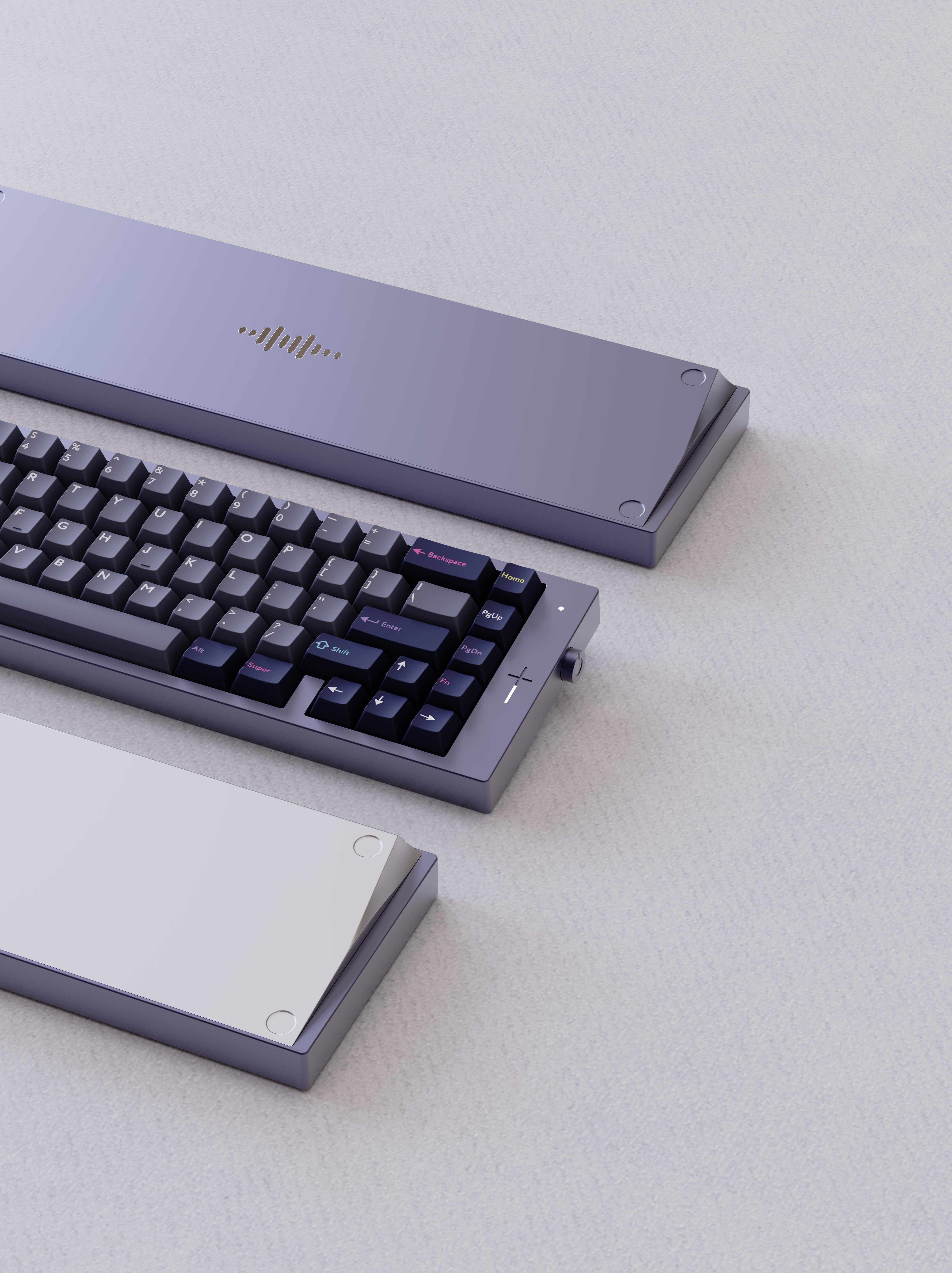

The overall design continues from SONIC V1. The slightly wider right bar and the left Macro keys create visual balance and house the EC11 knob. This time there are two top case versions, the cross design or the vertical bar design. The biggest visual change from V1 is the curved side transition. The side and bottom are connected with dual curves. This makes the keyboard easier to lift and adds more depth to the profile.
Addons Avaialble Here

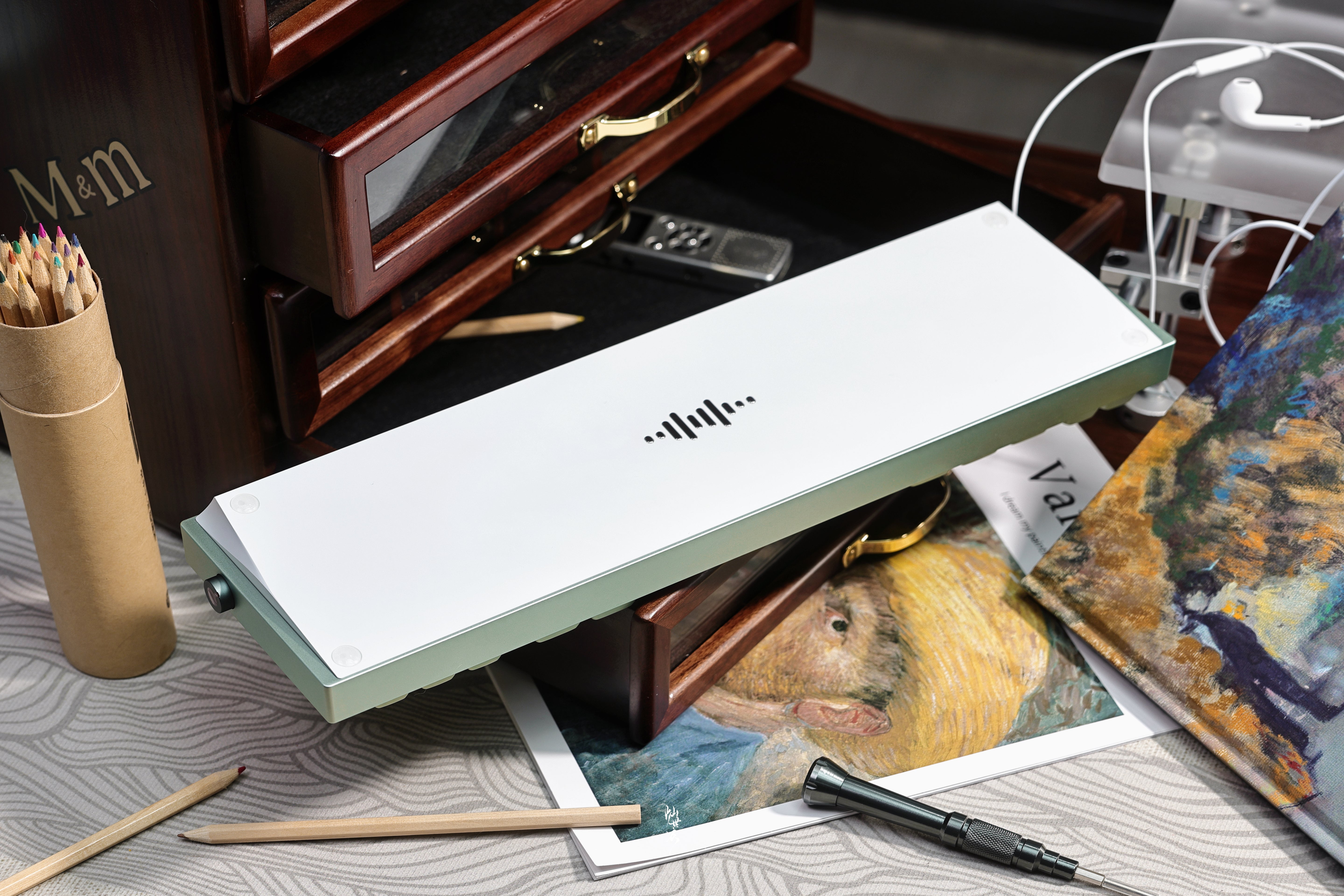

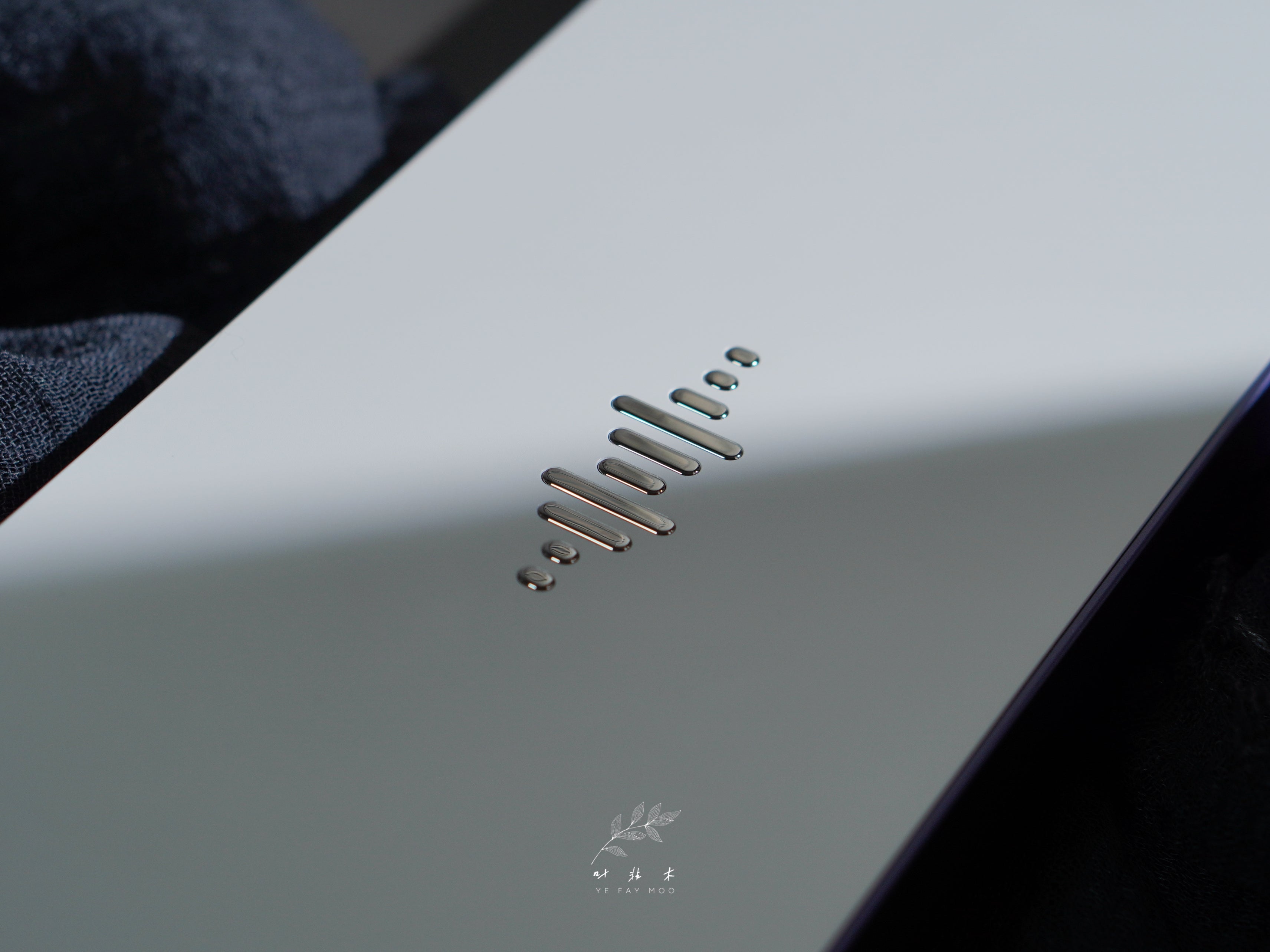

The bottom keeps a minimalist design language. We avoided extra lines and patterns to maintain harmony. The bottom logo uses a PVD finish.

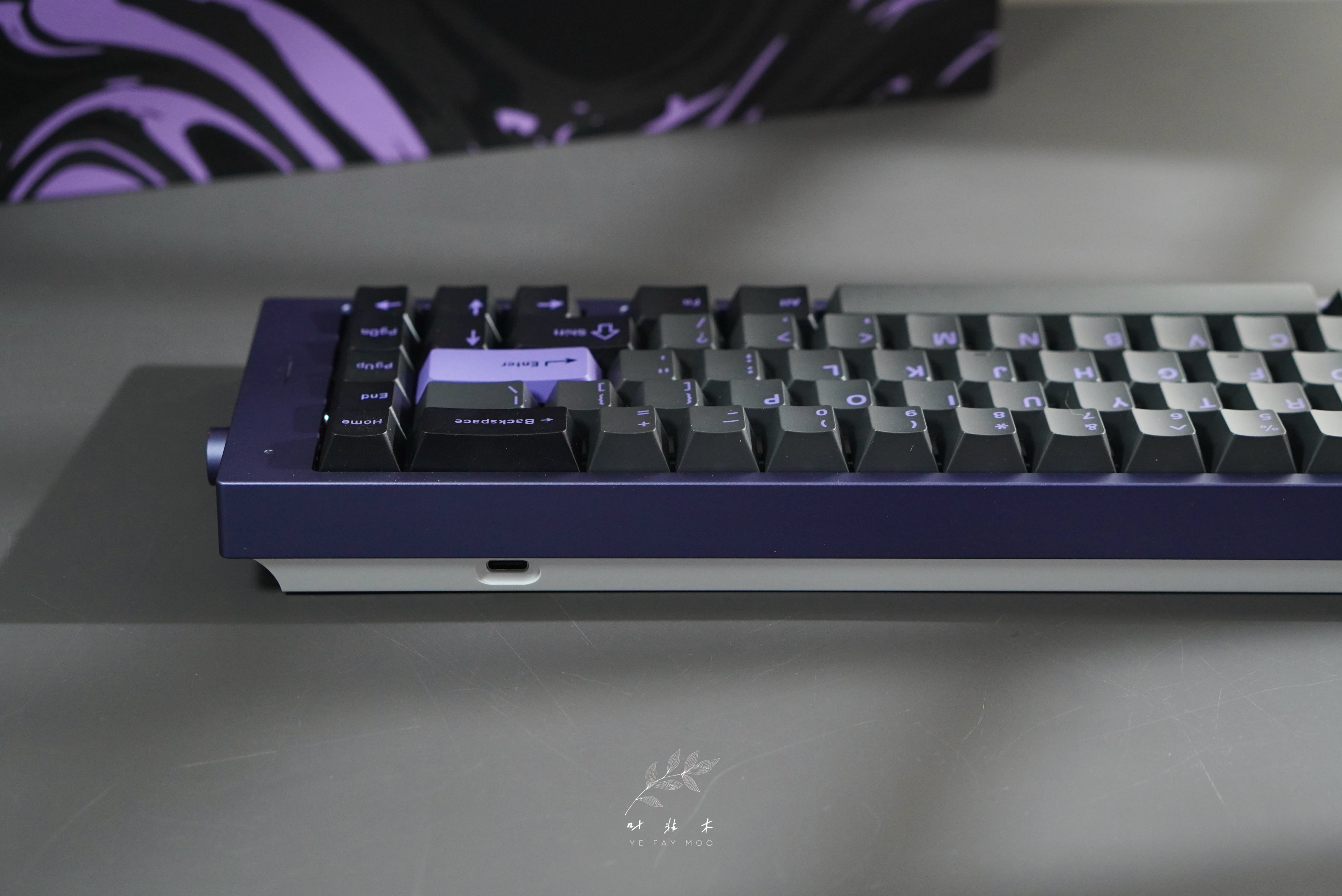

The USB port has been moved to the right side. It aligns with the backspace key. This makes it easier to connect multiple small PCBs with pogo-pins. It also better showcases custom coiled cables on the desk.

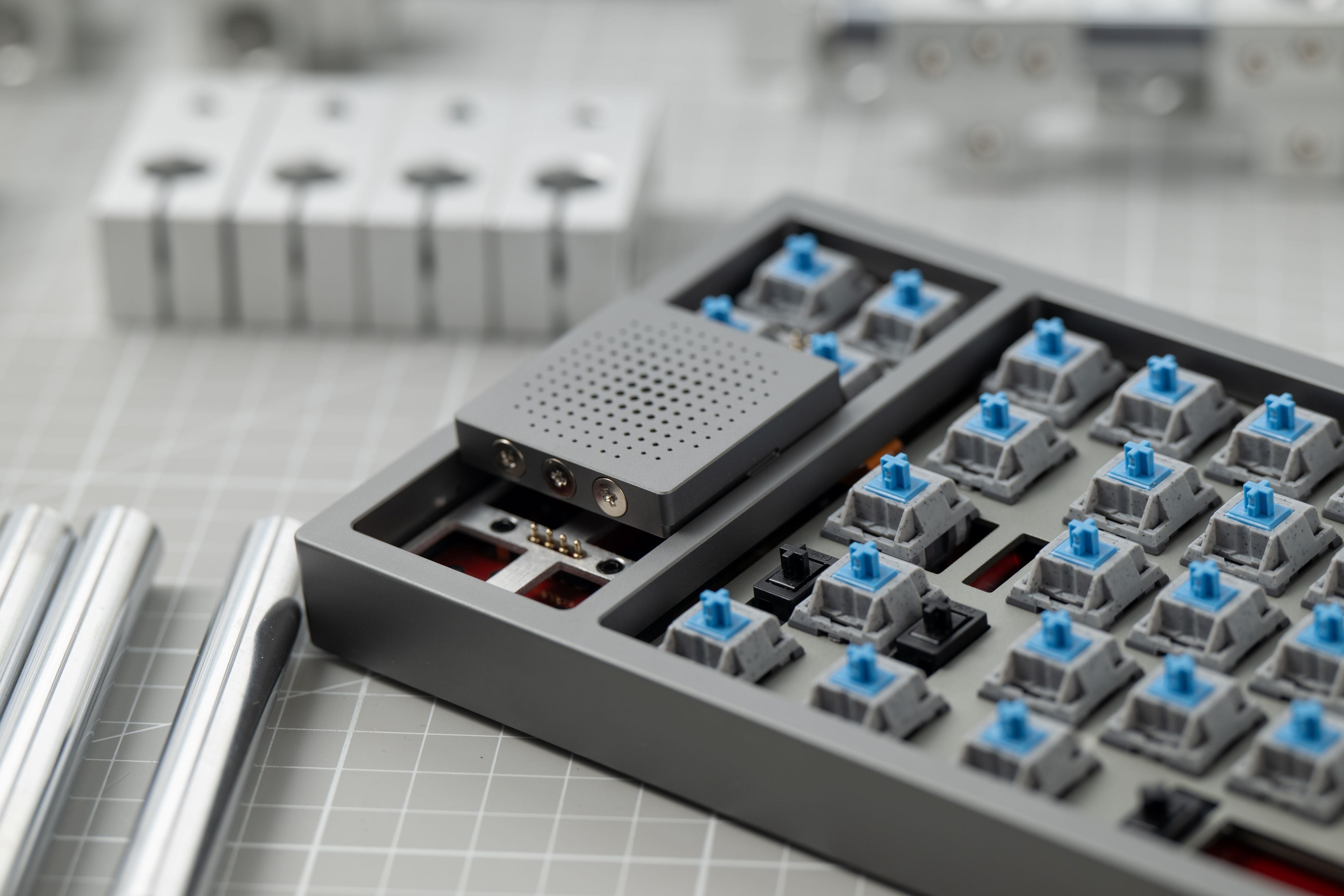

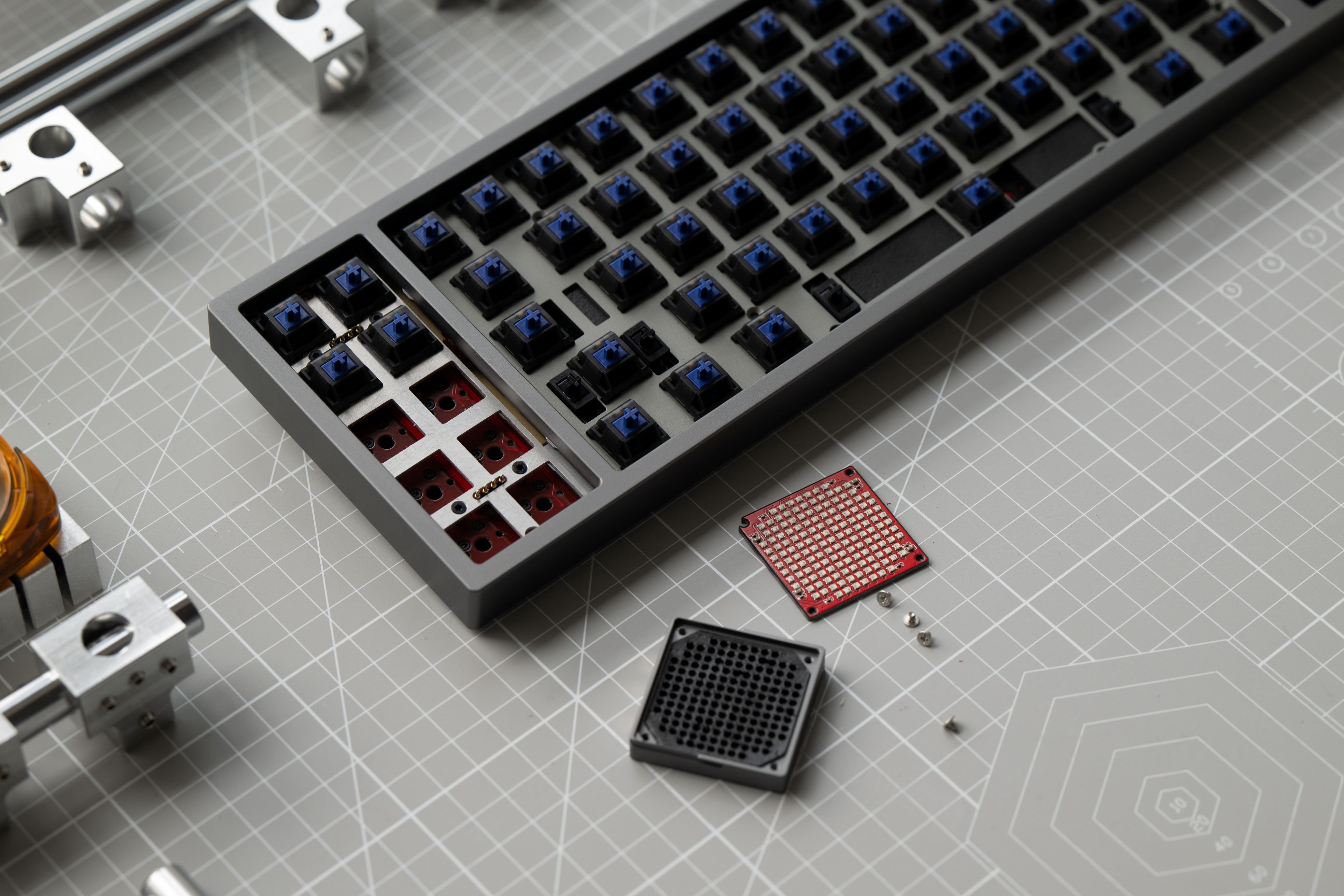

A matrix of 149 LEDs forms the lighting system. Each LED can be turned on or off individually in VIA to create custom patterns. Due to controller memory limits, it supports saving up to 5 custom patterns and 3 built-in patterns. You can switch between them using shortcuts.

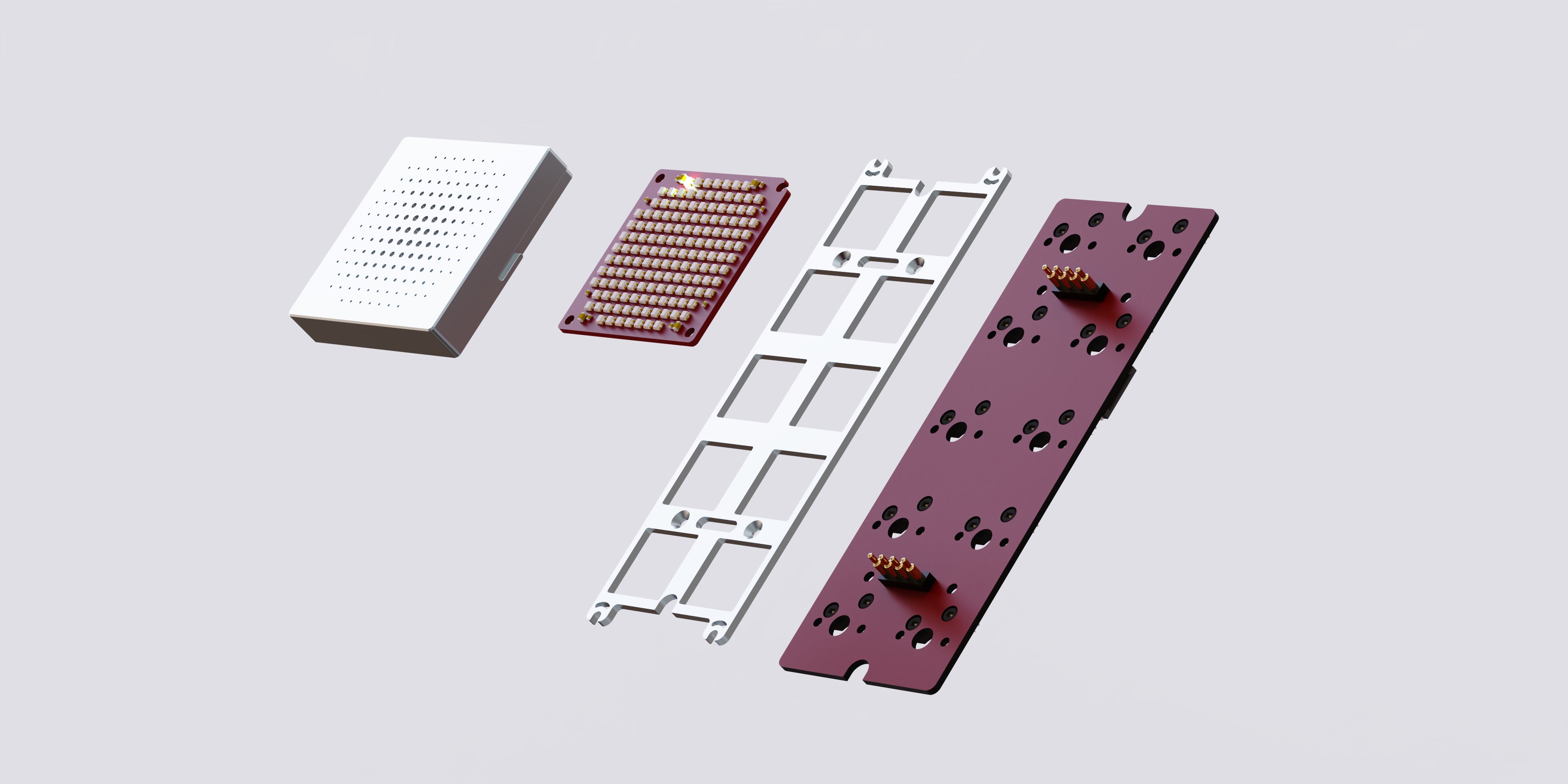

The light board and macro board use pogo pin connections. You can remove or reposition the lighting module without replacing the macro PCB. Additional lighting modules can be purchased; you can install two modules for different combinations.
The right light bar and Caps Lock indicator now use side-facing LEDs. This solves the issue of visible LED beads at low brightness and harsh glare at high brightness. The light PCB board is connected using pogo pins, reducing installation difficulty by removing the need for FFC cables during assembly.
The SONIC170 V2 uses extended plate arms to reduce resonance. A wall-like frame design separates the plate arms from the inner cavity, reducing contact between the top and bottom shell. The brass mid-frame also helps reduce hollow sound and case resonance. The kit includes silicone gaskets in three hardness levels to match different inner setups.
A brass mid-frame and brass internal weight reduce internal resonance. Even without foam, the keyboard delivers a solid sound and feel. The kit includes a Poron foam pack as standard which you can mix and match freely.

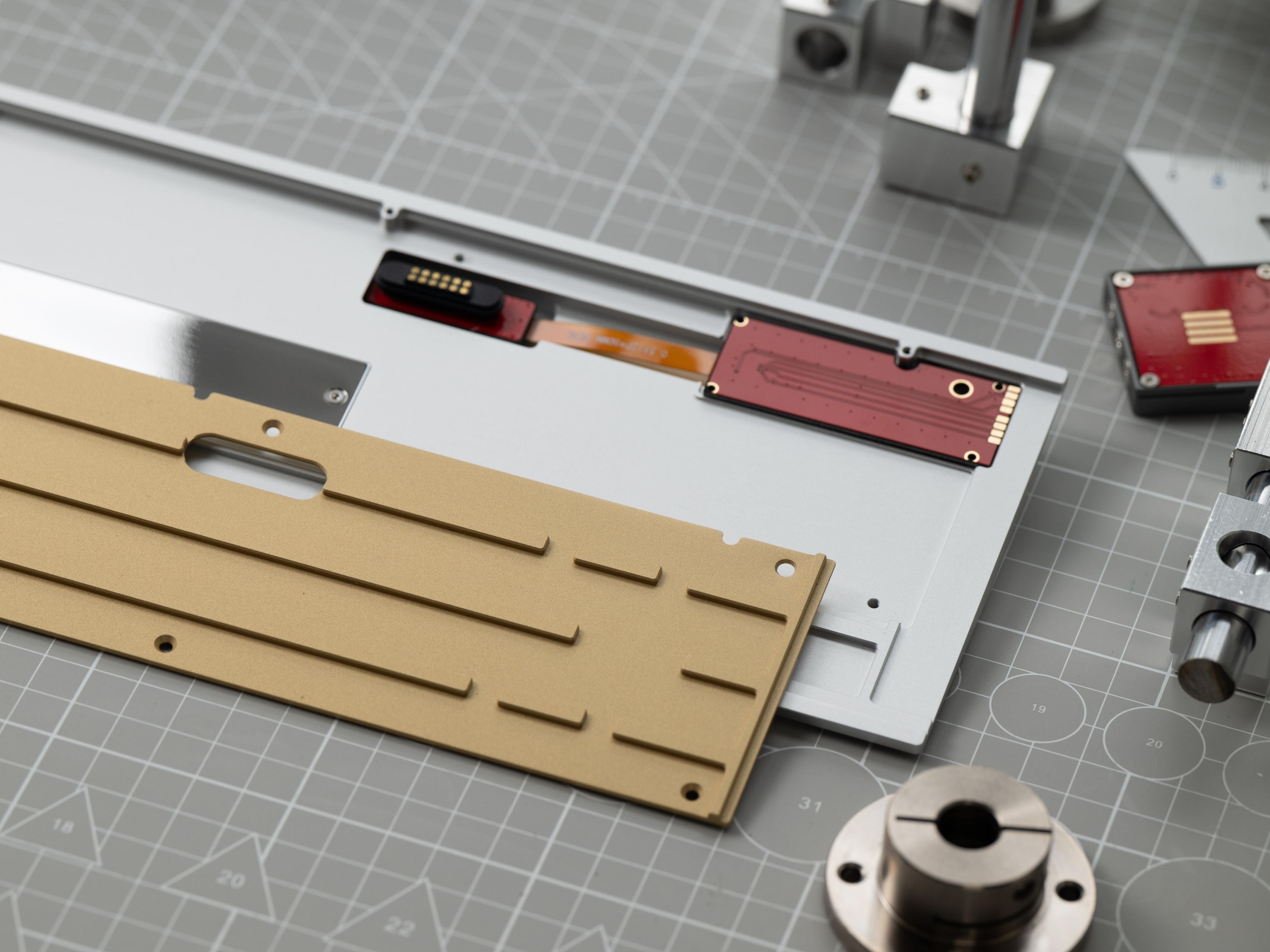

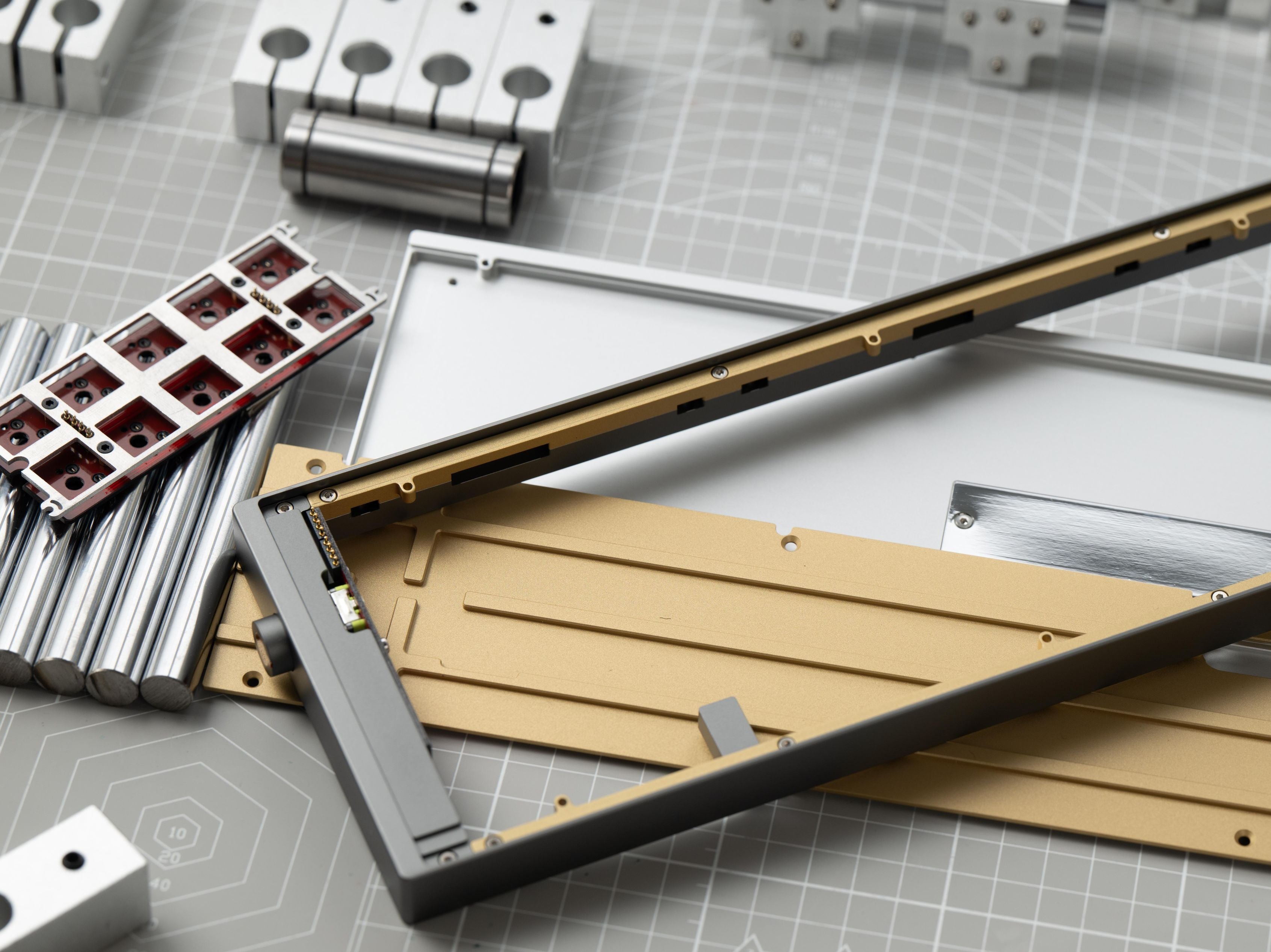

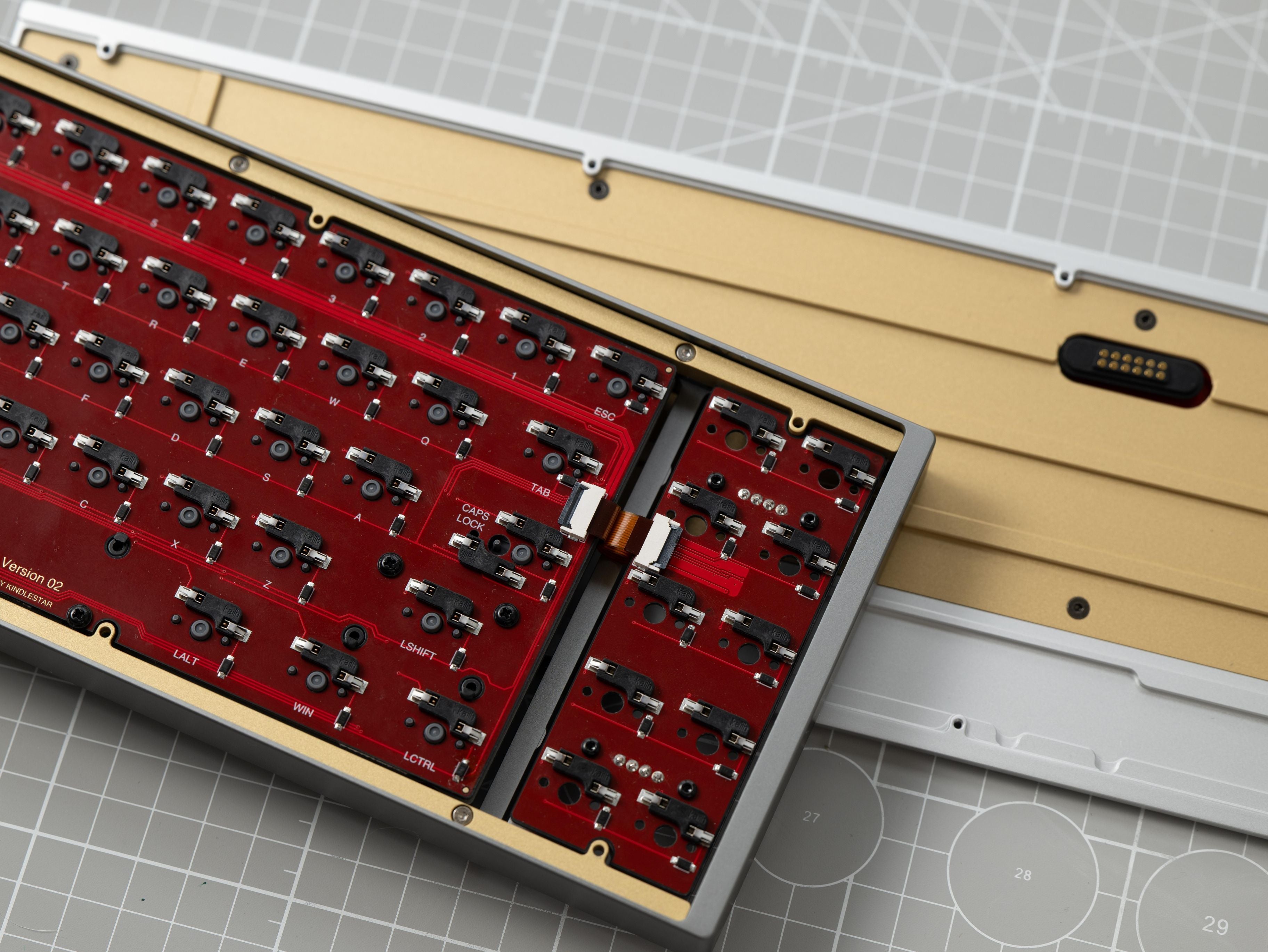

The SONIC170 V2 uses multiple pogo pins and magnetic connectors to reduce assembly difficulty. These parts come pre-installed from the factory. During assembly, you only need to connect one FFC between the main PCB and the macro board.

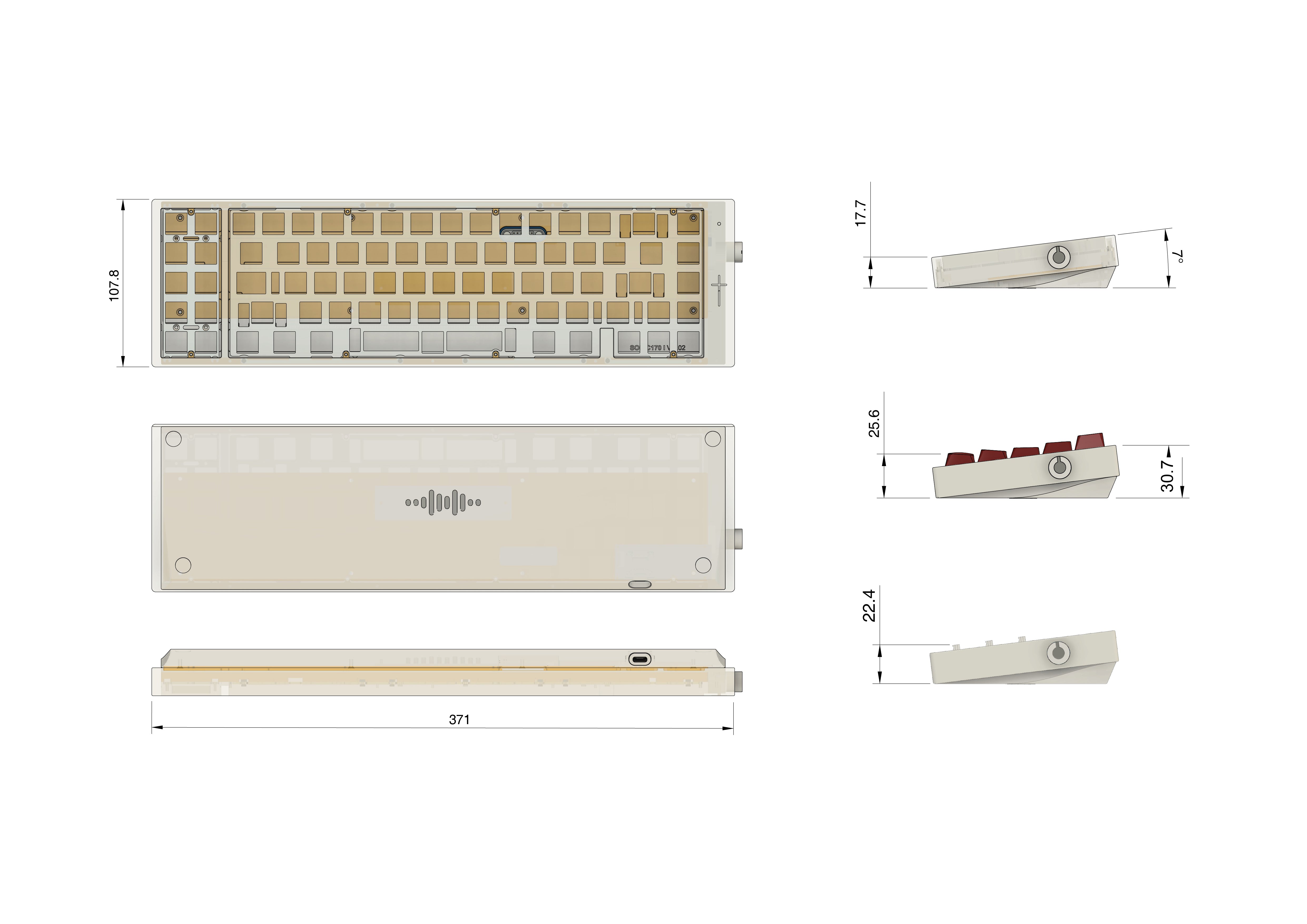

Specifications:
- Layout: 10% Macro + 65%
- Mounting: Leaf-spring gasket
- Typing Angle: 7°
- Front Height: 17.7mm
- EKH: 22.4mm
- Dimensions: 371 × 107.8 × 30.7mm
- Material: Aluminum / Brass
- Weight: 1.6kg (kit) / approx. 2.1kg built
PCB & Layout:
- Main PCB: 1.6mm hot-swap (fixed layout) or 1.6mm soldered (multi-layout)
- Hot-swap: Supports fixed layout and stepped Caps Lock
- Solder: Supports 7U spacebar and ISO enter
- Macro Section: Hot-swap only for easy lighting module installation

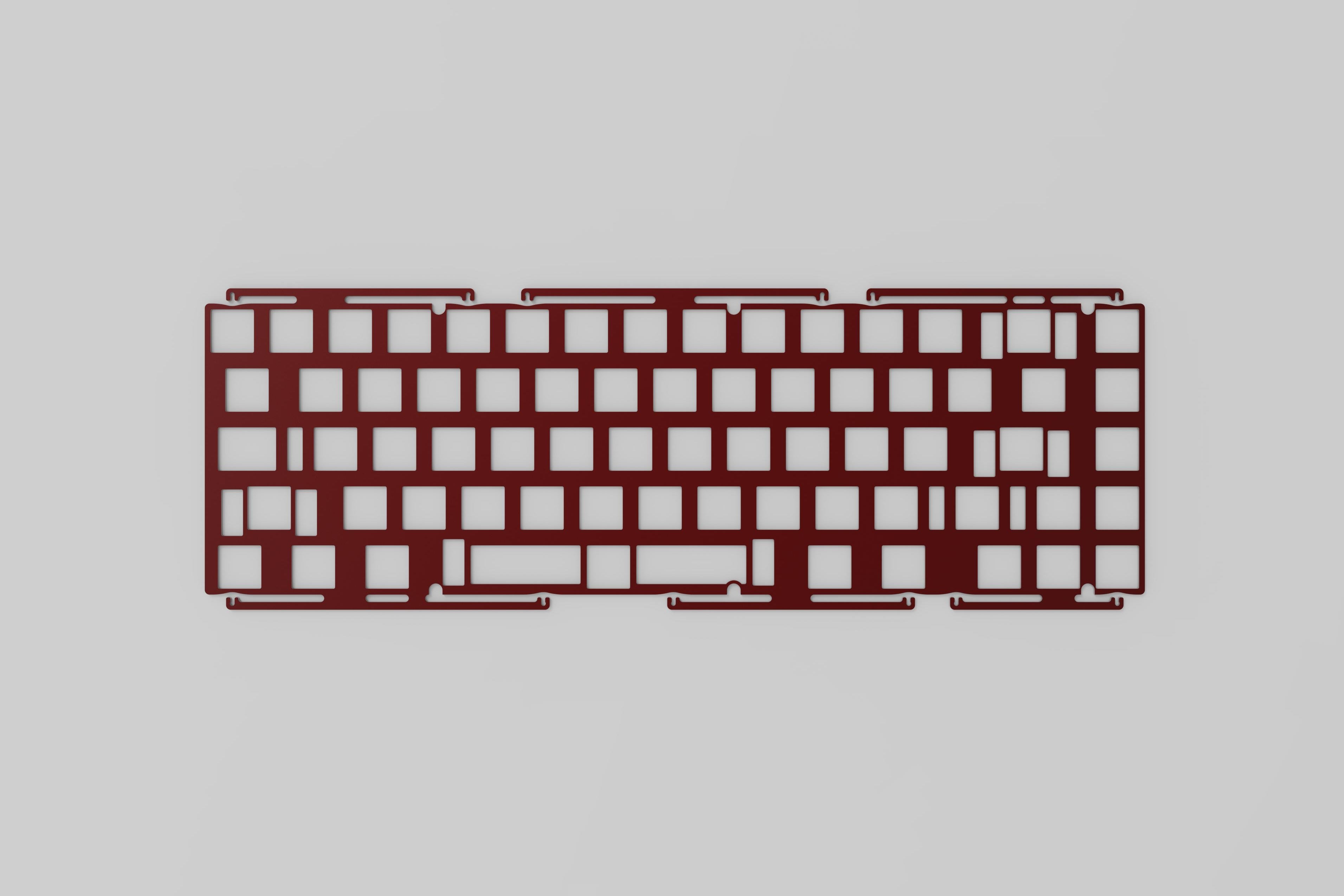

Hotswap PCB Layout

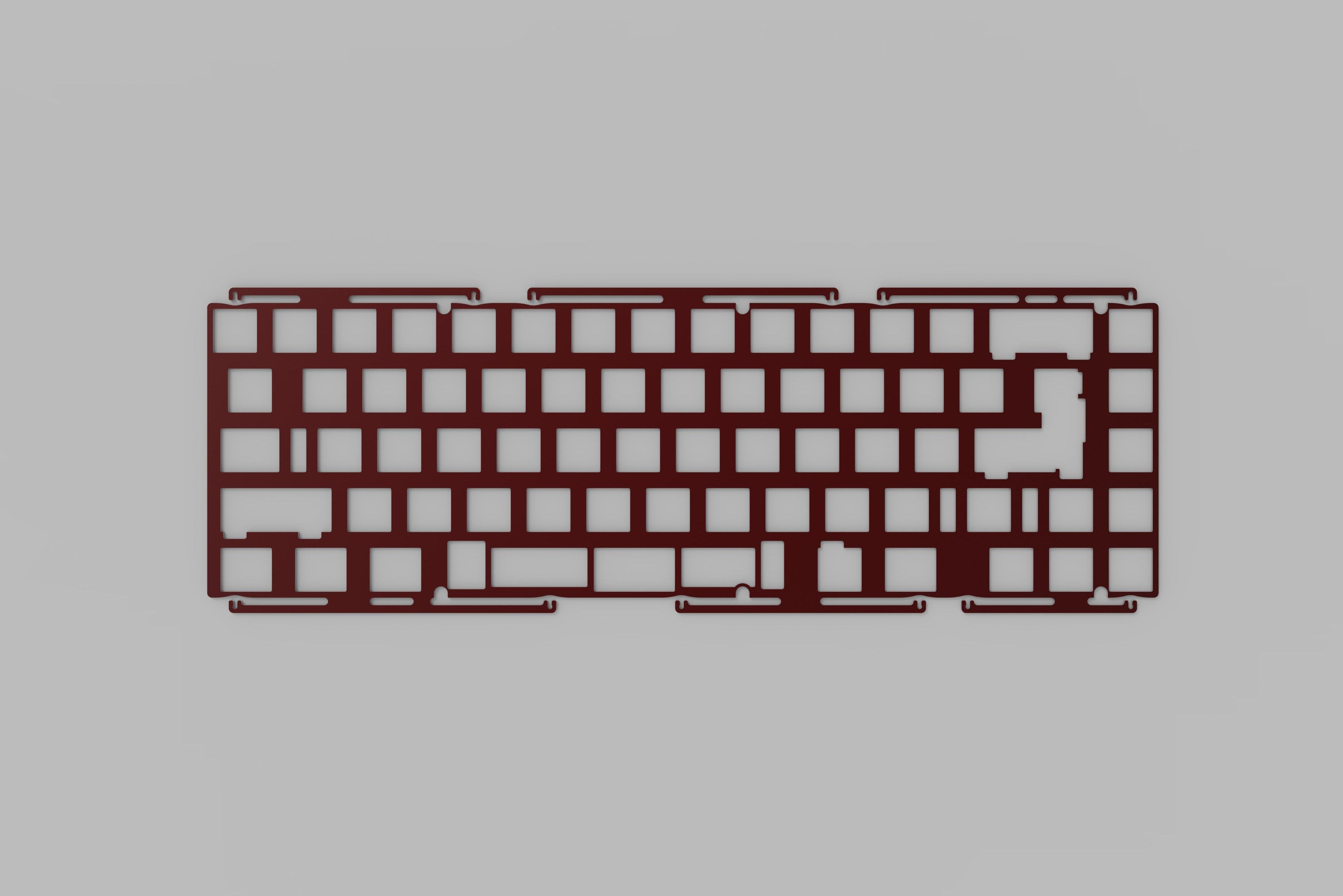

Solder PCB Layout

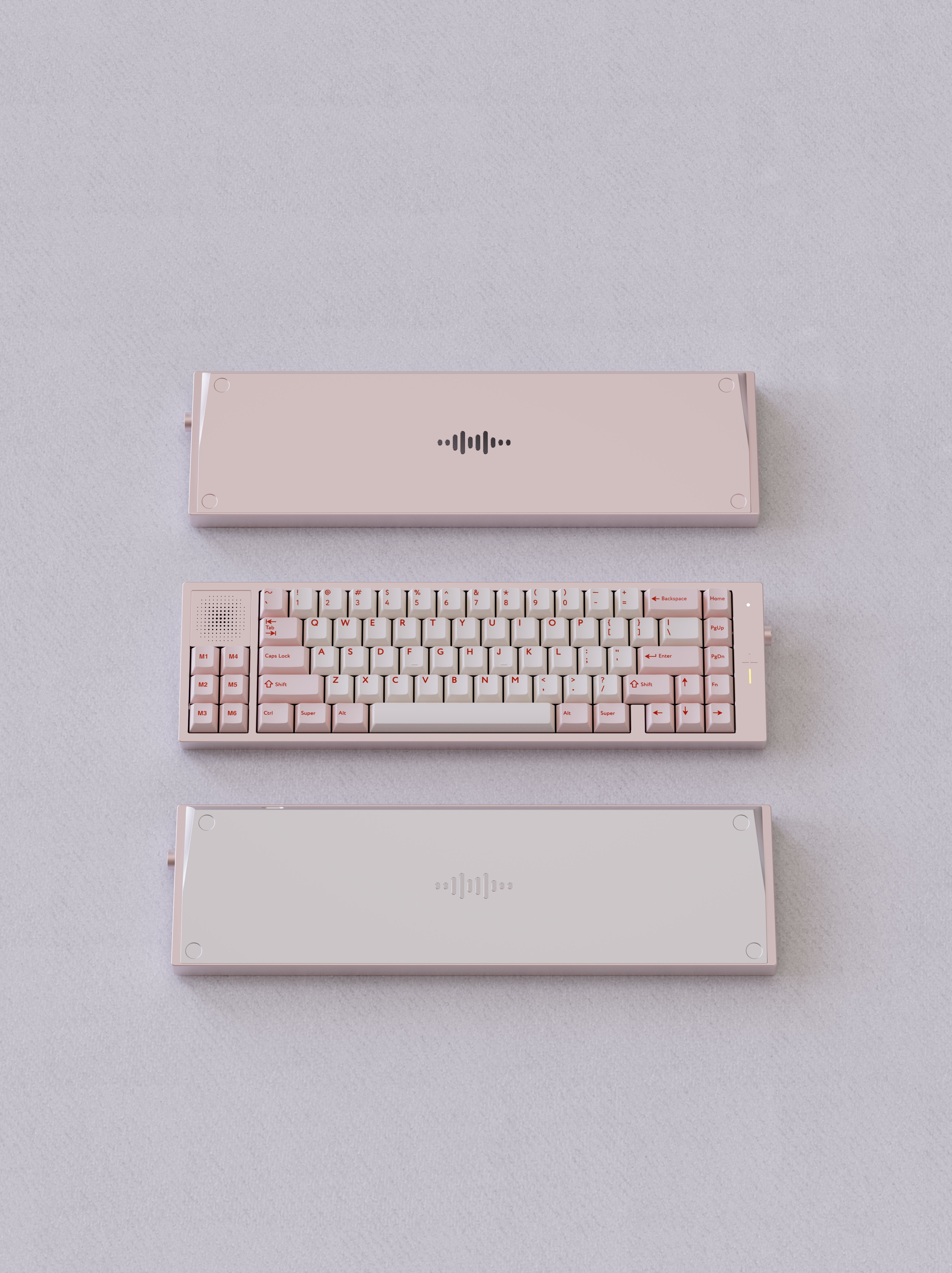

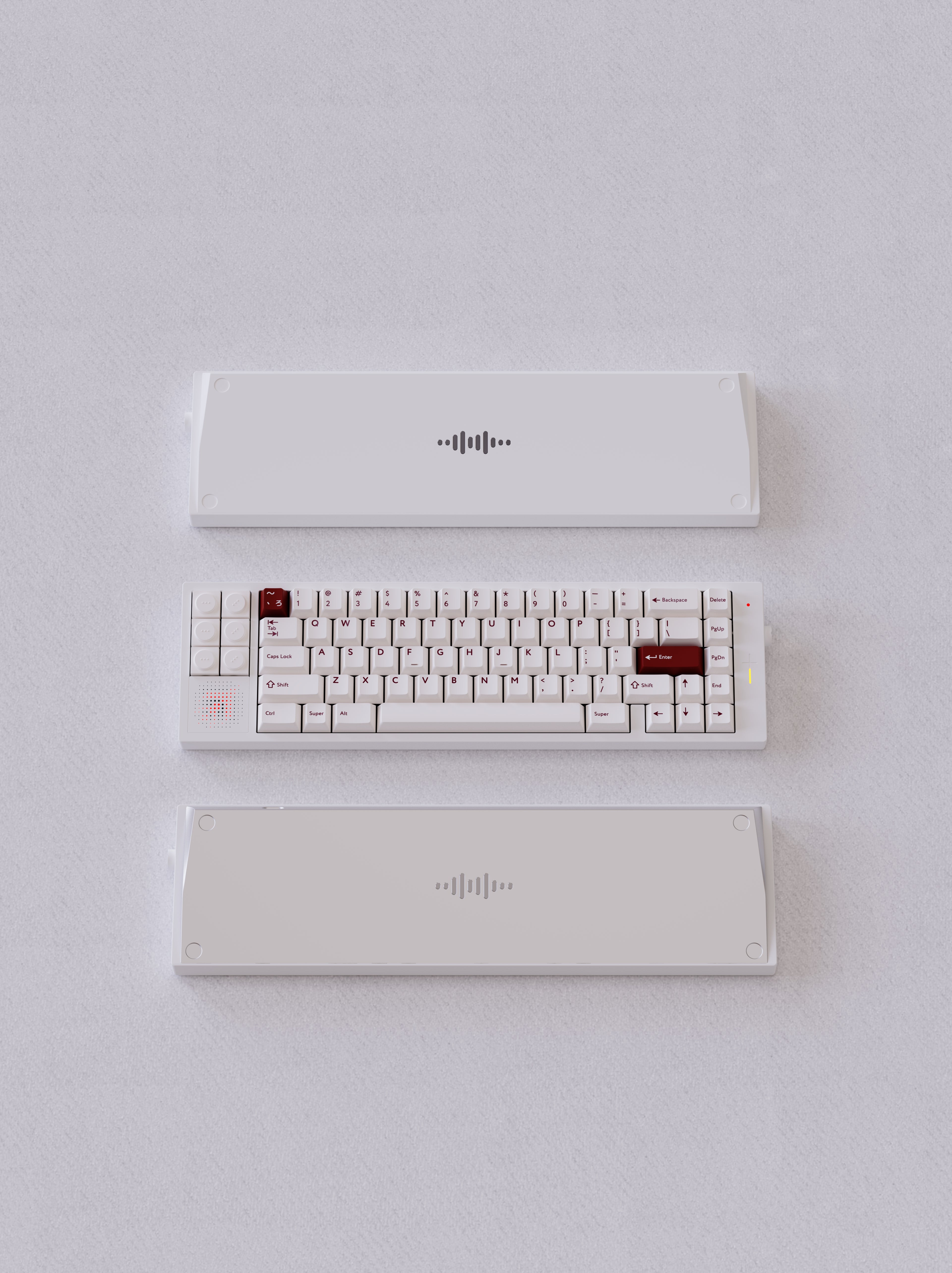

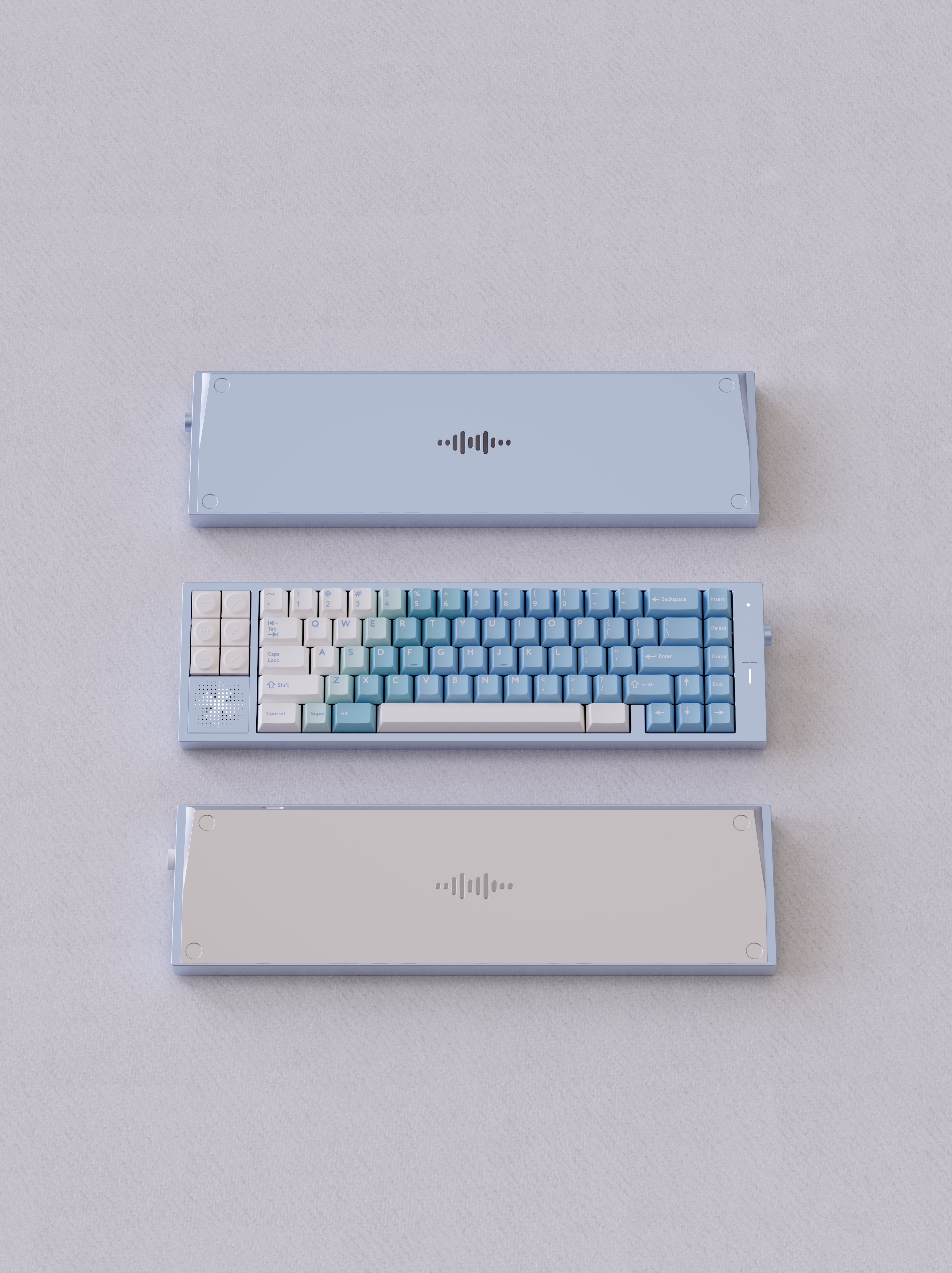

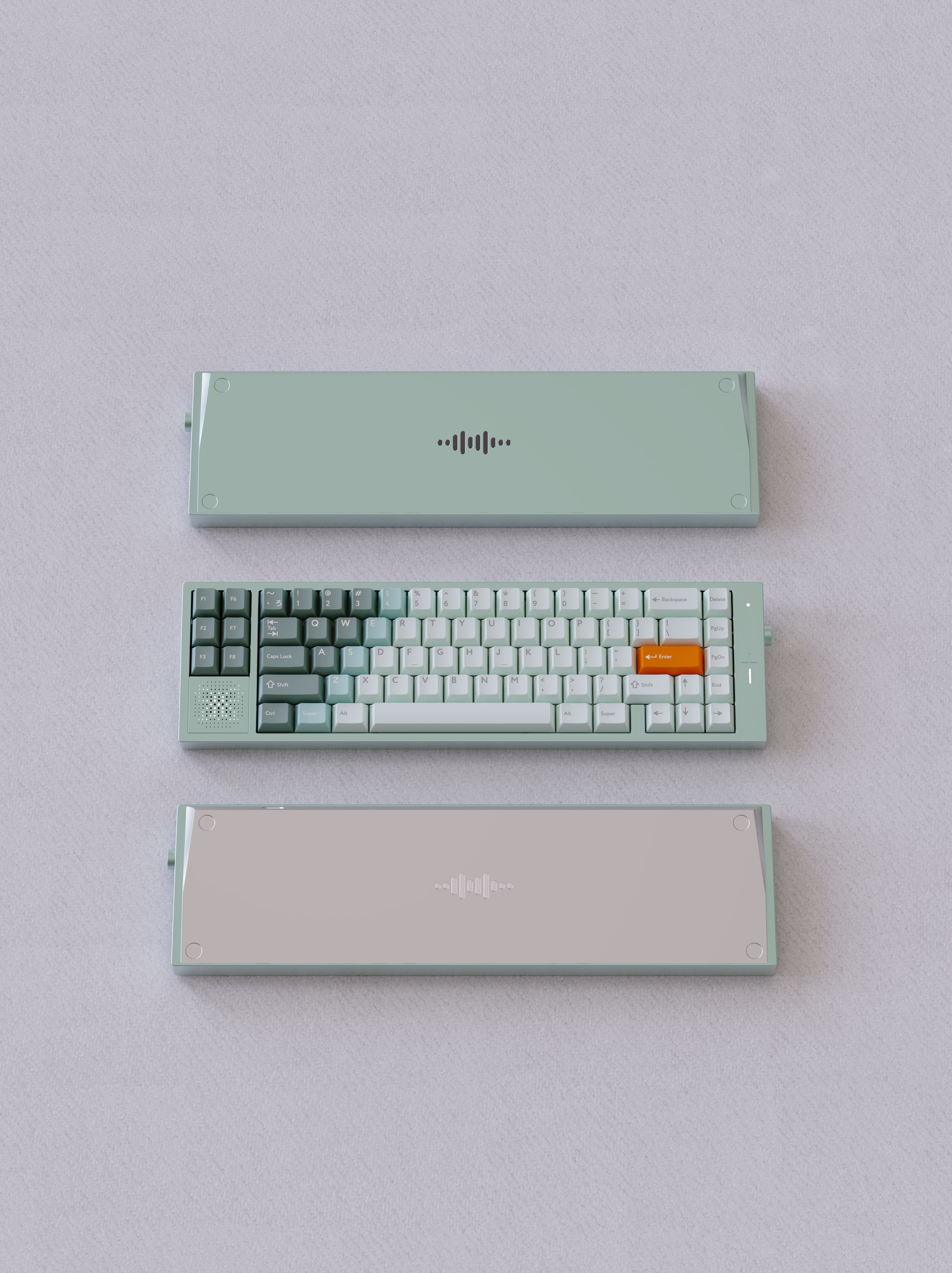

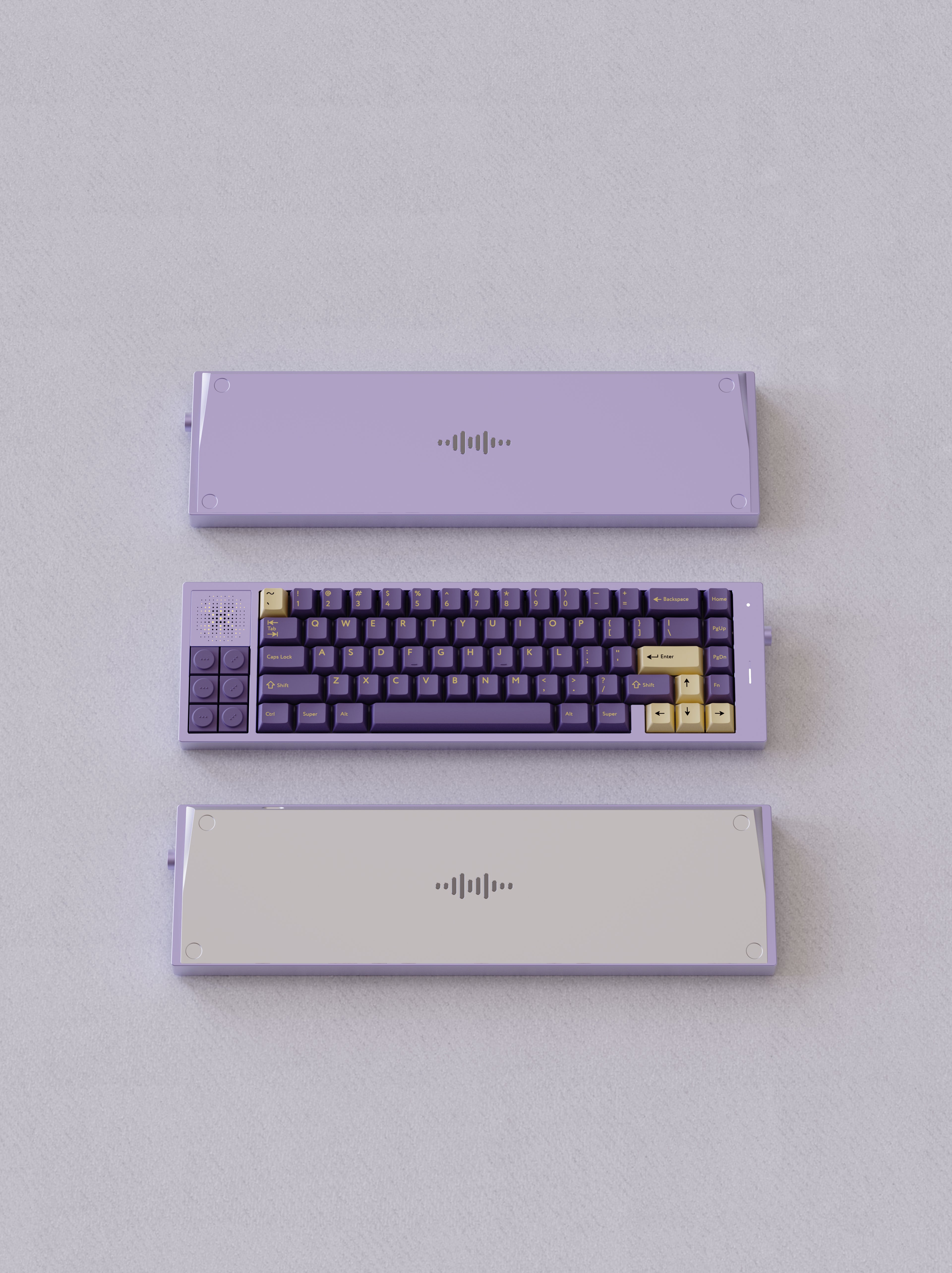

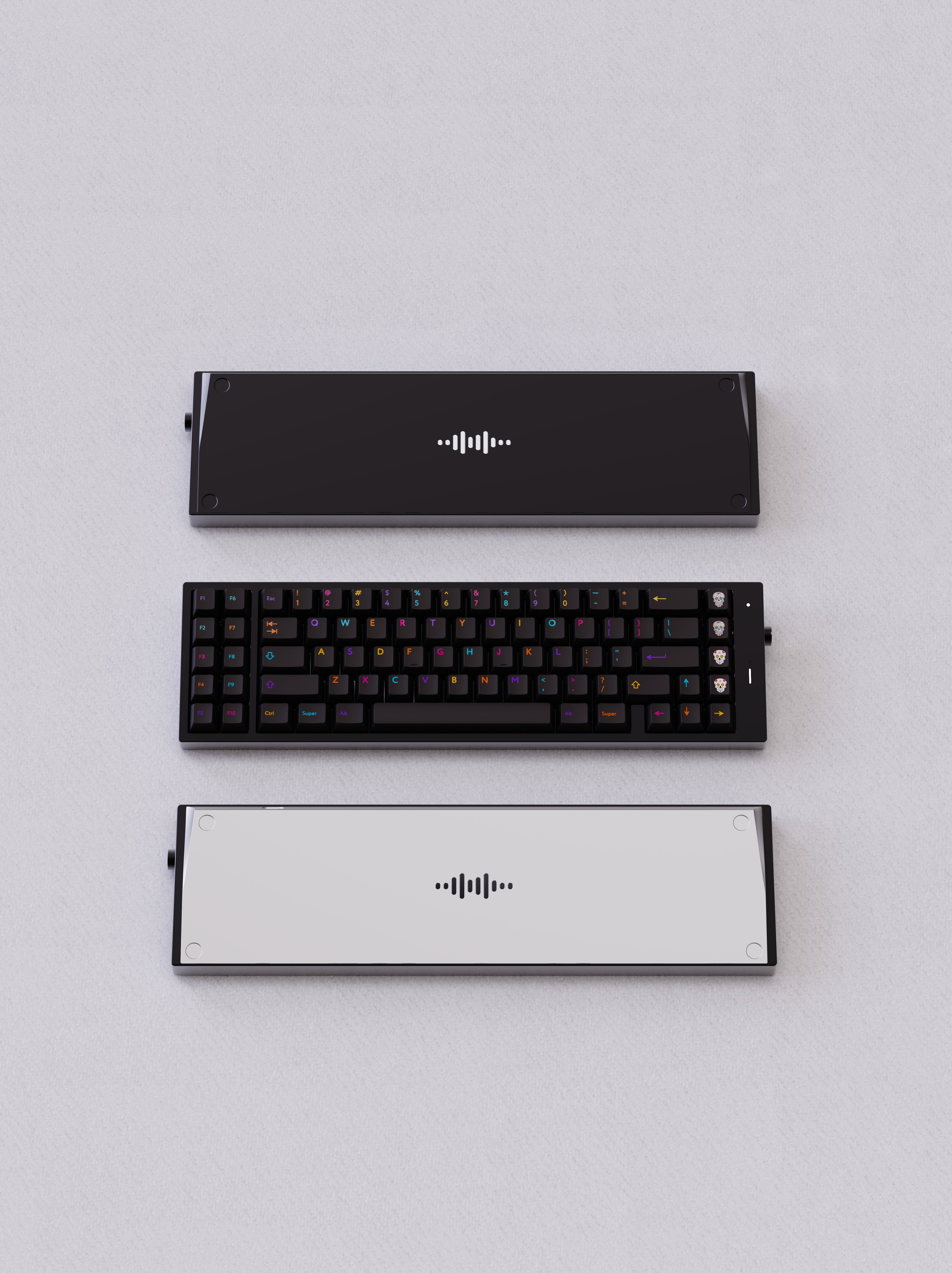

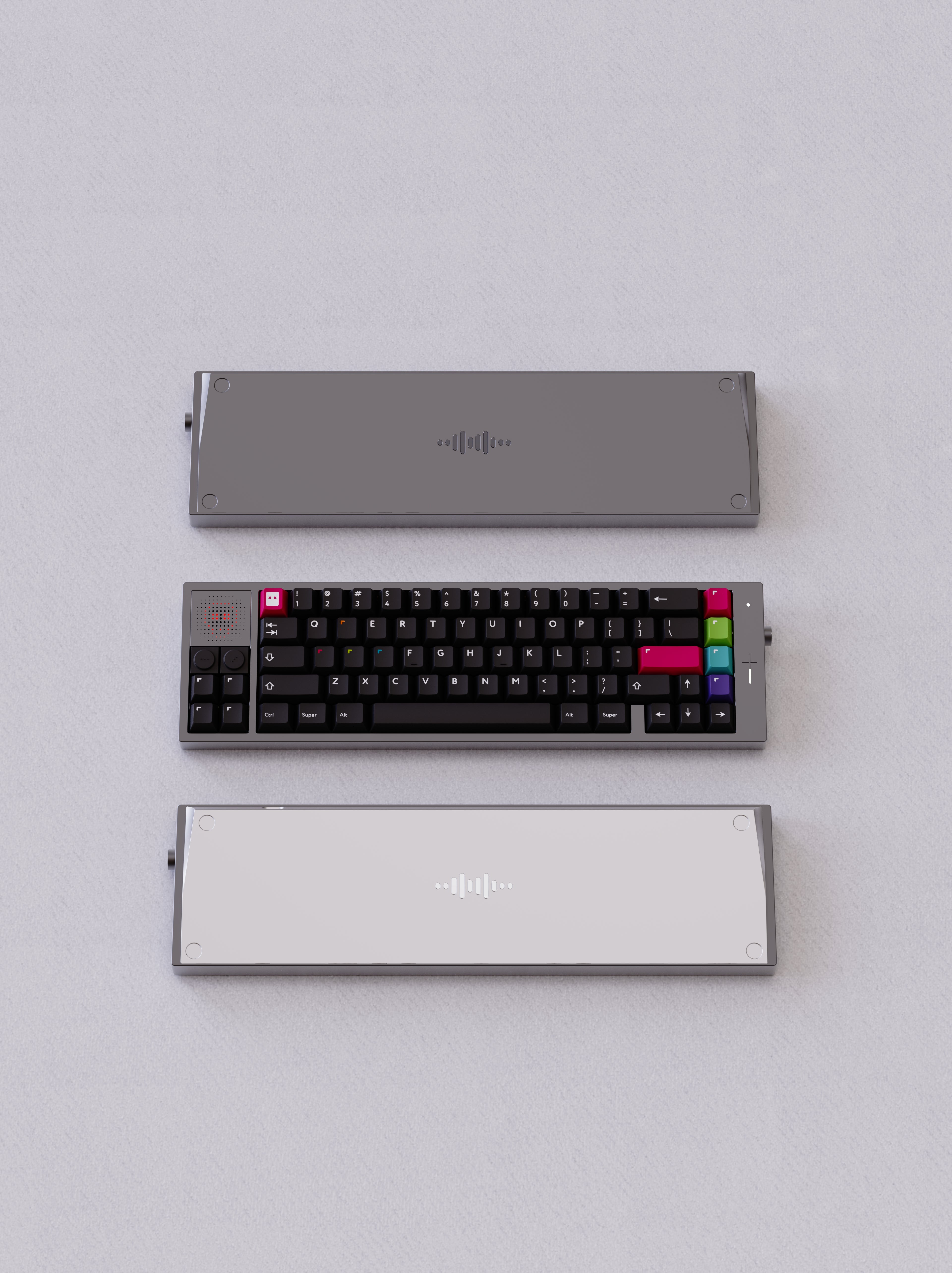

Top Case Colour Options:
- Black
- Blueish Purple
- Celadon
- E-White
- Grey
- Ice Blue
- Lilac
- Rose Gold
- Silver
Bottom Case Colour Options:
- Same as top case colour
- E-White
- Silver
PVD Bottom Logo Options:
- PVD Silver
- PVD Black
Kit Contents:
- Shell (6063 aluminum top and bottom / brass weight / brass mid-frame)
- Wired 1.6mm PCB (QMK with VIA support)
- Plate (color-matched aluminum; e-white version with silver plate)
- Foam kit (3mm Poron case foam / 0.5mm IXPE switch pad)
- Gasket (Three different hardness levels)
- Screws and feet
- Manual
- Full PCBA set (Type-C daughterboard / adapter / knob / light / macro / magnetic connector boards)
-
Keyboard case & Packaging box
