(Group Buy) Synovia Keyboard Kit

After many years, SYNOVIA returns, possibly BAIONLENJA’s magnum opus, to redeem itself and bring closure to the darkest chapter of this designer’s career.

This keyboard is based on the Y2K aesthetic, for which Baion is quite well known. The various curves and shapes that compose it make it one of the most unique keyboards ever designed. SYNOVIA has served as inspiration for countless other designers, and now, at last, its original version is being brought to life.

This design has gone through many iterations over the years, but finally, thanks to Bowlkeyboards, who assisted with the internals of the board, the final result is flawless both in sound and feel.

After this sale, SYNOVIA will not return, just like Baionlenja’s other vintage keyboards, marking the definitive end of that dark era, while at the same time creating the most refined version possible of this masterpiece.

Addons Available Here

Product Specifications:

• Keyboard Type: TKL
• Typing Angle: 7 Degrees
• Adjusted Front Height: 17.37mm
• EKH: 22.2mm
• Size: 162.2 x 146.4mm
• Weight: 1.6kg unbuilt
• Designer: Baionlenja + Bowl Internals

Case Specifications:

• Top & Bottom Material: 6063 Aluminum
• Finishes:
  • Anodised
  • Spray Coated
  • Caerakote

• Weight Material: Stainless Steel
• Finishes:
  • Raw
  • Black Mirror PVD

PCB Specifications:

• Material: Black FR4
• Thickness: 1.6mm
• Connectivity: JST to Unified Daughterboard
• Customizability: VIA
• Type: Solderable and Hotswap
• Designer: Gondolindrim

Layouts:

Solder PCB

Hotswap PCB

Mounting Design:

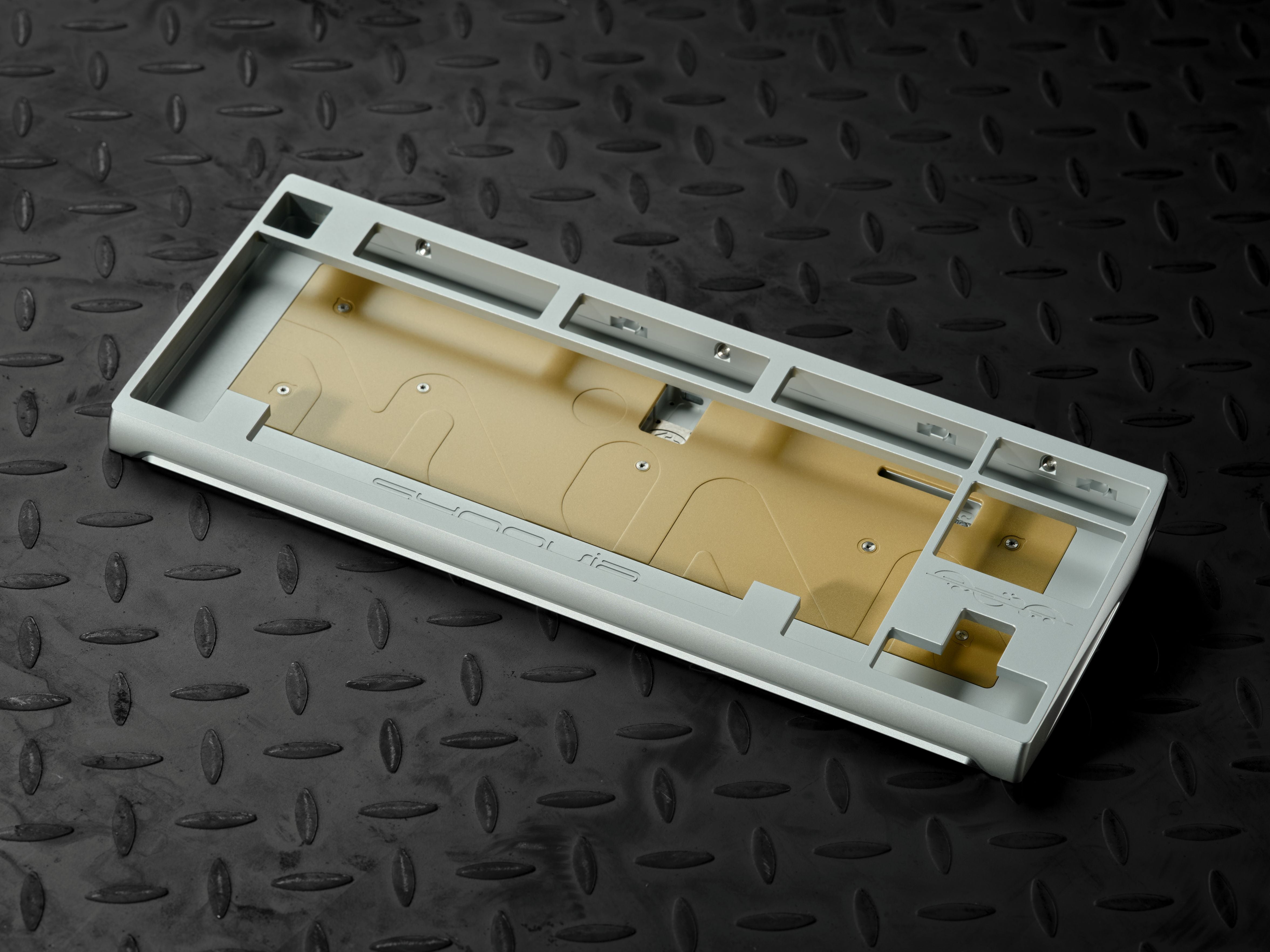

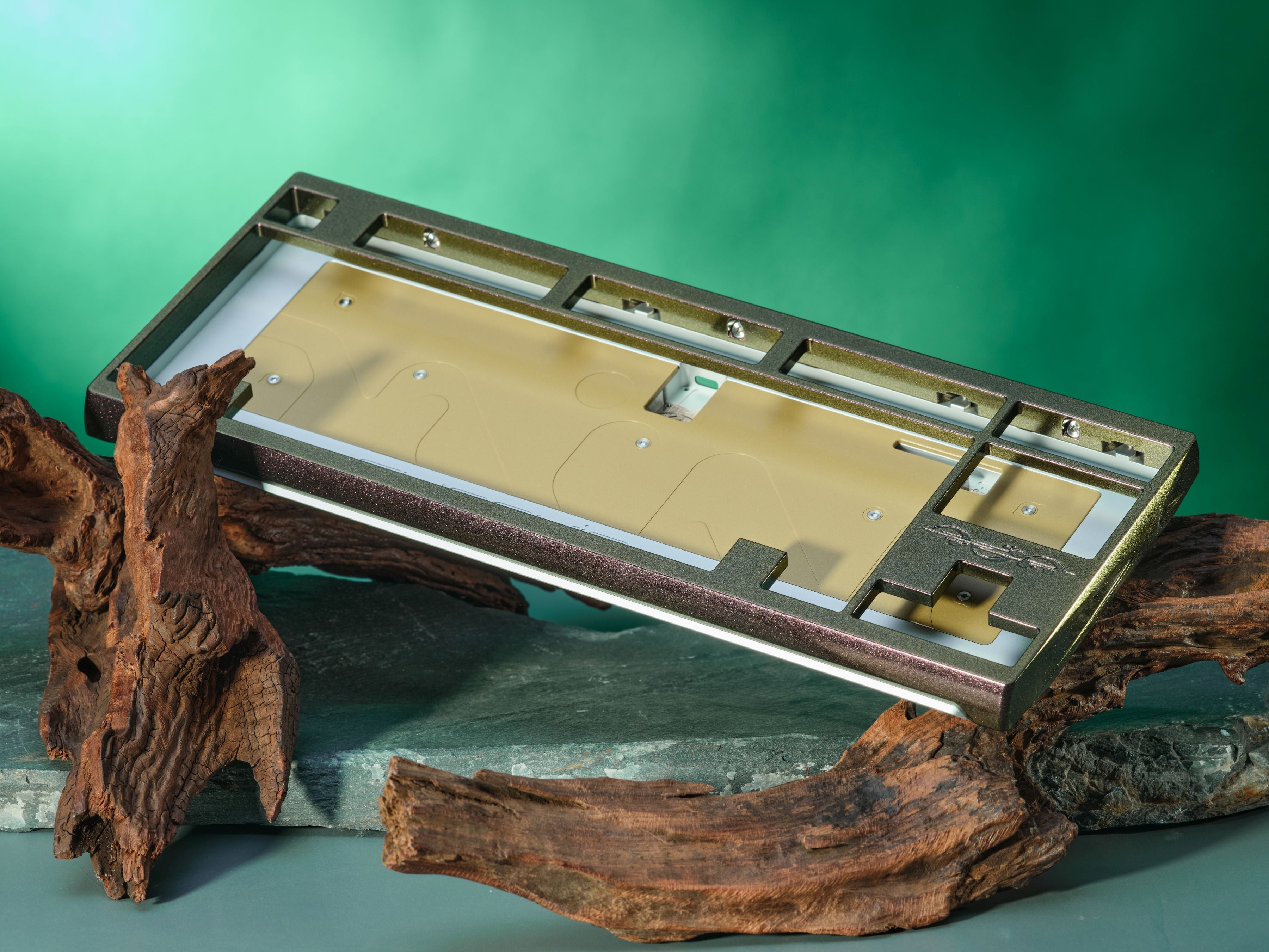

Designed by Bowl Keyboards, Synovia uses grommet gaskets to fully isolate the plate from the case while also allowing a customizable sound and feel using the different gasket durometers provided.

Plate Options:

Aluminum, Stainless Steel, PP, PEI, PC

Colours:

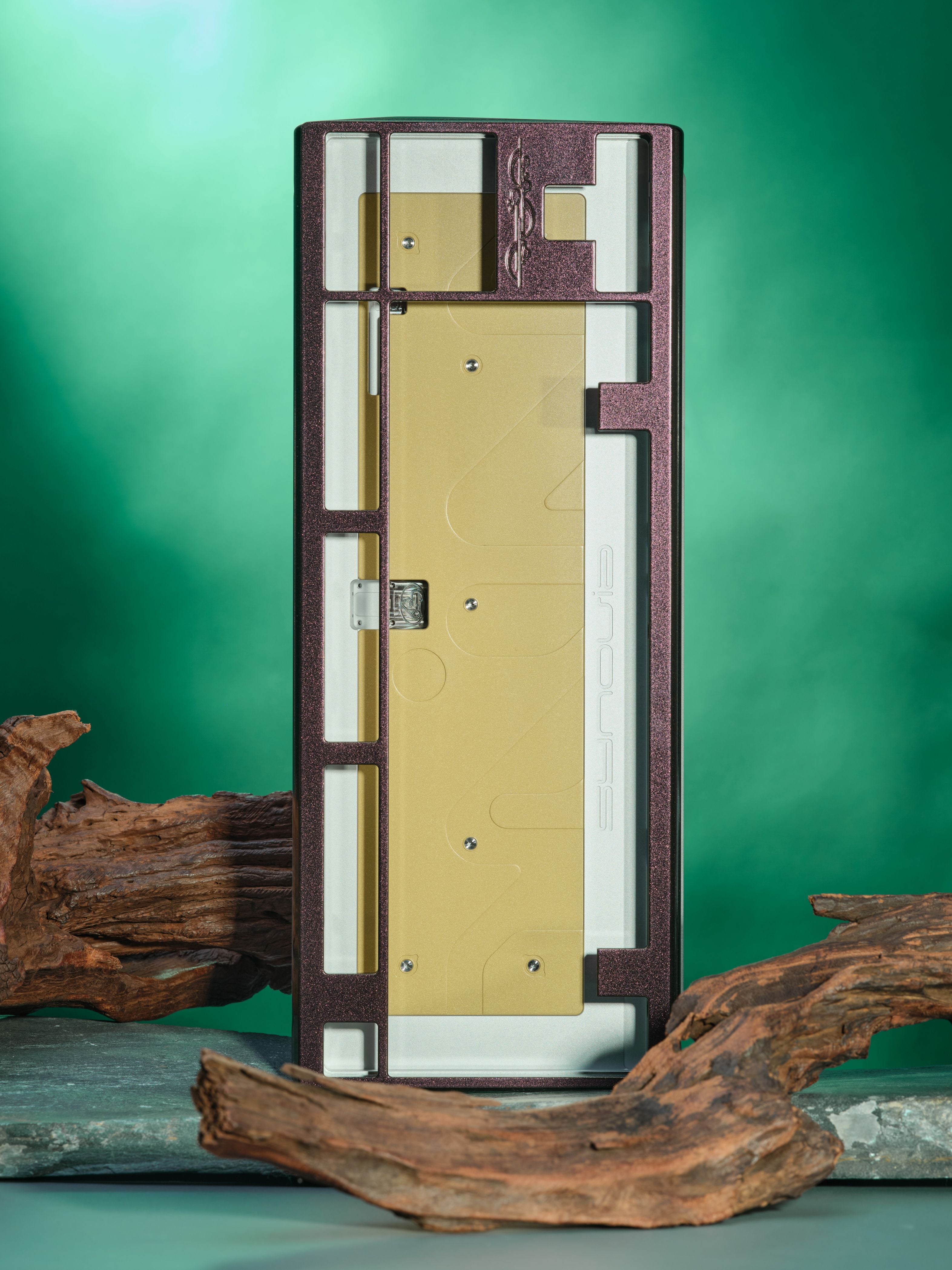

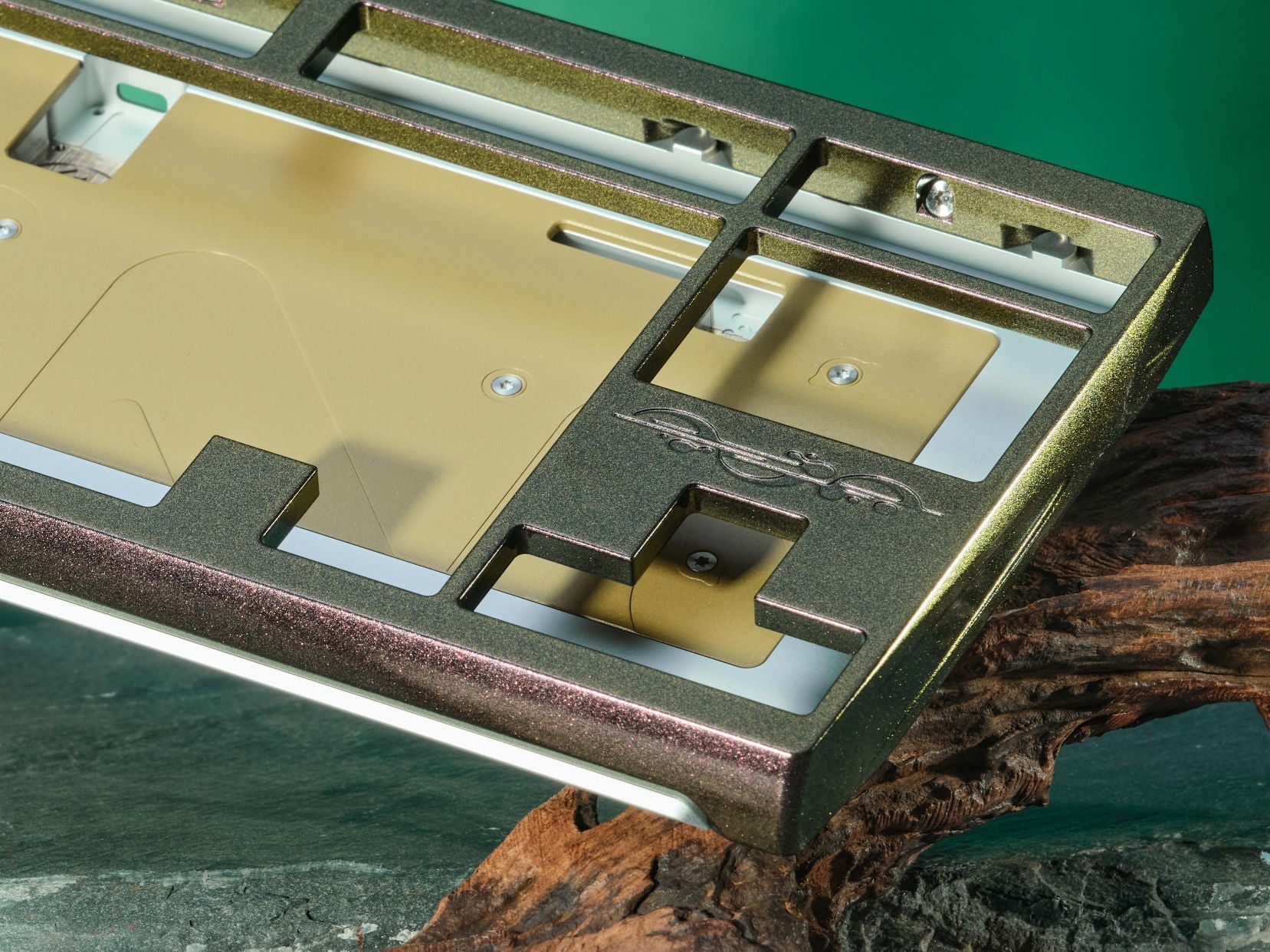

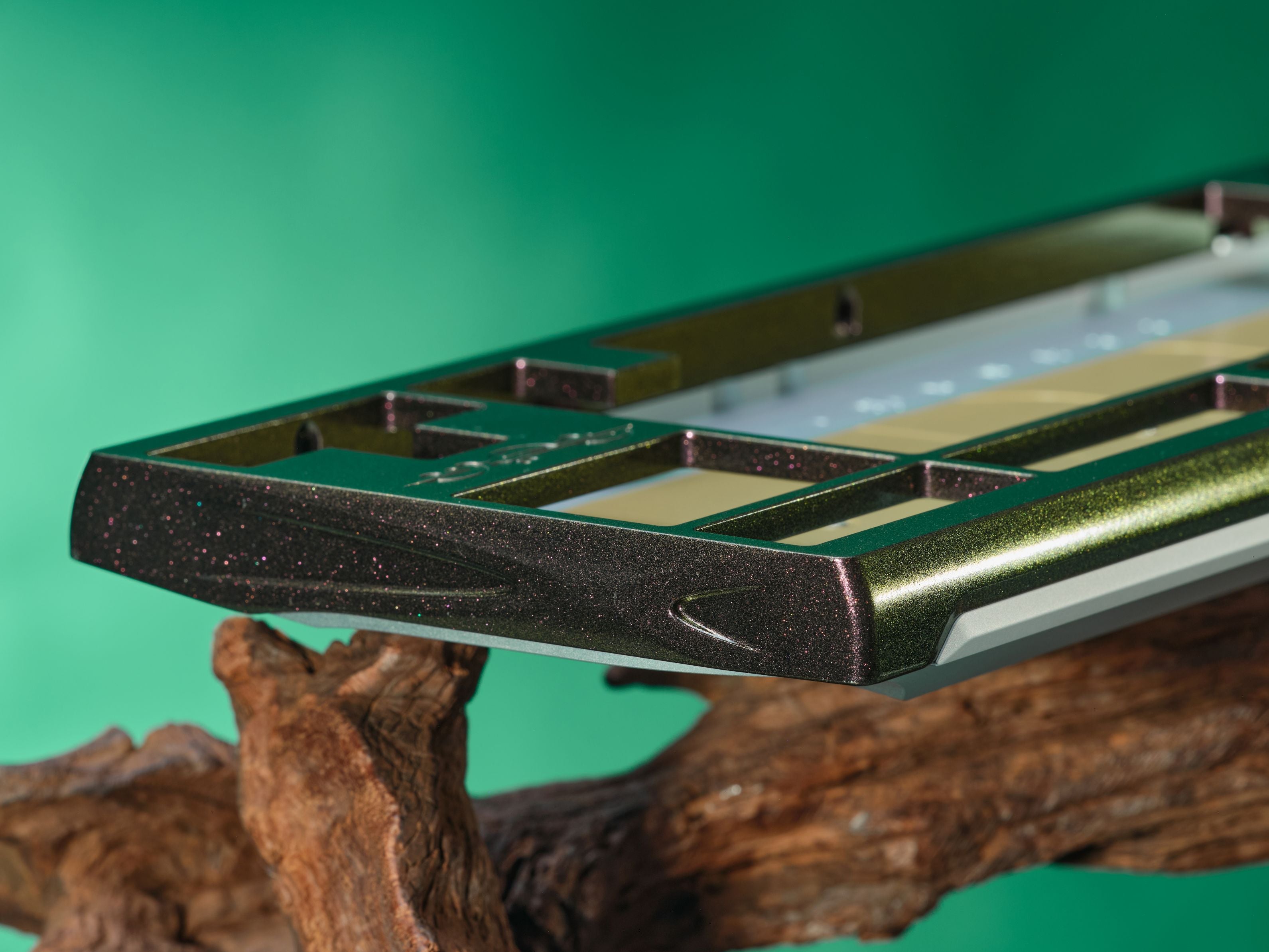

• Mechameleon
  • Colourshift Cerakote Top Case
  • Silver Anodised Bottom Case
  • Raw Stainless Steel Weight

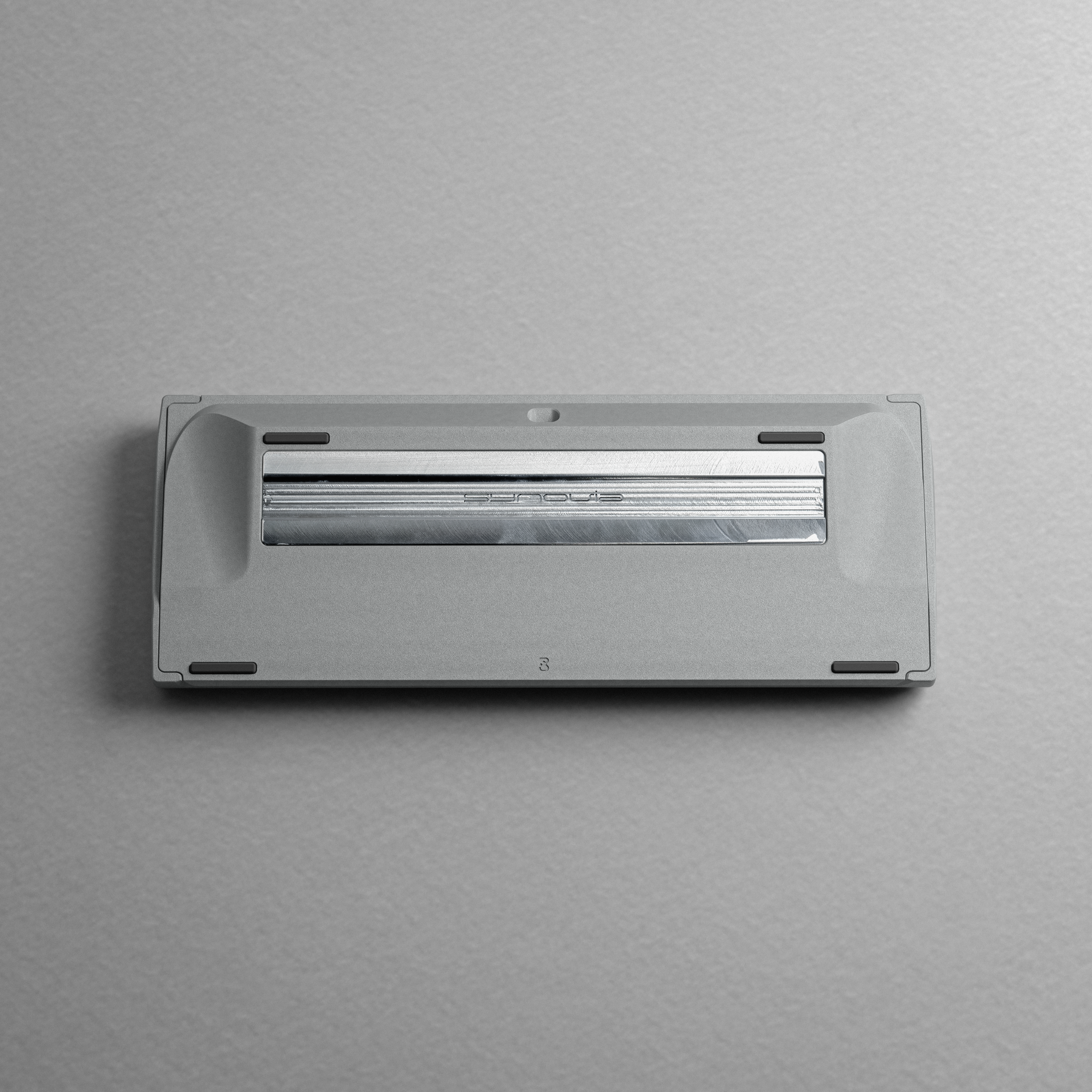

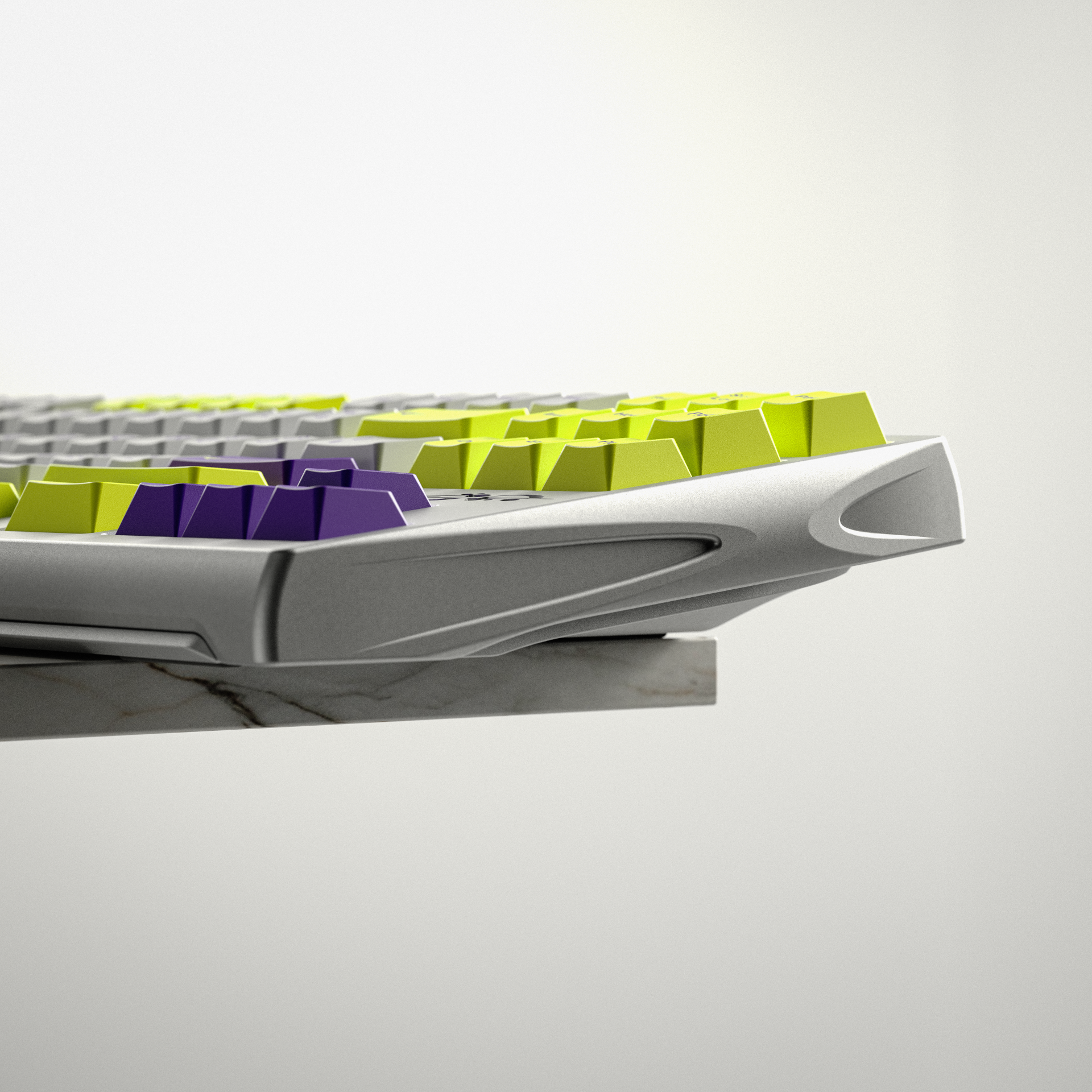

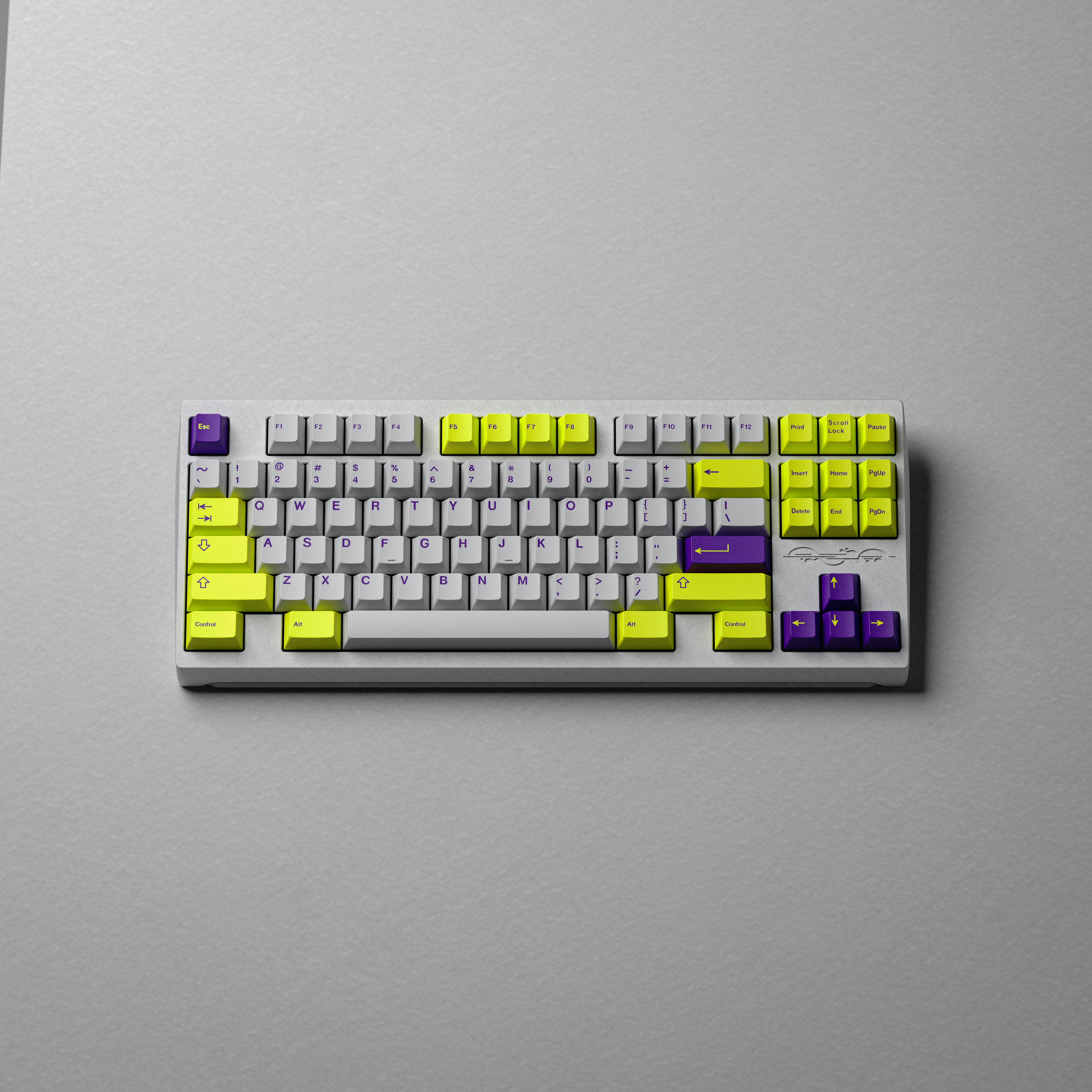

• Nostromo
  • Silver Anodised Top Case
  • Silver Anodised Bottom Case
  • Raw Stainless Steel Weight

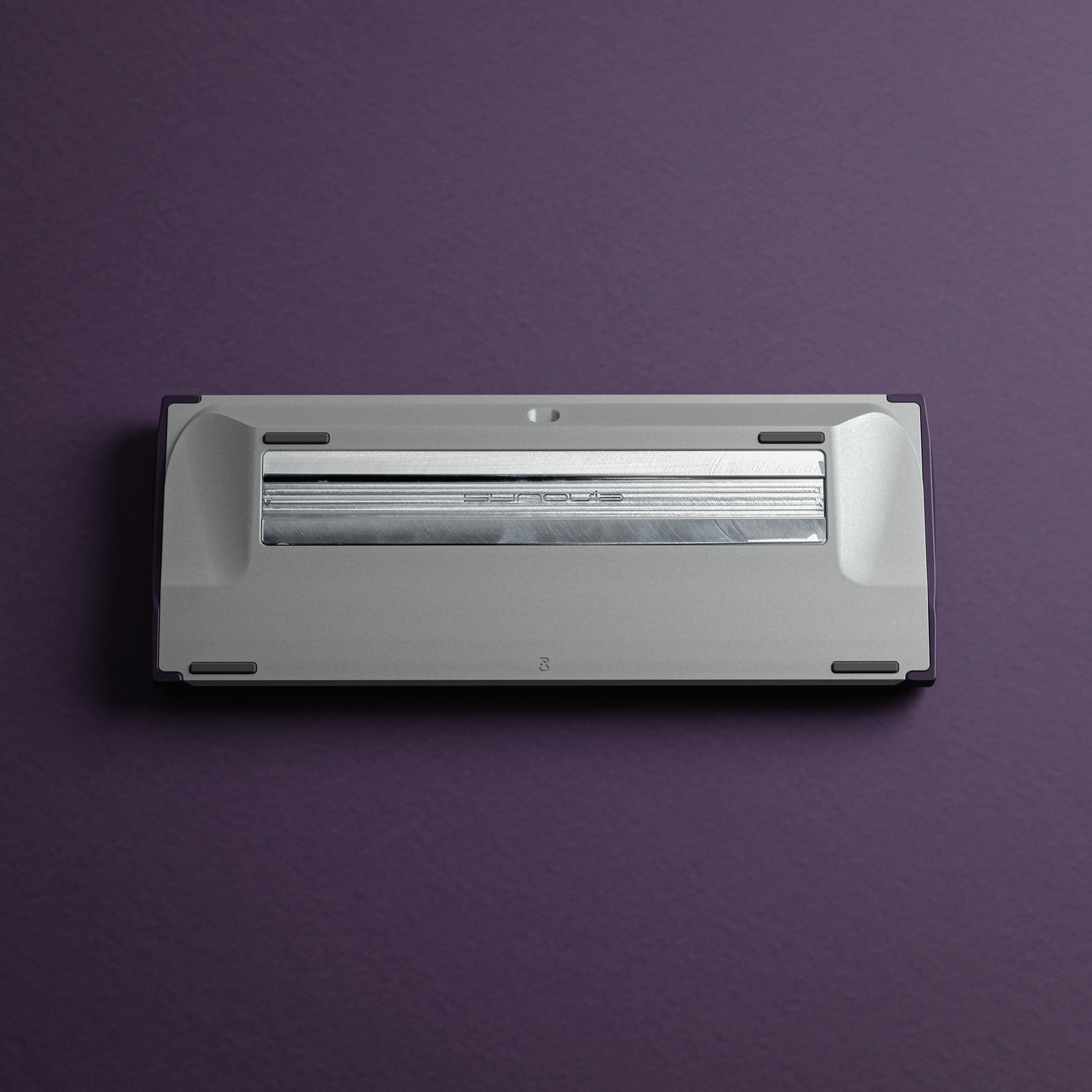

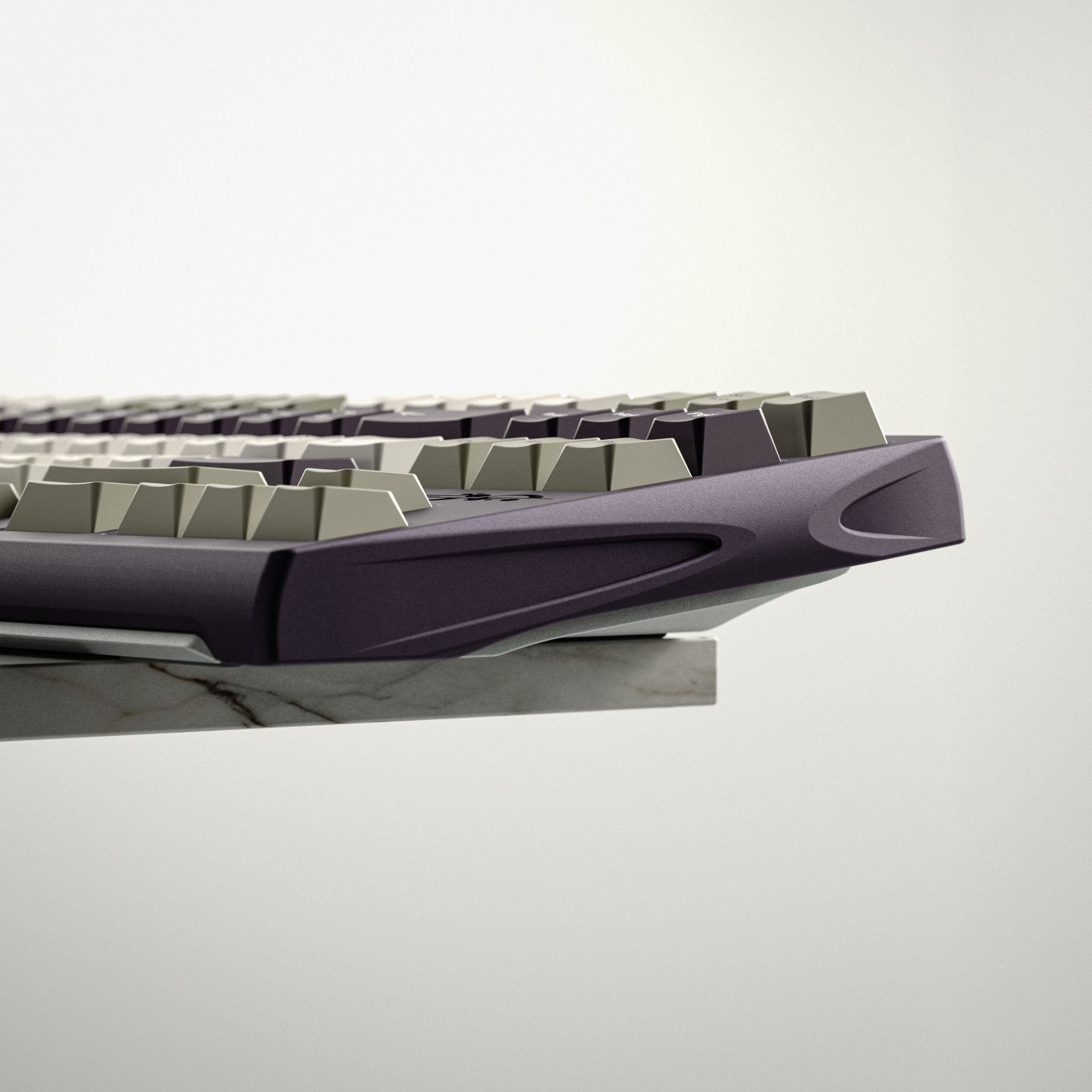

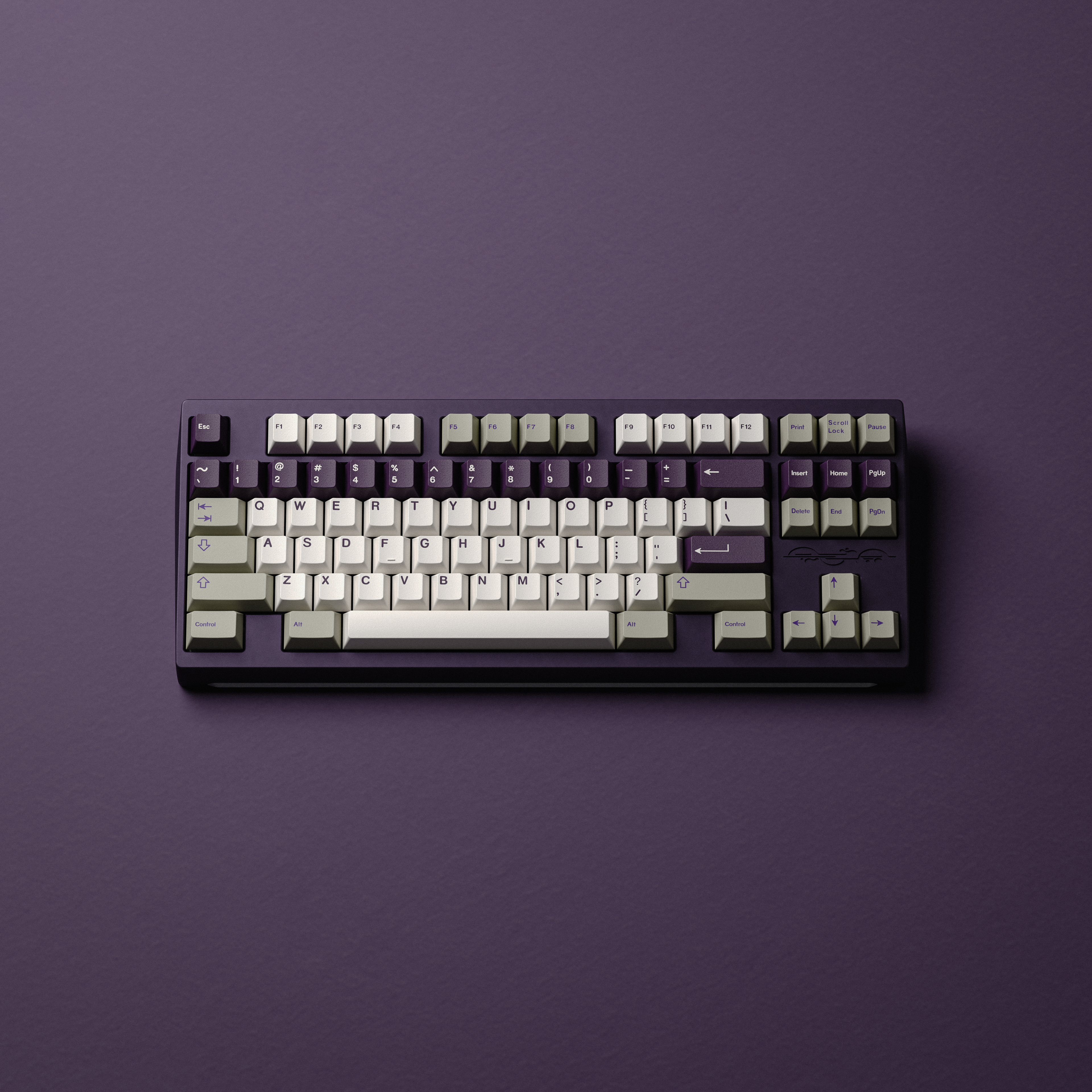

• Void
  • Dark Purple Anodised Top Case
  • Silver Anodised Bottom Case
  • Raw Stainless Steel Weight

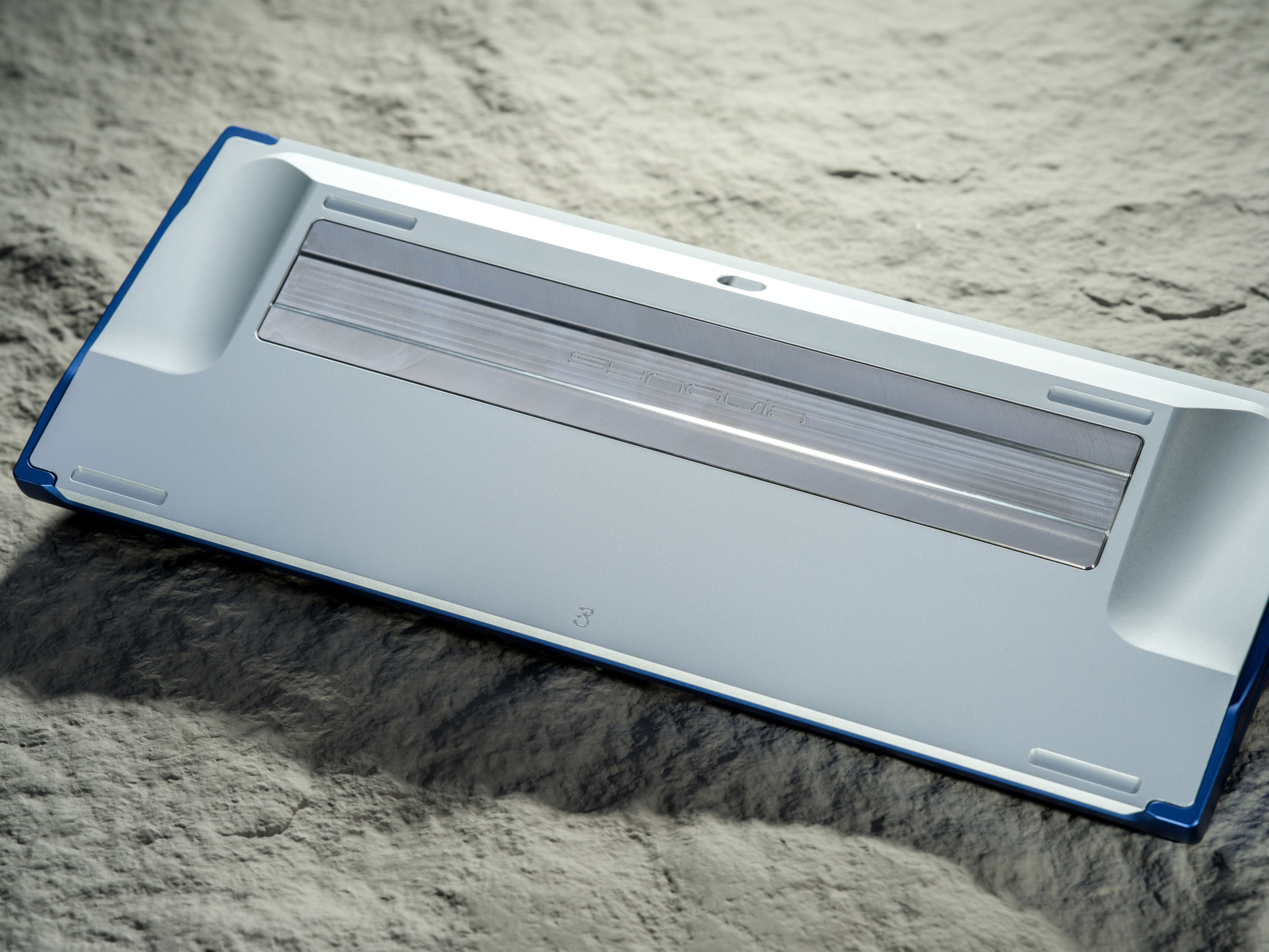

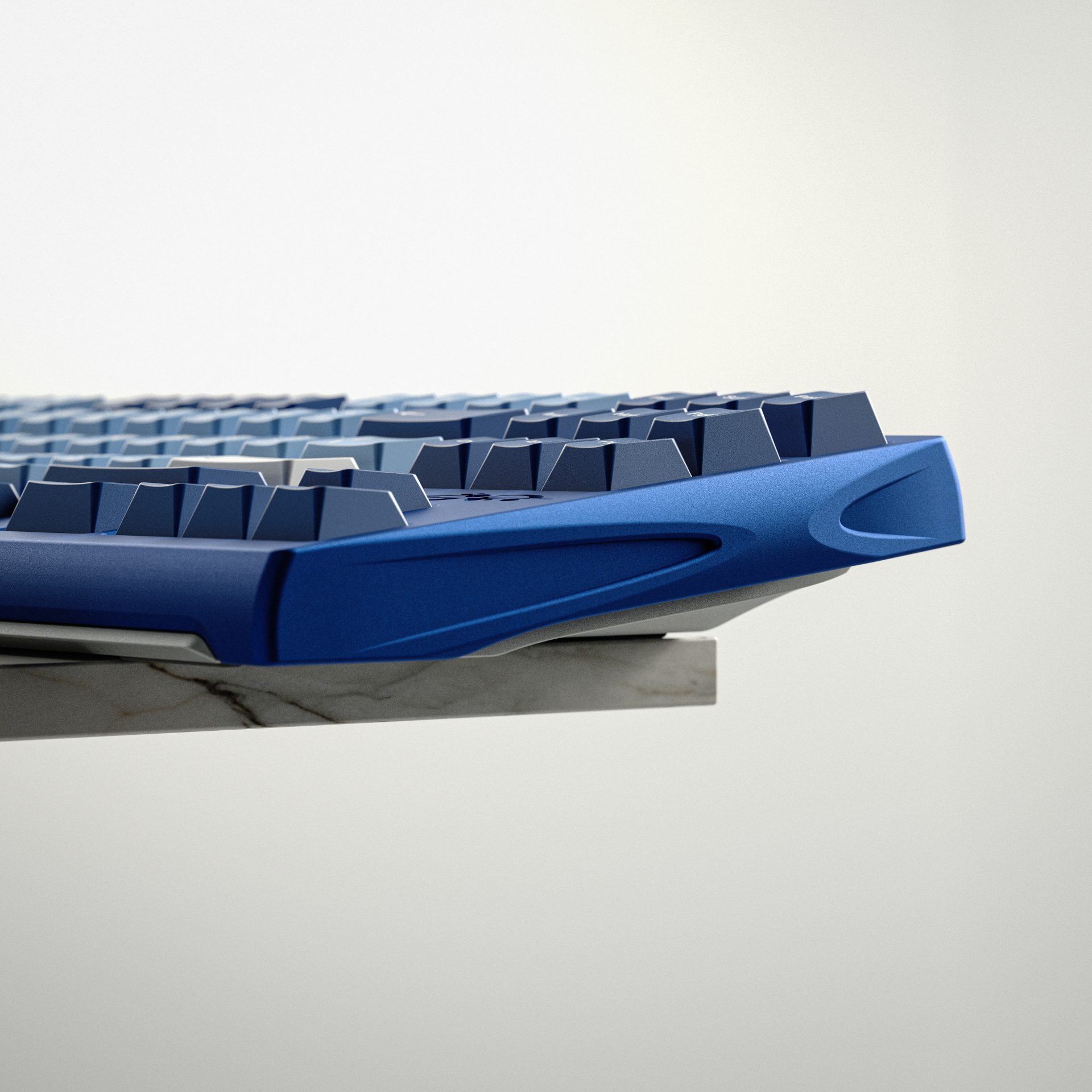

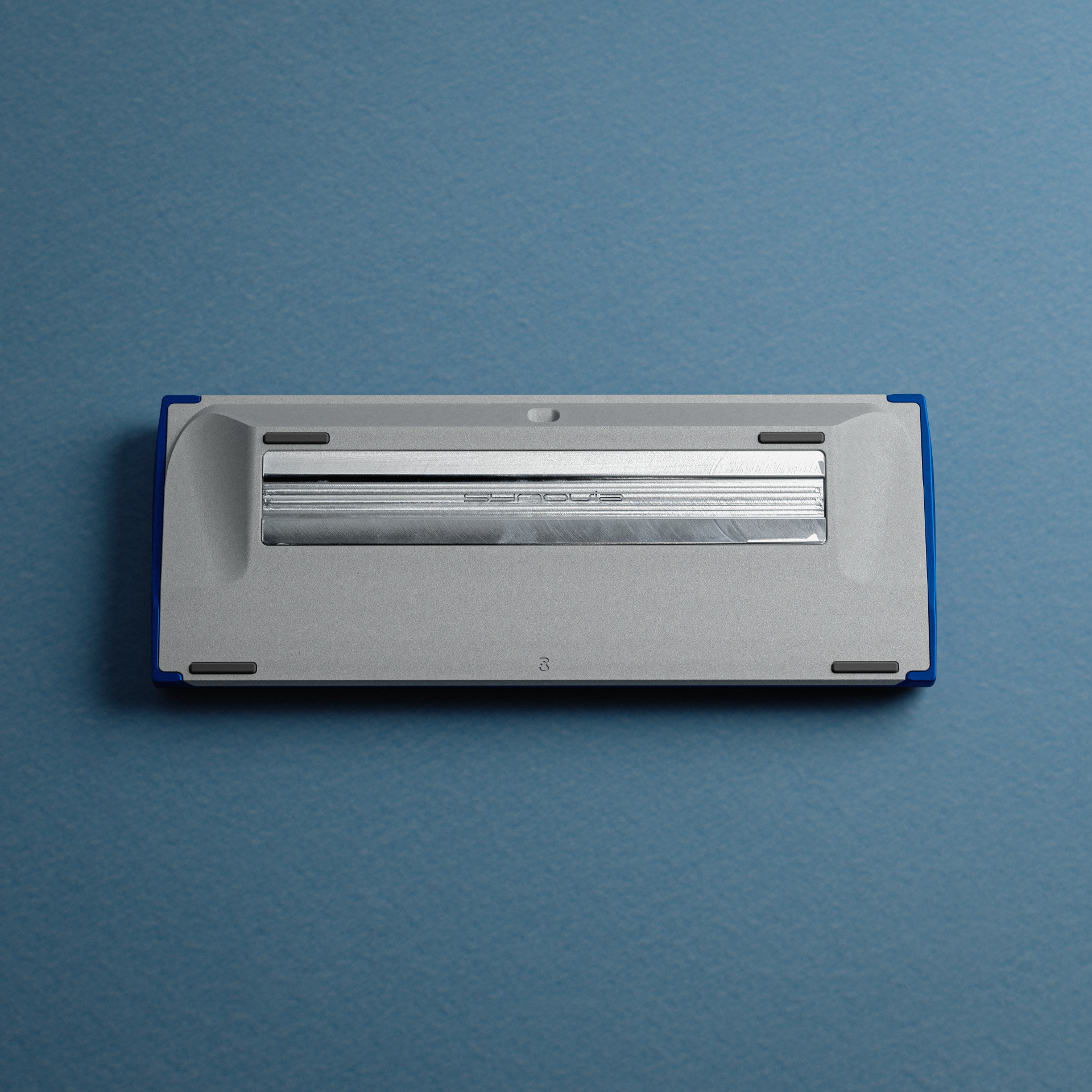

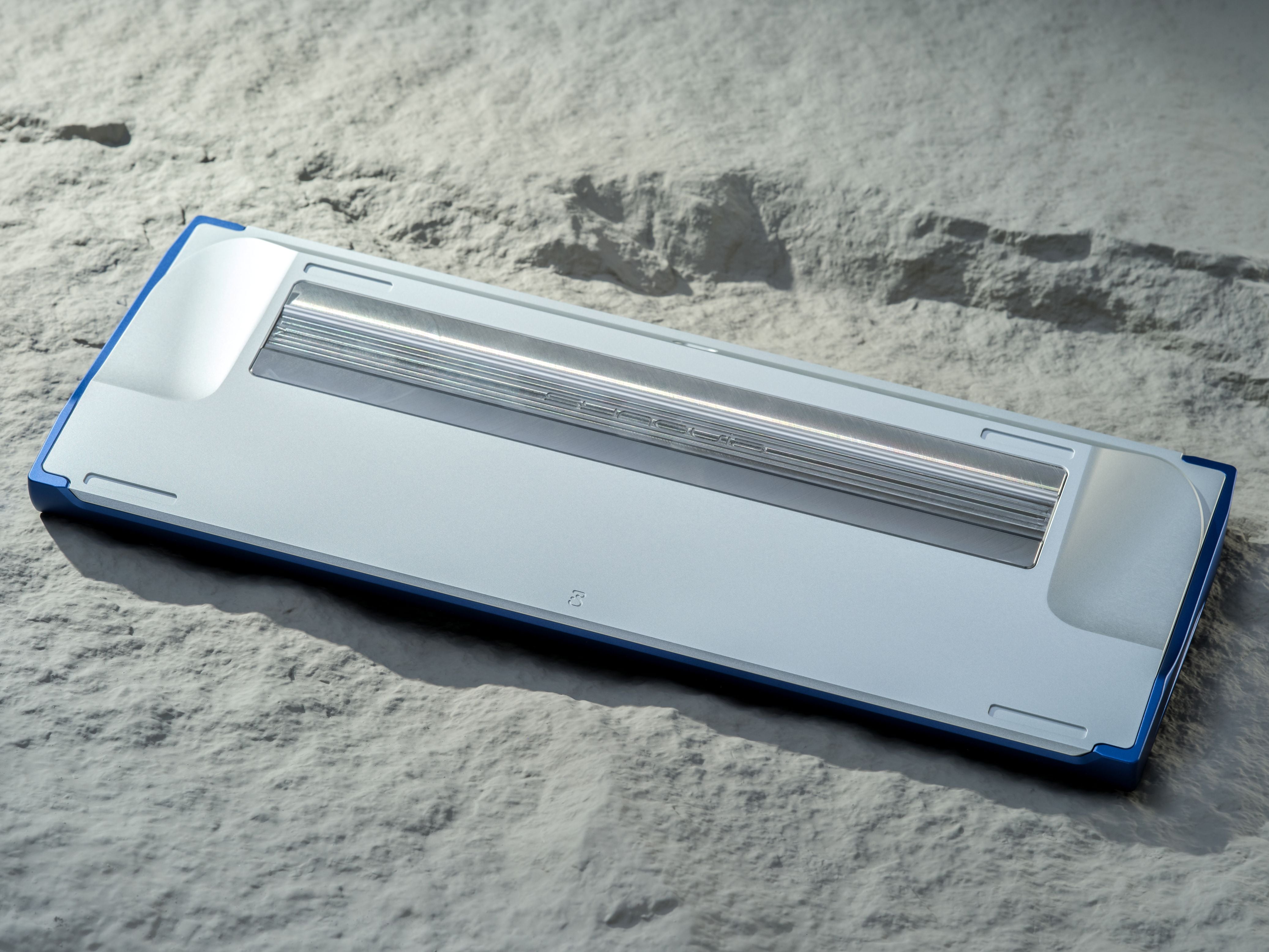

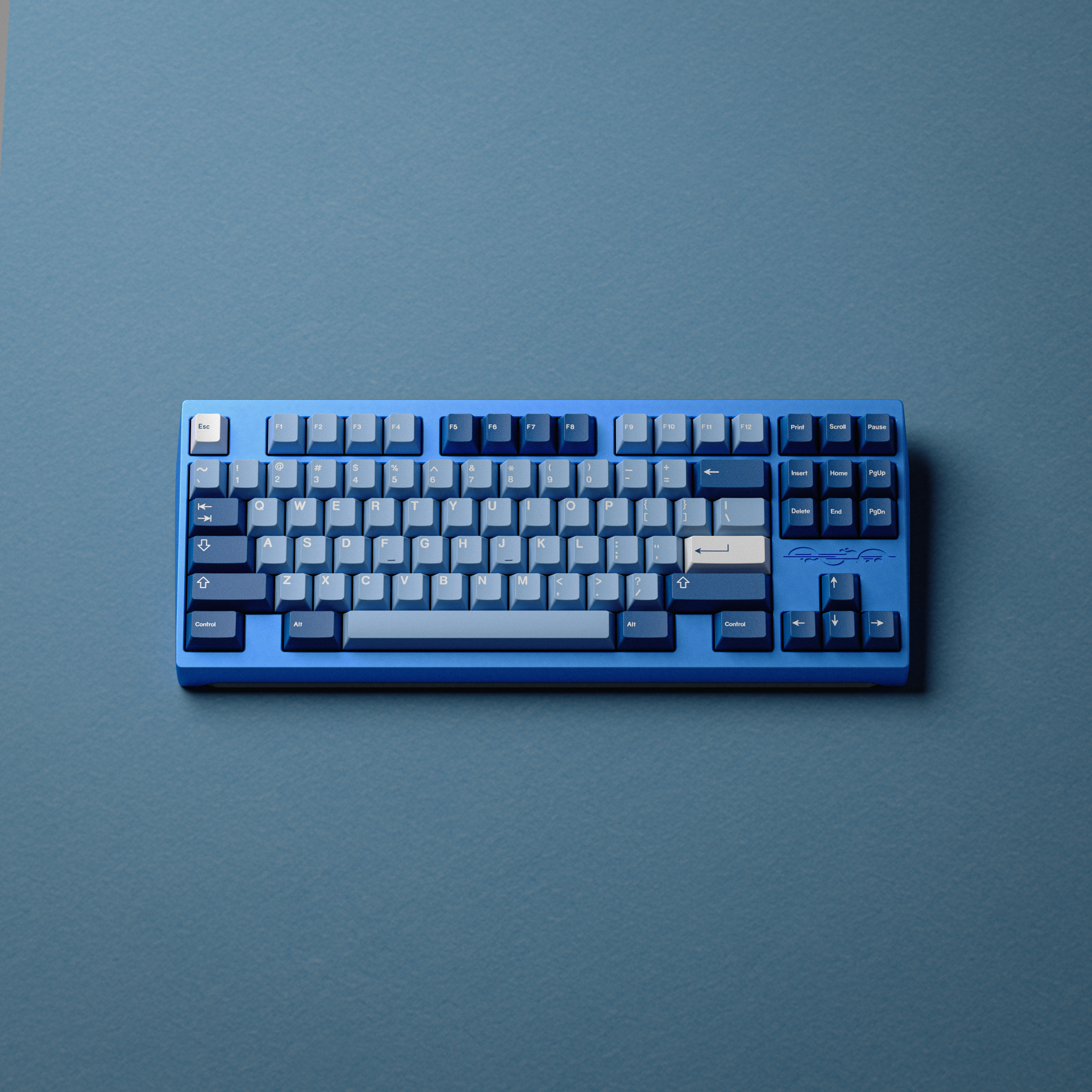

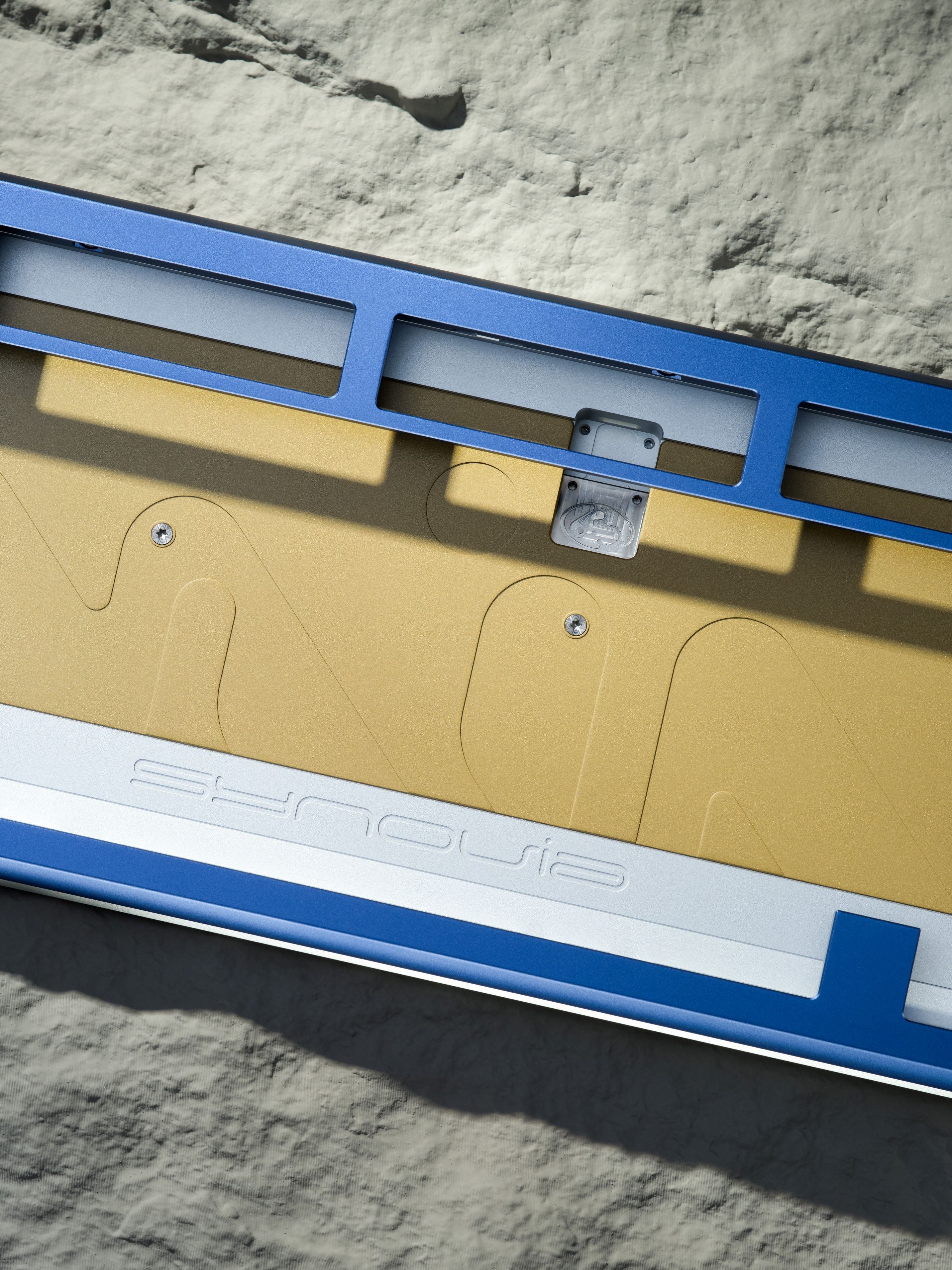

• Azure
  • Blue Anodised Top Case
  • Silver Anodised Bottom Case
  • Raw Stainless Steel Weight

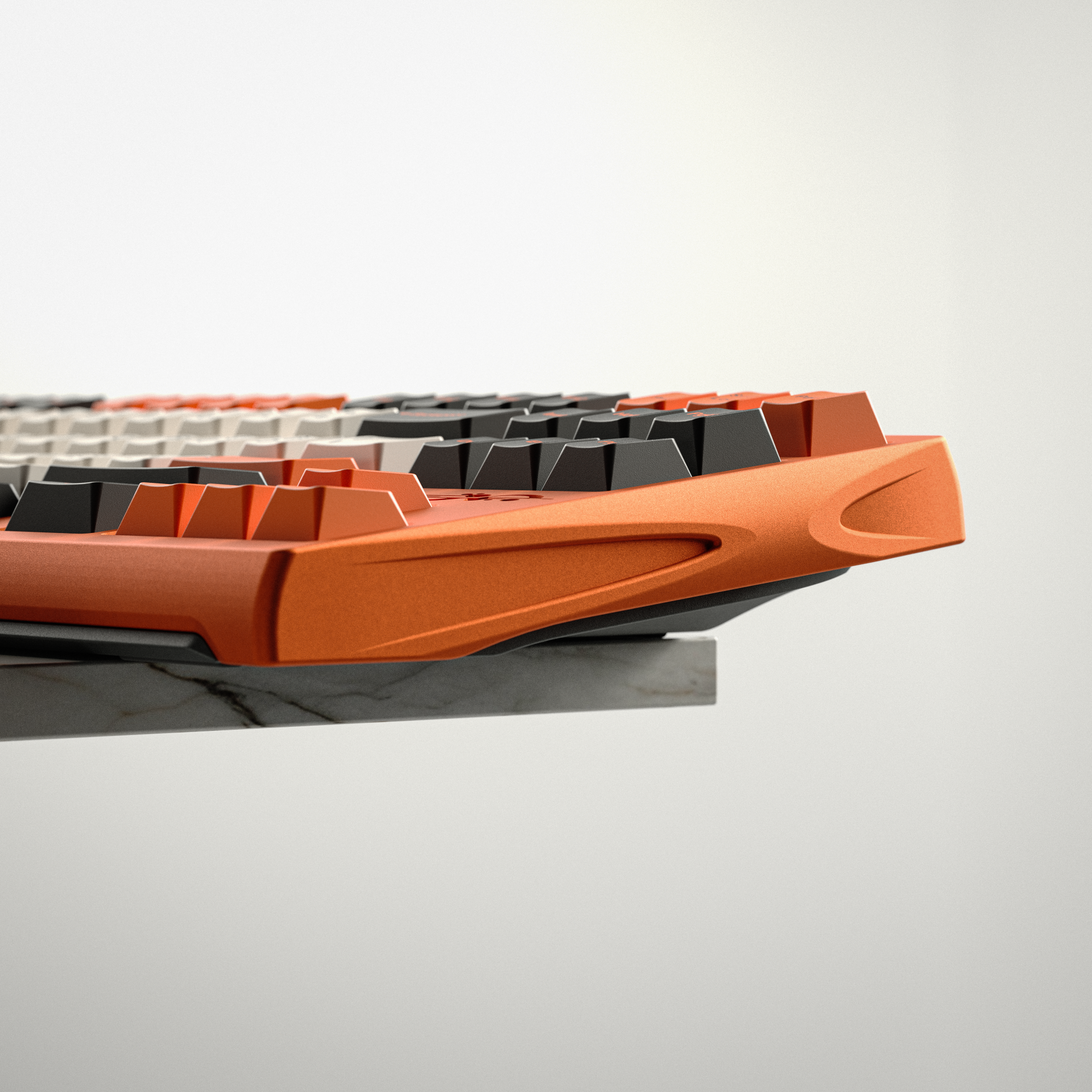

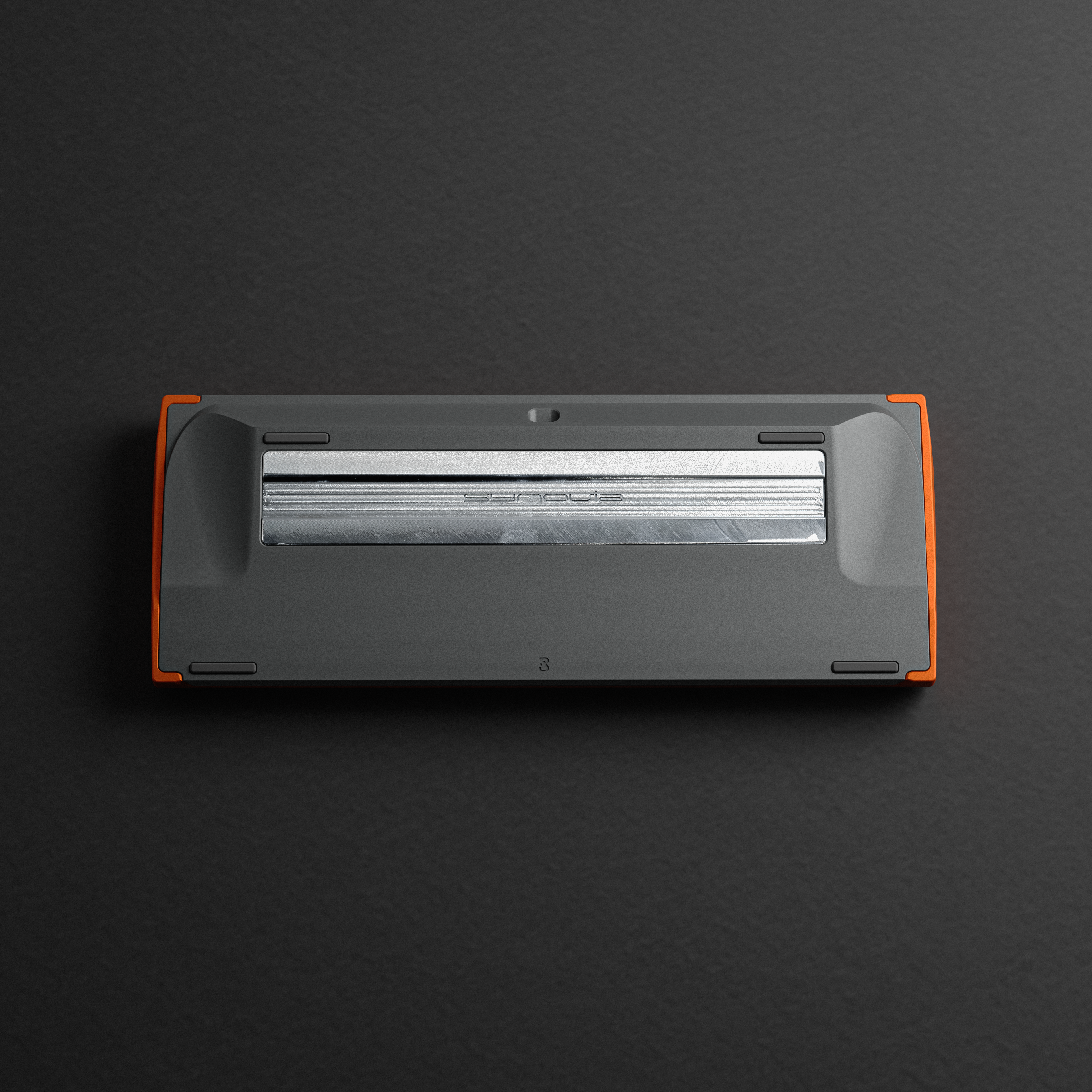

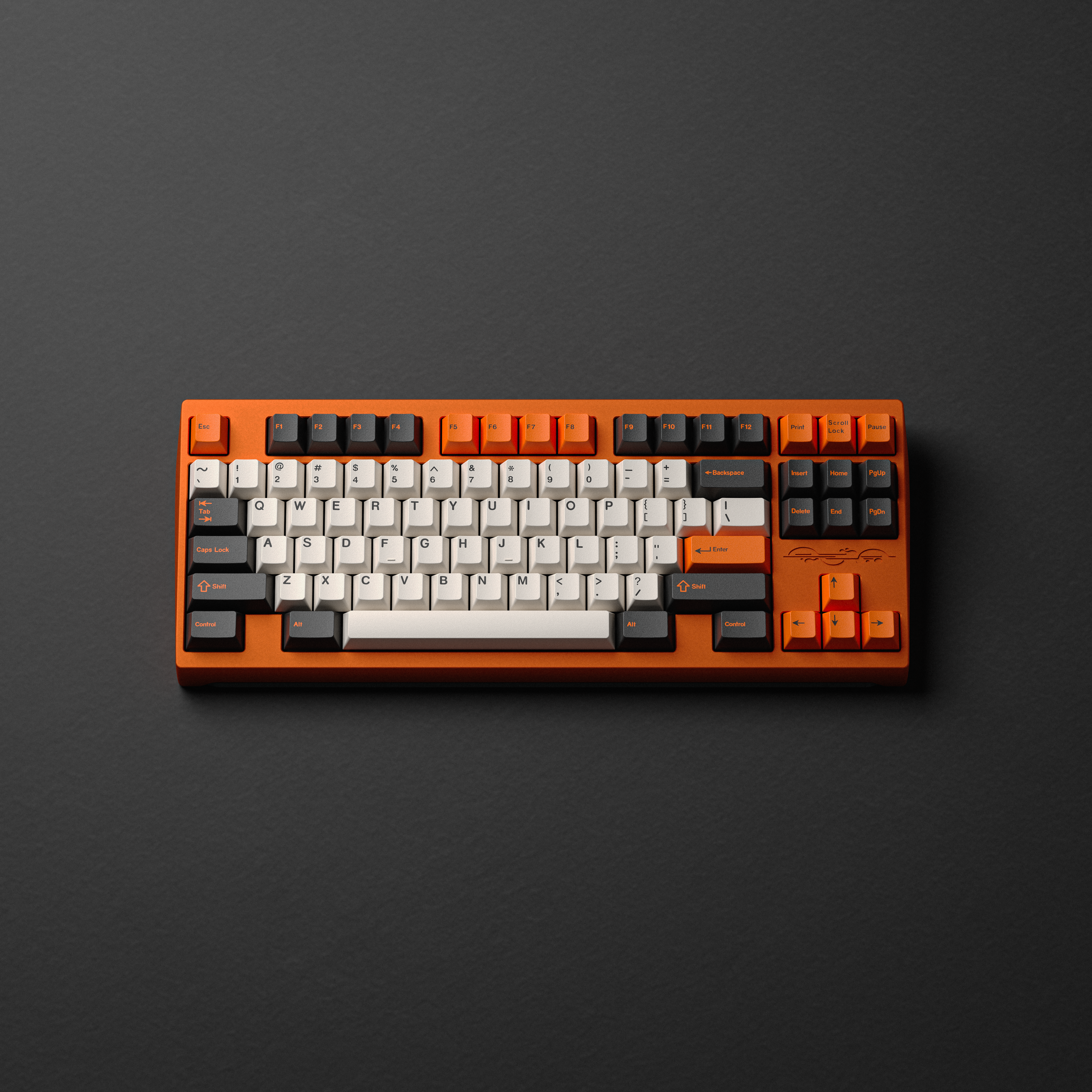

• Half Life
  • Orange Coated Top Case
  • Dark Grey Coated Bottom Case
  • Raw Stainless Steel Weight

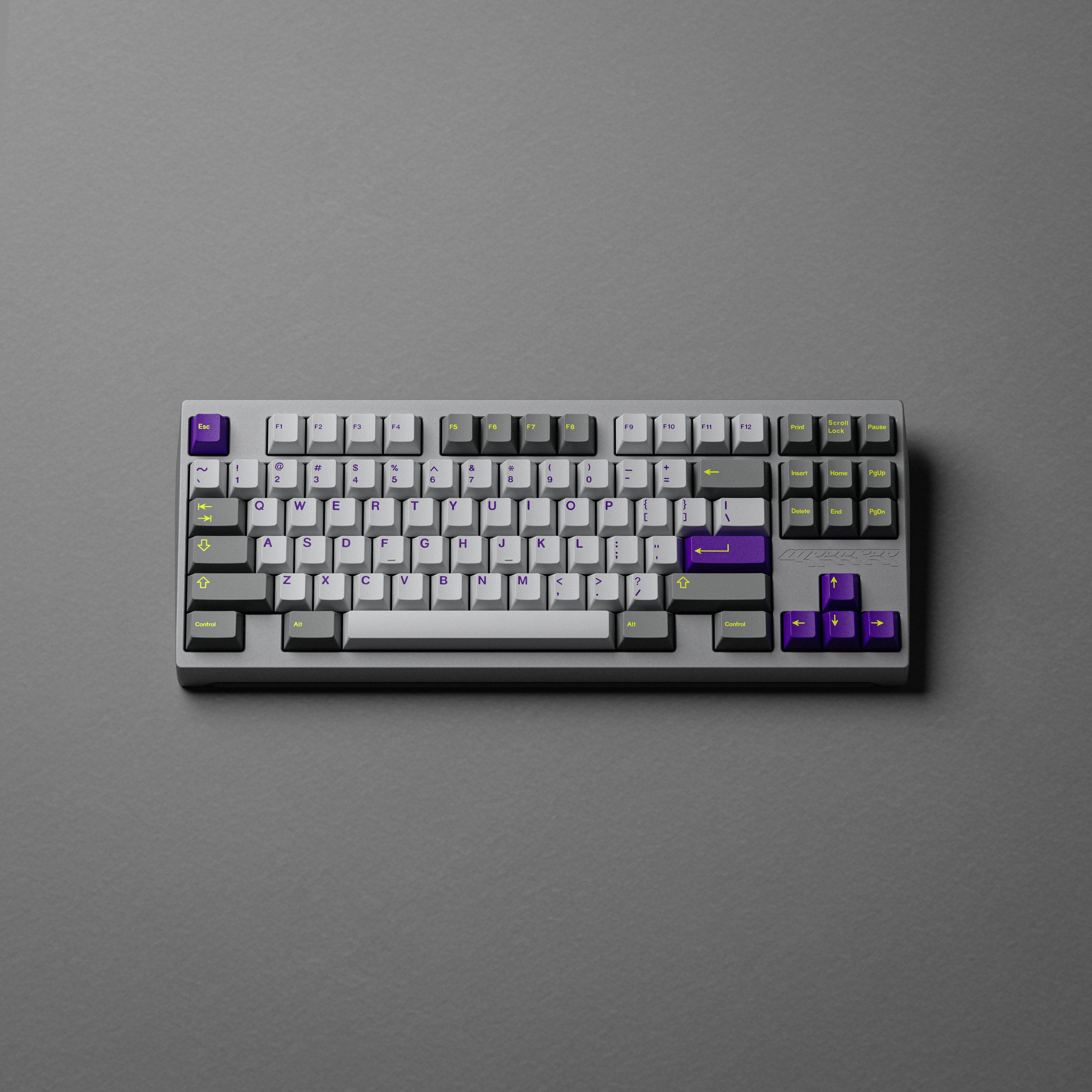

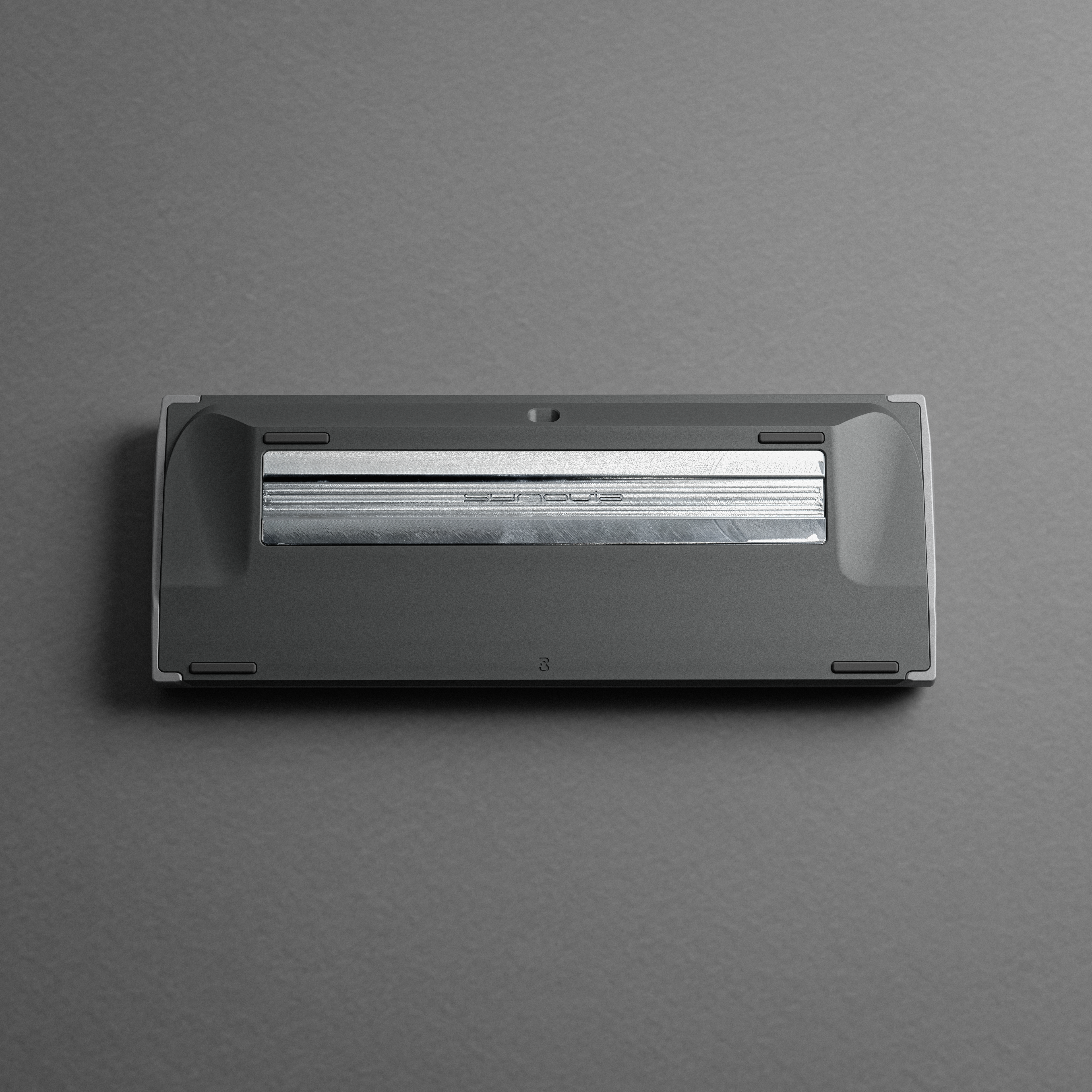

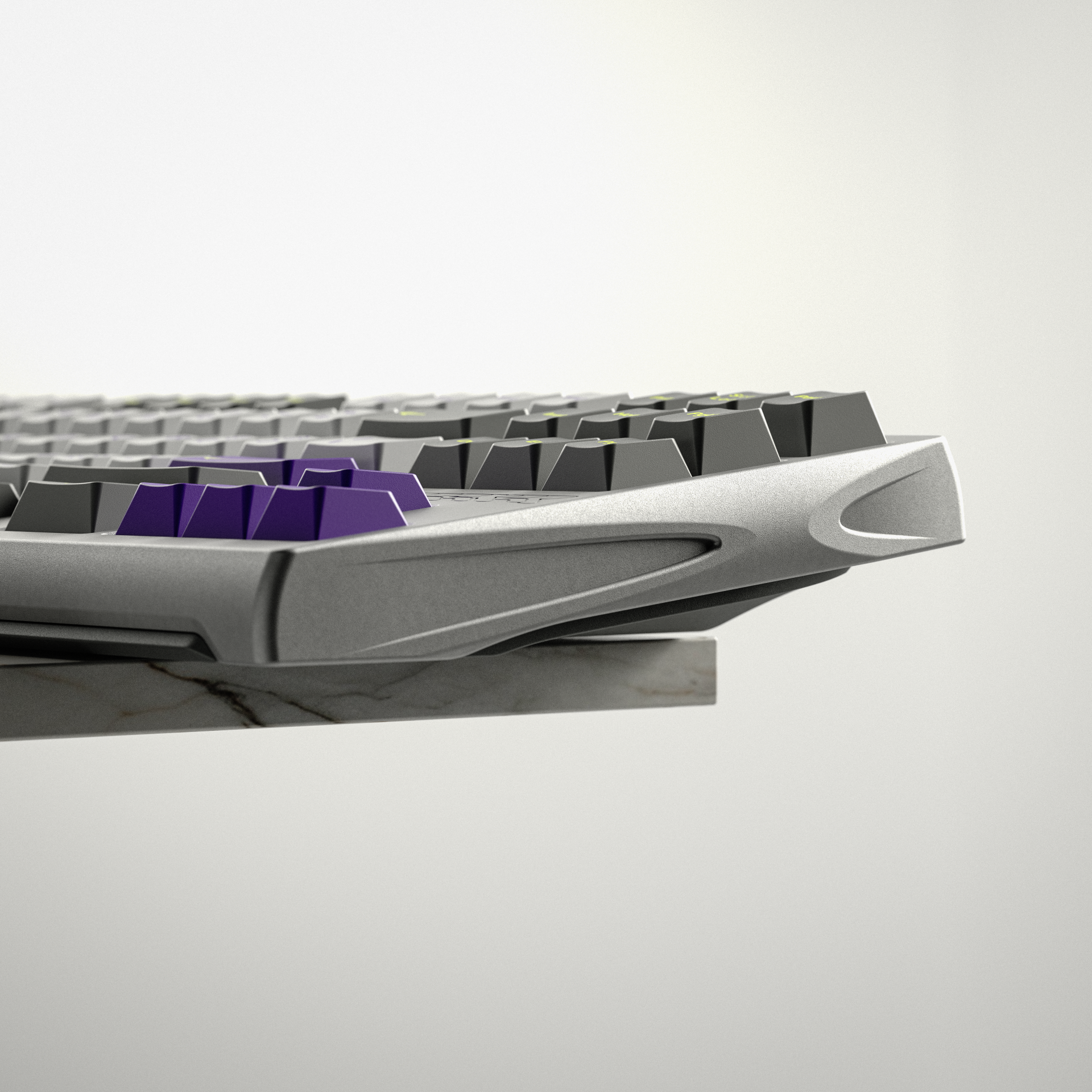

• Acero
  • Light Grey Coated Top Case
  • Dark Grey Coated Bottom Case
  • Raw Stainless Steel Weight

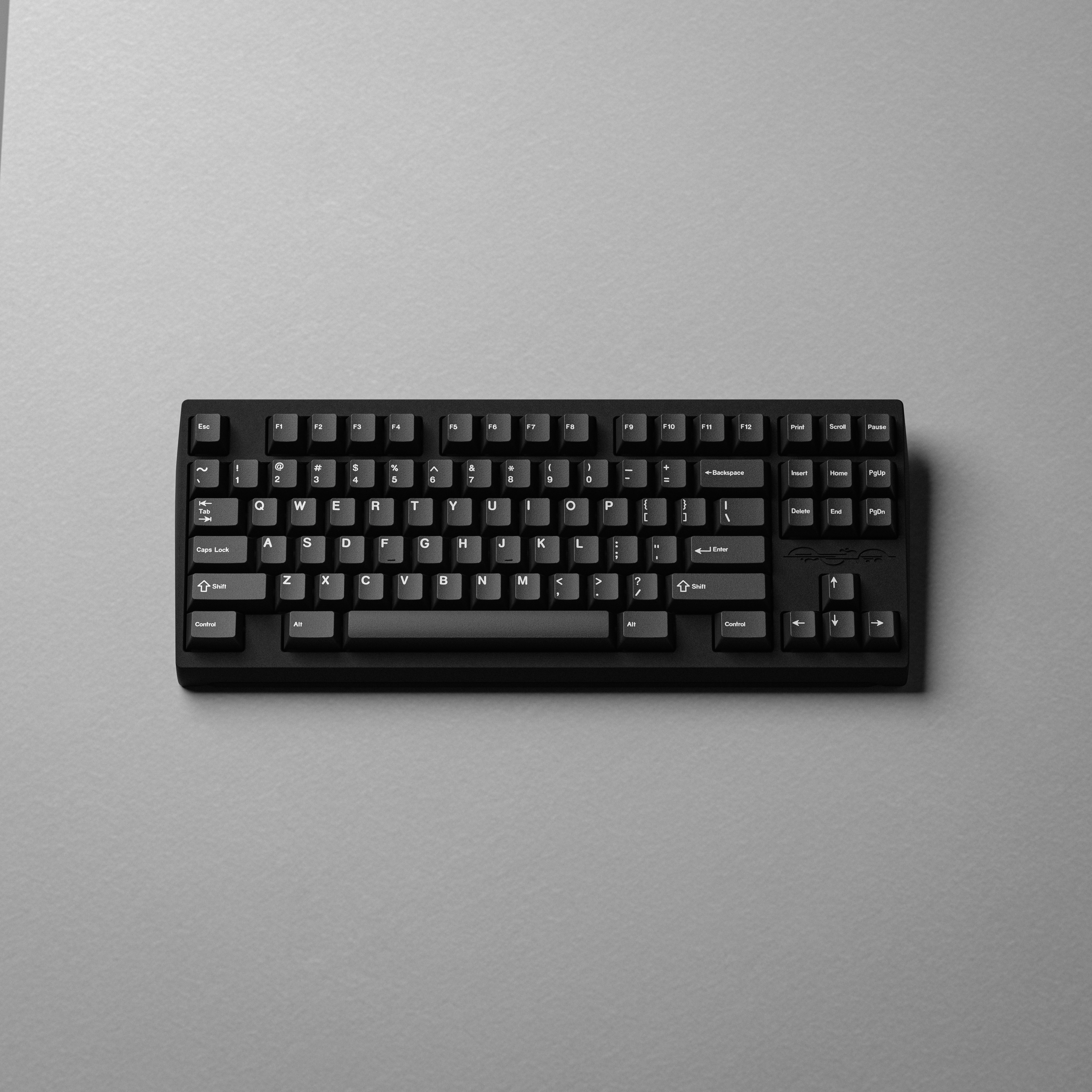

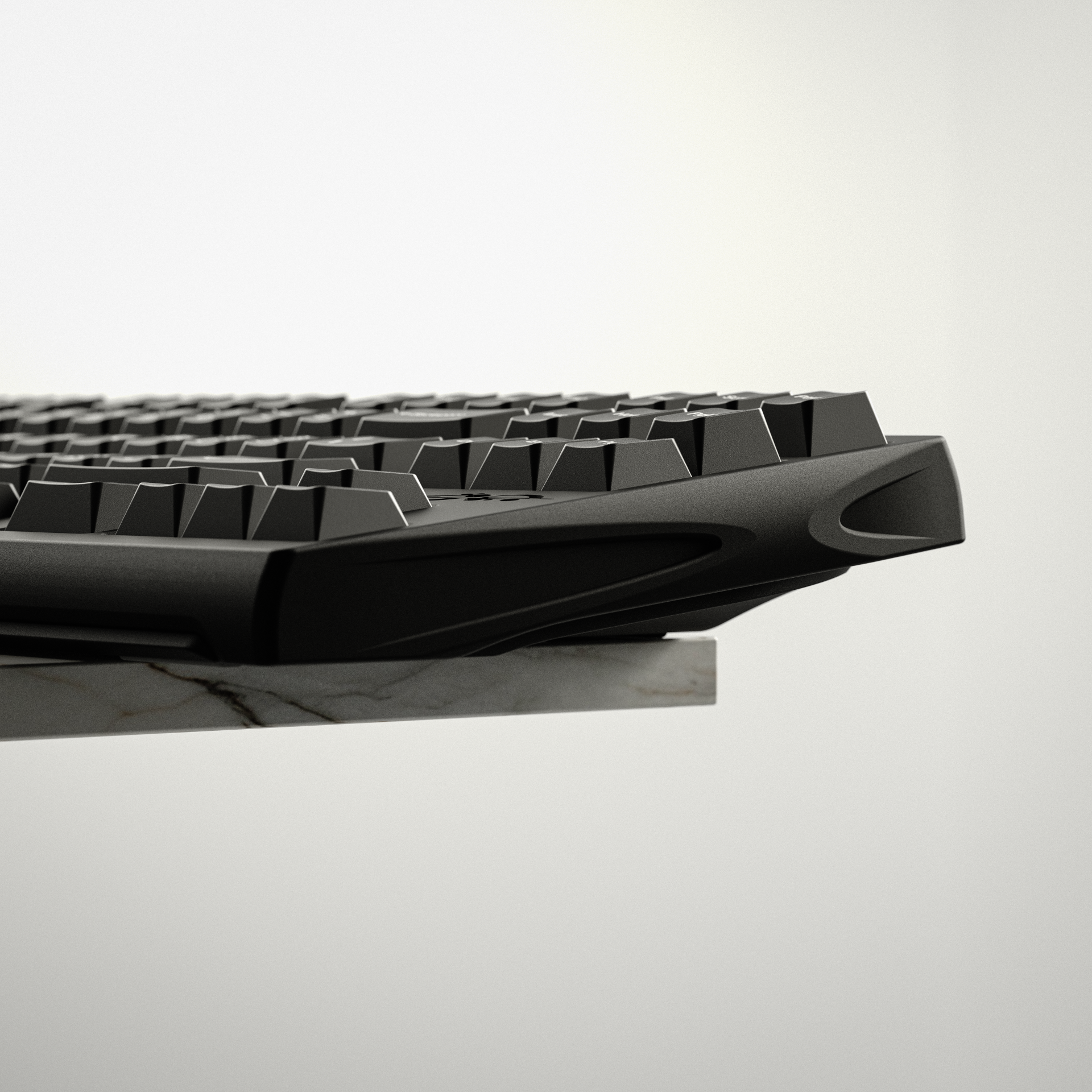

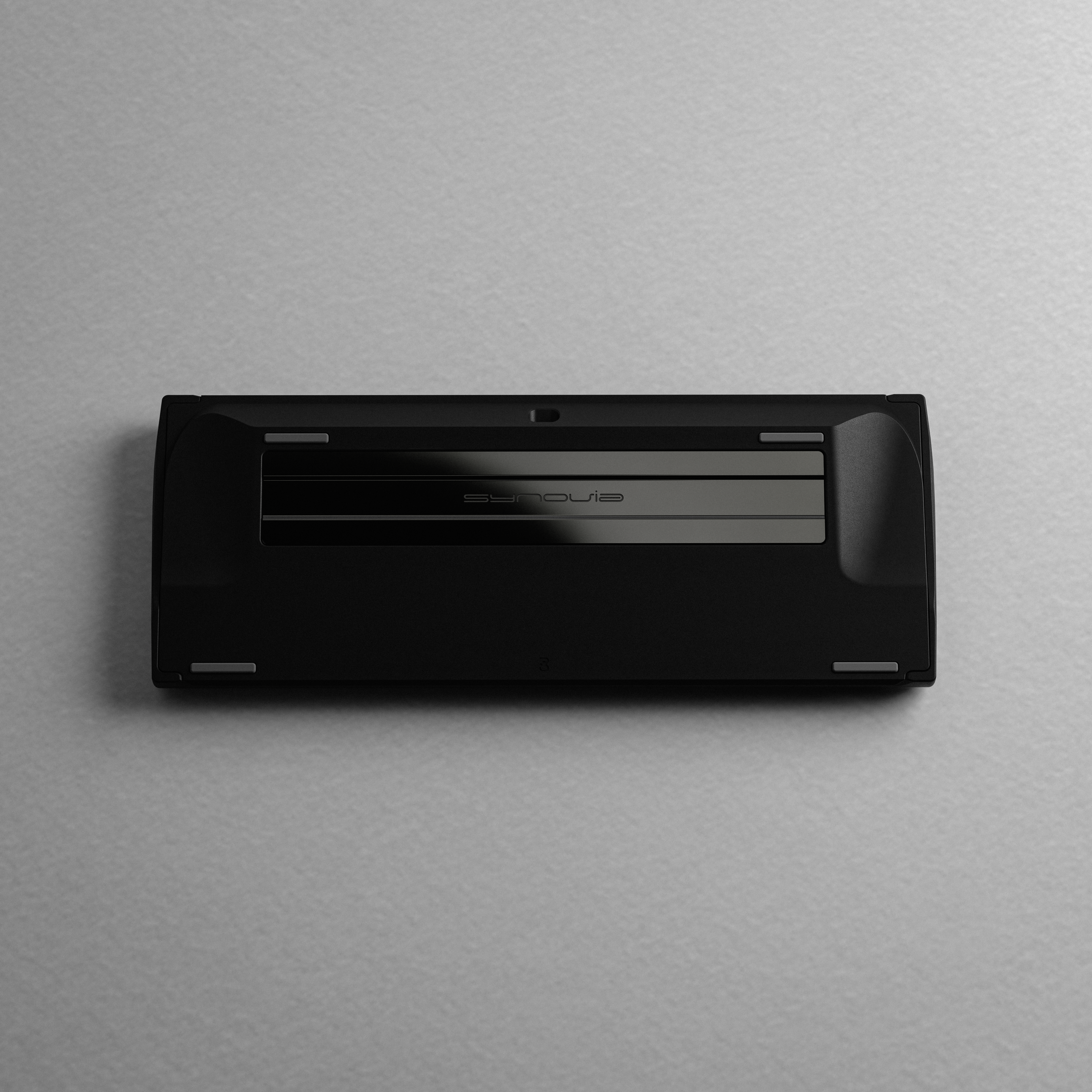

• Empty
  • Black Anodised Top Case
  • Black Anodised Bottom Case
  • Black Mirror PVD Stainless Steel Weight
