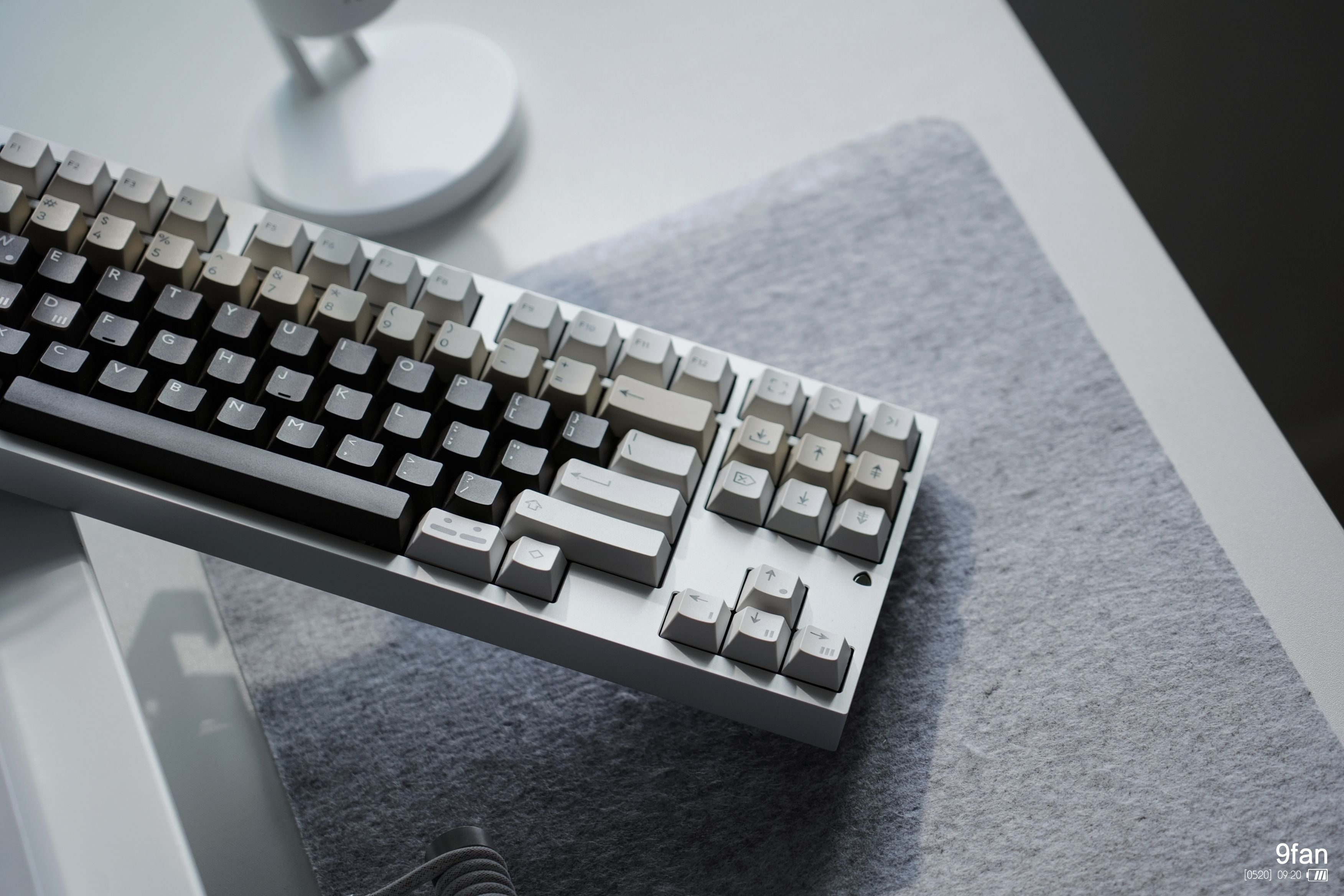

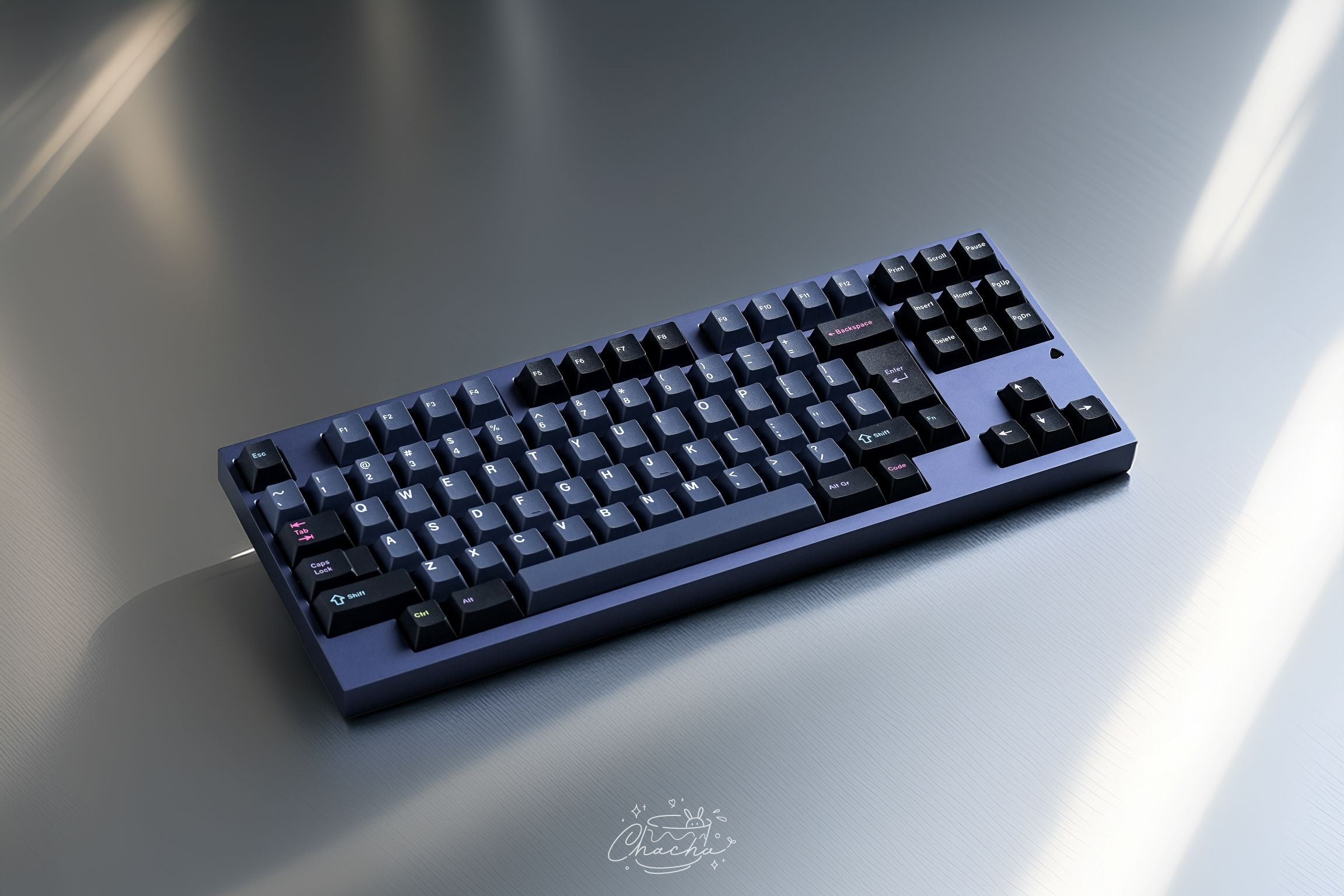

(Group Buy) Syrin TKL Keyboard Kit

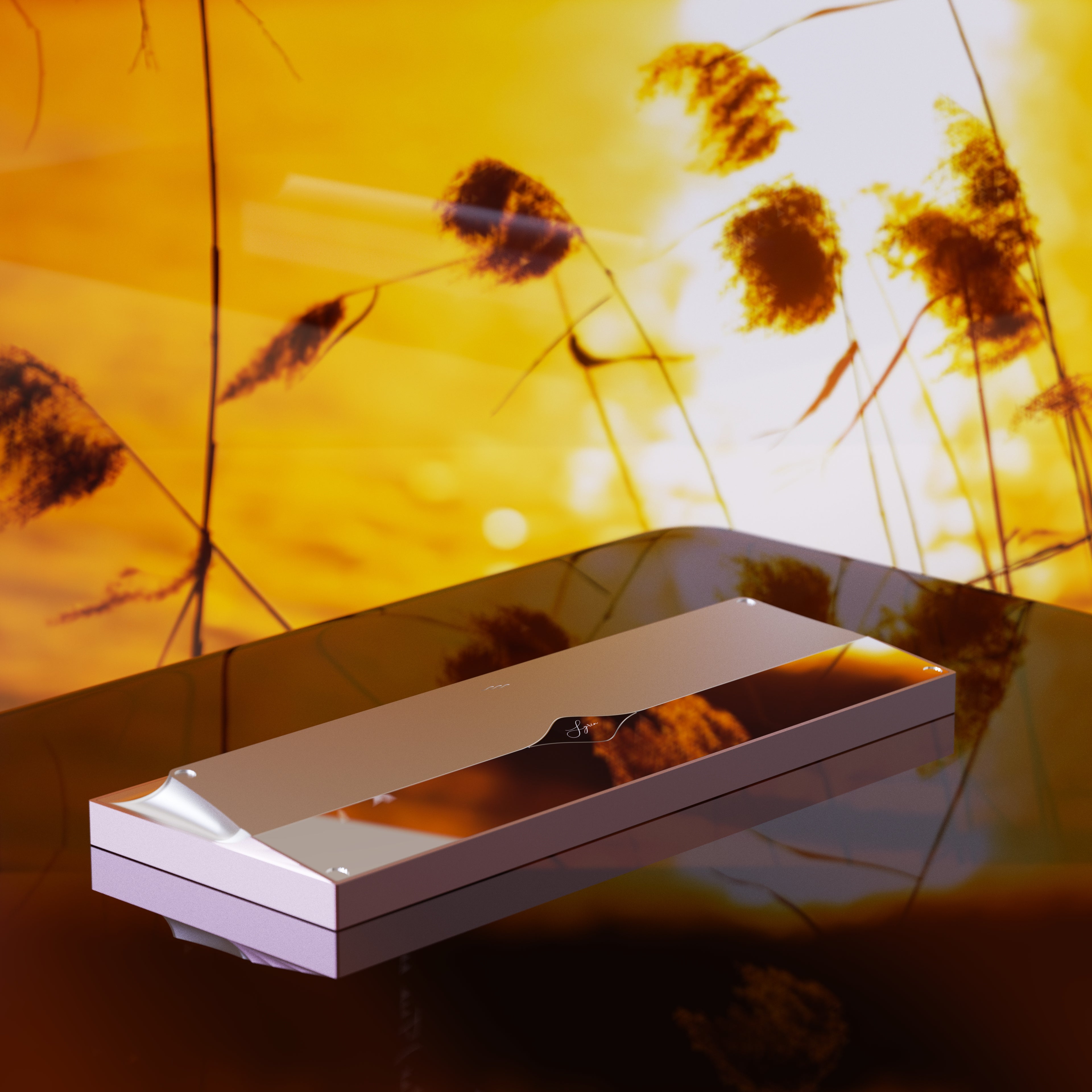

The design inspiration of this keyboard comes from "reeds" found in nature.

Production is underway, with a limited allocation to each vendor.

Addons Available Here

Introduction:

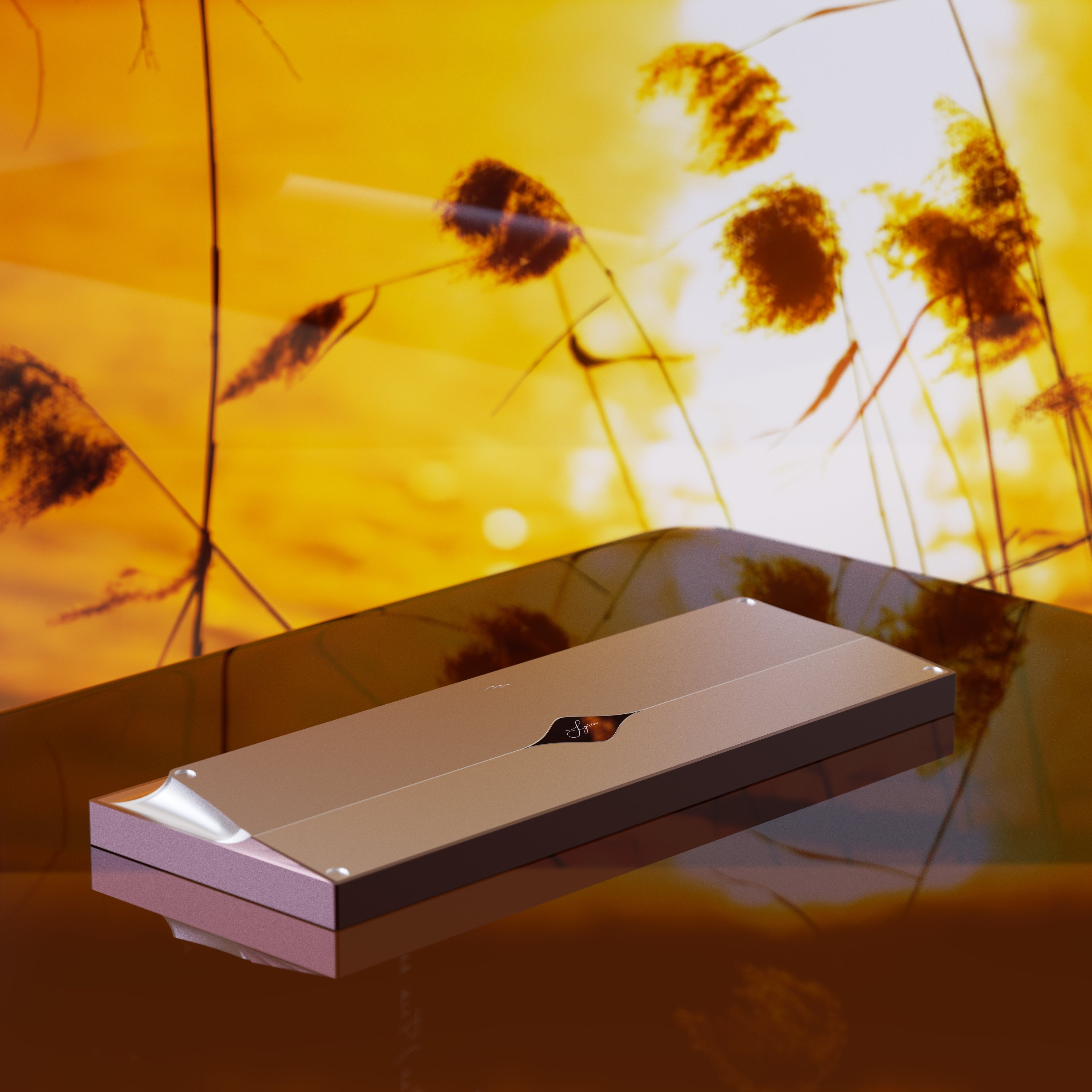

We often see it by the lake or beside the river. Its branches stand upright upwards while its leaves hang downwards. When the wind blows, its posture is particularly beautiful. We believe this state is suitable to be displayed on the side of the keyboard.

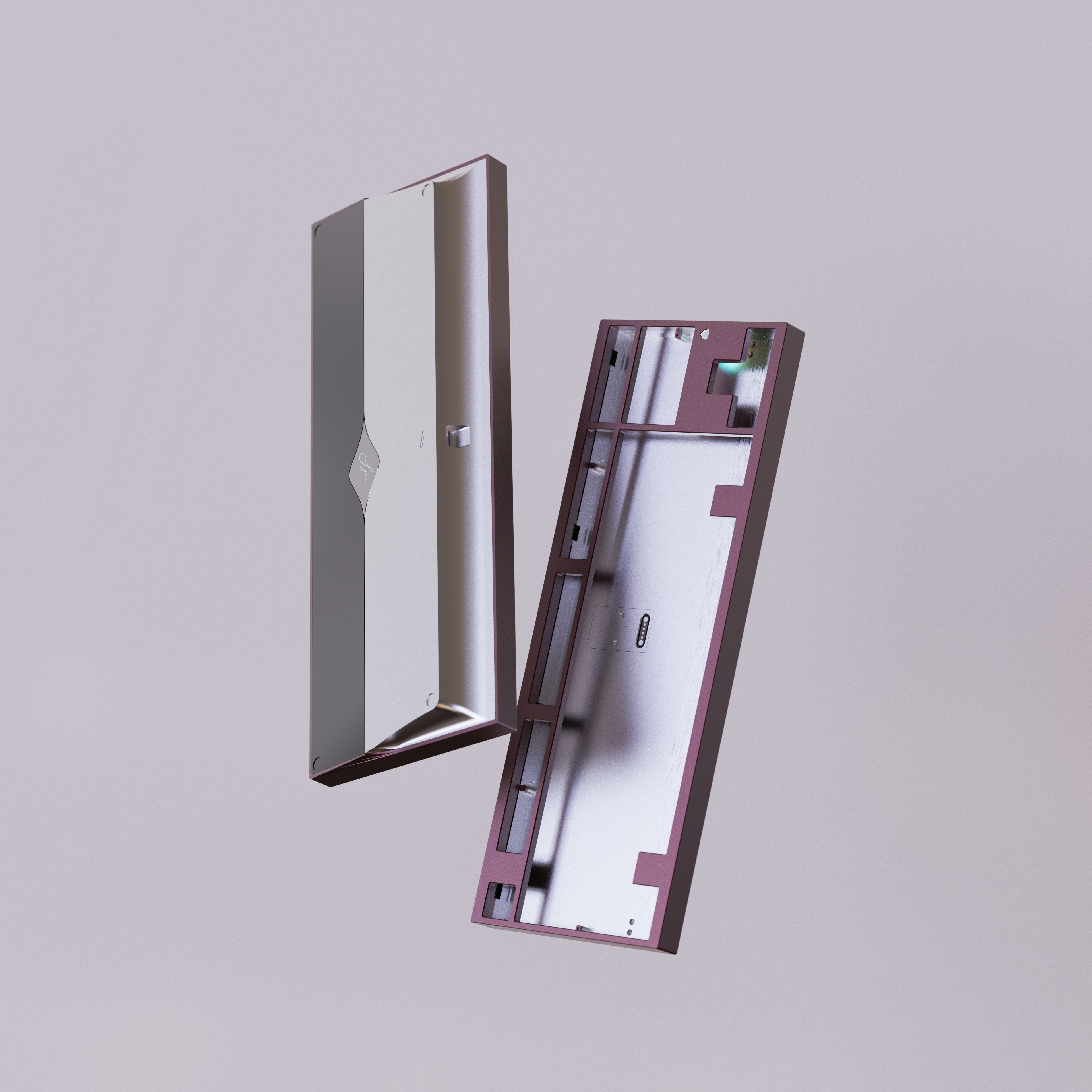

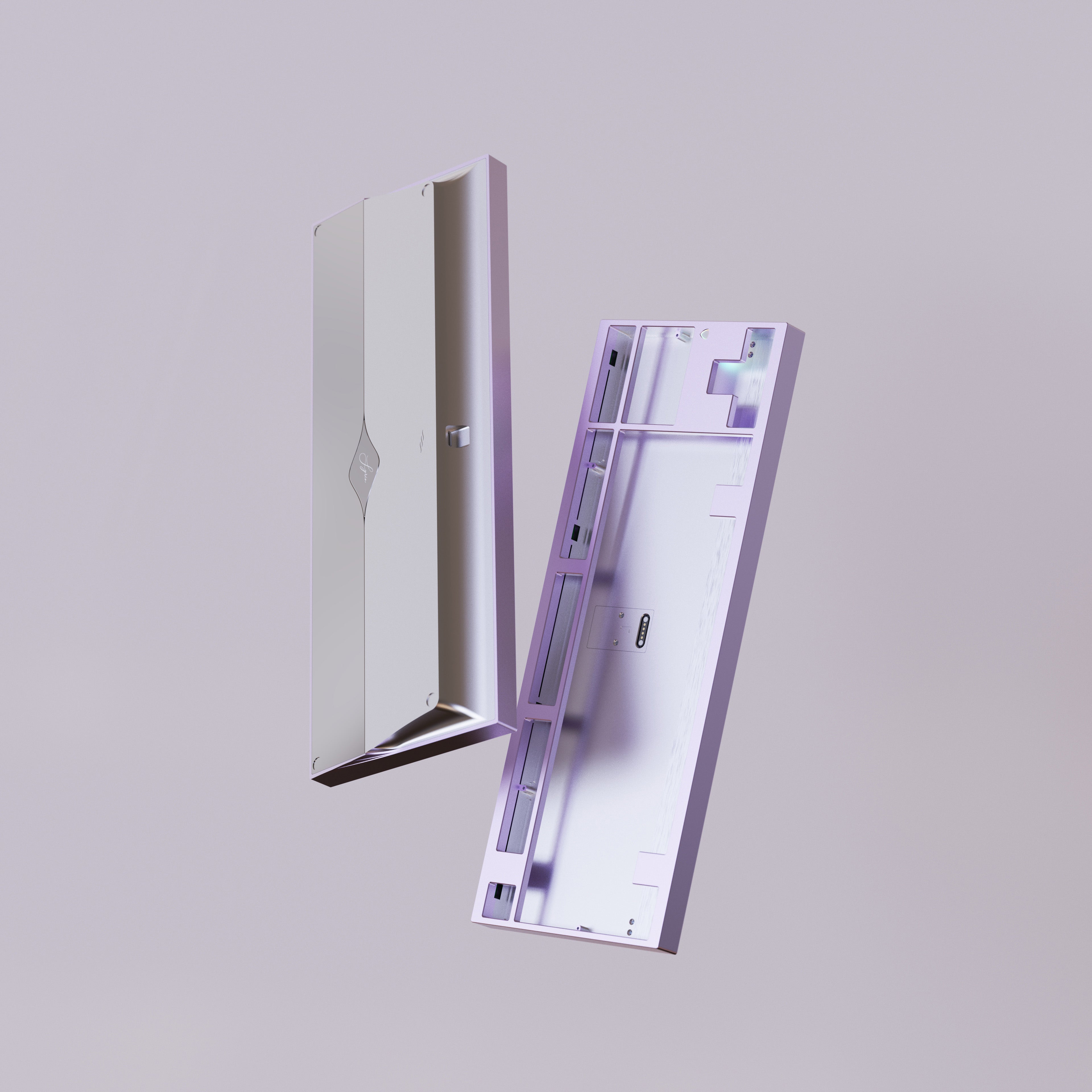

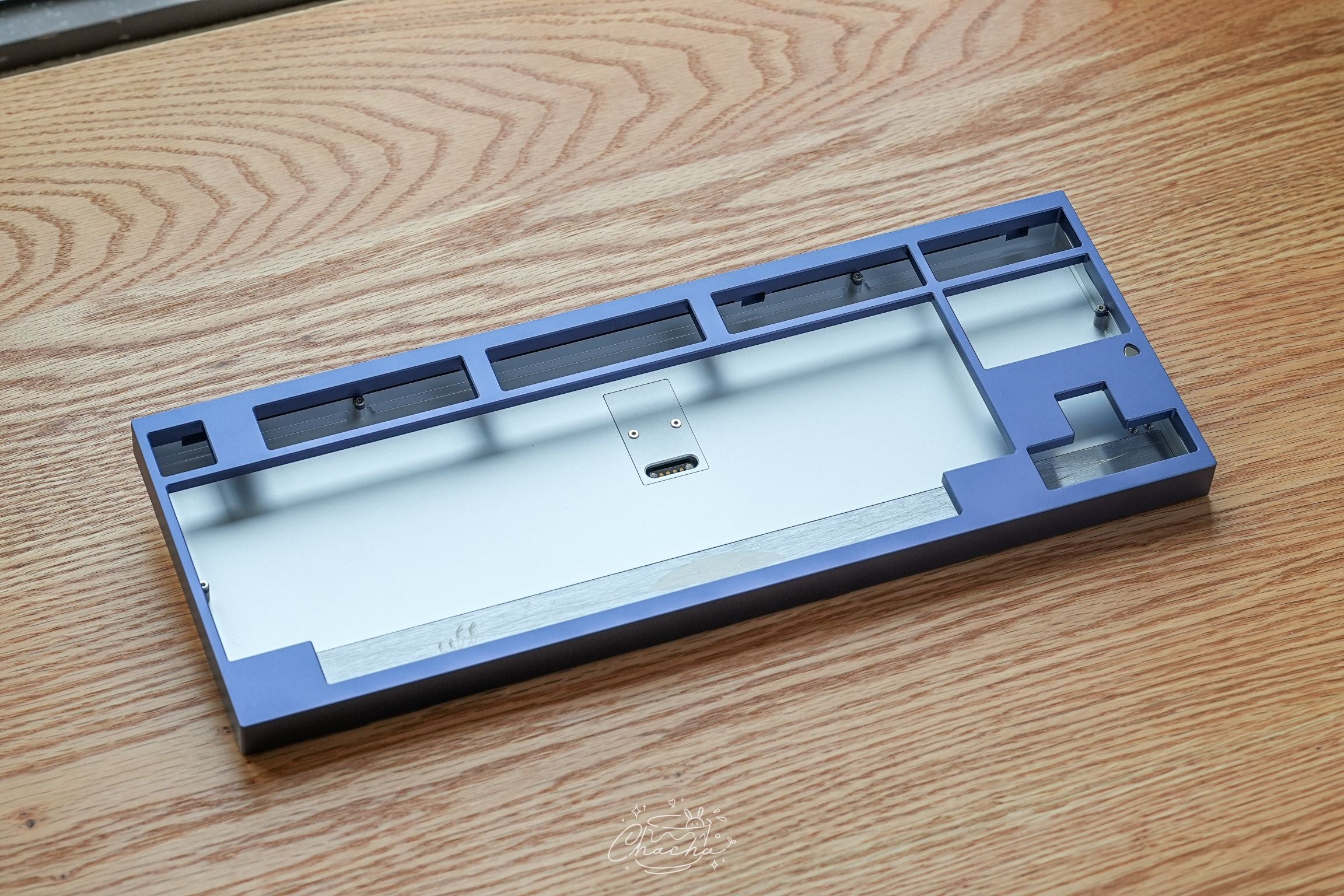

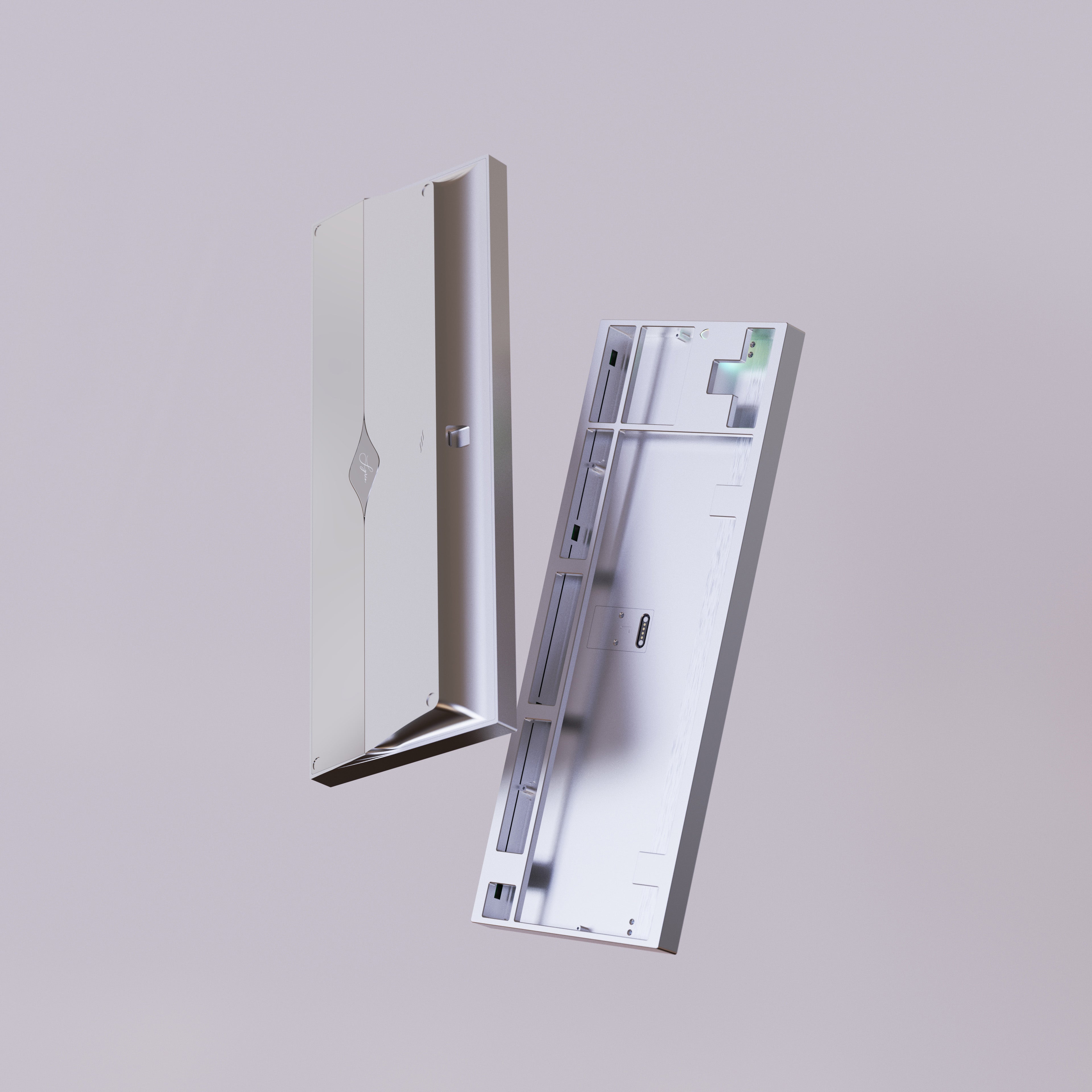

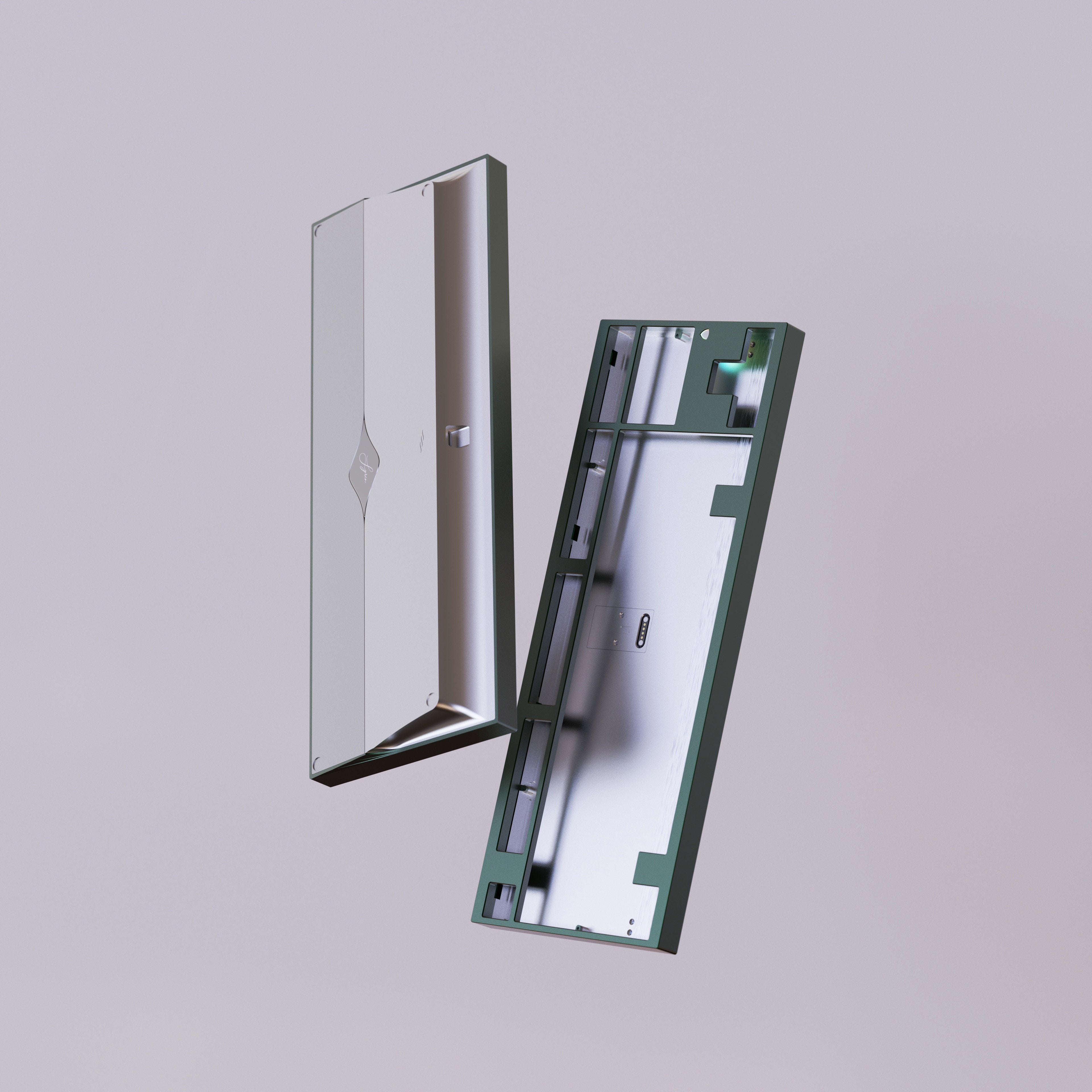

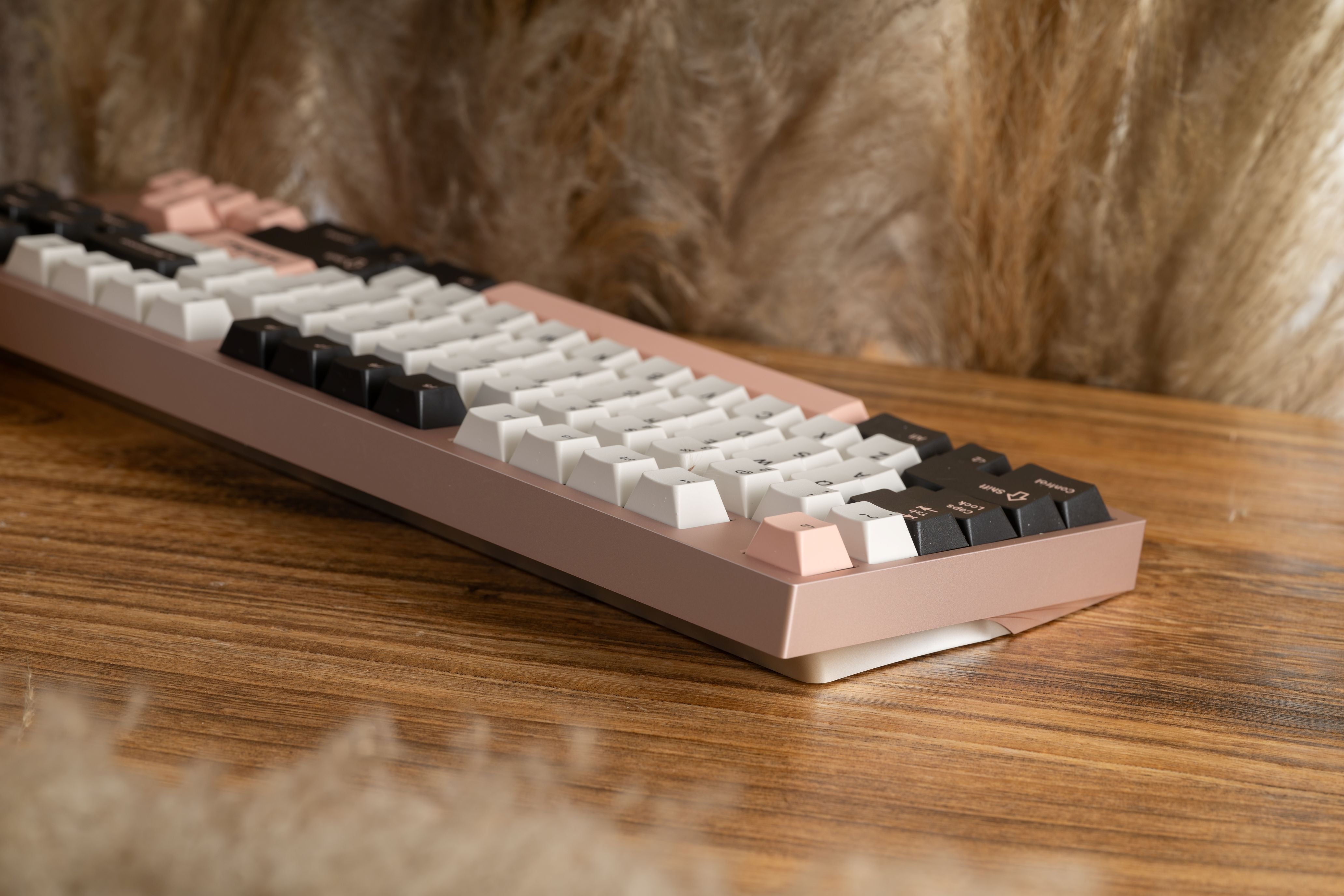

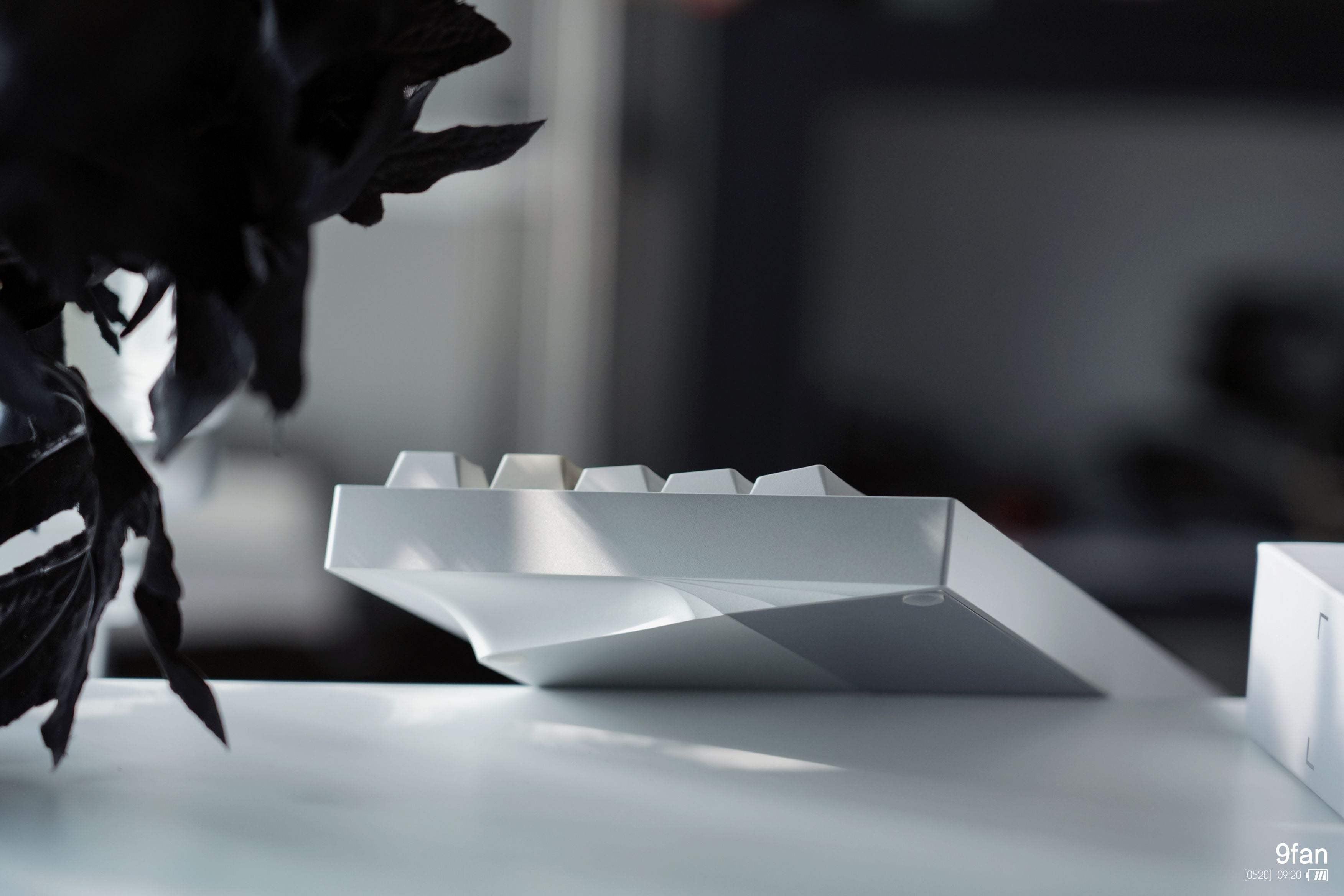

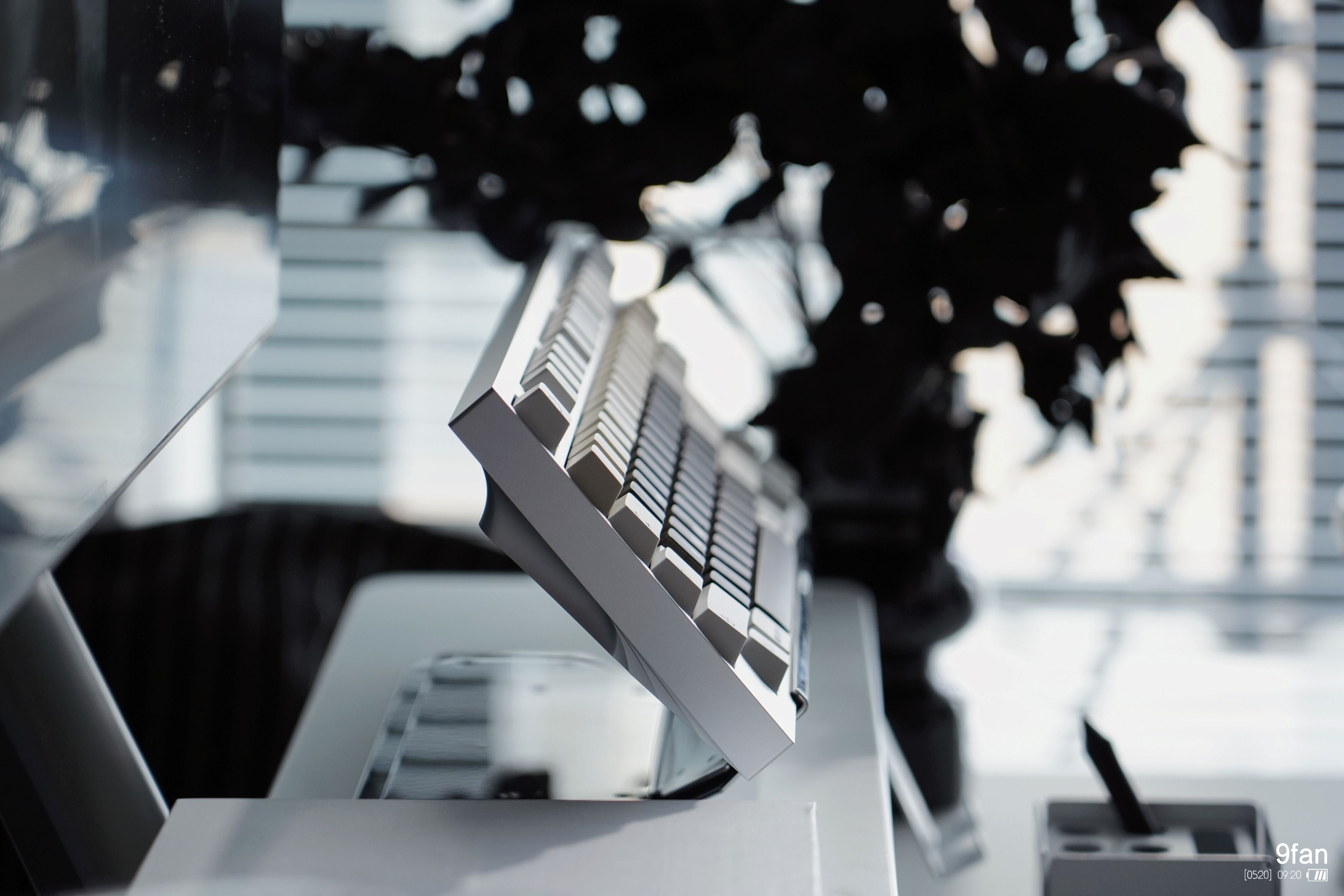

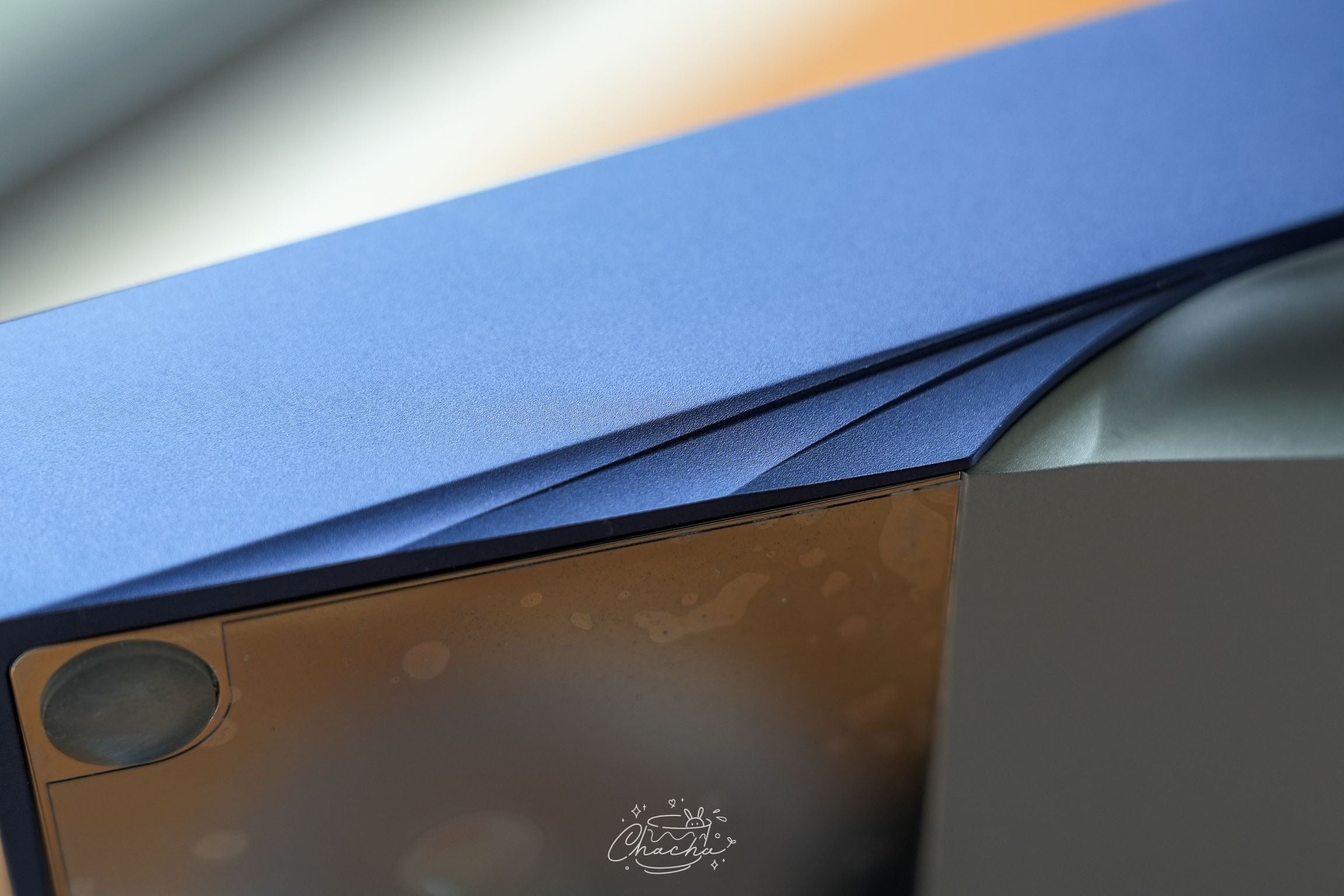

We designed the sides of the keyboard as multiple small arcs, and protruded the lines at the junction points to present the elegance of reeds. At the same time, the rear end of the keyboard is designed with an open structure, creating a tall and upright posture like reeds.

The conventional way of handling keyboard weight distribution is to place the weight at the top, but this results in an unbalanced keyboard with a heavy top and a light bottom.

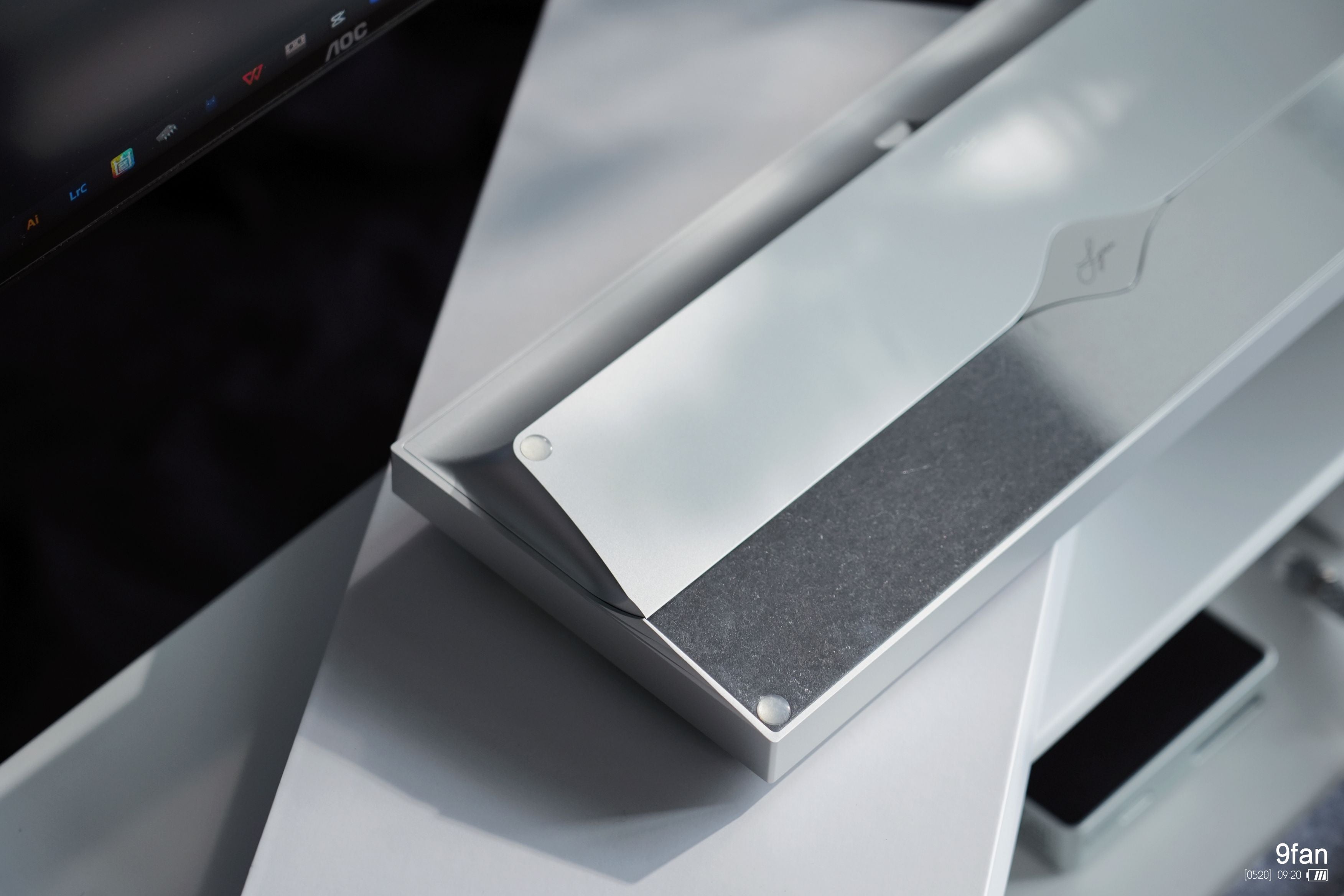

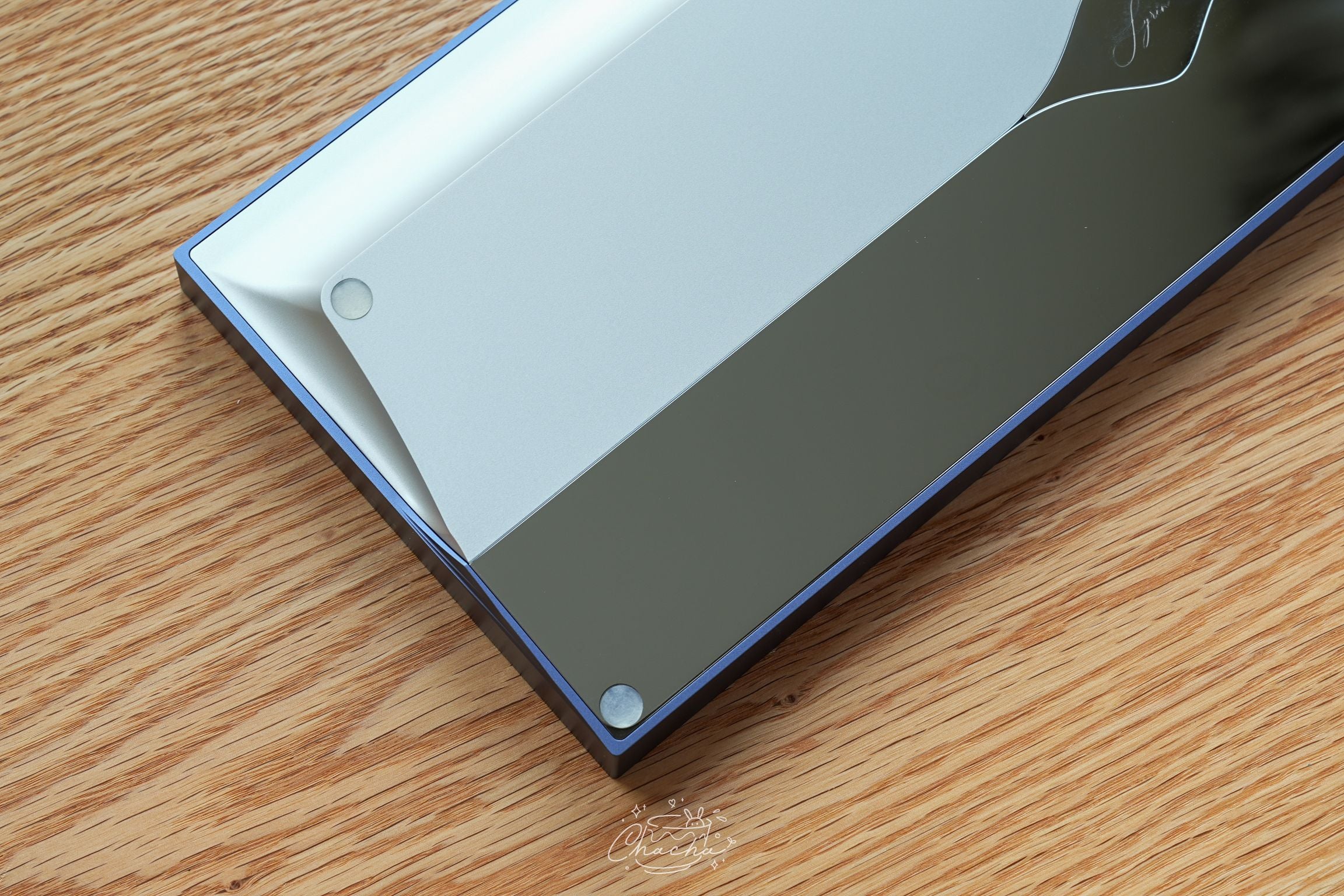

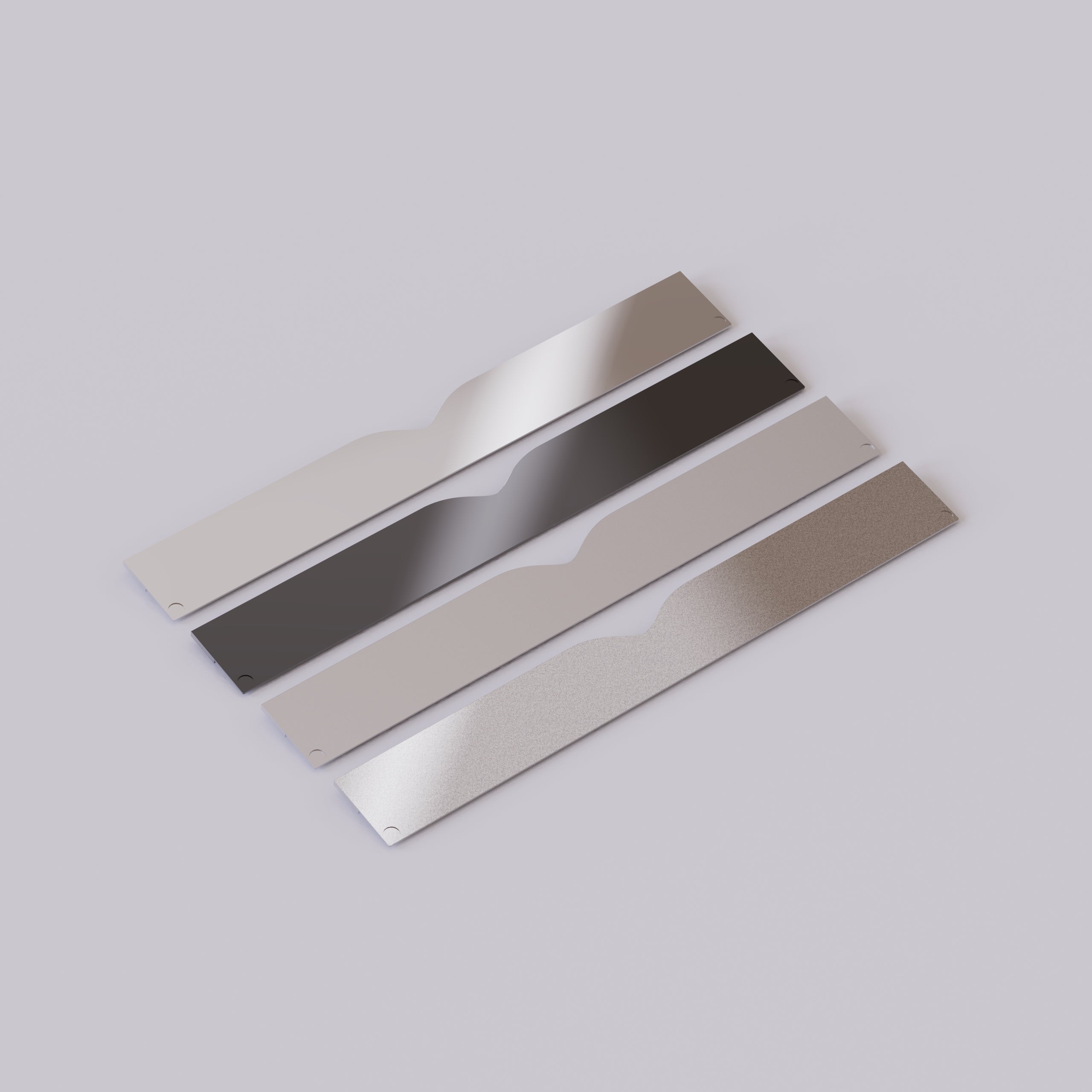

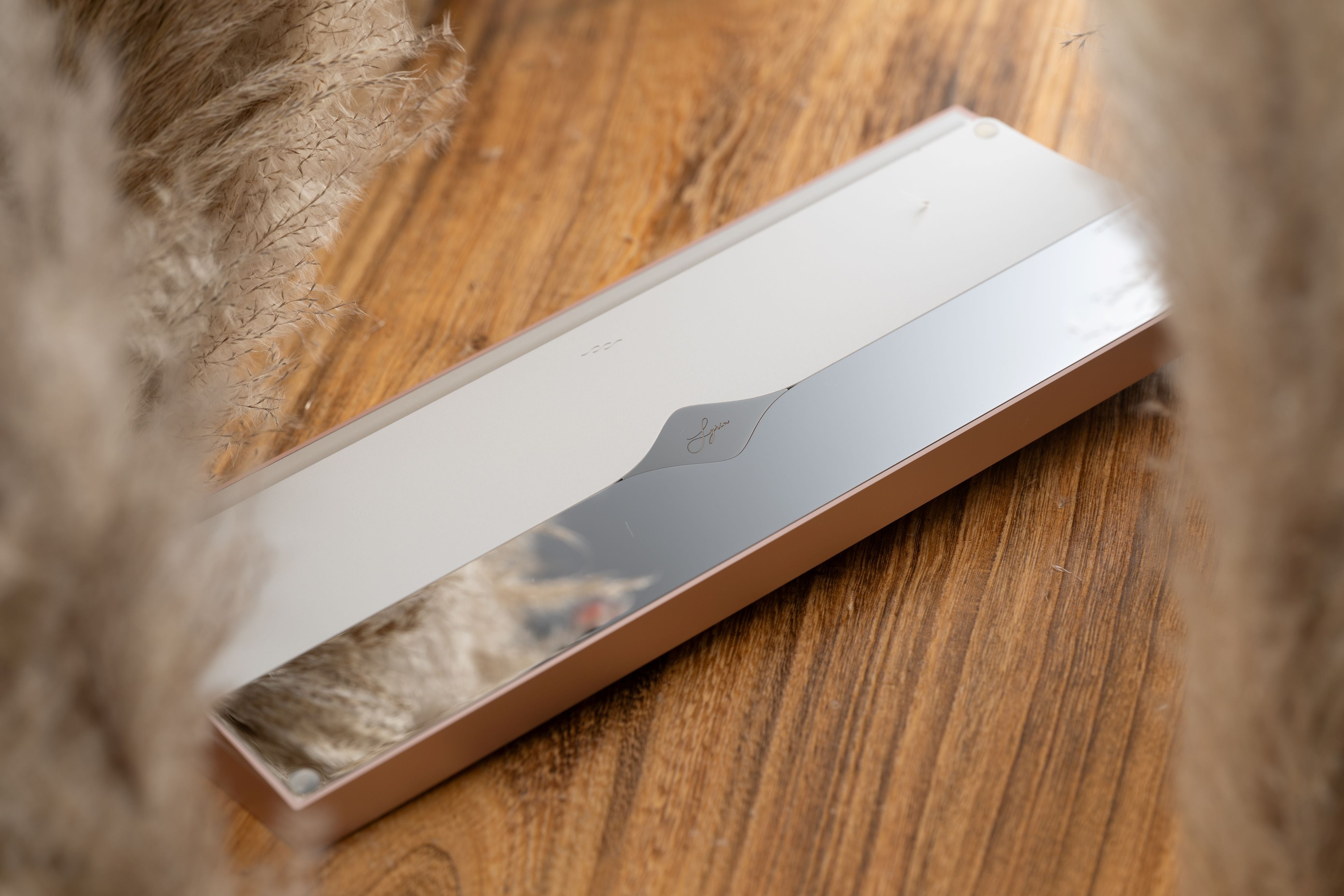

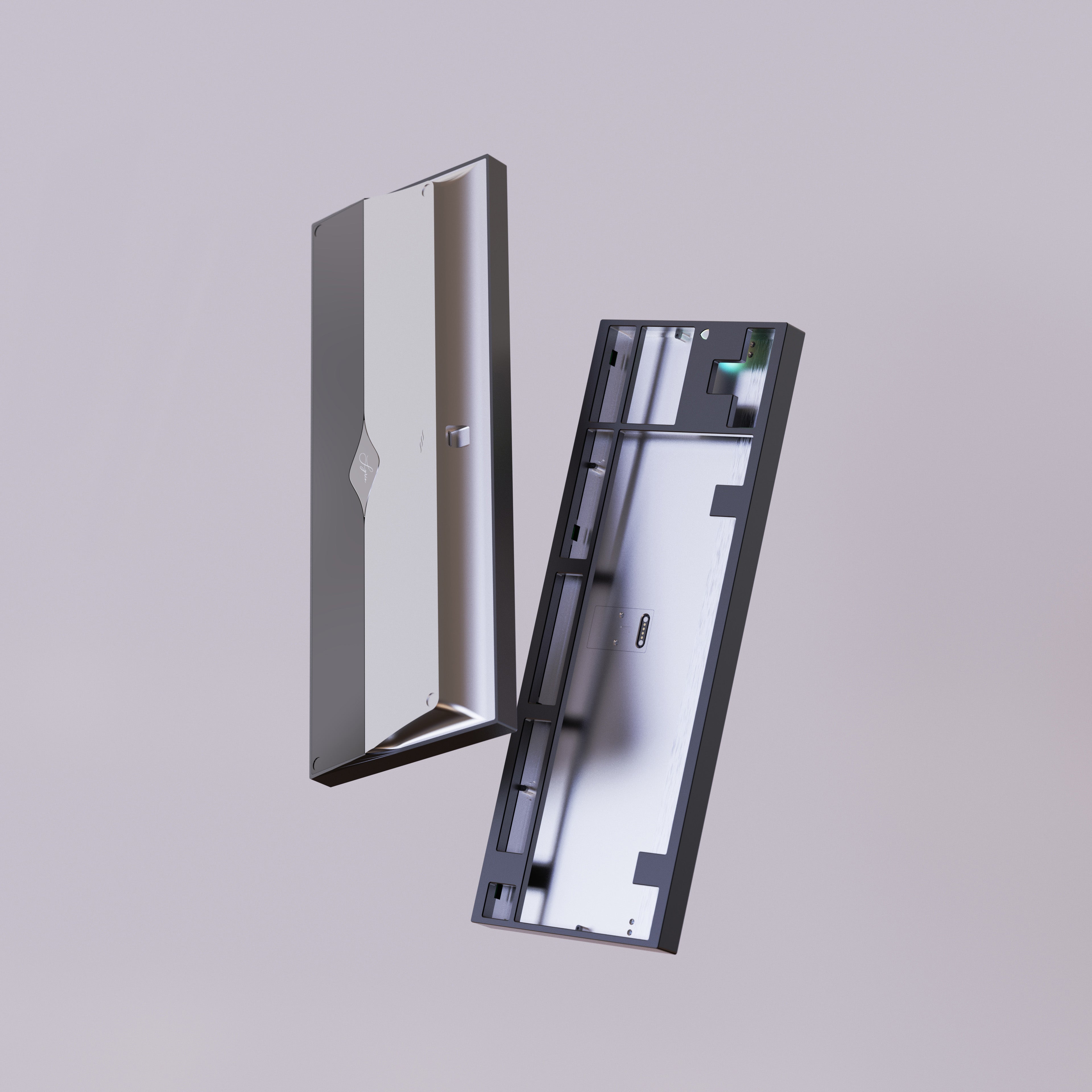

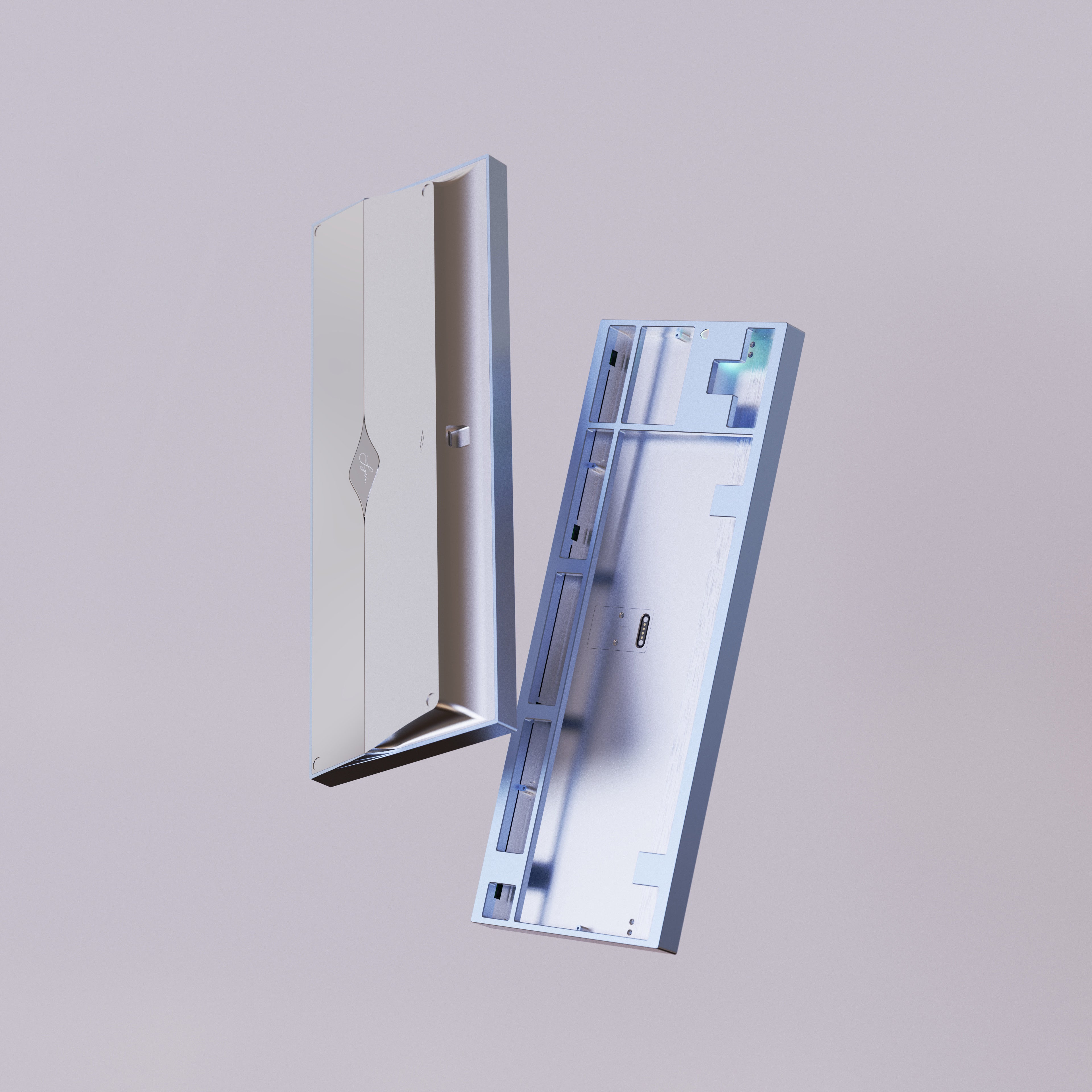

During the design phase, we aimed for visual harmony in the keyboard and to achieve a weight ratio of 50:50 for the upper and lower parts of the keyboard. Therefore, the weight was placed at the bottom of the keyboard's back.

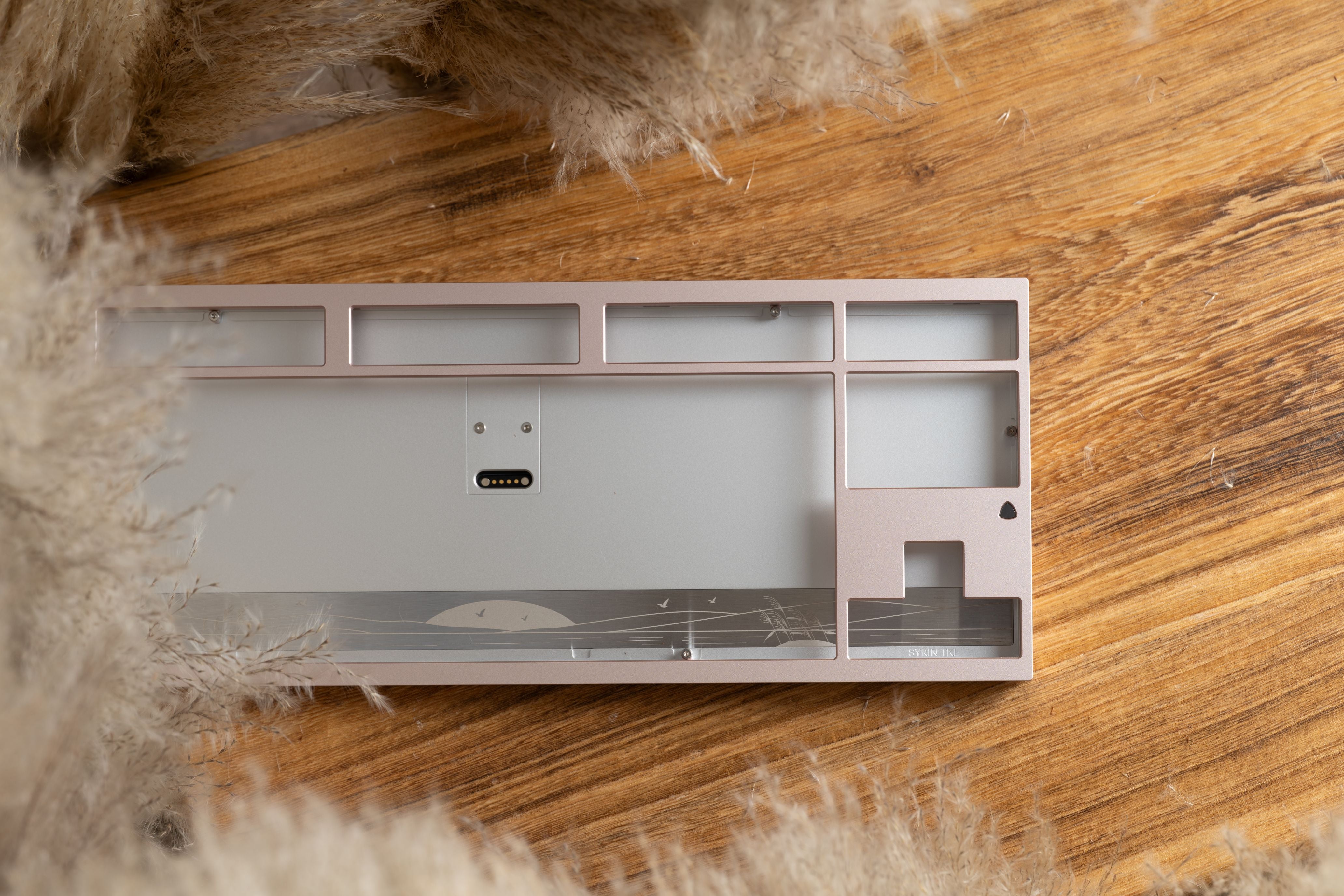

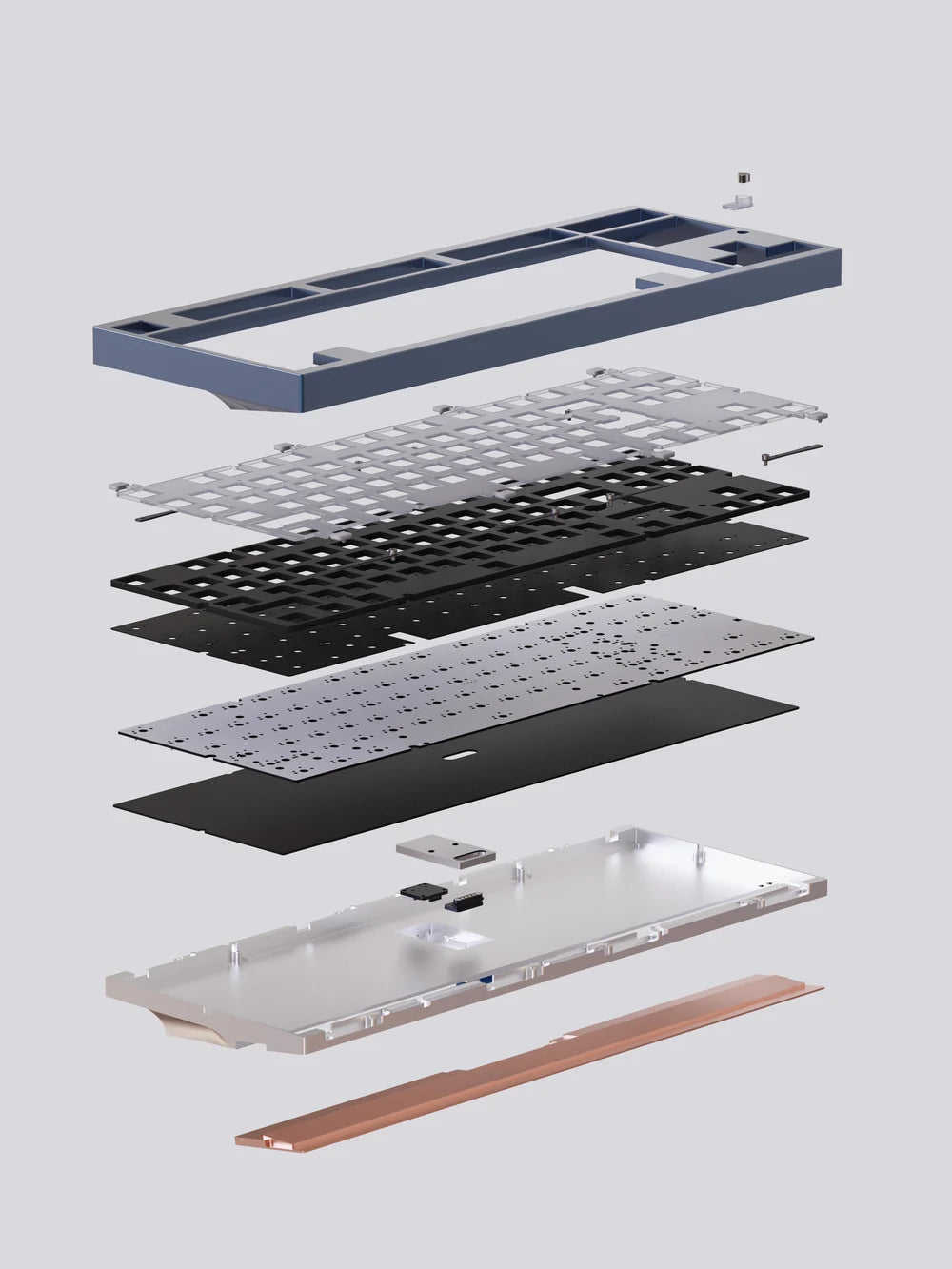

We adopted a concealed screw design and used magnetic FPC, which made the keyboard more streamlined and reduced the assembly complexity.

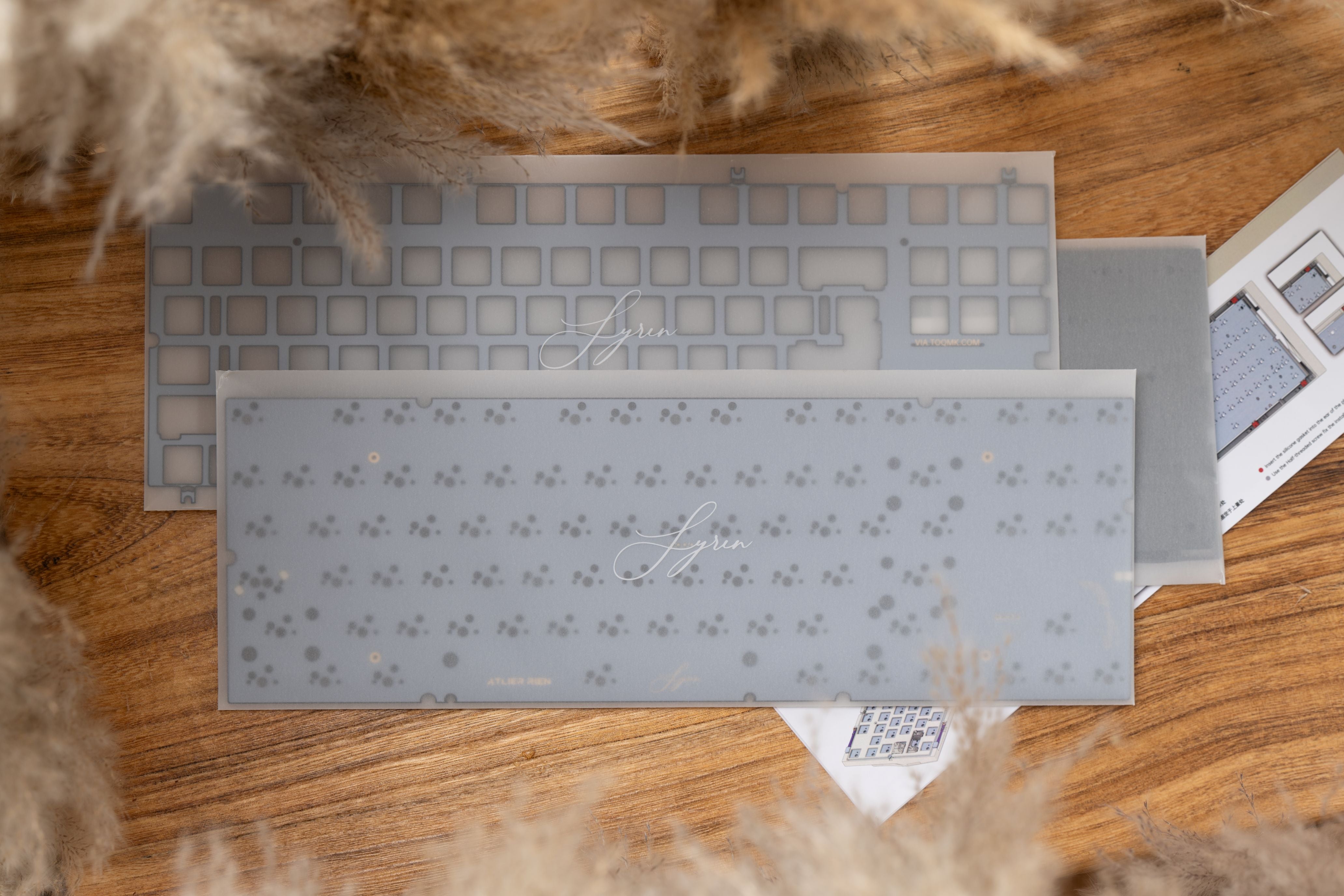

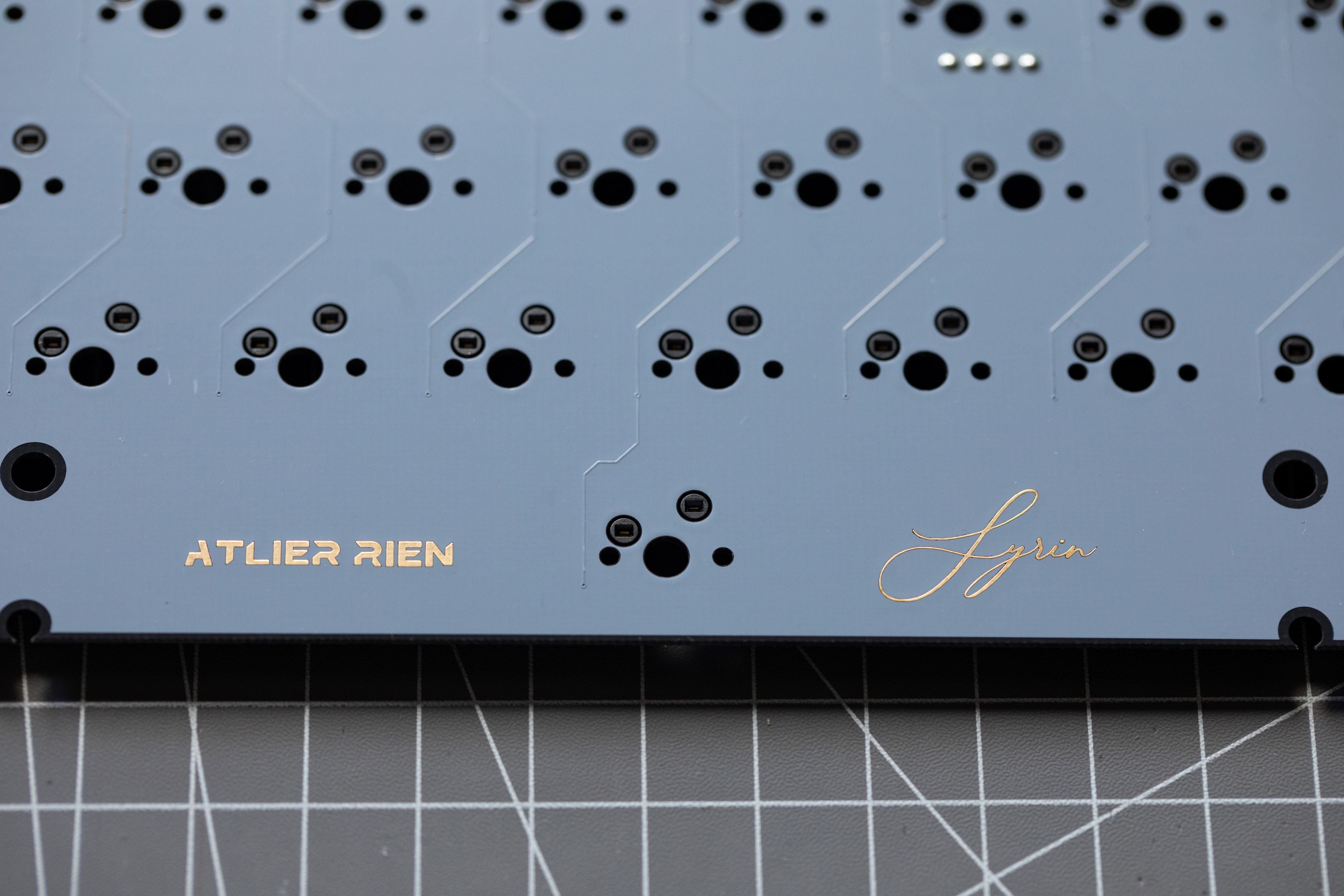

PCB Layout:

Hotswap

Solder
