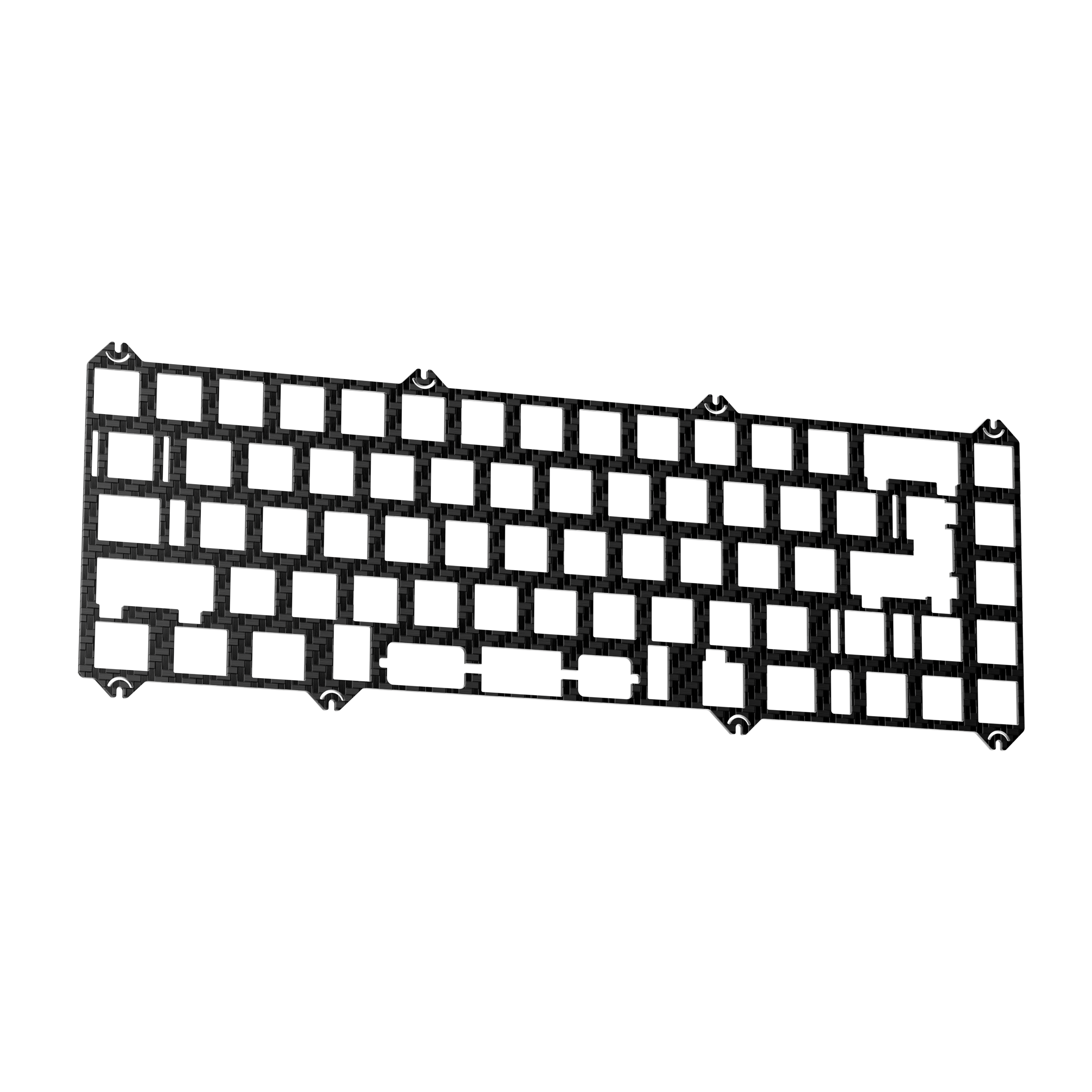

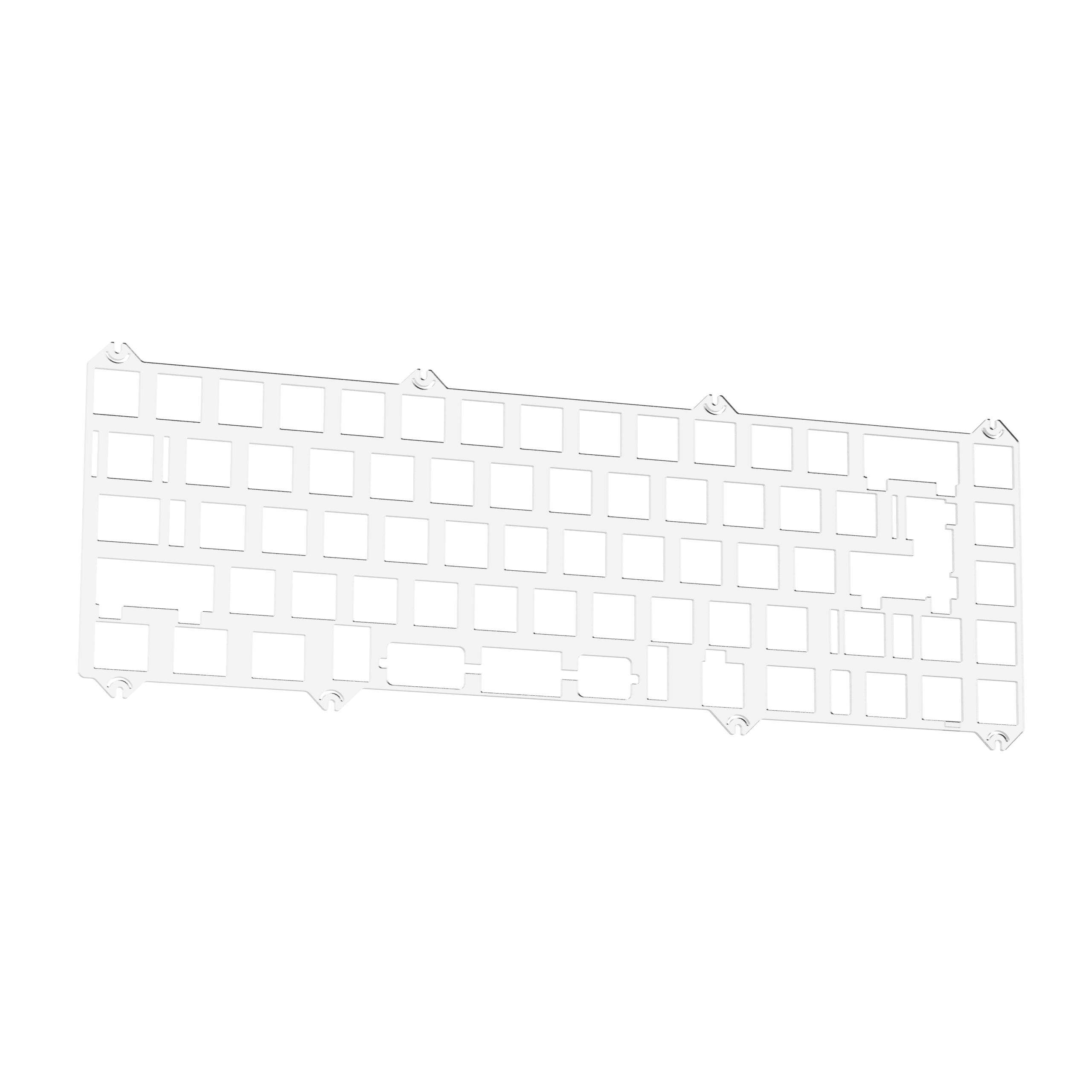

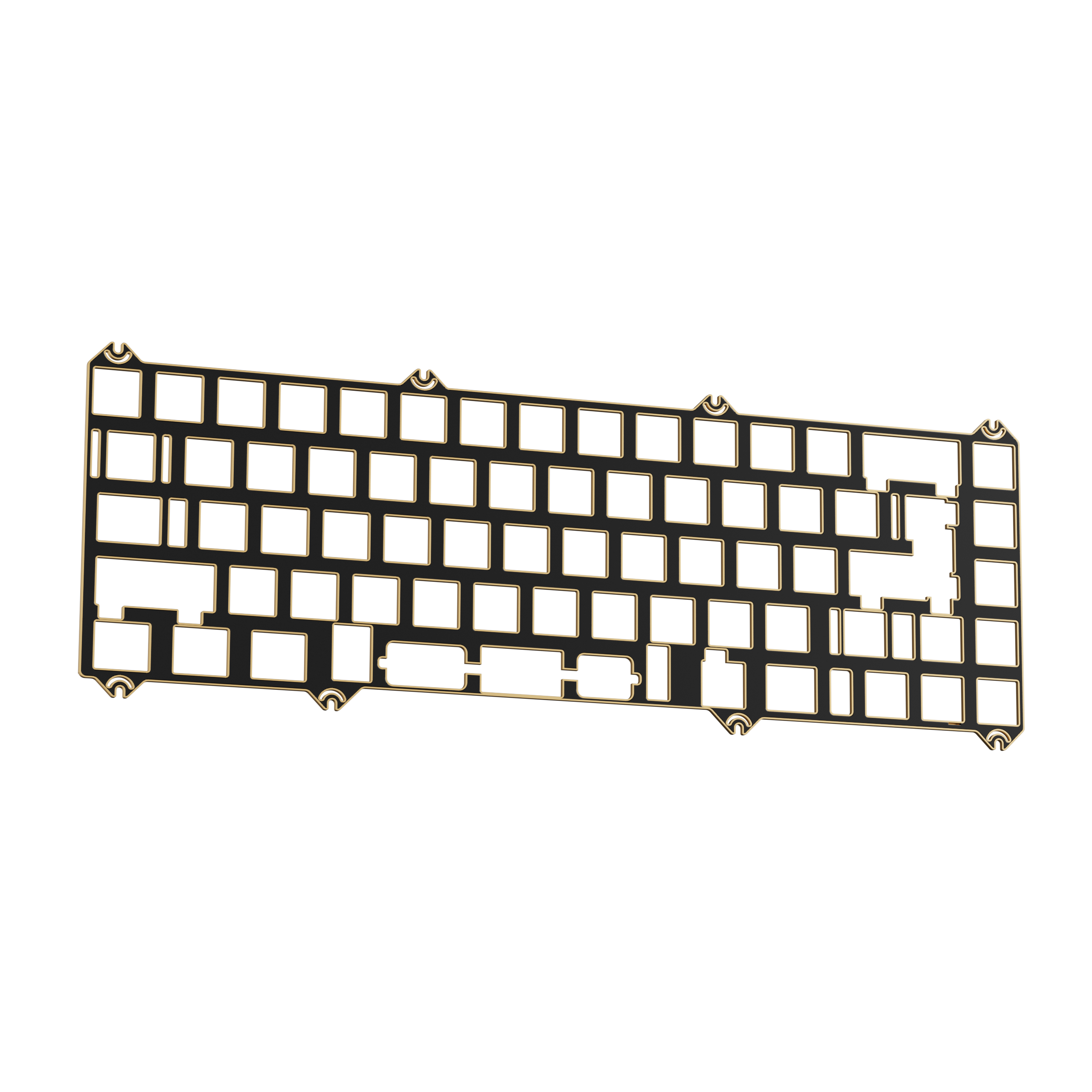

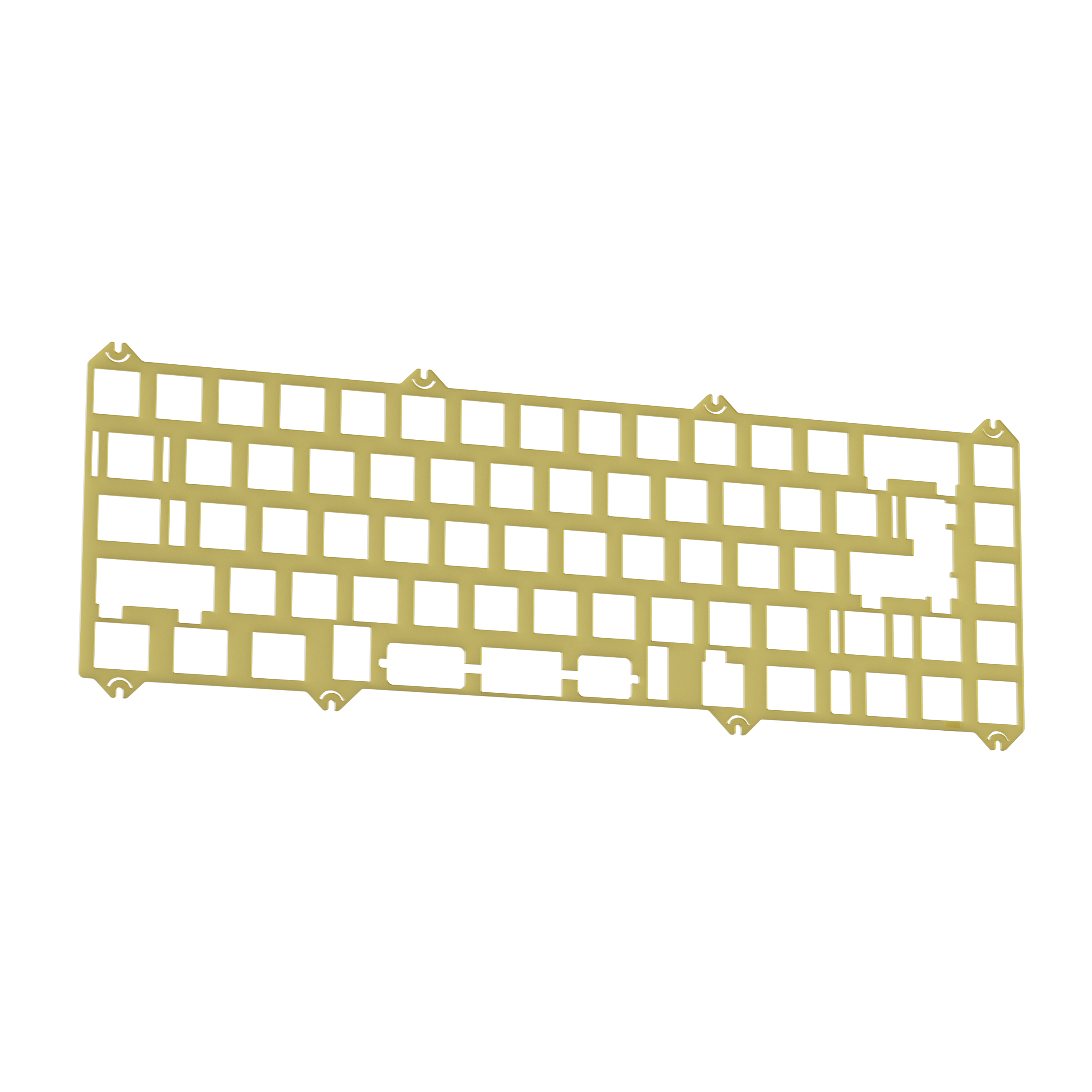

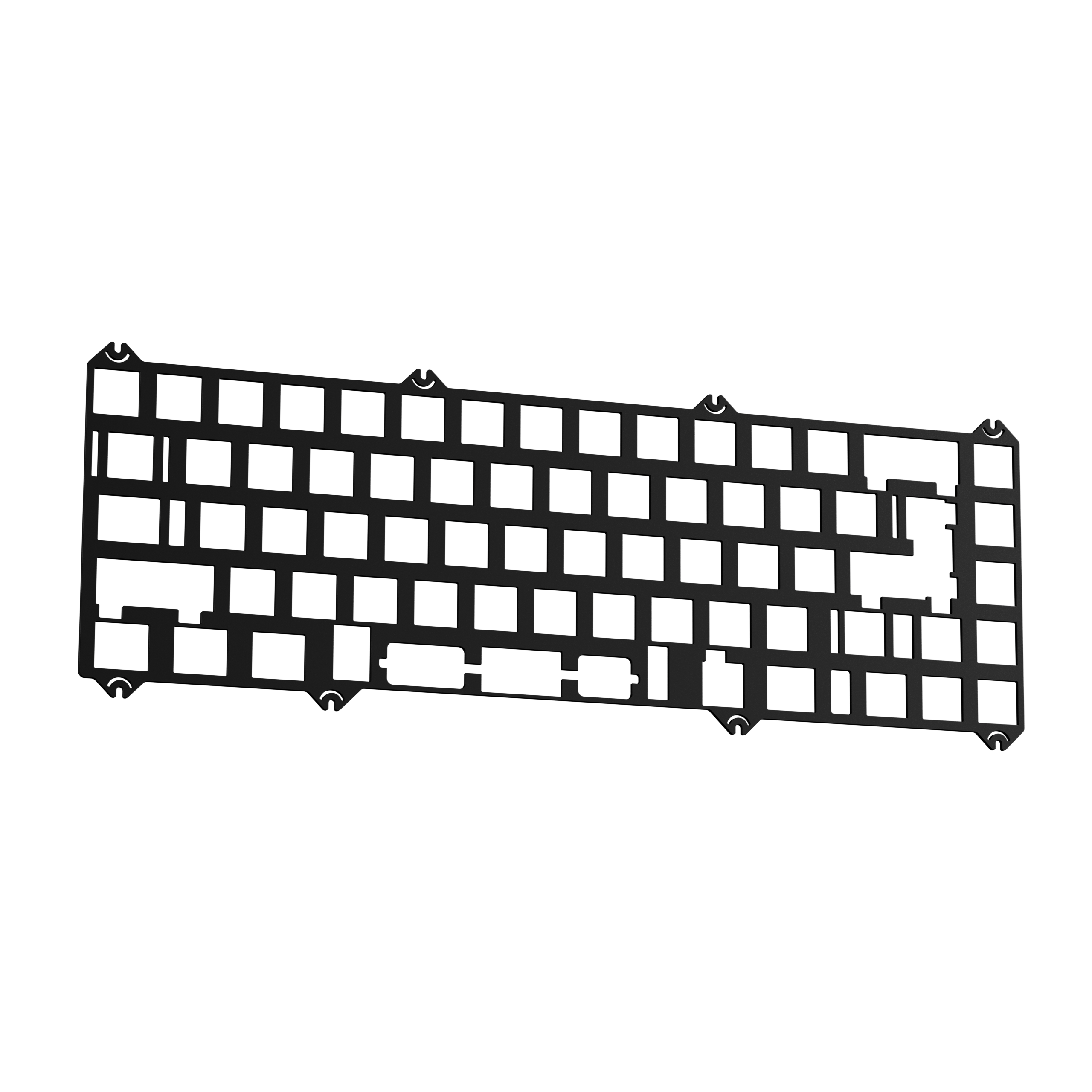

- Plates
- PCBs
- Weight Bars
- Foam Kit
PCB Options:
Wired PCB (Solder & Hot-Swap)
Dive into deep customization with support for AVA, VIAL, and VIA. The solder version also allows for a unique plateless build option.
- 1.6mm thickness
- FR4 material
- Solder version/ Hotswap version
- Magnetic connector PCB
- Json file：ydkb_kbdfans_tofu65_3_0_via.json
- Firmware: ydkb_kbdfans_tofu65_3_0_vial.uf2

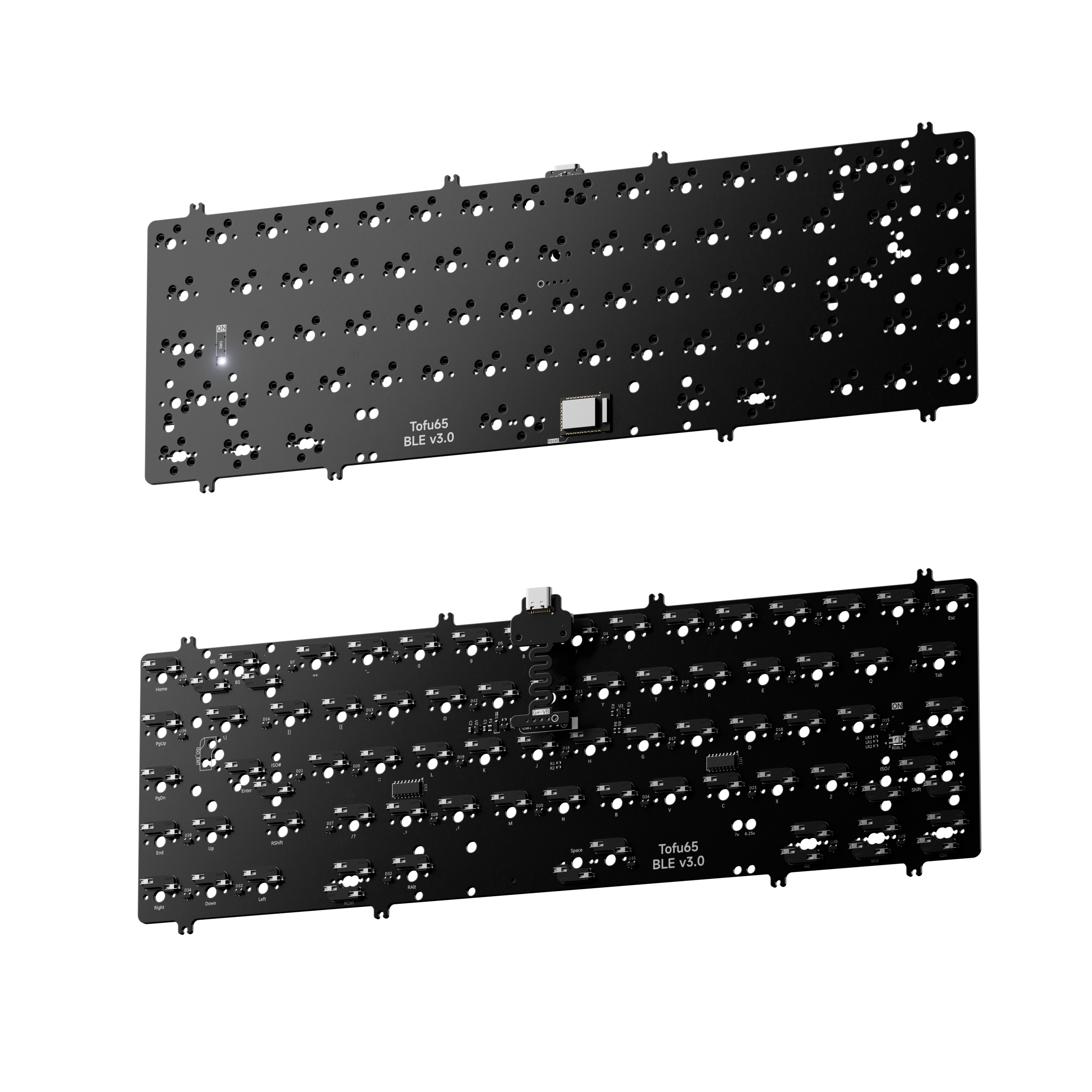

Dual-Mode PCB
Experience the freedom of wireless with our first-ever dual-mode board powered by ZMK. Its ultra-low power consumption delivers an incredible 6+ months of battery life from a single 1000mAh battery.
- 1.6mm thickness
- FR4 material
- Hotswap version
- Magnetic connector PCB
Layout Support:
QC Standard:
- Upon receipt, the casing is considered acceptable if all six external surfaces (top, bottom, left, right, front, and back) are free from machining marks, stains, dents, and pinholes, and do not have any black dots larger than 1mm or scratches longer than 1mm.
- The copper weight is considered acceptable if it does not have any black dots, pinholes, or blemishes larger than 1mm, and no scratches longer than 2mm.
- Flaws and manufacturing artifacts that do not affect the overall external appearance are considered reasonable. This includes, but is not limited to: minor blemishes around screw holes, uneven internal coating, hook marks (from anodizing/painting) where the base color is exposed, and water marks, tool marks, or scratches on internal surfaces. Purchasing this product means you accept these terms.
- Due to the significant weight difference between the top and bottom case parts, there may be slight color variations even when the same color is chosen for both.
-
Standards for RAW Finish
The RAW version is unanodized and uncoated. It preserves the original look of the machined metal, including natural tool marks.Acceptable Quality Standards (Not covered by warranty):
1. Minor scratches, tool paths, and small speck-like imperfections.
2. Variations in surface reflection or slight dark spots on the raw metal.(RAW products are not sold as "flawless." By purchasing, you acknowledge and accept the inherent characteristics of this manufacturing process.)
