(Group Buy) Toro60 Keyboard Kit

Closing Date: March 15th 2025

Expected Shipping time: Q2/Q3 2025

Introdution:

After a year of love and dedication, we are delighted to present Toro60. This keyboard is not just another design—it's a tribute to our studio’s beloved mascot, Toro the Shiba Inu. Every detail has been carefully crafted to capture the spirit of our furry friend, and we can't wait for you to see it!

Addons Available Here

Design Inspitation:

As our first keyboard project, the toro60 features a unique layout with a modified Chinese win-keyless blocker and an exploded 6.25u spacebar—designed to be as functional as it is stylish. While fairly unique, we feel that the layout is practical enough to use with any keycap kit.

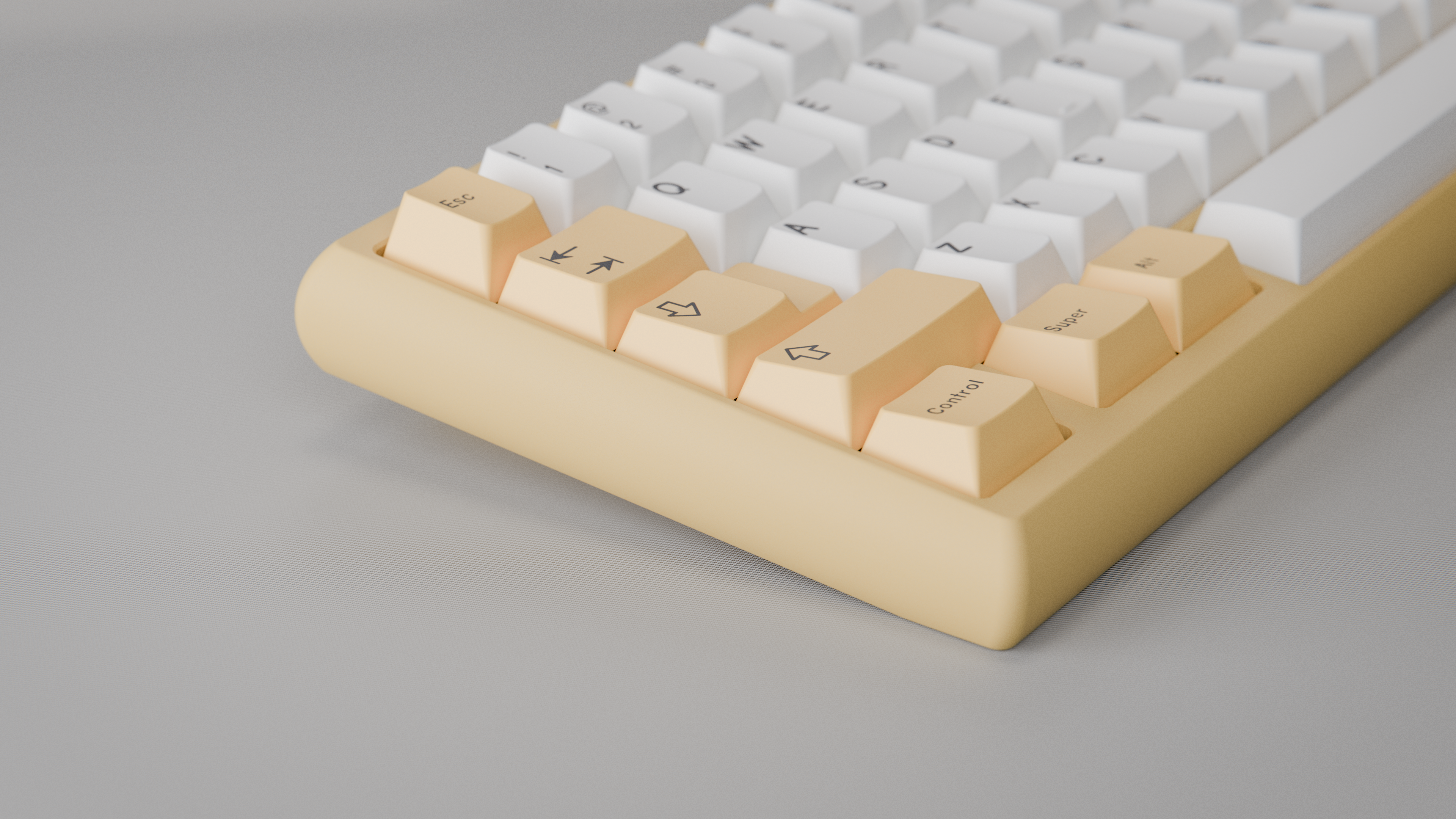

To ensure comfort for all users, the toro60 comes with a 7-degree typing angle and a 16mm front height, perfect for long typing sessions.

For the mounting style, we chose a top mount. It is an old classic mount that works like a champ. We cose it for its nice, even typing experience and great acoustics.

The case design is where things get interesting. We went all-in on curves, making the entire case sleek and smooth. All those curves help you visualise how chonky Toro is.

To keep the exterior clean and minimalist, we opted for the hidden screw utilising 4 internal M2 screws to hold the top and bottom together.

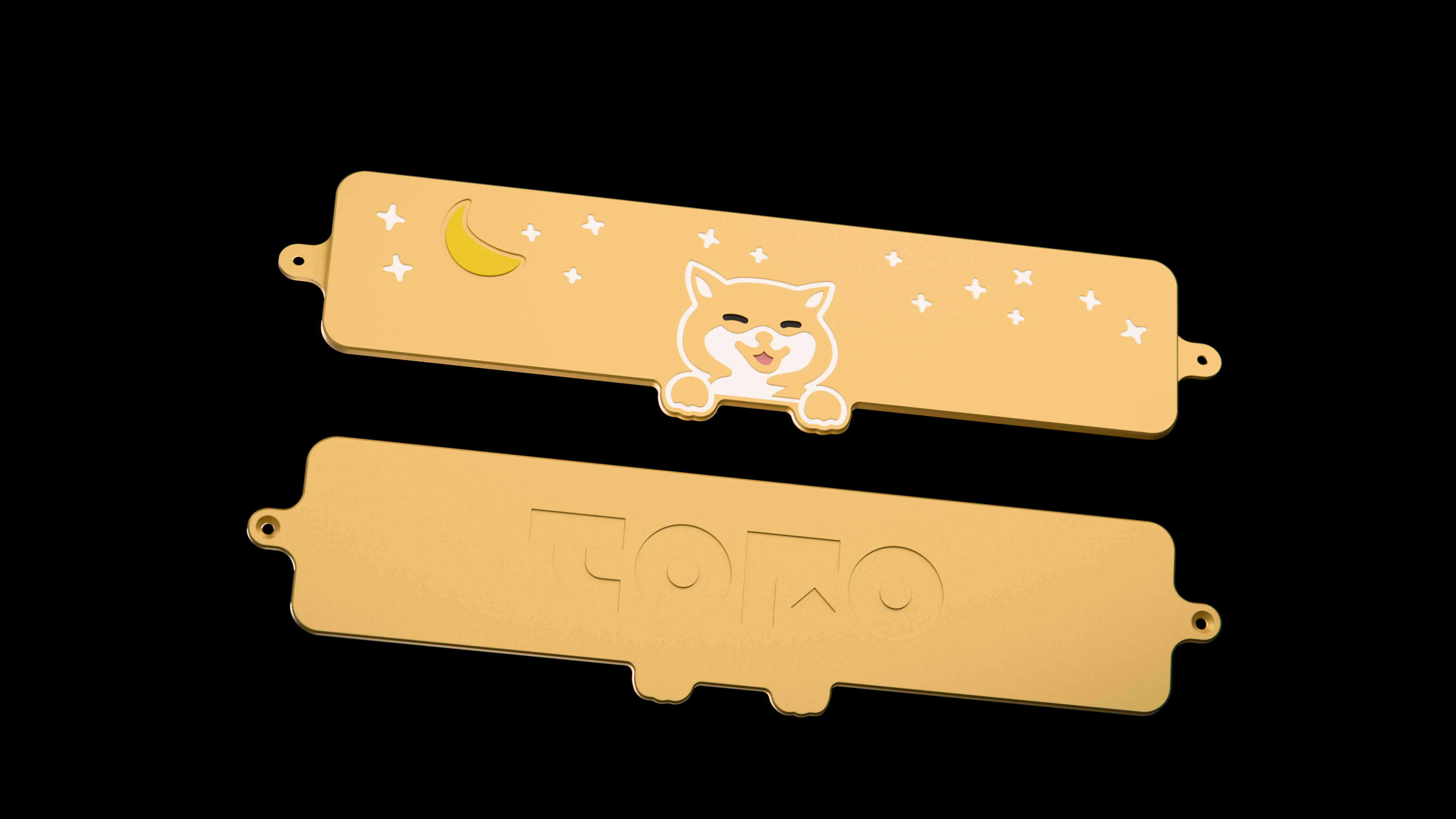

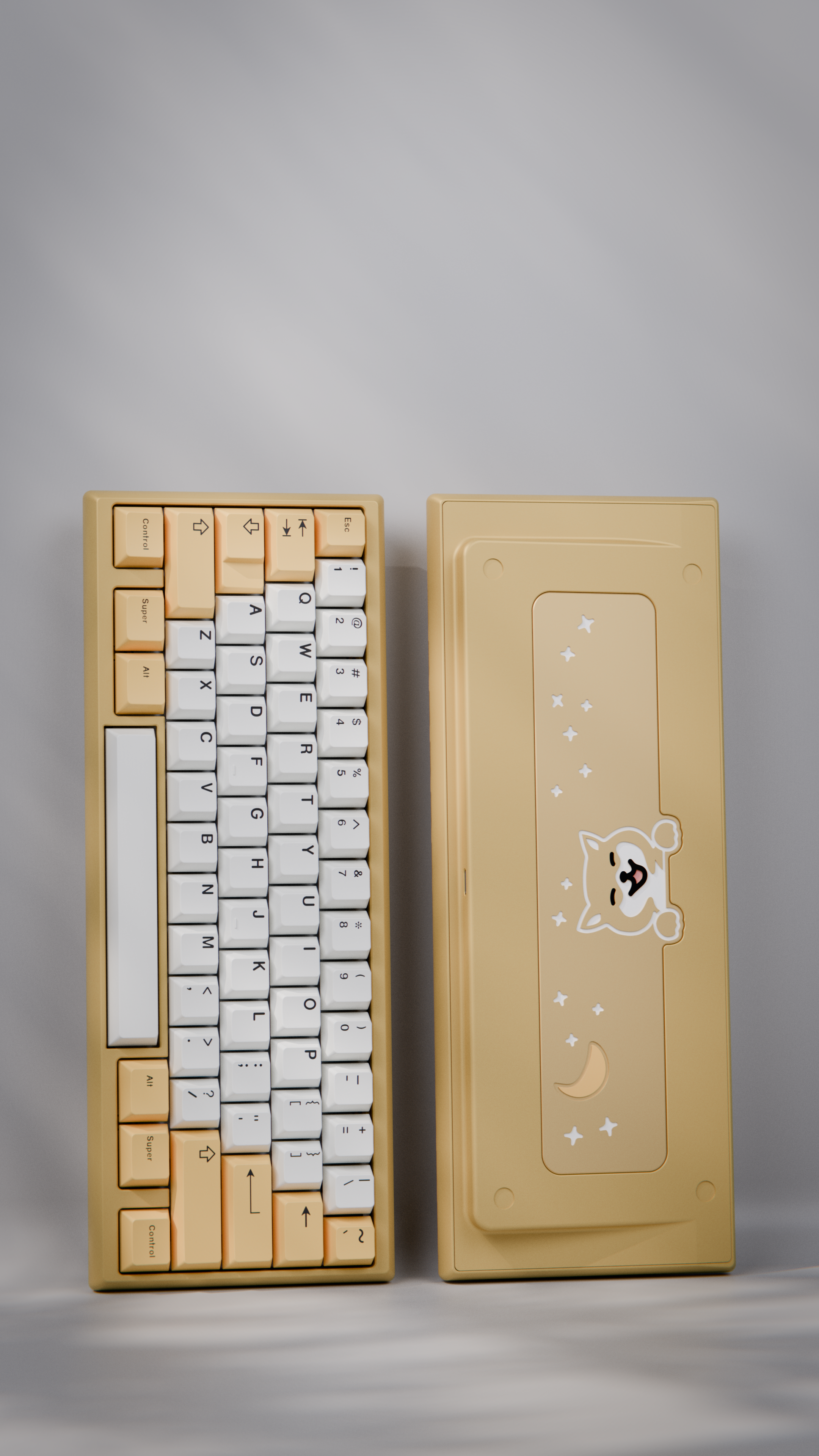

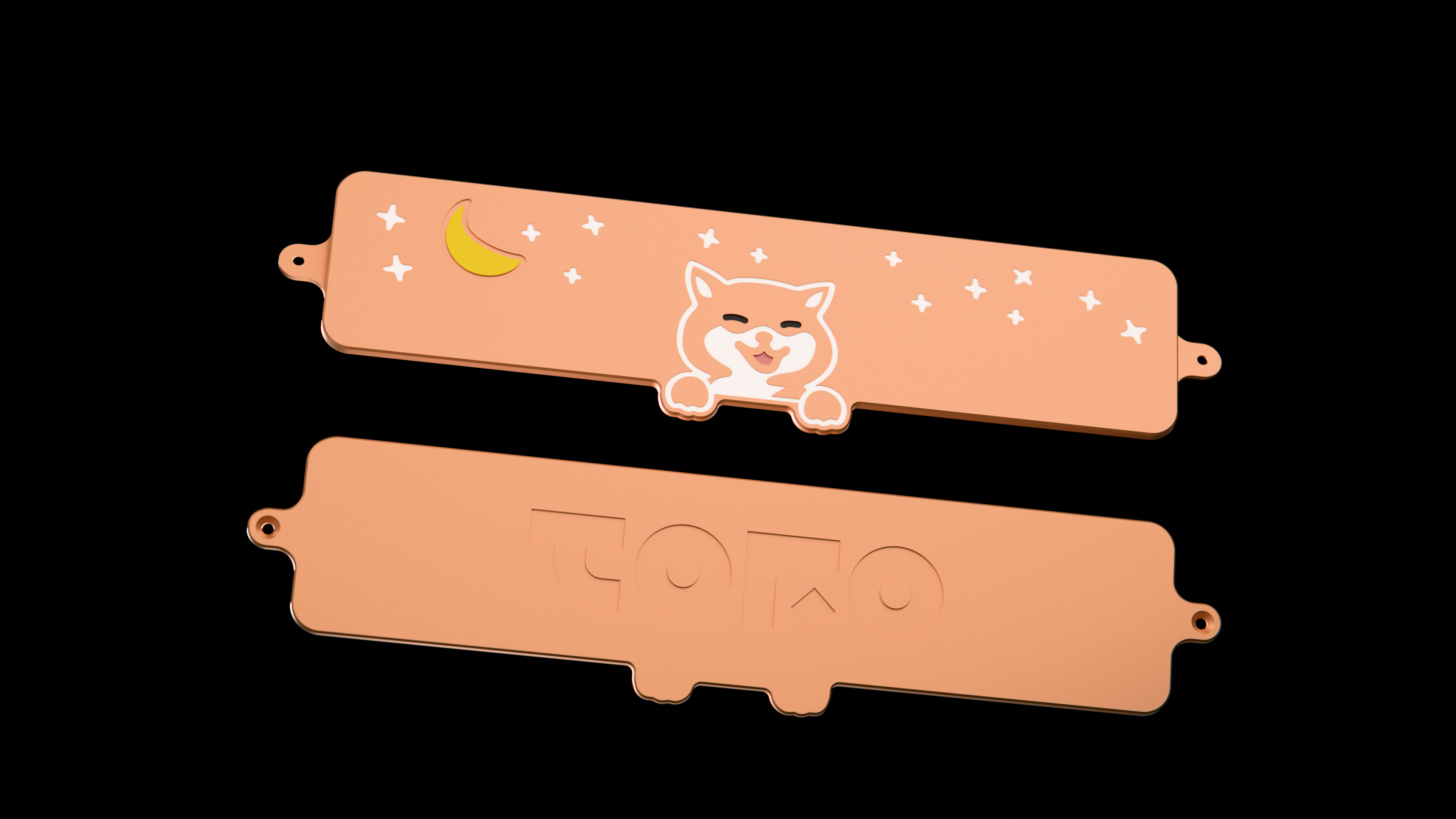

Finally, we added a generous weight featuring an engraving of Toro himself. Not only does it look amazing, but it also enhances the board's acoustics, giving you that perfect sound with every keystroke.

Specifications:

• Case Material: 6063 Aluminium or PC
• Weight: Brass or copper
• Layout
  • 60%
  • CWKL or HHKB
  • 6.25u exploded spacebar

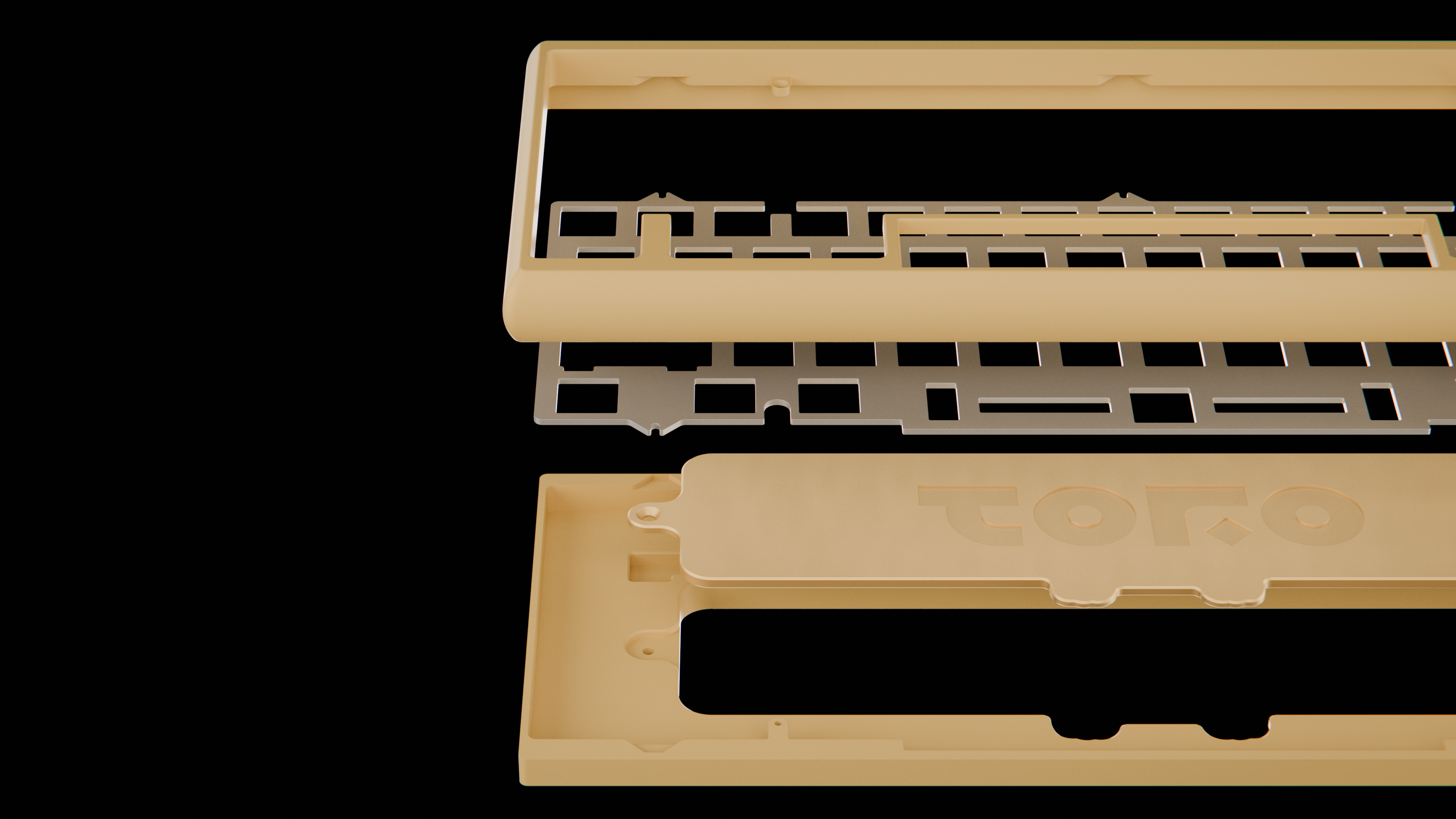

  • Top mount
• Plate: 5052 Aluminium default (PC, POM, CF, FR4 & PP available as addons)
• PCB
  • Hotswap Default (Solder available as addon)
  • VIA/ QMK Compatible
  • 1.6mm

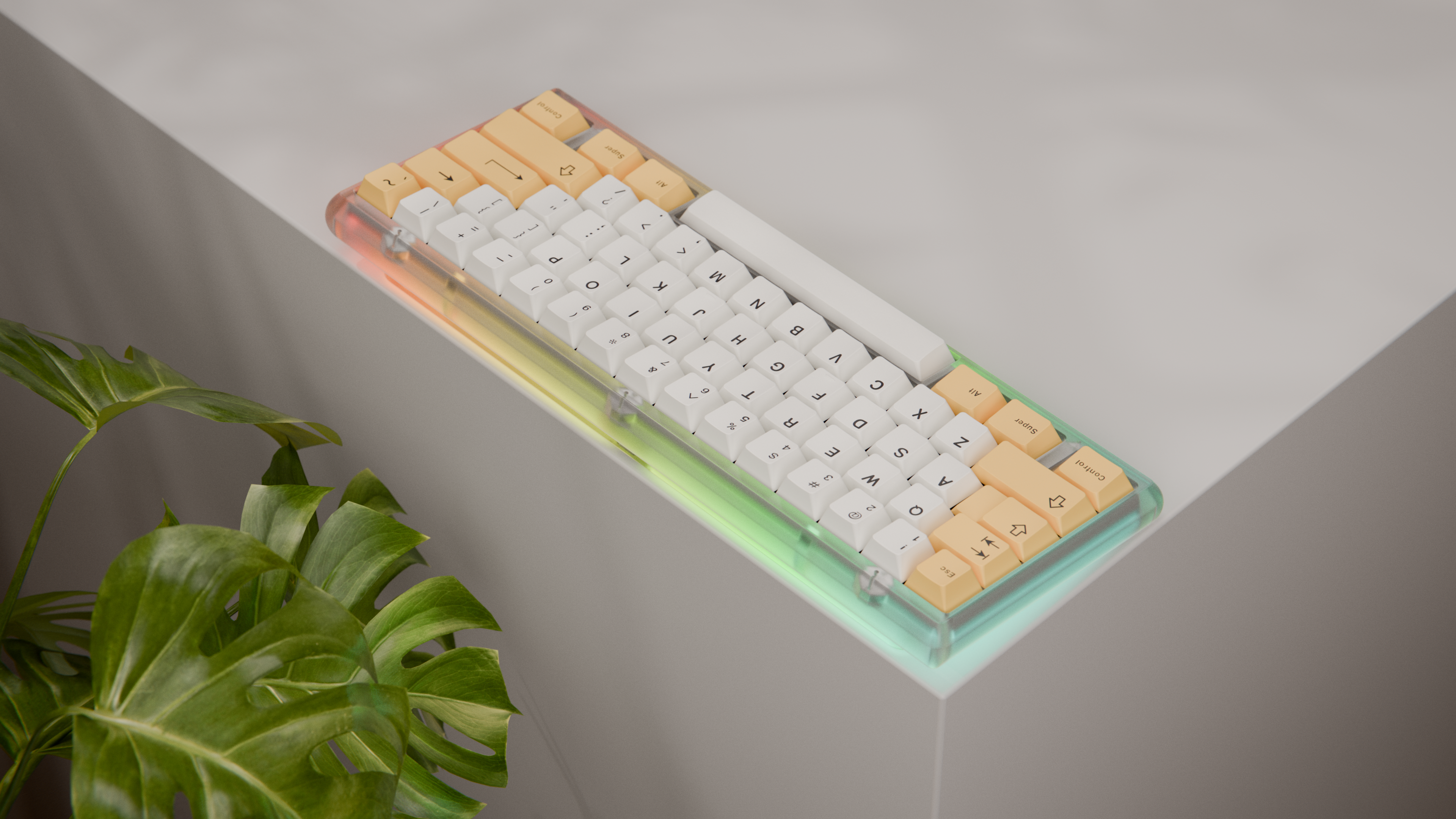

  • Underglow RGB
  • Custom Daughterboard (Fly Daughterboard compatible)
• Typing Angle: 7 degrees
• Front Height: 17.87mm
• Dimensions: Width 268mm Length 85mm
• Internal Case Screws

Hotswap PCB Layout

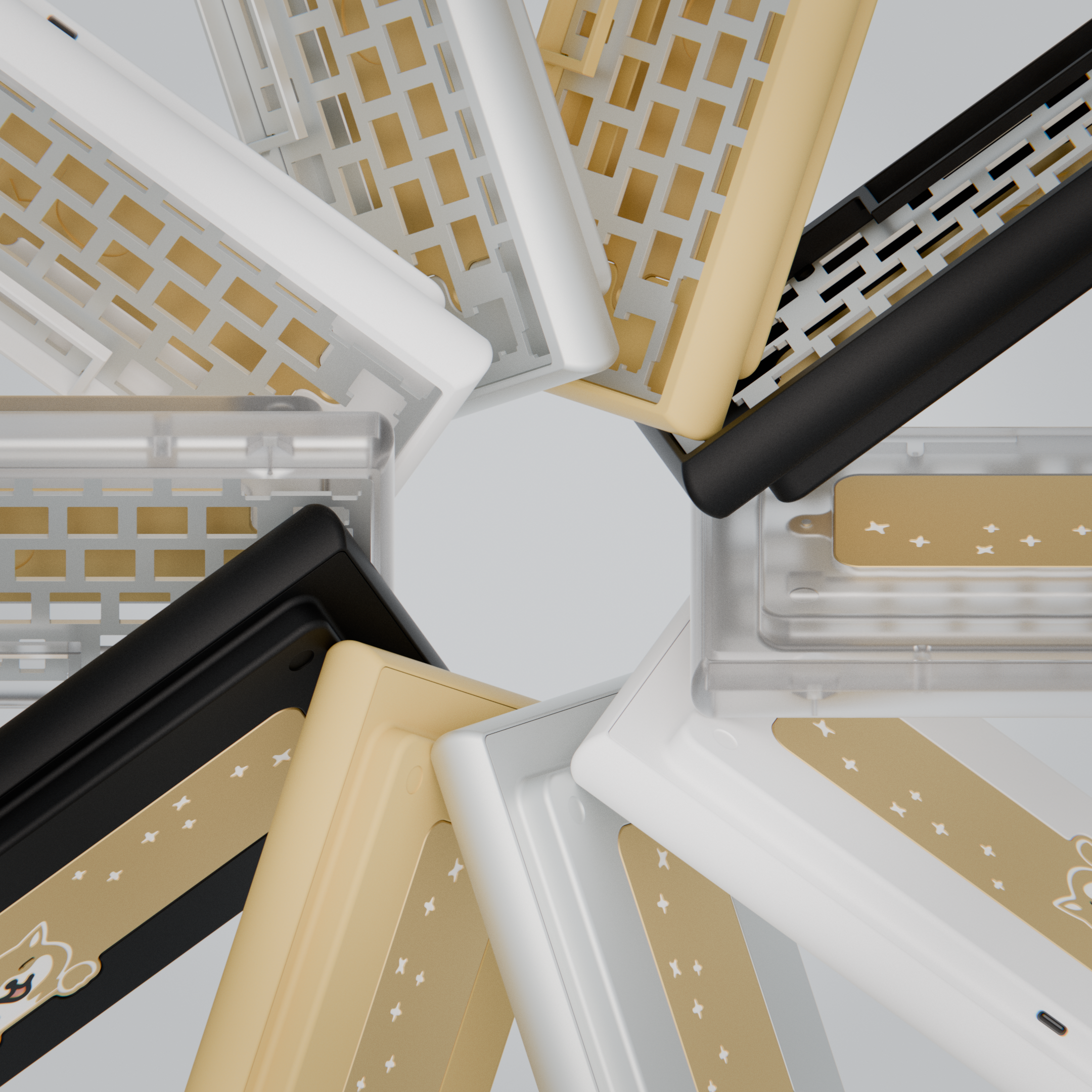

Case Colours:

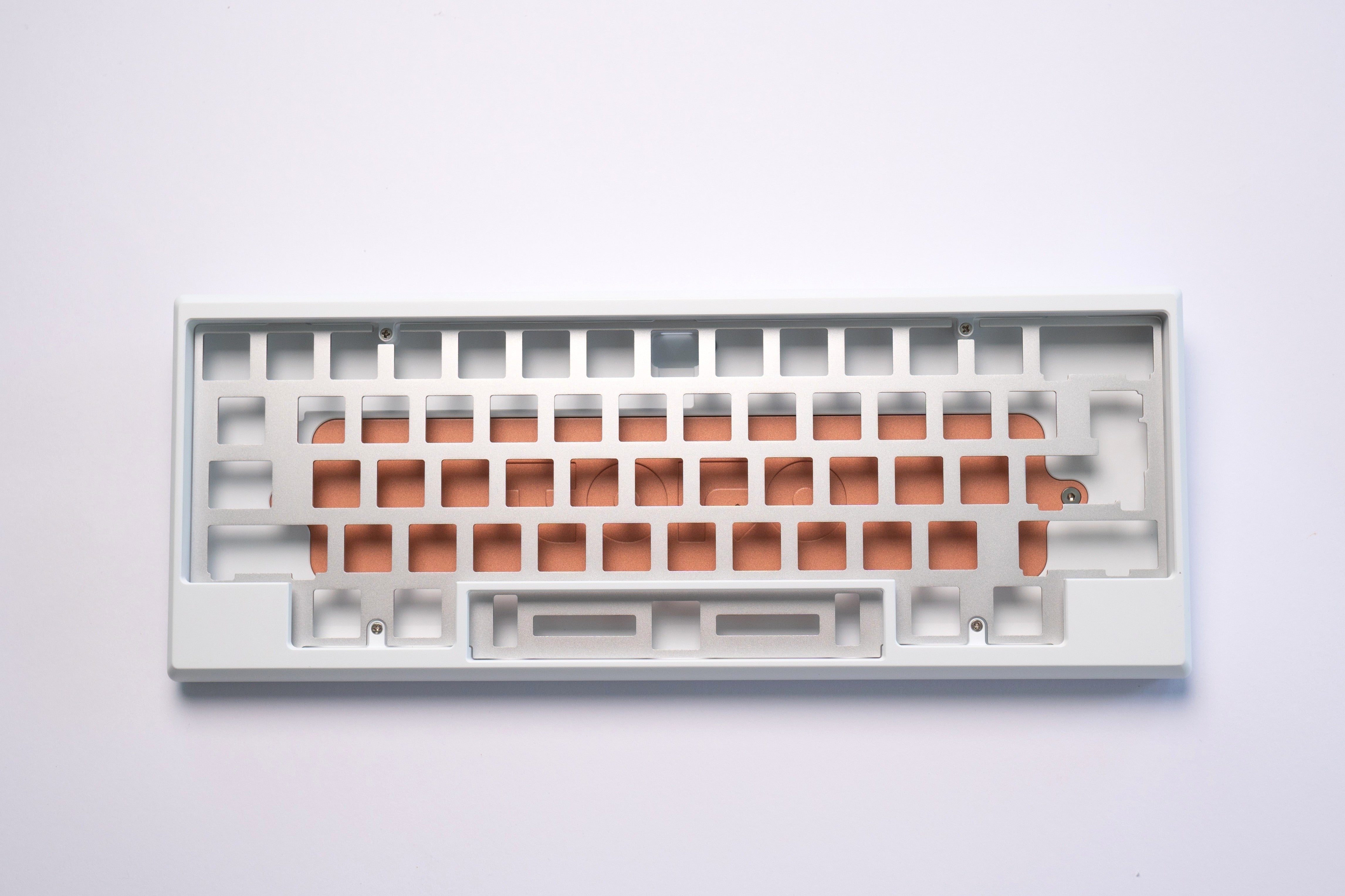

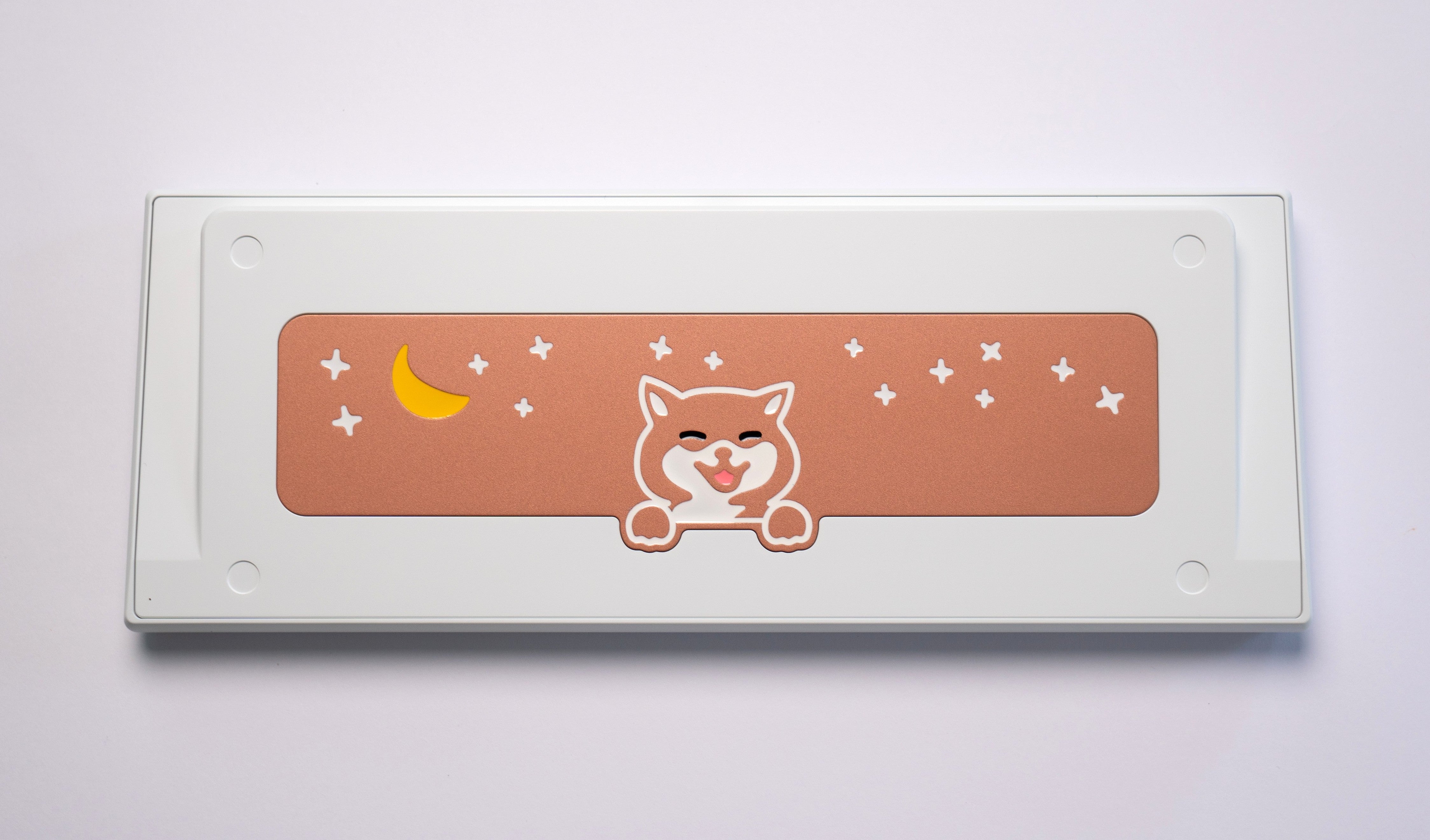

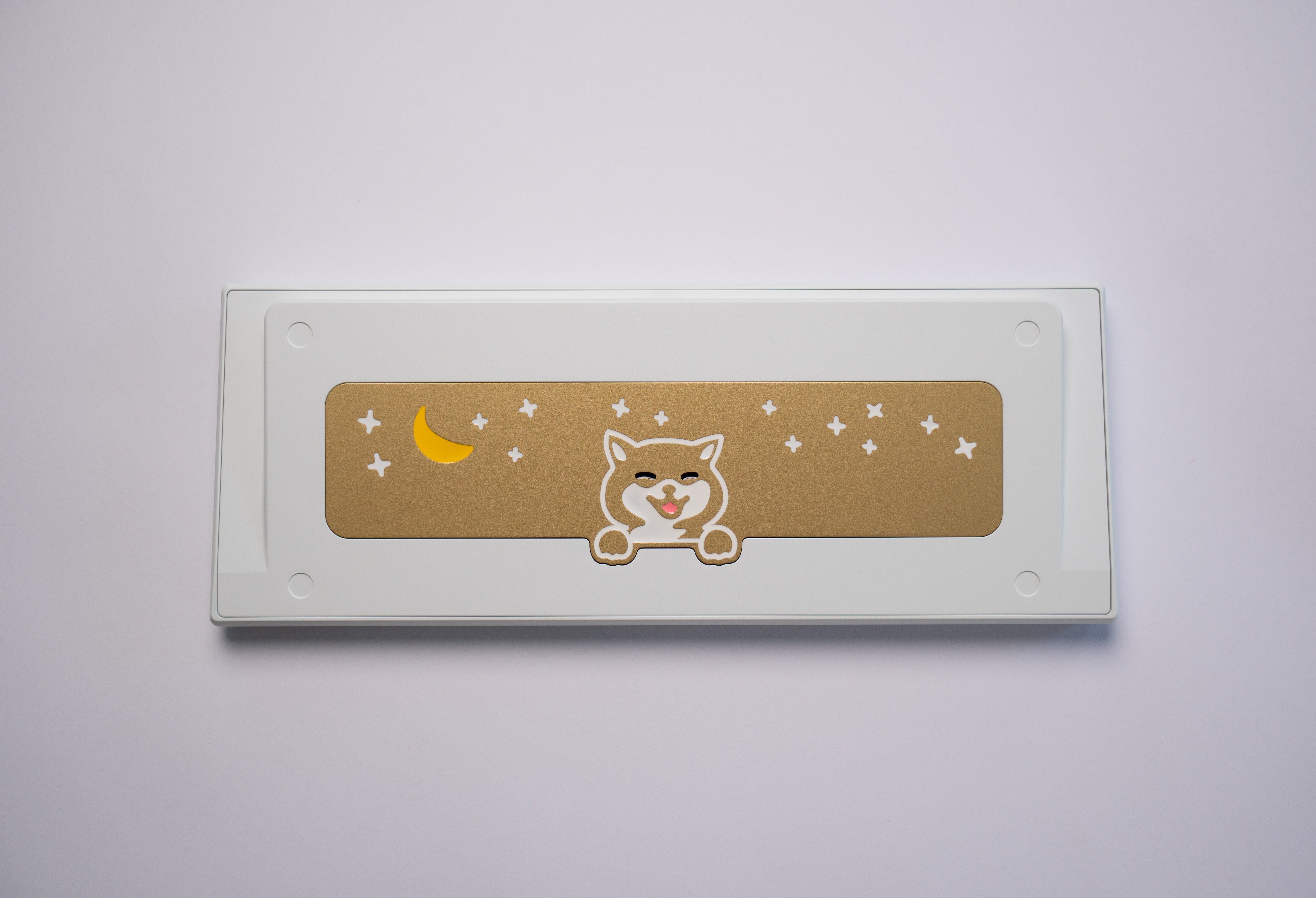

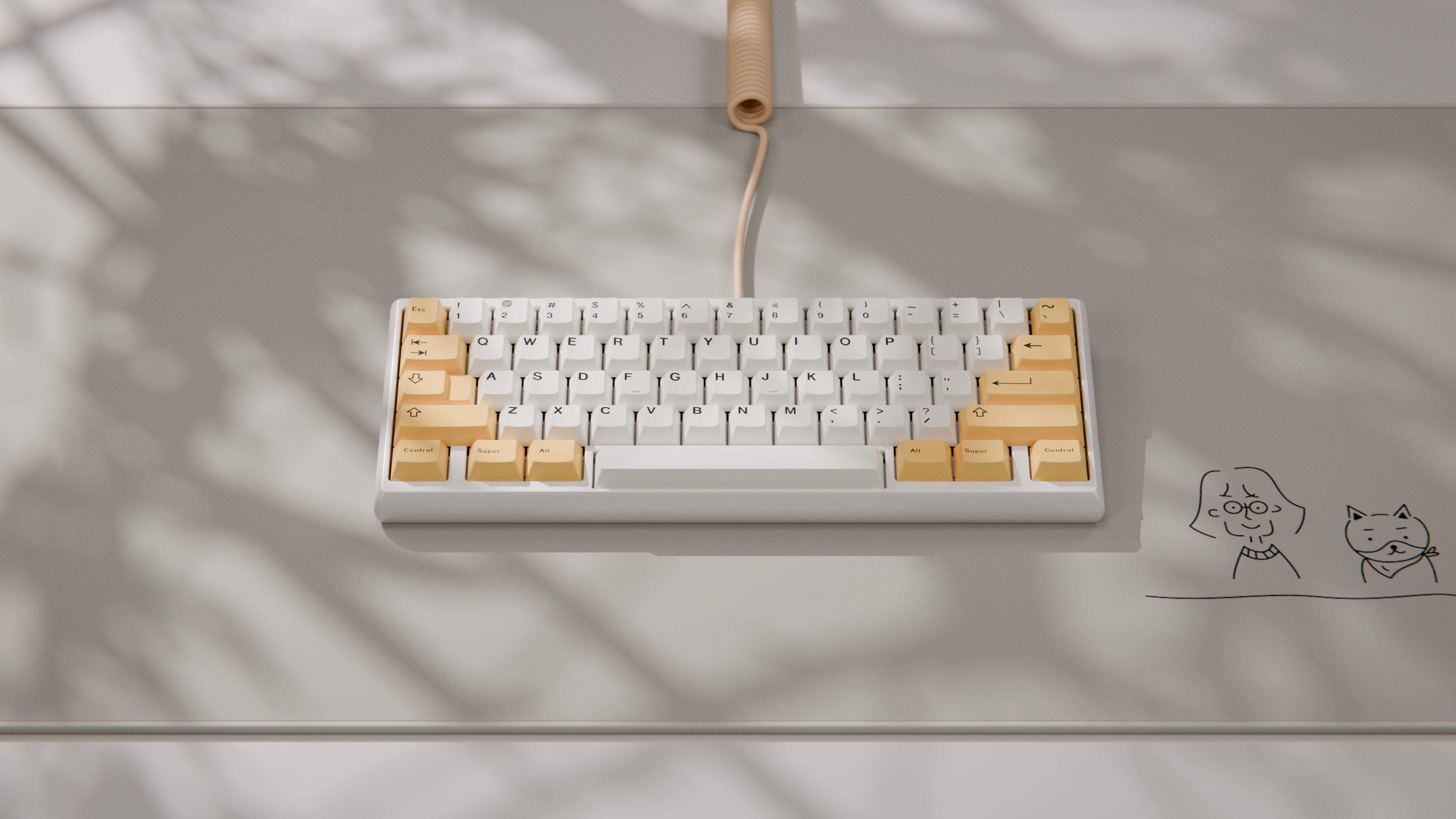

• Mika - Aluminium E-Coat White

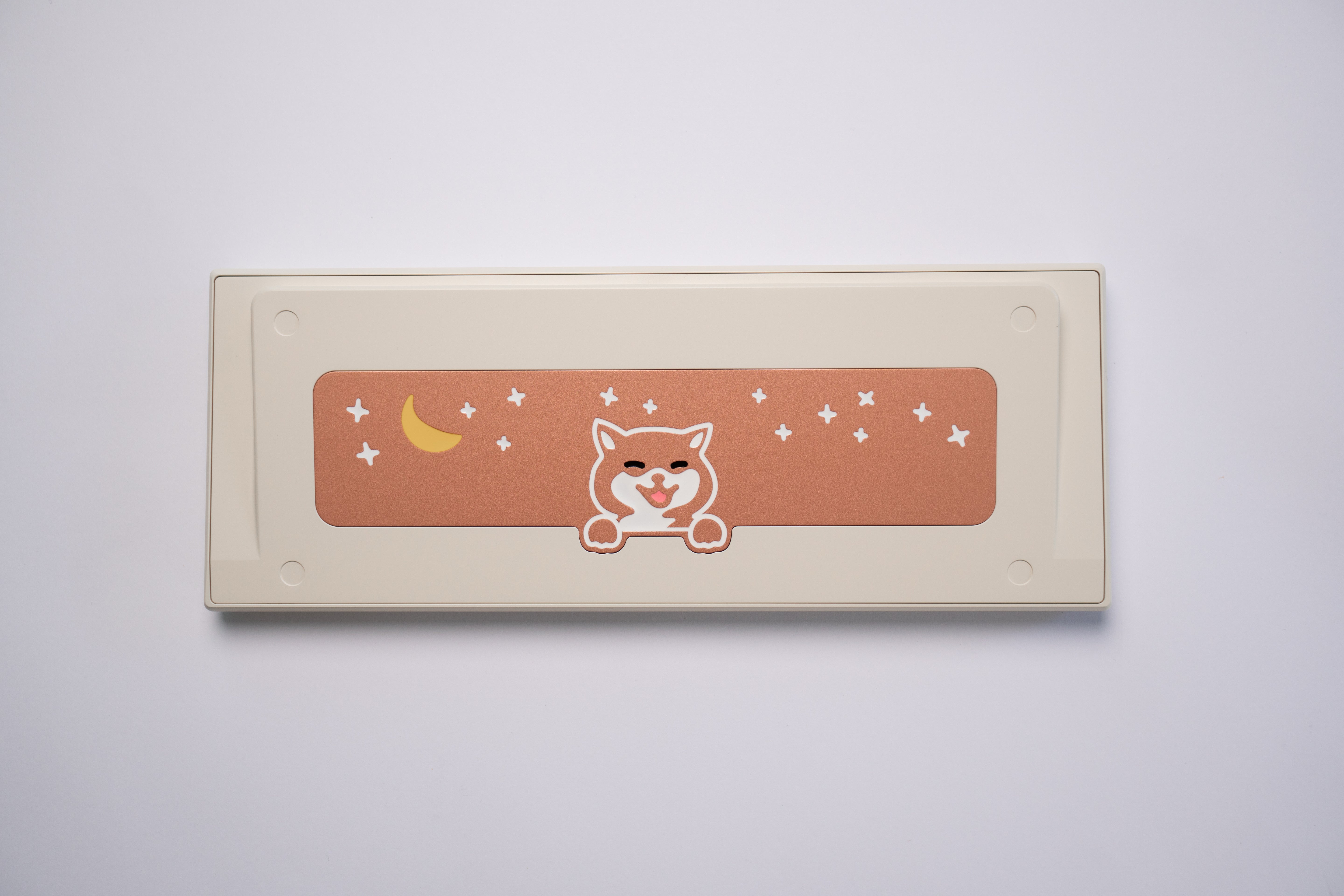

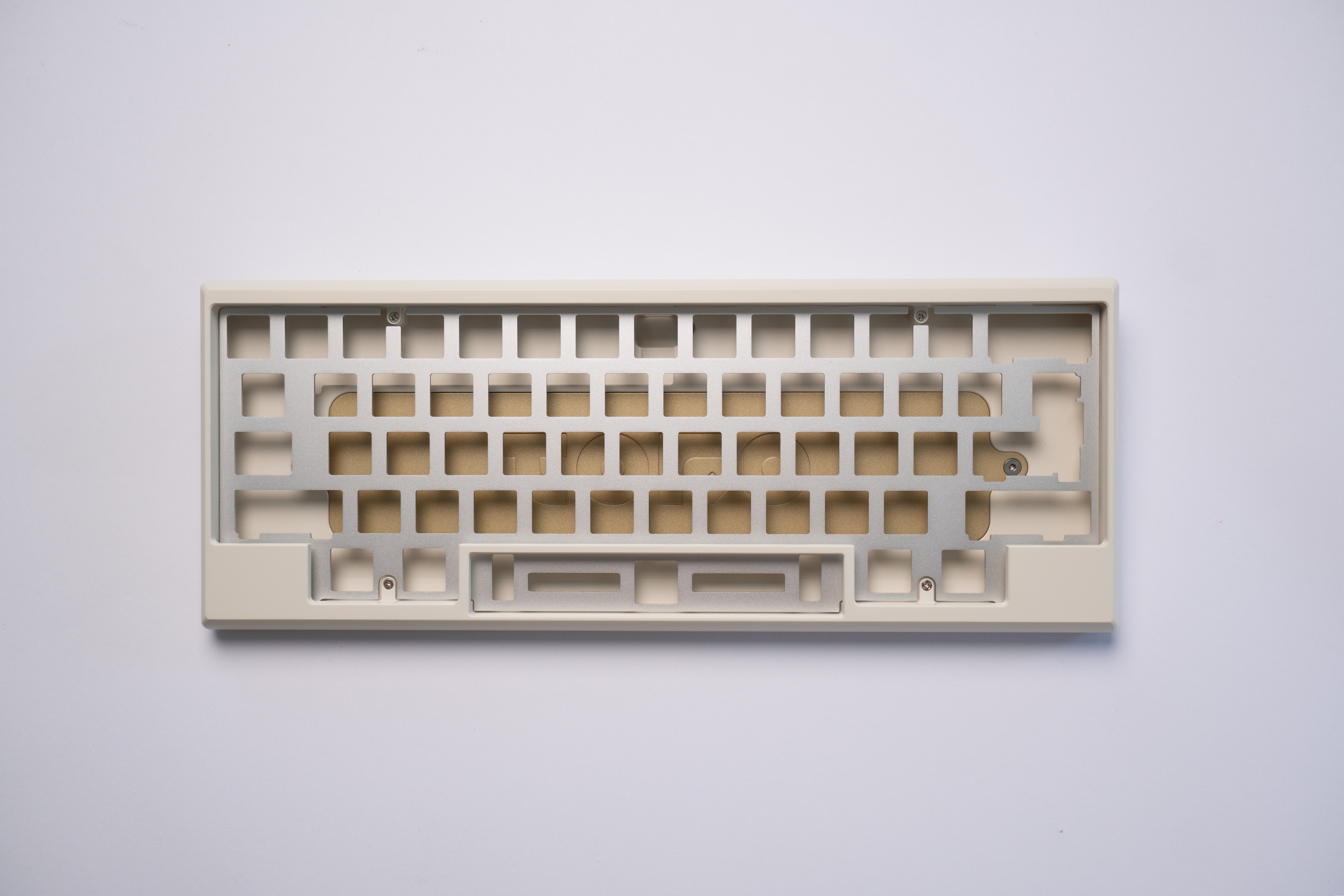

• Hachiko - Aluminium E-Coat Cream

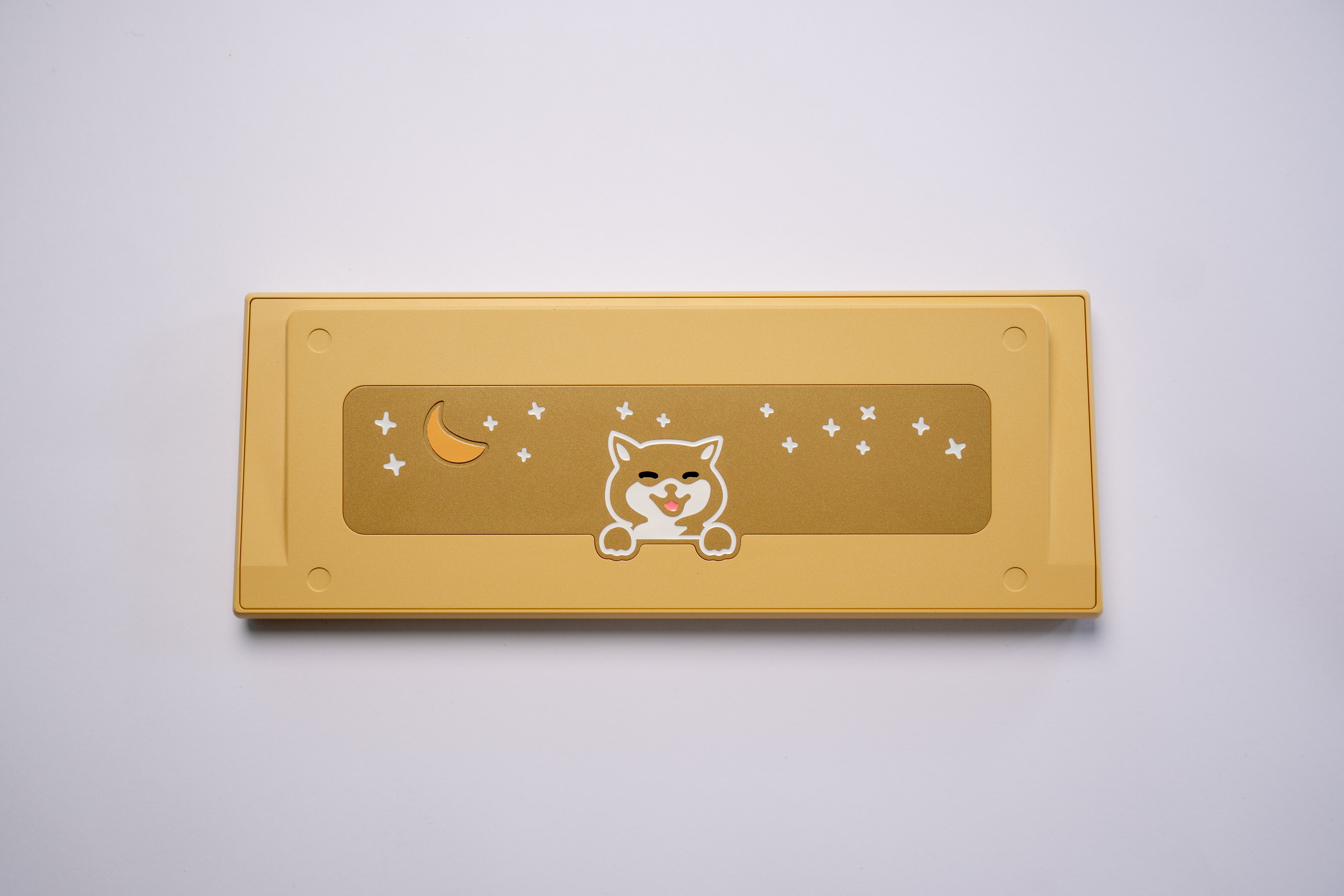

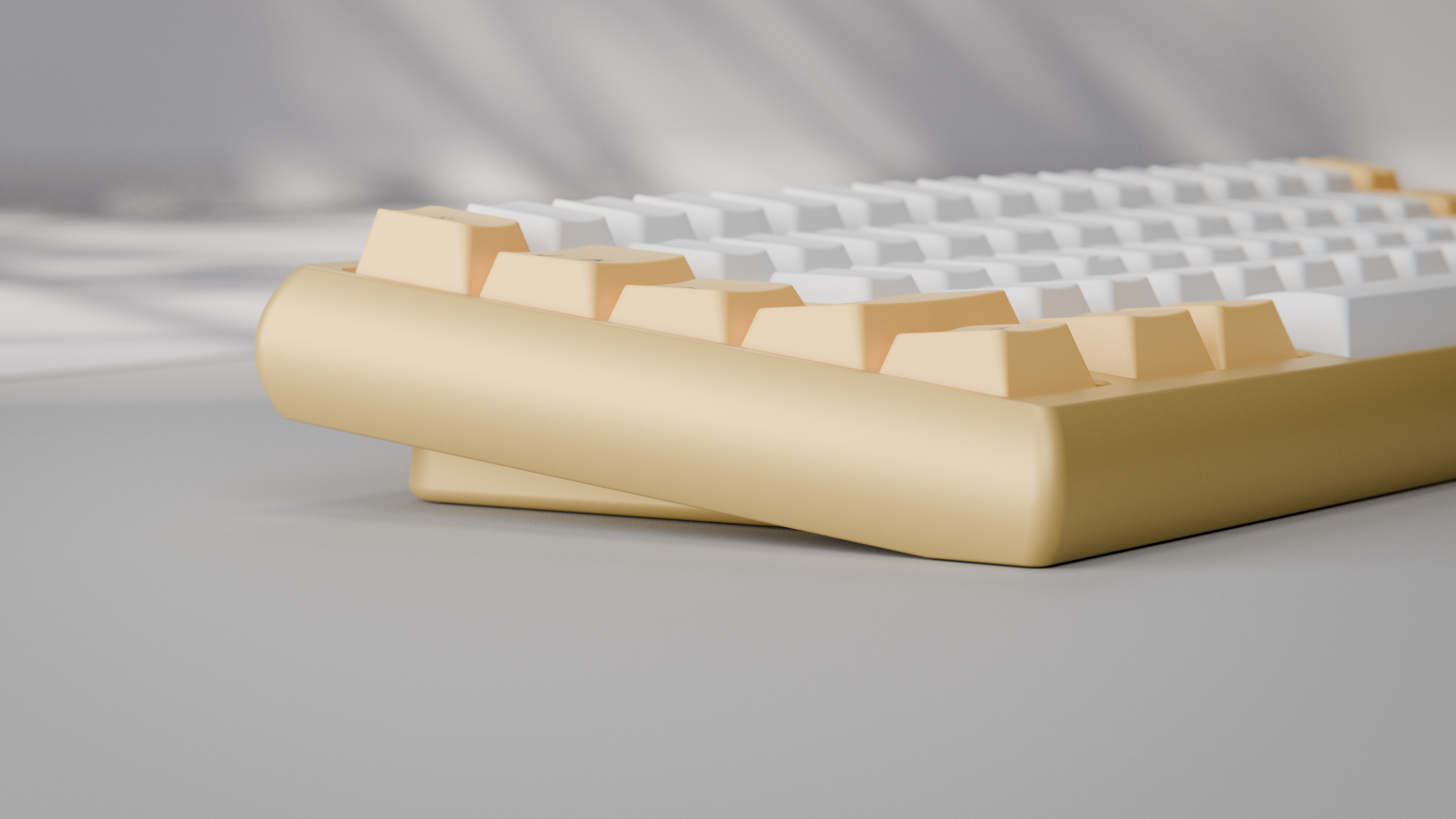

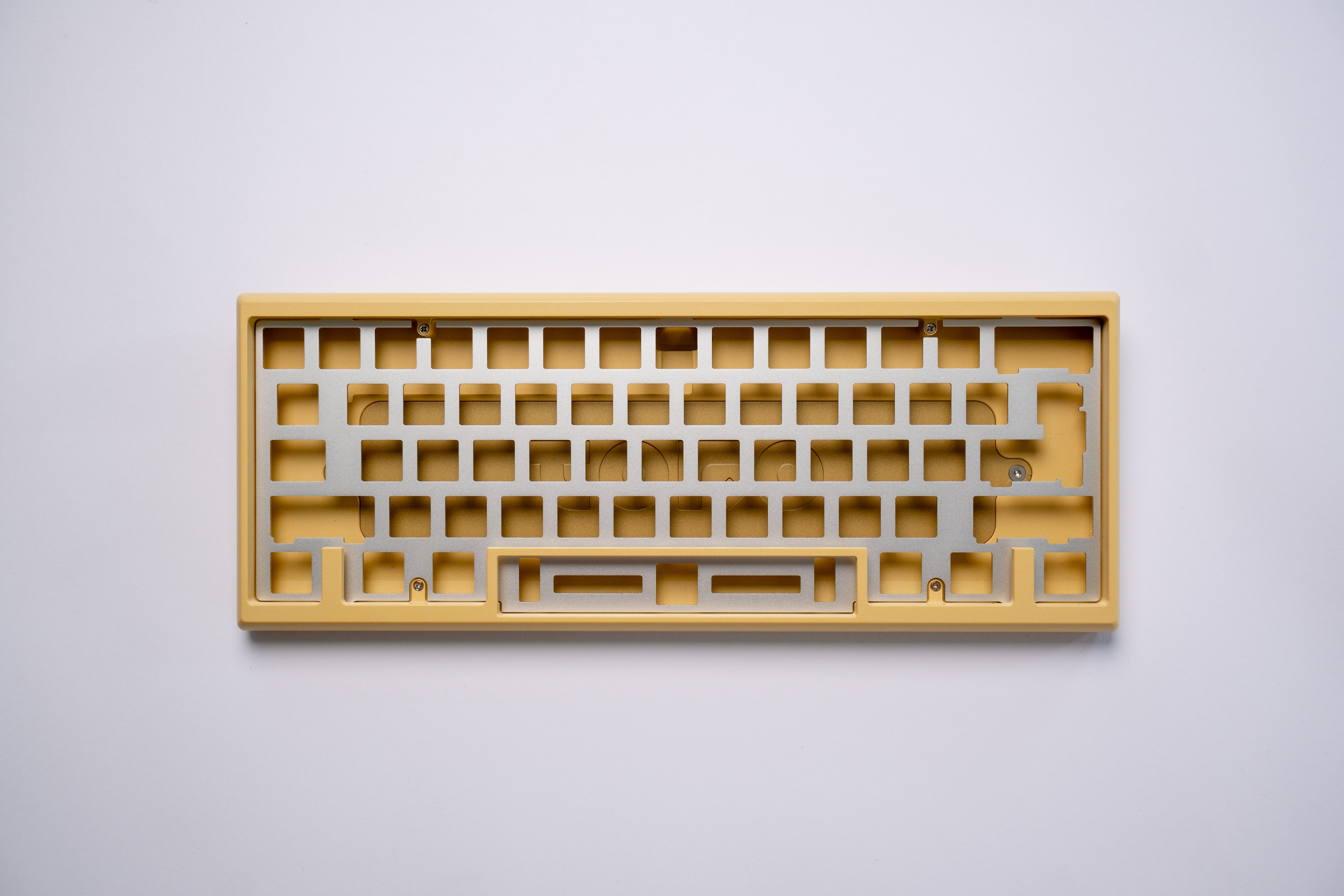

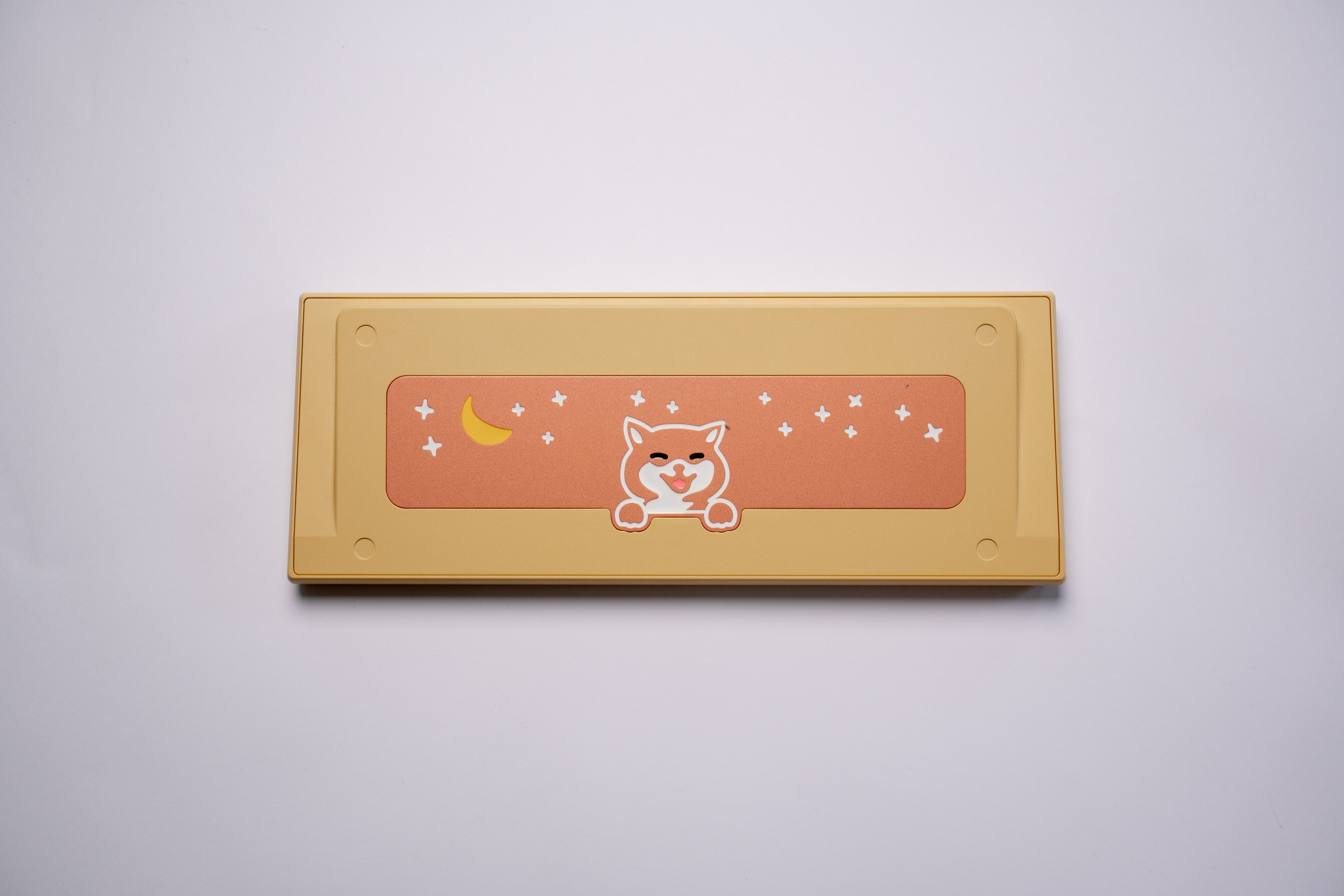

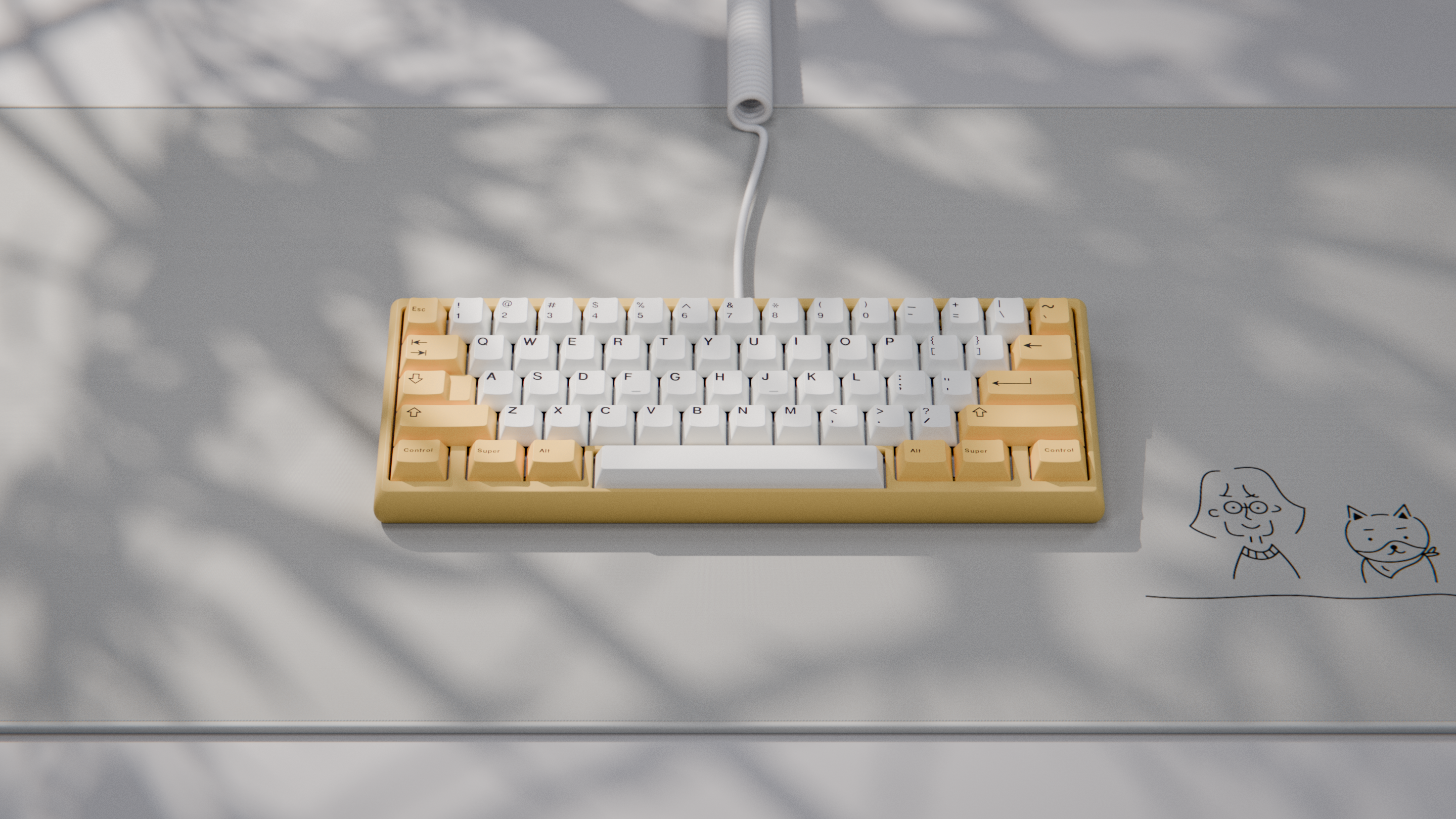

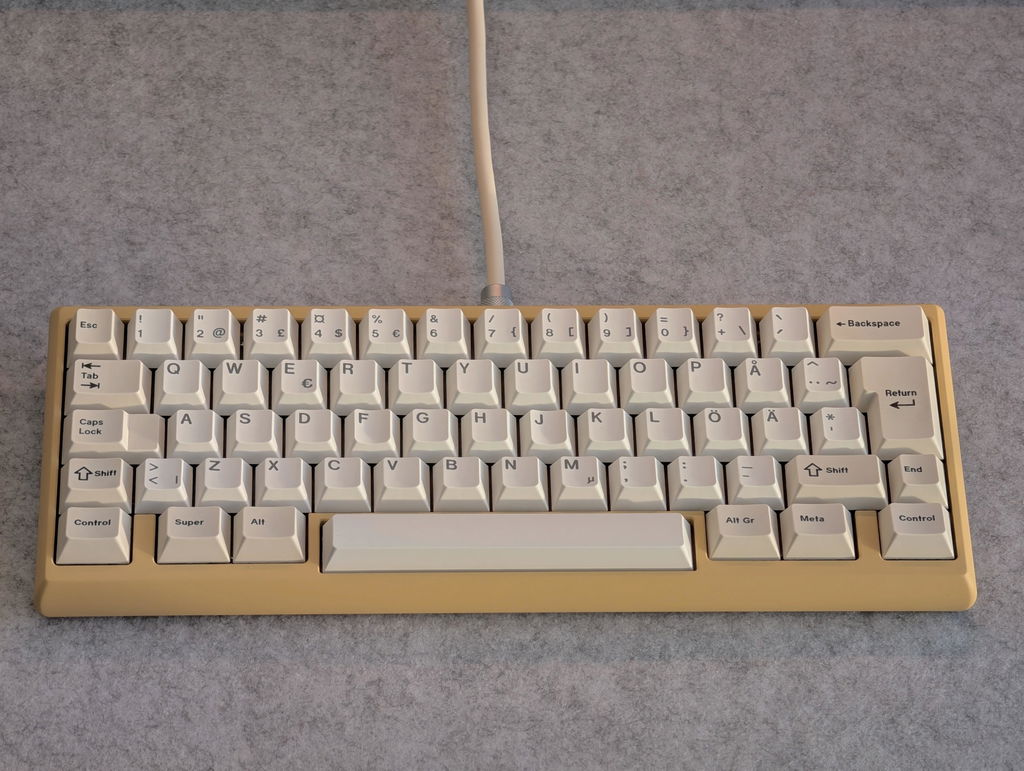

• Toro - Aluminium Sparay Coat Yellow

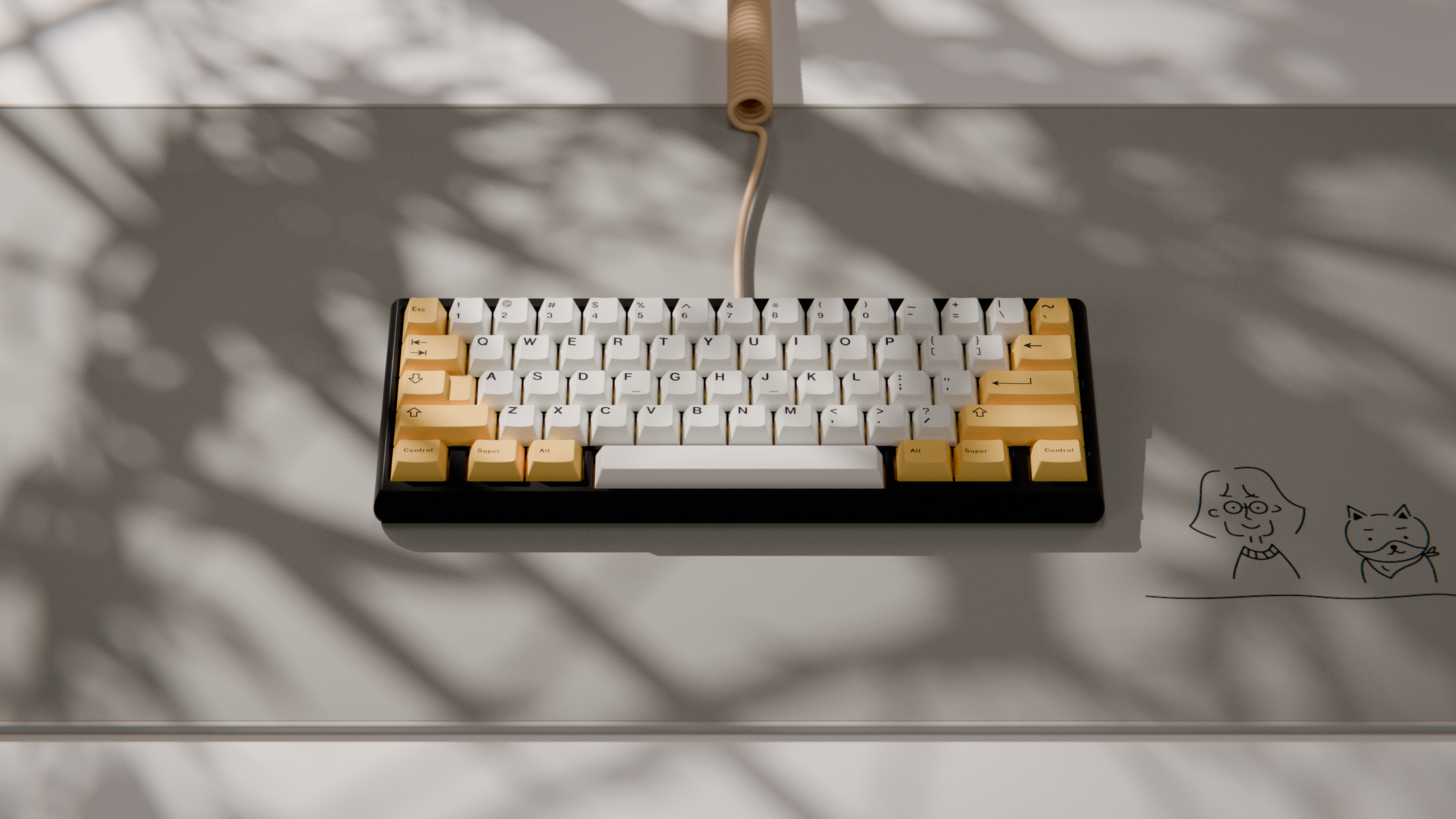

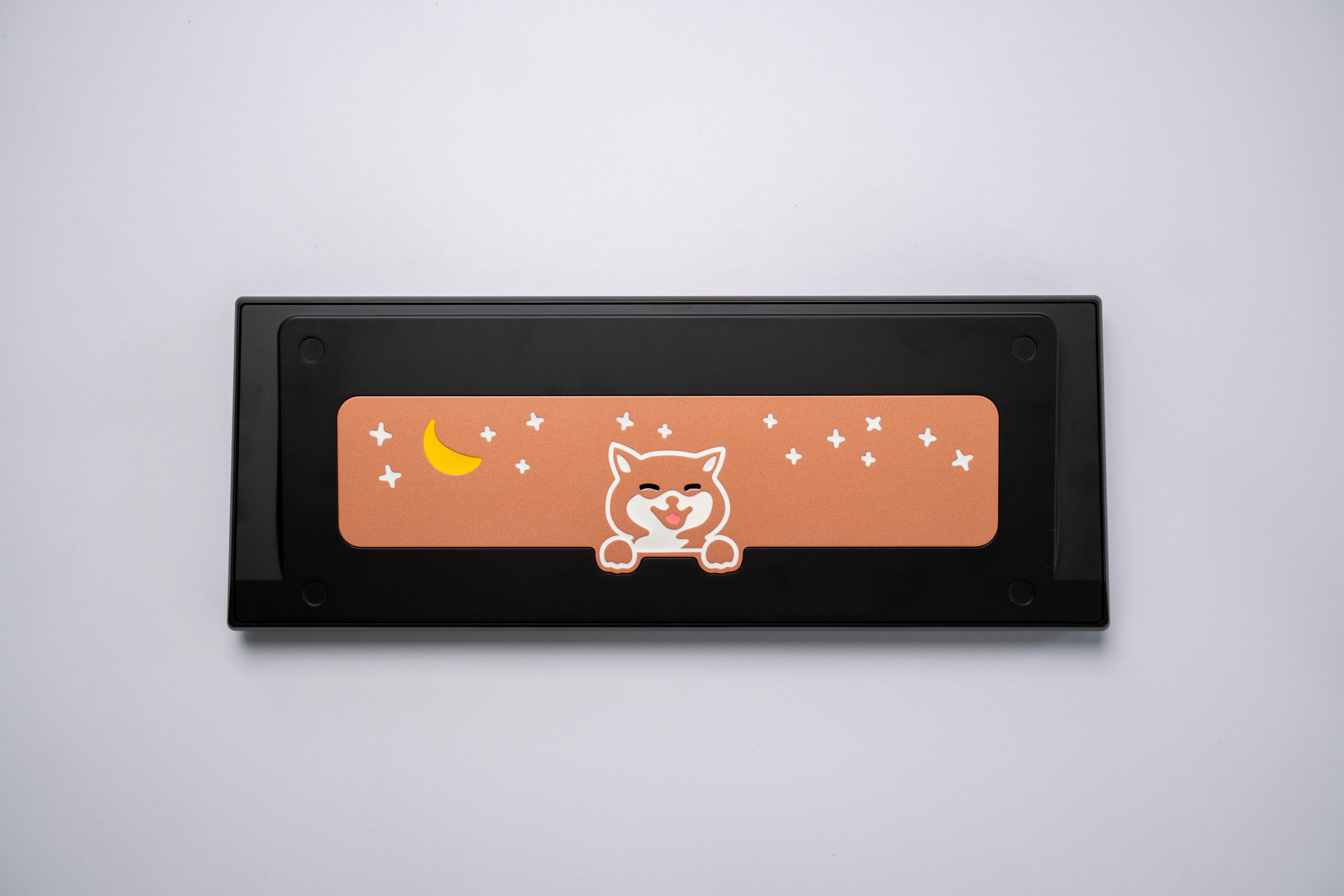

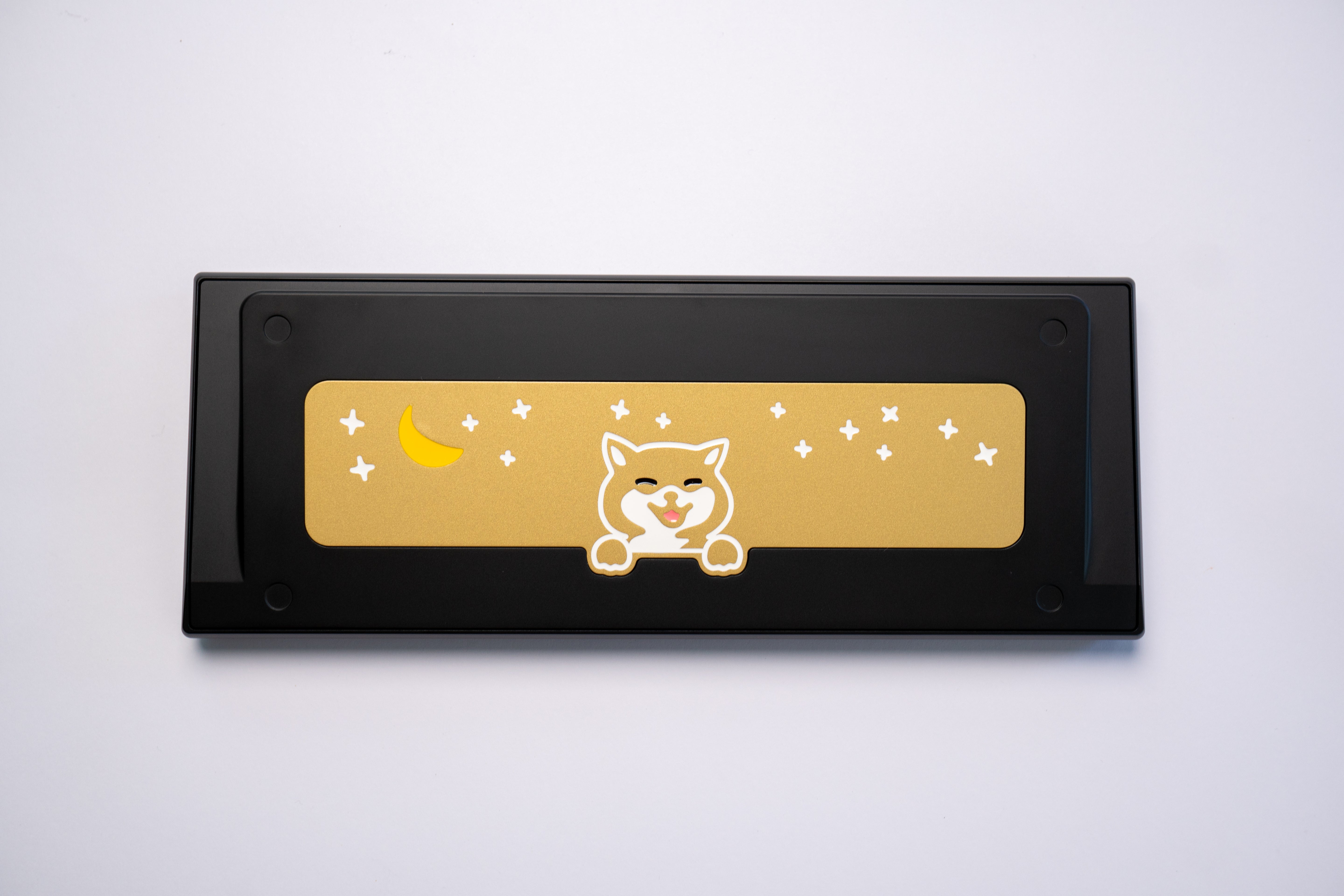

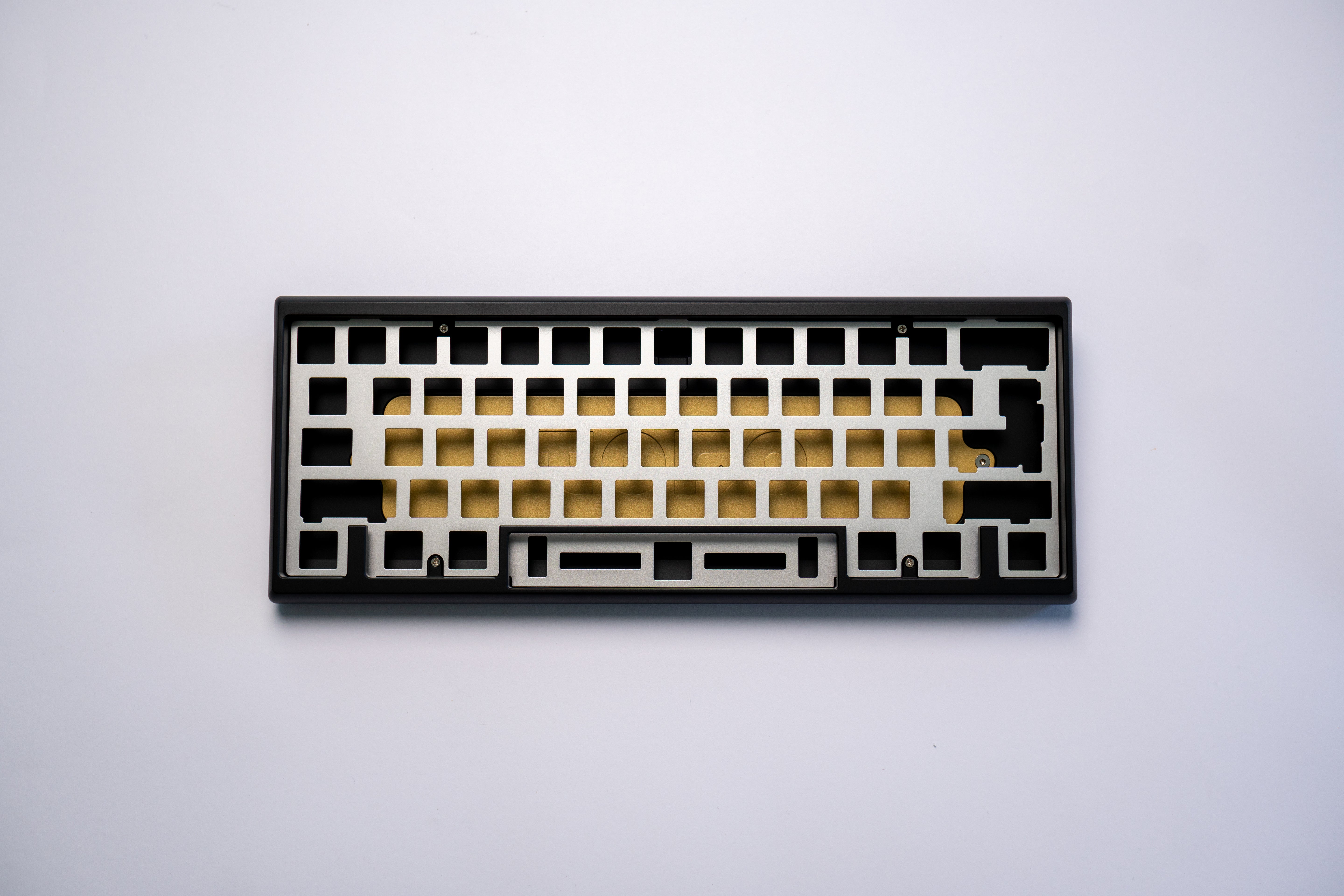

• Ginko - Aluminium Anodised Black

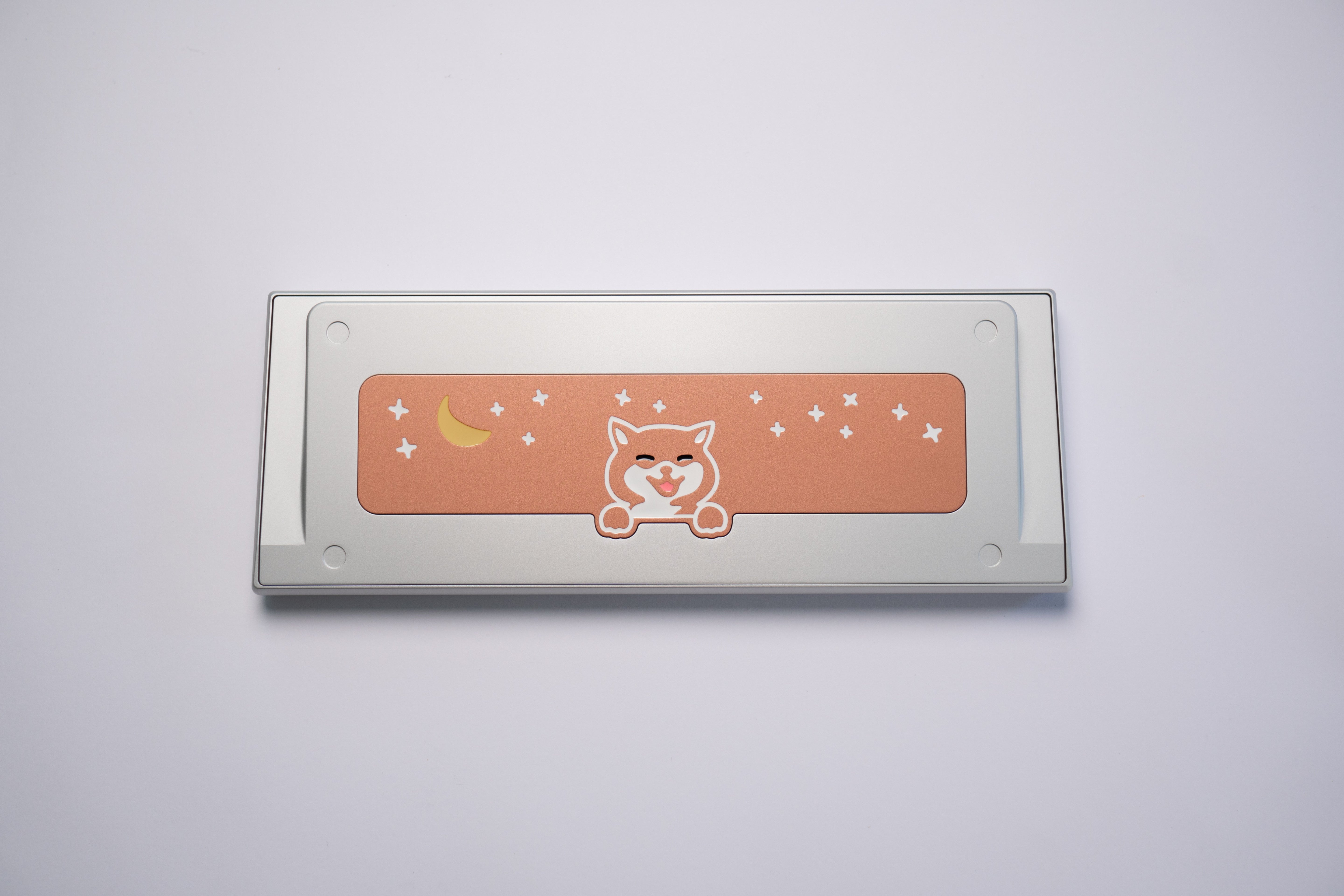

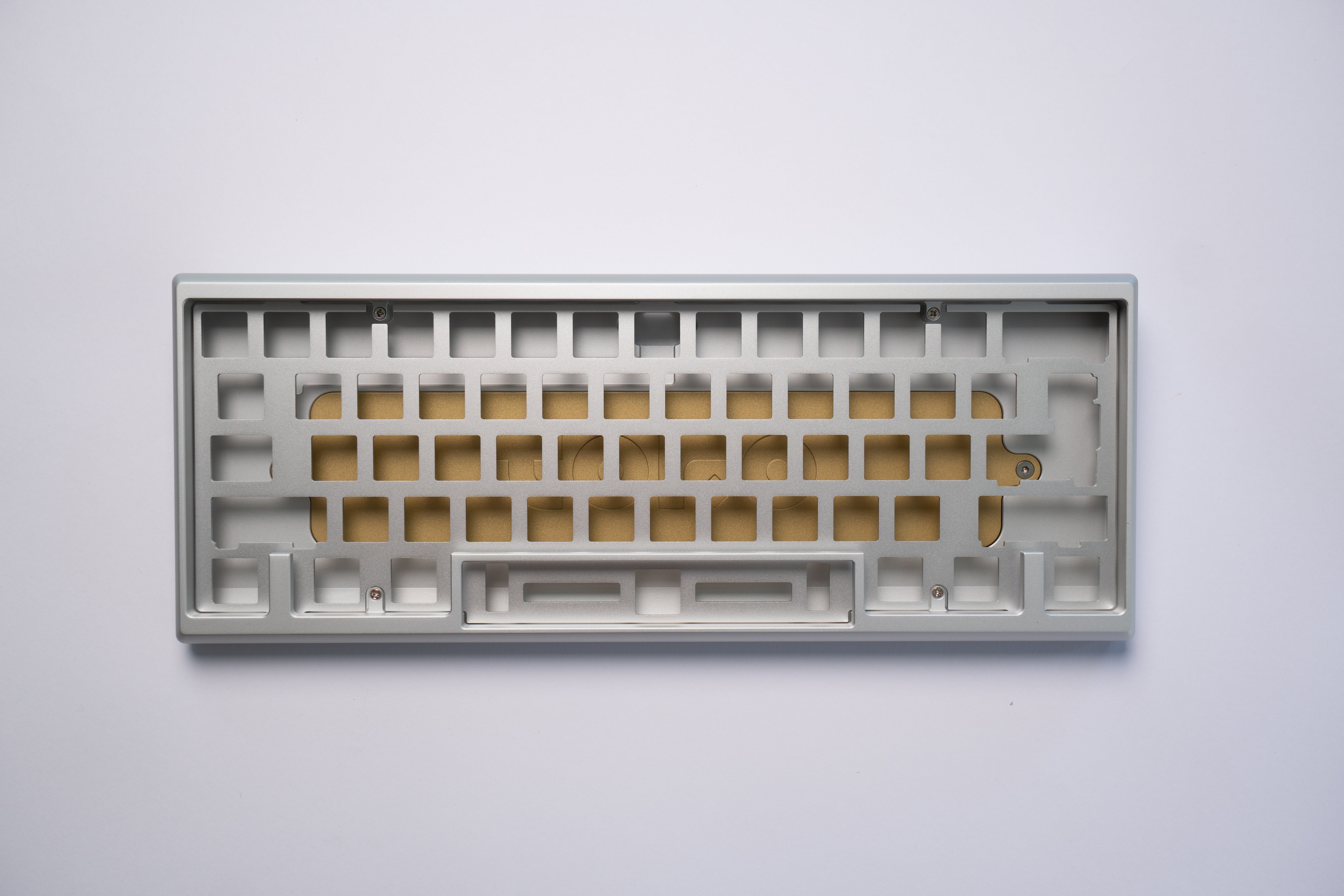

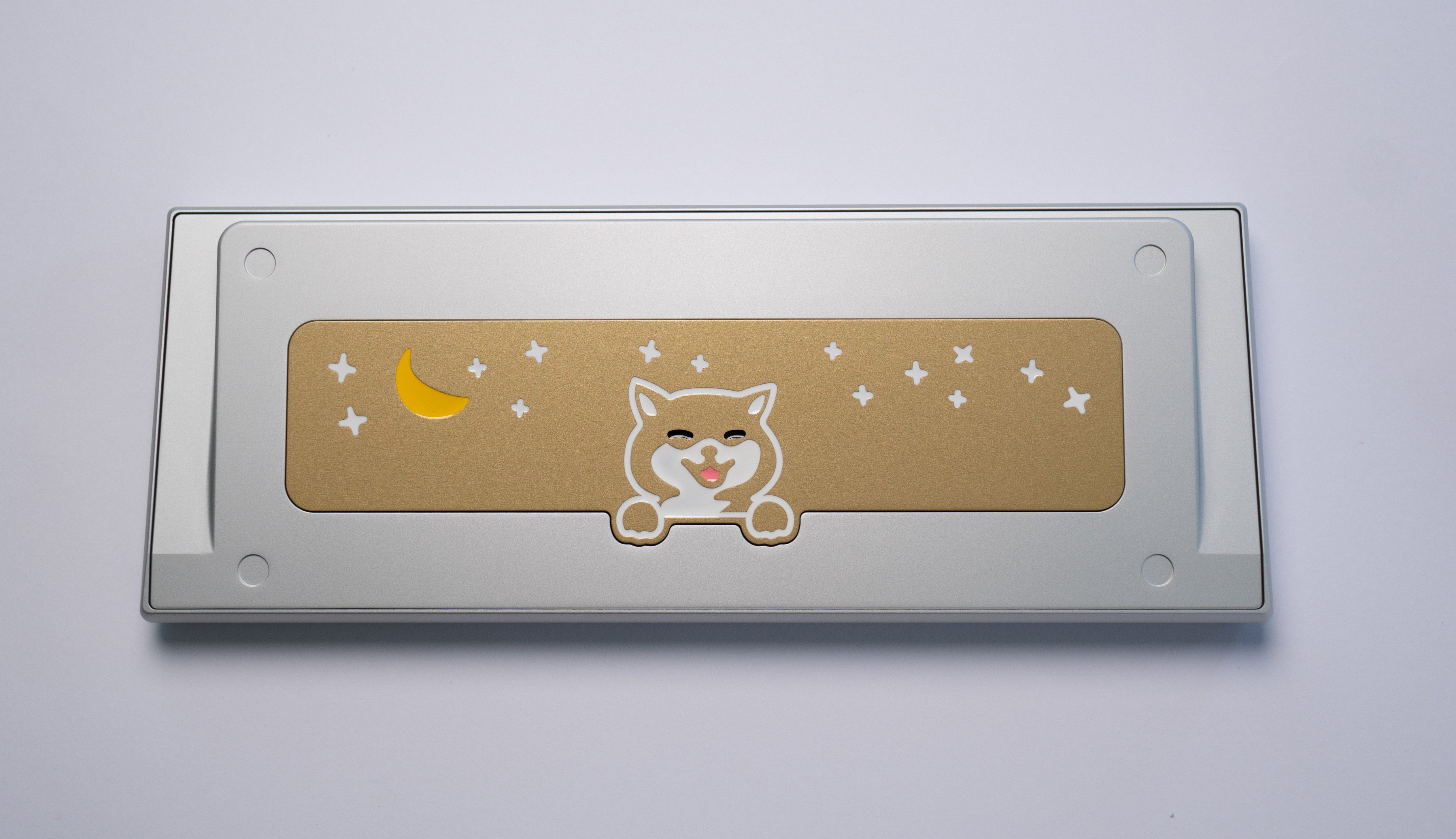

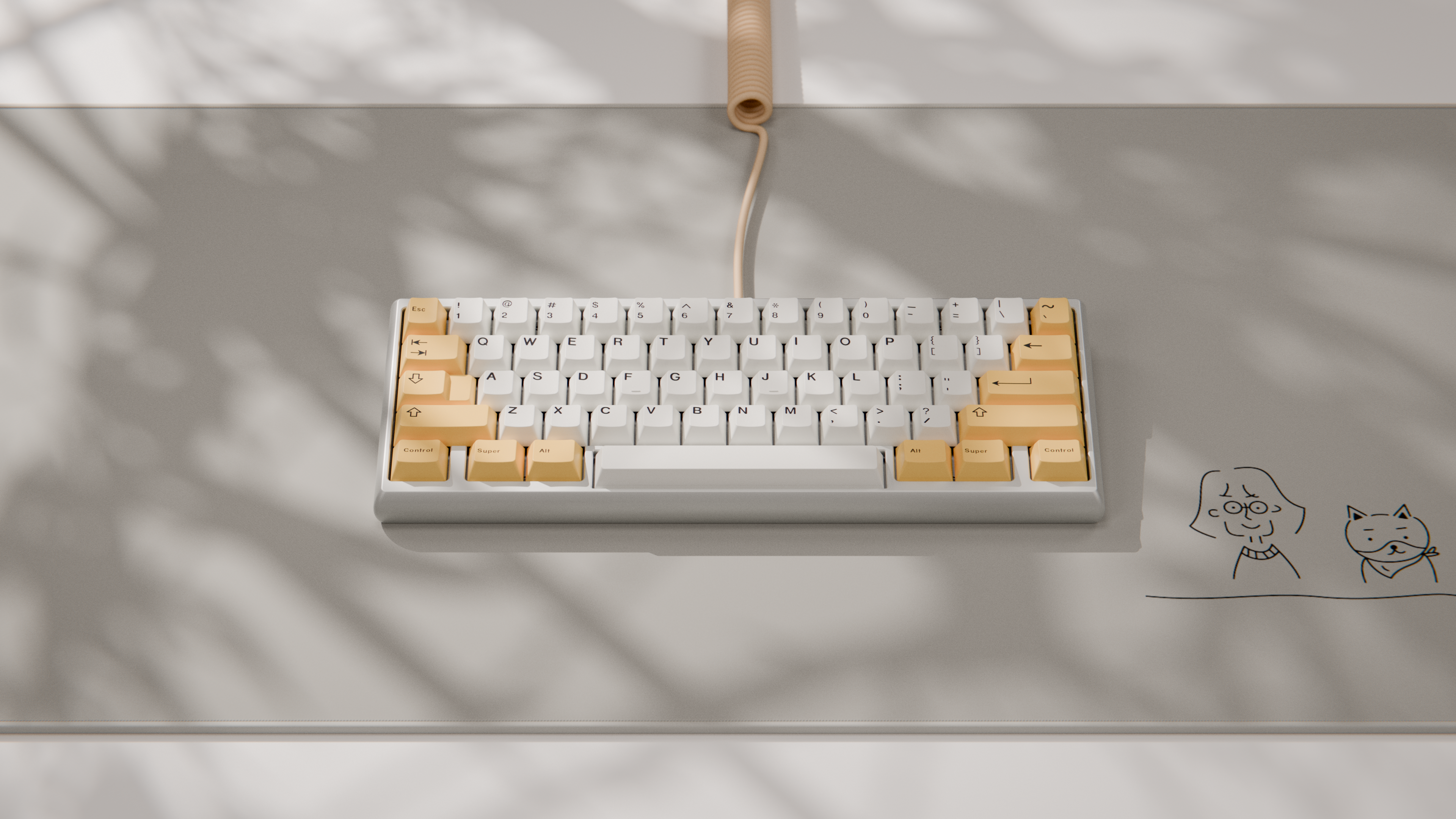

• Doge - Aluminium Anodised Silver

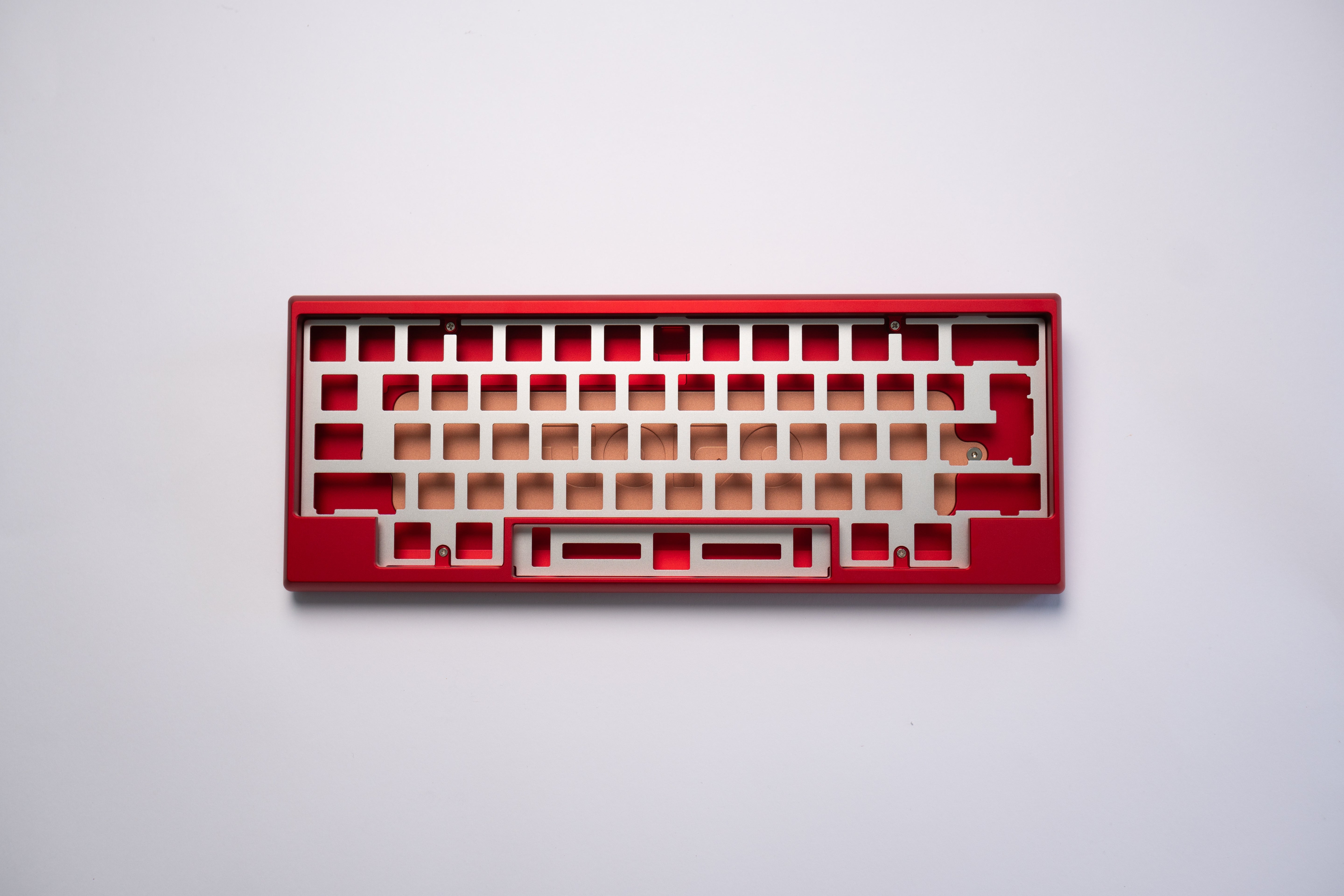

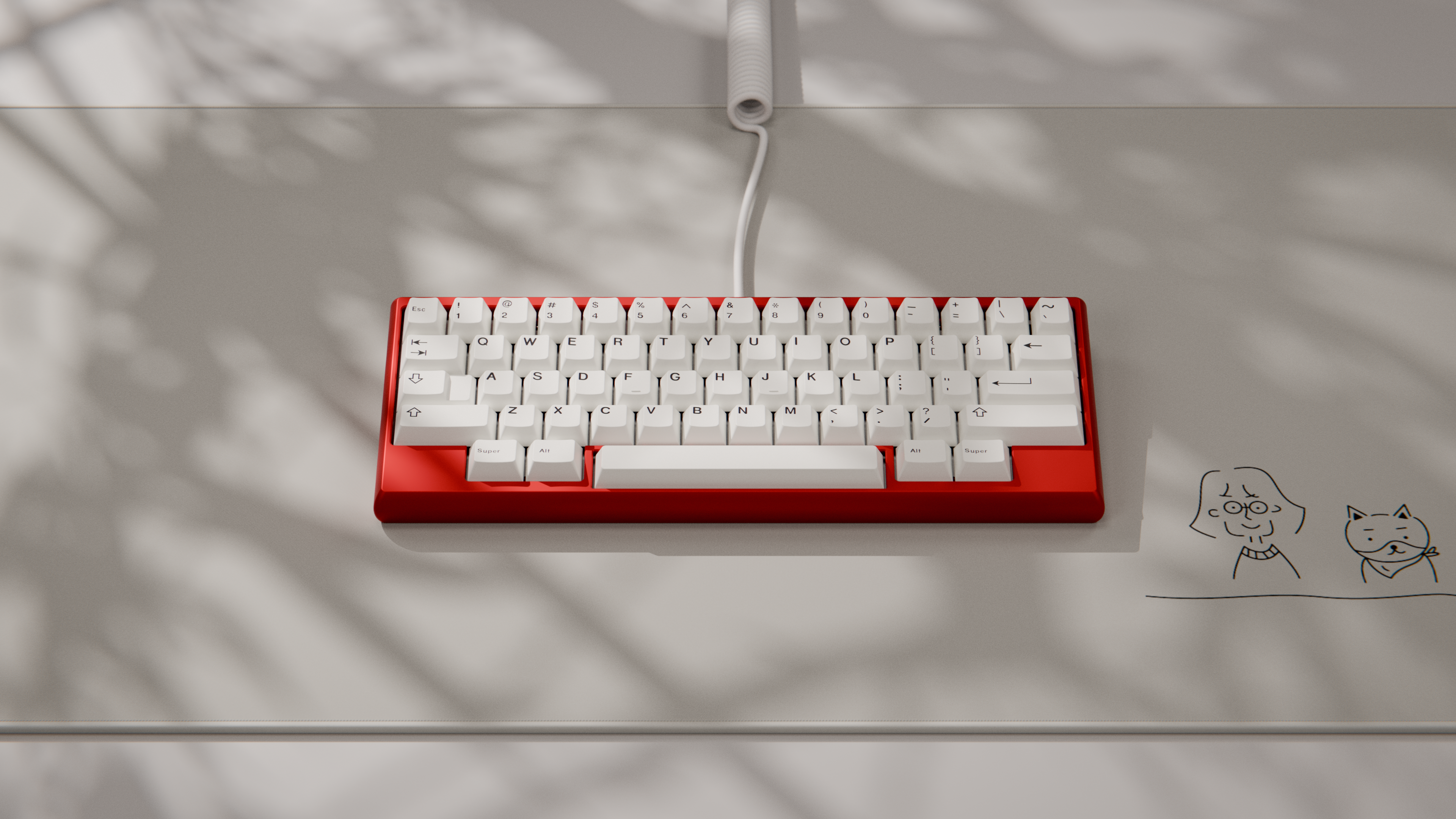

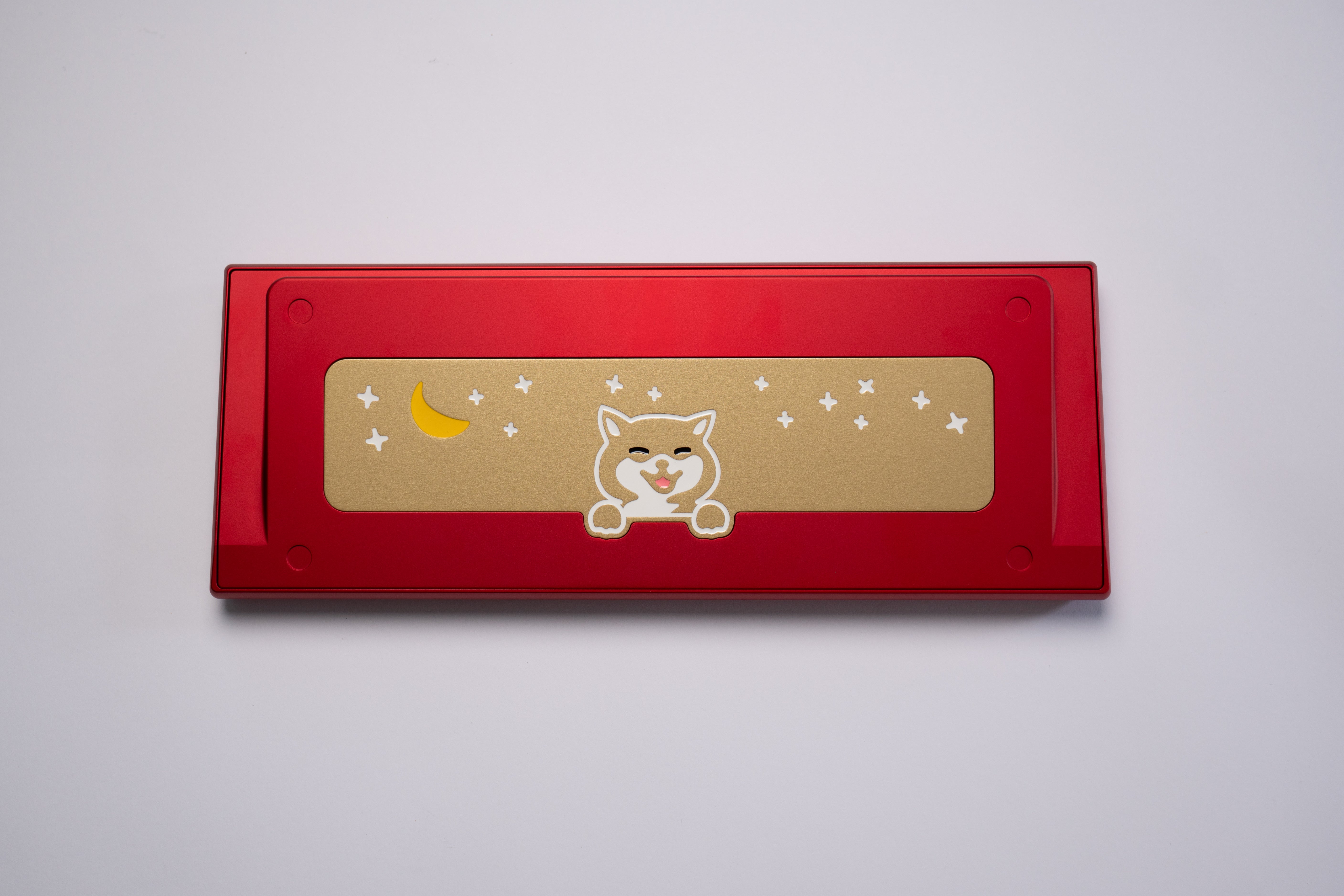

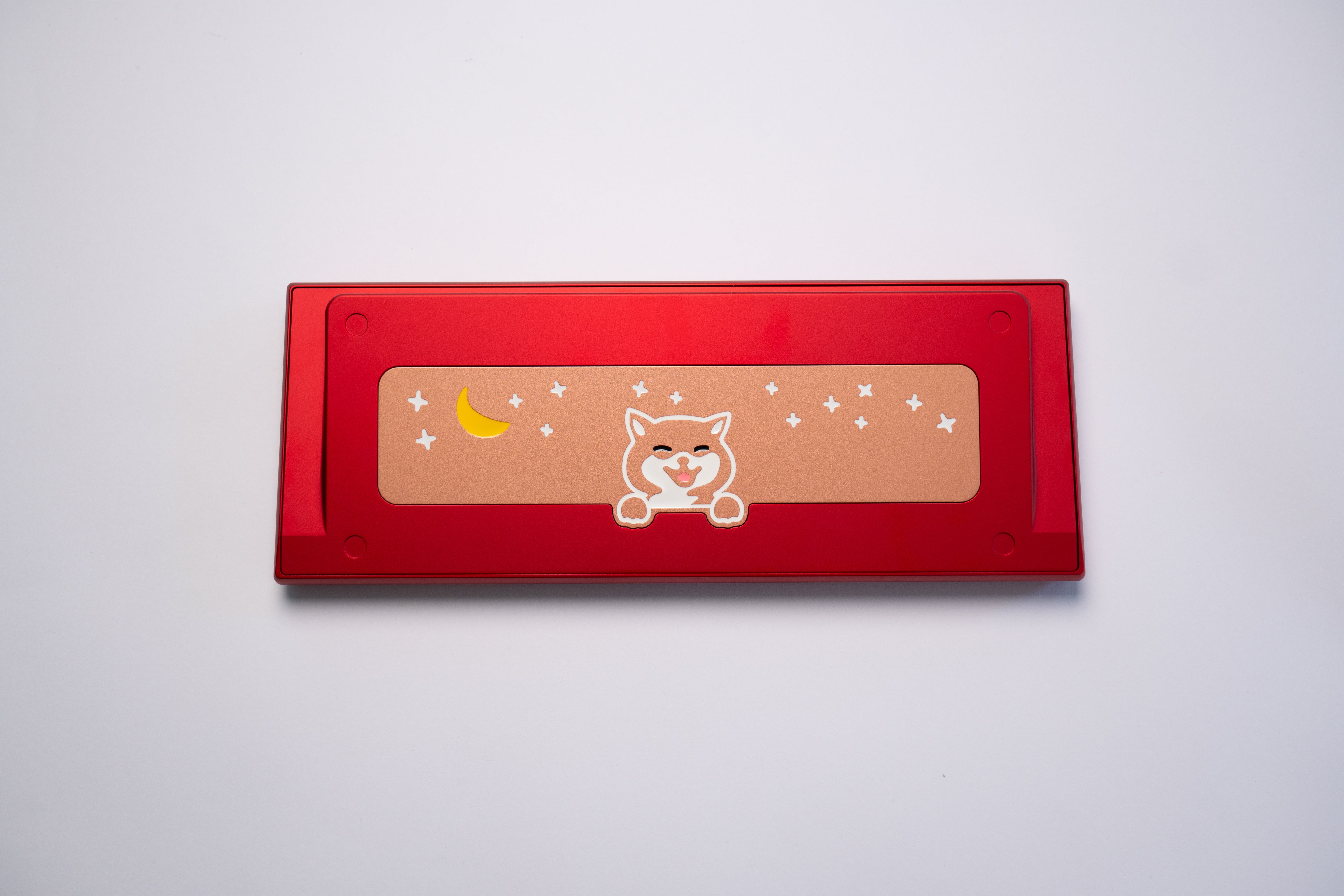

• Hong Bao - Aluminium Anodised Red

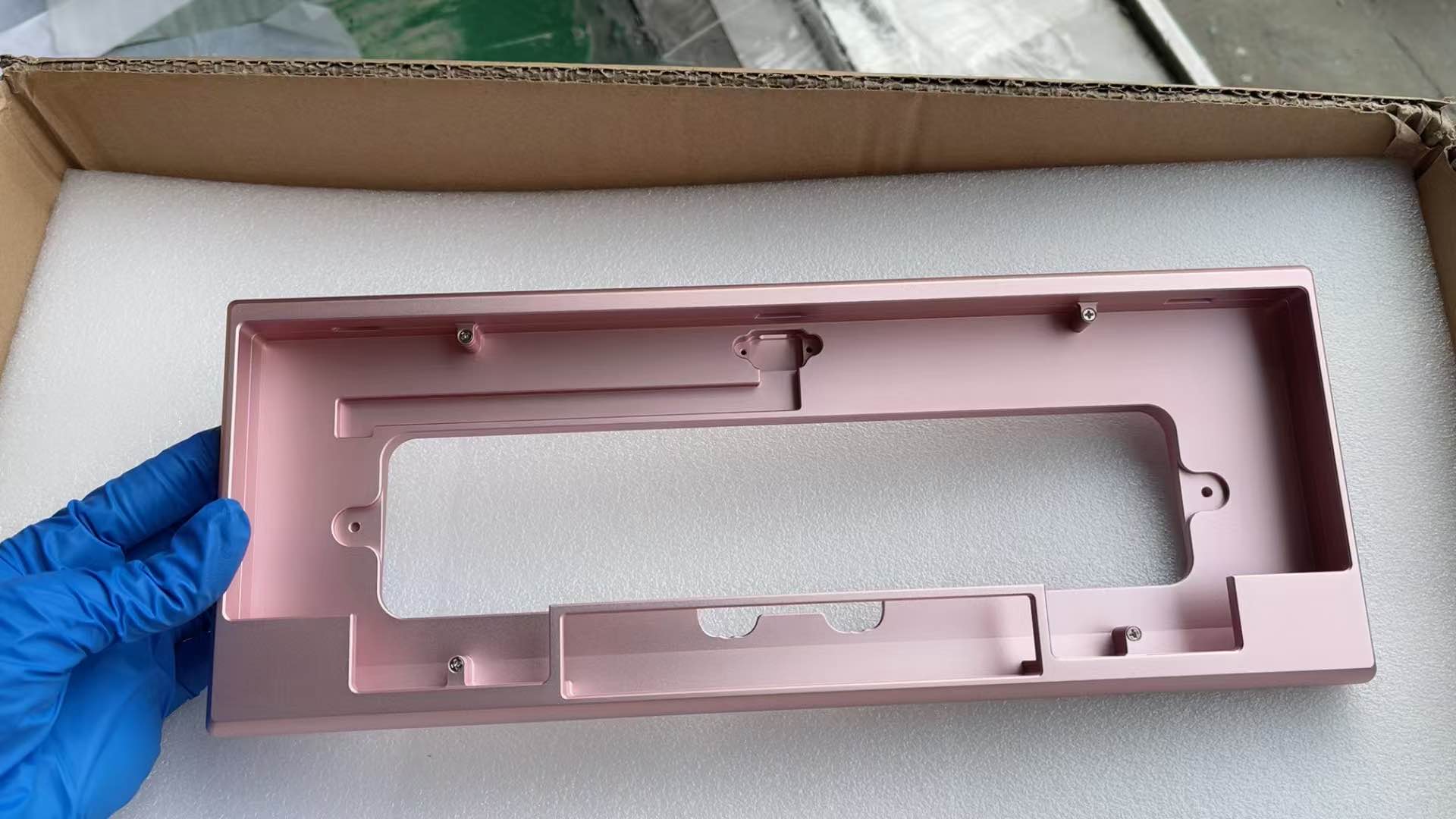

• Sakura - Aluminium Anodised Pink

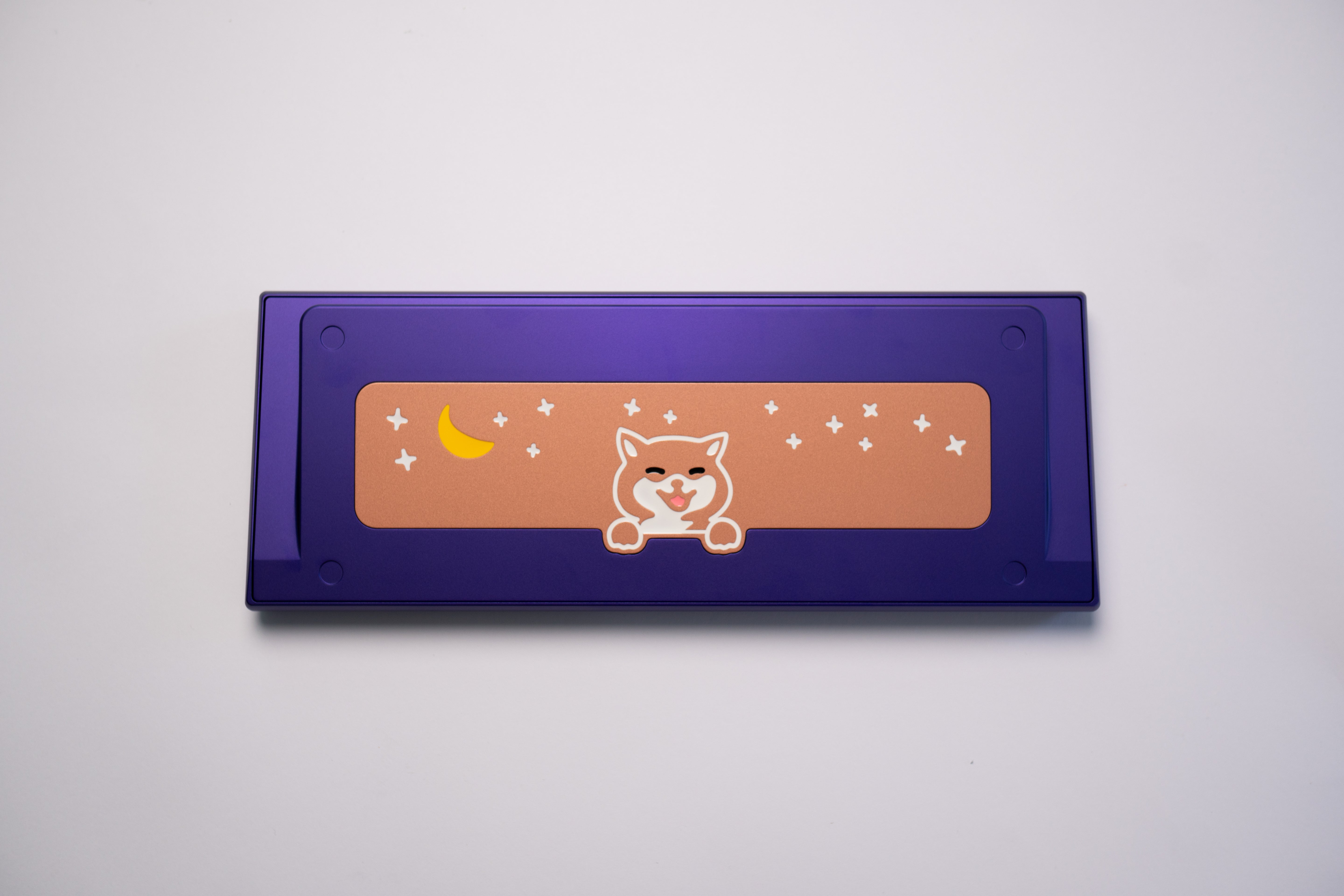

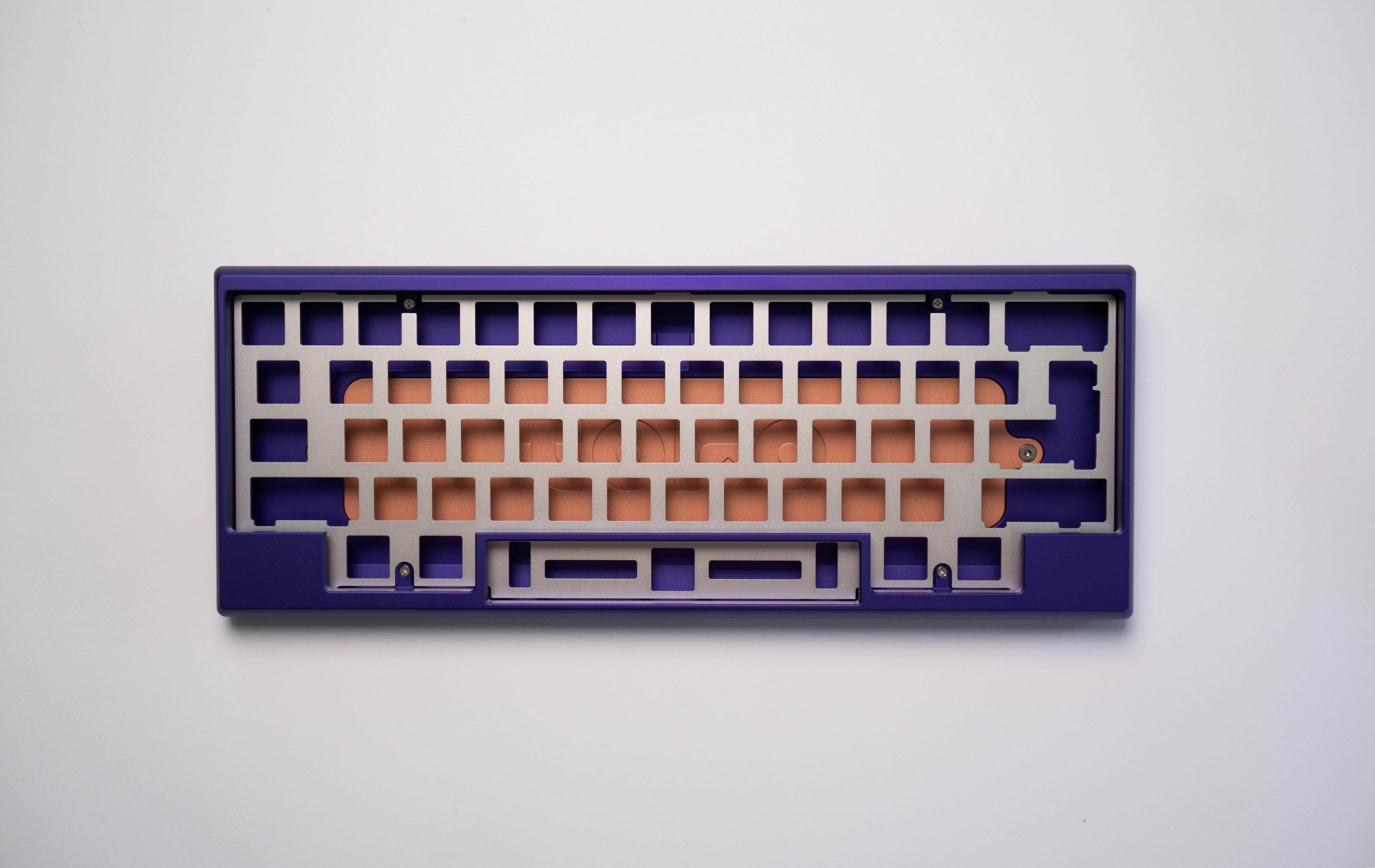

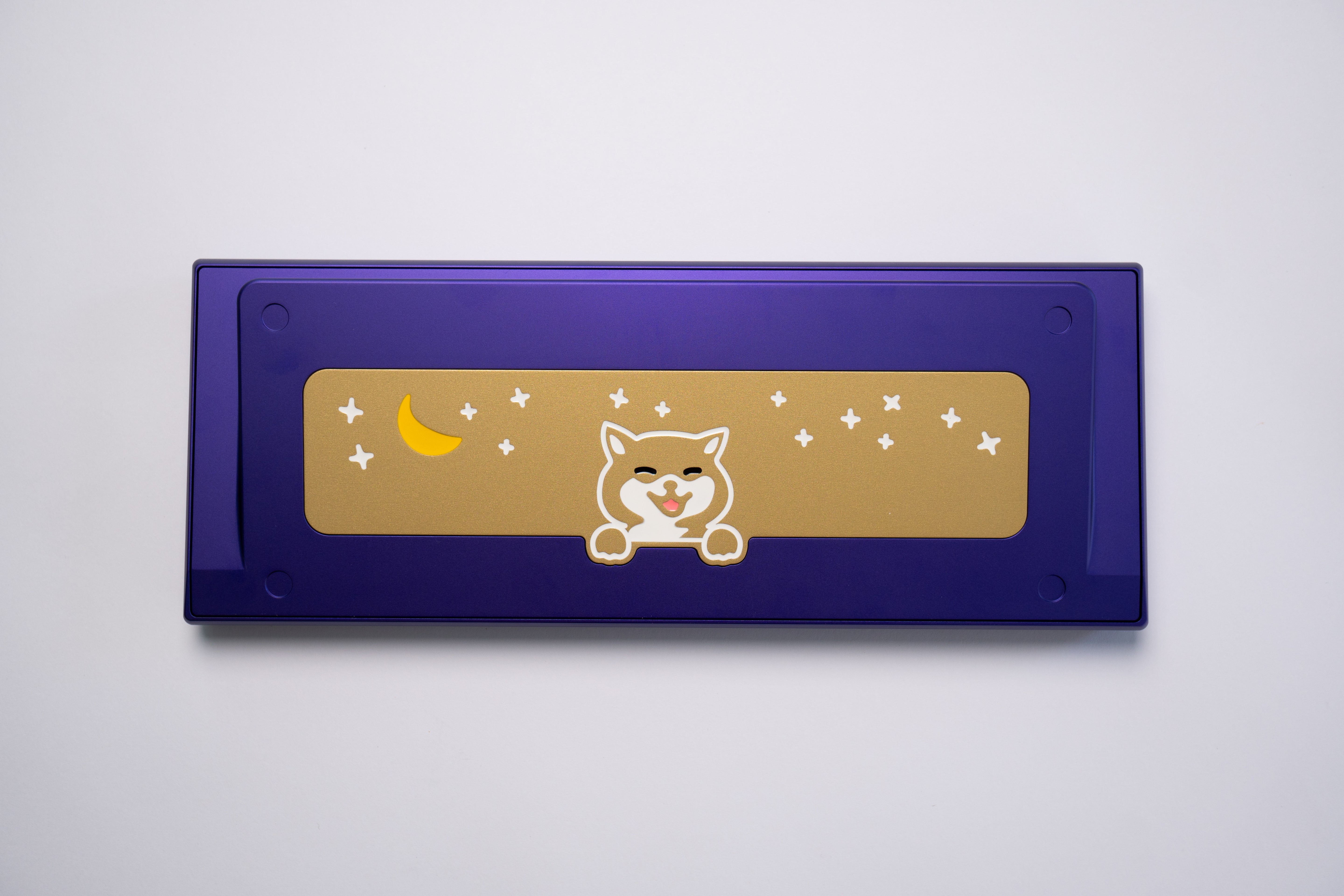

• Taro - Aluminium Anodised Ultra Violet

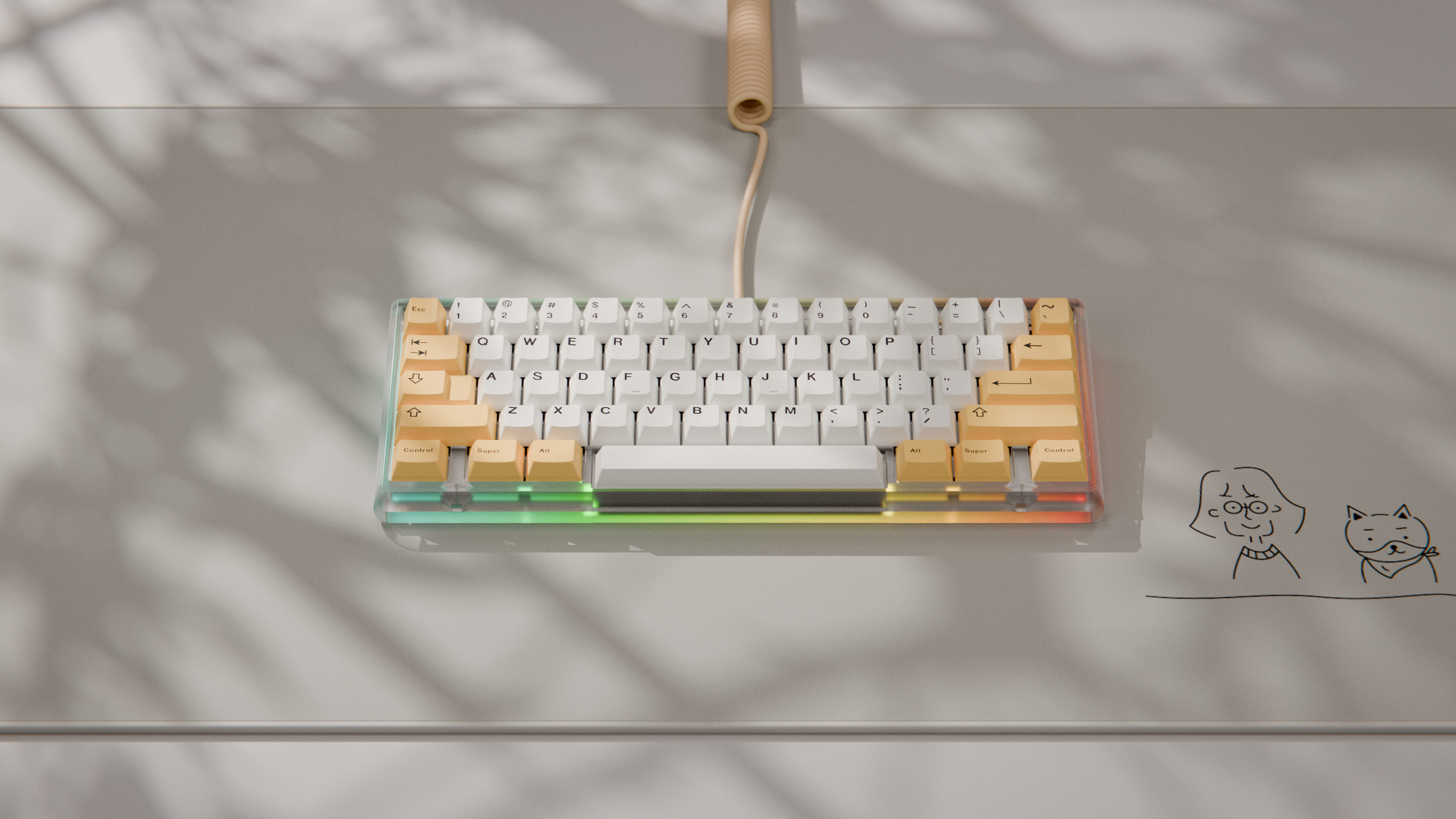

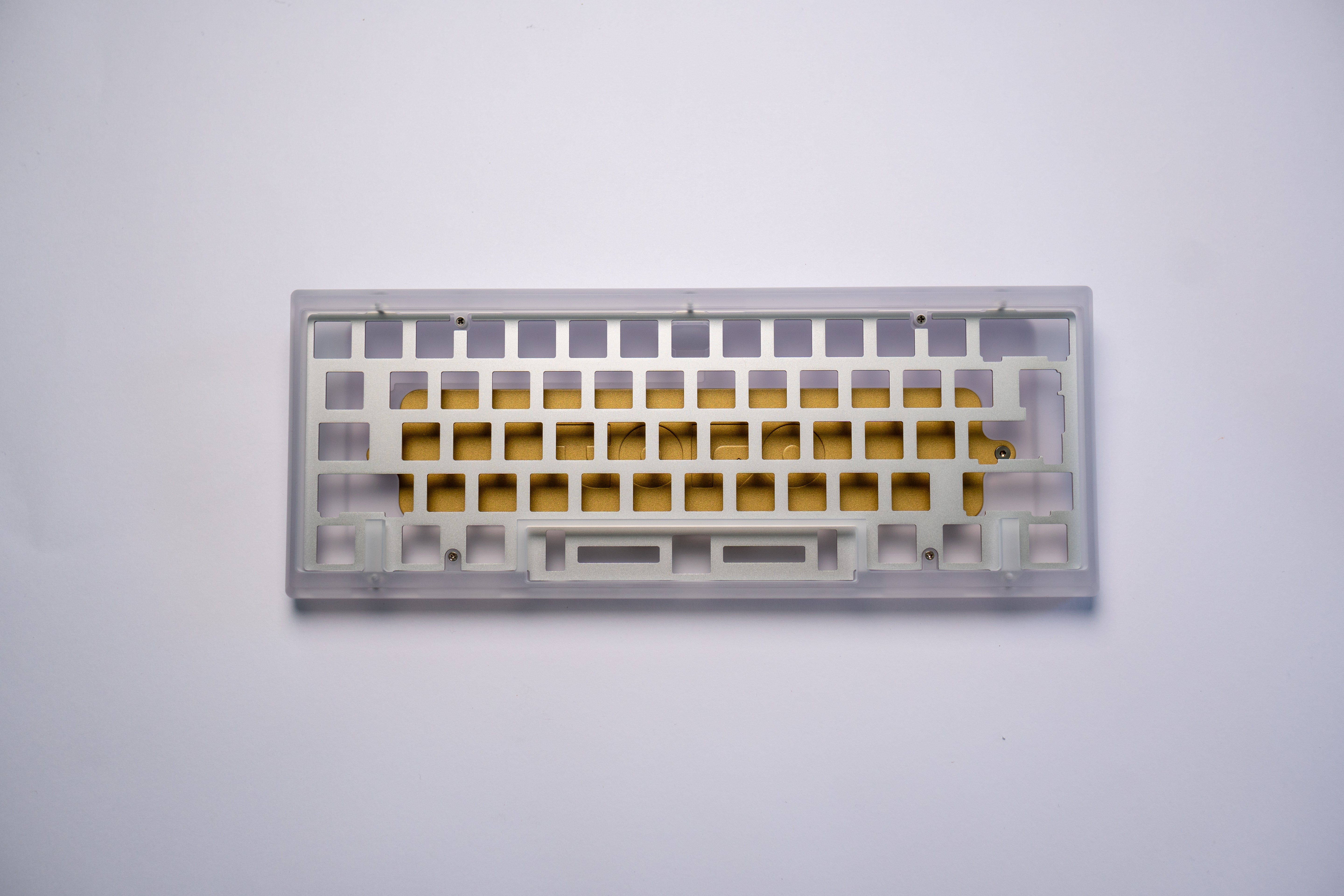

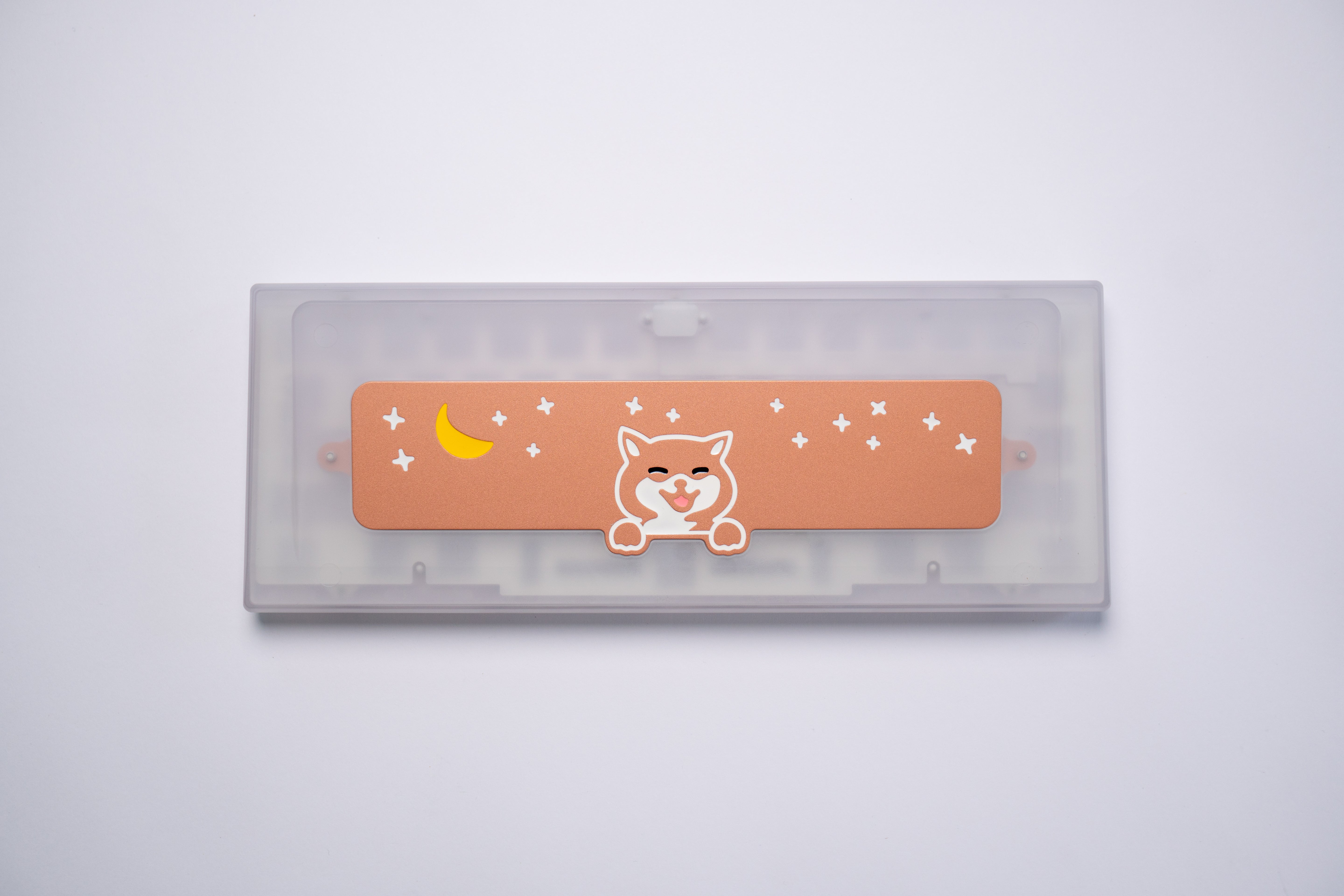

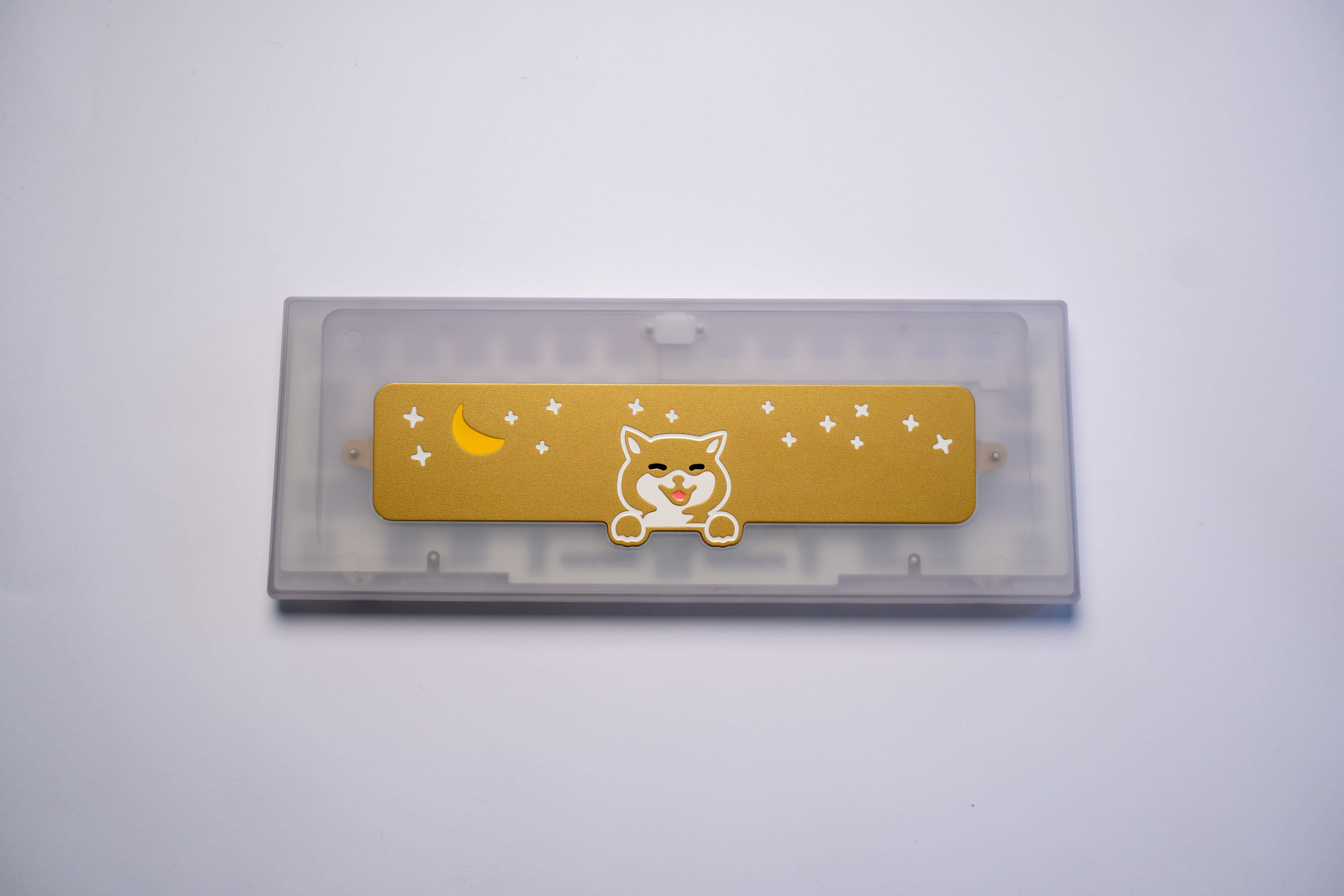

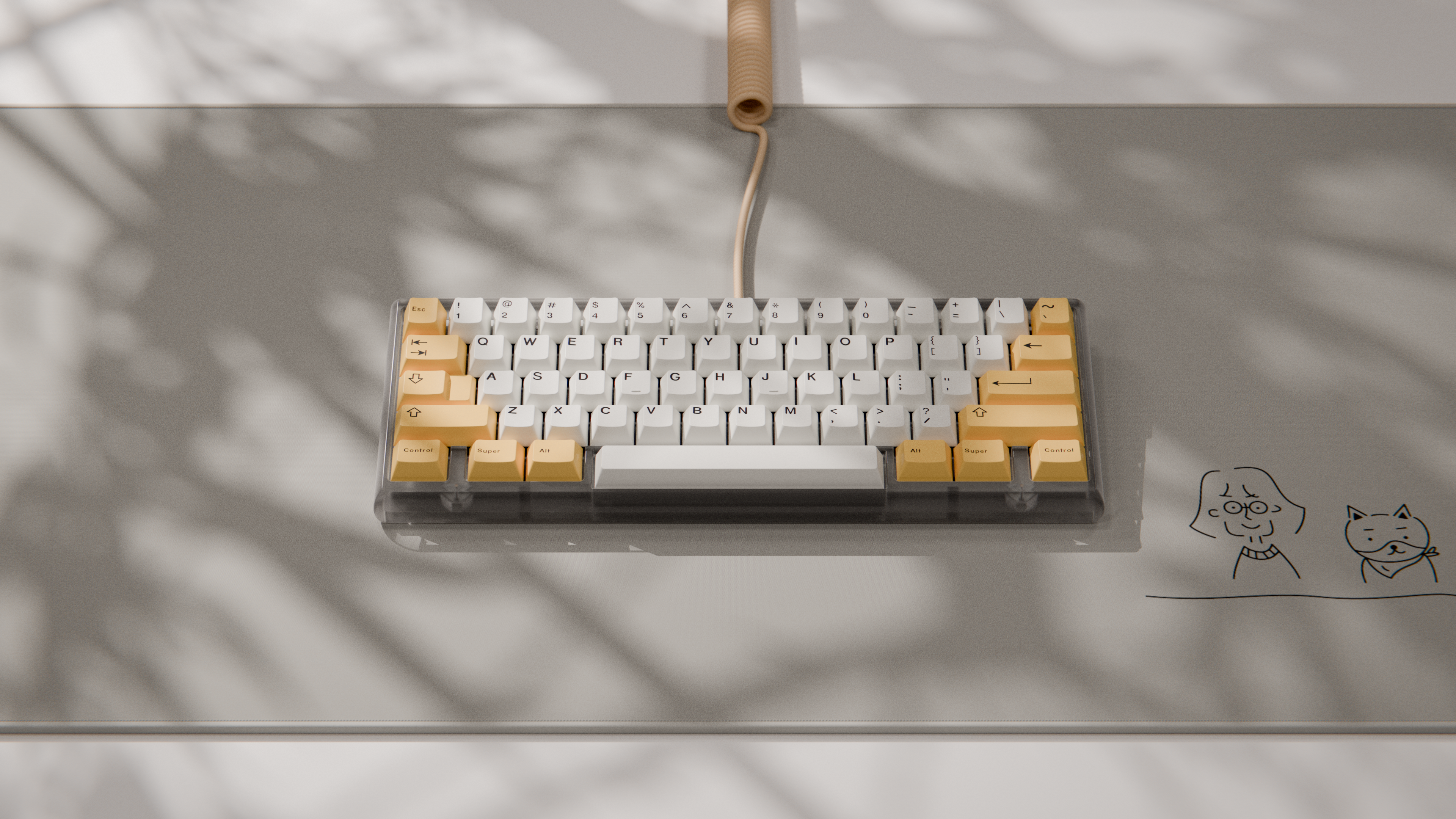

• Cheems - PC Sandblasted Clear

Kit Contents:

• Keyboard case
• Alu plate
• 1.6mm pcb
• Custom JST daughterboard + cable
• 5 x M2x5mm top mount screws
• 4 x M2 x 10mm case screws
• Keyboard carrying case
• Feet
• Cleaning cloth

Regional Vendors:

• CA: MechLand
• US: ClickClack
• UK: Prototypist
• EU: CoffeeKey
• SG: Ktechs
• MY: Mecha
• ID: KuKey Studio
• VN: Nuxroskb
• AU: Toro Studio
• TH: Aiglatson Studio
• JP: Yushakobo
• Scanda: MaxGaming
• CN: Kezewa
• KR: Swagkey

Disclaimers:

Shipping Time and GB Agreements (PLEASE READ):
These keyboards are set to be shipped out in Q3/Q4 2025.

Please note that this is a Group Buy. There can be delays and set backs. The timeline is only an estimate. By adding this item to your cart and purchasing you agree that you understand everything above. You will be charged immediately for this item. There are no refunds or cancellations on these orders. Please do not purchase this item with other group buys. Only the items specified in each product picture are included with that particular product.
