Sale price£150.83

Closing Date: December 15th 2024

Expected Shipping time: Q2 2025



Vida - A 60% Keyboard by James from AKB

VIDA is the culmination of several rounds of prototypes and community feedback, and we cannot wait to get it into your hands. The top and bottom case assembly is screwless via magnets and we are offering a ZMK powered wireless option.



Vida Blackout Edition Exclusive for Launch Day

Launching immediately on Black Friday, the BLACKOUT edition offers sleek looks and insane value. A fully blacked out case, starting at only £181, and available for only 24 hours.



Addons Available Here

Extra Top Case Available Here



Mounting Style:

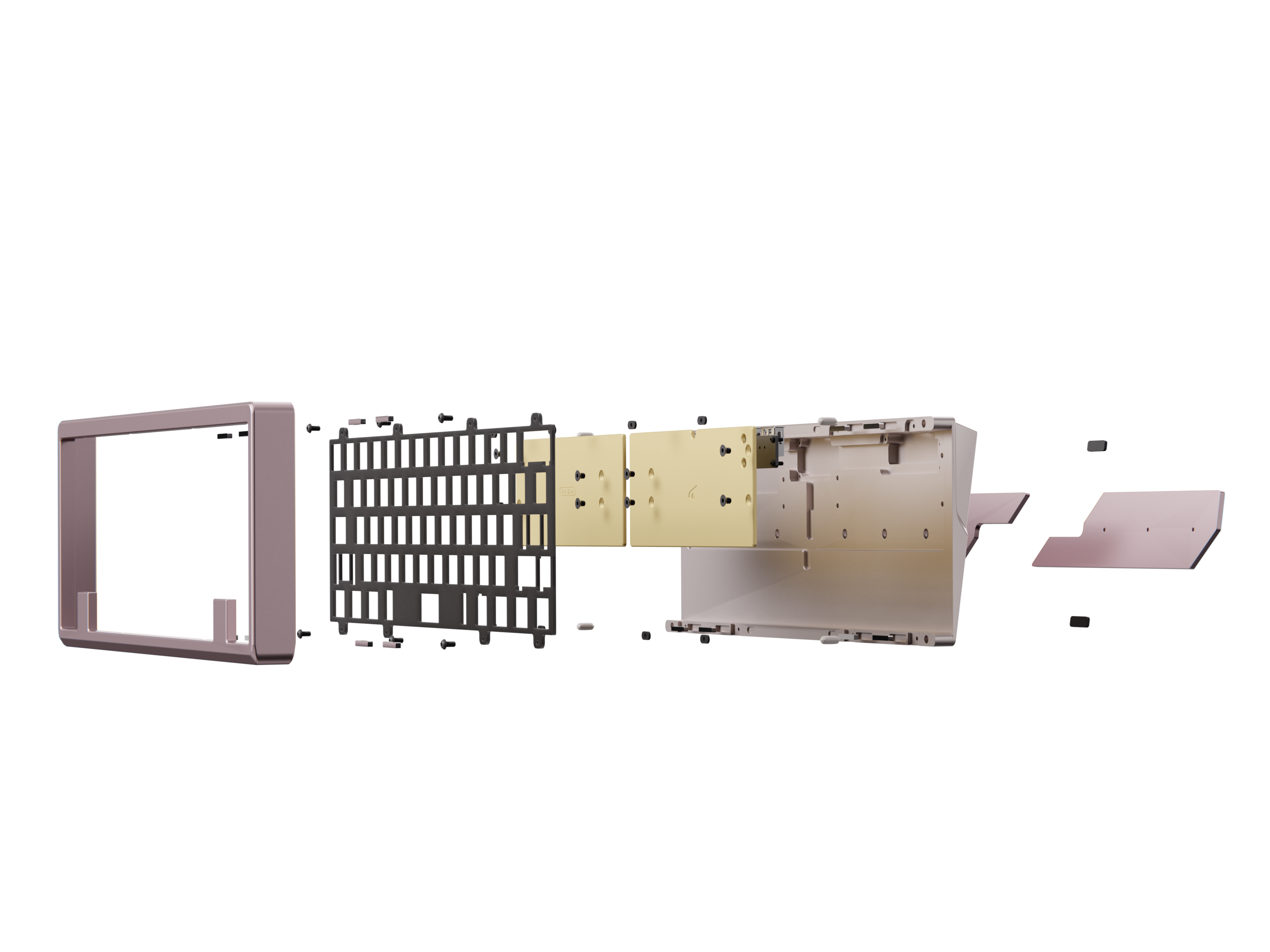

VIDA uses a unique version of bottom mount that utilises poron dampeners and nylon alignment pins. The plate screws into the bottom case, and the top case is connected to the bottom through integrated magnets that are automatically aligned thanks to the alignment pins.


    Wireless Enabled

    VIDA is designed with wireless in mind. Opt for the wireless kit to receive a ZMK powered PCB and battery that slots into the bottom case. Alternatively, you can choose a standard wired PCB. To learn more about ZMK, check out our recent blogpost.


    Elegantly Designed

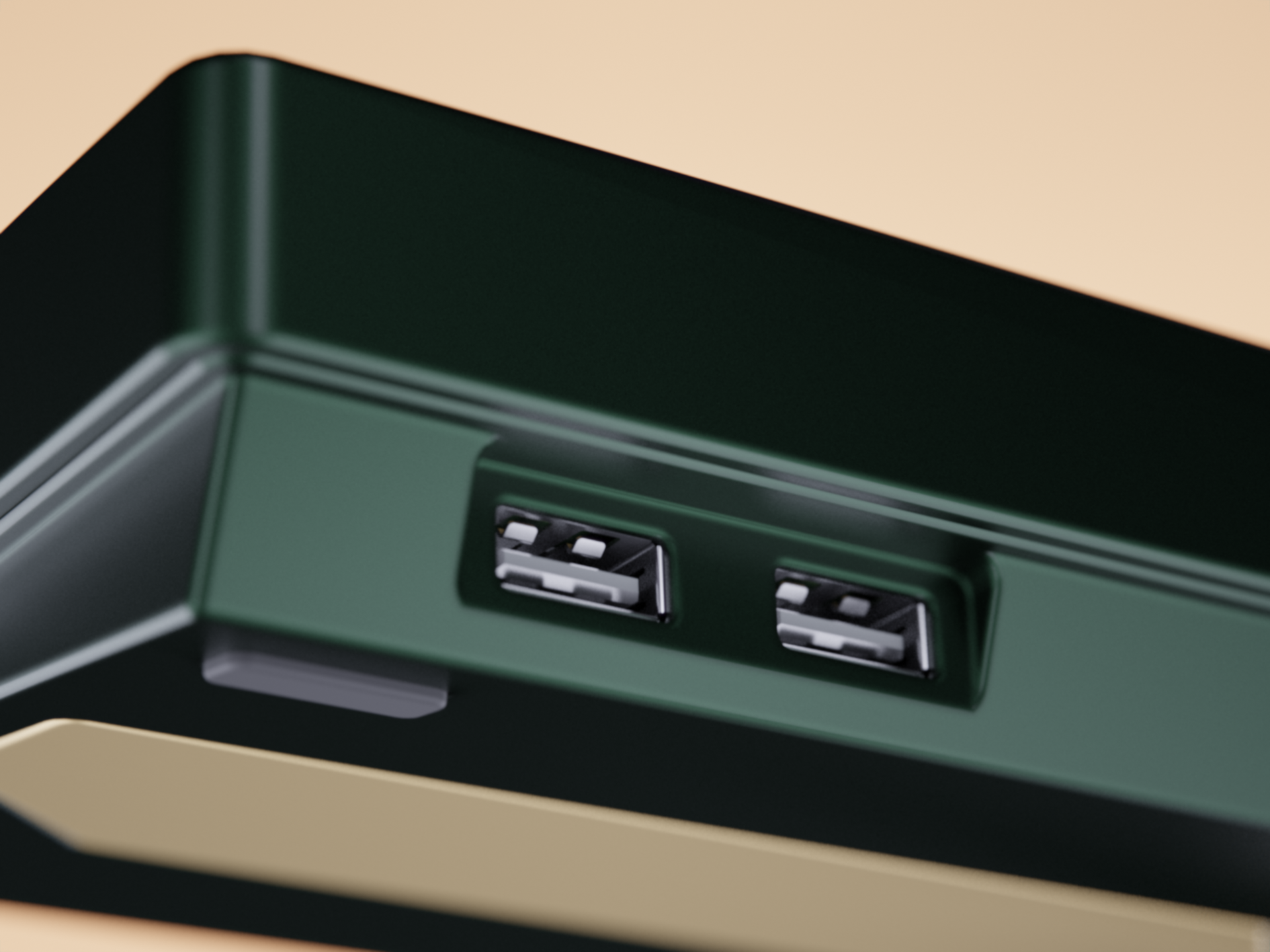

    VIDA combines form and function with it's stunning side profile, and seamlessly integrated USB hub. When wired, you can connect USB devices to save some desk space and reduce clutter.


    Layout Support:

    Wired Solder PCB

    Wired Hotswap PCB
    Wireless Hotswap PCB

    Vida Colourways:

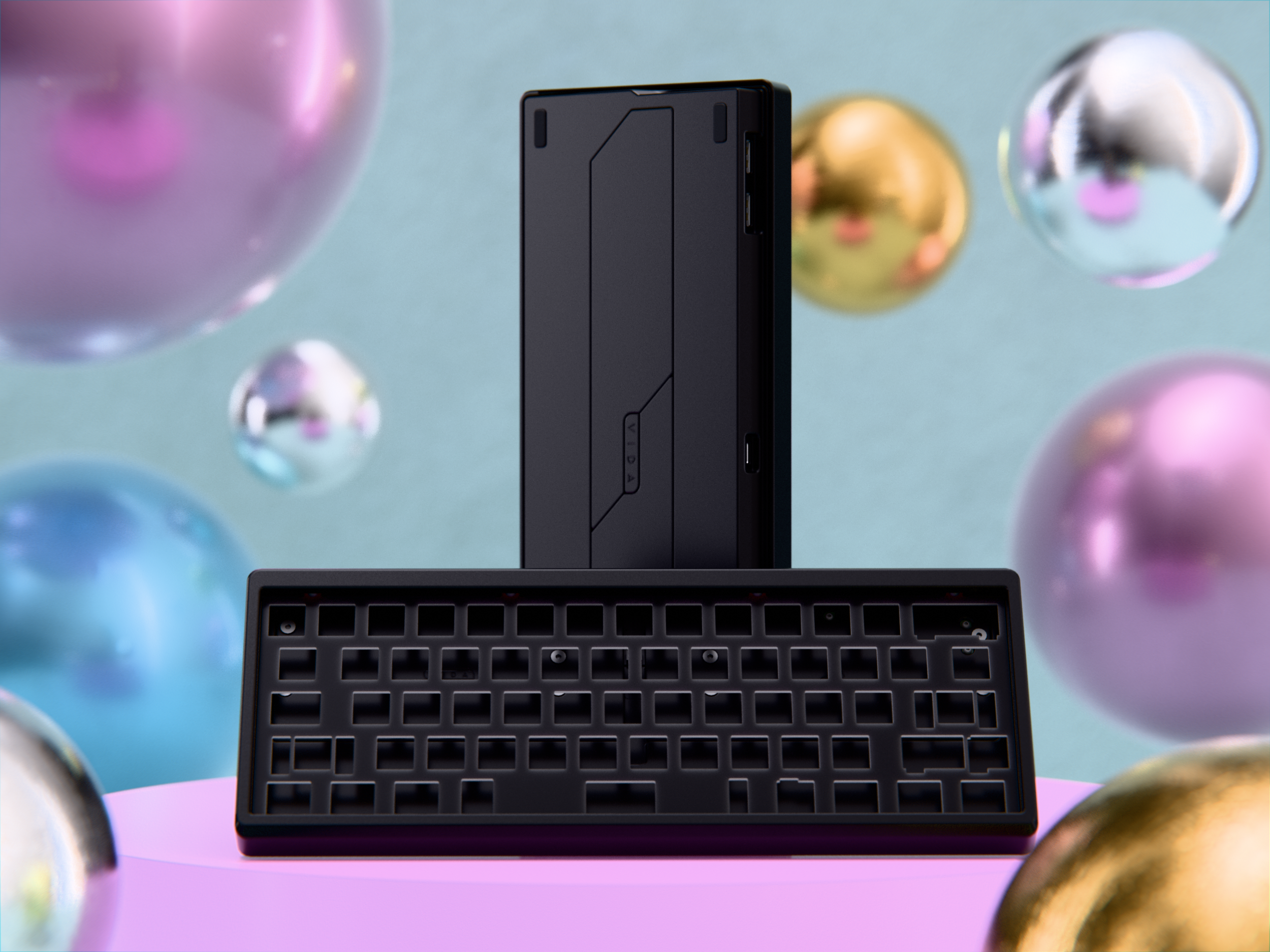

    Blackout - Black Friday Exclusive
    • Ano black top
    • Ano black bottom
    • Ano black internal weights
    • Ano black external weights

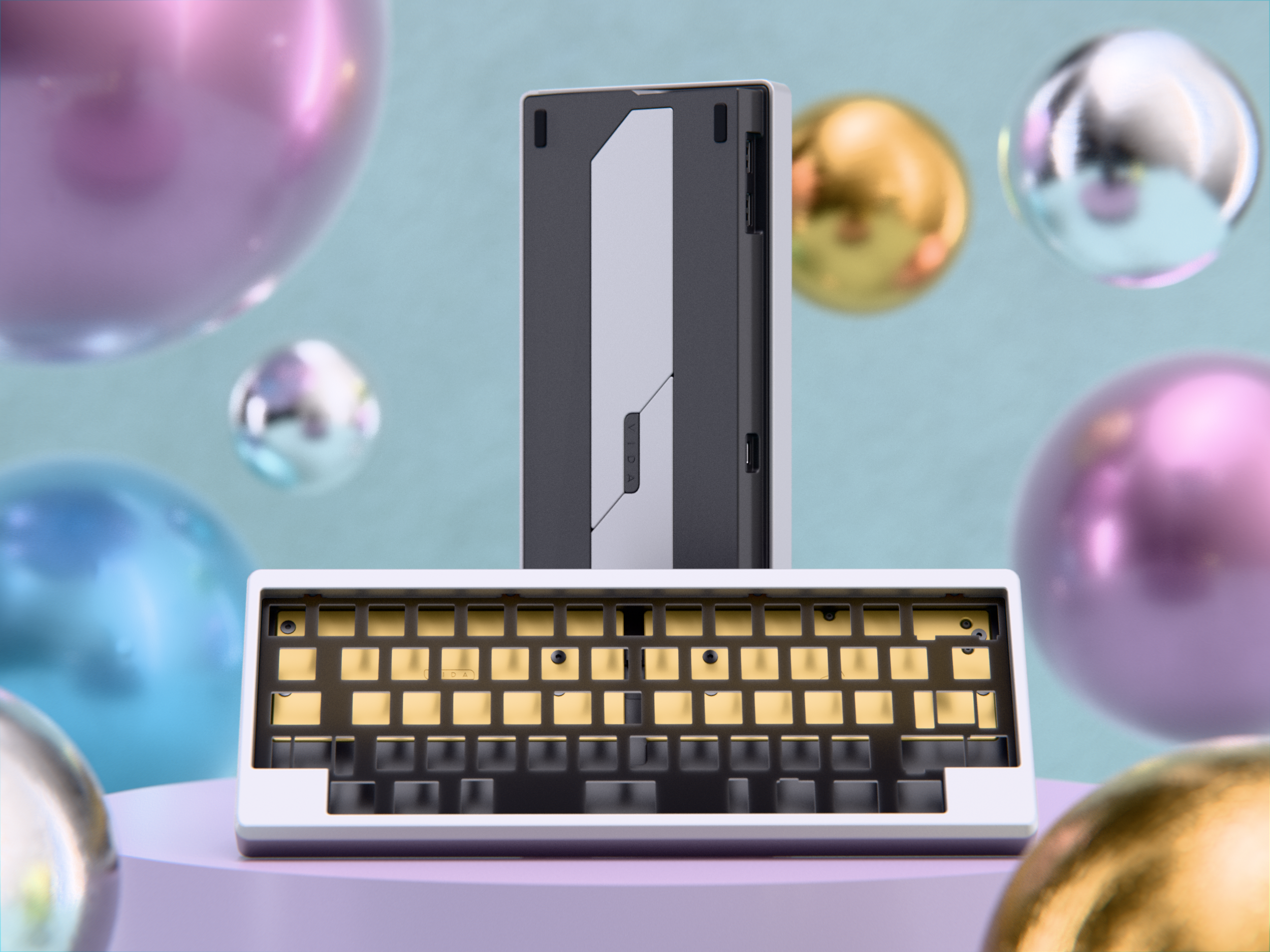

    Luma

    • Ano silver top
    • Ano dark grey bottom
    • Brass internal weights
    • Ano silver external weights

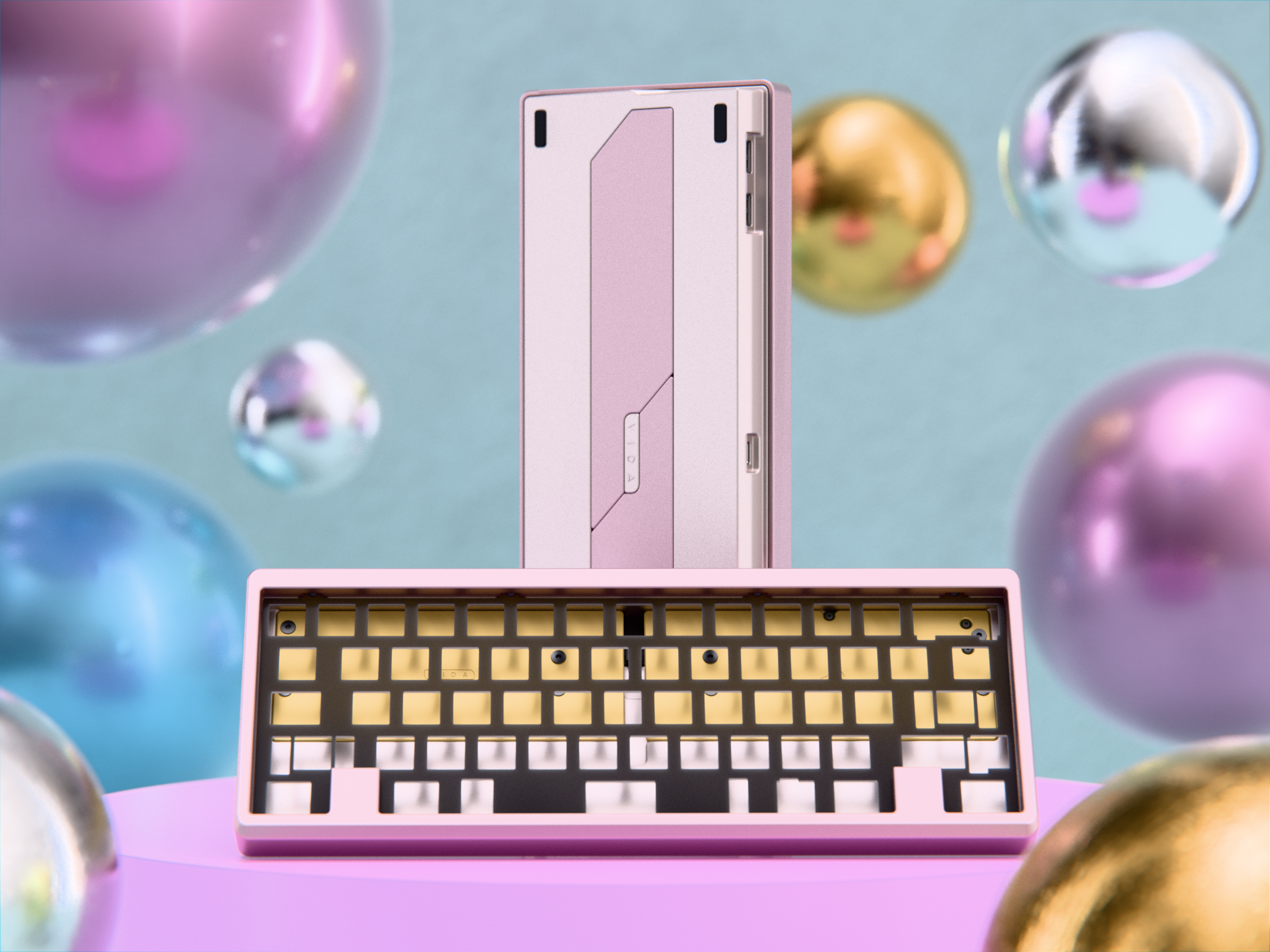

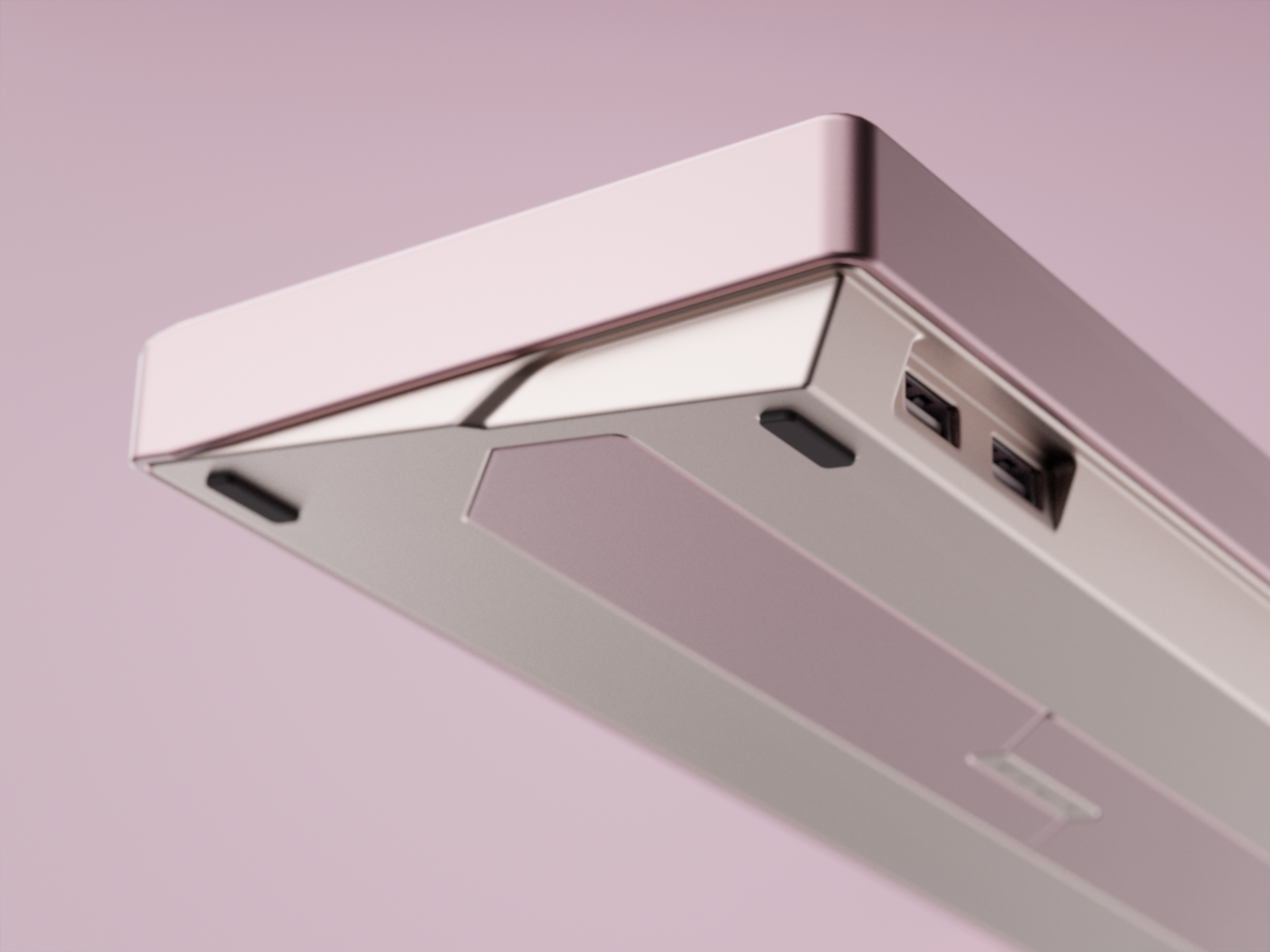

    Blush

    • Ano pink top
    • Ano rose gold bottom
    • Brass internal weights
    • Ano pink external weights

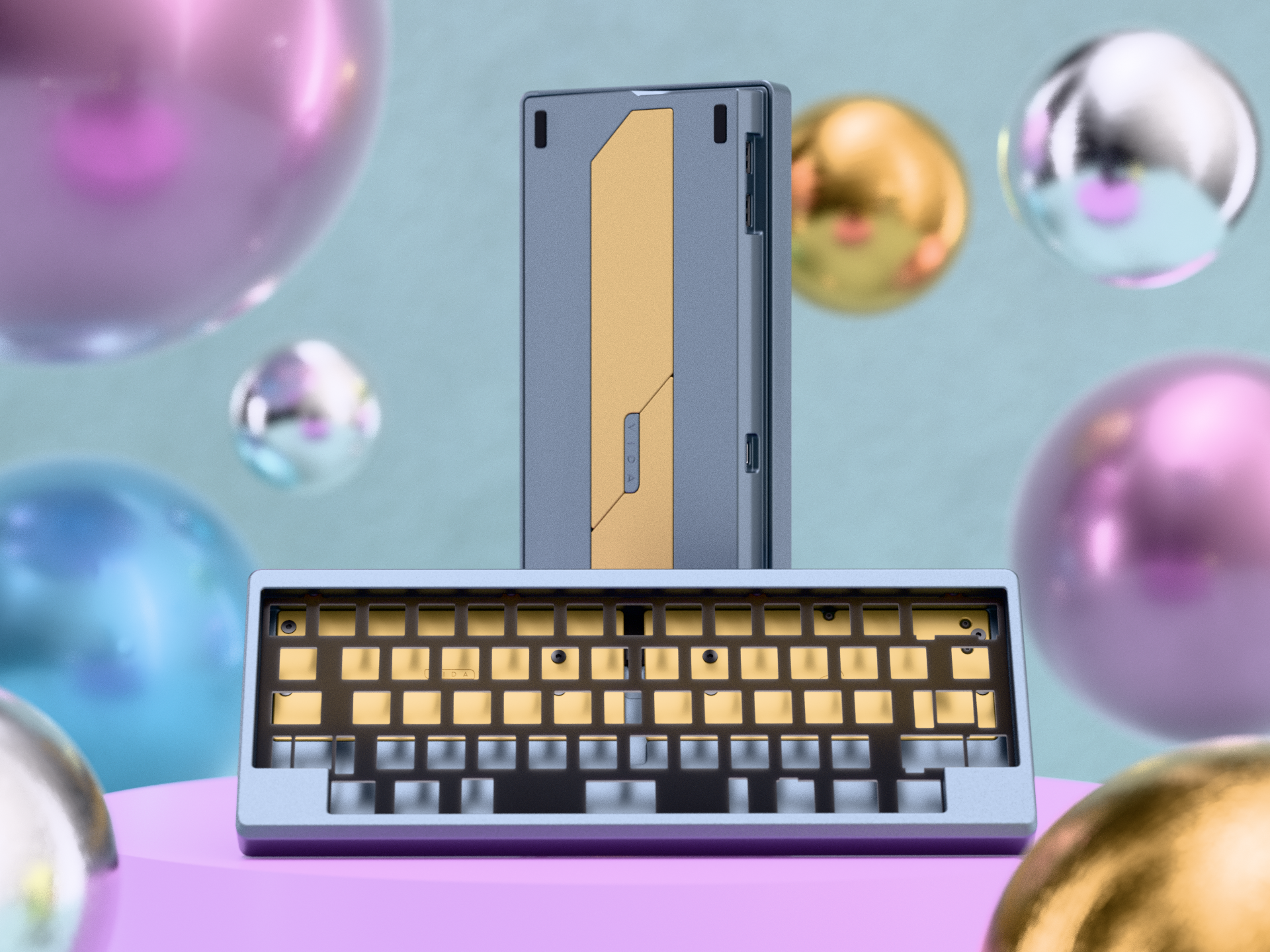

    Celeste

    • Ano midnight blue top
    • Ano midnight blue bottom
    • Brass internal weights
    • Ano gold external weights

    Verdant

    • Ano forest green top
    • Ano forest green bottom
    • Brass internal weights
    • Ano gold external weights

    Azure

    • Ano dark blue top
    • Ano dark blue bottom
    • Brass internal weights
    • Ano baby blue external weights

    Navy

    • Ano navy top
    • Ano navy bottom
    • Brass internal weights
    • Ano gold external weights

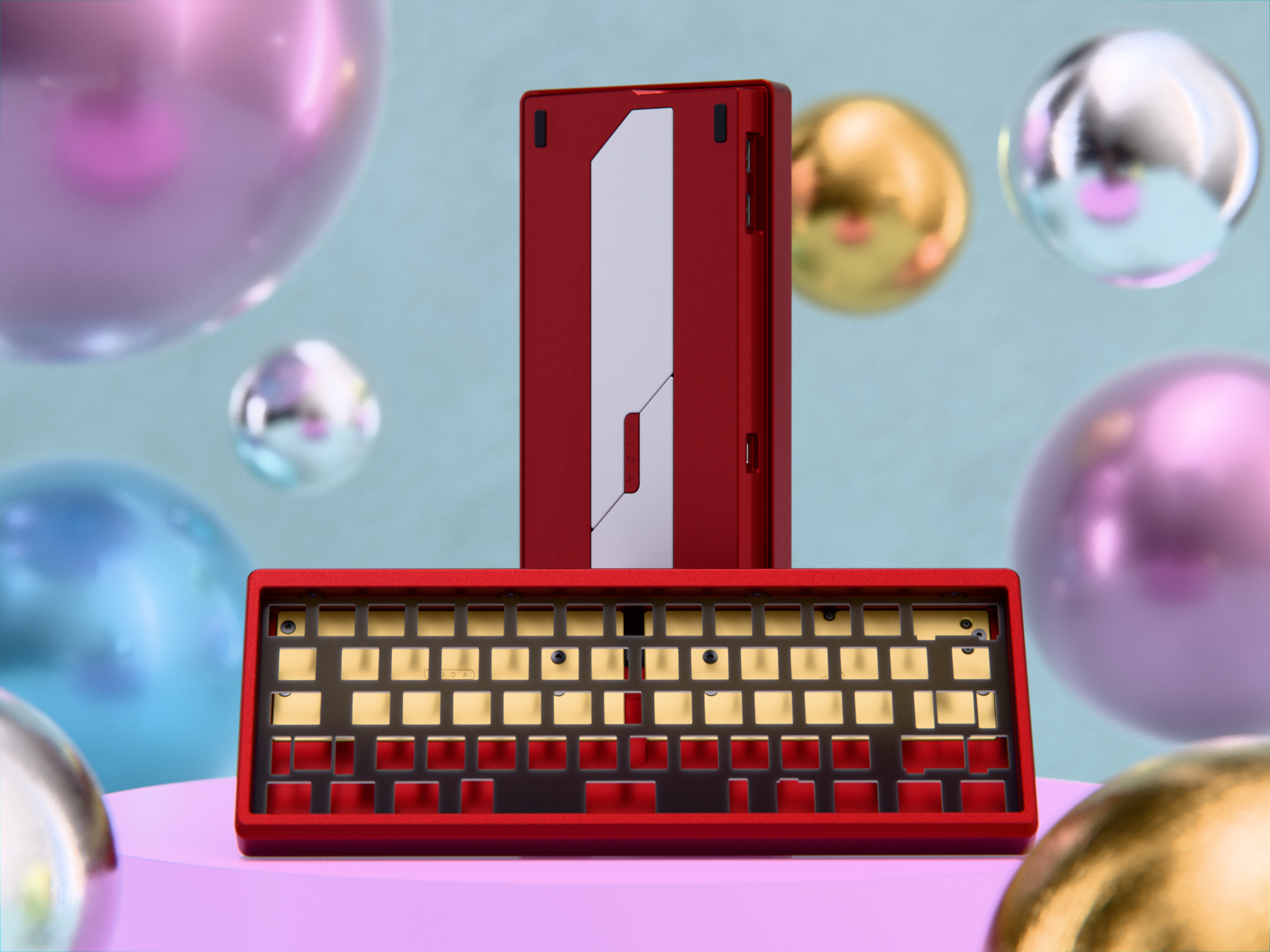

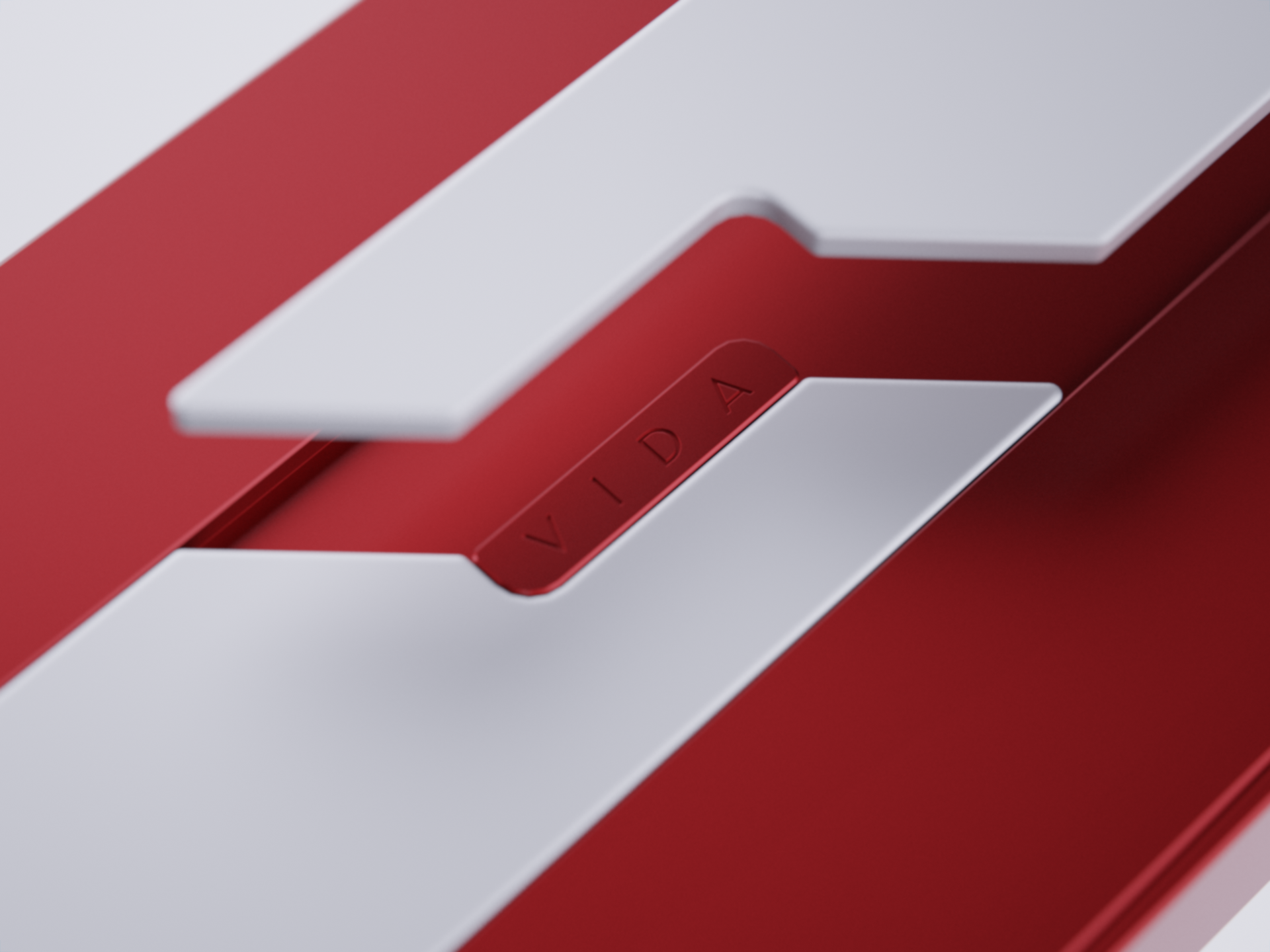

    Chili

    • Ano red top
    • Ano red bottom
    • Brass internal weights
    • Ano silver external weights

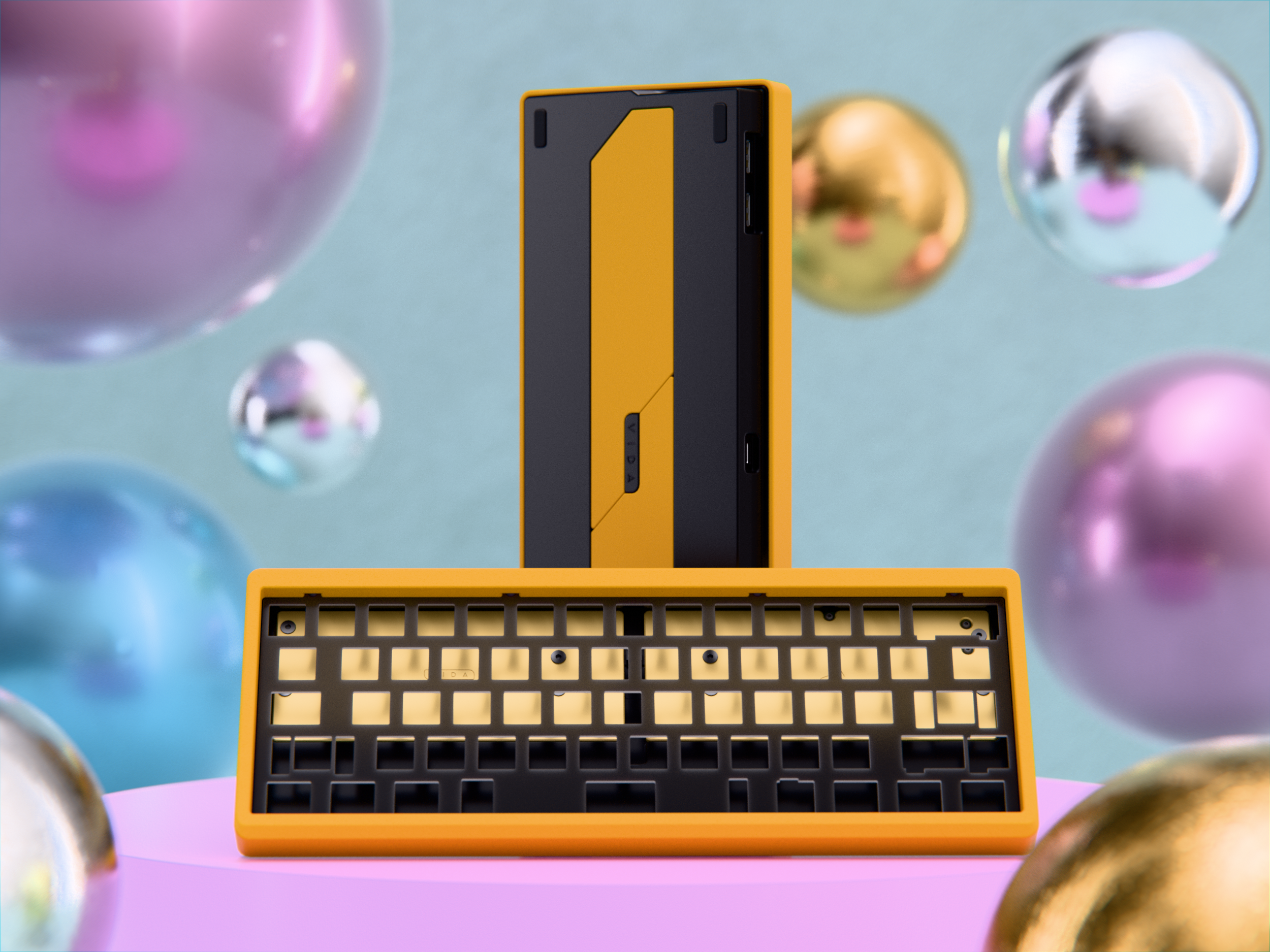

    Yellow Jacket

    • E-Yellow top
    • Ano Black bottom
    • Brass internal weights
    • E-Yellow external weights

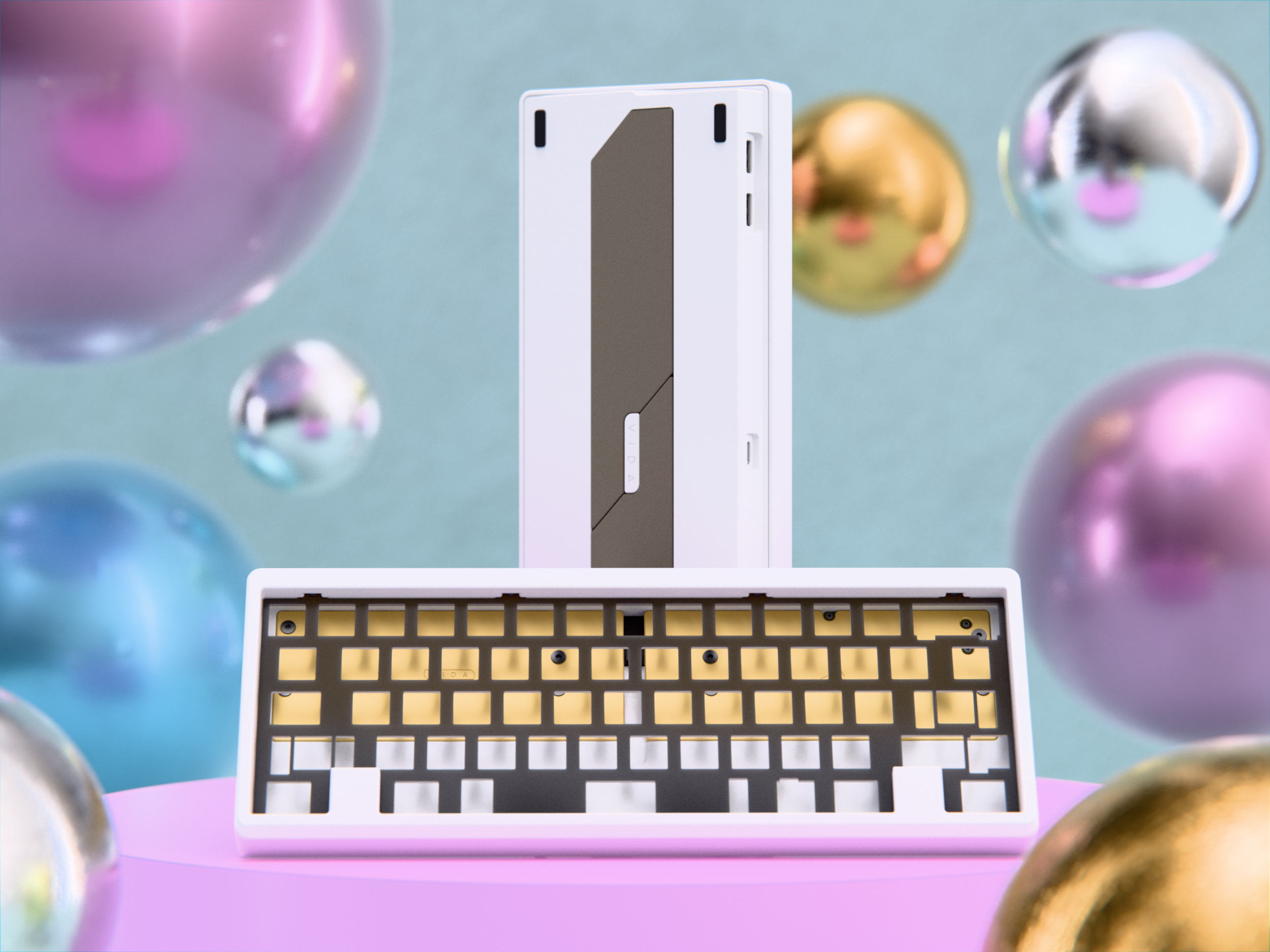

    Pureza

    • E-White top
    • E-White bottom
    • Brass internal weights
    • Ano dark gold external weights

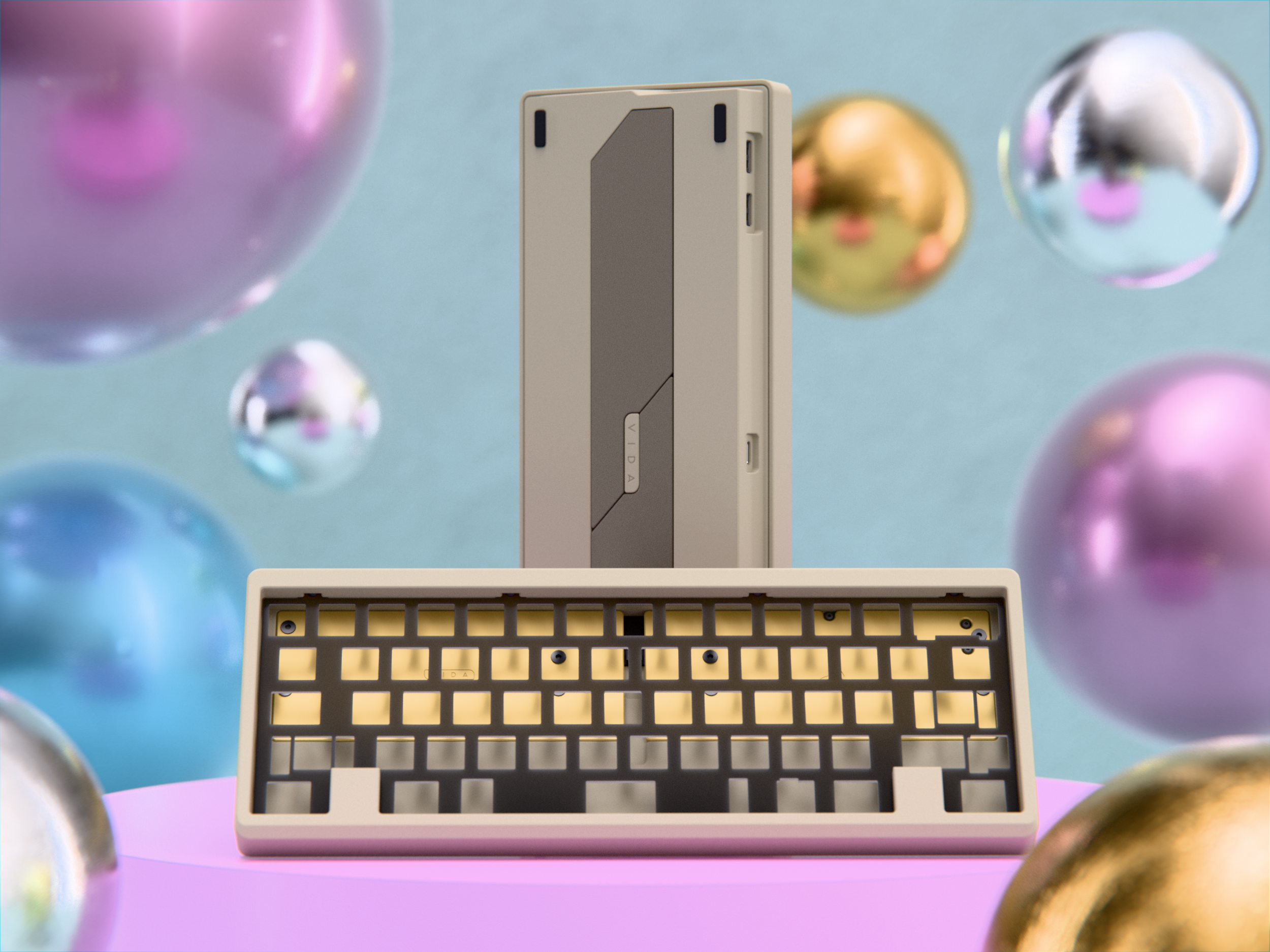

    Ecru

    • E-Beige top
    • E-Beige bottom
    • Brass internal weights
    • Ano dark gold external weights





    Specifications:
    • 8 degree typing angle
    • 19.54mm effective front height
    • Screwless (magnetic) case construction
    • ZMK Wireless PCB - learn about ZMK studio here
    • USB 2.0 hub (2 ports) for use when used wired
    • 6063 aluminium top/bottom case
    • Brass internal weights (2) (Blackout edition has aluminium internal weights)

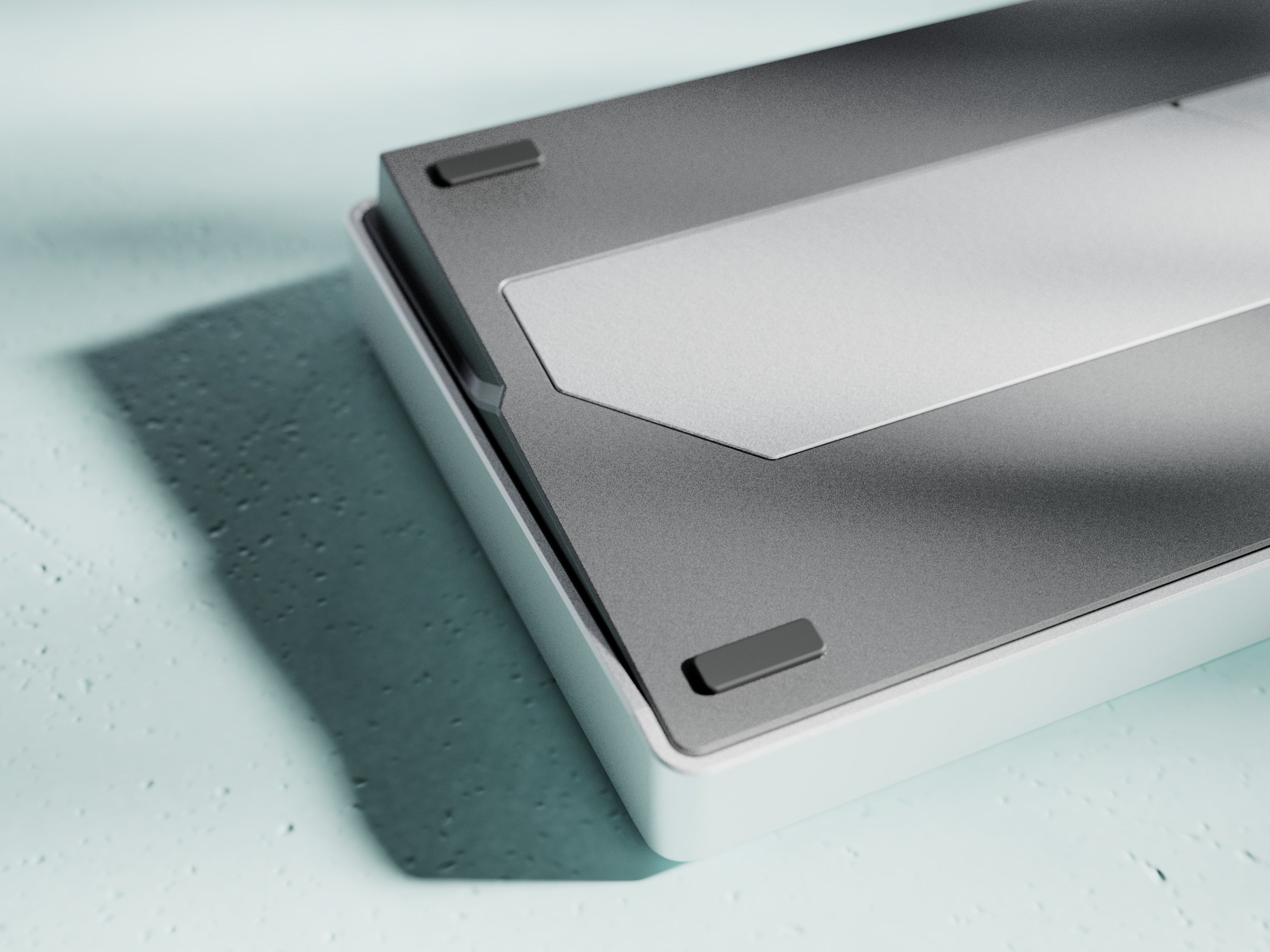

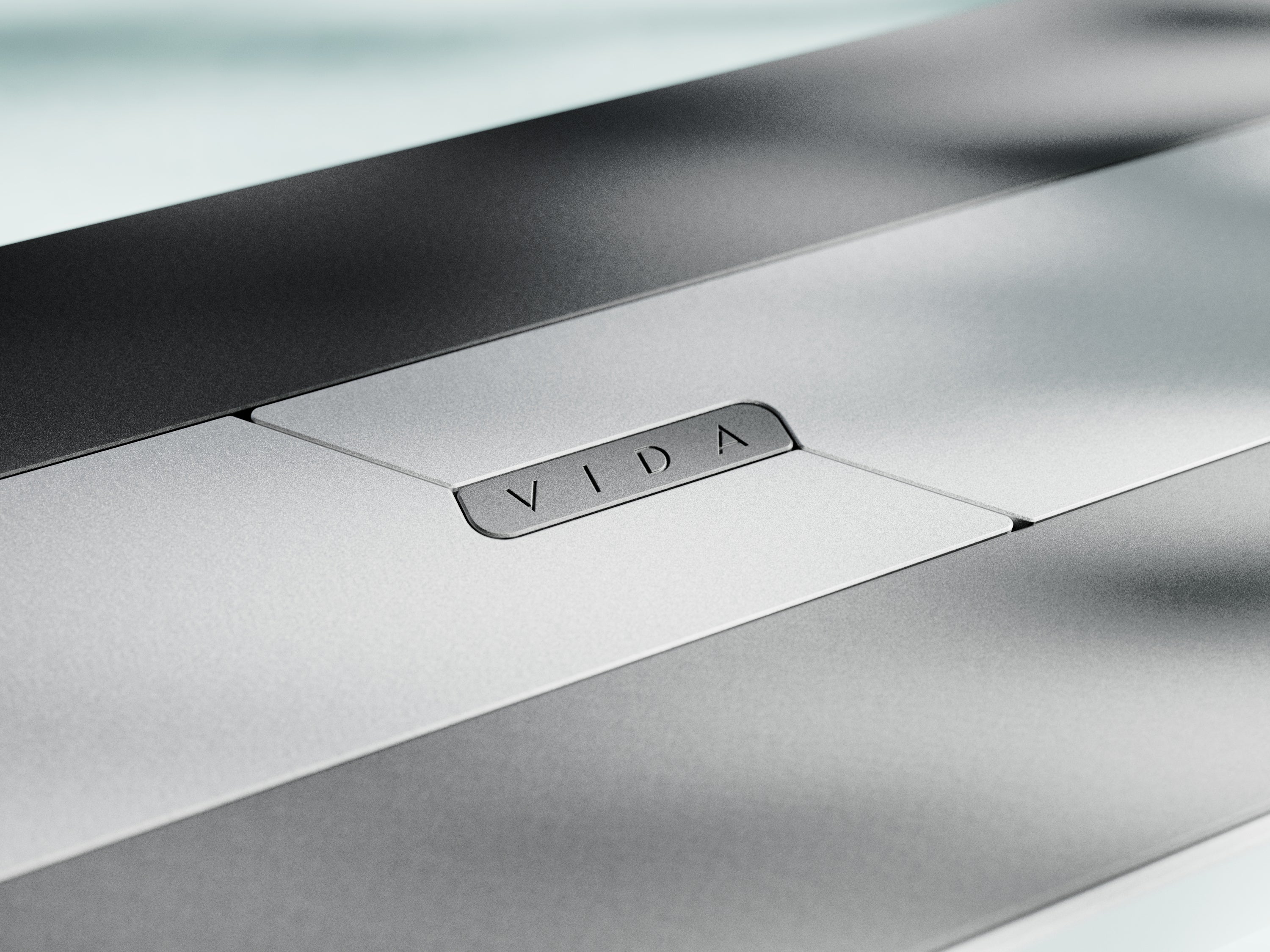

    • Anodized aluminium outer weights (2) -with options for brass and copper weight add-ons
    • Bottom mount plate (with poron dampeners)
    • Nylon alignment pins
    • WK, WKL & HHKB options available for all editions
    • 1,000mAh battery
    • Designed by James from AKB



    Options:

    • WK, WKL, or HHKB
    • Choice of wired solder, wired hotswap, and wireless hotswap PCB
    • Choice of FR4, PC, Alu, or CF plate
    • Eleven set colorways



    In the Box:

    • 1x 6063 Aluminium Top Case
    • 1x 6063 Aluminium Bottom Case
    • 2x Internal Weight (6063 Aluminium or Brass)
    • 2x External Weight (6063 Aluminium or Aged Brass)
    • 1x Choice of Plate
    • 1x Choice of PCB
    • 1x USB-C Daughterboard
    • 1x USB 2.0 Hub Daughterboard
    • 1x 6pin to 6pin JST cable
    • 1x 4pin to Molex EZ-Mate cable
    • 8x Poron Gaskets
    • 4x Silicone AKB Feet
    • 1x Battery (If wireless PCB is kitted)
    • 4x Nylon Alignment Pins
    • 16x Magnets (pre-installed)
    • Relevant screws and hardware
    • 1x Microfiber Cloth
    • 1x Foam-Lined Hard Carry Case




    Disclaimers

    Colours in the final product may vary since renders are done under idealistic artificial lighting.

    Quality Disclaimer

    A Stock units should not have any external scratches or egregious marks seen when built. Any internal flaws and marks (including hook marks) that are not seen when built do not constitute a B Stock unit.

    Screw holes are not fully anodized or coated, and small marks near the hole opening might be present.

    When raw or thinly coated, brass will oxidize and patina naturally. Small blemishes and discolorations may be visible



    Shipping Time and GB Agreements (PLEASE READ):
    These products are set to be shipped out in Q2 2025 but please check our updates for the latest information.

    Please note that this is a Group Buy. There can be delays and set backs. The timeline is only an estimate. By adding this item to your cart and purchasing you agree that you understand everything above. You will be charged immediately for this item. There are no refunds or cancellations on these orders. Please do not purchase this item with other group buys. Only the items specified in each product picture are included with that particular product.
