(Group Buy) VS06 Keyboard Kit

This Group Buy has closed

This Group Buy has ended and can no longer be ordered. Try searching Pre-Orders or our In Stock range.

Click Here for our Group Buy Guide

Case Colour: Classic Grey

Case Colour
PCB: Solder

PCB
Sale price£498.33
Sold out
Follow Group Buy / Pre-Order Updates Here

Want to see this product come back? Let us know!!

Let us know the name of the product and what you love most about it! We'll then see what we can do!

This is a Group Buy - that means this product has not yet been manufactured. This product will ship at a later date, as detailed in the product description below.

Please read our guidance on Group Buys here: FAQ's

This Group Buy Ended on or before:

Expected Shipping time: TBD

Addons Available Here



Orders placed after the 24th June 2026 will fall into the second batch of orders.

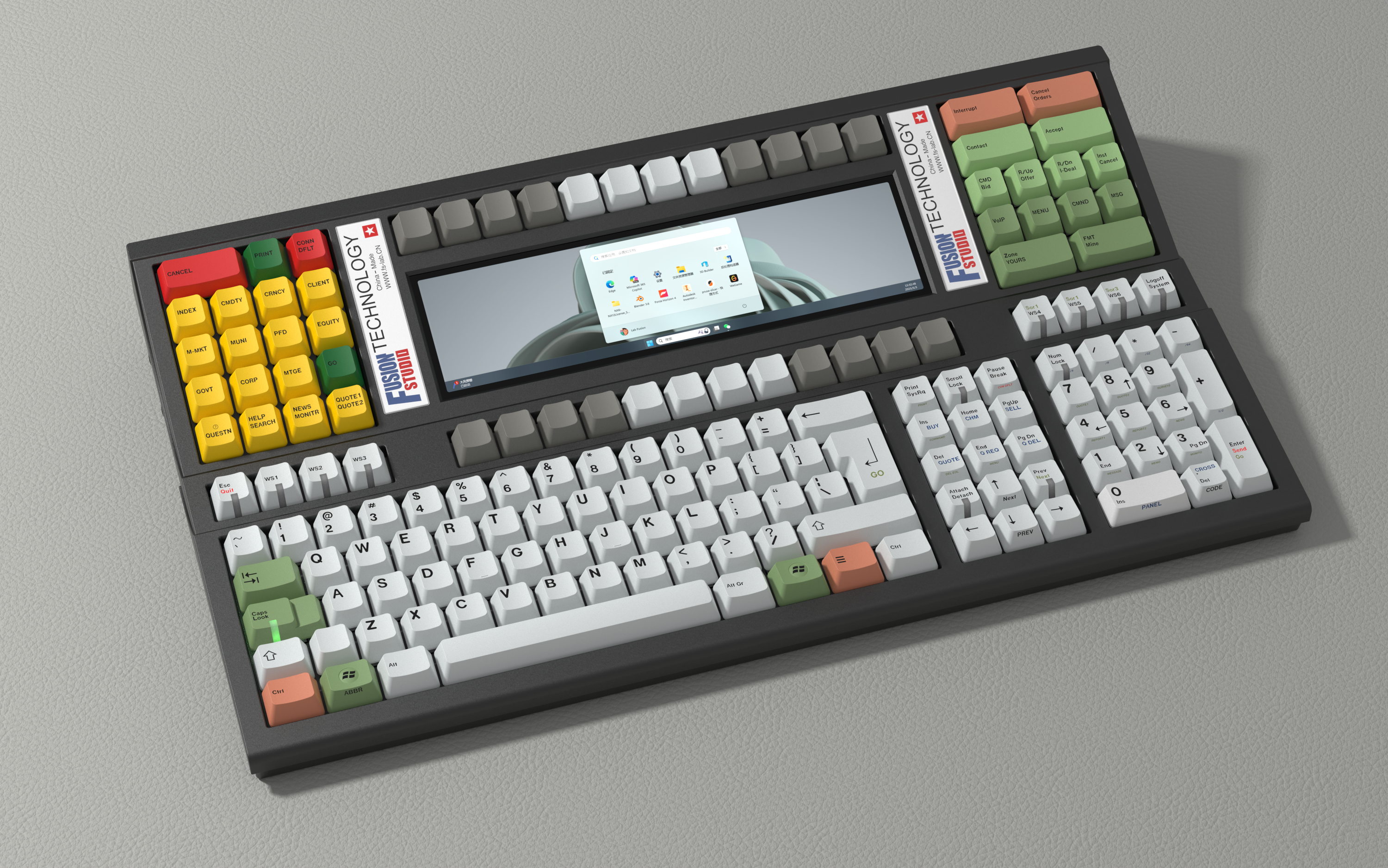

About VS06

VS06 is not just a restoration of an old keyboard. We want to give this classic model a new life, so that enthusiasts can own a brand-new, modernized MK06-inspired keyboard at a reasonable price.

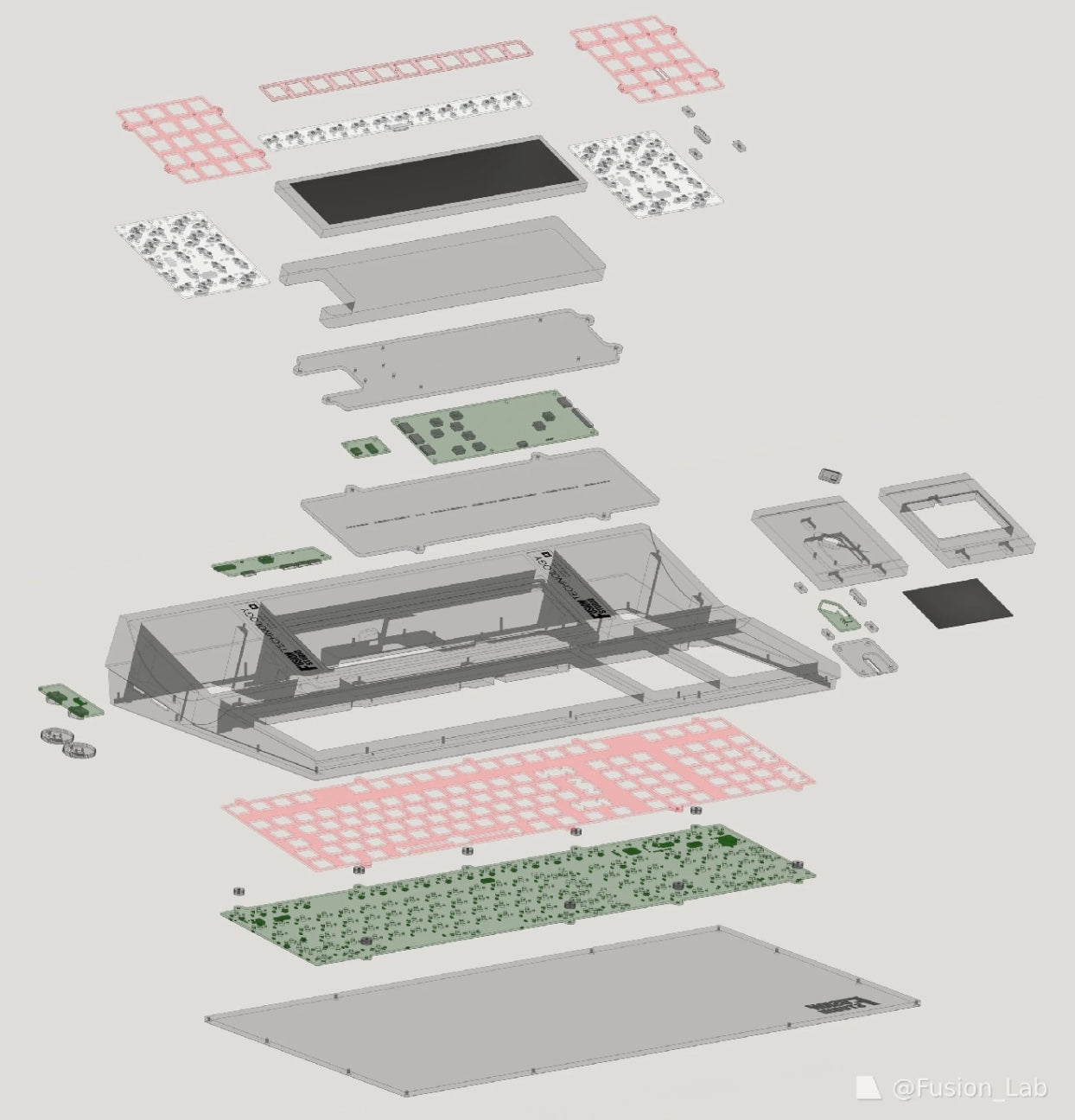

Fusion Lab is also bringing a full technical upgrade:

  • Aluminium alloy precision CNC case for improved durability and rigidity
  • Newly developed PCB and optimized internal structure

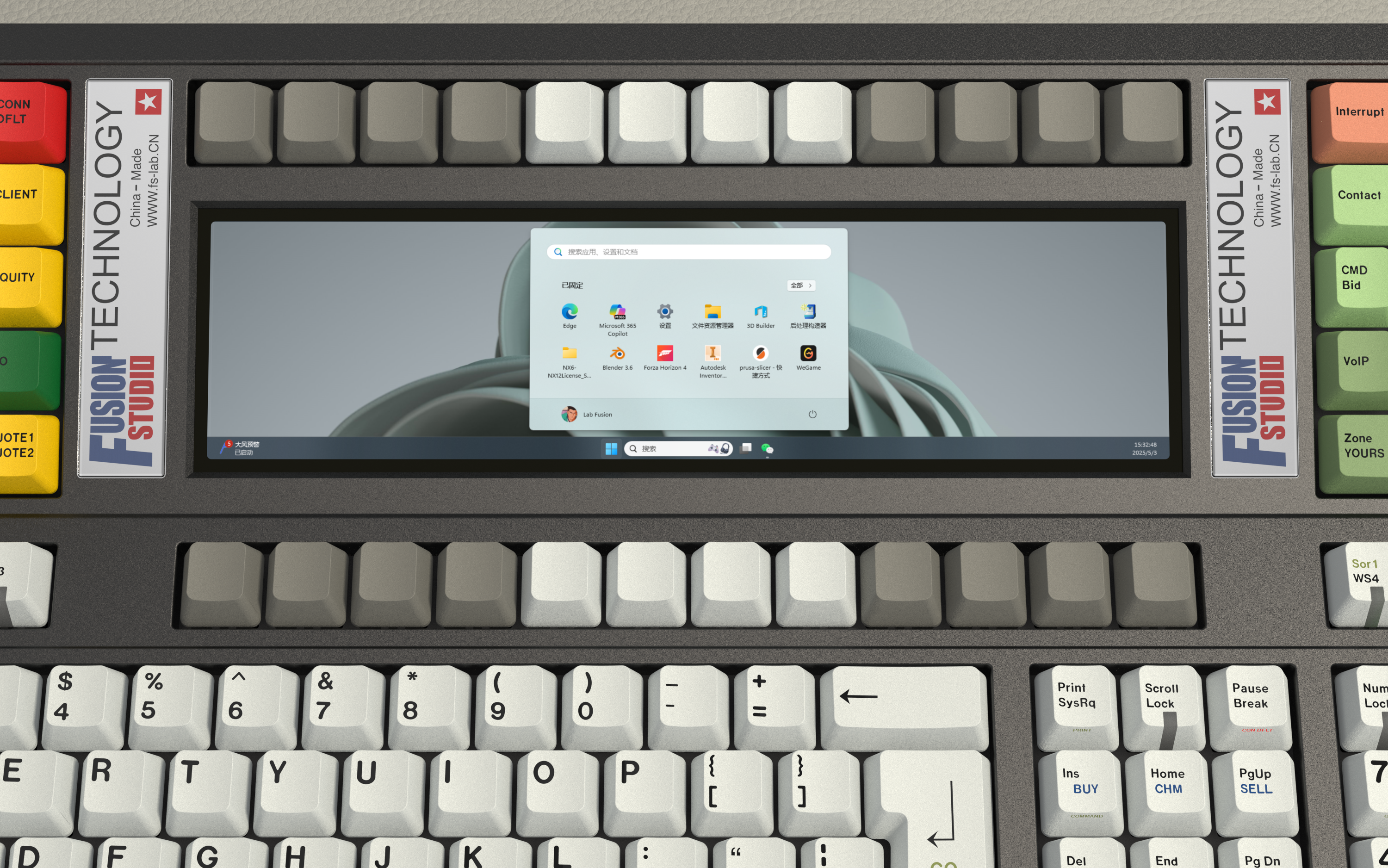

  • The original “display-only” screen becomes a fully usable computer secondary display

No extra video cable.

No extra power cable.

No Thunderbolt required.

With only USB 2.0, the computer can recognize the device directly and enable:

  • Secondary-display extension
  • Parameter adjustment
  • Touch interaction



Addons Available Here



Two Mounting Structures

  • Plate Top (hot-swap / soldered)
    • Plate is fixed to the top case with screws
    • Solid, classic typing feel
  • PCB Top (plateless soldered)
    • PCB is fixed directly to the top case with screws and gaskets
    • Plateless soldered build like the original, with flex and stable input



PCB & Layout

  • Hot-swap PCB: 1.6 mm
    • Single-color SMD LEDs
  • Solder PCB: 1.6 mm

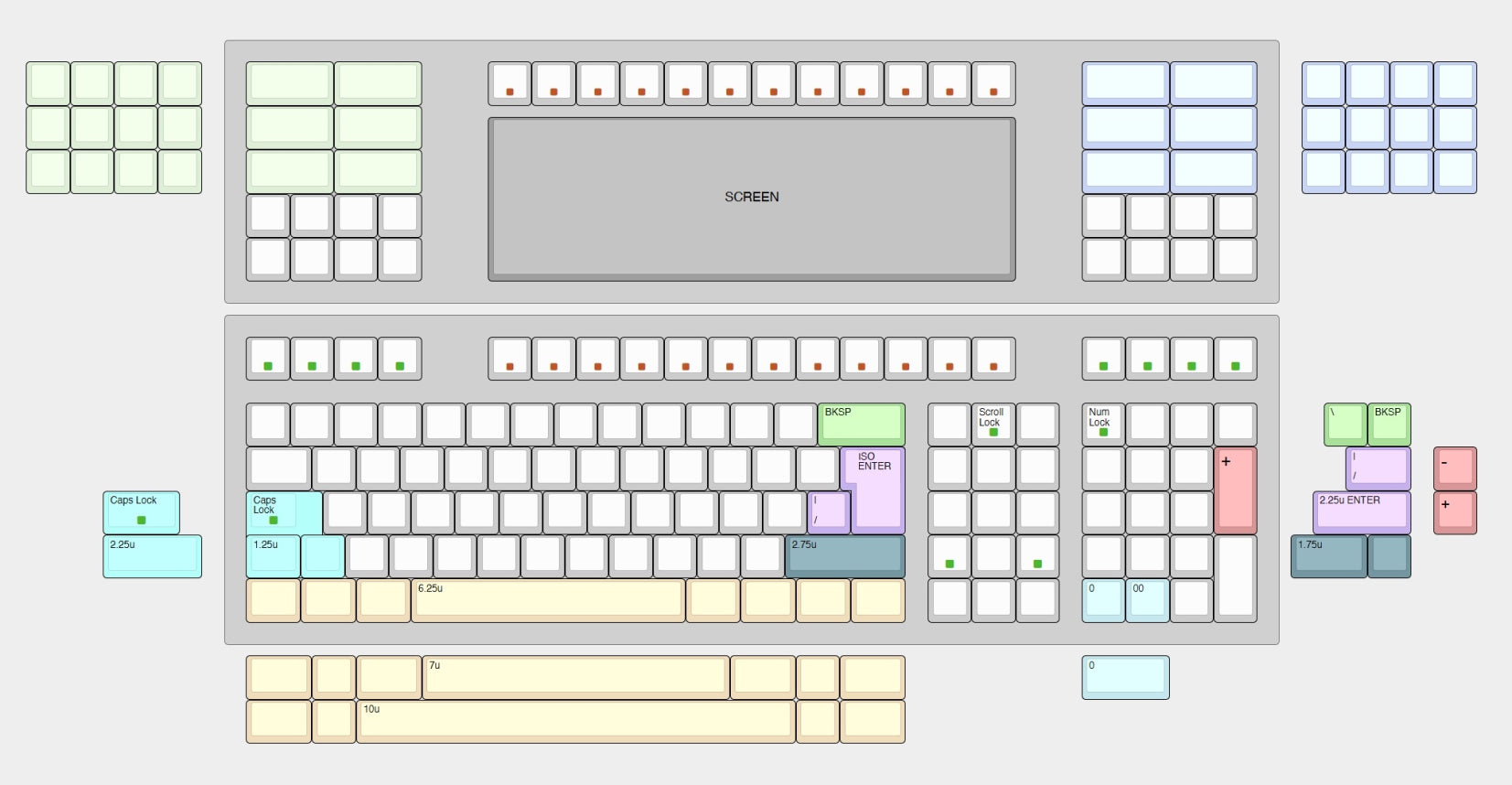

    • Multiple layout support
    • 2-pin through-hole LEDs (included in kit)

Specification:

  • Case: 6063 aluminum
  • Layout: WK + multi-layout compatibility
  • Front height: 18.7 mm
  • Typing angle: 5.73°
  • Dimensions: 460 × 270 × 69.3 mm (highest point)
  • Assembly: screws (case) + pogo magnetic connector (modules)
  • PCB: Wired 1.6 mm (QMK + VIAL), hotswap & solder options
  • Mounting: Plate Top / Plateless Top
  • Plate: Stainless steel



Highlights:

  • One USB 2.0 cable to drive everything (secondary display: 1920×480 @ 60 Hz), cross-OS support

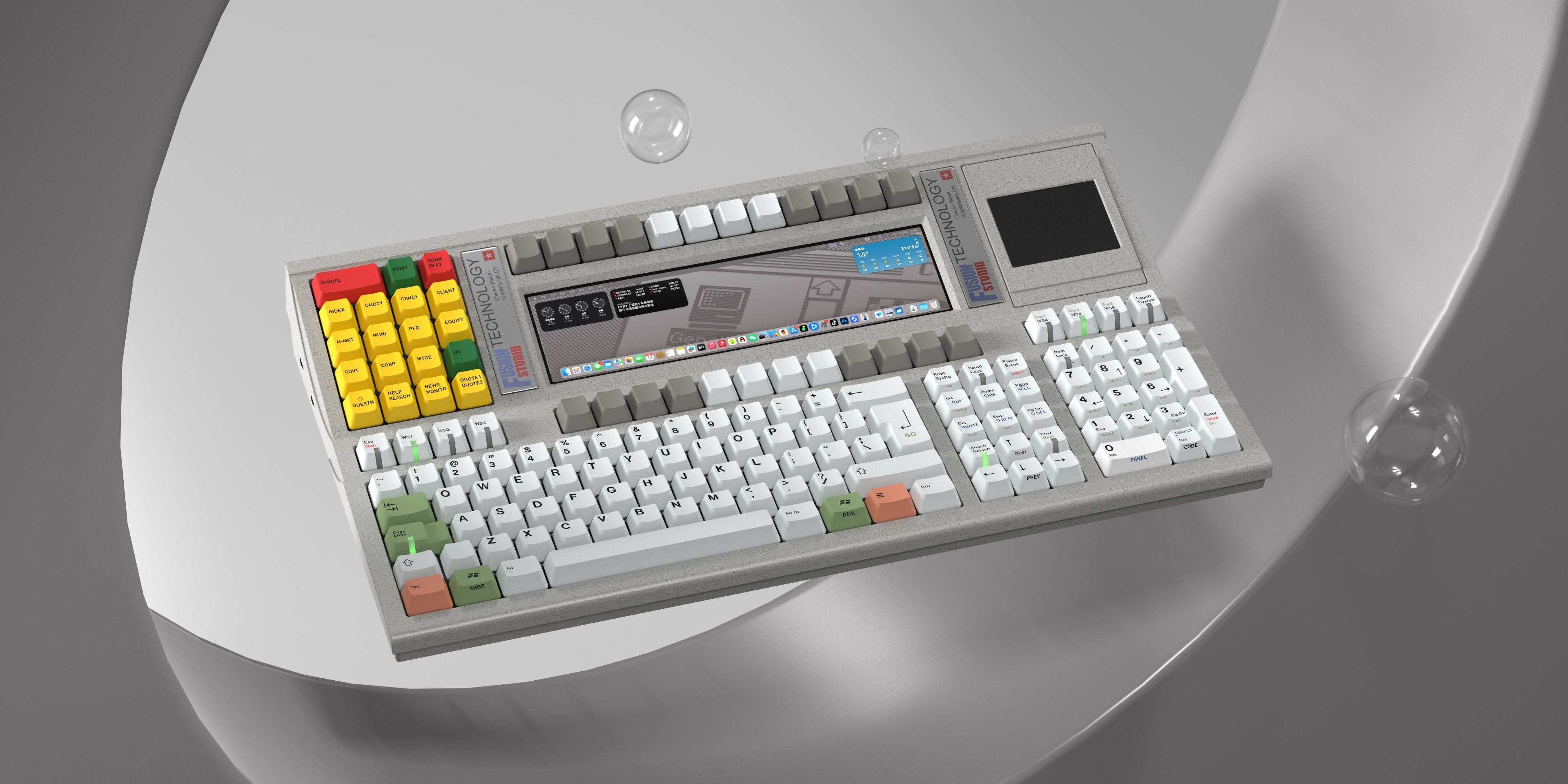

  • Magnetic modules (keys (default) fingerprint / touchpad (Optional Addons)
  • Solenoid + buzzer (homage to the classic)

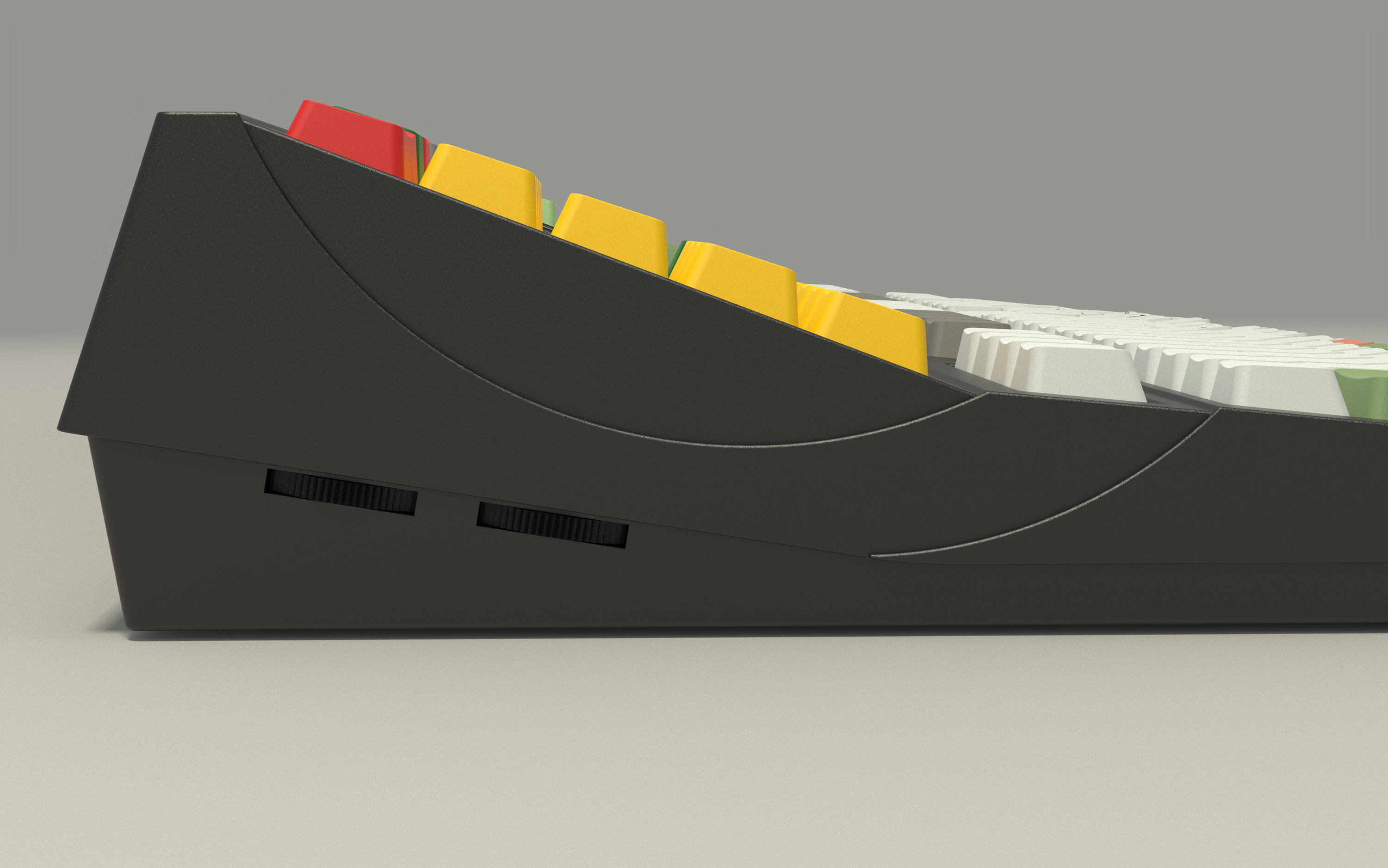

  • Dual dials for screen brightness and volume
  • Indicators: 3+8 lock indicators + 12+12 F-row RGB



Case Colour Options: All are powder coated finishes

  • Classic Grey
  • McFlurry
  • Linen Black
  • Sparkle Black

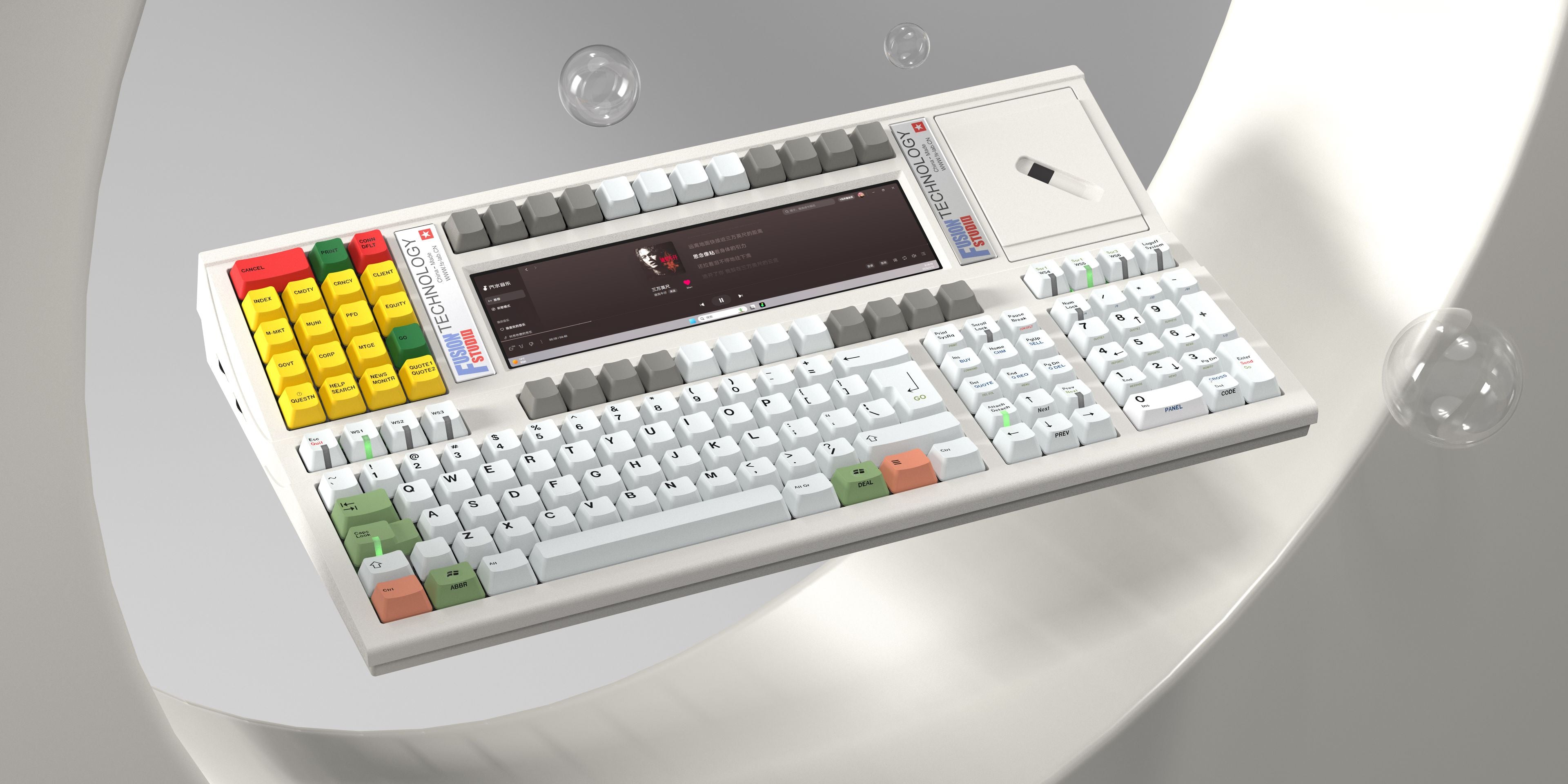

  • Cream White
  • Cool White

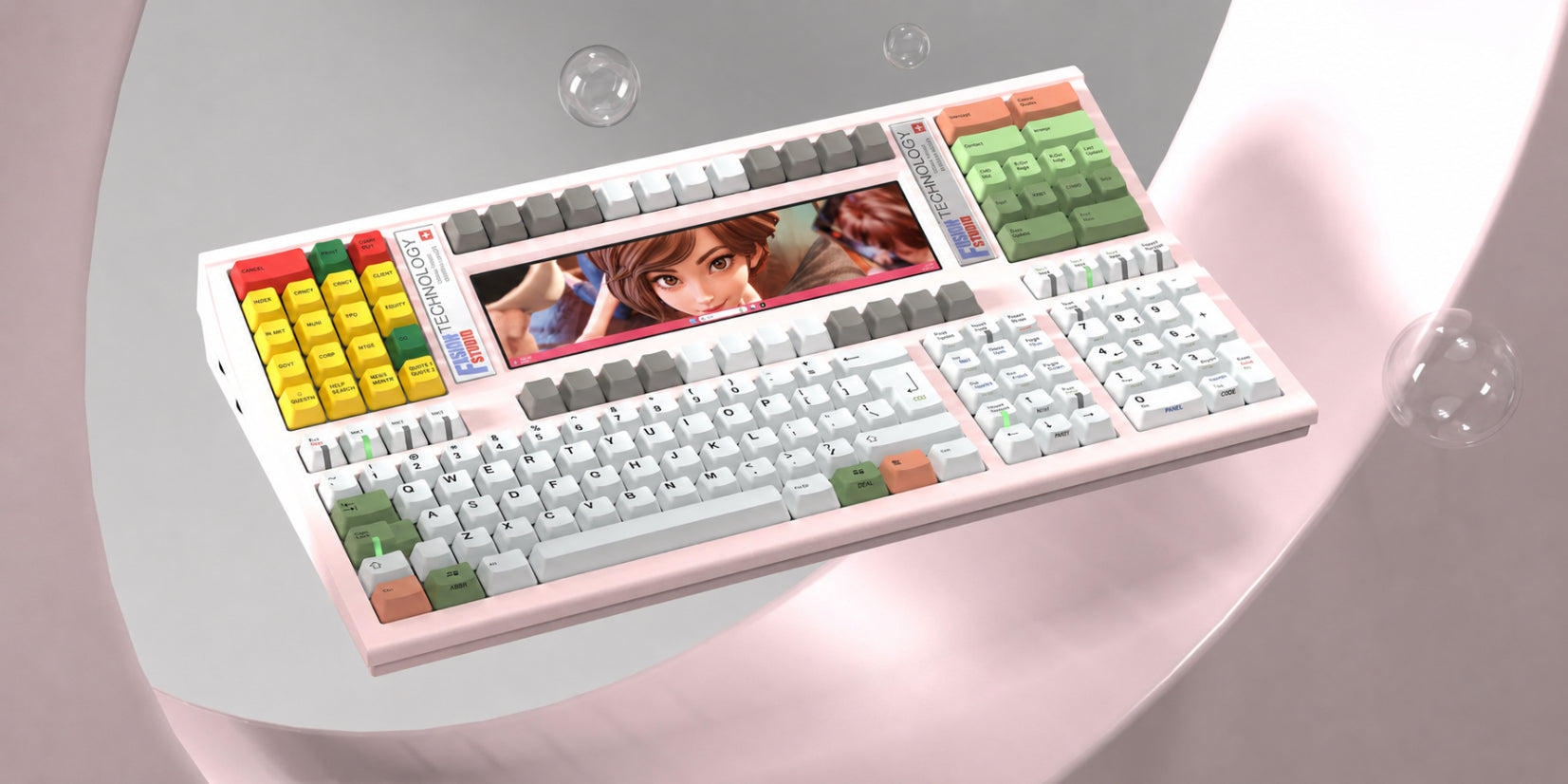

  • Soft Pink



Kit Contents:

  • 1x Case (6063 aluminum top & bottom)
  • 1x PCB Kit (4 pieces) Solder/ Hotswap
  • 1x Brushed Stainless Steel Plate
  • 1x Buzzer
  • 1x Solenoid
  • 1x Multi-touch Capacity Display



Disclaimers

Please note that images may be of 3D renders and are for illustration purposes only. The final colours may differ slightly under different lighting.

Only the products detailed in the description are included. Other products are shown for demonstrative purposes only and are not included. Please check Keyset kitting images carefully for included keys. Please check Keyboard layout options carefully to ensure it meets your requirements.

Shipping Time and GB Agreements (PLEASE READ):

Please note that this is a Group Buy. There can be delays and set backs. The timeline is only an estimate. By adding this item to your cart and purchasing you agree that you understand everything above. You will be charged immediately for this item. There are no refunds or cancellations on these orders due to their bespoke nature. Please do not purchase this item with other group buys or pre-orders as this will delay shipping till all items are available. Only the items specified in each product picture are included with that particular product.

These products are set to be shipped out at the date specified above, but please check our updates for the latest information.
