Expected Shipping time: Q3 2026
Hunyuan (混元) - The Hybrid Origin
Hunyuan embodies the beginning of design diversity and limitless compatibility — where all elements converge to create a new standard.
The Essence of Diversity & Compatibility
We believe a keyboard case should be more than a container. It should be the foundation for your unique experience, integrating structure, craftsmanship, function, lighting, color, and acoustic excellence into one harmonious form.
Hunyuan is designed to be the ultimate “Hexagon Warrior” — perfectly balanced, exceptionally versatile, and ready to adapt to your every need.
Addons Avaialble Here

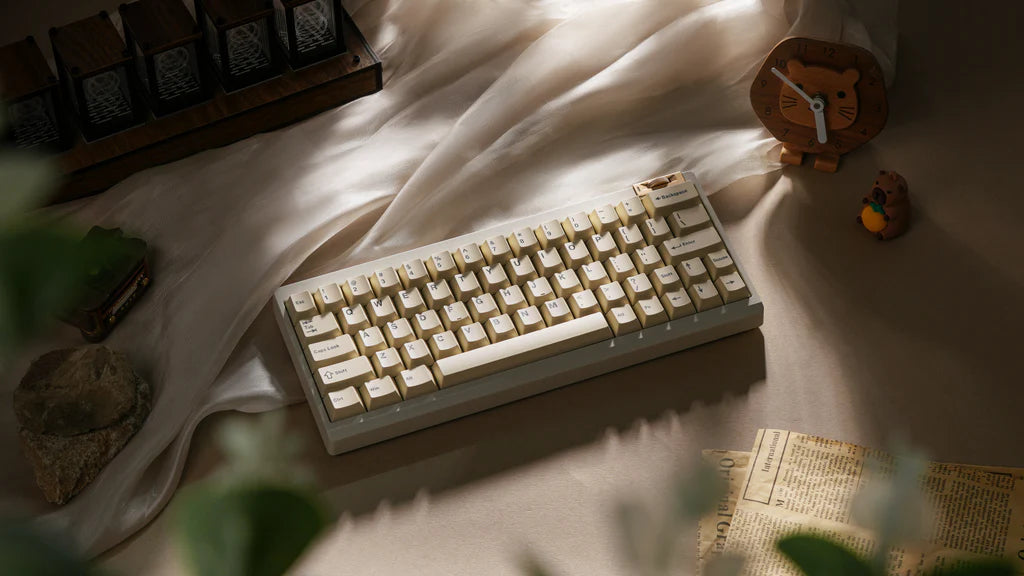

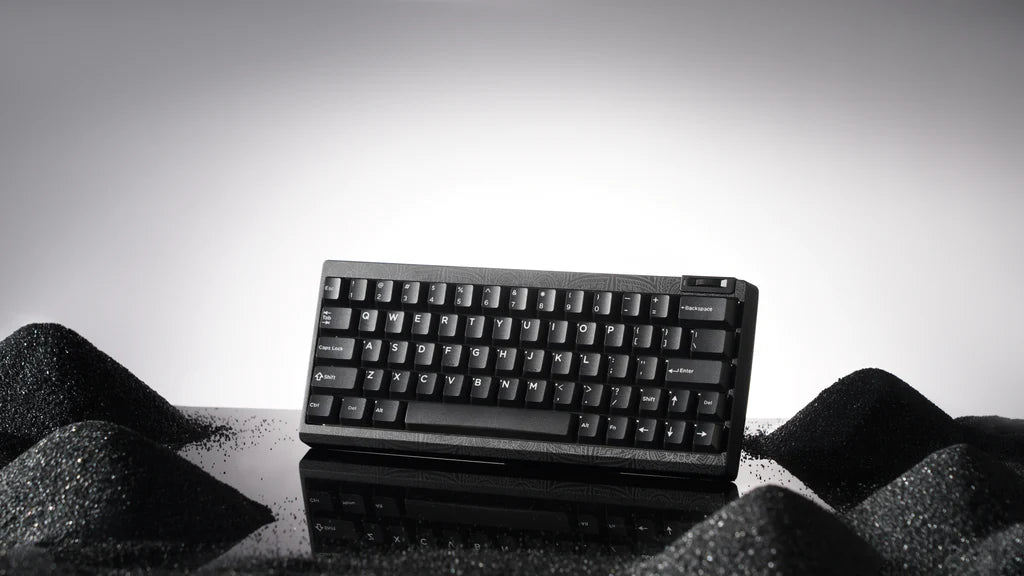

Zoom 64 Mechanical Keyboard Kit
Design:

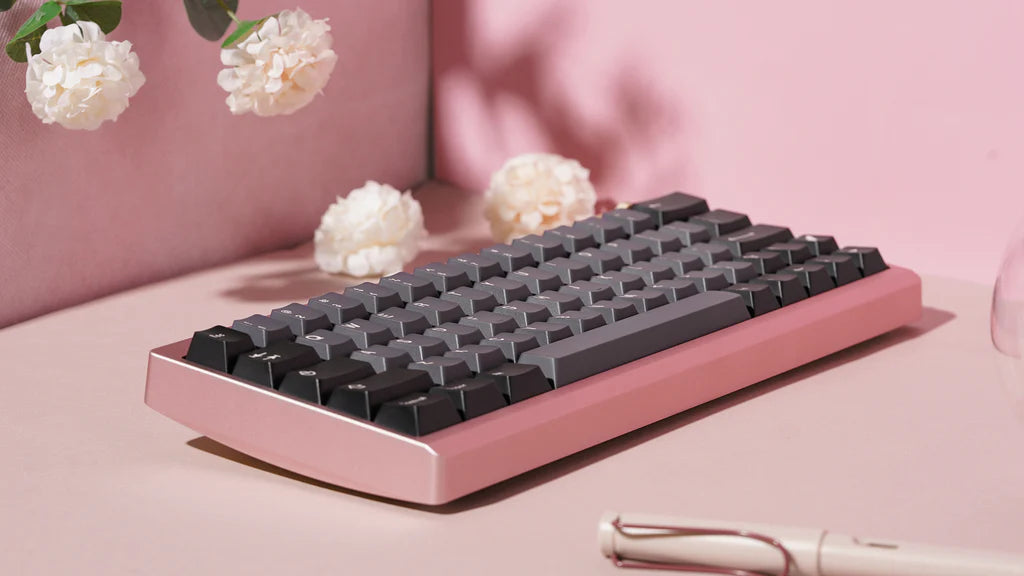

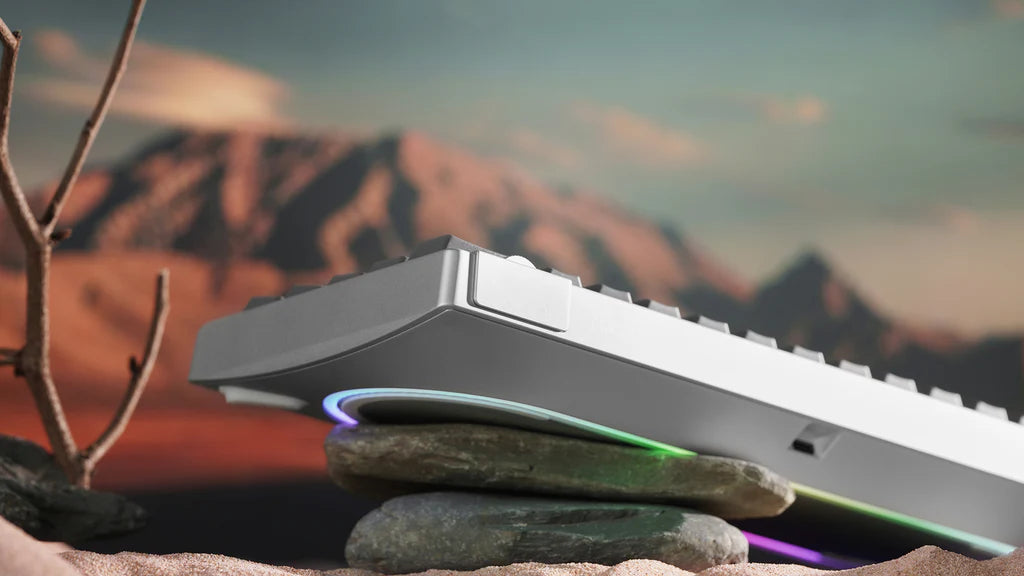

The lower case is a single, wraparound curve, erasing all superfluous edges. Like a river stone polished by time, it cradles the interior in a complete embrace.

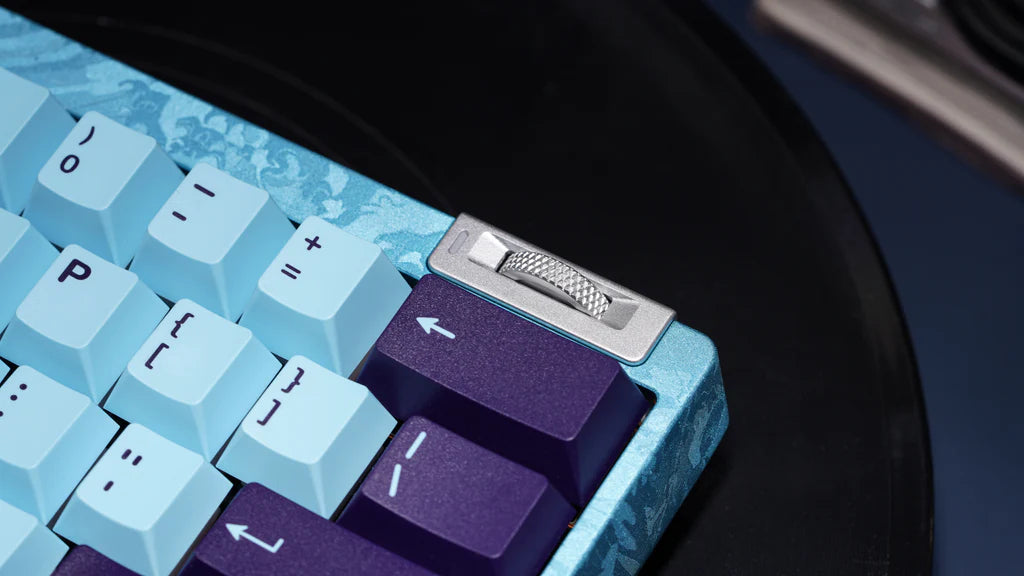

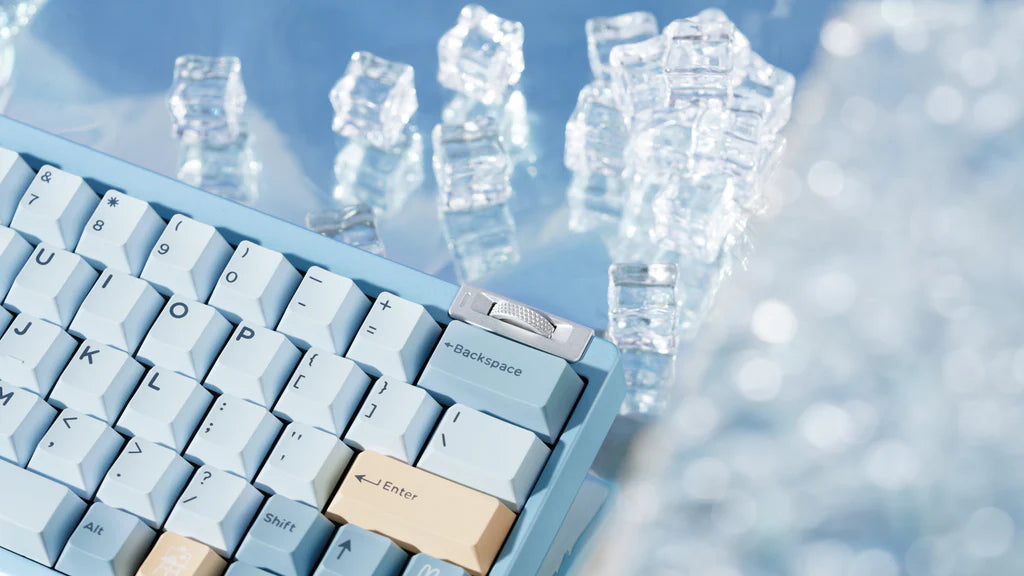

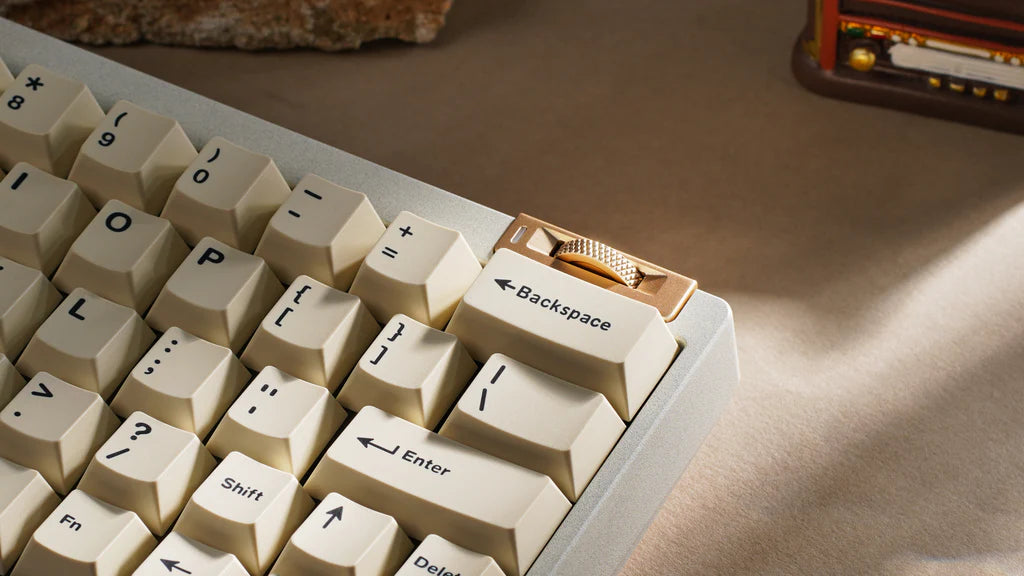

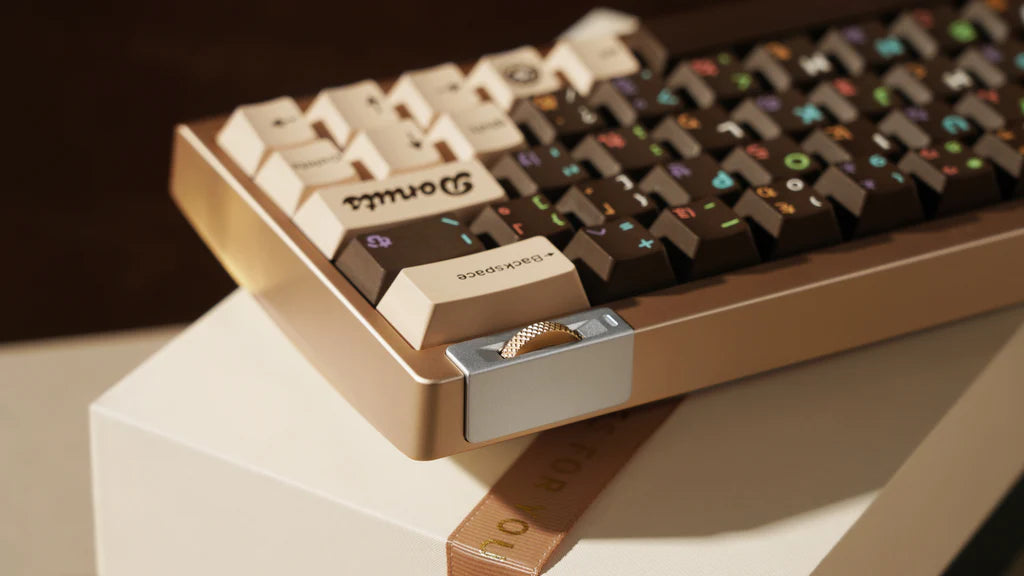

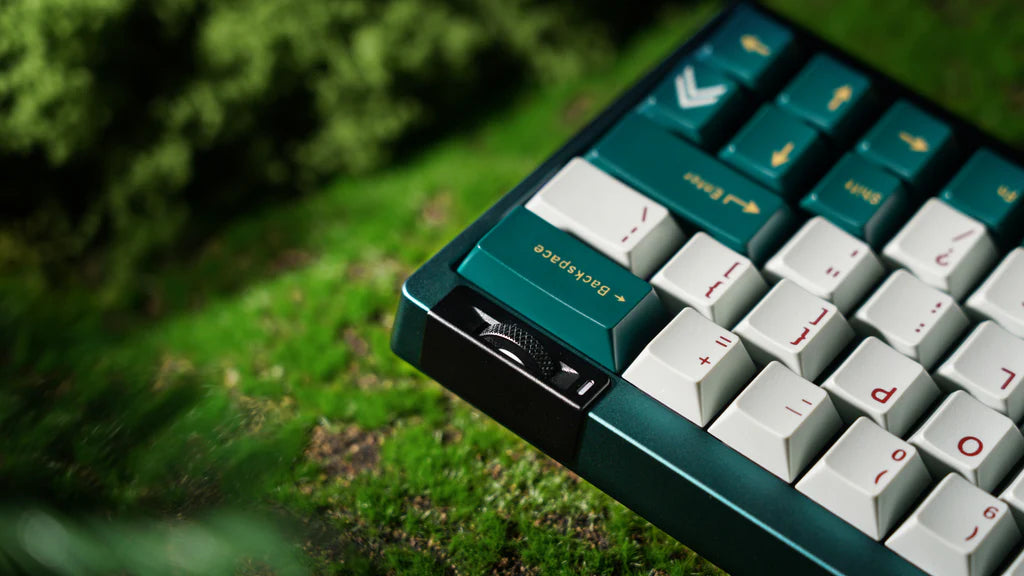

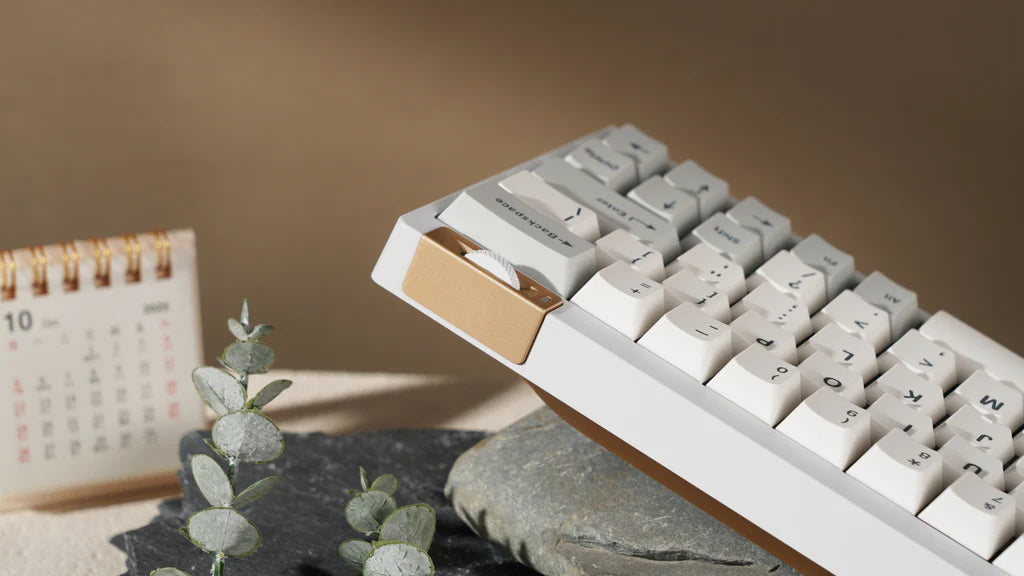

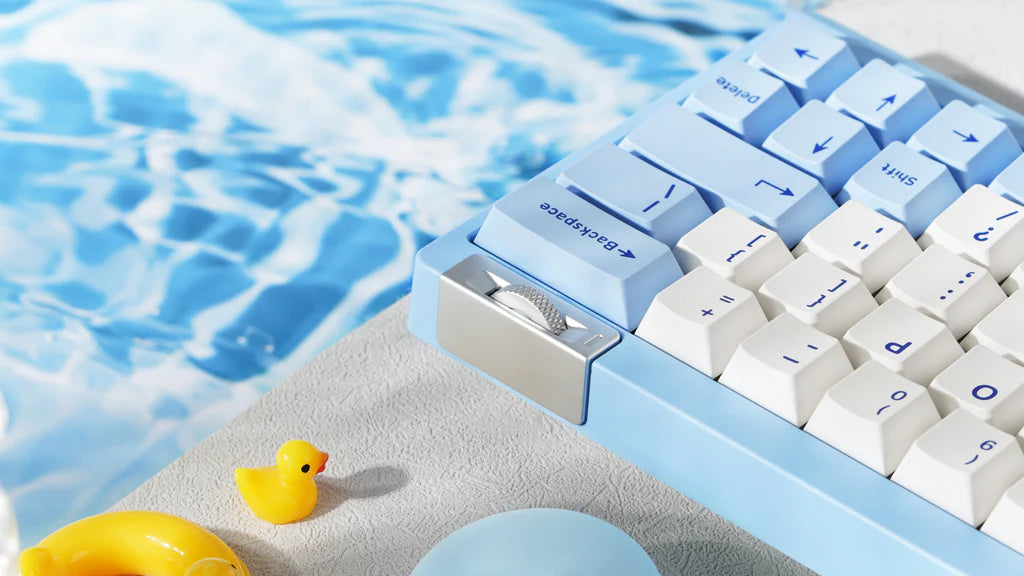

The recessed aluminium knob offers superb tactile feel while preserving the 60% layout's clean aesthetic. Via AIA it can be volume, scroll, or any function you define

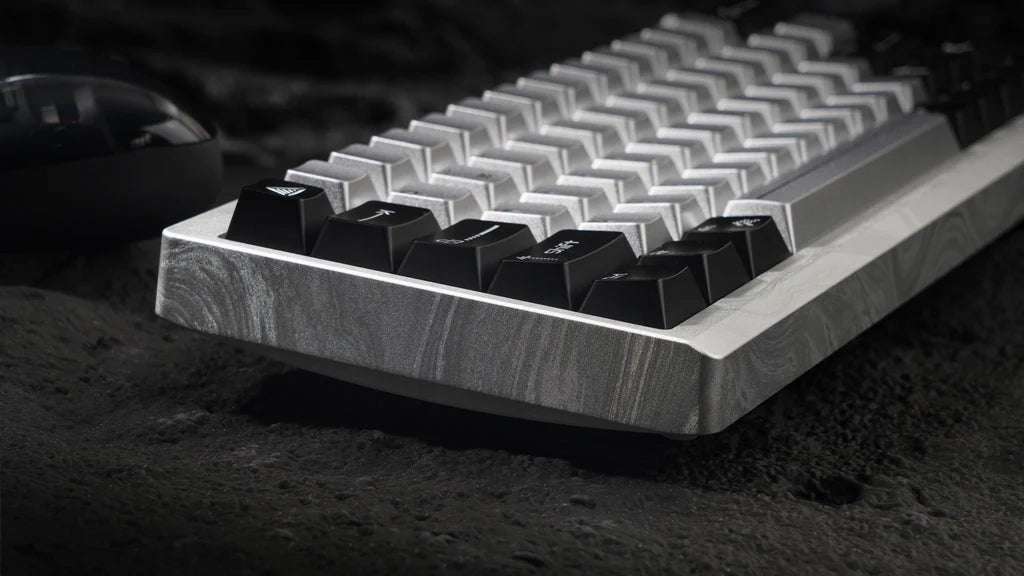

The side concave is inspired by the "aurora arc" balancing visual focus and depth

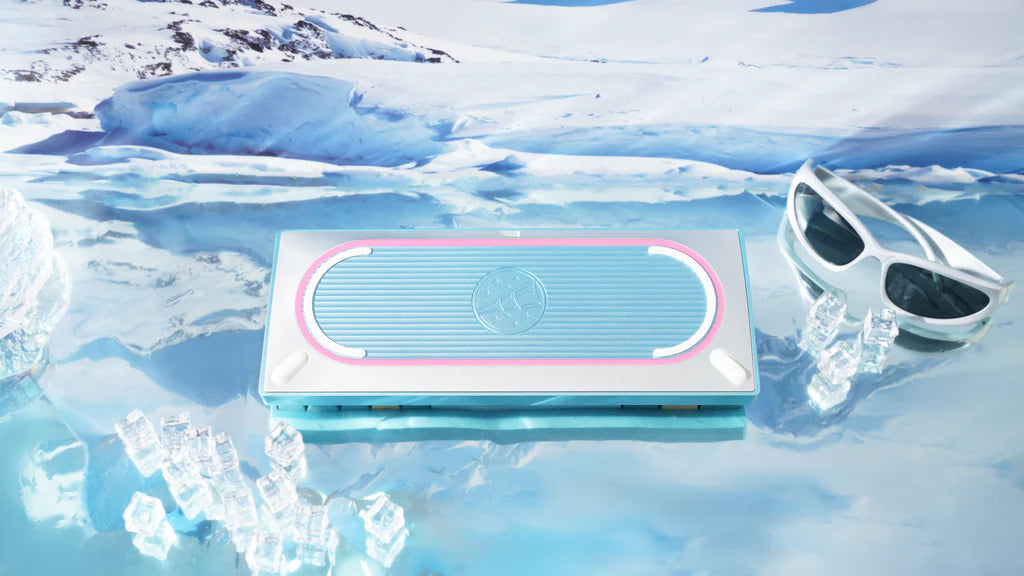

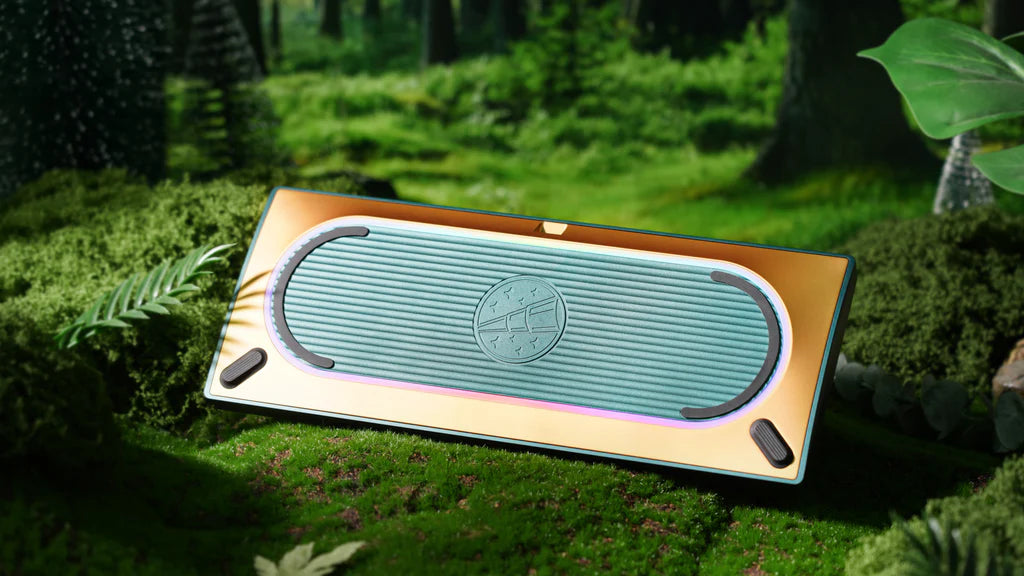

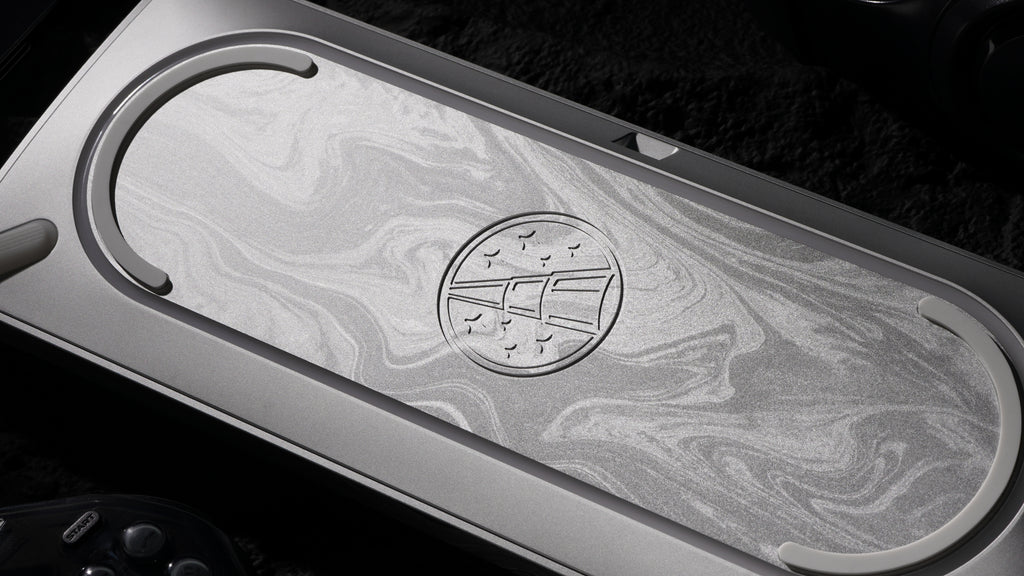

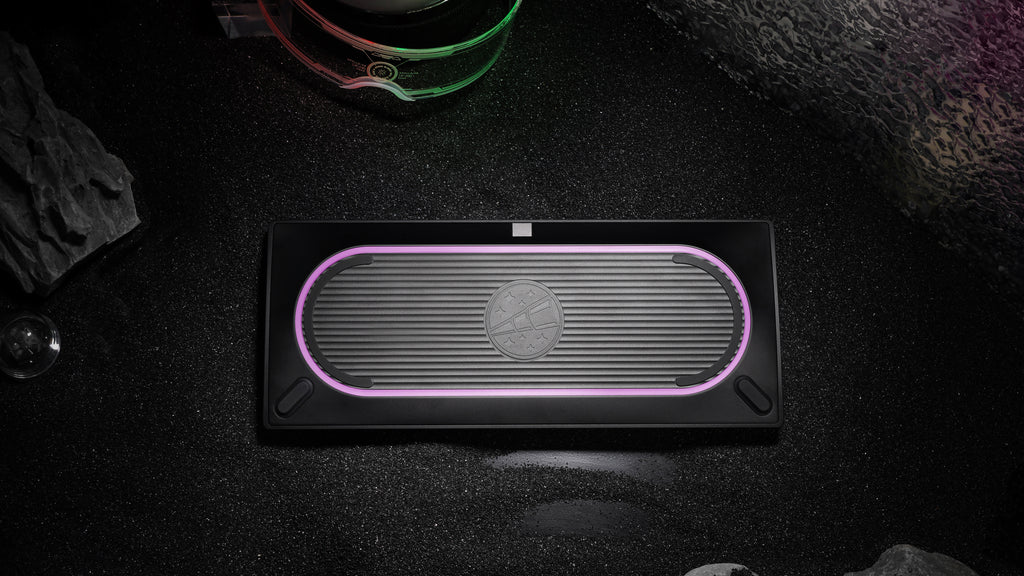

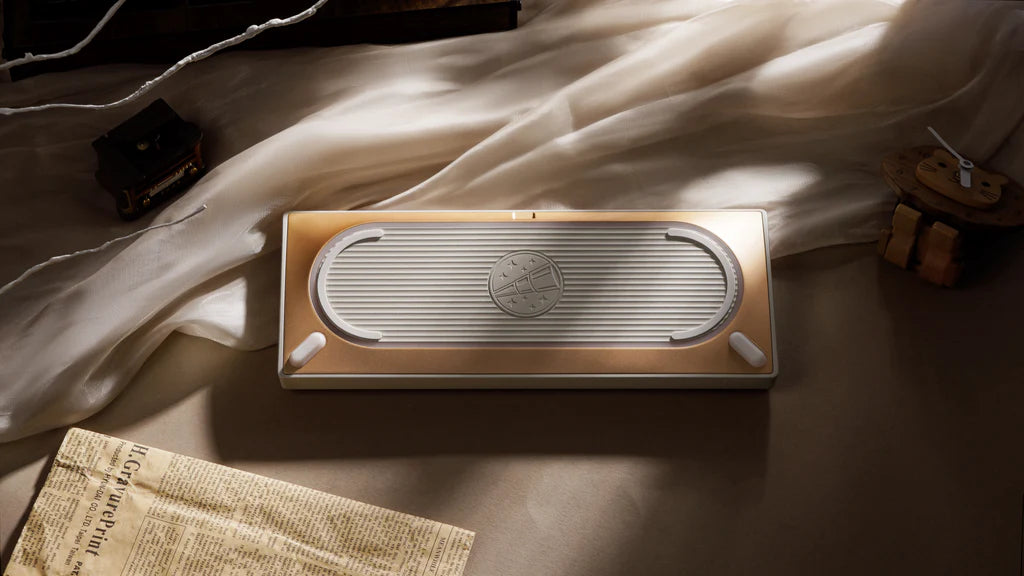

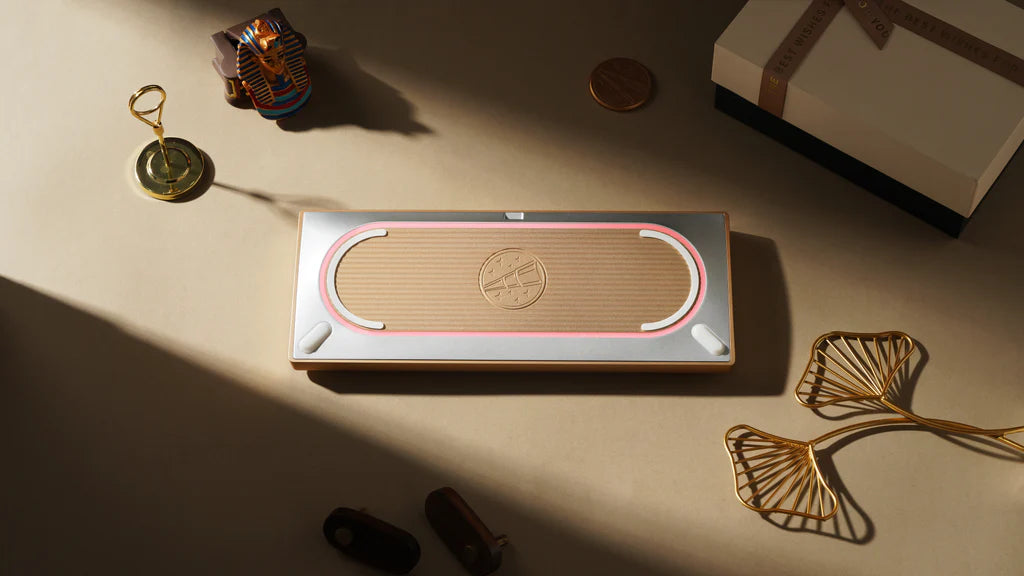

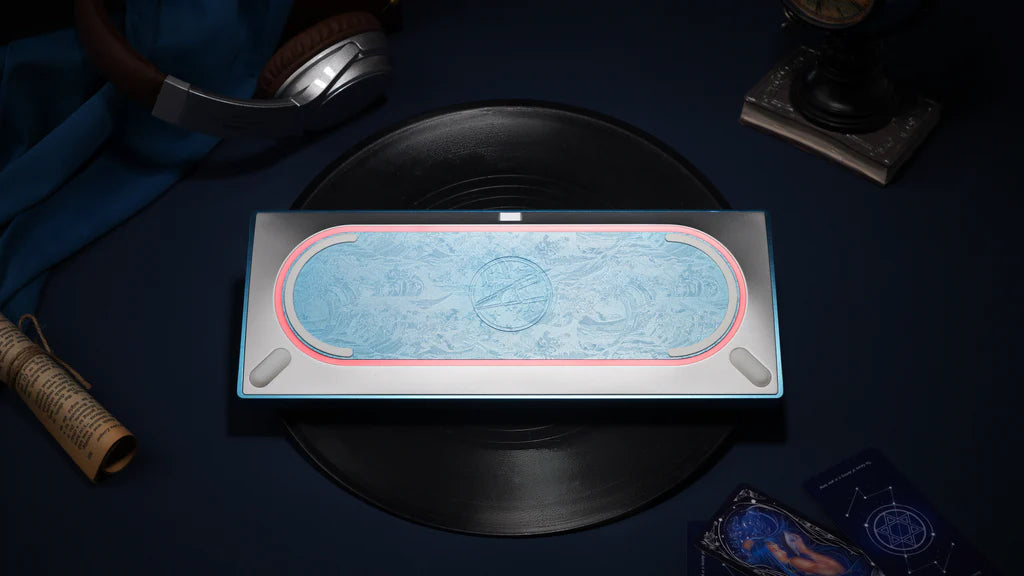

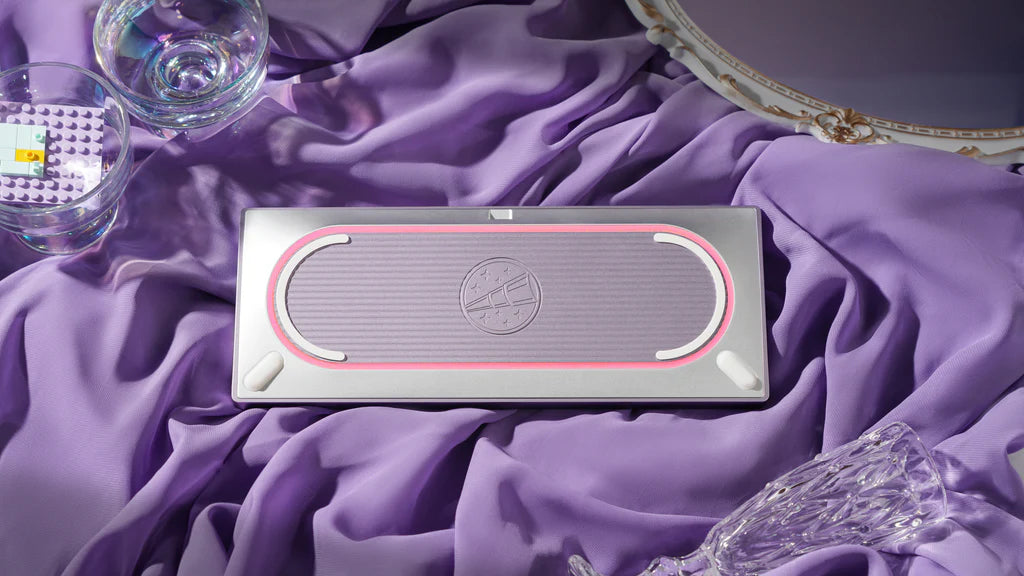

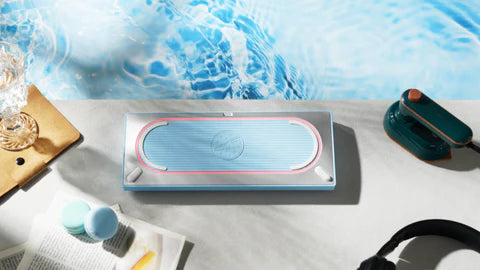

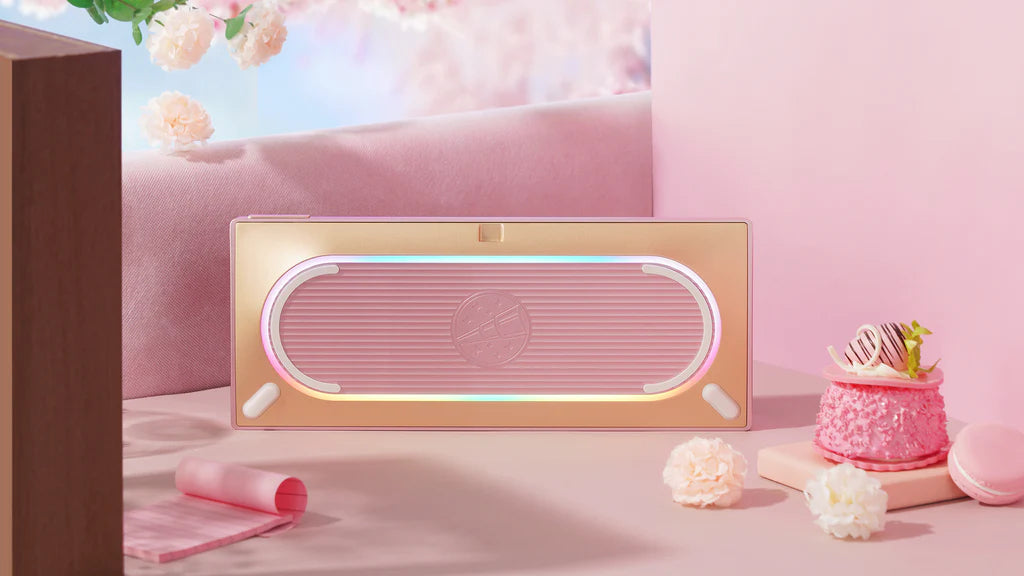

The “racetrack” curved weight with wave texture provides a secure grip when moving the keyboard. Twin-eared feet appear to listen to each keystroke, visually merging with the grand curve.

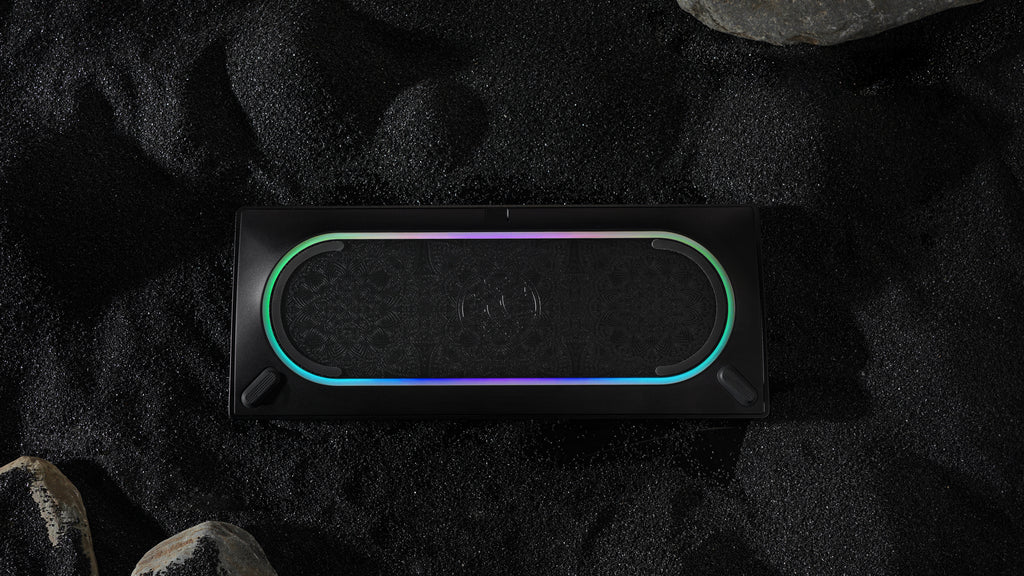

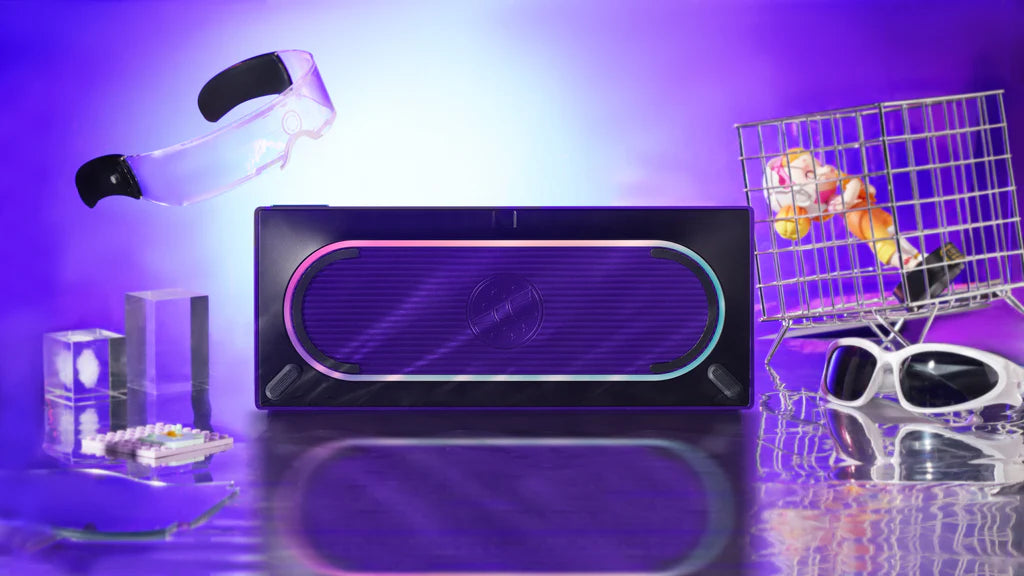

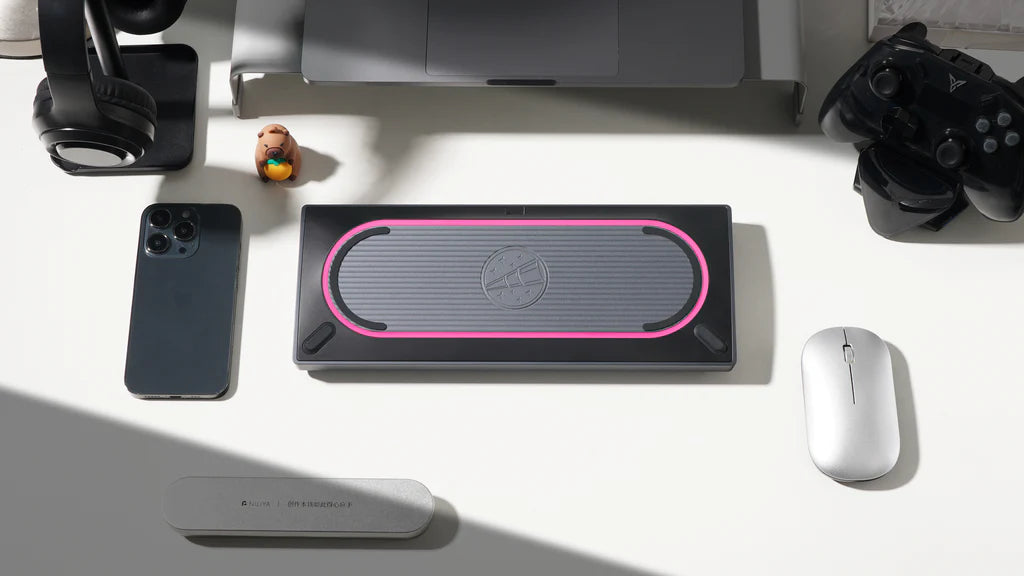

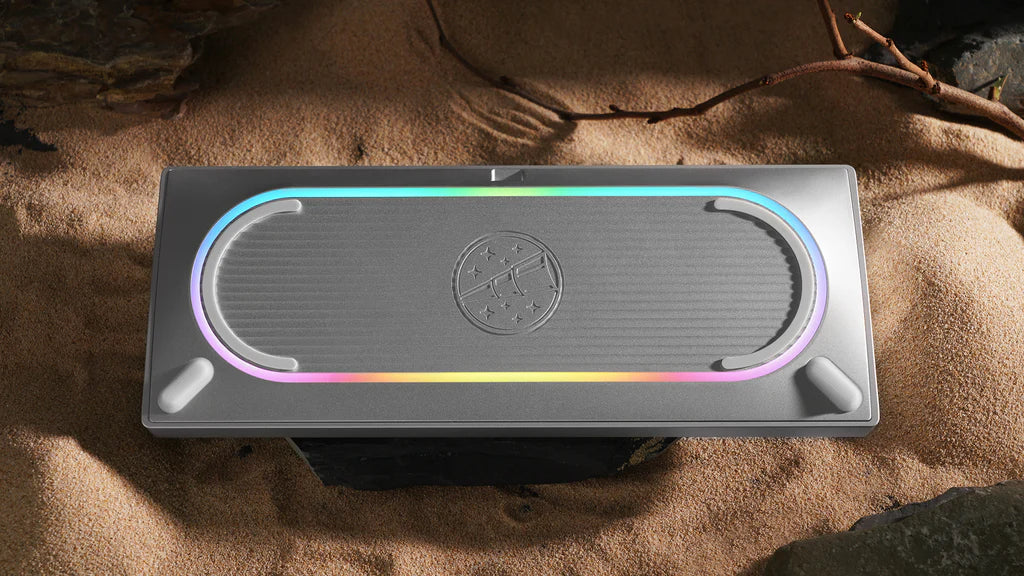

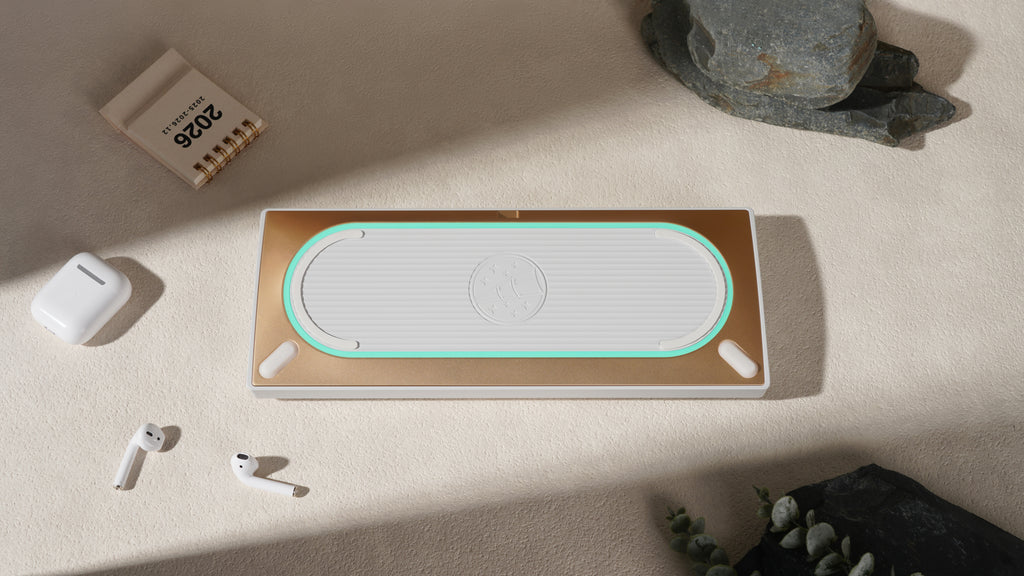

A hidden 360° bottom light strip is concealed within the form’s transitions. When lit, it appears as if light emanates from within, softly outlining your desk.

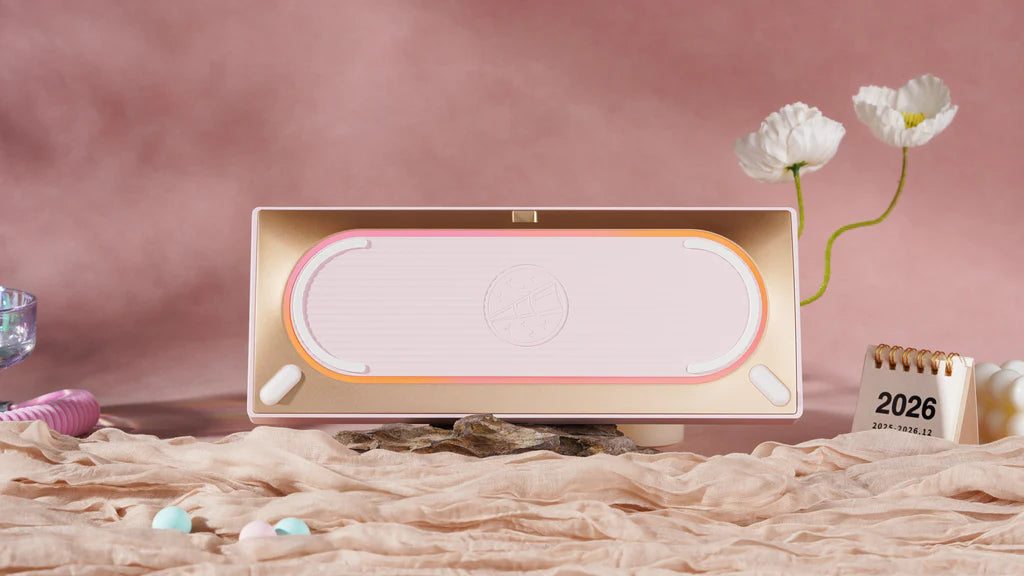

Moving beyond purely functional bumpers, these feet are sculpted into twin-ear shapes. They echo the case's macro-curves, creating a cohesive visual flow while offering stable support—as if gently leaning in to listen to every keystroke.
Structure · Hybrid Damping System
O-RING or Silica Gel Particle Mounting options support “foamless” tuning, effectively eliminating case ping.
Silicone gaskets and O-Rings are both optional, supporting "no-foam" tuning to effectively reduce hollow sound.For full magnetic switch mods, using silicone gaskets is the best pairing; O-Rings are not recommended.
Premium Acoustic Experience
Poron Foam: Poron foam offers excellent durability and fatigue resistance, ensuring consistent sound performance over time. With a muted sound profile, it makes it the perfect option for office use.
Cork Foam: This cork layer delivers a crisper sound, providing a distinctive typing experience unlike anything else on the market.
Classic Foam: Classic Foam evolves in character over time, beginning with a bright tone that gradually mellows with use.

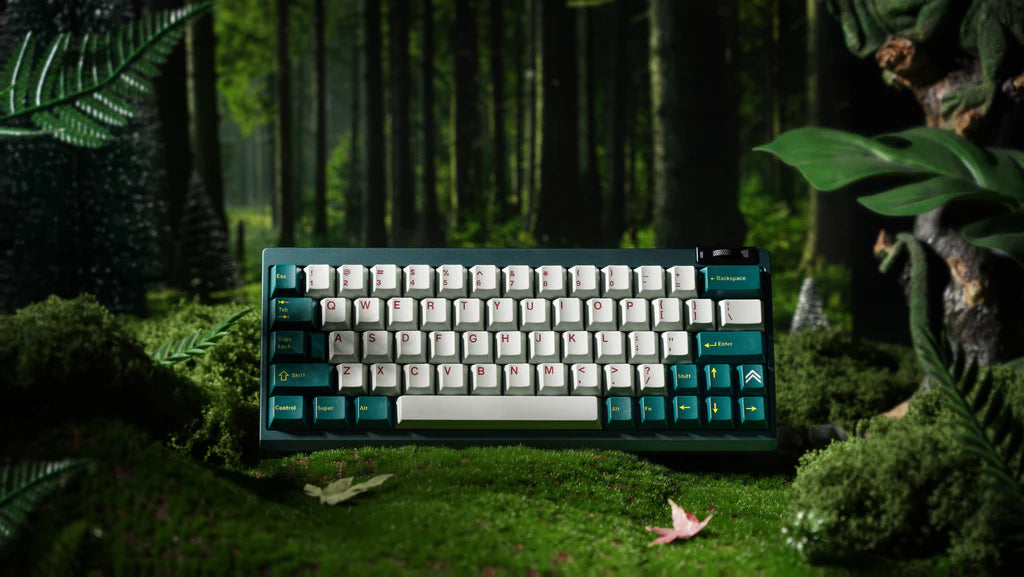

60% Form, Uncompromised Layout
ZOOM64 is not just a case, but a compatible platform for multiple classic layouts.
Supports: Split Backspace | ANSI/ISO Enter | Stepped CapsLock | Split Left Shift
PCB Option:
Tri-mode Flex Cut Hotswap RGB PCB (1.2mm)
Tri-mode Non Flex Cut Hotswap RGB PCB (1.6mm)
Case Colours
Please Note the 4 Acrtlic Cases Crystal Voyage, Shadow Black, Aurora Nebula & Mojito Green are not available in this launch
Exploded View
Case Specifications:
-
Material: 6063 Aluminum / Acrylic
-
Colour & Finish: Anodized / Acustatic/ Injection Molding
-
Typing Angle: 6.5°
-
Front / Rear Height: 17.8mm / 32.2mm
-
Dimensions: 297.1 x 122.1 x 36 mm
-
Mounting Structure: Silica Gel Particle Mounting + O-ring
-
Package Weight: 2.4 kg
PCB Specifications:
-
Hot-Swap: Yes
-
N-Key Rollover: Yes
-
Programmability: VIA Compatible
-
RGB: Yes, South-Facing LEDs
-
Wireless: Tri-Mode (USB / BLE 5.4 / 2.4GHz)
-
Wired Polling Rate: 1000Hz
-
BLE Polling Rate: 133Hz
-
Latency: ≈0.6ms (Wired) / ≈1.1ms (2.4G) / ≈8ms (BLE)
System Support & Misc:
-
Compatibility: Windows, macOS, Linux, Android
-
Simultaneous Connections: Up to 5 devices
-
Driver: Independent Software
-
Layout: 64-key
Included in Kit:
-
Stabilizers:Stabilizers (3x 2U stabilizers + 1x 6.25U stabilizer)
-
Cable: USB Type-C (Length to be confirmed)
-
User Manual: Included
- Package Includes
-
- 1. Tri-mode 1.2mm Flex-cut PCB(optional)
- 2. Dampening Foam Kit(optional)
- 3. Plate(optional)
- 4.USB cable
- 5.2.4G Receiver
- 6.Stabilizers
- 7.Screwdriver
- 8.Extra Cables
- 9.O-Ring Mount
- 10.Silica Gel Mount
- 11.Warranty Card
- 12.Operation Manual
Quality Disclaimer
