(Group Buy) Zoom98 Keyboard Kit Addons



Expected Shipping time: Q1 2024



THE NEXT LEVEL OF CUSTOMIZATION IN 98% LAYOUT

Customize your typing experience with hot-swappable switches, interchangeable external weight, and many keycap theme options.
(NOTE: Barebones kit only (includes stabilizers). Switches and keycaps are purchased separately.)

6 SPECIAL EDITION COLOURS: Case Finish: 5 Anodized +1 Electrophoresis(E-White)

 14 ESSENTIAL EDITION  COLOURS: Case Finish: Electrostatic coated

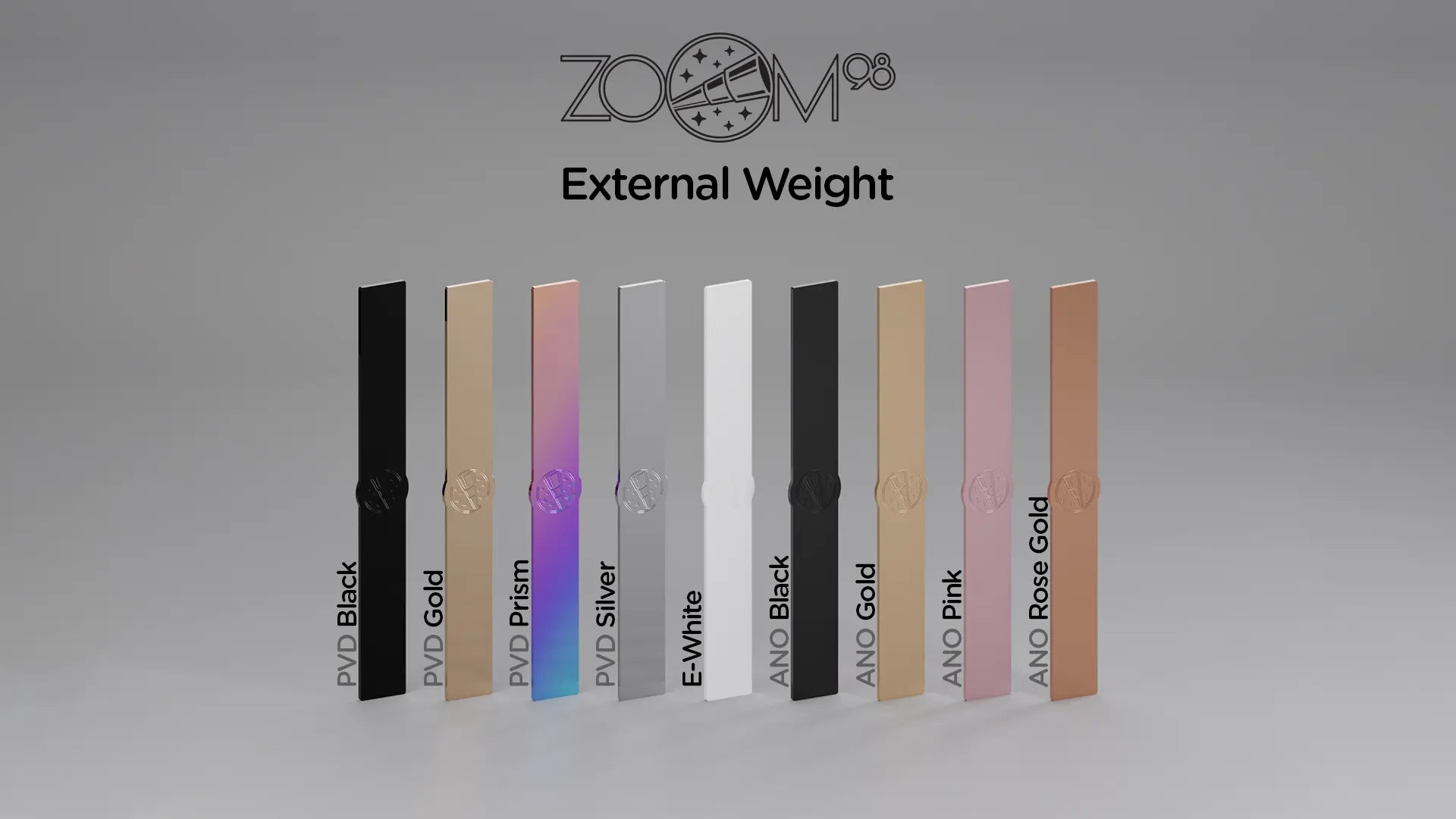

 OPTIONAL EXTERNAL WEIGHTS

NEW DESIGN

Top Case: includes a Telescope with an LED diffuser. Bottom Case: has ambient lights with our new side profile design.

Multiple colours and lighting effects can be chosen.

2 OPTIONAL PCB VERSIONS:

Tri-Mode Version-Defaults with the Screen Module

Wired Version-Defaults with the 2-keys Module

4 REPLACEABLE MODULES:

NOTE:
1. The Tri-mode version defaults with the screen module, so the 2-keys module, badge module, and knob module need to be purchased separately;

2. The wired version defaults with the 2-keys module, so the badge module and knob module need to be purchased separately (The screen module is not supported).

3. All module bases are not compatible with ZOOM75.

4. Each kit has a default module (Tri-mode: LCD screen or Wired: Two-keys). In addition, please add the corresponding module base to your shopping cart if you need to purchase other accessories for customization.

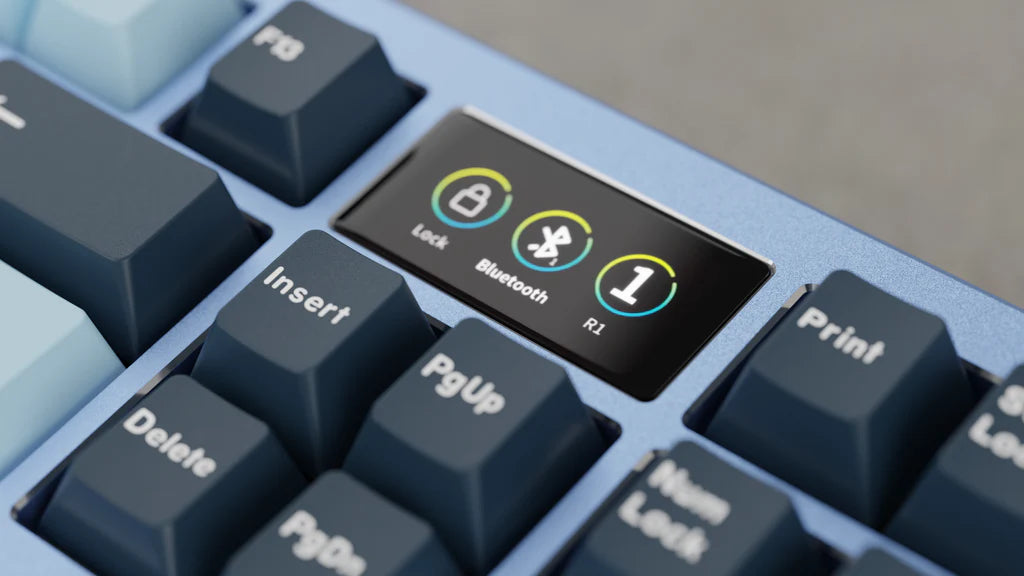

LCD Screen Module

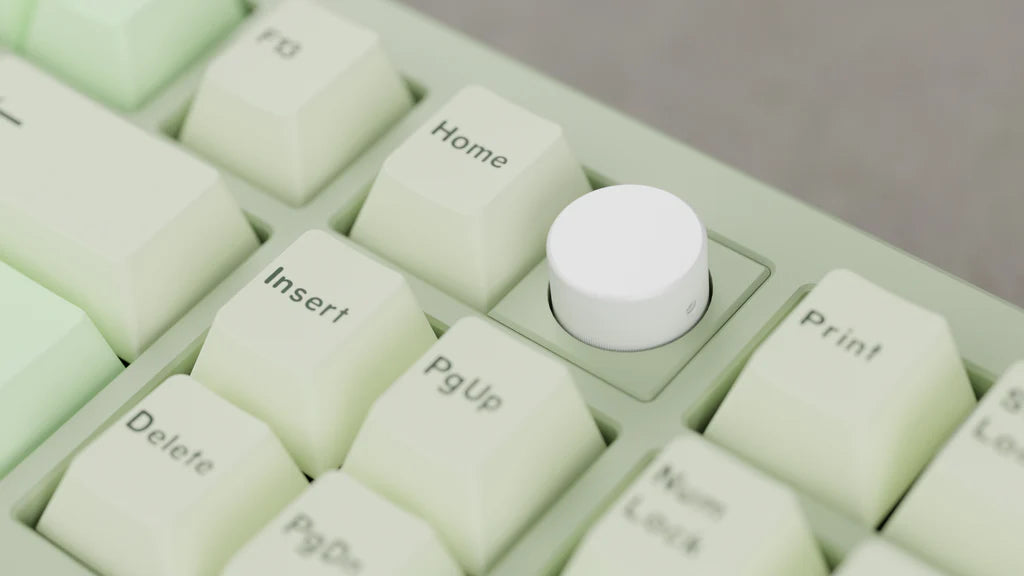

Knob Module

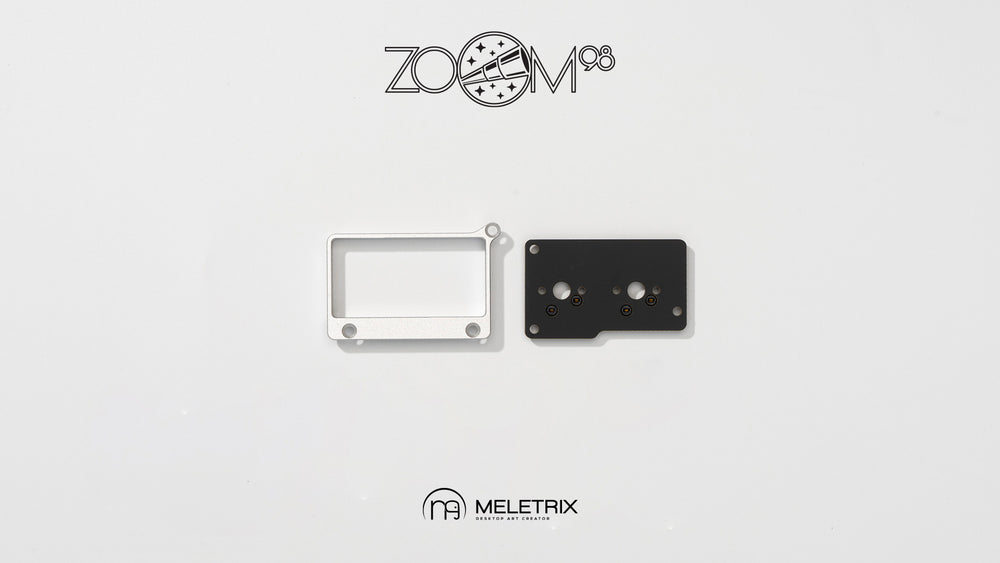

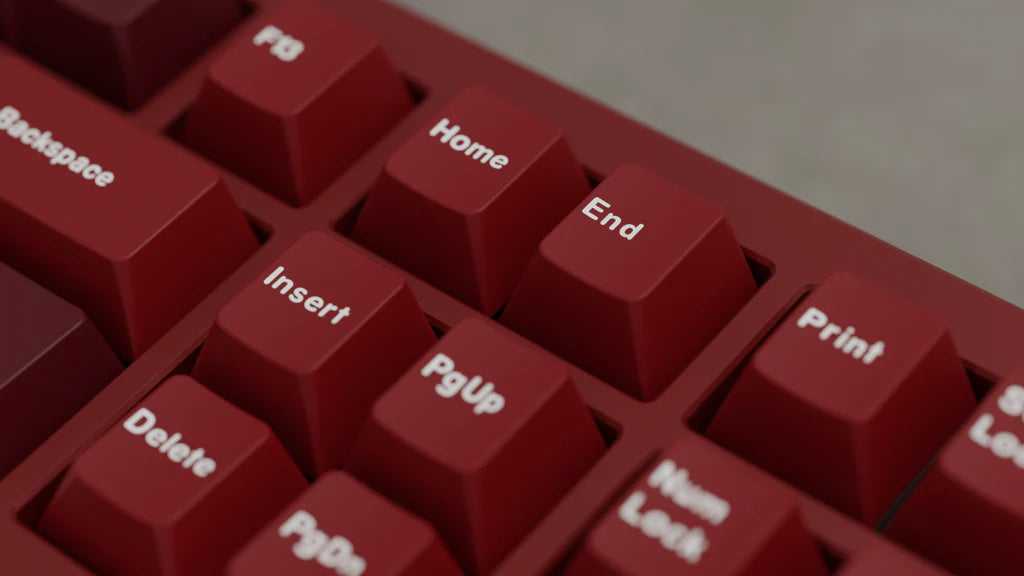

2-Keys Module

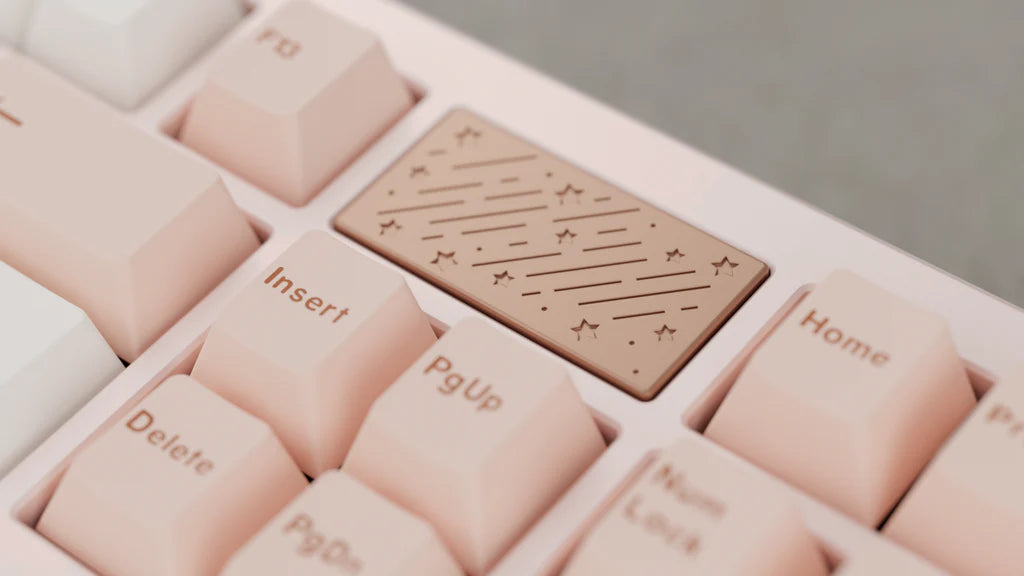

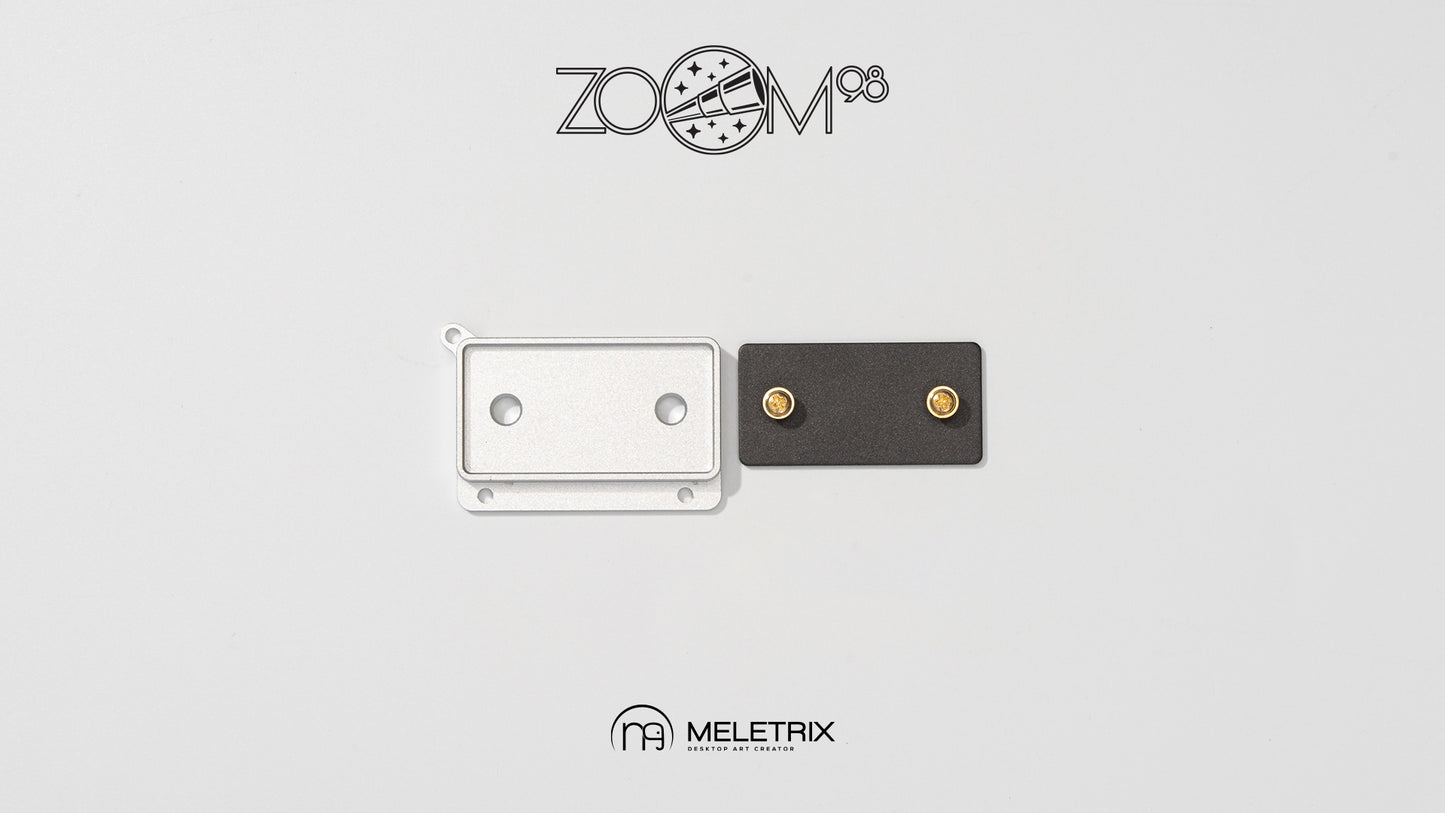

Badge Module

2U COLOUR LCD FEATURES

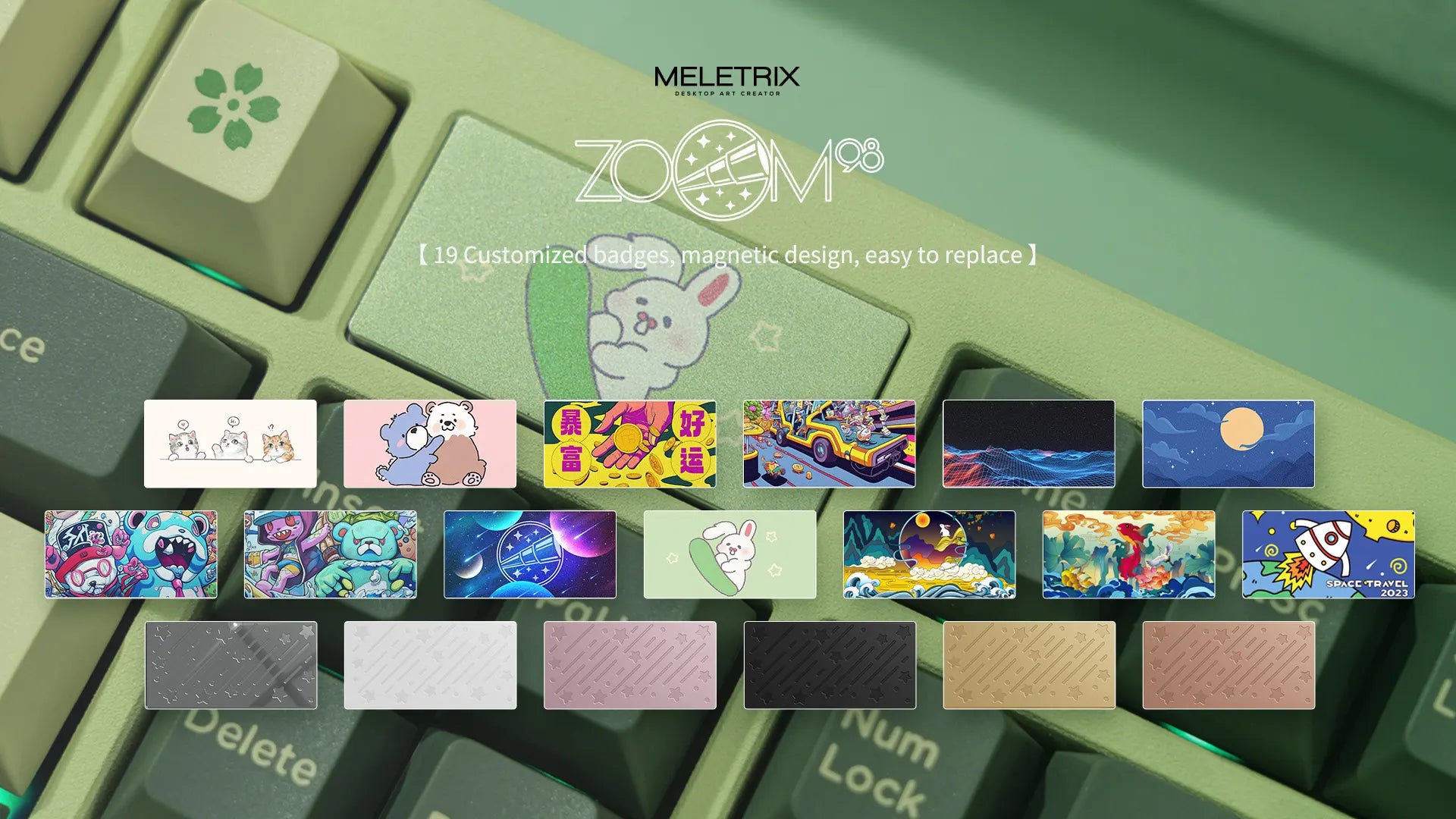

VARIOUS BADGES TO CHOOSE FROM:

Badges are compatible with the ZOOM75 series.

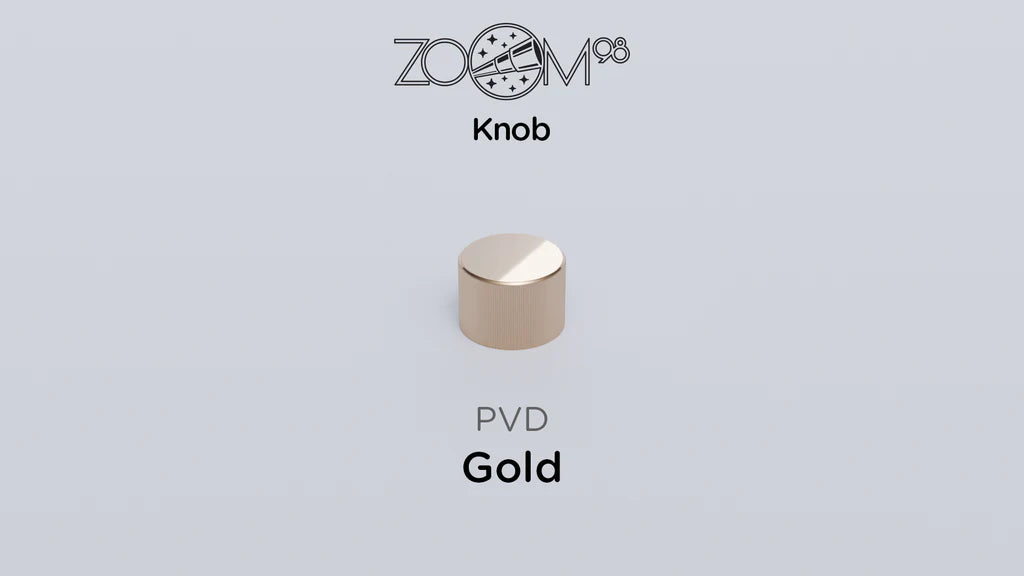

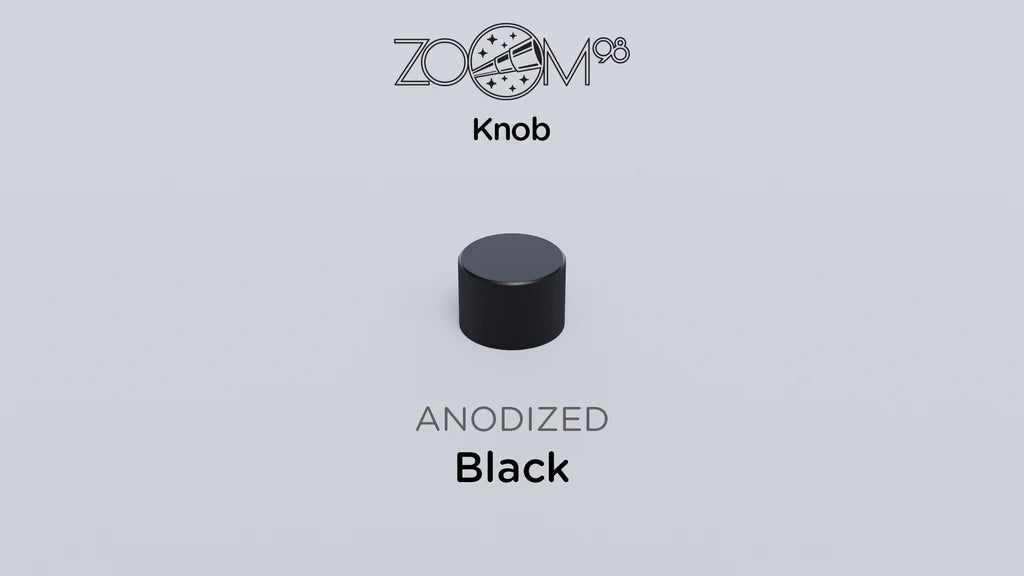

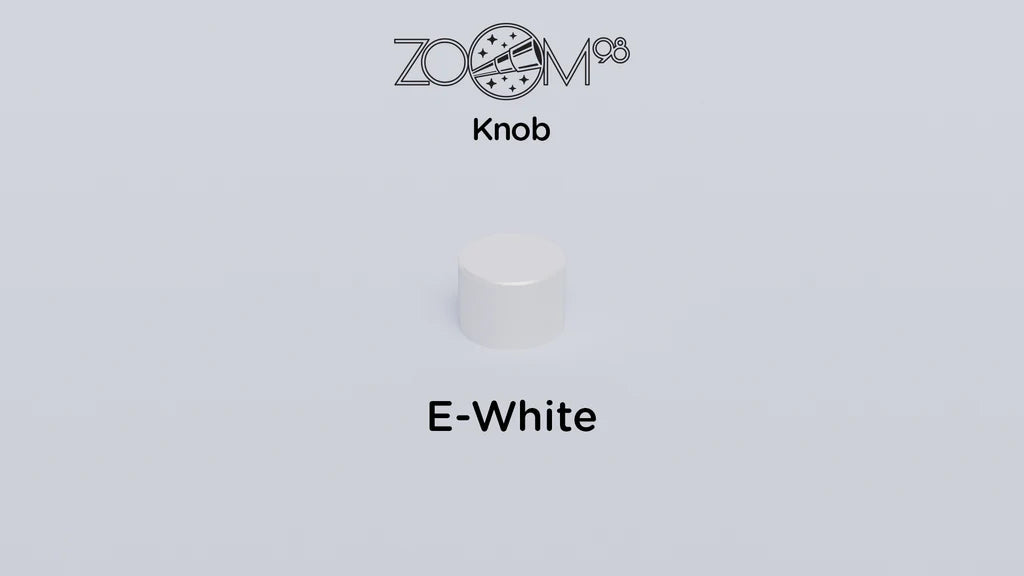

20 COLOR KNOB MODULES

The knob is compatible with ZOOM65/75/PAD series.
NOTE: Telescope Logo Design instead of Dot RGB Design.

AT A GLANCE

Knob Compatibility

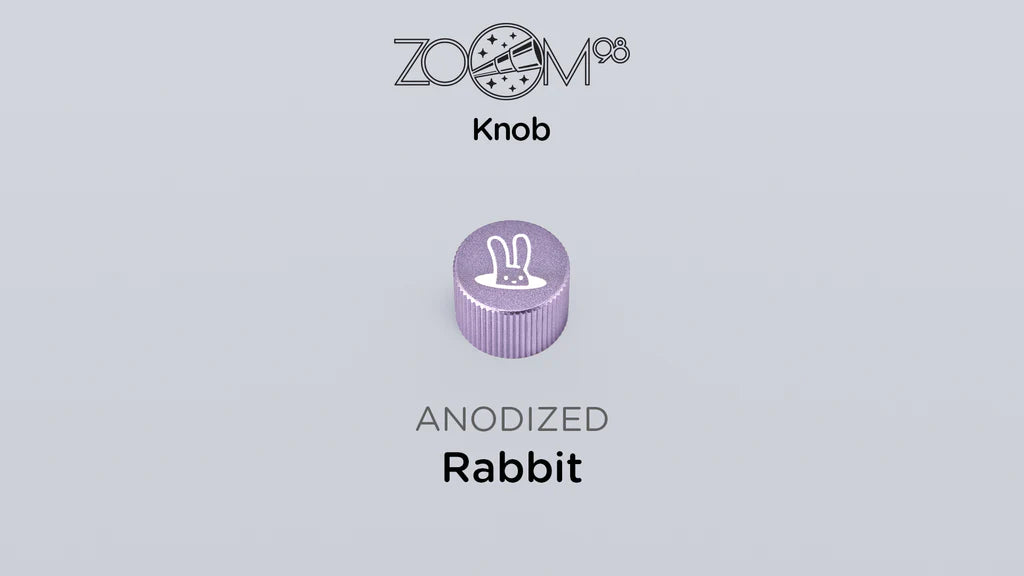

The Knobs are compatible with ZOOM65/75/PAD series, and lovely Spinny Friends knobs also as an add-on option. Featuring a cute animal pattern design, they offer a unique companion for your keyboard.

Gasket Slip Design

Stability, ease of installation, durability, and long-lasting flexibility come together seamlessly.

Per-Key RGB

The Tri-Mode PCB enables per-key RGB lighting, offering a diverse selection of colors and effects to enhance your visual experience. It is compatible with wired, wireless, and 2.4GHz modes, except for the wired PCB which lacks this feature.

NOTE: Telescope Logo Design instead of Dot RGB Design.

New WS Stabilizer V3.1

The new stabilizers that come with ZOOM98 are in a 9+1 configuration, 9x2U+1x 6.25U, and support splitting. This new version of the black stabilizers is which follows the original ZOOM75 silicone stabilizers, and is changed from the original pure black to glitter black. At the same time, it is lightly factory-lubed so novices can easily get started and no longer have to worry about lubrication.

Multi-Layout

Unlike traditional keyboards, you are not stuck with just one layout on Zoom98! Change things up every now and then with split (spacebars, back space, left shift, right shift),stepped caps Lock, ISO & ANSI enter.

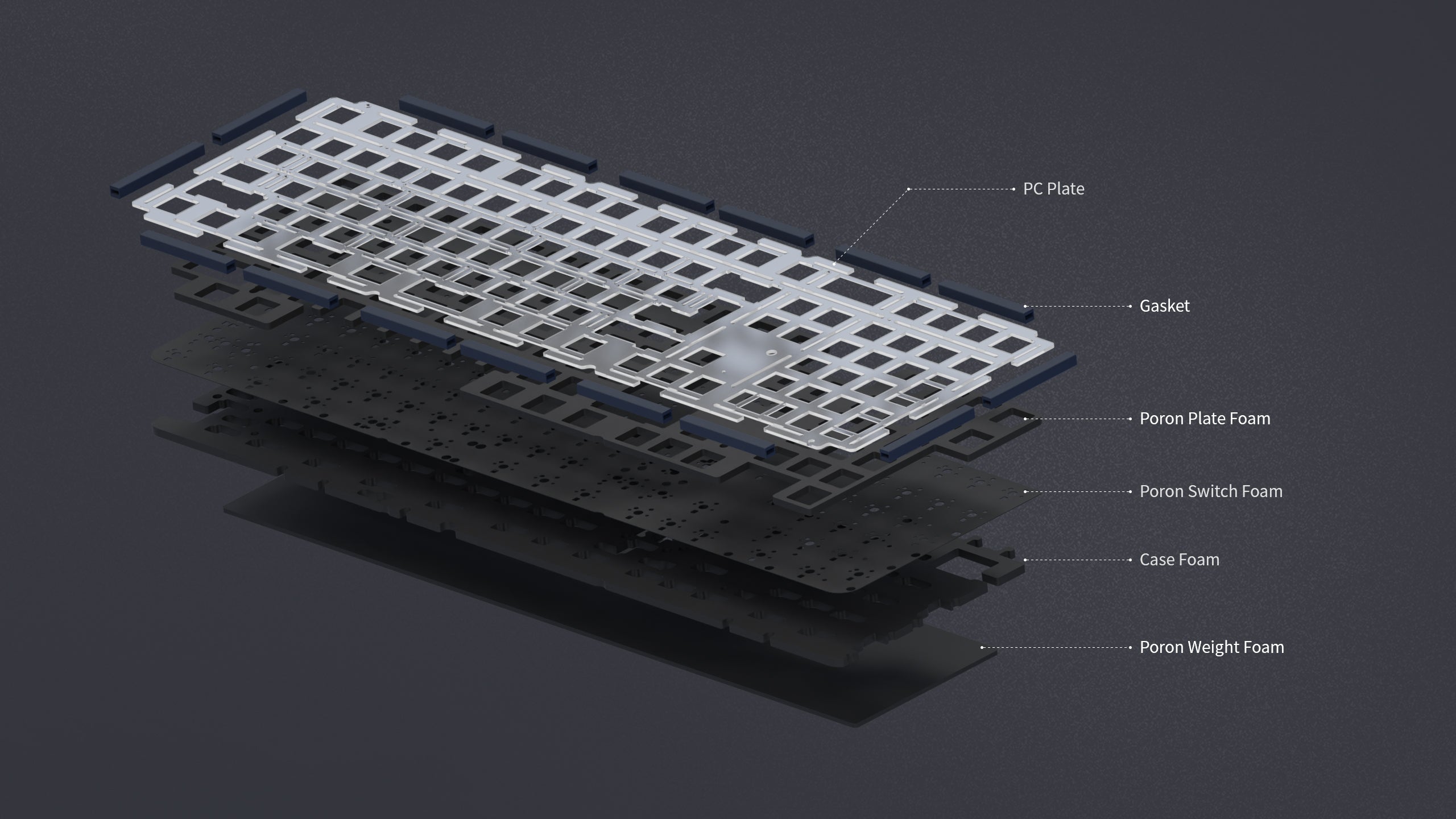

Foam Included

PCB and Bottom Case are made of lighter PORON material. To reduce resonance, many tests were done on the foaming material this time. We made the PORON lighter and the foam pores dense. Every minor detail matters a lot, with the current poron, the sound is more concentrated and is deeper than with normal dampeners.



Specifications:

General Specs

• Keyboard layout: 98% layout
• Mounting style:Gasket Mount
• Typing Angle: 7.7 degrees
• Front Height: 22mm
• Case Material: Aluminum
• Default plate: polycarbonate plate

PCB:

• PCB thickness: 1.2mm, with Ai03 DB
• PCB Version:Tri-mode Flex Cut or Non-Flex Cut Hotswap RGB PCB / Wired Non-flex Cut Hotswap PCB
• Supported layout: Split spacebars, back space, stepped caps Lock, left shift, right shift, ISO & ANSI enter
• Connection methods: Tri-mode(Wired/Bluetooth/2.4G) / Wired
• VIA/QMK Support: Tri-mode PCB supports VIA, the wired PCB supports QMK/VIA.

Size and Dimensions

 Kit Contents - Wired Version



Kit Contents - Tri Mode Version
