(In Stock) EVO70 R2 Keyboard Kit

IN STOCK - Ships within 3 working days, all sales final

Features:

• Colour LCD screen or monochrome OLED screen
• Dedicated ANSI or ISO layout
• Powerful ARM microcontroller (STM32F411)

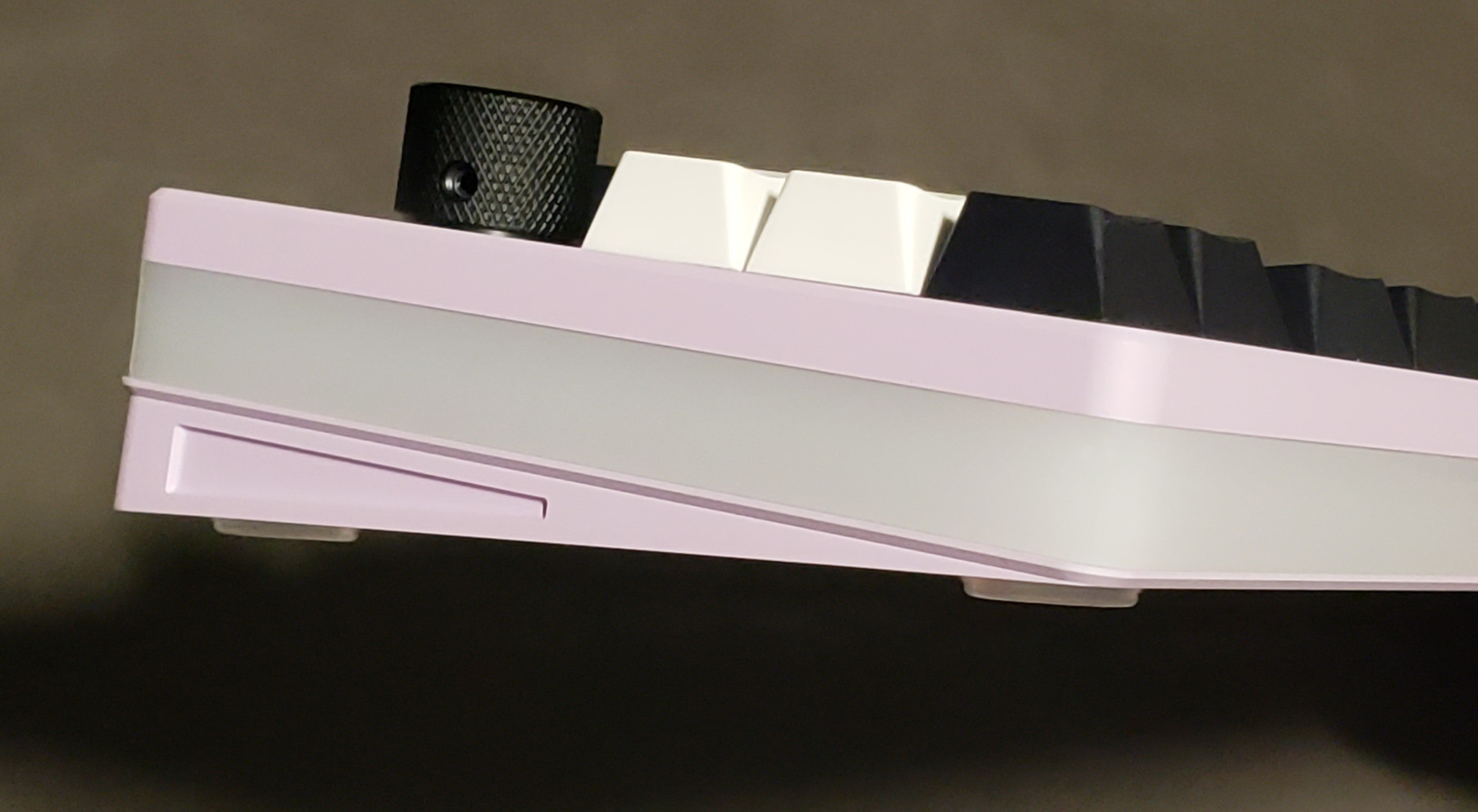

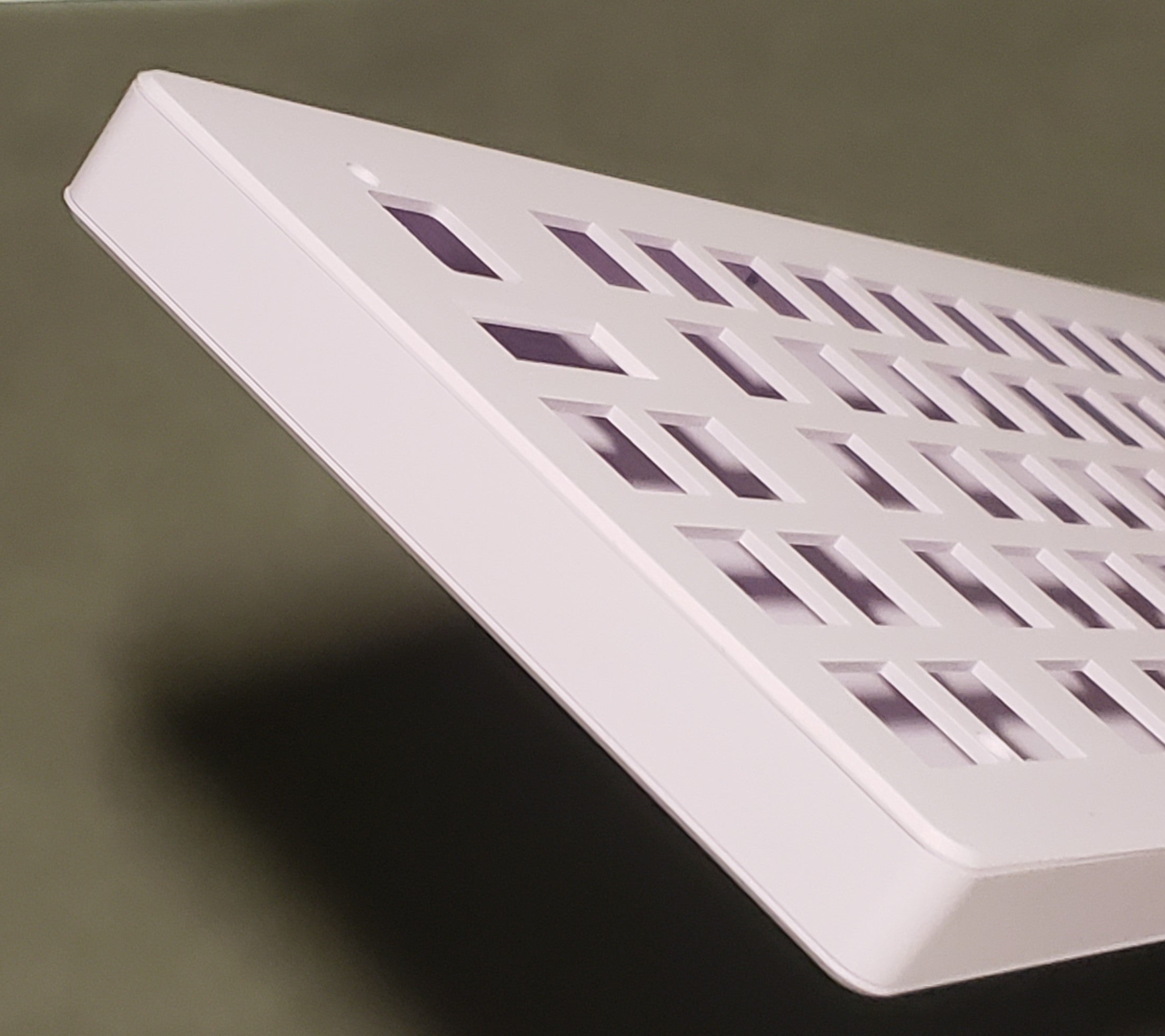

• High profile case and Low profile case available

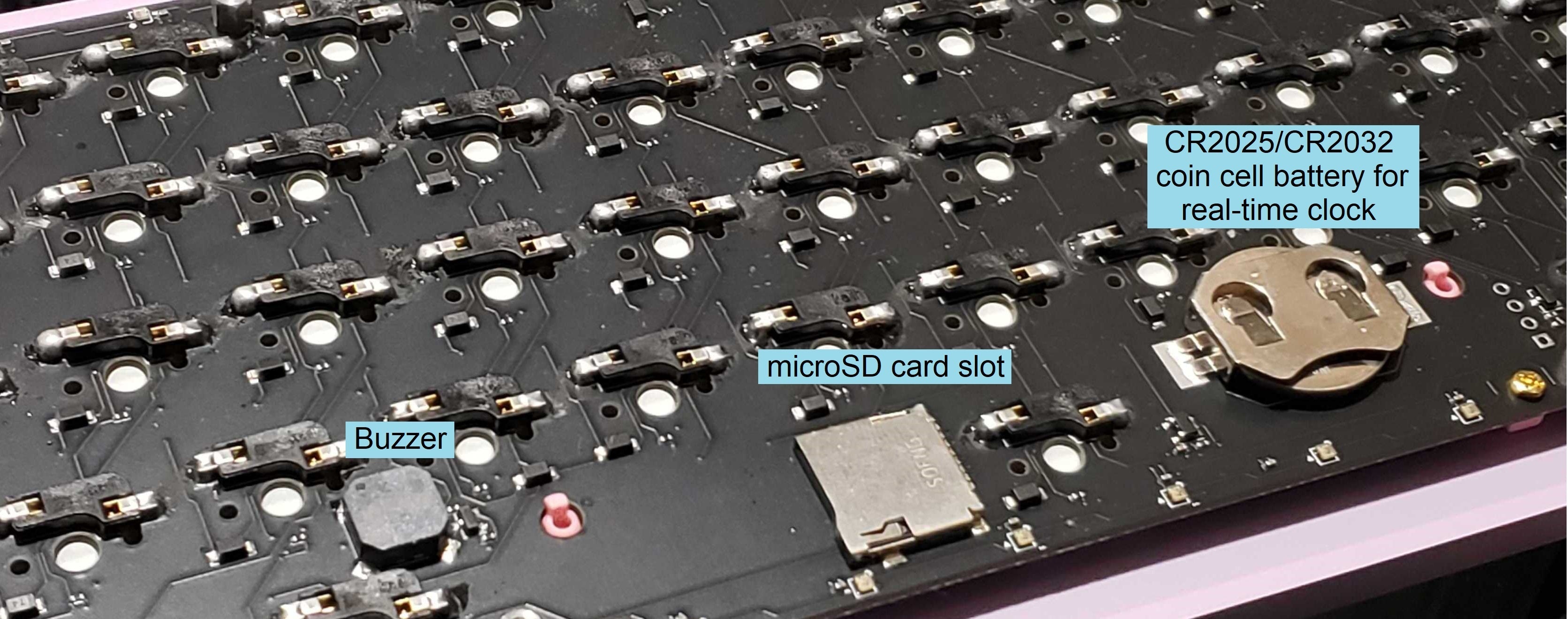

• 512kB program memory, 64kb FRAM, 16MB flash memory*, and microSD card slot*
• Real time clock
• Speaker
• Temperature sensor
• Want to see what the LCD screen in action? Check out this animation!

EVO70 R2:

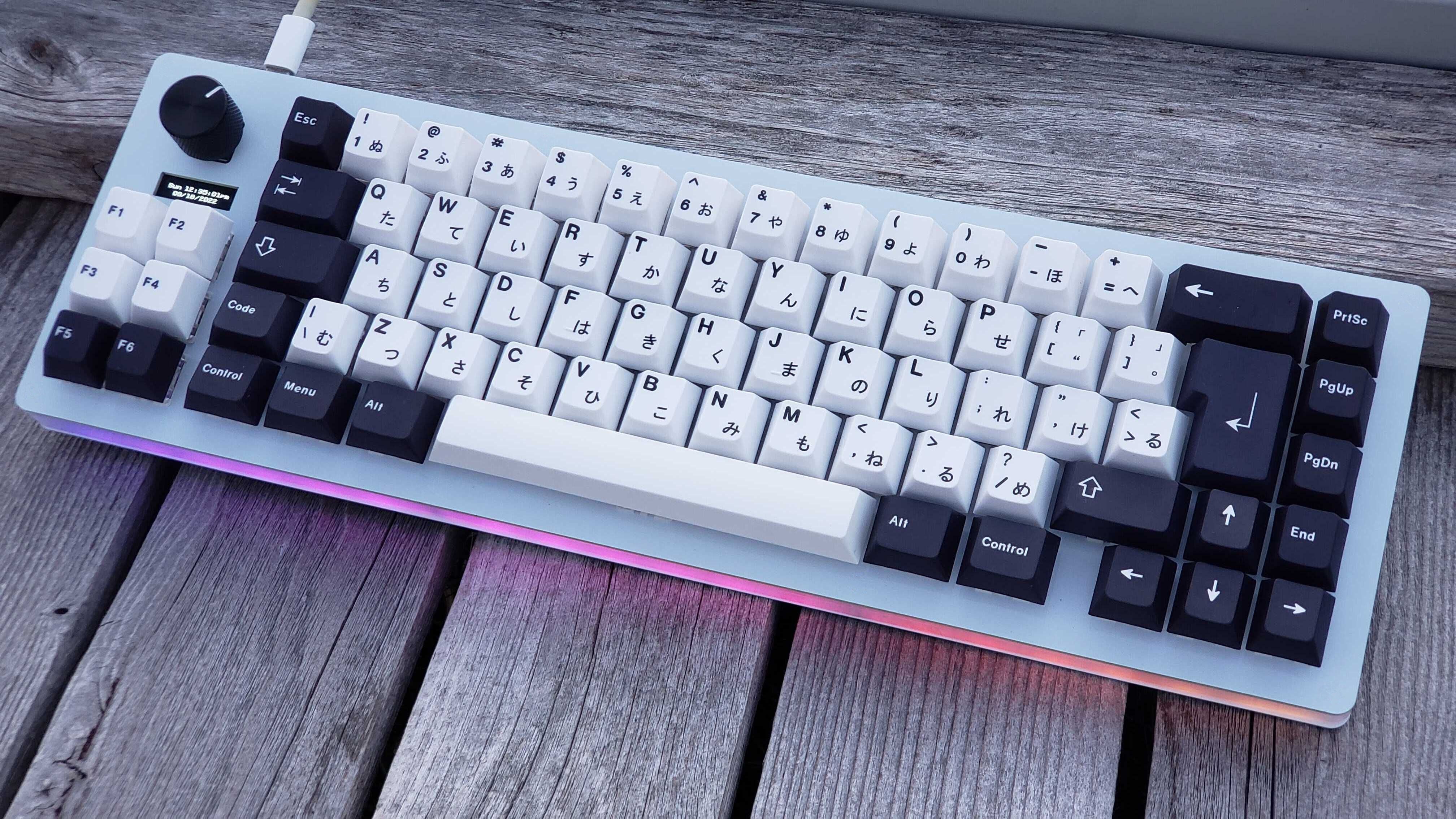

• 70% layout – classic 65% layout with an additional 6 macro keys on the left side
• 6 macro keys on the left side
• Requires 73 switches for ANSI, 74 switches for ISO
• PCB mount stabilizers, can be screw-in or clip-in designed for 1.6mm thick PCB
• ANSI: three 2u stabilizers, one 6.25u stabilizer
• ISO: two 2u stabilizers, one 6.25u stabilizer

Build options:

• FR-4

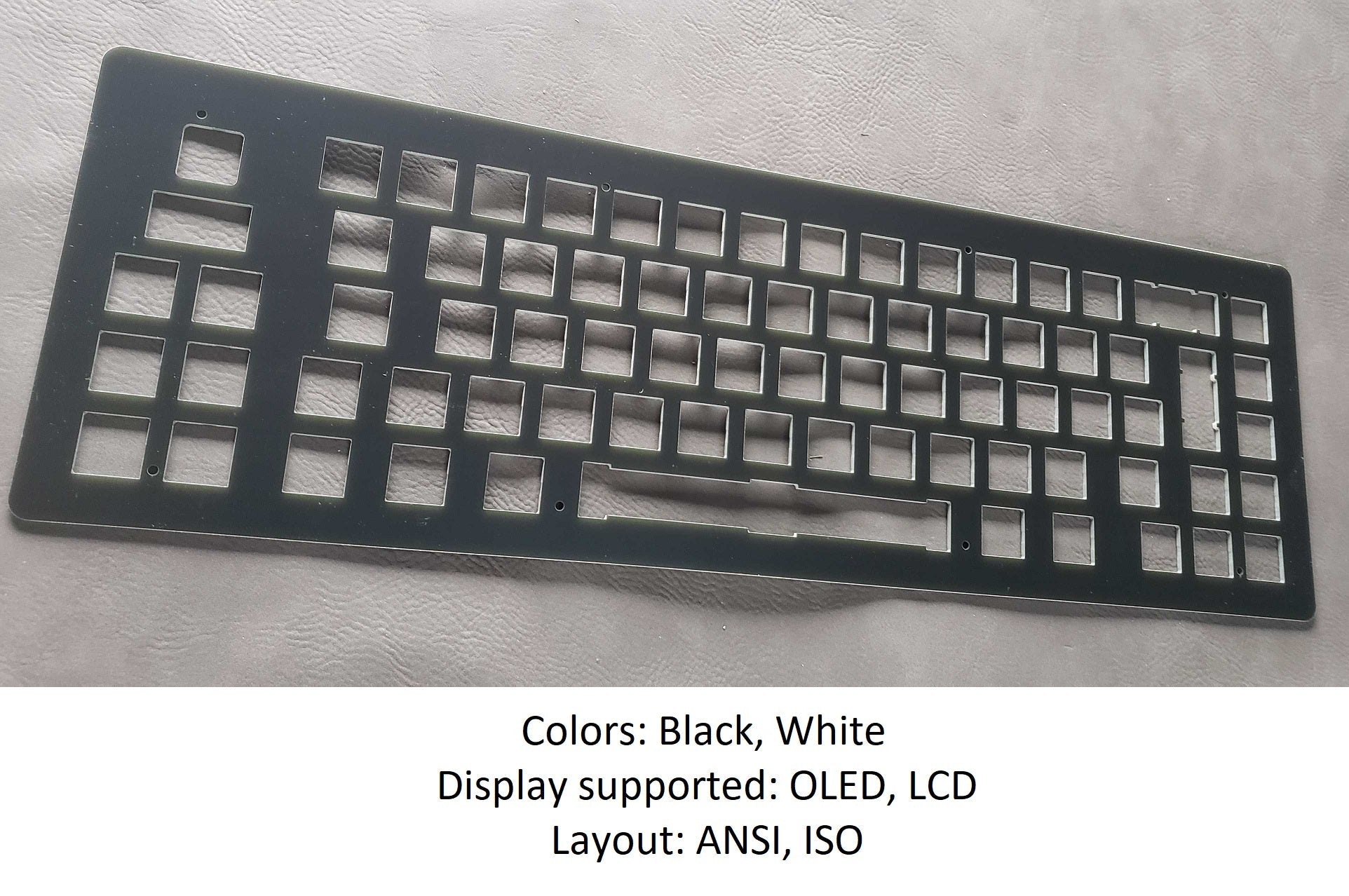

• 1.5mm FR-4 switch plate

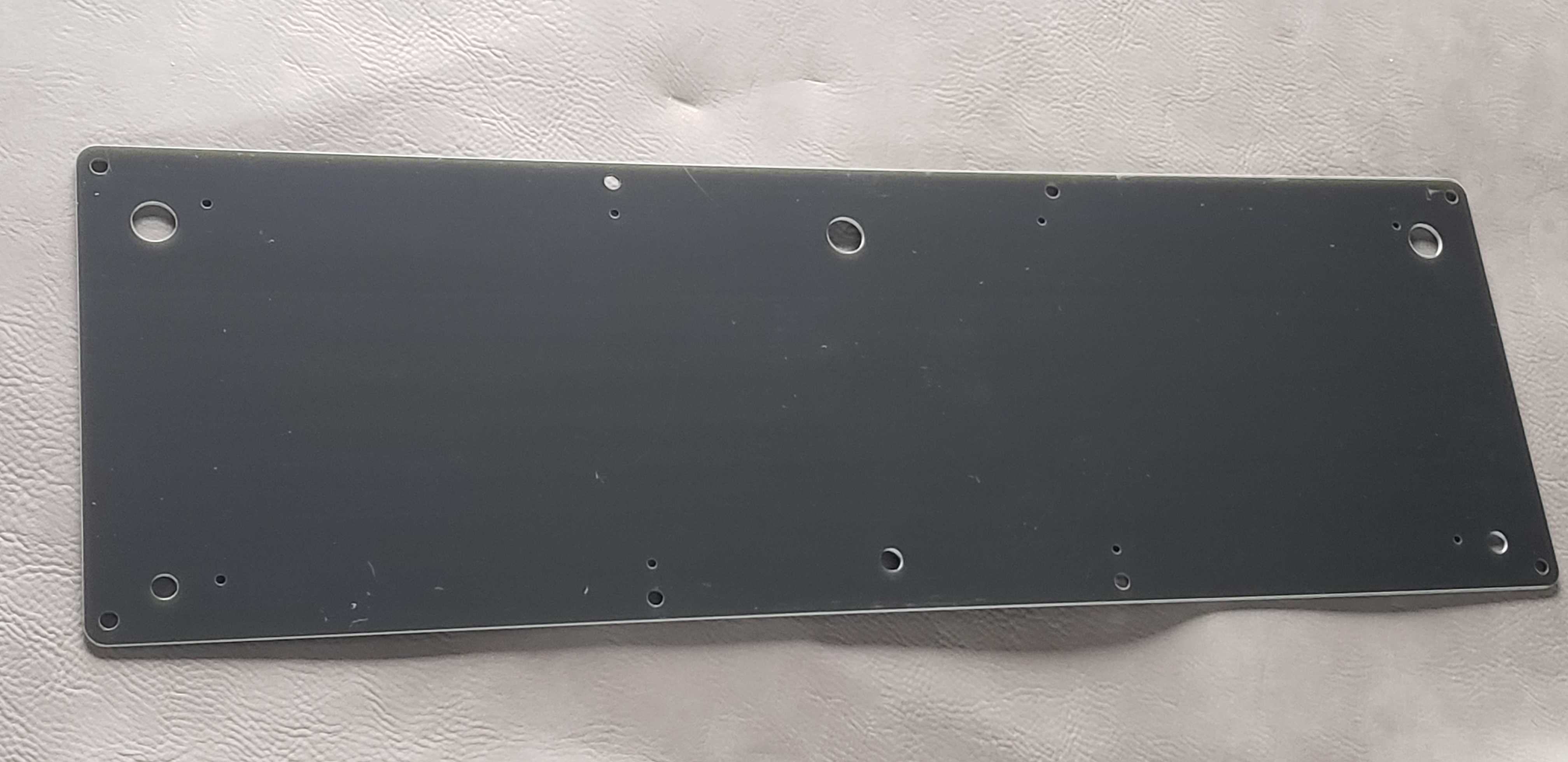

• 1.6mm FR-4 base

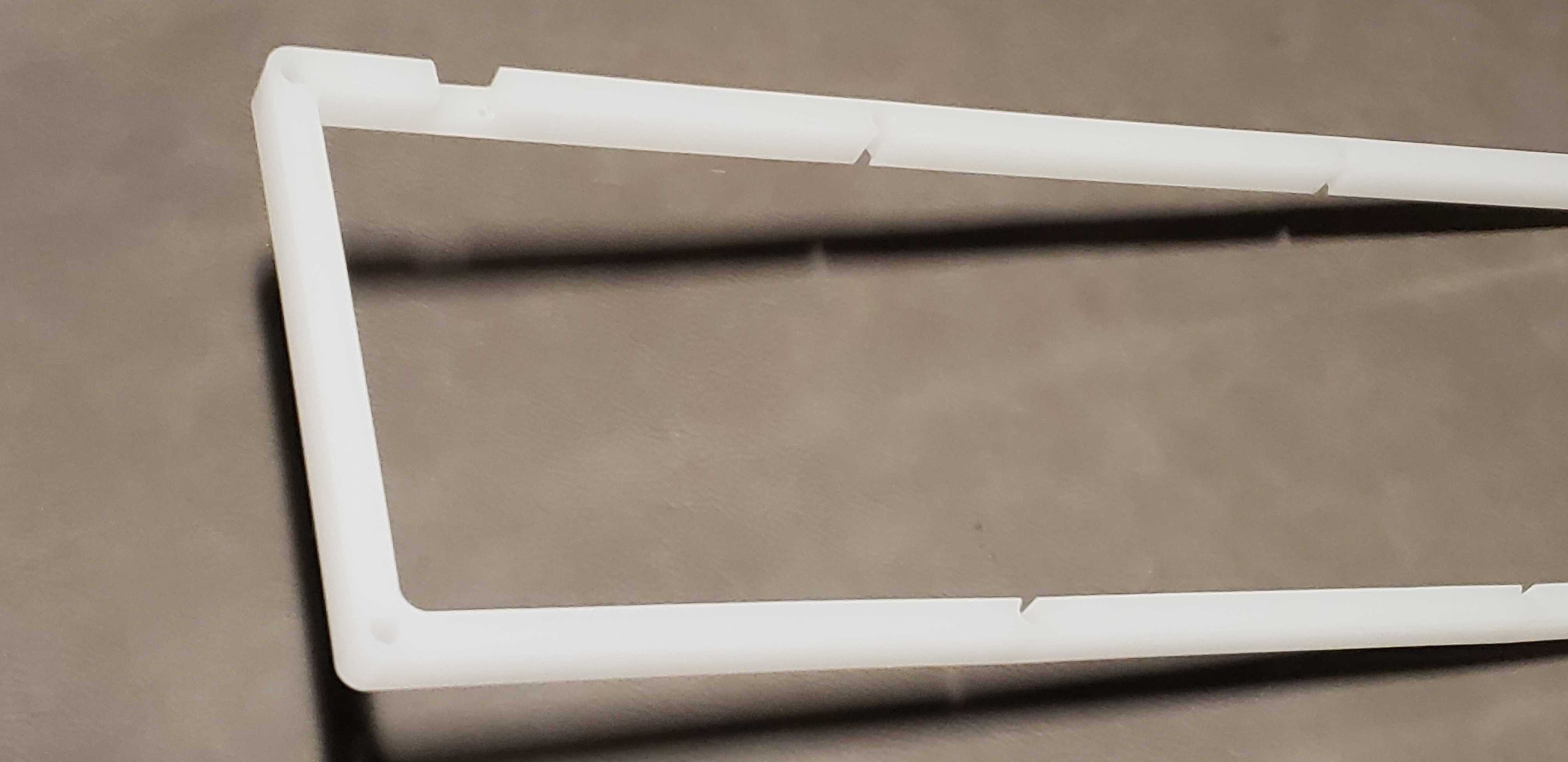

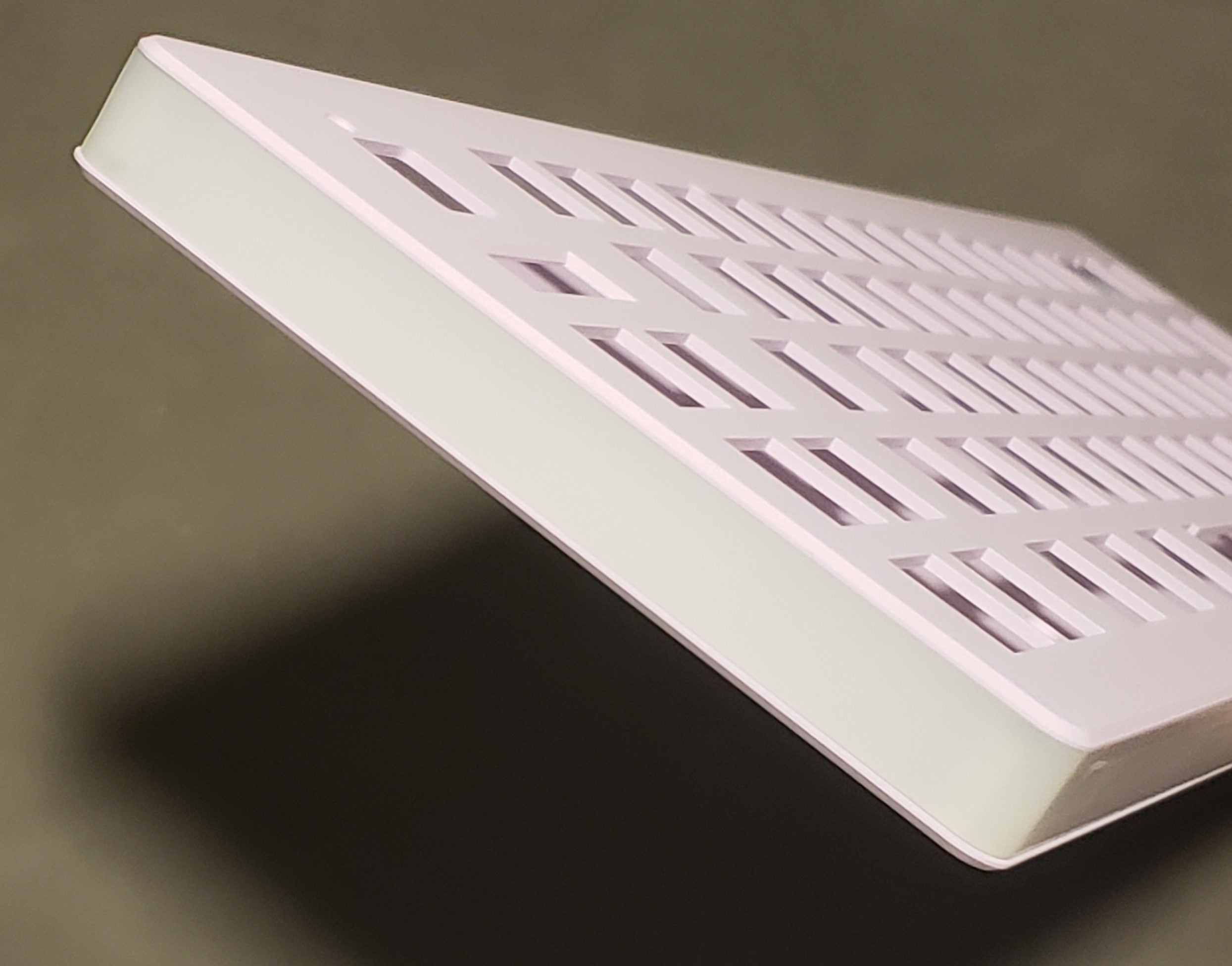

• Milky white translucent acrylic mid piece
• PCB with 5 pin switch support
• Aluminum

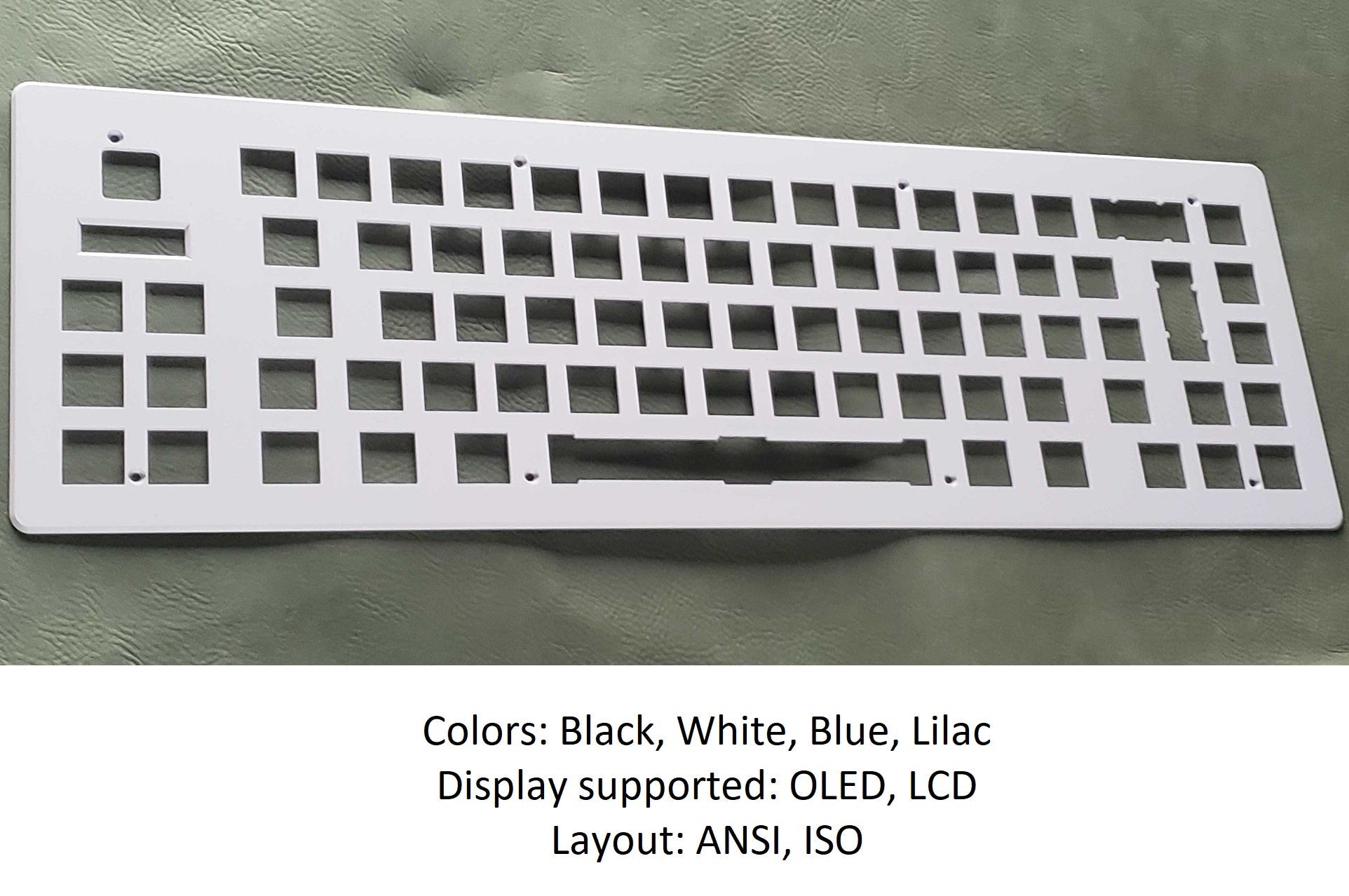

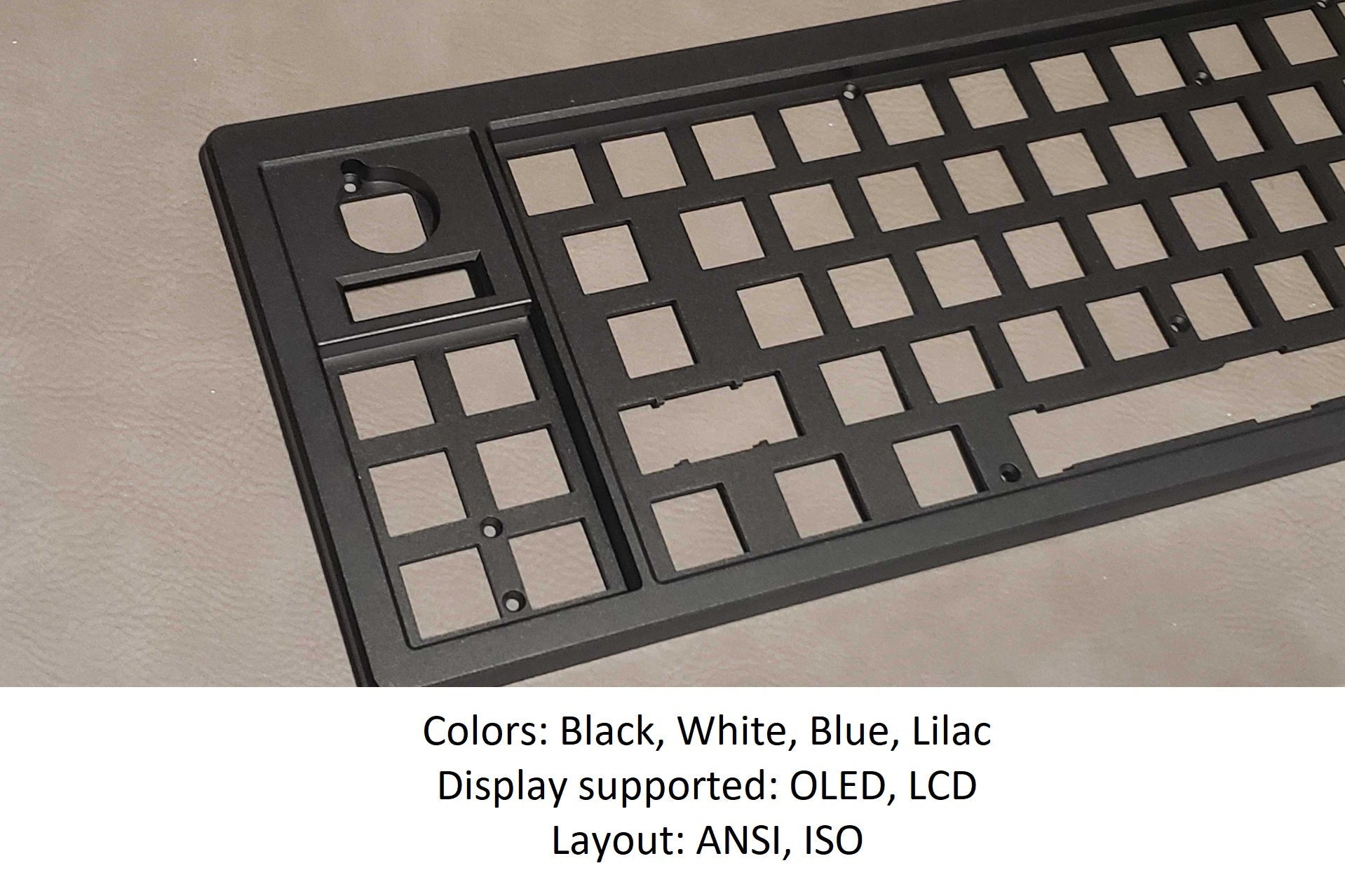

• 1.5mm sandblasted, anodized aluminum switch plate

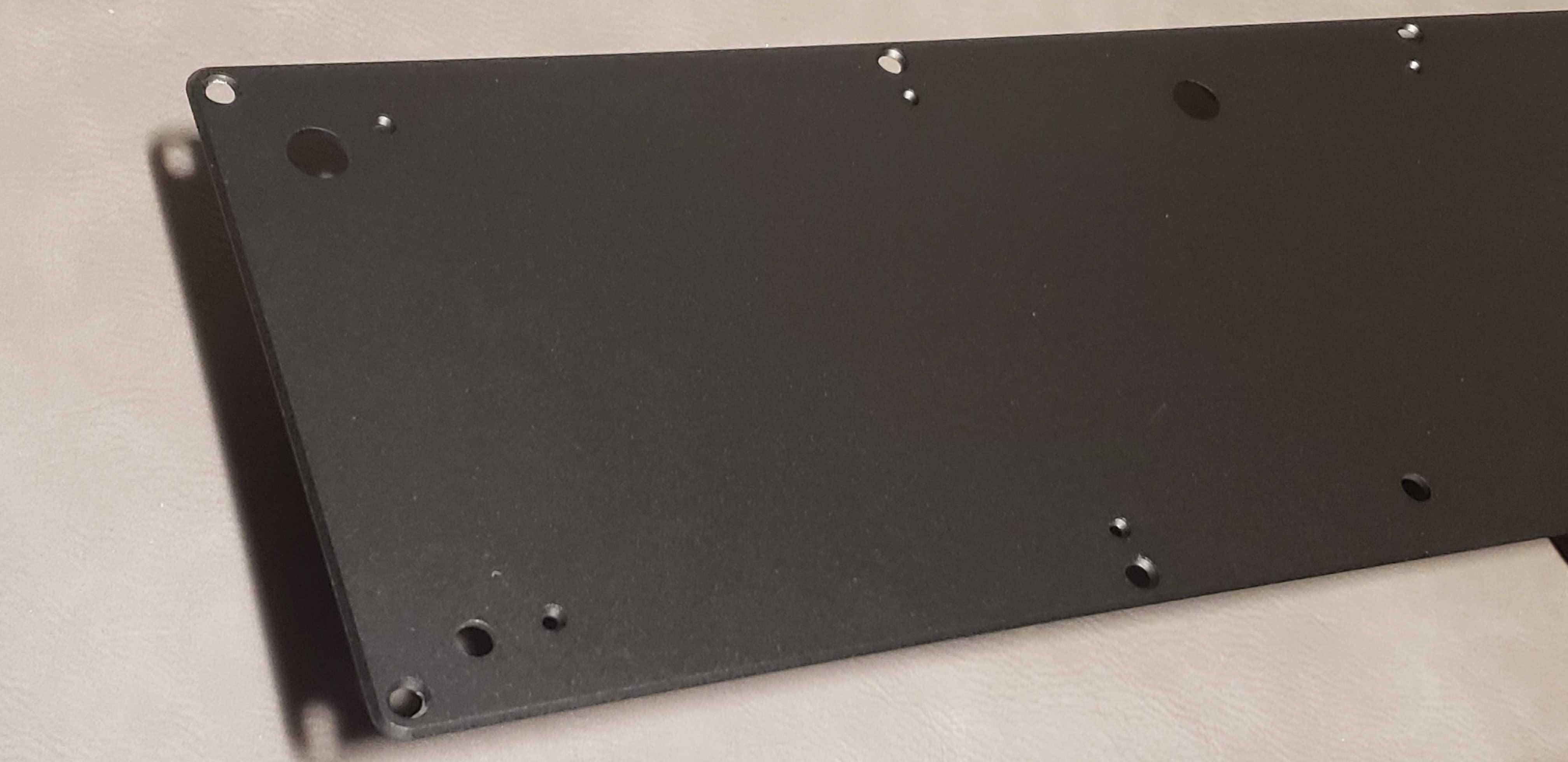

• 1.5mm sandblasted, anodized aluminum base
• Milky white translucent acrylic mid piece
• PCB with 5 pin switch support

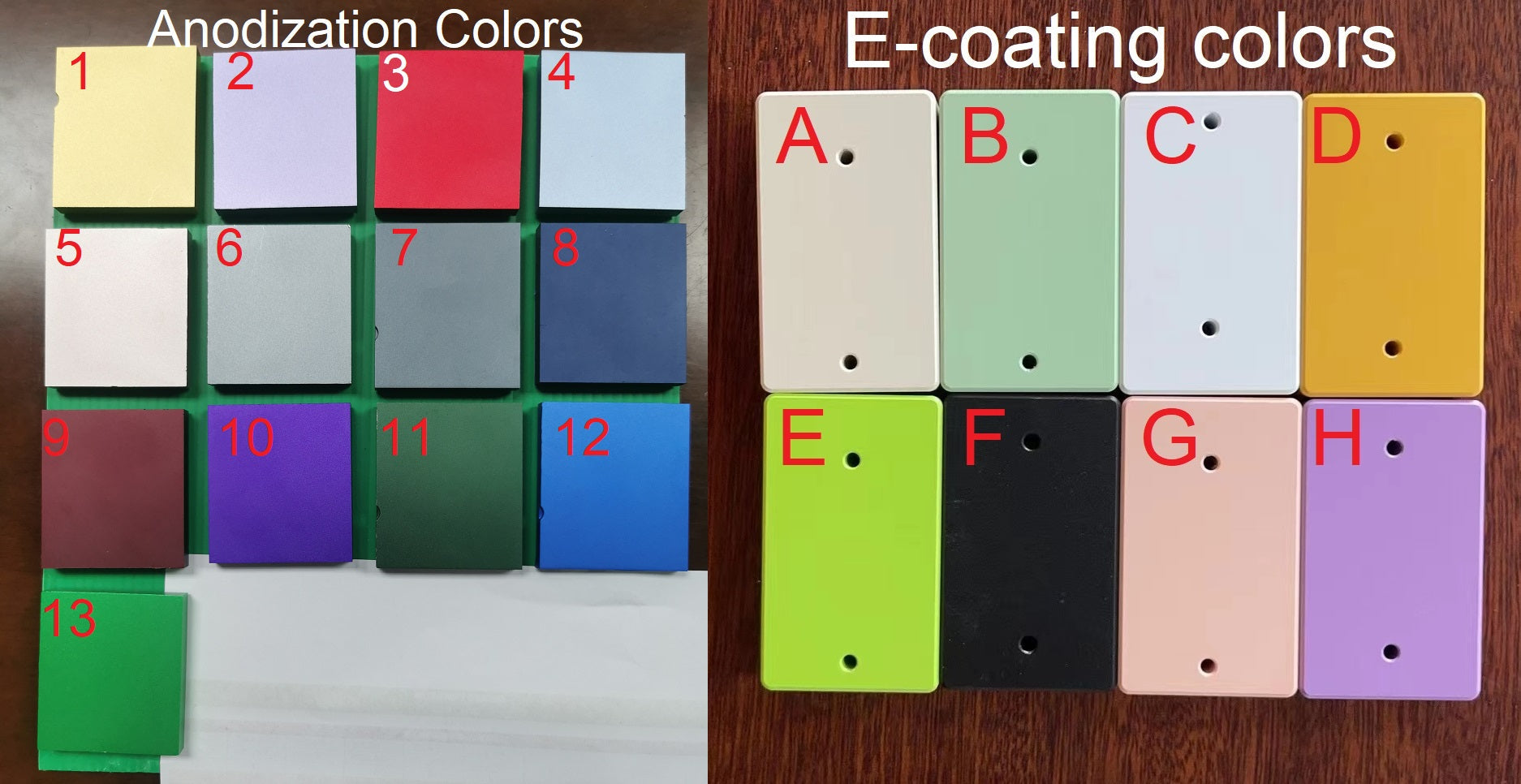

• Note: e-white and lilac use an electrophoresis coating rather than anodisation

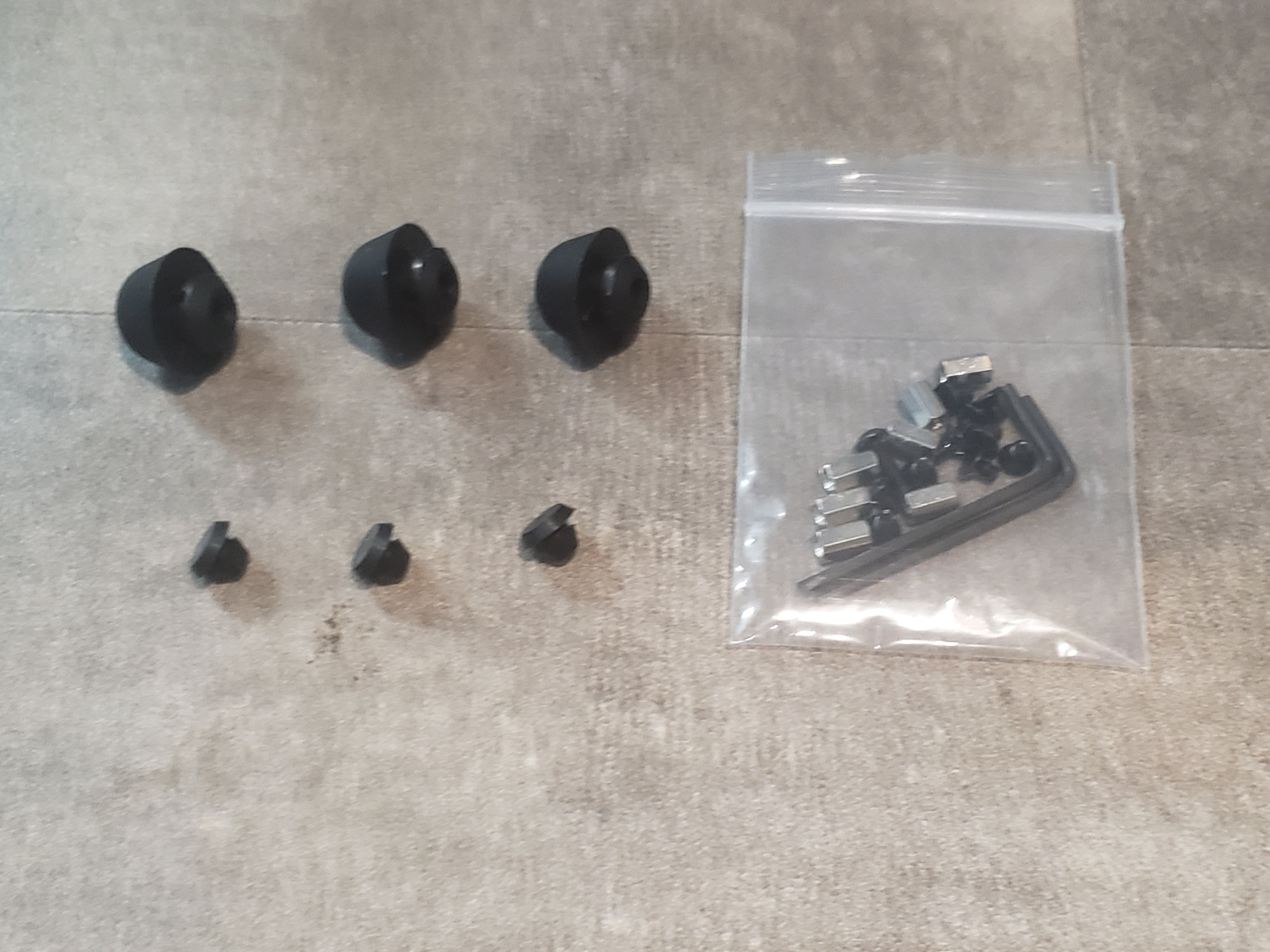

• All build options are pre-assembled, and include all hardware and tools needed to disassemble and reassemble

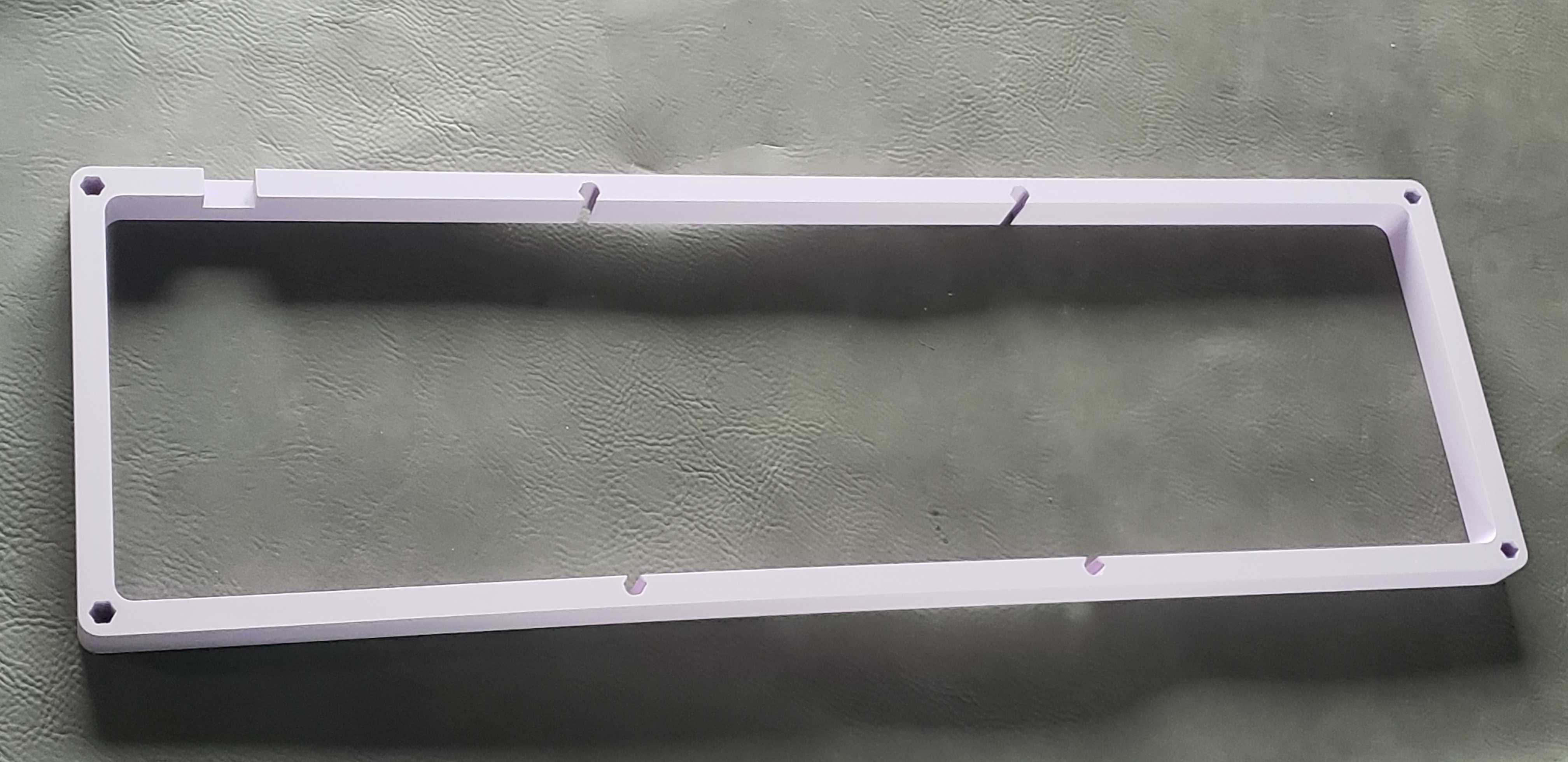

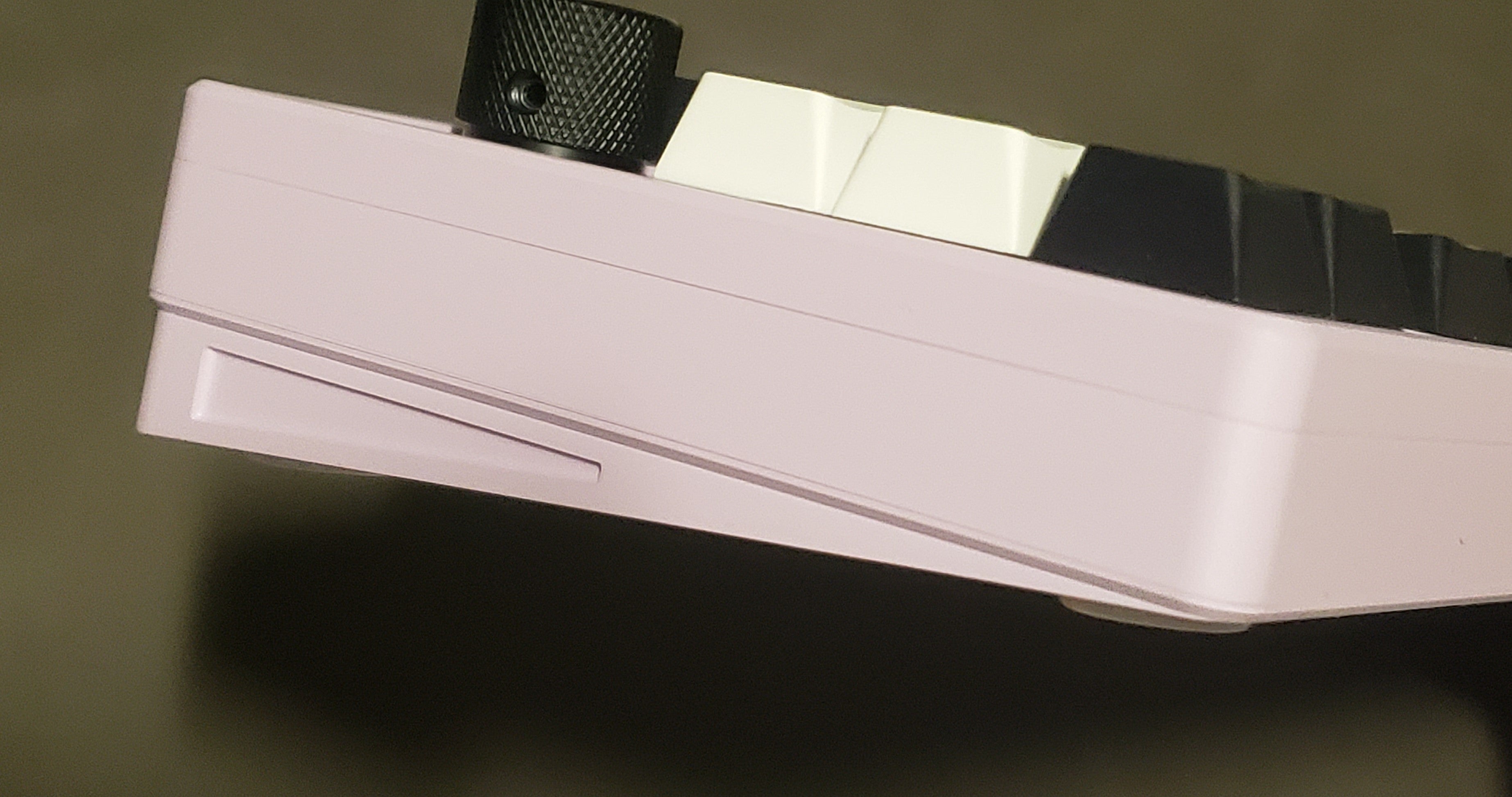

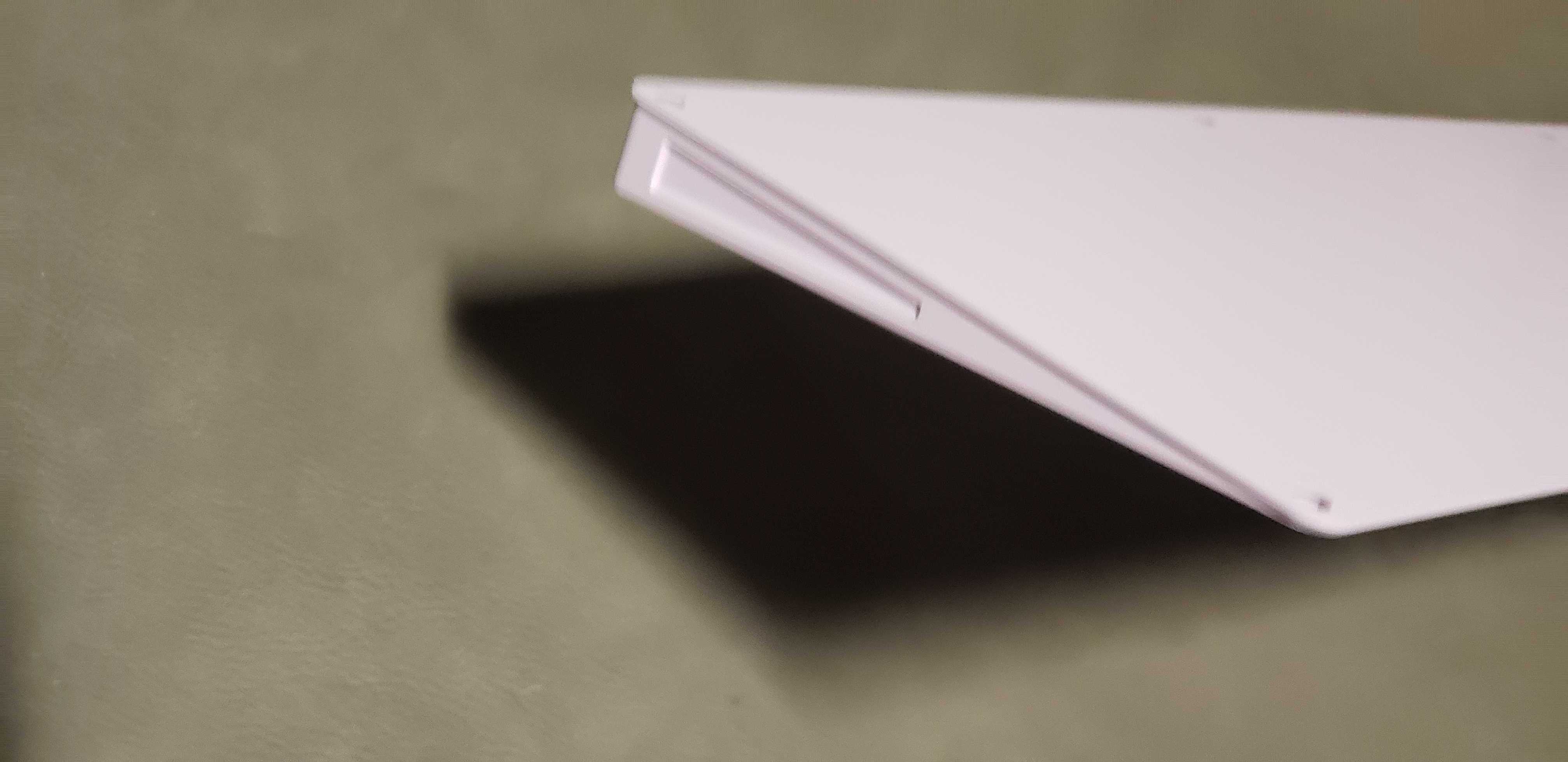

• Aluminum high profile top, aluminum solid base, and aluminum mid piece available separately.
• Does not include switches, stabilisers, keycaps, or USB-C cable

Colour options:

• FR-4: Black, White

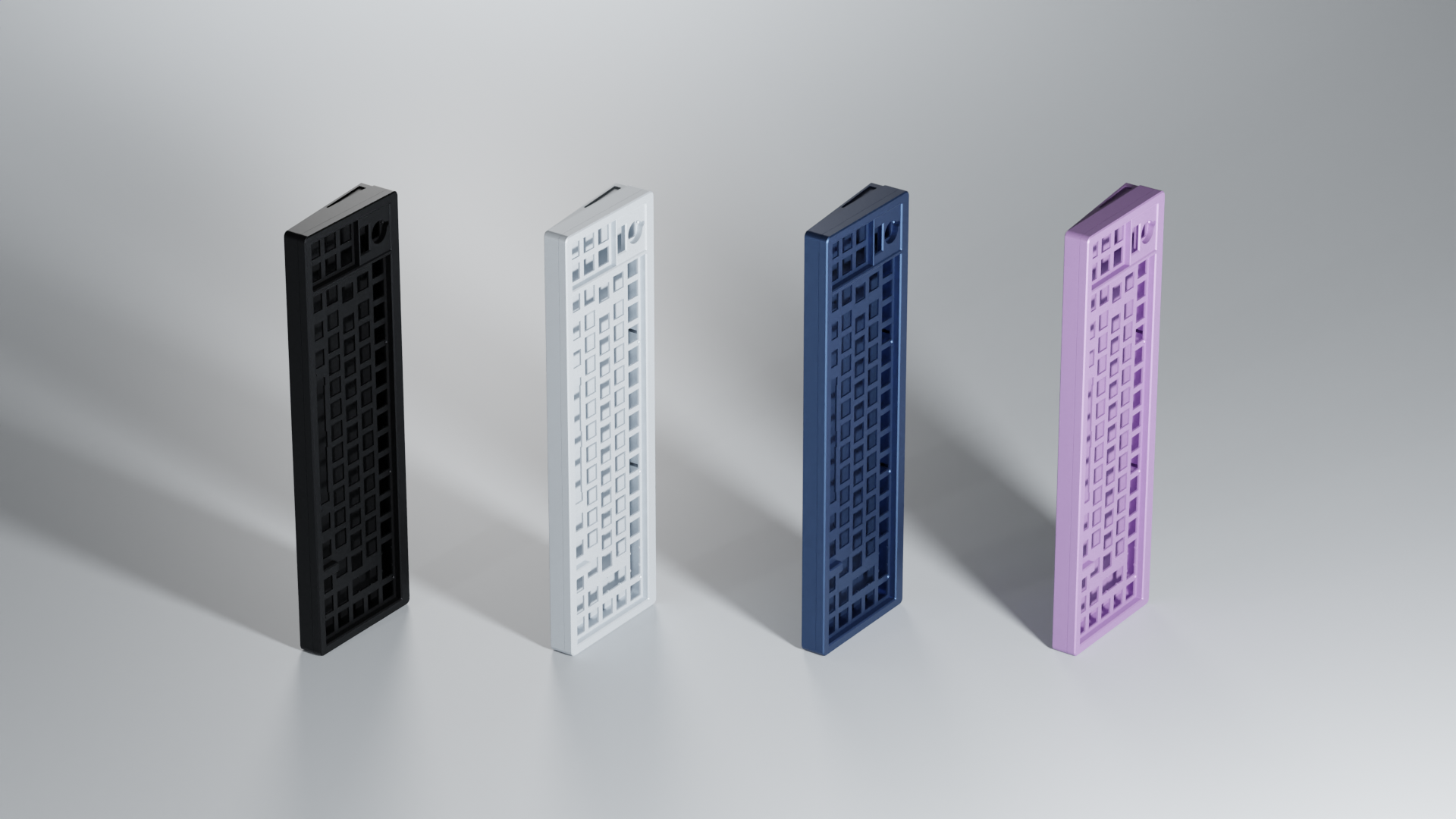

• Aluminum: Black, White, Blue, Lilac

Misc Specs:

• Kailh hotswaps – no soldering required.

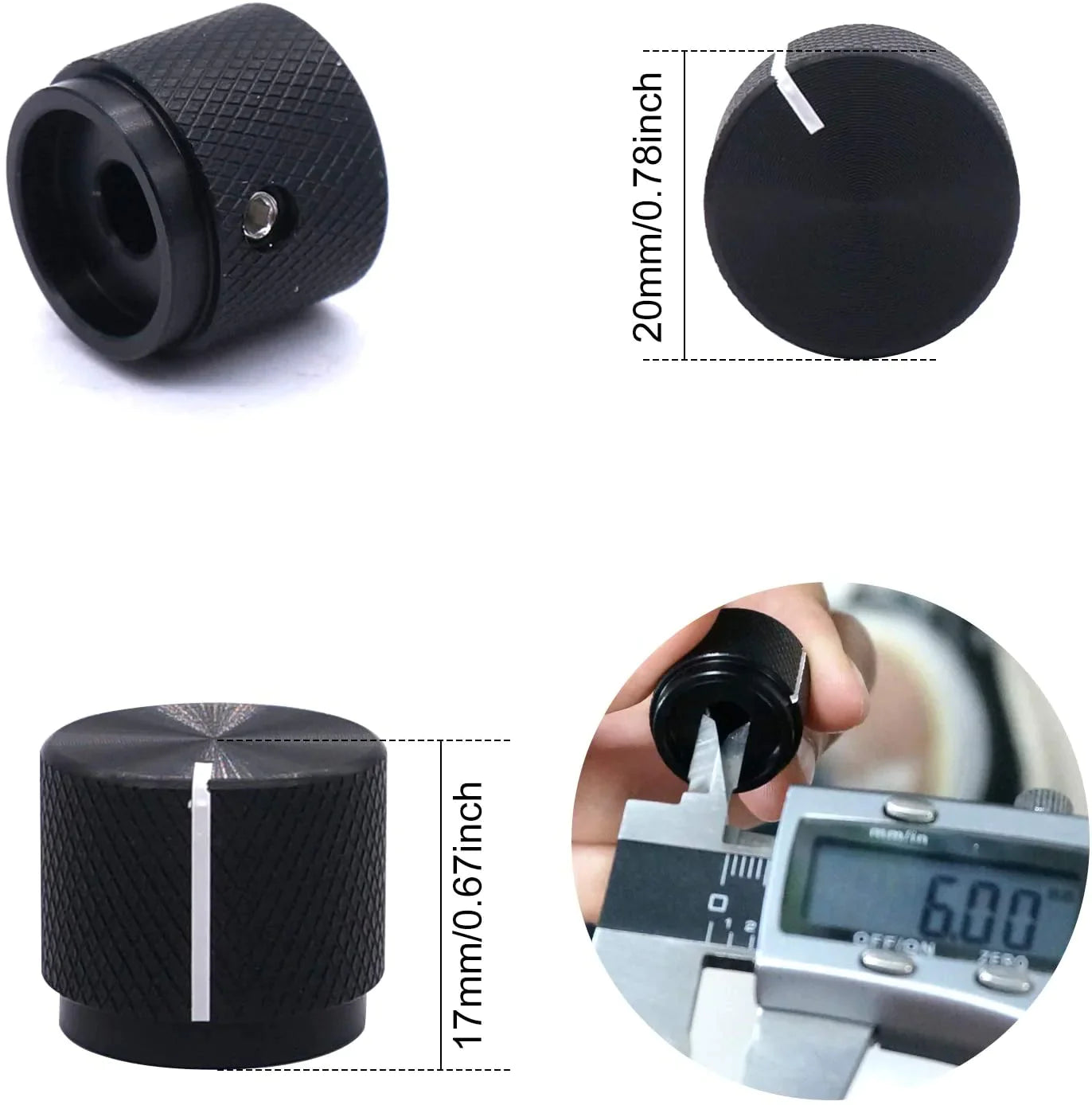

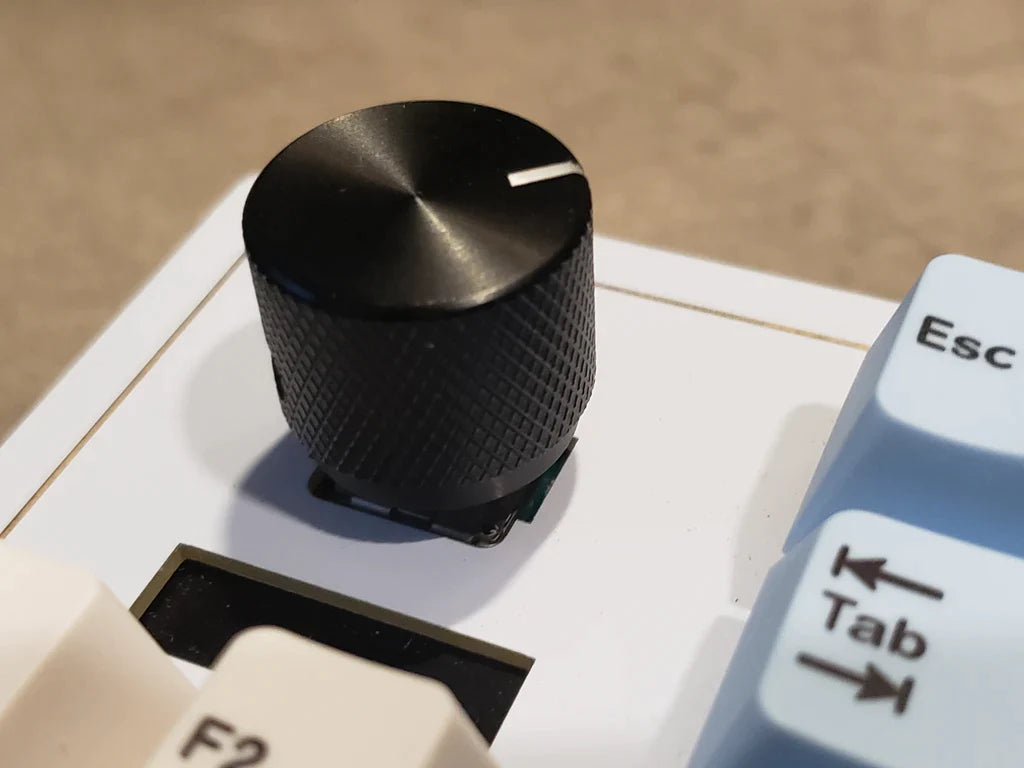

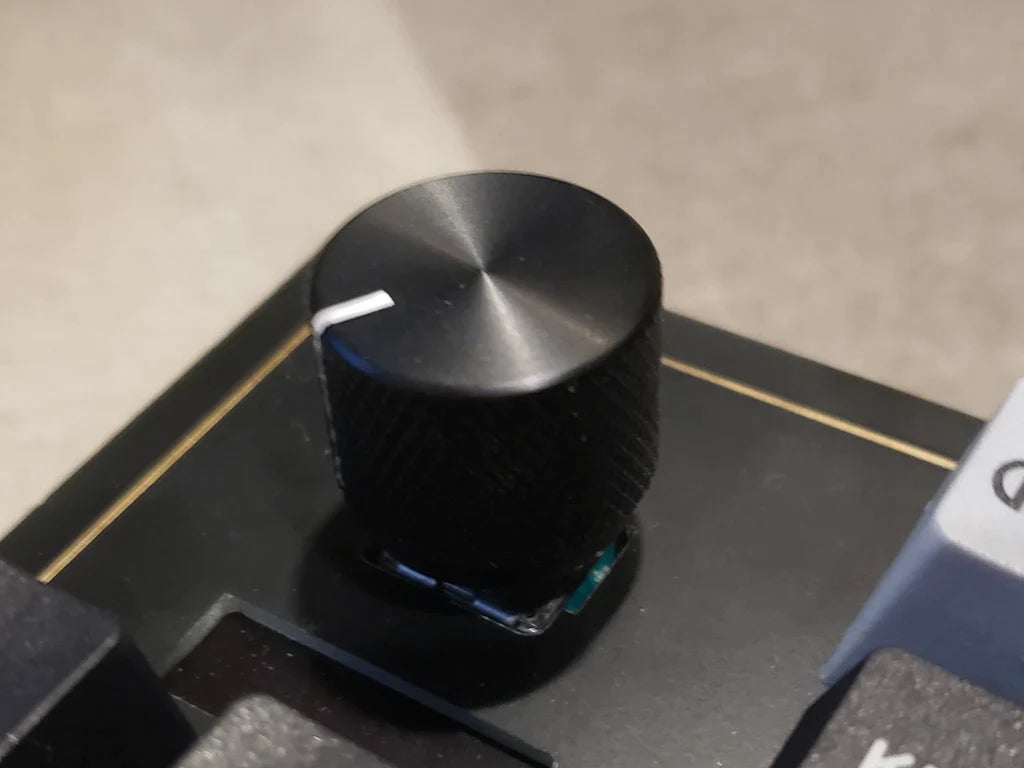

• Rotary Encoder w/ 20mm black aluminum knob – configurable in VIA along with preprogrammed functions to control volume, lighting brightness, scroll wheel, and more.

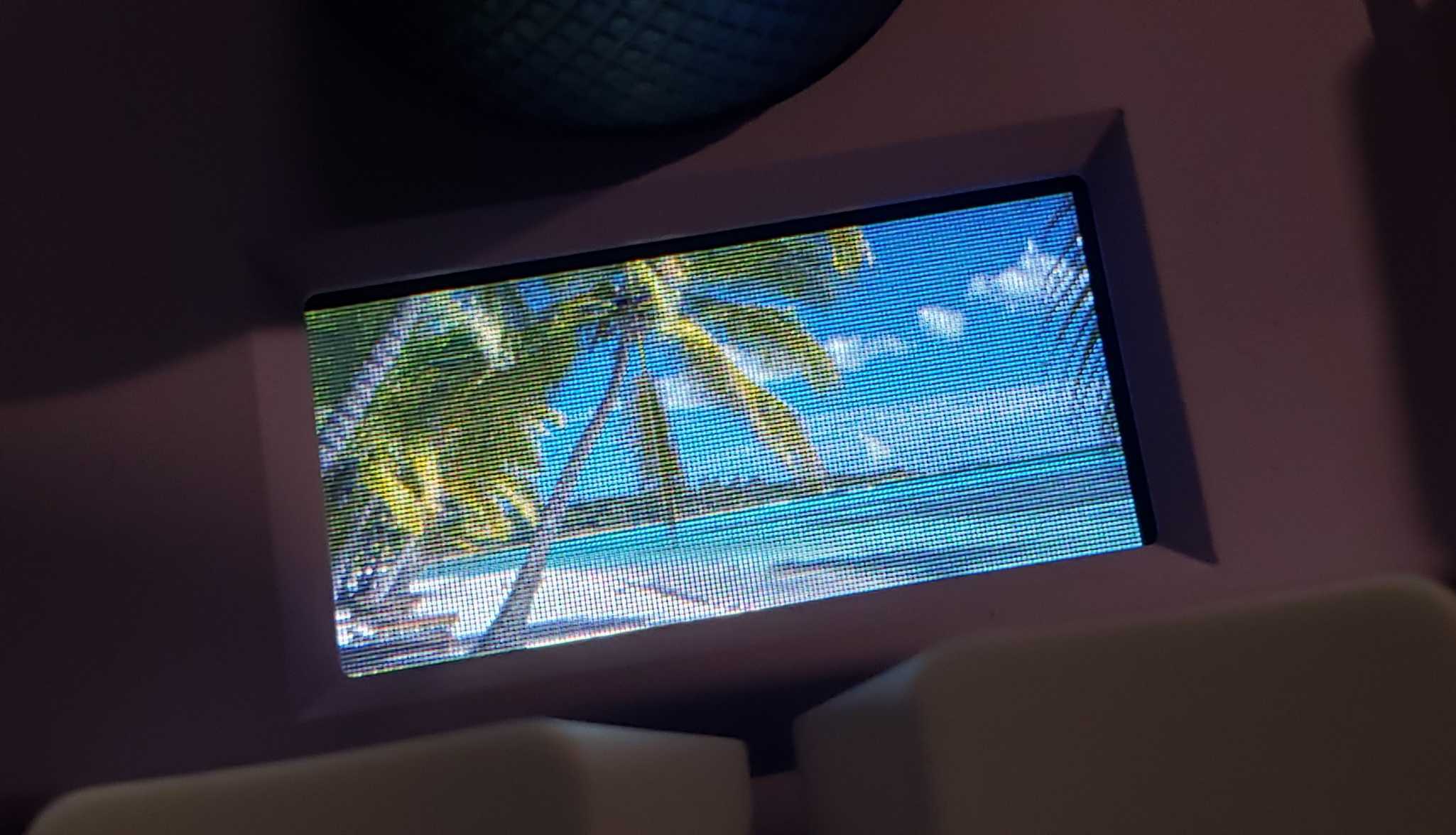

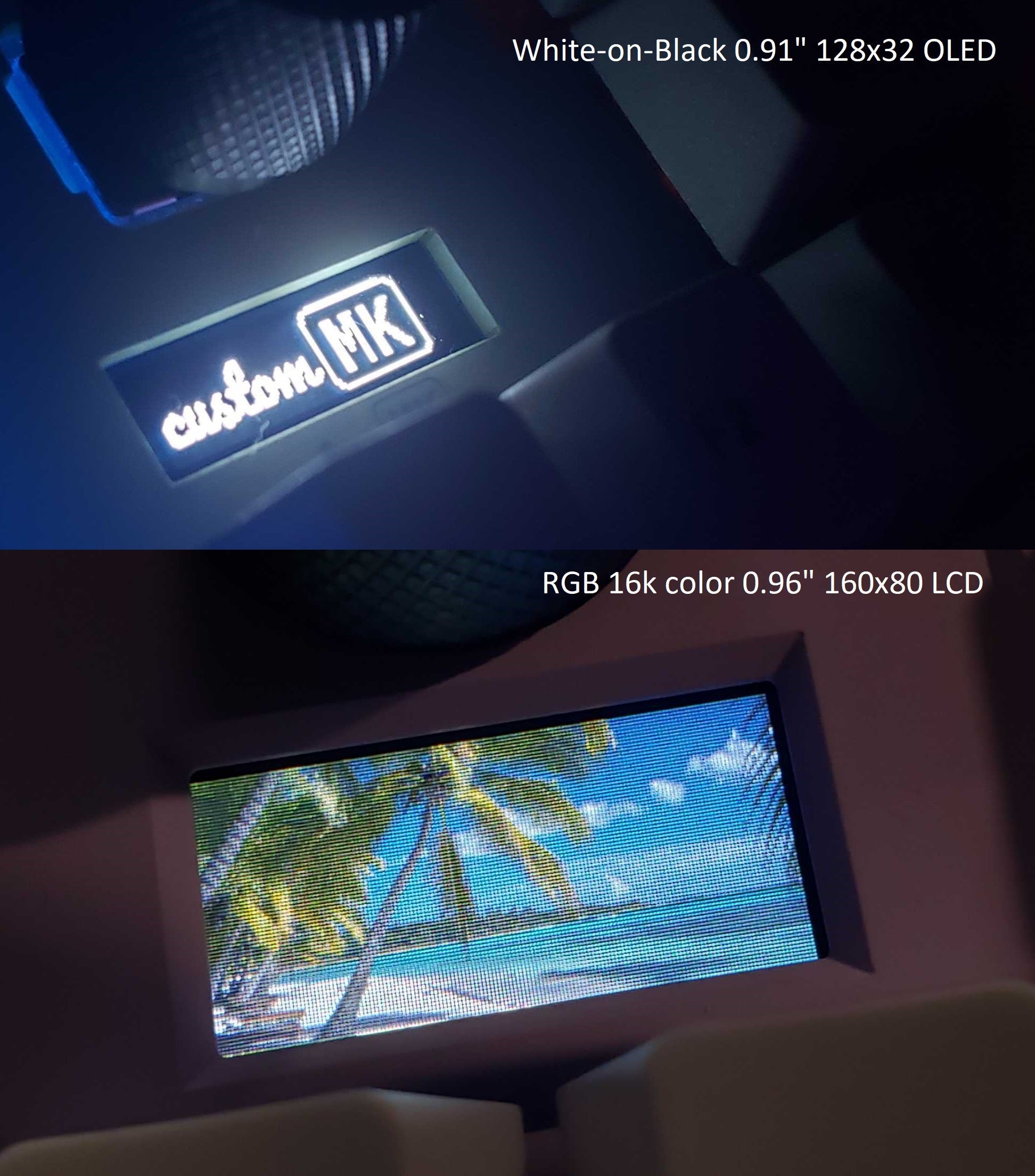

• 0.91″ OLED screen (128×32) or 0.96″ colour LCD screen (160×80)- displays current mode, layer number, caps lock, num lock and bongo cat.
• Display sits flush against the bottom of the switch plate

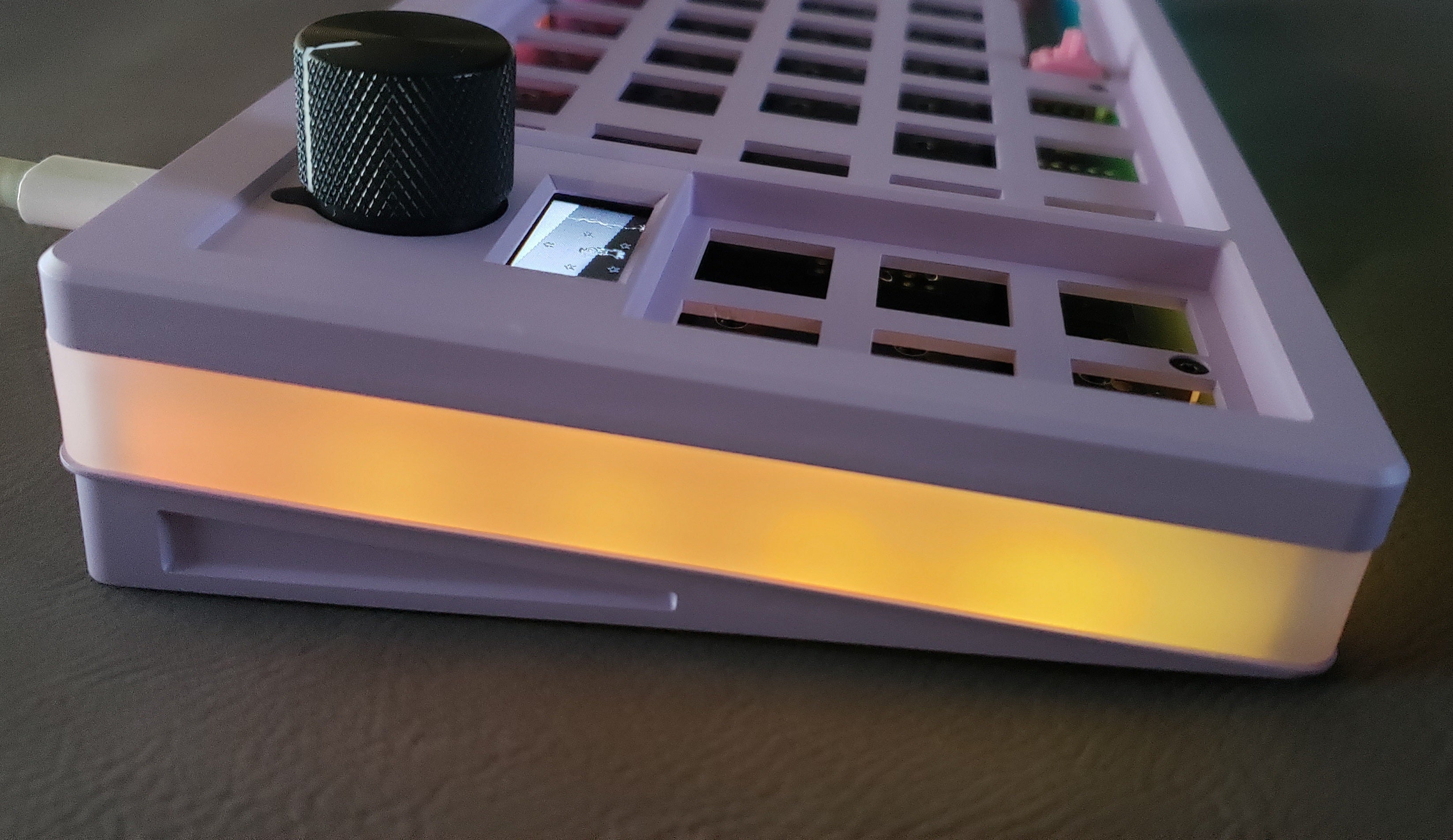

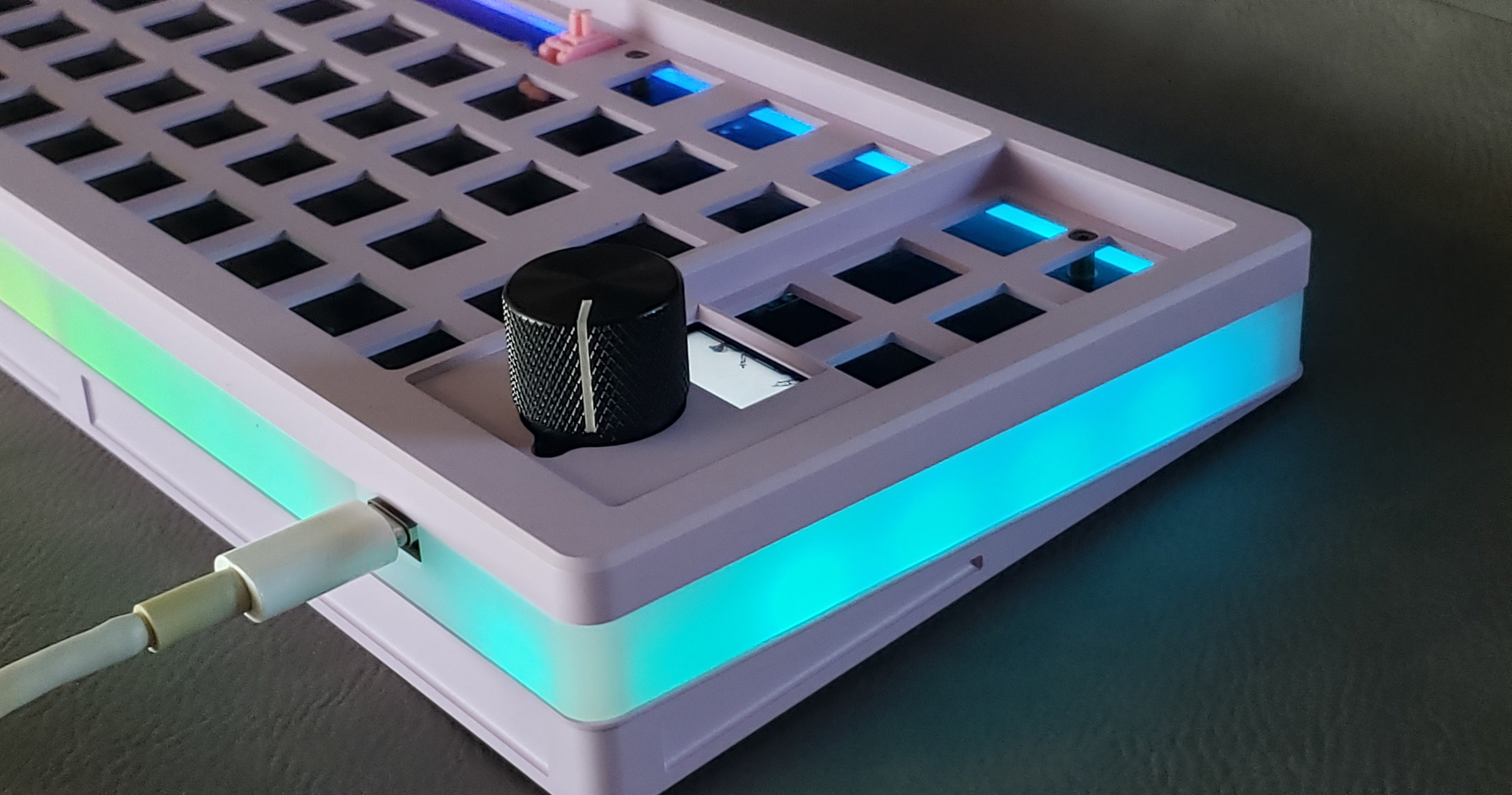

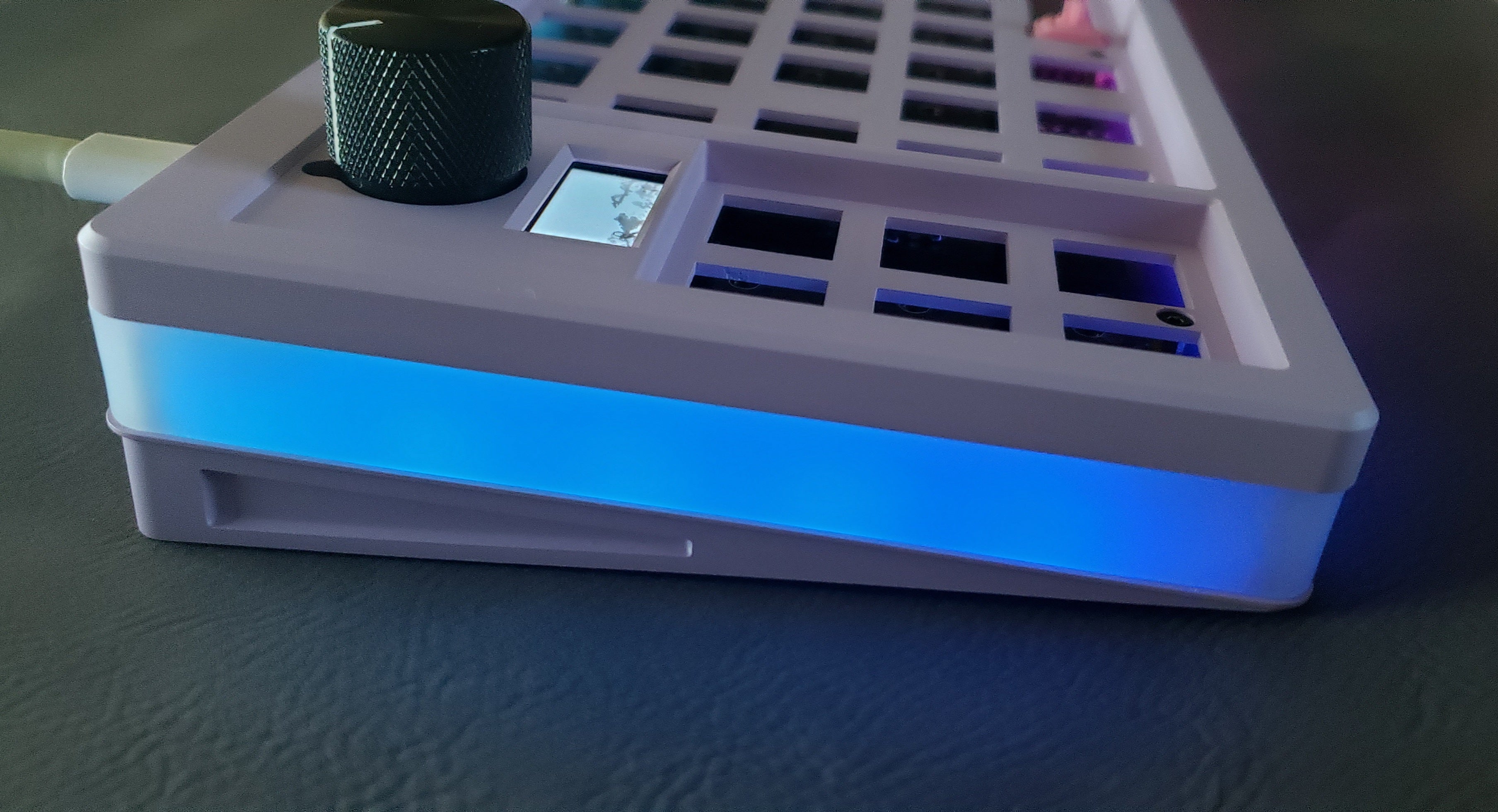

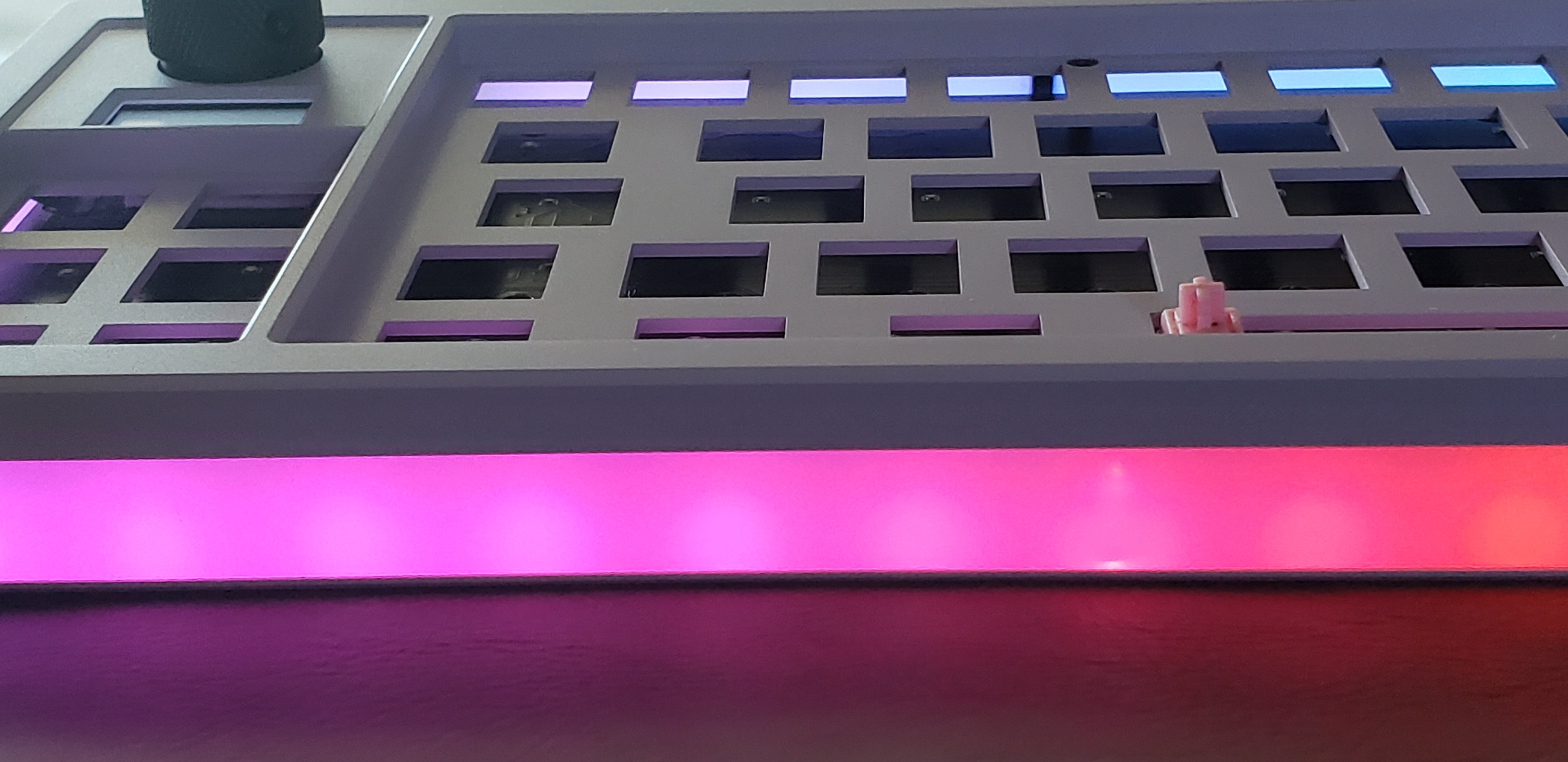

• Underglow RGB LED lighting (dimmable)
• Backlighting (white LEDs, 6000K temperature, dimmable)
• Speaker (can play simple tunes, no DAC)
• Real-time clock keeps track of time even when unplugged (2032 or 2025 coin cell battery required)
• Ambient temperature sensor
• ESD protection

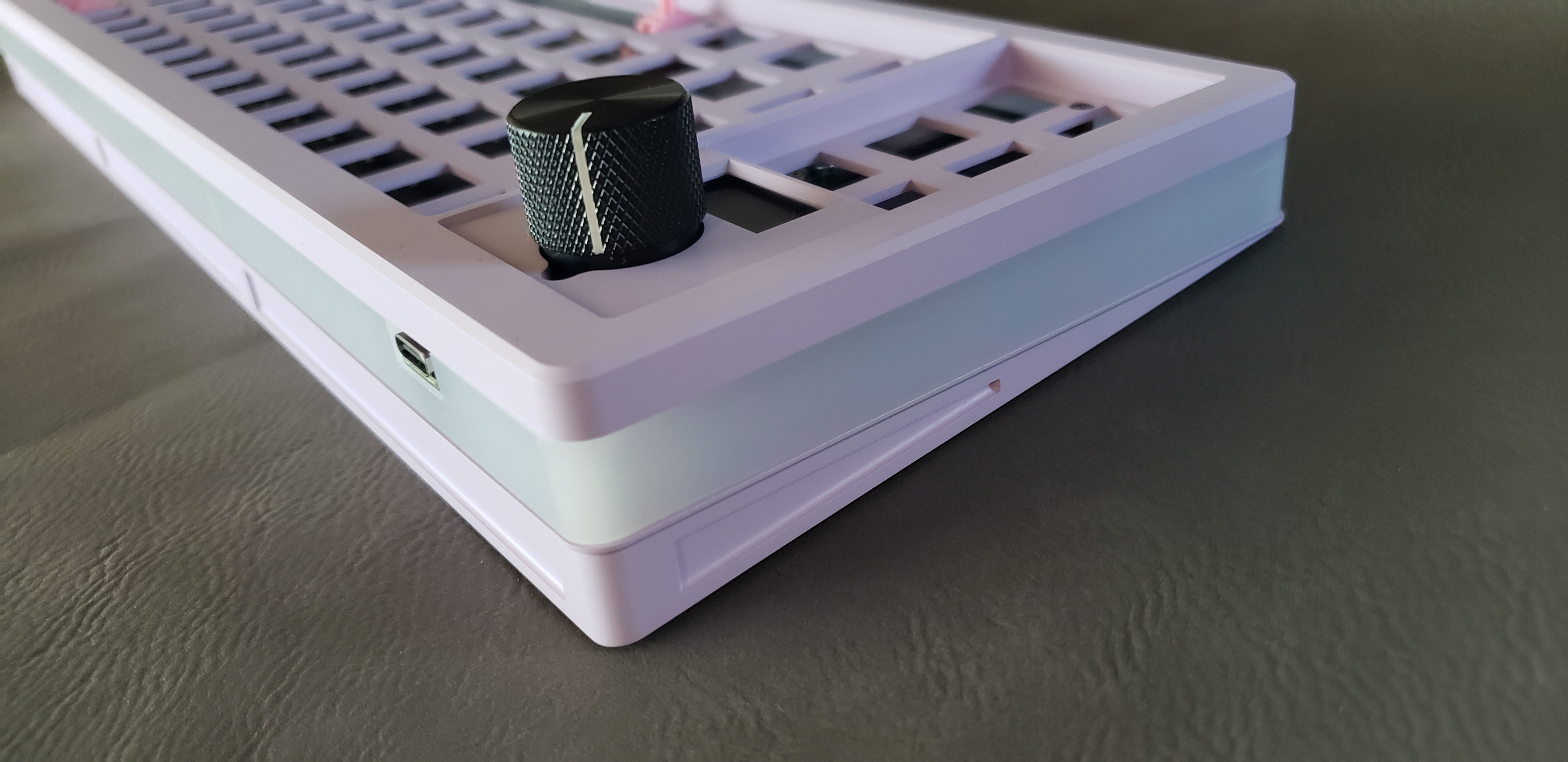

• USB C connection
• 6 degree angle
• QMK and VIA support.

*Please note that QMK does not yet support dynamic loading of LCD images over USB, memory card access, or use of the on-board flash memory. These features may be added to QMK in the future. Presently, adding custom graphics requires compiling new firmware.
