(In Stock) Zonex 75 Keyboard Kit

IN STOCK - Ships within 3 working days, all sales final.

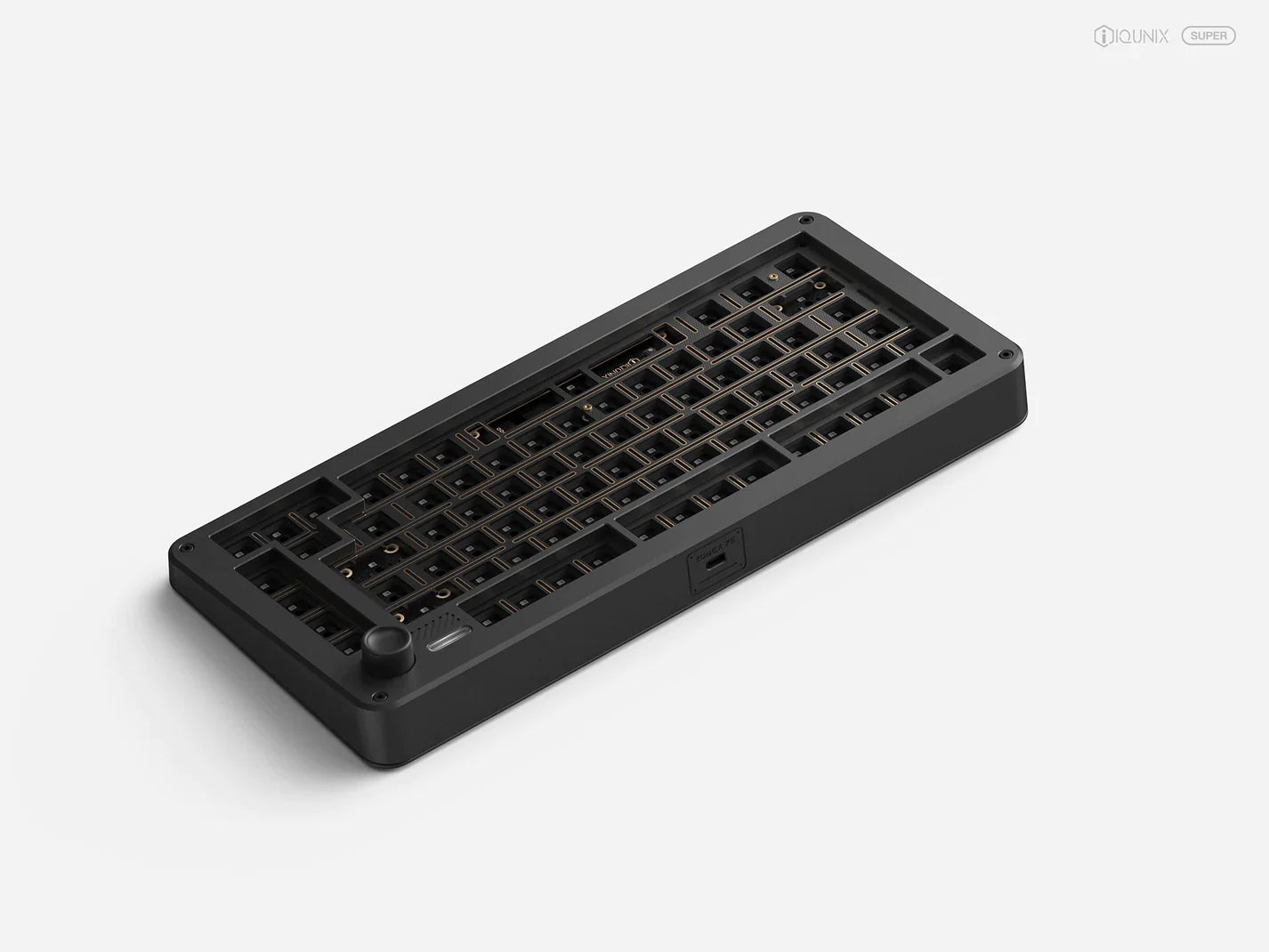

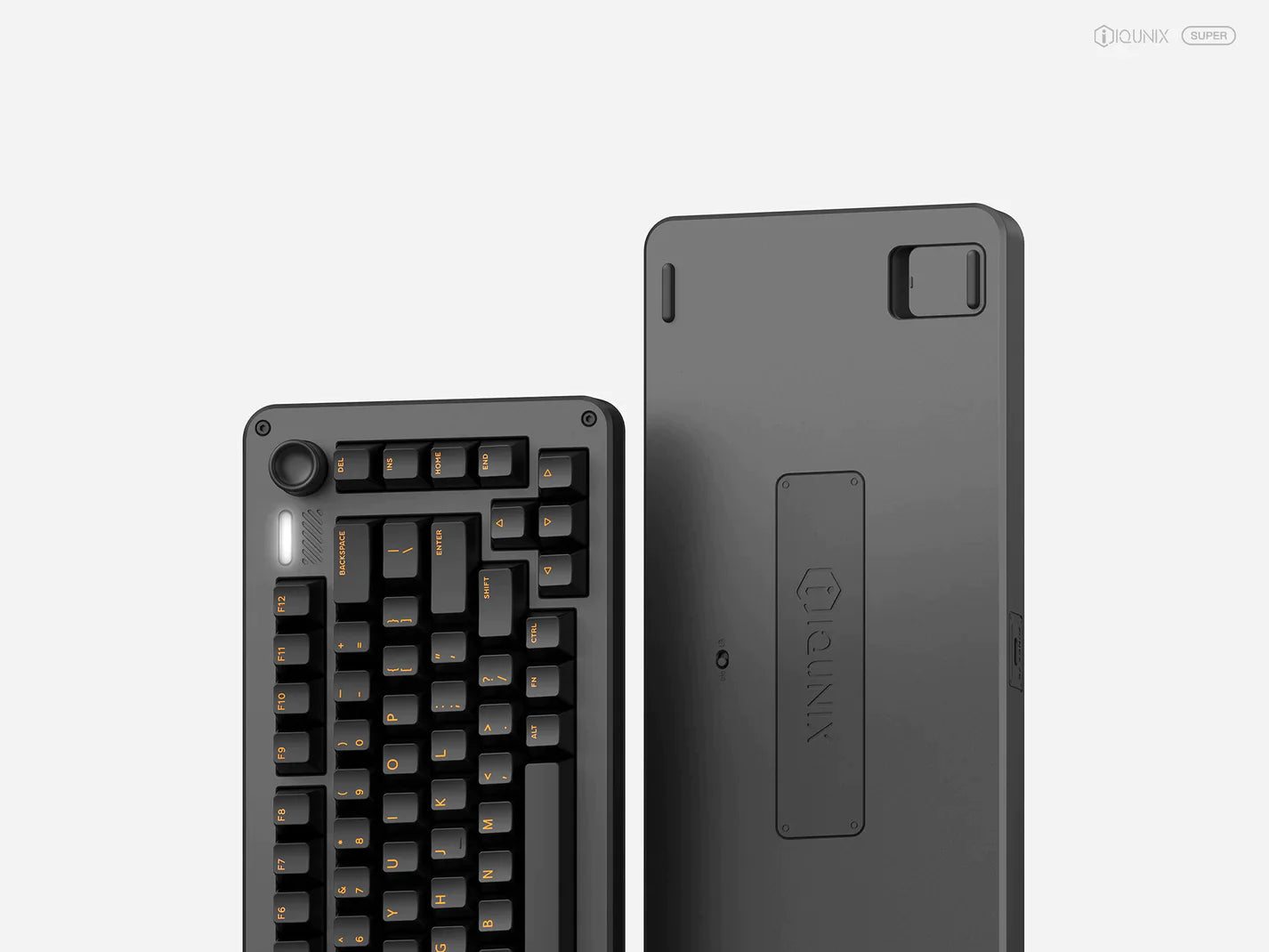

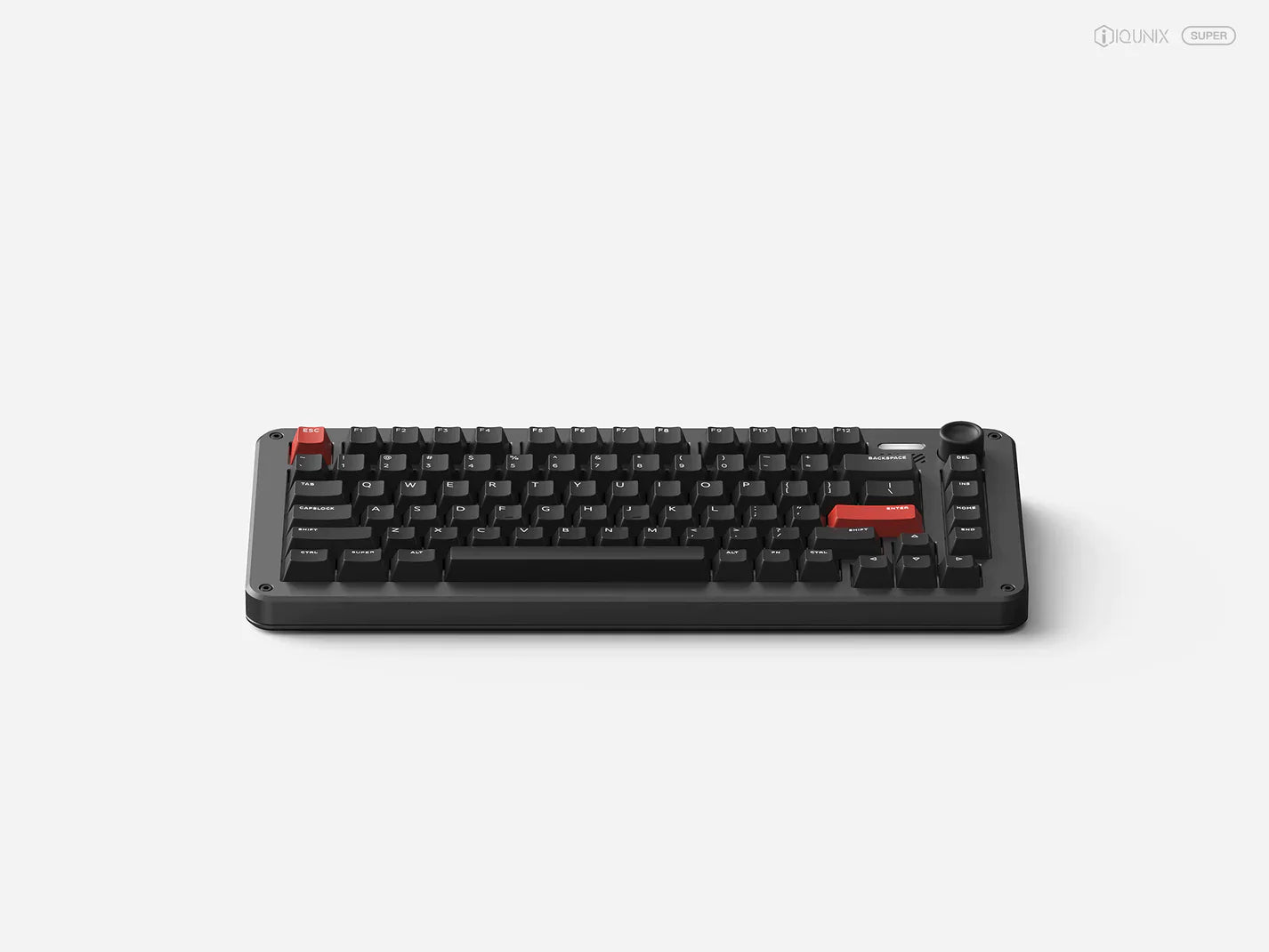

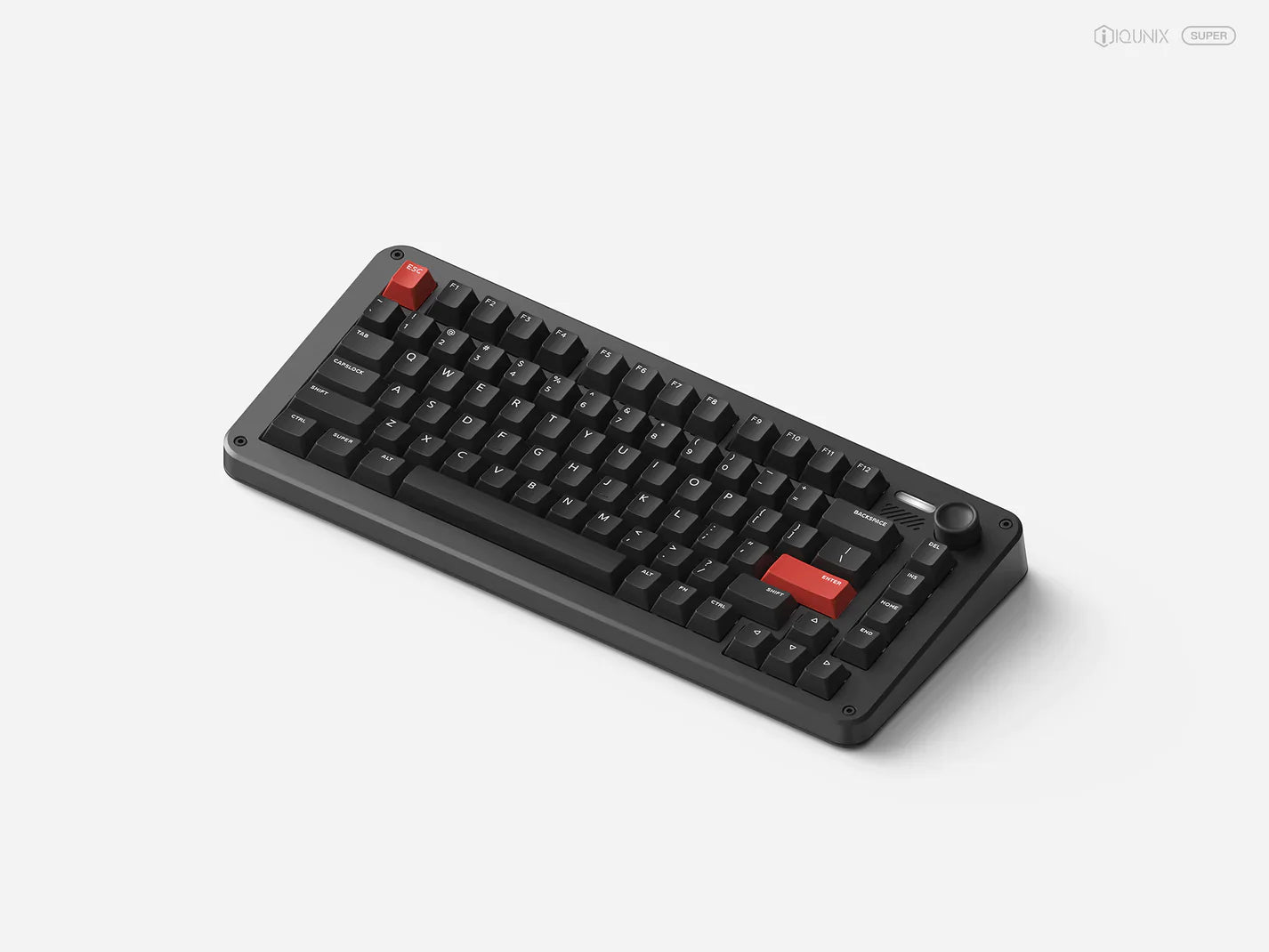

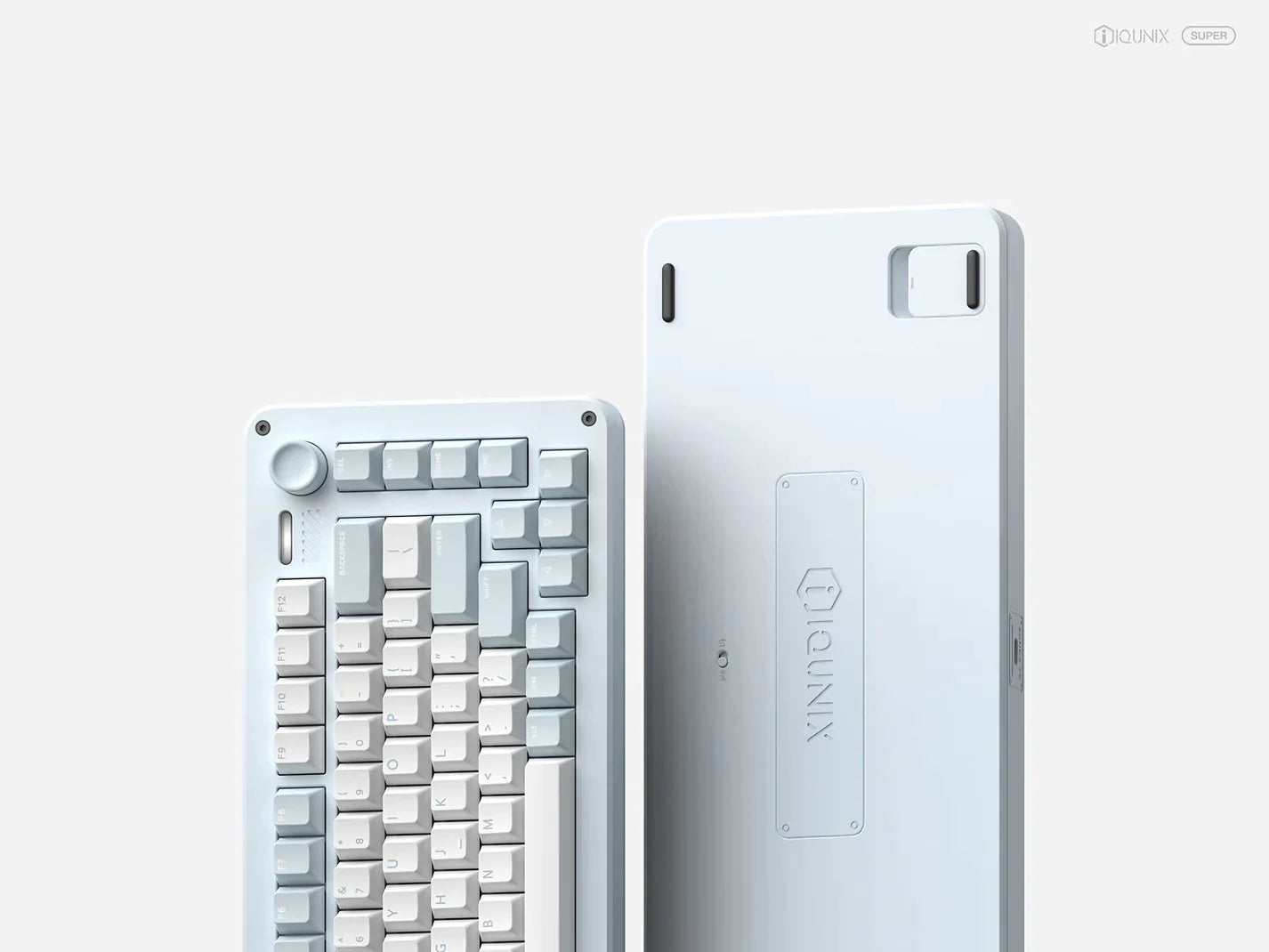

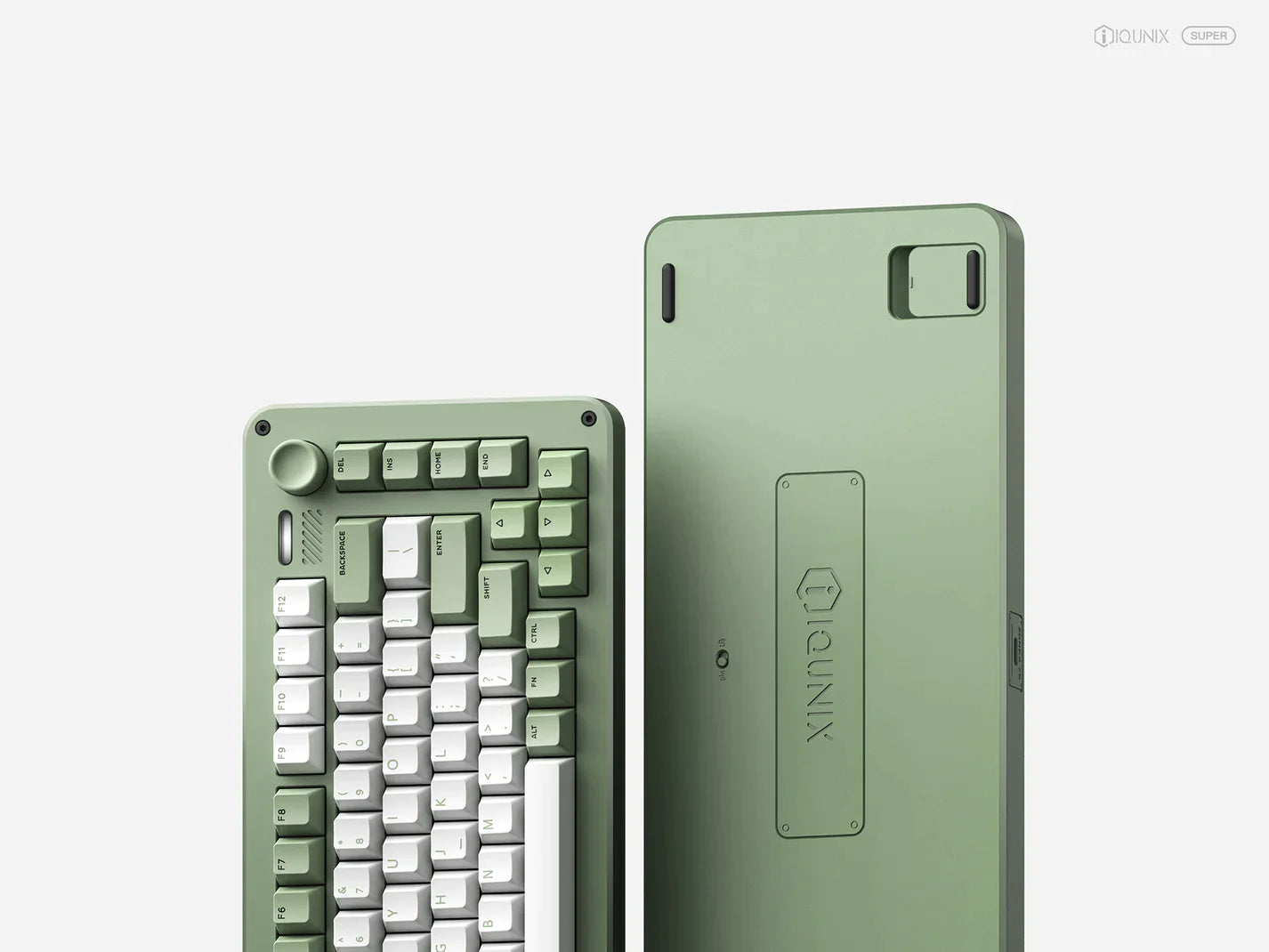

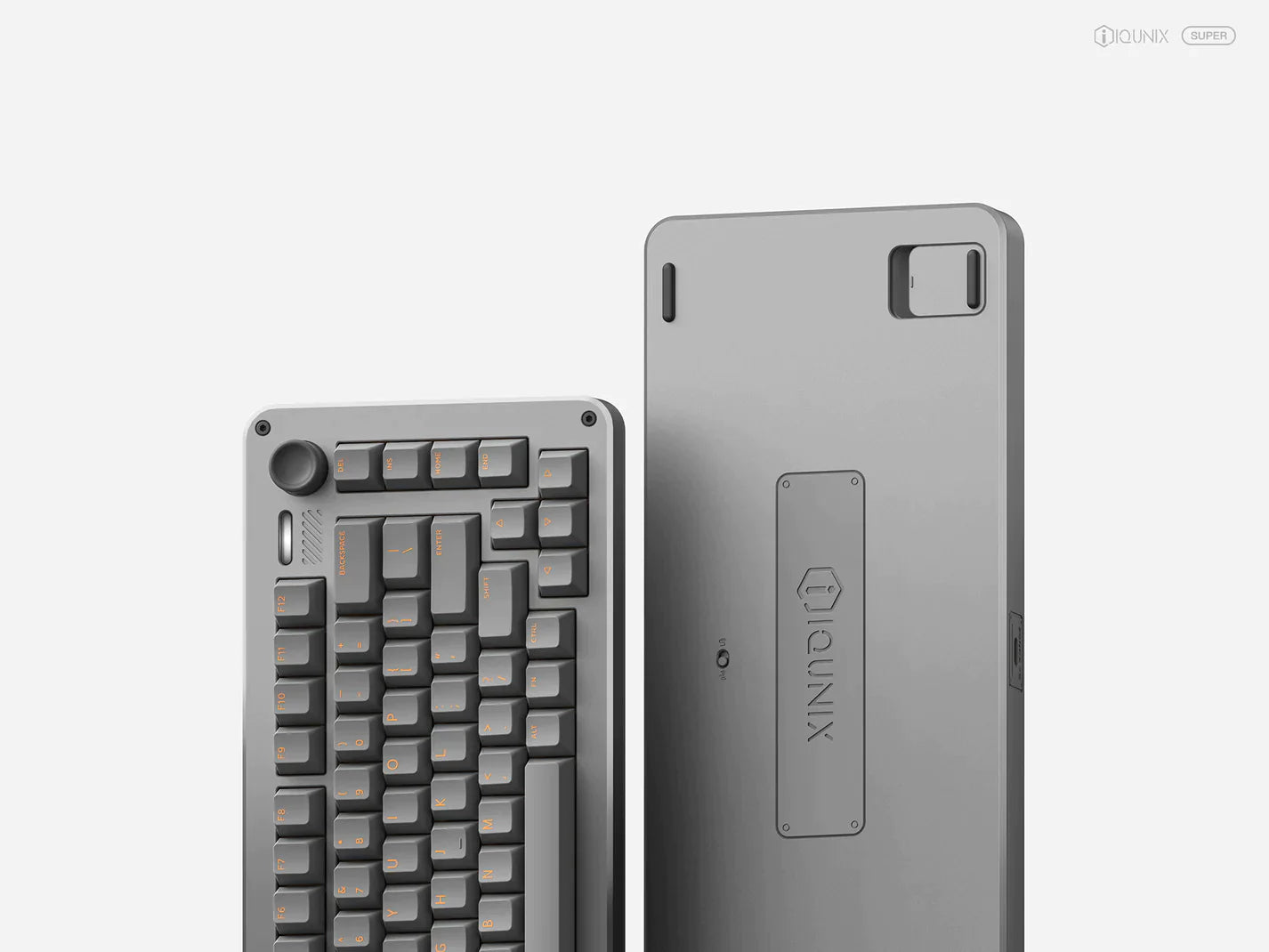

ZONEX 75 is a 75% gasket-mounted mechanical keyboard DIY kit launched by IQUNIX Super. Crafted from full aluminum and following the design standard of IQUNIX Super Series, ZONEX 75 is a significant upgrade from our pre-built ZONEX 75 PC version keyboard, catering specifically to custom keyboard enthusiasts.

Meticulously designed with a keen eye for detail, the ZONEX 75 is a true masterpiece that perfectly blends aesthetics, performance, and utility. The detachable magnetic feet allow for adjustable typing angles, providing extra comfort and convenience. The intuitive extra media knob enables users to effortlessly control video and music playback, pause, and volume adjustment functions. Additionally, there is an ambient indicator light next to the knob, which adds a sense of fashion and uniqueness to the keyboard.

Featuring a professional, low-key appearance, the ZONEX 75 boasts a highly-textured, stylish design that seamlessly integrates into any complex desktop configuration. The harmonious and natural design offers both practicality and aesthetics, making it an excellent choice for an entry-level custom mechanical keyboard.

Design Features

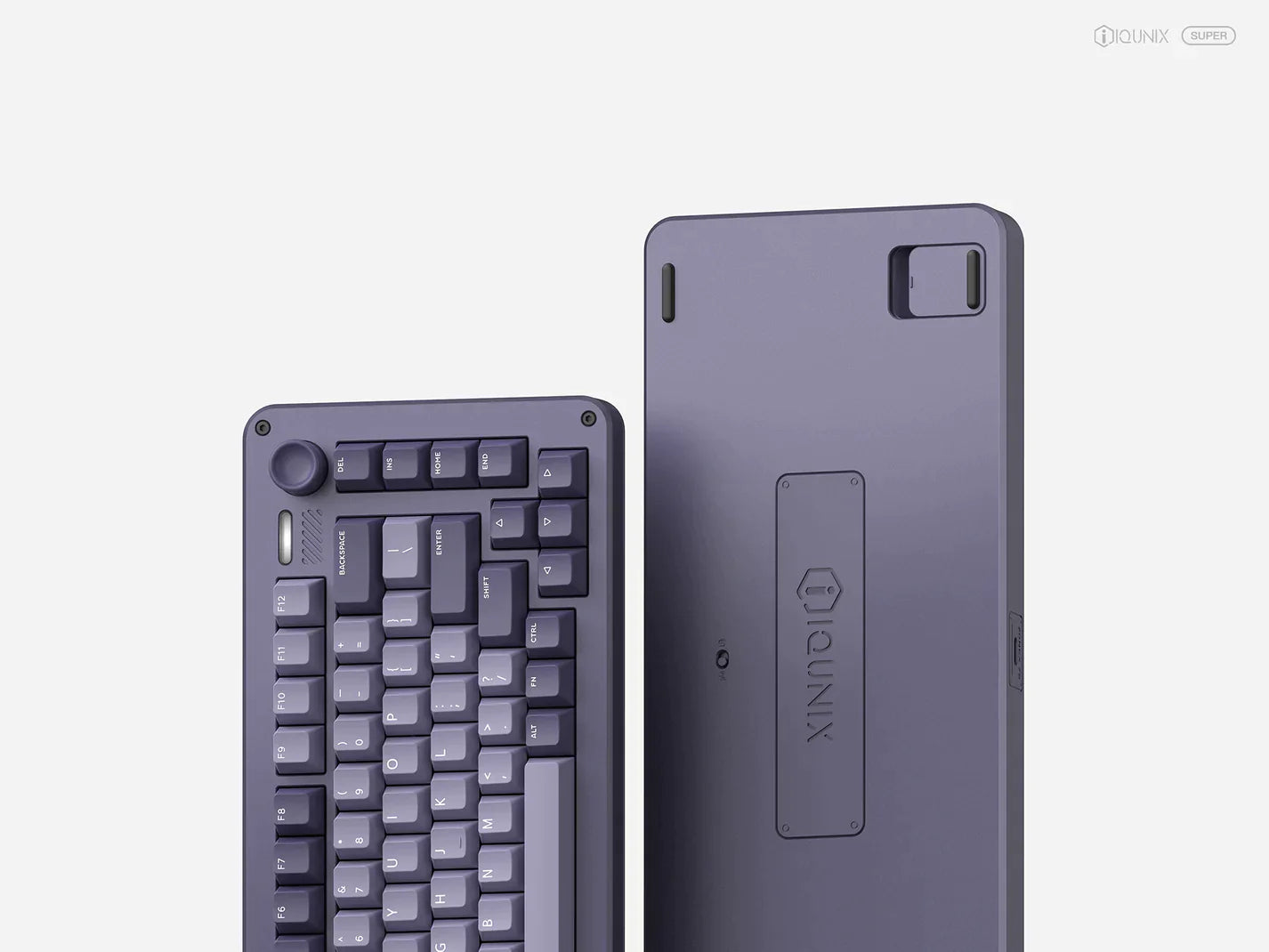

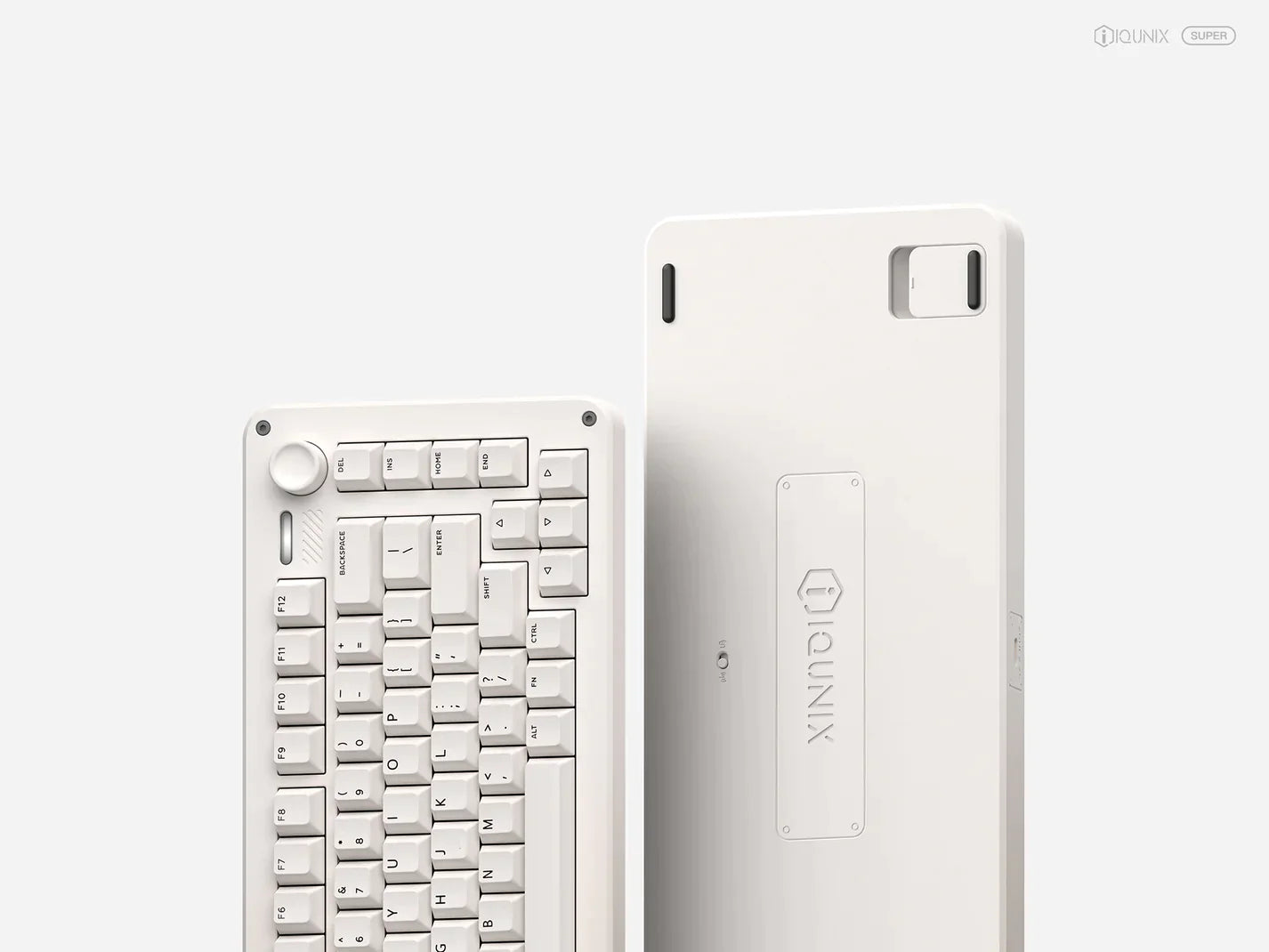

• Magnetic feet
• Tactile Media Knob
• Indicator light (Capslock, battery level, connection status)

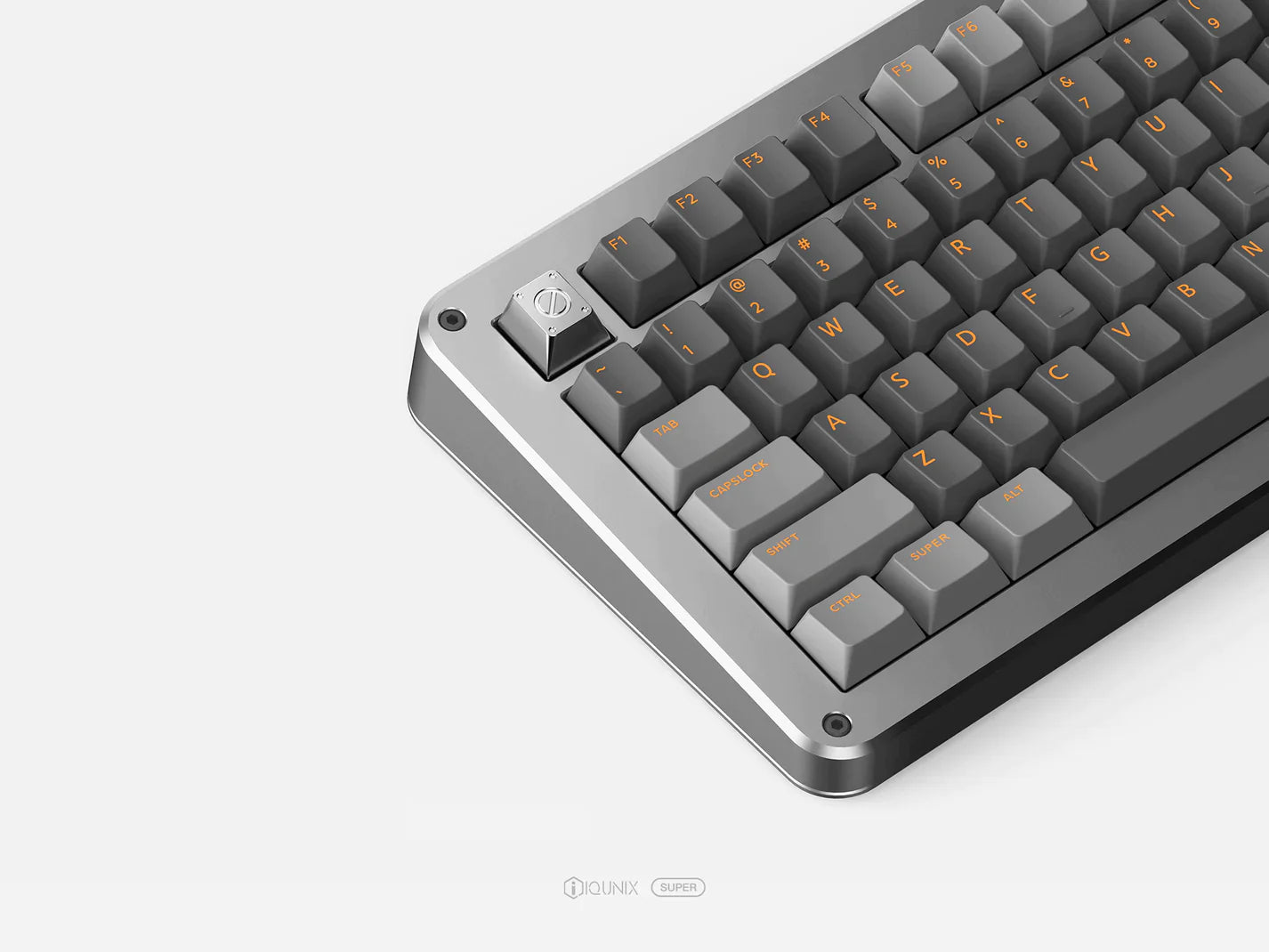

• CNC aluminum keycap（Anodized）
• FR4 Plate
• Tri-mode available: Bluetooth 5.1 / 2.4GHz / Wired
• Sleek Edition / Textured Edition

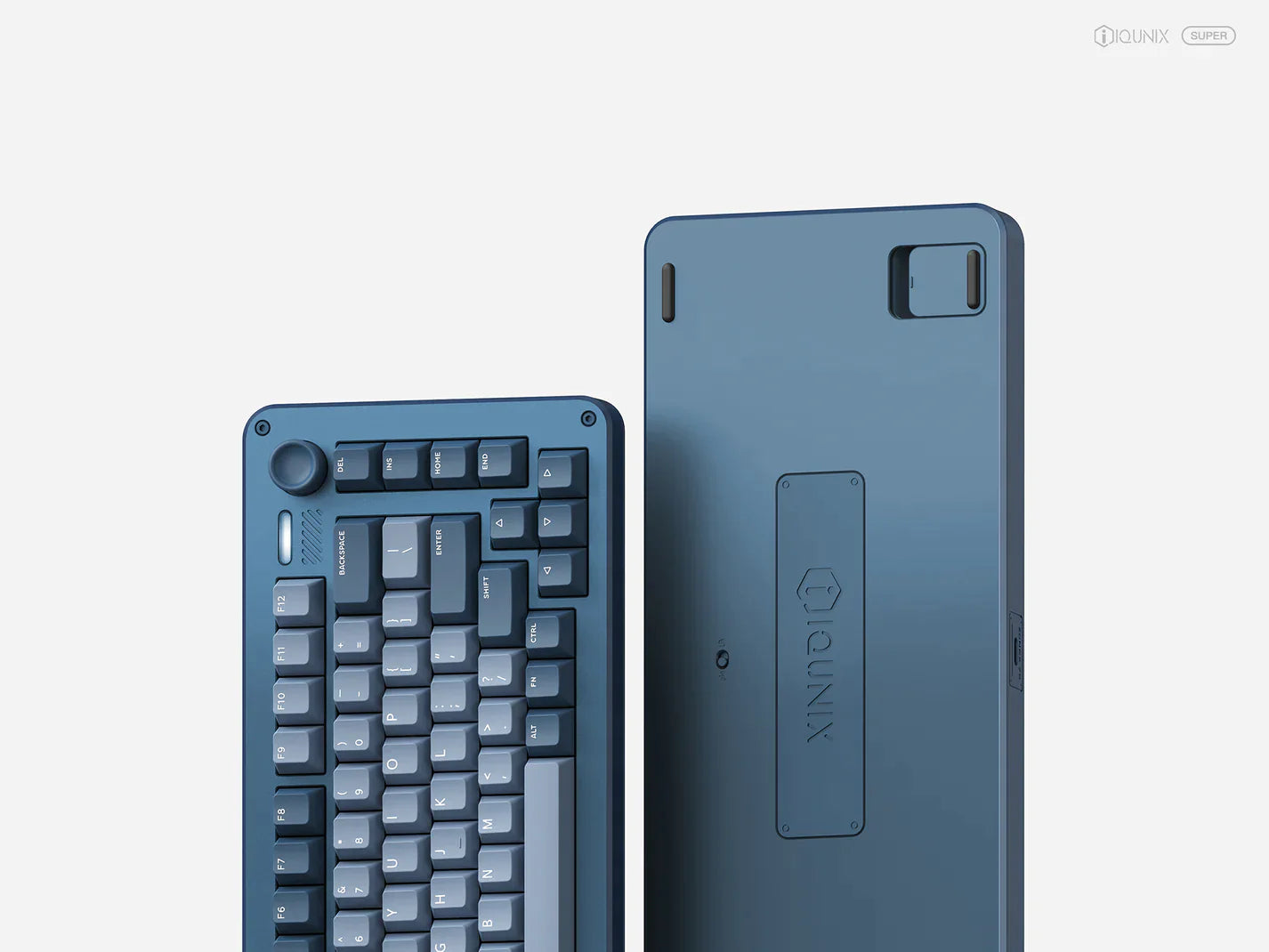

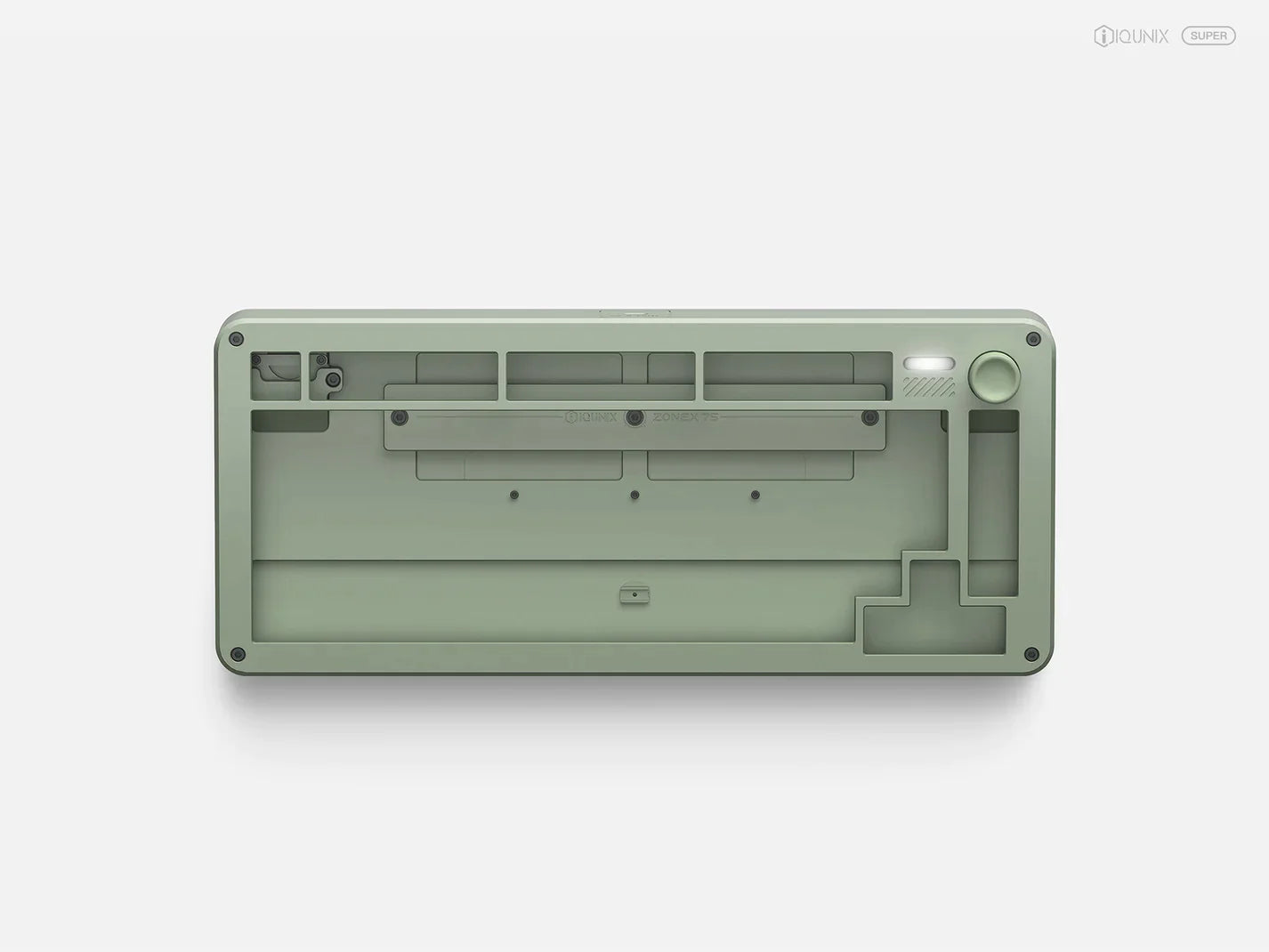

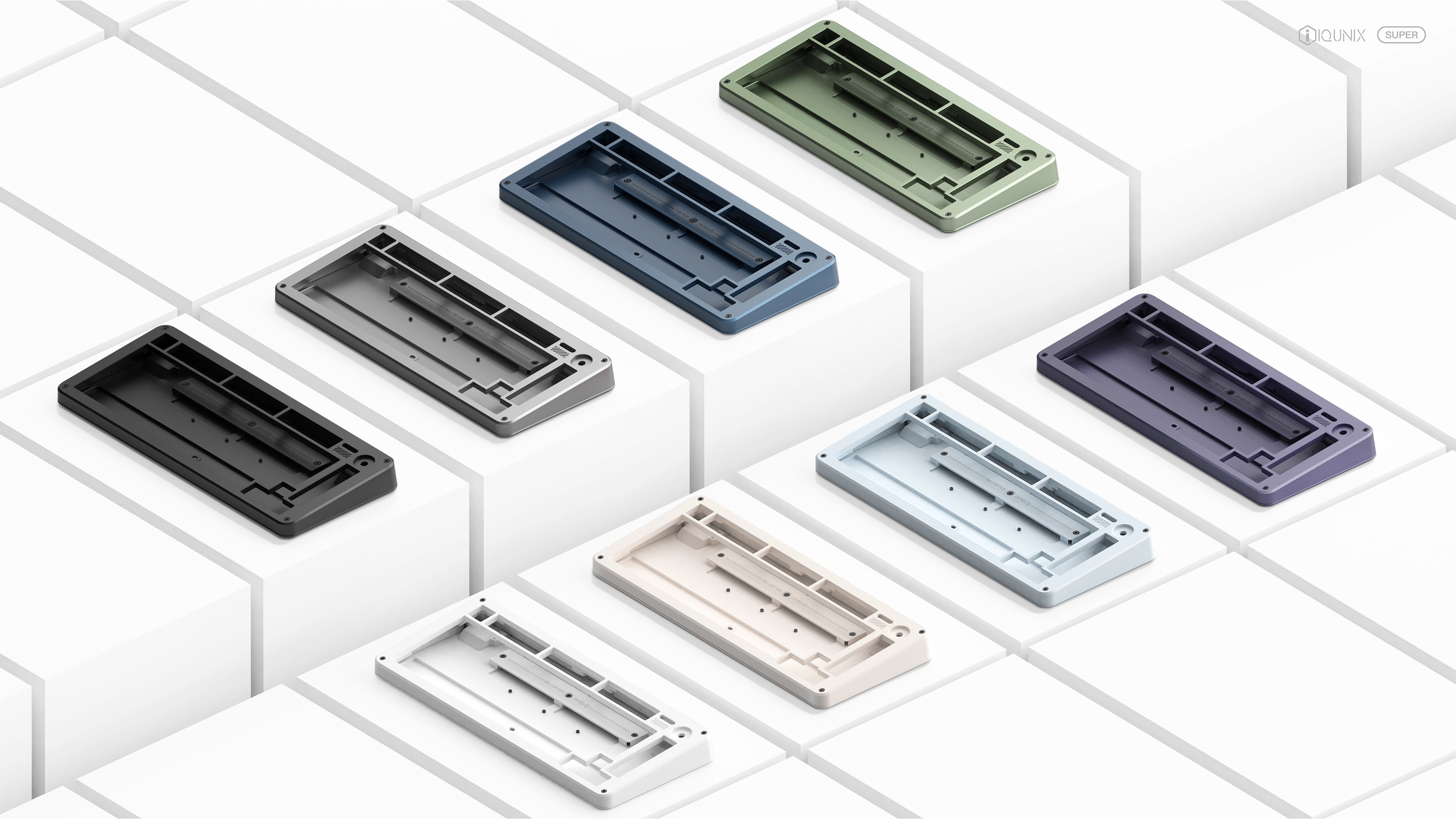

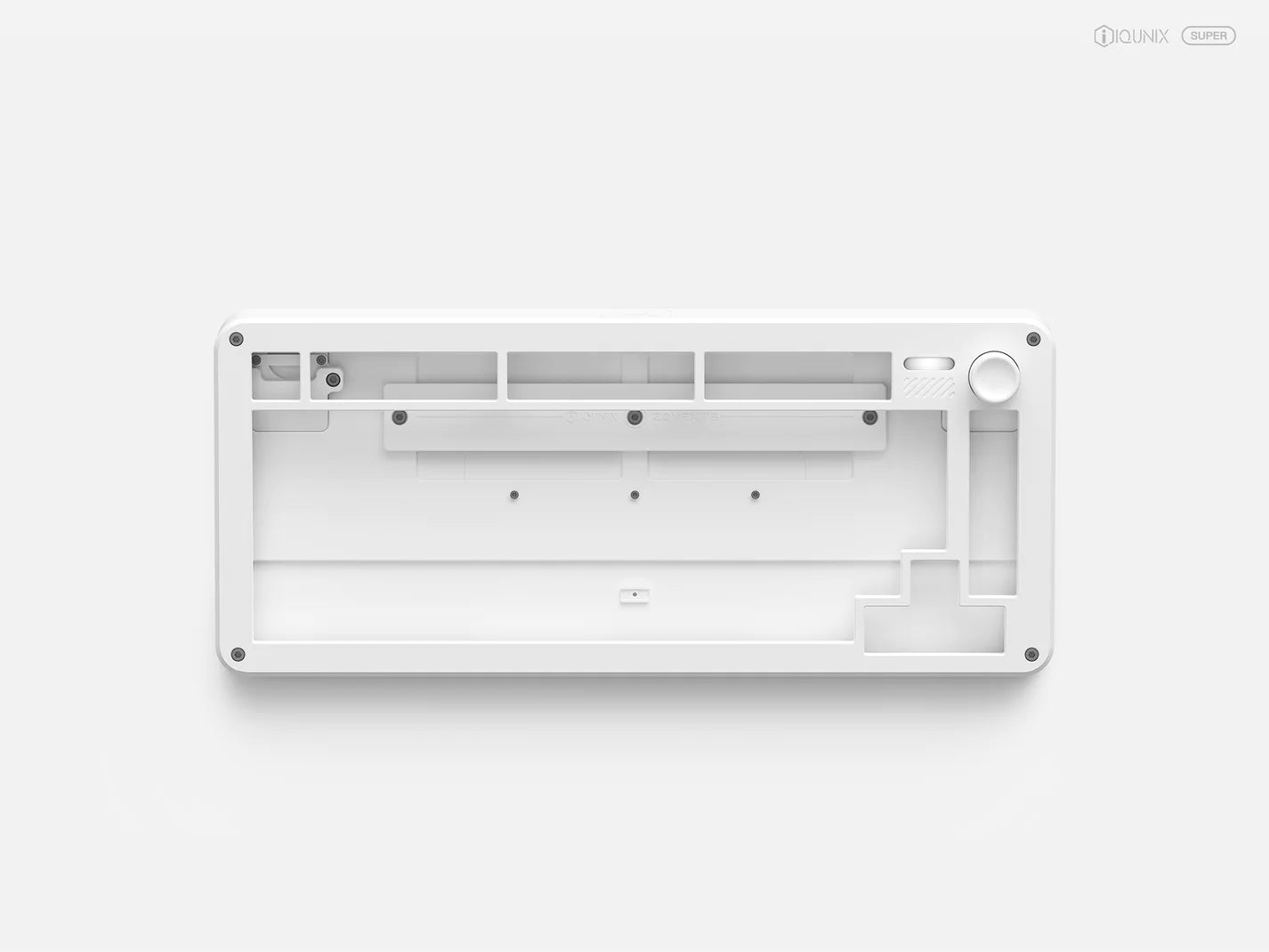

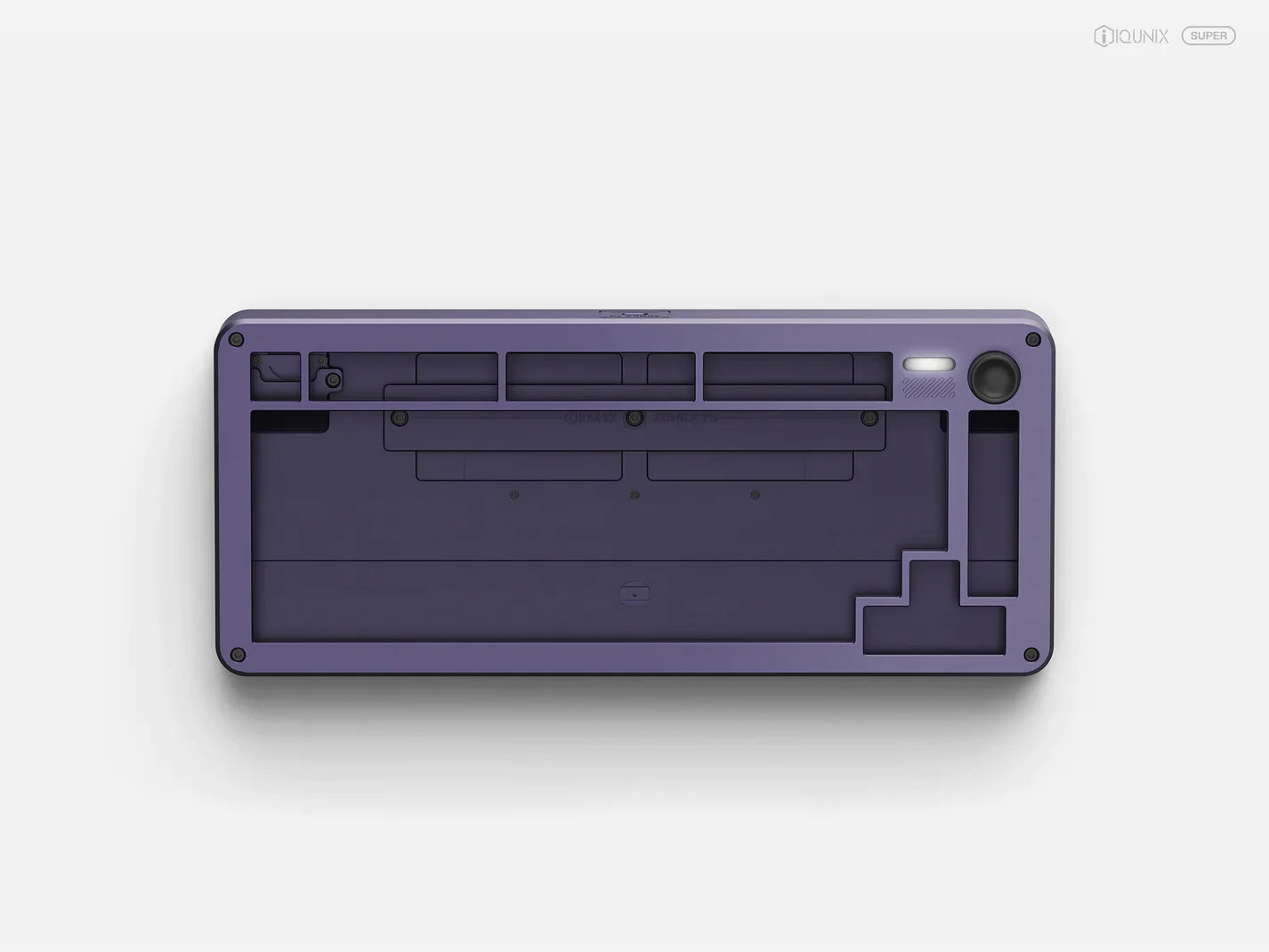

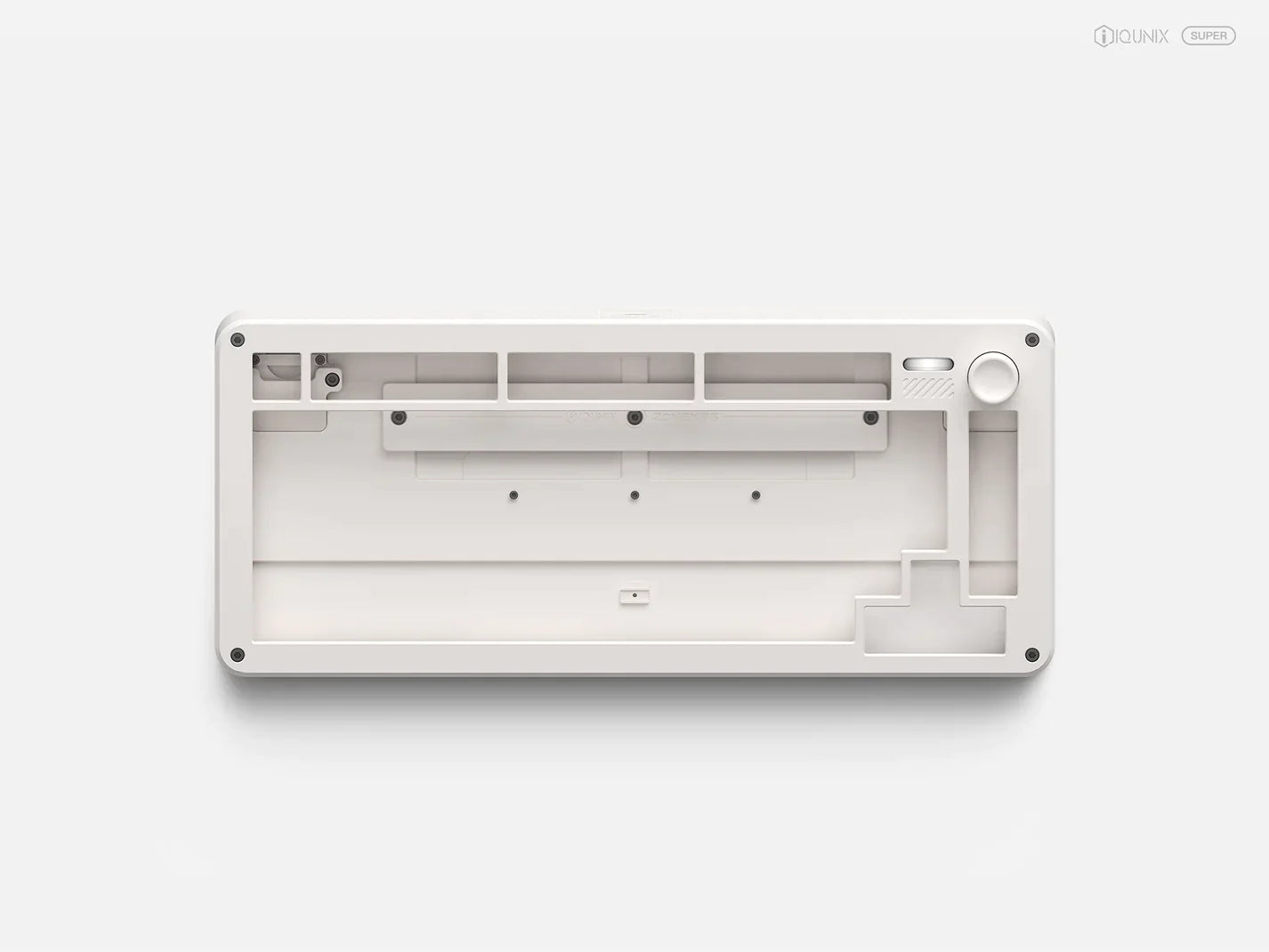

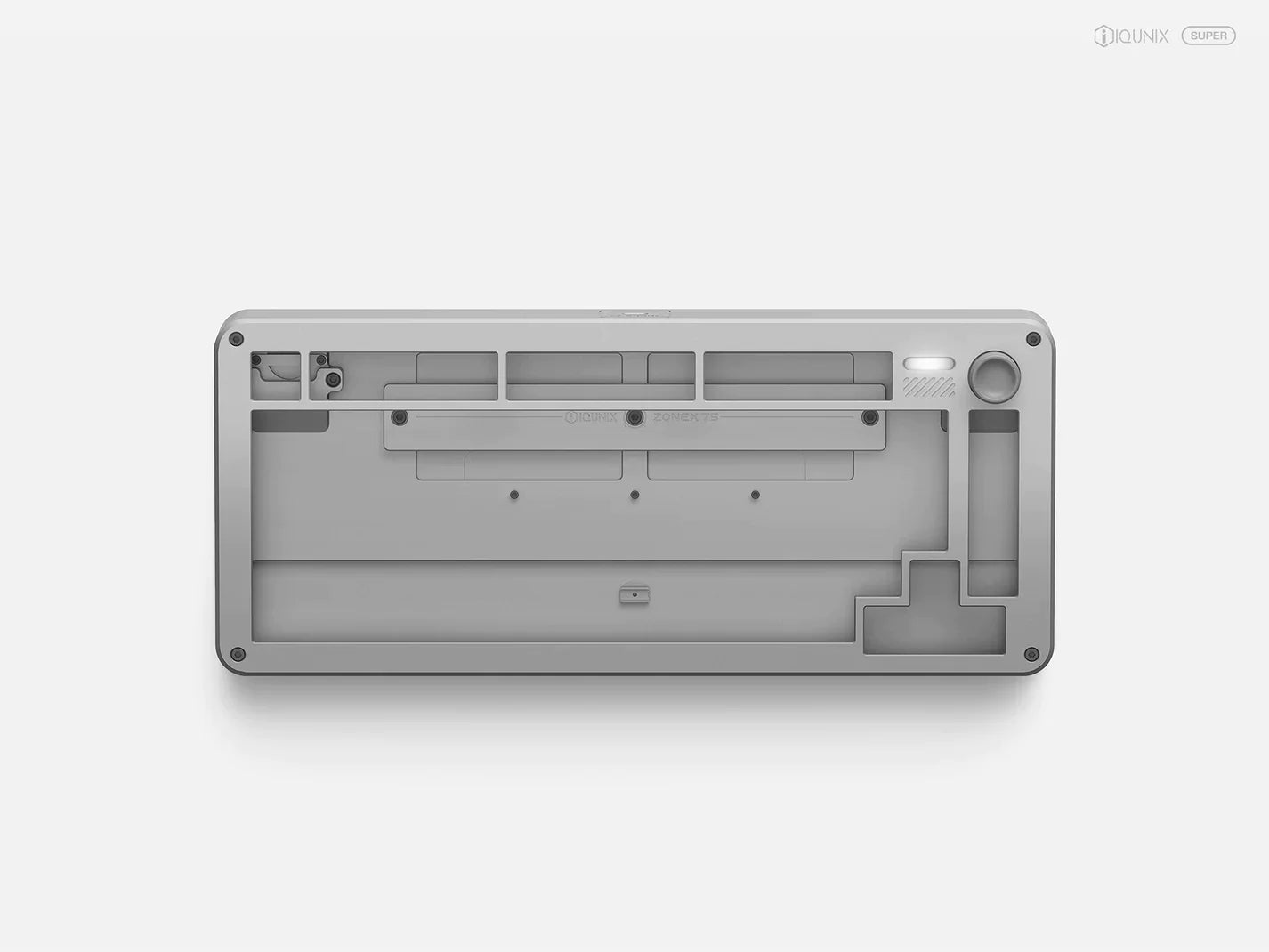

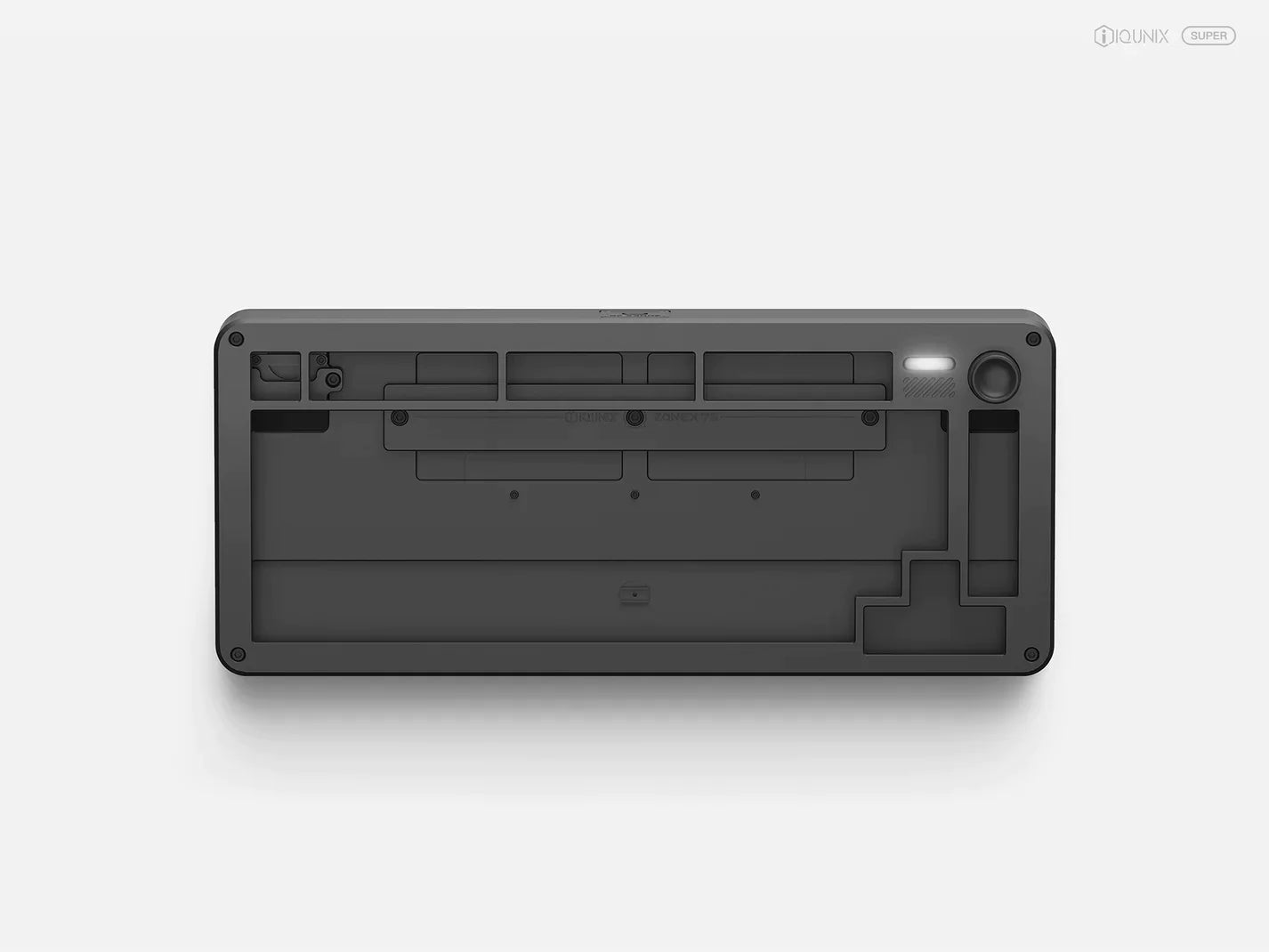

 Case available in eight colours

• Alice Blue, creamy white, pure white, green, navy blue, grey, black, purple

Please note regarding Navy Blue and Purple Case Colours,  there is a minimum quantity requirement for production. The minimum production quantity for each colour is 100 units. After the group buy is completed, if the final total quantity from all regions does not reach 100 units, consumers will be given the option to either change to another colour or cancel the order for a full refund.

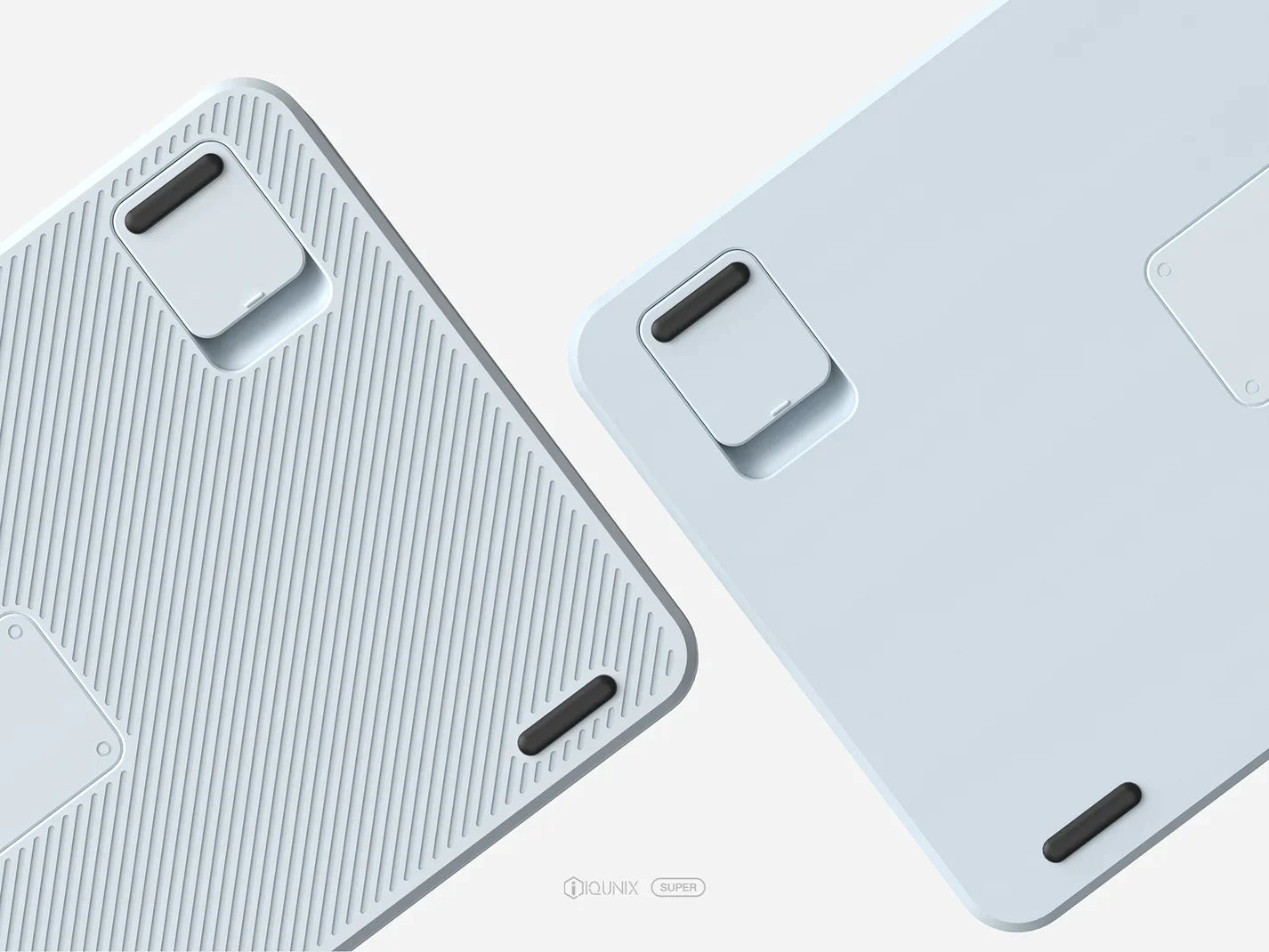

Sleek and Textures Version

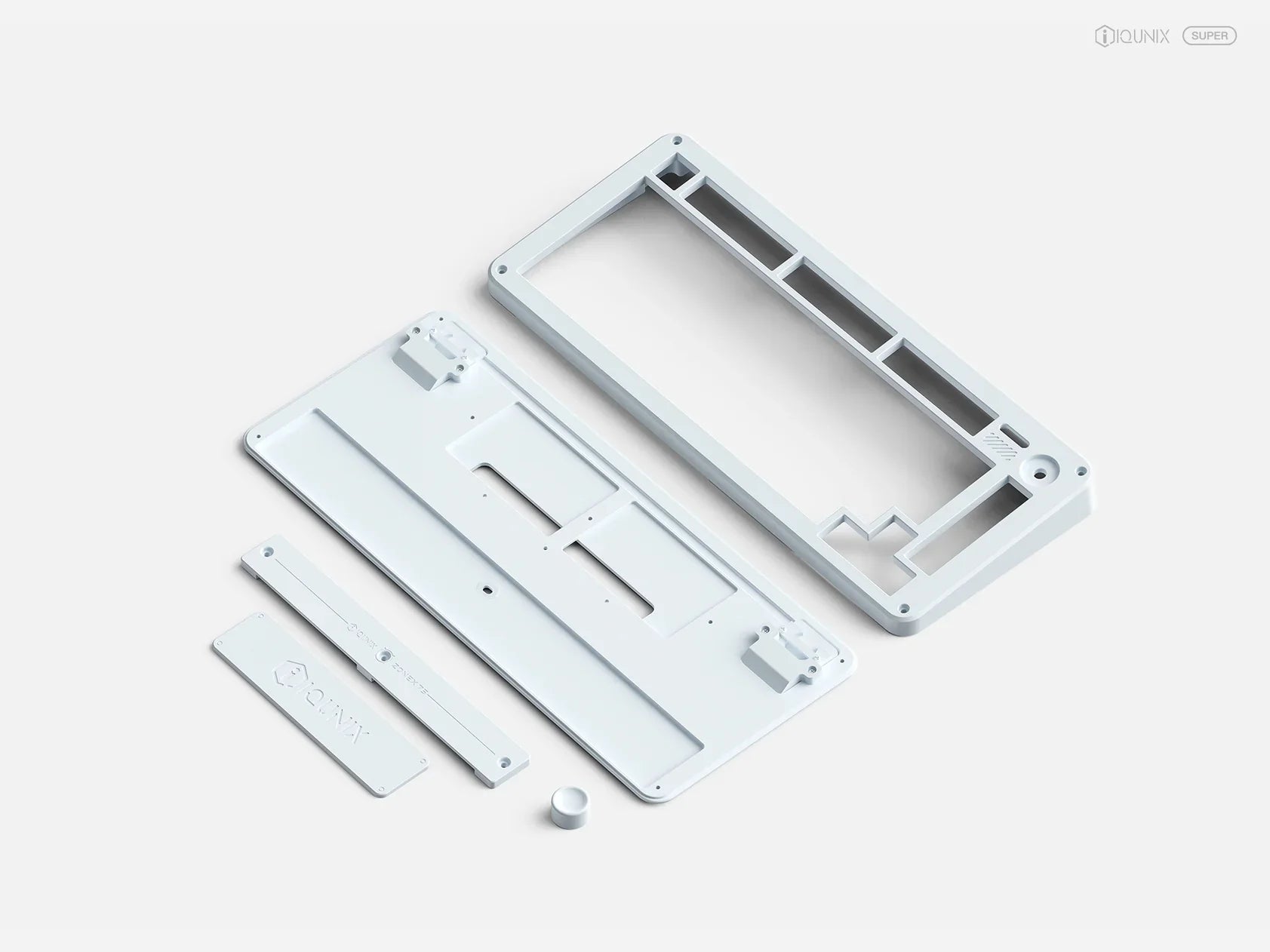

• The difference between ZONEX 75 Sleek and Textured versions is the surface of the bottom case.

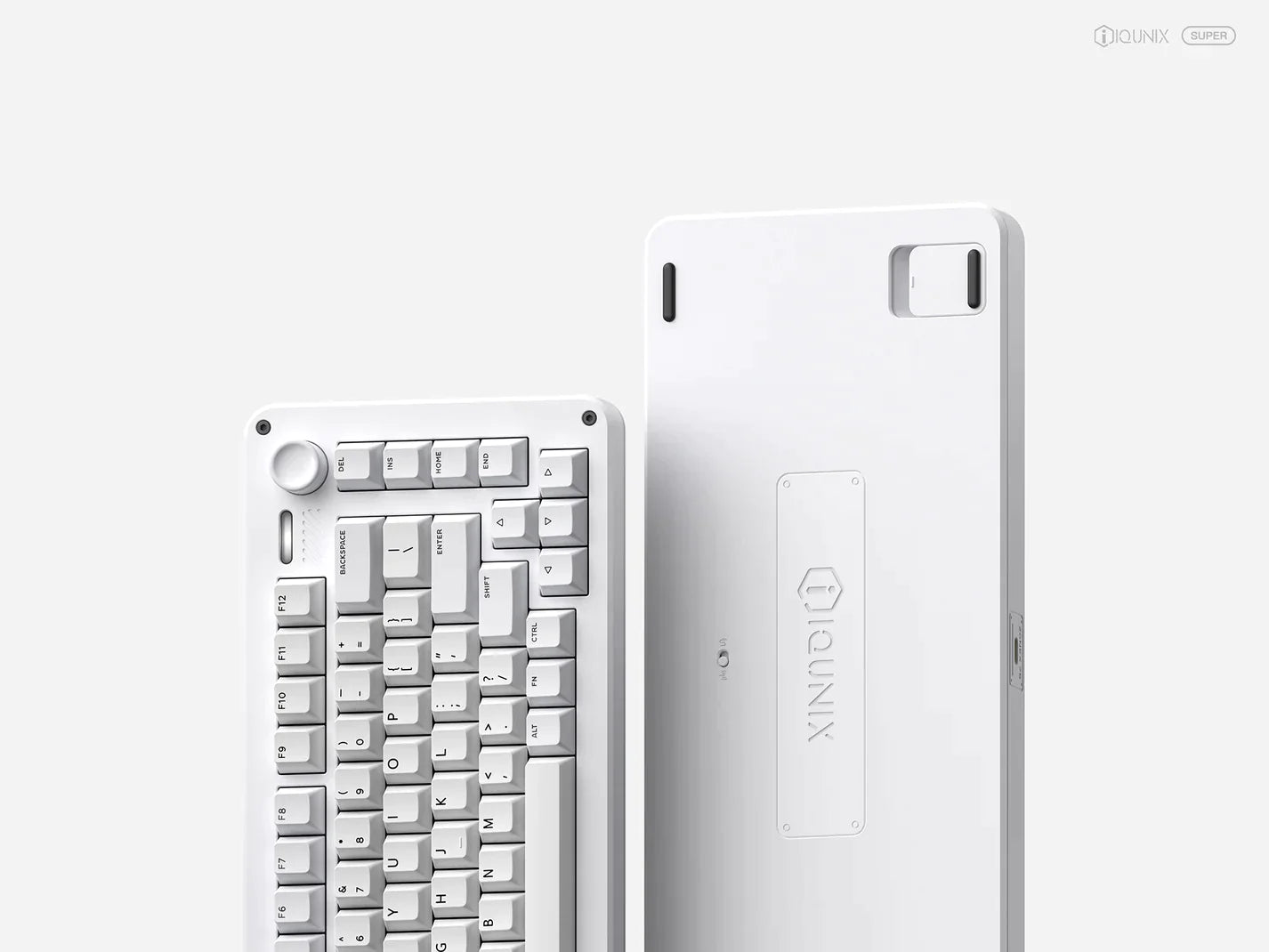

• The sleek version has a smooth surface, simple yet stylish. Through meticulous finishing craftsmanship, resulting in a flawless, velvety-smooth texture.

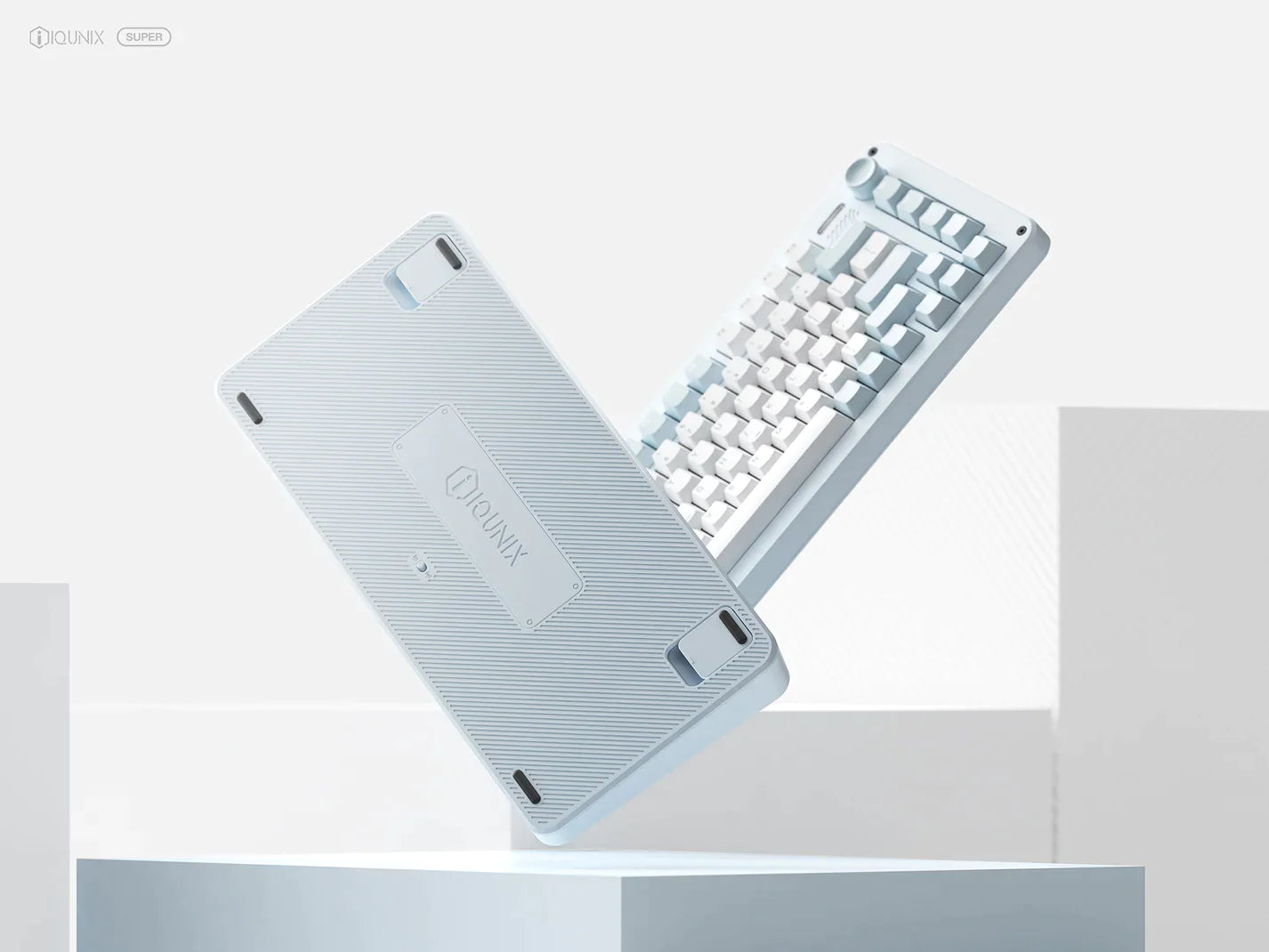

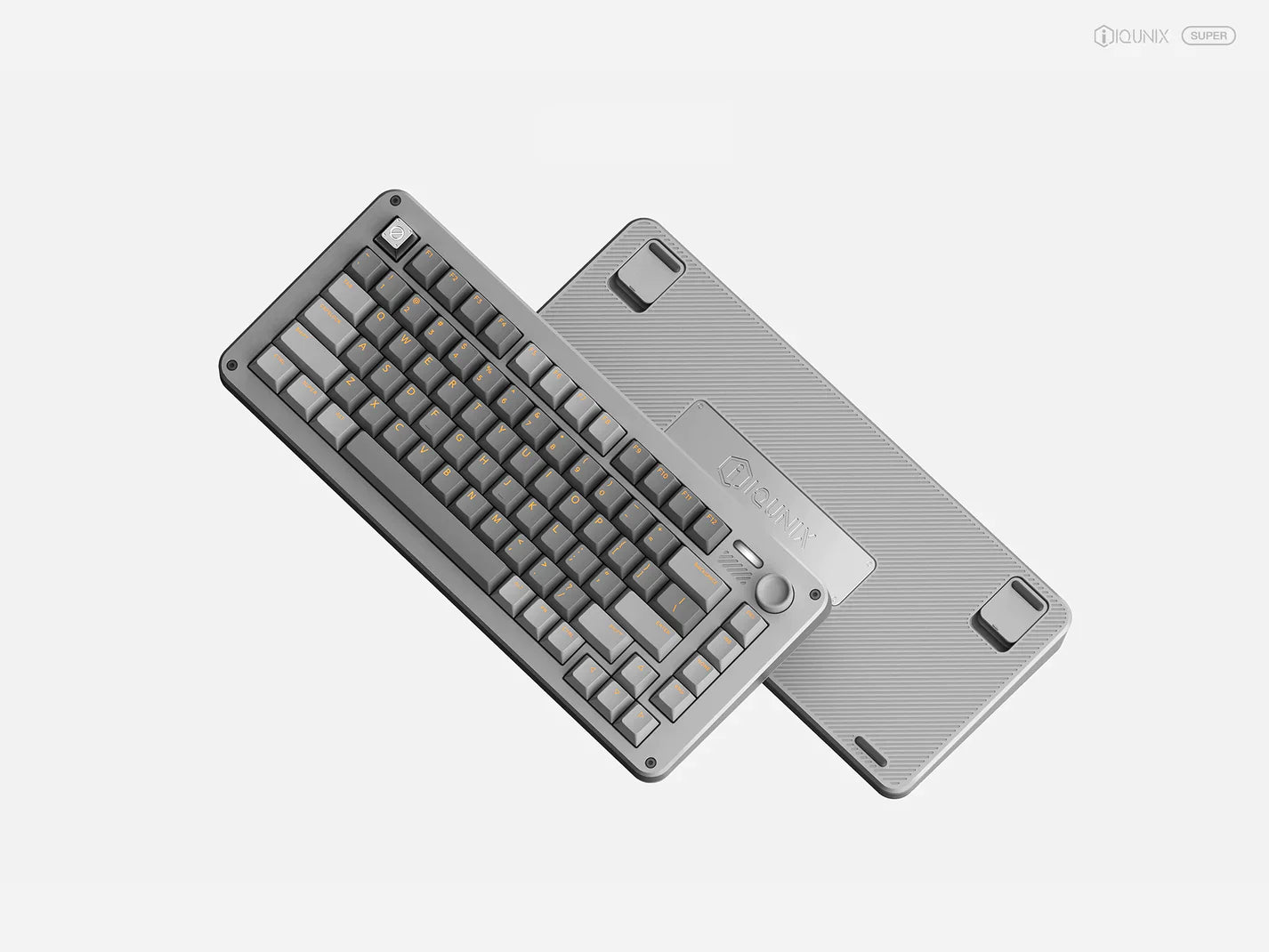

• The textured version case boasts a distinctive striped texture design that distinguishes it from the products, which adds a touch of sophistication. Importantly, production requires an extra 20 mins of CNC machining per unit.

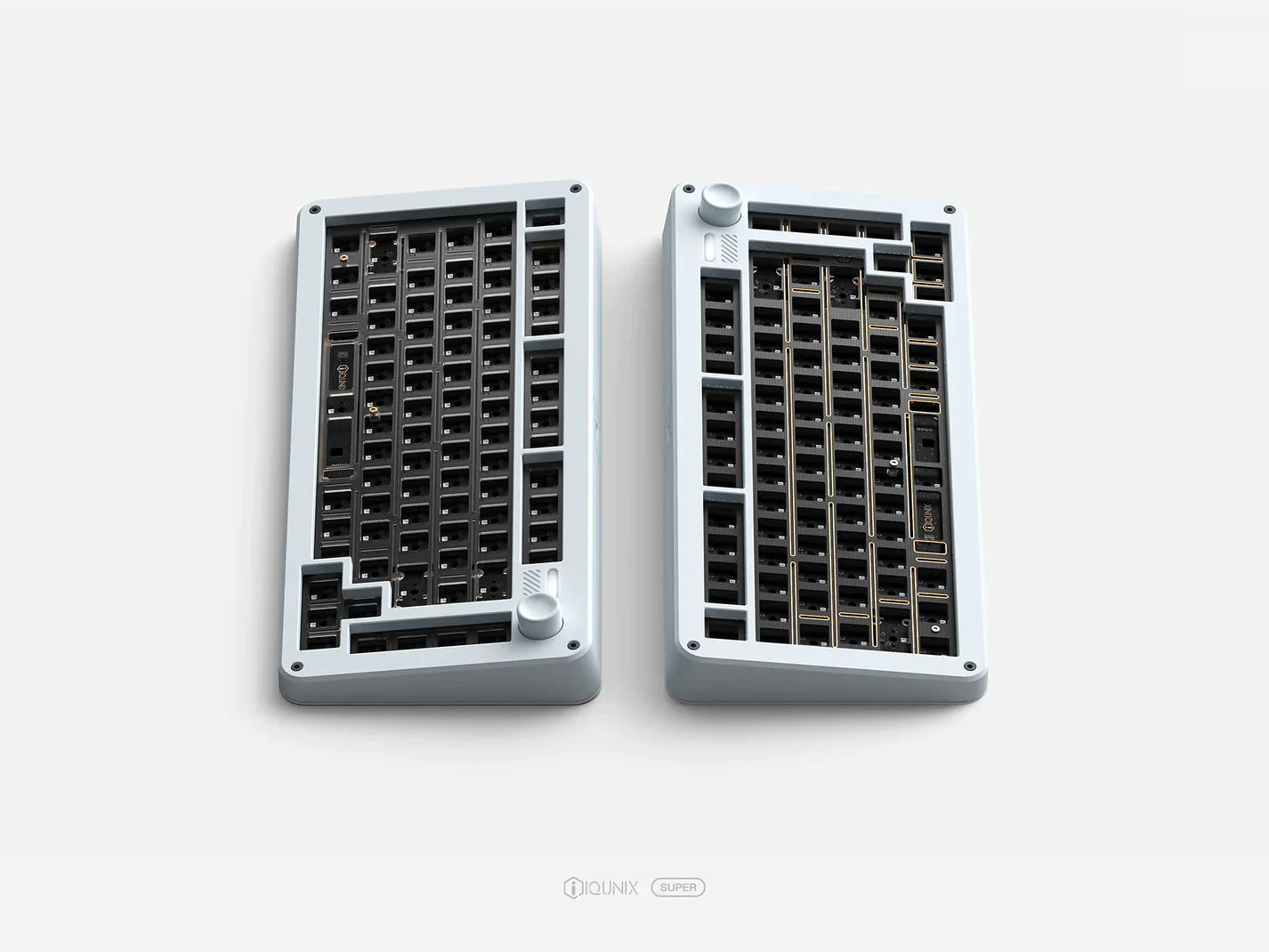

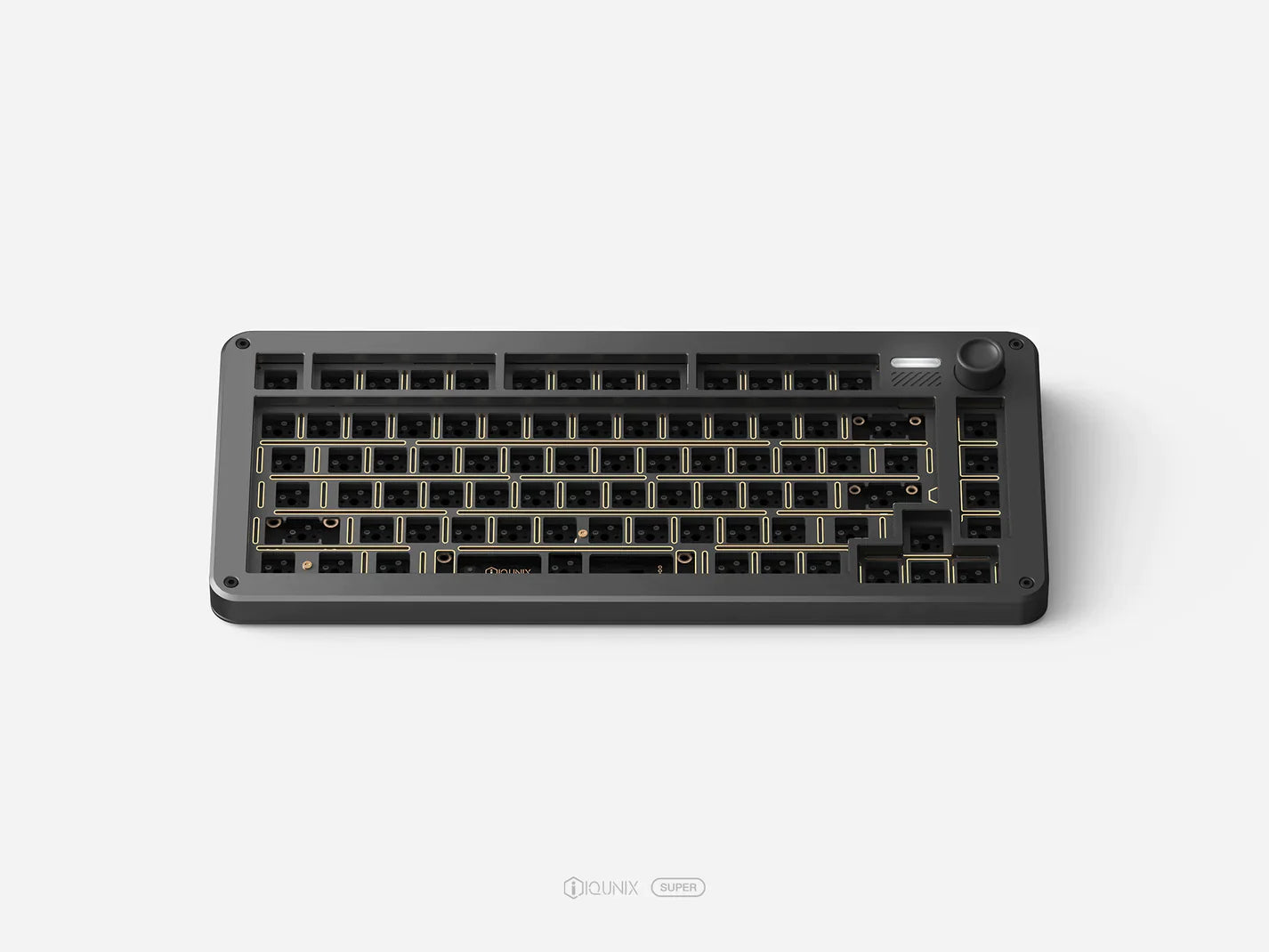

PCB Options

• Tri-mode ANSI Hotswap PCB with RGB (IQUNIX firmware)

• Tri-mode ISO Hotswap PCB with RGB (IQUNIX firmware)

• Wired Hotswap PCB (QMK firmware)

• Solderable PCB (QMK firmware)

Specification

• Typing angle: 6° (without feet) / 9°(with feet)
• Gasket Mount

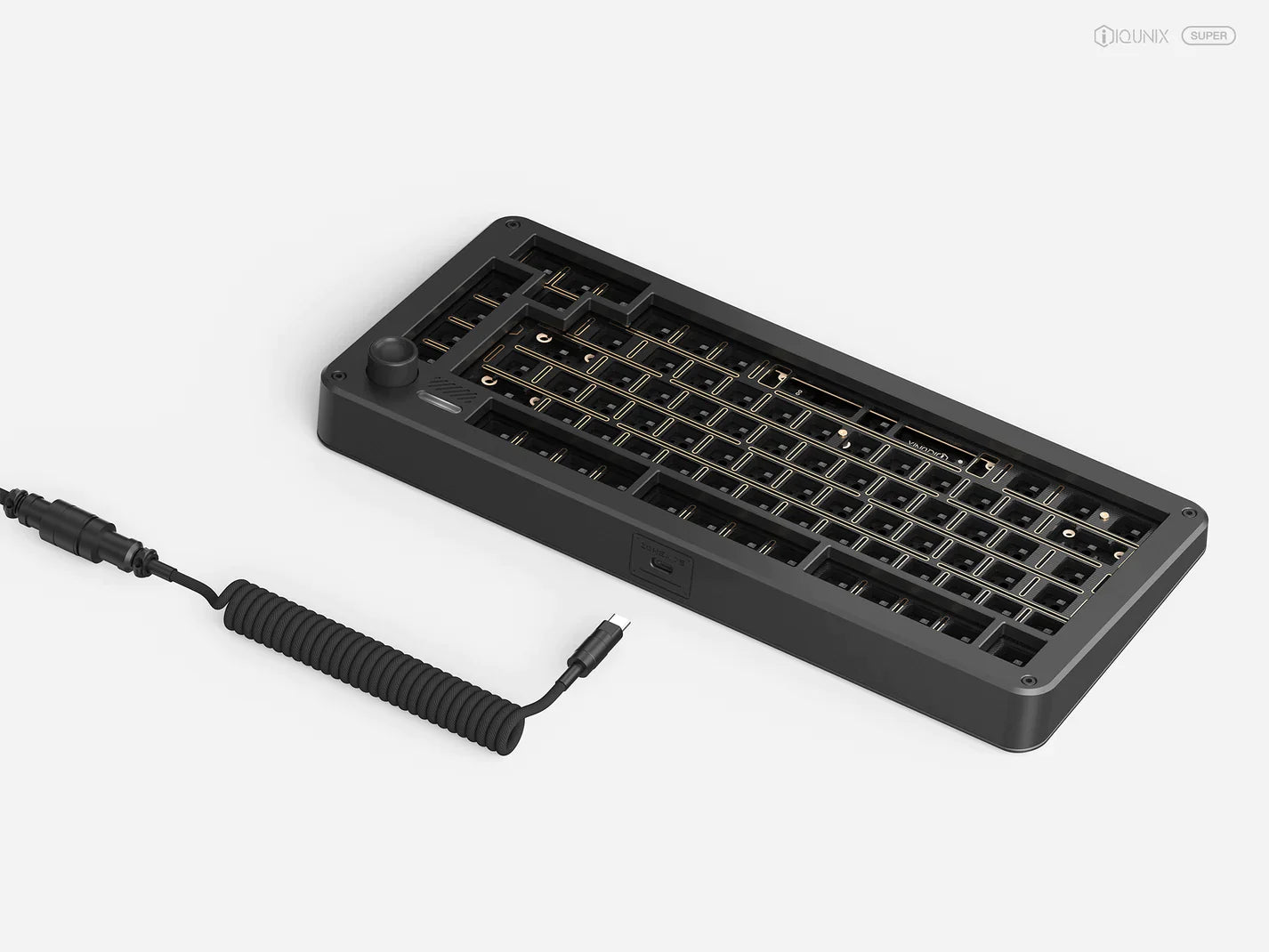

• USB-C

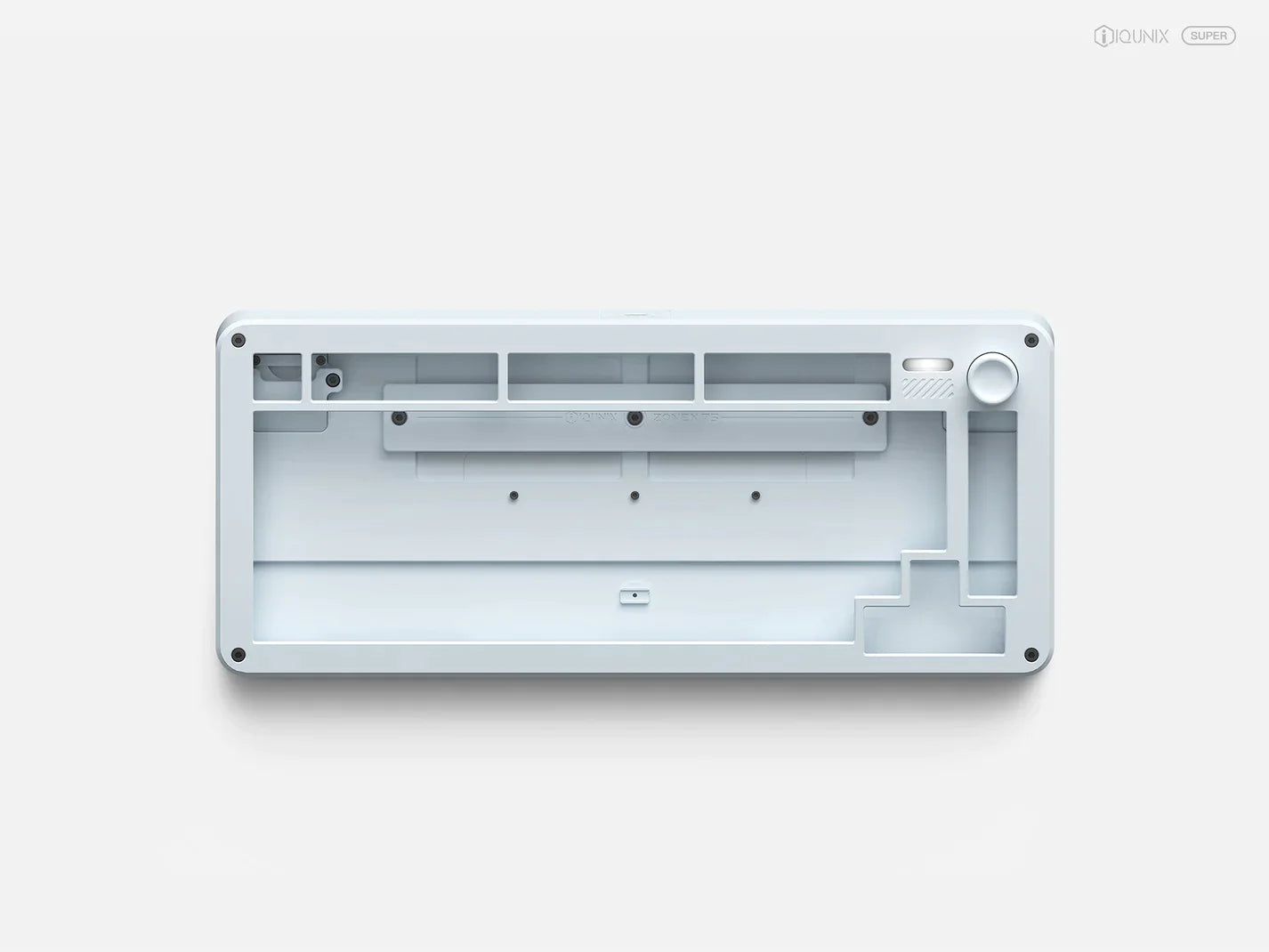

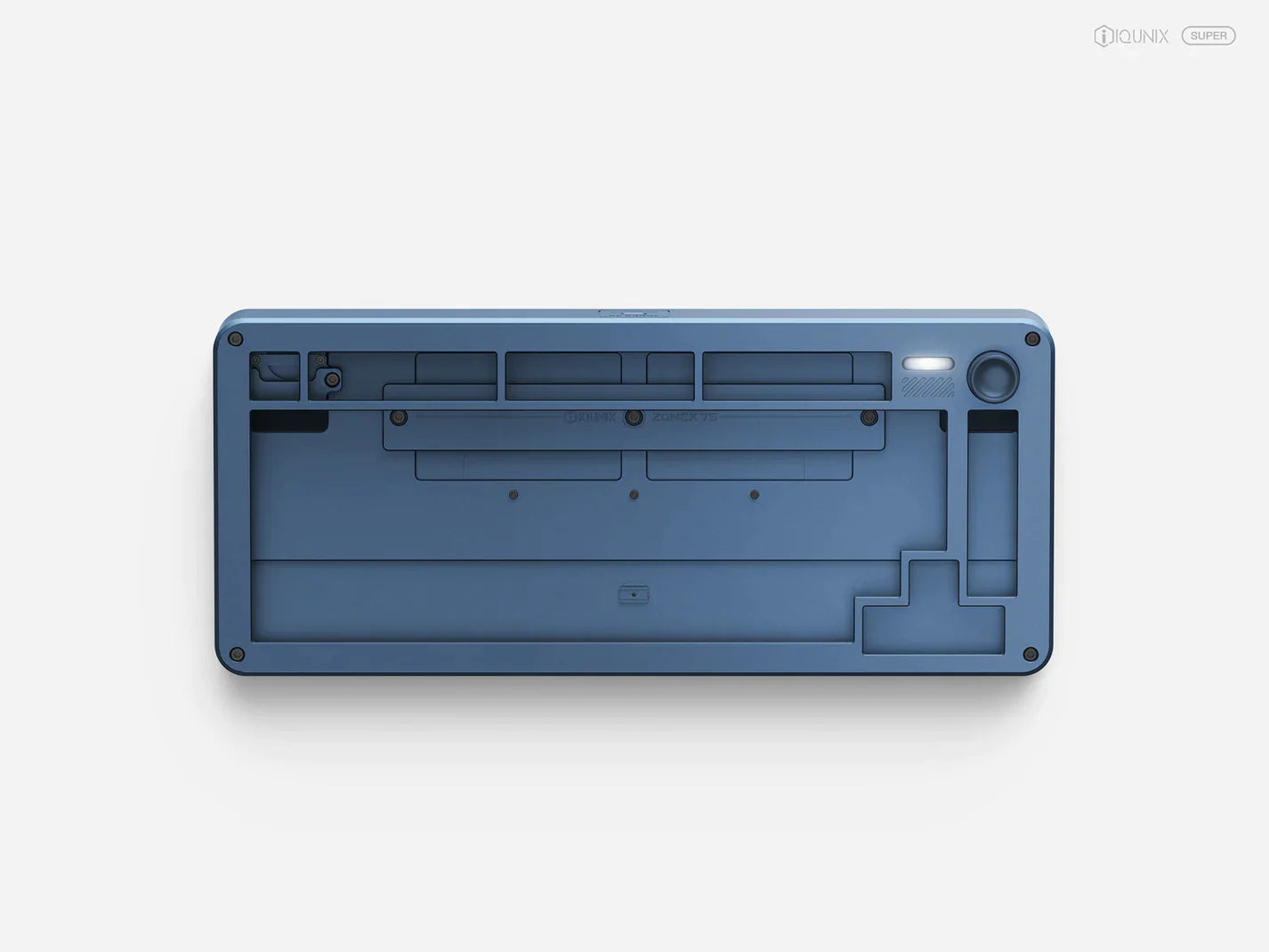

• Aluminum Case
• PCB-Mount Stabilizers
• Connection: Tri-Mode / Wired
• Software: IQUNIX firmware (Tri-Mode) / QMK firmware (Wired)

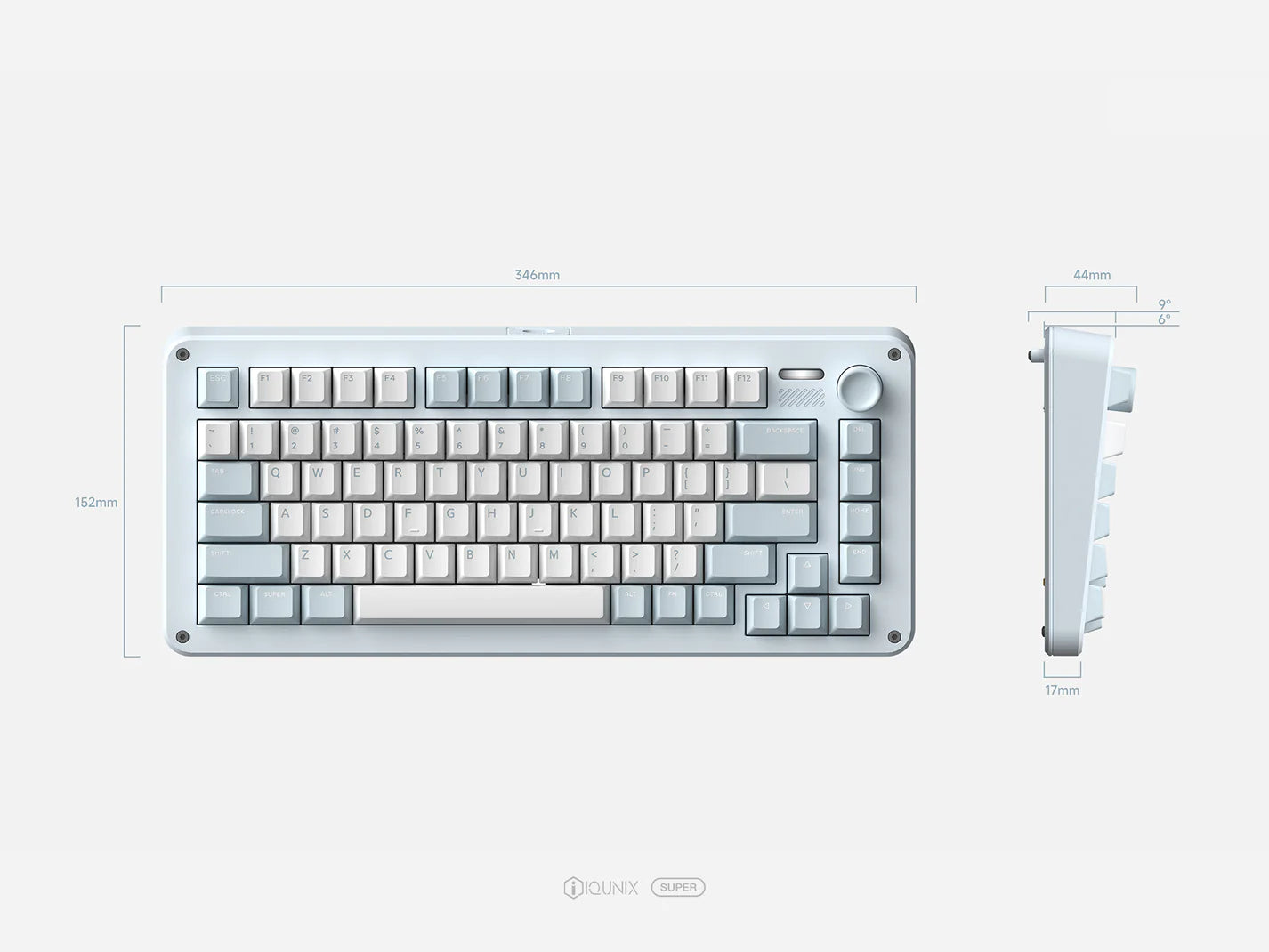

• Dimension: 346mm * 152mm * 17mm (front height)
• Case Weight: Approx. 1130g
• Default Package Weight: Approx. 2850g

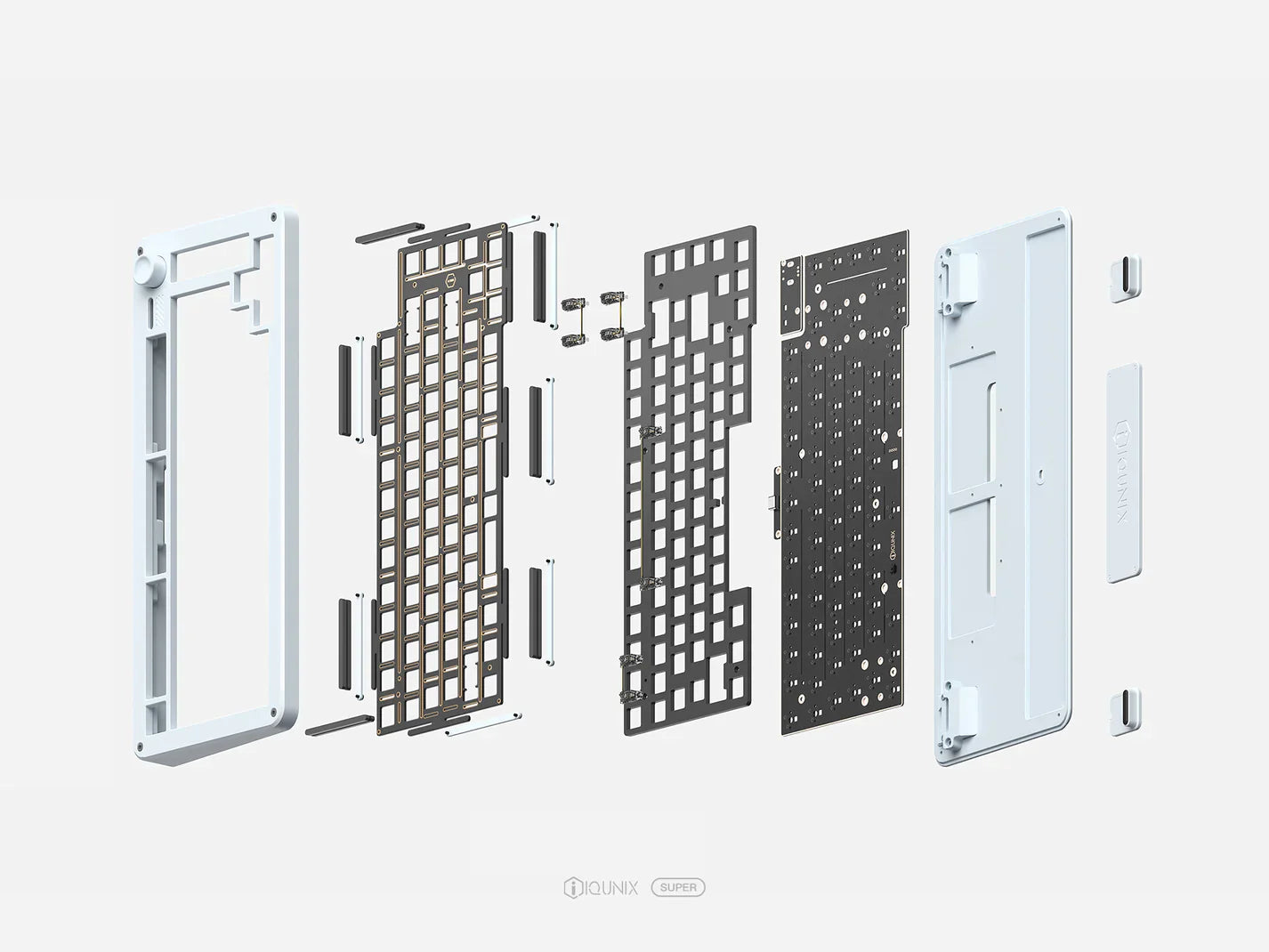

Default Packing list

• Keyboard Case x1
• PCB x1
•  FR4 Plate x1
• PCB Foam x1
• Case Foam x1
• Gaskets Set x1
• Stabs Kit x1
• Screws Set x1
• Screwdriver x1
• USB-C Cable x1
• Two 3000mAh Li-ion Polymer Batteries will be included if you choose the Tri-mode PCB.

• Please note keyboard kit does NOT including keycaps and switches.
