(In Stock) Zoompad Kits

IN STOCK - Ships within 3 working days, all sales final.

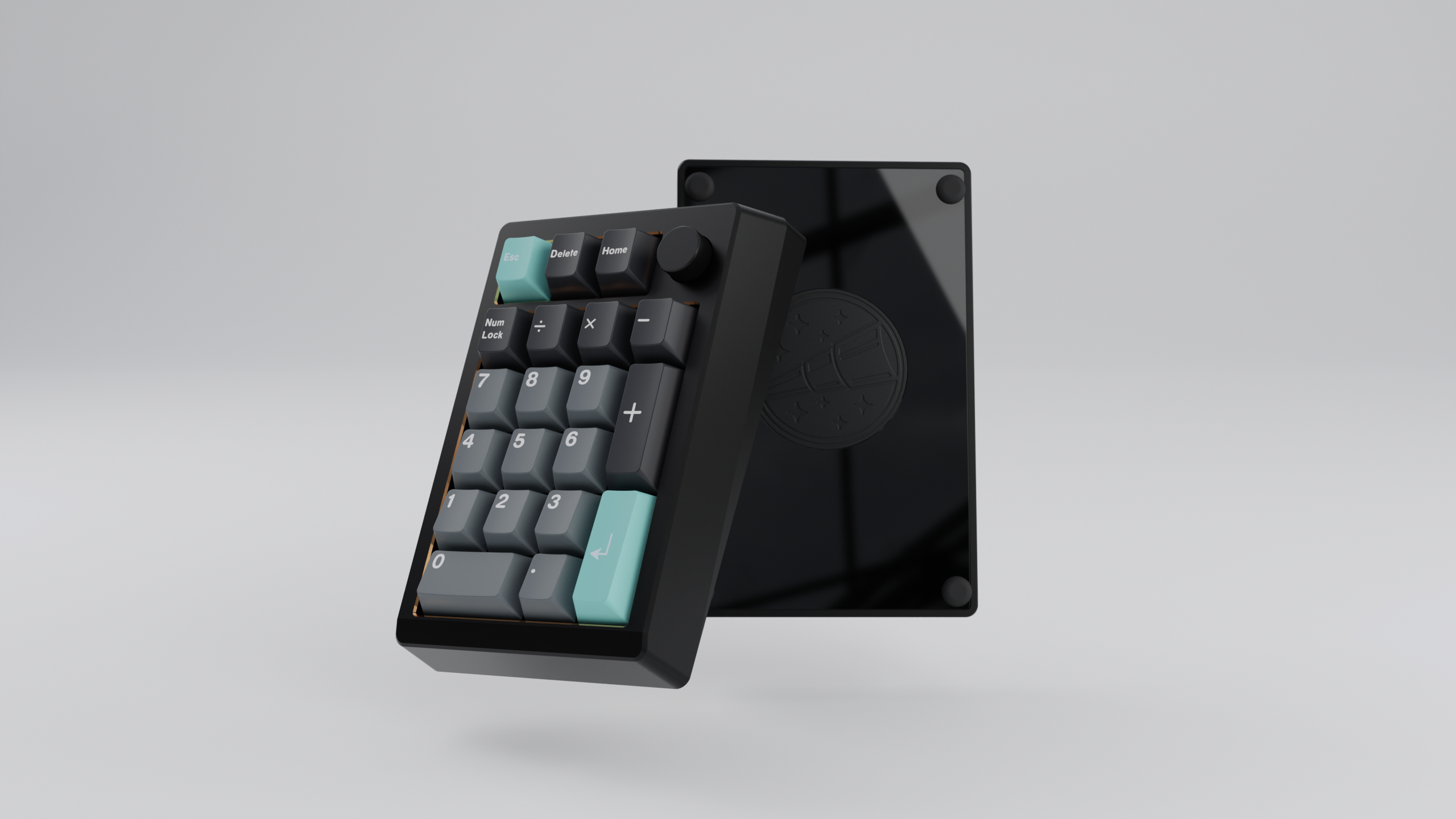

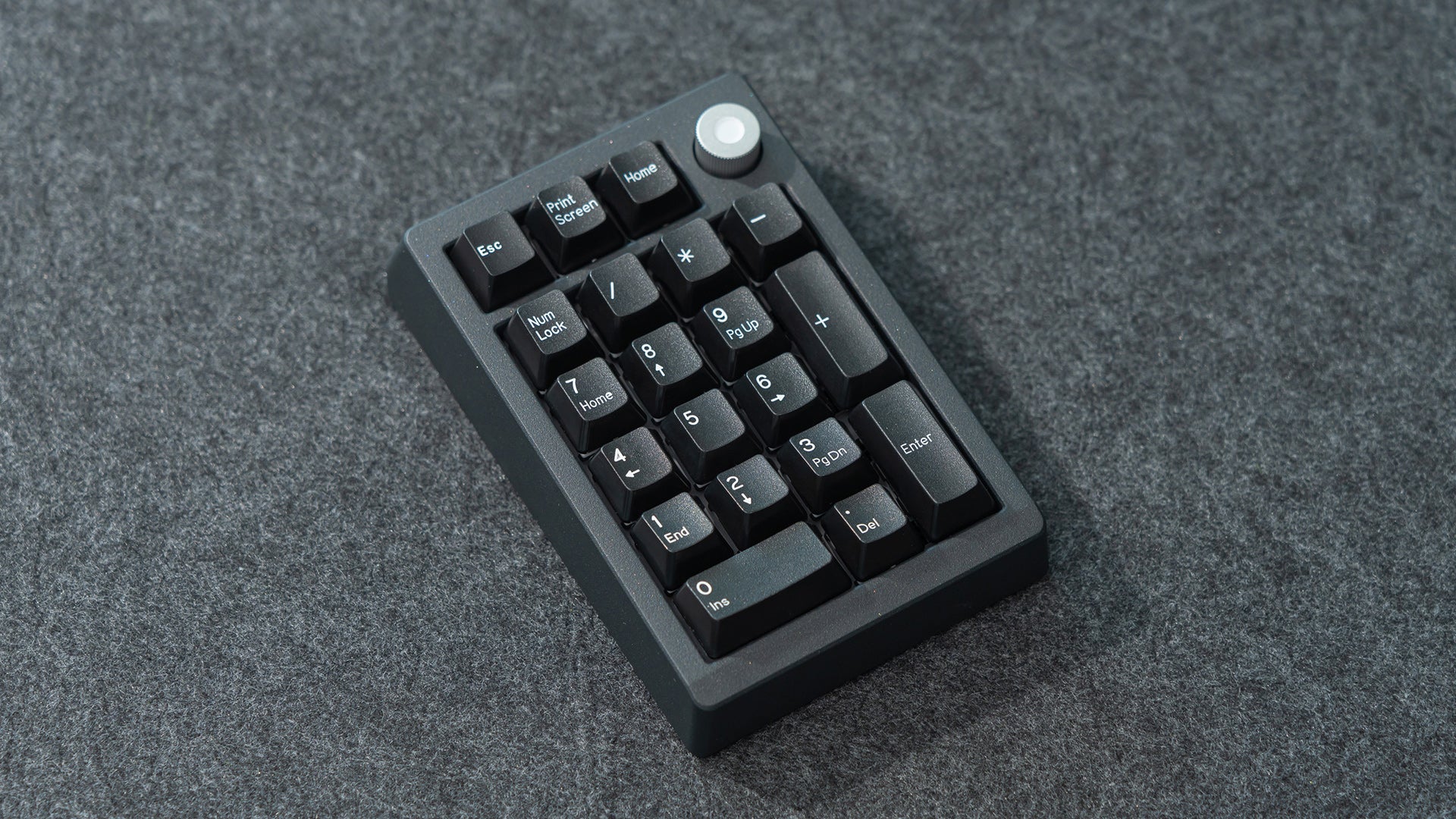

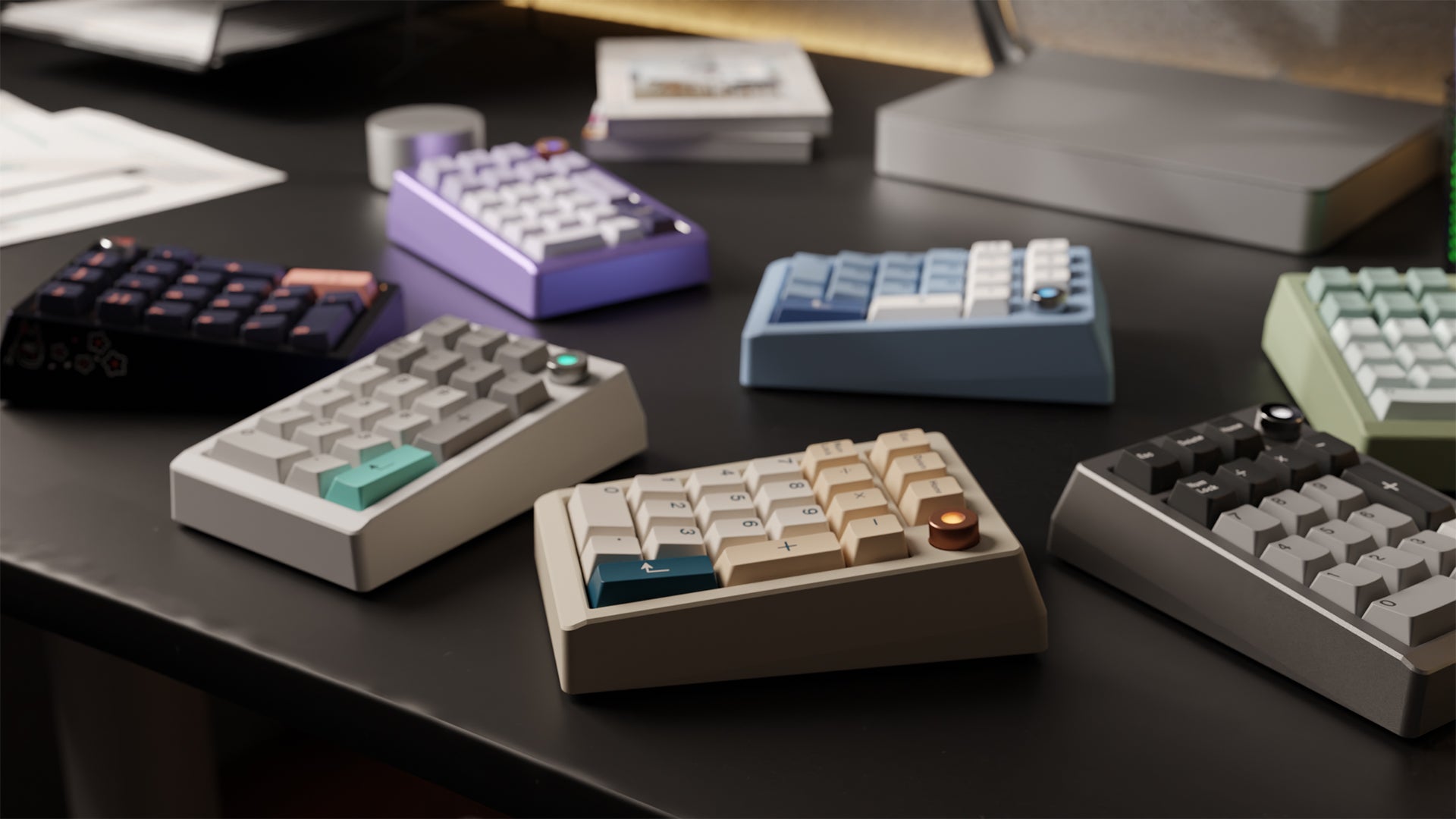

Introducing Zoompad an Essential Partner for your Keyboard

• Available in Standard Layouts
• 14 Essential Edition
• 5 Special Editions

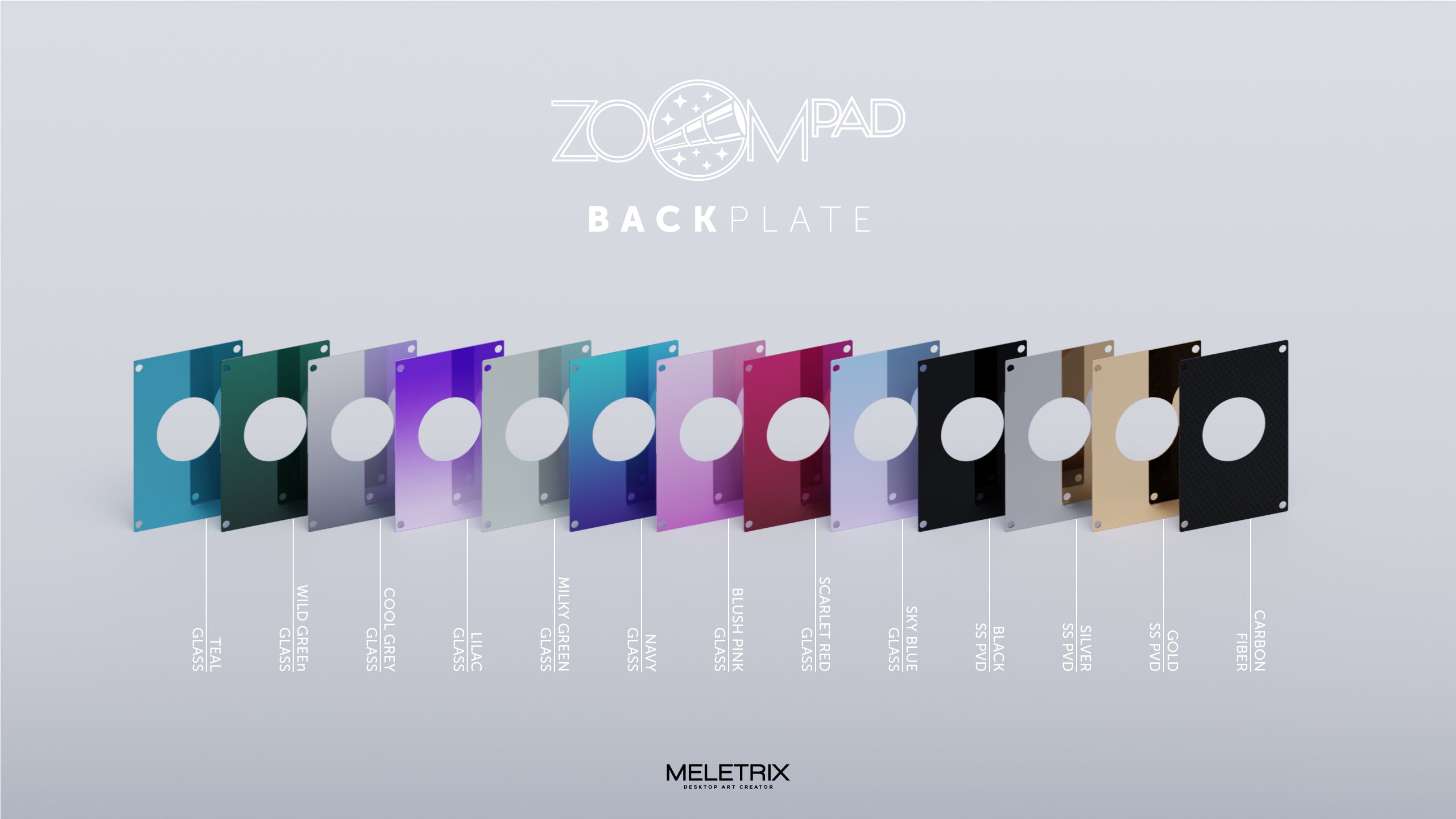

• Matching Backplate to case

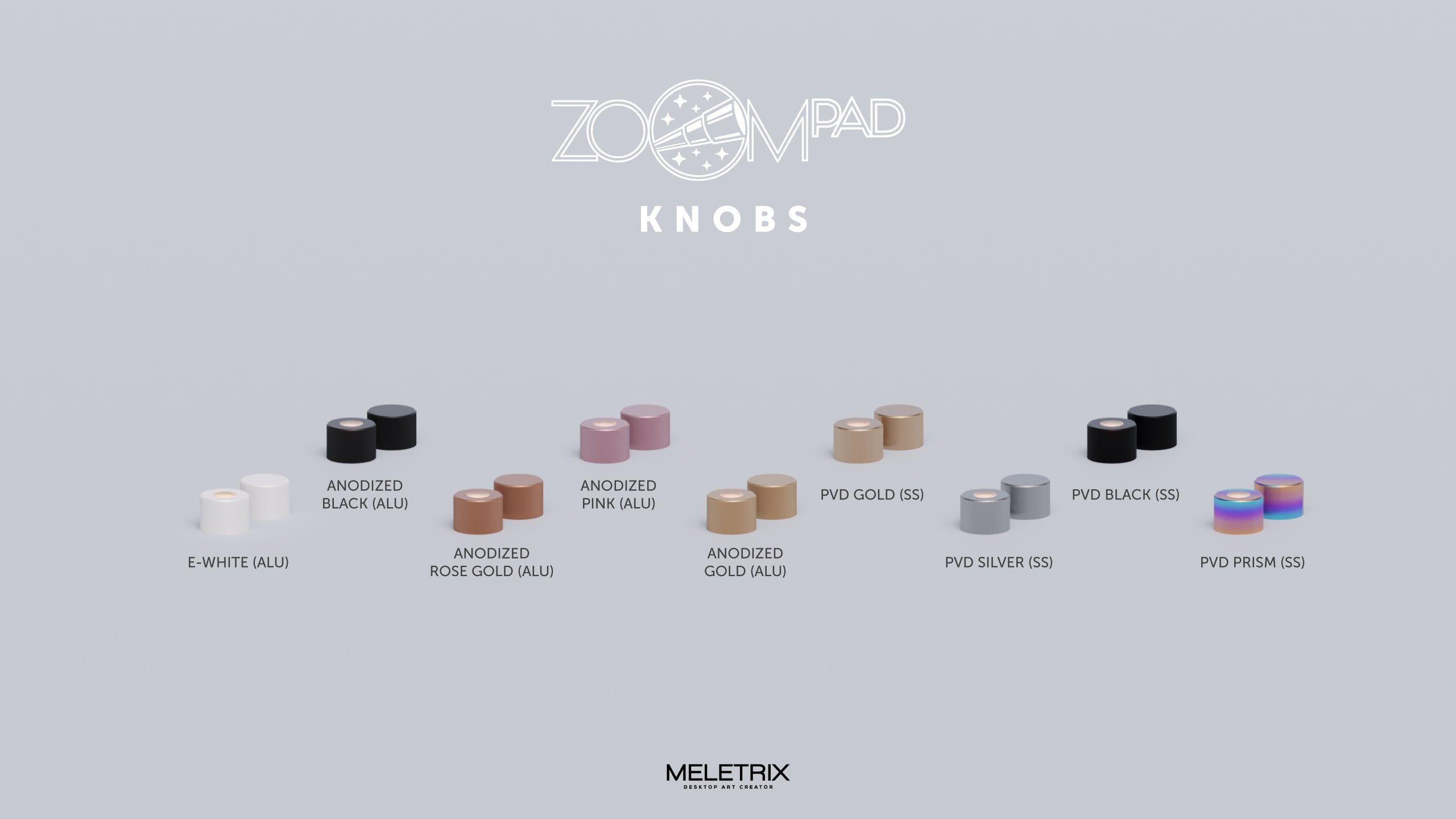

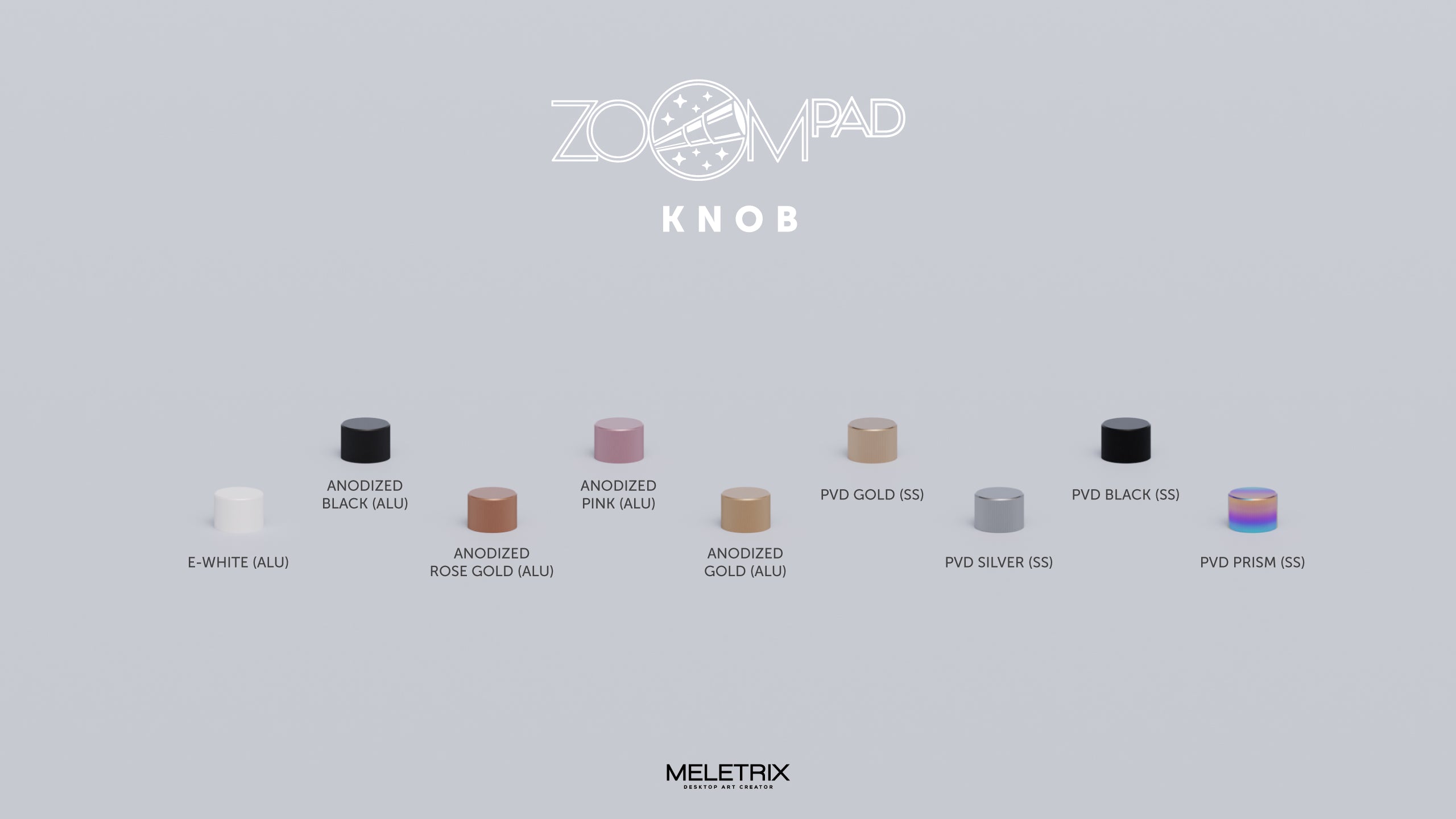

• Optional Knobs and Weights

Specifications:

• Keyboard Layout: 20 keys
• Typing Angle: 5 degrees
• Front Height: 20mm
• Case Material: Aluminum
• Mounting Style: Gasket Mount
• PCB Version:
• Tri-mode Non-Flex Cut Hotswap RGB PCB
•  Wired Non-flex Cut Hotswap PCB
• PCB: 1.2mm thickness, with Ai03 daughterboard
• Battery Capacity: 600mAh
• Default Plate: PC
• Bluetooth Version: 5.2
• Bluetooth Support: Can be paired up to 3 devices
• Connection Method:
• Tri-mode (Wired & Bluetooth 5.2 & 2.4G)
• Wired mode (for Wired PCB)
• Switch Support: Hot-swappable(5 pin & 3 pin)
• Electrostatic (ESD) Protection: Yes
• Dimension: 145.73 x 94. 83x 34.7 (mm)
• Finish Treatment: Electrostatic coated, anodized, E-white
• System Supported: Windows, Mac, iOS, Android
• VIA/QMK Support:
• Tri-mode PCB supports VIA
• The wired PCB supports QMK/VIA.
• Polling Rate:
• Zoom Pad Bluetooth PCB polling rate: 125Hz
• Zoom Pad 2.4GHz Polling Rate: 1000HZ
• Zoom Pad Wired Polling Rate: 1000HZ

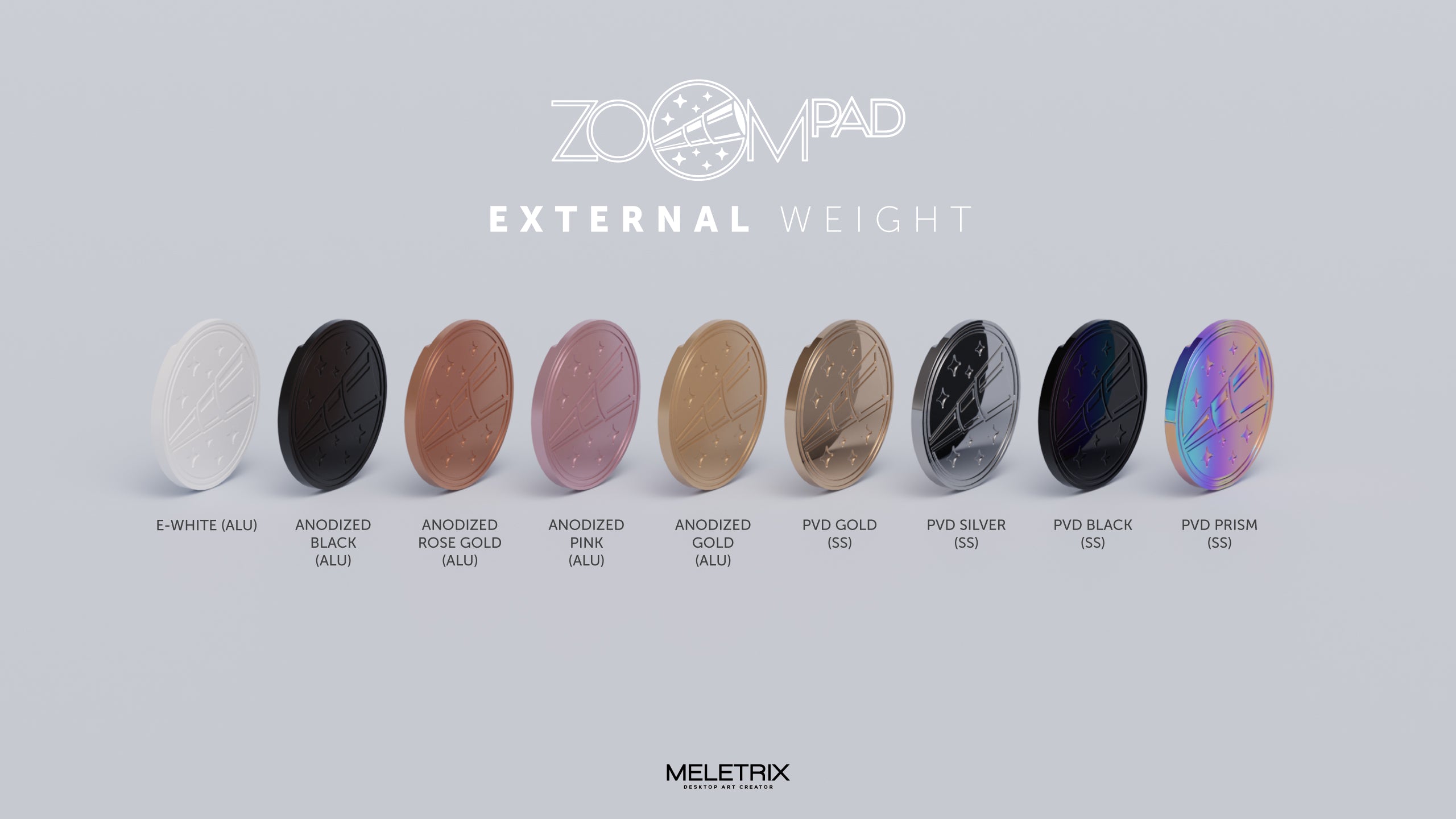

• Weight:
• Essential kit with Alu knob/weight / Glass Mirror Back Plate: 0.67 kg
• Essential kit with brass knob / PVD SS weight / Glass Mirror Back Plate: 0.72kg
• Essential kit with Alu knob/weight/PVD Back Plate: 0.72kg
• Essential kit with brass knob / PVD SS weight / PVD Back Plate: 0.77 kg

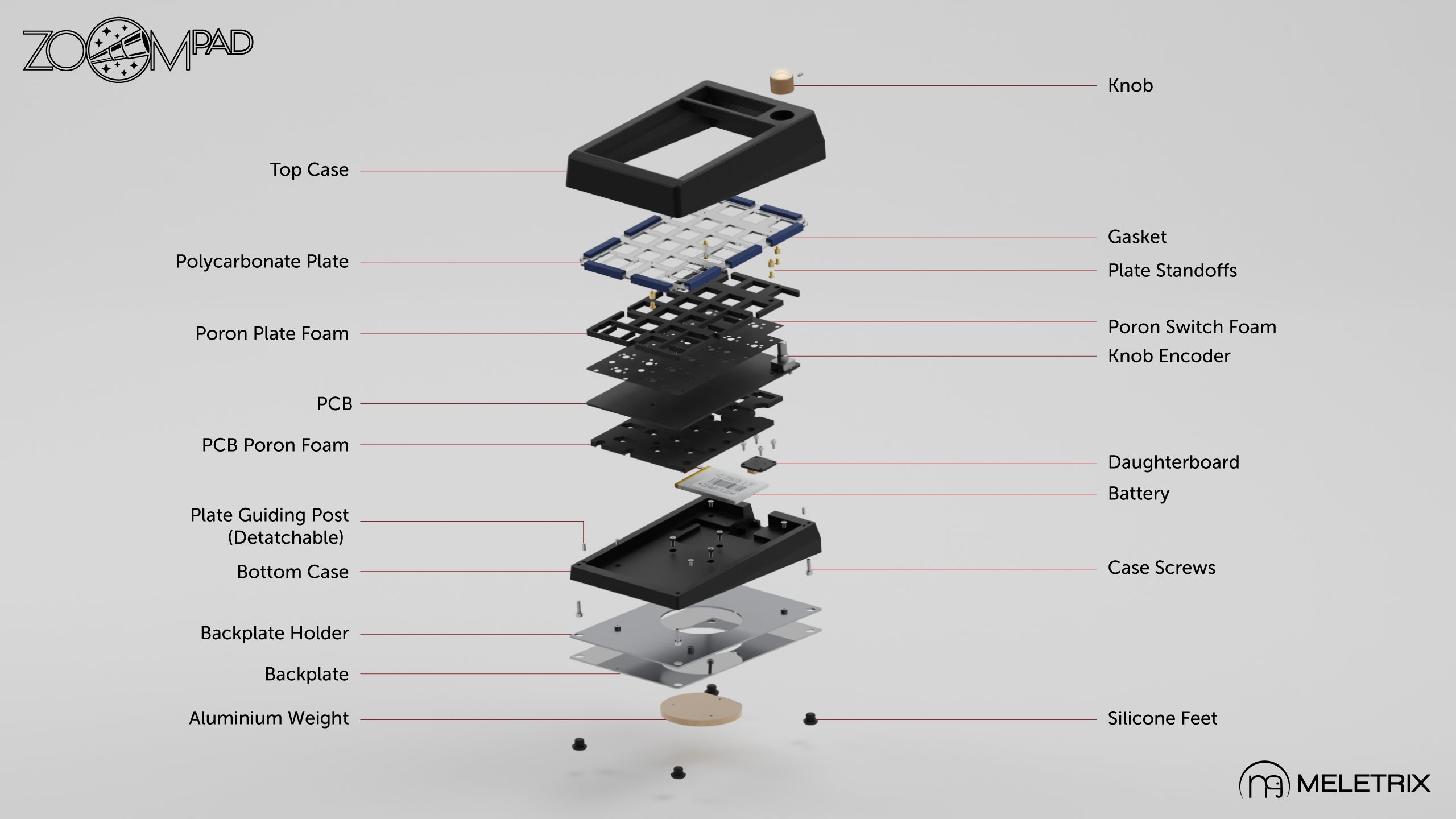

Kit Contents (Tri-Mode)

• Aluminium Top and Bottom Case of buyer's choice

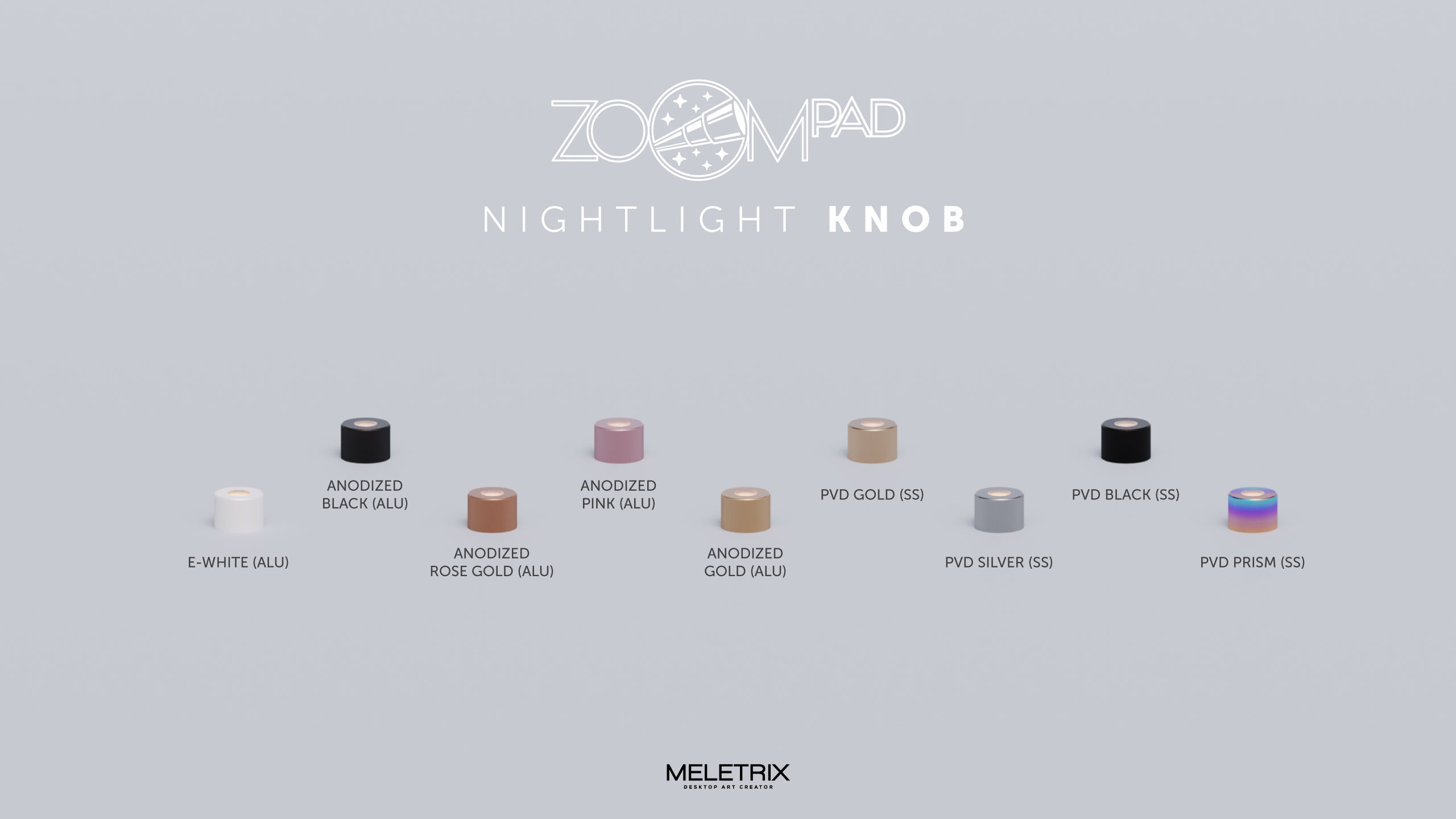

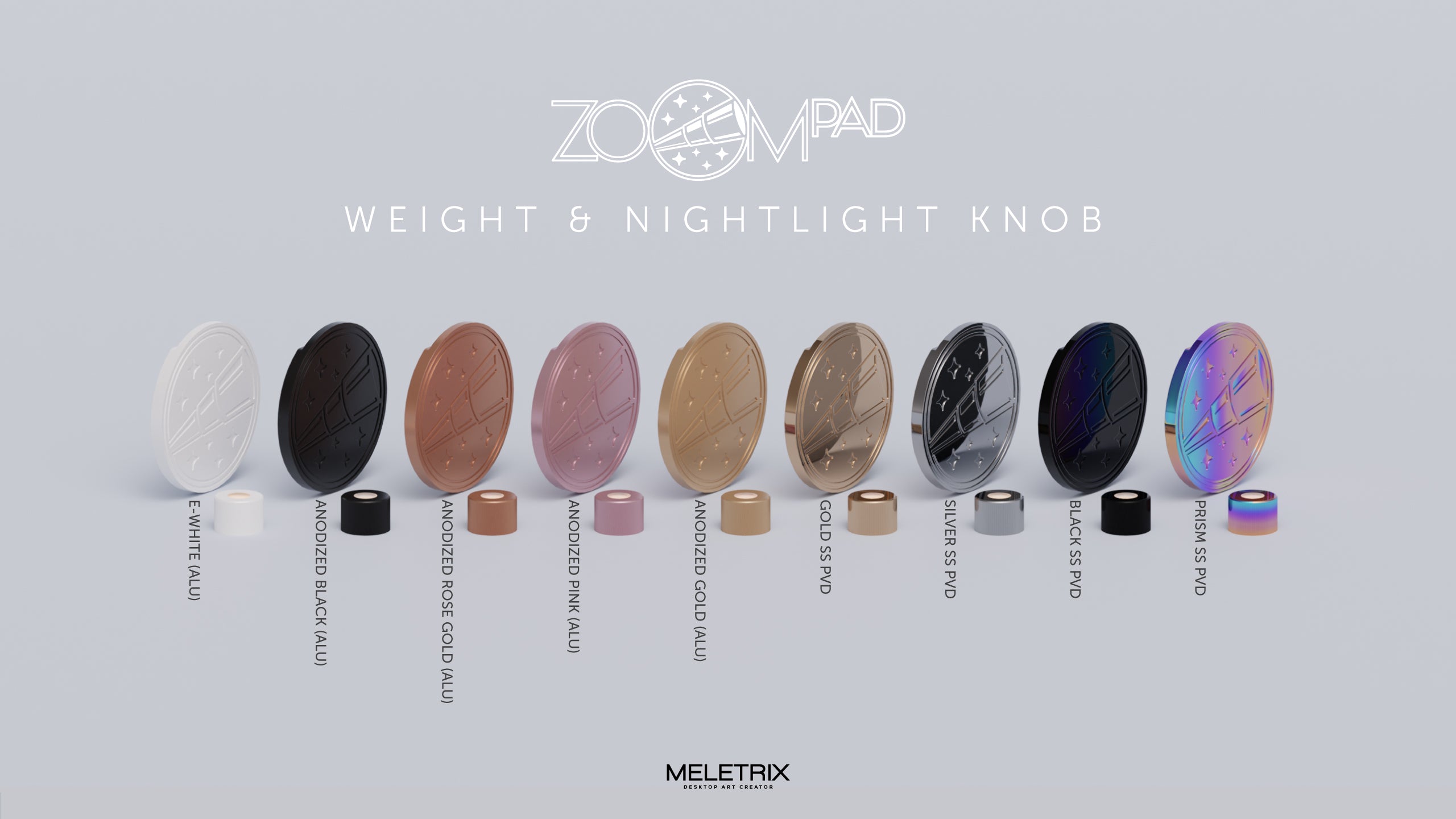

• Aluminium / Brass rotary knob matching the external weight (nightlight version only)

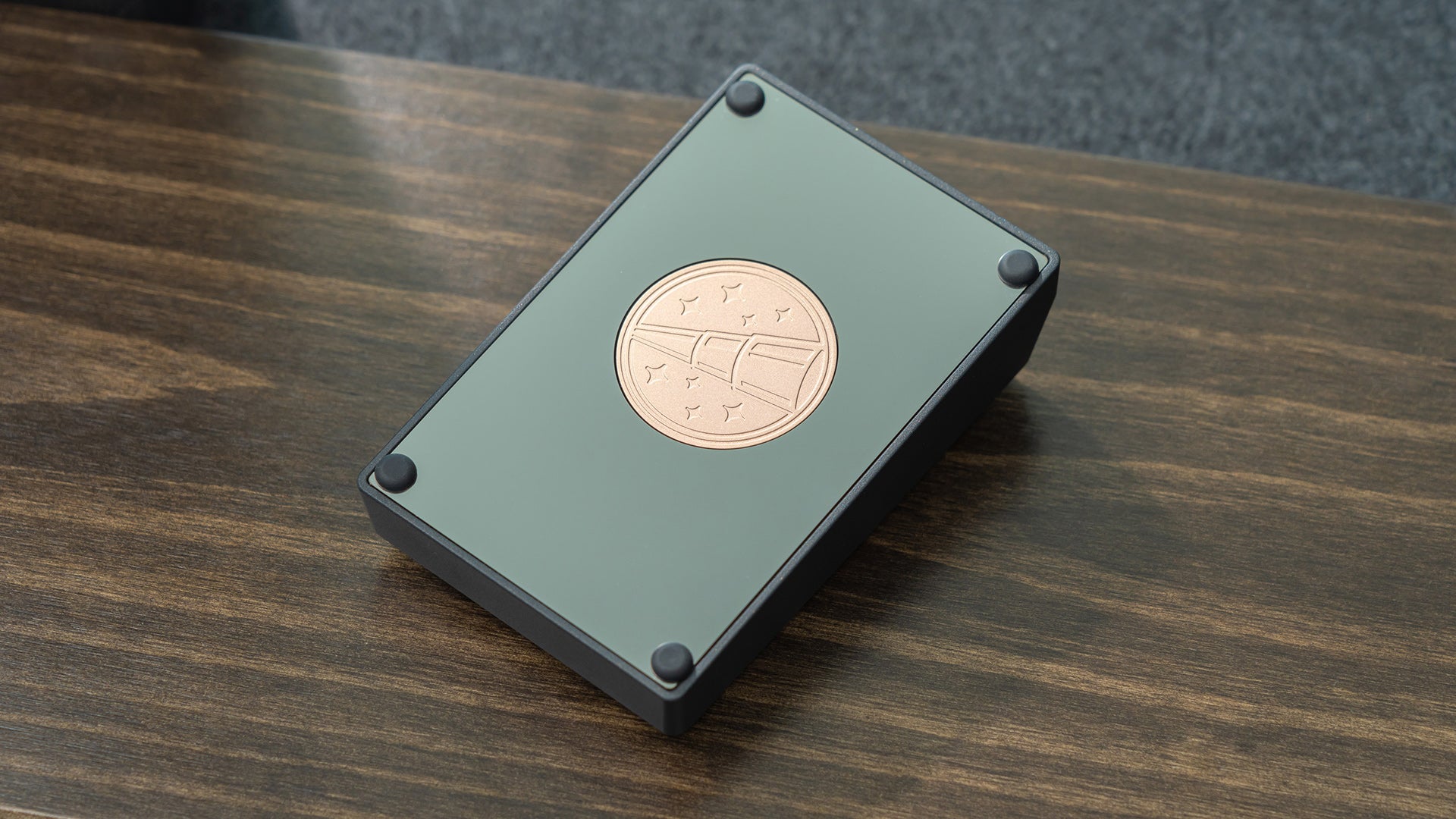

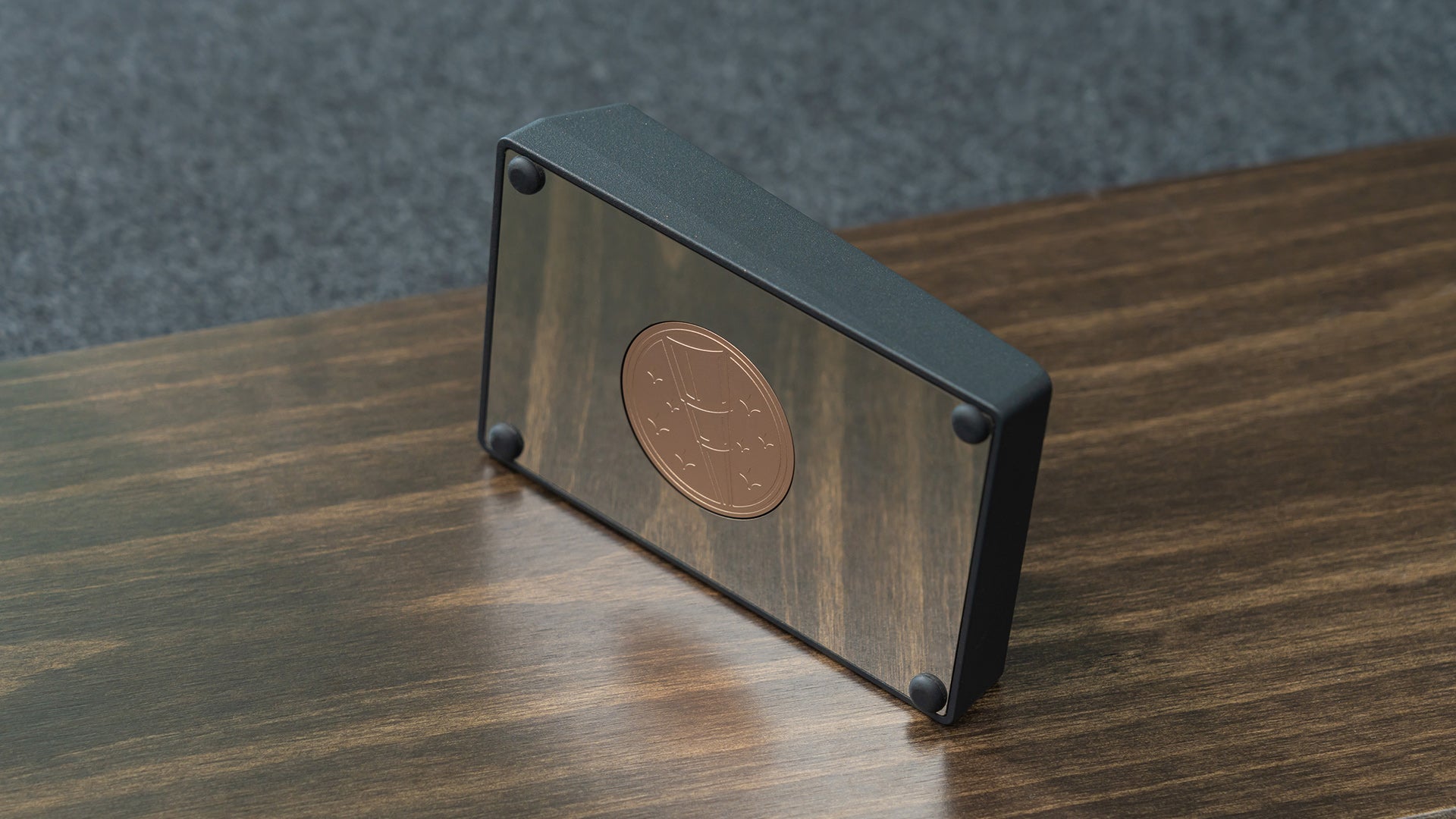

• Backplate of the same case colour
• 2.4G USB Receiver
• PC Plate
• Daughterboard/JST Cable
• Li-ion battery
• Poron Dampener Kit (Poron Plate Foam, Poron Switch Foam, PORON PCB Foam, Gasket)
• Set of Stabilizers (WS Stabs V3.1)
• Silicone Feet
• Screw Bag + Allen Key
