(Pre-Order) Cloudline V2

This is a Pre-Order, please read our guidance on Pre-Orders here: FAQ's

Expected to ship Q2/ Q3 2025

Pre-Order Closes March 29th 2025

Details:

Kit includes Cloudline V2 keyboard, full aluminum plate, custom PCB + daughterboard, 50A o-ring, polycarbonate top-mount spacers, injection-moulded feet, spare hardware, carrying case, and microfiber cloth. Kit does not include keycaps, switches, or stabilizers.

• Layout: F12 TKL (WKL or Full, split right-shift / backspace support)
• Plate: Full aluminum, anodized black

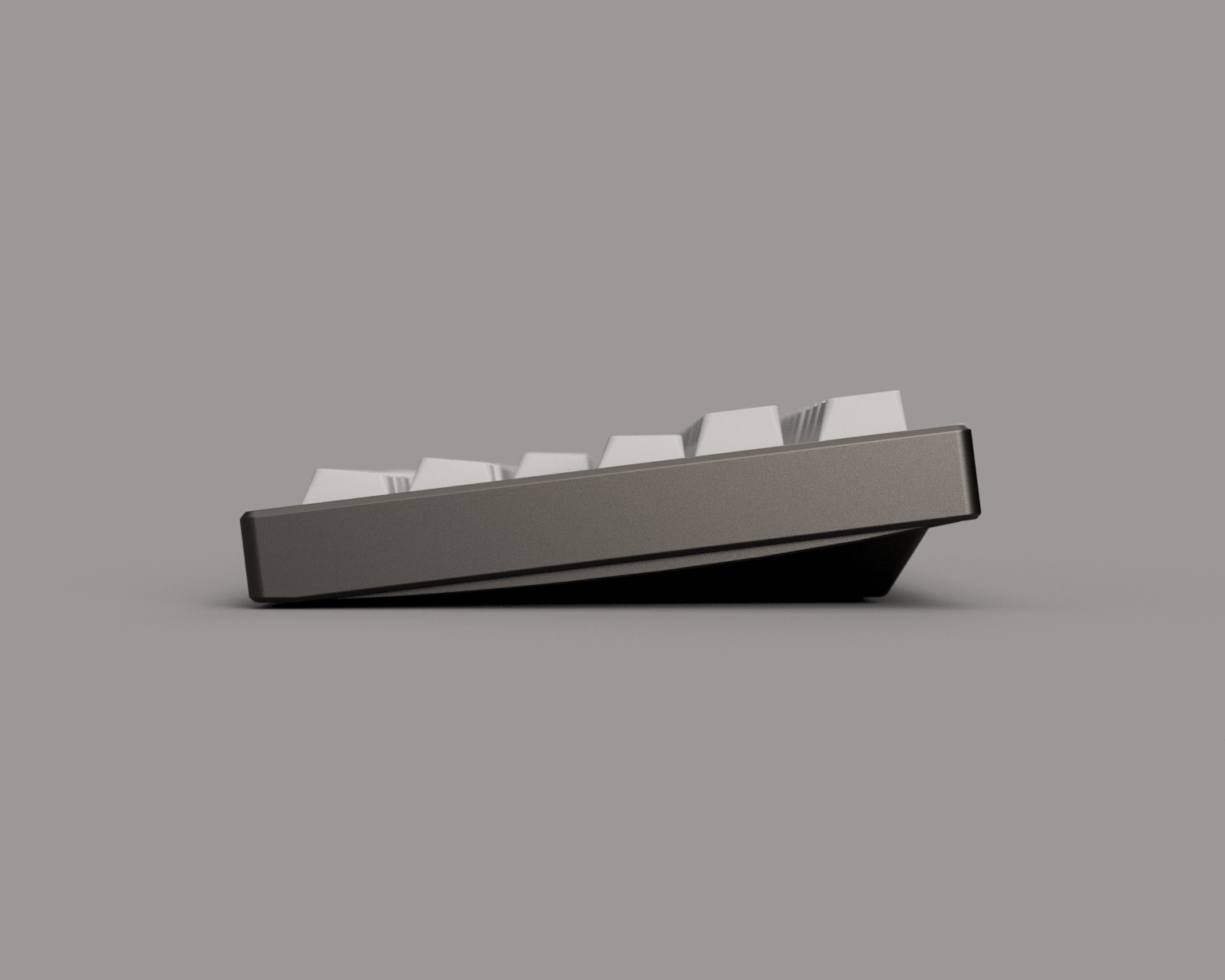

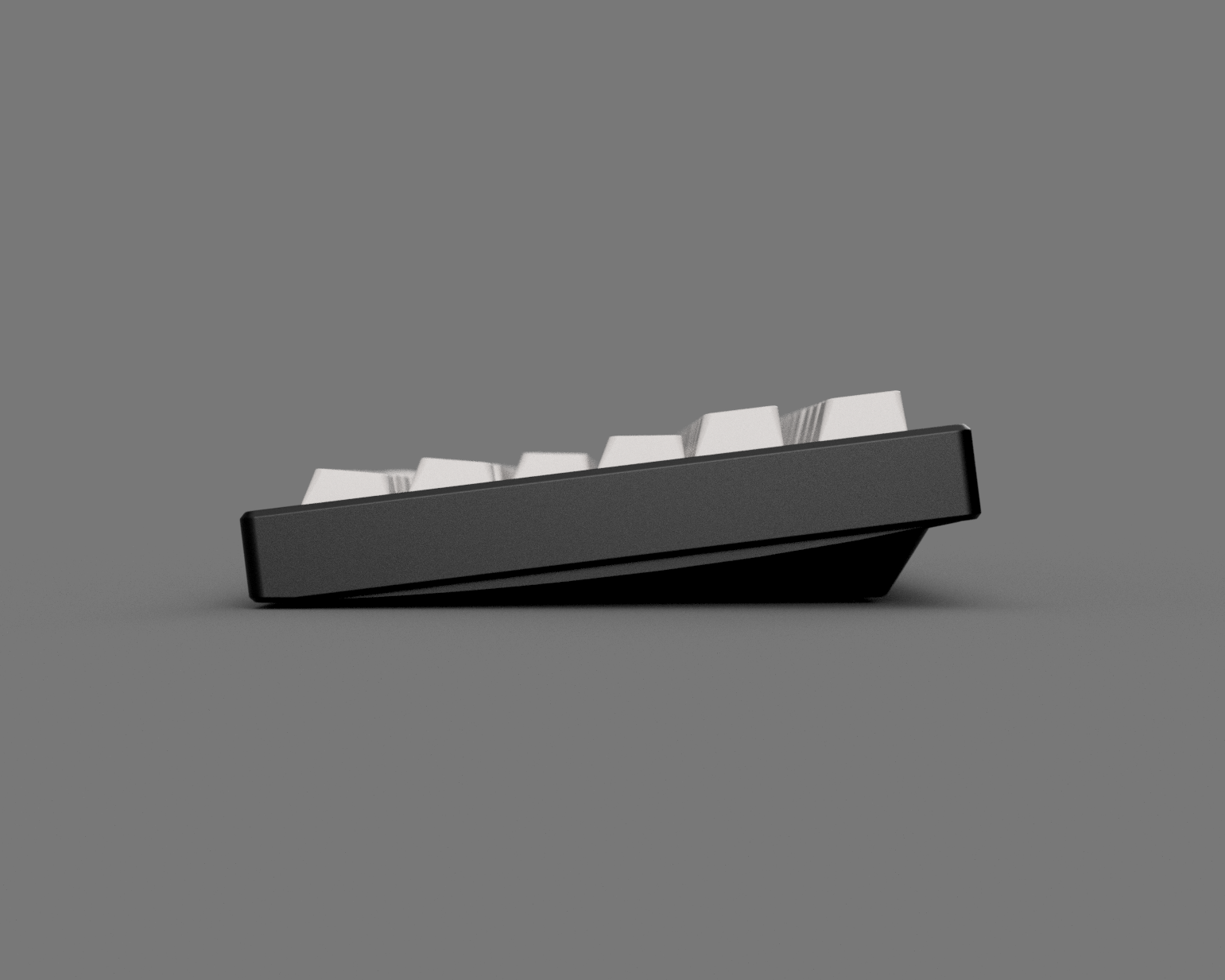

• Typing angle: 7 degrees
• PCB: Solderable Cloudline V2 PCB by Mechlovin' (STM32)
• Case materials: Aluminum 6063, Stainless Steel 304, Brass
• Weight: ~2200g / ~4.9 lbs built
• Front Height: ~17.1mm (21.8mm EKH)
• Mounting: Inverted o-ring friction mount / top mount

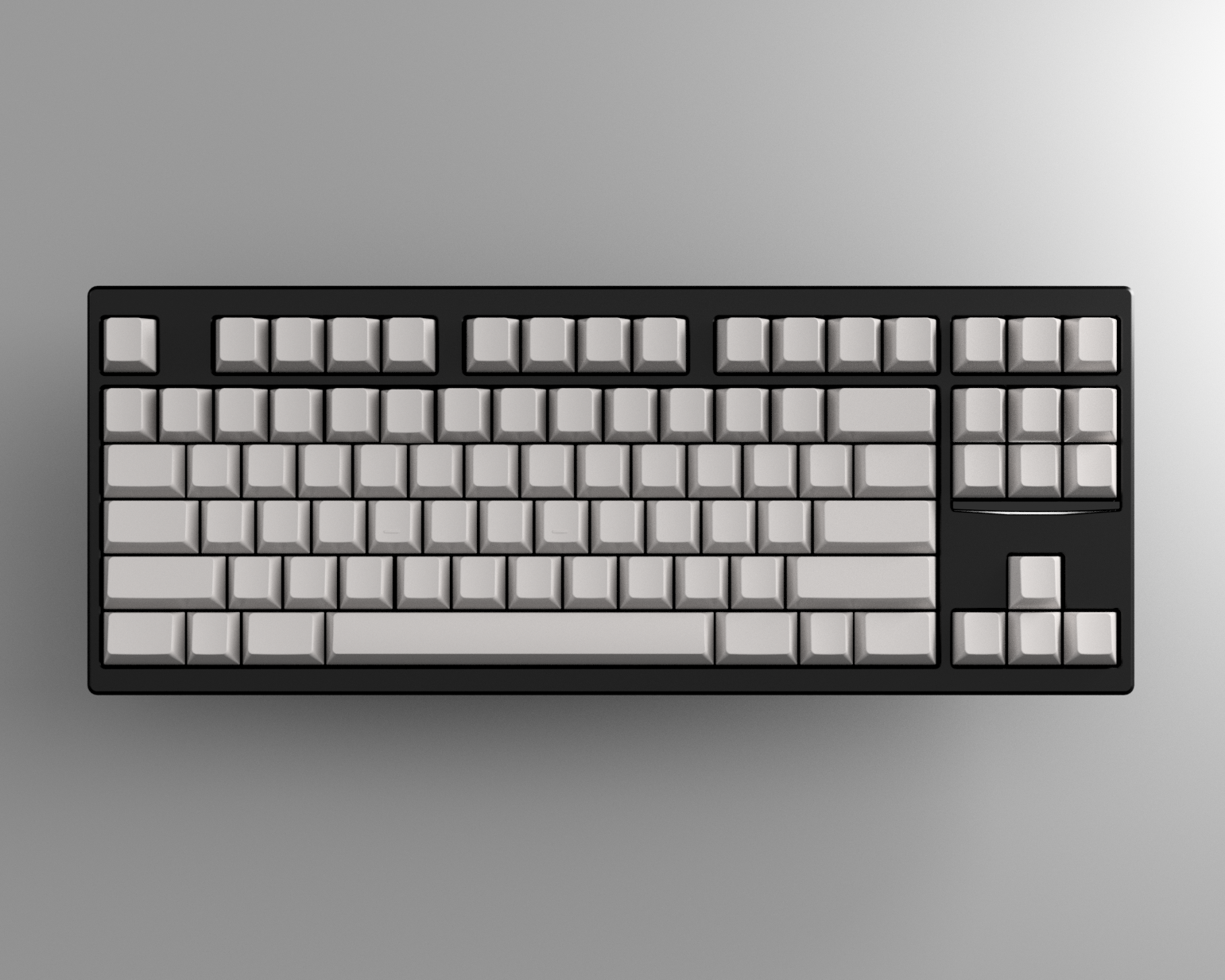

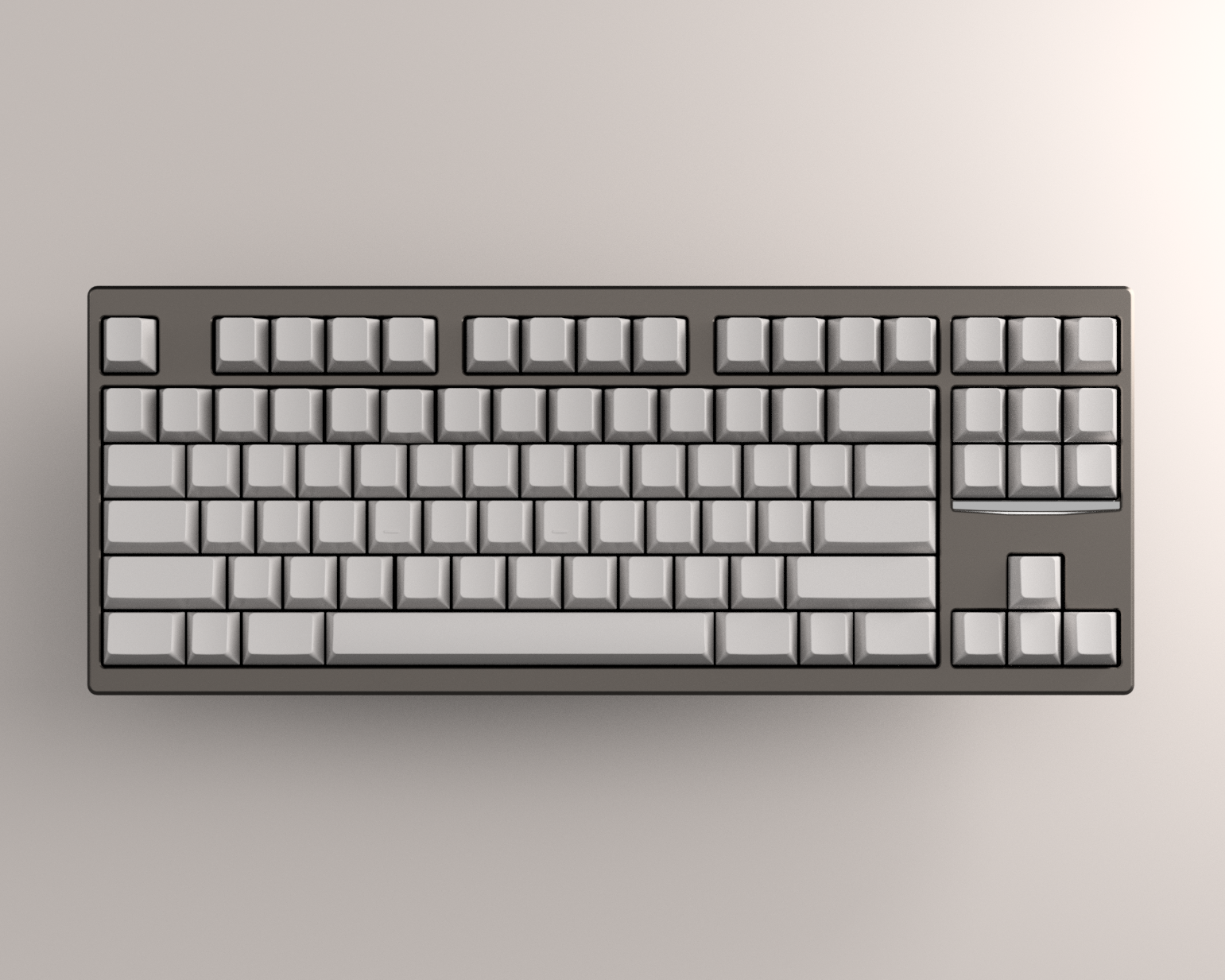

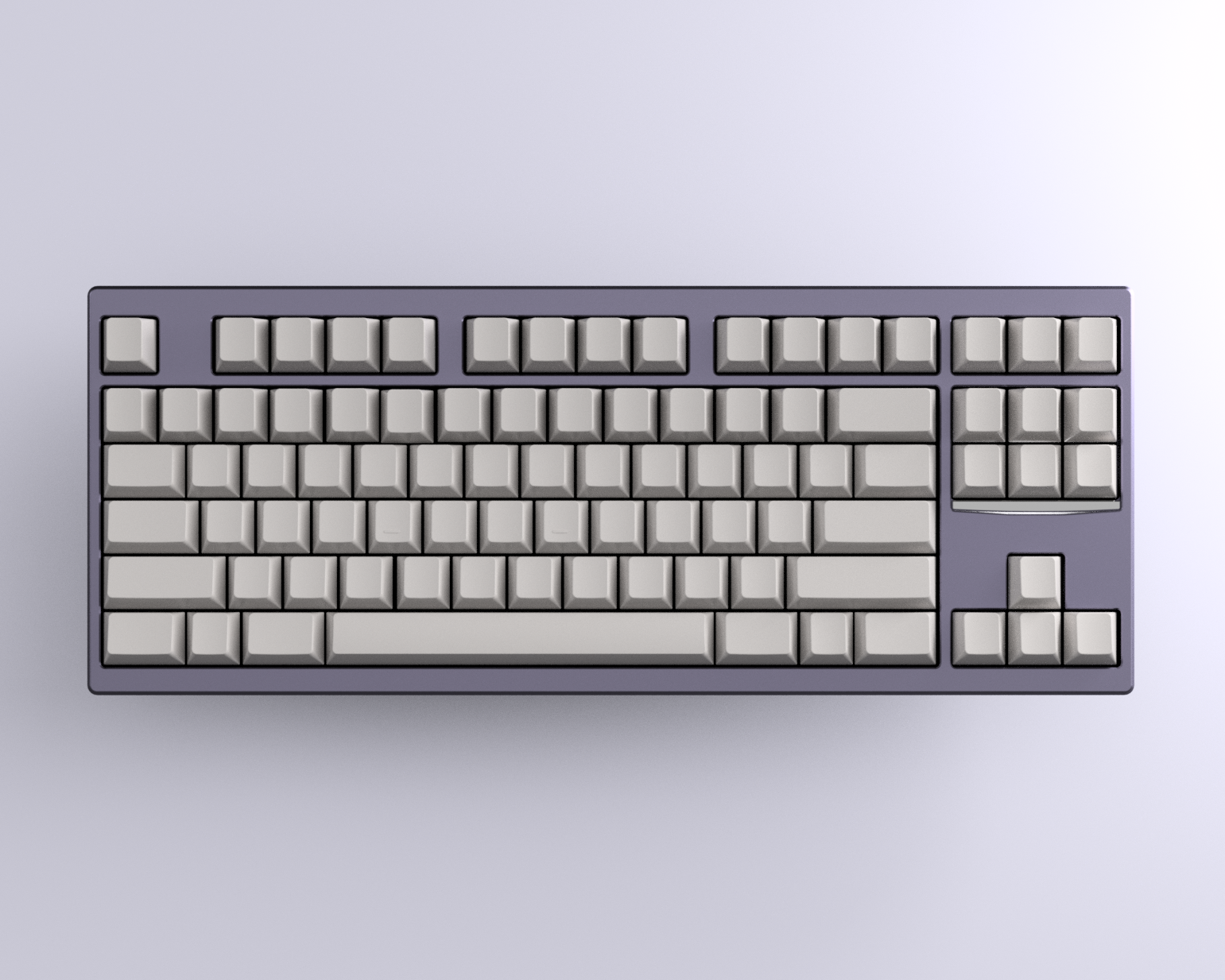

Case Colour Options

Addons Available Here

Inverted O-Ring Friction Mount

This mounting method is an implementation of the classic o-ring mount with a few key differences. The first thing to note is that we lean on a 'friction-fit', where the o-ring applies outward pressure on the side walls of the keyboard chassis. We also leave a ~1.0mm gap between the plate and the top case, ensuring there's no vertical pressure on the plate (and thus, no pressure on the top case - which often is the culprit for a 'boxy' and resonant sound). In addition, the o-ring is friction-fitted almost entirely into the top case while merely resting on the bottom case mounting posts, in hopes of providing as many contact points as possible to the o-ring.

Classic Top Mount

Top mount is still an option for owners who prefer a more classic sound profile. This time around, we've avoided unnecessary experimentation, and opted for a more straightforward top-mount implementation. No large relief cuts or arms on this plate, to avoid excess vibration - however, one key point is that we provide polycarbonate standoffs to properly space the plate away from the top case. This way, we can ensure that the inverted o-ring mount can be built without the plate contacting the top case, while still providing a completely viable top mount option.

Refined, yet Familiar

The original, iconic silhouette of Cloudline V1 remains minimally adjusted throughout this iteration. Motifs of freedom, optimism, and possibility present themselves cleverly throughout several external design elements. A new interpretation of the original front engraving finds its way to the new weight design, restricted from below yet unbound by a limitless sky.

Precision in Progress

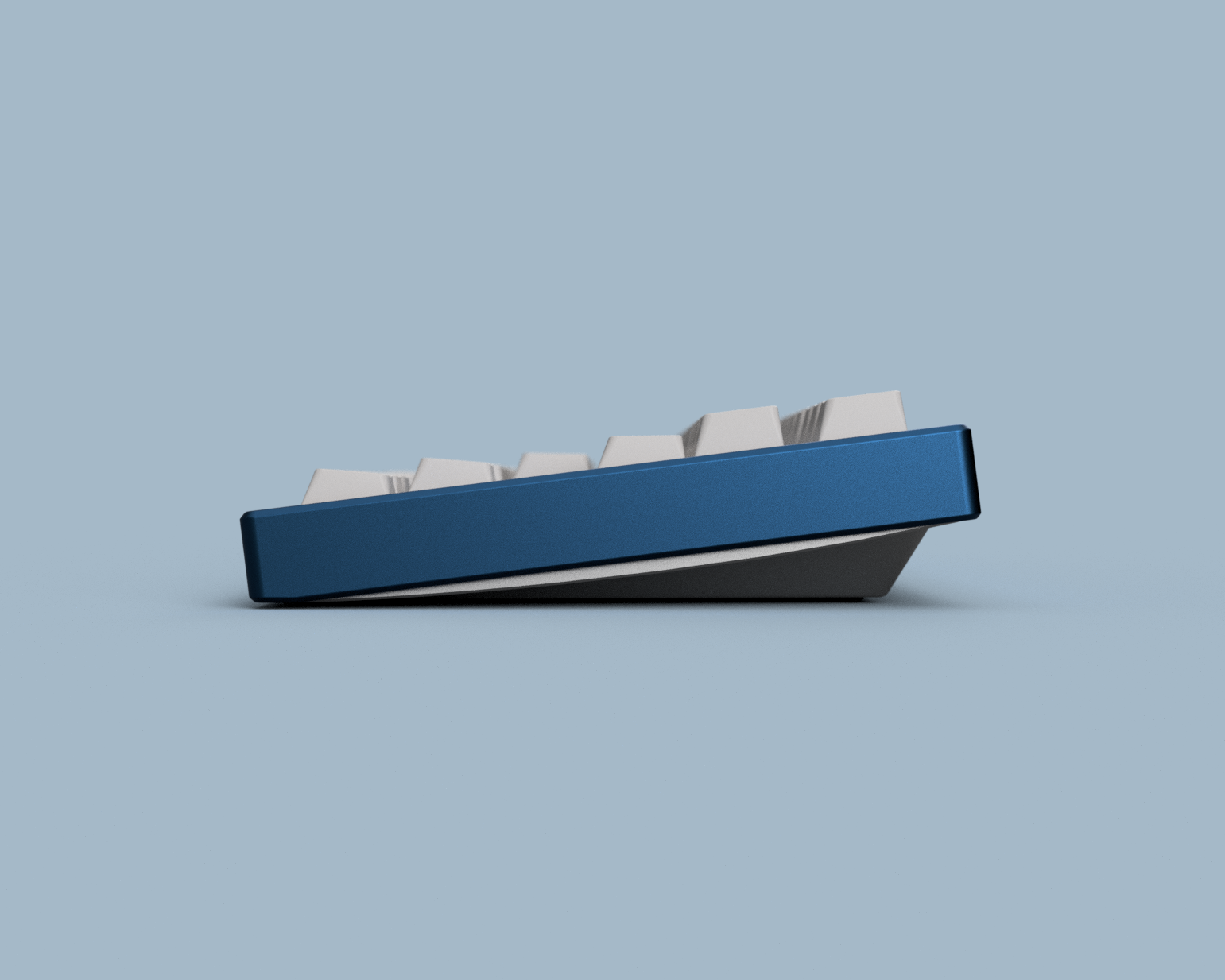

Subtle, carefully-considered adjustments can come together to make meaningful changes. Adjusted bezel ratios, corner radii, and tweaked design decisions lend to a more refined and balanced keyboard aesthetic. Cloudline V2 returns in a new "classic" F12 TKL layout, including improved ergonomics with a notable reduction in front-height and EKH (down ~1mm and ~0.6mm respectively).

More Than Meets the Eye

Typing sound and feel were some points of controversy for Cloudline V2's predecessor. With aesthetics being one of its strengths, it became my personal goal to make this iteration as focused and refined as possible from a typing perspective. Because of that, I've opted to implement the inverted o-ring friction mount on this keyboard, while still giving users the option to revert to classic top-mount.

Inside - Out

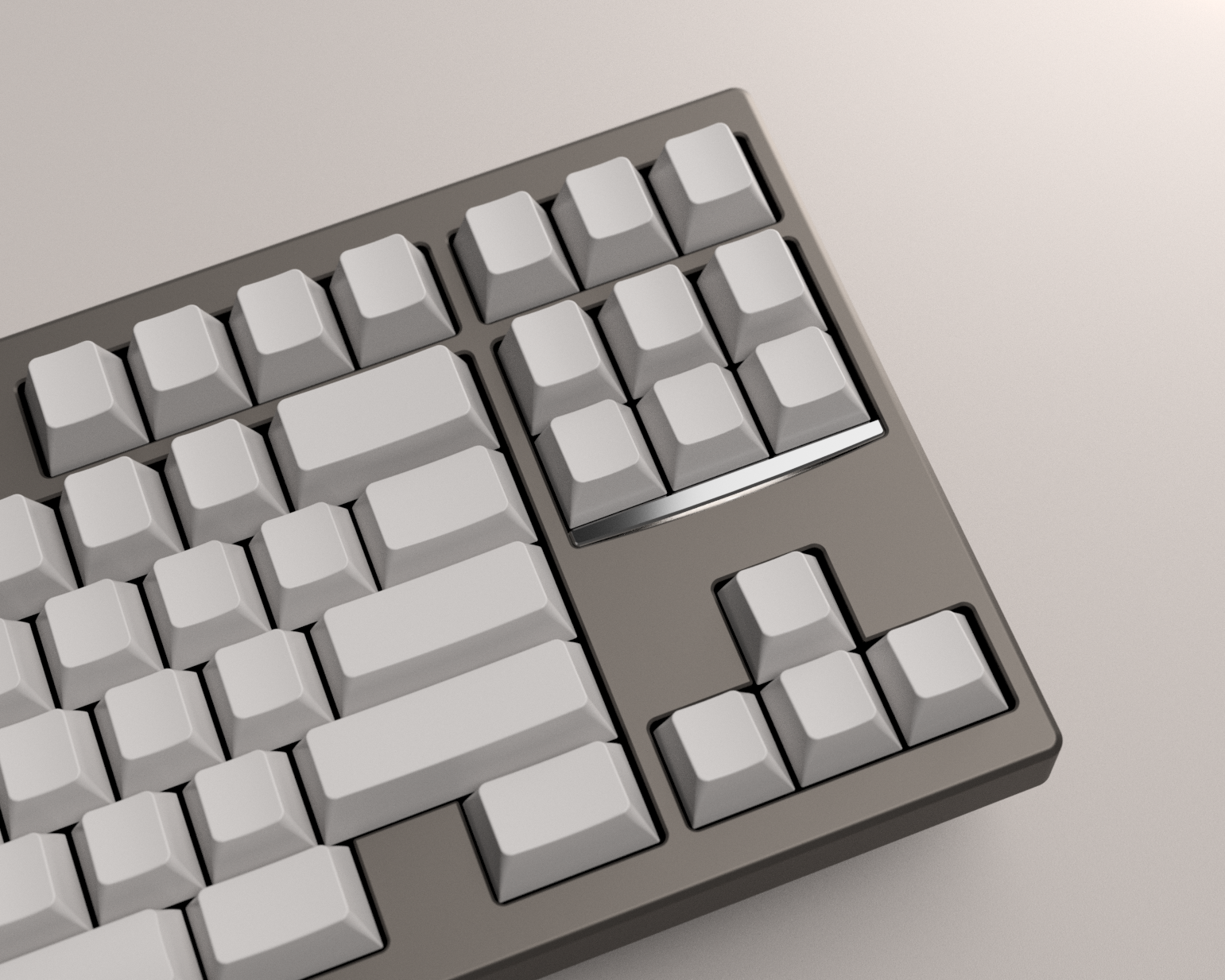

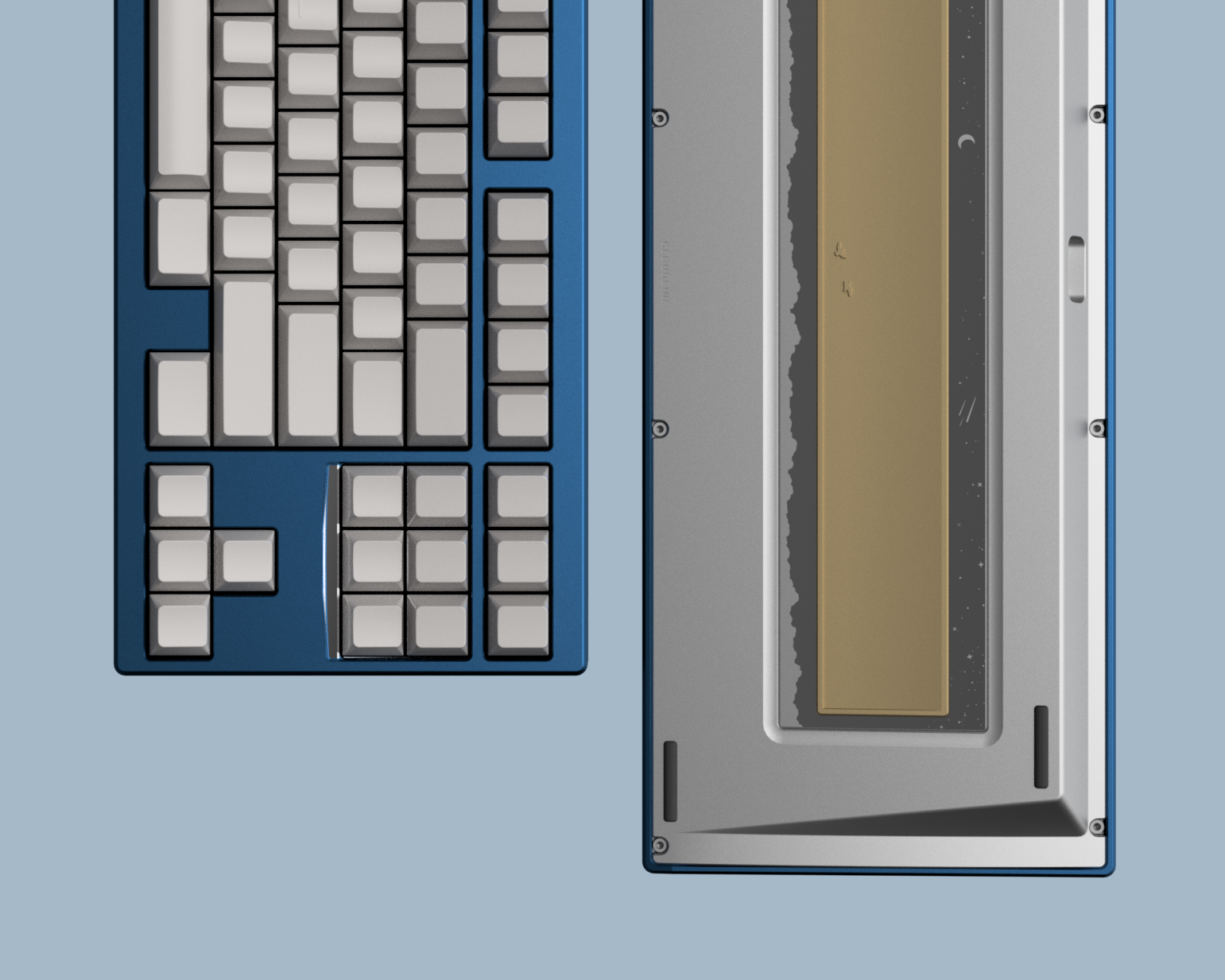

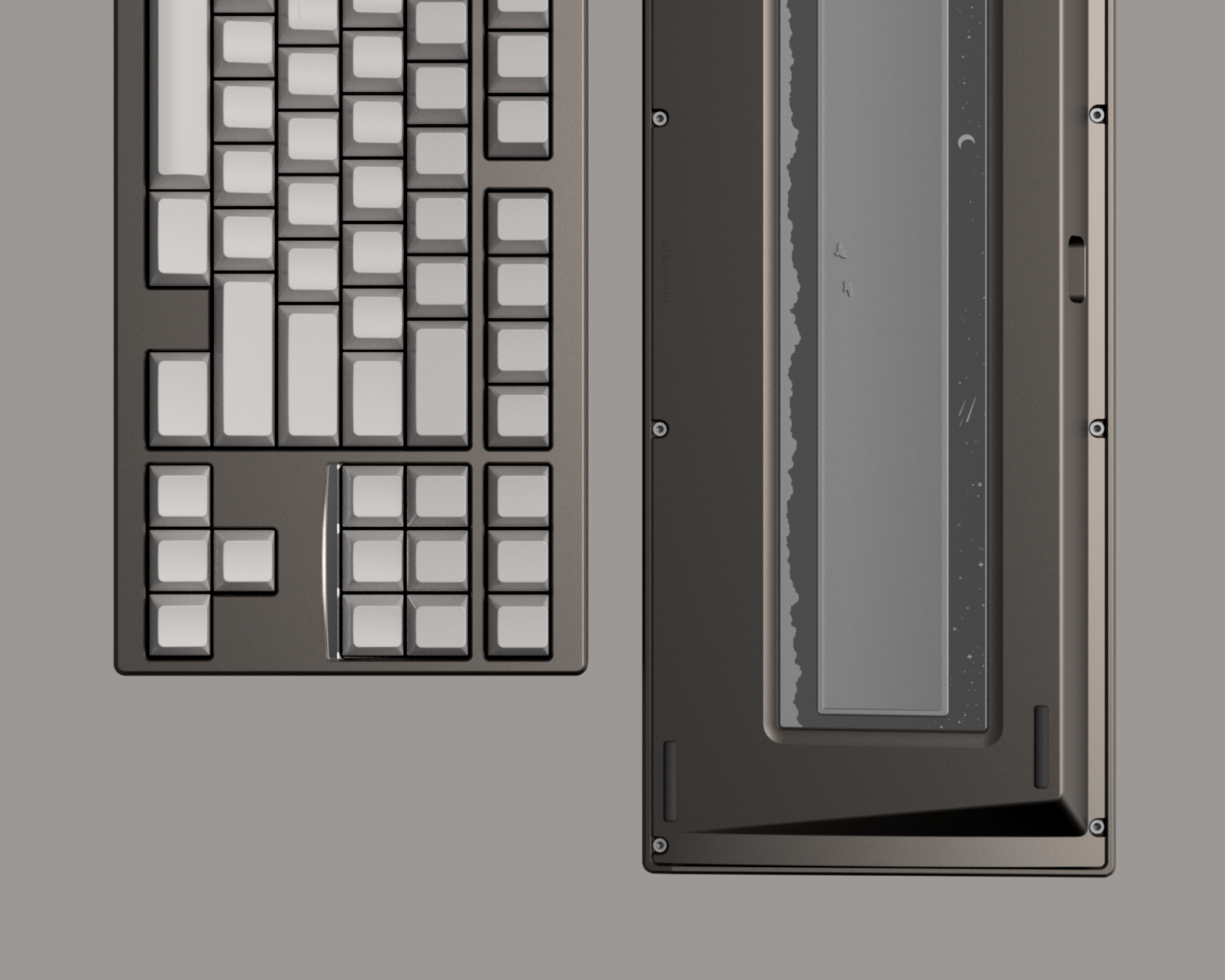

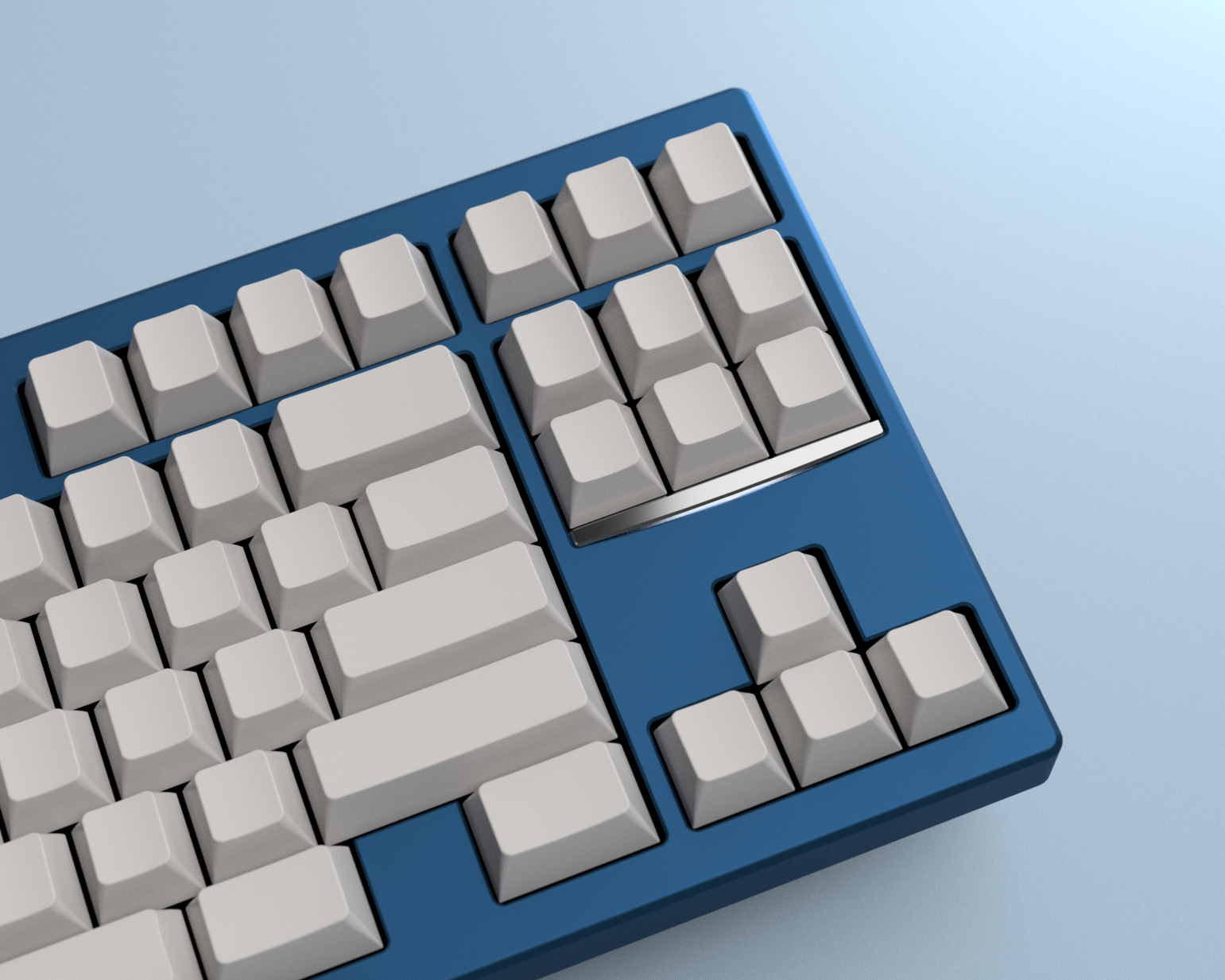

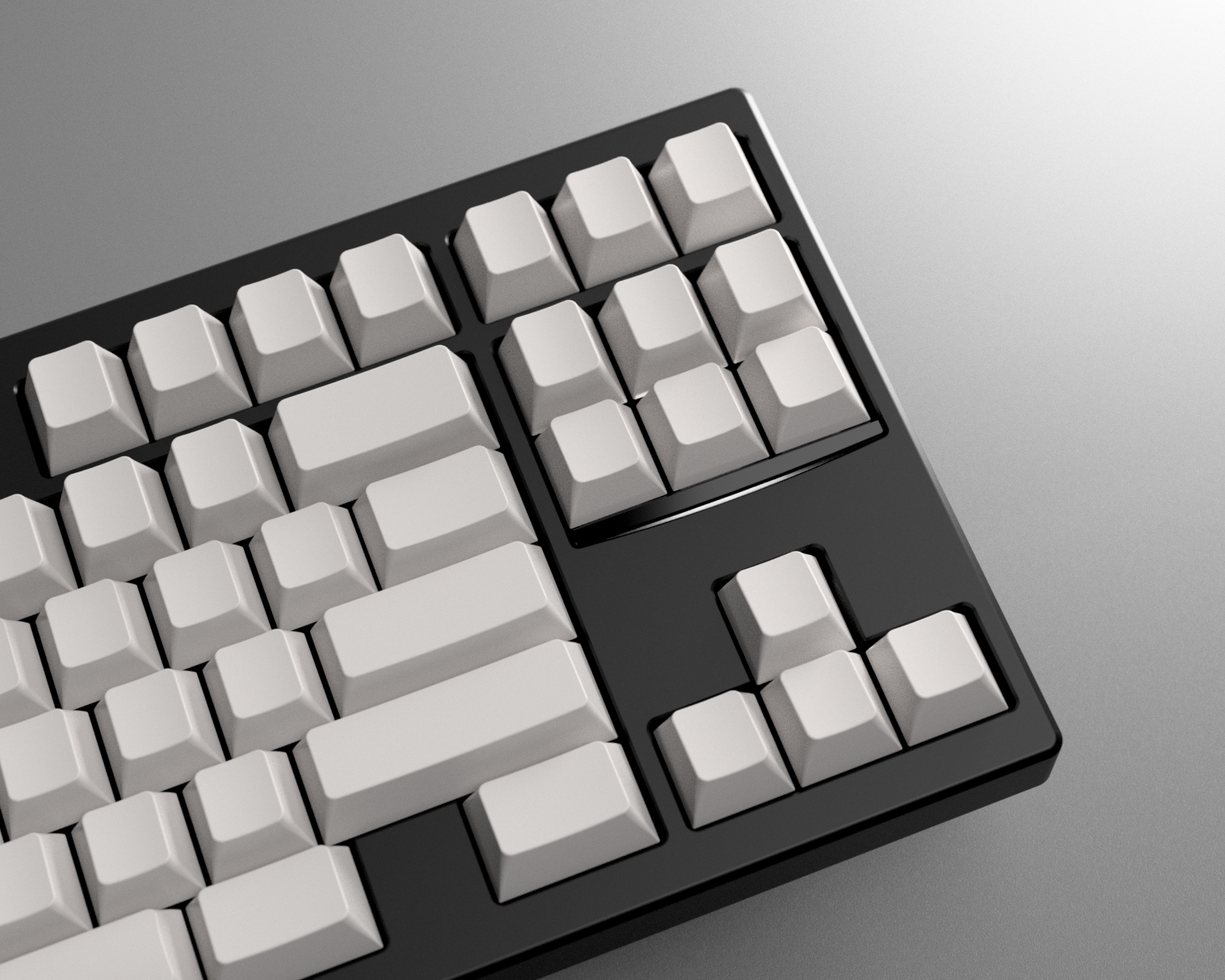

The intricate internal elements of Cloudline V1 were a major draw for many - however, a recurring (valid) sentiment was that owners preferred for it to be exposed. The bottom design has been reworked from the ground up to expose the signature contrasting weight finishes and beautifully detailed laser engravings. A new steel accent serves to differentiate the keyboard from above, while optional RGB references the silver lining namesake.
