(Pre Order) Neo65 Core Plus Keyboard Kit
Sale price£80.00
This product is a Pre-Order currently being manufactured to ship at a later date detailed in the product description below. It will be available for purchase until allocated stock sells through, or, the items arrive and move to our In Stock range.
Order soon as inventory in Pre-Order is discounted from full retail price and sells quickly!
Please read our guidance on Pre-Orders here: FAQ's
This is a Pre-Order, please read our guidance on Pre-Orders here: FAQ's
Pre-Order Ends: 30th September 2025
Expected Shipping time: Q1 2026
Introducing the Neo65 Core Plus from Neo Studio: a 65% keyboard refined through our O-ring and gasket dual-mounting structure. We've added a 3D copper weight into the unibody aluminum case and meticulously tuned its internal structure for better acoustics. The result is a natural, foam-free sound and a crisp, responsive keystroke experience that elevates every session without extra bulk.
Addons Available Here
Design Features

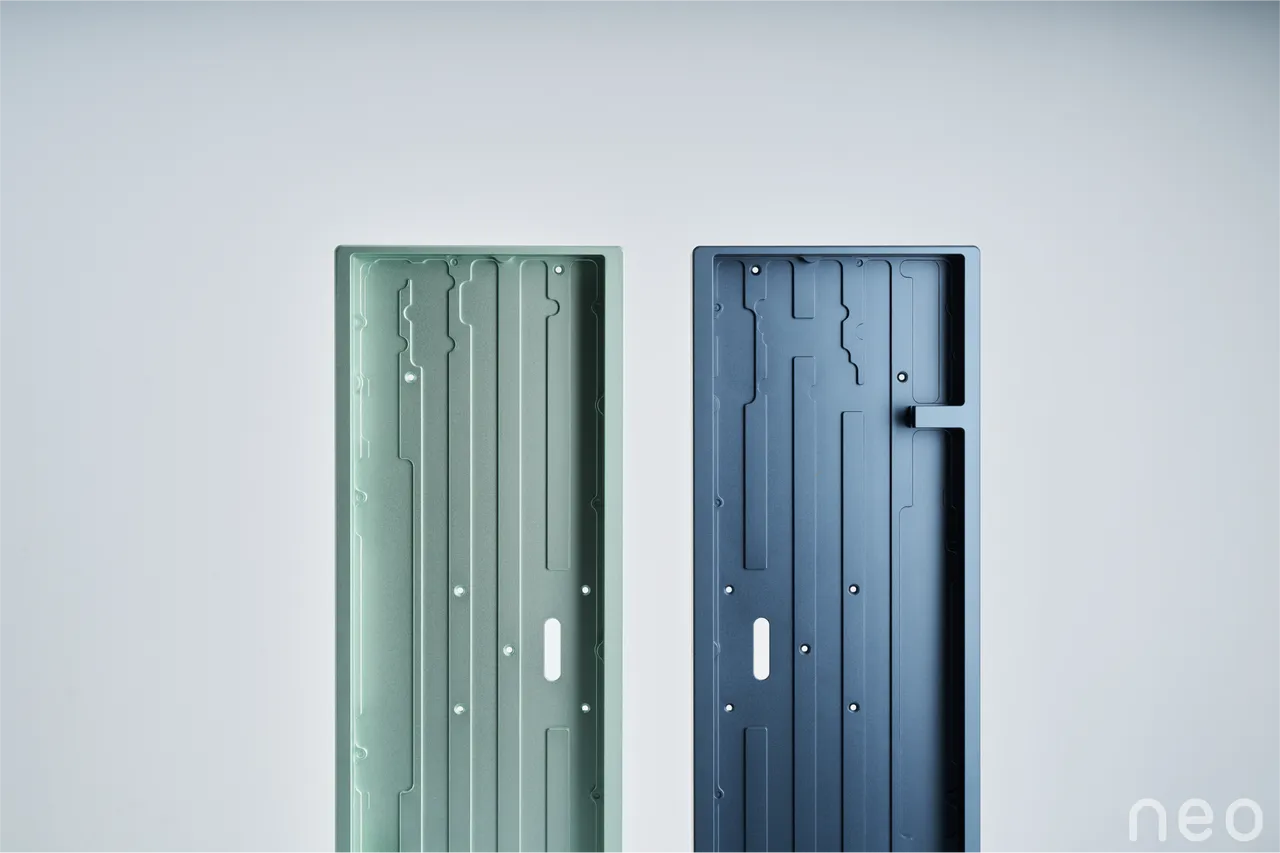

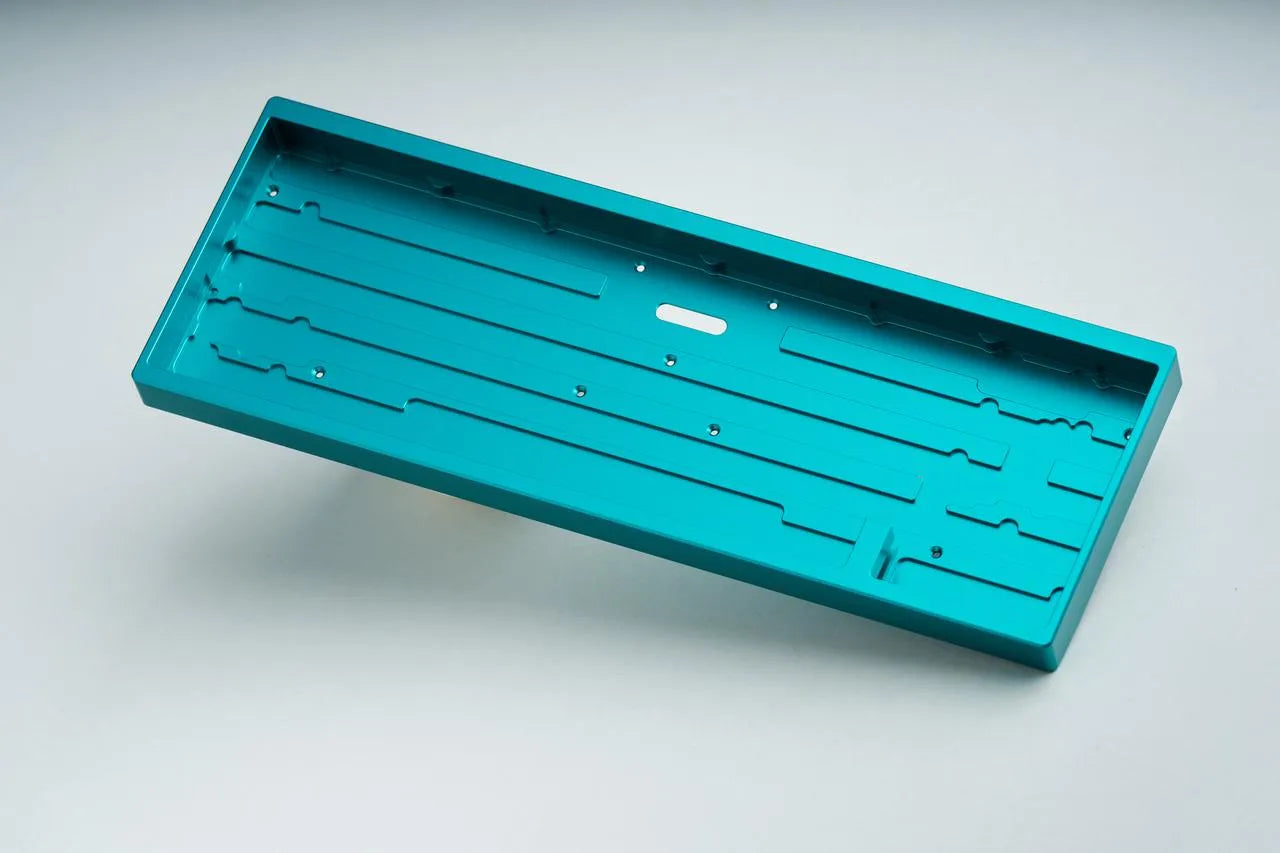

Unibody Case
Minimalism guides our design philosophy. The Neo65 Core Plus, like its predecessor Neo65, features ultra-slim side bezels that integrate seamlessly with any desk setup, regardless of theme.

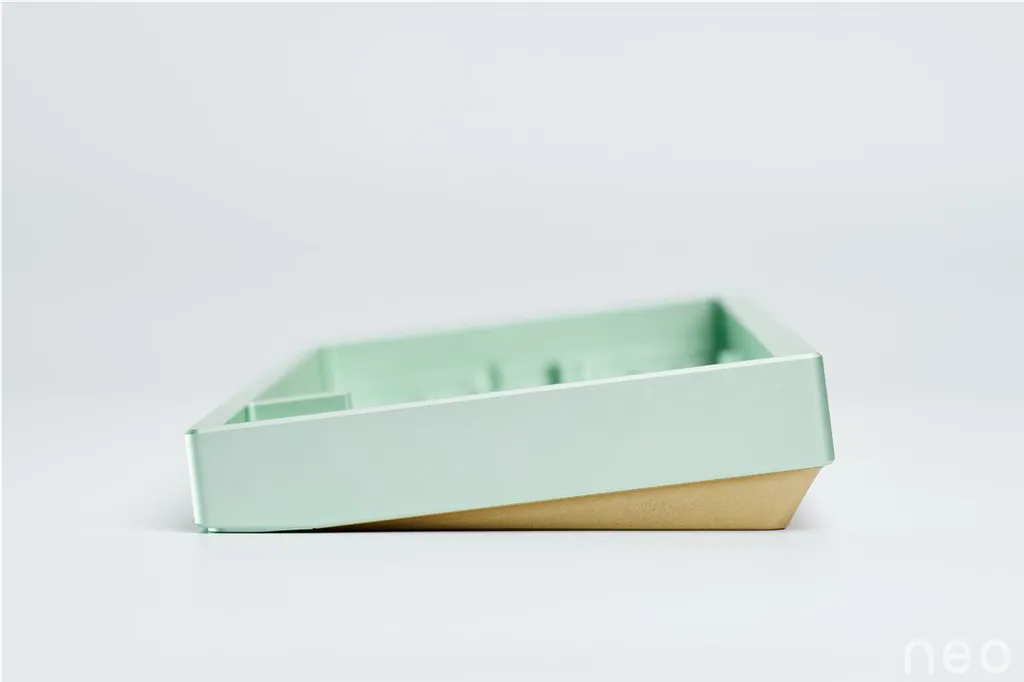

Neat Side Profile
The inward-sloping edge complements the front's minimal design while making the keyboard easier to lift and handle.

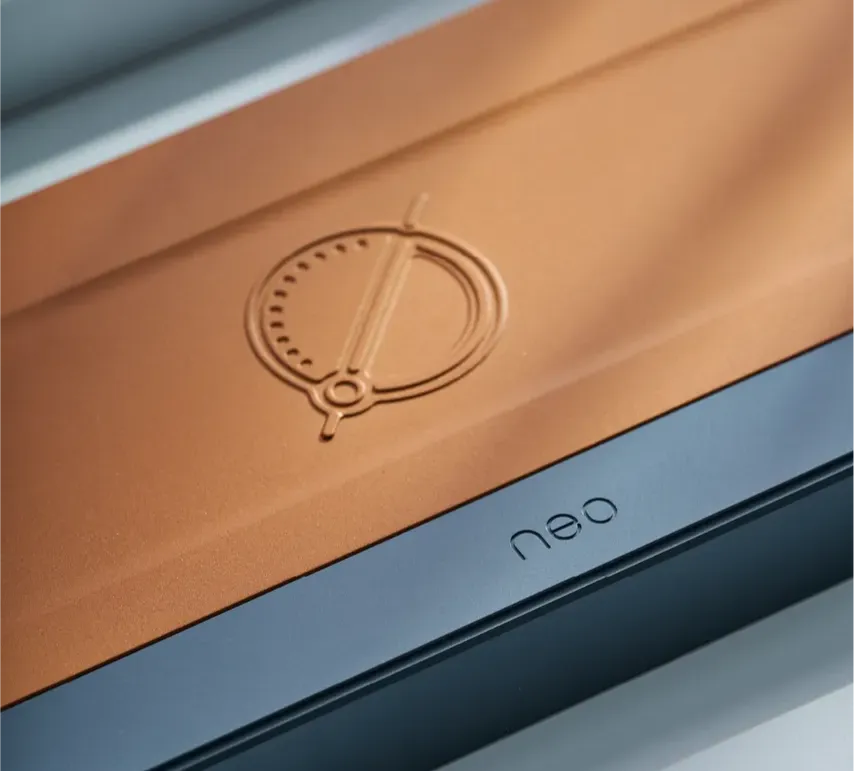

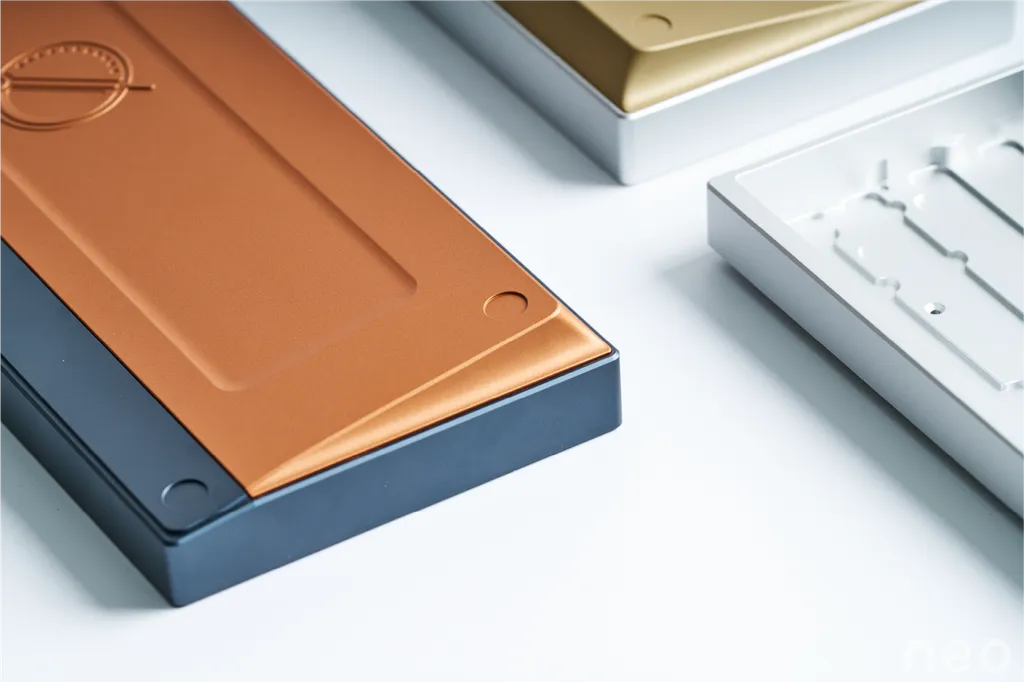

Weight with Orbit Engraved Logo
The engraved orbit logo on the weight builds on the Neo65’s design, adding just a few extra details to showcase the Core Plus series upgrade.
Acoustics Performance You Can Trust
Experience a crisper, brighter sound profile with the Neo65 Core Plus. We've perfected the bottom case's sound chamber using resonance principles and precision port placement to eliminate hollow echoes. Unlike the deeper tones of a copper bottom case like Neo65 Cu, this aluminum version creates a bright, lively tone—making every keystroke sounds more refreshing.

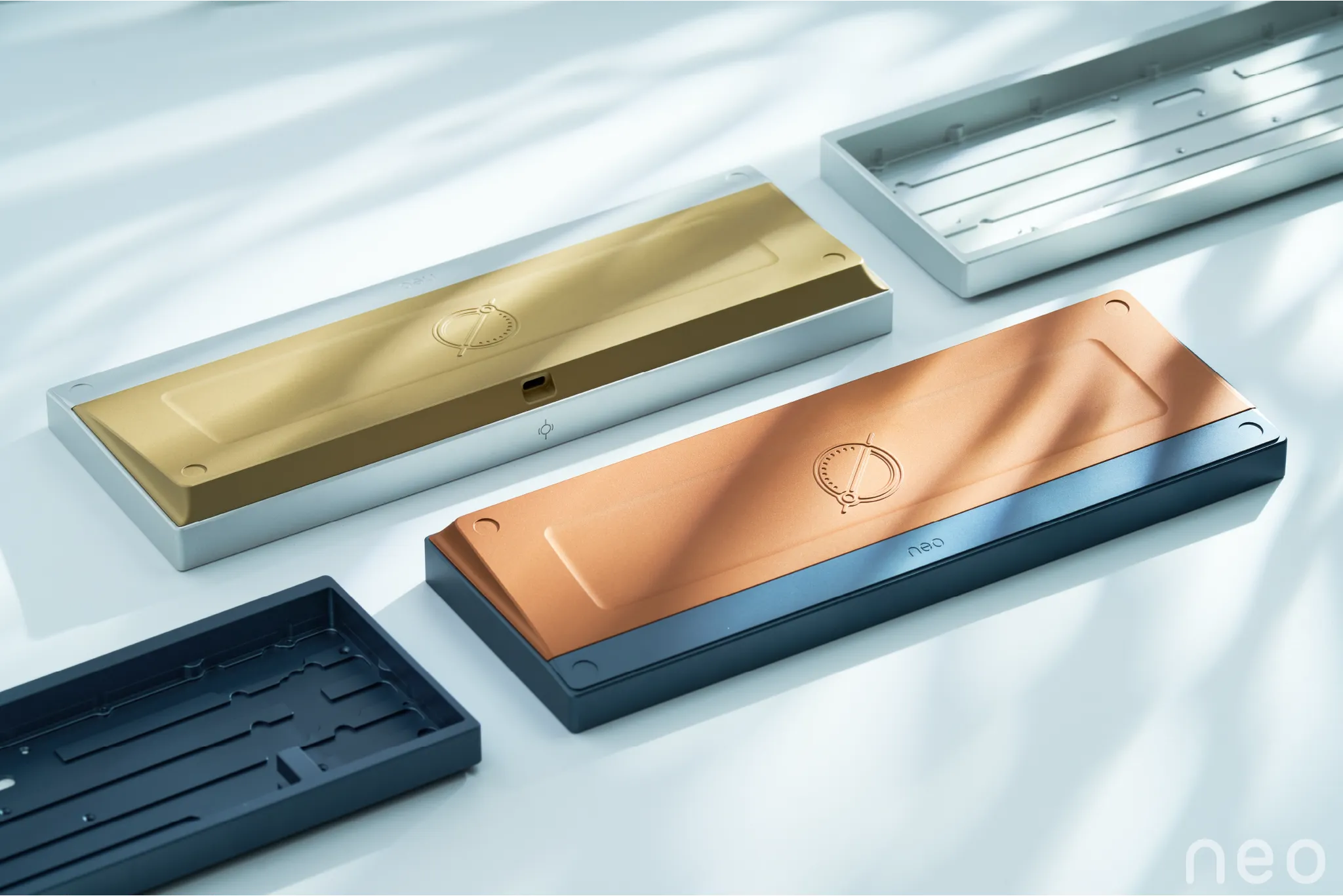

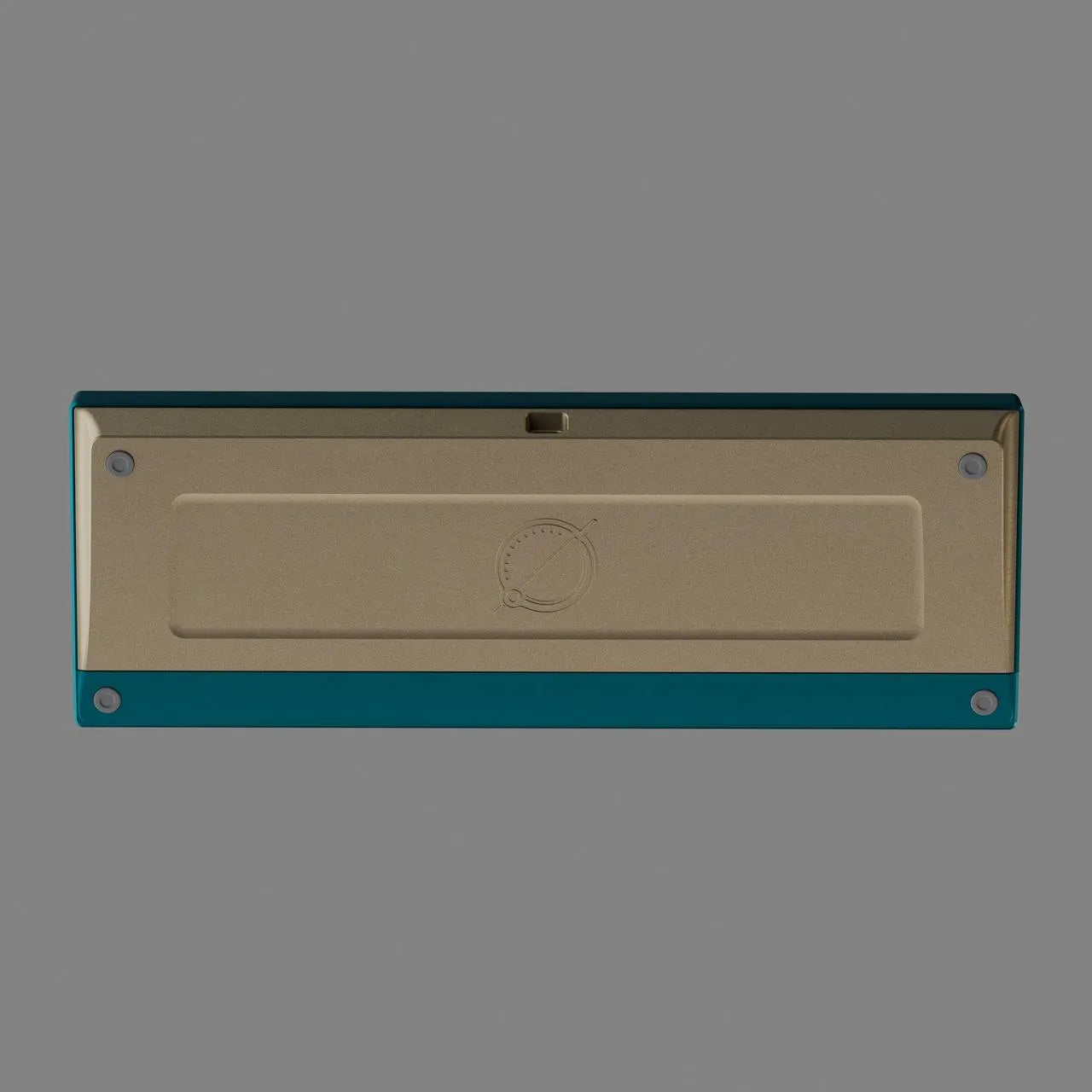

The substantial 3D copper weight on the Neo65 Core Plus anchors the keyboard both visually and functionally, dampening unwanted vibrations during typing. This adds a delightfully solid heft compared to the previous Neo65 and delivers a purer, more transparent key-on-case tone—all without requiring any foam.
Upgraded Aluminum & CF Plates
Both our aluminum and CF plates now feature a redesigned layout with a strategic slot above the spacebar. This slot helps absorb impact, reducing collision noise and wobble, while improving flexibility. The result is a more consistent typing feel between the spacebar and the rest of the keys.
Dual-Mounting System with Upgraded Gasket
- Support both PCB gasket mount and gummy O-ring mount (not compatible with plateless configurations)
- Our specially designed gaskets make installing the PCB and plate assembly into the case significantly easier
- The sloped-slot on the gasket distributes pressure evenly across the surface instead of concentrating it at one point, providing consistent cushioned rebound and stable support with every keystroke
Craftsmanship Elevated
We’ve elevated our anodizing process to achieve an ultra-fine, silky finish. With lower surface roughness, you’ll notice and appreciate the premium look and feel from every angle and every touch.

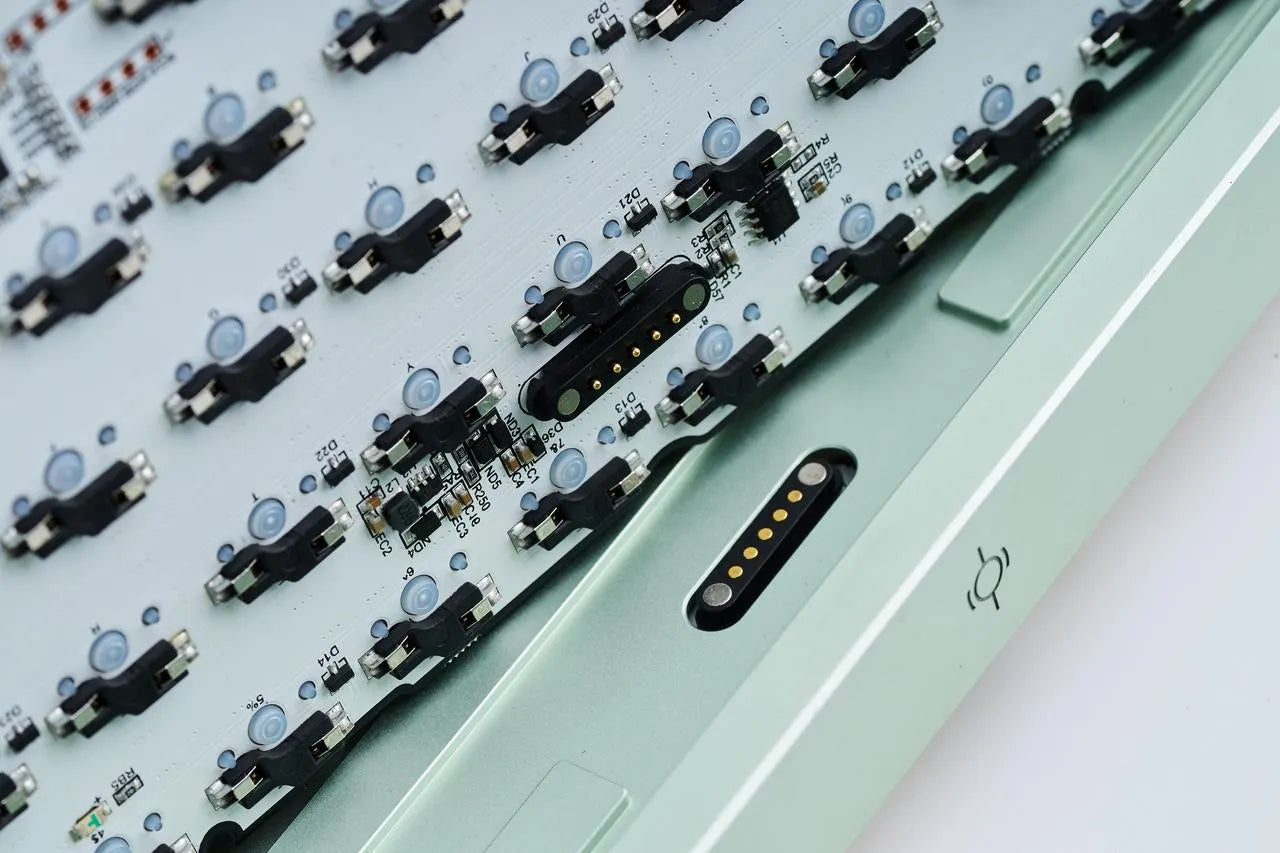

Lock-n-Pull Mechanism + Magnetic Connectors
Many users considered the absence of a pogo-pin connector the biggest pity in the original Neo65 a pity, but now we've addressed this on the Neo65 Core Plus. The pogo-pin connector allows you to remove the PCB in seconds without risking cable damage. With an integrated internals-removal port and included tool, upgrades and customization become effortless, giving you complete freedom to adapt your Neo65 Core Plus to match any style or setup.
Specifications:
- Typing angle: 7 degree
- Front height: 18.1mm
- Size: 312.7mm * 110.7mm
-
Weight(without PCB and plate)：
- case with brass weight: 1.335kg
- case with copper weight: 1.420kg

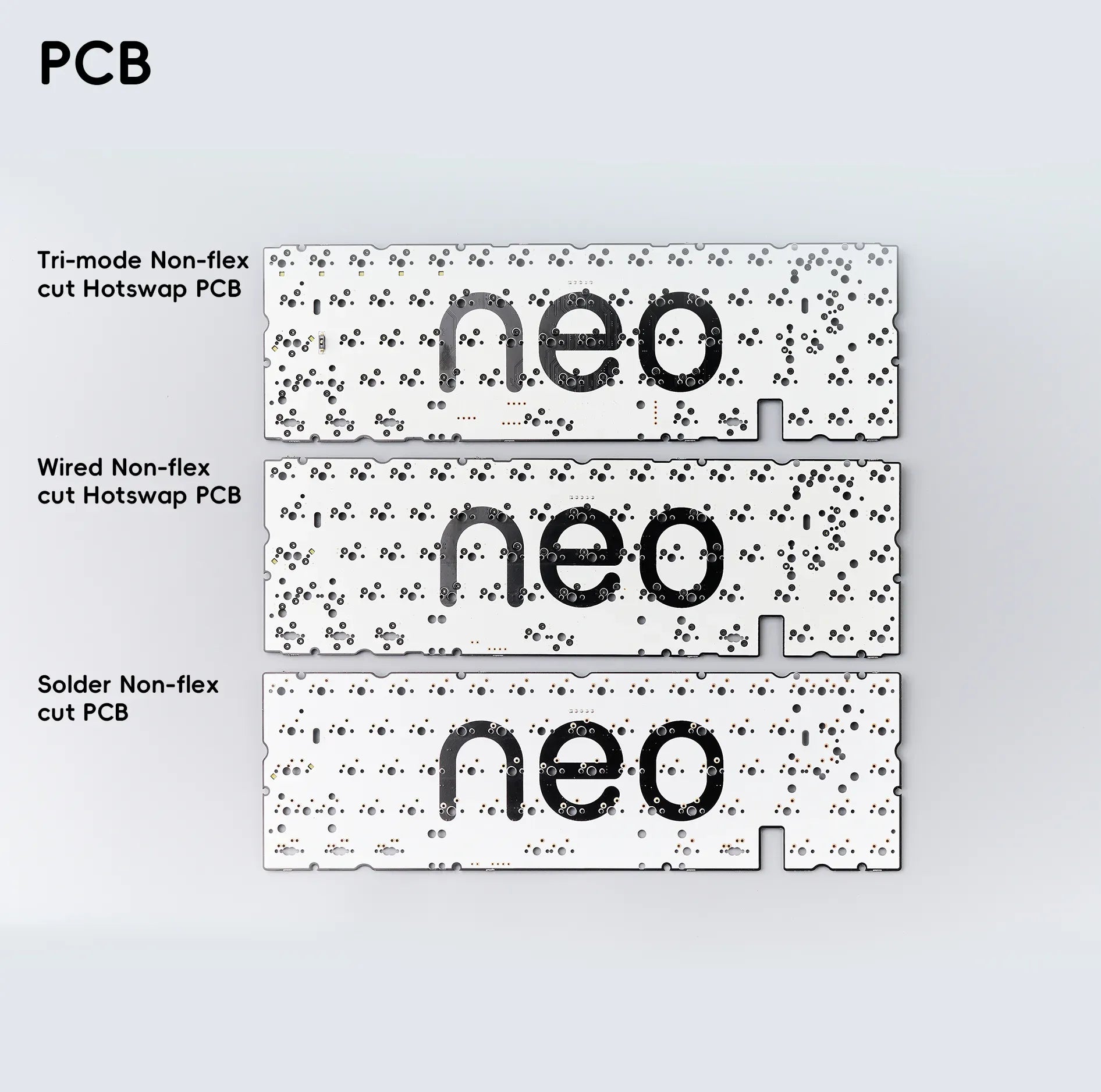

PCB Options:
-
Tri-mode Hotswap PCB
- 1.6mm thick, non-flex cut
- Support USB-C, Bluetooth, and 2.4GHz connection
- Support both ANSI and ISO layout
- VIA Compatible
- NKRO
- NO Per-key RGB
-
Wired Hotswap PCB
- 1.6mm thick, non-flex cut
- USB-C connection only
- Support both ANSI and ISO layout
- VIA Compatible
- NKRO
- NO Per-key RGB
-
Solder PCB
- 1.6mm thick, non-flex cut
- USB-C connection only
- Support both ANSI and ISO layout
- VIA Compatible
- NKRO
- NO Per-key RGB

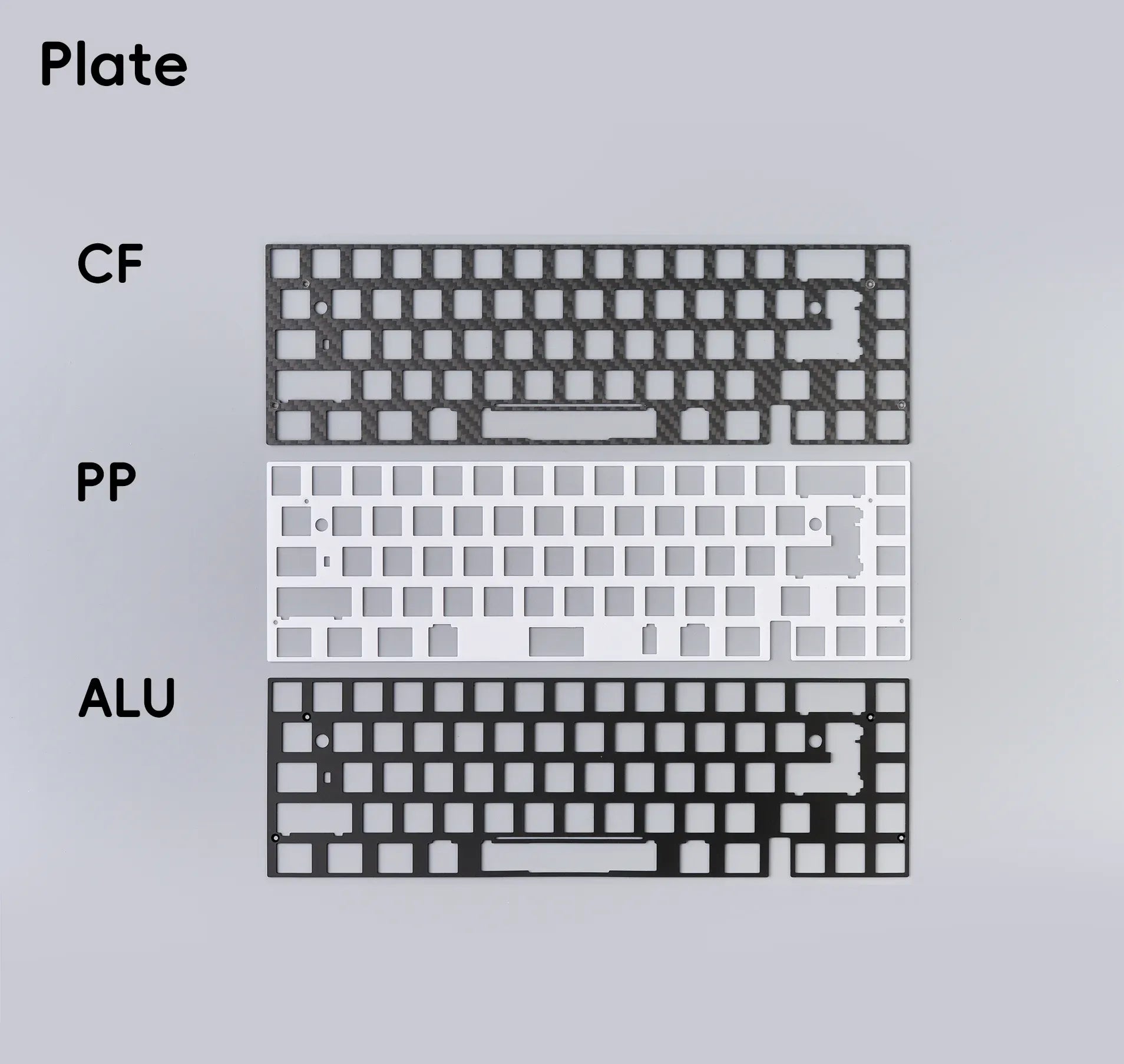

Plates Options
-
Hard —————————> Soft:
Carbon Fiber > Aluminum > PP
-
Clack ————————> Thock:
Carbon Fiber > Aluminum > PP
Colour Options
The Neo65 Core Plus introduces several new colours, including the special Heather Purple, Jade, and Slate Blue. Bring a fresh look to your desk setup with these exciting options. Which coloor would you choose?

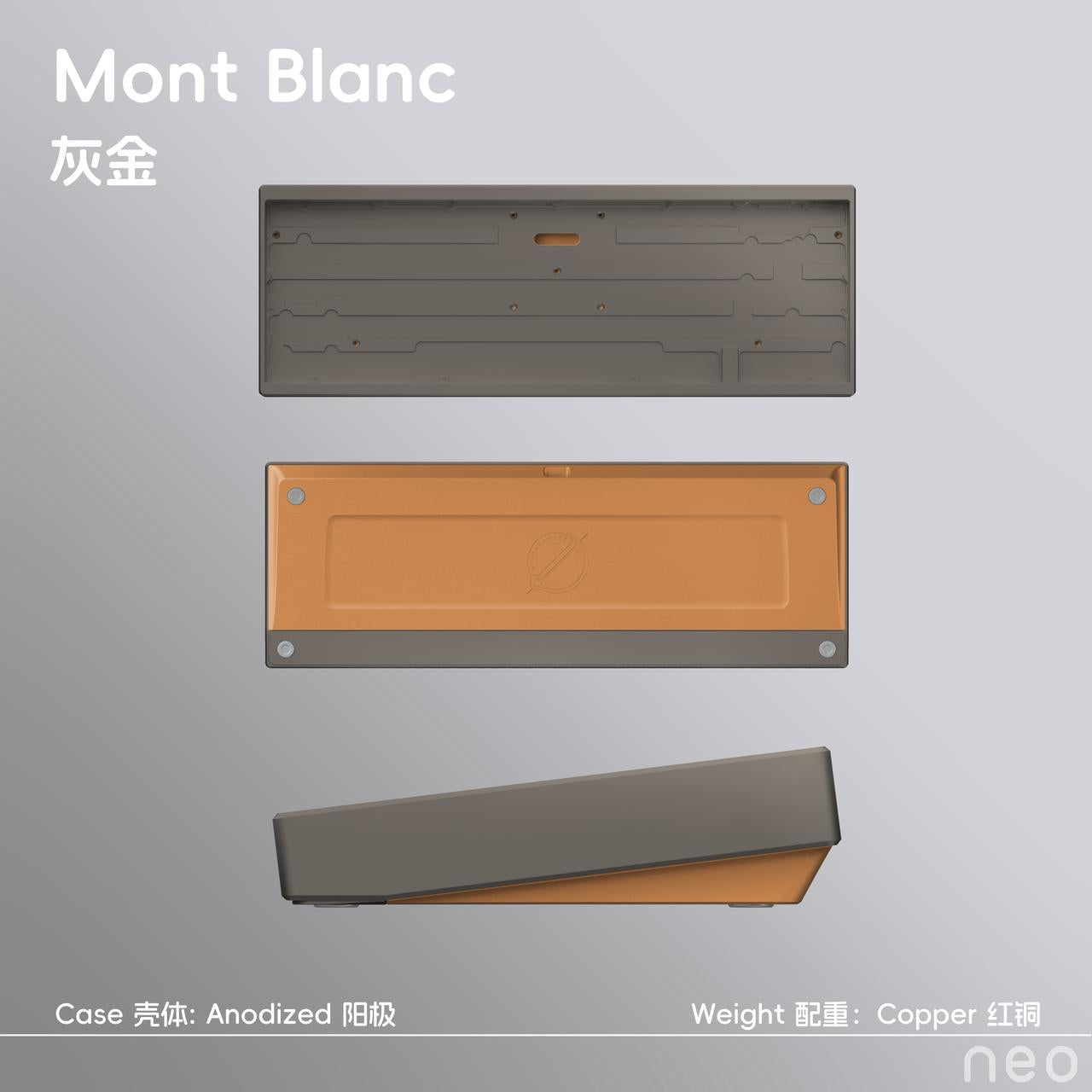

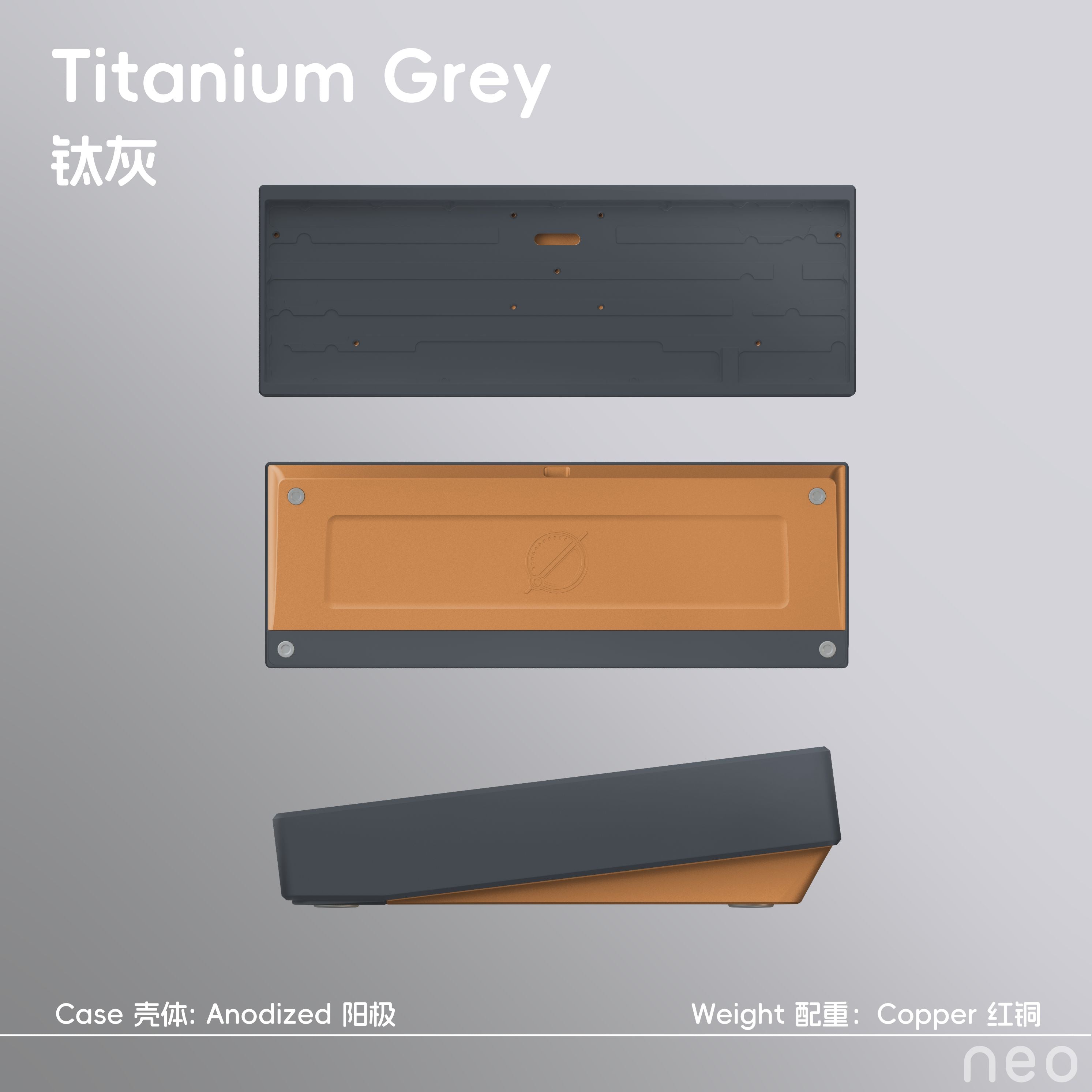

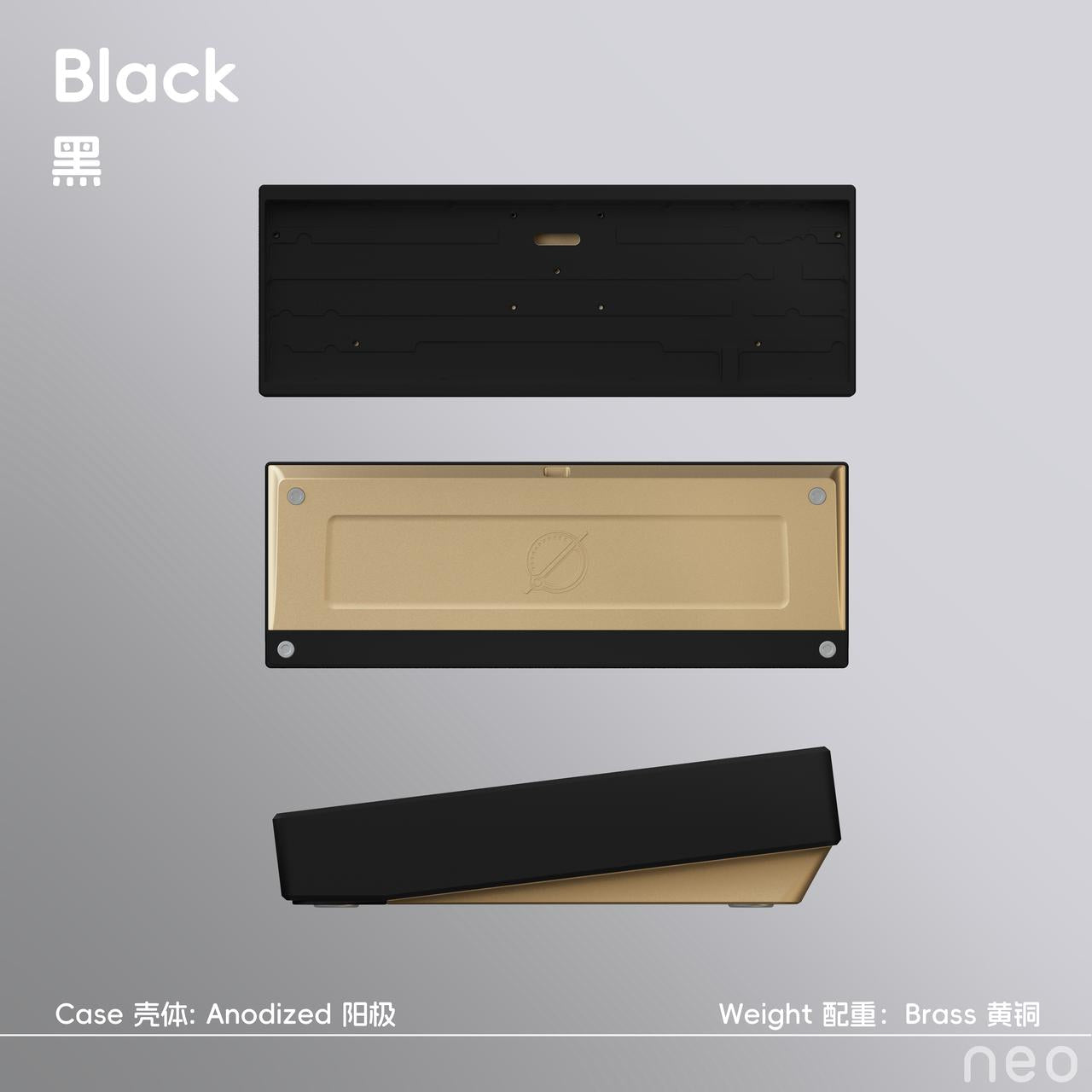

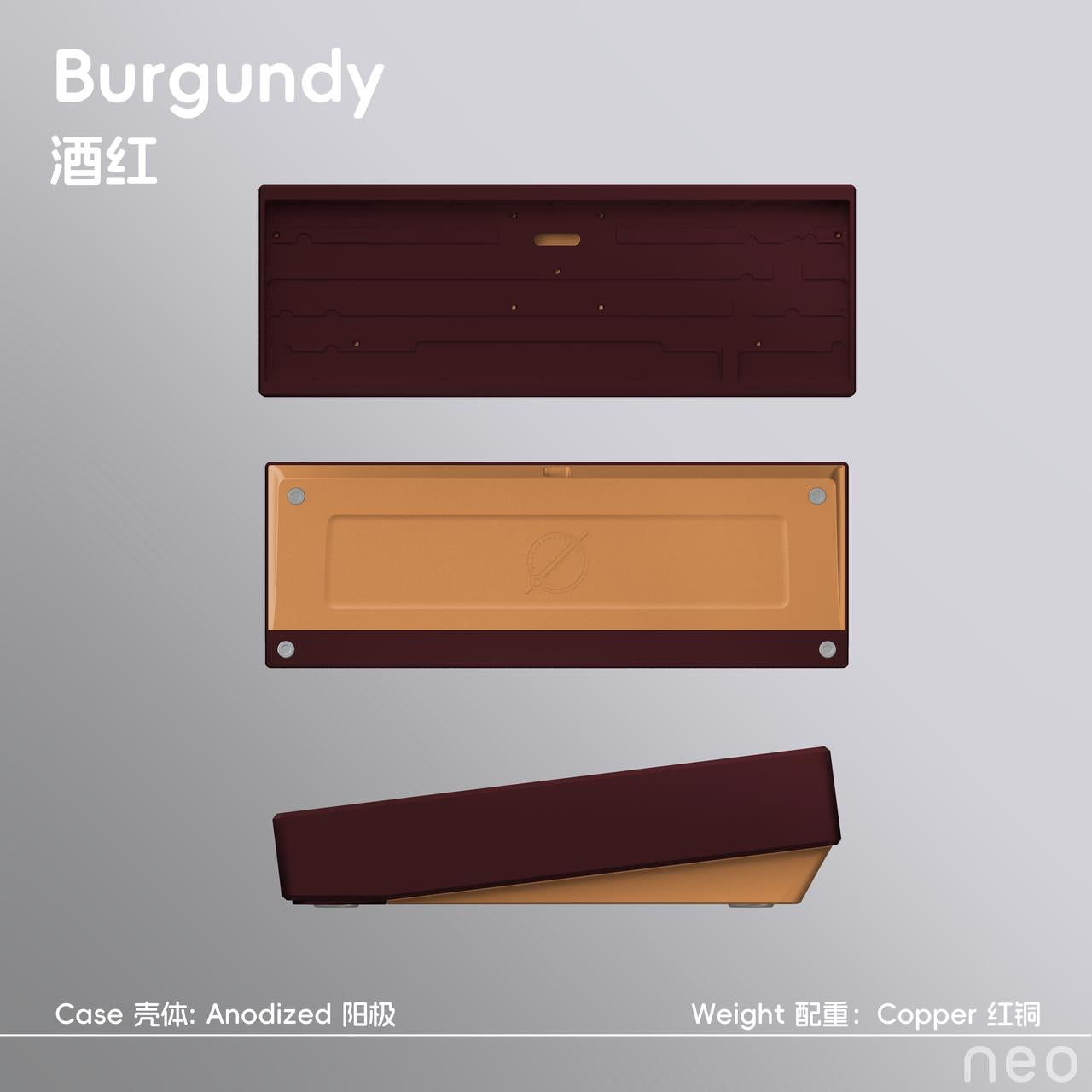

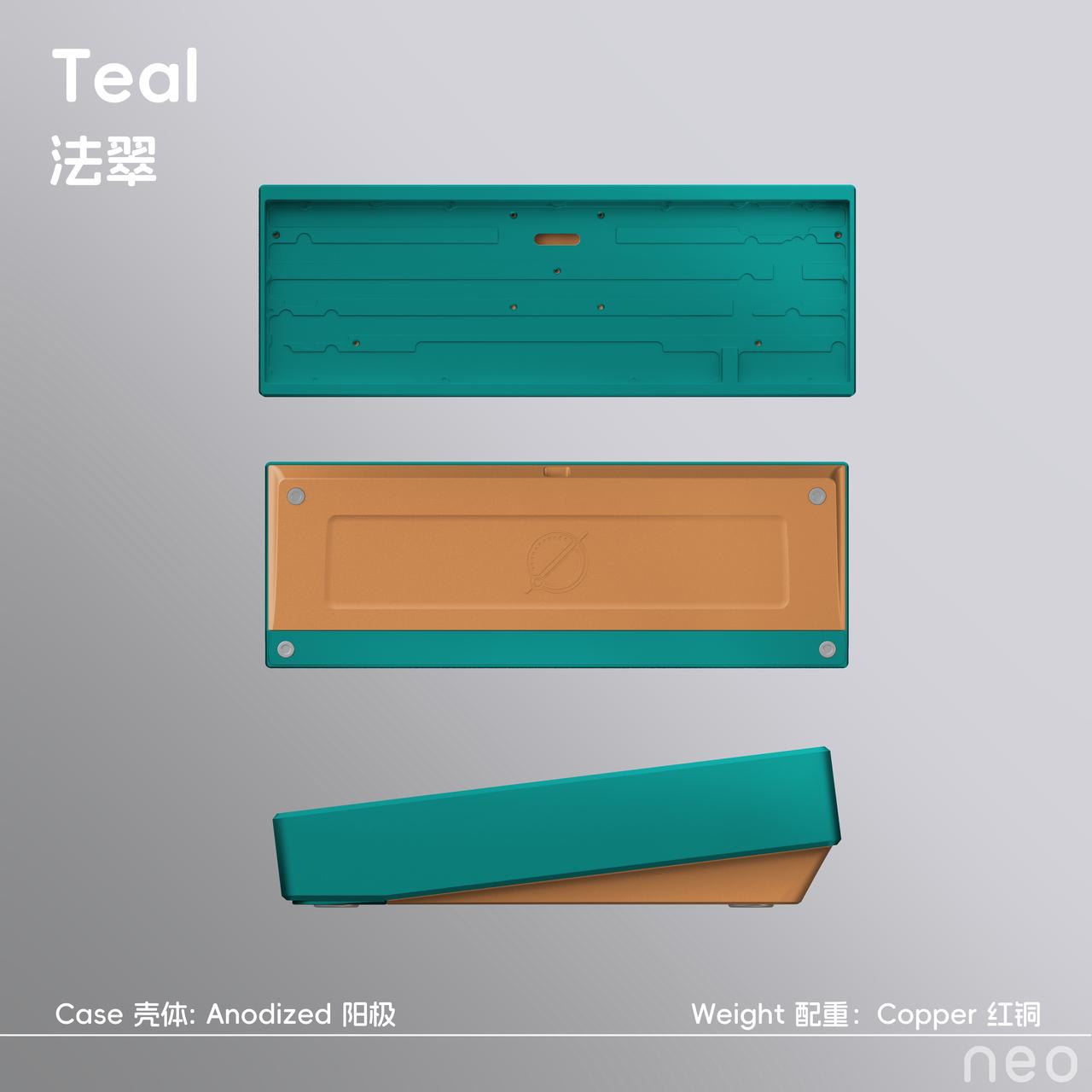

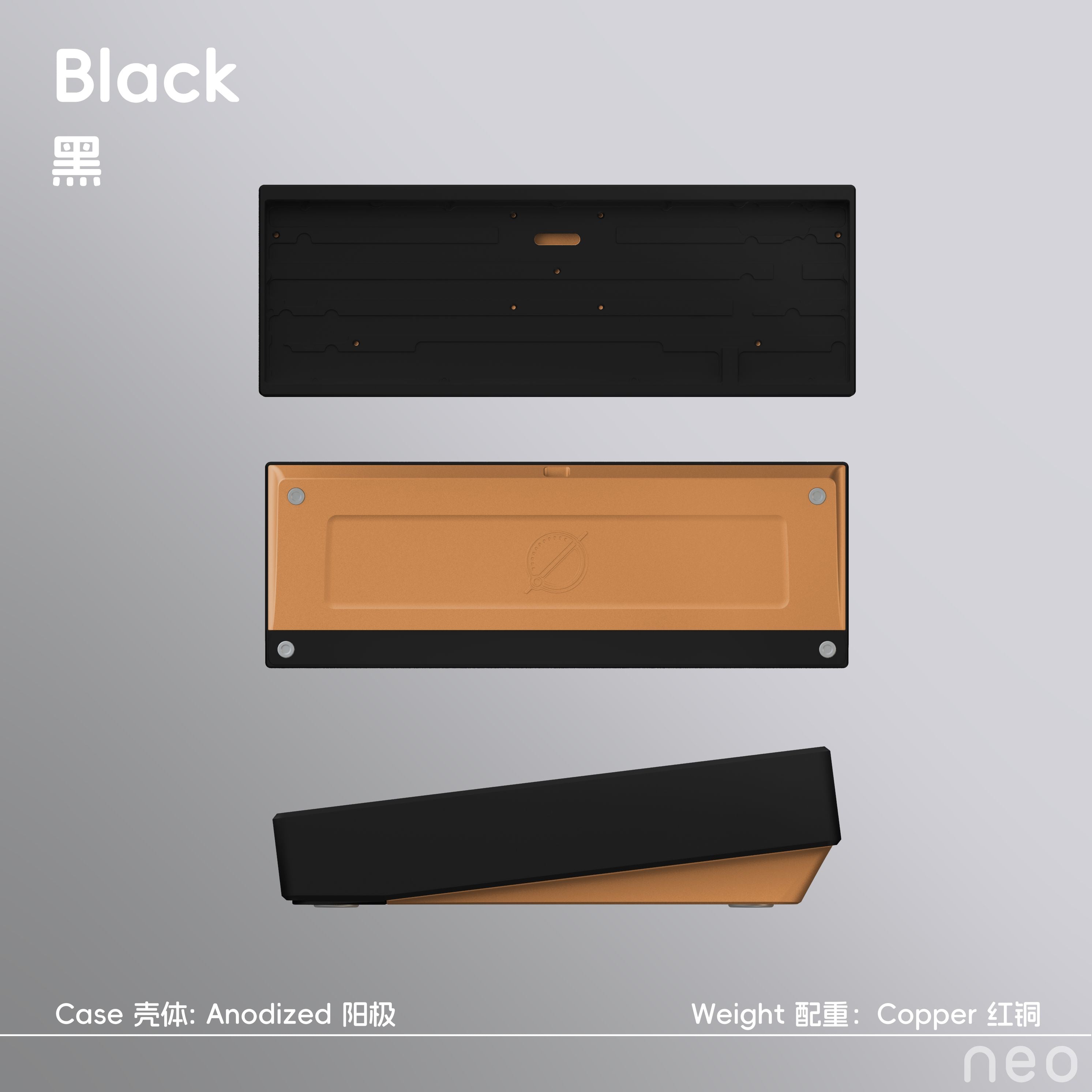

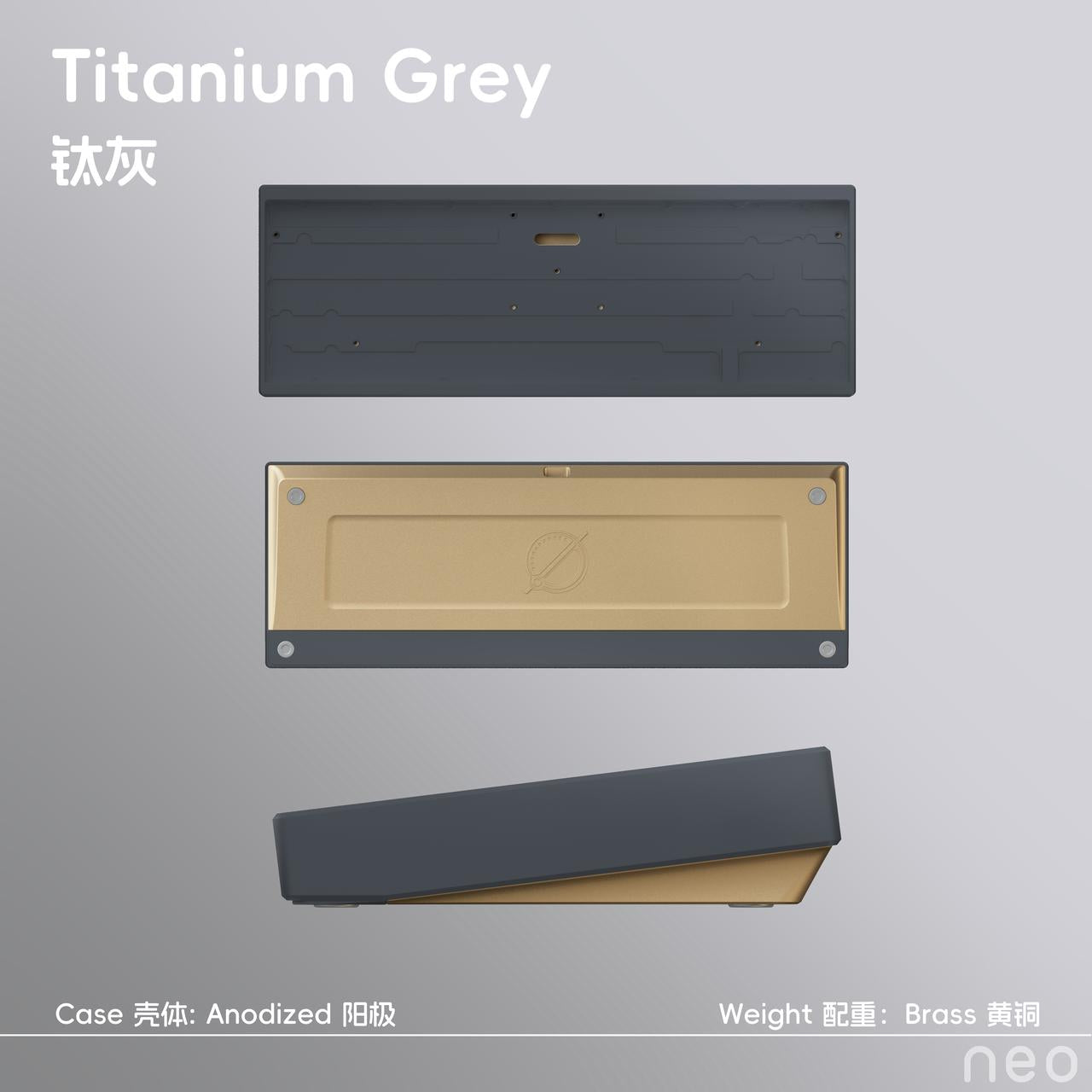

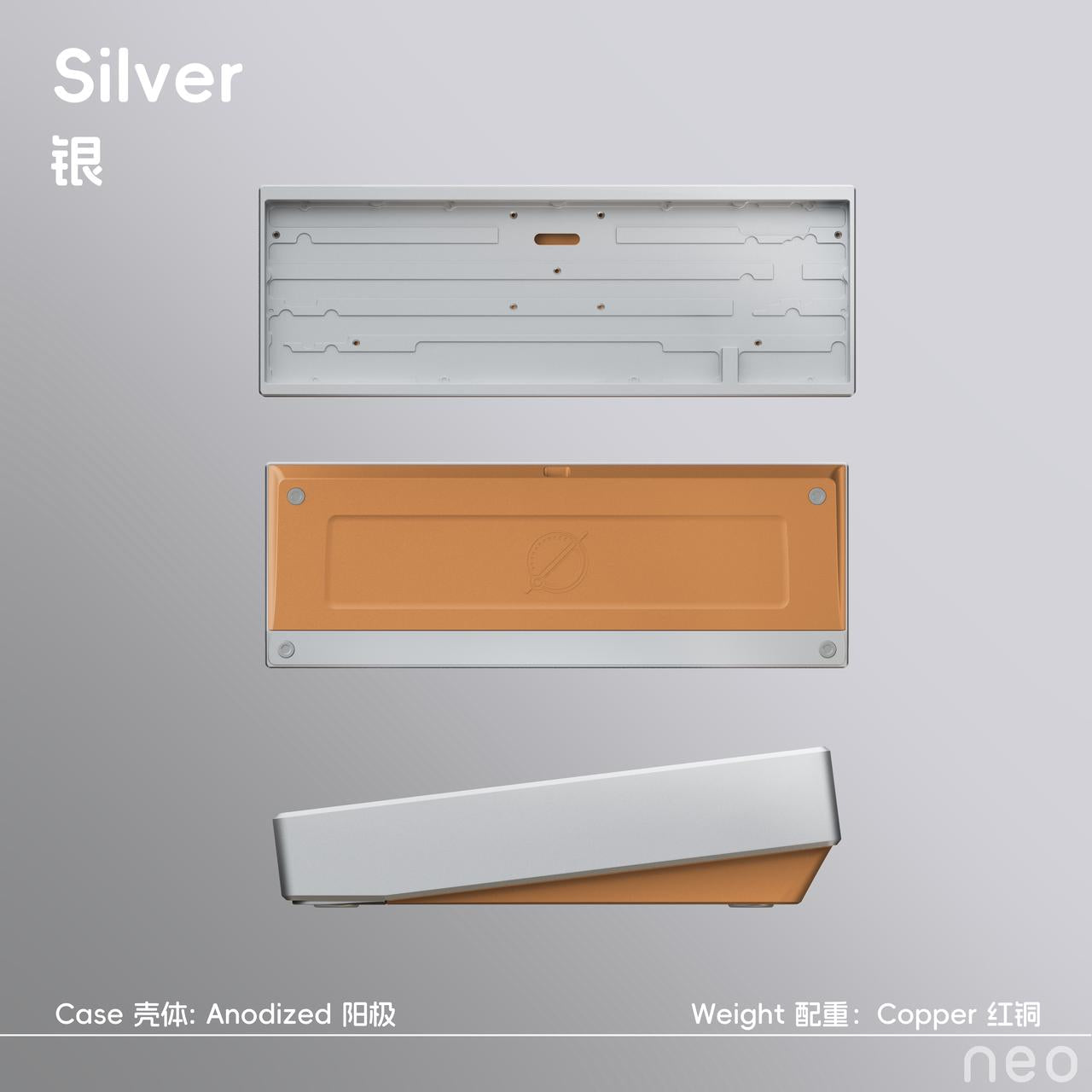

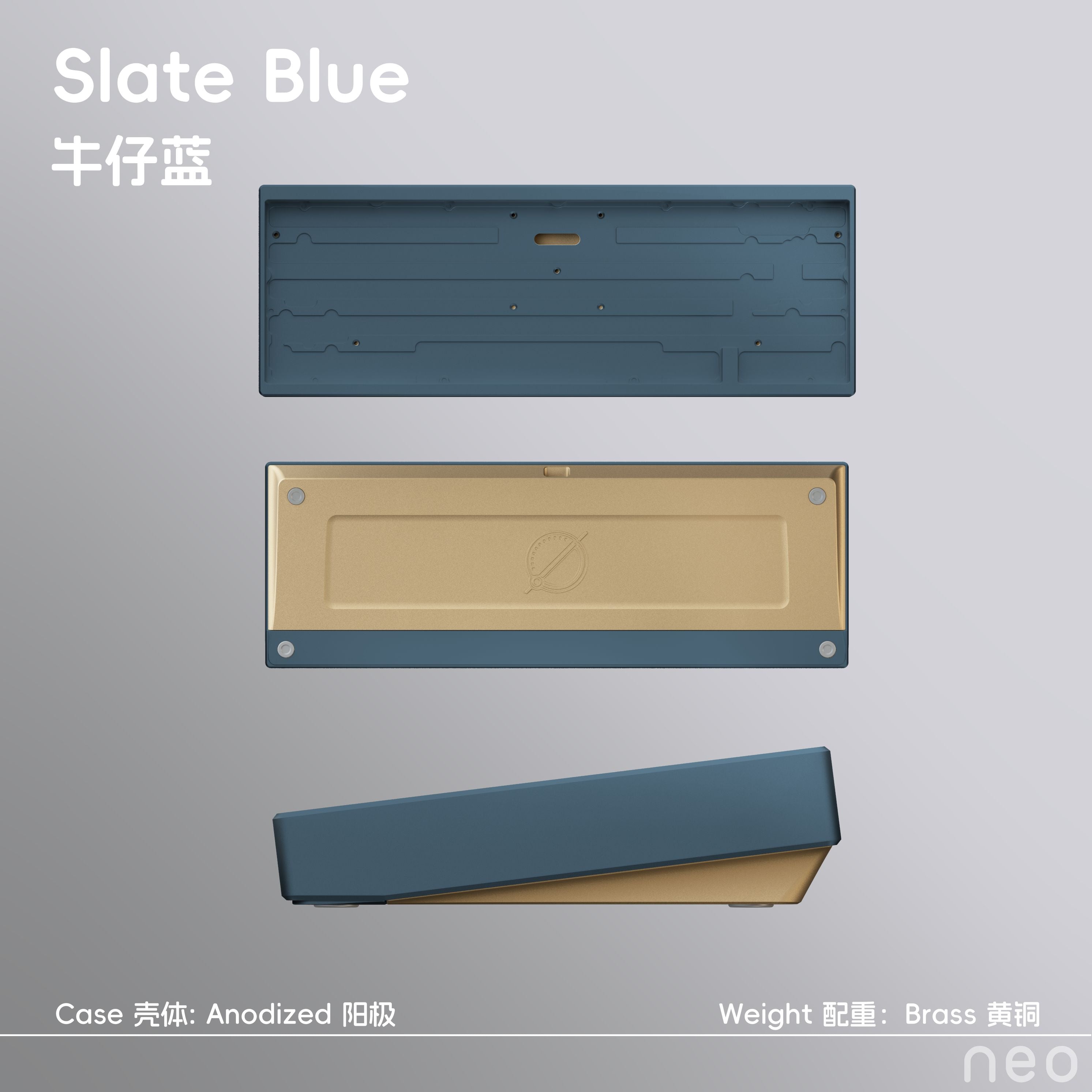

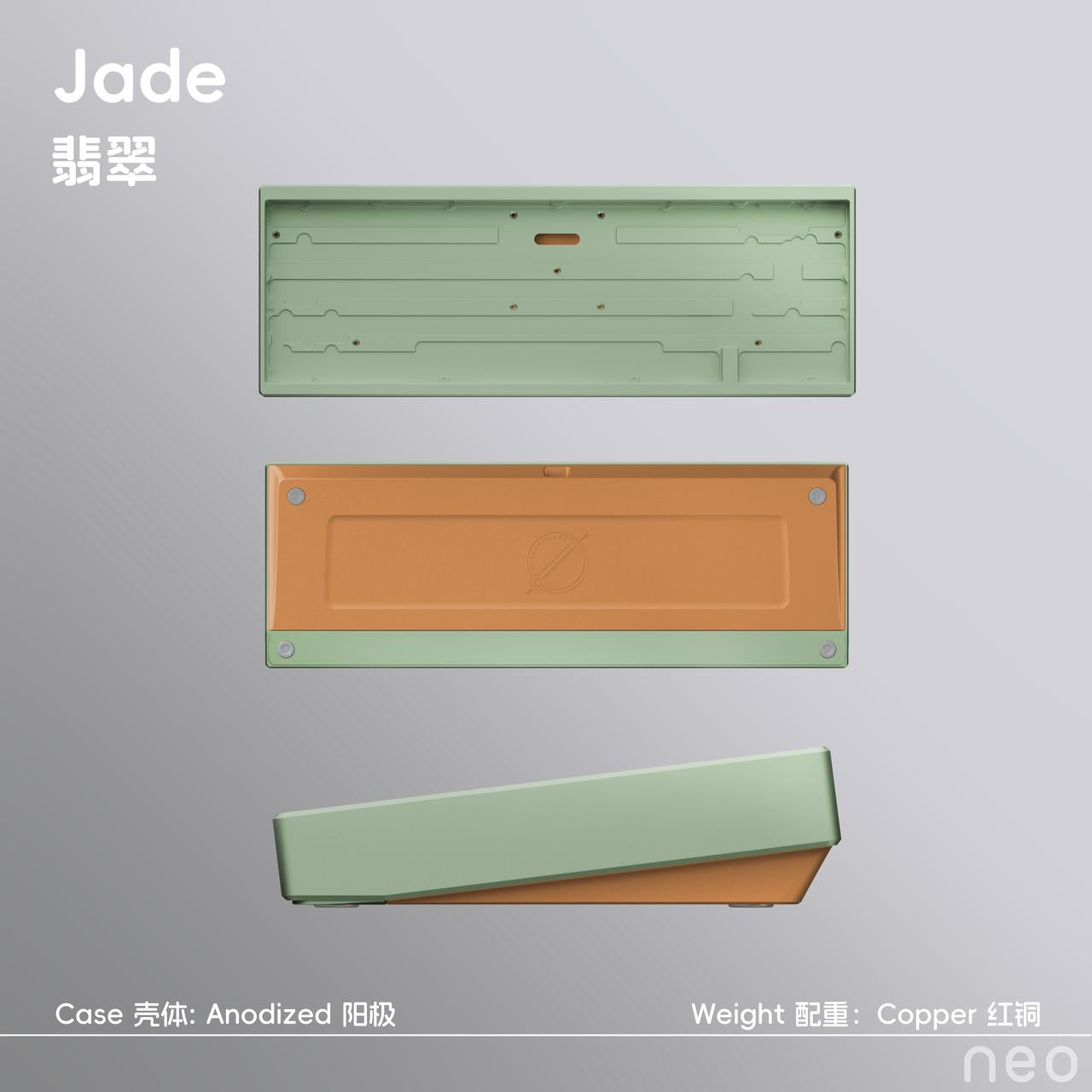

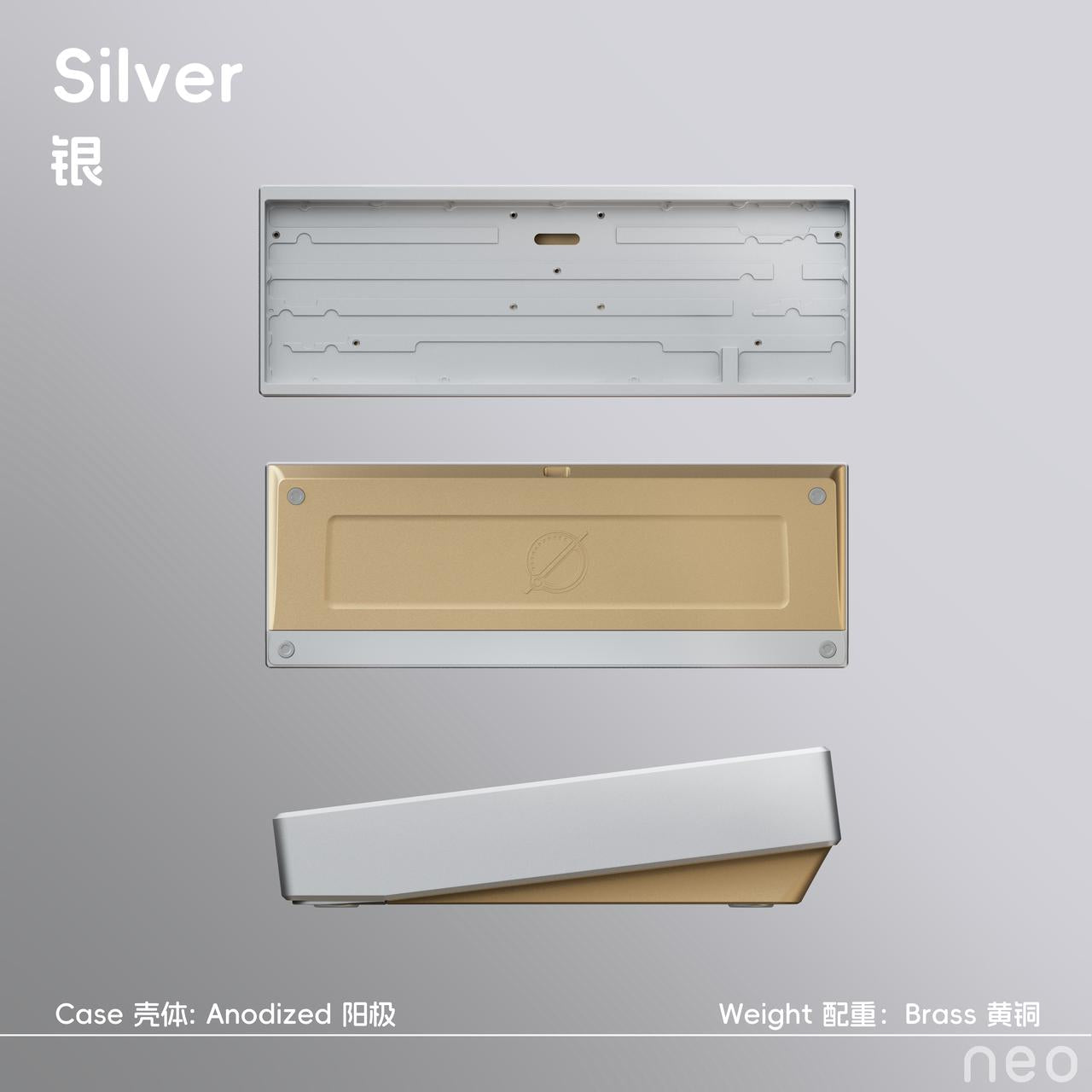

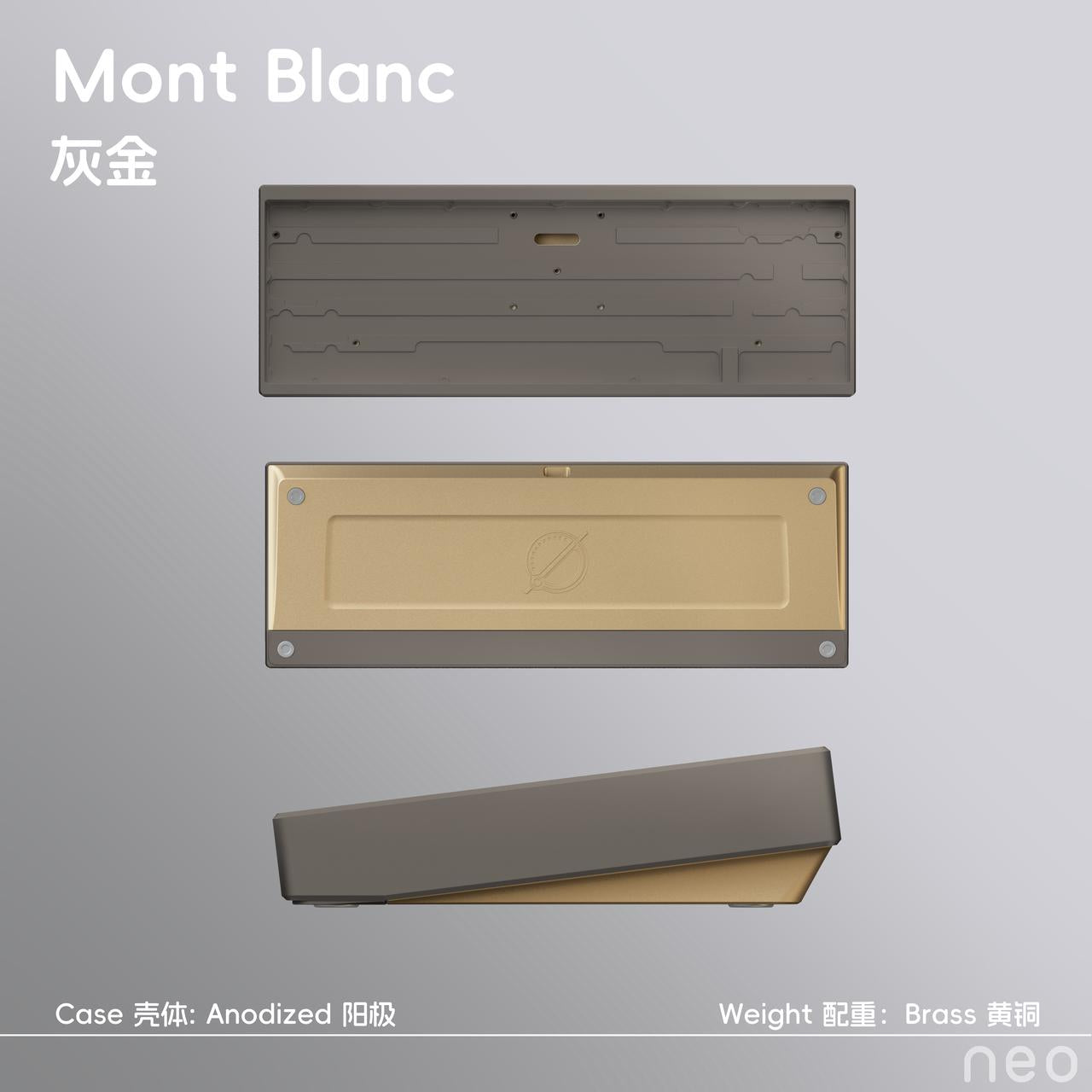

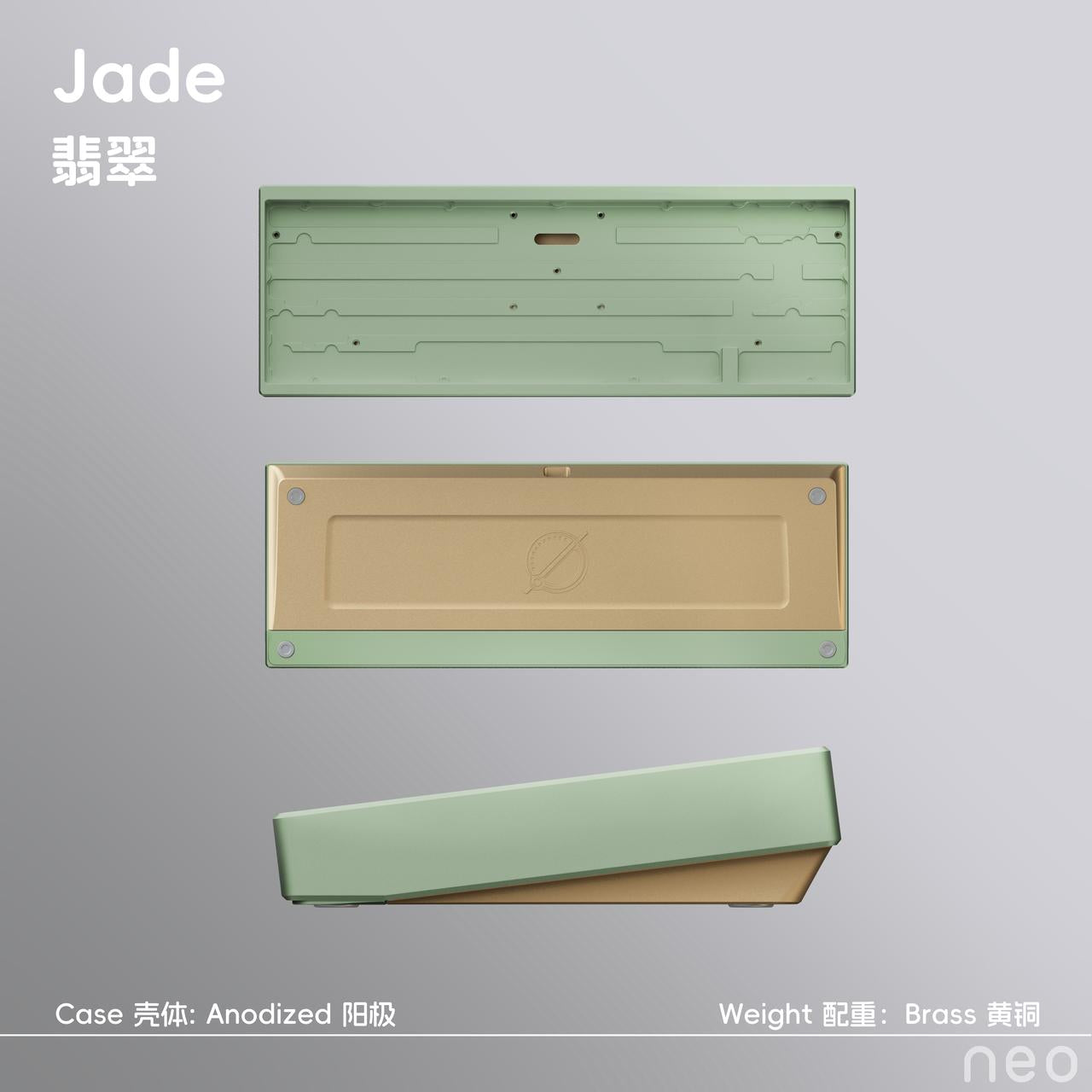

Nine Anodised Colours: Burgundy, Heather Purple, Black, Titanium Grey, Teal, Jade, Slate Blue, Mont Blanc, Silver.

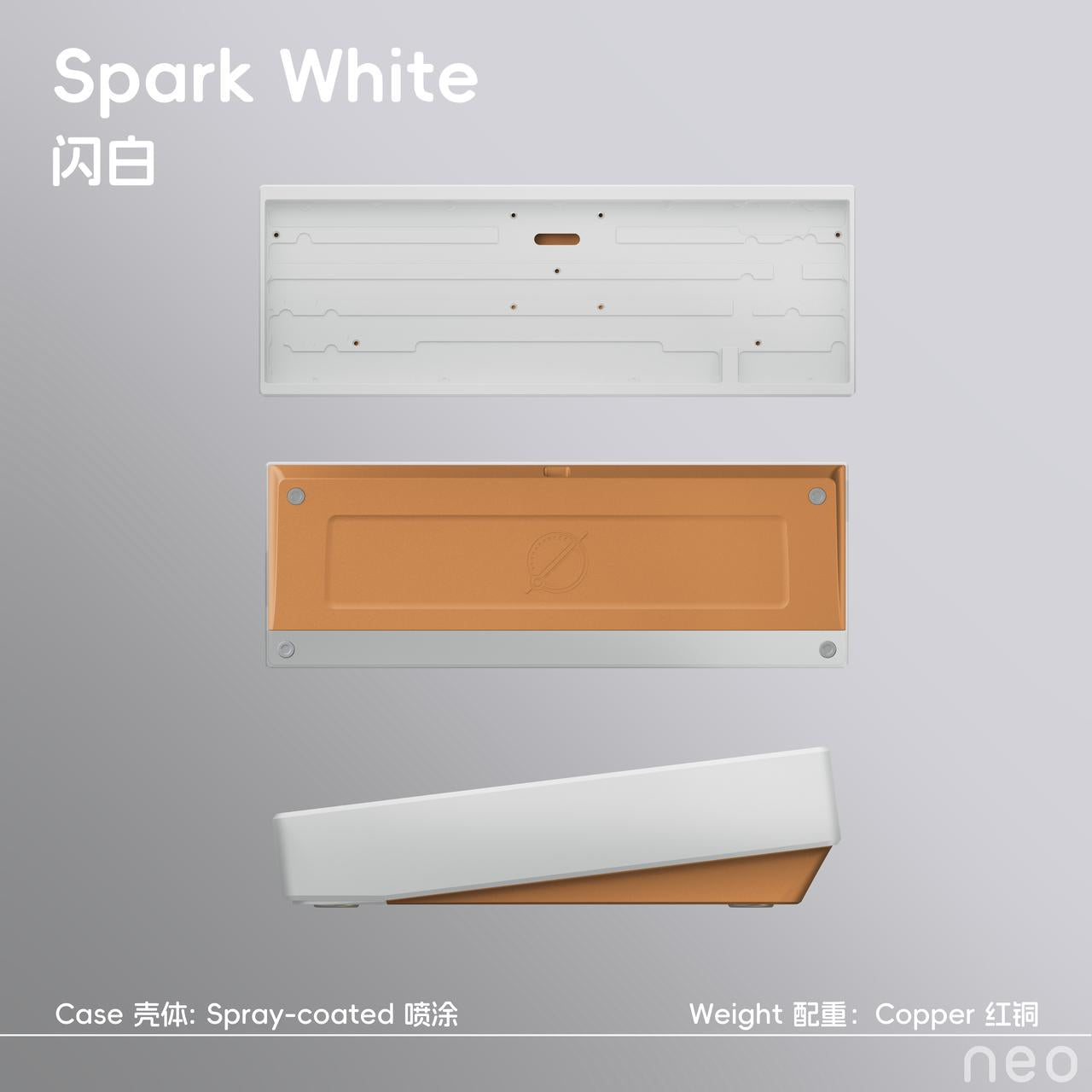

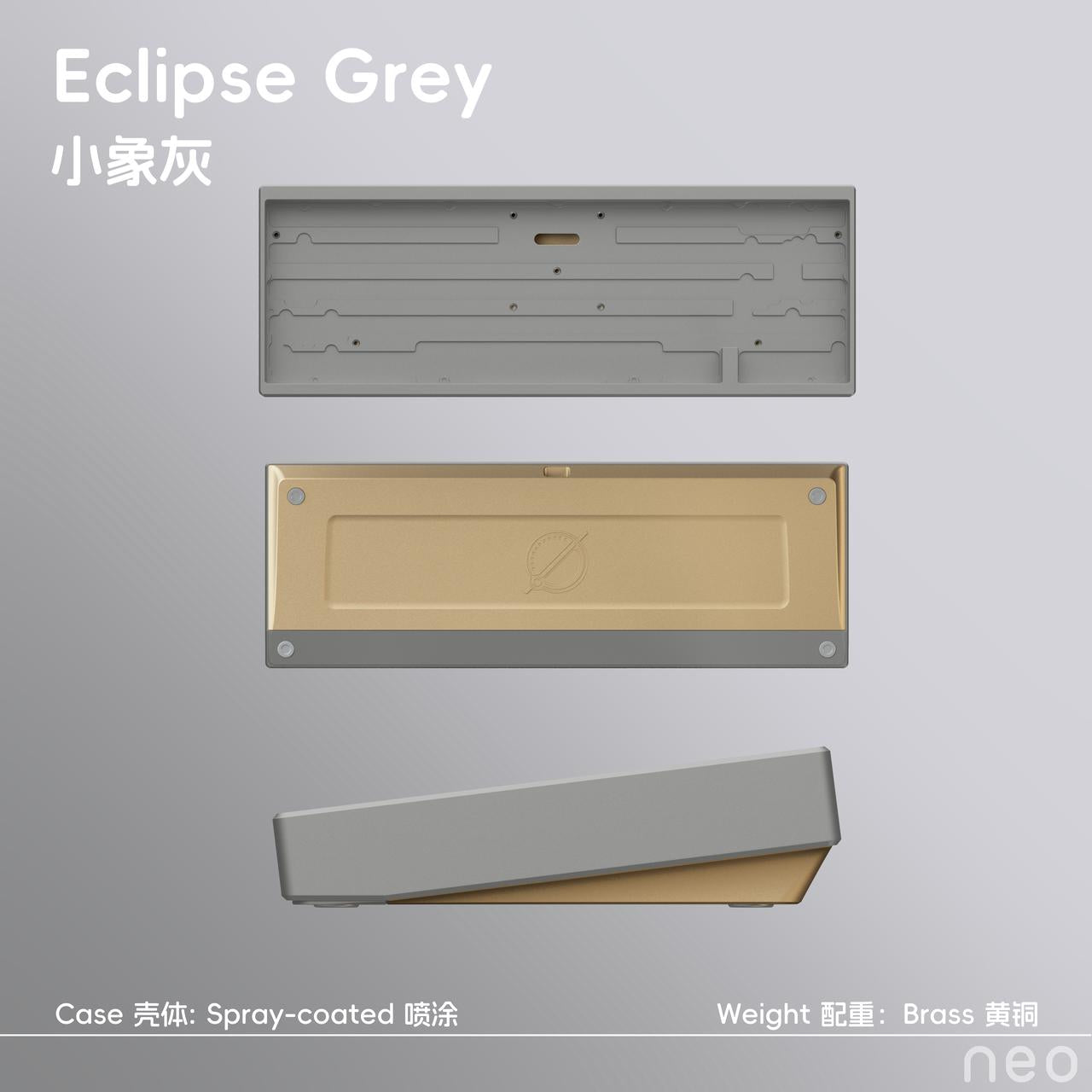

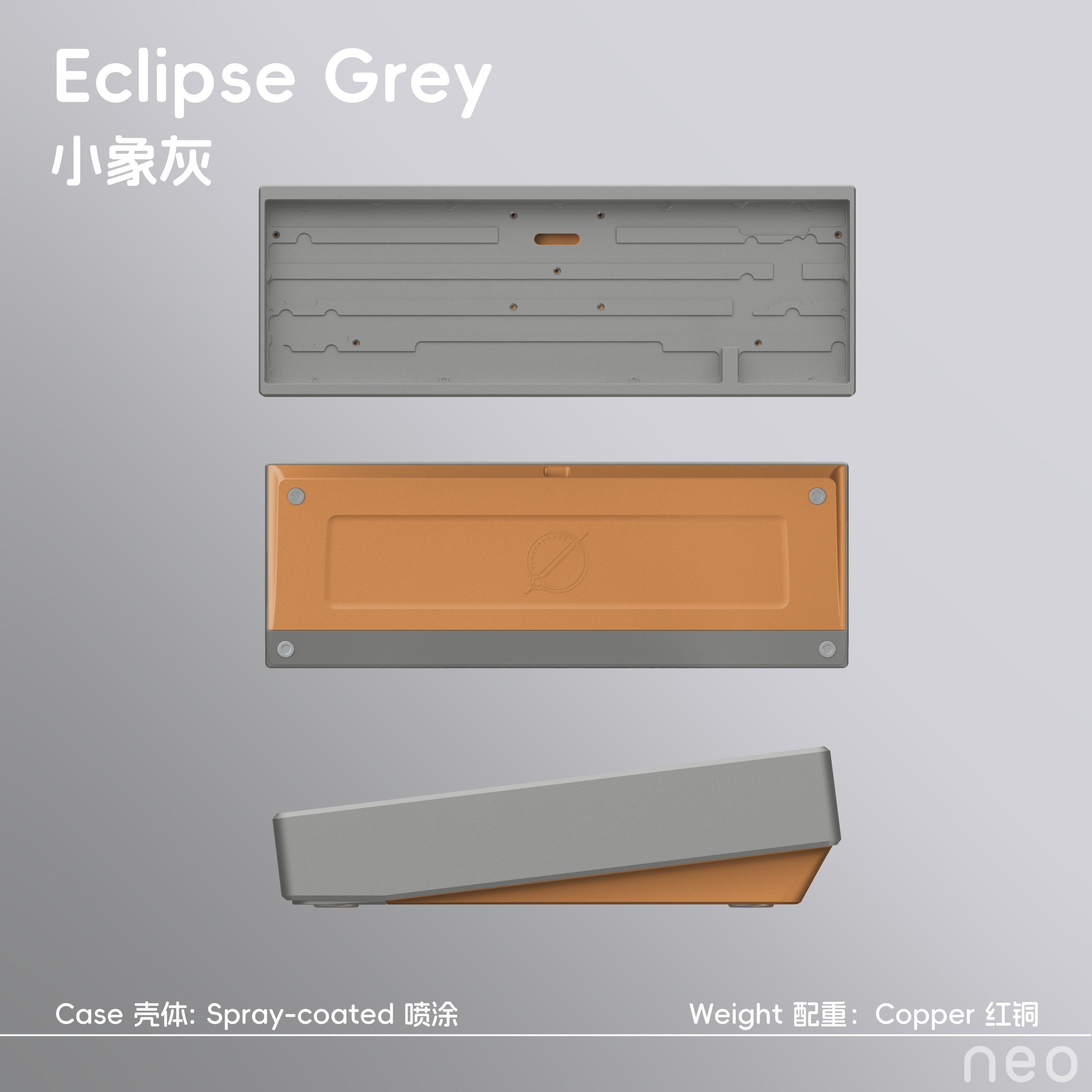

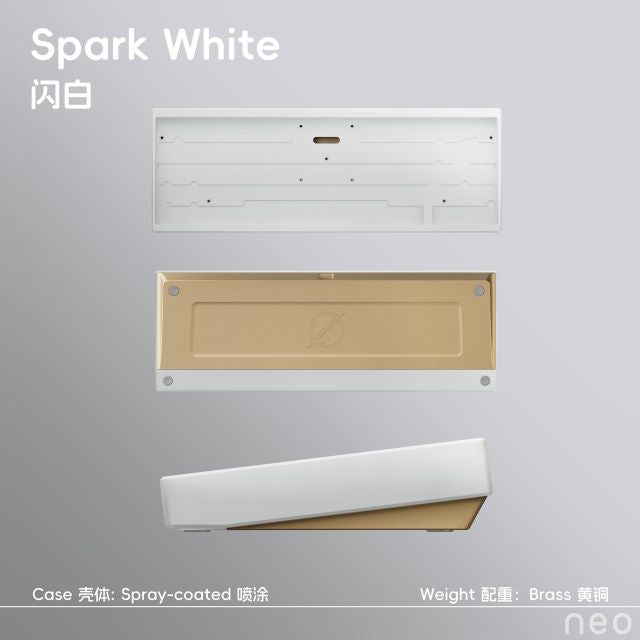

Two Spray Coated Colours: Spark White & Eclipse Grey

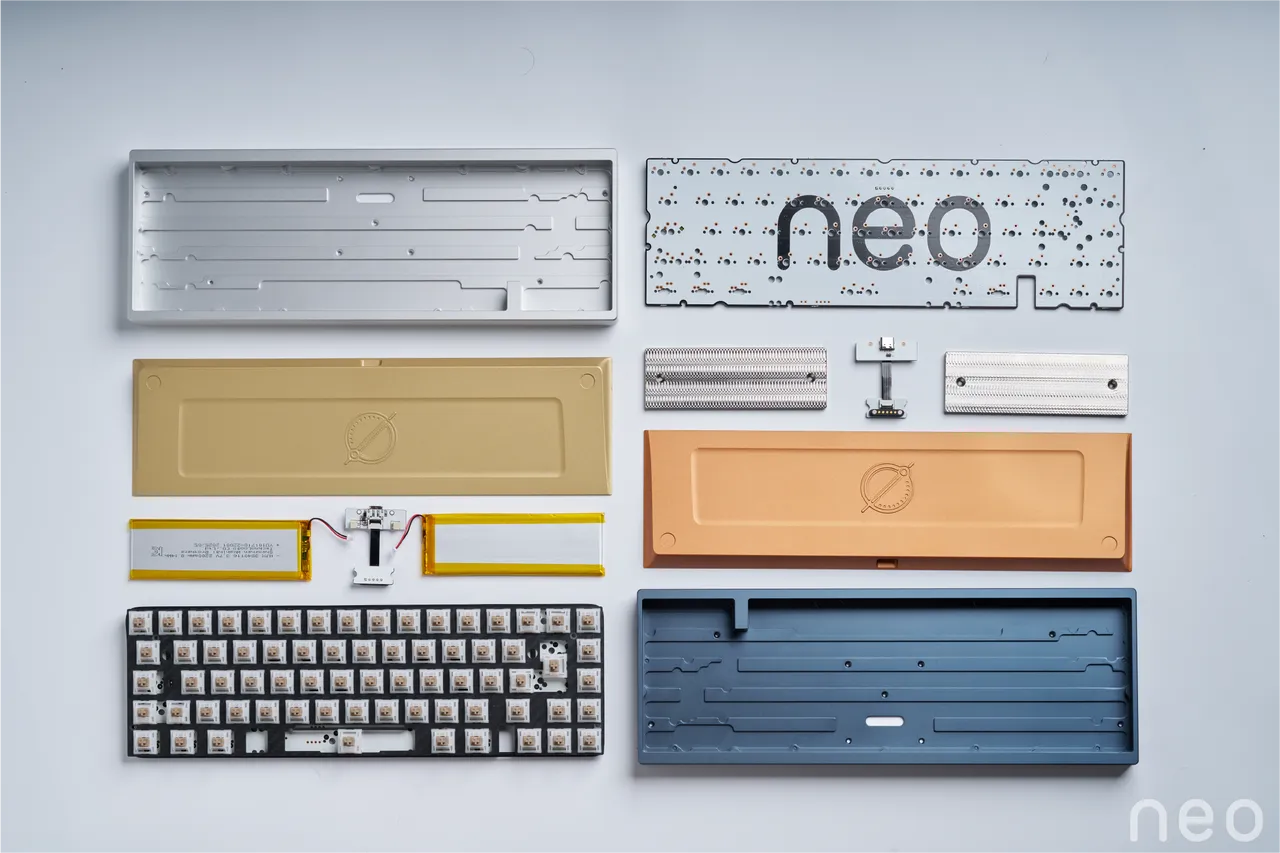

Kit Contents:
-
Keyboard Case
- For orders with tri-mode PCBs, two 2200 mAh batteries come pre-installed
- For orders with wired PCBs, two stainless steel fillers come pre-installed
-
For orders with solder PCBs, two foam fillers come pre-installed
- If you purchase the stainless steel battery compartment fillers in the extra part page, foam fillers will no longer be included.
-
PCB Kit
- PCB of your choice
- 1x PE sheet
- 1x PCB Foam
- Tri-mode PCB comes with a 2.4Ghz dongle
- Plate of your choice
- Poron case foam
- PCB Daughterboard and magnetic connectors - installed
- Gaskets
- 30-duro O-ring
- Rubber feet in 2 colors
- Backup screws
- Stand-offs included with the hotswap PCB
-
Free Gifts: Disclaimer: If any of these gifts is missing or is damaged, they will not be re-shipped or replaced.
- Keyboard carrying case
- 1x Keycap & Switch puller
- 1x Screwdriver
- 1 set of PCB clip-in NeoStab
- USB-C cable
- Plate fork
Disclaimers:
Kindly note that the images are of 3D renders and are for illustration purposes only. The final colours may differ slightly.
Shipping Time and GB Agreements (PLEASE READ):
These keyboards are set to be shipped out in Q1 2026
Please note that this is a Group Buy. There can be delays and set backs. The timeline is only an estimate. By adding this item to your cart and purchasing you agree that you understand everything above. You will be charged immediately for this item. There are no refunds or cancellations on these orders. Please do not purchase this item with other group buys. Only the items specified in each product picture are included with that particular product.
Disclaimers
Please note that images may be of 3D renders and are for illustration purposes only. The final colours may differ slightly under different lighting.
Only the products detailed in the description are included. Other products are shown for demonstrative purposes only and are not included. Please check Keyset kitting images carefully for included keys. Please check Keyboard layout options carefully to ensure it meets your requirements.
Shipping Time and Pre-Order Agreements (PLEASE READ):
Please note that this is a Pre-Order. There can be delays and set backs. The timeline is only an estimate. By adding this item to your cart and purchasing you agree that you understand everything above. You will be charged immediately for this item. There are no refunds or cancellations on these orders due to their bespoke nature. Please do not purchase this item with other group buys or pre-orders as this will delay shipping till all items are available. Only the items specified in each product picture are included with that particular product.
These products are set to be shipped out at the date specified above, but please check our updates for the latest information.
