Sale price£85.83
Sold out

This product is a Pre-Order currently being manufactured to ship at a later date detailed in the product description below. It will be available for purchase until allocated stock sells through, or, the items arrive and move to our In Stock range.
Follow Group Buy / Pre-Order Updates Here

This product is a Pre-Order currently being manufactured to ship at a later date detailed in the product description below. It will be available for purchase until allocated stock sells through, or, the items arrive and move to our In Stock range.

Please read our guidance on Pre-Orders here: FAQ's

This is a Pre-Order, please read our guidance on Pre-Orders here: FAQ's



Pre-Order Closes June 30th 2025

Expected to ship Q4 2025



Addons Available Here

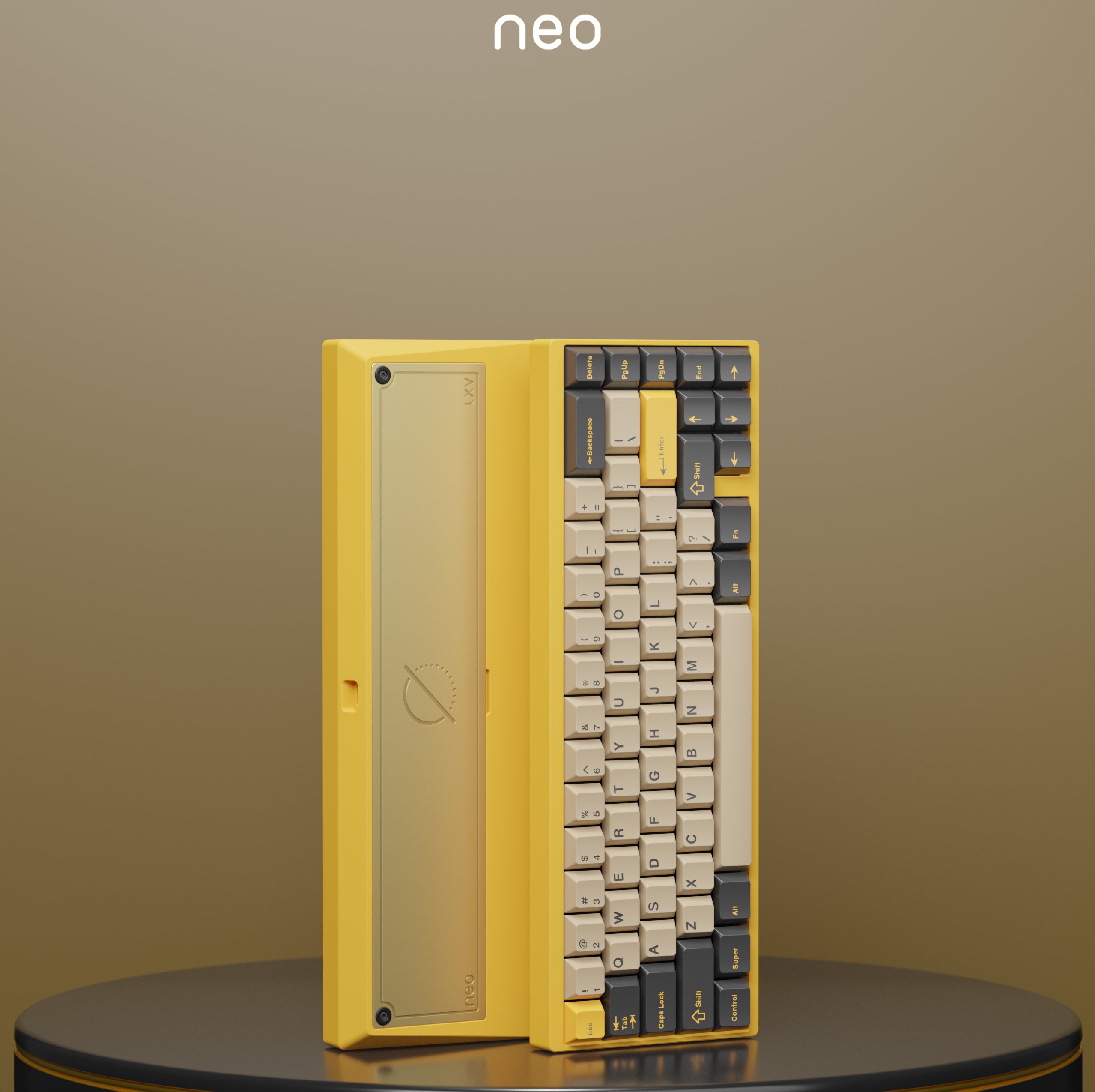

Neo65 Design

Unibody Case

Our design code is based on minimalism. The Neo 65 features an ultra-slim side bezel that blends seamlessly with any desk setup, regardless of the theme.

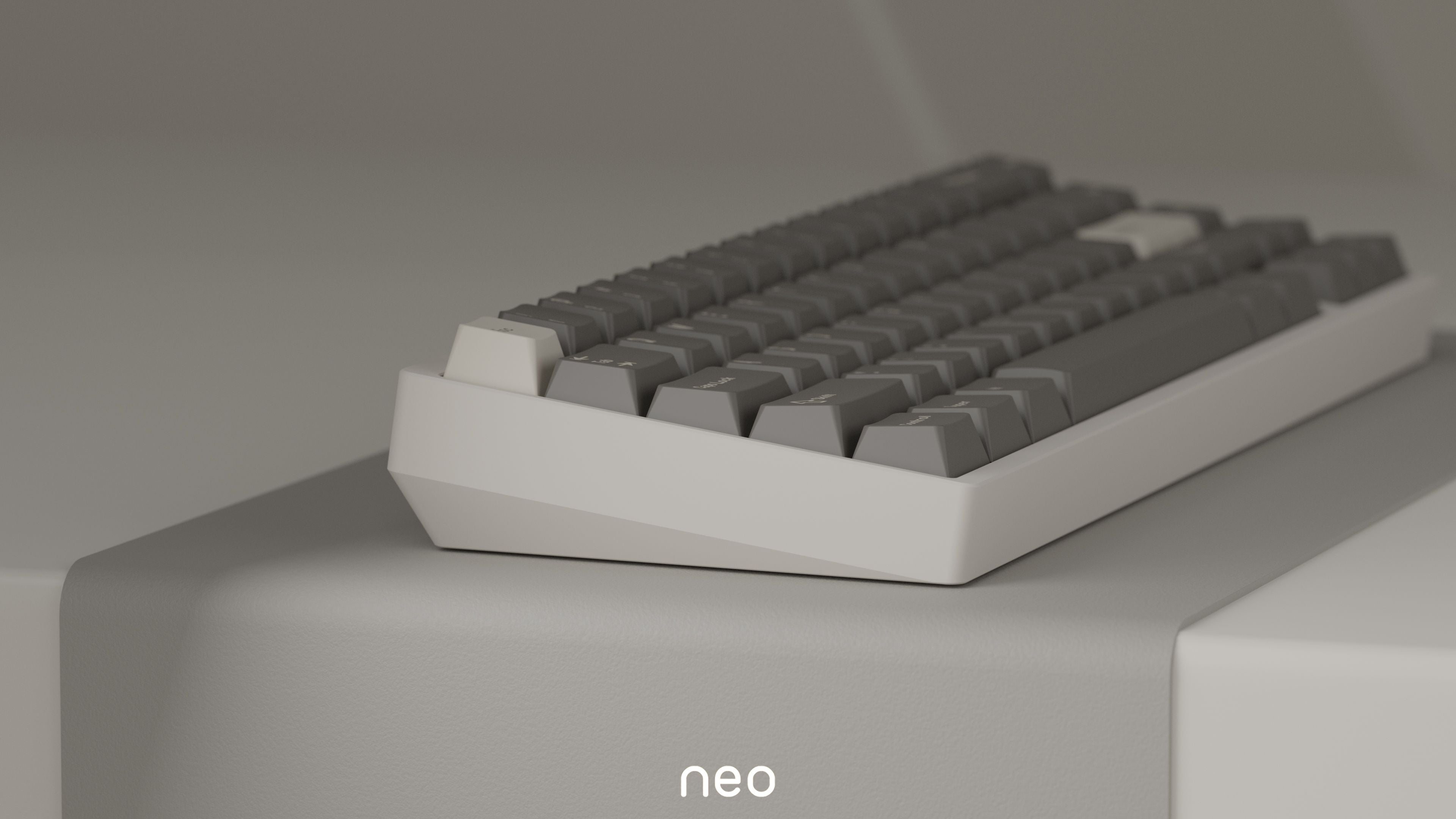

Neat Side Profile

We chose an inward-sloping edge to complement the minimal design on the front. This also makes it easier to pick up the keyboard.

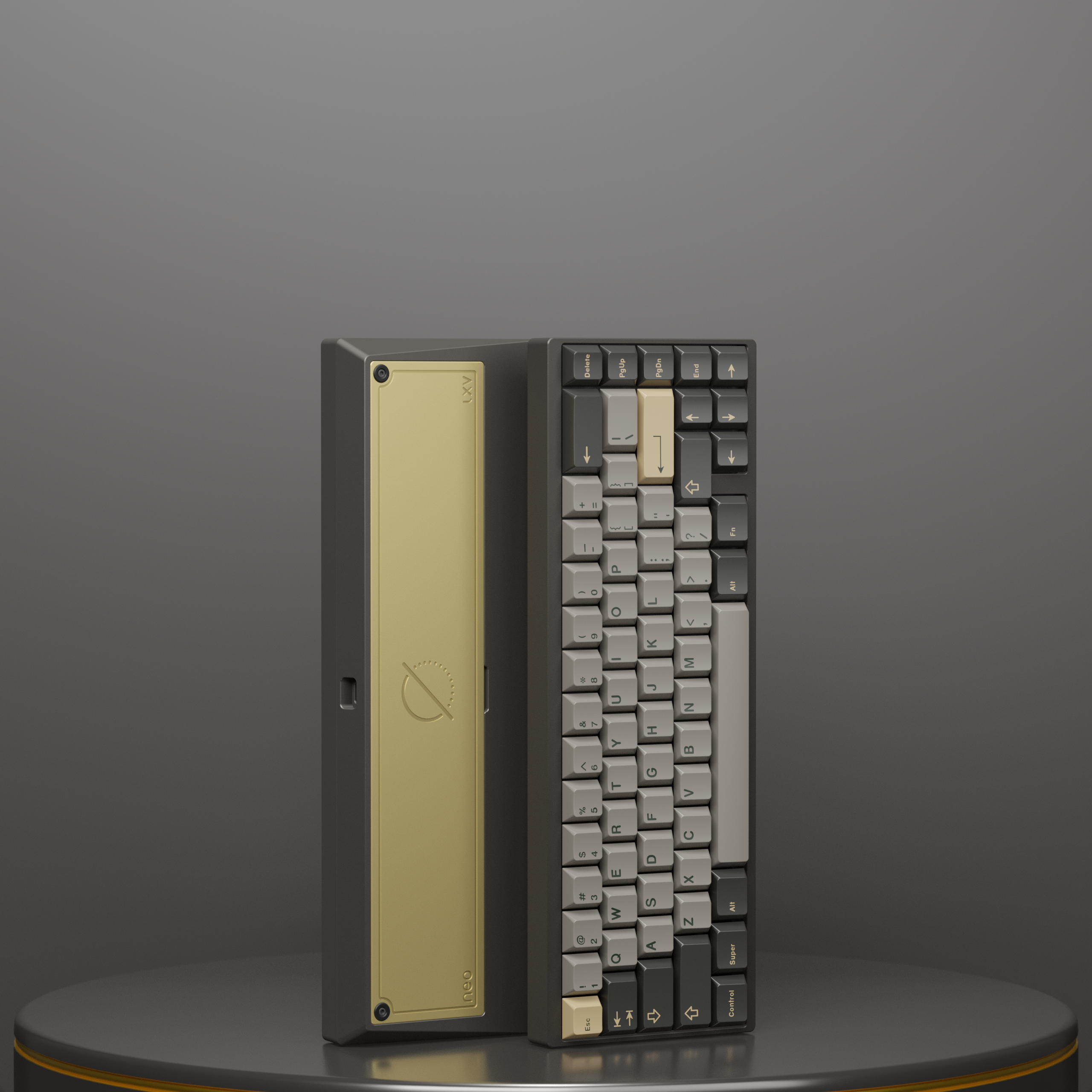

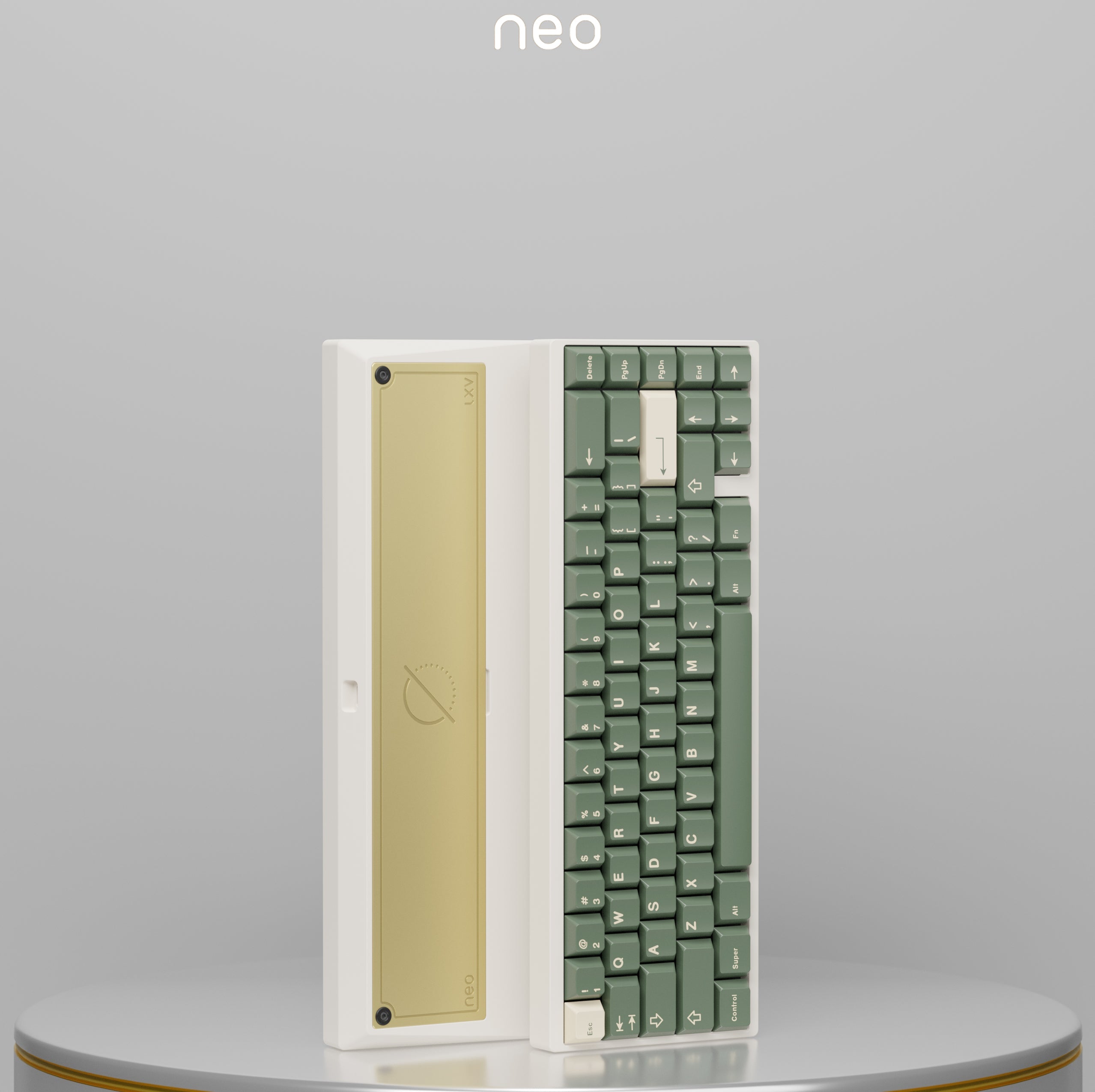

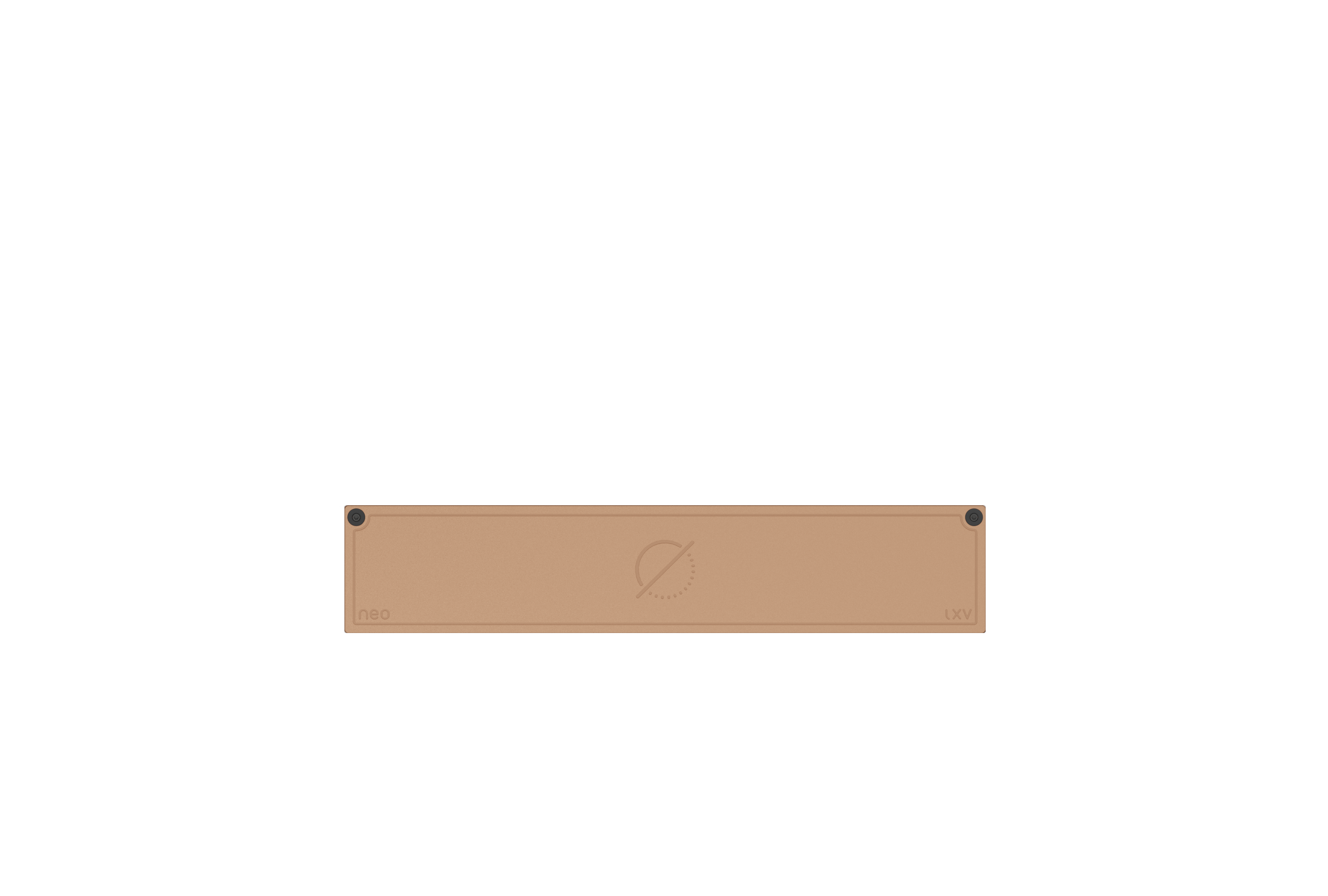

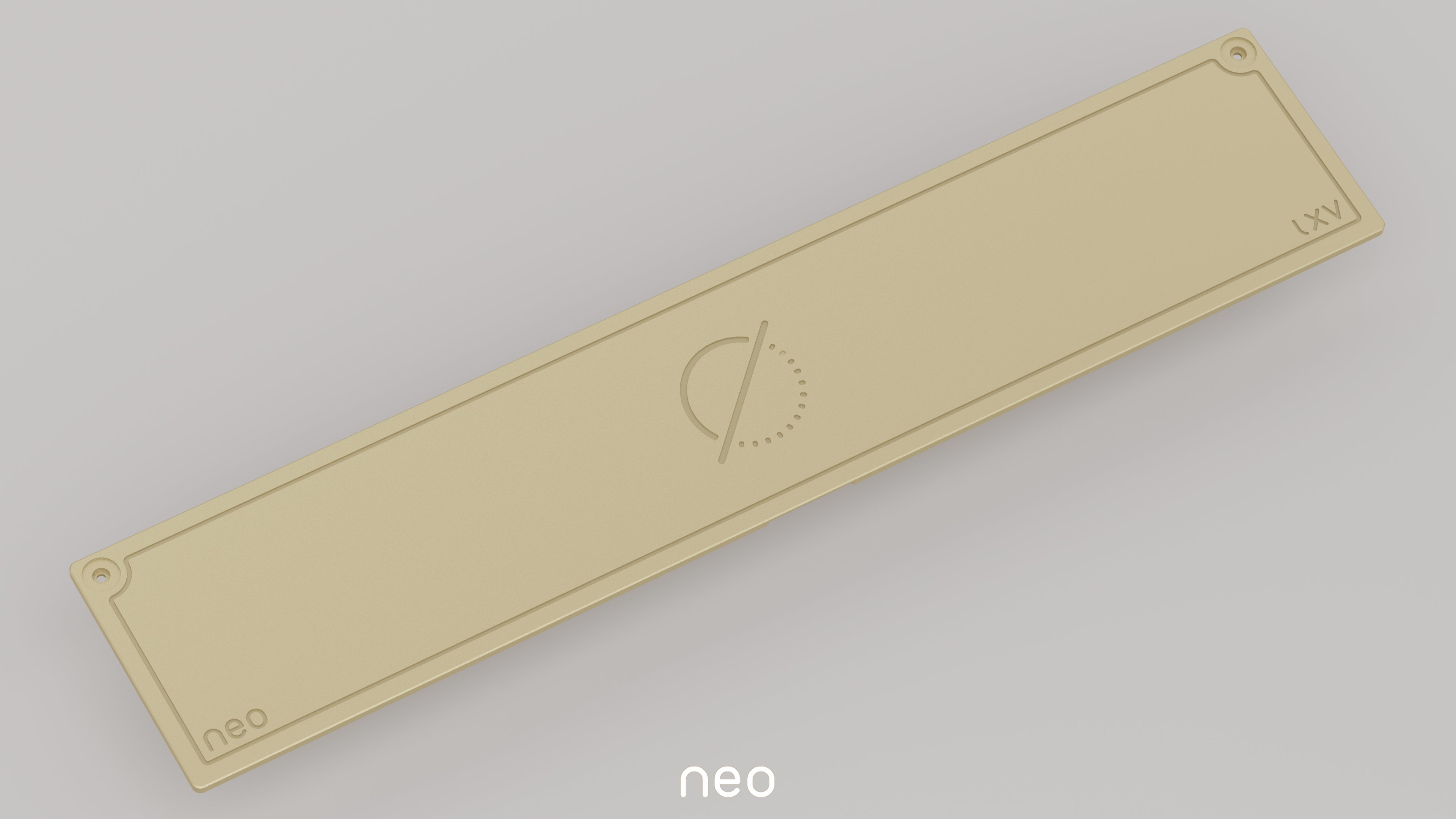

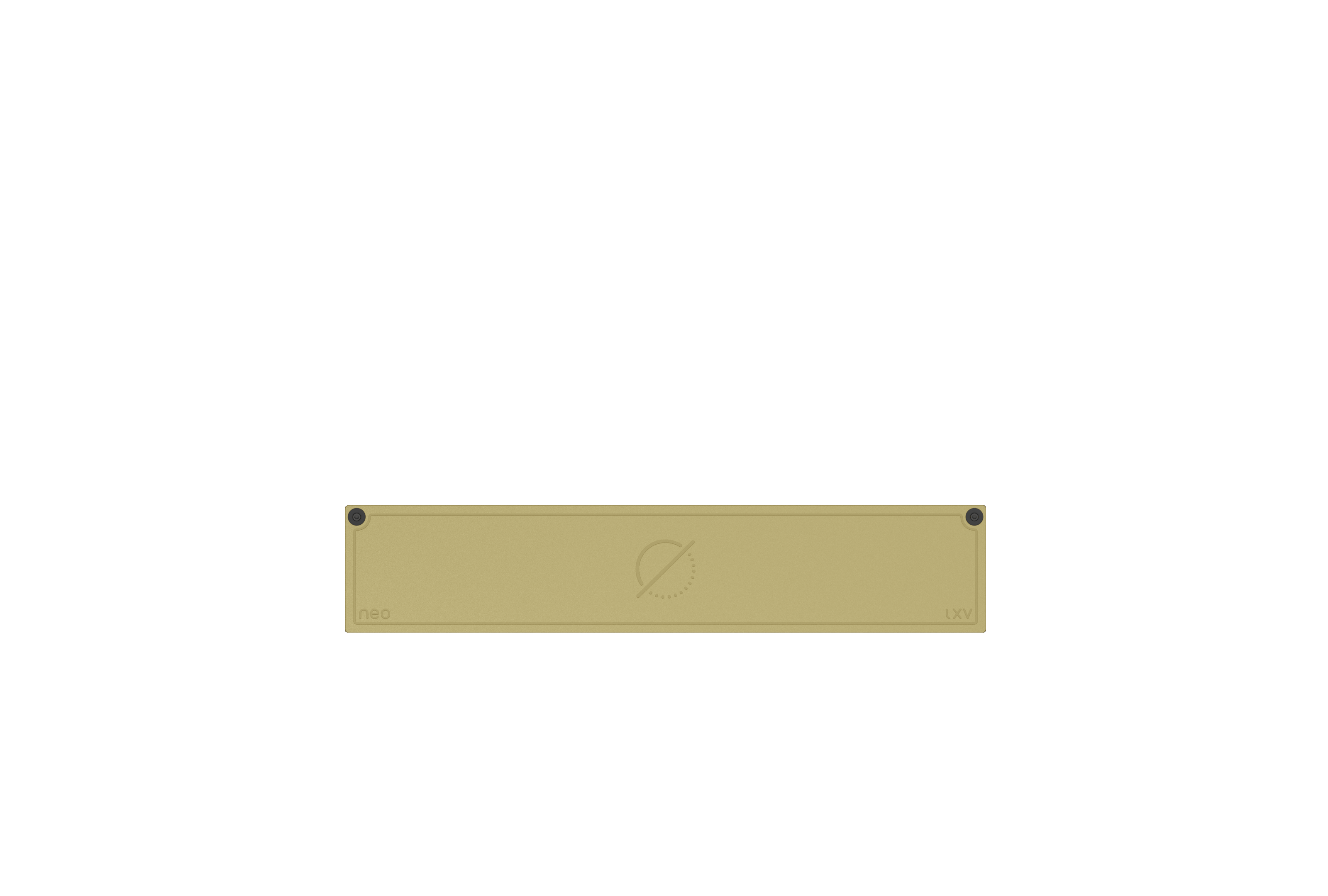

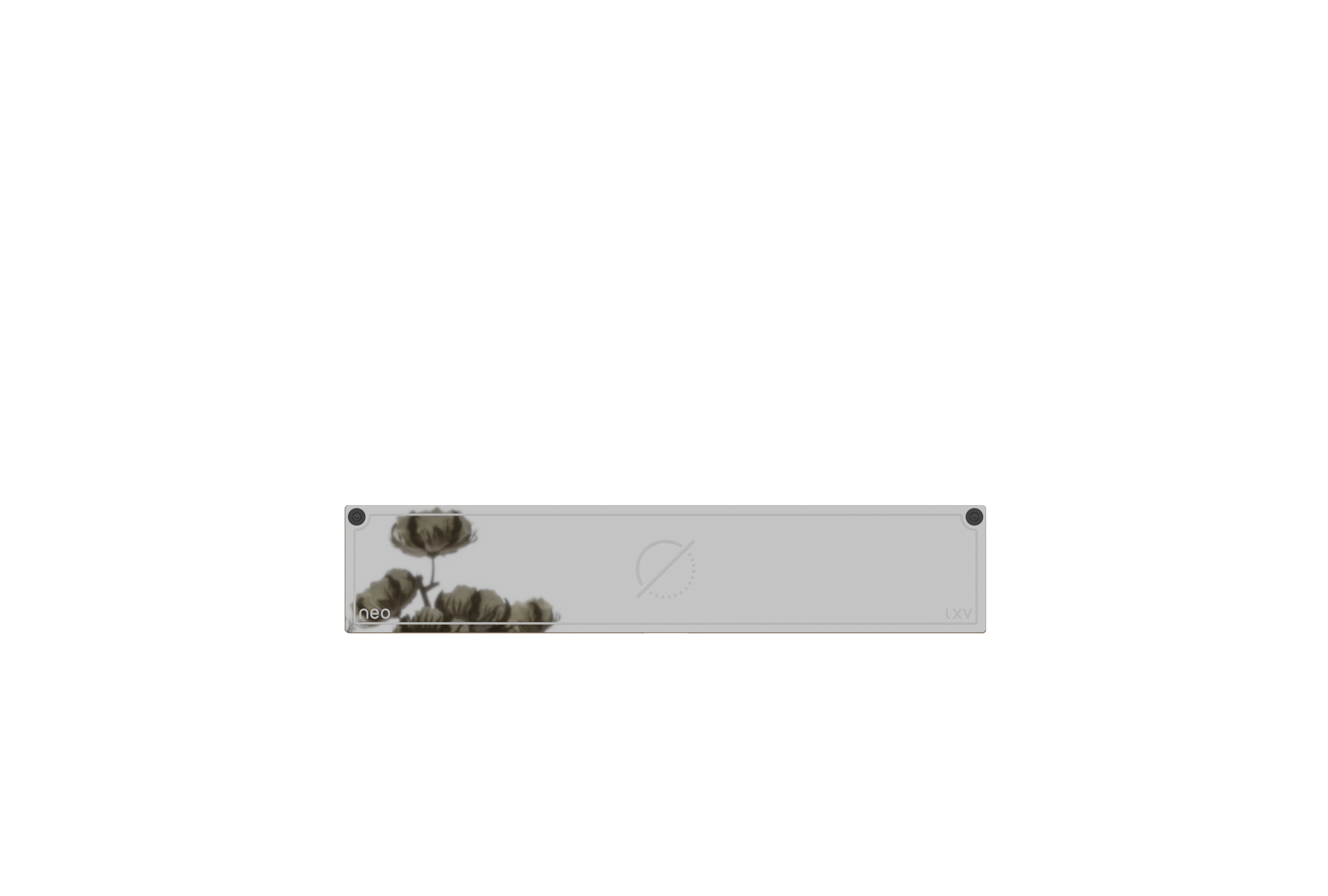

Brass Weight with Orbit Engraved Logo

The name Neo not only refers to the designer but also represents Near Earth Objects.

We opted for the orbit as the logo for the Neo series to symbolize the interconnection and alternation of our products.

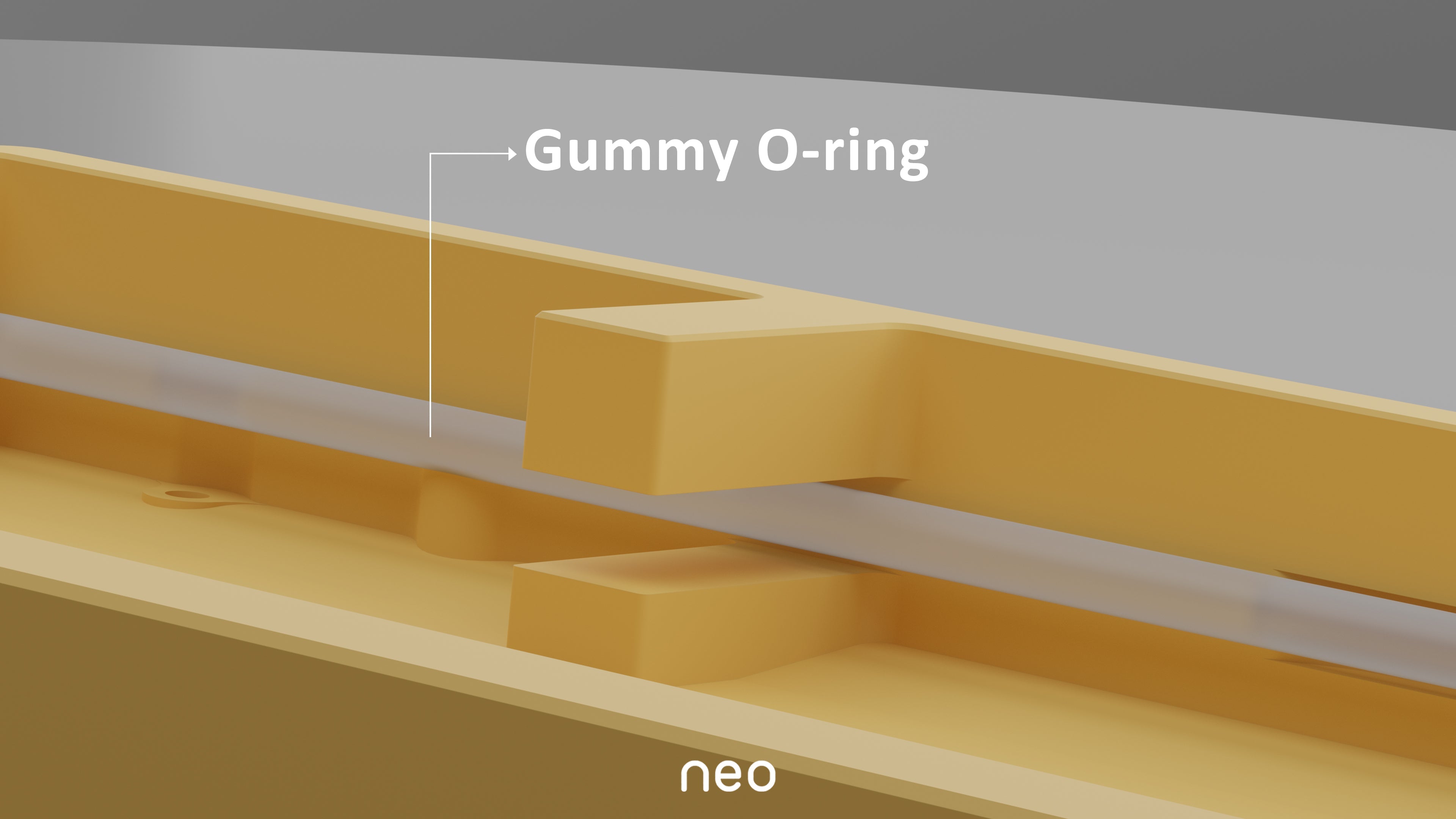

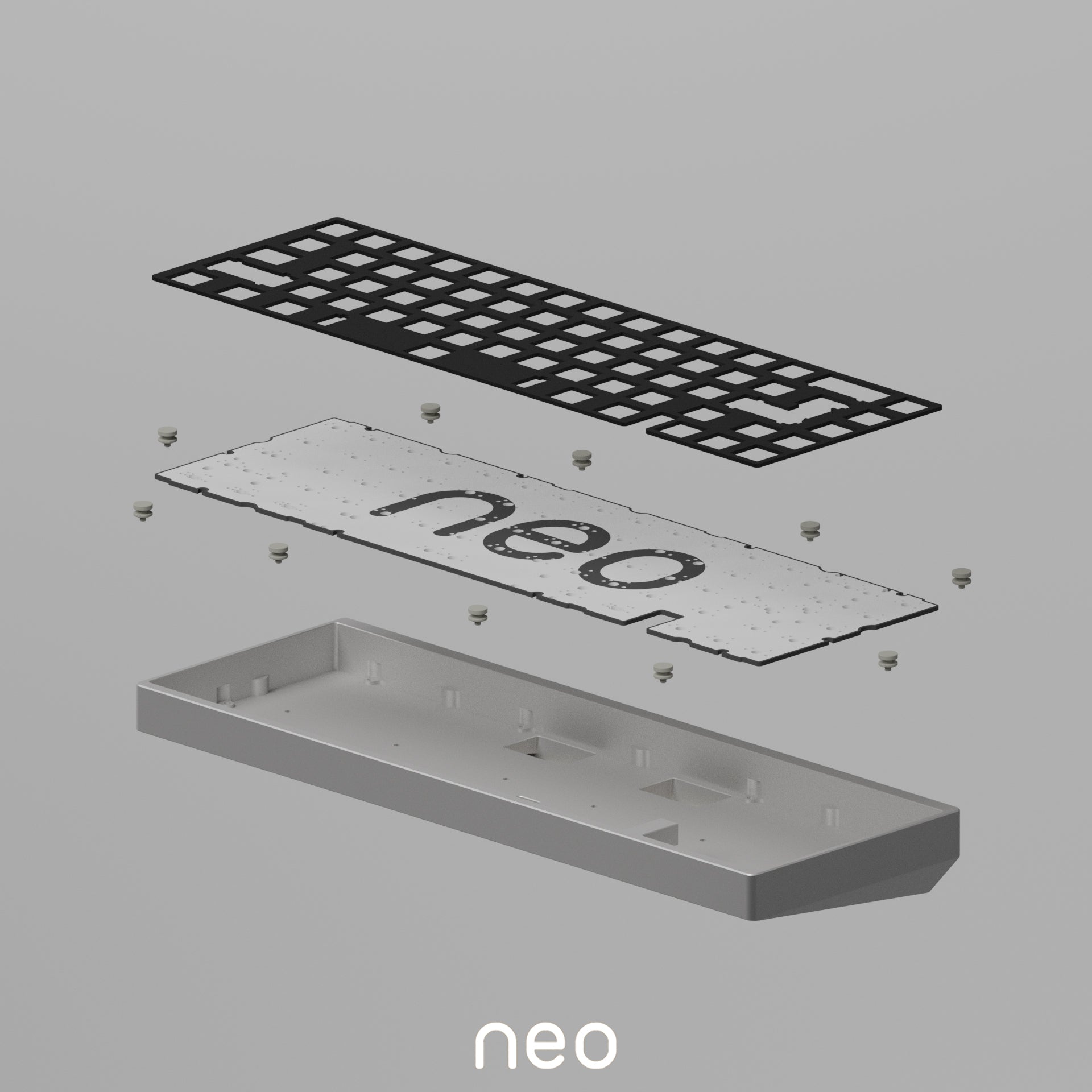

Dual Mounting System

  • Support both PCB gasket mount and gummy O-ring mount (not compatible with plateless configurations)
  • With our specially designed gaskets, the PCB and plate can be securely held in place, even if the case is flipped upside down
  • Finely-tuned sound profile - no hollowness nor case ping without the use of any foam
  • Reserved groove for the O-ring at the blocker - no need to forcefully bend the O-ring anymore, so the assembly experience can be more efficient and enjoyable
  • O-rings with different stiffness levels are available to provide varying typing feedback

Selective PCBs

  • We selected the 1.6mm PCB without flex cut to achieve a louder and fuller sound profile
  • All PCBs are QMK-based, VIA supported
  • Three PCB options:
    • Tri-mode Hotswap
      • Support wired, Bluetooth, and 2.4GHz connection
      • Support both ANSI and ISO layout
      • NKRO
      • Polling rate: 1000Hz in wired and 2.4Ghz mode; 125Hz in BT mode
    • Solder
      • Support both ANSI and ISO layout
      • USB-C connection only
      • NKRO
      • Polling rate: 1000Hz

Layout for tri-mode and solder PCB

  • Wired ANSI Hotswap
    • Per-key RGB
    • ANSI layout
    • USB-C connection only
    • NKRO
    • Polling rate: 1000Hz

Layout for wired PCB

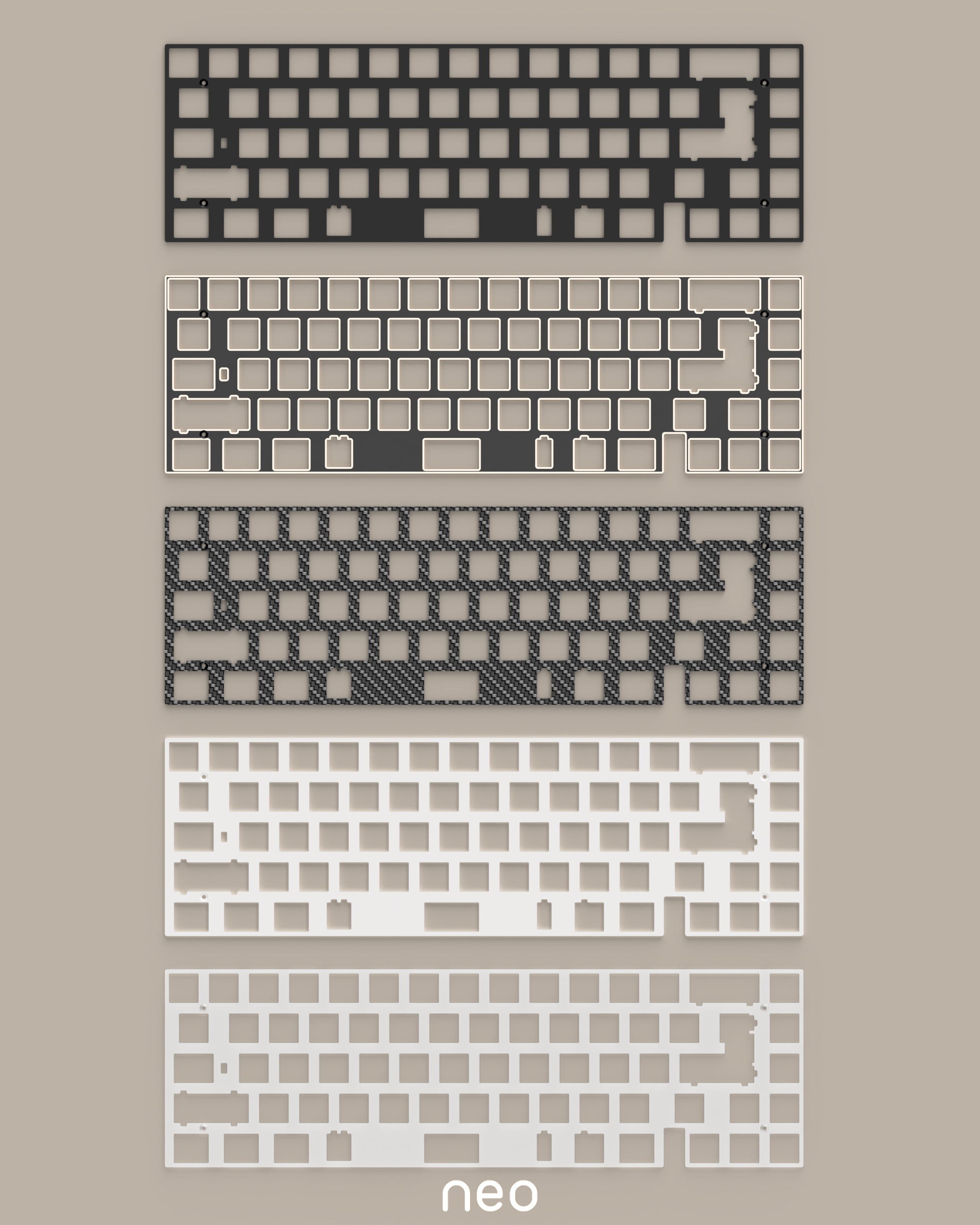

Plate Feel:

Hard ———————————————> Soft:
Carbon Fibre -> Aluminium -> FR4 -> POM -> PC

Clack ———————————————> Thock:
Carbon Fibre -> Aluminium -> FR4 -> POM -> PC

We recommend to take one hard and one soft plate additional so you can fine tune your experience better. So for example Alu in the kit and POM additional or PC and FR4.

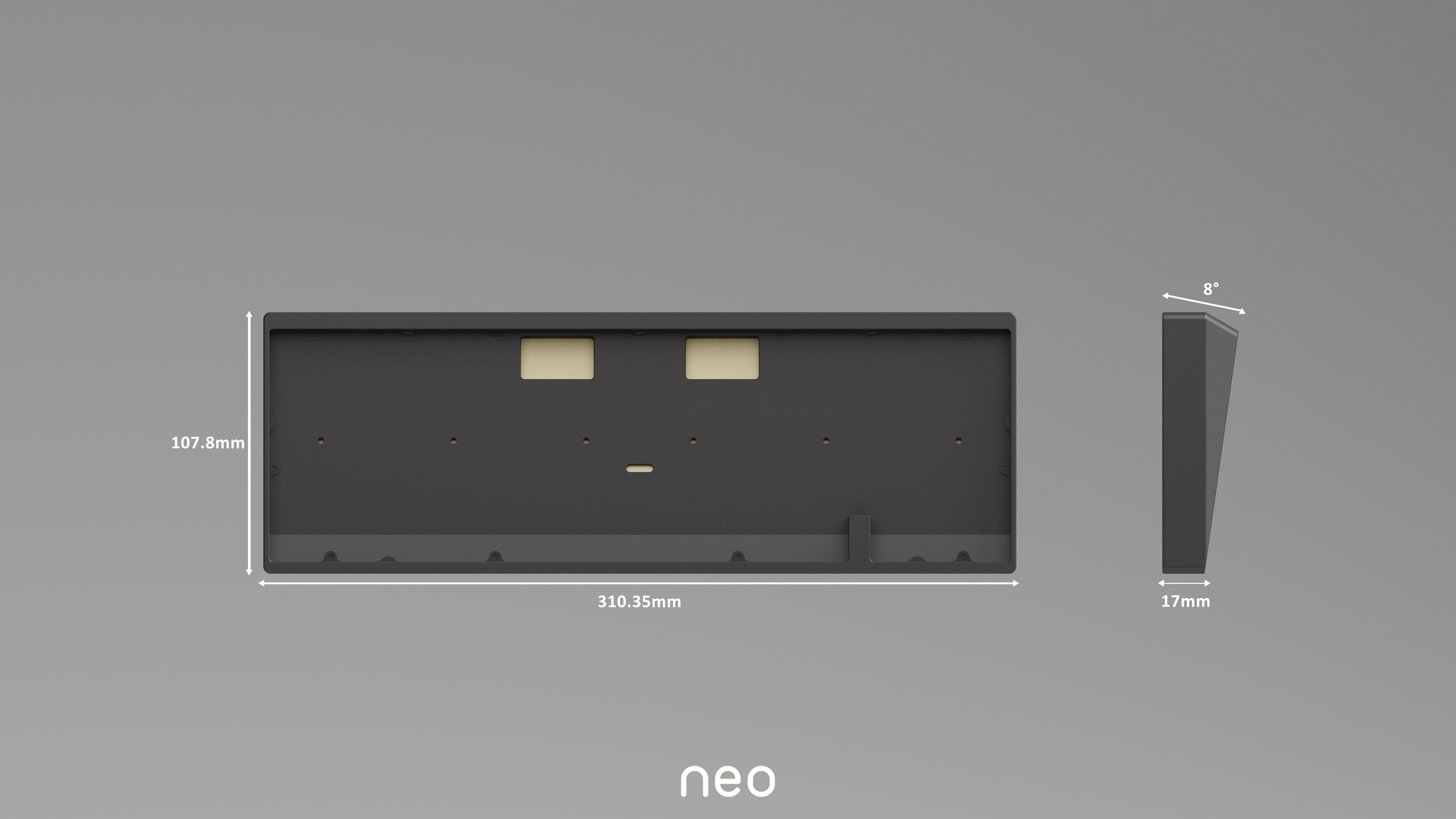

Specifications:
  • Typing angle：8 degree
  • Front height：17mm
  • Size：310.35mm x 107.8mm
  • Weight：
  • Before build：0.97kg
  • After build：1.32KG

Includes:
  • Case
  • Including one pre-installed external weight

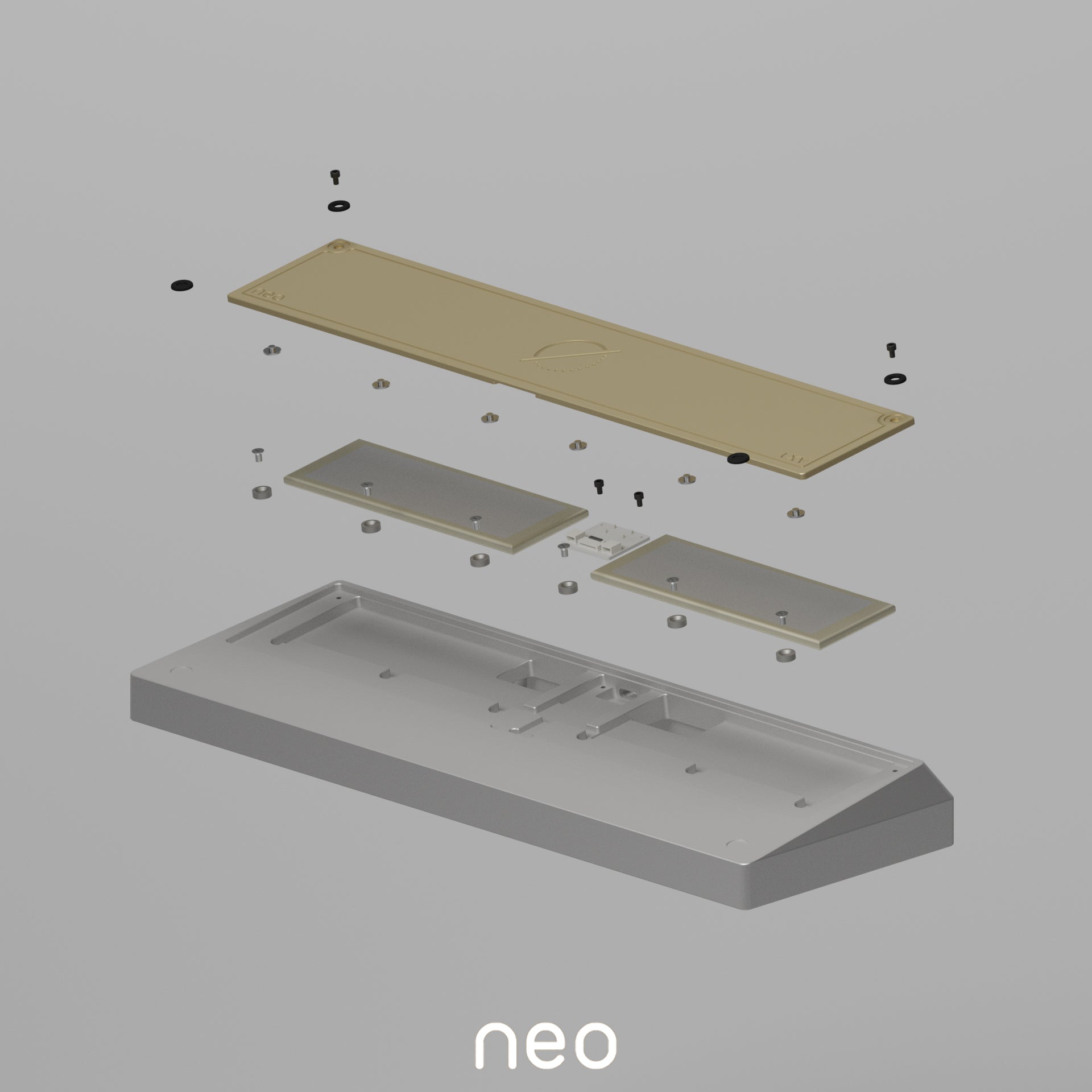

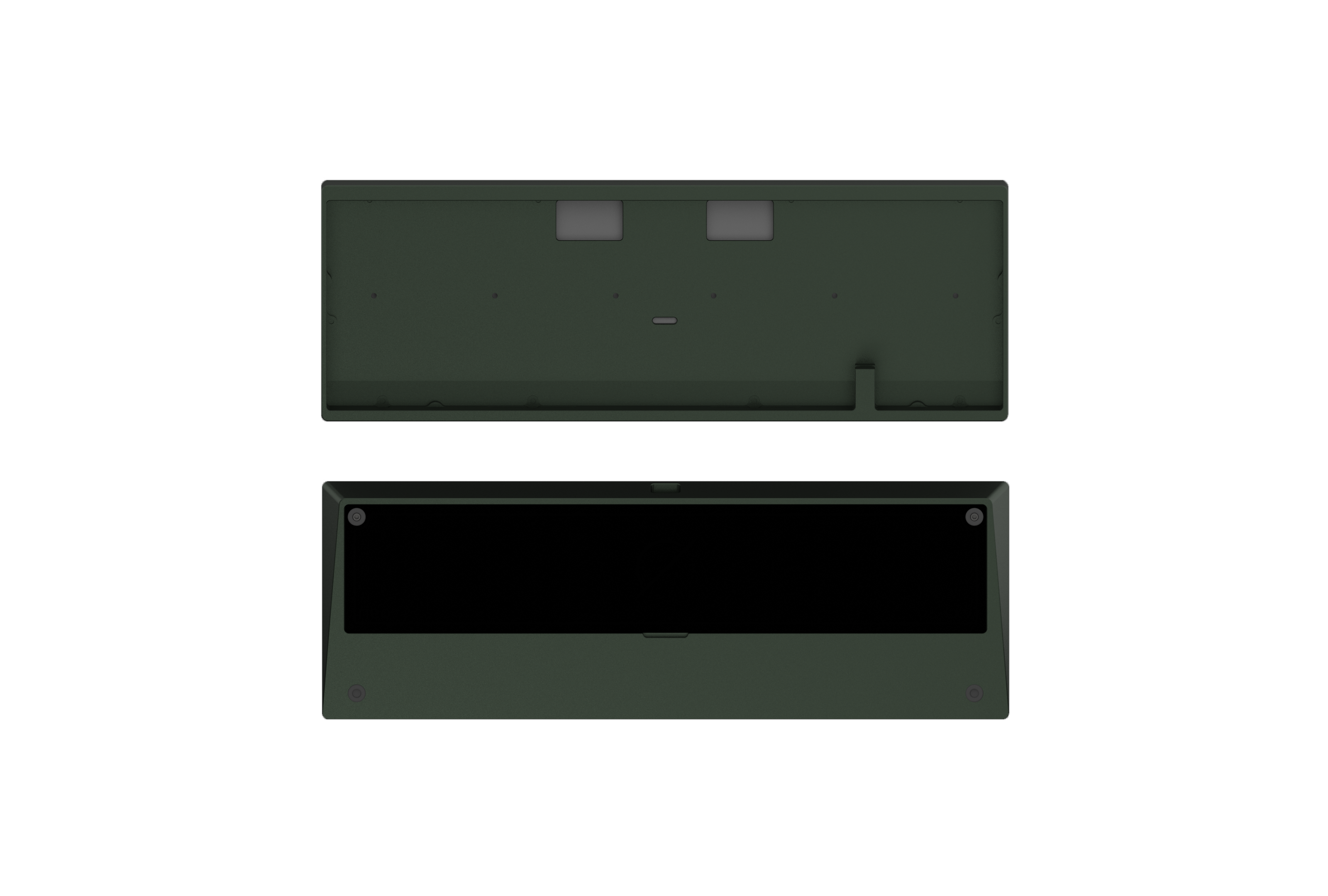

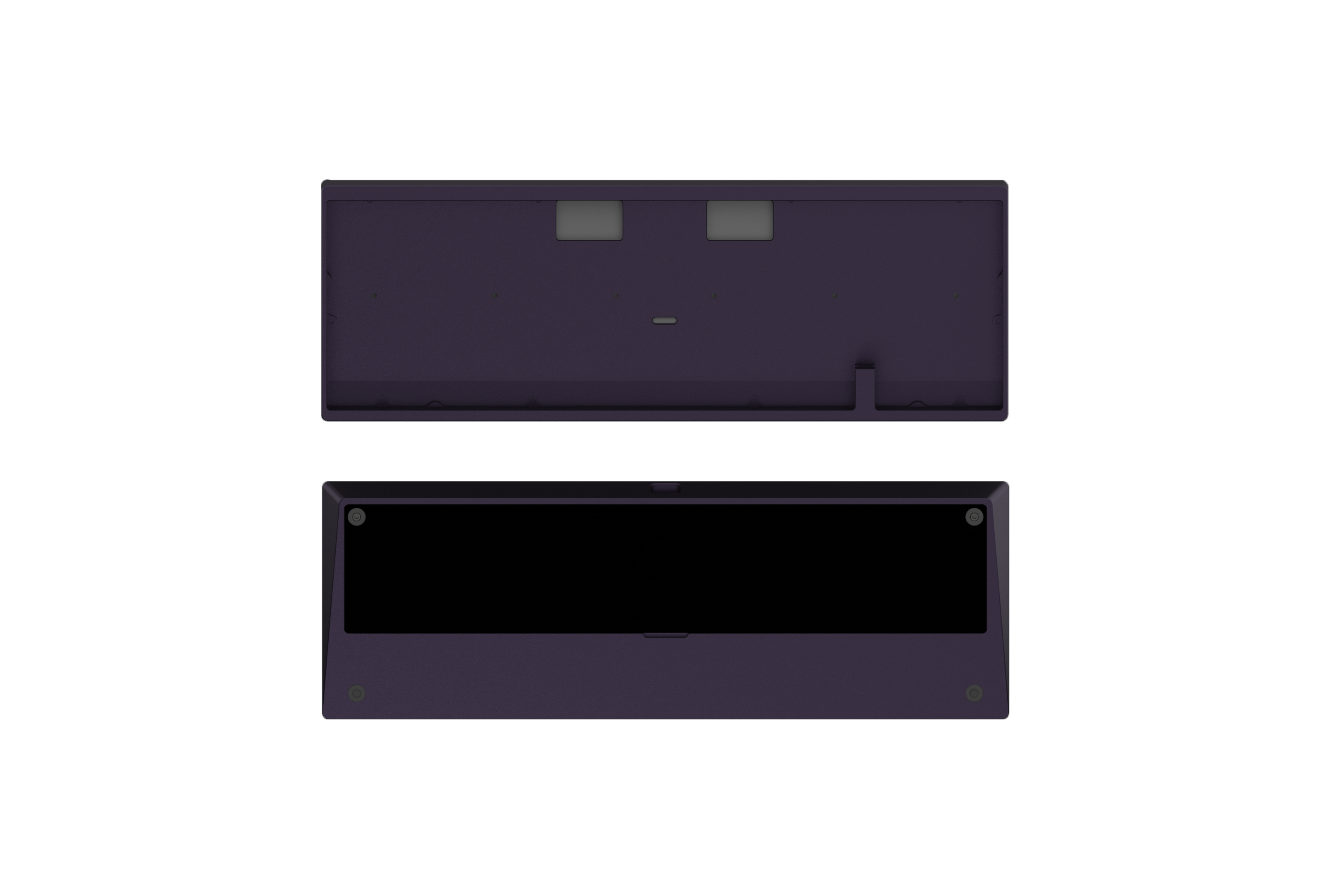

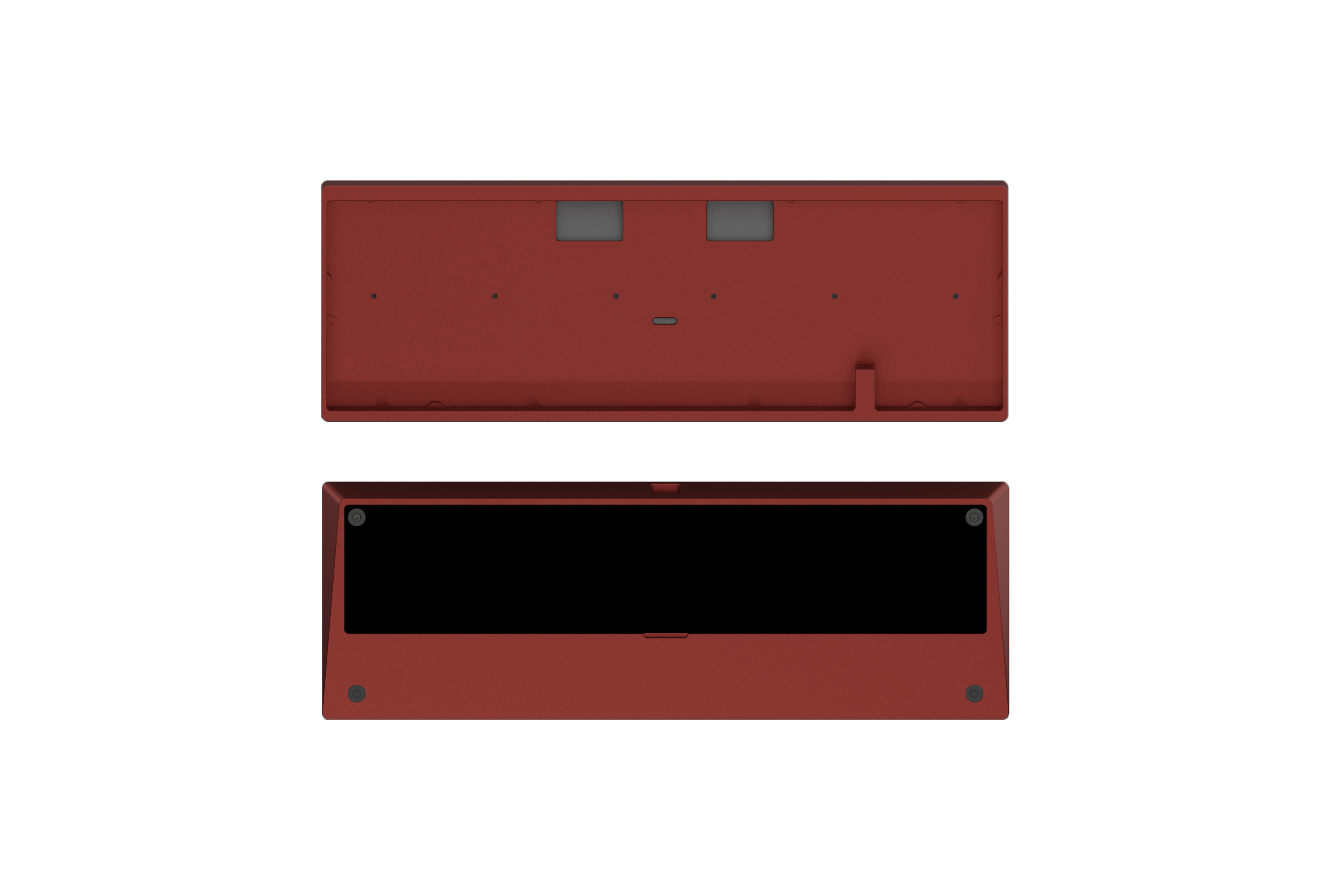

  • Two 2200 mAh batteries will be installed inside of the bottom case for orders with Tri-mode PCBs
  • Orders with wired PCBs will receive fillers for the battery compartments
  • PCB Kit
  • PCB of your choice
  • 1x PE sheet
  • 1x PCB Foam
  • Standoffs
  • Tri-mode PCB comes with a 2.4Ghz dongle
  • Plate of Your Choice
  • Poron Case Foam
  • Daughterboard - installed
  • Silicone Gaskets
  • O-ring (50 duro) x 1
  • Rubber feet in grey and black
  • Weight screws in silver and black
  • Daughterboard FPC cable



Free Gifts (Not covered by warranty):
  • Keyboard carrying case
  • 1x Hex screwdriver
  • 1x Philip screwdriver
  • 1x Keycap & Switch puller
  • 1 set of 65% clip-in NeoStab
  • Coiled USB-C cable






Key Notes:

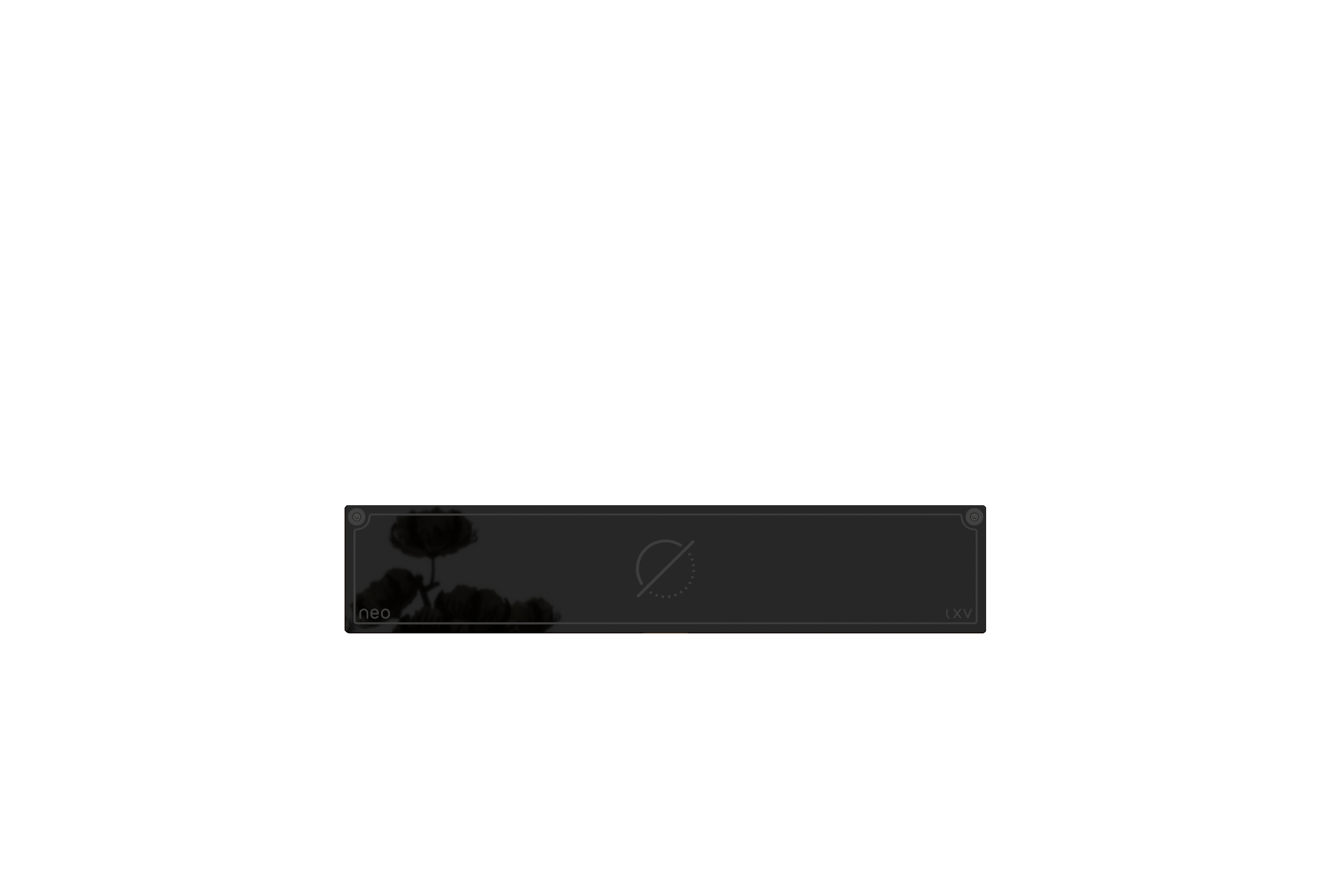

  • Please note that PVD doesn’t equal to mirror-polished. PVD usually refers to glossy surfaces like the weight on Spring, but it is only a coating technique that applies colour, similar to anodization or spray-coating.
  • Tri-Mode PCB means Bluetooth, 2,4GHz and USB-C connection possible. These boards will come with a battery included. All Tri-Mode PCBs support Hotswap.
  • ISO is supported with a multilayout PCB that uses a East/West facing sockets.
  • Single plateless solder builds are sadly not possible at this moment. You can purchase additional Solder PCBs and build it plateless if you want.



Disclaimers

Kindly note that the images are of 3D renders and are for illustration purposes only. The final colours may differ slightly.


Shipping Time and GB Agreements (PLEASE READ):
These products are set to be shipped out in Q4 2025 but please check our updates for the latest information.

Please note that this is a Group Buy. There can be delays and set backs. The timeline is only an estimate. By adding this item to your cart and purchasing you agree that you understand everything above. You will be charged immediately for this item. There are no refunds or cancellations on these orders. Please do not purchase this item with other group buys. Only the items specified in each product picture are included with that particular product.


Disclaimers

Please note that images may be of 3D renders and are for illustration purposes only. The final colours may differ slightly under different lighting.

Only the products detailed in the description are included. Other products are shown for demonstrative purposes only and are not included. Please check Keyset kitting images carefully for included keys. Please check Keyboard layout options carefully to ensure it meets your requirements.

Shipping Time and Pre-Order Agreements (PLEASE READ):

Please note that this is a Pre-Order. There can be delays and set backs. The timeline is only an estimate. By adding this item to your cart and purchasing you agree that you understand everything above. You will be charged immediately for this item. There are no refunds or cancellations on these orders due to their bespoke nature. Please do not purchase this item with other group buys or pre-orders as this will delay shipping till all items are available. Only the items specified in each product picture are included with that particular product.

These products are set to be shipped out at the date specified above, but please check our updates for the latest information.
