(Coming Soon) Katina TKL Keyboard Kit

Group Buy Starts: March 2026

Expected Shipping time: est Q4 2026

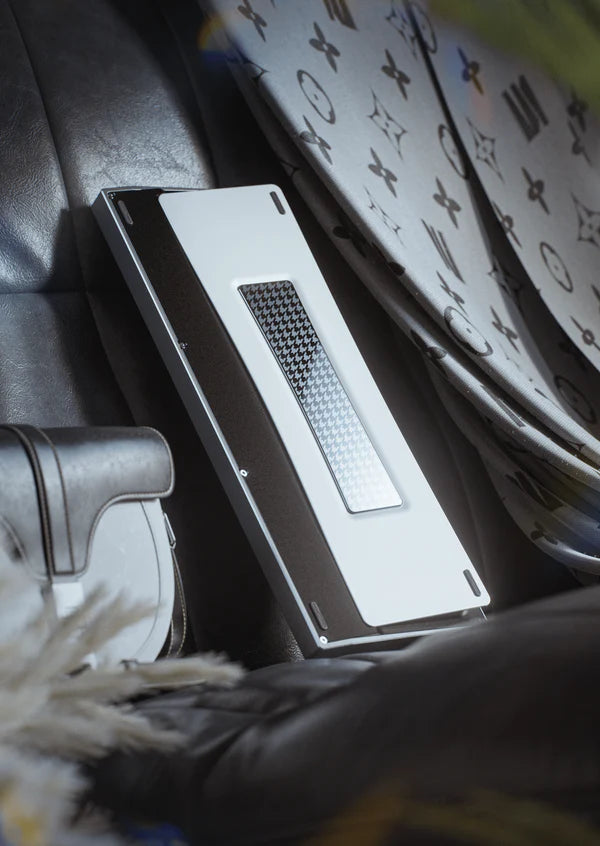

Structure in Balance

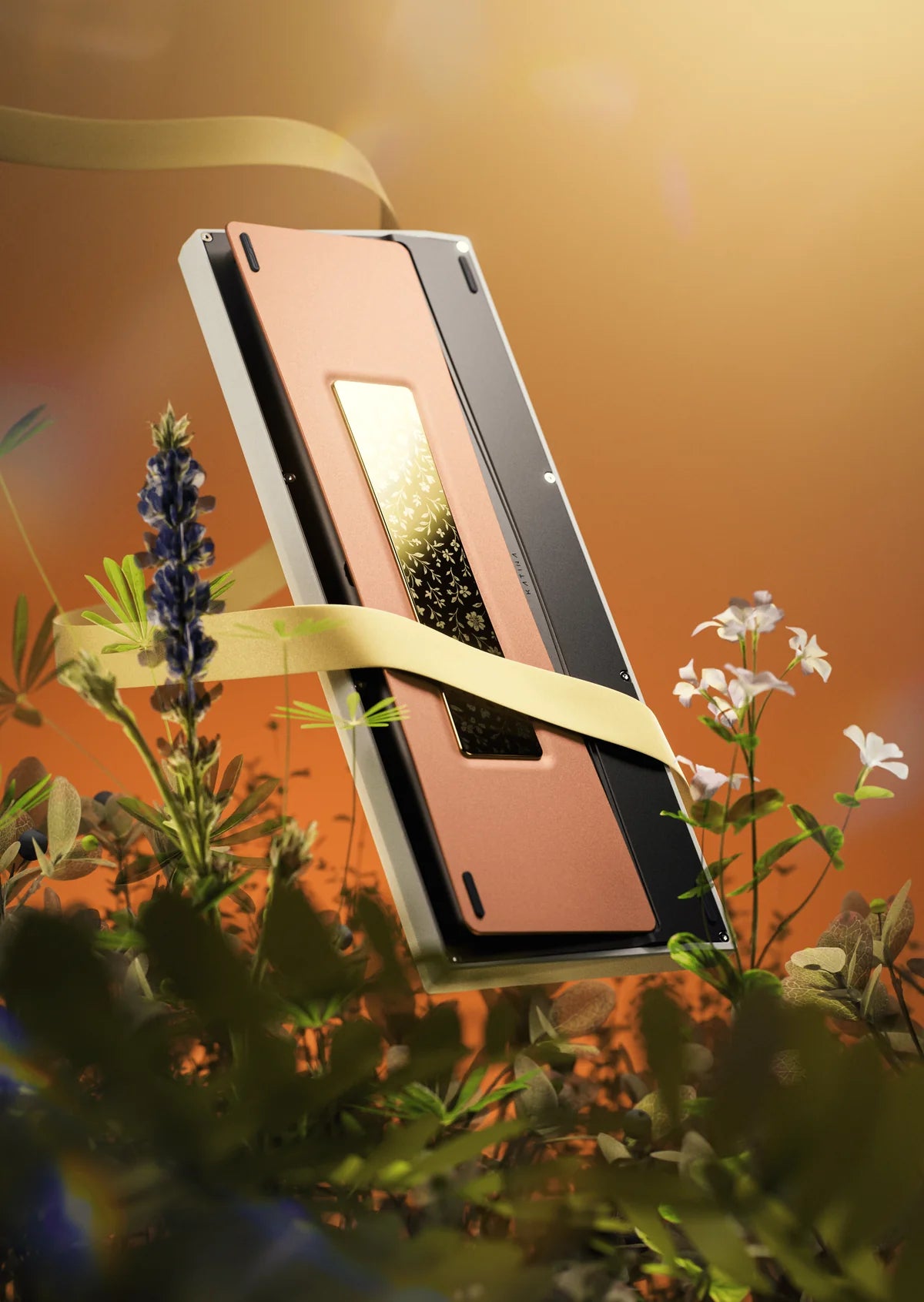

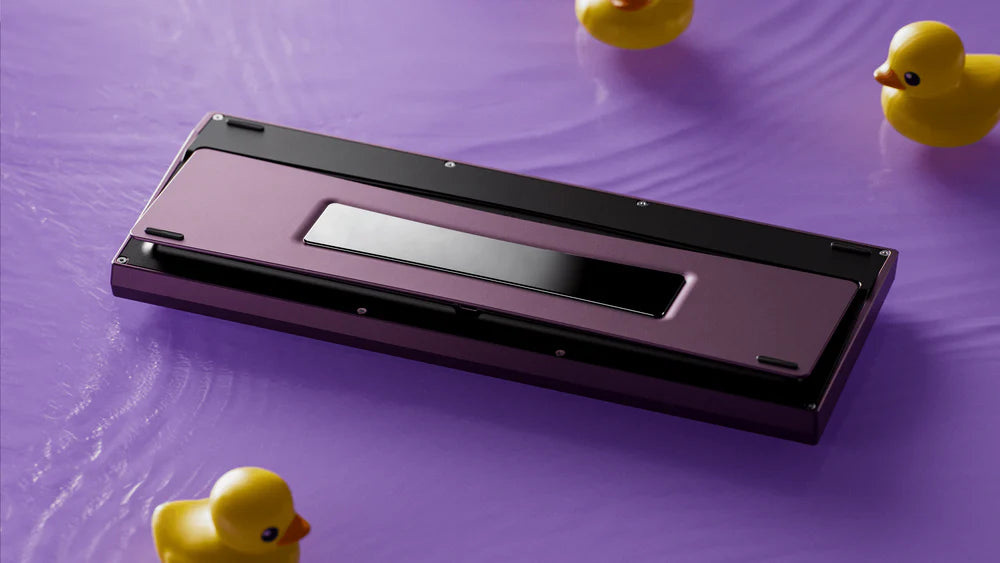

The rear view of Katina TKL is composed of three thoughtfully integrated elements: the lower case, an oversized external base weight, and a finely contoured weight plate. The generous use of materials such as stainless steel or red copper creates a striking visual presence, while the extended 18cm span of the weight block is balanced by elegantly curved crescents along its upper and lower edges. These flowing lines not only soften the sense of mass but also echo the hourglass-inspired silhouette of the keyboard’s side profile.

The Art of Light

Depth and order define the lower case, where a recessed arc engages in subtle dialogue with the base weight. Within this reserved space, two fading lines extend outward, reinforcing a sense of visual rhythm. A discreetly laser-engraved KATINA logo and a softly diffused LED—guided along the curved surface of the base—add refined detail and ambient sophistication. Through careful proportioning, intelligent layering, and precision mounting, the back achieves a harmonious and deep composition, free of visual clutter

Sculpted Silhouette

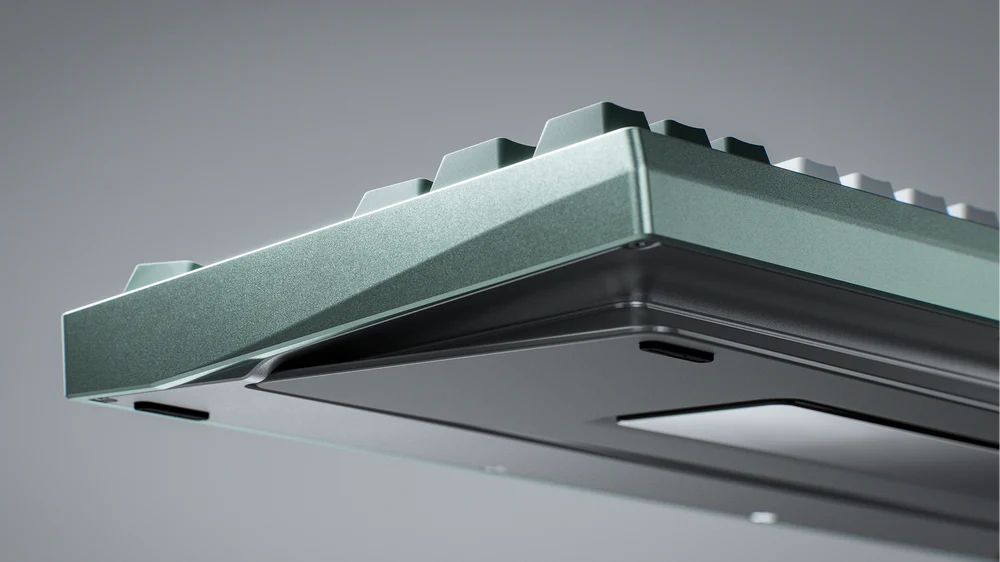

The side profile of Katina TKL is defined by an original "Dual-Arc Curve," inspired by the elegant contour of an hourglass. This flowing line is accentuated by a subtle inflection point, lending rhythm and softness to the form. Throughout the design, auxiliary lines—such as the waistline and bottom case line—are carefully integrated not only as transitions but as stages for light and shadow, establishing a harmonious visual order.

Floating Sensation

Emotionally, Katina TKL continues iNN’s exploration of a "Floating Sensation." Through precise coordination between the bottom case and external weight, a gem-like cut-out is subtly embedded in the middle. Visible only from certain angles, this restrained detail conveys a sense of quiet presence—as though the keyboard rests lightly upon the desk, inviting a moment of contemplation.

Specification:

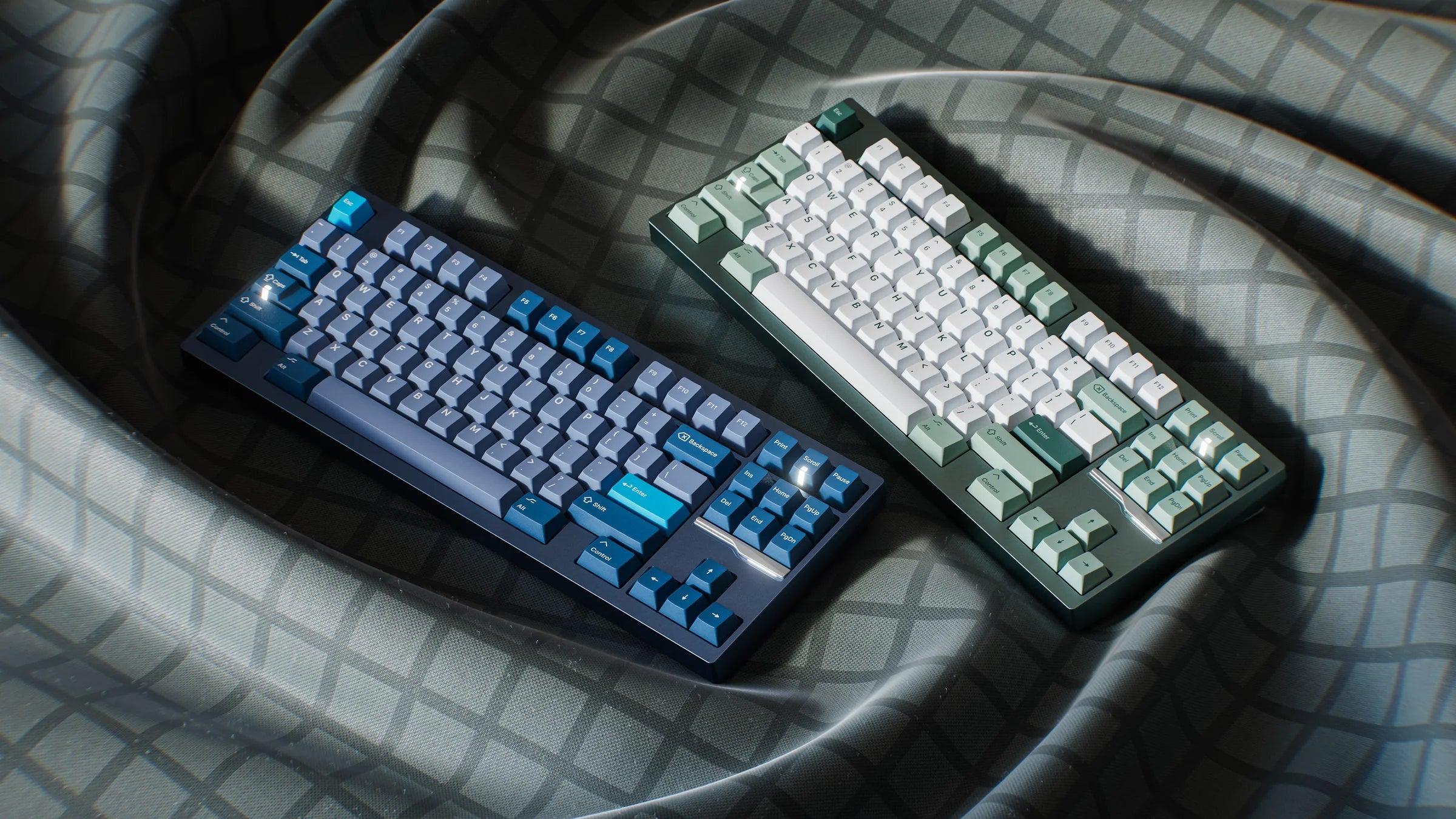

• Case Layout
  • TKL, 7U Spacebar
  • F12 - WK/WKL（Hotswap&Solder）
  • F13 - HHKB（Solder Only）
• Front Height
  • Actual Front Height=16.64 mm
  • EKH (Effective Keystroke Height) =21.83 mm
• Typing Angle: Typing Angle：8°
• Net Weight
  • Classic Edition with SS Internal Weight, ≈ 2.2kg
  • Classic PC Edition with Alu Internal Weight, ≈ 1.7kg
  • Deluxe Edition, ≈3-3.2 kg
• PCBA
  • 1.6mm, FR4, White matte finish, Copper-filled logo and edge, No flex-cut, QMK/Vial, Wired only
  • FPC to USB-C Daughter Board



Case Layout:

• WK & WKl - we chose F12 Layout to seek a classic vibe
• HHKB - we go for F13 to achieve a more symmetrical main visual



Compatibility:

• Hotswap：Split Backspace, Split L-Shift, Split R-Shift, Stepped Caps, 3-1-3 Split Sapcebar

• Solder：Split Backspace, Split L-Shift, Split R-Shift, Stepped Caps, 3-1-3 Split Sapcebar, ISO Enter, F13 support

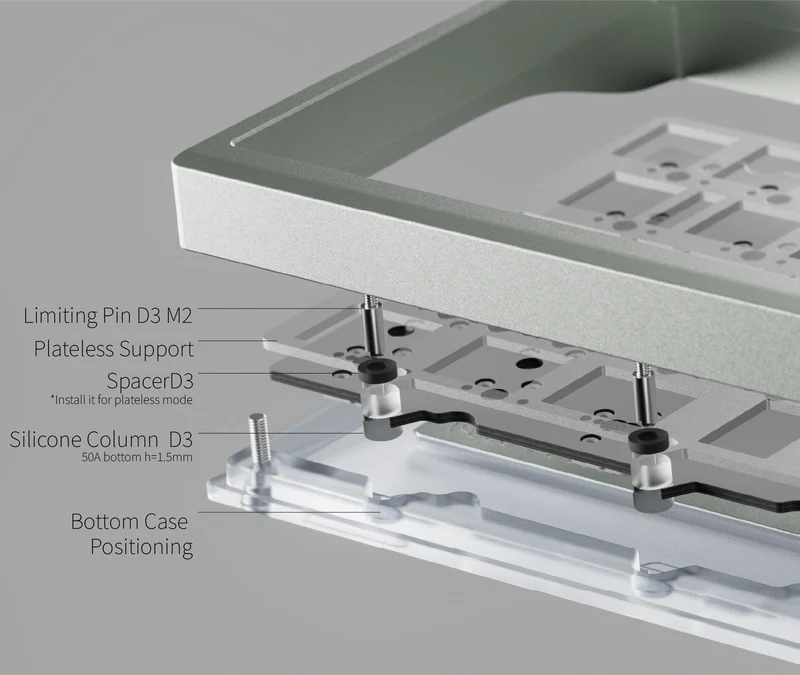

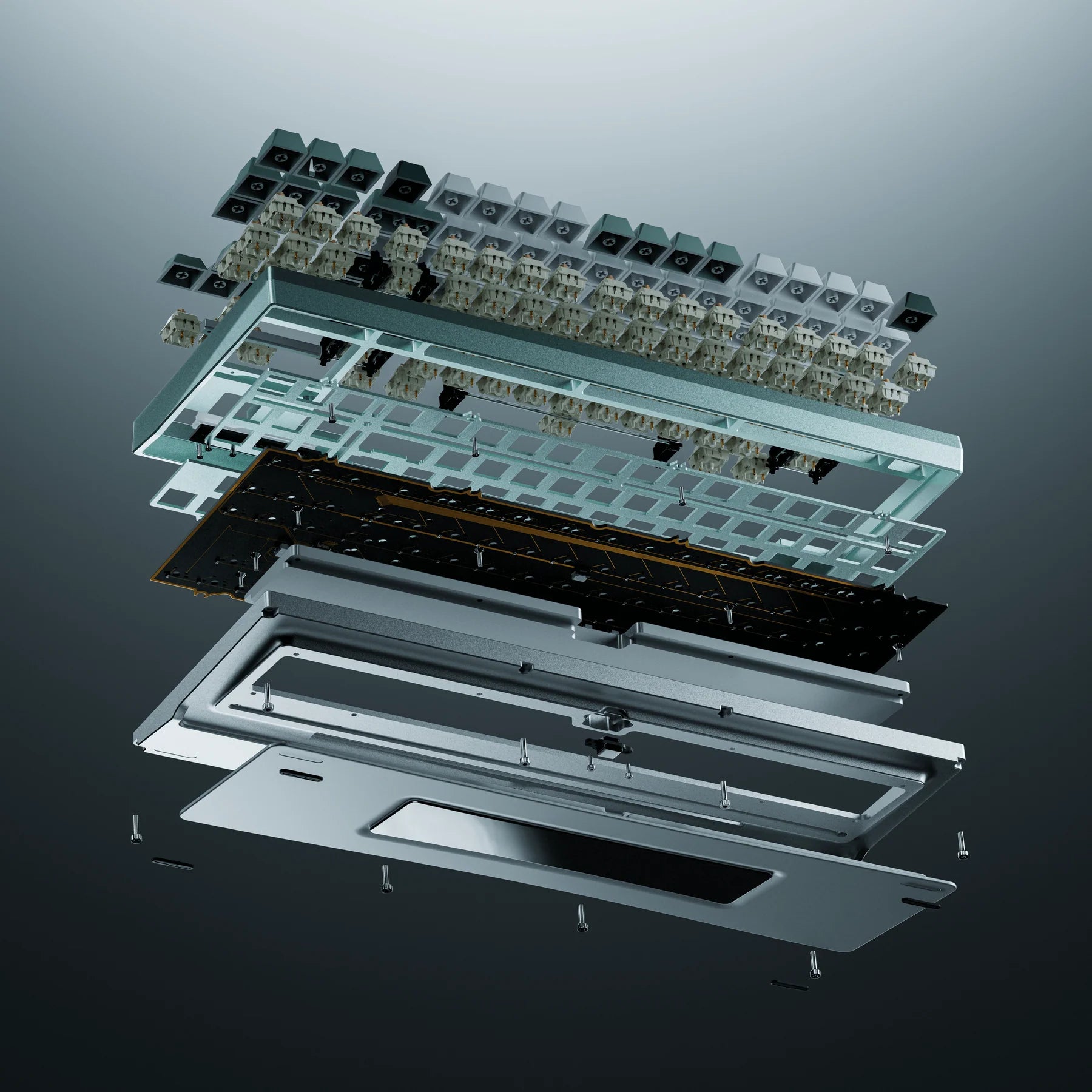

PCB Gasket Mount:

The internal assembly is suspended above the bottom case by the silicone columns, while limiting pins from the top case insert into the columns, restricting planar movement.

In this mode, the entire internal assembly makes no hard contact with the case. Simultaneously, the limiting pins introduce a subtle sense of firmness, giving a character best described as resilient.

With plateless mode and 3.7mm available travel space, the typing experience on the alphanumeric zone becomes notably soft and bouncy.

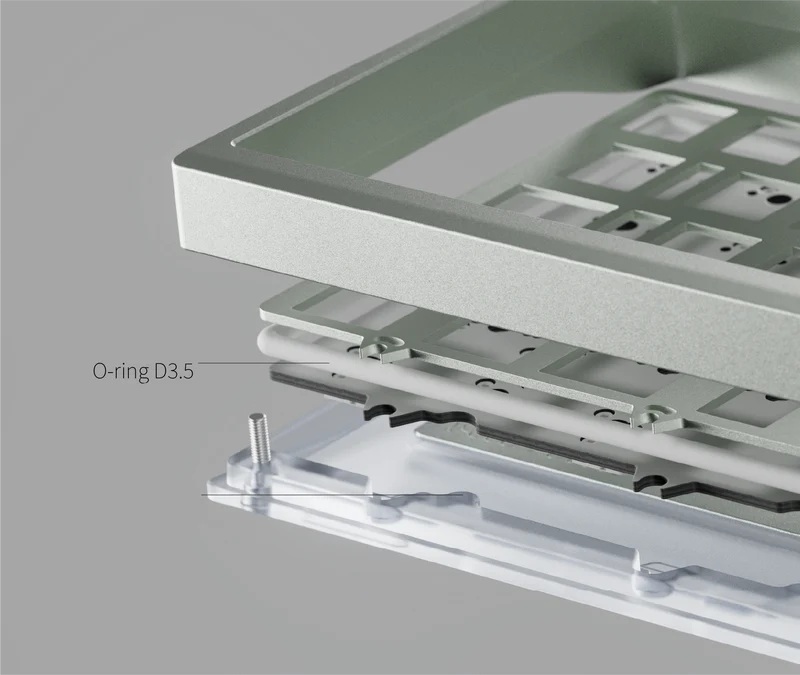

O-ring Mount:

Katina TKL adopted a configuration of 5 upper and 3 lower O-ring bosses to support the internal assembly.

It also employs standard D3.5 silicone O-ring and includes compatible clearance cuts in the plate for screw-in stabilizers. This delivers a typing experience that is moderately soft and acoustically focused.

The design is compatible with most mod parts and accessories readily available on the market,

e.g. Nexuros X Geon ‘s PCB Snap & Key Snap

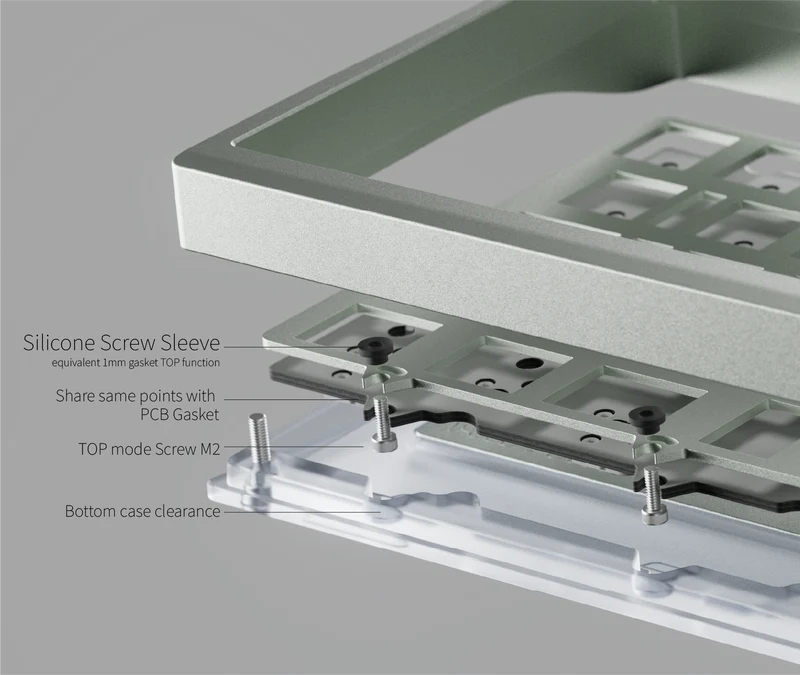

Isolated TOP Mount:

The Katina TKL can also be configured in a top-mounted mode using M2 cup head screws fitted with custom silicone sleeves.

The degree of screw tightness can be adjusted to influence the down travel to some extent, while the plate makes only minimal contact with the screw heads.

This design effectively isolates vibration and unwanted noise, resulting in a solid typing feedback.

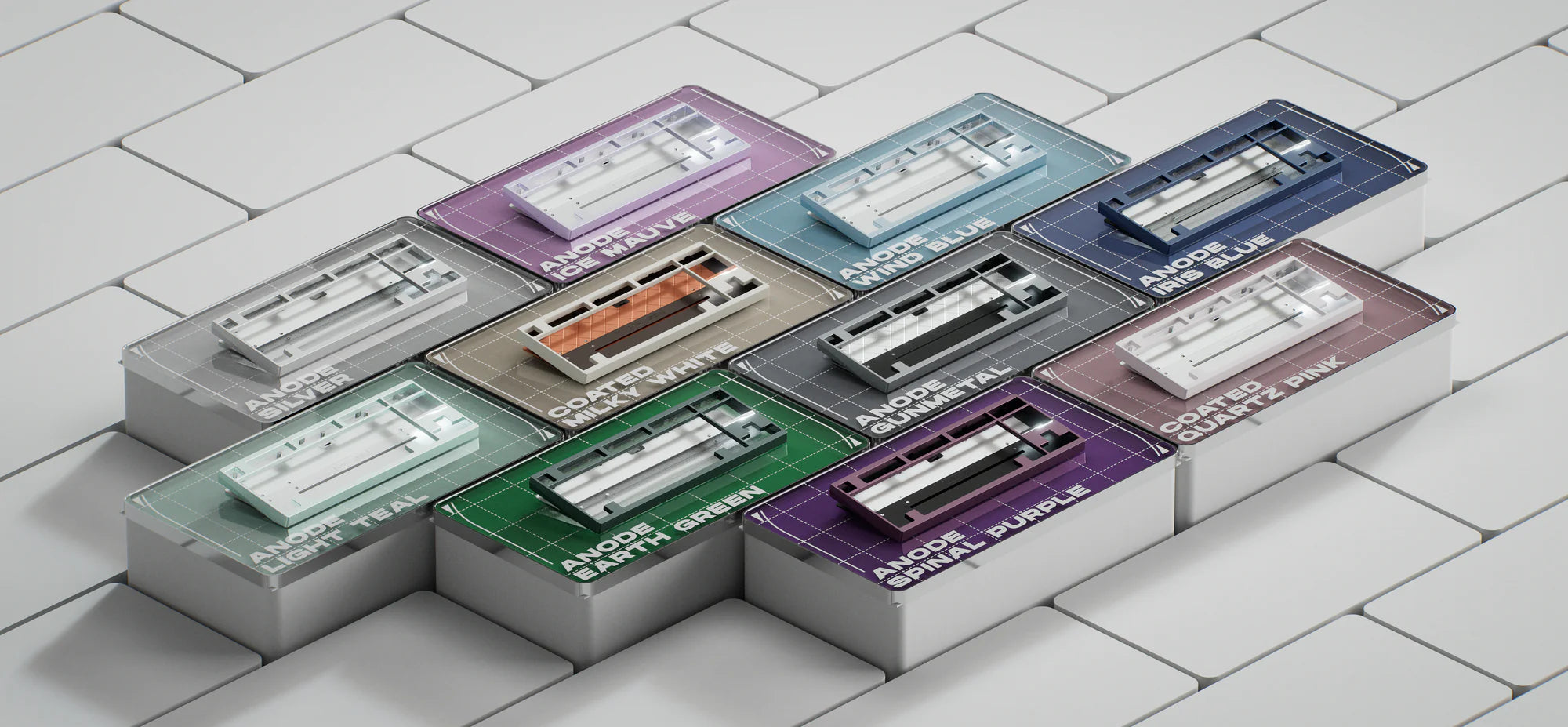

Colour Options:

Anodized:

• Silver, Light Teal, Spinal Purple, Earth Green,
• Wind Blue, Iris Blue, Ice Mauve, *Gunmetal

Coated:

• Quartz Pink, *Shinny Milky White

Note: Color with *mark means its exclusive for Deluxe Edition



Classic Edition:

Pure Design, Ultimate Freedom

The Classic Edition embodies the essence of the Katina TKL in its most refined form—free from decorative additions, delivering the perfect balance of freshness and value. Its structural feel and acoustic performance set a high benchmark for all upgraded variants, offering a complete experience of the designer's original vision at an accessible price point. This edition also includes the full iNN Studio unboxing and service experience.

With an extensive selection of SKUs, colors, finishes, and material upgrades, the Classic Edition puts the power of choice in your hands. Customize your keyboard your way—whether you prefer a minimalist look or a personalized style statement.

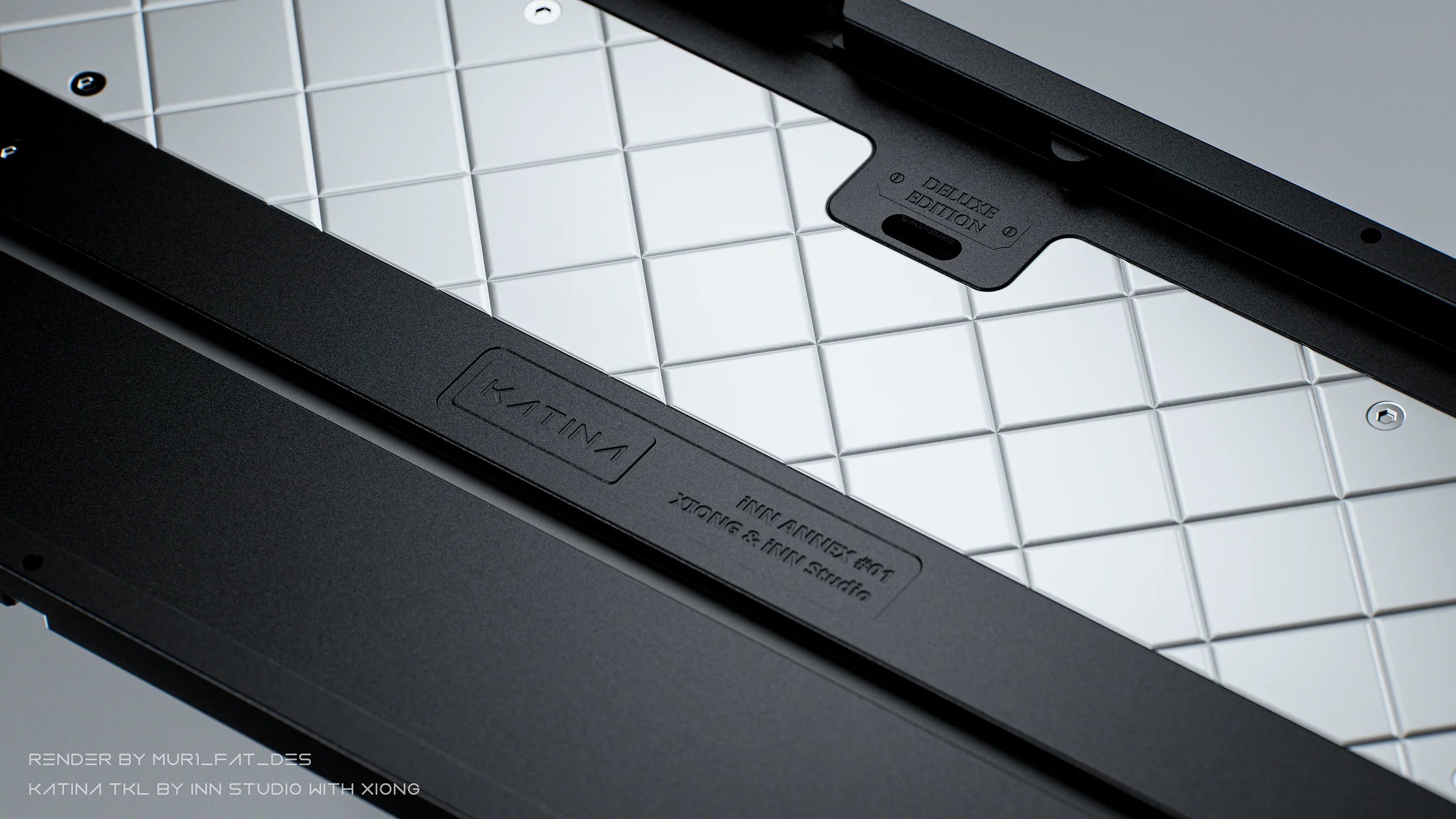

Deluxe Edition:

Focusing on various high-value, high-texture craftsmanship as the core, complemented by exclusive custom product details, packaging, and accessories.

'The Artistic Interpretation of Stainless Steel'

The major design of Katina TKL's Deluxe edtion is adding non-tactile patterns onto a mirror surface to achieve more complex, advanced aesthetic expression and emotional conveyance. Meanwhile, while pushing material and craftsmanship to their absolute limits, we've also prepared an abundance of design details to complement the 3D interior trim—including accent engraved patterns and deluxe logos.

The Deluxe versions feature exclusively designed packaging and inclusions, extensively utilizing materials like leather, silk, and silver to deliver an unboxing experience unlike any other.

•


Disclaimers

Kindly note that the images are of 3D renders and are for illustration purposes only. The final colours may differ slightly.
