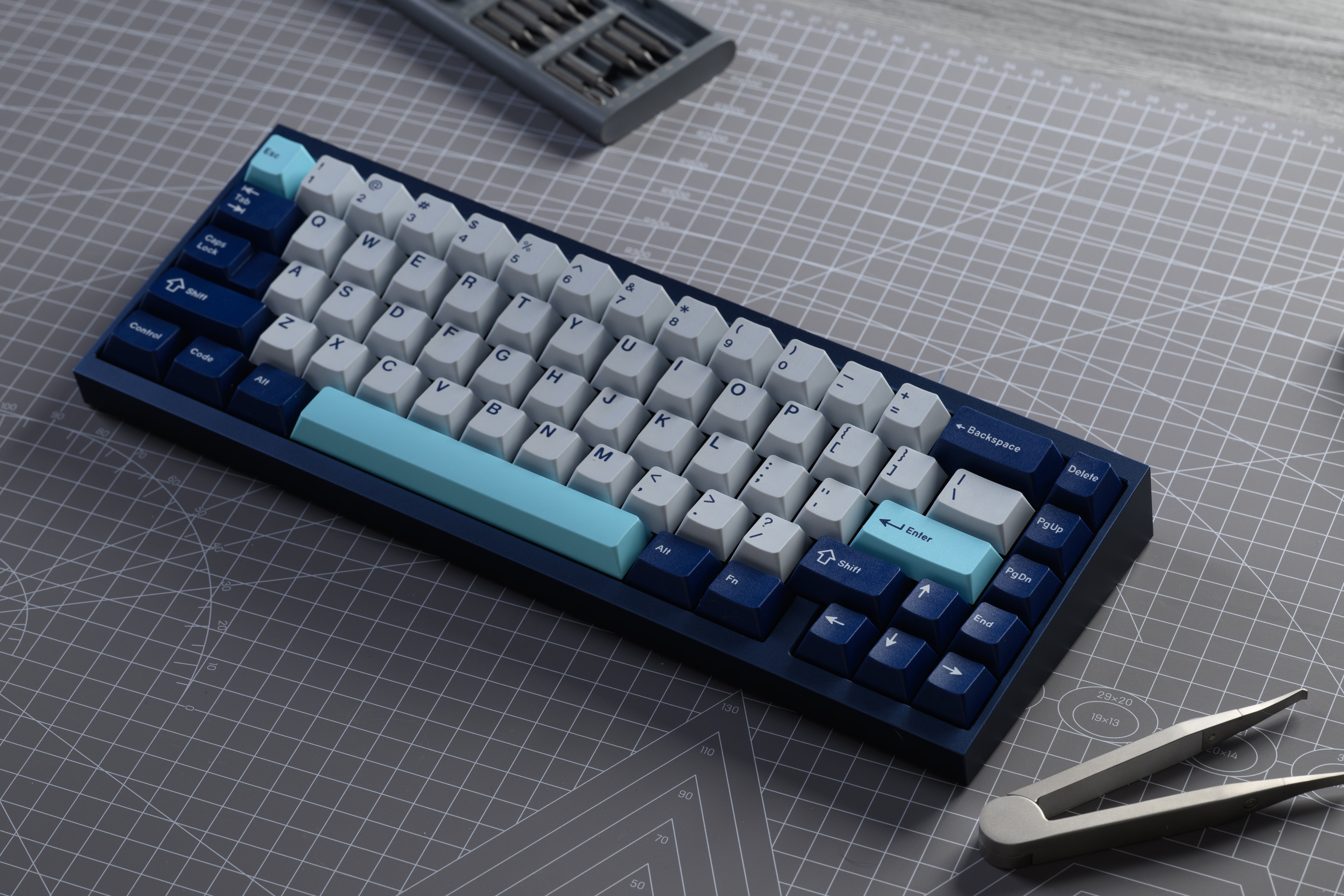

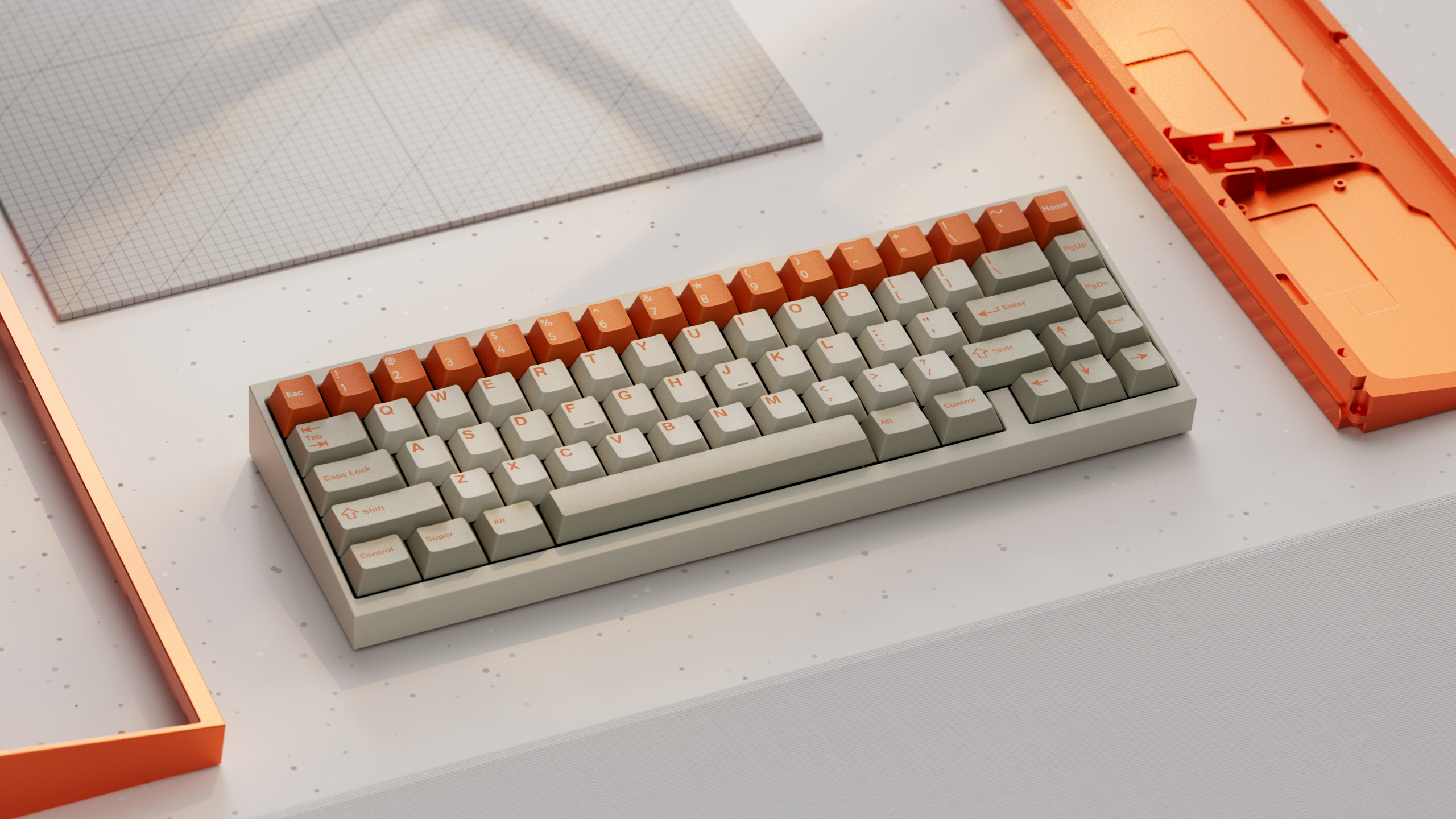

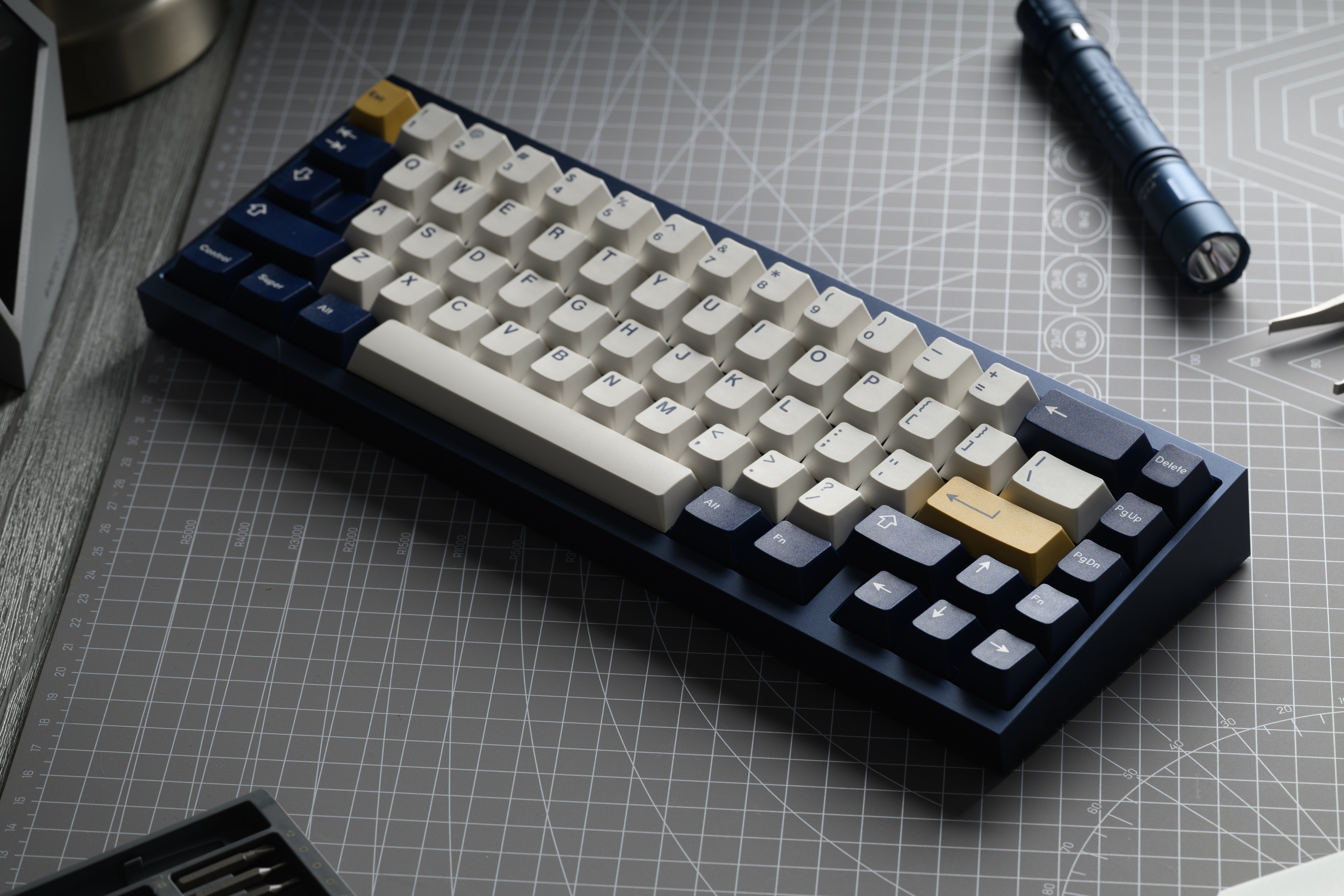

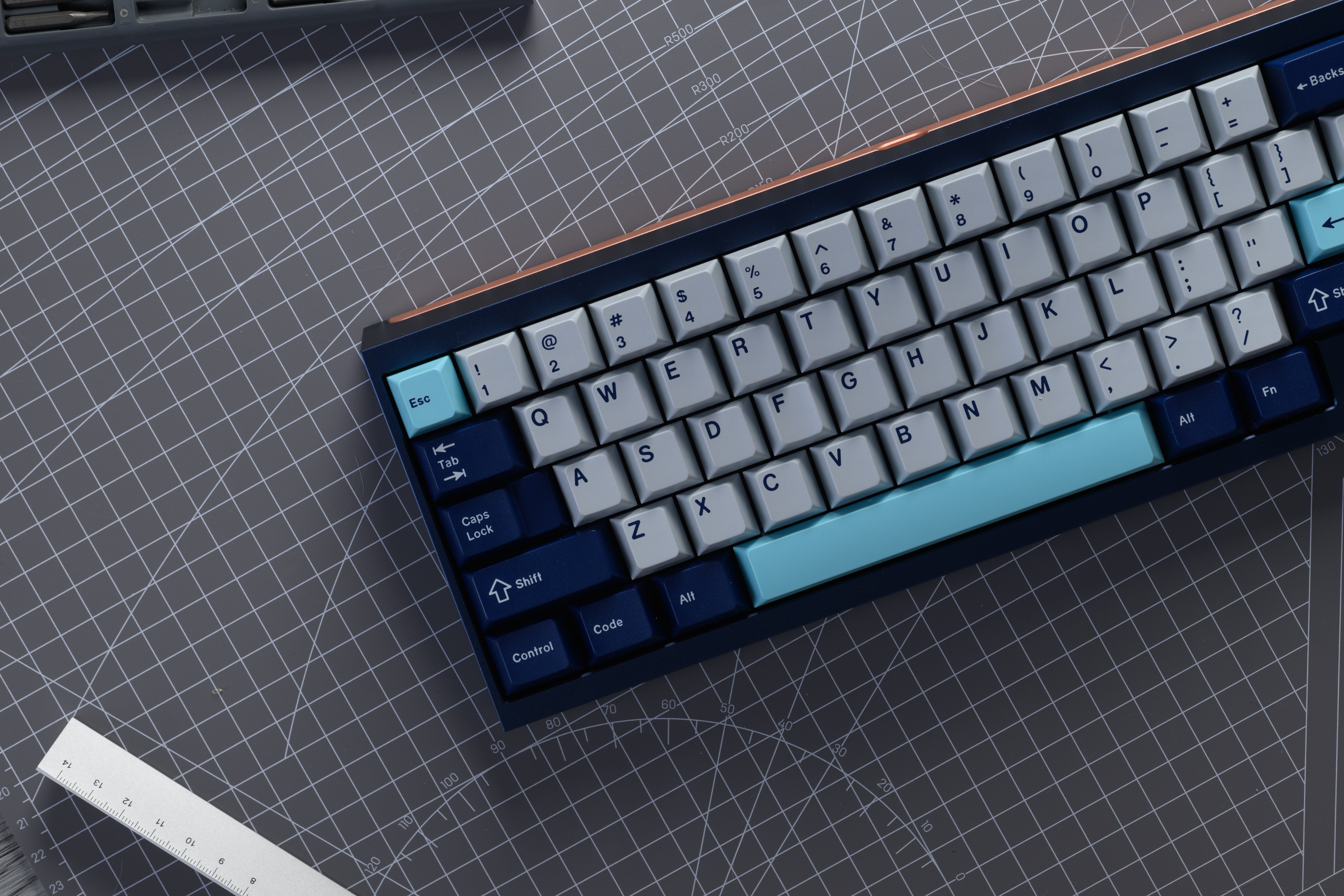

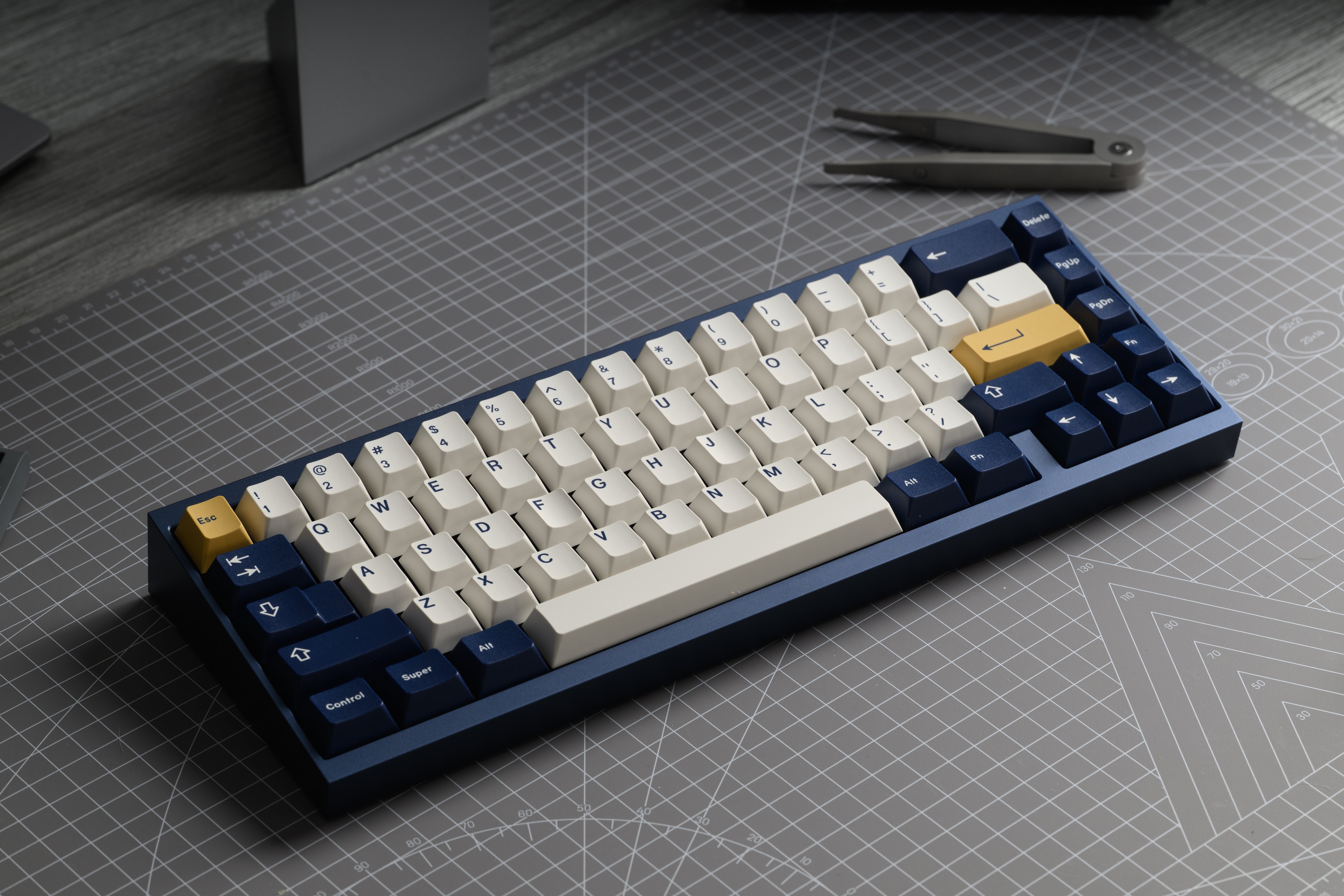

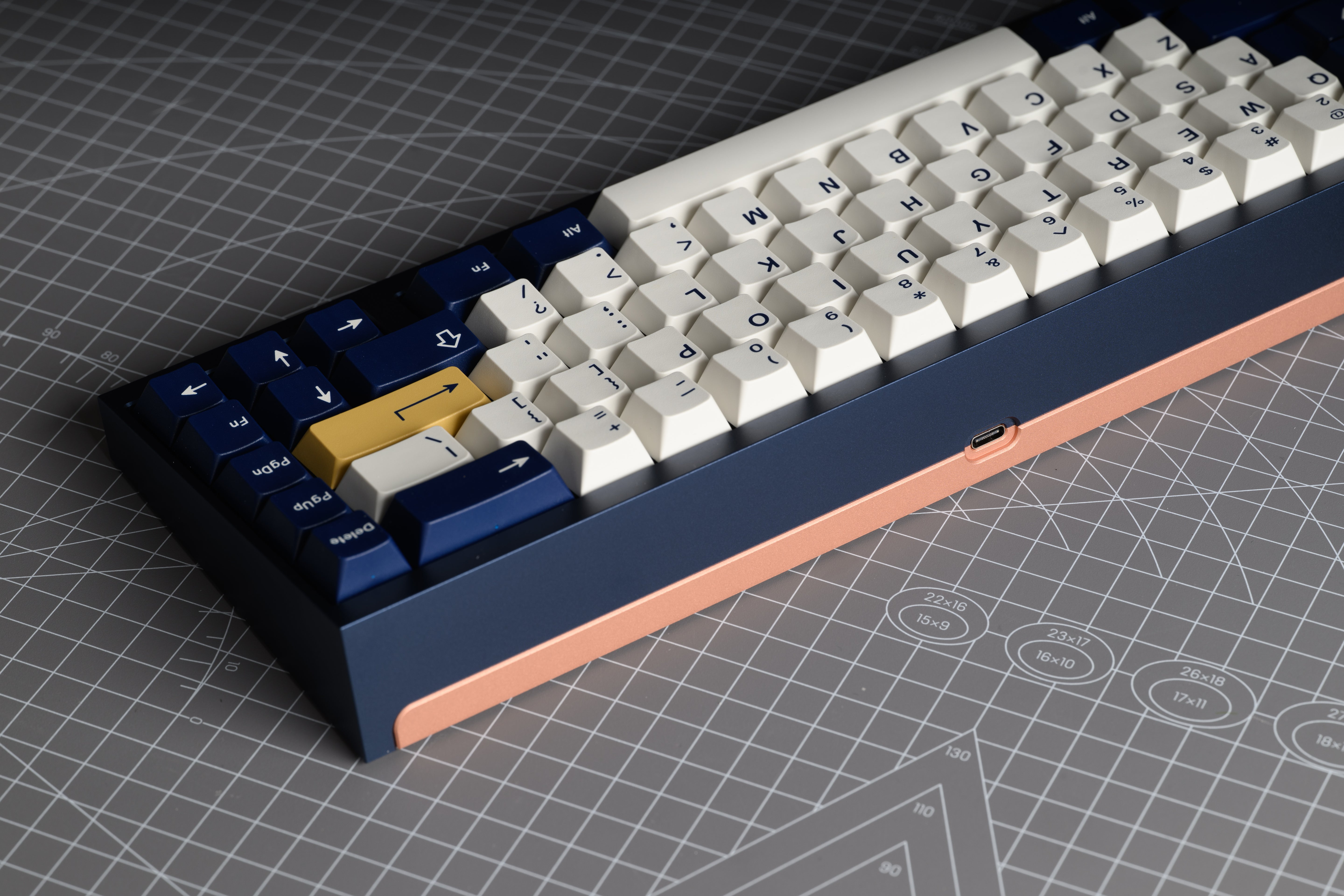

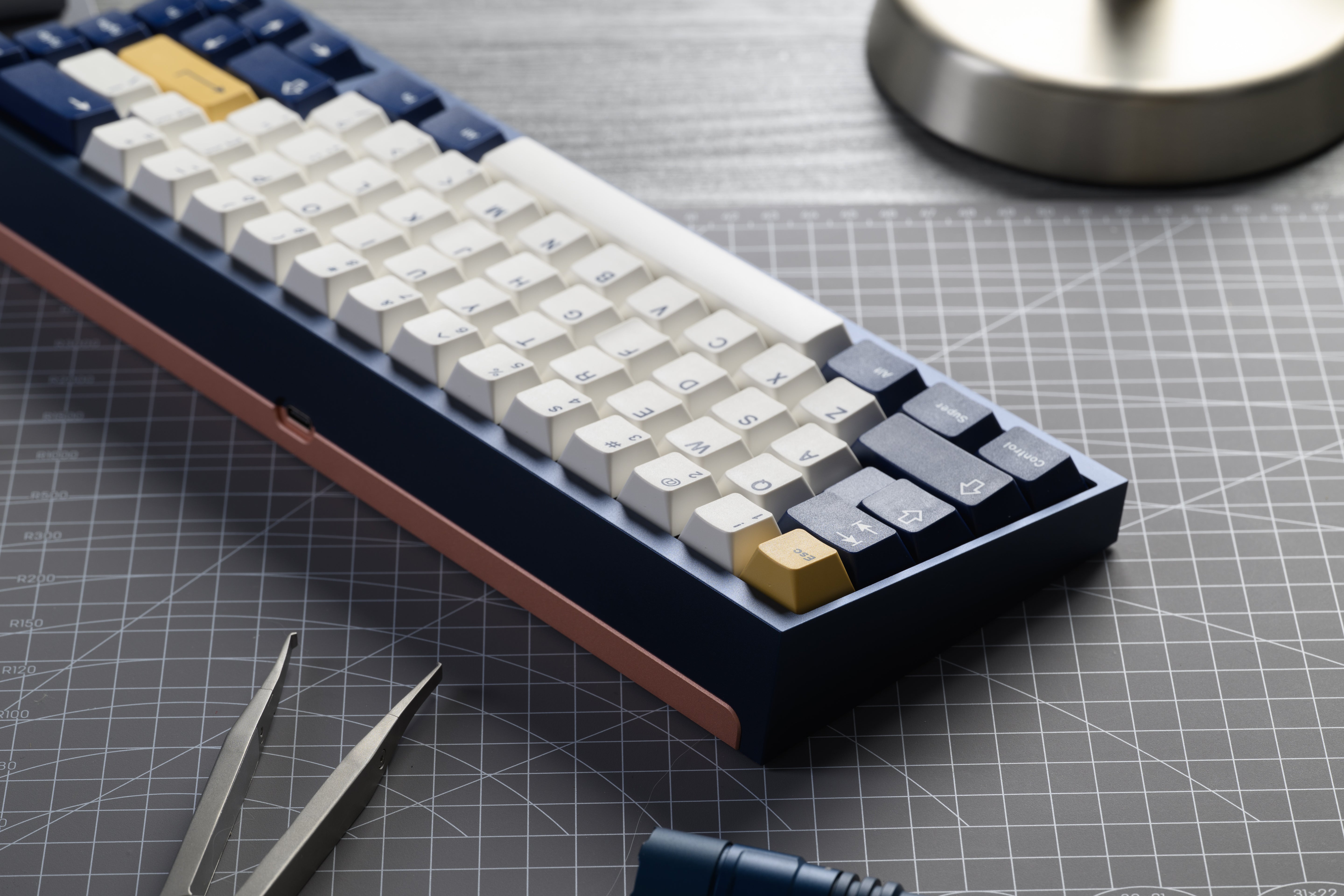

(Group Buy) Tofu65 3.0 Keyboard Kit

Optimized TOP Mount Structure
To minimize resonance and hollowness, the mounting points for the TOP structure are strategically placed to avoid the spacebar area. This results in a more uniform and satisfying sound signature.

Top Case Mount Silicone Dampeners
Silicone dampeners provide complete physical decoupling of the positioning plate from the upper housing. This design mitigates resonance conduction at its origin, significantly reducing structural noise. Top case mount method is easier to install.

Force Break Mod

Includes 4 Teflon pads to decouple case sections, effectively killing resonance and metallic ping at the source.

Exploded View

Keyboard Parts:

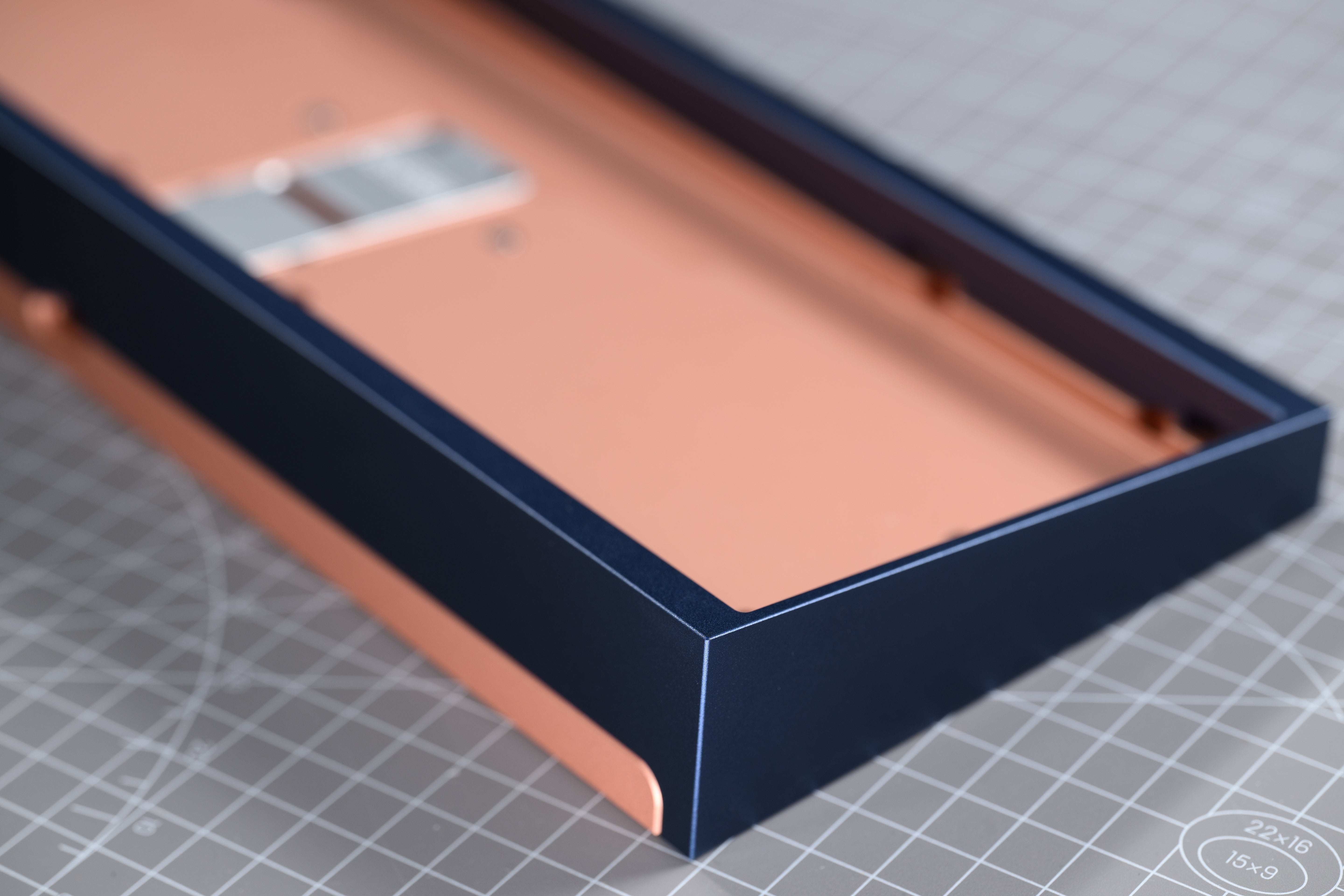

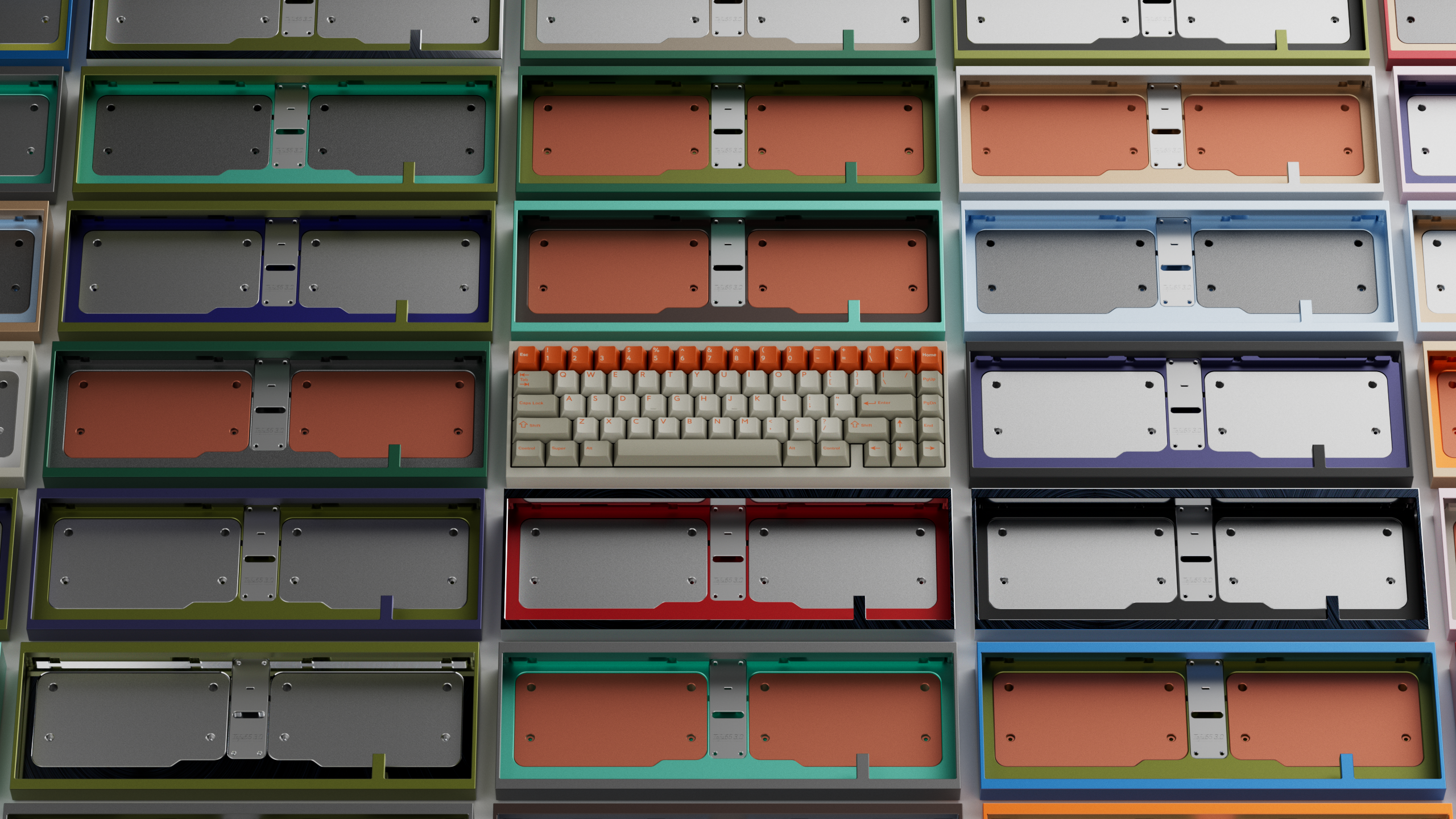

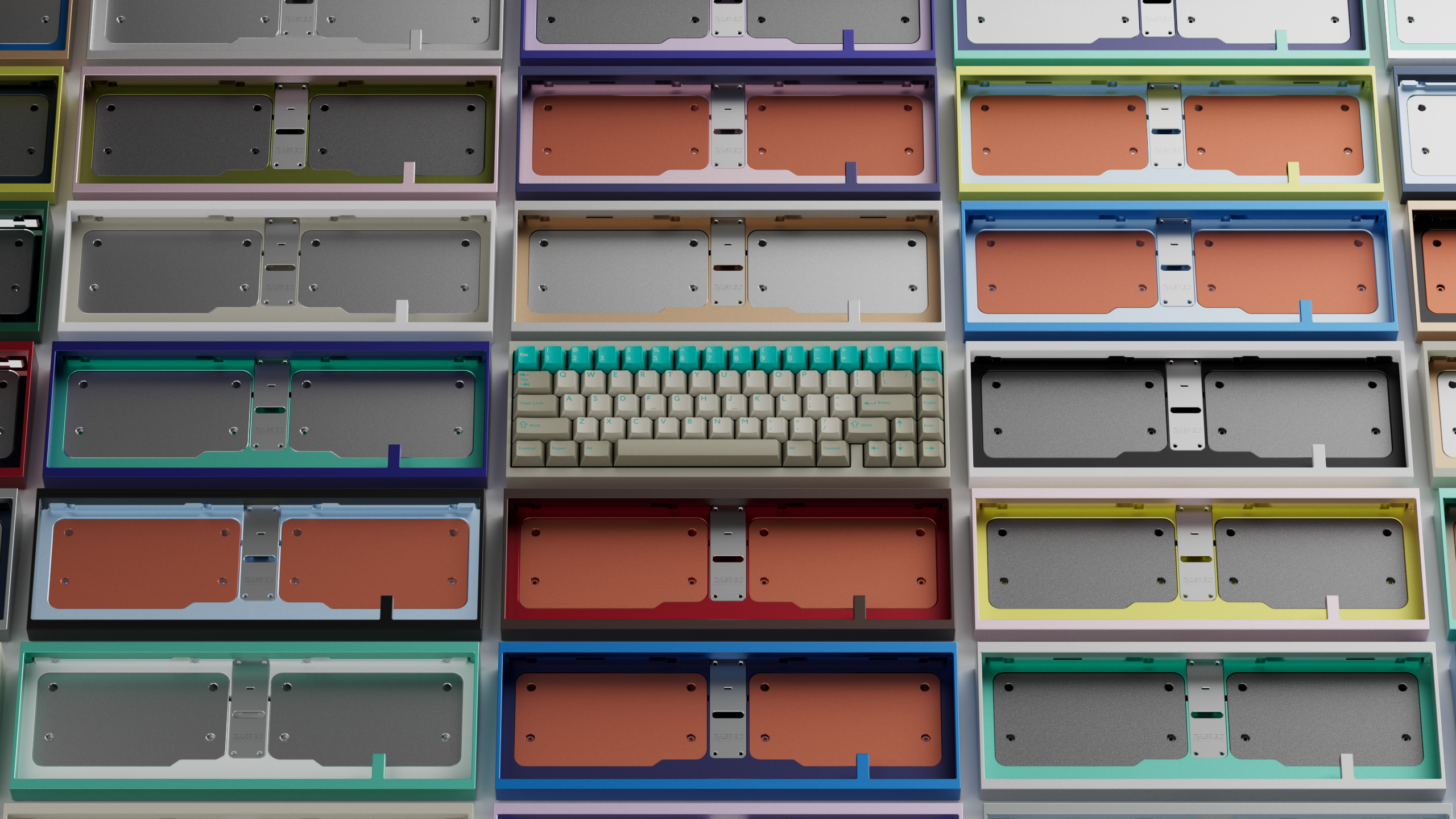

Top Case Colours

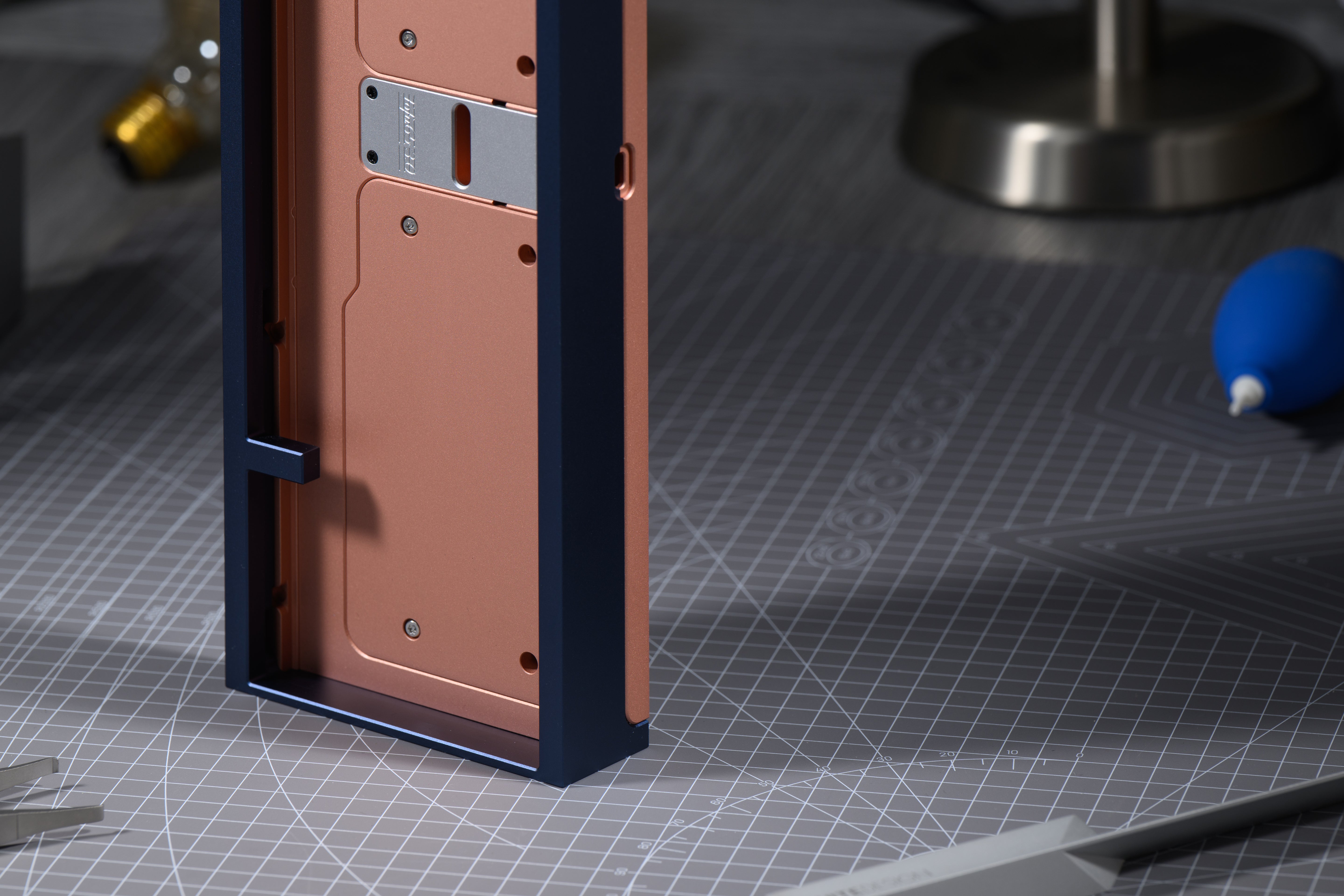

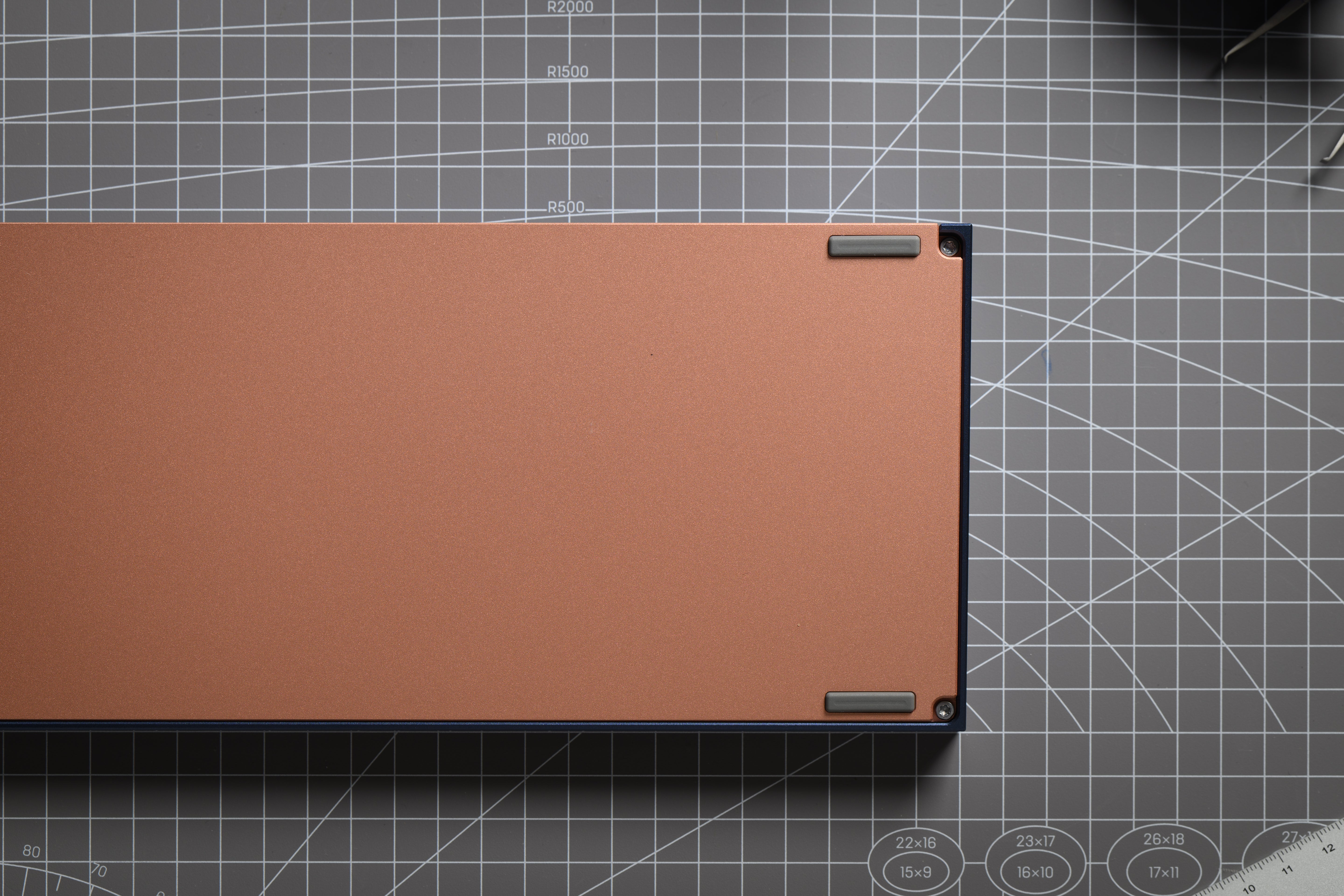

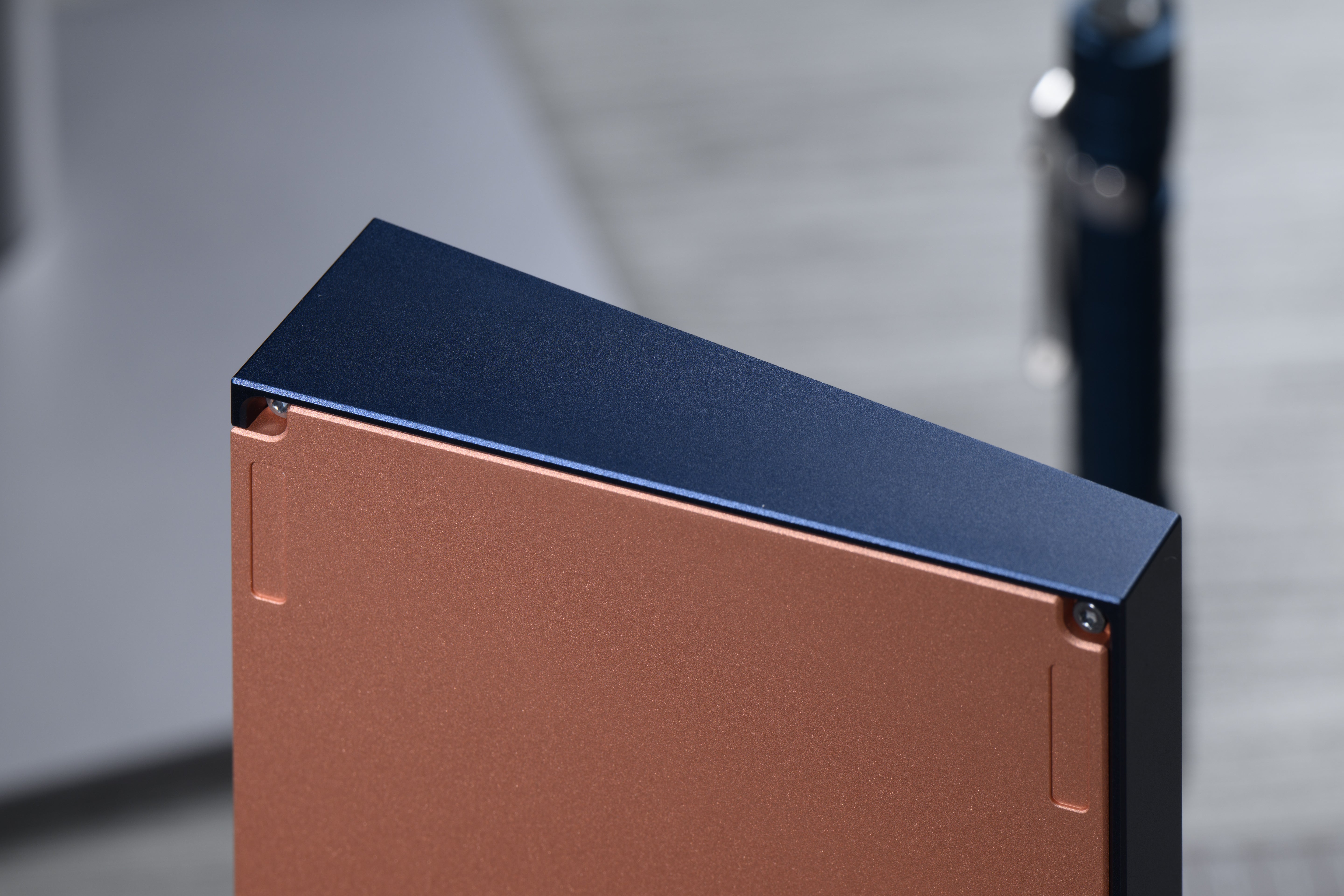

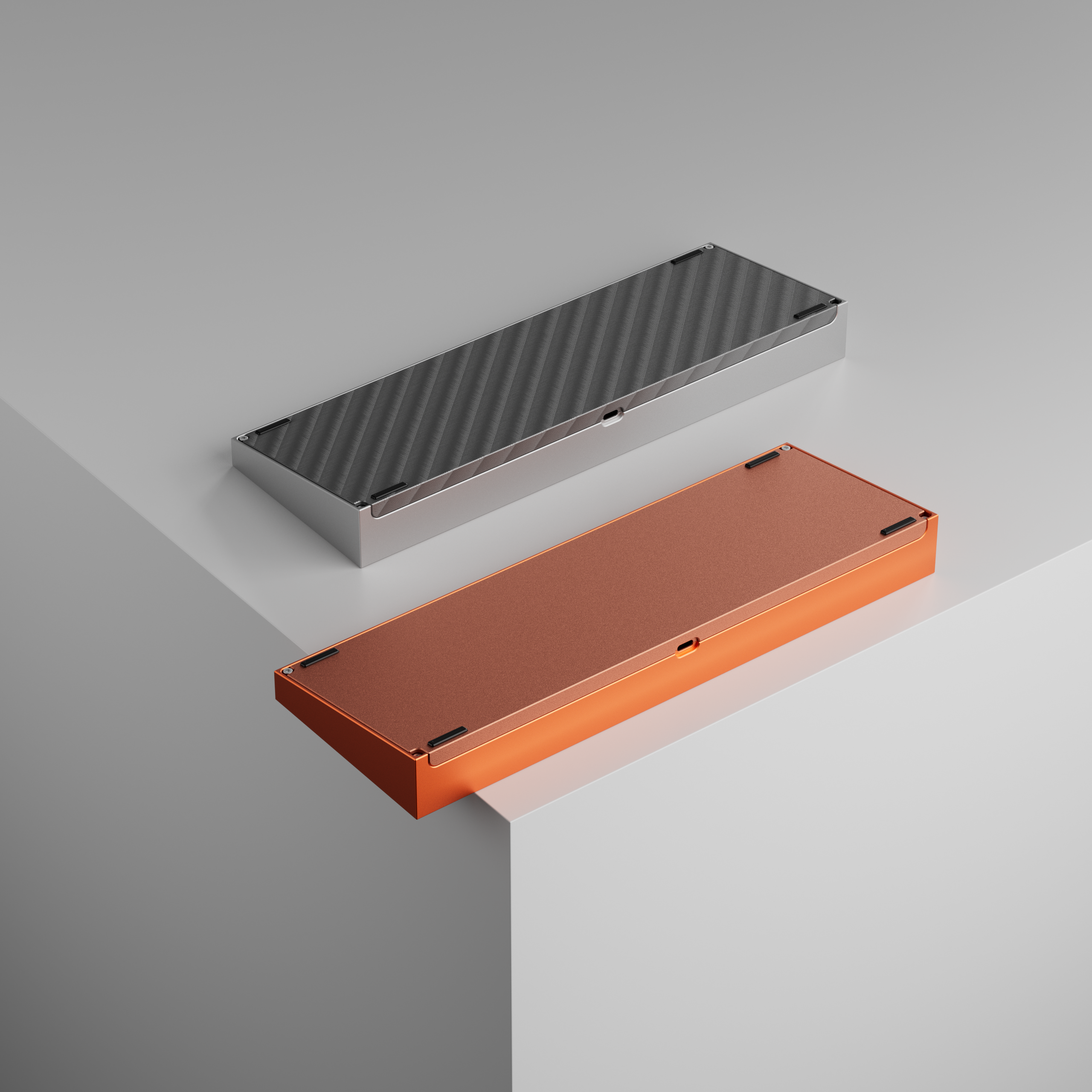

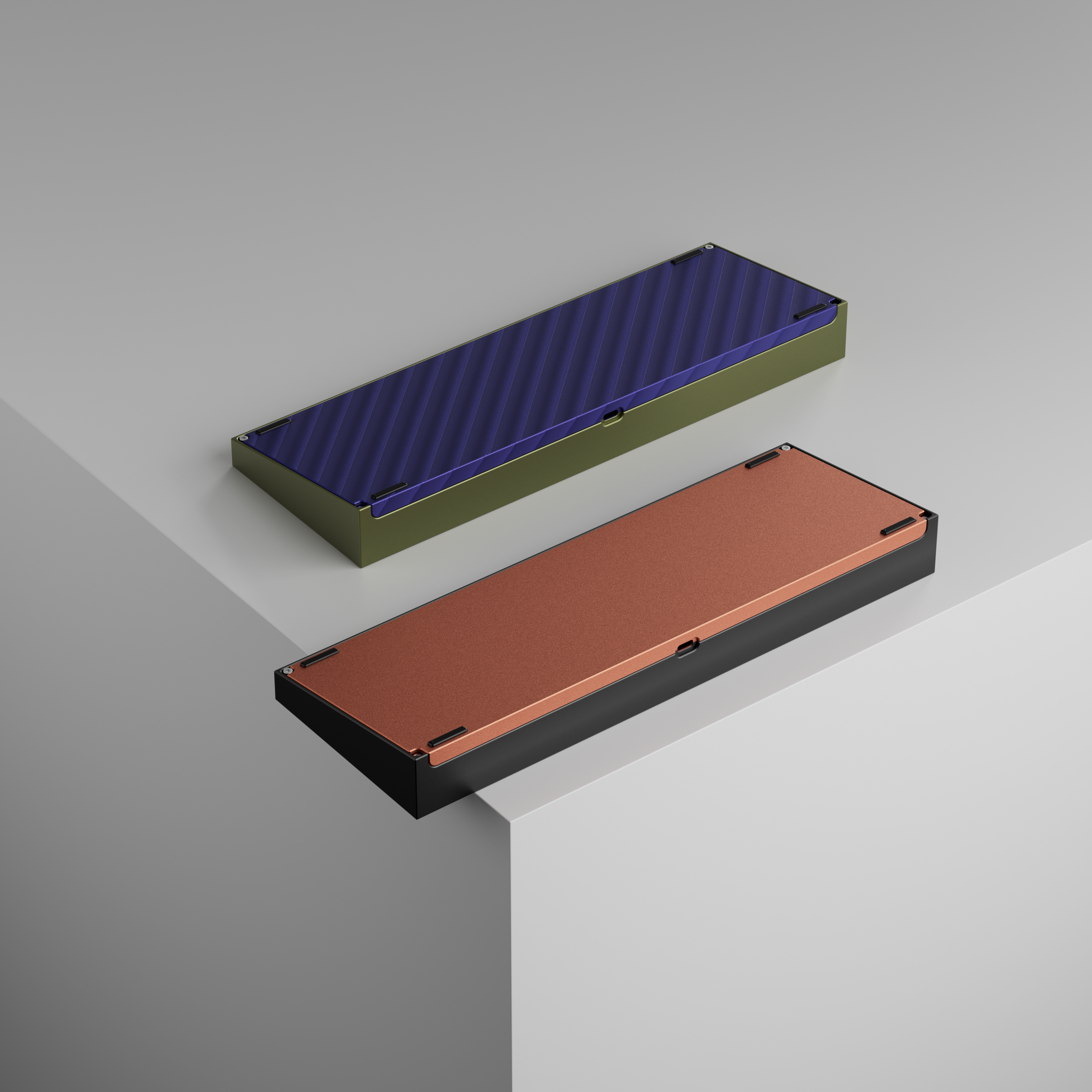

Bottom Case Colours

Custom Colour Top Case

Custon Colour Bottom Case

These bottom case colours are also available without the textured finish

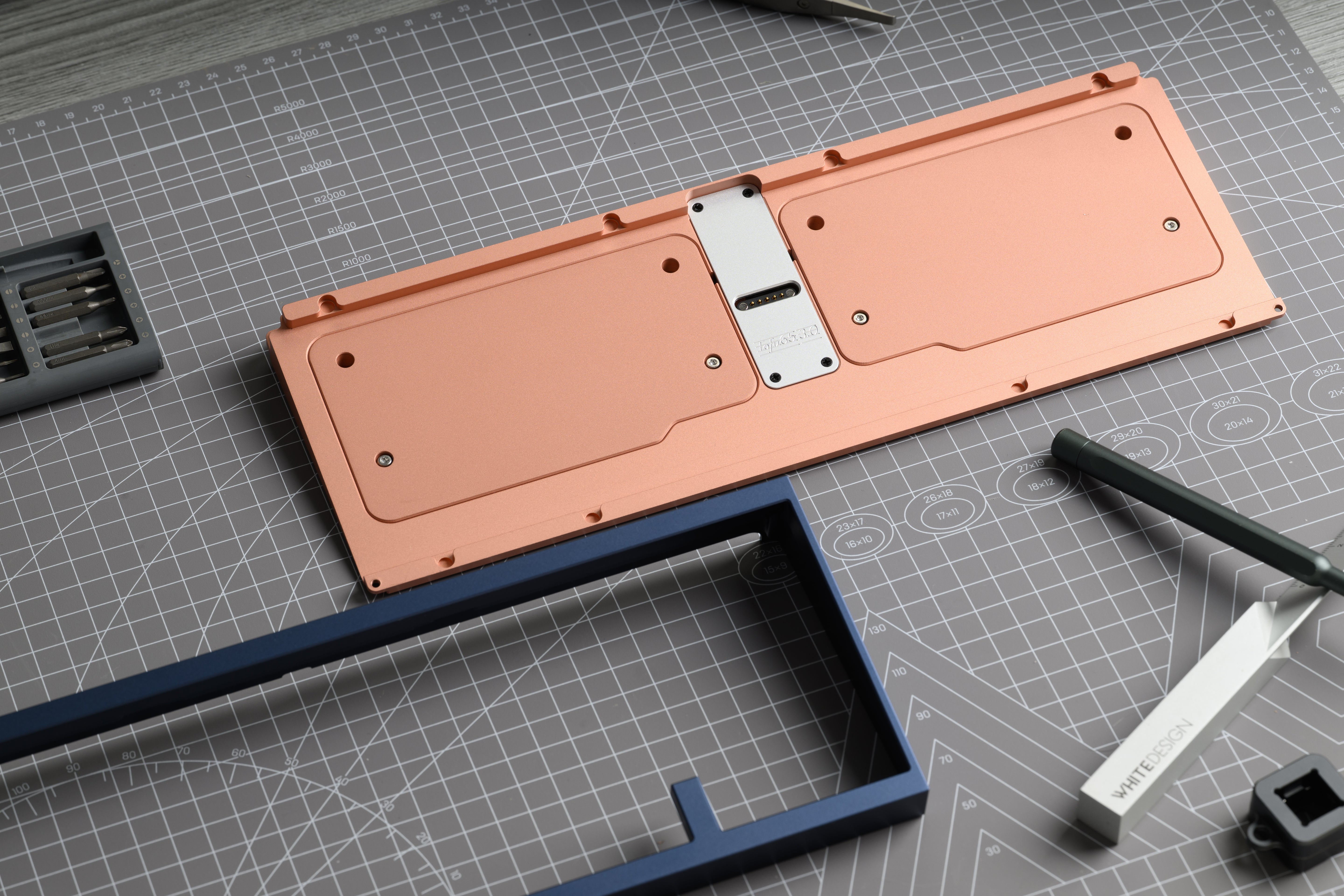

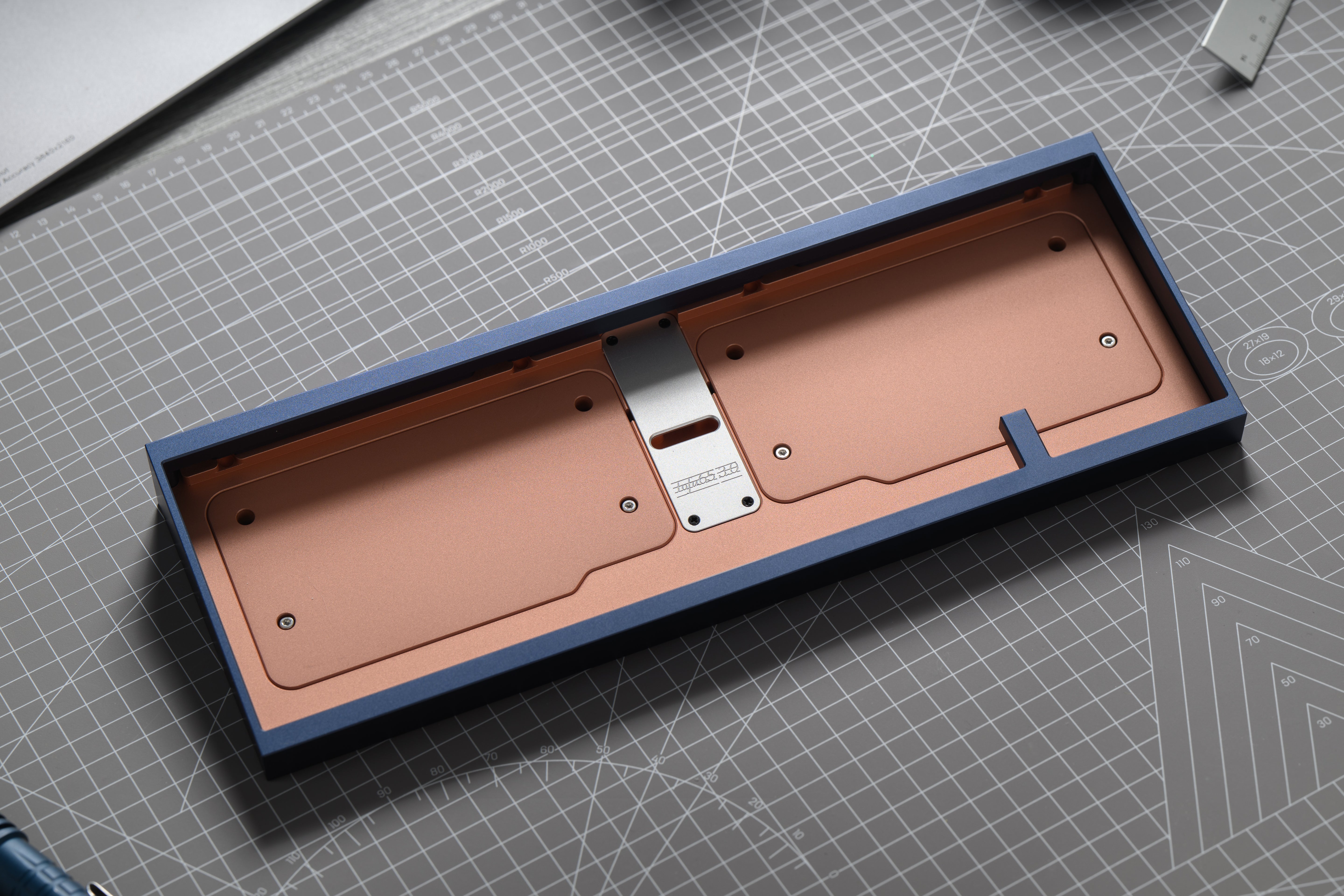

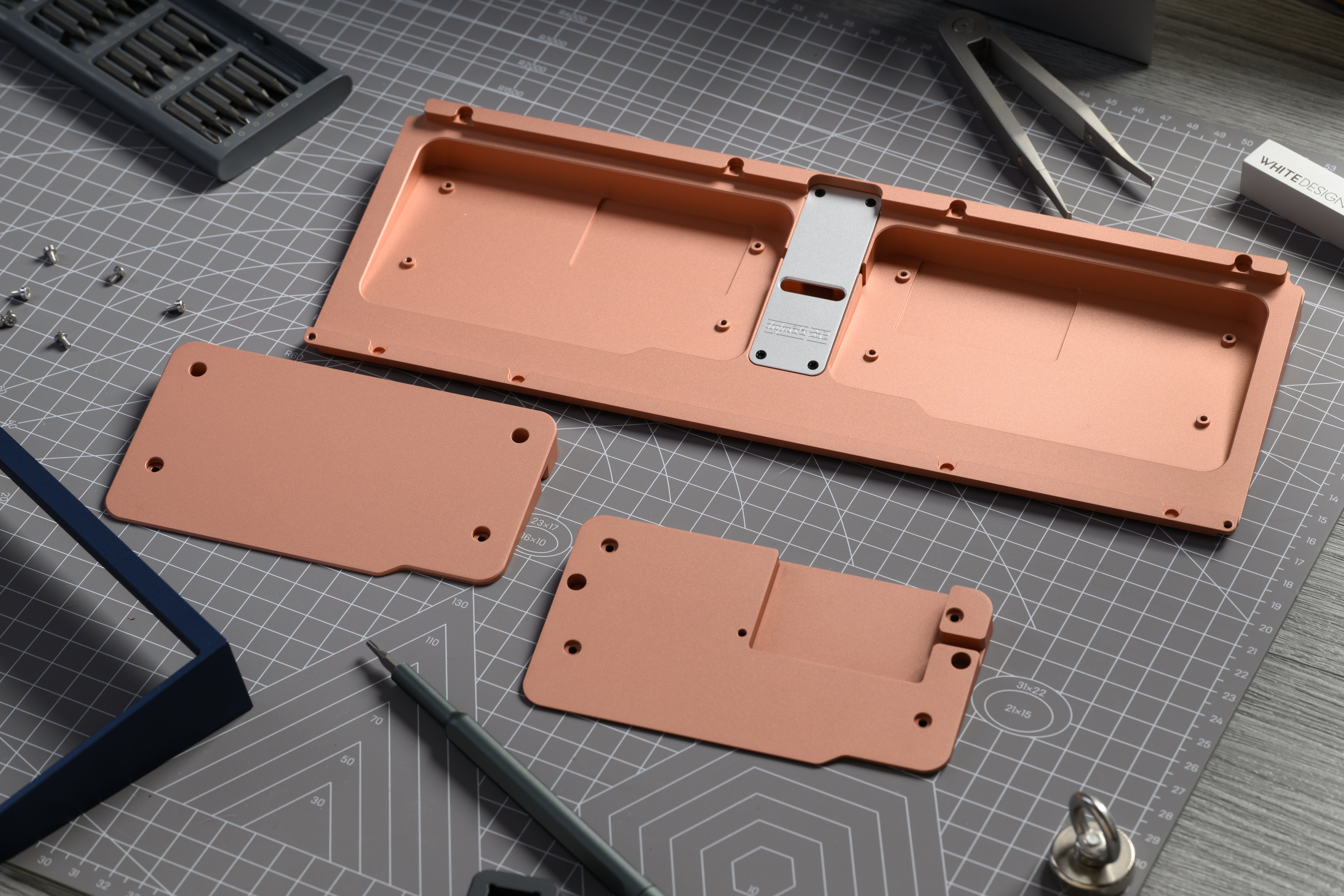

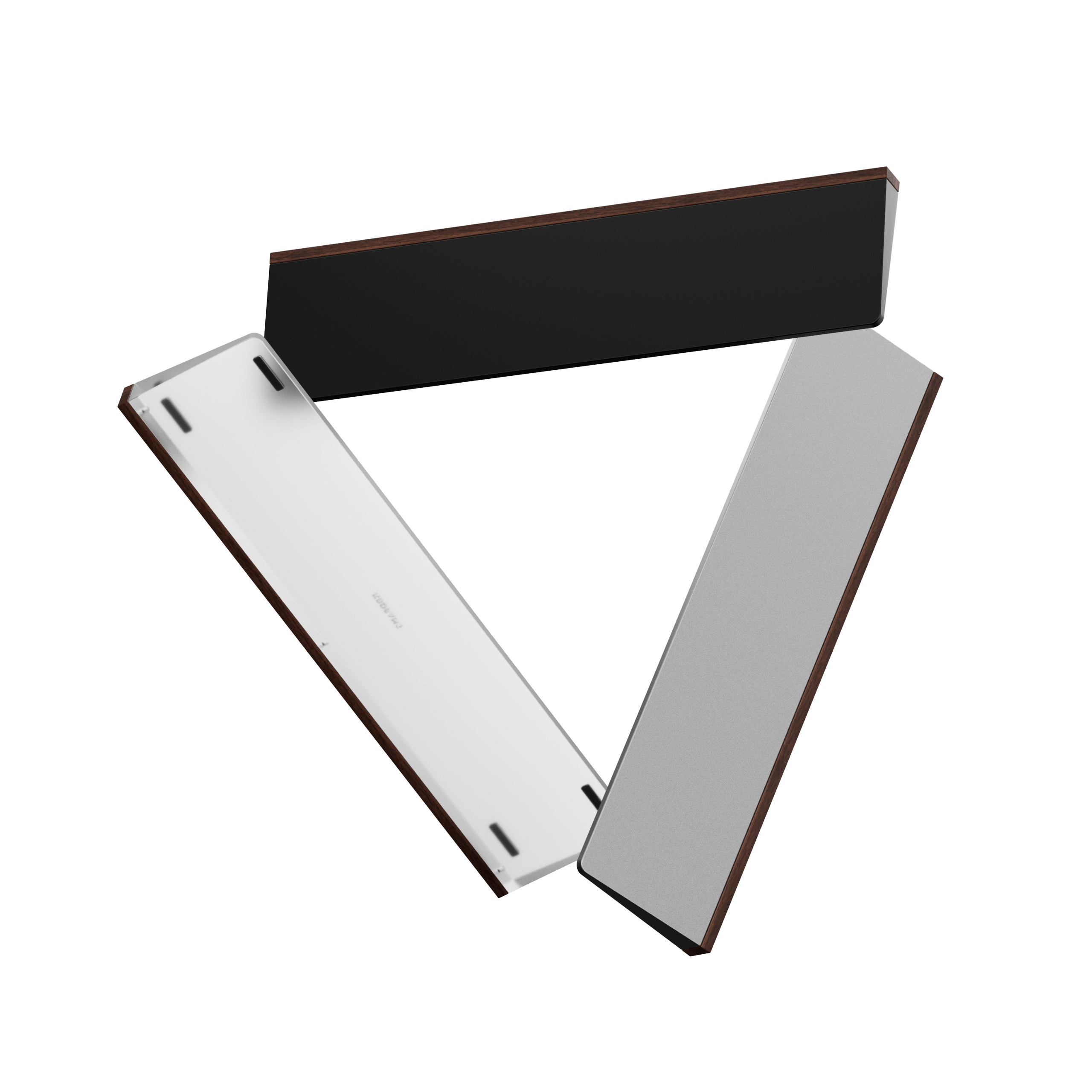

Weight Bar:

Copper

Stainless Steel

Aluminium

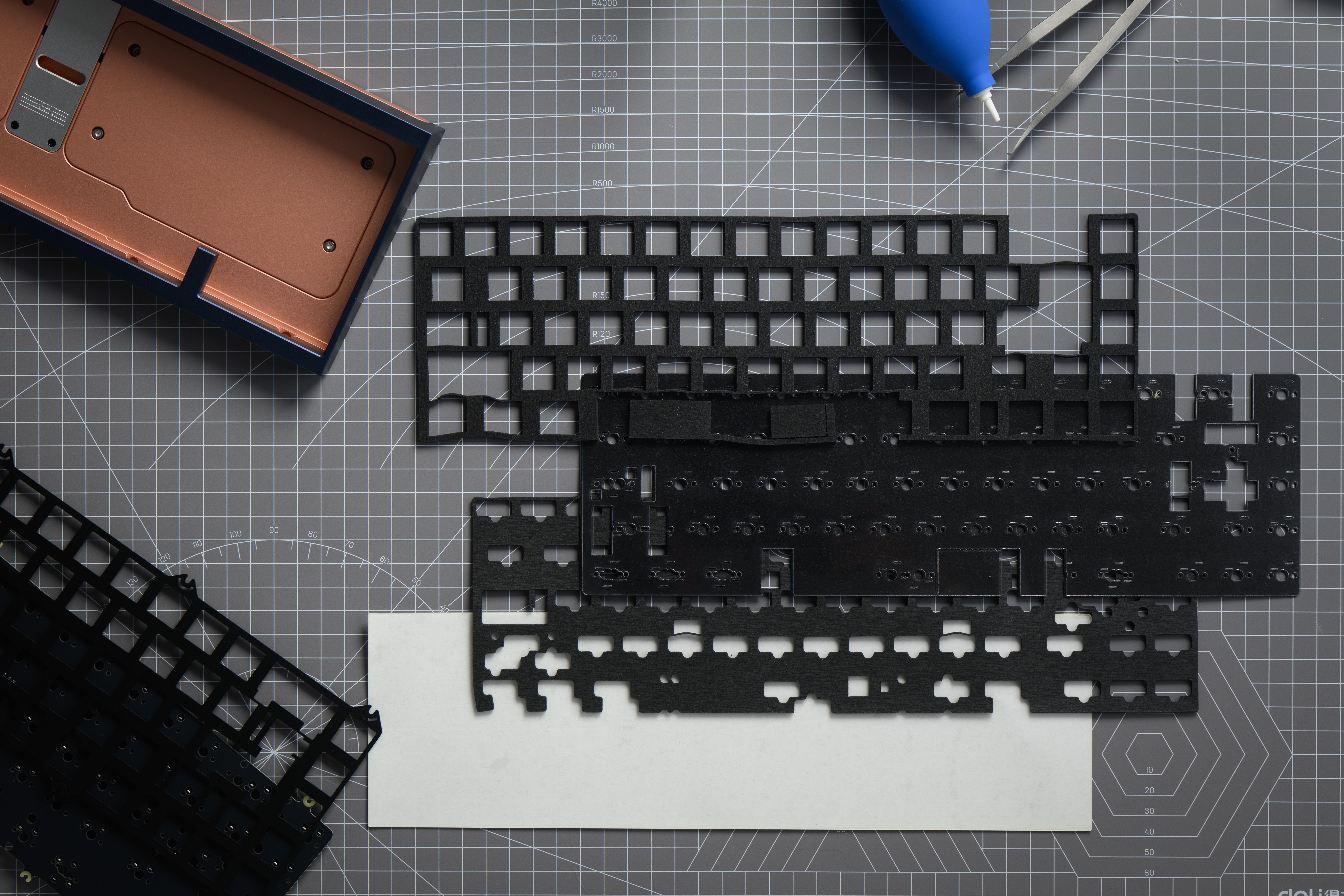

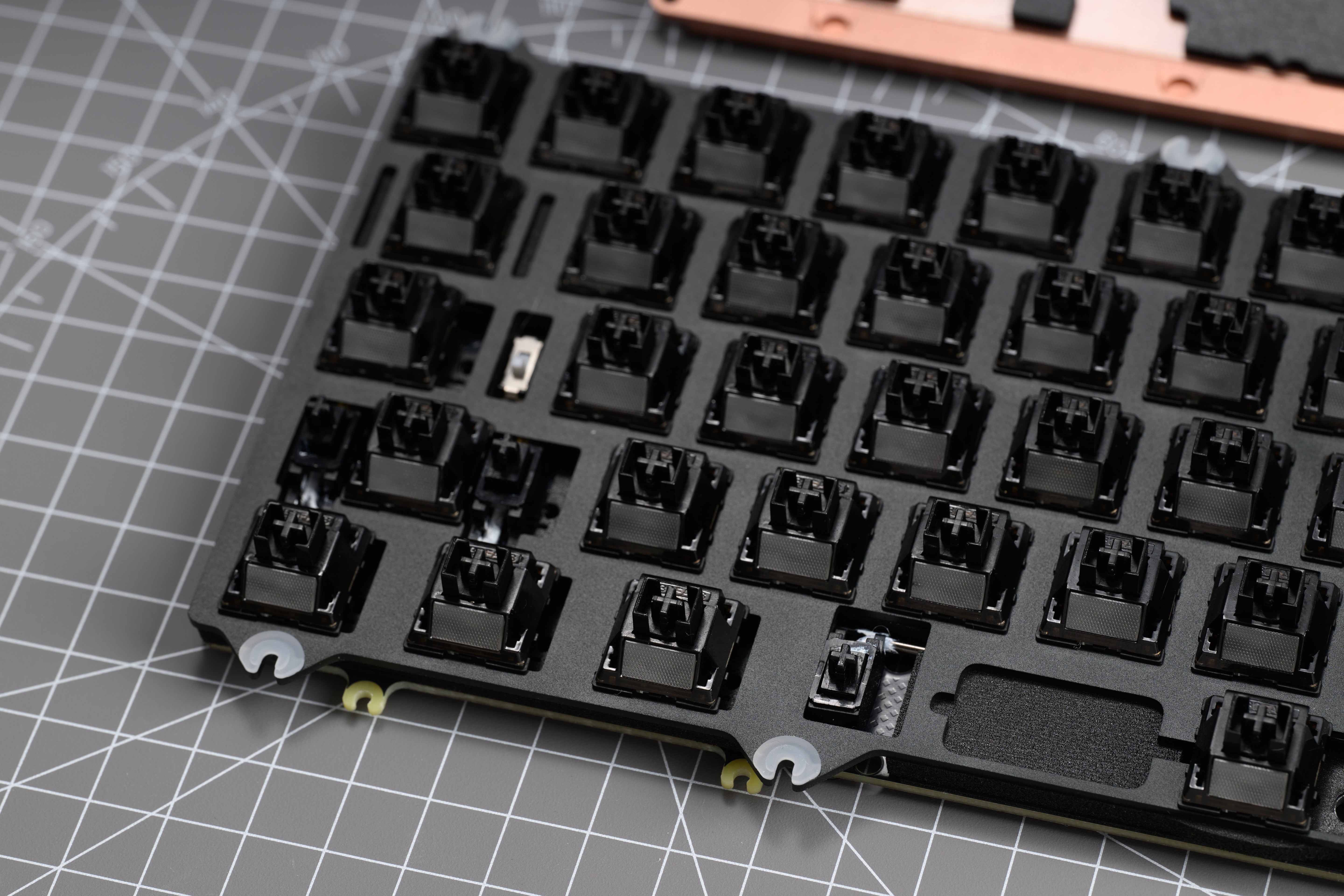

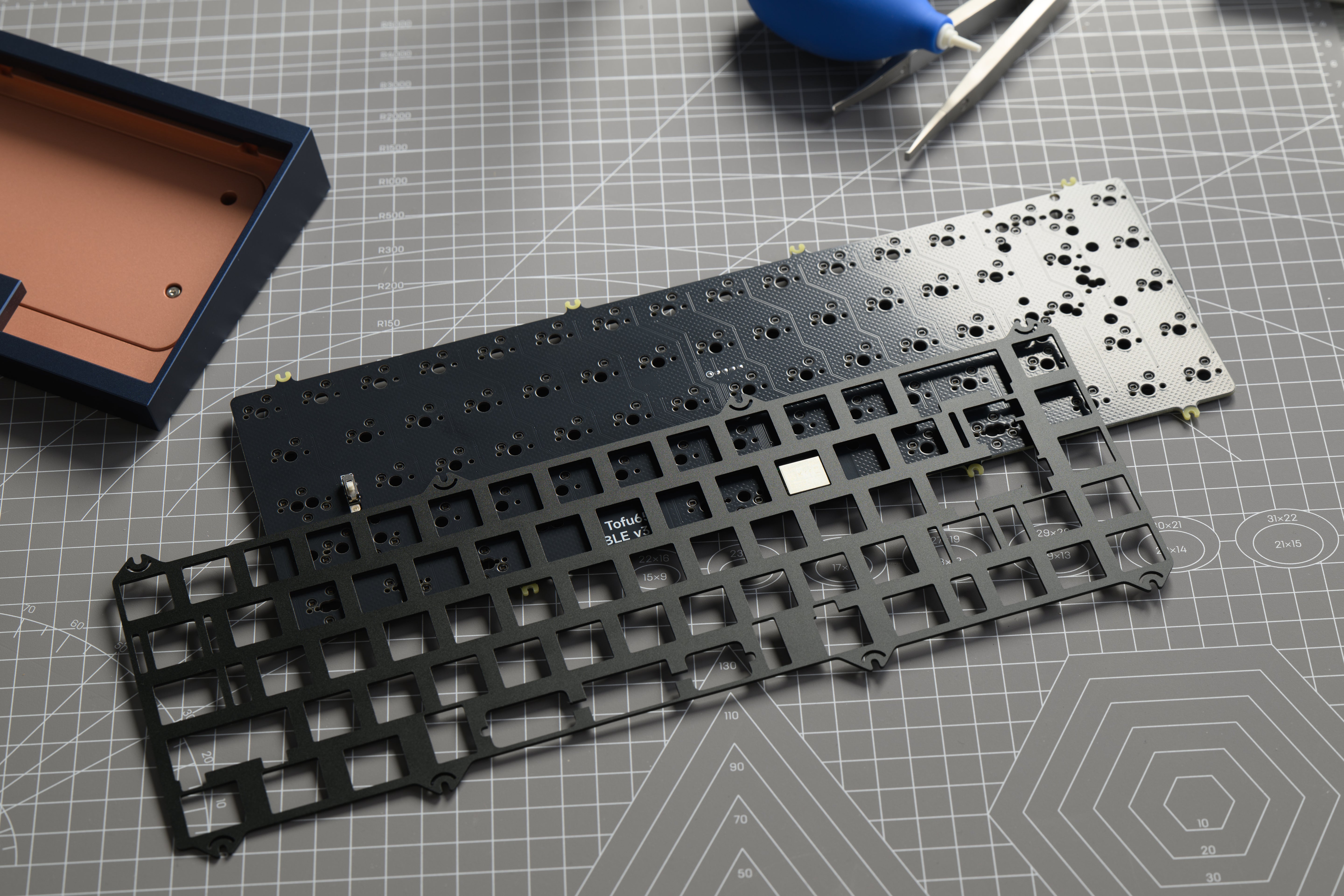

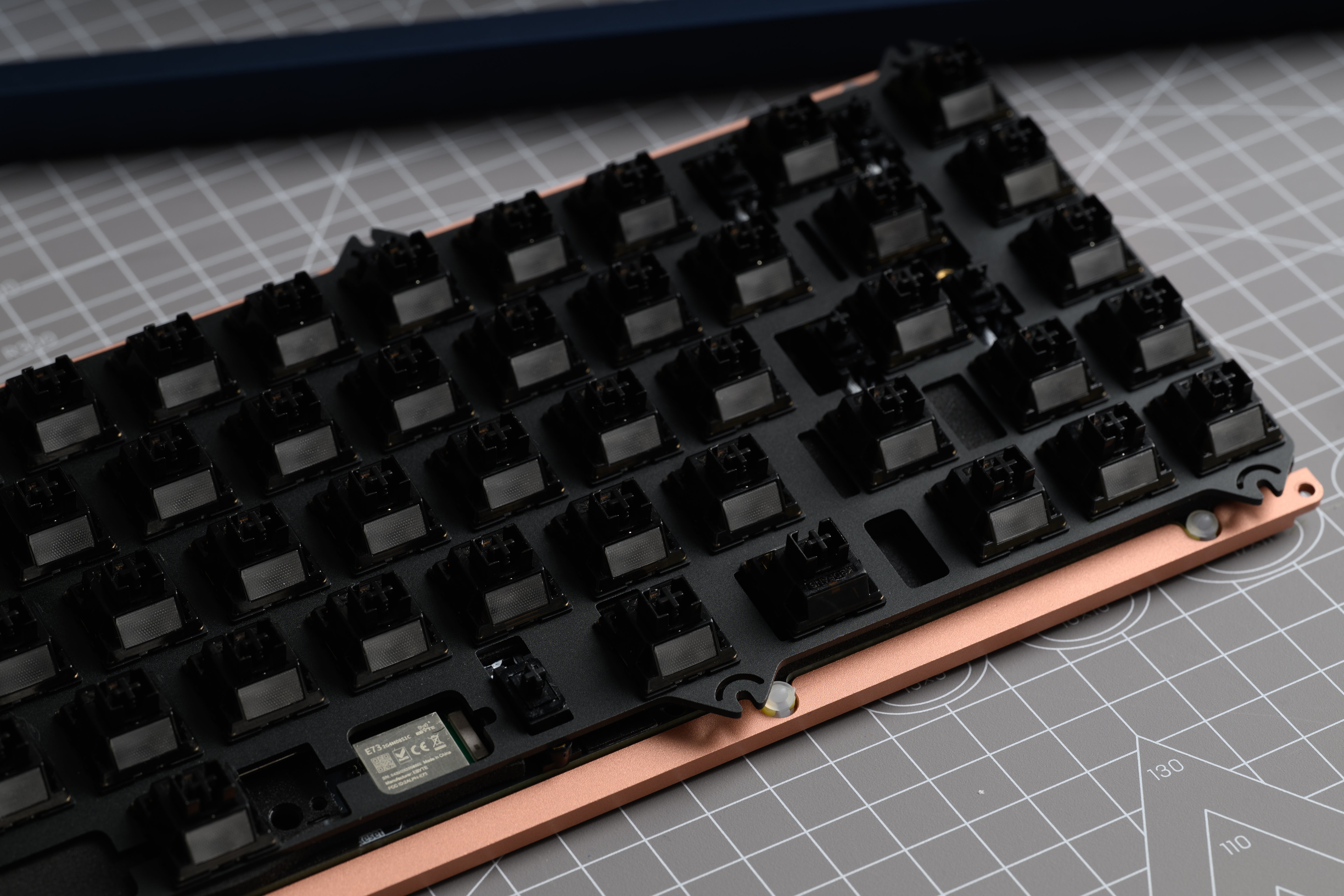

Plate Options:

• Aluminium
• Carbon Fibre
• PC
• PEI
• FR4

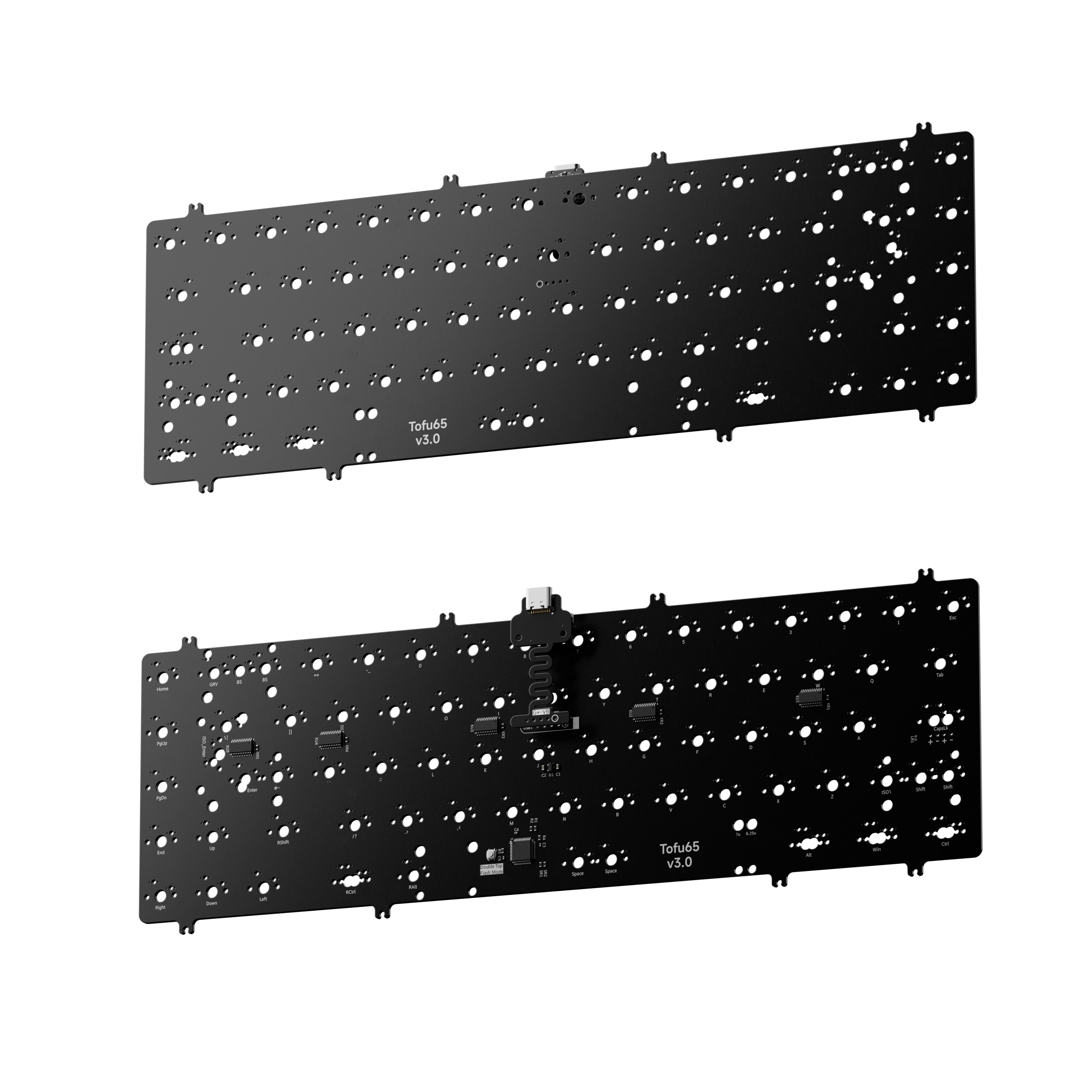

PCB Options:

Wired PCB (Solder & Hot-Swap)

Dive into deep customization with support for AVA, VIAL, and VIA. The solder version also allows for a unique plateless build option.

• 1.6mm thickness
• FR4 material
• Solder version/ Hotswap version
• Magnetic connector PCB
• Json file：ydkb_kbdfans_tofu65_3_0_via.json
• Firmware: ydkb_kbdfans_tofu65_3_0_vial.uf2

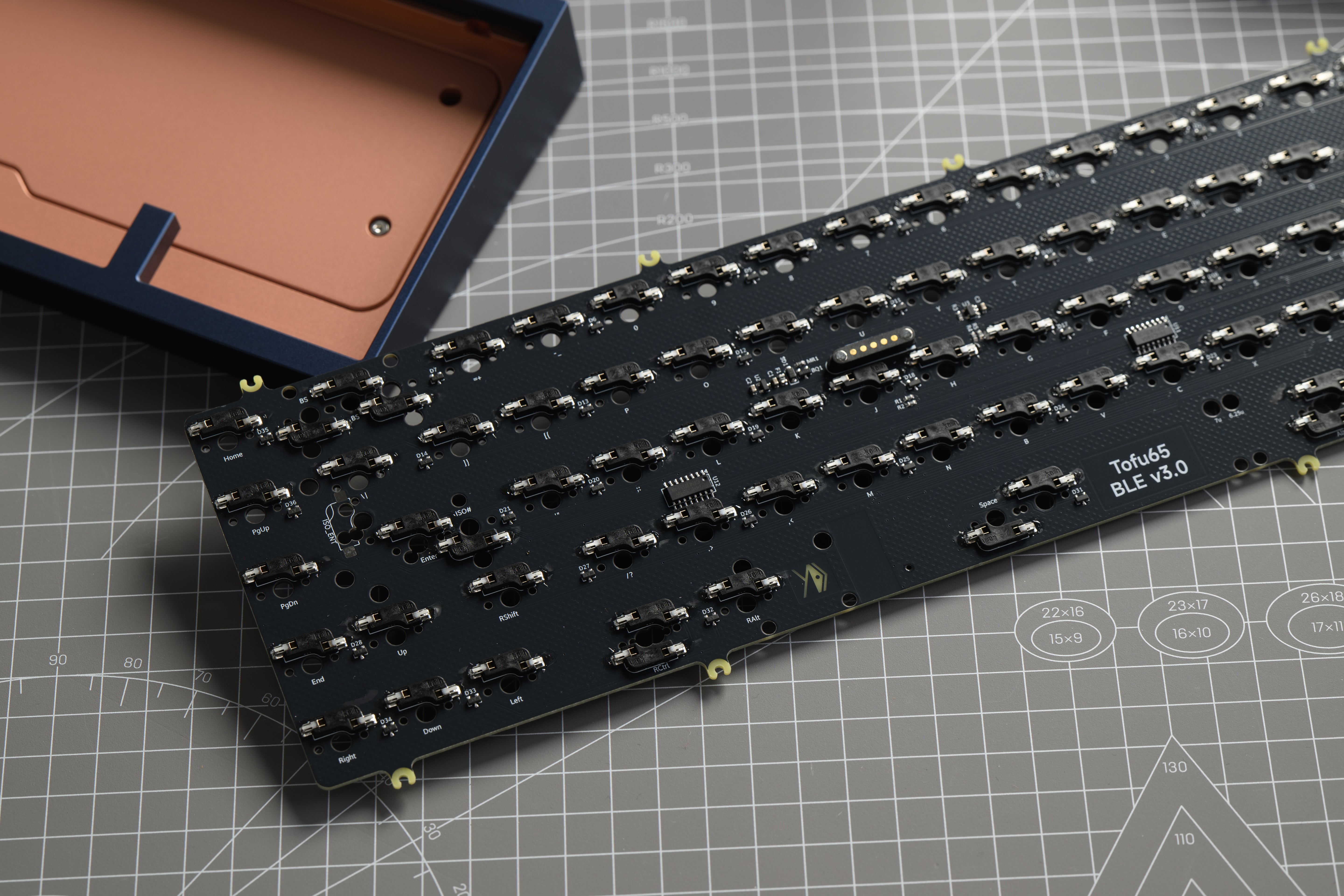

Dual-Mode PCB

Experience the freedom of wireless with our first-ever dual-mode board powered by ZMK. Its ultra-low power consumption delivers an incredible 6+ months of battery life from a single 1000mAh battery.

• 1.6mm thickness
• FR4 material
• Hotswap version
• Magnetic connector PCB

Layout Support:

Specification:

• Top case material: Aluminum (anodized/e-coating/RAW)

• Bottom case material: Aluminum/Copper/Stainless Steel (anodized/e-coating/RAW/textured/Sandblasted)

• Mounting style: Top Mount/PCB Gasket
• PCB: 1.6mm, 3 options, solder/wired hotswap/Dual-mode hotswap

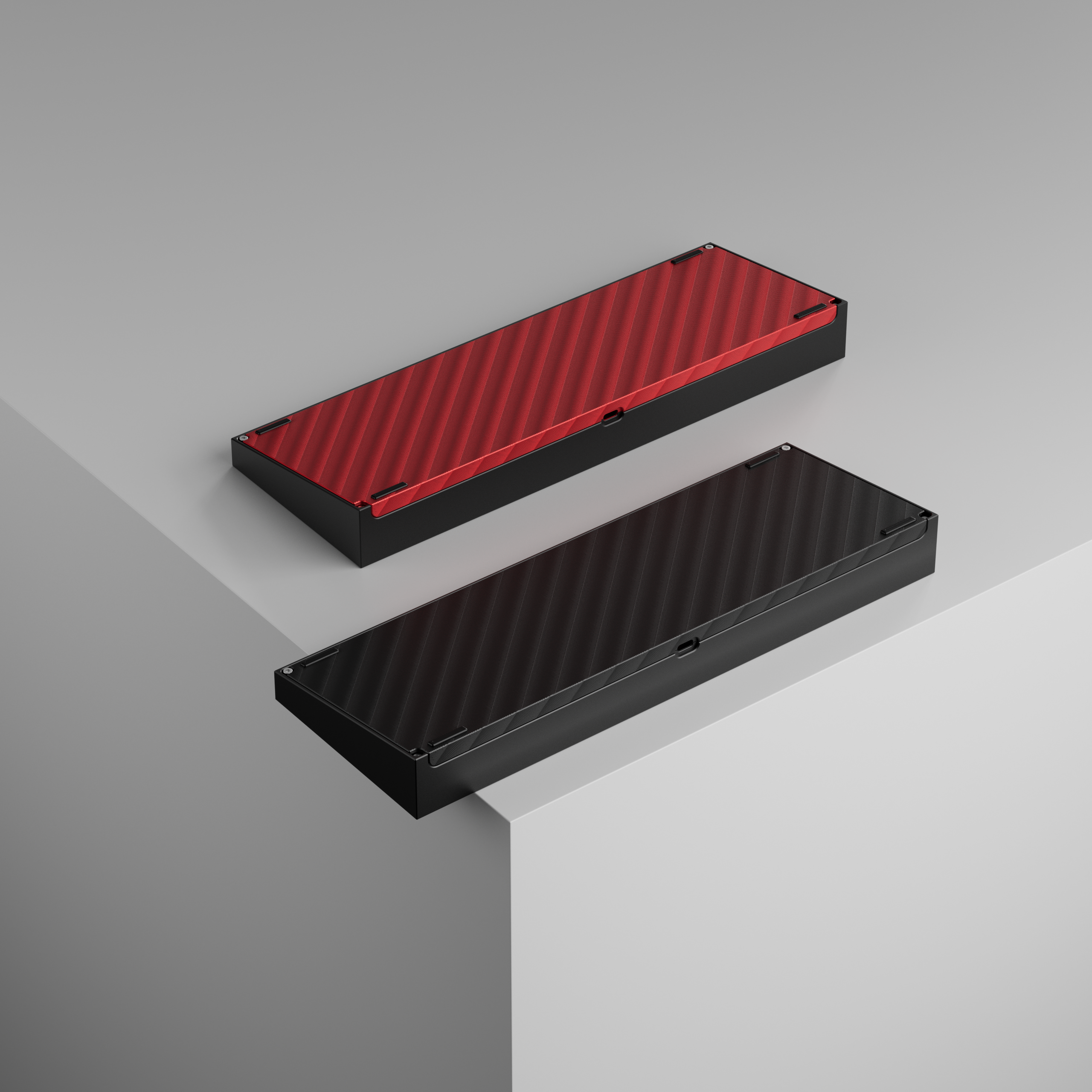

• Plate: Alu/Carbon fiber/PC/PEI/FR4 Plate
• Typing angle: 9 degree
• Weight bar: Aluminum, Stainless Steel, and Copper
• Designer: Wei

Kit Contents:

• Top case x1
• Bottom case x1
• Optional weight bars x2
• Silicone gasket x1 set
• Rubber feet x1 set
• PCB x1

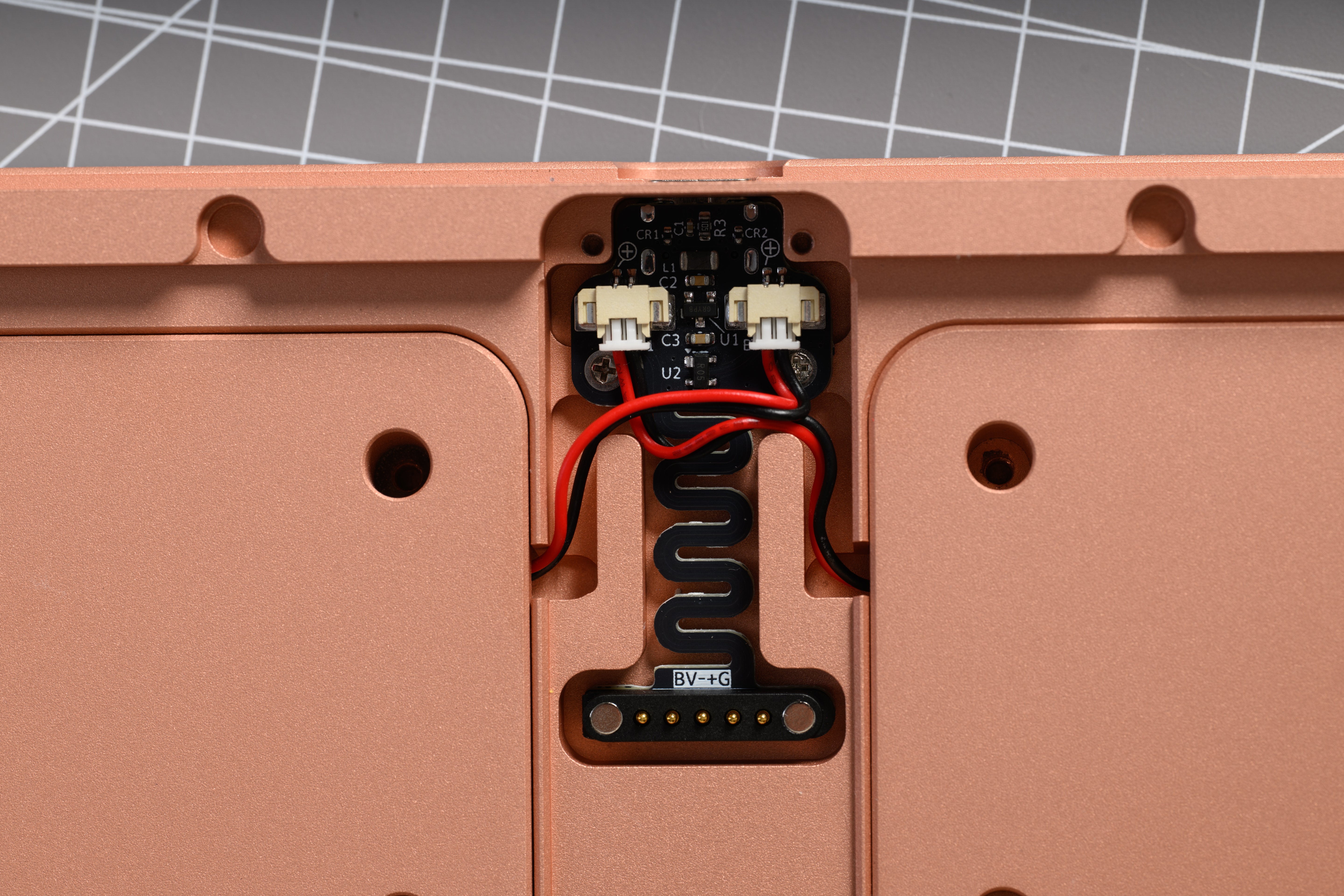

• Daughterboard x1
• Optional foam kit x1 set
• Battery compartment foam kit x1 set
• Optional plate x1
• Carrying case x1

 QC Standard:

• Upon receipt, the casing is considered acceptable if all six external surfaces (top, bottom, left, right, front, and back) are free from machining marks, stains, dents, and pinholes, and do not have any black dots larger than 1mm or scratches longer than 1mm.
• The copper weight is considered acceptable if it does not have any black dots, pinholes, or blemishes larger than 1mm, and no scratches longer than 2mm.
• Flaws and manufacturing artifacts that do not affect the overall external appearance are considered reasonable. This includes, but is not limited to: minor blemishes around screw holes, uneven internal coating, hook marks (from anodizing/painting) where the base color is exposed, and water marks, tool marks, or scratches on internal surfaces.  Purchasing this product means you accept these terms.
• Due to the significant weight difference between the top and bottom case parts, there may be slight color variations even when the same color is chosen for both.

• Standards for RAW Finish
  The RAW version is unanodized and uncoated. It preserves the original look of the machined metal, including natural tool marks.

  Acceptable Quality Standards (Not covered by warranty):
  1. Minor scratches, tool paths, and small speck-like imperfections.
  2. Variations in surface reflection or slight dark spots on the raw metal.

  (RAW products are not sold as "flawless." By purchasing, you acknowledge and accept the inherent characteristics of this manufacturing process.)
